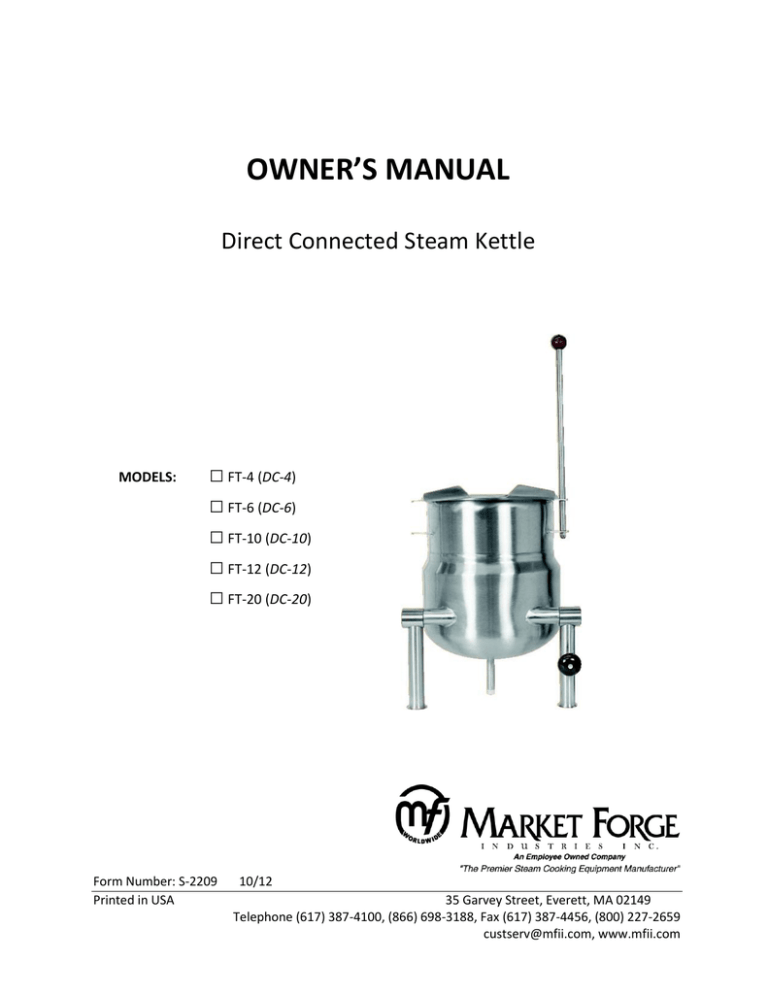

OWNER’S MANUAL
Direct Connected Steam Kettle
MODELS:
□ FT-4 (DC-4)
□ FT-6 (DC-6)
□ FT-10 (DC-10)
□ FT-12 (DC-12)
□ FT-20 (DC-20)
Form Number: S-2209
Printed in USA
10/12
35 Garvey Street, Everett, MA 02149
Telephone (617) 387-4100, (866) 698-3188, Fax (617) 387-4456, (800) 227-2659
[email protected], www.mfii.com
WARNING: Improper installation, operation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the installation,
operating and maintenance instructions thoroughly before installing, operating or
servicing this equipment.
This manual should be retained for future reference.
General:
All direct connected steam jacketed kettles pertaining to this manual are direct steam operated
pressure vessels of a double-wall stainless steel construction forming a steam chamber (jacket)
enveloping the lower two thirds of the kettle bowl surface. All kettles are tilting and countertop
mounted in fixed positions on legs.
Available models include:
FT-4, 4-Gallon (15 liters)
FT-6, 6-Gallon (23 liters)
FT-10, 10-Gallon (38 liters)
FT-12, 12-Gallon (46 liters)
FT-20, 20-Gallon (76 liters)
Description:
Kettle will be constructed of welded satin finish, stainless steel type 304. A double wall
kettle interior will form a steam jacket around the lower 2/3 of the kettle. Kettle bottom
will be of elliptical design for improved heat circulation.
Type 316 stainless steel liner for high acid content products. Tubular stainless steel
mounting frame will have steam supply and condensate return pipes completely
concealed within frame members.
Sealed stainless steel tilt mechanism bearings will permit the kettle to tilt forward 90o
for complete emptying. A removable operating handle with heat-proof knob can be
mounted on the left or right side of each kettle. Kettle will be built to A.S.M,E. code and
will be N.S.F. approved.
Operation will be by:
Direct steam at a minimum of 5 PSI (0.4 kg/cm2) and a maximum of 50 PSI (3.4 kg/cm2).
Functioning Mode:
Direct connected steam jacketed kettles consist of a stainless steel bowl and a stainless
steel jacket which envelopes two thirds of the lower surface of the bowl thus forming a
sealed pressure vessel (chamber) into which steam is introduced by means of a manual
control valve located in the right leg.
The kettle bowl is the container for the food product which ideally should be of a liquid
or semiliquid consistency to achieve complete contact with the bowl surface and thus
1
fully absorb the heat transmitted through that surface.
The temperatures required for the cooking process to function adequately must be
greater than the boiling point of the liquid food product, viz. water. Further, the greater
the steam pressure used, the higher the temperature and consequently the quicker the
cooking process. For example, steam pressurized at 30 psi attains a temperature of 274
degrees Fahrenheit (135o Celsius).
In the initial stages of the cooking process when the steam comes in contact with the
cold kettle bowl surface it condenses and forms considerable amounts of water. A
thermostatic steam trap should be plumbed to the exit end of the kettle jacket. This trap
is a mechanical device that closes on high temperatures and opens when the
temperature drops thus allowing the water formed from condensate to exhaust but
retain steam under pressure.
Options and Accessories at Extra Cost:
To purchase these items contact your local sales rep.
One-piece lift-off stainless steel cover
Stainless steel wire basket
Double Pantry Faucet with Swing Spout and Mounting Bracket.
Single Pantry Faucet with Swing Spout and Mounting Bracket.
1/2” (13mm) Leg-Mounted Steam Control Valve
1-1/2” (38mm) Draw-Off Valve with Strainer
Steam Trap
Check Valve
18" High Floor Stand with Sliding Drain Pan
28" High Stainless Steel Cabinet Base with Hot and Cold Water Fill Faucets,
Depressed Area and Drains, Clean-Up Pan with Removable Splash Guard, and
Steam Control Valve on Stainless Steel Marine Edged Countertop.
22" High Stainless Steel Cabinet Base with Hot and Cold Water Fill Faucets,
Depressed Area and Drains, Clean-Up Pan with Removable Splash Guard, and
Steam Control Valve on Stainless Steel Marine Edged Countertop.
Installation
Installation Instructions:
1. These kettles must be installed on a suitable table or counter top.
2. On counter top make 7/8" holes at 13 - 3/4" center for kettle legs on models FT4, FT-6, FT-10, and FT-12, 23-1/2" center on Model FT-20. Provide sufficient space
from rear wall to allow for tilting of kettle.
3. From bottom of leg remove mounting lockouts and washers. Apply Silastic to
flared edge of leg. Insert threaded portion of legs through holes. Replace washers
and locknuts and tighten. Wipe off excess sealant.
4. Install a safety relief valve in the steam line set at the maximum operating
pressure of the kettle. Note that one valve will handle a series of kettles.
5. Connect steam supply line (1/2" pipe size) to steam inlet fitting on right leg.
6. Install a steam shutoff valve in steam supply line, preferably near the kettle for
convenience.
7. A pressure reducing valve will be required if the steam supply pressure is greater
than the maximum kettle working pressure.
8. If large amounts of water are in the steam line it will be necessary to install one
or more ball float traps in the line to eliminate the water.
9. A steam line pressure gauge is also recommended to determine the actual
amount of steam coming to the kettle.
10. Install a suitable steam trap in condensate line (left leg) near the kettle and run
condensate return line to drain. If the condensate return line will be directed to
the boiler, then it must have a check valve and gate shutoff valve near the kettle.
Operating
WARNING: The kettle and its parts are hot. Use care when operating, cleaning and
servicing the appliance.
1. Fill kettle with product to desired level.
2. Slowly turn the steam control valve ON to full open position.
3. The water or food should boil 3 - 4 minutes per gallon. If it does not, then
incoming pressure should be checked to determine that it is adequate to operate
the kettle efficiently.
4. Regulate steam control valve depending on type of food being prepared.
5. When food is cooked, turn off steam, remove food and clean kettle immediately
to prevent residue from drying on kettle bowl surface.
Maintenance
Cleaning Procedures:
1. Your kettle should be cleaned immediately after each use.
2. Ensure that steam supply is OFF.
3. Pre-rinse inside of kettle thoroughly and tilt to remove any food particles.
4. Using a nylon brush, clean kettle with a mild detergent and warm water rinse.
Never use steel wool or scouring powder as it will scratch stainless steel.
5. Tilt kettle and rinse thoroughly draining out detergent solution.
CAUTION: Do not use cleaning agents that are corrosive.
Use of cleaning agents that contain chloride, acids or salts are corrosive and may cause
pitting and corrosion when used over a period of time; this will reduce the life of the
appliances. Should pitting or corrosion occur this is not covered by warranty.
Follow the recommended cleaning instructions. Use a mild detergent, warm water and
rinse thoroughly.
Illustrated Parts List
ITEM
CROWN
PART#
MFORGE
PART#
1
3819-1
97-5663
Trunnion Cap
2
2
1-62U3
97-7143
Set Screw, 5/16 -18 x 3/8 “
2
3
2-3187
97-5123
Retaining Clip
2
4
2-115R
97-5122
“O” Ring
4
5
2-111R
97-5664
“O” Ring
2
6
3796-1
97-5895
Brass Nut 1/2 - 14"
2
7
2-W0C7
97-5120
Washer
2
8
3-D034
97-5121
Nut 1/2 - 14 NPS
2
9
3-SC06
97-5306
Knob
1
10
3-SC11
97-5181
Valve
1
11
3520-1
97-6360
Nylon Foot
1
12
1-7850
97-5116
Acorn Nut 3/8 - 16
1
*13
3589-1
97-7144
Handle
1
5280-1
97-7145
Handle, 20 Gallon
1
14
2-KB01
97-5008
Knob
1
*15
3799-1
97-5666
Condensate Leg Assembly, 6 Gallon
1
3799-2
97-5667
Condensate Leg Assembly, 10, 12 Gallon
1
3799-3
97-5668
Condensate Leg Assembly, 20 Gallon
1
3800-1
97-5118A
Steam In Leg Assembly, 6 Gallon
1
3800-2
97-5660
Steam In Leg Assembly, 10, 12 Gallon
1
3800-3
97-5661
Steam In Leg Assembly, 20 Gallon
1
9085-1
97-6405
“O” Ring Lube, 2 grams
1
*16
**17
DESCRIPTION
* SELECT AS REQUIRED
** NOT SHOWN
2
QTY.
