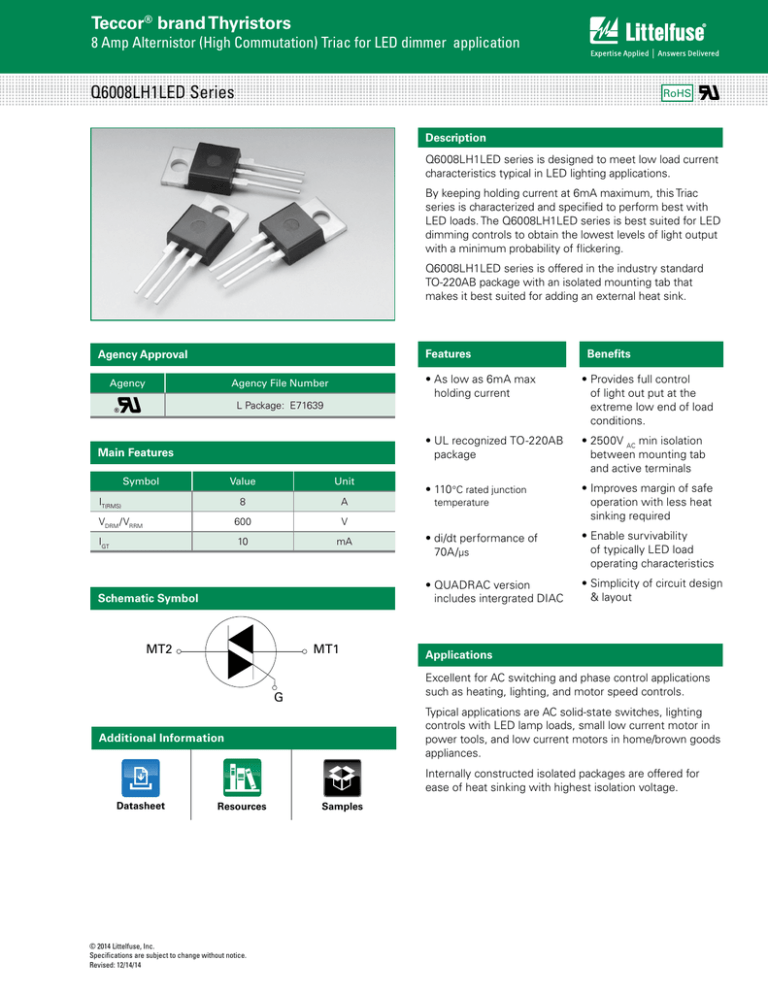

Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Q6008LH1LED Series
RoHS ®
Description
Q6008LH1LED series is designed to meet low load current
characteristics typical in LED lighting applications.
By keeping holding current at 6mA maximum, this Triac
series is characterized and specified to perform best with
LED loads. The Q6008LH1LED series is best suited for LED
dimming controls to obtain the lowest levels of light output
with a minimum probability of flickering.
Q6008LH1LED series is offered in the industry standard TO-220AB package with an isolated mounting tab that
makes it best suited for adding an external heat sink.
Features
Agency Approval
Agency
Agency File Number
L Package: E71639
®
Main Features
Symbol
IT(RMS)
VDRM /VRRM
IGT
Value
Unit
8
A
600
V
10
mA
Schematic Symbol
MT2
MT1
Benefits
• As low as 6mA max
holding current
• Provides full control
of light out put at the
extreme low end of load
conditions.
• UL recognized TO-220AB
package
• 2500V AC min isolation
between mounting tab
and active terminals
• 110 °C rated junction
• Improves margin of safe
operation with less heat
sinking required
temperature
• di/dt performance of 70A/μs
• Enable survivability
of typically LED load
operating characteristics
• QUADRAC version
includes intergrated DIAC
• Simplicity of circuit design
& layout
Applications
Excellent for AC switching and phase control applications
such as heating, lighting, and motor speed controls.
G
Typical applications are AC solid-state switches, lighting
controls with LED lamp loads, small low current motor in
power tools, and low current motors in home/brown goods
appliances.
Additional Information
Internally constructed isolated packages are offered for
ease of heat sinking with highest isolation voltage.
Datasheet
Resources
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Samples
Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Absolute Maximum Ratings
Symbol
IT(RMS)
Parameter
Test Conditions
Value
Unit
TC = 80°C
8
A
f = 50 Hz
t = 20 ms
80
f = 60 Hz
t = 16.7 ms
85
tp = 8.3 ms
30
A2s
RMS on-state current (full sine wave)
Non repetitive surge peak on-state current
(full cycle, TJ initial = 25°C)
ITSM
I 2t
A
I2t Value for fusing
di/dt
Critical rate of rise of on-state current
f = 120 Hz
TJ = 110°C
70
A/μs
IGTM
Peak gate trigger current
tP ≤ 10 μs;
IGT ≤ IGTM
TJ = 110°C
1.6
A
PG(AV)
Average gate power dissipation
TJ = 110°C
IGT = 35mA
0.5
W
Storage temperature range
-40 to 150
°C
Operating junction temperature range
-40 to 110
°C
Tstg
TJ
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
IGT
Test Conditions
Quadrant
I – II – III
VD = 12V RL = 60 Ω
VGT
Value
Unit
10
mA
1.3
V
MIN.
0.2
V
MAX.
I – II – III
VGD
VD = VDRM RL = 3.3 kΩ TJ = 110°C
I – II – III
IH
IT = 15mA
MAX.
6
mA
dv/dt
VD = VDRM Gate Open TJ = 110°C
MIN.
50
V/μs
(dv/dt)c
(di/dt)c = 4.3 A/ms TJ = 110°C
MIN.
10
V/μs
tgt
IG = 100mA PW = 15µs IT = 11.3 A(pk)
TYP.
4.0
μs
Value
Unit
MAX.
1.60
V
MAX.
500
μA
Static Characteristics
Symbol
Test Conditions
ITM = 11.3A tp = 380 µs
VTM
IDRM
VDRM = VRRM
IRRM
TJ = 110°C
Thermal Resistances
Symbol
Parameter
Value
Unit
Rθ(J-C)
Junction to case (AC)
2.8
°C/W
Rθ(J-A)
Junction to ambient
50
°C/W
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Figure 2: Normalized DC Gate Trigger Current for
All Quadrants vs. Junction Temperature
Figure 1: Definition of Quadrants
ALL POLARITIES ARE REFERENCED TO MT1
3.5
MT2 POSITIVE
(Positive Half Cycle)
3.0
(+)
I GT
GATE
MT1
I GT
MT1
REF
-
MT2
(-)
I GT
GATE
(+)
MT1
REF
REF
QII QI
QIII QIV
IGT (TJ = 25°C)
I GT
GATE
MT2
IGT
(-)
+
+ IGT
MT2
0.5
0.0
MT1
MT2 NEGATIVE
(Negative Half Cycle)
2.0
1.0
I GT
GATE
-
2.5
1.5
Ratio of
MT2
-65
-40
-15
REF
10
35
60
85
110
Junction Temperature (TJ)- ºC
NOTE: Alternistors will not operate in QIV
Note: Alternistors will not operate in QIV
Figure 3: Normalized DC Holding Current vs. Junction Temperature
Figure 4: Normalized DC Gate Trigger Voltage for
All Quadrants vs. Junction Temperature
3.5
2.0
2.0
1.5
VGT (TJ = 25°C)
VGT
2.5
1.5
1.0
Ratio of
IH
Ratio of
IH (TJ = 25°C)
3.0
1.0
0.5
0.5
0.0
0.0
-65
-40
-15
10
35
60
85
-65
110
-40
-15
35
60
85
110
Figure 6: Maximum Allowable Case Temperature
vs. On-State Current (Standard / Alternistor Triac)
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current
18
130
16
120
14
Maximum Allowable
Case Temperature (TC) - °C
Average On-State
Power Dissipation (PD(AV)) - Watts
10
Junction Temperature (TJ)- ºC
Junction Temperature (TJ)- ºC
12
10
8
6
4
110
100
90
80
70
2
0
60
0
2
4
6
8
RMS On-State Current (IT(RMS)) - Amps
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
10
0
1
2
3
4
5
6
RMS On-State Current (IT(RMS)) - Amps
7
8
Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Figure 7: On-State Current vs. On-State Voltage
(Typical)
Figure 8: Maximum Allowable Ambient Temperature vs.
On-State Current
120
TC = 25°C
16
Maximum Allowable
Ambient Temperature (TA) - °C
Postitive or Negative Instantaneous
On-State Current (iT) - Amps
20
12
8
4
0
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive CONDUCTION
ANGLE: 360
FREE AIR RATING - NO HEATSINK
100
80
60
40
20
0.6
0.8
1.0
1.2
1.4
1.6
0.0
Postitive or Negative Instantaneous
On-State Voltage (vT) - Volts
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
RMS On-State Current (IT(RMS)) - Amps
Figure 9: Surge Peak On-State Current vs. Number of Cycles
Peak Surge (Non-Repetitive)
On-State Current (ITSM) - Amps
100
SUPPLY FREQUENCY: 60 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [IT(RMS)]: Maximum Rated
Value at Specified Case Temperature
Notes:
1. G
ate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
10
1
1
10
100
1000
Surge Current Duration- Full Cycles
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Soldering Parameters
Pb – Free assembly
Pre Heat
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp)
(TL) to peak
5°C/second max
TS(max) to TL - Ramp-up Rate
5°C/second max
Reflow
- Temperature (TL) (Liquidus)
217°C
- Temperature (tL)
60 – 150 seconds
Peak Temperature (TP)
260+0/-5 °C
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
Ramp-down Rate
5°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
280°C
Physical Specifications
Terminal Finish
100% Matte Tin-plated
Body Material
UL recognized epoxy meeting flammability
classification 94V-0
Terminal Material
Copper Alloy
tP
TP
Temperature
Reflow Condition
Ramp-up
TL
tL
TS(max)
Preheat
TS(min)
25
tS
time to peak temperature
Time
Environmental Specifications
Test
AC Blocking (VDRM)
Temperature Cycling
Temperature/
Humidity
Design Considerations
High Temp Storage
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
Low-Temp Storage
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Ramp-do
Ramp-down
Thermal Shock
Autoclave
Specifications and Conditions
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 110°C for 1008 hours
MIL-STD-750, M-1051,
100 cycles; -40°C to +150°C; 15-min
dwell-time
EIA / JEDEC, JESD22-A101
1008 hours; 320V - DC: 85°C; 85%
rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
1008 hours; -40°C
MIL-STD-750, M-1056
10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max)
transfer time between temperature
EIA / JEDEC, JESD22-A102
168 hours (121°C at 2 ATMs) and
100% R/H
Resistance to
Solder Heat
MIL-STD-750 Method 2031
Solderability
ANSI/J-STD-002, category 3, Test A
Lead Bend
MIL-STD-750, M-2036 Cond E
Teccor® brand Thyristors
8 Amp Alternistor (High Commutation) Triac for LED dimmer application
Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab
TC MEASURING POINT
O
A
E
AREA (REF.) 0.17 IN2
Dimension
8.13
.320
P
B
C
13.36
.526
D
7.01
.276
F
R
G
L
H
K
Note: Maximum torque to
be applied to mounting tab
is 8 in-lbs. (0.904 Nm).
N
J
M
MT1 MT2 GATE
Inches
Millimeters
Min
Max
Min
Max
A
0.380
0.420
9.65
10.67
B
0.105
0.115
2.67
2.92
C
0.230
0.250
5.84
6.35
D
0.590
0.620
14.99
15.75
E
0.142
0.147
3.61
3.73
F
0.110
0.130
2.79
3.30
G
0.540
0.575
13.72
14.61
H
0.025
0.035
0.64
0.89
J
0.195
0.205
4.95
5.21
K
0.095
0.105
2.41
2.67
L
0.060
0.075
1.52
1.91
M
0.085
0.095
2.16
2.41
N
0.018
0.024
0.46
0.61
O
0.178
0.188
4.52
4.78
P
0.045
0.060
1.14
1.52
R
0.038
0.048
0.97
1.22
Product Selector
Gate Sensitivity Quadrants
Part Number
I – II – III
Q6008LH1LED
10 mA
Type
Package
Alternistor Triac
TO-220L
Packing Options
Part Number
Marking
Weight
Packing Mode
Base Quantity
Q6008LH1LED
Q6008LH1
2.2 g
Bulk
500
Q6008LH1LEDTP
Q6008LH1
2.2 g
Tube Pack
500 (50 per tube)
Part Numbering System
Part Marking System
TO-220 AB - (L Package)
Q 60 08 L H1 LED
DEVICE TYPE
Q : Alternistor Triac
LED LIGHTING APPLICATION
VOLTAGE RATING
60 : 600V
SENSITIVITY & TYPE
H1: 10mA (QI, II & III)
Q6008LH1
YMXXX
CURRENT
08: 8A
PACKAGE TYPE
L : TO-220 Isolated
®
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 12/14/14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
