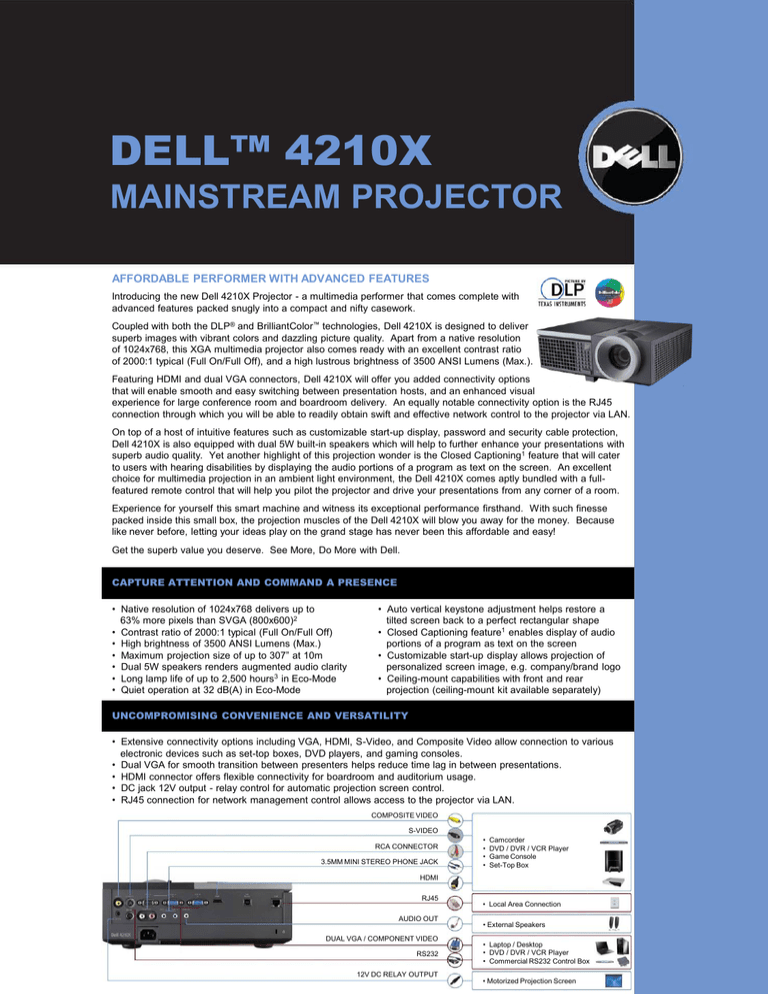

DELL™ 4210X
MAINSTREAM PROJECTOR
AFFORDABLE PERFORMER WITH ADVANCED FEATURES
Introducing the new Dell 4210X Projector - a multimedia performer that comes complete with
advanced features packed snugly into a compact and nifty casework.
Coupled with both the DLP® and BrilliantColor™ technologies, Dell 4210X is designed to deliver
superb images with vibrant colors and dazzling picture quality. Apart from a native resolution
of 1024x768, this XGA multimedia projector also comes ready with an excellent contrast ratio
of 2000:1 typical (Full On/Full Off), and a high lustrous brightness of 3500 ANSI Lumens (Max.).
Featuring HDMI and dual VGA connectors, Dell 4210X will offer you added connectivity options
that will enable smooth and easy switching between presentation hosts, and an enhanced visual
experience for large conference room and boardroom delivery. An equally notable connectivity option is the RJ45
connection through which you will be able to readily obtain swift and effective network control to the projector via LAN.
On top of a host of intuitive features such as customizable start-up display, password and security cable protection,
Dell 4210X is also equipped with dual 5W built-in speakers which will help to further enhance your presentations with
superb audio quality. Yet another highlight of this projection wonder is the Closed Captioning1 feature that will cater
to users with hearing disabilities by displaying the audio portions of a program as text on the screen. An excellent
choice for multimedia projection in an ambient light environment, the Dell 4210X comes aptly bundled with a fullfeatured remote control that will help you pilot the projector and drive your presentations from any corner of a room.
Experience for yourself this smart machine and witness its exceptional performance firsthand. With such finesse
packed inside this small box, the projection muscles of the Dell 4210X will blow you away for the money. Because
like never before, letting your ideas play on the grand stage has never been this affordable and easy!
Get the superb value you deserve. See More, Do More with Dell.
CAPTURE ATTENTION AND COMMAND A PRESENCE
• Native resolution of 1024x768 delivers up to
63% more pixels than SVGA (800x600)2
• Contrast ratio of 2000:1 typical (Full On/Full Off)
• High brightness of 3500 ANSI Lumens (Max.)
• Maximum projection size of up to 307” at 10m
• Dual 5W speakers renders augmented audio clarity
• Long lamp life of up to 2,500 hours3 in Eco-Mode
• Quiet operation at 32 dB(A) in Eco-Mode
• Auto vertical keystone adjustment helps restore a
tilted screen back to a perfect rectangular shape
• Closed Captioning feature1 enables display of audio
portions of a program as text on the screen
• Customizable start-up display allows projection of
personalized screen image, e.g. company/brand logo
• Ceiling-mount capabilities with front and rear
projection (ceiling-mount kit available separately)
UNCOMPROMISING CONVENIENCE AND VERSATILITY
• Extensive connectivity options including VGA, HDMI, S-Video, and Composite Video allow connection to various
electronic devices such as set-top boxes, DVD players, and gaming consoles.
• Dual VGA for smooth transition between presenters helps reduce time lag in between presentations.
• HDMI connector offers flexible connectivity for boardroom and auditorium usage.
• DC jack 12V output - relay control for automatic projection screen control.
• RJ45 connection for network management control allows access to the projector via LAN.
COMPOSITE VIDEO
S-VIDEO
RCA CONNECTOR
3.5MM MINI STEREO PHONE JACK
•
•
•
•
Camcorder
DVD / DVR / VCR Player
Game Console
Set-Top Box
HDMI
RJ45
AUDIO OUT
DUAL VGA / COMPONENT VIDEO
RS232
12V DC RELAY OUTPUT
• Local Area Connection
• External Speakers
• Laptop / Desktop
• DVD / DVR / VCR Player
• Commercial RS232 Control Box
• Motorized Projection Screen
FULL-FEATURED REMOTE CONTROL
DETAILED SPECIFICATIONS
Dell™ 4210X Mainstream Projector Specifications
DISPLAY
Light Valve
Single-chip 0.55" XGA DMD Type X, DarkChip2™ technology
Brightness
3500 ANSI Lumens (Max.)
Projection Lens
F/2.4~2.66, f=18.2~21.8 mm with 1.2x manual zoom lens
Projection Screen Size
30 - 307 inches (diagonal)
Projection Distance
3.94~32.81 ft (1.2 m~10 m)
Lamp
Philips 280W user-replaceable lamp of up to 2500 hours3 in Eco-Mode
RESOLUTION
• Blank Screen allows you to hide presentations.
• Video Mode shows selectable display modes
which offer optimal viewing experience when
connected to PC, gaming, and watching movies.
Number of Pixels
1024 x 768 (XGA)
Contrast Ratio
2000:1 typical (Full On/Full Off)
• Vertical Keystone Adjustment enables easy
image adjustment even when projector is tilted.
Displayable Color
Up to 16.7M colors
• Page Up / Page Down controls let you navigate
through presentations easily (notebook and
projector must be connected via USB cable).
Video Compatibility
Composite Video/ S-Video: NTSC (J/M/4.43MHz), PAL (B/D/G/H/I/M/N/Nc/60),
SECAM (B/D/G/K/K1/L)
Component Video via VGA and HDMI: 1080i/p, 720p, 576i/p, 480i/p
• Built-in Laser Pointer for ease of presentation.
POWER
• Menu button activates On-Screen Display (OSD)
which gives access to optional command keys
and settings (e.g. set buzzer alert loudness for
power on/off, warning, command keys).
Power Supply
Universal 90-264V AC 50-60Hz
Power Consumption
Normal mode: 360W 10% @ 110Vac (network on)
Eco-Mode: 320W 10% @ 110Vac (network on)
Power saving mode: <23W (network on, fan speed at minimum)
Standby mode: 1.65W 10% @ 110Vac (network on)
<1W (network off)
• Power On/Off renders quick shutdown with just
a single press of button (prior settings required).
Why Dell Projectors?
SOUND
UNCOMPROMISING VALUE
Dell projectors are designed to exacting standards
and manufactured by some of the world’s foremost
suppliers, consistently delivering outstanding
performance, quality and reliability.
Audio
2 x 5 watt speaker
Noise Level
35 dB(A) Normal mode, 32 dB(A) Eco-Mode
SIZE AND WEIGHT
TRUSTED BRAND
Our product portfolio offers trusted value and reliability
to complement your IT infrastructure. Firmly
established as an IT partner of choice for leading
companies across the world, Dell invites you to extend
your relationship with a partner you know and trust.
Dimensions (W x D x H)
External: 11.26” x 4.33” x 9.76” (286mm x 110mm x 247.8mm)
Weight
6.35 lbs (2.88 kg)
COMPLIANCE
Uniformity
85% Typical (Japan Standard - JBMA)
Environmental
Operating temperature: 5 C to 35 C (41 F to 95 F), Humidity: 80% maximum
Storage temperature: 0 C to 60 C (32 F to 140 F), Humidity: 90% maximum
Shipping temperature: -20 C to 60 C (-4 F to 140 F), Humidity: 90% maximum
WORLD CLASS SERVICE AND
SUPPORT
INPUTS
Enjoy the exceptional service and support that
you have come to expect from the Dell brand.
We provide a single point of contact and the peace
of mind of purchasing from a stable and reliable
technology partner.
I/O Connectors
Compute More. Consume Less.
Dell is committed to becoming one of the Greenest
Technology Companies on the Planet through being
environmentally responsible across the entire product
development process.
In line with our philosophy of precautionary
use of materials and recycling, all currently
shipping Dell projectors are RoHS-compliant,4
which restricts the use of hazardous materials.
For more information, please visit
www.dell.com/recycling and www.dell.com/environment.
Power: AC power input socket (3 pins - C14 inlet)
VGA input: two 15-pin D-sub connectors (Blue), VGA-A and VGA-B,
for analog RGB/Component input signals.
VGA output: one 15-pin D-sub connector (Black) for VGA-A loop through
S-Video Input: one standard 4-pin mini-DIN S-Video connector for Y/C signal
Composite Video input: one Yellow RCA jack for CVBS signal
HDMI input: one HDMI connector for supporting HDMI 1.3 HDCP compliant.
Analog Audio input: two 3.5mm stereo mini phone jack (Blue)
and one pair of RCA connector (Red/White)
Variable Audio output: one 3.5mm stereo mini phone jack (Green)
USB port: one USB slave for remote support
RS232 port one mini-DIN 6-pin for RS232 communication
RJ45 port: one RJ45 connector for control of projector through network
12V output: one 12V DC / 200mA max. relay output for driving automatic screen
PACKAGE CONTENTS
Contents
1Closed
Remote Control, 2 x AAA Battery, Power Cord, VGA Cable, User’s Guide in CD
(HTML format), Quick Start Guide, Product Information Guide, Carrying Case.
Captioning feature can be enabled only via Composite / S-Video inputs.
263%
more pixels claim: Resolution comparison based on SVGA pixel count of 480,000 (800 Horizontal x 600 Vertical) and XGA
pixel count of 786,432 (1024 Horizontal x 768 Vertical).
WARRANTY
3Usage
of a projector in stressful conditions which may include dusty environments, under high temperatures, many hours per day,
and abrupt powering-off will most likely result in a lamp’s shortened operating life span or possible lamp failure. Actual results will vary.
2-Year Advanced Exchange Service5 and Limited
Hardware Warranty6
4Options
SERVICE AND SUPPORT
6Limited
from Dell Custom Factory Integration (CFI), Software and Peripherals (S&P) and Customer Kits may not be RoHS-compliant.
5Advanced
Exchange Service: Replacement system or part dispatched, if necessary, following phone-based troubleshooting,
in advance of receipt of returned defective part or system. Bulbs have a 90-day limited warranty. Availability varies.
24x7 toll-free tech support, 3 to 5 years extended
service offerings and CompleteCare™ Accidental
Damage Service (US Only)7
Hardware Warranty: For a copy of limited warranty, write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock,
TX 78682 or visit www.dell.com/warranty.
7CompleteCare™
Accidental Damage Service excludes theft, loss, and damage due to fire, flood or other acts of nature, or intentional
damage. Customer may be required to return unit to Dell. For complete details, visit www.dell.com/servicecontracts.
DLP® and the DLP® logo are registered trademarks and BrilliantColor™ and DarkChip2™ are trademarks of Texas Instruments.
Dell disclaims proprietary interest in the marks and names of others.
Simplify IT at DELL.COM/Projector
