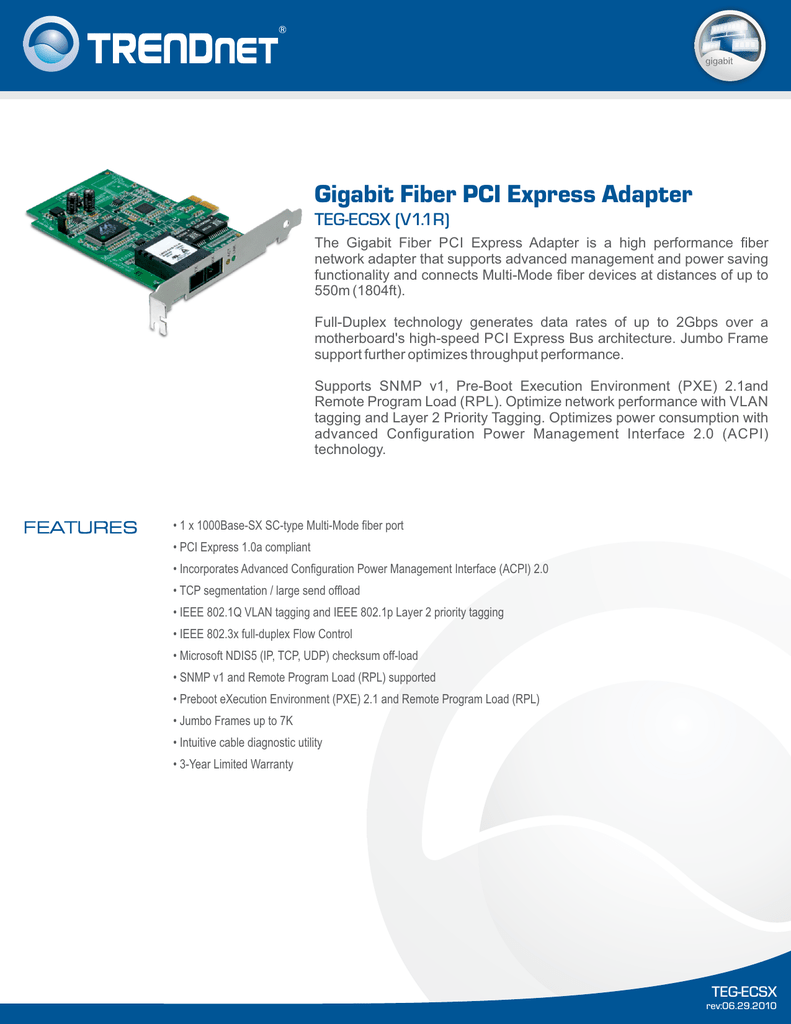

Trendnet TEG-ECSX Gigabit Fiber PCI Express Adapter Datasheet

gigabit
Gigabit Fiber PCI Express Adapter
TEG-ECSX (V1.1R)
The Gigabit Fiber PCI Express Adapter is a high performance fiber
network adapter that supports advanced management and power saving
functionality and connects Multi-Mode fiber devices at distances of up to
550m (1804ft).
Full-Duplex technology generates data rates of up to 2Gbps over a
motherboard's high-speed PCI Express Bus architecture. Jumbo Frame
support further optimizes throughput performance.
Supports SNMP v1, Pre-Boot Execution Environment (PXE) 2.1and
Remote Program Load (RPL). Optimize network performance with VLAN
tagging and Layer 2 Priority Tagging. Optimizes power consumption with
advanced Configuration Power Management Interface 2.0 (ACPI)
technology.
FEATURES
• 1 x 1000Base-SX SC-type Multi-Mode fiber port
• PCI Express 1.0a compliant
• Incorporates Advanced Configuration Power Management Interface (ACPI) 2.0
• TCP segmentation / large send offload
• IEEE 802.1Q VLAN tagging and IEEE 802.1p Layer 2 priority tagging
• IEEE 802.3x full-duplex Flow Control
• Microsoft NDIS5 (IP, TCP, UDP) checksum off-load
• SNMP v1 and Remote Program Load (RPL) supported
• Preboot eXecution Environment (PXE) 2.1 and Remote Program Load (RPL)
• Jumbo Frames up to 7K
• Intuitive cable diagnostic utility
• 3-Year Limited Warranty
TEG-ECSX
rev:06.29.2010
Gigabit Fiber PCI Express Adapter
TEG-ECSX (V1.1R)
SPECIFICATIONS
Hardware
• IEEE 802.3z 1000Base-SX
• IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Standards
• 1000Base-SX: 50/125μm Multi-Mode fiber optic cable, up to 550m
Network Media
62.5/125μm Multi-Mode fiber optic cable, up to 220m
Protocol
• SNMP v1
Interface
• PCI Express / Multi-Mode SC-type port
Wavelength
• 850nm
Power Consumption
• 2.3 watts (max)
Diagnostic LED
• Link, activity
Supported OS
• Windows 2000/2000 Server/XP(32/64-bit)/2003/Vista(32/64-bit)/Win 7 (32/64-bit)
• Novell NetWare Server 3.12/ 4.1/ 4.11/5.x / 6.x
• Linux Kernel 2.4.x / 2.6.x
Jumbo Frames
• 7K (7/Vista), 4K (XP/2000/2003 Server, Linux, Novell)
Data Rate
• 2000Mbps (full-duplex)
Dimensions (WxHxD)
• 109 x 83mm (4.3 x 3.3in)
Weight
• 80g (2.88oz)
Temperature
• Operating: 0° ~ 45° C (32° ~ 113° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
• 5 % ~ 95 %(non-condensing)
Certifications
• CE, FCC
PACKAGE CONTENTS
NETWORKING SOLUTIONS
• TEG-ECSX
• Multi-Language Quick Installation Guide
Gigabit Fiber PCI
Express Adapter
• CD-ROM (Drivers & User’s Guide)
(TEG-ECSX)
RELATED PRODUCTS
Gigabit PCI Express Adapter
(TEG-ECTX)
24-Port Gigabit
Web Smart Switch
(TEG-240WS)
1000Base-T to 1000Base-SX
Multi-Mode SC Fiber Converter
(TFC-2000MSC)
TEG-S081FMi
8-Port 100Base-FX Layer 2 Managed Switch
with Mini GBIC Slot
TFC-2000MSC
1000Base-T to 1000Base-SX SC-Type Multi-Mode
Fiber Converter
TEG-S3000i
4-Slot Gigabit Layer 2 Managed Chassis
Internet
300Mbps Wireless N
Gigabit Router
(TEW-633GR)
Gigabit
Cable/DSL
Modem
