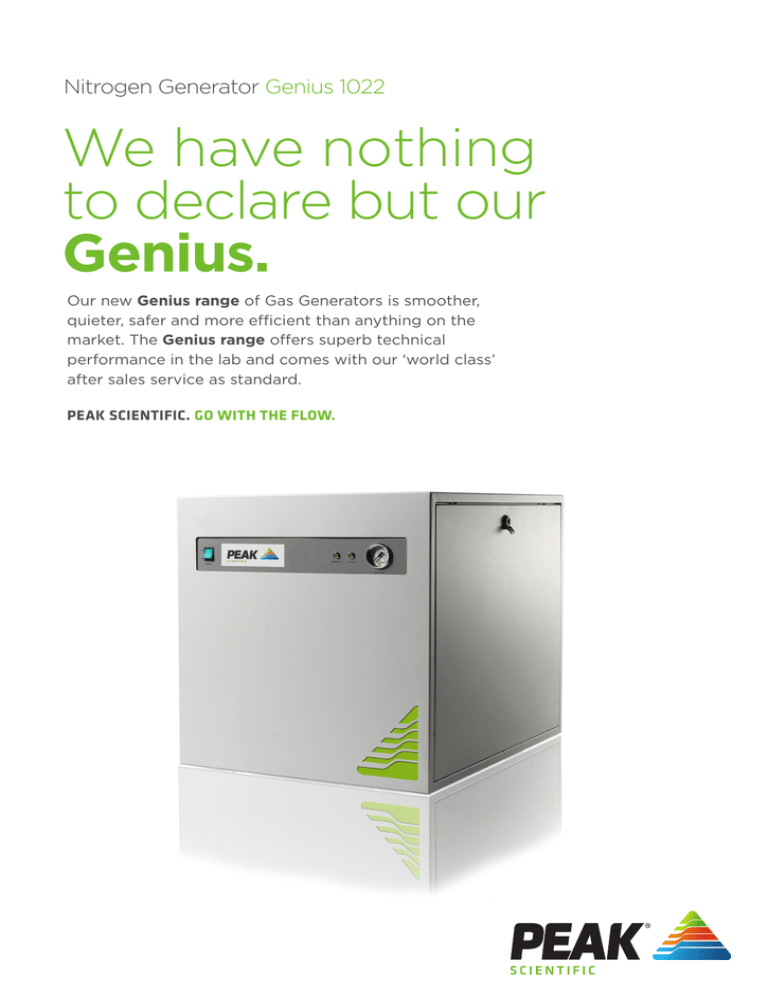

Nitrogen Generator Genius 1022
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 1022
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Specifically designed for operation with Thermo Scientific and
Shimadzu LCMS instruments, the Genius 1022 Nitrogen Generator is
Peak Scientific’s proven solution for LCMS applications that require a
high nitrogen supply pressure up to 116 psi.
Extensive testing of the generator by mass spec manufacturers
throughout the development process guarantees the best nitrogen
solution for your LCMS
Technical Specifications
Economical – More cost effective than any
other gas supply method
Nitrogen
32 L/min @ 8 bar / 1.13 CFM @ 116 psi
Min/ Max Operating Temperature
5 ºC - 35ºC / 41ºF - 95ºF
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
1x 1/4” BSP
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 7.0A
Power Consumption
1610 watts
Dimensions (cm/ ins) WxDxH
60 x 75 x 71.2 / 23.6 x 29.5 x 28
Weight (kg/ lbs)
95 / 209
Ordering Information
Part Number Genius 1022
10-6022
Annual Service Kit Genius 1022
Standard Maintenance Plan
Complete Maintenance Plan
08-4780
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
Copyright 2012 Peak Scientific - Rev. 3. 30/04/2012
2007
Nitrogen Generator Genius 1023
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 1023
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Economical – More cost effective than any
other gas supply method
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Switchable – Gas purity switchable between
standard LCMS grade and 10% Oxygen rich
specific for Agilent Chip Cube applications.
Specifically designed for use with LCMS instruments incorporating the
Agilent Chip Cube system. The Genius 1023 Nitrogen Generator is Peak
Scientific’s proven solution for customers requiring a source of nitrogen
which is switchable between standard LCMS grade Nitrogen and the
10% Oxygen rich Nitrogen required for Chip Cube.
Technical Specifications
Nitrogen
32 L/min @ 6.9 bar / 1.13 CFM @ 100 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
1x 1/4” BSP Female
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 7.0A
Power Consumption
1610 watts
Dimensions (cm/ ins) WxDxH
60 x 75 x 71.2 / 23.6 x 29.5 x 28
Weight (kg/ lbs)
95 / 209
Ordering Information
Peak Part No.
10-9040 Genius 1023 - 230V
Annual Service Kit Genius 1023
Standard Maintenance Plan
Complete Maintenance Plan
08-4780
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
Copyright 2012 Peak Scientific - Rev. 1 30/04/12
2007
Nitrogen Generator Genius 1050
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 1050
Features & Benefits:
Independent – No external compressor
required
Independent Operation - The gas supplied to
both instruments can be switched on and off
independently by the user
Quiet – Insulated compressor compartment
for minimum disruption
Mobile– Fitted with casters for easy mobility
within the laboratory environment
Simple Installation – Generator designed as
plug & play system
Economical – More cost effective than any
other gas supply method
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
The Genius 1050 Nitrogen Generator is Peak Scientific’s proven solution for
customers requiring nitrogen for their LCMS application. The Genius 1050
utilises CMS technology to ensure the best purity & cleanest gas supply
possible. Extensive testing of the generator by mass spec manufacturers
throughout the development process guarantees the best nitrogen solution
for your LCMS.
Technical Specifications
Nitrogen
32 L/min @ 6.9 bar / 1.13 CFM @ 100 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
1x 1/4” BSP Female
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 7.0A
Power Consumption
1610 watts
Dimensions (cm/ ins) WxDxH
60 x 75 x 71.2 / 23.6 x 29.5 x 28
Weight (kg/ lbs)
95 / 209
Ordering Information
Part Number: Genius 1050
10-9554
Annual Service Kit Genius 1050
Standard Maintenance Plan
Complete Maintenance Plan
08-4344
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
2007
Nitrogen Generator Genius 1052
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Copyright 2012 Peak Scientific - Rev. 1 27/09/2012
Nitrogen Generator Genius 1052
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Economical – More cost effective than any
other gas supply method
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
The Genius 1052 Nitrogen Generator is Peak Scientific’s proven solution
for customers requiring nitrogen for their Leco modulators. The Genius
1052 utilises CMS technology to ensure the best purity & cleanest
gas supply possible. Extensive testing of the generator by mass spec
manufacturers throughout the development process guarantees the
best nitrogen solution for your application.
Technical Specifications
Heating Gas
20 L/min @ 2.06 bar / 0.706 CFM @ 30 psi
Cooling Gas
12 L/min @ 1.38 bar / 0.424 CFM @ 20 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
2x 1/4” BSPP
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 7.0A
Power Consumption
1610 watts
Dimensions (cm/ ins) WxDxH
60 x 75 x 71.2 / 23.6 x 29.5 x 28
Weight (kg/ lbs)
95 / 209
Ordering Information
Part Number: Genius 1052 UK/US/EU 10-9556
Annual Service Kit Genius 1052 08-4780
Standard Maintenance Plan
09-3110
Complete Maintenance Plan
09-3000
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
2007
Nitrogen Generator Genius 3013
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 3013
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Economical – More cost effective than any
other gas supply method
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Switchable – Gas purity switchable between
standard LCMS grade and 10% Oxygen rich
specific for Agilent Chip Cube applications.
Specifically developed to support chip cube applications on the
6490 QQQ and 6550 Q-TOF mass spectrometers which demand a much
higher gas flow. The Genius 3013 Nitrogen Generator is Peak Scientific’s
proven solution for customers requiring a source of nitrogen which is
switchable between standard LCMS grade Nitrogen and the 10% Oxygen
rich Nitrogen required for Chip Cube.
Technical Specifications
Nitrogen
64 L/min @ 6.9 bar / 1.13 CFM @ 100 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
1/4” BSP Female
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 12A
Power Consumption
2760 watts
Dimensions (cm/ ins) WxDxH
60 x 85 x 130.3 / 23.6 x 33.4 x 51.3
Weight (kg/ lbs)
189 / 417
Ordering Information
Peak Part No.
10-6313 Genius 3013 - 230V
Annual Service Kit Genius 3013
Standard Maintenance Plan
Complete Maintenance Plan
08-4782
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
Copyright 2012 Peak Scientific - Rev. 1 02/05/12
2007
Nitrogen Generator Genius 3022
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 3022
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Specifically designed for operation with the Thermo Scientific Q Exactive
and Shimadzu LCMS instruments, the Genius 3022 Nitrogen Generator is
Peak Scientific’s proven solution for proven solution for LCMS applications
that require a high nitrogen supply pressure up to 116 psi. The Genius 3022
combines two individual systems with separate Nitrogen outputs into a
single compact unit, thus allowing two separate Mass Spectrometers to be
supplied by the same Generator with independent control. he
Technical Specifications
Nitrogen
2x 32 L/min @ 8 bar / 1.13 CFM @ 116 psi
Economical – More cost effective than any
other gas supply method
Min/ Max Operating Temperature
5 ºC - 35ºC / 41ºF - 95ºF
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
2x 1/4” BSP
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 12.0A
Power Consumption
2760 watts
Dimensions (cm/ ins) WxDxH
60 x 85 x 130.3 / 23.6 x 33.4 x 51.3
Weight (kg/ lbs)
189 / 417
Ordering Information
Part Number Genius 3022
10-6322
Annual Service Kit Genius 1022
Standard Maintenance Plan
Complete Maintenance Plan
08-4782
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Distributor of Peak Scientific Products.
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
Copyright 2012 Peak Scientific - Rev. 1. 01/05/2012
2007
Nitrogen Generator Genius 3023
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 3023
Features & Benefits:
Independent – No external compressor
required
Intelligent – High duty and service indication
Quiet – Insulated compressor compartment
for minimum disruption
Mobile – Flexibility to position generator
where required, even under standard lab
bench, the generator is supplied with caster
wheels for easy mobility
Simple Installation – Generator designed as
plug & play system
Economical – More cost effective than any
other gas supply method
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Switchable – Gas purity switchable between
standard LCMS grade and 10% Oxygen rich
specific for Agilent Chip Cube applications.
Specifically designed for use with LCMS instruments incorporating the
Agilent Chip Cube system. The Genius 3023 Nitrogen Generator is Peak
Scientific’s proven solution for customers requiring a source of nitrogen
which is switchable between standard LCMS grade Nitrogen and the
10% Oxygen rich Nitrogen required for Chip Cube. The Genius 3023
combines two individual systems with separate Nitrogen outputs into a
single compact unit, thus allowing two separate Mass Spectrometers to
be supplied by the same Generator with independent control. h
Technical Specifications
Nitrogen
2 x 32 L/min @ 6.9 bar / 1.13 CFM @ 100 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
2x 1/4” BSP Female
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 12A
Power Consumption
2760 watts
Dimensions (cm/ ins) WxDxH
60 x 85 x 130.3 / 23.6 x 33.4 x 51.3
Weight (kg/ lbs)
189 / 417
Ordering Information
Peak Part No.
10-6324 Genius 3023 - 230V
Annual Service Kit Genius 3023
Standard Maintenance Plan
Complete Maintenance Plan
08-4782
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
Copyright 2012 Peak Scientific - Rev. 1 02/05/12
2007
Nitrogen Generator Genius 3031
We have nothing
to declare but our
Genius.
Our new Genius range of Gas Generators is smoother,
quieter, safer and more efficient than anything on the
market. The Genius range offers superb technical
performance in the lab and comes with our ‘world class’
after sales service as standard.
PEAK SCIENTIFIC. GO WITH THE FLOW.
Nitrogen Generator Genius 3031
Features & Benefits:
Independent – No external compressor
required
Quiet – Insulated compressor compartment
for minimum disruption
Mobile– Fitted with casters for easy mobility
within the laboratory environment
The Genius 3031 is specifically designed to supply curtain, source &
exhaust gases at the higher flow required to support the AB SCIEX
6500 LCMS instrument, whilst integrated quiet compressors make it
independant from in-house air supplies.
Technical Specifications
Simple Installation – Generator designed as
plug & play system
Curtain Gas Maximum Flow (Nitrogen)
18 L/min / 0.64 CFM
Economical – More cost effective than any
other gas supply method
Source Gas Maximum Flow (Dry Air)
26 L/min / 0.91 CFM
Exhaust Gas Maximum Flow (Dry Air)
25 L/min / 0.88 CFM
Curtain Gas Maximum Pressure
5.5 bar / 80 psi
Source Gas Maximum Pressure
7.6 bar / 110 psi
Exhaust Gas Maximum Pressure
4.8 bar / 70 psi
Min/ Max Operating Temperature
5ºC - 35ºC / 41ºF - 95ºF
Max Relative Humidity
80% Non-Condensing
Max Altitude
2000 Metres
Particles
< 0.01μm
Gas Outlets
3 x 1/4” BSPP
Drain Outlets
1x 1/4” BSPP
Phthalates
None
Suspended Liquids
None
Noise Level
54 dB(A) @ 1m
Electrical Requirements
230v 50/60Hz 12A
Power Consumption
2990 watts
Dimensions (cm/ ins) WxDxH
60 x 85 x 130.3 / 23.6 x 33.4 x 51.3
Weight (kg/ lbs)
196.5 / 433
Convenient – Gas on demand, no health
hazards, no need to worry about running out
of gas
Ordering Information
Genius 3031 UK/US/EU Part Number
10-6331
Annual Service Kit Genius 3031
Standard Maintenance Plan
Complete Maintenance Plan
08-4787
09-3110
09-3010
Website: www.peakscientific.com
Email: [email protected]
Peak Scientific UK
Tel: +44 (0)141 812 8100
Fax:+44 (0)141 812 8200
Peak Scientific North America
Tel: +1 866 647 1649
Fax:+1 978 608 9503
Product Accreditations:
For a full list of our worldwide
office locations, please visit:
Web:
www.peakscientific.com/contact
2007
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
