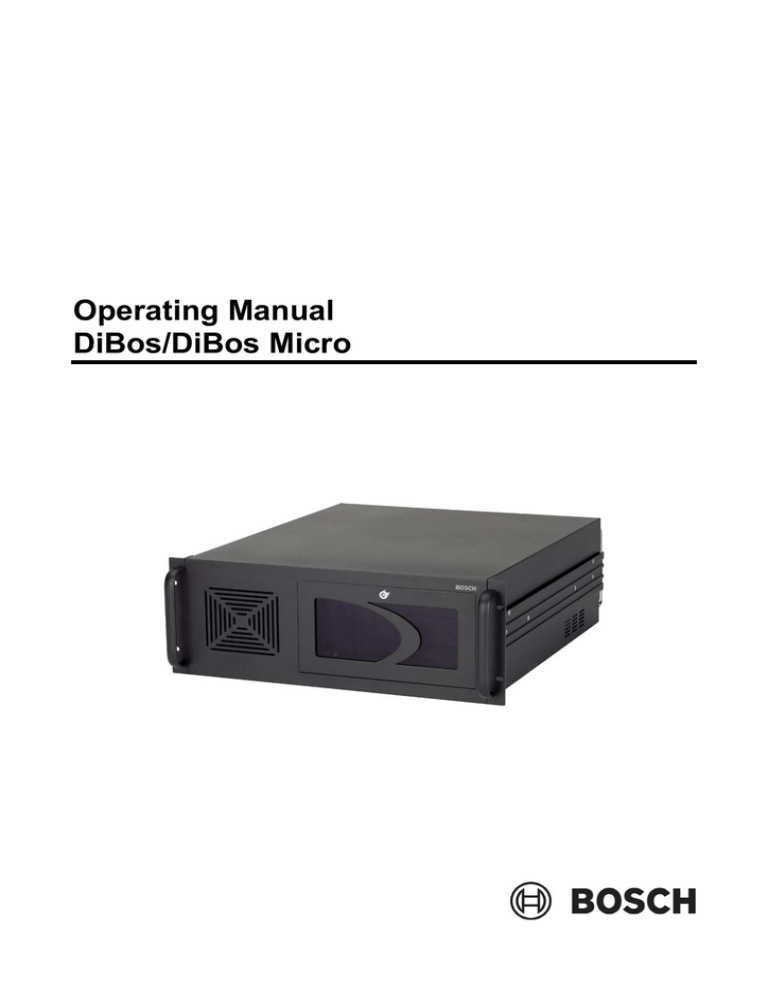

Operating Manual
DiBos/DiBos Micro
2
Operating Manual
DiBos
Table of Contents
Table of Contents
STARTING THE PROGRAM / LOGGING ON TO THE SYSTEM.....................................................................3
STARTING THE PROGRAM ......................................................................................................................................3
LOG ON TO THE SYSTEM ........................................................................................................................................3
THE USER INTERFACE ....................................................................................................................................4
THE SCREEN LAYOUT WHEN THE SYSTEM STARTS ...................................................................................................4
LIVE MODE ........................................................................................................................................................5
THE USER INTERFACE IN LIVE MODE .......................................................................................................................5
THE MENU BAR IN LIVE MODE .................................................................................................................................6
THE DISPLAY BAR ..................................................................................................................................................7
THE DEVICE LIST IN LIVE MODE ...............................................................................................................................8
THE CONTROL AND STATUS FIELD...........................................................................................................................9
THE IMAGE AREA IN LIVE MODE.............................................................................................................................15
THE IMAGE WINDOW ............................................................................................................................................17
THE EVENT FIELD ................................................................................................................................................18
PLAYBACK MODE ..........................................................................................................................................20
THE USER INTERFACE IN PLAYBACK MODE ............................................................................................................20
THE MENU BAR IN PLAYBACK MODE ......................................................................................................................21
THE DISPLAY BAR ................................................................................................................................................23
THE DEVICE LIST IN PLAYBACK MODE ....................................................................................................................24
THE IMAGE AREA IN PLAYBACK MODE....................................................................................................................25
THE IMAGE WINDOW ............................................................................................................................................27
THE TIMELINE AREA .............................................................................................................................................28
OPERATING PROCEDURES - LIVE / PLAYBACK MODE............................................................................34
DISPLAY INCOMING ALARMS .................................................................................................................................34
CREATING/EDITING FAVORITES ............................................................................................................................35
DISPLAY LOGBOOK ..............................................................................................................................................37
START/EXIT CAMERA ROUND ................................................................................................................................38
LOG OFF / CHANGE USER .....................................................................................................................................38
OPERATING PROCEDURES - LIVE MODE...................................................................................................39
FILTER EVENT LIST ..............................................................................................................................................39
ZOOM / CONTROL DOME CAMERAS AND PAN/TILT CAMERAS ....................................................................................40
OPERATING PROCEDURES - PLAYBACK MODE.......................................................................................42
SEARCH FOR MOTION ..........................................................................................................................................42
SEARCH FOR ADDITIONAL DATA ............................................................................................................................43
EXPORTING FILES................................................................................................................................................44
IMPORT EXPORTED FILES .....................................................................................................................................45
AUTHENTICATE IMAGES FROM SEVERAL CAMERAS.................................................................................................46
AUTHENTICATE A SINGLE IMAGE ...........................................................................................................................46
PROTECT VIDEO ..................................................................................................................................................47
DELETE VIDEO ....................................................................................................................................................47
THE ICON LIST................................................................................................................................................48
LIST OF ICONS .....................................................................................................................................................48
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
3
Starting the program / logging on to the system
Starting the program / logging on to the system
Starting the program
When installation is complete, you can start the program.
1. Switch on the computer and wait until the desktop appears.
2. Double-click on the DiBos icon on your desktop or select "Start - All Programs - DiBos". The program
is started and the log-on dialog box appears.
Log on to the system
After the program has started, the dialog box for logging on to the system appears.
1. Type the logon ID in the Name input box.
2. Type the password in the Password input box.
3. Click "OK". You are now in live mode.
Note: In systems which are linked to an LDAP server, an additional selection field appears beneath the
password. Here you must select whether you want to log on locally or onto the LDAP server.
Bosch Security Systems
A1/2005-09
F.01U.512.560
4
Operating Manual
DiBos
The user interface
The user interface
The screen layout when the system starts
You will automatically access live mode every time the system is re-started and every time you log on. You
can look at live images from selected cameras in this mode.
It is possible to switch quickly into playback mode and back by clicking on the button. The button you select
is then color-highlighted.
Live mode
Playback mode
Button for live mode
Button for playback mode
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
5
Live mode
Live mode
The user interface in live mode
The user interface is divided into different areas.
1
Menu bar with current date and time
2
Display bar
3
Device list with camera and remote stations
4
Image area with image window
5
Control and status field
6
Event field
Bosch Security Systems
A1/2005-09
F.01U.512.560
6
Operating Manual
DiBos
Live mode
The menu bar in live mode
The menu bar has the following functions.
System
Configuration wizard
Helps you to create a basic system configuration quickly.
Configuration
Displays the configuration.
Database information
Displays information on the cameras, e.g. free memory, average image size
etc.
Logbook
Displays specific events for local systems or a remote station.
Log off / change user
Logs the user off the system. The system continues running in the background.
A different user can log on.
Change password
You can enter a new password.
Exit
Exits the program (administrator rights necessary).
Selected image
window
Save image
Saves the image displayed in the selected image window. It can be saved as
an HTML, BMP, JPG, GIF, TIF or PNG file. If it is saved as a HTML file, the
additional data is also saved.
Print image
Prints the image displayed in the selected image window (including the
additional data and a commentary).
Motion data
Shows the areas where a motion was detected in the selected image window.
To hide it, repeat the command.
Note: The search for motion function is only possible with locally connected
cameras.
View
Large icons
Displays the icons in the device list in large format. To minimize them, repeat
the command.
Large image area
Enlarges the image area and minimizes the event field. To minimize the image
area, select the command again.
Large device list
Enlarges the device list and minimizes the control and status fields. To
minimize the device list, select the command again.
?
Help
Displays online help
Info
Displays system information.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
7
Live mode
The display bar
The display bar contains the following buttons:
Buttons for live and playback mode
Button for live mode
Button for playback mode
Button for full image
Clicking on the button enlarges the image area to create a full image.
Press the ESC button to switch to the original image display.
Buttons for arranging the image display in the image area
The buttons show how many image windows are shown
in the image area when this button is selected. Every
single image window shows the live image of a camera.
Button for camera round
A dialog box opens after the button is clicked. Enter the length of time after which the
system switches over from one camera to the other. During the camera round, all
cameras selected in the image area are displayed one after the other.
Note: Clicking on the button again ends the camera round.
Switching sound button on and off
Clicking on the button switches the sound on or off.
To adjust the volume, click on the down arrow .
Select the volume you require with the volume regulator.
Bosch Security Systems
A1/2005-09
F.01U.512.560
8
Operating Manual
DiBos
Live mode
The device list in live mode
The device list is located on the left-hand side of the screen. Depending on what is selected, the following
are displayed:
•
configured remote stations or cameras.
•
Favorites view.
•
incoming alarms.
Configured cameras and/or remote stations
All locally-connected cameras are listed.
If remote stations have been configured, they are listed along with the cameras connected to
them.
Network remote stations are automatically connected to the local system. Right-clicking on
the remote station icon and selecting the "Disconnect" command disconnects the remote
station.
RAS remote stations must be connected manually. To do so, right-click on the remote station
and select the "Connect" command.
The status of the devices is shown by the icons.
Favorites view
Favorites which have been saved are listed and can be called up by double-clicking on the
icon. New favorites can be created.
Note: A favorite is understood to mean a number of cameras which are displayed in a
specific way, e.g. camera 1 to 4 in the 2 x 2-image window view.
Incoming alarms
The icon flashes red after alarms have been received in the system.
Click on the icon and the flashing stops and the cameras in alarm status are listed. Doubleclicking on the camera icon shows the camera image in the selected window of the image
area. The image can be displayed in any window at all using the "Drag and drop" function.
Enlarging and minimizing device list
Click on the bar between the device list and the control and status field.
Minimizes the device list
Enlarges the device list
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
9
Live mode
The control and status field
You have the following options in the control and status field. Select the tab of the function you require. Use
the tabs' arrows to display hidden icons.
The control field for dome cameras and pan/tilt cameras is displayed.
The relays which have been configured are displayed.
The alarm inputs which have been configured are displayed.
Instant playback is started.
The monitors' control field is displayed.
Bosch Security Systems
A1/2005-09
F.01U.512.560
10
Operating Manual
DiBos
Live mode
Control field for dome cameras and pan/tilt cameras
After selecting this tab
, the control field for dome cameras and pan/tilt cameras is displayed. The
control field does not become active until a dome camera or pan/tilt camera is displayed in the selected
image window. When you move the mouse cursor over the various elements, they are highlighted optically.
If no dome camera or pan/tilt camera has been selected, the control field is inactive.
Pan the camera to the left/right.
Pan the camera up/down.
Pans the camera in all directions. To do so, move
the mouse cursor on to the icon, press and hold
the left mouse button, and drag the icon in the
direction that you want to pan the camera in.
Enlarge picture angle (zoom angle) / minimize
picture angle (wide angle)
Focus near / focus far (set the image so it is in
focus)
Close iris/ open iris
Sets the pan speed
(on left)
Camera positions which have been set can be
called up. To do so, click on the down arrow and
make your selection.
(on right)
Camera commands which have been saved can
be called up. To do so, click on the down arrow
and make your selection.
Note: It is also possible to control these functions in the image window.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
11
Live mode
Display of relay
After selecting the
tab, all locally configured relays and their statuses are displayed.
If remote stations have been configured, a selection field appears in the lower area. Click on the down arrow ,
and select the remote station in order to list the relays connected to it.
The relays can be activated or deactivated as follows:
•
Double-click with the left mouse button on the relay icon
or
•
Right click and select the "Activate/deactivate" command
The relay is inactive.
The relay is active.
Bosch Security Systems
A1/2005-09
F.01U.512.560
12
Operating Manual
DiBos
Live mode
Display alarm inputs
After selecting the
tab, all locally configured alarm inputs and their statuses are displayed.
If remote stations have been configured, a selection field appears. Click on the down arrow , and select the
remote station in order to list the alarm inputs connected to it.
Alarm input on standby.
Alarm input has triggered.
Note: alarm simulation inputs can be activated/deactivated by double-clicking or right clicking.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
13
Live mode
Start instant playback
After selecting the
tab, the images which have been saved in the selected camera are played back
instantly as live images. This means you will see the live image of the camera and the image of this camera
from about 30 seconds ago. Playback is in real time. The time delay can be set in the configuration.
Name of the camera
Enlarges the image. The image is displayed in a
window which can be moved and whose size can
be changed.
Minimizes the image (icon is located in the top
right-hand corner of the enlarged image).
Play reverse (real time)
Single image backwards
Pause
Single image forward
Play forward (real time)
Time at which the playback occurs
You can start the playback at any time at all. Just
click on day, month, year, hour, minute or second
and enter the time you want. Confirm the entries
with "Enter".
The image taken at this time will be displayed.
Playback starts at the configured time. The value
which has been set in the configuration is used,
i.e. there is a 30-second time delay between
playback and the live image.
Bosch Security Systems
A1/2005-09
F.01U.512.560
14
Operating Manual
DiBos
Live mode
Control field for monitors
After selecting the
tab, 2 monitors are displayed in the control field. Only locally connected cameras
can be displayed on the monitors.
Monitors A and B
Starts the sequence, i.e. the cameras which have been
assigned to the monitor in the configuration are displayed one
after the other.
You return to the "Default view", i.e. the configured camera is
displayed on the monitor.
A camera or sequence can be assigned to a monitor.
Assign using "Drag and Drop"
Only one camera can be assigned to a monitor with "Drag and Drop". This procedure can be repeated as
often as necessary. When a new user logs on, the camera which has been assigned with "Drag and Drop" is
replaced by the camera assigned in the configuration.
•
Press and hold the left mouse button, drag a camera from the camera list onto the monitor in the
control field.
or
•
Place the mouse cursor in the title bar of an image window, press and hold the left mouse button and
drag the camera onto the monitor.
Assign in the configuration
In the configuration ("Video and audio connections" menu), specify which camera is to be displayed by
default on which monitor, and which cameras are to be played as a sequence.
Note: The configuration specifies which cameras are to be visible for which users ("Authorization levels"
menu).
Enlarge and minimize control and status field
Click on the bar above the control and status field.
Enlarges the control and status field.
Minimizes the control and status field.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
15
Live mode
The image area in live mode
The middle and right-hand side of the screen is where live images or images which have been saved are
displayed.
Arrange this area to suit your requirements. Proceed as follows:
Specify the number and layout of image windows in the image area
Here you can specify what the image area looks like, i . e. the number and layout of the image windows. The
buttons are located in the display bar above the image area.
You can choose between 5 buttons with symmetrical and one button with asymmetrical image display.
Symmetrical image windows
Asymmetrical image windows
View with 1 image, 4
images, 9 images, 16
images or 30 images.
You can display one or more larger image windows surrounded by
smaller image windows.
To do so, click on the down arrow beside the button on the right, and
select a display.
Note: The last view used is copied to the display bar.
Note: At least 1 image window is selected in every display selected by you. The display you select
appears with a yellow border. The image of the camera on which you double-click in the device list is
shown in this image window.
The number to the right beneath the button shows the user how often he has already clicked on this button.
This number also indicates which cameras have been selected or which cameras will be selected the next
time the user clicks this button.
Example: With 16 cameras and 2x 2 image windows this means:
You can click on the button four times so that all cameras are displayed.
Cameras 1 to 4 are displayed (the number "1" appears on the right beneath the button).
Cameras 5 to 8 are displayed (the number "2" appears on the right beneath the button).
Cameras 9 to 12 are displayed (the number "3" appears on the right beneath the button)
etc.
Bosch Security Systems
A1/2005-09
F.01U.512.560
16
Operating Manual
DiBos
Live mode
Place individual cameras in the image area
After selecting the image display, you will now want to display specific cameras.
You can do so as follows:
•
Place by double-clicking
Double-clicking on a camera icon in the device list places the camera in the selected image window (with
the yellow border).
Left-click with the mouse to select a different image window. Double-clicking on a different camera icon
places its image in the new image window that you have selected.
•
"Drag and Drop"
Press and hold the left mouse button and drag the camera icon from the device list into an image
window. Release the mouse button and the image of this camera appears in the image window.
Note: In the image area, each camera can only be displayed once.
Move cameras within the image area
In a multiple-image display, you can move cameras within the image areas.
To do so, move the mouse cursor into the title bar of an image window, press and hold the left mouse button
and drag the camera into a different image window. Release the mouse button and the image of this camera
appears in the image window.
Enlarge and minimize image area
Click on the bar beneath the image area.
Minimizes the image area.
Enlarges the image area.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
17
Live mode
The image window
Depending on which display form you have selected in the display bar, one or more image windows will
appear in the image area.
The image window which is selected appears with a yellow border. The image of the camera on which you
double-click in the device list is shown in this image window. If an audio source has been assigned to the
camera, this is also selected. If a user is authorized to view live or saved images, the user is also authorized
to listen to an audio recording which accompanies these images.
In addition to the camera image display, each image window has a title bar with information and buttons
about the image, as well as a zoom function.
The title bar of the image window
The title bar contains
•
an icon describing the type of camera
•
the name of the camera
•
an icon which indicates whether the image also has an audio source
Camera with audio source
•
Buttons for enlarging, minimizing and de-selecting the image
The image window is enlarged so that it fills the entire image area.
The image window returns to its original size.
The camera is de-selected. No camera image is displayed. The image window is blue.
Image window zoom function
Every single image window has a zoom function. To use this function, move your mouse cursor into an
image window. The mouse cursor now changes from an arrow into a magnifying glass.
Using the zoom function with immobile cameras:
Left click with the mouse or rotate the mouse wheel. The image is digitally zoomed. In order
to show that an image has been zoomed, a magnifying glass appears in the bottom righthand edge of the image window.
Click several times: 2x, 4x and 8x zoom factors are possible.
Right click with the mouse or rotate the mouse wheel. The image returns to its original size.
The magnifying glass in the bottom right-hand corner of the image window disappears.
Note: The part of the image where the magnifying glass is located is zoomed.
Zooming with dome cameras and pan/tilt cameras:
Dome and pan/tilt cameras can be zoomed in the image window using their own control
functions. To do so, move the mouse cursor into the middle of the image window until a
magnifying glass with a plus or minus sign appears. Left click with the mouse to enlarge or
minimize the area.
The digital zoom function is not available for dome or pan/tilt cameras.
Note: The part of the image where the magnifying glass is located is zoomed. It is also
possible to pan in the image window.
Bosch Security Systems
A1/2005-09
F.01U.512.560
18
Operating Manual
DiBos
Live mode
The event field
The event field is located directly beneath the image area.
It contains
•
an event list.
•
a button for filtering these events.
•
a button for displaying the logbook.
The event list
The 100 most recent events are listed in an event list in the event field. This list includes events which have
been received since the last log-on.
If the list contains more entries than are displayed on the screen, you can scroll up and down using the
mouse wheel or the bar on the right-hand side.
Sort the list
Entries are displayed with "Category", "Type", "Date" and "Message". You can also sort by these criteria.
Left click on a field in the title bar, e.g. "Category". An arrow appears on the right-hand side of the field.
An arrow in the title bar field shows the criterion by which the entries have been classified. The direction of
the arrow - upwards or downwards - shows whether the column has been classified in an ascending or
descending order. You can switch between ascending and descending order by clicking with the mouse.
The column is classified in ascending order.
Note: The most recent events will only appear at the very top of the list if the "Date"
column is selected in ascending order.
The column is classified in descending order.
Edit the sequence of columns
Hold down the left mouse button to drag a title bar field to the required position. Release the mouse button
and the field is inserted in this position.
Change the column width
Click on the dividing line between the columns until a cross with arrow heads pointing left and right appears.
Hold the left mouse button down and move this cross to the right or left. The column width is changed.
Moving the arrowhead to the left or right changes the column width.
Note: Double-clicking in a field in the title bar optimizes the width of the column, i.e. the width is adjusted to
suit the length of the text in the column.
Filter event list
You can filter the list by certain criteria such as start and shutdown procedures, inputs, cameras etc. in order
to get a quick overview of which events are in the list. After filtering the list, only those events which match
the criteria you have selected will be displayed.
Calls up the filter dialog box.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
19
Live mode
Display the logbook
This function allows you to look for specific events such as start and shutdown procedures, system alarms,
back-up procedures etc. in the local system or a remote station.
Calls up the logbook.
Note: The logbook contains up to 25,000 entries.
Minimize or enlarge event field
If the event field has been minimized, the event list only contains one message.
Minimizes the image area and enlarges the event field.
Enlarges the image area and minimizes the event field.
Note: The most recent events will only appear at the very top of the list if the "Date" column is selected in
ascending order.
Bosch Security Systems
A1/2005-09
F.01U.512.560
20
Operating Manual
DiBos
Playback mode
Playback mode
The user interface in playback mode
The user interface is divided into different areas.
1
Menu bar with date and time
2
Display bar
3
Device list with camera and remote stations
4
Image area with image windows
5
Timeline area and search results
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
21
Playback mode
The menu bar in playback mode
The menu bar has the following functions.
System
Configuration wizard
Helps you to create a basic system configuration quickly.
Configuration
Displays the configuration.
Database information
Displays information on the cameras, e.g. free memory, average image size
etc.
Logbook
Displays specific events for local systems or a remote station.
Log off / change user
Logs the user off the system. The system continues running in the background.
A different user can log on.
Change password
You can enter a new password.
Exit
Exits the program (administrator rights necessary).
Selected image
window
Save image
Saves the image displayed in the selected image window. It can be saved as a
BMP, JPG or HTML file. If it is saved as a HTML file, the additional data is also
saved.
Print image
Prints the image displayed in the selected image window (including the
additional data and a commentary).
Motion data
Shows the areas where a motion was detected in the selected image window.
To hide it, repeat the command.
Note: The search for motion function is only possible with locally connected
cameras.
Additional data
Shows additional data in the selected image window under the camera image.
To hide it, repeat the command.
Authenticate
Checks whether a change has been made to the image in the selected image
window. Only the displayed image is checked.
Search for motion
Checks for motion information in the image in the selected image window. You
can enter a time period and select the image areas.
Note: The search for motion function is only possible with locally connected
cameras.
Bosch Security Systems
A1/2005-09
F.01U.512.560
22
Operating Manual
DiBos
Playback mode
Recording
Exporting
Exports video and audio data to a CD/DVD drive, a network drive or a USB
drive. The files are exported in DiBos or ASF format.
When exporting data in DiBos format, viewer software is also saved. The user
must have administrator rights in order to install the viewer. User rights are
sufficient for playing the viewer. The viewer runs on all Windows XP and
Windows 2000 systems.
Data which has been exported in ASF format can be played with default
software, e.g. Windows Media Player.
You can export individual search results or selected time ranges.
Load exported video
Imports and displays exported data.
Hide exported video
Hides imported data.
Authenticate video
Checks the images from all cameras displayed in the image area to see
whether changes have been made to the image itself.
The time period can be entered or highlighted with the hairline in the timeline
area.
Search for additional
data of displayed
cameras
Searches through the cameras displayed in the image area for additional data
on the saved images, e.g. for data on ATMs.
Search for additional
data from all cameras
Searches all cameras for additional data on saved images, e.g. for data on
ATMs.
You can enter the time period or select it with the hairline in the timeline area.
You can enter the time period or select it with the hairline in the timeline area.
Protect video
Protects images from being automatically overwritten.
Note: You cannot protect images for a time span of less than one day.
Delete video
Deletes images.
Note: You cannot delete images for a time span of less than one whole day.
View
Large icons
Displays the icons in the device list in large format. To minimize them, repeat
the command.
Large image area
Enlarges the image area and minimizes the event field. To minimize the image
area, select the command again.
?
Help
Displays online help.
Info
Displays system information.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
23
Playback mode
The display bar
The display bar contains the following buttons:
Buttons for live and playback mode
Button for live mode
Button for playback mode
Button for full image
Clicking on the button enlarges the image area to create a full image.
Press the ESC button to switch to the original image display.
Buttons for arranging the image display in the image area
The buttons show how many image windows are shown
in the image area when this button is selected. Every
single image window shows the live image of a camera.
Button for camera round
A dialog box opens after the button is clicked. Enter the length of time after which the
system switches over from one camera to the other. During the camera round, all
cameras selected in the image area are displayed one after the other.
Note: Clicking on the button again ends the camera round.
Switching sound button on and off
Clicking on the button switches the sound on or off.
To adjust the volume, click on the down arrow.
Select the volume you require with the volume regulator.
Bosch Security Systems
A1/2005-09
F.01U.512.560
24
Operating Manual
DiBos
Playback mode
The device list in playback mode
The device list is located on the left-hand side of the screen. Depending on what is selected, the following
are displayed:
•
Configured remote stations or cameras
•
Favorites view
•
Incoming alarms
•
Importing exported image files
Configured cameras and/or remote stations
All locally-connected cameras are listed.
If remote stations have been configured, they are listed along with the cameras connected to
them.
Network remote stations are automatically connected to the local station. Right-clicking on
the remote station icon and selecting the "Disconnect" command disconnects the remote
station.
RAS remote stations must be connected manually. To do so, right-click on the remote station
and select the "Connect" command.
The status of the devices is shown by the icons.
Favorites view
Favorites which have been saved are listed and can be called up by double-clicking on the
icon. New favorites can be created.
Note: A favorite is understood to mean a number of cameras which are displayed in a
specific way, e.g. camera 1 to 4 in the 2 x 2-image window view.
Incoming alarms
The icon flashes red after alarms have been received in the system.
Click on the icon and the flashing stops and the cameras in alarm status are listed. Doubleclicking on the camera icon shows the camera image in the selected window of the image
area. The image can be displayed in any window at all using the "Drag and drop" function.
Importing exported image files
Exported image files can be imported.
Note: "Recordings/Load exported video" must be selected!
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
25
Playback mode
The image area in playback mode
The middle and right-hand side of the screen is where live images or images which have been saved are
displayed.
Arrange this area to suit your requirements. Proceed as follows:
Specify the number and layout of image windows in the image area
Here you can specify what the image area looks like, i . e. the number and layout of the image windows. The
buttons are located in the display bar above the image area.
You can choose between 5 buttons with symmetrical and one button with asymmetrical image display.
Symmetrical image windows
Asymmetrical image windows
View with 1 image, 4
images, 9 images, 16
images or 30 images.
You can display one or more larger image windows surrounded by
smaller image windows.
To do so, click on the down arrow beside the button on the right, and
select a display.
Note: The last view used is copied to the display bar.
Note: At least 1 image window is selected in every display selected by you. The display you select
appears with a yellow border. The image of the camera on which you double-click in the device list is
shown in this image window.
The number to the right beneath the button shows the user how often he has already clicked on this button.
This number also indicates which cameras have been selected or which cameras will be selected the next
time the user clicks this button.
Example: With 16 cameras and 2x 2 image windows this means:
You can click on the button four times so that all cameras are displayed.
Cameras 1 to 4 are displayed (the number "1" appears on the right beneath the button).
Cameras 5 to 8 are displayed (the number "2" appears on the right beneath the button).
Cameras 9 to 12 are displayed (the number "3" appears on the right beneath the button)
etc.
Bosch Security Systems
A1/2005-09
F.01U.512.560
26
Operating Manual
DiBos
Playback mode
Place individual cameras in the image area
After selecting the image display, you will now want to display specific cameras.
You can do so as follows:
•
Place by double-clicking
Double-clicking on a camera icon in the device list places the camera in the selected image window (with
the yellow border).
Left-click with the mouse to select a different image window. Double-clicking on a different camera icon
places its image in the new image window that you have selected.
•
Place by "Drag and Drop"
Press and hold the left mouse button and drag the camera icon from the device list into an image
window. Release the mouse button and the image of this camera appears in the image window.
Move cameras within the image area
In a multiple-image display, you can move cameras within the image areas.
To do so, move the mouse cursor into the title bar of an image window, press and hold the left mouse button
and drag the camera into a different image window. Release the mouse button and the image of this camera
appears in the image window.
Enlarge and minimize image area
Click on the bar beneath the image area.
Minimizes the image area.
Enlarges the image area.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
27
Playback mode
The image window
Depending on which display form you have selected in the display bar, one or more image windows will
appear in the image area.
The image window which is selected appears with a yellow border. The image of the camera on which you
double-click in the device list is shown in this image window. If an audio source has been assigned to the
camera, this is also selected. If a user is authorized to view live or saved images, he is also authorized to
listen to an audio recording which accompanies these images.
In addition to the camera image display, each image window has a title bar with information and buttons
about the image, as well as a zoom function.
The title bar of the image window
The title bar contains
•
an icon describing the type of camera.
•
the name of the camera.
•
an icon which indicates whether the image also has an audio source.
Camera with audio source
•
Buttons for enlarging, minimizing and de-selecting the image.
The image window is enlarged so that it fills the entire image area.
The image window returns to its original size.
The camera is de-selected. No camera image is displayed. The image window is blue.
Image window zoom function
Every single image window has a zoom function. To use this function, move your mouse cursor into an
image window. The mouse cursor now changes from an arrow into a magnifying glass.
Using the zoom function with immobile cameras:
Left click with the mouse or rotate the mouse wheel. The image is digitally zoomed. In order
to show that an image has been zoomed, a magnifying glass appears in the bottom righthand edge of the image window.
Click several times: 2x, 4x and 8x zoom factors are possible.
Right click with the mouse or rotate the mouse wheel. The image returns to its original size.
The magnifying glass in the bottom right-hand corner of the image window disappears.
Note: The part of the image where the magnifying glass is located is zoomed.
Zooming with dome cameras and pan/tilt cameras:
Dome and pan/tilt cameras can be zoomed in the image window using their own control
functions. To do so, move the mouse cursor into the middle of the image window until a
magnifying glass with a plus or minus sign appears. Left click with the mouse to enlarge or
minimize the area.
The digital zoom function is not available for dome or pan/tilt cameras.
Note: The part of the image where the magnifying glass is located is zoomed. It is also
possible to pan in the image window.
Bosch Security Systems
A1/2005-09
F.01U.512.560
28
Operating Manual
DiBos
Playback mode
The timeline area
1
Tabs so you can choose to display
camera list with timeline or a list of the
search results.
6
Recorder buttons to play back the saved
image sequences
2
Camera list with timeline or list of the
search results
7
Minimize / enlarge timeline area
3
Measuring unit for the timeline (month,
day etc.) or title bar of the search results
8
Speed controller to change the playback
speed
4
Field for entering the time (for rapid
positioning of the hairline in the timeline)
9
Button for search function
5
Select previous/next event
10
Button for backing up data externally
Tab for camera list with timeline or list of the search results
Decide here whether to display a camera list with timeline or a list of the search results.
Shows a camera list with timeline for every camera in the image area.
Shows a list of the search results.
Only after a search has been performed will you get the tab which shows you whether
search results are available or not.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
29
Playback mode
Camera list with timeline and list of search results
The following information will appear in this area:
•
•
A camera list with timeline for every camera in the image area.
The timeline contains the following information.
Alarm recording
red
Motion recording
yellow
Continuous recording
blue
No video signal
black
Protected data
shading
Audio data available
thin green line above the timeline
No recording
light blue
a list of the search results
After a search has been performed, a list of the search results will appear.
Double-clicking with the left mouse button on a search result shows the image sequence in the selected
image window.
A click with the left mouse button selects the entry. This selected entry can be exported with this
button:
.
Right clicking opens a selection menu to display or export the image sequence.
Change timeline measuring unit
You can set four different measuring units - 1 month, 1 day, 4 hours, 15 minutes.
Click on the down arrow (on left) and select the measuring unit.
Navigation in the timeline (forwards and backwards):
•
Use the right and left arrows
or
•
Place the mouse cursor on the line and turn the mouse wheel
The search results title bar
The search results can be classified. The column width and sequence can be changed.
Bosch Security Systems
A1/2005-09
F.01U.512.560
30
Operating Manual
DiBos
Playback mode
Enter a time
A date and time entry field allows you to quickly access a specific time in the timeline.
Using the mouse cursor, select the date and time you want to edit and make the necessary entries.
Click on the button above it
. The timeline's hairline jumps to this time and is placed in the middle. The
images which have been found are displayed in the image area.
Select a time using the timeline's hairline
You can access a specific time in the timeline via the hairline.
Move the mouse cursor to the top anchor of the hairline and drag it to the required time. The images which
have been found are displayed in the image area.
Note: Clicking with the left mouse button on the timeline places the hairline in the place where you have
clicked.
Selecting a time period using the timeline's hairline
You can select a time period in the timeline using the hairline. You can use this selection for further actions
such as exporting images, searching for images in the displayed cameras.
Move the mouse cursor to the bottom anchor of the hairline and drag it to the required time period.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
31
Playback mode
Display a previous or subsequent event which has been recorded
You can jump to specific events in the displayed cameras.
Click on the down arrow beside the selection field and select the event, e.g. alarm, motion recording etc.
Click on
if you want to jump to the previous event, and on the arrow
if you want to jump to the
next event. The timeline's hairline jumps to this time. The images which have been found are displayed in the
image area.
The recorder buttons
The recorder buttons are used to play back the saved image sequences. The images are played back in all
image windows simultaneously. If a user is authorized to view saved images, he is also authorized to listen
to an audio recording which accompanies these images.
1
Jump to the start of the recording
5
Single image forward
2
Play video in reverse in real time or at
changed speed. The speed is set with
the speed regulator.
6
Play forward in real time or at changed
speed. The speed is set with the speed
regulator.
Note: Audio playback is in real time
mode only.
3
Single image reverse
7
Jump to the end of the recording
4
Pause
Bosch Security Systems
A1/2005-09
F.01U.512.560
32
Operating Manual
DiBos
Playback mode
Changing the playback speed
Press and hold the mouse button. Move the slide control to the left to reduce the playback speed, and to the
right to increases the play back speed. Rotating the mouse wheel also changes the playback speed.
Play back at 1/16 of the recording speed
1/8
Play back at 1/8 of the recording speed
1/4
Play back at 1/4 of the recording speed
1/2
Play back at 1/2 of the recording speed
1
Playback speed = recording speed
2
Play back at double the recording speed
4
Play back at four times the recording speed
8
Play back at eight times the recording speed
Play back at sixteen times the recording speed
Note: A system alarm is emitted if the saved images cannot be played at the set speed.
Minimize timeline area
Click on the bar above the timeline area.
Minimizes the image area and enlarges the timeline area.
Enlarges the image area and minimizes the timeline area.
When minimizing the timeline area the events saved from the cameras displayed appear on a single timeline.
If events overlap, they are displayed in the following order:
Priority 1
No camera signal
Priority 2
Alarm recording
Priority 3
Motion recording
Priority 4
Continuous recording
Priority 5
No recording
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
33
Playback mode
Call up search functions
The following search functions can be called up:
Click on the button and select the desired function.
Search for
motion
Opens a dialog box. In the "Search for motion" function, the image in the selected
image window can be checked for motion.
Search for
additional data
of displayed
cameras
You can search the cameras displayed in the image area or all connected cameras for
additional data here. The search results are displayed in the timeline area. The
number of hits is limited to 500.
Search for
additional data
from all
cameras
The search results are displayed in the lower part of the screen. An additional tab
bottom right of the screen.
is shown in the
Exporting image data
Video and audio data can be exported to a CD/DVD drive, a network drive or a USB drive. The files are
exported in DiBos or ASF format. When a video is exported in DiBos format, a viewer is added to the data.
The viewer can be run under Win XP and Windows. Data in ASF format can be played with default software,
e.g. Windows Media Player.
Select an entry in the search result or highlight a time period with the hairline and click
on the button. The data is exported.
Note: Only one entry can be exported at a time. If you have to export more than one
entry, repeat the process.
Bosch Security Systems
A1/2005-09
F.01U.512.560
34
Operating Manual
DiBos
Operating procedures - live / playback mode
Operating procedures - live / playback mode
Display incoming alarms
When incoming alarms are received, a red flashing tab
is added to the device list.
1. Select the tab. The flashing becomes static and the cameras or remote stations in alarm status are
listed.
2. Double-clicking on the camera icon shows the image in the selected window of the image area. The
image can be displayed in any window at all using the "Drag and drop" function.
Note: If several cameras are assigned to one remote station, you must first double click on the remote
station. Only then are the cameras listed and can be selected by double-clicking.
3. By right-clicking on the remote station icon, you can acknowledge the alarm or display all the
cameras in alarm.
Acknowledge alarm
Display all alarms
F.01U.512.560
When the command is selected, the alarm is acknowledged and deleted
from the display.
Note: As incoming alarms are saved in the logbook, they can be called up
at any time in playback mode.
All alarms are displayed in the image area. The system automatically
selected the best type of display.
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
35
Operating procedures - live / playback mode
Creating/editing favorites
A favorite is taken to mean a number of cameras which are combined together in camera groups to allow a
better overview, e.g. camera 1 to 4 in the 2x 2-image window view are combined together as an "Entry area"
favorite.
Favorites are available in live and playback mode.
Create a new favorite:
1. Select an image display in the display bar.
2. Using the "Drag and Drop" function, drag a camera from the device list into an image window.
Continue doing this until all the cameras you require are in the various image windows.
Note: When you select a favorite, the live image of the camera is shown in live mode, and the saved
image in playback mode.
3. Click on the Favorites icon
. The list of favorites appears.
4. Right click on the device list. Select the "New favorite" command.
5. Enter the name of the favorite in the dialog field and click on "OK". The cameras which you have
already placed and the display you have selected are saved with this name and can be called up
again.
Call a favorite
1. Click on the tab
. The favorites you have already saved are displayed.
2. Double click on Favorites or click it with the right mouse button and select the command "Call". The
setting for this favorite is displayed in the image area.
Edit a favorite
1. Double-click on the favorite you want to edit.
2. Make the changes (e.g. image partitioning, cameras).
3. Place the mouse cursor on the name of the favorite and right click. Select "Save favorite".
Edit the name of a favorite
1. Click on the favorite icon.
2. Place the mouse cursor on the name of the favorite and right click. Select "Rename".
3. Enter the name of the favorite in the dialog field and click on "OK".
Bosch Security Systems
A1/2005-09
F.01U.512.560
36
Operating Manual
DiBos
Operating procedures - live / playback mode
Edit the sequence of favorites
•
Hold the left mouse button down and drag the favorite to the required position and release the
mouse button.
The favorite is inserted in this position.
Delete a favorite
1. Click on the favorite icon.
2. Right click on the name of the favorite. Select the "Delete" command.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
37
Operating procedures - live / playback mode
Display logbook
This function allows specific local events or events from a remote station to be displayed.
1. Live mode: Select the "System/logbook" menu or click on the
Playback mode: Select the "System/logbook" menu.
icon under the image area.
2. In "Remote station", select those remote stations in which you want to look for specific events.
3. Enter the time period in "Time period".
4. In "Events", select those events which you want to look for within the time period.
5. Click on "Search". The search results are listed in the lower part of the dialog box . You can sort the
events if necessary. It is possible to change the column width.
6. Click on "Print" to print the logbook.
Note: To save the logbook, select "Fax" in the printer name in the dialog box and select "Print to file".
Confirm with "OK". The file is saved in "C:\Program Files\DiBos". It can be opened with the "Windows
Picture and Fax Viewer" program.
Sort list
Entries are displayed with "Category", "Type", "Date" and "Message". You can also sort by these criteria.
Left click on a field in the title bar, e.g. "Category". An arrow appears on the right-hand side of the field.
An arrow in the title bar field shows the criterion by which the entries have been classified. The direction of
the arrow - upwards or downwards - shows whether the column has been classified in an ascending or
descending order. You can switch between ascending and descending order by clicking with the mouse.
The column is classified in ascending order.
Note: The most recent events will only appear at the very top of the list if the "Date"
column is selected in ascending order.
The column is classified in descending order.
Editing the sequence of columns
Hold down the left mouse button to drag a title bar field to the required position. Release the mouse button
and the field is inserted in this position.
Change column width
Click on the dividing line between the columns until a cross with arrow heads pointing left and right appears.
Hold the left mouse button down and move this cross to the right or left. The column width is changed.
Moving the arrowhead to the left or right changes the column width.
Note: Double-clicking in a field in the title bar optimizes the width of the column, i.e. the width is adjusted to
suit the length of the text in the column.
Bosch Security Systems
A1/2005-09
F.01U.512.560
38
Operating Manual
DiBos
Operating procedures - live / playback mode
Start/exit camera round
During the camera round, all cameras selected in the image area are displayed one after the other. The
cameras are shown in single image mode.
1. Click on the
icon in the display bar to start the camera round.
2. In "Time interval in seconds", enter the time after which the system must switch from one camera to
the next.
3. Click on "OK". The camera round is started.
4. To exit the camera round, click on the
icon again.
Log off / change user
1. Select the "System / Log off / Change user" menu.
2. Enter the name and password of the new user.
3. Click on "OK".
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
39
Operating procedures - live mode
Operating procedures - live mode
Filter event list
The 100 most recent events are listed in an event list in the event field. This list includes events which have
been received since the last log-on.
If you only want to display specific events, you can filter the event list using these criteria.
beneath the image area. A dialog box opens.
1. Click on the icon
2. Select the criteria.
3. Click on "OK".
Sort list
Entries are displayed with "Category", "Type", "Date" and "Message". You can also sort by these criteria.
Left click on a field in the title bar, e.g. "Category". An arrow appears on the right-hand side of the field.
An arrow in the title bar field shows the criterion by which the entries have been classified. The direction of
the arrow - upwards or downwards - shows whether the column has been classified in an ascending or
descending order. You can switch between ascending and descending order by clicking with the mouse.
The column is classified in ascending order.
Note: The most recent events will only appear at the very top of the list if the "Date"
column is selected in ascending order.
The column is classified in descending order.
Edit sequence of columns
Hold down the left mouse button to drag a title bar field to the required position. Release the mouse button
and the field is inserted in this position.
Change column width
Click on the dividing line between the columns until a cross with arrow heads pointing left and right appears.
Hold the left mouse button down and move this cross to the right or left. The column width is changed.
Moving the arrowhead to the left or right changes the column width.
Note: Double-clicking in a field in the title bar optimizes the width of the column, i.e. the width is adjusted to
suit the length of the text in the column.
Bosch Security Systems
A1/2005-09
F.01U.512.560
40
Operating Manual
DiBos
Operating procedures - live mode
Zoom / control dome cameras and pan/tilt cameras
You can zoom and control the cameras in the control and status field, as well as directly in the image window.
Control/zoom in control and status field
1. Select the image window of the camera which you want to zoom or control. The image window now
appears with a yellow border.
2. Click on the
tab in the control and status field. The control field for dome cameras and
pan/tilt cameras is displayed.
3. Click on the various control elements in order to zoom or pan the camera.
Pan the camera to the left/right.
Pan the camera up/down.
Pans the camera in all directions. To do so,
move the mouse cursor on to the icon, press
and hold the left mouse button, and drag the
icon in the direction that you want to pan the
camera in.
Enlarge picture angle (zoom angle) /
minimize picture angle (wide angle).
Focus near (set sharp image) / Focus far (set
sharp image).
Close iris/ open iris.
Sets the pan speed.
(on left)
(on right)
F.01U.512.560
Camera positions which have been set can
be called up. To do so, click on the down
arrow and make your selection.
Camera commands which have been saved
can be called up. To do so, click on the down
arrow and make your selection.
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
41
Operating procedures - live mode
Control / zoom in image window
1. Move the mouse cursor into the image window of a dome or pan/tilt camera. This changes the
appearance of the mouse cursor.
Pan the camera in the relevant direction using the arrow
keys. To do so, hold the left mouse button down.
Pan to left/right.
etc.
Note: The closer you come to the edge of the image, the
faster the camera pans or tilts.
Enlarge picture angle (zoom angle) / minimize picture
angle (wide angle)
2. Click with the right mouse button on the image window in order to call up the following commands:
3. Focus near/far
4. Close iris/Open iris
5. Call up saved positions
6. Call up saved macros
Note: The digital zoom function is not available for dome or pan/tilt cameras.
Bosch Security Systems
A1/2005-09
F.01U.512.560
42
Operating Manual
DiBos
Operating procedures - playback mode
Operating procedures - playback mode
Search for motion
You can check the image in the selected image window for motion. The search for motion function is not
possible with IP cameras.
1. Select the image window of the camera whose images you want to check for motion. The image
window now appears with a yellow border.
2. Using the hairline, highlight the time period on the timeline.
3. Select the "Selected image window/Search for motion" menu, or click on the
image area.
icon beneath the
4. The current hairline value in the timeline is copied to the "from" and "to" fields for the start and end
time and date. If you want to change the time period, click on the down arrow beside the "from" and
"to" fields and select the new date and time.
5. Select "Display grid". A grid is placed above the image. Every cell in the grid can be selected for
search purposes.
6. Select those cells which you want to check for motion. To select the cells, click with the right mouse
or minimize an area while pressing and holding the right mouse button.
Selected areas:
•
Right click
or
•
hold the right mouse button down and drag up
an area
A plus sign appears beside the mouse cursor to show
that the area has been selected and will be assessed
during the search.
Note: Areas which are selected for search purposes are
shown without a grid.
Non-selected areas:
•
Left click
or
•
hold the left mouse button down and drag an
area.
A minus sign appears beside the mouse cursor to show
that the area has not been selected and will not be
assessed during the search.
Note: Areas which are not selected for search purposes
are shown with a grid.
7. Click on "OK". The search results are listed in the timeline area.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
43
Operating procedures - playback mode
Search for additional data
You can search all the cameras displayed in the image area or all connected cameras for additional data
here.
1. Using the hairline, highlight the time period on the timeline.
2. Select the "Recording/Search for additional data of displayed cameras", "Recording/Search for
additional data from all cameras" or click on the
icon beneath the image area.
3. The current hairline value in the timeline is copied to the "from" and "to" fields for the start and end
time and date. If you want to change the time period, click on the down arrow beside the "from" and
"to" fields and select the new date and time.
4. In "Additional data", select those criteria which are to form the basis of the search.
5. Click on "Start search". The search results are listed.
Bosch Security Systems
A1/2005-09
F.01U.512.560
44
Operating Manual
DiBos
Operating procedures - playback mode
Exporting files
Video and audio files can be exported to a CD/DVD drive, a network drive or a USB drive. The files are
exported in DiBos or ASF format.
When files are exported in DiBos format, a viewer is added to the data. The user must have administrator
rights in order to install the viewer. User rights are sufficient for playing the viewer. The viewer runs on all
Windows XP and Windows 2000 systems.
Files which have been exported in ASF format can be played with standard software, e.g. Windows Media
Player.
You can export individual search results or selected time ranges.
Export a time period
The video and audio data of the displayed cameras can be exported for a time period which has been
selected in the timeline area.
1. Using the hairline, highlight the time period on the timeline.
2. Click on
. The export dialog box opens.
3. In "Data carrier", select the medium to which you want to save the time period.
4. Specify the "Format" of the files to be exported. You may also have to specify the "Quality" of the
files.
5. The current hairline value in the timeline is copied to the "from" and "to" fields for the start and end
time and date. If you want to change the time period, click on the down arrow beside the "from" and
"to" fields and select the new date and time.
6. Click on "OK". The files are exported.
Export single search entries
Search entries can be exported on their own. If you want to export several entries, you must export them one
by one.
1. Select an entry in the search result with the left mouse button.
2. Click on
. The export dialog box opens.
3. In "Data carrier", select the medium to which you want to save the time period.
4. Specify the "Format" of the files to be exported. You may also have to specify the "Quality" of the
files.
5. The start and end time and date of the selected entry are copied to the "from" and "to" fields. The
pre-alarm and post-alarm time of the event is contained in this time. If you want to change the time
period, click on the down arrow beside the "from" and "to" fields and select the new date and time.
6. Click on "OK". The files are exported.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
45
Operating procedures - playback mode
Import exported files
Exported audio and video files can be imported in order to display their saved images.
1. Select the "Recording/ Load exported video" menu.
2. Select the drive on which the exported files are located. The files are displayed in the list field
beneath the drive.
3. In the list box, click on the file whose images you want to view.
4. Click on "OK".
An additional tab
is added to the device list.
5. Click on the tab. The name of the imported file is displayed in the device list with the camera name.
6. Double-clicking on the camera icon shows the image in the selected window of the image area. The
image can be displayed in any window at all using the "Drag and drop" function. If several cameras
are assigned to one remote station, you must first double click on the remote station. Only then are
the cameras listed and can be selected by double clicking.
Note: Select "Recording/ Hide exported video" to remove the exported files from the display.
Bosch Security Systems
A1/2005-09
F.01U.512.560
46
Operating Manual
DiBos
Operating procedures - playback mode
Authenticate images from several cameras
You can check whether changes have been made to the recorded images of all the cameras displayed in the
image area.
1. Using the hairline, highlight the time period on the timeline.
2. Select the "Recording/authenticate video" menu.
3. The current hairline value in the timeline is copied to the "from" and "to" fields for the start and end
time and date. If you want to change the time period, click on the down arrow beside the "from" and
"to" fields and select the new date and time.
4. Click on "Start" to start authentication.
Authenticate a single image
In the image of the selected image window, the images are then checked to see if they have been
changed. Only the displayed image is checked.
1. Select the image window of the camera whose image you want to check.
2. Click on the "Selected image window / Authenticate video" menu. A message shows you whether
the image has been changed or not.
F.01U.512.560
A1/2005-09
Bosch Security Systems
DiBos
Operating Manual
47
Operating procedures - playback mode
Protect video
This function allows you to protect the images of the displayed cameras against being automatically
overwritten.
1. Using the hairline, highlight the time period on the timeline.
2. Select the "Recording / Protect video" menu.
3. The date currently shown in the time period's hairline is copied to the "from" and "to" fields. If you
want to change the time period, click on the down arrow beside the "from" and "to" fields and select
the new date.
Note: It is not possible to protect images for a time span of less than one day.
4. Click on "Start".
Delete video
This function allows you to delete images from one day or more. Only the images from the displayed
cameras are deleted.
1. Using the hairline, highlight the time period on the timeline.
2. Select the "Recording / Delete video" menu.
3. Select the time period:
Delete images in time period
Only the images in this time period are deleted.
Delete older images up to and
including
All images which are older than the final date are deleted.
4. The date currently shown in the time period's hairline is copied to the "from" and "to" fields. If you
want to change the time period, click on the down arrow beside the "from" and "to" fields and select
the new date.
Note: It is not possible to delete images for a time span of less than one day.
5. Click on "Start".
Bosch Security Systems
A1/2005-09
F.01U.512.560
48
Operating Manual
DiBos
The icon list
The icon list
List of icons
Dome camera: live images are only
displayed (but not saved)
Network remote station DiBos 8:
connection has been made
Dome camera: poor image quality
(too light, too dark, noisy)
Network remote station DiBos 8:
connection is being established /
connection cannot be established
Dome camera: live images are
displayed and saved
Network remote station DiBos 8:
connection has been disconnected
Dome camera: no camera signal
Network remote station DiBos 7:
connection has been made
Camera: live images are only
displayed (but not saved)
Network remote station DiBos 7:
connection is being established /
connection cannot be established
Camera: poor image quality (too
light, too dark, noisy)
Network remote station DiBos 7:
connection has been disconnected
Camera: live images are displayed
and saved
RAS remote station DiBos 8:
connection has been made
Camera: no camera signal
RAS remote station DiBos 8:
connection is being established /
connection cannot be established
Network dome camera: live images
are only displayed (but not saved)
RAS remote station DiBos 8:
connection has been disconnected
Network dome camera: poor image
quality (too light, too dark, noisy)
RAS remote station DiBos 7:
connection has been made
Network dome camera: live images
are displayed and saved
RAS remote station DiBos 7:
connection is being established /
connection cannot be established
Network dome camera: no camera
signal from the dome camera on the
network module
RAS remote station DiBos 7:
connection has been disconnected
Network camera: connection has
been established
Network camera: poor image quality
(too light, too dark, noisy)
Network camera is recording
Network camera: no camera signal
F.01U.512.560
A1/2005-09
Bosch Security Systems
Notes
Notes
Notes
Notes
Notes
Bosch Security Systems B.V.
P.O. Box 80002, 5600 JB
Eindhoven
The Netherlands
Tel: 31 40 278 1222
Fax: 31 40 278 6668
Bosch Security Systems Pte Ltd
38C, Jalan Pemimpin
Singapore 577180
Republic of Singapore
Tel: 65 (6) 319 3486
Fax: 65 (6) 319 3499
Bosch Security Systems,Inc.
850 Greenfield Road
Lancaster, PA 17601 U.S.A.
Tel: 800-326-3270
Fax: 1-717-735-6560
Download PDF

advertising
