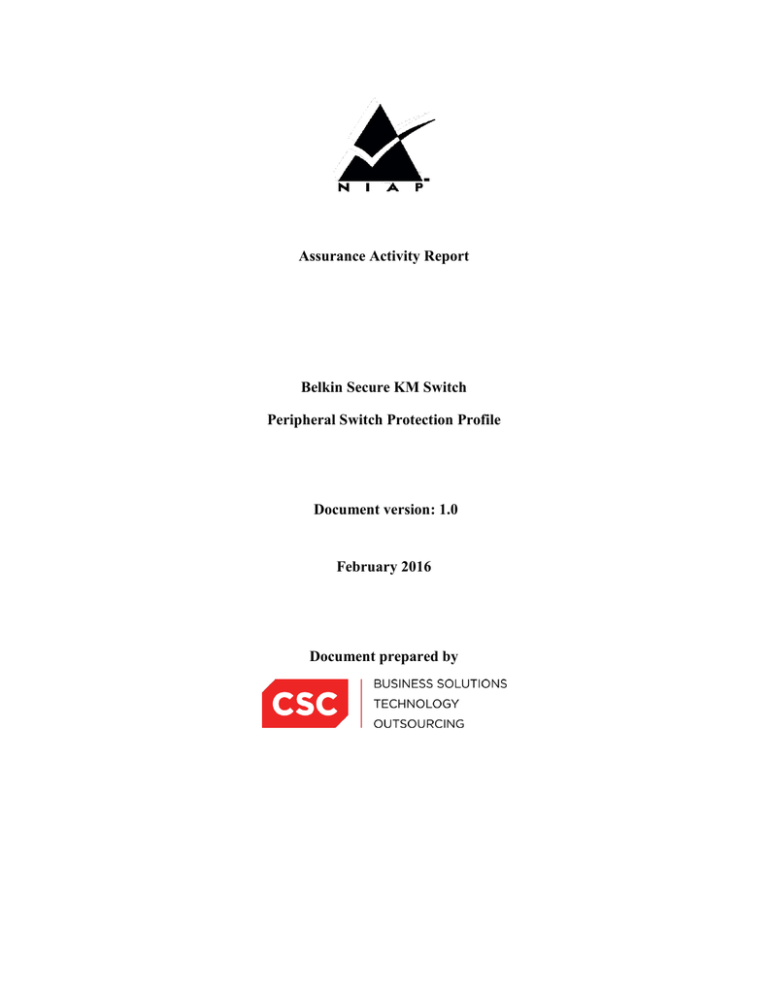

Assurance Activity Report

Belkin Secure KM Switch

Peripheral Switch Protection Profile

Document version: 1.0

February 2016

Document prepared by

Belkin Secure KM Switch

Document History

Version

1.0

Date Author

February 26, 2016 B Pleffner Final Report

Description

Assurance Activity Report v1.0 Page ii

Belkin Secure KM Switch

Intentionally left blank

Assurance Activity Report v1.0 Page iii

Belkin Secure KM Switch

Table of Contents

1 INTRODUCTION ..................................................................................................... 6

1.1

O

VERVIEW

........................................................................................................... 6

2 TOE EVALUATION SPECIFICS .......................................................................... 7

2.1

D

OCUMENT

R

EFERENCES

..................................................................................... 7

2.2

E

VALUATED

P

LATFORMS

(

FROM

S

ECURITY

T

ARGET

) .......................................... 7

2.3

E

QUIVALENCY

..................................................................................................... 7

3 EVALUATION ......................................................................................................... 9

3.1

T

ECHNIQUES

, T

OOLS AND

S

TANDARDS

................................................................ 9

3.2

T

EST

C

ONFIGURATION

....................................................................................... 10

3.2.1

Test Setup E (4P KM) ..................................................................................... 10

3.3

T

EST

C

ONFIGURATION

D

IAGRAM

....................................................................... 12

4 ASSURANCE ACTIVITIES FOR PSS PP .......................................................... 13

4.1

FDP_IFC.1

(1) S

UBSET INFORMATION FLOW CONTROL

..................................... 13

4.2

FDP_IFF.1

(1) S

IMPLE SECURITY ATTRIBUTES

.................................................. 14

4.3

FDP_IFC.1

(2) S

UBSET INFORMATION FLOW CONTROL

..................................... 17

4.4

FDP_IFF.1

(2) S

IMPLE SECURITY ATTRIBUTES

.................................................. 17

4.5

FDP_ACC.1

S

UBSET ACCESS CONTROL

............................................................ 35

4.6

FDP_ACF.1

S

ECURITY ATTRIBUTE BASED ACCESS CONTROL

............................ 36

4.7

FDP_RIP.1

S

UBSET

R

ESIDUAL INFORMATION PROTECTION

.............................. 40

4.8

FPT_PHP.1

S

UBSET

R

ESIDUAL INFORMATION PROTECTION

.............................. 43

4.9

FPT_PHP.3

S

UBSET

R

ESIDUAL INFORMATION PROTECTION

.............................. 45

4.10

FPT_FLS.1

F

AILURE WITH PRESERVATION OF SECURE STATE

........................... 48

4.11

FPT_TST.1

TSF

TESTING

.................................................................................. 49

4.12

FTA_CIN_EXT.1

E

XTENDED

: C

ONTINUOUS

I

NDICATIONS

............................... 53

4.13

FAU_GEN.1: A

UDIT

D

ATA

G

ENERATION

......................................................... 55

4.14

FIA_UAU.2

U

SER AUTHENTICATION BEFORE ANY ACTION

............................... 57

4.15

FIA_UID.2

U

SER IDENTIFICATION BEFORE ANY ACTION

................................... 58

4.16

ADV_FSP.1

B

ASIC

F

UNCTIONAL

S

PECIFICATION

............................................. 59

4.17

AGD_OPE.1

O

PERATIONAL

U

SER

G

UIDANCE

.................................................. 60

4.18

AGD_PRE.1

P

REPARATIVE

P

ROCEDURES

......................................................... 60

4.19

ATE_IND.1

I

NDEPENDENT

T

ESTING

C

ONFORMANCE

..................................... 61

Assurance Activity Report v1.0 Page 4

Belkin Secure KM Switch

4.20

ALC_CMC.1

L

ABELING OF THE

TOE ............................................................... 63

4.21

ALC_CMS.1

TOE CM C

OVERAGE

................................................................... 66

5 CONCLUSIONS AND RECOMMENDATIONS ................................................ 67

6 LIST OF EVALUATION EVIDENCE ................................................................. 68

7 PRODUCT COMPLIANCE LISTING ENTRY ................................................. 69

8 LIST OF ACRONYMS/GLOSSARY OF TERMS ............................................. 70

9 RATIONALE FOR TEST COVERAGE OF MULTIPLE TOE MODELS ..... 71

9.1

J

USTIFICATION FOR

S

ELECTION MADE BY

B

ELKIN

............................................. 71

9.1.1

Secure KM Switch (Group E) .......................................................................... 71

9.2

S

UMMARY

.......................................................................................................... 73

9.2.1

Number of ports / enclosures ........................................................................ 73

9.2.2

Operation Mode ............................................................................................ 73

Assurance Activity Report v1.0 Page 5

Belkin Secure KM Switch

1 Introduction

1.1 Overview

This Assurance Activity Report (AAR) documents the evaluation of Belkin Secure KM

Switch.

Belkin is the sponsor of this evaluation which is being conducted by CSC Security

Testing and Certification Laboratory (STCL) under the United States National

Information Assurance Partnership (NIAP) Common Criteria Evaluation and Validation

Scheme (CCEVS).

The following table contains the configuration control identifiers for the Target of

Evaluation (TOE); the Security Target (ST) for the evaluation; this document, the ETR, and the Protection Profile the TOE is conformed to.

Table 1: Items under configuration management

Item

Target of Evaluation:

Configuration Control Identifier

Belkin Secure KM Switch

Security Target:

Assurance Activity Report

Belkin Secure KM Security Target, version 3.27

Belkin Secure KM Switch Assurance Activity Report version 1.0

Evaluation Technical Report Belkin Secure KM Switch EAL1 Evaluation Technical Report version

1.0

Protection Profile: Standard Protection Profile for Peripheral Sharing Switch, version 3.0

(PSS PP)

Assurance Activity Report v1.0 Page 6

Belkin Secure KM Switch

2 TOE Evaluation Specifics

2.1 Document References

Table 2: Referenced documents

Ref. Document

[A]

Belkin Secure KM Switch Assurance Activity Report (This document)

[B]

Belkin Secure KM Security Target, version 3.27

[C]

Belkin Advanced Secure 2-port Flip KM PP 3.0 User Manual

[D] Belkin Secure 4/8 Port KM Switch PP 3.0 User Manual

2.2 Evaluated Platforms (from Security Target)

Table 3: Evaluated TOE

Model Description

2-Port

F1DN102K-3

Belkin secure 2-port Flip KM w/audio, PP 3.0

4-Port

F1DN104K-3 Belkin Secure KM Switch 4-Port, PP 3.0

8/16-Port

F1DN108K-3

Belkin secure 8-port KM Switch w/audio, PP 3.0

CGA (P/N) Version

CGA06860 30303-00C4

CGA10123 30303-00C4

CGA10183 30303-00C4

2.3 Equivalency

The Design Documentation describes a low-level breakdown of the TOE including firmware logic and circuitry. Review of this document shows how the circuitry is extended to include more ports for the 2, 4, and 8 port models.

Because the number of ports on the KM switch has no effect on the security threats associated with it, it is adequate to test a specific function on one product with arbitrary number of channels. It should be noted that the peripheral functions are identical in hardware and firmware across the different models.

This document describes the testing procedure for the 5 models shown in table 3 above.

The scope of the test plans includes only the claimed SFR’s, which are identical for each model of the KM switch. Each test case verifies one or more SFR’s in the Security

Target. The only model specific test cases are those that iterate through each computer in order to verify that each port is working as intended. The test cases can be applied to any model of the KM by changing the number of computers tested.

Based on the design presented in the ST, and the test cases defined in this document, there are no aspects of the different models that are not covered in testing a single model.

The primary difference between the various evaluated products is hardware related - the number of ports that the KVM support – 2, 4, or, 8;

Assurance Activity Report v1.0 Page 7

Belkin Secure KM Switch

All TOE are sharing the same firmware and significant similarities in the hardware designs. The development and production processes of the different models are identical.

The rationale provided in Section 9.

The following table provides a list of the TOE used for testing and the models they represent from the embedded document:

Table 4: Tested TOE

Test

Case

E

Product model

TOE Type

F1DN104K-3 Secure KM Switch

Represented models

F1DN104K-3, F1DN108K-3

Assurance Activity Report v1.0 Page 8

Belkin Secure KM Switch

3 Evaluation

Belkin Secure KM Switch is the Target of Evaluation (TOE) under the Standard

Protection Profile for Peripheral Sharing Switches, version 3.0.

3.1 Techniques, Tools and Standards

The standards used in the conduct of this evaluation:

Common Criteria for Information Technology Security Evaluation Part 1:

Introduction and general model September 2012 Version 3.1 Revision 4

Common Criteria for Information Technology Security Evaluation Part 2:

Security functional components September 2012 Version 3.1 Revision 4

Common Criteria for Information Technology Security Evaluation Part 3:

Security assurance components September 2012 Version 3.1 Revision 4

Common Methodology for Information Technology Security Evaluation methodology September 2012 Version 3.1 Revision 4

Test tools used in the independent testing are:

The evaluators used general purpose Intel/Windows computers and the following software tools:

1) List off all software tools and hardware tools and their versions as follows:

• Computer #1 – Asus M52BC-US003S Running Windows 7 Ultimate 64

Bit, Service pack 1 S/N E8PDCG00123C

• Computer #2 – Asus M52BC-US003S Running Windows 7 Ultimate 64

Bit, Service pack 1 S/N E8PDCG00122D

• Computer #3 – Asus M52BC-US003S Running Windows 7 Ultimate 64

Bit, Service pack 1 S/N E8PDCG00124S

• Computer #4 – Asus M52BC-US003S Running Windows 7 Ultimate 64

Bit, Service pack 1 S/N E8PDCG00125C

• Oscilloscope – Agilent Technologies DSO3102A Digital Storage

Oscilloscope, S/N CN47423598

• Lab power supply – Siglent SPD3303D Programmable power supply,

S/N SPD30CE1150090.

• Display #1 – Asus PA248Q, S/N EBLMQS082778

• Display #2 – Asus PA248Q, S/N EBLMQS082775

• Display #3 – Asus PA248Q, S/N EBLMQS082767

• Display #4 – Asus PA248Q, S/N EBLMQS082736

• Signal Generator – Rigol DG1022A 2 Channel 25MHz Function /

Arbitrary Waveform Generator, S/N DG1F134700206

Assurance Activity Report v1.0 Page 9

Belkin Secure KM Switch

• DVM – Fluke 117 True RMS Multi-meter, S/N 30390050WS

• USB Sniffer – Teledyne Lecroy USB-TMS2-M01-X Mercury T2, S/N

13788

• USB Load – HSL custom built accessory, S/N 972002

• USB Traffic generator – HSL custom built, S/N 972001

• Mass storage devices – Sandisk Cruzer Blade 8GB SDCZS0-008G

• USB Printer – HP Deskjet 1513C5X25A

• USB Keyboards – Asus G01 KB

• USB Mouse – Asus 0K1000

• PS/2 Keyboard – Rosenwill RK-200

• Amplified speakers – CA Audio CA-3602

• USB Headset – Koss SB/45

• USB Camera – Logitech Webcam C110

• USB Smart-card reader – Belkin F1DN005U

• Microphone – Connectland Microphone Sur Pied M1810

• Analog Headset – Koss CS100 – 32 Ohm Stereo headset

• MCCS Console – SoftMCCS Ver. 2.5.0.1034

• USB Analyzer software – USBLyzer Ver. 21.

• Keyboard emulator software - PassMark KeyboardTest™ version 3.0

• Tone Generator software – Tone Generator 100Hz – 15 KHz Ver. 1.04

• Athena smart-card

• Athena IDProtect Manager Tool Version 6.20.08

• Atmel Evaluation Board EVK1100 + AVR Studio 6 suite

3.2 Test Configuration

3.2.1 Test Setup E (4P KM)

1 x Belkin F1DN104K-3 Secure 4-Port KM Switch (P/N: CGA10174);

1 x Wall mounted power supply (P/N: CPS05296);

8 x Belkin USB Cable (P/N: CPN05487);

1 x USB Mouse;

1 x USB Keyboard;

4 x PC’s installed with Microsoft Windows 7, Windows 8 or Linux;

2 x Displays;

1 x Analog audio headsets; and

Additional test equipment per table 5 below.

Assurance Activity Report v1.0 Page 10

Belkin Secure KM Switch

Test

Case

From

PP

Note that the TOE used in all tests except for physical attack tests should be in the following initial state:

Anti-tampering system is activated and armed.

Device is new.

Table 5: Additional equipment needed for some Test Cases

4.1

4.2

4.3

4.4

4.5

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ●

4.6

4.7

4.8

● ● ● ● ●

4.9

4.10

4.11

● ●

4.12

4.13

4.14

Assurance Activity Report v1.0 Page 11

Belkin Secure KM Switch

3.3 Test Configuration Diagram

The following figures are test configurations examples

Sample 4 port KM switch with 4 monitors connected directly to computers

Note: This is a basic configuration for testing the 4 – port KM. Not all peripherals are connected to the TOE at all times. Displays are connected directly to their PC in KM systems.

Assurance Activity Report v1.0 Page 12

Belkin Secure KM Switch

4 Assurance Activities for PSS PP

4.1 FDP_IFC.1 (1) Subset information flow control

FDP_IFC.1.1 (1) The TSF shall enforce the [User Data Protection SFP] on

[Subjects: TOE computer interfaces, TOE peripheral device

interfaces

Information: User data transiting the TOE

Operations: Data flow between subjects].

Assurance Activity

Assurance Activities for this SFR were integrated with the Data Isolation Requirements

SFR below.

TSS Verification

Verify that the ST identifies subjects, information, and operations identified in the SFR.

CSC: It is stated in Section 7.1, in the first bulleted list, Bullet a) identifies the keyboard and mouse USB device emulators as the peripheral interfaces. The computer interfaces are identified in Bullet c as host (computer) emulators. The bulleted list also discusses the rules for data transiting the TOE between the mouse and keyboard emulators and the computer interfaces (host emulators).

Operational Guidance Verification

CSC: Operational Guidance analysis was conducted in the Data Isolation

Requirements SFR below as required by the Assurance Activity.

Testing Summary

CSC: Testing was conducted in the Data Isolation Requirements SFR below as required by the Assurance Activity.

Assurance Activity Report v1.0 Page 13

Belkin Secure KM Switch

4.2 FDP_IFF.1 (1) Simple security attributes

Security Target

FDP_IFF.1.1 (1) The TSF shall enforce the [User Data Protection SFP] based on the following types of subject and information security attributes:

[Subject: TOE computer interfaces

Subject security attributes: user selected computer interface

Subject: TOE peripheral device interfaces

Subject security attributes: none

FDP_IFF.1.2(1)

Information: User data transiting the TOE

Information security attributes: none].

The TSF shall permit an information flow between a controlled subject and controlled information via a controlled operation if the following rules hold: [The user makes a selection to establish a

data flow connection between the peripheral device interfaces and one computer interface based on the following rules:

1) The attribute User Selected Computer determines the operation Allowed Data Flow such that the only permitted data flows are as listed in the table below:

Value of

User

Selected

Computer

Allowed Data Flow

n This ST will claim the following data-flow claims based on applicable TOE groups:

[Selection]

a) User keyboard peripheral device interface data flowing from peripheral device interface to computer interface #n;

b) User mouse peripheral device interface data flowing from peripheral device interface to computer interface #n;

c)

User authentication peripheral device data flowing bidirectional between computer interface #n and user authentication device peripheral interface; and

d) Analog audio output data flowing from computer interface #n to the audio peripheral device interface;

2) When the user changes the attribute by selecting a different computer, this causes the TOE to change the data flow accordingly.

Assurance Activity Report v1.0 Page 14

Belkin Secure KM Switch

3) The specific TOE implementation may allow splitting of the user control to different shared peripheral groups. For example, the user authentication device selected computer may be #2, while the keyboard and mouse selected computer device may be #1. In this case, each selection shall be clearly indicated.

4) The TOE may support multiple instances of the peripheral devices shown in the table above, or a subset of these peripheral devices.]

FDP_IFF.1.3 (1) The TSF shall enforce the [the following additional information flow control SFP rules if the TOE supports user authentication devices

[Selection]

:

Following an event of the user changing the attribute by selecting a different computer, the TOE must reset the power to the connected user authentication device].

FDP_IFF.1.4 (1) The TSF shall explicitly authorize an information flow based on the following rules: [no additional rules].

FDP_IFF.1.5 (1) The TSF shall explicitly deny an information flow based on the following rules:

1) [The TSF shall deny any information flow between TOE peripheral device interfaces and TOE non-selected computer interfaces.

2) The TSF shall deny any data flow between an external entity and the TOE computer interfaces.

3) The TSF shall deny any user data flow between the TOE and an external entity].

Assurance Activity

Assurance Activities for this SFR were integrated with the Data Isolation Requirements

SFR below.

TSS Verification

Verify that the ST discusses the information flow control rules discussed in the SFR.

CSC: The following table identifies for each switch in the evaluation per Section

1.3.2.1 of the Security Target meets at least one selection from FDP_IFF.1.2 (1).

Where a column contains a checkmark indicates the switch meets the selection.

Assurance Activity Report v1.0 Page 15

Belkin Secure KM Switch

N o

Model

1)

F1DN102K-3

Table 6: FDP_IFF.1.2 (1) flows per TOE

Description

Selection # from FDP_IFF.1.2

(1) a b c d e

Belkin secure 2-port Flip KM w/audio, PP

3.0

X X X

2)

F1DN104K-3 Belkin Secure KM Switch 4-Port, PP 3.0

X

3)

F1DN108K-3

Belkin secure 8-port KM Switch w/audio,

PP 3.0

X

X

X

X

X

Operational Guidance Verification

CSC: Operational Guidance analysis was conducted in the Data Isolation

Requirements SFR below as required by the Assurance Activity.

Testing Summary

CSC: Testing was conducted in the Data Isolation Requirements SFR below as required by the Assurance Activity.

Assurance Activity Report v1.0 Page 16

Belkin Secure KM Switch

4.3 FDP_IFC.1 (2) Subset information flow control

Security Target

FDP_IFC.1.1 (2) The TSF shall enforce the [Data Isolation SFP] on

[Subjects: TOE computer interfaces, TOE peripheral interfaces

Information: data transiting the TOE

Operations: data flows between computer interfaces].

Assurance Activity

This Assurance Activity is combined with FDP_IFF.1 (2).

4.4 FDP_IFF.1 (2) Simple security attributes

Security Target

FDP_IFF.1.1 (2) The TSF shall enforce the [Data Isolation SFP] based on the following types of subject and information security attributes:

[Subject: TOE interfaces

Subject security attributes: Interface types (Allowed TOE interface

types are listed in Annex C of this PP. Power source and connected

computer interfaces are also applicable interface types.)

Subject: TOE peripheral device interfaces

Subject security attributes: none

FDP_IFF.1.2 (2)

Information: data transiting the TOE

Information security attributes: data types. (The TSF will enforce

the data isolation SFP on the following data types:

a.

User keyboard key codes;

b.

User pointing device commands;

c. Audio output data.)].

The TSF shall permit an information flow between a controlled subject and controlled information via a controlled operation if the following rules hold:

1) [During normal TOE operation, the TSF shall permit only user entered keyboard key codes, and user input mouse commands to flow between the TOE keyboard and mouse peripheral device interfaces and the TOE selected computer interface. No flow is permitted between the selected computer interface and the TOE keyboard and mouse peripheral device interfaces.

2)

The TSF shall permit information flow and TSF resources sharing between two TOE user peripheral interfaces of the same Shared Peripheral group. Both functions may share

Assurance Activity Report v1.0 Page 17

Belkin Secure KM Switch

the same interface].

FDP_IFF.1.3 (2) The TSF shall enforce the [No additional rules].

FDP_IFF.1.4 (2) The TSF shall explicitly authorize an information flow based on the following rules: [No additional rules].

FDP_IFF.1.5 (2) The TSF shall explicitly deny an information flow based on the following rules:

[1. The TSF will deny any information flow between TOE Computer

Interfaces, except those allowed by the User Data Flow rules;

2. The TSF will deny data flow other than keyboard entries and mouse reports between the TOE keyboard and mouse peripheral device interfaces and the TOE selected computer interface;

3. The TSF will deny power flow between the selected computer interface and TOE keyboard and mouse peripheral device interfaces;

4. The TSF will deny information flow from the TOE selected computer interface to the TOE keyboard and mouse peripheral device interface;

5. The TSF will deny information flow between two TOE user peripheral interfaces in different Shared Peripheral groups;

6. The TSF shall deny analog audio information flow between the TOE selected computer audio interface and the user audio device peripheral interface when a microphone peripheral device is intentionally or unintentionally connected to the TOE audio peripheral device interface;

7. The TSF shall enforce unidirectional information flow between the

TOE selected computer audio interface and the user audio device peripheral interface. Bidirectional information flow shall be denied;

8. The TSF shall recognize and enable only those peripherals with an authorized interface type as defined in Annex C of this PP.

Information flow to all other peripherals shall be denied; and

9. All denied information flows shall also be denied when the TOE’s

power source is removed]

Assurance Activity

TSS

The evaluator shall verify that the TOE Summary Specification (TSS) describes all of the interfaces supported in each port group. Any options to switch peripherals independently from the keyboard and mouse must be described.

The evaluator shall also verify that the TSS lists and describes all TOE control options.

Assurance Activity Report v1.0 Page 18

Belkin Secure KM Switch

To improve USB data analysis, prior to the following tests, the evaluator shall receive a full list of all USB endpoints used by the TOE, and their specific functions.

The evaluator shall verify that the TSS describes all of the external interfaces supported by the TOE and that there are no external interfaces other than computer interfaces, power interfaces and peripheral device interfaces. Any wireless or wired interface must be fully described with its intended function.

The evaluator shall verify that the TSS describes all of the interfaces supported in each port group.

Any options to switch peripherals independently from the keyboard and mouse must be described.

The evaluator shall examine the TSS and verify that for any human interface device that may be switched independently from the keyboard and mouse, there is a description that explains how this interface is isolated from all other device interfaces. The evaluator shall be able to determine from this description that there are no shared components, shared lines or shared power supplies.

The evaluator shall verify that the TSS provides details about supported user authentication devices. TSS shall also indicate whether the user authentication device is emulated by the TOE or switched.

The evaluator shall examine the TSS to verify that it describes how the user authentication data path is isolated from all other data paths. This section must indicate that the data path used by the user authentication device is not shared with other transiting data. This section must also describe how the USB port for the user authentication device is powered separately from other peripheral device functions.

If the TOE includes an integrated user authentication device, the evaluator shall examine the TSS to verify that is describes:

1) How the user authentication data path is isolated from all other data paths;

2) If the user authentication device is emulated by the PSS or not;

3) If the user authentication device is emulated, then the TSS shall include detailed information describing authentication session termination by the user, and describe how this occurs simultaneously in all connected computers.

[Conditional – not applicable for the TOE] If the TOE supports DisplayPort video –

The evaluator shall verify that the TSS describes how the TOE video auxiliary channel

(AUX) path blocks information flows other than the minimal set required to establish the video link. The description should discuss the method implemented to prevent unauthorized DisplayPort transactions:

The TOE prevents the DisplayPort AUX channel link from reaching speeds higher than 1 megabits per second (DisplayPort ver 1.2 or higher) while blocking

MCCS transactions; or

The TOE disassembles the DisplayPort AUX channel transactions to block all unauthorized transactions.

Assurance Activity Report v1.0 Page 19

Belkin Secure KM Switch

Guidance

The evaluator shall verify that the operational guidance provides clear direction for the connection of computers and peripheral devices to the TOE. Any options to switch peripheral devices independently from the keyboard and mouse must be described, including a description of how this switching is indicated on the PSS.

The evaluator shall verify that the operational guidance provides clear direction for the usage and connection of TOE interfaces. General information may be provided for computer, power and peripheral devices. Any wireless or wired interface that receives or transmits data to or from the TOE must be described in sufficient detail to allow the evaluator to determine if there is a risk that these interfaces could be misused to import or export user data.

The evaluator shall examine the user guidance and verify that the guidance provides users with information on how to recognize a device where the anti-tampering functionality has been activated. The evaluator shall review the following subjects in the user and administrative guidance to verify that there are no processes or settings that may allow any forbidden data flow between objects: a) Installation options; b) TOE configurations: c) TOE firmware options; or d) Accessories supplied with TOE

The evaluator shall verify that any cables or accessories supplied with the TOE (as described in the guidance) do not support computer interface types in the following prohibited protocols list: a) Microphone audio input; b) Line in audio input; c) DockPort; d) USB docking; e) Thunderbolt; or f) Other docking protocols.

The evaluator shall verify that the supported peripheral devices and protocols match the information in Annex C of this PP.

The evaluator shall examine the TOE user guidance to determine if there are any operating modes that allow peripheral devices to be switched independently from the keyboard and mouse. All such operating modes must be covered in the TSS. The evaluator shall examine the TOE guidance and verify that the TOE does not support microphone or audio line input device interfaces. The evaluator shall also examine the

TOE guidance and verify that it includes an explicit warning not to use microphone, line input or headset devices with the TOE.

Tests

Assurance Activity Report v1.0 Page 20

Belkin Secure KM Switch

1) Since a PSS typically has a large set of switched peripheral devices and connected computers, in order to prevent duplication of test setup and testing effort, several tests were grouped into larger test sets. The selection of the appropriate test set is based on the specific TOE implementation, which is based on the type of peripheral devices being supported.

2) Each port group switch selection must be tested for each device; however, not all port groups must be connected simultaneously. For example, if testing a 16-port device, the evaluator may use four connected computers, but must change the connected ports several times to ensure all computer port group connections and switch selections are tested. Likewise, a single USB protocol analyzer may be used, but must be moved to test each applicable port. Several of the tests are written assuming a 4 port device. Each test must be adapted to accommodate all of the ports on each tested TOE.

3) The tests assume the use of Windows on each connected computer. It is permissible to perform the tests using Linux based connected machines with similar applications installed.

4) The evaluator is expected to prepare an image or bitmap with an easily visible number to be used as a background for each connected computer in order to identify each channel (e.g., a white background with the number 1 may serve as a desktop background for computer #1.)

5) Note that some of the following tests require knowledge of the USB protocol to properly configure and operate a USB protocol analyzer and USB sniffer.

Evaluation Note: The actual tests in the Protection Profile Sections 4.2.10 –

4.2.20 were not reproduced for brevity. In the actual tests for this SFR, the test steps are reproduced from the PP.

TSS Verification

The evaluator shall verify that the TOE Summary Specification (TSS) describes all of the interfaces supported in each port group. Any options to switch peripherals independently from the keyboard and mouse must be described.

CSC: Tables 4 and 5 of the ST describes the protocols supported for each of the switches for each of the computer ports. For example, the first switch,

F1DN102K-3 supports USB 1.1/2.0 console keyboard and mouse, and analog stereo audio.

The evaluator shall also verify that the TSS lists and describes all TOE control options.

CSC: Table 4 identifies specifically, per switch, what is supported by the console port group. The keyboard, mouse, and audio peripherals are identified for each switch.

To improve USB data analysis, prior to the following tests, the evaluator shall receive a full list of all USB endpoints used by the TOE, and their specific functions.

The evaluator shall verify that the TSS describes all of the external interfaces supported by the TOE and that there are no external interfaces other than computer interfaces,

Assurance Activity Report v1.0 Page 21

Belkin Secure KM Switch power interfaces and peripheral device interfaces. Any wireless or wired interface must be fully described with its intended function.

CSC: Tables 4 and 5 details what interfaces and protocols are supported for each switch for the computer ports and the console ports. Table 3 of the ST list the peripheral devices supported by the TOE. The evaluator received a full list of all

USB endpoints used by the TOE – an empty list. No internal hub or endpoints listed in that list.

The application note for FDP_IFF.1.1(2) also states the interfaces not supported including Microphone audio input, DockPort, USB Docking, Thunderbolt, and other docking protocols.

The evaluator shall verify that the TSS describes all of the interfaces supported in each port group.

CSC: Tables 4 and 5 details what interfaces and protocols are supported for each switch for the computer ports and the console ports.

Any options to switch peripherals independently from the keyboard and mouse must be described.

CSC: There are no options to switches peripherals independently from the keyboard and mouse. Each peripheral group is powered by the connected group computer and sits behind a one way data diode. When a computer is selected, all peripherals in that group are selected. See Section 7.1 of the ST.

The evaluator shall examine the TSS and verify that for any human interface device that may be switched independently from the keyboard and mouse, there is a description that explains how this interface is isolated from all other device interfaces.

CSC: There is no option to switch other devices independently from the keyboard and mouse.

The evaluator shall be able to determine from this description that there are no shared components, shared lines or shared power supplies.

CSC: Section 7.1 describe the isolation requirements behind emulators (which are microcontrollers for each port group) to prevent peripherals from having direct access to computer ports. Each device emulator is powered by its own connected computer. Power domains of different computer interfaces are completely independent and isolated behind unidirectional data diodes.

The evaluator shall verify that the TSS provides details about supported user authentication devices. TSS shall also indicate whether the user authentication device is emulated by the TOE or switched.

CSC: The TOE does not support, emulate or process user authentication device data. No data retention is possible.

The evaluator shall examine the TSS to verify that it describes how the user authentication data path is isolated from all other data paths. This section must indicate that the data path used by the user authentication device is not shared with other transiting

Assurance Activity Report v1.0 Page 22

Belkin Secure KM Switch data. This section must also describe how the USB port for the user authentication device is powered separately from other peripheral device functions.

CSC: The TOE does not support, emulate or process user authentication device data.

If the TOE includes an integrated user authentication device, the evaluator shall examine the TSS to verify that is describes:

1) How the user authentication data path is isolated from all other data paths;

2) If the user authentication device is emulated by the PSS or not;

3) If the user authentication device is emulated, then the TSS shall include detailed information describing authentication session termination by the user, and describe how this occurs simultaneously in all connected computers.

CSC: The TOE does not support, emulate or process user authentication device data.

[Conditional – not applicable for TOE] If the TOE supports DisplayPort video

The evaluator shall verify that the TSS describes how the TOE video auxiliary channel

(AUX) path blocks information flows other than the minimal set required to establish the video link. The description should discuss the method implemented to prevent unauthorized DisplayPort transactions:

The TOE prevents the DisplayPort AUX channel link from reaching speeds higher than 1 megabits per second (DisplayPort ver 1.2 or higher) while blocking

MCCS transactions; or

The TOE disassembles the DisplayPort AUX channel transactions to block all unauthorized transactions.

CSC: None of the KM switches support video.

Operational Guidance Verification

The evaluator shall verify that the operational guidance provides clear direction for the connection of computers and peripheral devices to the TOE. Any options to switch peripheral devices independently from the keyboard and mouse must be described, including a description of how this switching is indicated on the PSS.

CSC: The User Guidance provides clear direction for the connection of computer and peripheral devices to the TOE through installation guides, precautions, and pictures. It is also stated, “Product design achieves maximal security by keeping the video path separate with keyboard and mouse switched together, purging keyboard buffer when switching channels.”

The evaluator shall verify that the operational guidance provides clear direction for the usage and connection of TOE interfaces. General information may be provided for computer, power and peripheral devices.

Assurance Activity Report v1.0 Page 23

Belkin Secure KM Switch

CSC: Throughout each User Guidance there are Installation guides, Operational guides and pictures to describe a clear direction for the usage and connection of all TOE interfaces.

Any wireless or wired interface that receives or transmits data to or from the TOE must be described in sufficient detail to allow the evaluator to determine if there is a risk that these interfaces could be misused to import or export user data.

CSC: Each User Guidance Manual has warnings and precautions stating, “For security reasons products do not support wireless keyboards and mice. In any case do not connect wireless keyboard/mouse to product.”

Document Reference

Table 7: Referenced documents

(see document references in Section 2.1)

Risk factor for wireless or wired interface

[C]

[D]

Page 10

Page 4

The evaluator shall examine the user guidance and verify that the guidance provides users with information on how to recognize a device where the anti-tampering functionality has been activated.

CSC: It is stated in the “User Guidance & Precautions,” the product is equipped with an always-on active anti-tampering system. In addition, “Any attempt to open product enclosure will activate the anti-tamper system indicated by all channel-select LEDs flashing continuously.”

Document Reference

Table 8: Referenced documents

Anti-tampering activation

(see document references in Section 2.1)

[C]

[D]

Page 10, bullet 6

Page 4, bullet 6

The evaluator shall review the following subjects in the user and administrative guidance to verify that there are no processes or settings that may allow any forbidden data flow between objects: a) Installation options; b) TOE configurations: c) TOE firmware options; or d) Accessories supplied with TOE

CSC: The User Manuals only show how to install and operate the product, there are no processes or settings allowing any forbidden data flow. All User manuals were examined in their entirety.

Assurance Activity Report v1.0 Page 24

Belkin Secure KM Switch

The evaluator shall verify that any cables or accessories supplied with the TOE (as described in the guidance) do not support computer interface types in the following prohibited protocols list: a) Microphone audio input; b) Line in audio input; c) DockPort; d) USB docking; e) Thunderbolt; or f) Other docking protocols.

CSC: The User Guidance Manuals have a section showing the products package contents. The Contents included do not support computer interface types in the prohibited protocols list above. The Guidance Manuals also specifically state “For security reasons products do not support microphone/line-in audio input.”

Table 9: Referenced documents

Document Reference

(see document references in

Section 2.1)

Package Contents Microphone/line-in audio input

[C]

[D]

Page 3

Page 3

Page 10, bullet 5

Page 4, bullet 5

The evaluator shall verify that the supported peripheral devices and protocols match the information in Annex C of this PP.

The TOE supports keyboard / mouse

The evaluator shall examine the TOE user guidance to determine if there are any operating modes that allow peripheral devices to be switched independently from the keyboard and mouse.

CSC: There are no options to switches peripherals independently from the keyboard and mouse.

All such operating modes must be covered in the TSS.

CSC: Per the ST, there are no options to switches peripherals independently from the keyboard and mouse.

The evaluator shall examine the TOE guidance and verify that the TOE does not support microphone or audio line input device interfaces.

CSC: Per the ST, for security reasons products do not support microphone/line-in audio input.

Assurance Activity Report v1.0 Page 25

Belkin Secure KM Switch

Document Reference

Table 10: Referenced documents

Microphone/Line-in Audio Support

(see document references in

Section 2.1)

[C]

[D]

Page 10, bullet 5

Page 4, bullet 5

The evaluator shall also examine the TOE guidance and verify that it includes an explicit warning not to use microphone, line input or headset devices with the TOE.

CSC: Explicit warning found in all TOE guidance at the same locations indicated in table 10 above. Text appearing in that bullet is, “For security reasons product do not support microphone/line-in audio input. In any case do not connect a microphone to product audio output port, including headsets.

Testing Summary

Table 11: Applicable test setups

Test Setup

E

TOE Model

F1DN104K-3

TOE Type

Secure KM Switch

Assurance

Activity

Test 4.1 – User

Control

This test is mandatory for all TOEs claiming compliance to this PP.

Testing Summary

General test setup from the PP, section 4.2.9, was followed to ensure the tests themselves would be run according to the established procedures.

Section 4.2.10 of the PP were followed as prescribed, results are captured below in the section marked “Actual Tests”.

The following chart indicates which models were tested by the evaluator:

Test Setup

Test 4.1 – User Control

Part

-

E

Notes / Justification:

Section 3.2 above identifies those additional items required to have the TOE in an operational condition; those items were used for these tests.

No TOE tested failed any portion of the required steps set forth in the PP.

Assurance Activity Report v1.0 Page 26

Belkin Secure KM Switch

Image showing test setup E configured for cursor tracking testing with side-by-side displays.

“Test E” several channel switching methods tested: front panel push buttons were used;

Cursor tracking method also used. The front panel and the TOE does not allow for nonauthorized methods to be enabled through any configuration. The TOE does not support a computer port scanning mode which was verified through the UG. Cursor tracking method used to switch the four channels across 4 direct connected displays. TOE switched channels as defined in the UG. When depressing more than one front panel button at a time (see image below) the TOE reverts back to the last correctly depressed selection. Additionally,

Microsoft’s “Notepad” was opened on each of the connected PCs. As characters were typed in one pc the front panel was used to select a different pc where it was noted that the letters typed on the previous PC did not carry over to the newly selected PC.

Test 4.2 –

Keyboard

Switching,

Data Isolation and Device

Qualification

Rules

General test setup from the PP, section 4.2.9, was followed to ensure the tests themselves would be run according to the established procedures.

Section 4.2.10 of the PP were followed as prescribed, results are captured below in the section marked “Actual Tests”.

The following chart indicates which models were tested by the evaluator:

Test Setup Part

Test 4.2 – Keyboard Switching, Data Isolation and Device Qualification Rules

1

2

3

4

5

E

The USBLyzer software was setup and testing began.

Assurance Activity Report v1.0 Page 27

Belkin Secure KM Switch

All PCs were loaded and correctly configured with the USB protocol analyzer software.

For Part 1 the evaluator setup the required number of computers for each TOE. All PCs used Microsoft Operating System Windows 7 and the application Notepad was used to enter text at each PC.

All tests on all TOEs resulted in positive results. No TOE tested failed any of the required tests set forth in the PP.

Part 2, Steps 16 thru 24 of the PP, was conducted without incident. USB devices that were not a keyboard were rejected and not enumerated. This was verified through the use of the

USB protocol analyzer and through Device Manager of Windows 7. This process was repeated through a USB hub to very the TOE recognized the keyboard through a USB hub yet rejected non-keyboard USB devices.

Part3, steps 25 thru 35d of the PP, ensured the keyboard flow isolation and unidirectional rule was compliant in the TOEs tested. Tools such as Passmark keyboard emulation was used as instructed in the PP (see image below on the left side). Keyboard LEDs did not respond as expected (see image below to the right). No test of any TOE resulted in a failure.

Assurance Activity Report v1.0 Page 28

Belkin Secure KM Switch

Part 4, steps 36 – 40, ensured the TOEs tested properly disabled unauthorized USB devices connected directly to the TOE or through a USB hub. All USB devices required by the PP were connected resulting in the TOE disabling those devices.

Test 4.3 –

Mouse

Switching,

Data Isolation and Device

Qualification

Rules

The image above on the left side show USB sniffer capture of typical USB device rejection.

The active area on the left is the device enumeration and then from that point to the end of capture all traffic is NAKs (nothing after NAK filtration).

Part 5, steps 41 – 43 of the PP, the tests conducted were an attempt to change ports of the

TOE through a combination of key sequences. All TOEs tested did not allow switching of ports/channels through key sequences.

Test setup procedures described in section 4.2.12 of the PP were followed prior to test initiation. Those section in the below table that are grayed out were not tested for those parts.

Test Setup

Test 4.3 - Mouse Switching, Data Isolation and Device Qualification Rules

1

2

3

4

5

Part E

All results of the required tests were successful.

A capture example of part 1:

Test 4.3 step 8 – No new traffic captured in the non-selected computer, cursor remains static.

Assurance Activity Report v1.0 Page 29

Belkin Secure KM Switch

Part 2, steps 16 thru 24 of the PP, demonstrated mouse movement on the selected PC not being replicated on a second non-selected PC. All steps were pretty straight forward. Again, a USB analyzer was used to confirm data between the chosen system and the device was the only allowed data to pass. All steps were performed and results were as expected.

Part 3, steps 25 thru 35 of the PP, required the use of a gaming mouse with programmable color LEDs.

Results were as expected MS Windows Device Manager was used to confirm devices were not enumerated that were HIDs.

Part 4, steps 36 thru 40 of the PP, correctly disabled USB devices that were not authorized and were verified through the use of a protocol analyzer. None of the six TOEs tested resulted in a negative result.

Part 5, steps 41 thru 43 of the PP, mouse data flow was isolated to only the chosen PC. This was verified through the use of a USB protocol analyzer.

Overall no negative results were experienced all TOEs tested functioned as expected.

Assurance Activity Report v1.0 Page 30

Belkin Secure KM Switch

Test 4.4 –

Display

Switching,

Data Isolation and

Unidirectional

Flow Rules

Test 4.5 –User

Authentication

Device

Switching and

Isolation Rules

Test Setup Part

E

Test 4.4 - Display Switching, Data Isolation and Unidirectional Flow Rules

1

2

3

Test 4.4 is not applicable for Belkin KM TOE as it does not support video.

Test 4.5 – User Authentication Device Switching and Isolation Rules

Test Setup Part E

3

4

1

2

5

Test 4.6 –

Analog Audio

Output

Switching,

Isolation and data-flow Rule

The following steps evaluate

TOE compliance with the allowed data flow as it is applied to the analog audio output.

Test 4.5 is not applicable for Belkin KM TOE as it does not support User

Authentication Devices.

Note that all KM switches supports audio devices.

Test setup procedures described in section 4.2.15 of the PP were followed prior to test initiation.

The evaluator confirmed that an analog audio signal traversing the TOE from one userselected connected computer does not leak to the non-selected computers’ analog audio interfaces. Similarly, the evaluator verified that there is no significant leakage across the non-selected computers.

Test Setup Part

E

Test 4.6 – Analog Audio Output Switching, Isolation and data-flow Rule -

For this test a programmable tone generator (Step 19) was used to test at the required frequencies (image below)

All steps in the test were straight forward, generate tone on selected TOE channel then change to PC without tone to check if you can hear the tone generated on from the previous selected PC.

A sample of the oscilloscope analysis at 1 Hz:

Assurance Activity Report v1.0 Page 31

Belkin Secure KM Switch

The image above depicts 1 Hz injected signal not visible in the noise background. Noise and signal totals 32 mVpp.

Test 4.7 – No

Other External

Interfaces

In the following test, the evaluator shall examine the

TOE external interfaces to assure that only the interfaces

(connectors) allowed by this

PP are available.

Part 2 of the test, steps 30-49 of the PP, required the evaluator to verify that the TOE analog audio functions:

- Are unidirectional (computer interface to peripheral device data flow only);

- Will reject a microphone if connected to the audio peripheral interface port; and

- Will attenuate the audio signal from a connected headset to a level that would not enable audio eavesdropping.

All steps were followed implicitly resulting in the expected findings. No TOE tested failed any portion of the required test procedures.

There are no external wired interfaces other than: a) Computer interfaces; b)

Peripheral device interfaces; and c) Power interfaces

Test Setup Part

Test 4.7 – No Other External Interface -

E

None of the Belkin KM switches support wireless interfaces.

Radiated emission tests were conducted by the Israel Testing Laboratories was provided establishing that no emissions emanated from any of the tested products.

Test 4.8 – No

Flow between

Computer

Interfaces

(USB-to-USB,

Power-to-USB)

In this test, the evaluator shall confirm that the following types

Test setup procedures described in section 4.2.17 of the PP were followed prior to test initiation.

Test Setup

Test 4.8 – No Flow between Computer Interfaces (USB-to-USB, Power-to-USB)

Part

-

E

These tests were very straight forward, connect a USB protocol analyzer between PC-2 and the TOE, and reboot PC-1. Was any USB traffic captured on PC-2 pertaining to PC-1? The only movement on the non-rebooted machines was the conversation of the protocol analyzer communicating with the new (changed to PC) USB connection.

Assurance Activity Report v1.0 Page 32

Belkin Secure KM Switch of events in one

TOE computer interface do not have any effect on any other

TOE computer interface:

Computer reboot or power off;

Normal

USB traffic flowing to the selected computer;

Enumeratio n of various

USB devices on non-selected computer interfaces;

Peripheral device overcurrent event effect on nonselected computers; and

USB power signaling effect between computer interfaces.

A USB overload device was created using the process described in the PP Annex.

The image above show the USB overload device connected to the TOE.

The following screen capture is indicative of the results for each of the sequences followed in the PP:

All TOEs tested resulted in the expected findings. No TOE failed any part of the tests.

Test 4.9 – No

Flow between

Computer

Interfaces with

TOE Powered

Off (USB-to-

USB, Power-to-

USB)

In this test, the evaluator shall confirm that the following types of events in one computer interface do not have any effect on any other computer

Test setup procedures described in section 4.2.18 of the PP were followed prior to test initiation.

Test Setup

Test 4.9 – No Flow between Computer Interfaces with TOE Powered Off (USB-to-

USB, Power-to-USB)

Part

-

E

An external power supply was required for this test. All steps were straight forward and easy to follow. All TOEs tested performed exactly as expected.

Assurance Activity Report v1.0 Page 33

Belkin Secure KM Switch interface while the TOE is powered off:

Computer reboot or power off; and

USB power signaling effect between computer interfaces.

It should be noted that although the

TOE is powered off, some components of the TOE may still be powered from the connected computers.

The image above show a screen capture taken from computer #2. No traffic detected in the non-selected computer #2 as expected.

The TOE power off / power on process did not allow ANY USB traffic through itself.

Image below is of step 4: Turn off the TOE and observe TOE enumeration data flow on all connected computers.

Test 4.10 – No

Flow between

Computer

Interfaces

(Power-/ USB to-Audio)

Test 4.10 – No Flow between Computer Interfaces (Power-/ USB-to-Audio)

Test Setup

Part

-

E

The evaluator verified that power events at one TOE USB computer interface did not affect the analog audio output computer interface of another computer. The TOE identified in the table above did not result in any negative findings.

Test 4.11 –

Peripheral to

Peripheral

Interface Rule

In this test, the evaluator shall verify that the

TOE implementation properly isolates the peripheral device interfaces that are not switched together.

Note that the

No special test setup was required for 4.2.20 of the PP.

Test Setup

Part E

Test 4.11 – Peripheral to Peripheral Interface Rule

-

Test 4.11 is not applicable for the Belkin KM as TEO does not support user authentication device.

Assurance Activity Report v1.0 Page 34

Belkin Secure KM Switch following test assumes that the

USB keyboard and mouse combination and the USB user authentication device are independently switched. The test may be modified to support different combinations of peripheral devices with minor changes.

4.5 FDP_ACC.1 Subset access control

FDP_ACC.1.1 The TSF shall enforce the [peripheral device SFP] on [Subjects:

Peripheral devices Objects: Console ports Operations: allow

connection, disallow connection].

Assurance Activity

Assurance Activities for this SFR are covered by the next SFR FDP_ACF.1.

Assurance Activity Report v1.0 Page 35

Belkin Secure KM Switch

4.6 FDP_ACF.1 Security attribute based access control

FDP_ACF.1.1 The TSF shall enforce the [peripheral device SFP] to objects based on the following:

[Subjects: Peripheral devices

Subject security attributes: peripheral device type

Objects: Console ports

Object security attributes: none].

FDP_ACF.1.2 The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled objects is allowed: [The TOE shall query the connected peripheral device

upon initial connection or upon TOE power up and allow connection for authorized peripheral devices in accordance with

the table in Annex C of this PP].

FDP_ACF.1.3

FDP_ACF.1.4

The TSF shall explicitly authorize access of subjects to objects based on the following additional rules: [none.].

The TSF shall explicitly deny access of subjects to objects based on the following additional rules:

[The TOE peripheral device interface (console) port will reject any

peripheral device that is not identified as an unauthorized device in

table 20 below].

TOE Console

Port

Authorized Devices

Keyboard

Mouse /

Pointing device

Any wired keyboard and keypad without internal USB hub or composite device functions;

USB hub and composite devices are allowed as TOE can filter USB endpoints (if at least one endpoint is a keyboard or mouse HID class).

In such case TOE will disable all other endpoints;

PS/2 keyboard;

KVM extender;

PS/2 to USB adapter; and

Barcode reader.

Any wired mouse or trackball without internal USB hub or composite device functions;

USB hub and composite devices are allowed as TOE can filter USB endpoints (if at least one endpoint is a keyboard or mouse HID class).

Assurance Activity Report v1.0

Authorized Protocols

USB

USB

Page 36

Belkin Secure KM Switch

Audio out

In such case TOE will disable all other endpoints;

PS/2 mouse;

Touch-screen;

Multi-touch or digitizer;

KVM extender.

Analog amplified speakers;

Analog headphones;

Digital audio appliance.

Note that the use of analog microphone or line-in audio devices is strictly prohibited.

Analog audio output;

Digital audio (for example SPDIF);

Digital audio embedded inside the video.

Assurance Activity

The evaluator shall verify that the TSS describes the allowed devices for each peripheral port type. The description does not need to include brand or model information, but must provide the following information: a. Whether or not the USB keyboard and USB mouse console ports are interchangeable or may be combined into one port (composite USB device); b. Whether or not PS/2 keyboard and mouse console ports are supported. c. What types of authentication devices (e.g., smart card, CAC, token, biometric reader) are supported, how they are identified, and whether or not the TOE enables configurable user authentication device profiling

(filtering); [Not applicable for the TOE] d. What audio out devices types are supported; and e. What user display interface protocols are supported by the TOE?

If hub and composite devices are permitted, the TSS must describe how the TOE filters endpoints.

The evaluator shall also verify that the TSS includes a statement indicating that the peripheral device qualification profiles cannot be changed after production.

[Conditional – Not applicable for the TOE] If the TOE supports configurable user authentication device filtering (CDF) -

Verify that the TSS provides information on how the whitelist and blacklist are loaded into the TOE and which users are authorized to load / change these parameters. (Only privileged administrators shall be authorized to perform this activity.)

The evaluator shall verify that the user guidance provides instructions for the implementation and use of all implemented connection types, and their limitations. The guidance must describe the visual indications provided to a user when a connected device is rejected.

Assurance Activity Report v1.0 Page 37

Belkin Secure KM Switch

TSS Verification

The evaluator shall verify that the TSS describes the allowed devices for each peripheral port type. The description does not need to include brand or model information, but must provide the following information: a. Whether or not the USB keyboard and USB mouse console ports are interchangeable or may be combined into one port (composite USB device);

CSC: Per the Table of authorized devices for FDP_ACF.1, the USB keyboard and USB mouse console ports are composite ports and the TOE can filter USB endpoints b. Whether or not PS/2 keyboard and mouse console ports are supported.

CSC: PS/2 Keyboard and mouse console ports are not supported for the

TOE. Only USB ports are used. From Table 20, PS/2 to USB adapter must be used for PS/2 keyboards and mice and the table in section 1.3.2.3 specifies the same. c. What types of authentication devices (e.g., smart card, CAC, token, biometric reader) are supported, how they are identified, and whether or not the TOE enables configurable user authentication device profiling

(filtering);

CSC: The Belkin KM Switch does not support User Authentication

Devices. d. What audio out devices types are supported; and

CSC: Section 7.3 of the ST identifies the security features of the audio subsystem. All TOE support audio, that “standard analog headphones and standard amplified speakers or multimedia set.” Table of 5 of the ST further clarifies the audio as analog stereo. e. What user display interface protocols are supported by the TOE?

CSC: Table 3 of the ST defines that all KM TOE are not supporting user display.

The evaluator shall also verify that the TSS includes a statement indicating that the peripheral device qualification profiles cannot be changed after production.

CSC: The Belkin KM Switch does not support User Authentication Devices.

[Conditional – Not applicable for the TOE] If the TOE supports configurable user authentication device filtering

Verify that the TSS provides information on how the whitelist and blacklist are loaded into the TOE and which users are authorized to load / change these parameters. (Only privileged administrators shall be authorized to perform this activity.)

CSC: The Belkin KM Switch does not support User Authentication Devices.

Assurance Activity Report v1.0 Page 38

Belkin Secure KM Switch

Operational Guidance Verification

The evaluator shall verify that the user guidance provides instructions for the implementation and use of all implemented connection types, and their limitations.

CSC: The User Guidance Manual has instructions for the use of all implemented connection types and their limitations on the Equipment Requirements page; their connection types and limitations are located on the Product Specifications page.

See mapping below.

Table 12: Referenced documents

Document Reference

(see document references in Section

2.1)

Instructions for Implementation and limitations.

[C]

[D]

Page 7-8

Page 10-11

The guidance must describe the visual indications provided to a user when a connected device is rejected.

CSC: If the device is detected but is not authorized, the device will be rejected for security reasons.

Testing Summary

Tests covering this SFR are tests 4.2 and 4.3 above.

Assurance Activity Report v1.0 Page 39

Belkin Secure KM Switch

4.7 FDP_RIP.1 Subset Residual information protection

FDP_RIP.1.1 [Refinement] the TSF shall ensure that any previous information content of a resource is made unavailable upon the [deallocation of the resource from] the following objects: [a TOE computer

interface]:

• Immediately after TOE switch to another selected computer;

• and on start-up of the TOE]

Assurance Activity

TSS

The TSS shall include a detailed Letter of Volatility. The evaluator shall verify that the

TSS Letter of Volatility provides at least the following information: a. It indicates which TOE components have a non-volatile memory, the nonvolatile memory technology, manufacturer and part number and memory size. b. The type of data that the TOE may store on each one of these components. c. Whether or not each one of these parts is used to store user data and how this data may remain in the TOE after power down. d. If the specific component may be independently powered by something other than the TOE (for example – by a connected computer).

The TSS must indicate whether or not the TOE has user data buffers and how these buffers are deleted when the user switches to another computer.

Note that user configuration and TOE settings are not user data and therefore may be stored in the TOE on non-volatile memory components.

Guidance

Check the user or administrative guidance for any limitations regarding transfer of the

TOE between different security levels / roles in the organization. Ensure this guidance is consistent with the claims in the Security Target.

Check that the user guidance provides a method to purge TOE memory or to Restore

Factory Default settings.

Test

Test 4.12 Residual Information Protection

Evaluator Note: See actual test below

TSS Verification

The TSS shall include a detailed Letter of Volatility. The evaluator shall verify that the

TSS Letter of Volatility provides at least the following information:

Assurance Activity Report v1.0 Page 40

Belkin Secure KM Switch a. It indicates which TOE components have a non-volatile memory, the nonvolatile memory technology, manufacturer and part number and memory size. b. The type of data that the TOE may store on each one of these components. c. Whether or not each one of these parts is used to store user data and how this data may remain in the TOE after power down. d. If the specific component may be independently powered by something other than the TOE (for example – by a connected computer).

CSC: It is stated in the Letter of Volatility through a table which components have non-volatile memory, the memory technology, manufacturer/part number/memory size and the types of data the TOE may store on each component. The text below this table further explains how data is stored and if the component may be independently powered. The Letter of Volatility is provided in

Annex C of the Security Target.

The TSS must indicate whether or not the TOE has user data buffers and how these buffers are deleted when the user switches to another computer.

Note that user configuration and TOE settings are not user data and therefore may be stored in the TOE on non-volatile memory components.

CSC: Section 7.1, bullet l, indicates that during TOE switching from one computer to another, the system controller function assures that the keyboard and mouse stacks are deleted and that the first 100 milliseconds of commands received from the keyboard after switching are ignored (deleted).

Operational Guidance Verification

Check the user or administrative guidance for any limitations regarding transfer of the

TOE between different security levels / roles in the organization. Ensure this guidance is consistent with the claims in the Security Target.

CSC: Guidance does not provide specific limitations regarding transfer of the

TOE between different security levels/roles in the organization.

Check that the user guidance provides a method to purge TOE memory or to Restore

Factory Default settings.

CSC: All user Guidance describe a ‘Restore-to-Default’ function, it describes

“product boots after Restore-to-Default, the active channel will be #1 and settings will be reset to default erasing all user-set definitions.” There is also picture evidence indicating where the ‘Restore-to-Default’ function is on each device.

Assurance Activity Report v1.0 Page 41

Belkin Secure KM Switch

Document Reference

Table 13: Referenced documents

(see document references in Section 2.1)

[C]

[D]

Page 10 bullet 2

Page 4 bullet 2

Testing Summary

Test 4.12 –

Residual

Information

Protection

All TOEs tested have a letter of volatility assuring that no user data remains in the TOE after power down.

After confirming the character repeat was set to the highest possible Notepad was used to continuously press the Letter “a” to capture nothing but “aaaaaaaaaaaaaaaaaaaa…” across the Notepad session. Changing to PC-2 and verifying there was no “a” on it’s’ session of its own Notepad, then repeating the process but holding down the letter “b”.

No letter of previous displayed PC was seen on current displayed PC.

All steps resulted in the expected findings.

The following image illustrates the Notepad session on PC -1 :

Assurance Activity Report v1.0 Page 42

Belkin Secure KM Switch

4.8 FPT_PHP.1 Subset Residual information protection

FPT_PHP.1.1 The TSF shall provide unambiguous detection of physical tampering that might compromise the TSF.

FPT_PHP.1.2 The TSF shall provide the capability to determine whether physical tampering with the TSF's devices or TSF's elements has occurred.

Assurance Activity

TSS

The evaluator shall verify that the TSS indicates that the TOE provides unambiguous detection of physical tampering. The evaluator shall verify that the TSS provides information that describes how the TOE indicates that it has been tampered with and how these indications cannot be turned on by the TOE user.

Guidance

The evaluator shall verify that the user guidance describes the mechanism by which the

TOE provides unambiguous detection of physical tampering and provides the user with instructions for verifying that the TOE has not been tampered with.

Test

The test for this SFR combined with the ant-tampering function testing. See test 4.13 (Test

#13) in page 49 below.

TSS Verification

The evaluator shall verify that the TSS indicates that the TOE provides unambiguous detection of physical tampering.

CSC: Section 7.5 of the ST indicates two non-ambiguous physical detection mechanisms the switches use to detect evidence of tampering. a)

The switches use ‘Tampering Evident Labels’ (TEL) located in on the

TOE enclosure. Any attempt to access the TOE internal circuitry would cause permanent visible damage to one or more TEL. Each label is numbered with unique number that recoded by the manufacturer during

TOE production. b) There is an always-on anti-tampering system mechanically coupled to the

TOE enclosure to detect and attempt to access the TOE internal circuitry.

Once triggered by physically attempting to open the enclosure or depleting/failing the battery causes the anti-tampering function to trigger and the TOE will become permanently disabled. The TOE cannot be recovered.

The evaluator shall verify that the TSS provides information that describes how the TOE indicates that it has been tampered with and how these indications cannot be turned on by the TOE user.

Assurance Activity Report v1.0 Page 43

Belkin Secure KM Switch

CSC: Section 7.5 indicates, “All TOE interfaces and user functions are disabled and proper user indications are shown through sequentially blinking front panel

LEDs.” when the TOE has been tampered with.

Operational Guidance Verification

The evaluator shall verify that the user guidance describes the mechanism by which the

TOE provides unambiguous detection of physical tampering and provides the user with instructions for verifying that the TOE has not been tampered with.

CSC: All the user manuals provided for the evaluation describe the use of tamper evident labels and the always-on anti-tampering system. All manuals describe how user can determine from these mechanisms the switch has been tampered with. The manuals provide a pictorial description of what an untampered tamper label will look like. See the table below for where each is described in the manuals. The manuals state the indication for a tampered state as all LEDs blinking.

Document Reference

(see document references in Section 2.1)

Table 14: Referenced documents

Tamper evident labels Determining tamper evident labels tampered with

[C]

[D]

Page 11

Page 7

Page 11; page 23

Page 2; page 7

Testing Summary

CSC: Test Combined with FPT_PHP.3 as per the Assurance Activity.

Assurance Activity Report v1.0 Page 44

Belkin Secure KM Switch

4.9 FPT_PHP.3 Subset Residual information protection

FPT_PHP.3.1 [Refinement] The TSF shall resist [a physical attack on the TOE for the purpose of gaining access to the internal components, or to damage the anti-tampering battery] to the [TOE Enclosure] by responding automatically such that the SFRs are always enforced

becoming permanently disabled.

Assurance Activity

TSS

The evaluator shall verify that the TSS describes the TOE’s reaction to opening the device enclosure, or damaging/exhausting the anti-tampering battery associated with the enclosure.

Guidance

The evaluator shall verify that the user guidance warns the user of the actions that will cause the anti-tampering functionality to disable the device.

Guidance shall also include a clear description of the anti-tampering triggering user indications.

Test

Test 4.13 Tampered TOE is permanently disabled and properly isolated

Evaluator Note: See actual test below

TSS Verification

The evaluator shall verify that the TSS describes the TOE’s reaction to opening the device enclosure, or damaging/exhausting the anti-tampering battery associated with the enclosure.

CSC: Section 7.5 indicates there is an always-on anti-tampering system mechanically coupled to the TOE enclosure to detect and attempt to access the

TOE internal circuitry. Once triggered by physically attempting to open the enclosure or depleting/failing the battery causes the anti-tampering function to trigger and the TOE will become permanently disabled. The TOE cannot be recovered.

Operational Guidance Verification

The evaluator shall verify that the user guidance warns the user of the actions that will cause the anti-tampering functionality to disable the device.

CSC: All user manuals provide a clear warning that states, “Important: This product is equipped with always-on active anti-tampering system. Any attempt to open the product enclosure will activate the anti-tamper triggers and render the unit inoperable and warranty void.” See the table below for page reference for the warning.

Assurance Activity Report v1.0 Page 45

Belkin Secure KM Switch

Table 15: Referenced documents

Document Reference

(see document references in

Section 2.1)

Tamper evident label warning

Determining tampering active

[C]

[D]

Page 11

Page 7 system

Page 11; page 23

Page 2; page 7

Guidance shall also include a clear description of the anti-tampering triggering user indications.

CSC: As stated in FPT_PHP.1, the indication for a tampered state as all LEDs blinking.

Table 16: Referenced documents

Document Reference

(see document references in Section 2.1)

Determining tampering system active

[C]

[D]

Page 11

Page 2

Testing Summary

Test 4.13 -

Tampered TOE is permanently disabled and properly

Isolated

In the following test the evaluator shall attempt to gain physical access to the TOE internal circuitry

(Enough access to allow the insertion of tools to tamper with the internal circuitry). The TOE anti-tampering function is expected to trigger, causing an irreversible change to the TOE functionality.

The evaluator then shall verify that the anti-tampering triggering provides the expected user indications and also

As set forth in the PP, the evaluator ensured each TOE had at least one tampering label attached between the front panel plastic bezel and the aluminum metal enclosure.

Test Setup Part

Test 4.13 - Tampered TOE is permanently disabled and properly isolated

1

2

3

Part – 1, Steps 1 thru 3 of the PP, resulted in the following:

The following image is a sample of those TOEs tested:

C

Assurance Activity Report v1.0 Page 46

Belkin Secure KM Switch disables the TOE.

TOE disabling means that the user would not be able to use the TOE for any purpose – all peripheral devices and computers are isolated.

Note that it is obvious that if the

TOE was physically tampered with, then the attacker may easily circumvent the tamper indication means

(for example cut the relevant TOE front panel wires).

Nevertheless, the following test verifies that the user would be unable to ignore the

TOE tampering indications and resume normal work.

The tamper label is clearly visible and in the non-tampered condition.

The second image displays the tampered state of the label removal/cut:

Part 2 – steps 4 and 5 of the PP, required the evaluator to ensure that the anti-tampering is permanent. The removal of the anti-tamper label, as evident in the image above, is permanent. When the evaluator attempted to gain access to any tested TOE there was an audible click or cracking sound dependent upon which TOE was being testing. No

TOE had accessible settings that could reset the TOE to a functional state.

Part -3, steps 6 thru 9 of the PP, the evaluator verified the TOE behavior conformed to the data isolation requirements once the device was tampered. All TOEs resulted in non-functional devices. The TOEs displayed either flashing lights, or clicking sounds with no switch function working nor keyboard or mouse functionality. If the TOE supported audio a load clicking in sequence with the flashing PC selection indicator could be heard.

All tests performed on all TOEs resulted in the expected fashion. No TOE failed.

Assurance Activity Report v1.0 Page 47

Belkin Secure KM Switch

4.10 FPT_FLS.1 Failure with preservation of secure state

FPT_FLS.1.1 The TSF shall preserve a secure state by disabling the TOE when the following types of failures occur: [failure of the power on selftest, failure of the anti-tampering function].

Assurance Activity

Assurance Activities for this SFR were integrated with the TSF Testing Assurance

Activities below.

TSS Verification

The evaluator shall verify that the TSS describes the secure state when the failure of the power on self-test and failure of the anti-tampering function occur.

CSC: It is stated in Section 7.6, TOE Self-testing, that if the self-testing function has failed, the TOE will provide proper user indications and will disable normal operation.

In Section 7.5, when the anti-tampering mechanism is triggered, “all TOE interfaces and user functions are disabled and proper user indications are shown through sequentially blinking front panel LEDs.” when the TOE has been tampered with.”

Operational Guidance Verification

The evaluator shall verify that the guidance describes the secure state when the failure of the power on self-test and failure of the anti-tampering function occur.

CSC: All user guidance state a precaution in case of self-test failure, “As product powers-up it performs a self-test procedure. In case of self- test failure for any reason, including jammed buttons, the product will be Inoperable. Self-test failure will be indicated by the following abnormal LED behavior: a. All channel-select LEDs will be turned ON and then OFF; b. A specific, predefined LED combination will be turned ON; c. The predefined LED combination will indicate the problem type (jammed buttons, firmware integrity).

Try to power cycle product. If problem persists please contact your system administrator or technical support.”

Table 17: Referenced documents

Document Reference

(see document references in Section 2.1)

Self-Test and Anti-Tampering

Failure

[C]

[D]

Page 10, bullet 1 & 6

Page 4, bullet 1 & 6

Assurance Activity Report v1.0 Page 48

Belkin Secure KM Switch

Testing Summary

CSC: FPT_PHP.3, Test 4.13, showed the tampered TOE is permanently disabled and properly isolated.

4.11 FPT_TST.1 TSF testing

FPT_TST.1.1 [Refinement] the TSF shall run a suite of self-tests that includes as minimum: a. Test of the basic TOE hardware and firmware integrity; and b. Test of the basic computer-to-computer isolation; and

FPT_TST.1.2

FPT_TST.1.3 c. Test of critical security functions (i.e., user control and antitampering).

[During initial startup, [upon reset button activation]] to demonstrate the correct operation of [the TSF].

The TSF shall provide users with the capability to verify the integrity of [the TSF functionality].

The TSF shall provide users with the capability to verify the integrity of [the TSF].

Assurance Activity

TSS

The evaluator shall verify that the TSS describes the self- tests that are performed on start up or on reset (if a reset function is available). The evaluator shall verify that the self-test covers at least the following: a) a basic integrity test of the TOE hardware and firmware (for example, memory testing and firmware checksum compare); b) a test of the computer interfaces’ isolation functionality (for example, generating data flow on one port and checking that it is not received on another port); c) a test of the user interface – in particular tests of the user control mechanism (for example checking that the front panel push-buttons are not jammed); and d) a test of the anti-tampering mechanism (for example checking that the backup battery is functional).

The evaluator shall verify that the TSS describes how the TOE ensures a shutdown upon a self-test failure or a failed anti-tampering function. If there are instances when a shutdown does not occur (e.g., a failure is deemed non-security relevant), those cases are identified and a rationale is provided explaining why the TOE’s ability to enforce its security policies is not affected.

The evaluator shall check the TSS to verify that it describes the TOE behavior in case of selftest failure. The evaluator shall verify that the described TOE behavior includes shutting down the PSS functionality once the failure is detected.

Assurance Activity Report v1.0 Page 49

Belkin Secure KM Switch

Guidance

The evaluator shall verify that the user guidance: a. describes how the results of self-tests are indicated to the user; b. provides the user with a clear indication of how to recognize a failed selfc. test; and details the appropriate actions to be completed in response to a failed selftest.

The evaluator shall verify that the user / administrative guidance provide adequate information on TOE self-test failures, their causes and their indications.

Test

Test 4.14 Self-Test Pass and Fail

Evaluator Note: See actual test below

TSS Verification

The evaluator shall verify that the TSS describes the self-test that are performed on start up or on reset (if a reset function is available).

CSC: Section 7.6 describes to power-up self-tests the TOE performs.

The evaluator shall verify that the self-test covers at least the following: a) a basic integrity test of the TOE hardware and firmware (for example, memory testing and firmware checksum compare); b) a test of the computer interfaces’ isolation functionality (for example, generating data flow on one port and checking that it is not received on another port); c) a test of the user interface – in particular tests of the user control mechanism (for example checking that the front panel push-buttons are not jammed); and d) a test of the anti-tampering mechanism (for example checking that the backup battery is functional).

CSC: It is stated in the ST, Section 7.6 bullet b, the self-testing function checks the integrity of the TOE microcontrollers firmware, the anti-tampering function, and the control functions, which satisfies bullets a,c and d above.

It is additionally stated in bullet c of Section 7.8 in the ST the self-test function tests “computer ports isolation by running test packets at different interfaces and attempting to detect traffic at all other interfaces.”

The evaluator shall verify that the TSS describes how the TOE ensures a shutdown upon a self-test failure or a failed anti-tampering function. If there are instances when a shutdown does not occur (e.g., a failure is deemed non-security relevant), those cases are identified and a rationale is provided explaining why the TOE’s ability to enforce its security policies is not affected.

CSC: Section 7.6 (Self Tests) or Section 7.5 (Anti-Tampering) of the ST does not indicate any situations where the TOE does not become disabled on failure of a

Assurance Activity Report v1.0 Page 50

Belkin Secure KM Switch self-test or triggering the anti-tampering function. Both sections indicate how the

TOE responds by sequentially blinking front panel LEDs.

The evaluator shall check the TSS to verify that it describes the TOE behavior in case of selftest failure. The evaluator shall verify that the described TOE behavior includes shutting down the PSS functionality once the failure is detected.

CSC: Along with what was previously stated, Section 7.6 bullet a states when a self-test fails the TOE, “will disable normal operation while isolating all / or affected peripheral devices and connected computers.”

Operational Guidance Verification

The evaluator shall verify that the user guidance: a. describes how the results of self-tests are indicated to the user; b. provides the user with a clear indication of how to recognize a failed selftest; and c. details the appropriate actions to be completed in response to a failed selftest.

CSC: Each User Guidance document provides the user with a clear indication of how to recognize a failed self-test, “after product boots up, the default active channel will be channel #1. This will be indicated by white color illumination of push-button #1.” As well as the appropriate actions to be completed if a failed self-test occurs.

Document Reference

Table 18: Referenced documents

(see document references in Section 2.1)

Actions in response to failed selftest

[C]

[D]

Page 10, bullet 1 & 2

Page 4, bullet 1 & 2

The evaluator shall verify that the user / administrative guidance provide adequate information on TOE self-test failures, their causes and their indications.

CSC: It is stated in each User Guidance Manual, “in case of self- test failure for any reason, including jammed buttons, the product will be inoperable.” It is further explained in above the indications of how to recognize a self-test failure.

All information can be found in mapping above.

Testing Summary

Test 4.14 Self-Test

Pass and Fail

In this test the evaluator shall cause a TOE selftest failure to verify that the TOE responds by

Test 4.14 - Self-Test Pass and Fail

Test Setup Part E

-

Pressing two selections while the TOE is powering up renders the TOE unusable until the TOE is rebooted without any selections being depressed. Power up the TOE while card is inserted or button is pressed – self-test failed. TOE beeps loudly and all LEDs are illuminating.

Assurance Activity Report v1.0 Page 51

Belkin Secure KM Switch disabling normal functions and providing proper user indications.

The evaluator shall also attempt to remove / disconnect the anti-tampering battery to check that the TOE indicates that it has been tampered with.

The image above shows the TOE after it was being powered-on while holding computer #2 push-button (see Test 4.14 Step 4). TOE entered self-test failed mode as expected.

Removing the TOE anti-tampering battery and reinstalling it resulted in the same effect as opening the device, the TOE became unusable.

All TOEs tested performed as expected.

Assurance Activity Report v1.0 Page 52

Belkin Secure KM Switch

4.12 FTA_CIN_EXT.1 Extended: Continuous Indications

FTA_CIN_EXT.1.1 The TSF shall display a continuous visual indication of the computer to which the user is currently connected, including on power up, [on reset].

Assurance Activity

TSS

The evaluator shall verify that the TSS describes how the switch behaves on power up.

The TSS must indicate whether or not the TOE has a reset option and, if so, the TSS shall describe how the switch behaves when this option is exercised.

Guidance

The evaluator shall verify that the user guidance notes which computer port group will be connected on TOE power up or recovery from reset, if this is an option. Where a reset option is available, use of this feature must be described in the user guidance.

Test

Test 4.15 – Power up defaults, Continuous Indications and Single Control

Evaluator Note: See actual test below

TSS Verification

The evaluator shall verify that the TSS describes how the switch behaves on power up.

CSC: In Section 7.4, bullets g and h identify the visual indicators during the power up and self-test sequences during power up. The bullets state, “ g. The communication, configuration and integrity of the TOE front panel are being tested during power up self-testing. During power up until the TOE successfully passed the self-test, no channel is selected and therefore no TOE state provided to the user. h. After self-test passed at all times that the TOE is operative, front panel indications are provided and cannot be turned off or dimmed by the user in any way.”

The TSS must indicate whether or not the TOE has a reset option and, if so, the TSS shall describe how the switch behaves when this option is exercised.

CSC: Bullet i of Section 7.4 states all switches have a “Restore to Factory

Default recessed switch” and the bullet further explains the behavior of the switch when the button is pressed during normal operation.

Operational Guidance Verification

The evaluator shall verify that the user guidance notes which computer port group will be connected on TOE power up or recovery from reset, if this is an option. Where a reset option is available, use of this feature must be described in the user guidance.

CSC: Each User Manual describes the power up setup, in which it states which port group will be connected on TOE when powering up, “By default, after

Assurance Activity Report v1.0 Page 53

Belkin Secure KM Switch product power-up, the active channel is #1. Product Restore-to-Default function is available via physical controls and/or keyboard shortcuts. When product boots after Restore-to-Default, the active channel will be #1 and settings will be reset to default erasing all user-set definitions.”

Document Reference

Table 19: Referenced documents

Log Functions

(see document references in Section 2.1)

[C]

[D]

Page 10, bullet 2

Page 4, bullet 2

Testing Summary

Test 4.15 – Power

Up Defaults,

Continuous

Indications and

Single Control

In this test the evaluator shall verify that the TOE power up default settings are consistent with the user guidance. If the TOE defaults are affected by the

TOE configuration, then each available configuration shall be tested.

The evaluator shall also check that the

TOE provides proper consistent indication of each peripheral device group selected.

Indications shall be always on.

Test Setup Part

Test 4.15 – Power Up Defaults, Continuous Indications and Single

Control

-

All tested TOEs operated as specified in their corresponding User Guidance.

Belkin 4-port KM – Default after power up is PC 1 (image below)

E

No TOE operated outside specification described in its corresponding user guidance.

Assurance Activity Report v1.0 Page 54

Belkin Secure KM Switch

4.13 FAU_GEN.1: Audit Data Generation

FAU_GEN.1.1 The TSF shall be able to generate an audit record of the following auditable events:

FAU_GEN.1.2 a) Start-up and shutdown of the audit functions; b) All auditable events for the [not specified] level of audit; and c) [administrator login, administrator logout, and [assignment: all administrative functions claimed in FMT_MOF.1 and

FMT_SMF.1]]

The TSF shall record within each audit record at least the following information: a) Date and time of the event, type of event, subject identity (if applicable), and the outcome (success or failure) of the event; and b) For each audit event type, based on the auditable event definitions of the functional components included in the PP/ST,

[no other information].

Assurance Activity

TSS

The evaluator shall verify that the TSS describes the audit functionality including which events are audited, what information is saved in each record type, how the records are stored, the conditions in which audit records are overwritten, and the means by which the audit records may be read. Although the TOE may provide an interface for an administrator to view the audit records, this is not a requirement.

Test

The evaluator shall perform each of the auditable functions to succeed, and where possible, to fail. The evaluator shall use the means described in the TSS to access the audit records and verify that each of the events has been recorded, with all of the expected information.

TSS Verification

The evaluator shall verify that the TSS describes the audit functionality including which events are audited, what information is saved in each record type, how the records are stored, the conditions in which audit records are overwritten, and the means by which the audit records may be read.

CSC: Section 7.6 of the ST describes what events are audited and their stored location. There are events stored in a critical log area and non-critical log area.

Critical events include product registration information, anti-tampering arming event and all tampering events detected (may be more than one, last admin log-on information and last self-test failure information. The non-critical events are administrator log in and changes made, changes in administrator password, rejection of USB devices, and self-test failures downloading, and power up and down cycles.

Assurance Activity Report v1.0 Page 55

Belkin Secure KM Switch

The critical log is never overwritten or deleted. The non-critical log can store 32 lines of records. The oldest record is overwritten by new records when the log is full.

The section describes three methods in which the audit records may be read or viewed.

Although the TOE may provide an interface for an administrator to view the audit records, this is not a requirement.

Operational Guidance Verification

The evaluator shall verify that the guidance describes the audit functionality including which events are audited, what information is saved in each record type, how the records are stored, the conditions in which audit records are overwritten, and the means by which the audit records may be read.

CSC: In the Administrator Guide on pages 8-11, provide detailed descriptions and pictures of the events audited, the information saved and stored, along with the conditions of overwritten audit records as stated; “In general the log function records all black text events and the last 40 lines of green events. After 40 green events recoded, it will overwrite first green events.”

Testing Summary

Optional Test

F.1.2 Audit Data

Generation

Optional Test F.1.2 - Audit data generation

Test Setup Part

-

E

As identified in each TOEs Administrator’s Guide the logs provide detailed data as needed. The image below is an example of the logs available from all the tested TOEs:

Assurance Activity Report v1.0 Page 56

Belkin Secure KM Switch

Administrator logged on and dumped the log to Notepad.

Sample log recovered from Test C

All TOEs tested provided this level of detail to the administrator.

4.14 FIA_UAU.2 User authentication before any action

FIA_UAU.2.1 The TSF shall require each administrator to be successfully authenticated before allowing any other TSF-mediated actions on behalf of that user.

Assurance Activity

CSC:

Optional Test

F.1.3

Administrator authentication and functions access

Optional Test F.1.3 – Administrator authentication and functions access

Test Setup Part

-

E

As identified in each TOEs Administrator’s Guide, and administrator must input a username/password to access any functions defined in FMT_MOF.1. The image shown above is an example of the log in screen for the TOE.

The image below shows an attempt to logon as an administrator with proper credentials

– attempt was successful as expected.

Assurance Activity Report v1.0 Page 57

Belkin Secure KM Switch

Test Steps

Entered administrator mode

Attempted to access the following administrative functions without administer logged on: a. Load KM settings; b. Download log; and c. Load USB filtration settings.

Attempts shall fail

(no access).

Attempted to logon without proper credentials – logon attempt shall fail.

Attempted to logon with proper credentials – logon attempt shall succeed.

Checked the above listed administrative functions to assure that access is now possible.

Checked that the failed and passed administrator logon attempts are properly logged.

Actual Results

Attempted to perform commands prior to logging on.

Attempts failed as expected. a) Could not access loading options without a prior login and entering the terminal mode. b) Could not access log functions without a prior login. c) Could not access USB filtration options without prior login.

Attempted to logon with user name “badadmin” (user does not exist) – verified. Log-on attempt failed as expected.

Verified. Log-on successful.

Verified. Terminal mode available only after administrator is authenticated.

Verified. Both events were properly logged with cause, date and time.

4.15 FIA_UID.2 User identification before any action

FIA_UID.2.1 The TSF shall require each administrator to be successfully identified before allowing any other TSF-mediated actions on behalf of that user.

Assurance Activity

CSC: Refer to FIA_UAU.2.1, Optional Test F.1.3 included identification and authentication when using management functions.

Assurance Activity Report v1.0 Page 58

Belkin Secure KM Switch

4.16 ADV_FSP.1 Basic Functional Specification

Assurance Activities:

There are no specific assurance activities associated with these SARs. The functional specification documentation is provided to support the evaluation activities described in

Section 4.2 and other activities described for AGD, and ATE SARs. The requirements on the content of the functional specification information are implicitly assessed by virtue of the other assurance activities being performed; if the evaluator is unable to perform an activity because the there is insufficient interface information, then an adequate functional specification has not been provided.

Assurance Activity Report v1.0 Page 59

Belkin Secure KM Switch

4.17 AGD_OPE.1 Operational User Guidance

Assurance Activities:

Some of the contents of the operational guidance will be verified by the assurance activities in Section 4.2 and evaluation of the TOE according to the Common Evaluation

Methodology (CEM). The following additional information is also required.

The operational guidance shall contain instructions for configuring the TOE environment to support the functions of the TOE. These instructions shall include configuration of the

TOE as well as configuration of the connected computers and peripheral devices.

Operational Guidance Verification

The operational guidance shall contain instructions for configuring the TOE environment to support the functions of the TOE. These instructions shall include configuration of the

TOE as well as configuration of the connected computers and peripheral devices.

CSC: All User Guidance have Before Installation procedures and Installation procedures that include configuration of the TOE and configuration of the connected computers and peripheral devices.

Document Reference

Table 20: Referenced documents

Isolation

(see document references in Section 2.1)

[C]

[D]

4.18 AGD_PRE.1 Preparative Procedures

Page 14-20

Page 16-23

Assurance Activities:

The evaluator shall check to ensure that the guidance provided for the TOE adequately addresses the computer platforms and peripheral devices claimed for the TOE in the ST.

Operational Guidance Verification

The evaluator shall check to ensure that the guidance provided for the TOE adequately addresses the computer platforms and peripheral devices claimed for the TOE in the ST.

CSC: User Guidance manuals have an ‘Equipment Requirement’ page which details the computer platforms and peripheral devices for the TOE’s claimed in the ST.

Table 21: Referenced documents

Document Reference

(see document references in Section 2.1)

Computer platforms and peripheral devices claimed

[C]

[D]

Assurance Activity Report v1.0

Page 7-8

Page 10-12

Page 60

Belkin Secure KM Switch

4.19 ATE_IND.1 Independent Testing - Conformance

Assurance Activities:

The evaluator shall prepare a test plan and report documenting the testing aspects of the system. The test plan covers all of the testing actions contained in the CEM and the body of this PP’s Assurance Activities. While it is not necessary to have one test case per test listed in an Assurance Activity, the evaluator must document in the test plan that each applicable testing requirement in the PP is covered.

The test plan identifies the platforms to be tested, and for those platforms not included in the test plan but included in the ST, the test plan provides a justification for not testing the platforms. This justification must address the differences between the tested platforms and the untested platforms and make an argument that the differences do not affect the testing to be performed. It is not sufficient to merely assert that the differences have no affect; rationale must be provided. If all platforms claimed in the ST are tested, then no rationale is necessary.

The test plan describes the composition of each platform to be tested and any setup that is necessary beyond what is contained in the AGD documentation. It should be noted that the evaluator is expected to follow the AGD documentation for installation and setup of each platform either as part of a test or as a standard pre-test condition. This may include special test equipment or tools. For each piece of equipment or tool, an argument (not just an assertion) should be provided that the equipment or tool will not adversely affect the performance of the functionality by the TOE and its platform.

The test plan identifies high-level test objectives as well as the test procedures to be followed to achieve those objectives. These procedures include expected results. The test report (which could just be an annotated version of the test plan) details the activities that took place when the test procedures were executed, and includes the actual results of the tests. This shall be a cumulative account, so if there was a test run that resulted in a failure; a fix installed; and then a successful re-run of the test, the report would show a

“fail” and “pass” result (and the supporting details), and not just the “pass” result.

Testing Summary

While it is not necessary to have one test case per test listed in an Assurance Activity, the evaluator must document in the test plan that each applicable testing requirement in the

PP is covered.

CSC: The test cases conducted in testing were organized exactly as presented in the PP. For example, test case 4.1 in the actual testing replicates exactly test case

4.1 from the PP, including all test steps presented in the PP.

The test plan describes the composition of each platform to be tested and any setup that is necessary beyond what is contained in the AGD documentation. It should be noted that the evaluator is expected to follow the AGD documentation for installation and setup of each platform either as part of a test or as a standard pre-test condition.

CSC: Sections 3.2 and 3.3 of this document describe each platform tested, what tools and what setup was necessary for that platform.

Assurance Activity Report v1.0 Page 61

Belkin Secure KM Switch

This may include special test equipment or tools. For each piece of equipment or tool, an argument (not just an assertion) should be provided that the equipment or tool will not adversely affect the performance of the functionality by the TOE and its platform.

CSC: The Test Report identifies how test tools were used during testing in the annexes of the test report.

The test plan identifies high-level test objectives as well as the test procedures to be followed to achieve those objectives. These procedures include expected results. The test report (which could just be an annotated version of the test plan) details the activities that took place when the test procedures were executed, and includes the actual results of the tests. This shall be a cumulative account, so if there was a test run that resulted in a failure; a fix installed; and then a successful re-run of the test, the report would show a

“fail” and “pass” result (and the supporting details), and not just the “pass” result.

CSC: The actual test cases executed are provided in a separate document. The testing is replicated from the PP along with all actual results from the testing.

Each of the assurance activities in the SFRs above provide a summarization of the testing conducted along with a sample of pictures of important test steps to show representation of how testing was conducted.

Assurance Activity Report v1.0 Page 62

Belkin Secure KM Switch

4.20 ALC_CMC.1 Labeling of the TOE

Assurance Activities:

The evaluator shall check the ST to ensure that it contains an identifier (such as a product name/version number) that specifically identifies the version that meets the requirements of the ST. Further, the evaluator shall check the AGD guidance and TOE samples received for testing to ensure that the version number is consistent with that in the ST. If the vendor maintains a web site advertising the TOE, the evaluator shall examine the information on the web site to ensure that the information in the ST is sufficient to distinguish the product.

Additionally, the evaluator shall verify that the labels required by FPT_PHP.1 are present and intact, as follows:

1)

2)

3)

The TOE is labeled with at least one unique identifying tamper-evident marking (such as unique serial number) that can be used to authenticate the device.

Tamper evident labels have been placed in critical locations on the TOE enclosure to assure that any attempt to open the enclosure enough to gain access to its internal components will change at least one label to a tampered state.

At least one tamper evident label is placed in a location that will be visible to the user operating the TOE.

TSS Verification

The evaluator shall check the ST to ensure that it contains an identifier (such as a product name/version number) that specifically identifies the version that meets the requirements of the ST.

CSC: In the ST, Table 2 in Section 1.3.2.1 identifies every switch in the evaluation along with a unique part number and unique evaluation version

(33333-C4C4).

Operational Guidance Verification

Further, the evaluator shall check the AGD guidance and TOE samples received for testing to ensure that the version number is consistent with that in the ST.

CSC: Each of the switches delivered to the user has a switch version number stamped on a plate. The version number is the same format in the ST.

Additionally the samples delivered to the lab for testing were verified against the

ST. The picture below is an example of the F1DN104K-3 Switch with a version of 30333-00C4, which matches row 3 on table 2 of the ST for the switch. The test report contains pictures of all version of switches provided for testing.

Assurance Activity Report v1.0 Page 63

Belkin Secure KM Switch

Belkin F1DN104K-3 KM TOE product nameplate

If the vendor maintains a web site advertising the TOE, the evaluator shall examine the information on the web site to ensure that the information in the ST is sufficient to distinguish the product.

CSC: The ST specifies in Section 1.5 Overview “All documentation delivered with the product or available for download from Belkin’s website is relevant to and within the scope of the TOE – for additional information see paragraph 1.4.1 above. Link to documentation: http://belkinbusiness.com/secure-kvm-products

Testing Summary

Additionally, the evaluator shall verify that the labels required by FPT_PHP.1 are present and intact, as follows:

1)

2)

3)

The TOE is labeled with at least one unique identifying tamper-evident marking (such as unique serial number) that can be used to authenticate the device.

Tamper evident labels have been placed in critical locations on the TOE enclosure to assure that any attempt to open the enclosure enough to gain access to its internal components will change at least one label to a tampered state.

At least one tamper evident label is placed in a location that will be visible to the user operating the TOE.

CSC: The picture provided in Test 4.13 for FPT_PHP shows an example of the tamper evident labels placed on the TOE. It clearly shows the tamper evident label is clearly visible and on a critical spot on the switch where two plastic covers come together. The following pictures are further examples of tamper evident labels clearly showing a serial number:

Assurance Activity Report v1.0 Page 64

Belkin Secure KM Switch

Belkin F1DN104K-3 KM TOE - Tamper Evident Label positioned between the front panel bezel and the aluminum enclosure

Assurance Activity Report v1.0 Page 65

Belkin Secure KM Switch

4.21 ALC_CMS.1 TOE CM Coverage

Assurance Activities:

The “evaluation evidence required by the SARs” in this PP is limited to the information in the ST coupled with the guidance provided to administrators and users under the AGD requirements. By ensuring that the TOE is specifically identified and that this identification is consistent in the ST and in the AGD guidance (as done in the assurance activity for ALC_CMC.1), the evaluator implicitly confirms the information required by this component.

Assurance Activity Report v1.0 Page 66

Belkin Secure KM Switch

5 Conclusions and Recommendations

The overall verdict for the evaluation is PASS, hence, it is concluded that the TOE in its evaluated configuration meets all Peripheral Switch Protection Profile requirements.

The evaluators recommend that the consumers of this product understand and use all of the appropriate secure configuration requirements recommended in each of the user guidance documents provided to ensure that the secure configuration is achieved.

Assurance Activity Report v1.0 Page 67

Belkin Secure KM Switch

6 List of Evaluation Evidence

1. Belkin Secure KM Security Target, version 3.27

2. Belkin Advanced Secure 2-port Flip KM PP 3.0 User Manual, Rev D

3. Belkin Secure 4/8 Port KM Switch PP 3.0 User Manual, Rev D

4. Belkin Administrator Guide, Rev C

5. Isolation Documentation Belkin Secure KVM Switch, KM, and Windowing

KVM, version 3.01

6. Letter of Volatility – Belkin Secure KM, Rev C

Assurance Activity Report v1.0 Page 68

Belkin Secure KM Switch

7 Product Compliance Listing Entry

Provided as a separate document

Assurance Activity Report v1.0 Page 69

Belkin Secure KM Switch

TDS

TOE

TSF

TSFI

TSS

IT

ITSL

NIAP

PP

SAR

SFR

ST

STCL

AC

ARC

CC

CCEVS

CEM

EAL

ETR

FSP

8 List of Acronyms/Glossary of Terms

Common Criteria specific terminology is defined in CC Part 1. Table 22 below identifies

commonly used acronyms and terminology used in the ETR that requires clear definition.

Table 22: Acronyms & terms

Term Definition

Access Control

TOE Architecture

Common Criteria

Common Criteria Evaluation Validation Scheme

Common Methodology for Information Technology Security Evaluation

Evaluation Assurance Level

Evaluation Technical Report

Functional Specification

Information Technology

IT Security Laboratory

National Information Assurance Partnership

Protection Profile

Security Assurance Requirement

Security Functional Requirement

Security Target

Security Testing and Certification Laboratory

TOE Design

Target of Evaluation

TOE Security Functionality

TSF Interface

TOE Summary Specification

Assurance Activity Report v1.0 Page 70

Belkin Secure KM Switch

9 Rationale for test coverage of multiple TOE models

This section supports the decision to test only one TOE model of the three KM TOE models listed in the ST.

The primary difference between the three KM TOE evaluated products is:

The number of ports that the KVM support – 2, 4, or 8;

All three KM TOE models are sharing the same firmware and significant similarities in the hardware designs. The development and production processes of the different models are identical.

Represented models Test

Setup

Product model

E

TOE Type

F1DN104K-3 Secure KM Switch F1DN102K-3, F1DN104K-3,

F1DN108K-3

Table 23: TOE models used for testing

Refer to the Belkin Secure KM Security Target document for a list of the claimed SFR’s.

9.1 Justification for Selection made by Belkin

The following paragraphs provide detailed explanation and rationale behind the selection of specific TOE models for testing. It should be noted that the particular PP requires the longest set of tests of any other PPs that exist today.

The proper selection of products is therefore critical to assure that full features and risks would be covered on one hand and that the scope of testing effort would be manageable on the other hand.

9.1.1 Secure KM Switch (Group E)

The model selected for testing is F1DN104K-3.

No Model Description

1

F1DN102K-3

2

● ●

Belkin secure 2-port Flip KM Switch w/audio, PP 3.0

12 F1DN104K-3

4

● ●

Belkin secure 4-port KM Switch w/audio, PP 3.0

19 F1DN108K-3

8

● ●

Belkin secure 8-port KM Switch w/audio, PP 3.0

Table 24: Belkin KM models differences coverage

Note that the first column indicating the corresponding line number in ST products table.

Assurance Activity Report v1.0 Page 71

Belkin Secure KM Switch

The KM product line is sharing the same system controller board design with different number of channels. The only significant differences between models is the number of computer channels assembled on the board (2, 4 or 8). Note that the unique enclosure related security functions are already covered by other groups (2, 4 and 8 ports).

Note that the configuration utility used to load displays configuration to all TOE models is identical (not evaluated but used for testing).

Therefore the selection of the F1DN104K-3 model for testing provides the best coverage of the three KM TOE models. All security functions are covered by this selected device.

Assurance Activity Report v1.0 Page 72

Belkin Secure KM Switch

9.2 Summary

Overall the current selection of products for each group provides good coverage of all required functions:

9.2.1 Number of ports / enclosures

Ports

4

Covered by Groups

E

Table 25: Number of ports coverage

9.2.2 Operation Mode

Op. Mode

KM

Covered by Groups

E

Table 26: Operation mode coverage

Assurance Activity Report v1.0 Page 73

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
