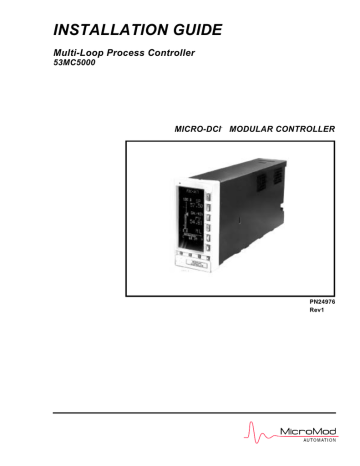

MicroMod 53MC5000 Installation Guide

INSTALLATION GUIDE

Multi-Loop Process Controller

53MC5000

MICRO-DCI

MODULAR CONTROLLER

PN249

76 Rev1

MicroMod Automation, Inc.

The Company

MicroMod Automation is dedicated to improving customer efficiency by providing the most ost-effective, application-specific process solutions available. We are a highly responsive, application-focused company with years of expertise in control systems design and implementation.

We are committed to teamwork, high quality manufacturing, advanced technology and unrivaled service and support.

The quality, accuracy and performance of the Company's products result from over 100 years experience, combined with a continuous program of innovative design and development to incorporate the latest technology.

Use of Instructions

Warning. An instruction that draws attention to the risk of injury or death.

Note. Clarification of an instruction or additional information.

the product, process or surroundings.

Information. Further reference for more detailed information or technical details.

Although Warning hazards are related to personal injury, and Caution hazards are associated with equipment or property damage, it must be understood that operation of damaged equipment could, under certain operational conditions, result in degraded process system performance leading to personal injury or death. Therefore, comply fully with all Warning and Caution notices.

Information in this manual is intended only to assist our customers in the efficient operation of our equipment. Use of this manual for any other purpose is specifically prohibited and its contents are not to be reproduced in full or part without prior approval of MicroMod

Automation, Inc.

Licensing, Trademarks and Copyrights

MOD 30 and MOD 30ML are trademarks of MicroMod Automation, Inc.

Health and Safety

To ensure that our products are safe and without risk to health, the following points must be noted:

The relevant sections of these instructions must be read carefully before proceeding.

1. Warning Labels on containers and packages must be observed.

2. Installation, operation, maintenance and servicing must only be carried out by suitably trained personnel and in accordance with the information given or injury or death could result.

3. Normal safety procedures must be taken to avoid the possibility of an accident occurring when operating in conditions of high

4. pressure and/or temperature.

5. Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry. Normal safe handling procedures must be used.

When disposing of chemicals, ensure that no two chemicals are mixed.

Safety advice concerning the use of the equipment described in this manual may be obtained from the Company address on the back cover, together with servicing and spares information.

All software, including desi gn, appearance, algorithms and source co des, is copyrighted by MicroMod Automation, Inc. and is owned by MicroMod Automation or its suppliers.

MODULAR CONTROLLER QUICK START i

1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.1 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 USING THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1

1.3 MODEL NUMBER BREAKDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

2.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 LOCATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.3 MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.3.1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.3.2 MOUNTING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.4 INTERCONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.1 PREPARATORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.2 WIRING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.2.1 POWER INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.2.1.1 DC Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.4.2.1.2 AC Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.2.2 VOLTAGE INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.2.3 CONTACT INPUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.2.4 CURRENT OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.2.5 CONTACT OUTPUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.3 FACTORY SET CALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2.5 CORD SETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2.5.1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2.5.2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2.5.3 INTERCONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

2.6 GROUNDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

3.0 FUNCTIONALITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1 CONTROLLER FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.1.1 DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.1.1.1 ALARM ANNUNCIATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.1.1.2 ENGINEERING LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.1.2 KEY FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

3.2 ENGINEER MODE OVERLAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.2.1 PASSWORD FUNCTION PROMPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.2.2 DISPLAYING A DATAPOINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.2.3 DISPLAYING A MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.2.4 CONFIGURE A DATAPOINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.2.5 CONFIGURE A MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.3 KEYPAD ALTERNATIVES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

3.3.1 USING THE HAND HELD CONFIGURER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

3.3.1.1 SETUP OF THE HAND HELD CONFIGURER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

3.3.1.2 DISPLAYING A DATA BASE PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

3.3.1.3 CHANGING A DATA BASE PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

3.3.1.4 SETTING OR CHANGING A PASSWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

3.3.1.5 STORAGE CARTRIDGE TRANSFER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22

3.3.1.6 SAMPLE HAND HELD CONFIGURER OPERATION . . . . . . . . . . . . . . . . . . . . . . . 3-23

3.3.2 USING A PC TERMINAL EMULATOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

3.3.2.1 MICROSOFT WINDOWS HYPERTERMINAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

MODULAR CONTROLLER QUICK START

3.4 DATABASE MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

3.4.1 ANALOG INPUT MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

3.4.2 ANALOG OUTPUT MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

3.4.3 CONTACT INPUT MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31

3.4.4 CONTACT OUTPUT MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

3.4.5 EXTERNAL INPUT MODULE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

3.4.6 CONTROLLER MODULE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34

3.4.7 STATUS DISPLAY MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38

3.4.8 PARAMETER DISPLAY MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-40

3.4.9 TREND MODULES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41

3.4.10 TOTALIZER MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42

3.4.11 SYSTEM MODULE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43

4.0 FLEXIBLE CONTROL STRATEGY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1 CS 1 SINGLE LOOP STANDARD PID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1.1 CS 1 SINGLE LOOP PID CONTROLLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.1.2 SETTING UP THE STANDARD PID LOOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.1.3 CS 1 STANDARD PID FCS DISPLAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.1.4 CONTROL OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.1.4.1 REMOTE SETPOINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.1.4.2 FEEDFORWARD INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.1.4.3 OUTPUT TRACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.2 CS 20 TWO-LOOP STANDARD PID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.2.1 CS 20 TWO LOOP PID CONTROLLER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.2.2 SETTING UP THE STANDARD LOOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

4.2.3 CS-20 STANDARD PID FCS DISPLAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

4.2.4 CONTROL OPTIONS - REMOTE SETPOINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

APPENDIX A - FM APPROVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

II

READ FIRST

53MC5000 Process Control Station

WARNING

INSTRUCTION MANUALS

Do not install, maintain, or operate this equipment without reading, understanding and following the proper MicroMod Automation Inc. instructions and manuals, otherwise injury or damage may result.

Read these instructions before starting installation; save these instructions for future reference.

Contacting MicroMod Automation Inc.

Should assistance be required with any MicroMod Automation Inc. product, contact the following:

Telephone:

MicroMod Automation Inc., Rochester NY:

Phone: 1 (585)

321-9200

Fax: 1 (585)

321-9291

MicroMod Automation Inc., Southampton, PA:

Phone: 1 (215) 355-4377

Fax: 1 (215) 355-4378

E-Mail:

[email protected]

MODULAR CONTROLLER QUICK START

1.0 INTRODUCTION

1.1 DESCRIPTION

This Quick Start Guide provides the information needed to install and wire a 53MC5000 Modular

Controller with a quick and easy set up of two control strategies: CS1 Standard PID and CS20 Two

Loop Controller. This guide is designed to help the user become familiar with the 53MC5000 and to place it in service for simple applications. More detailed information on technical specifications, control strategies and communications are discussed in the 53MC5000 Instruction Bulletin.

1.2 USING THIS MANUAL

The following paragraphs briefly describe the remaining sections of this manual.

1.2.1 INSTALLATION

Section 2.0, INSTALLATION, describes the hardware requirements for mounting and wiring the

53MC5000 in a panel. This section includes a full set of dimensional and mounting drawings. The interconnections subsection describes the types of signals required for each of the input/outputs: analog (or voltage) inputs, analog (or current )outputs, contact inputs and contact outputs. Connection drawings are included for 53MC5000 controllers with the standard rear terminals on the back of the instrument or with optional cord set terminations.

For mounting in panels ............................................. see pages 2-1 to 2-5

For interconnection wiring ........................................ see pages 2-6 to 2-10

For cord set wiring .................................................... see pages 2-11 to 2-14

For grounding ............................................................ see page 2-15

1.2.2 FUNCTIONALITY

Section 3.0, FUNCTIONALITY, provides general instructions for configuring the 53MC5000 for operation. The Modular Controller database is comprised of many parameters that control or display various operational features. Each parameter is identified by a database location (e.g. A10 or

C100). The values loaded into specific database locations enable the 53MC5000 to perform its specialized functions. For convenience, database values that perform a single function have been grouped into modules. All data in the database are one of six types. The data type is identified by the first character of the database location. A full description of each module type is included in this section.This section also describes the function of the controller front panel, and the method in which front panel keys or the Hand Held Configurer can be used to input database values.

For available Function Indexes................................ see pages 3-1 to 3-2

For Front Panel operation ........................................ see pages 3-3 to 3-5

For description of parameter types ......................... see pages 3-6 to 3-8

For displaying/configuring a data point ................... see pages 3-9 to 3-10

For using the Hand Held Configurer ....................... see pages 3-11 to 3-15

For Database Modules ............................................. see pages 3-16 to 3-36

1-1

MODULAR CONTROLLER QUICK START

1.2.3 FLEXIBLE CONTROL STRATEGIES

Section 4.0, FLEXIBLE CONTROL STRATEGIES, includes all the information required to set up and place in operation a 53MC5000 Controller using the standard single and two loop control strategies (CS1 and CS20). Listed in a recipe form are all the database parameters that are used by these control strategies.

For CS1 Single Loop PID ......................................... see pages 4-1 to 4-6

For CS20 Two Loop PID .......................................... see pages 4-7 to 4-12

1-2

MODULAR CONTROLLER QUICK START

1.3 MODEL NUMBER BREAKDOWN

The following pages show the detailed breakdown of the 53MC5000B Controller Model Number

MODNUML

1-3

MODULAR CONTROLLER QUICK START

53MC5 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Base Model Number

Control Loops

One Loop

Two Loops

Four Loops

Power Requirements

AC (120/240)

DC (24)

Functional Requirements

Standard

Extended (Programmable)

Standard w/Factory Configuration

Extended w/Factory Programming

Standard w/Configuration by Subsidiary or

Field Integration

Extended w/Programming by Subsidiary or

Field Integration

Design Level

Type Bezel (Design Level "B" Only)

DIN 72 x 144 mm Bezel Lo-Resolution Display

DIN 72 x 144 mm Bezel Hi-Resolution Display

Main Rear Terminal Req.

Std. Rear Terminal

Std. Rear Terminal w/Valve Holder Connector

Cord Set Connector Board Only

Cord Set Connector Board Standard ITB

Cord Set Connector Board Cable, Standard ITB

Cord Set Connector Board w/Valve Holder Connector

Cord Set Conn. Board w/Valve Holder Conn., Std. ITB

Cord Set Conn. Board w/Valve Holder Conn., Cable,

Standard ITB

Chassis

Standard

Expansion Ready

Safety Classification

General Purpose

FM Approved: Nonincendive for Class 1, Div. 2,

Groups A,B,C & D

CSA Approved General Purpose Category Certification

Discrete I/O Option

Not Implemented

6DI/4DO Board Only

6DI/4DO Board, DI/DO ITB

6DI/4DO Board, Cable, DI/DO ITB

16DI/DO Board Only

16DI/DO Board, ITB

16DI/DO Board, cable, ITB

DDI-A HART AUX PROCESS Board Only

DDI-A HART APB, HART MODEM ITB

DDI-A HART APB, MODEM ITB, 5’ Cable

DDI-A Printer/PLC APB Only

DDI-A Printer/PLC APB, RS-232/485 ITB

DDI-A Printer/PLC APB, RS-232/485 ITB, 5’ Cable

1-4

MODNUML

MODULAR CONTROLLER QUICK START

53MC5 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Dual Relay ITB

Not Implemented

One ITB

Two ITB’s

Three ITB’s

Analog I/O Option

Not Implemented

Single Channel Analog Input Bd Only

Multi-Channel Analog I/O Board

Multi-Channel Analog I/O Board, Analog ITB

Multi-Channel Analog I/O Board, Cable, Analog ITB

Multi-Channel Analog I/O Board/HART Option

Multi-Channel Analog I/O Board/HART, HART ITB

Multi-Channel Analog I/O Board/HART, HART ITB, 5’ Cable

Analog Conditioning

Not Implemented

0-20 mA

0-5V

RTD 100 Ohm, -100 o

C to +100

Type J, 0 to +760 o

Type T, 0 to +200 o

C o

Comm A Option

Not Implemented

Cable Only

Communication ITB Only

Cable, Communications ITB

Microlink A Communications Board Only

Microlink A Communications Board, Cable

Microlink A Communications Board, Cable, Communications ITB

Comm B Option

Not Implemented

Microlink B

DDI-B HART AUX PROCESS Board Only

DDI-B HART APB, HART MODEM ITB

DDI-B HART APB, HART MODEM, 5’ Cable

DDI-B Printer/PLC APB Only

DDI-B Printer/PLC APB, RS-232/485 ITB

DDI-B Printer/PLC APB, RS-232/485 ITB, 5’ Cable

Conformal Coating

Not Required

Required

MODNUML

1-5

MODULAR CONTROLLER QUICK START

2.0 INSTALLATION

2.1 INSPECTION

An itemized list of all items in the shipment is attached to the shipping container. Inspect the equipment upon arrival for damage that may have occurred during shipment. All damage claims should be reported to the responsible shipping agent before installation is attempted. If damage is such that faulty operation is likely to result, the

MicroMod

Automation Service Department should be notified.

Inspect the packing material before discarding to prevent the loss of mounting hardware or special instructions that may have been included with the shipment. Normal care in the handling and installation of this equipment will contribute towards satisfactory performance.

Prior to actual installation refer to Instruction Bulletin 53E9049 Site Preparation Guide For Digital

Electronic Instrumentation. This publication includes recommendations relative to environmental conditions, input power, grounding, process wiring and switched contact load suppression. The

Site Preparation Guide can be obtained from your

MicroMod

Automation Sales Representative.

2.2 LOCATION

The

MicroMod

Automation Series 53MC5000 Controller is supplied with an enclosure designed specifically for indoor mounting. The installation site selected should be dry, well lighted, and vibration free. The ambient temperature should be stable and maintained within the specified minimum and maximum temperature limits listed in the Instruction Bulletin 53MC5000 Section 1.4.

The Controller can be supplied for use with a 24 V dc supply or 120, 220 and 240 V ac line service.

Instrument power requirements are given on the instrument data tag.

2.3 MOUNTING

2.3.1 GENERAL

It is normally not necessary to open the instrument case during installation. If the instrument must be removed from the case, refer to Instruction Bulletin 53MC5000 Section 6 for details. Incorrect procedures may damage the instrument.

The Controller can be flush panel mounted, either as a single unit or side by side in multiple fashion. Appropriate mounting hardware is supplied by

MicroMod

Automation. Outline dimensions and panel cut-out requirements for case mounting are shown in Figure 2-1. Outline dimensions for optional interconnection terminal boards are shown in Figure 2-2.

The dimensions given for spacing between instruments were selected on the basis of 1/8" thick panel strength. Panel strength must be considered when multiple case mounting is required. As the panel cut-out becomes longer it may be necessary to install supporting members. Because the panel area between instrument rows becomes weaker as the cut-out becomes longer to the point

2-1

MODULAR CONTROLLER QUICK START where the panel offers very little support. It is recommended that the 9 inch minimum center line dimension between horizontally mounted rows be increased as the number of units increases, or that the panel strip be stiffened.

The rear of the instrument case must be supported to prevent panel distortion. Mount an angle iron or similar member along the bottom of the cases as indicated in Figure 2-3. If the panel is to be moved the instrument cases must be tied down to prevent damage.

If multiple mounted instruments are installed in a panel that tilts back, it may be necessary to support the instruments so the panel does not sag. The downward weight should be supported by additional panel supports and/or by increasing panel thickness.

2.3.2 MOUNTING PROCEDURE

For single and multiple case mounting the instruments are furnished with a trim collar (mounting frame). Figure 2-3 illustrates the installation and use of the trim collar (mounting frame). Trim collars (mounting frames) are available in various sizes and are supplied to conform with the particular panel cut-out.

NOTE

Mounting brackets and trim collars (mounting frames) are packaged separately. Check the shipment carefully to prevent loss of mounting hardware.

To install single or multiple mounted instruments in a prepared panel cut-out, proceed as follows.

1. Remove the through-case shipping bolt

2. Slip the trim collar (mounting frame) over the rear of the case and slide it forward to the front of the case.

3. Slide the instrument case through the panel opening.

a) Single mounting case - support the weight of the case and attach the top and bottom mounting brackets. Tighten the bracket screws.

b) Multiple mounted cases -

MicroMod

Automation spacer bars and self-adhesive pads must be used between the cases, as shown in Figure 2-4. Start the installation from the right

(when facing the panel), installing the spacers as each case is added. As each case is positioned in place, install and tighten the top and bottom mounting brackets. Each case must be tight against the previous case.

NOTE

Spacers are not required on the outside of the right and left cases.

2-2

MODULAR CONTROLLER QUICK START

FIGURE 2-1. OUTLINE DIMENSIONS AND PANEL CUT-OUT

REQUIREMENTS

2-3

MODULAR CONTROLLER QUICK START

FIGURE 2-3. SINGLE OR MULTIPLE PANEL MOUNTING

FIGURE 2-4. INTERCASE SPACING

2-5

MODULAR CONTROLLER QUICK START

2.4 INTERCONNECTIONS

2.4.1 PREPARATORY

The 53MC5000 can be configured as any of a variety of conventional controller types, enabling it to be easily adaptable for service in numerous system applications. Prior to electrical interconnection, the particular instrument configuration should be established and all inputs and outputs identified and assigned to assure proper signal routing.

2.4.2 WIRING PROCEDURE

Provisions for electrical interconnections are located at the rear of the instrument case. Under ideal conditions the use of shielded cable may not be required. In noisy locations all system input, output and power wiring should be enclosed in electrical conduit. Rigid conduit should be terminated by using a short length of flexible conduit at the rear of the case to reduce stress. System interconnection wiring (except for power cable) should be fabricated by the use of 2-wire shielded signal cable. Signal transmission distance should not exceed the limit specified for the particular transmitter

(refer to applicable technical literature provided for the respective device). Polarity must be observed when connecting the remote transmitters to the Controller.

The Controller is available with integral rear case wiring terminal strips. Power wiring is connected to separate screw type terminals on the rear of the instrument case. Optional Cord Set connections are discuss in Section 2.5 of Instruction Bulletin 53MC5000.

NOTE

The screw terminals on the back of the instrument are designed for 12 -

24 AWG wire. It is important that the wire be stripped to expose 1/2 inch of conductor before installation.

Refer to the Interconnection Diagrams, Figures 2-11 through 2-14 of Instruction Bulletin

53MC5000, to supplement the following description of system interconnections.

WARNING

Instruments that are powered from an ac line service constitute a potential electric shock hazard to the user. Make certain that these system ac power lines are disconnected from the operating branch circuit before attempting electrical interconnections.

2.4.2.1 POWER INPUT (AS SPECIFIED)

2.4.2.1.1 DC Power:

Connect the remote 24 V dc power supply to the Controller, as follows:

1. Connect (+) input line, via remote SPST switch, to terminal "L".

2. Connect (-) input line to the system bus bar. The bus bar should be connected to a good earth ground (#8 AWG wire is recommended). Individual wires should be run from the Controller Power Common and Signal Common terminals to the bus bar. The chassis should be grounded by connecting terminal "G" to earth ground.

2-6

MODULAR CONTROLLER QUICK START

NOTE

Use of a common bus bar is recommended to minimize potential voltage differences that may occur as the result of ground current loops, i.e., potential difference between separate signal grounds, power grounds, etc.

2.4.2.1.2 AC Power:

Connect the specified line service (110-120, 220-240 V ac, 50 or 60 Hz) to the Controller, as follows:

1. Connect the phase or hot line (L), via a remote power disconnect switch or circuit breaker, to terminal "L1".

2. Connect the neutral line (N) to terminal "L2" for 110-120 V ac. Connect the neutral line

(N) to terminal "L3" for 220-240 V ac.

3. Connect Power Common to a good earth ground (#12 AWG wire is recommended).

4. The instrument case shall be grounded by connecting terminal "G" to earth ground at the source of supply (green/green-yellow ground).

5. All supply connections include surge protection rated at 264 V ac, normal mode, and 275

V ac, common mode to chassis ground.

NOTE

To minimize possible interference, ac power wiring should be routed away from signal wiring.

2.4.2.2 VOLTAGE INPUT

When the input signal is from a 4-20 mA current transmitter, a precision 250 ohms (+/-0.1%) resistor is required. The resistor tolerance is critical in this case, because the resistor is utilized to accurately convert the current signal from the transmitter (4-20 mA, typical) to a specified analog input voltage (1 to 5 Vdc). The standard rear terminal board has the appropriate resistors on AI0 and

AI1. If the input signal is already a voltage signal, the resistors should be removed. The optional

Cord Set ITB has the appropriate resistors on AI0 - AI3.

2.4.2.3 CONTACT INPUTS

Two separate contact input signals may be used for system sequencing or control purposes, e.g., pump "on" contact. One side of each remote contact must be connected to power common, refer to

Figure 2-5 of this manual and Figure 2-11 of the Instruction Bulletin 53MC5000. The remote contact must provide a maintained closure for at least 0.05 second, to provide the Controller with enough time to "read" the signal. The user must assign each remote contact to a specific input

(DI0-DI1) as dictated by the particular operation to be performed.

2.4.2.4 CURRENT OUTPUT

Two current output signals are available for transmission to remote analog indicating, recording or controlling devices. The current output signal, 4 to 20 mA, will vary in direct proportion to the process variable being displayed, e.g., volumetric flow rate, mass flow rate, operating pressure, etc.

Observe proper polarity when connecting the remote analog instrument.

2-7

MODULAR CONTROLLER QUICK START

2.4.2.5 CONTACT OUTPUTS

Two discrete contact outputs (DO0 to DO1, typically one for each of two separate process measurement loops) are identified in Figures 2-5 and 2-6. The discrete output is a solid state switch with a rating of 30 V dc, 50 mA maximum. Both discrete outputs are referenced to power common.

The contact outputs are assigned and used in different ways depending on the particular Function

Index being employed.

When these contacts are connected to an inductive load, an external arc suppression network is required for contact protection.

2.4.3 FACTORY SET CALIBRATION

Each unit contains individual factory set entries which calibrate the standard analog inputs and outputs. Upon completion of the installation, the calibration sheet supplied with the instrument should be retained for future reference.

Refer to Section 6.2 of Instruction Bulletin 53MC5000 for additional information.

2-8

MODULAR CONTROLLER QUICK START

2.5 CORD SETS (OPTIONAL)

2.5.1 GENERAL

The 53MC5000 Cord Set receptacle and cables are an alternate method of interconnecting the

Controller to a remotely mounted interconnection terminal block(ITB). The standard instruments have screw type terminals directly mounted on the rear terminal board. In the cord set version the screw type terminals and associated circuit board are removed and in its place a circuit board that terminates in receptacles is furnished.

2.5.2 INSTALLATION

The Cord Set Case is assembled as part of the instrument before leaving the factory. Carefully remove the instrument assembly from its packing case. After the instrument has been mounted in the panel, install the cable or cables. The latches on the plug must engage the receptacle keepers.

2.5.3 INTERCONNECTIONS

The accessory cable and standard lengths are as follows:

1. Signal Cable, standard (20 conductor) - used for control signals, 4AI, 2AO, 2DOs, 2DIs; standard length 5 feet .

2. Data Link Cable for unit to unit interconnect (6 conductor) - used for connection of one controller to another; standard length 30 inches with a 6 conductor connector on each end.

3. Refer to Figures 2-7 through 2-9 of this manual and Figures 2-12 through 2-14 of Instruction Bulletin 53MC5000.

2-11

MODULAR CONTROLLER QUICK START

2.6 GROUNDING

Installations are expected to have access to an independent, high quality, noise-free point of earth reference. The system should be connected by a dedicated, low resistance (less than one ohm) lead wire directly to the installation’s point of earth reference. This ground reference is referred to as the Instrumentation Ground. If an instrumentation ground reference does not exist in the installation, an earth ground electrode should be established with an independent grounding rod or groundgrid mesh.

2-15

MODULAR CONTROLLER QUICK START

3.0 FUNCTIONALITY

This section provides general instructions for configuring the 53MC5000 Modular Controller for operation, and the information necessary for a quick and easy set-up of the CS-1 Standard PID and

CS-20 Two Loop controller. For special configuration or other Control Strategy types, refer to the

53MC5000 Instruction Manual.

The 53MC5000 controller’s functionality is controlled by the instrument’s Function Index (FIX). The available FIXs are described below. The FIX is set by means of database parameter B00. As described in Section 4.0, when shipped from the factory the Flexible Control Strategy, FIX 1, is enabled. The basic FIX 1 control strategy, CS1 described in Section 4.0, is a Single Loop PID

Controller. If this control strategy meets your needs, your controller is ready to use as received. If, however, minor changes are required such as enabling remote setpoint or characterizing the PV input, follow the instructions provided in Section 4.1 for making these minor modifications. (Note that all changes made to parameters must be made using one of the methods described in Section

3.2.2)

Instructions for transforming the single-loop Flexible Control Strategy into a direct digital controller, flow ratio controller, automatic/manual station, or ratio automatic/manual station are provided in the

53MC5000 Instruction Bulletin.

All FIXs are executed in a common environment of input, output and general modules. Each control strategy mentioned above may be further modified by taking advantage of the standard modules described in Section 3.5. Customizing the FIX 1 Control Strategy by changing the modules is described in Section 4.4 of Instruction Bulletin 53MC5000.

If a greater degree of customization is desired, the extended version of the 53MC5000 allows designing of a user-defined control strategy using F-CIM function blocks as described in the

53MC5000 Customization Guide. For the ultimate degree of customization, F-TRAN, also described in the Customization Guide, can be used with the extended version of the controller.

The available FIXs are:

FIX 0 - Suspend Control

The control program stops,inputs continue to be measured, and Totalizers and Trends continue to update. Outputs reflect the contents of their associated datapoints. The display will always show the Fischer & Porter logo.

FIX 1 - Flexible Control Strategy (FCS)

The FIX 1 control algorithm executes a set of function modules in a fixed sequence. The inputs of each module can be connected to the output of any other module simply by configuring the appropriate database parameter (soft wiring). Various pre-configured wirelists are contained within the unit and each is referred to as a control strategy (CS). Two of the available control strategies are explained in the subsequent section. All of the control strategies are defined in Section 4 of Instruction Bulletin 53MC5000. The controller is shipped with FCS active, FIX = 1, and the standard single loop control strategy CS = 1 enabled.

3-1

3-2

MODULAR CONTROLLER QUICK START

FIX 97 - Display Test

FIX 97 causes a series of three test patterns to appear on the display. One pattern lights the dots around the outer edge of the display. A second pattern lights the even numbered dots. The third pattern lights the odd numbered dots. The control program stops but the database is not disturbed..

FIX 98 - Default Database

The database of the controller can be set to a predetermined condition by setting B00 to 98. This causes the entire database except for the analog I/O calibration constants, the FCS wirelist, and some text strings ("A" data types) to be set to default values. After this operation, the controller returns to FIX 0. See the tables in Section 7 of Instruction Bulletin 53MC5000 for the default values of each parameter.

The Extended Functionality version of the Controller allows additional customization through the use of F-CIM function block programming and F-TRAN programming.

FIX 99 - F-CIM Programming

If a control strategy is needed that can not be accomplished by use of the FCS algorithm, the F-

CIM configuration method can be used. F-CIM allows the soft wiring as in the FCS algorithm and also allows the use of additional modules and user specified sequencing of the modules. Each module constitutes a step and the entire sequence can be 100 steps long. A large library of modules is available. Many of these are reusable, that is, they can be used as many times as necessary.

FIX 99 is ignored unless the Controller is of the Extended Functionality version which allows additional customization through the use of F-TRAN.

For the ultimate in flexibility and performance, custom control strategies can be implemented using the F-TRAN Programming language. It is also possible to create custom modules using the

F-TRAN programing language discussed in the 53MC5000 Customization Guide.

Using the Extended Functionality Option also permits the development of customized controller strategies and displays using the F-TRAN language. The development and loading of F-TRAN programs can be performed using the MicroMod Automation Micro-Tools product.

MODULAR CONTROLLER QUICK START

3.1 CONTROLLER FRONT PANEL

3.1.1 DISPLAY

The Modular Controller contains a high visibility dot matrix display. It is possible to configure static and/or dynamic data for application to specific displays. A detailed discussion of the various types of displays can be found in section 4.2 of Instruction Bulletin 53MC5000.

3.1.1.1 ALARM ANNUNCIATION

If a process alarm occurs "ALARM" will begin flashing on the top line of the display. The alarm is acknowledged by pressing the "MODE" pushbutton

3.1.1.2 ENGINEERING LINE

When the controller is in Engineering Mode described in Section 3.4 of Instruction Bulletin

53MC5000, the bottom line of the display can be used to display or change any of the controllers parameters.

3.1.2 KEY FUNCTIONS

The operation of the 10 pushbuttons on the front of the controller (see Figure 3-1) depends on the type of display currently selected. In general, the keys function as described below. Unless specified as an Engineering Mode function, the functions listed are for control mode.

R/L - This key is used by the POINT and GROUP displays to switch between REMOTE and LOCAL setpoint modes.

SP Buttons - The setpoint pushbuttons are used to adjust the setpoint of POINT displays and to highlight various selections in other displays. In Engineering Mode these keys are used to change or set values.

A/M - This button is used by the POINT displays to switch between AUTOMATIC and MANUAL operation.

OUT Buttons - The output pushbuttons are used by the POINT displays to adjust the output of the controller when the controller is in manual. In Engineering Mode these keys are used to change or set values.

MODE Button - The "MODE" button is used to turn off the alarm annunciator. If the alarm annunciator is not ON when the key is pressed, Engineering Mode is entered. Pressing the MODE key while in Engineering mode will return the user to normal "Operator Mode".

F1 - The F1 key is normally used to either page back to the previous display or to step to the next display group depending on how the display hierarchy has been configured. In Engineering Mode the F1 key moves back to the previous menu level.

F2 - The F2 key is normally used to advance to the next display. In Engineering Mode the F2 key is used to advance through the various choices (DISPLAY - CONFIGURE - PROGRAM).

F3 - The F3 key is used as an "ENTER" key by the Status, Parameter, and Summary displays to select the indicated menu choice. In the TWO LOOP display it toggles between the two loops.

In Engineering Mode the F3 key is used as an ENTER to choose the current selection or to complete the entry.

3-3

MODULAR CONTROLLER QUICK START

3-4

FIGURE 3-1. MODULAR CONTROLLER FRONT PANEL

Note: EMODE = Engineering Mode

Display

MODULAR CONTROLLER QUICK START

Engineer Mode

Configure

Key? **

[Sec 3.2.1]

Program *

Key? **

[Sec 3.2.1]

Datapoint

Module

Datapoint

Module

View Build Erase

Display

Datapoint

Operations

[Sec. 3.2.2]

Module

Display

Mode

[Sec. 3.2.3]

Configure

Datapoint

Operations

[Sec. 3.2.4]

Module

Configure

Mode

[Sec. 3.2.5]

*See 53MC5000 Customization Guide

** If configured

Blocks shown shaded only appear when using the Hi-Resolution display

Figure 3-2. Engineer Mode Command Overview

3-5

MODULAR CONTROLLER QUICK START

3.2 ENGINEER MODE OVERLAYS

The Engineer Mode Overlays are used to view (Display) or make necessary changes (Config-

ure) to the controller database parameters. Standard viewing/change entries are made by address-

ing single parameters by their datapoint specification on a single line overlay at the bottom of the display. On units with HiRes displays (53MC5xxxB4xxxxxxxxx) either the datapoint method or the module method may be used to perform viewing/change operations. The following sample screens show the high-resolution display except where noted. The module method uses a full screen overlay to navigate through a series of menus to select the parameter(s) of interest by their module/atom reference. If Engineer Mode is accessed and its functions (e.g., configure or display) are not used, it "times-out" in 20 seconds and the overlay disappears from the bottom of the display.

The Engineer Mode may be locked-out with the Hand Held Configurer using the procedure described in Section 3.4.

3.2.1 PASSWORD FUNCTION PROMPT

When the password prompt

KEY?

appears, it indicates a password was set with an external device

(e.g. Hand Held Configurer, personal computer, etc.). The password can not be set via the front panel push buttons. A password key is a maximum of 10 numeric characters (numbers 0-9 only).

It does not impede display functions in engineering mode but must be unlocked to perform configuration functions. A password key is

NOT SET FOR NEW INSTRUMENTS

from the factory; therefore, if it is set, it must have been done locally. The password must first be obtained from the originator before the procedures below can be used to access the engineering mode configuration function capabilities.

3.2.1.1 Procedure to Enter a Key Password

The following screens illustrate the

CONFIGURE

prompt, the

KEY?

prompt, the key

222222

entered on the edit line, and the

POINT

input query that appears after key access is granted.

•

Press the Mode button to enter the ENGINEER mode indicated by the appearance of either CONFIG-

URE, DISPLAY or PROGRAM at the bottom of the

display.

•

If CONFIGURE does not appear, press F2 until CON-

FIGURE appears

•

When CONFIGURE is displayed, press F3.

3-6

MODULAR CONTROLLER QUICK START

•

The screen should now appear as shown on the right.

•

If the required key-code is "222222", follow the following procedure.

•

Press the key until the digit "2" appears on the entry line.

•

Press the key to shift the first entry one position to the left.

•

Press the key until the next "2" appears on the entry line.

•

Press the key to shift this entry one position to the left.

•

Repeat this procedure until all of the key-code characters have been entered on the entry line.

•

The display should now look as shown on the right.

•

When all of the characters have been entered, press

F3.

•

Pressing the F3 key enters the password key and enables display and entry of either the MODULE o r

DATAPOINT modes which will be discussed later.

•

The engineer mode configuration function is now ready for use.

•

The screen should now appear as shown in one of the following screens (the rightmost screen represents the low-resolution display).

3-7

MODULAR CONTROLLER QUICK START

3.2.2 DISPLAYING A DATAPOINT

The following procedure illustrates how to display the contents of datapoint B012, which is the display brightness index.Note that

B12

is shown being entered instead of

B012

, since leading zeros are not required when specifying datapoints.

3.2.2.1 Procedure to Display a Datapoint

•

Press the Mode button to enter the ENGINEER mode indicated by the appearance of either CONFIG-

URE, DISPLAY or PROGRAM at the bottom of the

display.

•

If DISPLAY does not appear, press F2 until DISPLAY appears

•

When DISPLAY appears at the bottom, press F3.

•

Press F2 until DATAPOINT appears at the bottom of the display.

•

The bottom of the screen should appear as shown on the right.

•

Press F3 to enter DATAPOINT mode.

3-8

MODULAR CONTROLLER QUICK START

•

The display shows the POINT entry line at the bottom of the display, as shown on the right.

•

Press the key until the character "B" appears on the entry line.

•

Press the key to shift the first entry one position to the left.

•

Press the key until "1" appears on the entry line.

•

Press the key to shift this entry one position to the left.

•

Press the key until "2" appears on the entry line.

•

The entry-line should now appear as shown on the right.

•

Press F3 to accept the entry.

•

The contents of DATAPOINT B012 are displayed at the bottom of the display as shown on the right.

•

Press the Mode button to return the instrument to operator mode.

3-9

MODULAR CONTROLLER QUICK START

3.2.3 DISPLAYING A MODULE

Refer to Section 3.11 for Keypad function in Module Mode

The navigational sequence would be the following

(Refer to Table 3-5):

•

Select Module Type (then Module, if there’s more than one Module)

•

Select Page (Skipped when there’s only a single page)

•

Select Parameter

3.2.3.1 Procedure to Display a Module

•

Press the Mode button to enter the ENGINEER mode indicated by the appearance of either CONFIG-

URE, DISPLAY or PROGRAM at the bottom of the

display.

•

If DISPLAY does not appear, press F2 until DISPLAY appears

•

When DISPLAY is shown at the bottom, press F3.

•

Press F2 until MODULE appears at the bottom of the display.

•

Press F3 to enter MODULE mode.

•

Press the button, if required, until the pointer aligns with SYSTEM.

•

The screen should now appear as shown at the top right.

•

Press F3 to enter the SYSTEM module.

•

The list of SYSTEM module pages now appear.

•

Press the button to scroll to the DISPLAY page.

•

The display should now appear as shown in the right center screen.

•

Press F3 and the DISPLAY page parameters are shown as the screen to the right shows.

•

The parameter BRGT, associated with Datapoint B012 storage location (refer to Section 3.2.2) is displayed as the second entry in the list of parameters as shown in screen to the right.

•

Press the Mode button to return the instrument to operator mode.

3-10

MODULAR CONTROLLER QUICK START

3.2.4 CONFIGURE A DATAPOINT

The following procedure illustrates how to alter the contents of datapoint C115 (CONTROL module

& Span parameter) from 100 to 200.

3.2.4.1 Procedure to Configure a Datapoint

•

Press the Mode button to enter the ENGINEER mode indicated by the appearance of either CONFIG-

URE, DISPLAY or PROGRAM at the bottom of the

display.

•

If CONFIGURE does not appear, press F2 until CON-

FIGURE appears at the bottom of the display.

•

When CONFIGURE is displayed at the bottom, press

F3.

•

If using the Hi-Res display, as shown, press F2 until

DATAPOINT appears at the bottom of the display.

•

Then press F3 to enter DATAPOINT mode.

•

The screen should now show the point-entry line similar to the one at the right.

•

Press the key until the character "C" appears on the entry line.

•

Press the key to shift the first entry one position to the left.

•

Press the key until "1" appears on the entry line.

•

Press the key to shift this entry one position to the left.

•

Press the key until "1" appears on the entry line.

•

Press the key to shift this entry one position to the left.

•

Press the key until "5" appears on the entry line.

•

The entry line should appear similar to that shown on the right.

•

Press F3.

3-11

MODULAR CONTROLLER QUICK START

•

The existing contents of DATAPOINT C115 are displayed (shown as 100.000 in this example).

•

To change the value of C115, first shift the C115 contents all the way right by pressing and holding the button.

•

Replace the "1" with a "2" by pressing the button until a "2" appears on the entry line, as shown in the screen to the right.

•

Enter the two additional zeros by using the and buttons as discussed previously.

•

The screen should now look as shown on the right.

3-12

•

Replace the current C115 value with the new one by pressing the F3 button.

•

If you don’t want to make the change, the edit may be aborted by pressing the F1 button.

•

After pressing F3, the display changes back to the

DATAPOINT display as shown to the right.

•

Notice the change in bar-graph scale to 200.0.

•

Press the Mode button to return the instrument to operator mode.

MODULAR CONTROLLER QUICK START

3.2.5 CONFIGURE A MODULE

The navigational sequence would be the following:

•

Select Module Type (then Module, if there’s more than one Module)

•

Select Page (Skipped when there’s only a single page)

•

Select Parameter

3.2.5.1 Module-Mode ConfigurationProcedure

•

Press the Mode button to enter ENGINEER mode indicated by the appearance of either CONFIGURE,

DISPLAY or PROGRAM at the bottom of the display..

•

If CONFIGURE does not appear, press F2 until CON-

FIGURE appears at the bottom of the display.

•

When CONFIGURE is displayed, press F3 to enter the

CONFIGURE mode.

•

For a Hi-Res display, as shown, press F2 until MOD-

ULE appears at the bottom of the display.

•

When MODULE is displayed, press F3 to enter the

MODULE mode.

•

The screen should now appear as shown on the right.

•

Select the desired MODULE type to be configured by using the keys to navigate to the desired module type.

•

In this example, the button was used to navigate to the CONTROL module type as shown to the right.

•

Press F3 to select this Module type.

3-13

MODULAR CONTROLLER QUICK START

•

If more than one module of the type selected is available, a list of modules appears showing module number and TAGNAME

•

Use the buttons to scroll to the desired module, in this example the CONTROL-0 module is selected.

•

The screen should now be similar to the one to the right.

•

Press F3 to select the desired module.

3-14

•

If more than one screen of parameters is available, the parameters are grouped into separate sections (called

PAGES) which are listed as shown in the screen to the right.

•

Use the button to scroll to the desired PAGE.

•

In this example, the TUNE page is selected, as shown on the right.

•

Press F3 to select the desired page.

•

This should show a list of parameters that the selected

PAGE consists of, similar to the one to the right.

•

Use the keys to navigate to the desired parameter

•

Press F3 to select the desired parameter to be configured.

•

Depending on the type of data associated with the parameter, one of three methods may be used to configure the data as shown on the next page:

MODULAR CONTROLLER QUICK START

Numeric and Datapoint Data

•

The current value and an editable value are displayed, as shown in the screen to the right.

•

Use the buttons to select the desired character position on the edit line

•

Use the buttons to change the character value on the edit line.

•

Once the new value has been entered, press F3 to accept the new value on the edit line and change the parameter’s value or press F1 to abort the changes and retain the current value.

Listed-Choices Data

•

A list of choices for the value is displayed with the current value indicated, as shown to the right.

•

Use the buttons to scroll to the desired selection.

•

If the length of the list exceeds what can fit on the screen, up (

∧

) and down (

∨

) arrows are displayed indicating the direction to scroll in to view the additional selections. An axample is shown in the screen to the right.

•

Press F3 to accept the new value or press F1 to abort the changes and retain the current value.

Word Data

•

The screen shows the current value, an editable value and a table of alphanumeric characters from which to select as shown in the example on the right.

•

The underline indicates the character to be changed.

•

Use the buttons to select the desired values from the alphanumeric table.

•

Press the F2 button to shift the underline one position to the right. The underline "wraps around" to the leftmost character if scrolling past the right-most position.

•

Press F3 to accept the new value on the edit line and change the parameter’s value or press F1 to abort the changes and retain the current value.

3-15

MODULAR CONTROLLER QUICK START

When the Module Mode configuration is complete, the controller may be returned to the operator mode either by pressing the F1 key to step backwards through the menus or by pressing the

MODE key .

The following chart is a representation of the Module-Mode menu structure:

3-16

CONFIGURE-MODULE MODE MENU ORGANIZATION

SYSTEM

EXECUTE

COUNTER

COMM.

DISPLAY

CALIB.

EZ-TUNE

TAG

FIX

FXM

SCAN

BACK

BSCAN

PWRUP

LLD

SEC

MIN

HOURS

DAY

MONTH

YEAR

CMODE

DLD

DSPL

BRGT

NALIN

ALINE

MDG

MDS

CIS 0

CIZ 0

CIS 1

CIZ 1

CIS 2

CIZ 2

CIS 3

CIZ 3

COS 0

COZ 0

COS 1

COZ 1

LPS

TLIM

DPV

DOUT

DPPV

PLIM

APLD

ANALOG IN

0 to 8

SPAN

ZERO

DFILT

BASE

SQRT

FREQ *

TAG

ANALOG OUT

0 to 3

BASE

TAG

DISCRETE IN

0 to 11

INV

TAG

DISCRETE OUT

0 to 11

INV

TAG

EXTERNAL

0 to 11

RPT

LPT

SCAN

MODE

* Only appears in Module numbers 4 through 7

CONTROL

0 to 3

GENERAL TAG

IRL

CTR

CTM

CDM

SETPOINT

RSP

STV

SSR

SPM

ALARM

PL1

PL2

ADB

AIX

TUNE

OUTPUT

OUT

OSR

OTV

RSV

HML

MFD

SWITCHES

STE

OTE

SWA

SWR

SWSPT

SWOVT

STATUS

0 & 1

NAME

STA

STB

STC

STD

STE

STF

STG

STH

TAG

MODE

SMA

SMB

SMC

SMD

SME

SMF

SMG

SMH

PARAMETER

0 to 7

TAG

PNA

PDA

PNB

PDB

PNC

PDC

PMD

ALARM

SAA

SAB

SAC

SAD

SAE

SAF

SAG

SAH

MODIFY

SDA

SDB

SDC

SDD

SDE

SDF

SDG

SDH

TREND

0 to 7

TAG

TRS

TRZ

TRR

TRM

TRH

TRP

TOTALIZER

0 to 7

TAG

TMM

TMD

TMF

TMPT

TMR

MODULAR CONTROLLER QUICK START

3.3 KEYPAD ALTERNATIVES

There are six alternative methods other than the faceplate push buttons for accessing and changing database parameters. All six methods to display and/or alter database parameters are listed as follows:

Using a personal computer running the MC5FIG.EXE configuration program that is supplied as part of the 53HC3300 software package. This procedure is included in the Instruction Bulletin (IB 53HC3300) with the software.

Using a personal computer running the configuration program that is supplied as part of the 53MT6000 software package. This procedure is included in the Instruction Bulletin

(IB 53MT6000) with the software.

Using an

UPERVISOR-PC with configuration software. This procedure is provided in the SUPERVISOR-PC Instruction Bulletin (IB 53SU5000).

Using the Hand Held Configurer connected to the configuration port mini-DIN plug on the front panel of the instrument.

Using an ASCII RS-232 terminal or a PC terminal emulator application connected to the configuration port mini-DIN plug on the front panel of the instrument (Refer to Section

3.3.2).

Using the remote keypad. (See Appendix C, Remote Keypad.)

Figure 3-3 illustrates the Hand Held Configurer and personal computer mini-DIN plug cables necessary to configure an instrument using alternative methods 1 through 6 described above. The personal computer cable type (9 pin or 25 pin) is dependent upon the communications port connector.

3.3.1 USING THE HAND HELD CONFIGURER

The "Configuration Port" connector behind the pull-down door on the front panel (see Figure 3-1) allows the attachment of the Hand Held Configurer. The configurer can then be used to display or change any parameter in the controller’s data base.

The Hand Held Configurer (HHC) is a portable terminal designed to interface with the 53MC5000 through the configuration port. The "Configuration Port" connector is located behind the pull-down door on the front panel of the 53MC5000 (see Figure 3-1). The Hand Held Configurer is available in two versions:

•

The Standard HHC allows the user to display or change individually the various parameters in the instrument database. The part number for ordering this HHC is

698B182U01.

•

In addition to the capabilities of the Standard HHC, the HHC with Memory

Functions allows the user to save and/or load the entire database and program of an instrument on a removable storage cartridge. The part number for ordering this

HHC is 698B182U02.

3-18

MODULAR CONTROLLER QUICK START

3.3.1.1 SETUP OF THE HAND HELD CONFIGURER

The Hand Held Configurer is shipped pre-configured to operate with the Controller. If the Configurer does not operate correctly, check the configuration by entering the Configurer’s set-up mode.

To enter set-up mode press <control> <shift> and <F1> simultaneously. The correct configuration is shown below.

BAUD = 9600

DATA BITS = 7

PARITY = SPACE

(not aplicable for U02 version)

(PARITY = NONE for U02 version)

DISPLAY PE ENABLED

REPEAT = FAST

ECHO DISABLED

HANDSHAKE DISABLED

SELF TEST DISABLED

If the configuration is not correct, it can be altered while in the Configurer’s set-up mode.

When set-up mode is entered the current baud rate setting is displayed on the top line; the following choices are also displayed:

F1 Change Parameter

F2 Next

F3 Previous

F4 Quit

F5 Save

If the baud rate setting is incorrect, the setting can be changed by pressing F1. Each time the F1 key is pressed, an optional setting for the parameter on the top line of the display will be shown.

When the desired setting appears, press F2 to see the current setting for the next parameter (or F3 to see the setting for the previous one). If the setting is not correct, use F1 to cycle through available settings. All parameters can be checked and changed, if desired, in this way.

Pressing F4 (Quit) will exit set-up mode and any changes made will stay in effect until the Configurer is disconnected.

Use F5 to save changes to the controller’s memory; the Hand Held Configurer can then be disconnected and the changes will remain in effect.

3-19

FIGURE 3-3. FRONT PANEL CONFIGURATION PORT CONNECTIONS

MODULAR CONTROLLER QUICK START

3.3.1.2 DISPLAYING A DATA BASE PARAMETER

To display a data base parameter press "D" and the parameter ID followed by <enter>. The current value of the parameter will be displayed. The parameter ID is the data type specifier (B, L, C, H, F, and A) and number of the point as shown in Section 7 of Instruction Bulletin 53MC5000.

For example, to see the value of B12, press:

D B12 <enter>.

The value presently assigned to B12 will be displayed.

Values displayed with the "D" command are formatted as follows:

B - three digit characters 000-255

L - one digit character 0 or 1

C & H - ten characters including digits, decimal point and sign (when negative). An exception is for the value of true zero, where the display consists of the three characters 0.0

F - five characters or less

A & Q - ten characters or less

Pressing <enter> after pressing "D" will automatically recall the last data base parameter ID used.

Pressing "N" after pressing "D" causes the next parameter of the same data type to be displayed.

(The NEXT command "N" only works with index numbers below 256.)

3.3.1.3 CHANGING A DATA BASE PARAMETER

To modify a value or enter a new value press "P" and the parameter ID followed by <enter>. Then press the keys corresponding to the value to be assigned followed by <enter>.

For example, to set B0 to FIX 99 press:

P B0 <enter> 099 <enter>

Values entered with the PUT command "P" must be formatted as follows:

In general, all modification inputs are limited to the first ten characters of the field.

For B data type the value entered must be between 0 and 255.

For L data type the value must be 1 or 0.

All responses are completed by pressing <enter>.

Pressing <enter> after pressing "P" will automatically recall the last database parameter.

Pressing "N" after pressing "P" causes the next parameter of the same data type to be displayed.

(The NEXT command "N" only works with index numbers below 256.)

3.3.1.4 SETTING OR CHANGING A PASSWORD ("KEY")

As a security feature,the Modular Controller can be configured so that a password or "key" is needed to change the controller’s configuration or F-CIM program in Engineering Mode using the buttons on the front panel of the controller. These passwords or "keys" can only be accessed by the Hand Held Configurer or the 53HC3300C software package.

3-21

MODULAR CONTROLLER QUICK START

The "keys" are a special datatype which can be displayed or configured as any other datatype with the Hand Held Configurer. The "keys" are datapoint Q1 for front panel configuration and Q2 for front panel F-CIM program access.

The value assigned to a "key" can be any ASCII string up to 10 characters. However, front panel password entry will only permit numbers (0-9) as input characters. To remove a "key" completely, modify its value to <CTRL> 0 (hold CTRL and press 0).

3.3.1.5 STORAGE CARTRIDGE TRANSFER

The procedure for saving or loading the database program or calibration constants of an instrument to/from a storage cartridge is as follows. First insert the cartridge containing the desired database and/or program into the HHC. The cartridge is inserted by placing it into the recess at the back of the HHC with the cartridge label facing outward and up, then sliding the cartridge down until it is firmly seated. When loading to the instrument, verify that the write protect switch (when present) on the cartridge has been pushed to its outside position. When saving to the cartridge the write protect switch must be toward the inside.

To initiate the transfer operation press "T" at command entry point. The following menu will appear:

MEMORY TRANSFER

F1-TO CONTROLLER

F2-FROM CONTROLLER

PRESS EITHER F1 or F2 key to select the desired operation. Pressing <CTRL> C will abort the operation. Depending on which selection is made one of the following two menus will be displayed:

1. If F1 is selected, the following menu will appear:

F1-CALIBRATE

F2-DATABASE

F3-PROGRAM

Based on which selection from this menu is made the following operations will occur:

F1-CALIBRATE:

This copies the calibration values of the standard analog inputs and outputs to the controller. These values were saved to the storage cartridge during the copying of the database to the cartridge. Transfer takes approximately 1 second.

F2-DATABASE:

This copies the database less the calibration values and the instrument address to the controller. Transfer takes approximately 12 seconds.

F3-PROGRAM:

This copies the user programs and F-CIM program which were earlier saved to the controller. Transfer takes approximately 20 seconds.

3-22

MODULAR CONTROLLER QUICK START

2. If F2 is selected, the following menu will appear:

F2-DATABASE

F3-PROGRAM

Based on which selection from this menu is made the following operations will occur:

F2- DATABASE:

This copies the entire database, all B,L,C,H,A, and F datapoint values, in the controller to the storage cartridge. Transfer takes approximately 12 seconds.

F3- PROGRAM:

This copies all the user written F-TRAN programs and the F-CIM programs in the controller to the storage cartridge. Transfer takes approximately 20 seconds.

When the transfer begins a message indicating that the transfer has started will be displayed.

When the transfer is completed a message indicating completion will be displayed. If for some reason the transfer failed, an error message will be displayed in place of the completed message. If an error occurs resolve the problem and reinitiate the transfer. No transfer error should be ignored since a partial transfer may have left the instrument cartridge in an indeterminate condition. Upon completion or error the HHC is again in the command entry mode.

3.3.1.7 SAMPLE HAND HELD CONFIGURER OPERATION

The following table provides a sample of typical Hand Held Configurer Display (

D

), Put (

P

), and

Memory Transfer (

T

) commands.

Key Entries

D B101 <ENTER>

D N <ENTER>

D <ENTER>

P C256 <ENTER> 200 <ENTER>

P <ENTER> 150 <ENTER>

P N 200 <ENTER>

T <ENTER>

Displayed Data

D B101 XXX

D B102 XXX

P C256 XXX 200

P C256 XXX 150

P C257 XXX 200

MEMORY TRANSFER

F1 - TO CONTROLLER

F2 - FROM CONTROLLER

✦

TRANSFER FINISHED

Result

Displays contents of B101.

Displays contents of Next (N) datapoint, B102.

B102 contents still displayed. It updates the display value of the current datapoint.

Alters contents of C256 to 200

Alters contents of C256 to 150.

It alters the value of the current datapoint.

Alters contents of C257 to 200.

It alters the value of the Next (N) datapoint.

Displays memory transfer query t o e i t h e r s e n d c a l i b r a t i o n c o n s t a n t s , d a t a b a s e , o r programs to the instrument; or receive database or programs from the instrument for storage into the memory module.

Note:

XXX

= Displayed characters from the addressed datapoint.

3-23

MODULAR CONTROLLER QUICK START

3.3.2 USING A PC TERMINAL EMULATOR

3.3.2.1 MICROSOFT WINDOWS HYPERTERMINAL

This procedure describes the use of the Microsoft Windows HyperTerminal program to emulate the 53MC5000 Handheld terminal. This procedure is based on configuring this function for the first time. Once configured, handheld terminal emulation may be started by double-clicking on the icon created in Step 5 of this procedure.

Be sure the serial communication port to be used with HyperTerminal program is not being used by another application.

Attached the communication cable between the PC and the front port of the 53MC5000 controller.

The HyperTerminal program can usually be found in the START/Programs/Accessories program group. Start the program by double clicking on the HyperTerminal Icon.

The HyperTerminal program will open a window for the application. The first time we use

HyperTerminal for this application, we must set up a new connection and its settings.

Enter a name for the connection and select an Icon from the display provided. The name and

Icon are used for future access to this particular terminal setup. This example uses Hand-

held Emulation as the name and the default Icon. Select OK to continue.

A new Connect To window is displayed. Since a modem or phone connection will not be used, select COM1 from the Connect using: pull down menu.

3-24

Select OK to continue.

MODULAR CONTROLLER QUICK START

The next window is used to configure the PC COM port communications parameters. The front port of the 53MC5000 has fixed communication parameters of 9600 baud, 8 Data Bits,

1 Stop Bit, and no Parity.

When the proper settings have been made, select OK to accept the settings.

10. Select File Properties from the HyperTerminal tool bar.

3-25

MODULAR CONTROLLER QUICK START

11. In the Properties window, select the Settings tab as pictured below. Choose the VT100 option from the Emulation pull down list. Click OK to continue.

12. The terminal mode setup is now complete. If the cable is connected between the controller and the PC, the basic handheld functions may now be performed using the terminal mode.

13. Displaying database values:

Any database location within the controller can be displayed. To display a database location type D. The controller will respond by placing a space after the letter D. Enter the database location (such as B12) and press the ENTER key. The controller will respond by displaying the current value of this database location.

14. Modifying a database location:

Any database location within the controller can also be modified. To modify a database location type P (for put). The controller will respond by placing a space after the letter P.

Enter the database location to be modified and press the ENTER key. The controller will respond again by sending a space. Enter the new value to be put into the database location you selected and press the ENTER key.

3-26

MODULAR CONTROLLER QUICK START

3.4 DATABASE MODULES

The controller’s database is made of many parameters, most of which are not needed for any one particular application.

The most important parameters are discussed in this section and are grouped together by the function they perform. These groupings are called the Database Modules. These modules provide a common environment within which any particular function index can be executed.

A complete listing of the database can be found in Appendix D.0 of the 53MC5000 Instruction Manual.

FIGURE 3-6. DATABASE MODULES

3-27

MODULAR CONTROLLER QUICK START

3.4.1 ANALOG INPUT MODULES

The analog input modules permit the user to configure the characteristics of each input. The available parameters are shown below. Inputs AI4 through AI8 are only active if the appropriate hardware option is installed.

Each of the analog signals has its own set of parameters. To identify the data point corresponding to each parameter refer to the following table.

0 - 5 INPUT VOLTAGE RANGE:

Input transmitter ranges of 0-5 or 1-5 volts are supported as standard analog inputs. Setting this parameter to "1" indicates the input ranges from 0 to 5 volts; setting it to "0" indicates a 1 to 5 volt range.

SQUARE ROOT SIGNAL:

This parameter indicates whether the analog input signal should be interpreted as either a linear or square root representation of the value. When square root is selected input signals less then about

1% (10% input range) force the input to its zero value. A "1" indicates square root while a "0" indicates linear.

ENGINEERING SPAN and ZERO:

These parameters define the range of values that the analog input represents in engineering units.

Engineering Zero is the minimum range value. Maximum range value equals Engineering Zero plus

Engineering Span.

CALIBRATION ZERO and SPAN:

These parameters are set at the factory for correct operation of the associated input. They should not need adjustment under normal operation.

3-28

MODULAR CONTROLLER QUICK START

DIGITAL FILTER INDEX :

In addition to the input filtering provided in hardware each input may have a first order digital filter applied to its signal. The following table indicates the time constant for each index value.

0 No Smoothing

1 0.05s

2 0.1s

3 0.3s

4 0.7s

5 1.5s

6 3.1s

7 6.3s

8 12.7s

9 25.5s

10 51.1s

11 102s

12 205s

13 410s

14 819s

15 1638s

FREQUENCY INPUT:

This parameter (available only for AI4-7) specifies that the input signal is a pulse train whose frequency is to be measured. The value of the input becomes (SPAN x FREQUENCY) + ZERO.

PULSE COUNT:

When the input is configured for a frequency input this value represents the total number of pulses applied to the analog input terminals. The count value automatically resets to 0.0 when it reaches

10,000,000.

TAG NAME:

A user assigned name for the AI can be loaded into this parameter.

ENGINEERING UNITS:

The units of measure the AI represents can be loaded into this parameter.

3-29

MODULAR CONTROLLER QUICK START

3.4.2 ANALOG OUTPUT MODULES

The analog output modules permit the user to configure the characteristics of each output. The available parameters are shown below. Outputs AO2 and AO3 are only active if the appropriate hardware option is installed.

ANALOG OUTPUT:

The value in this datapoint represents the percent of output to be generated by the hardware.

0 - 20 mA OUTPUT:

This datapoint indicates the percentage output should generate a 0-20 mA signal when a "1".

When a "0" the percentage output should generate a 0-20 mA signal.

CALIBRATE ZERO and SPAN:

These values are set at the factory for correct operation of the associated output. They should not need adjustment under normal operation.

TAG NAME:

A 10 character user assigned name for each AO can be placed in this datapoint.

3-30

MODULAR CONTROLLER QUICK START

3.4.3 CONTACT INPUT MODULES

The contact input modules generate logic levels based on the applied voltages or contact condition on the associated terminals. INPUTS DI2 - DI17 are active when the appropriate hardware options are installed. The parameters for each module are given below.

CONTACT INPUT:

The value of this datapoint is either a "1" or "0" based on the input voltage level and the IINV parameter.

CONTACT INPUT INVERT:

When this datapoint is a "0" a closed contact or low voltage level will generate a "1" and an open contact or high voltage will generate a "0" as the input value. When a "1" an open contact or high voltage level will generate a "1" as the input value.

TAG NAME:

A 10 character user assigned name for each DI can be placed in this datapoint.

3-31

MODULAR CONTROLLER QUICK START

3.4.4 CONTACT OUTPUT MODULES

The contact output modules convert a logic level to a hardware contact condition. Output DO2 -

DO17 are only active if the appropriate hardware options are installed. The parameters for each module are given below.

CONTACT OUTPUT:

The value of this datapoint along with the value of OINV determines the condition of the output contact.

CONTACT OUTPUT INVERT:

When this datapoint’s value is "1", the hardware contact will be closed when the output value is

"1" and be open when the output value is "0". When the datapoint’s value is "0", the hardware contact will be open when the output value is "1" and be closed when the output value is "0".

TAG NAME:

A 10 character user assigned name for each DO can be placed in this datapoint.

3-32

MODULAR CONTROLLER QUICK START

3.4.5 EXTERNAL INPUT MODULE

The External Input Modules provide the ability to obtain data from other MICRO-DCI



instruments through the Optional Peer to Peer Communications MicroLink



. The retrieval of a value from a connected instrument and its subsequent storage at a local datapoint is referred to as a task. Up to 24 tasks are supported at an instrument. The following parameters control and indicate the status of the tasks.

SOURCE:

This parameter specifies the address of the instrument and the datapoint of the value in the remote instrument to be accessed by the task. The datatype of the SOURCE must be the datatype of the

DESTINATION parameter of each task.

For example: If you access the value of AI2 in instrument 10 the entry would be 10H002.

DESTINATION:

This parameter specifies the local (within instrument) datapoint which is accessed by the task. The datapoint datatype must match in both SOURCE and DESTINATION parameters of each task.

For example: If you access the value of PV in CON module 1 the entry would be C136.

SCAN:

The rate at which a task is executed is determined by this parameter. The time in seconds (0-255) at which the task is to be repeated is loaded into this datapoint. A value of 0 stops task execution.

MODE:

This parameter indicates the type of access to be performed by the task.

0 - No access of source or destination

1 - Read from source , write to destination

2 - 255 - Undefined

STATUS:

This parameter indicates whether the last scheduled execution of the task was successfully completed.

0 - Unsuccessful

1 - Successful

3-33

MODULAR CONTROLLER QUICK START

3.4.6 CONTROLLER MODULE

Up to four CON modules are present in the controller. Compare the model number on the controller with the model number breakdown in Section 1.2 to determine the number of loops accessible.

These parameters control the action of the control algorithms and the content of the control loop displays.

3-34

MODULAR CONTROLLER QUICK START

The following options and characterization parameters are available in each PID control algorithm.

Data point references are for control loop 0. Data points for additionally available control loops are indicated in the module table.

PROPORTIONAL BAND:

The parameter PB (C106) modifies the controller response in standard PID terms. It is the percent of error required to move the output full scale.

RESET TIME:

The TR parameter (C107) modifies the controller response in standard PID terms. The value represents the number of minutes per repeat.

DERIVATIVE TIME:

The TD parameter (C108) modifies the controller response in standard PID terms. The value entered represents the minutes that proportional action is advanced.

DIRECT/REVERSE CONTROL ACTION:

The control action is determined by the configuration of the reverse action select (L106). When set to a 0 the controller output increases as the process value increases. When set to a 1 the controller output decreases as the process value increases.

CONTROLLER SPAN AND ZERO:

Control span (C115) and zero (C116) establish the upper and lower range of the controller. These permit the control action to be defined over an range independent of the process variable input range. The control span parameter also determines the speed at which the setpoint changes when the up and down arrow buttons are pressed.

CONTROL ZONE:

This parameter (C114) defines a gap or dead band on either side of the setpoint. When the process variable is within this gap control output changes are suppressed.

SETPOINT SLEW RATE:

Parameter T1 (C117) imposes a ramp limit on the setpoint. When configured to a non-zero value the setpoint used in the PID algorithm is only allowed to change by that amount each scan time.

The final value of the setpoint is always displayed on the units display.

REMOTE SETPOINT MODIFIERS:

B1 (C112) and K1 (C113) modify the remote setpoint input prior to being used in the setpoint generator. Setpoint = Remote Setpoint(RSP)

Ratio(K1) + Bias(B1).These parameters allow the

Remote Setpoint input to be configured to reflect the signal source.

REMOTE SETPOINT ENABLE:

When the Remote Setpoint Enable bit RE (L115) is a 1 the modified RSP is allowed to become the setpoint value of the setpoint generator based on the R/L pushbutton or if the remote switch SWR

(L113) is a 1.

SETPOINT MODE INDEX:

This parameter(B338), specifies how the SP increase and decrease buttons function when in remote. When the controller is in REMOTE the following applies.

0 = pushbuttons have no effect

1 = pushbuttons adjust K1

2 = pushbuttons adjust B1

3-35

MODULAR CONTROLLER QUICK START

SETPOINT TRACKING ENABLE:

When the Setpoint Tracking Enable bit STE (L118) is configured to a 1 the controller’s setpoint can be forced to match Setpoint Track Value STV (C128) when Setpoint Track Switch SWSPT (L116) is a 0. Based on the sources of the later two data points; PV tracking, SP fallback, SP override and other schemes can be implemented in the local setpoint generator.

SETPOINT LIMITS:

Parameters SH (C125) and SL (C126) are configured to indicate the maximum and minimum controller setpoint value allowed. These parameters are applied to the final output of the setpoint generator and thus effect the remote and track setpoint results.

OUTPUT HIGH AND LOW LIMIT:

Parameters OH (C109) and OL (C110) are configured to indicate the maximum and minimum controller output value in percent. These values may or may not be applied to the output in manual operation, depending on the setting of Hard Manual Limiting bit HML (L122).

OUTPUT SLEW RATE:

The value configured into parameter T3 (C118) is the maximum output change in percent allowed for the PID algorithm. A zero disables output slewing. This value has no effect on the manual operation of output.

OUTPUT TRACK ENABLE:

When Output Tracking Enable bit OTE (L119) is configured to a 1 the controller’s output can be forced to match Output Track Value OTV (C129) when Output Track Switch SWOVT (L117) is a 0.

Based on the sources of the later two data points; Output fallback or override as well as other schemes can be implemented in the auto/manual switch generator.

AUTO ENABLE:

When the Auto Enable bit AE (L114) is a 1 the control output CO (C123) becomes the auto/manual generator result OUT (C102) based on the A/M pushbutton or if the auto switch SWA (L112) is a 1.

HARD MANUAL LIMITING:

This parameter HML (L122) when set to a 1 applies the output limits to the final output of the auto/manual generator, effecting both the manual pushbutton and the controller’s result.

REVERSE VALVE:

This parameter provides information for the various control displays to indicate which direction the control output must go to close the final control element. A "1" indicates that 20mA closes the valve.

ALARM LIMITS:

These parameters PL1 (C103) and PL2 (C104) are the points in engineering units at which the alarms are triggered.

ALARM DEAD BAND:

Parameter ADB (C105) sets the activation/deactivation gap for the alarm. This value in engineering units defines an area of hysteresis at the alarm point.

3-36

MODULAR CONTROLLER QUICK START

ALARM TYPE:

The AIX parameter (B335) defines the alarm action interpretation of the two alarm limits.

0 - PA1 HIGH (PV > PL1)

PA2 LOW (PV < PL2)

1 - None

2 - PA1 HIGH (PV > PL1)

PA2 not effected

3 - PA1 not effected

PA2 LOW (PV < PL1)

4 - PA1 HIGH (PV > PL1)

PA2 HI-HI (PV > PL2)

5 - PA1 LOW (PV < PL1)

PA2 LO-LO (PV < PL2)

6 - PA1 HI-DEV (DEV > PL1)

PA2 LO-DEV (DEV < PL2)

TREND RATE:

This parameter(B336) defines the sampling rate of the PV trend displayed in seconds. The legal values are 0, 1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, and 60 seconds. If any other value is set it will be reduced to one of these values.

TREND MODE:

This parameter(B337) specifies the mode of the PV trend.

0 - use instantaneous samples

1 - average of 1 second samples

2 - maximum of 1 second samples

3 - minimum of 1 second samples

DISPLAY MODE:

This parameter(B339) controls the type of point display which will be used with this CON module.

0 - standard PID

1 - Indicator

2 - Manual loader

3 - Ratio Controller

4 - A/M station

5 - Ratio A/M station

3-37

MODULAR CONTROLLER QUICK START

3.4.7 STATUS DISPLAY MODULE

Two Status Display Modules are present in the controller. Each module provides display and pushbutton access to eight logical status bits and can also generate alarms.

3-38

MODULAR CONTROLLER QUICK START

STATE:

This is the current condition of the individual points (0 or 1).

NAME:

This is treated as a 10 character name of the point or two 5 character words. Each point of an SDM has an associated name.

MODE:

This indicates how NAME is interpreted and displayed based on the points state. If a "0" name is treated as a 10 character entry, when state is "1" the name is in reverse video, when state is "0" the name appears normal. If a "1" name is divided into two 5 character words, the first 5 display when state is "0", the second 5 when state is "1".

ALARM ENABLE:

When this value is "1" the HORN (L65) bit is set when the corresponding state goes from "0" to"1" and the displayed name flashes as long as STATE = "1" and ALARM ACKNOWLEDGE = "0".

ALARM ACKNOWLEDGE:

This data is always forced to "0" when STATE is "0". When STATE is "1" and ALARM ENABLE is

"1" this point should be set to "1" to stop the flashing of the displayed name and to indicate that the alarm condition has been recognized.

MODIFY DISABLE:

This will inhibit the operator from modifying the STATE of individual points through pushbutton activity when set to "1". When set to "0" the operator can toggle the state of a point with the pushbuttons.

DISPLAY:

This is the index number for the display that provides access through the status module.

3-39

MODULAR CONTROLLER QUICK START

3.4.8 PARAMETER DISPLAY MODULE

Eight Parameter Display Modules are present in the controller. Each module provides display and pushbutton access to any three parameters in the database.

TITLE:

This is a 10 character name which is associated with the module.

POINT NAME 1, 2 and 3:

Each module allows three 10 character names to be associated with the three individual parameters of the module.

POINT DESIGNATOR 1, 2 and 3:

These designates the three datapoints to be included in this module. Any database datapoint specifier is allowed.

MODIFY DISABLE:

When this value is "1" the members of this module can not be changed through the pushbutton activity. The values of these parameters are only for display purposes. When this value is "0" the values of the module members can be altered by the operator when the module is displayed.

DISPLAY:

This is the index number for the display that provides access through the parameter module.

3-40

MODULAR CONTROLLER QUICK START

3.4.9 TREND MODULES

Eight Trend Modules are present in the controller. Each module provides storage of the last 80 samples of the specified input. The available parameters are shown below. The first four modules are attached to the CON modules if the CON modules’ trend rate parameter is non-zero. As long as the trend is attached to the CON module the height rate, mode, span, zero and designator parameters are overwritten with the values from the CON module.

TREND ZERO and SPAN:

The values assigned to these parameters indicate the lowest value in engineering units displayed as 0 in the trend and the SPAN in engineering units which corresponds to the height of the trend display. Samples outside this range will be recorded as at the limits.

TREND POINT DESIGNATOR:

This designates the datapoint to be recorded. It can contain any L, B, C or H datapoint specifier.

When controlled by the CON module this parameter is set to the datapoint specifier which is the

PV of the associated CON module.

TREND ENGINEERING UNIT:

Each trend provides for a 10 character word to indicate the units of measure which are being trended.

TREND TAG:

Each trend allows for a 10 character name to be associated with it.

TREND RATE:

This parameter defines the recording rate in seconds of the selected datapoint. Legal values are 1,

2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 seconds. If a value which is not legal is entered it will be reduced to the nearest legal value. A value of 0 turns off the trending.

TREND MODE:

This parameter specifies the sampling method used to record the selected datapoint. The datapoint is continually sampled at a one second rate regardless of the trend rate value. The recorded value can then be a representation of all samples between recording periods.

The available representations are:

0 - Instantaneous value

1 - Average value

2 - Maximum value

3 - Minimum value

TREND HEIGHT:

This specifies the displayed height assigned to a full scale sampled value. This in turn determines the resolution of the trend and the size of the trend in the front display. When controlled by a CON module this value is fixed at 50.

3-41

MODULAR CONTROLLER QUICK START

3.4.10 TOTALIZER MODULES

Eight Totalizer Modules are present in the controller. Each module provides a "totalization" (integration) of the specified input. Sampling occurs once a second whenever the input parameter contains a legitimate datapoint specification.

INPUT:

This designates the datapoint to be totalized. It can contain any B, C or H datapoint, i.e., C100 for totalizing CON0 PV.

SCALE FACTOR:

The value of the input is multiplied by this parameter prior to being summed to the running total.

The parameter is used for both scaling and time interval integration.

For example, if AI0 is in M gallon/day, in order to totalize in K gallon the Scale Factor (SF) would be:

SF

= Units X Time Base

Conversion Conversion

SF

= 1000 K gal X 1 day X 1 hr X 1 min X 1 sec = 1000 = .01157

M gal 24 hrs 60 mins 60 sec sample 86400

ROLLOVER VALUE:

This parameter specifies the maximum value of the totalizer. When the total reaches this value it is reset to 0.0 and continues totalizing. This must be a positive number.

DROPOUT VALUE:

When the value of the input is less than this parameter, no change in the total will occur.

RESET:

When this parameter is a "1" the total will be forced to 0.0 and the parameter returned to "0".

ACTUAL TOTAL:

This parameter indicates the integer value of the total accumulation.

OUTPUT PULSE:

This parameter is pulsed to a "1" for one scan each time the ACTUAL TOTAL reaches the ROLL-

OVER VALUE.

TAG:

This parameter allows a 10 character name to be associated with each totalizer.

ENGINEERING UNITS:

This parameter allows a 10 character word to indicate the units of measure for each totalizer.

3-42

MODULAR CONTROLLER QUICK START

3.4.11 SYSTEM MODULE

The System Module controls the fundamental response of the controller.

FUNCTION INDEX:

The operational algorithm of the unit is selected by the value of this parameter.

2 - 89

90 - 96

100

101 - 255

No Control Algorithm Execution

Execute Flexible Control Strategy

(or custom EPROM)

Execute User F-TRAN Program

(or custom EPROM

Reserved

Display Test

Default Database

Execute F-CIM Module

Special Approval (Custom EPROM)

Execute User F-TRAN Program

3-43

MODULAR CONTROLLER QUICK START

SCAN INDEX:

This parameter SCAN (B01) determines the frequency of execution for the operation FIX selected.

The repetition period equals B01 x 50 mS. This value should be set to the smallest value possible which doesn’t cause OVR (B04) to increment.

SCAN FILE OVERRUN COUNTER:

This parameter OVR (B04) is incremented whenever the execution of the control algorithm exceeds the repetition period specified in SCAN (B03). Each time an increment occurs,one pass of the control algorithm is skipped. In order to stop overruns, increase the value of SCAN.

LINK LIST LOAD:

The LLO parameter (B16) loads the Control Strategy Wirelists. Configuring this value forces the

FIX to 0 and installs the selected wirelist and any associated database changes, then returns the value to 0. If a non-existent control strategy is selected the default wirelist is loaded.

DISPLAY PROGRAM:

The DSPL parameter (B05) designates which display is presented on the first screen.

DISPLAY BRIGHTNESS INDEX:

The BRIGHT parameter (B12)controls the display screen intensity. Values from 0 to 7 determine brightest to dimmest intensity.

BACKGROUND PROGRAM:

The BACK parameter (B08) is used to implement the E-Z TUNE algorithm. When set to "1"

EASY-TUNE operation is initiated.

BACKGROUND SCAN INDEX:

The BSCAN parameter (B06) directs how often the display is renewed and the period for executing the EASY-TUNE algorithm when active. The period realized equals B06 x B03 x 50mS.

BACKGROUND OVERRUN COUNTER:

The BOVR parameter (B07) is incremented whenever the execution time of the display program and background program exceed the repetition rate realized by SCAN x BSCAN. Each time an increment occurs, one pass of the display update and background program is skipped. In order to stop overruns, increase the value of either SCAN or BSCAN.

TIME/DATE:

Time functions are provided by parameters:

Time

Seconds

Minutes

Hours

Parameter

B257

B258

B259

3-44

MODULAR CONTROLLER QUICK START

Date functions are provided by parameters:

Date

Day

Parameter

B260

Month

Year

B261

B262

As long as power to the unit is maintained, the time and date will remain accurate.

UNIT TAG NAME:

This parameter TAG (A08) indicates the name which is to be displayed as the Controller Name.

This should not be confused with the loop tag names.

3-45

MODULAR CONTROLLER QUICK START

4.0 FLEXIBLE CONTROL STRATEGY

4.1 CS 1 SINGLE LOOP STANDARD PID

If Model Number 53MC51X1 has been purchased, the controller is shipped from the factory loaded with the FCS CS 1 for Single Loop Standard PID. Other strategies are described in Section 4.3 of

Instruction Bulletin 53MC5000 . Figure 4-1 is a block diagram of this control strategy.

The default CS 1 set-up is as follows:

1. Flexible Control Strategy CS1 enabled.

(B00 = 1)

2. Proportional Band = 100%

3. No Reset

4. No Derivative

5. No Alarms

6. PV input, 1-5 V is 0 - 100%

7. Reverse mode. That is, it expects a control element such that increasing the control output increases the

PV.

(C106 = 100)

(C107 = 0)

(C108 = 0)

(B335 = 1)

(C256 = 100)

(L106 = 1)

8. Remote Set Point disabled

9. Five displays:

POINT display of CON0

POINT with PV TREND of CON0

Tuning Parameters (PAR0)

Alarm Limits (PAR1)

System Status

(L115 = 0)

To start up the controller in this mode:

1. Install the controller as described in Section 2; as a minimum the AI0 (PV) input and the AO0

(OUT) output must be connected.

2. Apply power to the controller

The controller should now be operating. A full description of the set-up is discussed in Section

4.1.2.

4-1

MODULAR CONTROLLER QUICK START

4.1.1 CS 1 SINGLE LOOP PID DESCRIPTION

The "Standard PID" configuration of the Flexible Control Strategy (FCS) is designed to fulfill the requirements of a large majority of process applications. CS1 implements a standard feedback control loop which automatically controls a process variable (PV) at a predetermined setpoint (SP).

The process variable and the control signal output are the only essential signals in this configuration. CS1 is loaded from EPROM to set-up the FCS with a minimum of configuration effort. The user must only configure the proper ranges and setpoints for the particular application.

AI0 - Process Variable (PV)

AI1 - Remote Setpoint

AI2 - Additive Feed Forward Input

AI3 - Tracking Input

AO0 - Controller Output

AO1 - Retransmitted PV

DI0 - Force Output Tracking (Open Contact)

DI1 - Remote Setpoint Enable (Closed Contact)

DO0 - Process Alarm 1

DO1 - Process Alarm 2

4.1.2 SETTING UP THE STANDARD PID LOOP

All Single Loop 53MC5000’s are shipped from the factory with CS1 loaded. For instruments being installed for the first time, Steps 1, 2 and 3 are not required. If the state of the database is unknown Steps 1, 2 and 3 should be followed.

1. For a first time start-up, it is suggested that the database be set to default values. This is done by configuring B00 to load a default database. B00 is the Function Index (FIX) of the controller, which identifies the type of control strategy being executed. Entering 98 in B00 will load the default values. When the default process is complete, B00 will reset to 0 and the display will show the logo.

This means the 53MC5000 is in "Suspend mode" (B00=0) and the processor is halted.

2. With the 53MC5000 still in "Suspend" (B00=0), load the FCS set-up values for CS1 Standard

Single Loop PID from EPROM into controller RAM. This is done by setting B16=1. Other values in

B16 will load other strategy types (See Instruction Bulletin 53MC5000 ). B16 will always reset to 0 when the load is complete.

3. Set B00=1, which tells the controller to run the FCS strategy which has been loaded to operate as CS1 Standard PID.

At this point, the 53MC5000 is a functional controller with default spans and tuning parameters.

The user may configure parameters specific to the application as described below.

4-2

MODULAR CONTROLLER QUICK START

4. Configure the PV input signal parameters: Refer to Instruction Bulletin 53MC5000 Section 4.3.1.

•

Set-up the AI module by entering the span (in Engineering Units of the PV range) in

C256 and the range minimum in C276. Span is defined as (Range Max. - Range

Min.).

•

The 53MC5000 is set to accept a 1-5 V PV signal. If 0-5 V is required, enter L416=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, enter L440=1.

5. Configure the Control Module parameters:

•

Enter the 10-character loop tagname in A00 and the 7-character Engineering units in A01.

•

Set-up the CON module by entering the span in C115 and the range minimum in

C116. For standard PID control, the span and minimum of the AI and CON modules is the same.

•

Set the tuning parameters if desired:

C106 = Proportional Band

C107 = Reset time in minutes per repeat

C108 = Derivative time in minutes

•

The 53MC5000 is set for reverse action. If direct action is required, enter L106=0.

•

If setpoint limits are desired, enter the setpoint high limit in C125 and the low limit in C126. Both limits are in engineering units.

•

If output limits are desired, enter the output high limit in C109 and the low limit in

C110. Both limits are in percent of output. Output limits are active in both Auto and

Manual mode.

•

If HI/LO alarms are required, enter the following:

B335=0 (HI/LO alarm index)

C103=High alarm setpoint

C104=Low alarm setpoint

C105=Alarm deadband

Alarm setpoints and deadbands are in engineering units. Other alarm types are available (see Instruction Bulletin 53MC5000 Section 4.1.6).

6. If it is required that the setpoint track the process variable when in manual, enable setpoint tracking by entering L118=1.

7. If it is required that the output track AI3 when DI0 is open, enable output tracking by entering

L119=1.

4-3

MODULAR CONTROLLER QUICK START

4.1.3 CS 1 STANDARD PID FCS DISPLAYS

The 53MC5000’s dot matrix display provides unequalled capability for presentation of information to the user. The default CS1 FCS configuration includes five displays as described below. The user can easily incorporate additional displays if desired as described in Section 4.2 of the Instruction

Bulletin 53MC5000 .

The standard display list includes:

•

Single Loop Display (CON0) - The loop PV is displayed in digital and bargraph form

(in engineering units) with a SP arrow. Alarm limits are displayed as ticks on the

PV. When in alarm condition, the alarm line will flash. The PV bargraph is displayed with a scale including the minimum and maximum range values. The OP is shown as a horizontal bargraph with a digital display of output percent.

Auto/Manual and Remote/Local mode indications are displayed at the bottom of the screen).

•

Single Loop with Trend display (CON0) - This display provides digital indication of the PV, SP and OP associated with the loop, but adds a 40-value process variable trend. The sample rate of the trend is defaulted every 2 seconds. Sample rate may be changed by setting B336 equal to the desired sample rate in seconds.

Acceptable values of B336 are 0, 1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30, and 60 seconds. Any other value will be reduced to the closest of these values.

•

Parameter display (PID parameters - Displays the tuning parameters for the loop;

Proportional Band, Reset Time, and Derivative time. Values may be changed by an operator as follows:

1. Use the Up/Down (SP) arrows to position the cursor at the value to be changed. Press F3 to select.

2. Use the Increase/Decrease (OP) arrows to move the value to the digit to be changed. Use the Up/Down (SP) arrows to page through the list of alphanumerics.

3. When the number on the screen is correct, press F3 to enter the number.

•

Parameter display (Alarm limits) - Displays the alarm parameters for the loop;

Alarm Limit #1 (HI), Alarm Limit #2 (LO), and the Alarm Deadband. Values may be changed as described above.

•

System status - This displays the control strategy (FCS=1), the control strategy scan rate (3 = 150 ms), control strategy overruns, the display scan rate (1 = same as Control Strategy Scan Rate), the display overruns, and the instrument address

(0).

4-4

MODULAR CONTROLLER QUICK START

4.1.4 CONTROL OPTIONS

4.1.4.1 REMOTE SETPOINT

1. Configure the RSP input signal parameters:

•

Set C257 to the span (in Engineering Units) of the RSP range.

•

Set C277 to the minimum (in Engineering Units) of the RSP range.

•

The 53MC5000 is set to accept a 1-5 V RSP signal. If 0-5 V is required, set L417=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, set L441=1.

2. Enable the Remote Setpoint capability by setting L115=1.

3. The 53MC5000 will permit remote setpoint operation if DI1 is closed.

4.1.4.2 FEEDFORWARD INPUT

Additive feedforward provides the ability to add a remotely generated analog value to the control output of the PID controller:

1. Configure the FF input signal parameters:

•

Set C258 to the span (in Engineering Units) of the FF range.

•

Set C278 to the minimum (in Engineering Units) of the FF range.

•

The 53MC5000 is set to accept a 1-5 V RSP signal. If 0-5 V is required, set

L418=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, set L442=1.

4.1.4.3 OUTPUT TRACKING

The 53MC5000 is capable of forcing the control output to track an analog value based on the status of a discrete input. This value can come from two sources; either an internal database location or a remotely generated analog signal:

To track an internal database location:

1. Softwire the FCS Auto/Manual module to the internal value to be tracked by setting B160=129.

2. Set C129 to the desired value.

3. Enable Output Tracking by setting L119=1.

4. The 53MC5000 will track C129 only if DI0 is open (0 state).

To track a remotely generated analog signal (AI3):

1. Configure the RSP input signal parameters:

•

Set C259 to the span (in Engineering Units) of the OTV range.

•

Set C279 to the minimum (in Engineering Units) of the OTV range.

4-5

MODULAR CONTROLLER QUICK START

•

The 53MC5000 is set to accept a 1-5 V RSP signal. If 0-5 V is required, set

L419=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, set L443=1.

2. Enable Output Tracking by setting L119=1.

3. The 53MC5000 will track AI3 only if DI0 is open (0 state).

4-6

MODULAR CONTROLLER QUICK START

FIGURE 4-1. CS 1 FUNCTION BLOCK DIAGRAM

4-7

MODULAR CONTROLLER QUICK START

4.2 CS 20 TWO-LOOP STANDARD PID

If Model Number 53MC52X1 has been purchased, the controller is shipped from the factory loaded with the FCS CS20 for Two-Loop Standard PID. Other strategies are described in Section 4.3 of Instruction Bulletin 53MC5000 .

4.2.1 CS 20 TWO LOOP PID DESCRIPTION

The "Two Loop PID" configuration of the Flexible Control Strategy (FCS) is designed to fulfill the requirements of a large majority of process applications. CS20 implements two standard feedback control loops which automatically controls two process variables (PV) at predetermined setpoints

(SP). The process variables and the control signal outputs are the only essential signals in this configuration. CS20 is loaded from the EPROM to set-up the FCS with a minimum of configuration effort. The user need only configure the proper ranges and setpoints for a particular application.

Loading CS20 generates the softwiring required and initializes AI1’s Engineering Span to 100.0

and the display list sequence to incorporate a second display group (CON1). Figure 4-2 is a block diagram of this control strategy. The following I/O assignments result:

AI0 - PROCESS VARIABLE LOOP 1

AI1 - PROCESS VARIABLE LOOP 2

AI2 - REMOTE SETPOINT LOOP 1

AI3 - REMOTE SETPOINT LOOP 2

AO0 - CONTROL OUTPUT LOOP 1

AO1 - CONTROL OUTPUT LOOP 2

DI0 - REMOTE ENABLE LOOP 1

DI1 - REMOTE ENABLE LOOP 2

DO0 - PROCESS ALARMS LOOP 1

DO0 - PROCESS ALARMS LOOP 2

4.2.2 SETTING UP THE STANDARD LOOP

All Two Loop 53MC5000’s are shipped from the factory with CS20 loaded. For instruments being installed for the first time, Steps 1, 2 and 3 are not required.

1. If the state of the database is unknown, it should be set to default values. This is done by configuring B00 to load a default database. B00 is the Function Index (FIX) of the controller, which identifies the type of control strategy being executed. Entering 98 in B00 will load the default values.

When the default process is complete, B00 will reset to 0 and the display will show the logo.

This means the 53MC5000 is in "Suspend mode" (B00=0) and the processor is halted.

4-8

MODULAR CONTROLLER QUICK START

2. With the 53MC5000 still in "Suspend mode" (B00=0), load the FDC set-up values for CS20

Standard Two Loop PID from the EPROM into controller RAM. This is done by setting B16=20.

Other values in B16 will load other strategy types. B16 will always reset to 0 when the load is complete.

3. After loading the CS20 Two Loop PID database values, set B00=1. This places the 53MC5000 in a "Run" mode using the FCS strategy.

At this point, the 53MC5000 is a functional controller with default spans and turning parameters.

The user may configure parameters specific to an application as described below.

4. Configure the PV input signal parameters for Loop #1:

•

Set-up the AI module by entering the span (in Engineering Units of the PV range) in

C256 and the range minimum in C276. Span is defined as (Range Max. - Range

Min.)

•

Set-up the CON module by entering the span in C115 and the range minimum in

C116. For standard PID control, the span and minimum of the AI and CON modules are the same.

•

The 53MC5000 is set to accept a 1 - 5 V PV signal. If 0 - 5 V is required, enter

L416=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, enter L440=1.

5. Configure the PV input signal parameters for Loop #2:

•

Set-up the AI module by entering the span (in Engineering Units of the PV range) in

C257 and the range minimum in C277. Span is defined as (Range Max. - Range

Min.).

•

Set-up the CON module by entering the span in C151 and the range minimum in

C152. For standard PID control, the span and minimum of the AI and CON modules are the same.

•

The 53MC5000 is set to accept a 1 - 5 V PV signal. If 0 - 5 V is required, enter

L417=1.

•

The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, enter L441=1.

6. Configure the Control Module parameters for Loop #1:

•

Enter the 10-character loop tagname in A00 and the 7-character Engineering Units in A01.

•

Set the tuning parameters if desired:

C106 = Proportional Band

C107 = Reset time in minutes per repeat

C108 = Derivative time in minutes

•

The 53MC5000 is set for reverse action. If direct action is required, enter L106=0.

•

If setpoint limits are desired, enter the setpoint high limit in C125 and the low limit in C126. Both limits are in Engineering Units.

•

If output limits are desired, enter the output high limit in C109 and the low limit in

C110. Both limits are in percent of output. Output limits are active in both Auto and

Manual mode.

4-9

MODULAR CONTROLLER QUICK START

•

If HI/LO alarms are required, enter the following:

B335=0 (HI/LO alarm index)

C103=High alarm setpoint

C104=Low alarm setpoint

C105=Alarm deadband

Alarm setpoints and deadbands are in Engineering Units.

7. Configure the Control Module parameters for Loop #2:

•

Enter the 10-character loop tagname in A02 and the 7-character Engineering Units in A03.

•

Set the tuning parameter if desired:

C142 = Proportional Band

C143 = Reset time in minutes per repeat

C144 = Derivative time in minutes

•

The 53MC5000 is set for reverse action. If direct action is required, enter L130=0.

•

If setpoint limits are desired, enter the setpoint high limit in C161 and the low limit in C162. Both limits are in Engineering Units.

•

If output limits are desired, enter the output high limit in C145 and the low limit in

C146. Both limits are in percent of output. Output limits are active in both Auto and

Manual mode.

•

If HI/LO alarms are required, enter the following:

B340=0 (HI/LO alarm index)

C139=High alarm setpoint

C140=Low alarm setpoint

C141=Alarm deadband

Alarm setpoints and deadbands are in Engineering Units. Other alarm types are available (see Instruction Bulletin 53MC5000 Section 4.1.6).

4-10

MODULAR CONTROLLER QUICK START

4.2.3 CS 20 STANDARD PID FCS DISPLAYS

The 53MC5000’s dot matrix display provides unequalled capability for presentation of information to the user. The default CS20 FCS configuration includes ten displays as described below. The user can easily incorporate additional displays if desired as described in the Instruction Bulletin

53MC5000.

The standard display list includes:

•

Two Loop Overview display - This display provides an overview of both loops. The

PV’s are displayed in bargraph form with a SP arrow. The Output (OP) is shown as a horizontal bargraph. The tags of both loops are shown at the top of the screen.

•

Two Single Loop Displays (CON0 and CON1) - An individual display is provided for each loop. The PV is displayed in digital and bargraph form (in engineering units) with a SP arrow. Alarm limits are displayed as ticks on the PV. When in alarm condition, the alarm line will flash. The PV bargraph is displayed with a scale including the minimum and maximum range values. The OP is shown as a horizontal bargraph with a digital display of output percent. Auto/Manual and

Remote/Local mode indications are displayed at the bottom of the screen.

•

Two Single Loop with Trend displays (CON0 and CON1) - An individual display is provided for each loop. This display provides digital indication of the PV, SP and

OP associated with each loop, but adds a 40-value, process variable trend. The sample rate of the trend is defaulted at 2 seconds. Sample rate may be changed by setting B336 equal to the desired sample rate in seconds.

•

Two PID Parameter Display - An individual display is provided for each loop which displays the tuning parameters; Proportional Band, Reset Time, and Derivative time. Values may be changed by an operator as follows:

1. Use the Up/Down (SP) arrows to position the cursor at the value to be changed. Press F3 to select.

2. Use the Increase/Decrease (OP) arrows to move the value to the digit to be changed. Use the Up/Down (SP) arrows to page through the list of alphanumerics.

3. When the number on the screen is correct, press F3 to enter the number.

•

Two Alarm Limits Parameter displays - An individual display is provided for each loop which displays the alarm parameters; Alarm Limit #1 (HI), Alarm Limit #2 (LO), and the Alarm Deadband.

Values may be changed as described above.

•

System status - Displays the control strategy (FCS=1), the control strategy scan rate (3 = 150 ms), control strategy overruns, the display scan rate (1 = same as

Control Strategy Scan Rate), the display overruns, and the instrument address (0).

4-11

MODULAR CONTROLLER QUICK START

4.2.4 CONTROL OPTIONS - REMOTE SETPOINT

The 53MC5000 is capable of accepting a setpoint from a remote instrument for loop #1 through

AI2.

1. Configure the RSP input signal parameters:

•

Set C258 to the span (in Engineering Units) and C278 to the minimum (in

Engineering Units) of the RSP range.

•

The 53MC5000 is set to accept a 1-5 V RSP signal. If 0-5 V is required, set

L487=1. The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, set L442=1.

2. Enable the Remote Setpoint capability by setting L115=1. The 53MC5000 will permit remote setpoint operation if DI0 is closed.

The 53MC5000 is capable of accepting a setpoint from a remote instrument for Loop #2 through

AI3.

1. Configure the RSP input signal parameters:

•

Set C259 to the span (in Engineering Units) and C279 to the minimum (in

Engineering Units) of the RSP range.

•

The 53MC5000 is set to accept a 1-5 V RSP signal. If 0-5 V is required, set

L497=1. The 53MC5000 is set to accept a linear PV signal. If square root extraction is required, set L443=1.

2. Enable the Remote Setpoint capability by setting L139=1. The 53MC5000 will permit remote setpoint operation if DI1 is closed.

4-12

MODULAR CONTROLLER QUICK START

FIGURE 4-2. CS 20 FUNCTION BLOCK DIAGRAM

4-13

MODULAR CONTROLLER QUICK START

APPENDIX A.0 - FM APPROVAL

The following listed equipment is Factory Mutual approved as:

Nonincendive for use in Class I, Division 2, Group A, B, C & D locations, Temperature Code T3C,

160 o

C. Temperature Code T3C means that the highest component surface temperature at maximum line and load conditions, does not exceed 160

(104 o o

C (320 o

F) based on an ambient temperature of 40 o

F). This restricts the use of this equipment to atmospheres with an Autoignition Temperature

(AIT) greater than 160 o

C. Based on the gases and vapors listed in ANSI/NFPA 497M, Classification of Gases, Vapors and Dusts for Electrical Equipment in Hazardous (Classified) Locations, the only listed Group C atmosphere in which this equipment cannot be used is Diethyl Ether with an AIT of

160 o

WARNING

It is the users responsibility to install all apparatus in accordance with

ANSI/NFPA 70, National Electrical Code. Rules and requirements for the installation and wiring of equipment in Class I, Division 2 Hazardous

(Classified) Locations are found in Article 501 of the Code.

The following Model Number variations of the

53MC5000 are suitable for installation in Division 2 locations:

Modular Controller. Model 53MC5abcA2deBfghjkXl a = Control Loops 1, 2 or 4 b = Power Requirements 1 or 2 c = Functional Requirements 1, 2 ,3 or 4 d = Rear terminal Requirements 1, 3, 4 or 5 e = Chassis A or B f = Discrete I/O Option A, B, C, D, E, F or X g = Dual Relay ITB 1, 2, 3 or X h = Analog I/O Option A, B, C, D or X j = Analog Conditioning Module A, B, C, D, E or X k = Communications Option A, B, C, D, E, F, G, H, J or X l = Conformal Coating A or X

A-1

MODULAR CONTROLLER QUICK START

APPROVED OPTIONS

The following optional accessories as listed in Chapter 1.0 of the Instruction Manual are suitable for use in Division 2.

•

6DI/4DO, Contact Closure Input (CCI), Contact Closure Output (CCO).

•

Dual Relay ITB, CCO.

WARNING

For use in Division 2 locations, the energy to relay contacts 8 and 11 must be limited to <3 VA, <28 V and <250 mA, resistive loads only.

The use of open contact type relays in a Class I, Division 2 locations is permitted only if the energy switched by the contacts is limited to an intrinsically safe level. It is the user’s responsibility to limit the energy.

•

16DI/DO ITB, for Opto 22 I/O modules.

•

Opto 22 I/O modules:

The following modules are suitable for use in Class I, Division 2 locations as part of the 16DI/DO ITB.

AC Input

Modules

G4IDC5

G4IDC5G

G4IAC5

G4IAC5A

G4IDC24

G4IAC24

Opto 22 Part Number

AC Output

Modules

G4OAC5

G4OAC5A

G4OAC5A5(NC)

G4OAC24

G4OAC24A

DC Input

Modules

G4IC5

G4IDC5B

G4IDC5D

G4IDC5G

G4IAC5

G4IAC5A

G4IDC24

G4IAC24

DC Output

Modules

G4ODC5

G4ODC5A

G4ODC24

WARNING

It is the user’s responsibility to install all associated switches and load apparatus in accordance with ANSI/NFPA 70, National

Electrical Code. Rules and requirements for the installation and wiring of equipment in Class I, Division 2 Hazardous (Classified)

Locations are found in Article 501 of the Code.

A-2

MODULAR CONTROLLER QUICK START

APPROVED OPTIONS (cont’d)

•

Single Channel Analog Input Option.

•

Multi-Channel Analog I/O Option.

•

5Bxx Group of mV, Voltage, Current, RTD and Thermocouple Input Isolation

Modules.

•

SCADA Adapter ITB.

NON-APPROVED OPTIONS

The Hand Held Configurer (HHC) (Discussed in Chapter 3.0 of the 53MC5000 Instruction Manual) is a portable terminal designed to interface with the 53MC5000 through the "Configuration Port" connector located on the front panel of the 53MC5000. It is NOT APPROVED FOR USE IN CLASS

I, DIVISION 2, HAZARDOUS (CLASSIFIED) LOCATIONS.

To use the HHC, the user must certify that the atmosphere in the area of the 53MC5000 is nonhazardous.

A-3

MODULAR CONTROLLER QUICK START

INSTALLATION DIAGRAMS

A copy of each of the following interconnection diagrams is included in this Appendix.

In Class I, Division 2 installations these drawings shall be used in place of the installation drawings provided in the 53MC5000 Instruction Manual and 53MC5000 Quick Start Installation Guide.

ID-53-1592 Installation Diagram, Standard Rear Terminal Board and Expansion

Rear Terminal Board

ID-53-1593

ID-53-1594

ID-53-1595

ID-53-1596

ID-53-1597

ID-53-1598

ID-53-1599

ID-53-1601

ID-53-1603

Installation Diagram, Discrete ITB and Dual Relay ITB

Installation Diagram, Cord Set Rear Terminal Board and Expansion

Rear Terminal Board

Installation Diagram, Cord Set ITB and Dual Relay ITB

Installation Diagram, Analog ITB

Installation Diagram, MicroLink Communications

Installation Diagram, Standard Communications with Cord Set

Installation Diagram, Standard Communications with Standard Rear Terminal Board

Installation Diagram, Controller to SCADA Adaptor

Installation Diagram, 16DI/DO ITB

CORRECTIVE MAINTENANCE

WARNING

EXPLOSION HAZARD, DO NOT DISCONNECT CABLES, MODULES, OR

FUSES UNLESS POWER HAS BEEN DISCONNECTED OR THE AREA IS

KNOWN TO BE NON-HAZARDOUS.

When the equipment is installed in a Class I, Division 2 location, no service that requires the removal, replacement, or connection of components or wiring shall be performed on any circuits not known to be operating at intrinsically safe energy levels unless the power supplies have been disconnected or the area is known to be nonhazardous. If the area is to be declared nonhazardous, it is the user’s responsibility to determine whether the atmosphere is hazardous with a suitable combustible gas detector.

A-4

MODULAR CONTROLLER QUICK START

LITHIUM BATTERY HANDLING PRECAUTIONS

Part. No.

167B024U01

Manufacturer: Eag l e Picher Industries, Inc.

Box 130 Bethel Road

Seneca, MO 64865

Part Number:

Type:

LTC-7P

Inorganic, Liquid Lithium Thionyl Chloride

Voltage: 3.5

Capacity: 750 mAh

Storage Temp.: 150 o

C (302 o

Operating Temp.: -40 to 125 o

C (-40 to 257 o

Sealing: Hermetic, Non-Venting

WARNING

REPLACE BATTERY WITH EAGLE PICHER P/N LTC-7P ONLY. USE OF

ANOTHER BATTERY MAY PRESENT A RISK OF FIRE OR EXPLOSION.

Replacement

Procedure:

Disposal

Procedure:

CAUTION

BATTERY MAY EXPLODE IF MISTREATED. DO NOT RECHARGE,

DISASSEMBLE OR DISPOSE OF IN FIRE.

The LTC-7P battery is short circuit protected for wave soldering.

Care should be taken to avoid short circuiting the battery during installation. No special handling procedures are required for removal of used batteries.

Dispose of used batteries in accordance with Federal, state and local code requirements for disposal of hazardous materials.

A-5

The Company’s policy is one of continuous product improvement and the right is reserved to modify the information contained herein without notice, or to make engineering refinements that may not be reflected in this bulletin.

Micromod Automation assumes no responsibility for errors that may appear in this manual.

5 MicroMod Automation, Inc.

Printed in USA

MicroMod Automation, Inc.

75 Town Centre Drive

Rochester, NY USA 14623

Tel. 585-321-9200

Fax 585-321-9291

www.micromodautomation.com

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
