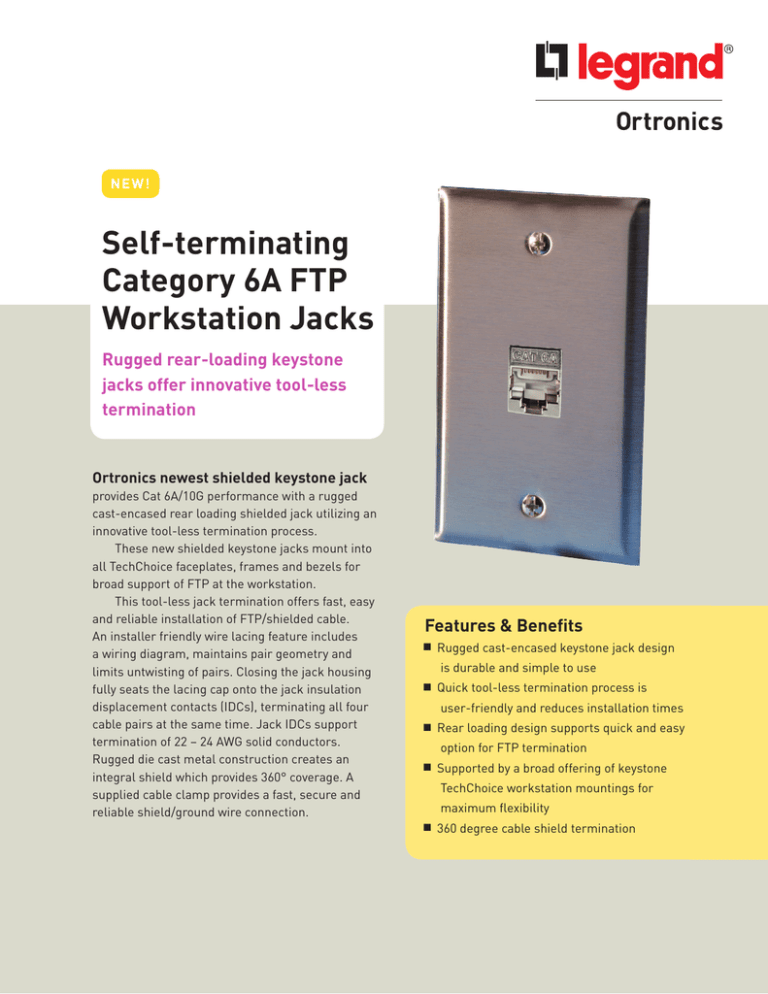

Category 6A FTP Workstation Jacks
NEW!
Self-terminating
Category 6A FTP
Workstation Jacks
Rugged rear-loading keystone
jacks offer innovative tool-less
termination
Ortronics newest shielded keystone jack
provides Cat 6A/10G performance with a rugged
cast-encased rear loading shielded jack utilizing an
innovative tool-less termination process.
These new shielded keystone jacks mount into
all TechChoice faceplates, frames and bezels for
broad support of FTP at the workstation.
This tool-less jack termination offers fast, easy
and reliable installation of FTP/shielded cable.
An installer friendly wire lacing feature includes
a wiring diagram, maintains pair geometry and
limits untwisting of pairs. Closing the jack housing
fully seats the lacing cap onto the jack insulation
displacement contacts (IDCs), terminating all four
cable pairs at the same time. Jack IDCs support
termination of 22 – 24 AWG solid conductors.
Rugged die cast metal construction creates an
integral shield which provides 360° coverage. A
supplied cable clamp provides a fast, secure and
reliable shield/ground wire connection.
Features & Benefits
n
Rugged cast-encased keystone jack design
is durable and simple to use
n
Quick tool-less termination process is
user-friendly and reduces installation times
n
Rear loading design supports quick and easy
option for FTP termination
n
Supported by a broad offering of keystone
TechChoice workstation mountings for
maximum flexibility
n
360 degree cable shield termination
Ordering Information
PART NO.
DESCRIPTION
OR-TKS6A
Cat 6A FTP self-terminating keystone jack
Related Products
Category 6A shielded patch panels with supplied jacks and rear cable management
PART NO.
DESCRIPTION
OR-PHDTKS6A24
24-port, flat 1RU patch panel with 24 Cat 6A TKS jacks
OR-PHDTKS6A48
48-port, flat 2RU patch panel with 48 Cat 6A TKS jacks
OR-PHATKS6A24
24-port, angled 1RU patch panel with 24 Cat 6A TKS jacks
OR-PHATKS6A48
48-port, angled 2RU patch panel with 48 Cat 6A TKS jacks
Specifications
Category performance
Category 6A/FTP
Panel materials
Zinc plated 16 AWG cold rolled steel
Wiring scheme
T568A/B
Jack color
Silver /metallic cast
Wire gauge
22 – 24 AWG
Jack materials
Zinc alloy shielded housing
IDC tinned plated phosphor bronze
Modular contacts 50 micro inch gold over
nickel plated phosphor bronze
Jack mounting
Keystone snap-in, rear loading compatible
with all TechChoice plates
UL standard
UL 1863
125 Eugene O’Neill Drive
New London, CT 06320
(800) 934.5432
860.445.3900 (sales)
860.405.2992 (fax)
www.legrand.us/ortronics
REV 01/10
