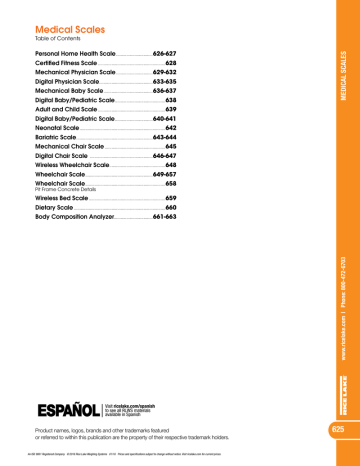

Medical Scales

Table of Contents

Personal Home Health Scale

................................

626-627

Certified Fitness Scale

...........................................................

628

Mechanical Physician Scale

................................

629-632

Digital Physician Scale

...............................................

633-635

Mechanical Baby Scale

...........................................

636-637

Digital Baby/Pediatric Scale

............................................

638

Adult and Child Scale

...........................................................

639

Digital Baby/Pediatric Scale

.................................

640-641

Neonatal Scale

...........................................................................

642

Bariatric Scale

...................................................................

643-644

Mechanical Chair Scale

.....................................................

645

Digital Chair Scale

.......................................................

646-647

Wireless Wheelchair Scale

.................................................

648

Wheelchair Scale

...........................................................

649-657

Wheelchair Scale

......................................................................

658

Pit Frame Concrete Details

Wireless Bed Scale

...................................................................

659

Dietary Scale

................................................................................

660

Body Composition Analyzer

..................................

661-663

Visit

ricelake.com/spanish

to see all RLWS materials available in Spanish

Product names, logos, brands and other trademarks featured or referred to within this publication are the property of their respective trademark holders.

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

625

Personal Home Health Scale

Standard Features

• Weigh in pounds, kilograms or stones

• Easy to read 1.5 in LCD display

• Durable platform with non-slip surface

• Auto holds weight value on display

• Lithium battery included

• Tap to turn on, automatic switch off

Specifications

Capacity:

440 lb x 0.2 lb (200 kg x 0.1 kg)

1 st - 10 st x 0.5 lb; 10 st - 31 st x 1.0 lb st = stone

Platform Dimensions:

(L x W x H) 13.7 x 12.9 x 1.625 in

Warranty:

One-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

112566 RL-440HH

440 lb x 0.2 lb (200 kg x 0.1 kg)

1 - 10 st x 0.5 lb;

10 - 31 st x 1.0 lb

4.0 lb

PRICE

$58.00

Model RL-440HH

626

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Personal Home Health Scale

Standard Features

• Easy to read 7.875 in diameter dial

• Colorful markers for record purposes

• Durable steel base and platform

• Non-slip mat

Specifications

Capacity:

330 lb x 1 lb (RL-330HHL)

330 lb (150 kg) x 1 lb (0.5 kg) (RL-330HHD)

Platform Dimensions:

(L x W x H) 16.93 x 11.22 x 2.5 in

Warranty:

One-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

110592 RL-330HHL 330 lb x 1 lb

113500 RL-330HHD

330 lb x 1 lb

(150 kg x 0.5 kg)

EST.

SHIP

WEIGHT

9.0 lb

9.0 lb

PRICE

$58.00

58.00

Model RL-330HHL

Model RL-330HHD

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

627

Certified Fitness Scale

Standard Features

• Capacity: 600 lb x 0.1 lb (270 kg x 0.05 kg)

• Platform dimensions: (L x W x H) 14.5 x 14.5 x 3 in

• Large 1 in LCD display

• AC adaptor and internal rechargeable battery

• RS-232 output

• 6.5 ft cable between scale base and indicator

• Switch between lb and kg

• Lightweight, 14 lb, for ease of transport

Specifications

Power:

9 VDC, provided by AC adaptor or internal rechargeable battery

Battery Type:

Sealed lead acid

Battery Use:

75 hours, automatic power off can be configured from 0-20 minutes

Operating Temperature:

32° F to 104° F (0° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE, NTEP CC 09-098, MC AM-5759

Part Number/Price

PART # MODEL # CAPACITY

119551 140-10-7N 600 lb x 0.1 lb

EST. SHIP

WEIGHT

20 lb

Options/Accessories

PART # DESCRIPTION

107445 Transport/carrying case

PRICE

$495.00

PRICE

$90.00

APPROVALS

N

AT

IO

NA

L CONFER

EN

C

E

W

E

IG

H TS

A N D M

E A

S

U

R

Measurement

Canada

Approved

Model 140-10-7N

Optional Transport/Carrying Case

628

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Mechanical Physician Scale

Standard Features

• Dual read capacity and height rod

• Capacity: 440 lb x 4 oz (200 kg x 100 g)

• 10.75 x 14.75 in platform

• Sturdy enameled steel body

• Die cast beam

• Rugged scale understructure

• Removable slip-resistant plastic base cover

• Retractable aluminum height rod

• Easy operation with two sliding weights

• Rear wheels for portability ease

Specifications

Height Rod:

24-84 in (60-210 cm)

Height Division:

0.125 in (0.1 cm)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

102613 RL-MPS

440 lb x 4 oz

(200 kg x 100 g)

EST SHIP WEIGHT

43 lb

B

C

DIMENSIONS

A 10.75 in (27.3 cm)

D

14.75 in (37.5 cm)

E

4.125 in (10.5 cm)

22.25 in (56.5 cm)

58.5 in (148.6 cm)

PRICE

$250.00

LB & KG

E

Model RL-MPS

D

B

A

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

629

630

Mechanical Physician Scale

Standard Features

• Capacity: 450 lb x 4 oz

• 10.75 x 14.75 in platform

• Sturdy enameled steel body

• Die cast beam

• Rugged scale understructure

• Removable slip-resistant plastic base cover

• Retractable aluminum height rod, inches only

• Easy operation with two sliding weights

• Rear wheels for portability ease

Specifications

Height Rod:

24-84 in

Height Division:

0.125 in

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY EST SHIP WEIGHT

124223 RL-MPS-10 450 lb x 4 oz 43 lb

DIMENSIONS

A

B

C

10.75 in (27.3 cm) D

14.75 in (37.5 cm) E

4.125 in (10.5 cm)

PRICE

$250.00

22.25 in (56.5 cm)

58.5 in (148.6 cm)

LB Only

Model RL-MPS-10

E

D

B

A

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Mechanical Physician Scale

Standard Features

• Dual read capacity

• Capacity: 440 lb x 4 oz (200 kg x 100 g)

• 10.75 x 14.75 in platform

• Sturdy enameled steel body

• Die cast beam

• Rugged scale under structure

• Removable slip-resistant plastic base cover

• Easy operation with two sliding weights

Lb and kg without height rod or wheels

Specifications

Height Division:

0.125 in (0.1 cm)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST SHIP

WEIGHT

124222 RL-MPS-20 440 lb x 4 oz (200 kg x 100 g) 41 lb

DIMENSIONS

A

B

C

10.75 in (27.3 cm) D

14.75 in (37.5 cm) E

4.125 in (10.5 cm)

PRICE

$230.00

22.25 in (56.5 cm)

58.5 in (148.6 cm)

LB & KG

No Height Rod

Model RL-MPS-20

E

D

B

A

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

631

632

Mechanical Physician Scale

Standard Features

• Capacity: 180 kg x 100 g

• 10.75 x 14.75 in platform

• Sturdy enameled steel body

• Die cast beam

• Rugged scale understructure

• Slip-resistant plastic base cover

• Retractable aluminum height rod, centimeter only

• Easy operation with two sliding weights

• Rear wheels for portability ease

Specifications

Height Rod:

60-212 cm

Height Division:

0.1 cm

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY EST SHIP WEIGHT

132703 RL-MPS-30 180 kg x 100 g 44 lb

DIMENSIONS

A

B

C

10.75 in (27.3 cm) D

14.75 in (37.5 cm) E

4.125 in (10.5 cm) F

PRICE

$265.00

22.25 in (56.5 cm)

58.5 in (148.6 cm)

31.5 in (80 cm)

KG Only

with handpost

Model RL-MPS-30

E

F

D

B

A

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Digital Physician Scale

Eye Level

Standard Features

• Capacity: 550 lb x 0.2 lb (250 kg x 0.1 kg)

• Platform dimensions: (W x L x H) 14.5 x 14.5 x 3 in

• Motiontrap

TM

(movement compensation technology)

• Large LCD display

• 6

AA

alkaline batteries included

• Low-battery indicator/automatic power-off

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• Built-in height measuring rod measures from 27.5 to 82 x 1/8 in

(70 to 208 x 1 mm)

• Integrated wheels for portability ease

Specifications

Power:

9 VDC, provided 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours, continuous use with batteries

Approvals:

CE

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

119113 150-10-5

550 lb x 0.2 lb

(250 kg x 0.1 kg), with USB

26 lb

PRICE

$475.00

26 lb 550.00

Options/Accessories

PART # DESCRIPTION

133077

102508

N/A

9 VDC adaptor, 120 V/230 V auto switching †

9 VDC adaptor, 230 V ††

Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

† NEMA Type 1-15 Plug

Model 150-10-5

†† CEE 7/16 Euro Plug

DIMENSIONS

A

B

54 in (133 cm)

22.4 in (57 cm)

C 14.7 in (37.5 cm)

D 30.8 in (78 cm) b c d

Index

a

Measurement [cm],[inch] Remark

123cm, 48.4inch

57cm, 22.4inch

37.5cm, 14.7inch

78cm, 30.7inch

indicator height pla orm depth pla orm width pla orm height d.

c.

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

b.

a.

DWG. No

TITLE:

REV.

SHEET:

PHYSICIAN SCALE 15X-XX-6

CAT. No

633

Digital Physician Scale

Waist Level

Standard Features

• Capacity: 550 lb x 0.2 lb (250 kg x 0.1 kg)

• Platform dimensions: (W x L x H) 14.5 x 14.5 x 3 in

• Motiontrap

TM

(movement compensation technology)

• Large LCD display

• 6

AA

alkaline batteries included

• Low-battery indicator/automatic power-off

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• Integrated wheels for portability ease

Specifications

Power:

9 VDC, provided six AA batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours, continuous use with batteries

Approvals:

CE

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL

161786 150-10-6

CAPACITY

EST. SHIP

WEIGHT

550 lb x 0.2 lb (250 kg x 0.1 kg), with USB

26 lb

26 lb

PRICE

$450.00

525.00

Options/Accessories

PART # DESCRIPTION

133077

102508

N/A

9 VDC adaptor, 120 V/230 V auto switching †

9 VDC adaptor, 230 V ††

Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

† NEMA Type 1-15 Plug

Model 150-10-6

†† CEE 7/16 Euro Plug

634

DIMENSIONS

A

B

48.4 in (123 cm)

22.4 in (57 cm)

C 14.7 in (37.5 cm)

D 30.7 in (78 cm) a.

b c

Index

a d

Measurement [cm],[inch] Remark

123cm, 48.4inch

57cm, 22.4inch

37.5cm, 14.7inch

78cm, 30.7inch

indicator height pla orm depth pla orm width pla orm height d.

c.

b.

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

DWG. No

TITLE:

REV.

SHEET:

PHYSICIAN SCALE 15X-XX-6

CAT. No

Digital Physician Scale

Standard Features

• Capacity 550 lb x 0.2 lb (250 kg x 0.1 kg)

• Platform dimensions: (L x W x H) 14.5 x 14.5 x 3 in

• Motiontrap

(movement compensation technology)

• Large LCD display

• 6 AA alkaline batteries

• Low battery indicator/automatic power-off

• BMI (body mass index) function

• Hold function

• Unit of measure; lb only, kg only, lb/kg

• EMR capable

Specifications

Power:

9 VDC provided by six alkaline AA batteries (standard) or 120 V/230 VAC adaptor

(optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Approvals:

CE

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL

121304 150-10-7

CAPACITY

EST. SHIP

WEIGHT

550 lb x 0.2 lb (250 kg x 0.1 kg), with USB

25 lb

PRICE

$365.00

25 lb 440.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

107445 Carrying case

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

90.00

Consult

APPROVALS

† NEMA Type 1-15 Plug c.

b.

a.

Model 150-10-7

†† CEE 7/16 Euro Plug

DIMENSIONS

A

B

C

14.7 in (37.5 cm)

14.7 in (37.5 cm)

3 in (7.8 cm)

D 7.8 in (20 cm)

E 6.7 in (17 cm) d.

DWG. No d e b c

Index

a

Measurement [cm],[inch] Remark

37.5cm,14.7inch

37.5cm,14.7inch

7.8cm,3inch pla orm width pla orm depth pla orm height

20cm,7.8inch

17cm,6.7inch

indicator breadth indicator height

REV.

TITLE:

SHEET:

H150-XX-7 PHYSICIAN SCALE

PLATFORM

CAT. No e.

635

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Mechanical Baby Scale

Standard Features

• Dual-read capacity and measuring tape

• Built-in measuring tape 0-23 in (0-58 cm)

• Die cast beam

• Sturdy enameled steel body

• Easy-to-clean ABS plastic tray

Specifications

Tray Dimensions:

(W x D x H) 24 x 16 x 3 in (610 x 406 x 76 mm)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL

131470 RL-MIS

CAPACITY

EST. SHIP

WEIGHT

135 lb x 1 oz (62 kg x 20 g) 14 lb

PRICE

$265.00

LB & KG

Model RL-MIS

636

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Mechanical Baby Scale

Standard Features

• Built-in measuring tape 0-58 cm

• Die cast beam

• Sturdy enameled steel body

• Easy-to-clean ABS plastic tray

Specifications

Tray Dimensions:

(W x D x H) 24 x 16 x 3 in (610 x 406 x 76 mm)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

131471 RL-MIS-20 70 kg x 20 g

EST. SHIP

WEIGHT

14 lb

PRICE

$265.00

KG Only

Model RL-MIS-20

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

637

Digital Baby/Pediatric Scale

Standard Features

• Hold function

• Units of measure kg/lb/lb-oz

• Adjustable automatic shutoff

• Ergonomic handheld design

• Battery operated, 2 AA batteries included

• Carrying case and top s-hook included

Part Number/Price

PART # MODEL CAPACITY

130292 OS-10

130293 OS-25

130294 OS-45

10 kg x 0.01 kg (22 lb x 0.02 lb

(22 lb x 1/4 oz)

25 kg x 0.02 kg (55 lb x 0.05 lb

(55 lb x 1/2 oz)

45 kg x 0.05 kg/99 lb x 0.1 lb

(99 lb x 1 oz)

Options/Accessories

PART # DESCRIPTION

141444 Suspended infant sling seat trousers

EST. SHIP

WEIGHT

1.25 lb

1.25 lb

1.25 lb

PRICE

$75.00

75.00

75.00

PRICE

$5.00

Model OS-10/25/45

Optional suspended infant sling trousers

638

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Adult and Child Scale

Standard Features

• Adult/Child weighing mode allows the child to be accurately weighed while safely being held by an adult

• Tap to turn on, auto power off ensures long battery life

• 4 AA batteries (included) and universal AC adaptor (included)

• Lb/kg switch on bottom of scale

• Master on/off power toggle switch on bottom of scale to keep scale from turning on accidentally during transportation

• Transport carry case (optional)

Specifications

Capacity

0-100 lb x 2 oz

100-400 lb x 4 oz

0-50 kg x 0.05 kg

50-200 kg x 0.1 kg

Platform Dimensions:

(L x W x H)12.68 x 12.68 x 1.97 in (322 x 322 x 50 mm)

Warranty:

One-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

PRICE

157108 D400

0-100 lb x 2 oz

100-400 lb x 4 oz

0-50 kg x 0.05 kg

50-200 kg x 0.1 kg

9.0 lb $125.00

Options/Accessories

PART # DESCRIPTION

107445 Transport/carrying case

PRICE

$90.00

Model D400

Optional Transport/Carrying Case

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

639

640

Digital Baby/Pediatric Scale

Standard Features

• Capacity: 44 lb x 0.5 oz (20 kg x 10 g)

• Convenient lb/kg toggle key

• Large, easy-to-read 1 in LCD

• Built-in measuring tape: 0 - 22.5 in (0 - 57 cm)

• Recall key to view last weight measurement

• 4 AA batteries (included) or AC adaptor (included)

• Automatic shut-off ensures long battery life

Specifications

Capacity:

44 lb x 0.5 oz

20 kg x 0.01 kg

Platform Dimensions:

(L x W) 23.5 x 11 in

Power:

4 AA batteries (included) or

AC adaptor (included)

Adaptor is UL and C-UL approved

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

107423 RL-DBS

112571 RL-DBS

44 lb x 0.5 oz (20 kg x 10 g), includes 120 VAC adaptor

44 lb x 0.5 oz (20 kg x 10 g), includes 230 VAC adaptor

EST. SHIP

WEIGHT

10 lb

10 lb

Options/Accessories

PART # DESCRIPTION

112570 Transport/carrying case (RL-DBS)

158463

Growth chart, boy, birth to 36 months, pack of

100 sheets

158464

Growth chart, girl, birth to 36 months, pack of

100 sheets

158465 Growth chart, boy, 2-20 years, pack of 100 sheets

158466 Growth chart, girl, 2-20 years, pack of 100 sheets

PRICE

$125.00

125.00

PRICE

$55.00

25.00

25.00

25.00

25.00

Model RL-DBS

Transport/Carrying Case

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Digital Baby/Pediatric Scale

Standard Features

• Dual Range Capacity:

0-22 lb x 0.2 oz (0-10 kg x 5 g)

22-44 lb x 0.5 oz (10-20 kg x 10 g)

• Convenient lb/kg toggle key

• Large, easy-to-read 1 in LCD

• Built-in measuring tape: 0 - 22.5 in (0 - 57 cm)

• Recall key to view last weight measurement

• 4

AA

batteries (included) or AC adaptor (included)

• Automatic shut-off ensures long battery life

Specifications

Capacity:

0-22 lb x 0.2 oz (0-10 kg x 5 g)

22-44 lb x 0.5 oz (10-20 kg x 10 g)

Platform Dimensions:

(L x W) 23.5 x 11 in

Power:

4 AA batteries (included) or

AC adaptor (included)

Adaptor is UL and C-UL approved

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

155922 RL-DBS-2

155923 RL-DBS-02

0-22 lb x 0.2 oz (0-10 kg x 5 g,

22-44 lb x 0.5 oz (10-20 kg x

10 g

)

) , includes 120 VAC adaptor

0-22 lb x 0.2 oz (0-10 kg x 5 g

22-44 lb x 0.5 oz (10-20 kg x

10 g

) ,

) , includes 230 VAC adaptor

DUAL RANGE

EST. SHIP

WEIGHT

10 lb

10 lb

PRICE

$150.00

150.00

Options/Accessories

PART # DESCRIPTION

112570 Transport/carrying case (RL-DBS-2)

158463

Growth chart, boy, birth to 36 months, pack of

100 sheets

158464

Growth chart, girl, birth to 36 months, pack of

100 sheets

158465 Growth chart, boy, 2-20 years, pack of 100 sheets

158466 Growth chart, girl, 2-20 years, pack of 100 sheets

PRICE

$55.00

25.00

25.00

25.00

25.00

Model RL-DBS-2

Transport/Carrying Case

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

641

Neonatal Scale

Standard Features

• Capacity: 0-10 lb (0-5 kg) x 0.05 oz (1 g); 10-33 lb (5-15 kg) x 0.1 oz (2 g)

• Tray dimensions: (L x W x H)11 x 23.5 x 3 in

• 2-sided removeable tray with built-in measuring tape

(up to 23.5 x 1/8 in or 60 x 1/4 cm )

• Motiontrap

(movement compensation technology)

• 0.75 in LCD display

• Reweigh function

• Low battery indication

• Auto shut-off ensures long battery life

Specifications

Power:

12 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional).

Battery Type:

6 Li-FeS2 batteries

Operating Temperature:

50° F to 95° F (10° C to 35° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

25 lb

PRICE

$795.00

Options/Accessories

PART # DESCRIPTION

165138 AC adaptor

N/A Allscripts ® EHR Interface

PRICE

$45.00

Consult

APPROVALS

Model 650-10-1

642

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Bariatric Scale

Standard Features

• Platform dimensions: (L x W x H) 20 x 25 x 3 in

• Handrails for extra support and safety

• Integrated wheels for portability ease

• Motiontrap ™ (movement compensation technology)

• Large 1 in LCD display

• Low battery indicator/automatic power-off

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• Updatable firmware

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST.

SHIP

WEIGHT

PRICE

Bariatric/Handrail

133119 250-10-2

1,000 lb x 0.2 lb (450 kg x 0.1 kg) with USB

65 lb

65 lb

$1,040.00

1,115.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

Bariatric Model 250-10-2

† NEMA Type 1-15 Plug

†† CEE 7/16 Euro Plug

E

F

A

DIMENSIONS

A

B

C

20 in

25 in

3 in

D 25 in

E 34 in

F 44.5 in

B

C

Model 250-10-2

D

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

643

644

Bariatric Scale

Standard Features

• Platform dimensions: (L x W x H) 20 x 25 x 3 in

• Handrails for extra support and safety

• Integrated wheels for portability ease

• Motiontrap ™ (movement compensation technology)

• Large 1 in LCD display

• Low battery indicator/automatic power-off

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• Updatable firmware

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

Bariatric/Handrail with Chair Seat (Model 250-10-4)

• Folding seat

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST.

SHIP

WEIGHT

Bariatric/Handrail with Chair Seat

133120 250-10-4

1,000 lb x 0.2 lb (450 kg x 0.1 kg) with USB

75 lb

PRICE

$1,640.00

75 lb 1,715.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

Bariatric/Handrail with Chair Seat Model 250-10-4

APPROVALS

† NEMA Type 1-15 Plug

†† CEE 7/16 Euro Plug

Model 250-10-2

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

NEW

Mechanical Chair Scale

Standard Features

• Capacity: Lb only beam 440 lb x 4 oz; kg only beam 200 kg x 100 g

• Swing-up arms for easy access and exit

• Fold up footrest

• Sturdy enameled, steel frame

• Dual read die cast beam

• Polypropylene seat with ABS armrest

• Heavy duty wheels - 2 back wheels lock, 2 front wheels swivel

Specifications

Capacity:

Lb only beam 440 lb x 4 oz

Kg only beam 200 kg x 100 g

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

172098 RL-MCS-LB 450 lb x 4 oz

172099 RL-MCS-KG 200 kg x 100 g

EST. SHIP

WEIGHT

85 lb

85 lb

PRICE

$495.00

495.00

Model RL-MCS-LB

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

645

NEW

Digital Chair Scale

Standard Features

• Lift away arm rests and side folding footrest to ease patient access

• Motiontrap

(movement compensation technology)

• 4 swivel casters, rear locking

• Large LCD display

• Unit of measure: lb only, kg only, lb/kg

• 6 AA alkaline batteries included

• Low-battery indication/automatic power-off

• EMR capable USB

• BMI (body mass index) function

Specifications

Power:

9 VDC provided by 6 AA alkaline batteries (standard) or 120 V/230 VAC adaptor

(optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Dimensions:

Arm: (H x W) 10.5 x 10.5 in

Seat: (W x D x H) 20 x 19.5 x 2 in

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

Chair Scale

WEIGHT

166644 560-10-1 660 lb x 0.2 lb (300 kg x 0.1 kg) 63 lb

PRICE

$995.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

Model 560-10-1

† NEMA Type 1-15 Plug

†† CEE 7/16 Euro Plug

646

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Digital Chair Scale

Standard Features

• Swing-up arm rests and fold up footrest to ease patient access

• Motiontrap

(movement compensation technology)

• 4 locking casters

• Large LCD display

• Unit of measure: lb only, kg only, lb/kg

• 6 AA alkaline batteries included

• Low-battery indication/automatic power-off

• EMR capable

• BMI (body mass index) function

Specifications

Power:

9 VDC provided by 6 AA alkaline batteries (standard) or 120 V/230 VAC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST.

SHIP

WEIGHT

Chair Scale

119114 550-10-1

660 lb x 0.2 lb (300 kg x 0.1 kg) with USB

44 lb

44 lb

PRICE

$895.00

970.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

DIMENSIONS

A

B

37.4 in (95 cm

33.4 in (85 cm

C 25.2 in (64 cm

D 20.5 in (52 cm c.

a.

b.

d.

Index

a

Measurement [cm],[inch]

95cm,37.4inch

b c

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

d

85cm,33.4inch

64cm,25.2inch

52cm,20.5inch

Remark

with feet rest open inner handle distance wheel breadth

647

DWG. No REV.

TITLE:

SHEET:

55X CHAIR SCALE

WITH TITANIUM INDICATOR

CAT. No

Wireless Wheelchair Scale

Standard Features

• Lightweight design to ease portability

• Simple user Interface

• 4 scale pads

• 1 handheld controller

• 4 wheel stops

• 4 roll-up ramps

• 1 lanyard

• 1 rubber glove for controller

Specifications

Capacity:

800 lb x 0.5 lb (363 kg x 0.2 kg)

1,200 lb x 0.5 lb (544 kg x 0.02 kg)

Power:

8 EL-123 batteries per scale system 2 per pad (included)

3 AAA lithium batteries (included) for handheld controller

Construction:

Powder coated molded plastic and cast aluminum

Operating Temperature:

50° F to 90° F (14

° C to 35° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

157141 D300-8 800 lb x 0.5 lb (363 kg x 0.2 kg) 15 lb

158214 D300-12 1,200 lb x 0.5 lb (544 kg x 0.2 kg) 15 lb

PRICE

$2,695.00

3,395.00

Options/Accessories

PART # DESCRIPTION

107445 Transport/carrying case

PRICE

$90.00

Optional Transport/Carrying Case

Model D300

Wheelchair Positioned on Pads

648

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 29.5 x 32 in

• Single ramp for on-off access

• 2 wheels for portability ease

• Motiontrap™ (movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST.

SHIP-

WEIGHT

Single Ramp Wheelchair Scale

141445 350-10-2

168351 350-10-2BT

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth ®

72 lb

72 lb

PRICE

$1,040.00

1,115.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

Wheelchair Scale Model 350-10-2

Wheelchair scale in folded position

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

A

B

C

DIMENSIONS

Wheelchair Scale

29.5 in

32 in

2.375 in

D

E

F

9.25 in

37.5 in

39.75 in

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

649

650

Wheelchair Scale

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 29.5 x 32 in

• Single ramp for on-off access

• 2 wheels for portability ease

• Motiontrap™ (movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• 6.5 ft cable between scale base and indicator

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

EST.

SHIP-

WEIGHT

Single Ramp Wheelchair Platform Scale

141446 350-10-7

1,000 x 0.2 lb (450 x 0.1 kg) with USB

60 lb

PRICE

$995.00

60 lb 1,070.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts

®

EHR Interface

PRICE

$15.00

20.00

Consult

Wheelchair Platform Scale Model 350-10-7

APPROVALS

† NEMA Type 1-15 Plug

†† CEE 7/16 Euro Plug

B

C

DIMENSIONS

Wheelchair Platform Scale

A 32 in

29.5 in

2.375 in

D

E

9.25 in

37.5 in

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 29.5 x 32 in

• Dual ramp for on-off access

• 2 wheels for portability ease

• Motiontrap™ (movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART

#

MODEL

Wheelchair Scale

CAPACITY

141447 350-10-3

1,000 lb x 0.2 lb (450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb (450 kg x 0.1 kg) with USB and Bluetooth

®

EST. SHIP

WEIGHT

75 lb

75 lb

PRICE

$1,595.00

1,670.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508

N/A

9 VDC adaptor, 230 V ††

Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

A

F

Dual Ramp Wheelchair Model 350-10-3

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

D

E

B

C

Model 350-10-3

DIMENSIONS

Wheelchair Scale

A 48.5 in

B 29.5 in

C 2.375 in

D

E

F

9.25 in

38 in

45 in

651

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

652

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 29.5 x 32 in

• Dual ramp for on-off access

• 2 wheels for portability ease

• Motiontrap™ (movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• Includes padded, fold away chair with back rest

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14 C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART # MODEL CAPACITY

Wheelchair Scale with Chair Seat

EST. SHIP

WEIGHT

85 lb

PRICE

$2,295.00

168354 350-10-4

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth

®

85 lb 2,370.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

APPROVALS

Dual Ramp Wheelchair Platform with Chair Seat

Model 350-10-4

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

F

D

DIMENSIONS

Wheelchair Scale

B

C

A

B

48.5 in

29.5 in

C 2.375 in

Wheelchair Platform Scale

A 48.5 in

29.5 in

2.375 in

D

E

F

D

E

F

9.25 in

38 in

45 in

9.25 in

38 in

N/A

A

Model 350-10-3

E

B

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 29.5 x 32 in

• Dual ramp for on-off access

• 2 wheels for portability ease

• Motiontrap™ (movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• 6.5 ft cable between scale base and indicator

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

CE

Part Number/Price

PART

#

MODEL CAPACITY

Dual Ramp Wheelchair Platform Scale

141449 350-10-8

168355 350-10-8BT

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and

Bluetooth

®

EST. SHIP

WEIGHT

63 lb

63 lb

PRICE

$1,550.00

1,625.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

Dual Ramp Wheelchair Platform Model 350-10-8

APPROVALS

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

A

D

E

B

C

A

B

C

DIMENSIONS

Wheelchair Platform Scale

48.5 in

29.5 in

2.375 in

D

E

9.25 in

38 in

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

653

654

Wheelchair Scale

Single Ramp with Wheel Stop

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 34 x 34 in

• Anti slip rubber surface on platform

• 2 integral handles and wheels for portability ease

• Motiontrap

(movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• 10 ft cable between scale base and indicator

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

135 lb

PRICE

$1,595.00

150703 RL-350-5

168357 RL-350-5BT

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth

®

135 lb 1,670.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

DIMENSIONS

A

B

C

41 in

40 in

2.22 in

D

E

34 in

34 in

Single Ramp with Wheel Stop Model RL-350-5

D

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

E

B

Model RL-350-6

A

C

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Dual Ramp

Standard Features

• Capacity: 1,000 lb x 0.2 lb (450 kg x 0.1 kg)

• Platform dimensions: (L x W) 34 x 34 in

• Anti slip rubber surface on platform

• 2 integral handles and wheels for portability ease

• Motiontrap

(movement compensation technology)

• Large 1 in LCD display

• Ability to manually enter the tare weight of a wheelchair

• BMI (body mass index) function

• Hold function

• Unit of measure: lb only, kg only, lb/kg

• EMR capable

• 10 ft cable between scale base and indicator

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

135 lb

PRICE

$1,595.00

150704 RL-350-6

168358 RL-350-6BT

1,000 lb x 0.2 lb (450 kg x

0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth

®

135 lb 1,670.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

C

B

E

Dual Ramp Model RL-350-6

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

D

A

DIMENSIONS

A

B

C

41 in

40 in

2.22 in

D

E

34 in

34 in

Model RL-350-6

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

655

656

Wheelchair Scale

Standard Features

• (W x L) 36 x 36 in 1,000 lb mild steel painted scale with anti-slip rubber surface and three-sided safety rails

• Access ramp (W x L) 36 x 28.5 in with anti-slip rubber surface

• Motiontrap

(movement compensation technology)

• Large 1 in LCD display

• Pushbutton or manual entry of tare weight

• Unit of measure: lb only, kg only, lb/kg

• 10 ft interface cable from scale to indicator

• EMR capable

• BMI (body mass index) function

• Hold function

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours, continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

370 lb

PRICE

$1,495.00

150706 SB-1150

168359 SB-1150BT

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth

®

370 lb 1,570.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

DIMENSIONS

A

B

C

36 in

36 in

28.5 in

D

E

F

36 in

4 in

1 in

Model SB-1150

† NEMA Type 1-15 Plug †† CEE 7/16 Euro Plug

F

A

B

C

D

E

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Standard Features

• (W x L) 36 x 36 in 1,000 lb mild steel painted scale with anti-slip rubber surface

• (H x L) 36 x 30 in handrail and mounting hardware

• (W x L) 36 x 36 in mild steel painted pit frame

• Large 1 in LCD display

• Push button or manual entry of tare weight

• Unit of measure: lb only, kg only, lb/kg

• 10 ft interface cable from scale to indicator

• EMR capable

• BMI (body mass index) function

• Hold function

Specifications

Power:

9 VDC, provided by 6 AA alkaline batteries (included) or AC adaptor (optional)

Battery Type:

6 AA alkaline

Battery Use:

25 hours continuous use with batteries

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

295 lb

PRICE

$1,695.00

150707 SD-1150-WP

168360 SD-1150-WPBT

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB

1,000 lb x 0.2 lb

(450 kg x 0.1 kg) with USB and Bluetooth

®

295 lb 1,770.00

Options/Accessories

PART # DESCRIPTION

133077 9 VDC adaptor, 120 V/230 V auto switching †

102508 9 VDC adaptor, 230 V ††

N/A Allscripts ® EHR Interface

PRICE

$15.00

20.00

Consult

In Ground

Scale Package

Model SD-1150-WP

† NEMA Type 1-15 Plug

†† CEE 7/16 Euro Plug

DIMENSIONS

A

B

C

36 in

36 in

3 in

D

E

31.5 in

37 in

D

E

A

C

B

657

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wheelchair Scale

Pit Frame Concrete Details

658

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Wireless Bed Scale

Standard Features

• 4 scale pads

• 1 handheld controller

• 4 wheel stops

• 4 roll-up ramps

• 1 bed rail controller mount

• Simple user interface

• Compact and lightweight

Specifications

Capacity:

800 lb x 0.5 lb (363 kg x 0.2 kg)

1,200 lb x 0.5 lb (544 kg x 0.2 kg)

Power:

8 EL-123 batteries per scale system 2 per pad (included)

3 AAA lithium batteries (included) for handheld controller

Construction:

Powder coated molded plastic and cast aluminum

Operating Temperature:

50 ° F to 95° F (14° C to 35° C)

Warranty:

Two-year limited warranty

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

158216 D1100-8 800 lb x 0.5 lb (363 kg x 0.05 kg) 15 lb

157222 D1100-12 1,200 lb x 0.5 lb (544 kg x 0.02 kg) 15 lb

PRICE

$2,695.00

3,395.00

Options/Accessories

PART # DESCRIPTION

158229 Lanyard

158230 Rubber controller glove

PRICE

$5.00

10.00

Bed Positioned on Pads

Model D1100

Bedrail Mount

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

659

660

Dietary Scale

Standard Features

• 6-digit LCD display

• Powered by 2 D cell batteries* (up to 500 hours operation)

• Auto power-off function

• Low battery indicator

• Overload stops

Specifications

Display:

6 digits (7-segment), LCD

Character height: 1 in (25.4 mm)

Keyboard:

Zero, tare, on/off, unit (lb/kg)

NOTE: oz version only displays weight in oz

Power:

2 dry cell D type batteries* (up to 500 hours) or AC adaptor

Auto power-off function (can be set to 60 min., 20 min., or off)

Divisions (Auto Ranging):

100 oz: 0.05 oz from 0–50 oz, 0.1 oz from 50–100 oz

6 lb (3 kg): 0.002 lb (0.001 kg) from 0–3 lb (0–1.5 kg), 0.005 lb (0.002 kg) from 3–6 lb

(1.5–3 kg)

15 lb (6 kg): 0.005 lb (0.002 kg) from 0–6 lb (0–3 kg), 0.01 lb (0.005 kg) from 6–15 lb

(3–6 kg)

30 lb (15 kg): 0.01 lb (0.005 kg) from 0–15 lb (0–7.5 kg), 0.02 lb (0.01 kg) from

15–30 lb (7.5–15 kg)

60 lb (30 kg): 0.02 lb (0.01 kg) from 0–30 lb (0–15 kg), 0.05 lb (0.02 kg) from 30–60 lb

(15–30 kg)

Operational Temperature:

23° F to 104° F (-5° C to 40° C)

Platter Size:

100 oz: (3 kg) 9.1 x 7.8 in (231 x 198.1 mm)

6 lb (3 kg): 9.1 x 7.8 in (231 x 198.1 mm)

15 lb (6 kg): 9.1 x 7.8 in (231 x 198.1 mm)

30 lb (15 kg): 11 x 11.5 in (279.4 x 292.1 mm)

60 lb (30 kg): 11 x 11.5 in (279.4 x 292.1 mm)

Warranty:

One-year limited warranty

Approvals:

NTEP Certified CC 02-139, Class III

0-30 lb 1500d; 60 lb 1200d; 0-100 oz 1000d

UL listed

Part Number/Price

PART # CAPACITY DIMENSIONS

EST. SHIP

WEIGHT

PRICE

Single display

75466 100 oz (3 kg)

Single display, multi-ranging

75454 6 lb (3 kg)

75455 15 lb (6 kg)

75457 30 lb (15 kg)

75458 60 lb (30 kg)

9.1 x 7.8 in

9.1 x 7.8 in

9.1 x 7.8 in

11 x 11.5 in

11 x 11.5 in

6 lb

6 lb

6 lb

8 lb

8 lb

$230.00

230.00

230.00

230.00

230.00

Options/Accessories

PART # DESCRIPTION

75470

Stainless steel platter cover (100 oz, 6 and 15 lb capacity)

75739 Stainless steel platter cover (30 and 60 lb capacity)

75473 AC adaptor

PRICE

$20.00

20.00

19.00

APPROVALS

N

AT

IO

NA

L CONFER

EN

C

E

W

E

IG

H TS

A N D M

E A

S

U

R

DIMENSIONS

A

B

C

9.3 in (236.2 mm)

9.1 in (231.1 mm)

7.8 in (198.1 mm)

D

E

11.1 in (281.9 mm)

3.9 in (99.1 mm)

* Batteries and AC adaptor not included

Model iPC

I

H

J

F

G

11.3 in (287 mm)

11 in (279.4 mm)

11.5 in (292.1 mm)

14.3 in (363.2 mm)

4 in (101.6 mm)

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Body Composition Analyzer

Standard Features

• Multi frequency full body composition obtained from BIA, bio-electrical impedance analysis through scale base electrodes and handheld electrodes

• Capacity: 440 lb x 0.2 lb (200 kg x 0.1 kg)

• Platform dimensions: (L x W x H) 14.5 x 14 x 4 in

• User configurable mode: Adult and Athlete Mode, Wrestler, Goal Setter,

Weight Only

• Built-in thermal printer

• USB terminal and RS-232 port for computer interface

• Includes AC adaptor and 2 rolls of thermal printer paper

Specifications

Power Supply:

12 VAC adaptor

Frequency:

50, 150, 250 K Hz

Test Duration:

Approximately 60 seconds

Height Range:

3 ft to 7 ft 11.5 in x 0.5 in increments

(90 cm to 249 cm x 1 cm)

Body Fat Range:

1 to 75% x 0.1% increments

BMR:

1 kcal increments

Impedance Measurement Range:

150–900 ohms

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

FDA, 510 K

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

PRICE

33 lb (15 kg $3,295.00

33 lb (15 kg 3,295.00

Options/Accessories

PART # DESCRIPTION

152984 Column kit

158046 Contact software, English firmware

165501 Contact software, Spanish firmware

75947 Replacement paper, 85 ft long, direct thermal

PRICE

$400.00

295.00

295.00

6.00

Full Body!

Model D1000-3

Shown with optional column kit

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

661

662

Body Composition Analyzer

Standard Features

• Single frequency lower body composition obtained from BIA, bio-electrical impedance analysis through scale base electrodes

• Capacity: 440 lb x 0.2 lb (200 kg x 0.1 kg)

• Platform dimensions: (L x W x H) 14.5 x 14 x 4 in

• User configurable mode: Adult and Athlete Mode, Wrestler, Goal Setter,

Weight Only

• Built-in thermal printer

• USB terminal and RS-232 port for computer interface

• Includes AC adaptor and 2 rolls of thermal printer paper

Specifications

Power Supply:

12 VAC adaptor

Frequency:

50 K Hz

Test Duration:

Approximately 60 seconds

Height Range:

3 ft to 7 ft 11.5 in x 0.5 in increments

(90 cm to 249 cm x 1 cm)

Body Fat Range:

1 to 75% x 0.1% increments

BMR:

1 kcal increments

Impedance Measurement Range:

150–900 ohms

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

FDA, 510 K

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

PRICE

151115 D1000-1 440 lb x 0.2 lb (200 kg X 0.1 kg) 33 lb (15 kg) $2,595.00

165499 D1000-1 440 lb x 0.2 lb (200 kg x 0.1 kg) 33 lb (15 kg) 2,595.00

Options/Accessories

PART # DESCRIPTION

152984 Column kit

158046 Contact software, English firmware

165501 Contact software, Spanish firmware

75947 Replacement paper, 85 ft. long, direct thermal

PRICE

$400.00

295.00

295.00

6.00

Lower Body!

Model D1000-1

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Body Composition Analyzer

Standard Features

• Single frequency upper body composition obtained from BIA, bio-electrical impedance analysis through handheld electrodes

• Capacity: 440 lb x 0.2 lb (200 kg x 0.1 kg)

• Platform dimensions: (L x W x H) 14.5 x 14 x 4 in

• User configurable mode: Adult and Athlete Mode, Wrestler, Goal Setter,

Weight Only

• Built-in thermal printer

• USB terminal and RS-232 port for computer interface

• Includes AC adaptor and 2 rolls of thermal printer paper

Specifications

Power Supply:

12 VAC adaptor

Frequency:

50 K Hz

Test Duration:

Approximately 60 seconds

Height Range:

3 ft to 7 ft 11.5 in x 0.5 in increments

(90 cm to 249 cm x 1 cm)

Body Fat Range:

1 to 75% x 0.1% increments

BMR:

1 kcal increments

Impedance Measurement Range:

150–900 ohms

Operating Temperature:

50° F to 104° F (14° C to 40° C)

Warranty:

Two-year limited warranty

Approvals:

FDA, 510 K

Part Number/Price

PART # MODEL CAPACITY

EST. SHIP

WEIGHT

PRICE

151114 D1000-2 440 lb x 0.2 lb (200 kg x 0.1 kg) 33 lb (15 kg) $2,595.00

165498 D1000-2 440 lb x 0.2 lb (200 kg x 0.1 kg) 33 lb (15 kg) 2,595.00

Options/Accessories

PART # DESCRIPTION

152984 Column kit

158046 Contact software, English firmware

165501 Contact software, Spanish firmware

75947 Replacement paper, 85 ft. long, direct thermal

PRICE

$400.00

295.00

295.00

6.00

Upper Body!

Model D1000-2

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

663

Notes

664

An ISO 9001 Registered Company © 2016 Rice Lake Weighing Systems 01/16 Prices and specifications subject to change without notice. Visit ricelake.com for current prices.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
