UL489

UL489

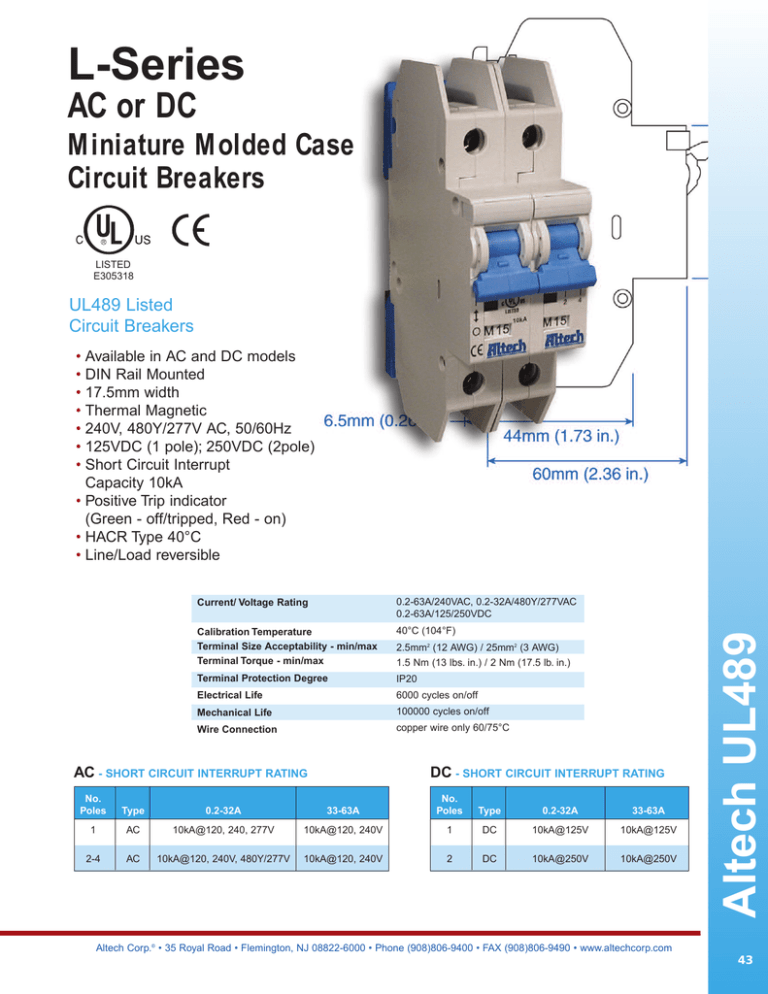

L-Series
AC or DC
Miniature Molded Case
Circuit Breakers
LISTED
E305318
UL489 Listed
Circuit Breakers
• Available in AC and DC models
• DIN Rail Mounted
• 17.5mm width
• Thermal Magnetic
• 240V, 480Y/277V AC, 50/60Hz
• 125VDC (1 pole); 250VDC (2pole)
• Short Circuit Interrupt
Capacity 10kA
• Positive Trip indicator
(Green - off/tripped, Red - on)
• HACR Type 40°C
• Line/Load reversible
40°C (104°F)
Calibration Temperature
Terminal Size Acceptability - min/max
Terminal Torque - min/max
2.5mm2 (12 AWG) / 25mm2 (3 AWG)
Terminal Protection Degree
IP20
Electrical Life
6000 cycles on/off
Mechanical Life
100000 cycles on/off
Wire Connection
copper wire only 60/75°C
AC - SHORT CIRCUIT INTERRUPT RATING
1.5 Nm (13 lbs. in.) / 2 Nm (17.5 lb. in.)
DC - SHORT CIRCUIT INTERRUPT RATING
No.
Poles
Type
0.2-32A
33-63A
No.
Poles
Type
0.2-32A
33-63A
1
AC
[email protected], 240, 277V
[email protected], 240V
1
DC
[email protected]
[email protected]
2-4
AC
[email protected], 240V, 480Y/277V
[email protected], 240V
2
DC
[email protected]
[email protected]
Altech UL489
0.2-63A/240VAC, 0.2-32A/480Y/277VAC
0.2-63A/125/250VDC
Current/ Voltage Rating
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
43
Minutes
Time
versus
Current Trip Curve
10
4
1
For the exact trip curve,
please refer to page 48.
10
1
Dimensions in mm
side view
0.4
C
D
45mm (1.77 in.)
Time t
4
10-1
4x10-2
Seconds
Altech UL489
60
40
10-2
4x10-3
10-3
2
3 4
6 8 10 16 20
6.5mm
(0.26 in.)
Multiple of Rated Current
44mm (1.73 in.)
60mm (2.36 in.)
17.5mm (0.69 in.)
3 POLE
69mm (2.72 in.)
109mm (4.29 in.)
14.5mm (0.57 in.)
17.5mm (0.69 in.)
14.5mm (0.57 in.)
69mm (2.72 in.)
2 POLE
109mm (4.29 in.)
14.5mm (0.57 in.)
69mm (2.72 in.)
109mm (4.29 in.)
1 POLE
17.5mm (0.69 in.)
35mm (1.38 in.)
35mm (1.38 in.)
52.5mm (2.07 in.)
Trip-Characteristics*
Type
Characteristic Trip Boundaries
Thermal Trip
Applications
Lighting
Wiring
Protection
Magnetic Trip
Control
Circuits
Must not Must Trip Must not Must Trip
Trip>100ms
<1hr
Trip>100ms at 100ms
Business
Equipment
Transformers
Appliances
Motors
Power
Supplies
Reactive
Load
Heaters
Low
Inrush
High
Inrush
C-Characteristics
1.05xRC
1.3xRC
5xRC
10xRC
AC
1.05xRC
1.3xRC
5xRC
10xRC
DC
D-Characteristics
1.05xRC
1.3xRC
10xRC
16xRC
AC
1.05xRC
1.3xRC
10xRC
16xRC
DC
*The value of each characteristic is shown vertically beneath its corresponding heading.
Warning!
This information should only be used as a selection guide. The use of a Miniature Circuit
Breaker in an application with a certain Trip-Characteristic always requires prototype
testing! It is the responsibility of the circuit design engineer to select the appropriate
Miniature Circuit Breaker for his specific application.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
44
AC C-Trip
Characteristics
Application Examples:
Low inrush motors, resistive loads, wiring
protection, receptacles, lighting, and
control circuit applications. Relatively
short thermal trip delay and medium
magnetic trip point.
LISTED
E305318
Three Pole
Type/
Cat. No.
1CU02L
1CU05L
1CU1L
1CU1.6L
1CU2L
1CU3L
1CU4L
1CU5L
1CU6L
1CU8L
1CU10L
1CU12L
1CU13L
1CU15L
1CU16L
1CU20L
1CU25L
1CU30L
1CU32L
1CU40L
1CU50L
1CU60L
1CU63L
Two Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
2CU02L
2CU05L
2CU1L
2CU1.6L
2CU2L
2CU3L
2CU4L
2CU5L
2CU6L
2CU8L
2CU10L
2CU12L
2CU13L
2CU15L
2CU16L
2CU20L
2CU25L
2CU30L
2CU32L
2CU40L
2CU50L
2CU60L
2CU63L
Standard Pack: 12
Standard Pack: 6
Weight: 1.7kg (3.74 lb.)
Weight: 1.7kg (3.74 lb.)
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
3CU02L
3CU05L
3CU1L
3CU1.6L
3CU2L
3CU3L
3CU4L
3CU5L
3CU6L
3CU8L
3CU10L
3CU12L
3CU13L
3CU15L
3CU16L
3CU20L
3CU25L
3CU30L
3CU32L
3CU40L
3CU50L
3CU60L
3CU63L
Four Pole
Please contact
Altech.
Standard Pack: 4
Weight: 1.7kg (3.74 lb.)
Altech UL489
One Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
45
Altech UL489
AC D-Trip
Characteristics
Application Examples:
Low inrush motors, resistive loads, wiring
protection, receptacles, lighting, and
control circuit applications. Relatively
short thermal trip delay and medium
magnetic trip point.
LISTED
E305318
One Pole
Three Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
1DU02L
1DU05L
1DU1L
1DU1.6L
1DU2L
1DU3L
1DU4L
1DU5L
1DU6L
1DU8L
1DU10L
1DU12L
1DU13L
1DU15L
1DU16L
1DU20L
1DU25L
1DU30L
1DU32L
1DU40L
1DU50L
1DU60L
1DU63L
Two Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
2DU02L
2DU05L
2DU1L
2DU1.6L
2DU2L
2DU3L
2DU4L
2DU5L
2DU6L
2DU8L
2DU10L
2DU12L
2DU13L
2DU15L
2DU16L
2DU20L
2DU25L
2DU30L
2DU32L
2DU40L
2DU50L
2DU60L
2DU63L
Standard Pack: 12
Standard Pack: 6
Weight: 1.7kg (3.74 lb.)
Weight: 1.7kg (3.74 lb.)
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
3DU02L
3DU05L
3DU1L
3DU1.6L
3DU2L
3DU3L
3DU4L
3DU5L
3DU6L
3DU8L
3DU10L
3DU12L
3DU13L
3DU15L
3DU16L
3DU20L
3DU25L
3DU30L
3DU32L
3DU40L
3DU50L
3DU60L
3DU63L
Four Pole
Please contact
Altech.
Standard Pack: 4
Weight: 1.7kg (3.74 lb.)
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
46
DC C-Trip
Characteristics
Application Examples:
Telecommunication equipment,
computer equipment, uniterruptable
power supplies.
LISTED
E305318
One Pole
Type/
Cat. No.
DC1CU02L
DC1CU05L
DC1CU1L
DC1CU1.6L
DC1CU2L
DC1CU3L
DC1CU4L
DC1CU5L
DC1CU6L
DC1CU8L
DC1CU12L
DC1CU10L
DC1CU13L
DC1CU15L
DC1CU16L
DC1CU20L
DC1CU25L
DC1CU30L
DC1CU32L
DC1CU40L
DC1CU50L
DC1CU60L
DC1CU63L
Two Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
12A
10A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Standard Pack: 12
Standard Pack: 6
Weight: 1.7kg (3.74 lb.)
Weight: 1.7kg (3.74 lb.)
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
12A
10A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
DC1DU02L
DC1DU05L
DC1DU1L
DC1DU1.6L
DC1DU2L
DC1DU3L
DC1DU4L
DC1DU5L
DC1DU6L
DC1DU8L
DC1DU12L
DC1DU10L
DC1DU13L
DC1DU15L
DC1DU16L
DC1DU20L
DC1DU25L
DC1DU30L
DC1DU32L
DC1DU40L
DC1DU50L
DC1DU60L
DC1DU63L
Two Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
12A
10A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Standard Pack: 12
Standard Pack: 6
Weight: 1.7kg (3.74 lb.)
Weight: 1.7kg (3.74 lb.)
Type/
Cat. No.
DC2CU02L
DC2CU05L
DC2CU1L
DC2CU1.6L
DC2CU2L
DC2CU3L
DC2CU4L
DC2CU5L
DC2CU6L
DC2CU8L
DC2CU12L
DC2CU10L
DC2CU13L
DC2CU15L
DC2CU16L
DC2CU20L
DC2CU25L
DC2CU30L
DC2CU32L
DC2CU40L
DC2CU50L
DC2CU60L
DC2CU63L
Type/
Cat. No.
DC2DU02L
DC2DU05L
DC2DU1L
DC2DU1.6L
DC2DU2L
DC2DU3L
DC2DU4L
DC2DU5L
DC2DU6L
DC2DU8L
DC2DU12L
DC2DU10L
DC2DU13L
DC2DU15L
DC2DU16L
DC2DU20L
DC2DU25L
DC2DU30L
DC2DU32L
DC2DU40L
DC2DU50L
DC2DU60L
DC2DU63L
Altech UL489
One Pole
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
12A
10A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
47
C and D Trip
10A and higher
120
7200
60
40
3600
2400
20
1200
10
8
6
4
600
480
360
240
Minutes
Minutes
C and D Trip
Less than 10A
2
120
1
40
60
40
20
Tripping time t
Tripping time t
20
10
5
1
0.5
10
5
1
0.5
Seconds
Seconds
Altech UL489
L-Series Trip Curves
0.1
0.05
C
D
0.01
0.1
0.05
C
D
0.01
1
2
3
4
5 6 7 8 9 10 12 14 16 20
1
1.05 1.3
2
3
4
5 6 7 8 9 10 12 14 16 20
1.05 1.3
Multiple of Rated Current
Multiple of Rated Current
Temperature and Power Loss Specifications
Rated
current
In (A)
rated current allowing for ambient temperature
I cor (A)
Internal
impedance
Z (m Ω)
char. B, C, D, K
Power Loss
B, C, D, K
P (W)
-20
-10
0
10
20
30
40
50
60
0.2
0.24
0.24
0.23
0.22
0.21
0.2
0.19
0.18
0.17
45100.0
1.80
0.5
0.61
0.59
0.57
0.55
0.53
0.5
0.47
0.44
0.42
8000.0
2.00
1
1.21
1.18
1.14
1.1
1.05
1.0
0.93
0.88
0.83
2000.0
2.00
2
2.42
2.36
2.28
2.2
2.1
2.0
1.86
1.76
1.67
490.0
1.96
3
3.63
3.54
3.42
3.3
3.15
3.0
2.79
2.64
2.5
230.0
2.07
4
4.84
4.72
4.56
4.4
4.2
4.0
3.72
3.52
3.33
150.0
2.40
5
6.1
5.9
5.7
5.5
5.3
5.0
4.7
4.4
4.2
95.0
2.38
6
7.3
7.1
6.8
6.6
6.3
6.0
5.6
5.3
5.0
69.0
2.48
7
8.5
8.2
8.0
7.7
7.4
7.0
6.5
6.2
5.8
52.0
2.55
8
9.7
9.4
9.1
8.8
8.4
8.0
7.4
7.0
6.7
35.0
2.24
10
12.1
11.8
11.4
11.0
10.5
10.0
9.3
8.8
8.3
23.5
2.35
12
14.5
14.2
13.7
13.2
12.6
12.0
11.2
10.6
10.0
18.7
2.69
13
15.7
15.3
14.8
14.3
13.7
13.0
12.1
11.5
10.8
14.3
2.42
14
16.9
16.5
16.0
15.4
14.7
14.0
13.0
12.3
11.7
12.4
2.43
15
18.2
17.7
17.1
16.5
15.8
15.0
14.0
13.2
12.5
10.1
2.27
16
19.4
18.9
18.2
17.6
16.8
16.0
14.9
14.1
13.3
7.5
1.92
20
24.2
23.6
22.8
22.0
21.0
20.0
18.6
17.6
16.7
6.3
2.52
25
30.3
29.5
28.5
27.5
26.3
25.0
23.3
22.0
20.8
4.6
2.88
30
36.3
35.4
34.2
33.0
31.5
30.0
27.9
26.5
25.0
3.6
3.24
32
38.7
37.8
36.5
35.2
33.6
32.0
29.8
28.2
26.7
3.6
3.69
35
42.3
41.3
39.9
38.5
36.8
35.0
32.6
30.8
29.2
3.6
4.41
40
48.4
47.2
45.6
44.0
42.0
40.0
37.2
35.2
33.3
3.0
4.80
50
60.5
59.0
57.0
55.0
52.5
50.0
46.5
44.1
41.7
2.4
6.00
60
72.6
70.9
68.4
66.0
63.0
60.0
55.9
52.9
50.1
1.8
6.48
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
48
Accessories
L-Series
Circuit Breakers
LISTED
Accessories can be factory or field mounted on L-Series miniature molded case circuit
breakers for enhanced control and monitoring capabilities. Field mounting kits include all
necessary parts and instructions. Accessories can be gang mounted on a single controller
(the Auxiliary Switch in the outside position). The mounting arrangement links the internal
latch-pins for the tripping mechanisms, ensuring simultaneous trips. Handles are linked to
simplify manual resetting.
Neutral
Pole
(63A/240VAC; 32A/480Y/277VAC)
Description
Neutral
Type/
Cat. No.
ALTN2L
Cable
Max
25mm2
3 AWG
Cable
Min
2.5mm2
12 AWG
Torque
Max
2Nm
17.5 lb-in
Torque
Min
1.5Nm
12 lb-in
Standard Pack: 10
Weight: 1.2kg (2.64 lb.)
Shunt Trip
and Undervoltage Trip
Description
Shunt Trip
Undervoltage Trip
Shunt Trip
Undervoltage Trip
Type/Cat. No.
Type/Cat. No.
AC Coil:
12V AC
24V AC
48V AC
60V AC
110V AC
120V AC
230V AC
277V AC
400V AC
DC Coil:
12V DC
24V DC
48V DC
110V DC
Cable
Max
Cable
Min
Torque
Max
Torque
Min
FA12ACL
FA24ACL
FA48ACL
FA60ACL
FA110ACL
FA120ACL
FA230ACL
FA277ACL
FA400ACL
UV12ACL
UV24ACL
UV48ACL
UV60ACL
UV110ACL
UV120ACL
UV230ACL
UV277ACL
UV400ACL
25mm2
3 AWG
2.5mm2
12 AWG
2Nm
1.5Nm
17.5 lb-in 12 lb-in
FA12DCL
FA24DCL
FA48DCL
FA110DCL
UV12DCL
UV24DCL
UV48DCL
UV110DCL
25mm2
3 AWG
2.5mm2
12 AWG
2Nm
1.5Nm
17.5 lb-in 12 lb-in
Standard Pack: 10
Auxiliary
Contact (6A/120VAC; 3A/240VAC)
Description
1 x CO
Type/
Cat. No.
H1COL
2 x CO
H2COL
1 x CO, 1 Signal
& Test Button
HSTCOL
Cable
Max
Cable
Min
Torque
Max
Torque
Min
2.5mm2
12 AWG
0.5mm2
20 AWG
0.5Nm
4 lb-in
0.33Nm
3 lb-in
Standard Pack: 15
Weight: 0.5kg (1.32 lb.)
Lockon, Lockoff
Adaptor
Description
Yellow
Type/
Cat. No.
EASS2L
Standard Pack: 10
Weight: 50g (1.76 oz.)
Altech UL489
Weight: 1.1kg (2.43 lb.)
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
49
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
