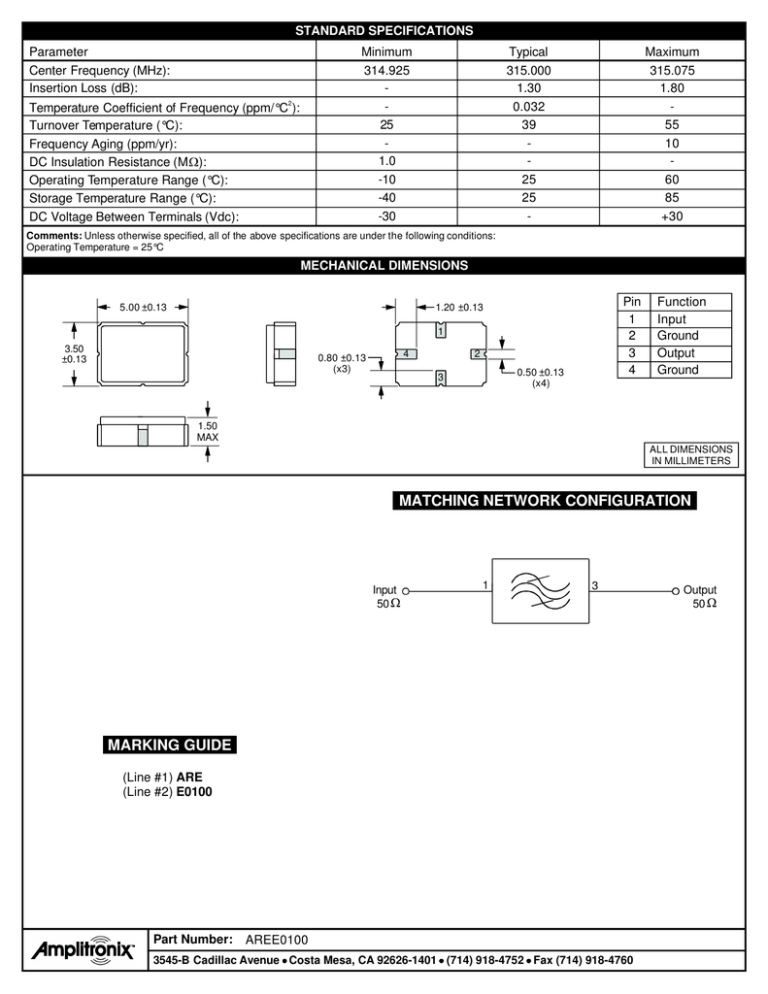

datasheet for AREE0100 by Amplitronix LLC

datasheet for AREE0100 by Amplitronix LLC
STANDARD SPECIFICATIONS
Parameter
Center Frequency (MHz):
Insertion Loss (dB):
Minimum
314.925
25
1.0
-10
-40
-30
2
Temperature Coefficient of Frequency (ppm/°C ):
Turnover Temperature (°C):
Frequency Aging (ppm/yr):
DC Insulation Resistance (M ):
Operating Temperature Range (°C):
Storage Temperature Range (°C):
DC Voltage Between Terminals (Vdc):
Typical
315.000
1.30
0.032
39
25
25
-
Maximum
315.075
1.80
55
10
60
85
+30
Comments: Unless otherwise specified, all of the above specifications are under the following conditions:
Operating Temperature = 25°C
MECHANICAL DIMENSIONS
5.00 ±0.13
Pin
1
2
3
4
1.20 ±0.13
1
3.50
±0.13
4
0.80 ±0.13
(x3)
2
0.50 ±0.13
(x4)
3
Function
Input
Ground
Output
Ground
1.50
MAX
ALL DIMENSIONS
IN MILLIMETERS
MATCHING NETWORK CONFIGURATION
Input
50
1
3
MARKING GUIDE
(Line #1) ARE
(Line #2) E0100
Part Number:
AREE0100
3545-B Cadillac Avenue Costa Mesa, CA 92626-1401 (714) 918-4752 Fax (714) 918-4760
Output
50
