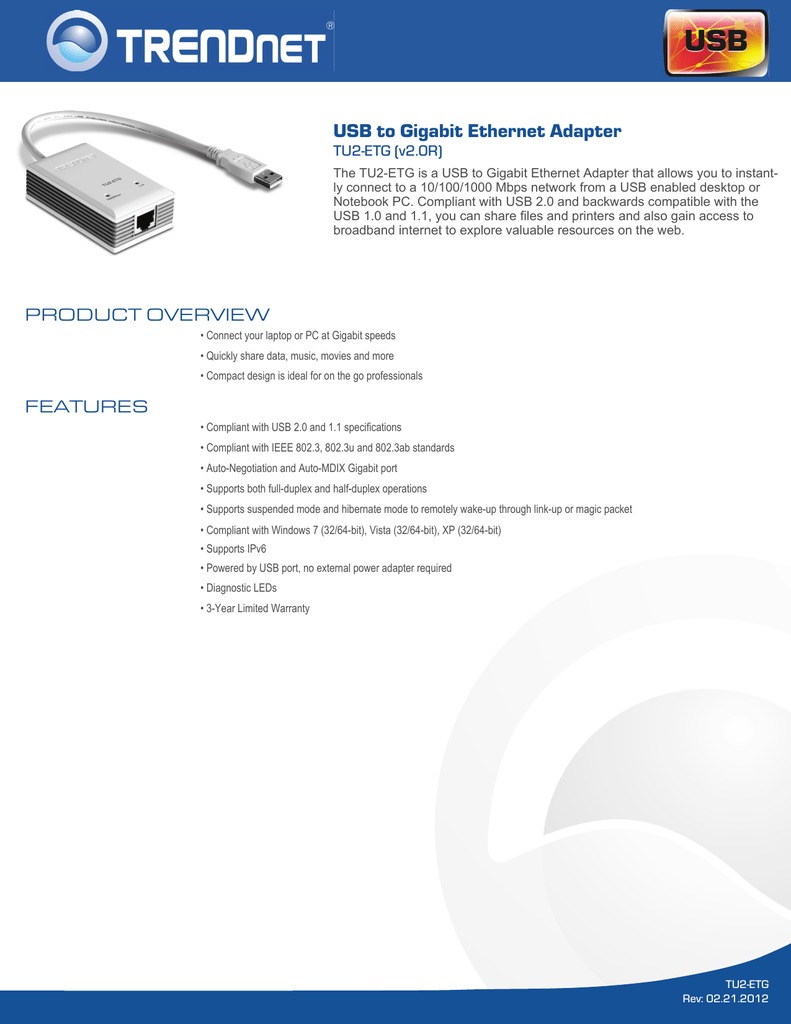

Trendnet TU2-ETG USB to Gigabit Ethernet Adapter Datasheet

USB to Gigabit Ethernet Adapter
TU2-ETG (v2.0R)
The TU2-ETG is a USB to Gigabit Ethernet Adapter that allows you to instantly connect to a 10/100/1000 Mbps network from a USB enabled desktop or
Notebook PC. Compliant with USB 2.0 and backwards compatible with the
USB 1.0 and 1.1, you can share files and printers and also gain access to
broadband internet to explore valuable resources on the web.
PRODUCT OVERVIEW
• Connect your laptop or PC at Gigabit speeds
• Quickly share data, music, movies and more
• Compact design is ideal for on the go professionals
FEATURES
• Compliant with USB 2.0 and 1.1 specifications
• Compliant with IEEE 802.3, 802.3u and 802.3ab standards
• Auto-Negotiation and Auto-MDIX Gigabit port
• Supports both full-duplex and half-duplex operations
• Supports suspended mode and hibernate mode to remotely wake-up through link-up or magic packet
• Compliant with Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
• Supports IPv6
• Powered by USB port, no external power adapter required
• Diagnostic LEDs
• 3-Year Limited Warranty
TU2-ETG
Rev: 02.21.2012
USB to Gigabit Ethernet Adapter
TU2-ETG (v2.0R)
SPECIFICATIONS
HARDWARE
Standards
•
•
•
•
USB 2.0, 1.1, 1.0
IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3ab: 1000Base-T
Data Transfer Rate
• Ethernet: 10/20 Mbps (half / full-duplex)
• Fast Ethernet: 100/200 Mbps (half / full duplex)
• Gigabit: 2000 Mbps (full-duplex)
Embedded Buffers
• 20 KB SRAM for RX packets buffering
• 20 KB SRAM for TX packaging buffering
Supported OS
• Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
• Mac OS X 10.4 – 10.6
LEDs
• 1000 Mbps (green), Link (green)
Power
• Bus-Powered
Power Consumption
• 131 mA
Power Management
• Suspend mode
• Wake on LAN
Dimension
• Unit: 77 x 46 x 24 mm (3.0 x 1.8 x 0.9 in.)
• Cable: 258 mm (10.2 in.)
Weight
• 60 g (2.1 oz.)
Temperature
• Operating: 0° C~ 70° C (32° F~ 158° F)
• Storage: -10° C~ 80° C (14° F~ 176° F)
Humidity
• Max 85% (non-condensing)
Certifications
• CE, FCC
NETWORKING SOLUTIONS
PACKAGE CONTENTS
TU2-ETG
Quick Installation Guide
CD-ROM (Driver and User’s Guide)
RELATED PRODUCTS
TU2-ET100
USB to 10/100 Mbps Adapter
TU2-EX5
USB Extender Cable
TU2-EX12
12-Meter USB 2.0 Extension Cable
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web: www.trendnet.com
Email: [email protected]
1-888-326-6061
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,
without notice. For the most recent product information please visit http://www.trendnet.com Copyright ©TRENDnet.All Rights Reserved.
