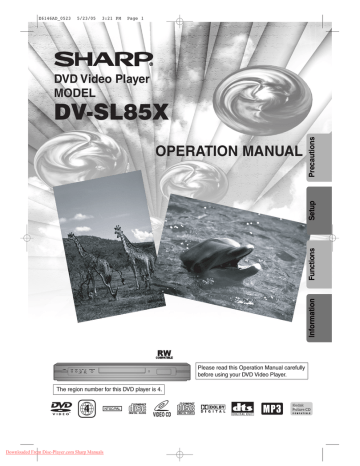

DVD Video Player
MODEL
Information
Functions
Setup
OPERATION MANUAL
Precautions
DV-SL85X
POWER
PLAY
STOP
SKIP
REV
Please read this Operation Manual carefully
before using your DVD Video Player.
OPEN/CLOSE
FWD
The region number for this DVD player is 4.
4
Downloaded From Disc-Player.com Sharp Manuals
NTSC/PAL
E6146AD_0523
5/23/05
3:21 PM
Page 2
Precautions
SAFETY INFORMATION
NOTE:
Power Cord Protection
This unit can be used only where the power supply is AC
220V-240V, 50/60Hz. It cannot be used elsewhere.
To avoid any malfunctions of the unit, and to protect against
electric shock, fire or personal injury, please observe the following.
• Hold the plug firmly when connecting or disconnecting the
AC power cord.
• Keep the AC power cord away from heating appliances.
• Never put any heavy object on the AC power cord.
• Do not attempt to repair or reconstruct the AC power cord
in any way.
• This unit is classified as a CLASS 1 LASER product.
• The CLASS 1 LASER PRODUCT marking is embossed on
the rear cover.
• This product contains a low power laser device. To ensure
continued safety, do not remove any cover or attempt to
gain access to the inside of the product. Refer all servicing
to qualified personnel.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
Precautions
AS THE LASER BEAM USED IN THIS unit IS
HARMFUL TO THE EYES, DO NOT ATTEMPT TO
DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING:
CLASS 1
LASER PRODUCT
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DONOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
AUDIO OUT
L
CR / PR
Y
DIGITAL AUDIO OUT
4
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPARATUS TO DRIPPING
OR SPLASHING, NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHOULD BE PLACED
ON THE APPARATUS.
OPTICAL COAXIAL
R
VIDEO
OUT
CB / PB
COMPONENT
VIDEO OUT
S-VIDEO
OUT
Supplied Accessory
• Remote control
with two AA size (R-6)
batteries
Laser Diode Properties
Material:
GaAs
Wave length: DVD: 655 nm
CD: 790 nm
Emission Duration: Continuous
Laser output:
Max. 0.8 mW
• Operation Manual
DV-SL85X
OPERATION MANUAL
POWER
PLAY
STOP
SKIP
REV
OPEN/CLOSE
FWD
4
NTSC/PAL
• Video/Audio cables
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
Symbols Used in This Manual
“DTS” and “DTS Digital Out” are trademarks of Digital
Theater Systems, Inc.
“Kodak Picture CD COMPATIBLE” is a trademark of
Eastman Kodak Company.
is a trademark of DVD Format/Logo Licensing
Corporation.
For Customer Use:
Read carefully the information located at the bottom of your
unit and enter below the Serial No.
Retain this information for future reference.
The following symbols appear in some headings and notes in
this manual.
Description refers to playback of DVD Video discs
(including DVD-RW/-R and DVD+RW/+R discs
(Video mode only)).
Description refers to playback of VR mode (Video
Recording format).
The VR mode (Video Recording format) is a recording mode to enjoy editing the program or manual
mode for recording in desired resolution and time.
Description refers to playback of Audio CDs.
Model No.: DVD Player: DV-SL85X
Description refers to playback of Video CDs.
Description refers to playback of Video CDs without
PBC function.
Description refers to playback of MP3 discs.
Serial No.: ______________________________________
Description refers to viewing of JPEG discs.
–2–
Downloaded From Disc-Player.com Sharp Manuals
EN
5/23/05
3:21 PM
Page 3
Features
Table of Contents
¡Progressive Scan System
¡Component Video Out Jacks
Jacks located on the back of the unit which are used to
send high-quality video to a TV via Component Video In
Jacks.
¡DTS (Digital Theater System)
You can enjoy 5.1 channel surround sound system developed by Digital Theater System, Inc. which reproduces
the original sound as truthfully as possible. External
decoder is required.
¡Dolby Digital Sound
This unit can handle Dolby Digital surround sound having
5.1 channels when connected to a Dolby Digital decoder.
¡Still/Fast/Slow/Step Playback
¡Rapid Play
Playback in slightly faster/ slower speed while keeping the
sound quality as in the normal playback.
Rapid Play is available only on discs recorded in the
Dolby Digital format.
¡Random Playback for Audio CD, MP3, JPEG and
Kodak Picture CD
¡Programmed Playback for Audio CD, MP3, JPEG and
Kodak Picture CD
¡DVD Menus in a Desired Language
¡Screen Saver/Auto Power-off Functions
The screen saver programme starts when there is no input
from the unit for 5 minutes in the stop mode. When the
screen saver programme is activated for 25 minutes, the
power is automatically turned off.
¡Subtitles in a Desired Language
¡Selecting a Camera Angle
¡Choices for Audio Language and Sound Mode
¡Parental Lock
¡Automatic Detection of Discs
This unit automatically detects if a loaded disc is DVD,
Audio CD, Video CD, MP3, JPEG and Kodak Picture CD.
¡Playing Disc with MP3 and JPEG Files.
¡Kodak Picture CD Playback
¡Dual Playback
You can make CD-RW/-R to put your favorite music (MP3)
and picture (JPEG) files in one disc with the computer to play
back simultaneously.
¡Folder Playback
This function lets you play all the files and tracks contained in
one selected folder automatically.
¡Direct Search
¡MPEG audio
This unit can handle a disc that supports MPEG audio
when it is connected to a MPEG decoder.
¡On-Screen Display
Information about the current operation can be displayed on
a TV screen, allowing you to confirm the currently active
functions (such as Programmed playback), on the TV
screen using the remote control.
¡Search
Chapter search / Title search / Track search / Time search
¡Repeat
Chapter / Title / Track / Group / All / A-B
¡Zoom
¡Marker
The part designated by user can be called back.
¡Resume Play
¡Virtual Surround
¡Dimmer
The brightness of the Panel Display can be varied.
¡Bit Rate Indication
¡DRC (Dynamic Range Control)
You can control the range of sound volume.
¡Digital Gamma Setting
¡Video Out
When playing back an NTSC disc, select either PAL or
AUTO (NTSC) correspondingly to your TV set.
Precautions
■ SAFETY INFORMATION . . . . . . . . . . . .
Supplied Accessory . . . . . . . . . . . . . . . .
Symbols Used in This Manual . . . . . . . .
Features. . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents . . . . . . . . . . . . . . . . . .
Location and Handling . . . . . . . . . . . . . .
Nonuse Periods . . . . . . . . . . . . . . . . . . .
No Fingers or Other Objects Inside. . . . .
Warning of Dew Formation . . . . . . . . . . .
Copyright . . . . . . . . . . . . . . . . . . . . . . . .
Copy Protection . . . . . . . . . . . . . . . . . . .
Notice for Progressive Scan Outputs . . .
If There Is Noise Interference on the TV
while a Broadcast Is Being Received . .
Maintenance . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2
2
2
3
3
4
4
4
4
4
4
4
........4
........4
Precautions
E6146AD_0523
Setup
■ About the Discs . . . . . . . . . . . . . . . . . . . . . .
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . .
Unplayable Discs . . . . . . . . . . . . . . . . . . . . . .
■ Functional Overview . . . . . . . . . . . . . . . . . .
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . .
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . .
■ About the Remote Control . . . . . . . . . . . . . .
Remote Control . . . . . . . . . . . . . . . . . . . . . . .
Installing the Batteries for the Remote Control
■ Connections . . . . . . . . . . . . . . . . . . . . . . . . .
Connection to a TV. . . . . . . . . . . . . . . . . . . . .
Basic TV connection. . . . . . . . . . . . . . . . . . . .
Connection to an Audio System . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5
5
5
6
6
6
6
7
7
7
8
8
8
9
Functions
■ Playback . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rapid Play . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing the Disc Recorded in VR Mode
(Video Recording Format) . . . . . . . . . . . . .
■ MP3, JPEG Playback . . . . . . . . . . . . . . . . .
Kodak Picture CD. . . . . . . . . . . . . . . . . . . . .
Dual Playback . . . . . . . . . . . . . . . . . . . . . . .
Transition Mode . . . . . . . . . . . . . . . . . . . . . .
Adjustment of Picture Size . . . . . . . . . . . . . .
Folder Playback . . . . . . . . . . . . . . . . . . . . . .
■ On-Screen Display . . . . . . . . . . . . . . . . . . .
■ Search Function . . . . . . . . . . . . . . . . . . . . .
Track Search . . . . . . . . . . . . . . . . . . . . . . . .
Title / Chapter Search . . . . . . . . . . . . . . . . .
Time Search. . . . . . . . . . . . . . . . . . . . . . . . .
■ Marker Setup . . . . . . . . . . . . . . . . . . . . . . .
■ Repeat / Random / Programmed Playback
Repeat Playback . . . . . . . . . . . . . . . . . . . . .
Repeat A-B Playback . . . . . . . . . . . . . . . . . .
Random Playback . . . . . . . . . . . . . . . . . . . .
Programmed Playback . . . . . . . . . . . . . . . . .
■ Special Settings . . . . . . . . . . . . . . . . . . . . .
Subtitle Language . . . . . . . . . . . . . . . . . . . .
Audio Language . . . . . . . . . . . . . . . . . . . . . .
Camera Angles . . . . . . . . . . . . . . . . . . . . . .
Digital Gamma Setting . . . . . . . . . . . . . . . . .
Stereo Sound Mode . . . . . . . . . . . . . . . . . . .
Virtual Surround . . . . . . . . . . . . . . . . . . . . . .
■ DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . .
LANGUAGE Setting . . . . . . . . . . . . . . . . . . .
DISPLAY Setting . . . . . . . . . . . . . . . . . . . . .
AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . .
PARENTAL Setting . . . . . . . . . . . . . . . . . . . .
OTHERS Setting . . . . . . . . . . . . . . . . . . . . .
Reset to the Default Setting
(except for PARENTAL Setting) . . . . . . . . .
. . . . 10
. . . . 11
. . . . 11
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . 11
. . 12
. . 12
. . 13
. . 13
. . 13
. . 13
. . 14
. . 15
. . 15
. . 15
. . 15
. . 15
. . 16
. . 16
. . 16
. . 16
. . 16
. . 17
. . 17
. . 17
. . 17
. . 17
. . 18
. . 18
. . 18
. . 19
. . 19
. . 20
. . 20
. . 21
. . . . 21
Information
■ Language List. . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . 23
–3–
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:21 PM
Page 4
Location and Handling
Notice for Progressive Scan Outputs
Precautions
• Do not stand the unit vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top
of the unit. Do not place the unit directly on top of the TV.
• Do not cover or place the unit in enclosed spaces to prevent excessive temperature build up.
• Do not place the unit in direct sunlight, or near heat
sources.
• Depending on the environment, the temperature of the unit
may increase slightly. This is not a malfunction.
• Keep the unit away from strong magnetic objects.
• Do not place any object containing water or other liquids
on the unit. In the event that liquid should enter the cabinet, unplug the unit immediately and contact the retailer or
service centre approved by SHARP immediately.
• Do not remove the unit cabinet. Touching parts inside the
cabinet could result in electric shock and/or damage to the
unit. For service and adjustment inside the cabinet, call a
qualified dealer or service centre approved by SHARP.
• Be sure to remove a disc and unplug the AC power cord
from the output before carrying the unit.
Consumers should note that not all high definition television
sets are fully compatible with this product and may cause
artifacts to be displayed in the picture. In case of picture
problems with 525 or 625 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your
TV set compatibility with this 525p or 625p DVD player,
please contact our customer service centre.
“Licensed under one or more of U.S. Pat. 4,972,484, 5,214,678,
5,323,396, 5,530,655, 5,539,829, 5,544,247, 5,606,618,
5,610,985, 5,740,317, 5,777,992, 5,878,080, or 5,960,037.”
If There Is Noise Interference on the TV
while a Broadcast Is Being Received
Depending on the reception condition of the TV, interference
may appear on the TV monitor while you watch a TV broadcast and the unit is left on. This is not a malfunction of the
unit or the TV. To watch a TV broadcast, turn off the unit.
Maintenance
Nonuse Periods
• When the unit is not being used, switch the unit to the
standby mode.
• When left unused for a long period of time, the unit should
be unplugged from the household AC outlet.
No Fingers or Other Objects Inside
Do not put your fingers or objects on the disc tray.
Warning of Dew Formation
Moisture may form inside the unit under the following conditions:
• Immediately after a heater is turned on.
• In a steamy or humid room.
• When the unit is suddenly moved from a cold to warm
environment.
If moisture forms inside this unit, it may not operate properly.
In such case, turn on the power and waitfor more than 2
hours for the moisture to evaporate.
Copyright
Copyright may exist in material you wish to record. Copying
such material without permission of the relevant licensee(s)
or owner(s) of the copyright is prohibited by law. SHARP is
not in a position to authorise the recording of copyright
works and nothing in this manual should be read or implied
as giving that authority.
Copy Protection
This unit supports Macrovision copy protection. On DVD
discs that include a copy protection code, if the contents of
the DVD disc are copied using a VCR, the copy protection
code prevents the videotape copy from playing normally.
U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098;
4,907,093; 5,315,448; and 6,516,132.
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must
be authorized by Macrovision, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly
is prohibited.
Servicing
1. Please refer to relevant topics in the “Troubleshooting
Guide” on page 23 before returning the product.
2. Do not attempt to service this unit yourself. Instead, unplug
it and contact a SHARP Approved Service Centre for
inspection. (Refer to page 23.)
3. Be sure the service technician uses authorised replacement parts or their equivalents. Unauthorised parts may
cause fire, electrical shock, or other hazards.
4. Following any service or repair, be sure the service technician performs safety checks to certify that this unit is in
safe operating order.
Cleanning the cabinet
• Use a soft cloth slightly moistened with a mild detergent
solution. Do not use a solution containing alcohol, spirits,
ammonia or abrasive.
Cleaning discs
• When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the centre out. Do not wipe in a circular
motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analogue records.
Recommended measures for optimum picture excellence
This unit is a precision device constructed using extremely
accurate technology.
• The disc cannot be played if the disc drive component is
worn out or if the internal pick up lens is dirty.
• If this unit still does not perform properly although you refer
to the relevant sections and to “Troubleshooting Guide” on
page 23, the laser optical pickup unit may be dirty. Consult
a SHARP Approved Service Centre for inspection and
cleaning of the laser optical pickup unit.
Soiling or friction affecting the pickup lens or disc drive can
impair the image quality. At the worst, neither video nor audio
will be played back. To maintain optimum picture quality, the
Player should be serviced (cleaned and replacement of
some parts) every 1,000 hours. Note that this period varies
depending on the environment (temperature, humidity, dust,
etc.) in which the unit is used. Contact your authorised
SHARP supplier for details.
Disc handling
• When you handle a disc, hold it by its edge and try not to
touch the surface of the disc.
• Always store a disc in its protective case when it is not
used.
–4–
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:21 PM
Page 5
Setup
About the Discs
Playable Discs
Mark (logo)
DVD-Video
* 1, 2, 3
DVD-RW
DVD-R
Region code
_
DVD+RW
DVD+R
* 1, 3, 4, 5,
7, 8, 9
_
Video CD
_
* 3, 5
* 3, 5, 10
CD-RW
CD-R
* 3, 4, 5,
8, 9, 10
Kodak
CD
Disc size
Disc types
or
* 1, 3, 4, 5,
6, 8, 9
Audio CD
Recorded
signals
12 cm
or
Digital video 8 cm
(MPEG2)
Example
_
_
Title 2
12 cm
Digital video
with audio
Video CD
or
Audio CD
Example
Track 1
_
Title 1
Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2
Track 2
Track 3
Track 4
Track 5
Track 4
Track 5
Track 6
Digital audio 12 cm
or
Digital audio 8 cm
or
MP3
or
JPEG
JPEG
MP3
or
JPEG
Example
Track 1
Group 1
Track 2
Track 3
Setup
Playable
discs
Group 2
Track 6
12 cm
If you cannot play back a disc which bears one of the marks above, check the following notes.
*1: This unit conforms to the PAL colour system. Also you can play back discs recorded with the NTSC system via a PAL system TV set.
*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers.
*3: Scratched or stained discs may not be played back.
*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.
*5: You can play back discs which bear the marks above. If you use nonstandardised discs, this unit may not play them back.
Even if they are played back, the sound or video quality will be compromised.
*6: Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be
smooth, etc.). In this case, you need to finalise the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.
*7: Only the discs recorded in the video mode and finalised can be played back.
Unfinalised discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at
all or the picture or sound may not be smooth, etc.
*8: If the recorded portion of the disc is too small (less than 55 mm across), it may not play back properly.
*9: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
*10: Also DTS CD is available when the unit is connected to the DTS decoder.
: This label indicates playback compatibility with DVD-RW discs recorded in VR mode (Video Recording Format).
NOTE:
• This unit cannot play back the DVD-RW/-R recorded of the once-copy programmes.
• This unit cannot play back the DVD-R discs recorded in VR mode (Video Recording Format).
• 8 cm disc is not available on some media.
ABOUT THE PBC FUNCTION OF VIDEO CD
This unit conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.
Ver.2.0 (with PBC function):
When using a Video CD with PBC function, “Pbc”
appears on the display.
What is PBC? “PBC” stands for
the Playback Control. You can
play interactive software using a
menu screens. Refer to instructions of Video CD.
Unplayable Discs
¡NEVER play back the following discs. Otherwise, malfunction may result:
DVD-RAM, CD-I, Photo CD, DVD with region codes other than 4 or ALL,
DVD-ROM for personal computers, CD-ROM for personal computers
¡On the following disc, the sound MAY NOT be heard.
Super Audio CD
¡Any other discs without compatibility indications.
–5–
Downloaded From Disc-Player.com Sharp Manuals
Hint
• Only the sound recorded on the normal CD layer can be delivered.
The sound recorded on the high
density Super Audio CD layer cannot be delivered.
EN
E6146AD_0523
5/23/05
3:21 PM
Page 6
Functional Overview
Front Panel
1
2 3 4 5
6
7
8
9
OPERATE
REV
1. OPERATE
To switch the unit ON or OFF.
5. SKIP j /FWD g
Goes to next chaper or track during playback; press and
hold for 1.5 seconds for a forward search.
2. PLAY B
To start or resume disc playback.
6. OPEN/CLOSE A
To open/close the disc tray.
3. STOP C
To stop playback.
7. Disc Tray
4. SKIP j /REV h
Goes to previous chapter or track during playback; press
and hold for 1.5 seconds for a reverse search.
8. Remote Sensor Window
9. Display
Display
Setup
Lights up when the
A-B repeat function
is on.
Displays a type of the disc
which is inserted on the tray.
• DVD: DVD
• CD : Audio CD, MP3, JPEG, Kodak Picture CD
• VCD: Video CD
Lights up when the
Lights up when the
progressive scan
repeat function is on.
system is activated.
GROUP
Power on
No disc inserted or
cannot read
Tray open
P.SCAN
DVD
VCD
Lights up when
the ALL repeat
function is on.
Tray closed
Displays how long the current title
or track has been played back. When
a chapter or track is switched, the
number of a new title, chapter or
track is displayed.
Lights up when the
inserted disc comes
to a pause.
Loading the Disc
Lights up when the playback
control is activated (VCD).
Lights up when the inserted
disc is being played back.
Lights up when playing back
in slow mode (DVD, Video CD).
Power off
Rear View
AUDIO OUT
L
CR / PR
Y
DIGITAL AUDIO OUT
4
CB / PB
S-VIDEO
OUT
11 12 13 14 15
16
OPTICAL COAXIAL
10
R
COMPONENT
VIDEO OUT
VIDEO
OUT
10. MAINS (AC Power Cord)
Connect to a standard AC outlet.
14. VIDEO OUT
Connect to the Video Input of a TV.
11. OPTICAL (DIGITAL AUDIO OUT)
Connect to digital (optical) audio equipment.
15. COMPONENT VIDEO OUT
Connect to a TV with Component video in jacks.
12. COAXIAL (DIGITAL AUDIO OUT)
Connect to AUDIO inputs of a digital (coaxial) audio equipment.
16. S-VIDEO OUT
Connect to a TV with S-Video inputs.
13. AUDIO OUT
Connect to AUDIO inputs of an amplifier, receiver, or stereo
system.
CAUTION:
• Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the
unit.
–6–
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:21 PM
Page 7
About the Remote Control
Remote Control
Disc
Button
(Alphabetical order)
ON
SCREEN
SETUP
OPEN/
CLOSE
DIMMER GAMMA
MODE
MARKER
SUBTITLE
ANGLE
AUDIO
ZOOM
TITLE
MENU
RETURN
ENTER
2
3
4
5
6
7
8
9
0
+10
A-B REPEAT
ANGLE
REPEAT
1
2
3
4
5
6
7
8
9
0
+10
A-B REPEAT
C
• Press to select track directly.
• (up/down/left/right) Press to
select an item in the menu and
to move the cursor.
• (up/down/left/right) Press to
select an item in the menu and
to move the cursor.
• Repeats playback of a selected
section.
• Repeats playback of a selected
section (VCD, CD).
• Press to change the camera
angle to see the sequence
being played back from a
different angle (DVD Video).
AUDIO
• Press to select a desired audio
language or sound mode.
• Press to select a desired sound
mode (VCD, CD).
CLEAR
• Press to clear the markers or
the incorrect input.
• Press to clear the markers or
the incorrect input.
• Press to adjust the brightness
of the Panel Display.
• Press to adjust the brightness
of the Panel Display.
• Press to search chapter, title or
time.
• Press to search track.
• Press to search time (VCD, CD).
SKIP
CLEAR
REV
• Press to select chapter or title
directly.
C
FWD
DIMMER
PLAY
DIRECT SKIP
DIRECT SKIP
STILL/PAUSE
STOP
Installing the Batteries for the
Remote
Control
a
Install two AA size (R-6) batteries (supplied)
matching the polarity indicated inside battery
compartment of the remote control.
ENTER
• Press to accept a setting.
• Press to accept a setting.
• Fast forwards playback to a desired point.
• Press to begin slow forward playback
during the pause mode.
• Fast forwards playback to a desired point.
• Press to begin slow forward playback
during the pause mode (VCD).
GAMMA
• Press to adjust the black parts
of the picture brighter.
• Press to adjust the black parts of
the picture brighter (VCD).
MARKER
• Press to call back the Marker
display.
• Press to display the DVD
menus.
• Press to display the current
playback mode.
• Press to call back the Marker
display (VCD, CD).
• Press to display the MP3 or
JPEG file lists.
• Activates programmed playback,
random playback or folder playback
mode (CD, MP3, JPEG).
• Activates the 3D sound (VCD, CD).
• Press to display the current
playback mode.
• Press to insert discs into or
remove them from the tray.
• Press to insert discs into or
remove them from the tray.
• Press to turn the power on and
off.
• Press to turn the power on and
off.
• Press to begin playback.
• Press to begin playback.
• Repeats playback of the
current disc, title or chapter.
• Repeats playback of the
current disc, group or track.
• Returns to the previous
operation.
• Returns to the previous
operation.
FWD
MENU
• Activates Virtual Surround or
Rapid Play.
MODE
ON
SCREEN
OPEN/
CLOSE
OPERATE
PLAY
Hint
REPEAT
• Do not mix alkaline and manganese batteries.
• Do not mix old and new batteries.
Keep in mind the following when using the
remote control:
• Make sure that there is no obstacle between
the remote control and the remote sensor on
the unit.
• The maximum operable range as follows;
Beeline: approximately 7 m (23 feet)
Either side of centre:
approximately 5 m (16 feet) within 30 degrees
Above: approximately 5 m (16 feet) within 15 degrees
Below: approximately 3 m (10 feet) within 30 degrees
RETURN
• Fast reverse playback to a desired point. • Fast reverse playback to a
desired point.
• Press to begin slow reverse
playback during the pause mode.
REV
SETUP
SKIP
STILL/PAUSE
STOP
• Press to enter the setup mode
or to change setup items.
• Press to enter the setup mode
or to change setup items.
• Press to skip chapters or titles.
• Press to skip tracks.
• Press to pause playback or to
advance playback one frame at
a time.
• Press to pause playback.
• Press to stop playback.
• Press to stop playback.
OPERATE
SUBTITLE
REV
• Press to select a desired
subtitle language.
• Press to return to the first hierarchy in
OPERATE
ON
SCREEN
SETUP
OPEN/
CLOSE
DIMMER GAMMA
MODE
MARKER
SUBTITLE
ANGLE
AUDIO
ZOOM
TITLE
TITLE
• Displays the title menu.
the programme and file list when the
file list is the second hierarchy or
deeper (MP3, JPEG).
• Enlarges part of a DVDreproduced image.
• Enlarges part of a reproduced
image (VCD, JPEG).
MENU
ENTER
RETURN
REPEAT
1
2
3
4
5
6
7
8
9
0
+10
ZOOM
A-B REPEAT
SKIP
CLEAR
C
–7–
Downloaded From Disc-Player.com Sharp Manuals
EN
Setup
OPERATE
1
E6146AD_0523
5/23/05
3:21 PM
Page 8
Connections
Connection to a TV
CAUTION:
•
•
•
•
Be sure to turn off the unit and equipment to be connected before connecting.
Read through the Operation Manual for the equipment to be connected.
Be sure that the colours of the jacks and plugs match up when connecting the cable.
Be sure to keep the unit connection cables separate from the TV antenna cable when you install the unit, because it
may cause electrical interference when you are watching television programmes.
• DTS audio cannot be produced with an analogue connection.
Basic TV connection
CAUTION:
This unit
• Connect the unit directly to the TV. Do not connect the unit to a VCR,
then connect the VCR to the TV. Copyright protection in the VCR could
distort the picture playing on the unit.
Basic Audio
TV
VCR
Method 1
Method 2
Method 3
Good picture
Better picture
Best picture
COMPONENT
VIDEO IN
TV
Y
AUDIO IN
L
R
VIDEO IN
Y
S-VIDEO IN
Setup
PB
CB
or
PR
S-Video
cable
(commercially
available)
Video
cable
(supplied)
Audio cable
(supplied)
CR
Component
Video cables
(commercially
available)
This unit
AUDIO OUT
AUDIO OUT
L
Y
DIGITAL AUDIO OUT
4
OPTICAL COAXIAL
R
VIDEO
OUT
L
CR / PR
Y
COMPONENT
VIDEO OUT
CB / PB
S-VIDEO
OUT
Y
R
VIDEO
OUT
CR / PR
COMPONENT
VIDEO OUT
S-VIDEO
OUT
CB / PB
(Analogue) AUDIO OUT
VIDEO OUT
S-VIDEO OUT
COMPONENT VIDEO OUT
NOTES:
• If you want to listen to the audio through audio equipment, connect only the S-Video or Video cable to the TV.
• When the unit is connected to a TV using both a Video cable and an S-Video cable, only the S-Video connection is
enabled (the Video connection is disabled).
• You will not be able to hear all of the sound being output by the unit if you use the Video/Audio cable (supplied) to a
monaural TV that has only one AUDIO input jack.
If your TV is compatible with 525 or 625 progressive scanning and you want to enjoy
that high quality picture;
You must select the connection Method 3 above and progressive scanning mode. To set the mode, set “PROGRESSIVE” to
“ON” in the DISPLAY menu so that “P.SCAN” will appear on the display of this unit. See pages 18, 19 for more details.
• You can set “PROGRESSIVE” to “OFF” either in the DISPLAY menu or by pressing and holding PLAY B on the front of
the unit for more than 5 seconds.
• When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and S-VIDEO OUT jacks will be distorted or
not be output at all.
If your TV is not compatible with progressive scanning;
Use this unit in interlace mode. Make sure that no “P.SCAN” is on the display of this unit. If so, set “PROGRESSIVE” to
“OFF” in the DISPLAY menu so that “P.SCAN” on the display of this unit will disappear.
–8–
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:21 PM
Page 9
Connection to an Audio System
Method 1
Method 2
Dolby Digital decoder, DTS decoder, MPEG
decoder, MD deck or DAT deck
Stereo system
Analogue audio
input jacks
AUDIO
L
R
Digital audio
input jack
COAXIAL
OPTICAL
or
Audio cable
(supplied)
AUDIO OUT
This unit
L
Y
CR / PR
L
DIGITAL AUDIO OUT
(Analogue)
AUDIO OUT
Audio Coaxial or
Optical Digital cable
(commercially
available)
AUDIO OUT
COMPONENT
VIDEO OUT
L
Y
CR / PR
DIGITAL AUDIO OUT
COMPONENT
VIDEO OUT
R
OPTICAL COAXIAL
R
VIDEO
OUT
CB / PB
OPTICAL COAXIAL
R
VIDEO
OUT
CB / PB
DIGITAL AUDIO OUT
Connecting to
Stereo System.
SETUP >
DOLBY DIGITAL
DPCM
(QUICK) >
DTS
OFF
Setting
Connection
MPEG
Connecting to a
Dolby Digital, DTS
decoder or MPEG
decoder for Dolby
Digital, DTS or
MPEG audio output.
Connecting to the
other equipment
(an MD deck or
DAT deck etc.)
without Dolby
Digital decoder.
DPCM
* To complete these settings, refer to pages 18, 20.
Hint
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
SETUP >
DOLBY DIGITAL
(QUICK) >
DTS
MPEG
Setup
Setting
Connection
BITSTREAM
DPCM
OFF
DPCM
* To complete these settings, refer to pages 18, 20.
Hint
• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital
sound by an MD or DAT deck.
• By hooking this unit up to a Multi-channel Dolby Digital
decoder, you can enjoy high-quality Dolby Digital 5.1
channel surround sound as heard in the movie theatres.
• By hooking this unit up to the DTS decoder, you can
enjoy 5.1 channel surround system which reproduces
the original sound as truthfully as possible. 5.1 channel
surround system is developed by the Digital Theater
System Inc.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Optical cable (not supplied)
• Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15 cm or more when storing them.
• Use a cable which is 3 m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.
–9–
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:21 PM
Page 10
Functions
Operations described after this section are mainly based on the remote control use. Some operations can be carried out on main unit.
Playback
Before: Turn on the TV, amplifier and any other equipments
which are connected to this unit. Make sure the TV and
audio receiver (commercially available) are set to the correct channel.When you play NTSC recorded discs, the
default setting converts this to a modified PAL. (See page
19 “DISPLAY Setting”.)
(
page 12
1
2
OPERATE
REV
1 3 4 13
Hint
)
1
OPERATE
OPEN/
CLOSE
ON
SCREEN
SETUP
DIMMER GAMMA
MODE
MARKER
SUBTITLE
ANGLE
AUDIO
OPERATE
ZOOM
TITLE
Insert a disc with
label facing up.
4
ENTER
REPEAT
1
2
3
A-B REPEAT
4
7
To stop playback.
5
6
8
9
0
+10
SKIP
CLEAR
3
4
C
REV
FWD
PLAY
DIRECT SKIP
STILL/PAUSE
Paused and Step-by-Step Playback
Functions
Some discs contain menus which allow you to customise
disc playback.
Use Cursor K / L / s / B or the Number buttons to select
an item, then press ENTER or PLAY B.
Calling up a Menu Screen (for playback of a DVD Video)
• Press MENU to call up the DVD menu.
• Press TITLE to call up the title menu.
Cancelling the PBC (for playback of a Video CD)
1 Insert a Video CD. (Playback will start automatically.)
2 Press STOP C.
3 Enter track number of your choice with the Number
buttons.
4 PBC is now cancelled and the playback of the Video CD
will start.
Hint
• If the feature is not available,
symbol may appear on the TV
screen.
• Menu operations may vary depending on the disc. Refer to the
manual accompanying the disc for more details.
Press STILL/PAUSE F during playback.
• Playback will be paused and sound will be muted.
• Press STILL/PAUSE F once during Dual/Folder Playback to
pause a JPEG file only. Press STILL/PAUSE F one more
time to pause an MP3 track.
To continue playback, press PLAY B.
The disc goes forward by one frame each time
STILL/PAUSE F is pressed during the pause mode.
To continue playback, press PLAY B.
Hint
• On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause mode are blurred. (Refer to pages 18, 19.)
Fast Forward/Reverse Search
Press FWD g or REV h repeatedly during
playback to select the required forward or
reverse speed.
To continue playback, press PLAY B.
Resume
Press PLAY B, playback will
resume from the point
at which playback was stopped.
E1
Hint
Resume ON
Press 'PLAY' to play from here.
To play the beginning,
press 'STOP' first and then 'PLAY'.
<Example : DVD>
Hint
• To cancel resume, press STOP C one more time during the stop
mode. On some discs, STOP C will not work while the Resume
message appears. Please wait until the message disappears.
• For MP3 and JPEG, playback will resume from the beginning of the
track at which playback was stopped.
• The resume information will be kept even when the power is turned off.
• On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if
pictures during fast forward and reverse search are blurred.
• For DVDs, fast forward or reverse search speed is different
depending on the disc.
• For DVDs, approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and
5(x100).
• For Audio CDs, Video CDs and MP3, approximate speed is 1(x2), 2(x8)
and 3(x30).
• For Audio CDs and MP3, sound will be output during Fast Forward
or Reverse Search.
• If you are using FWD g or REV h on the front panel, press
and hold it for more than 1.5 seconds. When you reach the desired
speed, release the button.
– 10 –
Downloaded From Disc-Player.com Sharp Manuals
• You can change the On-Screen language in “PLAYER MENU”
setting. (Refer to pages 18, 19.)
• When you play back MP3 or JPEG files, details are on page 12.
• A “prohibited icon” may appear at the top-right on
the TV screen when the operation is prohibited by
the disc or this unit.
• Some DVDs may start playback from title 2 or 3 due to specific
programmes.
• During the playback of a 2-layered disc, pictures may stop for a
moment. This happens while the 1st layer is being switched to
the 2nd layer. This is not a malfunction.
• A DVD-RW disc recorded in the VR mode may freeze momentarily during playback depending on how the playlist was made
and edited (deleted titles, repeated recording).
STOP
DISC menu
Press STOP C during playback.
Resume message will appear
on the TV screen.
1
3
MENU
RETURN
3
2
EN
E6146AD_0523
5/23/05
3:22 PM
Page 11
2
Slow Forward/Slow Reverse
or
1
Press FWD g or REV h repeatedly during the
pause mode to select the required forward or reverse speed.
To continue playback, press PLAY B.
Hint
• Slow forward or reverse speed is different depending on the disc.
Approximate speed is 1(1/16), 2(1/8) and 3(1/2).
• On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow playback mode are blurred. (Refer to page 19.)
• If you are using FWD g or REV h on the front panel, press
and hold it for more than 1.5 seconds. When you reach the desired
speed, release the button.
• You cannot play back Video CDs in reverse slow motion.
or
Press ENTER or Cursor { / B to switch among “
“ (x0.8)” and “OFF”.
(x1.3)”,
: Plays back approximately at 0.8 times of normal playback.
: Plays back approximately at 1.3 times of normal playback.
OFF : No effects.
3
To continue normal playback.
Hint
Zoom
• Audio (language) setting cannot be changed while using this mode.
• Virtual Surround and Digital Gamma settings cannot be changed
while using this mode.
• Virtual Surround does not function while using this mode.
• This feature may not work at some point in a disc.
• When using digital audio connection, the DPCM sound will be output.
The zoom function allows you to enlarge the video image
and to pan through the enlarged image.
1
Playing the Disc Recorded in VR Mode
(Video Recording Format)
a
During playback, press ZOOM.
• The picture becomes twice as large.
DVDs recorded in VR mode can have a PLAYLIST assigned
to alter the order or content to be played back. If a PLAYLIST
has been created, you can choose the ORIGINAL or
PLAYLIST option.
2
3
Press MENU in stop mode.
• The current setting screen will
appear.
• Pressing MENU during playback
is not valid.
Once a desired zoom factor is set,
use Cursor K / L / s / B to slide the
zoomed picture across the screen.
4
ORIGINAL
Functions
1
Press ZOOM repeatedly to change
the zoom factor: “x2”, “x4” or “OFF”.
PLAYLIST
1 ORIGINAL1
2 ORIGINAL2
3 ORIGINAL3
4 ORIGINAL4
5 ORIGINAL5
6 ORIGINAL6
2
or
To exit zoom function, press
ZOOM repeatedly to select “OFF”.
ORIGINAL
PLAYLIST
1 PLAYLIST1
2 PLAYLIST2
3 PLAYLIST3
4 PLAYLIST4
5 PLAYLIST5
6 PLAYLIST6
Hint
• Zooming function does not work while the disc menu is showing up.
• x4 zoom is not available on some discs.
• Only x2 zoom is available on Video CDs and JPEG.
• You may not be able to move zoomed JPEG pictures.
• Zooming function is also available during pause mode.
ORIGINAL: A list of titles which are recorded with a DVD recorder.
PLAYLIST : A list of titles which is made based on the ORIGINAL
edited list.
3
or
Rapid Play
or
To select the desired title.
To decide.
ORIGINAL
Rapid Play function is available only during playback.
Available only on discs recorded in the Dolby Digital format,
Rapid Play plays back in slightly faster/slower speed with
sound that is close to normal playback quality.
1
OFF
During playback, press MODE.
• The current setting appears.
1 ORIGINAL1
2 ORIGINAL2
3 ORIGINAL3
4 ORIGINAL4
5 ORIGINAL5
6 ORIGINAL6
Hint
• PLAYLIST will not be displayed when it has not been made.
• Resume playback will not be possible if you change the setting.
• When discs recorded in VR mode, changing the audio (MAIN, SUB
or MAIN+SUB) is effective only when using an analogue connection. Although you may be able to change the settings of the onscreen display, it will not affect the sound when using a digital connection.
– 11 –
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:22 PM
Page 12
MP3, JPEG Playback
MP3 or JPEG is a method of compressing files. You can copy MP3 or JPEG files on CD-RW/-Rs from the computer and play
back the files on this unit.
Insert a MP3 or JPEG-format disc, then
press MENU to call up the FILE LIST
on the TV screen.
1
FILE LIST
FOLDER
MP3
JPEG
DISC NAME
ENTER
PLAY
or
folder name 1
folder name 2
folder name 3
folder name 4
file name 1
file name 2
file name 1
1/
2
folder name 1
When selecting the folder:
• Press Cursor B when
you want to go to the
next hierarchy.
• Press Cursor s when
you want to go back to
the previous hierarchy
(except for the top hierarchy).
2
Refer to “Resume” on page 10.
Hint
• Some selections may take a while to be recognised.
• Press TITLE to return to the 1st item.
• Press MENU or RETURN to go back to the opening display.
• Folders are known as Groups; files are known as Tracks.
• Folders, MP3 files and JPEG files are displayed respectively as ,
and
.
• A maximum of 255 folders or 999 files may be recognised in one disc.
• Up to 8 hierarchies can be recognised in one folder. Files in the 9th or deeper hierarchies cannot be played back.
• This unit can play back images and sounds from data recorded in MP3 and JPEG formats
on CD-RW/-R discs.
• A file with an extension of “.mp3 (MP3)” is called an “MP3 file” and a file with an extension
of “.jpg (JPG)” or “.jpeg (JPEG)” is called a “JPEG file”.
• The unit can run an image file conforming to the Exif specification. Exif is a file format,
Exchangeable Image File format established by Japanese Electronic Industry Development
Association (JEIDA).
• Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and “.jpeg (JPEG)” will not
be listed in the MP3 or JPEG menu.
• If the file is not recorded in MP3 or JPEG format, noise may be produced even if the file
extension is either “.mp3 (MP3)”, “.jpg (JPG)” or “.jpeg (JPEG)”.
• The name of group and track can be displayed in up to 25 characters. Unrecognisable characters will be replaced with asterisks.
• Unplayable groups or tracks may be displayed depending on the recording conditions.
• If TITLE is pressed when a FILE LIST is displayed, the 1st item will be highlighted.
• Progressive JPEGs (JPEG Files saved in the progressive format) will not play on this unit.
This unit recommends the files recorded under the following circumstances:
Applicable MP3 file
Sampling frequency:
44.1kHz or 48kHz
Functions
Constant bit rate:
32kbps ~ 320kbps
Remarks
Applicable JPEG file
For MP3 file recorded in Variable Bit
Rate (VBR), the
unit may not display
the actual elapsed
time.
Normal playback
Upper limit: 6,300 x 5,100 dots
Lower limit: 32 x 32 dots
File size:
Max. 5MB
Dual playback
Upper limit: 4,000 x 4,000 dots
Lower limit: 32 x 32 dots
File size:
Max. 3MB
Remarks
A JPEG image that
extends beyond the
screen is reduced
so that it will be displayed within the
screen.
Kodak Picture CD
1
The unit can also run JPEG files stored
on Kodak Picture CDs. The Picture CD
is a service to convert photographs
taken by a conventional film camera
into digital data and write the data on a
CD. The user can enjoy picture images
on the television set by playing back
the Picture CDs.
For details of Kodak Picture CD, contact a shop that deals with developing
service of Kodak Inc.
2
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
Picture 6
or
1/32
Current track number /
the number of total tracks
• If all menu items cannot be displayed in
the screen scope, “ G” appears at the
right bottom of the screen, indicating that
the user can view remaining items on
the next page. “ H” appears, it indicates that the user can view other items
on the previous page. The track number
of the currently highlighted item and the
total tracks are shown at the centre bottom of the screen.
• If “G” is shown at the right bottom,
use SKIP G to view the next page. If
“H” is shown at the left bottom, use
SKIP H to view the previous page.
• It may take some time until all menu
items are displayed on the menu
screen.
– 12 –
Downloaded From Disc-Player.com Sharp Manuals
To select a
desired track.
To playback.
• If a Kodak Picture CD file is selected, an image will be played back
from the selected track and go to
the next one in turn.
Hint
• A track is displayed for 5 seconds and then
the next track is displayed.
• Every press on Cursor B will turn the
image clockwise by 90 degrees when an
image is displayed. A press on Cursor s
will turn the image counterclockwise by 90
degrees.
• If a group is selected, press Cursor K / L
to select a desired group, then press
Cursor B, PLAY B or ENTER to select a
track.
EN
E6146AD_0523
5/23/05
3:22 PM
Page 13
Dual Playback
Hint
2
This function lets you play back MP3 and
JPEG files simultaneously.
Available only when Dual Playback is ON.
See pages 18, 21 on how to set the Dual
Playback ON or OFF.
1
or
or
To select a desired
MP3 or JPEG file
from the FILE LIST.
To playback.
FILE LIST
FOLDER
MP3
JPEG
DISC NAME
folder name 1
folder name 2
folder name 3
folder name 4
file name 1
file name 2
file name 1
ENTER
1/
PLAY
2
folder name 1
• To cancel Dual Playback, press MENU
again at step [1].
• If you press PLAY B directly after you
inserted a disc which contains both MP3
tracks and JPEG files and if the
“DUAL PLAYBACK” setting is “ON”, Dual
Playback will start automatically.
• If you press FWD g or REV h during
Dual Playback, a JPEG file will be paused.
• Zooming or rotating a JPEG file during
Dual Playback may cause an intermittent
sound.
• Depending on the data size of each file,
Dual Playback may not function properly.
(Refer to “Applicable JPEG file” on page 12.)
Transition Mode
2
You can switch to the Transition Mode
for JPEG files during playback.
or
or
1
CUT
3
FADE IN/OUT
To switch “CUT IN/OUT”
or “FADE IN/OUT”.
IN/OUT
Press repeatedly until
“
” appears.
CUT IN/OUT:
The entire image appears in one
time.
FADE IN/OUT:
The image appears gradually and
then disappears.
Hint
• The Transition mode cannot be switched
when it is stopped, or from the FILE LIST
screen or the Picture CD menu screen.
• The default setting is “CUT IN/OUT”.
2
Depending on the TV connected to this
unit, the overall picture cannot be displayed and the edge of the picture can
be cut off. In this case, you can adjust
the size of the JPEG playback image
on screen.
1
NORMAL
Press repeatedly until
“
” appears.
3
SMALL
or
To switch “NORMAL” or
“SMALL”.
NORMAL:
To display the image at 100% of the
picture size.
SMALL:
To display the image at 95% of the
picture size.
Hint
• The setting screen will not be displayed
while in the stop mode or from the FILE
LIST.
• This feature may have no effect on some
files (e.g. Files with a small picture size).
• The default setting is “NORMAL”.
Folder Playback
Hint
1
FOLDER LIST
This function lets you play all the files and
tracks contained in one selected folder
automatically.
If the folder contains both MP3 and JPEG
files, the Dual Playback will begin automatically within that folder.
Available only when Dual Playback is ON.
See pages 18, 21 on how to set the Dual
Playback ON or OFF.
FOLDER
DISC NAME
folder name 1
folder name 2
folder name 3
folder name 4
ALL
ENTER
PLAY
1/
1
folder name 1
2
or
• To cancel Folder Playback, press MODE
again at step [1].
• If you press FWD g or REV h during
Folder Playback, a JPEG file will be
paused.
• Zooming or rotating a JPEG file during
Folder Playback may cause an intermittent
sound.
• Depending on the data size of each file,
Folder Playback may not function properly.
(Refer to “Applicable JPEG file” on page 12.)
or
To select a desired folder
from the FOLDER LIST. To playback.
– 13 –
Downloaded From Disc-Player.com Sharp Manuals
EN
Functions
Adjustment of Picture Size
E6146AD_0523
5/23/05
3:22 PM
Page 14
On-Screen Display
You can check the information about the current disc by pressing ON SCREEN on the remote control.
Angle icon, appears only
when available on the DVD.
Current playback status
Current playback status
1
1
4/12 0:03:21 - 0:02:15
T
Remaining time of the current track
11/16 0:00:00 - 0:03:30
Remaining time of the current
chapter
Elapsed time of the current
track
Elapsed time of the current
chapter
T (Track):
Current track number / Total
tracks
C (Chapter):
Current chapter number /
Total chapters
2
2
1/3
4/12 0:13:45 - 0:45:40
T
ALL:
Current track number / Total
tracks
Current repeat setting
appears only when the
repeat setting is active.
T : Track repeat
A : All Tracks repeat
A B : A-B repeat
0:00:00 - 1:23:45
Remaining time of the current
title
Elapsed time of the current
title
Remaining time of the entire
disc
T (Title):
Current title number / Total
titles
Elapsed time of the entire
disc
3
T
3
L1
Layer numbers, appears only
when playing back a two-layered disc.
L0: Layer 0 is playing.
L1: Layer 1 is playing.
Hint
• When you are playing back a disc in PROGRAM or RANDOM mode,
PROGRAM (or RANDOM) will be displayed instead of 2 .
Functions
Current repeat setting
appears only when the repeat
setting is active.
C : Chapter repeat
T : Title repeat
A B : A-B repeat
Current playback status
1
TRACK 01
The name of the file currently
in playback will be displayed.
BIT RATE: The amount of
audio and video data currently
being read.
2
A
1/36 0:01:15
ORG
T
T (Track):
Current Track number / total
tracks
Current Repeat setting, if
active
T : Track repeat
G: Group (folder) repeat
A : Disc repeat
List status
ORG :Original is playing.
PL :Playlist is playing.
Current repeat setting
appears only when the repeat
setting is active.
C : Chapter repeat
T : Title repeat
A B : A-B repeat
A : All repeat
Elapsed playing time of the
current track
3
4
PROGRAM
or
RANDOM
(Only when you are playing back a disc in PROGRAM
or RANDOM mode.)
4
Hint
• When the Dual Playback is ON, MP3 and JPEG file name will be
displayed.
– 14 –
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:22 PM
Page 15
Search Function
Track Search
Title / Chapter Search
Using DIRECT SKIP
1
Using DIRECT SKIP
1
/29
1
TOTAL
Press repeatedly until
“
” appears.
Press once for the
Chapter Search.
Press twice for the
Title Search.
/29
2
Within 30 seconds.
• For the discs with less than 10 tracks,
press the track number directly.
• +10 button can also bring up the Track
Search display.
• For discs with 10 or more but less
than 100 tracks, to play back a singledigit track, press 0 first, then the track
number (e.g. for track 3, press 0, 3).
To play back a double-digit track,
press the track number.
• For discs with 100 or more tracks, to
play back a single or a double-digit
track, press 0 first, then the track number (e.g. for track 3, press 0, 0, 3, and
for track 26, press 0, 2, 6). To play
back a triple-digit track, press the
track number.
TOTAL
2
Current Track
(T)
1:29:00
/12
Within 30 seconds.
Within 30 seconds.
Using SKIP H / G
1
Current Chapter
(C)
C1 C2 C3 C4
SKIP
SKIP
Hint
• When there is no need to enter a number,
“0” appears automatically.
For example, “0: 0-: --” appears in the Time
Search display if the total time of the title
or track is less than 10 minutes.
• Press CLEAR to erase the incorrect input
at step [2].
or
Current Title
(T)
T1 T2 T3 T4
SKIP
SKIP
(If the disc has no chapters.)
Using SKIP H / G
1
Hint
T1 T2 T3 T4
SKIP
1:29:00
/12
Functions
2
Time Search
SKIP
Hint
• SKIP H / G are not available when
playback is stopped.
• Depending on the disc being played back,
this function can also be performed by
directly entering the desired chapter number with the Number buttons. Refer to the
manual accompanying the disc.
• For Audio CDs and MP3, Track Search is
not available for Programmed or Random
Playback.
Marker Setup
This feature allows you to assign a specific
point on a disc to be called back later.
To return to the marker later
1
To set a marker
1
• The Marker display will disappear in about
30 seconds when there is no input.
• To clear a marker, select the marker to be
cleared at step [2] in the section “To set a
marker” or “To return to the marker later,”
and then press CLEAR.
• Opening the disc tray or turning off the
power will erase all markers.
• Selecting “AC” at step [2] in the section “To
set a marker” or “To return to the marker
later” will also erase all markers.
• You can mark up to 10 points.
2
or
2
1
Hint
MARKER
MARKER
To exit the Marker display
or
3
3
At the desired marker
• Playback will restart from the specific
point which you set.
– 15 –
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:22 PM
Page 16
Repeat / Random / Programmed Playback
Repeat Playback
Repeat A-B Playback
Programmed Playback
You may determine the order in which
tracks will play.
1
Repeat function is available only during
playback.
1
A-
PROGRAM
1
CD-DA
At your desired starting point (A)
ENTER
TOTAL
0:00:00
3:31
4:28
4:19
3:58
4:12
4:02
3:55
1/ 1
T 1 3:31
Press once.
A-B
2
PROGRAM
CD-DA
or
At your desired end point (B)
• Point B should be in the same title
TOTAL
T 15 3:18
T 16 4:24
ALL CLEAR
ENTER
or track as point A.
OFF
1
2
3
4
5
6
7
1/ 3
PLAY
CLEAR
2
Each time you press REPEAT, repeat
function changes as examples below.
T
T
T
T
T
T
T
PLAY
CLEAR
3/ 3
T 4
T 16
0:08:22
3:58
4:24
1/ 1
T 16 4:24
(repeat off)
Hint
CHAPTER (current chapter repeat)
TITLE
(current title repeat)
OFF
(repeat off)
CHAPTER (current chapter repeat)
Functions
TITLE
(current title repeat)
ALL
(entire disc repeat)
• To exit the sequence, press A-B REPEAT
so that OFF appears.
• To cancel Point A, press CLEAR.
• This function does not work in the other
repeat modes.
Random Playback
This function shuffles the playing order
of tracks instead of playback in the
sequence.
• Up to 99 tracks can be ordered.
• If 8 or more tracks were in a programme,
use SKIP H / G to see all the tracks.
• While a MP3 or JPEG folder is open:
– Press Cursor B when you want to go to
the next hierarchy.
– Press Cursor s when you want to go
back to the previous hierarchy (except for
the first hierarchy).
– Press TITLE when you want to go back to
the first hierarchy.
3
1
RANDOM
CD-DA
OFF
TOTAL 0:45:55
RANDOM PROGRAM
--no indication--
(repeat off)
PLAY
TRACK
(current track repeat)
ALL
(entire disc repeat)
OFF
(repeat off)
TRACK
(current track repeat)
GROUP
(current group repeat)
ALL
(entire disc repeat)
Hint
• Repeat setting will be cleared when moving to another title, chapter, track or group.
• Repeat playback may not function with
some discs or during Repeat A-B
Playback.
Press twice.
2
Hint
• To repeat the current track in the random
selections, press REPEAT repeatedly until
“
TRACK” appears during playback.
• To repeat the entire random selections,
press REPEAT repeatedly until “
ALL”
appears during playback.
• Random Playback of MP3 or JPEG is not
available while Dual Playback is ON.
– 16 –
Downloaded From Disc-Player.com Sharp Manuals
Hint
• Press CLEAR at step [2] to erase the most
recently entered track.
• To erase all programmed tracks at once,
select “ALL CLEAR’’ and press ENTER at
step [2].
• While a programme is being played back,
STOP C works as follows;
⇒Press STOP C and PLAY B next, so
that the programmed playback restarts.
(CD playback restarts from the current
point. MP3 or JPEG playback restarts
from the beginning of the current track.)
⇒Press STOP C twice and PLAY B next,
so that playback restarts from the first
track in the original order. However, your
programmed playback can be restarted
when you follow the above steps. (Your
programmes are still stored until either
the disc tray is open or power is turned
off.) On some discs, STOP C will not
work while the Resume message
appears. Please wait until the message
disappears.
• To repeat the current track in the programme, press REPEAT repeatedly until
“
TRACK’’ appears during playback.
• To repeat the entire programme, press
REPEAT repeatedly until “
ALL’’ appears
during playback.
• Programmed Playback of MP3 or JPEG is
not available while Dual Playback is ON.
EN
E6146AD_0523
5/23/05
3:22 PM
Page 17
Special Settings
Subtitle Language
Audio Language
Camera Angles
This unit allows you to select a subtitle
language (if available) during DVD playback.
This unit allows you to select an audio
language (if multiple languages are
available) during DVD playback.
1
1
Current subtitle language
Current audio language
1.ENG/6
1.ENG
Subtitles can be varied on
the displayed number.
Each time you press SUBTITLE,
subtitle language changes as example
below.
OFF
(no subtitles)
(English subtitles)
FRE
(French subtitles)
Audio can be varied on
the displayed number.
1
Each time you press AUDIO, audio
language changes as example below.
ENG
(English audio)
SPA
(Spanish audio)
1/8
Digital Gamma Setting
...
...
ENG
3/2.1ch 48k/3
Some DVD discs may contain scenes which have been
shot simultaneously from various angles. You can change the camera angle if “ ” appears on the
screen. If the “ANGLE ICON” setting is
“OFF” in the OTHERS menu, “ ” will
not appear. (Refer to pages 18, 21.)
To set subtitle ON/OFF
1
1.ENG/6
2
OFF
Hint
• If your language is not shown after pressing SUBTITLE several times, the disc may
not have that language. However, some
discs allow you to change subtitle languages setting in the disc menu.
(Operation varies depending on the disc,
so refer to the manual included in the
disc.)
• When “NOT AVAILABLE” appears on the
TV screen, it means no subtitle is recorded
on the scene.
• If you choose a language that has 3-letterlanguage code, the code will be displayed
every time you change the subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer
to page 22.)
(French audio)
Hint
• The sound mode cannot be changed during playback of discs not recorded in double sound.
• Audio language selection cannot be made
during Rapid Play. (Refer to page 11.)
• If your language is not shown after pressing AUDIO several times, the disc may not
have that language. However, some discs
allow you to change multiple audio languages setting in the disc menu.
(Operation varies depending on the disc,
so refer to the manual included in the
disc.)
• When “NOT AVAILABLE” appears on the
TV screen, it means no audio is recorded
on the scene.
• If you choose a language that has 3-letterlanguage code, the code will be displayed
every time you change the audio language
setting. If you choose any other languages,
‘---’ will be displayed instead. (Refer to page
22.)
For VR mode only:
• Pressing AUDIO cycles the sound mode
through MAIN, SUB, MAIN + SUB.
• DVD-RW discs recorded in double sound
(2 languages) can be played back in either
sound mode of MAIN, SUB or MAIN +
SUB.
• With discs recorded in VR mode, changing
the audio (MAIN, SUB or MAIN+SUB) is
effective only when using an analogue
connection. Although you may be able to
change the settings of the on-screen display, it will not affect the sound when using
a digital connection.
Mode
MAIN
SUB
MAIN
SUB
AUDIO OUTPUT
L
R
L
R
L
R
Main Audio
Main Audio
Sub Audio
Sub Audio
Main Audio
Sub Audio
– 17 –
Downloaded From Disc-Player.com Sharp Manuals
Display on
the TV screen
MAIN
DIGITAL GAMMA is a digital image
quality enhancement function that gives
a richer image by brightening the darker and more obscure portions of the
image without altering the brightness of
the brighter portions thereby making
the entire image easier to see. Three
digital gamma settings are available to
allow for differences in the images
played back and in brightness of the
room.
1
Functions
FRE
ON
2
OFF
or
or
1, 2, 3: Makes the dark parts brighter.
OFF : Shows the original picture as
recorded.
3
or
Hint
• The setting will be kept even if the unit is
turned off.
• This function cannot be used during Rapid
Play.
SUB
MAIN+
SUB
EN
E6146AD_0523
5/23/05
3:22 PM
Page 18
Stereo Sound Mode
Virtual Surround
3
This unit allows you to select a sound
mode during CD playback.
1
You can enjoy stereophonic virtual
world on your existing 2 channel stereo
system.
Hint
• The setting will be kept even if the unit is
turned off.
• On Audio CDs and Video CDs, Virtual
Surround will not be effective if the sound
mode is set to something other than
“STEREO”. Refer to “Stereo Sound Mode”.
• Turn down the level or select “OFF” if the
sound is distorted.
• This function cannot be used during Rapid
Play.
STEREO
1
OFF
Each time you press AUDIO, sound
mode changes as example below.
STEREO (Right and left channels
are active.)
L-ch
(Left channel is active.)
R-ch
(Right channel is active.)
Press repeatedly until
“
” appears.
2
1
or
Hint
or
• Virtual Surround cannot be changed when
the sound mode is set to either L-ch or
R-ch.
• Stereo Sound Mode is not available on
DTS CD.
1
: Natural effect.
2
: Emphasised effect.
OFF : No effects (original sound).
DVD Setup
Q UICK SETUP Men u
You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE”, “DOLBY DIGITAL” , “DTS” or “MPEG” from the QUICK SETUP menu quickly.
1
2
or
QUICK SETUP
Functions
<SETUP MENU>
Confirm that “
highlighted.
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
(QUICK)” is
QUICK SETUP
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
ENTER
Select the desired item.
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
P19
A (Step [5])
P19
B (Step [5])
P19
B (Step [5])
P20
C (Step [5])
P20
C (Step [5])
P20
C (Step [5])
• Refer to the sections
“PLAYER MENU”, “TV ASPECT” or “PROGRESSIVE” on page
19 and “DOLBY DIGITAL”, “DTS” or “MPEG” on page 20.
CUSTOM Men u
You can change the settings of the unit.
• QUICK on pages 19, 20 indicates DVD Setup menus also accessible from the QUICK SETUP menu.
1
2
<SETUP MENU>
ENTER
or
To decide.
To select the desired item.
QUICK SETUP
QUICK SETUP
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
3
or
Select
“ (CUSTOM)”.
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
ENTER
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
LANGUAGE
AUDIO
SUBTITLE
DISC MENU
PLAYER MENU
ORIGINAL
OFF
ENGLISH
ENGLISH
ENTER
LANGUAGE menu
DISPLAY menu
DISPLAY
LANGUAGE
AUDIO
SUBTITLE
DISC MENU
PLAYER MENU
AUDIO menu
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
ORIGINAL
OFF
ENGLISH
ENGLISH
AUDIO
4:3 LETTER BOX
AUTO
OFF
PAL
ENTER
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
MPEG
A
ENTER
page 19
B
OTHERS
page 20 C
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
PARENTAL LEVEL ALL
ON
ON
BRIGHT
OFF
5 sec
ENTER
ENTER
– 18 –
Downloaded From Disc-Player.com Sharp Manuals
OTHERS menu
PARENTAL
ON
ON
BITSTREAM
OFF
DPCM
ENTER
page 19
PARENTAL menu
page 20 D
page 21 E
EN
E6146AD_0523
A
5/23/05
3:22 PM
Page 19
LANGUAGE Setting
Follow the steps [1] to [3]
in the “CUSTOM Menu”
section on page 18.
5
4
AUDIO: ∗1 ∗2
(Default: ORIGINAL)
Sets the audio language.
AUDIO
ORIGINAL
ENGLISH
FRENCH
SUBTITLE: ∗1 ∗2
(Default: OFF)
Sets the subtitle language.
SUBTITLE
OFF
ENGLISH
FRENCH
DISC MENU: ∗1
(Default: ENGLISH)
Sets the language in DVD
menu.
DISC MENU
ENGLISH
FRENCH
SPANISH
PLAYER MENU: QUICK
(Default: ENGLISH)
Sets the language for the
On-Screen Display.
PLAYER MENU
ENGLISH
Select the
desired
item.
or
LANGUAGE menu
LANGUAGE
AUDIO
SUBTITLE
DISC MENU
PLAYER MENU
ORIGINAL
OFF
ENGLISH
ENGLISH
ENTER
Hint
∗1
• Language options are not available with
some discs.
• If OTHER is selected in the AUDIO,
SUBTITLE or DISC MENU screen,
press four-digit number to enter the
code for the desired language. (Refer to
the language code list on page 22.)
• Only the languages supported by the
disc can be selected.
∗2
• Language Setting for Audio and Subtitle
are not available with some discs. Then
use AUDIO and SUBTITLE. Details are
on page 17.
DISPLAY Setting
You can change the display functions. Follow the
steps [1] to [3] in the
“CUSTOM Menu” section
on page 18.
5
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
4:3 LETTERBOX
AUTO
OFF
PAL
Select the
desired
item.
or
DISPLAY menu
DISPLAY
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
TV ASPECT
4:3 LETTERBOX
AUTO
OFF
PAL
STILL MODE
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
4:3 LETTERBOX
AUTO
OFF
AUTO
4:3 LETTERBOX
AUTO
OFF
PAL
PROGRESSIVE: QUICK
(Default: OFF) See Hint to the right.
4:3 LETTERBOX
AUTO
OFF
PAL
Select
YES.
4:3 LETTERBOX
AUTO
ON
PAL
or
If you do not press any buttons for 15 seconds,
Progressive Scan will switch
to OFF.
6 To confirm the
PROGRESSIVE.
Select
YES.
or
NO
YES
– 19 –
Downloaded From Disc-Player.com Sharp Manuals
or
VIDEO OUT:
(Default: PAL) See Hint to the right.
4:3 LETTER BOX
AUTO
OFF
PAL
ENTER
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
Select the
desired
setting.
AUTO
FIELD
FRAME
To exit the menu.
Hint
or
4:3 LETTER BOX
4:3 PAN & SCAN
16:9 WIDE
STILL MODE:
(Default: AUTO) See Hint to the right.
TV ASPECT
STILL MODE
PROGRESSIVE
VIDEO OUT
6
Select the
desired
setting.
TV ASPECT: QUICK
(Default: 4:3 LETTER BOX)
See Hint to the right.
4
5
To exit the menu.
TV ASPECT:
• Select “4:3 LETTER BOX”,
so that black bars may
appear on the top and bottom of the screen.
• Select “4:3 PAN & SCAN” for
a full height picture with both
sides adjusted.
• Select “16:9 WIDE” if a widescreen TV is connected to
this unit.
STILL MODE:
• Select “AUTO” usually.
• If you select “FIELD”, the
picture in the still mode will
be stabilised.
• If you select “FRAME”, the
picture in the still mode will
be highly defined.
VIDEO OUT:
When playing back an NTSC
disc
• If you have a PAL TV, select
PAL; the modified PAL signal
will be output.
• If you have an NTSC TV or
multi system TV, select AUTO;
the NTSC signal will be
output.
PROGRESSIVE:
• You can set “PROGRESSIVE”
to “OFF” either in the DISPLAY menu or by pressing
and holding PLAY B on the
front of the unit for more than
5 seconds.
• When “PROGRESSIVE” is
“ON”, video signals from the
unit’s VIDEO OUT and SVIDEO OUT jacks will be
distorted or not be output at
all.
EN
Functions
B
6
Select the desired
language.
or
E6146AD_0523
C
5/23/05
3:22 PM
AUDIO Setting
Choose the appropriate audio
settings for your equipments.
It only affects during the playback of DVD discs. Follow the
steps [1] to [3] in the “CUSTOM Menu” section on page
18.
4
Page 20
5
Select the desired item.
or
AUDIO menu
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
MPEG
ON
ON
BITSTREAM
OFF
DPCM
ON
ON
BITSTREAM
OFF
MPEG
DPCM
Hint
ON
OFF
BITSTREAM
OFF
DPCM
DOLBY DIGITAL:
(Default: BITSTREAM)
Set to “BITSTREAM” when the unit is connected to a Dolby Digital receiver.
• BITSTREAM: Outputs a Dolby Digital Signals.
• DPCM: Convert the Dolby Digital into DPCM (2 channel).
ON
ON
BITSTREAM
OFF
DPCM
ENTER
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
ON
ON
BITSTREAM
OFF
MPEG
DPCM
To exit
the menu.
OFF
DPCM
DOWN SAMPLING: (Default: ON)
Set to “ON” when outputting in 48 kHz.
Set to “OFF” when outputting the original sound.
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
6
OFF
ON
BITSTREAM
QUICK
AUDIO
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
MPEG
DRC (Dynamic Range Control): (Default: ON)
Set to “ON” to compress the range between soft and loud sounds.
ON
ON
DRC:
• This function is available
only on the discs which
are recorded in the Dolby
Digital format.
DOWN SAMPLING:
• When playing back a disc
with copyright protection,
the sound will be down
sampled at 48kHz, even
if you set to “OFF”.
• This function is available
only on digital outputting
of a disc recorded in
96kHz.
DPCM
OFF
DPCM
DTS: QUICK (Default: OFF)
Set to “BITSTREAM” when the unit is connected to DTS decoder.
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
ON
ON
BITSTREAM
OFF
ON
ON
BITSTREAM
BITSTREAM
MPEG
DPCM
DPCM
MPEG: QUICK (Default: DPCM)
Set to “BITSTREAM” when the unit is connected to MPEG decoder.
• DPCM: Convert an MPEG into DPCM.
• BITSTREAM: Outputs the MPEG Signals.
Functions
D
DRC
DOWN SAMPLING
DOLBY DIGITAL
DTS
ON
ON
BITSTREAM
OFF
MPEG
DPCM
ON
ON
BITSTREAM
OFF
BITSTREAM
PARENTAL Setting
Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not play.)
This feature prevents your children from viewing inappropriate materials.
Parental Le vels
Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set.
Follow the steps [1] to [3] in the “CUSTOM Menu” section on page 18.
4
Enter your desired fourdigit password (except
for 4737).
5
Select “PARENTAL
LEVEL”.
or
PARENTAL LEVEL
PASSWORD CHANGE
PARENTAL menu
PASSWORD
Please enter a 4-digit password.
PARENTAL
PASSWORD
Please enter a 4-digit password.
Don’t forget the password.
Press ‘ENTER’ to activate password.
ENTER
or
If you have set a password
already, enter the current
four-digit password.
6
Select the
desired level.
7
To exit
the menu.
or
ALL
PARENTAL LEVEL
ALL
8
7
6
CONTROL LEVELS
• ALL
: All parental locks are cancelled.
• Level 8
: DVD softwares of any grades (adult/general/children) can be played back.
• Levels 7 to 2 : Only DVD softwares intended for general use and children can be played
back.
• Level 1
: Only DVD softwares intended for children can be played back, with those
intended for adult and general use prohibited.
Hint
PARENTAL
Enter current password.
ENTER
• DVD-Video discs may not respond to the parental lock settings. Make sure this function works with your DVD-Video discs.
– 20 –
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:22 PM
Page 21
To Chang e the Pass w or d f or Parental Controls
You can change your password for parental controls. Follow the steps [1] to [3] in the “CUSTOM Menu” section on page 18.
4
Enter your 4-digit
password
(except for 4737).
5
Select “PASSWORD CHANGE”.
6
7
Enter your new
4-digit password
(except for 4737).
To exit
the menu.
or
PARENTAL LEVEL
PASSWORD CHANGE
Hint
ALL
PARENTAL menu
PASSWORD
Please enter a 4-digit password.
PARENTAL
Enter current password.
ENTER
E
• Record the password in
case you forget it.
• If you forget the password,
press 4, 7, 3, 7 at step [4],
then enter your new password.
• Password will be cleared
and parental levels will be
set to “ALL”.
OTHERS Setting
You can change the other functions. Follow the steps [1] to [3] in the “CUSTOM Menu” section on page 18.
4 Select the desired
5
6
ANGLE ICON: (Default: ON)
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
or
OTHERS menu
OFF
ON
BRIGHT
OFF
5 sec
ON
ON
BRIGHT
OFF
5 sec
Hint
AUTO POWER OFF: (Default: ON)
Set to “ON” to turn this unit off automatically after 30 minutes of no use.
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
OTHERS
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
To exit
the menu.
Set to “ON” to show the angle icon when multiple camera angles are
available during DVD playback.
item.
ON
ON
BRIGHT
OFF
5 sec
PANEL DISPLAY
• When AUTO is
selected, the display dims only
during playback.
ON
OFF
BRIGHT
OFF
5 sec
ON
ON
BRIGHT
OFF
5 sec
ENTER
Select the
desired
setting.
PANEL DISPLAY: (Default: BRIGHT)
This adjusts the brightness of the panel display.
See Hint to the right.
ON
ON
BRIGHT
OFF
5 sec
PANEL DISPLAY
or
BRIGHT
DIMMER
AUTO
Functions
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
DUAL PLAYBACK: (Default: OFF)
Set to "ON" to play back MP3 and JPEG files simultaneously.
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
ON
ON
BRIGHT
ON
5 sec
ON
ON
BRIGHT
OFF
5 sec
SLIDE SHOW: (Default: 5 sec)
Set to the
• 5 sec:
• 10 sec:
• MUSIC:
length of displayed JPEG picture.
The picture changes every 5 seconds.
The picture changes every 10 seconds.
The picture changes according to the change
of MP3 during Dual/Folder Playback. When
Dual Playback is "OFF", the picture changes
every 5 seconds.
ANGLE ICON
AUTO POWER OFF
PANEL DISPLAY
DUAL PLAYBACK
SLIDE SHOW
ON
ON
BRIGHT
OFF
5 sec
Select the
desired
setting.
SLIDE SHOW
or
5 sec
10 sec
Music
Reset to the Default Setting (except for PARENTAL Setting)
2
1
4
3
or
or
<SETUP MENU>
Select “
ENTER
Select “YES”.
QUICK SETUP
QUICK SETUP
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
(INITIALIZE)”.
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
ENTER
PLAYER MENU
TV ASPECT
PROGRESSIVE
DOLBY DIGITAL
DTS
MPEG
INITIALIZE
ENGLISH
4:3 LETTER BOX
OFF
BITSTREAM
OFF
DPCM
Initialize?
NO
YES
ENTER
– 21 –
Downloaded From Disc-Player.com Sharp Manuals
To exit
the menu.
Press
twice.
Hint
• When you cancel to initialise
at step [3],
select “NO”.
EN
E6146AD_0523
5/23/05
3:22 PM
Page 22
Information
Language List
Language
Code
A-B
Abkhazian
Afar
Afrikaans
Albanian
Amharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali;Bangla
Bhutani
Bihari
Bislama
Breton
Bulgarian
Burmese
Byelorussian
C-E
Cambodian
Catalan
Chinese [CHI]
Corsican
Croatian
Czech
Danish [DAN]
Dutch [DUT]
English [ENG]
Esperanto
Estonian
F-H
Faroese
Fiji
Finnish [FIN]
4748
4747
4752
6563
4759
4764
5471
4765
4771
4772
4847
5167
4860
5072
4854
4855
4864
4853
5971
4851
5759
4947
7254
4961
5464
4965
5047
6058
5160
5161
5166
5261
5256
5255
Language
Code
Language
Code
Language
Code
French [FRE]
Frisian
Galician
Georgian
German [GER]
Greek [GRE]
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
Hungarian [HUN]
I-K
Icelandic [ICE]
Indonesian
Interlingua
Interlingue
Inupiak
Irish [IRI]
Italian [ITA]
Japanese [JPN]
Javanese
Kannada
Kashmiri
Kazakh
Kinyarwanda
Kirghiz
Kirundi
Korean [KOR]
Kurdish
L-N
Laothian
Latin
Latvian;Lettish
Lingala
Lithuanian
5264
5271
5358
5747
5051
5158
5758
5360
5367
5447
5569
5455
5467
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian [NOR]
O-R
Occitan
Oriya
Oromo(Afan)
Panjabi
Pashto;Pushto
Persian
Polish
Portuguese [POR]
Quechua
Rhaeto-Romance
Romanian [RUM]
Russian [RUS]
S
Samoan
Sangho
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Sesotho
Setswana
Shona
Sindhi
Singhalese
5957
5953
5965
5958
5966
5955
5964
5961
5960
6047
6051
6061
Siswat
Slovak
Slovenian
Somali
Spanish [SPA]
Sundanese
Swahili
Swedish [SWE]
6565
6557
6558
6561
5165
6567
6569
6568
5565
5560
5547
5551
5557
5347
5566
5647
5669
5760
5765
5757
6469
5771
6460
5761
5767
5861
5847
5868
5860
5866
6149
6164
6159
6247
6265
5247
6258
6266
6367
6459
6461
6467
6559
6553
6547
5350
6564
6554
6566
6660
6560
6550
6555
T
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Tsonga
Turkish [TUR]
Turkmen
Twi
6658
6653
6647
6666
6651
6654
4861
6655
6661
6665
6664
6657
6669
U-Z
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
6757
6764
6772
6855
6861
4971
6961
7054
5655
7161
7267
If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or
Subtitle language setting on page 17. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language
code is written in bracket.)
Specifications
Information
PRODUCT TYPE
DVD Player
DISCS (PLAYBACK COMPATIBILITY)
DVD Video
DVD-RW/-R, DVD+RW/+R
Audio CD
Video CD
CD-RW/-R
OUTPUT SIGNAL FORMAT
PAL colour system
FREQUENCY RESPONSE
DVD (linear sound) : 20 Hz to 20 kHz (sample rate: 48 kHz)
20 Hz to 44 kHz (sample rate: 96 kHz)
CD :
20 Hz to 20 kHz
SIGNAL-TO-NOISE RATIO (S/N RATIO)
CD :
120 dB (JEITA)
DYNAMIC RANGE
DVD (linear sound) : 102 dB
CD :
99 dB (JEITA)
TOTAL DISTORTION FACTOR
DVD :
0.0025% (JEITA)
CD :
0.003% (JEITA)
WOW AND FLUTTER
Below the measurement limitation (+/-0.001% W PEAK)
(JEITA)
CONNECTIONS
Video Output
Component video output
S-Video output
Analogue audio output
One RCA connector, 1 Vpp (75 Ω)
One pin jack (Y), 1 Vpp (75 Ω)
Two pin jacks (CR / PR, CB / PB),
700 mVpp (75 Ω)
Mini DIN 4-pin jack (75 Ω)
Two RCA connectors (one left channel,
one right channel)
2 Vrms (47 k Ω)
One pin jack, 500 mVpp (75 Ω)
One optical connector
Coaxial digital audio output
Optical digital audio output
POWER SOURCE
220-240 V ~ +/- 10%, 50/60 Hz +/- 0.5%
POWER CONSUMPTION
12 W (standby: 0.9 W)
OPERATING TEMPERATURE
41F° to 104F° (5°C to 40°C)
DIMENSIONS
W 435 mm
H 51 mm
D 211 mm
WEIGHT
Approx 1.3 kg
• Designs and specifications are subject to change without notice.
– 22 –
Downloaded From Disc-Player.com Sharp Manuals
EN
E6146AD_0523
5/23/05
3:22 PM
Page 23
Troubleshooting Guide
If this unit does not perform properly when operated as instructed in this Operation Manual, check this unit consulting the following checklist.
PROBLEM
CORRECTIVE ACTION
• Make sure the power plug is connected to an AC outlet.
• Make sure the power is turned on.
• Check if the "AUTO POWER OFF" is set to "OFF".
The unit turns off suddenly.
This unit does not respond to • Check if the power plug is connected to an AC outlet.
• Check the batteries in the remote control.
the remote control.
• Aim the remote control directly at the remote sensor. If necessary, remove all the
obstacles between the sensor and the remote.
• You have to be within 7 m (23 feet) of this unit.
• Connect the Video cables firmly.
No picture.
• Insert a correct video disc that plays on this unit.
• Insert the disc.
Disc cannot be played.
• Clean the disc.
• Place the disc correctly with the label side up.
• Cancel the parental lock or change the control levels.
• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.
• If the recorded portion of the disc is too small (less than 55 mm across), it may not play
back properly.
No sound.
• Connect the Audio cables firmly.
• Turn the power of the audio component on.
• Correct the audio output settings.
• Correct the input settings on the audio component.
No DTS audio is output.
• Use a DIGITAL AUDIO OUT jack when outputting the DTS audio.
Distorted picture.
• Connect this unit directly to the TV.
• There are some cases where pictures may be slightly distorted, and those are not a sign of
a malfunction.
• During the playback of a 2-layered disc, pictures may stop for a moment. This happens while
the 1st layer is being switched to the 2nd layer. This is not a malfunction.
• Check if the INTERLACE/PROGRESSIVE mode is set correctly according to your TV. See page 8.
• This happens right after fast forwarding or rewinding. This is not a malfunction.
Audio or subtitle language
• The selected language is not available for audio or subtitles on the DVD.
does not match the set up.
This is not a malfunction.
The camera angle cannot be • The DVD does not contain sequences recorded from different camera angles.
changed.
This is not a malfunction.
Audio or subtitle language
• The DVD does not contain audio source or subtitles in the selected language.
cannot be changed.
This is not a malfunction.
“Prohibited icon” appears on the • That operation is prohibited by this unit or the disc. This is not a malfunction.
screen, prohibiting an operation.
• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Operation Manual
for details on correct operations.
• Playback from a desired track and random playback are not available during program playback.
• Some functions are prohibited on some discs.
FOR LOCATION ENQUIRIES WITHIN
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
NEW ZEALAND
REGARDING YOUR LOCAL
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
VISIT OUR WEBSITE AT
www.sharp.net.au
www.sharp.net.nz
OR CALL SHARP CUSTOMER CARE
CONTACT YOUR SELLING DEALER/RETAILER
OR CALL
1300 135 022
SHARP CUSTOMER SERVICES
(LOCAL CALL COST APPLY WITHIN AUSTRALIA)
TELEPHONE: 09 573 0111
FACSIMILE: 09 573 0113
SHARP CORPORATION OF AUSTRALIA PTY LTD
SHARP CORPORATION OF NEW ZEALAND LIMITED
– 23 –
Downloaded From Disc-Player.com Sharp Manuals
EN
Information
No power.
E6146AD_0523
5/23/05
3:22 PM
Page 24
Congratulations on Your Purchase!
This Sharp product is warranted against faults in materials and manufacture for a period
of twelve (12) months from the date of original purchase.
If service is required during the warranty period, please contact your nearest Sharp
Approved Service Centre. These repairs would be carried out at no charge to the
owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has
to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting
from causes not attributable to faulty parts or the manufacture of the product, including
but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect,
accidental damage, improper voltage, liquid spillage, vermin infestation, software, or
any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a
warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and
implied rights and remedies under any relevant legislation in the country of sale.
IMPORTANT
DO NOT RETURN THIS DOCUMENT TO SHARP
Model No.
Serial No.
Date of Purchase
Retailer
S
A HA
AB UST RP
1 N RA CO
Hu Hun 40 LIA RP
nt tin 003 P OR
in g
gw wo 03 TY. ATI
oo od 9 4 LIM ON
0
d
O
NS Driv 5 ITE F
D
W e
S
21
N HAR
48
59 EW P C
Pe Hu ZEA OR
nr go L PO
os J AN R
e, oh D A
Au ns LI TIO
ck ton MIT N
lan D E OF
d riv D
e
For your reference, please enter the particulars of your purchase
below and retain, with your purchase documentation.
0
02
rm
fo
SP
E
N
U
(J
)
04
20
IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand
9HS1VMN20846
E6146AD★★★★★
1VMN20846
Downloaded From Disc-Player.com Sharp Manuals
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
