Datalogic 4420 Specifications

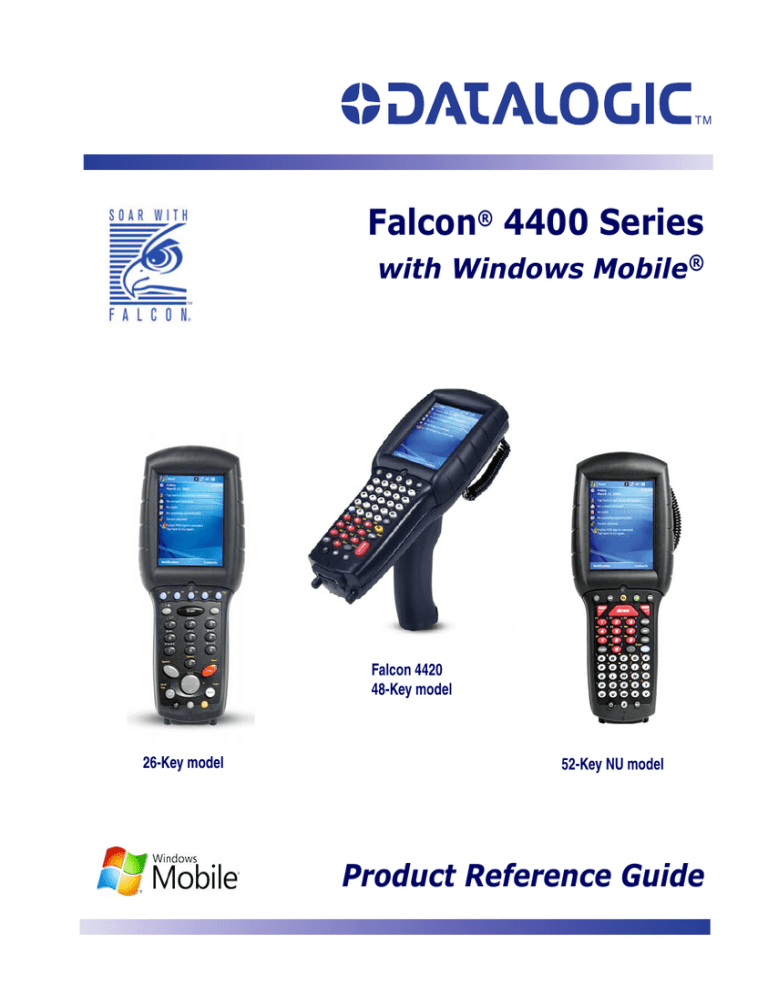

Falcon® 4400 Series
with Windows Mobile®
Falcon 4420
48-Key model
26-Key model
52-Key NU model
Product Reference Guide
Datalogic Mobile, Inc
1505 Westec Dr.
Eugene, Oregon 97402
Telephone: (541) 743-4800
Fax: (541) 743-4900
An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures
described therein may be reproduced or transmitted in any form or by any means without prior written permission of
Datalogic Mobile, Inc. or its affiliates or subsidiaries ("Datalogic" or “Datalogic Mobile”) . Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the
purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including
copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of
the documentation.
Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic
representative. Electronic versions may either be downloadable from the Datalogic Mobile website
(www.mobile.datalogic.com) or provided on appropriate media. If you visit our website and would like to make
comments or suggestions about this or other Datalogic publications, please let us know via the “Contact Datalogic”
page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate,
however, Datalogic reserves the right to change any specification at any time without prior notice.
Datalogic is a registered trademark of Datalogic S.p.A. and the Datalogic logo is a trademark of Datalogic S.p.A. all
licensed to Datalogic Mobile, Inc. All other trademarks and trade names referred to herein are property of their
respective owners.
Falcon® is a registered trademark of Datalogic Mobile, Inc. and of its affiliates and wholly owned subsidiaries.
Microsoft Windows®, Windows® 2000, Windows®CE, Windows Mobile®, Windows® NT, Windows® XP and the
Windows logo are registered trademarks of Microsoft Corporation.
Patents
This product may be covered by one or more of the following patents:
4,861,972 • 4,866,257 • 4,879,456 • 5,198,649 • 5,208,449 • 5,212,372 • 5,247,161 •
5,311,000 • 5,440,110 • 5,481,098 • 5,493,108 • 5,508,505 • 5,664,231 • 5,671,374 •
5,686,716 • 6,041,374 • 6,412,698 • 6,415,978 • 6,454,168 • 6,478,224 • 6,513,714 •
6,536,670 • 6,561,427 • 6,585,157 • 6,923,377 • 7,108,170 • D377345 • CA2,188,399 • Other
U.S. and Foreign Patents Pending.
Table of Contents
Preface: About this Guide .................................................................................... v
Chapter 1. Batteries and Power ........................................................................ 1-1
Overview ...................................................................................................................1-1
Suspend Mode ............................................................................................................1-1
Suspending ..........................................................................................................1-1
Resuming ............................................................................................................1-2
Battery Warnings and Cautions .....................................................................................1-2
Battery Disposal ........................................................................................................1-4
Chapter 2. Configuration Settings..................................................................... 2-1
Overview ...................................................................................................................2-1
Settings .....................................................................................................................2-2
Personal Settings ..................................................................................................2-2
Datalogic System Settings ......................................................................................2-3
Connections ....................................................................................................... 2-23
Chapter 3. Software Programs.......................................................................... 3-1
Overview ...................................................................................................................3-1
Programs ...................................................................................................................3-1
Installing Programs ...............................................................................................3-2
Firmware Update Utility ...............................................................................................3-3
Retrieving a Firmware Image Update .......................................................................3-3
Installing FUU on the Host PC .................................................................................3-4
Updating the Falcon Firmware .................................................................................3-4
AutoStart ...................................................................................................................3-6
Installing CAB files ................................................................................................3-7
Autostart.ini .........................................................................................................3-8
Appendix A. Accessories .................................................................................. A-1
Overview ...................................................................................................................A-1
Power Supplies ...........................................................................................................A-2
Battery Pack ........................................................................................................A-2
Single-Slot Dock ...................................................................................................A-2
Four-Slot Dock .....................................................................................................A-3
Battery Charger ....................................................................................................A-3
USB Cable ............................................................................................................A-3
Serial Charging Cable ............................................................................................A-4
Printer Cable ........................................................................................................A-4
Serial Printer Adapter ............................................................................................A-4
Product Reference Guide
i
Contents
Holsters and Softcases ................................................................................................ A-6
Holsters ............................................................................................................. A-6
Softcases ............................................................................................................ A-7
Installing the Handle or Handstrap ............................................................................... A-8
Installing the Handstrap on the Falcon 4420 ............................................................ A-8
Installing a Handle on the Falcon 4410 .................................................................... A-9
Tethered Stylus ........................................................................................................A-11
Installing a Tethered Stylus ..................................................................................A-11
Removing a Tethered Stylus .................................................................................A-12
Appendix B. Falcon® Desktop Utility ................................................................ B-1
Overview .................................................................................................................. B-1
Falcon Desktop Utility ................................................................................................. B-2
Getting Started .................................................................................................... B-2
Using FDU ........................................................................................................... B-4
FMU ................................................................................................................... B-4
Administrative Options (Admin Tab) ....................................................................... B-5
Setting a Password ............................................................................................... B-7
Changing a Password ............................................................................................ B-7
Removing a Password ........................................................................................... B-7
Password Request Dialog Box ................................................................................ B-7
Setting Hot Keys ................................................................................................. B-9
Internet Explorer Configuration .............................................................................B-12
Modifying Windows Controls .................................................................................B-13
Application Selector Setup ..........................................................................................B-14
Add Application ...................................................................................................B-15
Application Selector ...................................................................................................B-16
Application Switcher User Interface .............................................................................B-17
Appendix C. SNMP Interface............................................................................. C-1
Overview ..................................................................................................................
SNMP .................................................................................................................
SNMP Concepts ....................................................................................................
MIB Files .............................................................................................................
Additional Resources ............................................................................................
C-1
C-1
C-2
C-2
C-3
Appendix D. Cable & Connector Configurations ................................................ D-1
Introduction .............................................................................................................. D-1
General Specifications ................................................................................................. D-1
Wire Requirements ............................................................................................... D-1
Supply Voltage .................................................................................................... D-1
USB Cable ................................................................................................................. D-1
Serial Cable ............................................................................................................... D-2
Printer Cable ............................................................................................................. D-2
Appendix E. Programming Parameters ............................................................. E-1
Overview ...................................................................................................................E-1
ii
Falcon® 4400 Series with Windows Mobile®
Contents
Programming Codes Without Parameters ........................................................................E-2
Bar Code Parameters ...................................................................................................E-3
OCR Configuration ..................................................................................................... E-37
OCR Data Output ................................................................................................ E-37
OCR Templates ................................................................................................... E-37
OCR Check Characters ......................................................................................... E-42
Appendix F. Programming Bar Codes ................................................................ F-1
Overview ................................................................................................................... F-1
Predefined Defaults .................................................................................................... F-3
Codabar ..................................................................................................................... F-3
Code 39 ..................................................................................................................... F-5
Code 93 ..................................................................................................................... F-8
Code 128 ................................................................................................................. F-10
EAN-13 .................................................................................................................... F-12
EAN-8 ..................................................................................................................... F-14
Interleaved 2 of 5 ..................................................................................................... F-15
Matrix 2 of 5 ............................................................................................................ F-17
MSI ......................................................................................................................... F-19
Pharmacode 39 (Code 32) .......................................................................................... F-21
RSS-14 .................................................................................................................... F-21
RSS Limited ............................................................................................................. F-22
RSS Expanded .......................................................................................................... F-22
Standard 2 of 5 ........................................................................................................ F-24
Trioptic .................................................................................................................... F-26
UPC-A ..................................................................................................................... F-26
UPC-E ...................................................................................................................... F-28
UPC/EAN Extensions .................................................................................................. F-29
2D Symbologies ........................................................................................................ F-30
Aztec Code ............................................................................................................... F-30
DataMatrix ............................................................................................................... F-32
Composite ................................................................................................................ F-34
Maxicode ................................................................................................................. F-36
OCR ........................................................................................................................ F-38
PDF-417 .................................................................................................................. F-39
MicroPDF-417 ........................................................................................................... F-41
QR Code .................................................................................................................. F-43
Imager Labels .......................................................................................................... F-45
Other Controls .......................................................................................................... F-45
Appendix G. SDK Installation........................................................................... G-1
About the Software Development Kit (SDK): ............................................................ G-1
Appendix H. Glossary....................................................................................... H-1
Index.................................................................................................................. i-i
Product Reference Guide
iii
Contents
NOTES
iv
Falcon® 4400 Series with Windows Mobile®
Preface:
About this Guide
How to Use this Manual
This Product Reference Guide contains comprehensive basic user
instructions for the Falcon 4400 Series color mobile computer with
Windows Mobile®. The manual discusses software, batteries, dock, serial
cables, data transfer, as well as advanced user information such as bar code
configuration and parameters.
Refer to the Falcon 4400 with Windows Mobile® Quick Reference Guide
(QRG) for other information such as a description of the Falcon’s features,
setup and reset procedures, and troubleshooting.
This section of the manual provides an overview of the manual’s contents
and organization.
Document Overview
This document contains the following material:
Product Reference Guide
•
This Preface provides an overview of the contents for each chapter, and describes document style conventions.
•
Chapter 1, Batteries and Power, discusses checking battery power,
power conservation, battery installation, battery charging with a
dock or battery charger, battery storage, battery disposal, and
resetting the mobile computer.
•
Chapter 2, Configuration Settings, describes how to adjust the
device’s settings, such as date and time, display backlight/contrast,
volume/sounds, scanner, and power.
•
Chapter 3, Software Programs, covers installing, selecting, using,
and removing applications, entering data, and using the on-screen
keyboard with pre-installed programs such as Outlook, Pocket
MSN, and Word Mobile.
v
Preface
•
Appendix A, Accessories, describes Accessories like docks, battery
chargers, holsters, and soft cases that are available for the Falcon.
•
Appendix B, Falcon® Desktop Utility (FDU) allows Datalogic
Windows administrators to configure Windows® Mobile Falcons
to control individual user access.
•
Appendix C, SNMP Interface, describes SNMP (Simple Network
Management Protocol) concepts, MIB (Management Information Base) files, and provides additional resources.
•
Appendix D, Cable and Connector Configurations contains
information on standard interface cables for use in interconnecting the Dock to power and/or peripheral devices.
•
Appendix E, Programming Parameters, provides the programmable settings for the Falcon.
•
Appendix F, Programming Bar Codes, provides bar codes for
common setup parameters for programming the Falcon.
•
Appendix G, SDK Installation, gives instructions for installation
and setup of SDK software.
•
Appendix H, Glossary, is a glossary of terms used in this manual
that you may not be familiar with that are specific to Windows®Mobile and the portable data terminal.
Registering Your Datalogic Product
Datalogic values your feedback. Please take a few moments and complete
the Product Registration Utility, or go to the form located on the
Datalogic Mobile website (www.mobile.datalogic.com). Registering your
products ensures that you will be informed of the latest product news,
technical specifications, software updates and other future developments
from Datalogic.
Document Conventions
Formatting conventions are used throughout this guide to provide a
consistent method for representing screen shots, command entries, and
keyboard characters. This guide also provides special conventions for
notes and cautions, information of high interest to the user.
vi
Falcon® 4400 Series with Windows Mobile®
Document Conventions
NOTES contain information necessary for properly diagnosing, repairing and
operating the terminal.
The CAUTION symbol advises you of actions that could damage equipment or
property.
CAUTION
A WARNING symbol calls attention to actions that could result in personal injury.
WARNING
Keystrokes. Filenames, paths, field selections from a drop-down list,
and data or keystrokes entered by the user are shown in monospaced
typeface.
Windows Controls. Windows controls including prompts, dialog
boxes, fields, drop-down lists, checkboxes and radio-buttons are printed in
bold typeface.
Portable Keys
Keys on the Falcon are bracketed by “less than” (< ) and “greater than” (>)
symbols to distinguish them from keys on the PC.
<F1> — <F19> Keys. The Function keys, such as <F1>, refer only to
keys on the Falcon.
<ENTER> Key. In order to differentiate the <ENTER> key on the
portable keypad from the Enter key on the PC’s keyboard, portable keys
are formatted in ALL CAPS: <ENTER>.
Stylus Actions
Stylus actions apply to the Falcon only; most PCs use a mouse or trackball
as an input device.
Tap or Select. Tap the display screen once with the stylus to activate a
specific button or an application, or to select an item from a drop-down
list or box.
Product Reference Guide
vii
Preface
Tap and Hold. Tap and hold the stylus to view and select items from a
list or drop-down box.
Refer to the Falcon 4400 with Windows Mobile® Quick Reference Guide
(QRG) for more information on using a stylus with the Falcon.
Mouse Actions
Applies to the software installation portions of this document using a PC;
the Falcon comes equipped with a stylus. Refer to Stylus Actions on
page vii, or see the QRG for more information.
Click or Select. Press and immediately release the left mouse button
without moving the mouse. Clicking is used to select specific buttons on
various forms and tables.
Double-Click. Click the left mouse button twice in rapid succession.
Used to initiate an application.
Right Click. Press and hold the right mouse button without moving the
mouse.
Select. Click and release the left mouse button to choose an item or
items from a drop-down list or box.
viii
Falcon® 4400 Series with Windows Mobile®
Chapter 1
Batteries and Power
Overview
This section contains the following topics:
•
Suspend Mode, p. 1-1
•
Battery Warnings and Cautions, p. 1-2
•
Battery Disposal, p. 1-4.
Suspend Mode
The Falcon will go into a suspend or sleep mode when it is idle for a period of
time. This duration can be customized using the on-screen Power control
panel (refer to Advanced Tab, p. 2-22). Suspend mode works and looks just
like you have turned the unit off. Press <POWER> to suspend (put to sleep) the
Falcon. Press <POWER> again for the Falcon to resume its previous state.
Use the Power control panel to set the idle duration and the initiation of suspend mode. These features save battery power when the Falcon is not in use.
Refer to Advanced Tab, p. 2-22 for more information.
Suspending
The following conditions will put the unit into suspend (sleep) mode:
1. When the unit is on, press <POWER> for 0.5 seconds to initiate suspend mode.
2. When the sleep timer expires, indicating that there has been no use
for a specified period of time.
3. A discharged battery pack.
Product Reference Guide
1-1
Batteries and Power
Resuming
Use one of the following methods to resume (wake up the Falcon):
•
Press <POWER> to resume (wake up).
•
Put the Falcon into a dock.
•
Press the Scan Trigger to wake up the unit (handled version only).
When a battery pack is fully discharged while the unit is in suspend mode, the
Falcon remains in the suspended mode until the battery pack is charged or
external power is supplied via the dock or a power cable.
Battery Warnings and Cautions
Do not discharge the battery using any device except for the Falcon. When the
battery is used in devices other than the Falcon, it may damage the battery or
reduce its life expectancy. If the device causes an abnormal current to flow, it may
cause the battery to become hot, explode or ignite and cause serious injury.
WARNING Lithium-ion battery packs may get hot, explode or ignite and cause serious injury
if exposed to abusive conditions. Be sure to follow the safety warnings listed
below:
•
Do not place the battery pack in fire or heat.
•
Do not connect the positive terminal and negative terminal of the battery pack
to each other with any metal object (such as wire).
•
Do not carry or store the battery pack together with metal objects.
•
Do not pierce the battery pack with nails, strike it with a hammer, step on it or
otherwise subject it to strong impacts or shocks.
•
Do not solder directly onto the battery pack.
•
Do not expose the battery pack to liquids, or allow the battery to get wet.
In the event the battery pack leaks and the fluid gets into your eye, do not rub the
eye. Rinse well with water and immediately seek medical care. If left untreated, the
battery fluid could cause damage to the eye.
1-2
Falcon® 4400 Series with Windows Mobile®
Battery Warnings and Cautions
Always charge the battery at 32°–113°F (0°–45°C) temperature range.
If you remove the battery pack or it becomes completely discharged, there is a 30
minute window in which to insert a charged battery pack before the backup battery fails. If your backup battery completely discharges, the contents of the RAM
CAUTION memory will be lost. If your back-up battery is less than fully charged, there is a
proportionally smaller window of time available.
Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage
the Falcon and void your warranty. Refer to Appendix A for the correct "Power
Supplies" and Accessories.
Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode
or ignite.
Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery in direct sunlight, or use or store the battery inside
non-ventilated areas such as cars in hot weather. Doing so may cause the battery
to generate heat, explode or ignite. Using the battery in this manner may also
result in a loss of performance and a shortened life expectancy.
Do not place the battery in microwave ovens, high-pressure containers or on
induction cookware.
Immediately discontinue use of the battery if, while using, charging or storing the
battery, the battery emits an unusual smell, feels hot, changes color or shape, or
appears abnormal in any other way.
Datalogic recommends annual replacement of rechargeable battery packs to
ensure maximum performance.
Product Reference Guide
1-3
Batteries and Power
Battery Disposal
If you must dispose of a battery pack, please follow the CAUTIONS below:
CAUTION
Use only a battery pack supplied by a Datalogic reseller for this device.The use of
other battery supplies can damage the Falcon and void your warranty. Contact
your reseller for the correct power supplies; view your options under Battery
Pack, p. A-2 or the Datalogic Mobile website at www.mobile.datalogic.com.
When the battery pack is worn out, insulate the battery pack terminals with adhesive tape or similar materials before disposal.
Recycle Lithium-Ion Batteries.
CAUTION
Do not throw Lithium-Ion Batteries in the trash
Please reference your local regulations for any further guidelines about battery
disposal.
1-4
Falcon® 4400 Series with Windows Mobile®
Chapter 2
Configuration Settings
Overview
This section describes how to access and configure customized Datalogic settings and configuration screens. For information about Microsoft configuration items, reference the help system on your device.
Access the items on the Settings screen to configure the Falcon. These include
date and time, display backlight, volume/sounds, scanner, and power.
The first screen you see on your Falcon after powerup is the Today screen. Tap
the
(Start) icon to access the Start Menu. See the Falcon 4400 with Windows Mobile Quick Reference Guide (QRG) for more information about navigating the Falcon’s menus and screens.
Figure 2-1. Windows Mobile Today screen
Title bar
Start Menu
Today Screen
Product Reference Guide
2-1
Configuration Settings
Settings
Access the Settings screen from
(Start), then tap the desired icon to open
the control panel for that item. The icons available on your screen may vary,
depending on your initial configuration.
There are three types of Settings:
•
Personal Settings on this page
•
System Settings on page 2-3
•
Connections on page 2-23
This manual describes Datalogic settings and configuration screens. For information about Microsoft configuration items, reference the help system on
your device.
Personal Settings
This manual describes Datalogic settings and configuration screens. For
information about configuration of
Personal Settings, reference the
Microsoft help system on your device.
2-2
Falcon® 4400 Series with Windows Mobile®
Settings
Datalogic System Settings
Customized Datalogic System Settings are discussed in this section. For information on Microsoft settings, see the help system on your device.
Datalogic System Settings
Backlight, p. 2-4
Decoding, p. 2-5
Falcon Config, p. 2-13
Falcon Information, p. 2-13
Imager, p. 2-14
Keyboard, p. 2-20
Persistent Registry, p. 2-21
Power, p. 2-22
Product Reference Guide
2-3
Configuration Settings
Backlight
Increasing backlight brightness can cause the battery pack to discharge at a faster
rate. The battery discharge rate decreases with a decrease in backlight usage.
Change the Backlight settings by completing the following steps:
1. Tap
> Settings > System and tap the Backlight icon.
Some Falcon keypads also provide keyboard shortcuts to launch the
Backlight control panel:
• On the 26-key model press: <Fn>+<Backlight> ( ).
• On the 48-key model press: <Fn>+<Backlight> ( ).
• On the 52-key model press: <Fn>+< . >.
2. You can specify different settings for use when the device is running
on Battery Power or External Power.
• Specify the amount of time the backlight stays on when device is
not in use.
• Set the backlight to turn on automatically when any key is pressed
or the touchscreen is tapped, either while on battery or external
power.
3. Additionally, the PSC tab provides several other options:
• Adjust the Brightness slider by tapping it with the stylus. You can
also use the navigation keys on the Falcon keypad to move the
slider.
• Turn on the backlight when the trigger is pulled.
• Launch the Backlight control panel from the keyboard. See above
for key sequences.
2-4
Falcon® 4400 Series with Windows Mobile®
Settings
Figure 2-2. Backlight Settings
Using Auto-on while running from battery power will cause the battery pack to
discharge at a faster rate. The battery discharge rate decreases with a decrease in
backlight usage.
4. Exit and save your modifications by tapping OK, or press <ENTER> on
the keypad.
Decoding
You can configure the Falcon’s decoding options by tapping
> Settings >
System > Decoding. Decoder configuration can also be accomplished for large
numbers of terminals using FMU (Falcon Management Utility).
There are two sections in the Decoding control panel, each containing additional pages. There are six General Configuration pages and multiple Bar
Code symbology pages.
Other decoding parameters are described in Programming Parameters, starting
on page E-1; bar code settings are provided in Programming Bar Codes, starting
on page F-1.
Configuration Control Panels
Select the desired configuration from the following options shown in Figure 23, and the other Decoding Properties figures on the following pages.
Product Reference Guide
2-5
Configuration Settings
Use the drop-down menus or tap the left and right arrow keys to navigate the
different pages of the Configure utility.
Figure 2-3. Decoding Properties: Audio
Select Configure > General from the menu to view other configuration options.
•
Audio: Sets volume, tone, duration, and number of various types of
beeps.
Figure 2-4. Decoding Properties: General Options
Select Configure > General from the menu to view other configuration options.
2-6
Falcon® 4400 Series with Windows Mobile®
Settings
•
General Options: Select from Label Programming Enable, Symbology
IDs, Label Prefix, Label Suffix, and Data Separator.
Figure 2-5. Decoding Properties: Decoding Options
Select Configure > General from the menu to view other configuration options
•
Decoding Options: Set the User ID character associated with a symbology,
the Redundancy and select Aggressive Decoding when available.
Figure 2-6. Decoding Properties: Trigger Options
Select Configure > General from the menu to view other configuration options
Product Reference Guide
2-7
Configuration Settings
•
Trigger Options: Select to enable or disable Pistol Trigger or Scan Key for
Bar Code, Image, or RFID (if installed). Select the desired radio buttons
to define the button functions. Available items will vary according to the
model.
Figure 2-7. Decoding Properties: Imager Options
Select Configure > General from the menu to view other configuration options.
•
Imager Options: (Models with Imaging module only). Enable/Disable
Illumination and the Aiming Beam for Imaging Mode lets you select
between Concurrent (the aiming beam and the illumination beam
turn on at once); and Interlaced (the aimer beam and illumination
alternate being on). Set Imager Brightness and Timeout properties
using the sliders.
2-8
Falcon® 4400 Series with Windows Mobile®
Settings
Figure 2-8. Decoding Properties: Devices
Select Configure > General from the menu to view other configuration options.
•
Devices: Enable the keyboard wedge for Bar Code scanner, Magnetic
Stripe reader, RFID (if installed), and Read-Ahead options for attached
devices.
Bar Code Symbology Pages
Use the drop-down menus from Configure > 1D Bar Code or 2D Bar Code, or tap
the left and right arrow keys to navigate the different pages of the bar code
symbology pages. Each bar code symbology opens to its own page, as shown in
Figure 2-10 on page 2-10.
Product Reference Guide
2-9
Configuration Settings
Figure 2-9. Available 1D Bar Code Symbologies
Codabar
Pharmacode 39
Code 39
RSS-14
Code 93
RSS-Limited
Code 128
RSS-Expanded
EAN-13
Standard 2/5
EAN-8
Trioptic
Interleaved 2/5
UPC-A
Matrix 2/5
UPC-E
MSI
UPC/EAN Extensions
See Appendix F for details on parameters
available for each symbology.
Refer to the sample symbology control panels in Figure 2-10 for examples of
the types of fields and options you can modify.
Other decoding parameters are described in Programming Parameters, starting
on page E-1; bar code settings are provided in Programming Bar Codes, starting
on page F-1.
Figure 2-10. Common Symbologies: Code 39 and UPC-A
2-10
Falcon® 4400 Series with Windows Mobile®
Settings
•
Code 39: Select Enable, Min/Max Lengths, Enable Checksum, Send
Checksum, Full ASCII Conversion, and Concatenate.
•
UPC-A: Select Enable, Send Check Digit, Send System Digit, and Convert to EAN-13.
2D Bar Code Symbologies
If you have the 2D Imager module installed, the following additional symbology options are also available:
Aztec Code
OCR Template
Data Matrix
PDF417
Composite
MicroPDF417
MaxiCode
QR Code
OCR
See Appendix F for details on parameters
available for each symbology.
Refer to Figure 2-10 for an example of the types of fields and options you can
modify.
Other decoding parameters are described in Programming Parameters, starting
on page E-1; bar code settings are provided in Programming Bar Codes, starting
on page F-1.
Product Reference Guide
2-11
Configuration Settings
OCR
The OCR page gives you the following
options:
•
Specify a font by selecting from
the drop-down menu.
•
Select the desired Check Digit
from the drop-down menu.
See "OCR Configuration" starting on
page E-37 for more information.
OCR Template
The Falcon provides limited support for
OCR templates. An OCR template lets
you specify the format of an OCR
string that can be read by the Falcon.
The imager will only decode OCR
strings that match the specified template.
For detailed information on creating
OCR templates, see the section entitled
"OCR Templates" starting on
page E-37.
2-12
Falcon® 4400 Series with Windows Mobile®
Settings
Decoding Settings
Select from the Decoding Properties Settings menu to restore previous configurations and/or other available default
settings. Choose from:
•
Factory Defaults
•
Minimum Settings
•
Maximum Settings
•
Save (New Settings)
•
Revert to Saved Settings
The settings are saved when you tap OK.
Falcon Config
Tap
> Settings > System > Falcon Config to access configuration utilities such
as the Falcon Management Utility (FMU) and Falcon Desktop Utility (FDU)
settings. See Falcon® Desktop Utility, starting on page B-1, for complete
information on FDU.
Falcon Management Utility (FMU)
The Falcon Management Utility (FMU) is the easiest method to use to configure multiple Falcons, especially if you have an enterprise-wide deployment. A
copy of FMU is shipped with all Falcon Windows Mobile units. For complete
information on FMU, refer to the FMU User’s Guide on the product CD
included with your Falcon.
Falcon Information
Tap
> Settings > System > Falcon Information to view the device serial number, model number, firmware version, and keyboard type.
The serial number is also displayed on the safety label on the scanning pod.
Product Reference Guide
2-13
Configuration Settings
Figure 2-11. Serial Number Locations
AVOID EXP
OSURE — LASER LIGHT IS EMITTED FROM THIS APERTURE
Datalogic Mobile
1505 Westec Dr.
PRODUCT OF USA
Eugene, OR 97402
SERIAL #FLYYDDDXXX
Complies with 21CFR and Part 15 of FCC rules.
Item # 345-4201-005 DATE OF MANUF
RADIO: BREEZECOM
EUR: CE0560
CAN: 24611032079A FCC: M52PCRNZZ-00
SERIAL
# FLYYDDDXXX
SERIAL
#FLYYDDDXXX
Serial Number
S
te afe
ste ty
d
on
cti d
du itore
Pro on
m
BACKUP BATTERY: 3.1 V Lithium
Approved RLAN Module inside
,186 - 4,460,120 - 4,758
4,593
,717
97 - 5,
130
87,2
4,3
,
PRODUCT SERVICE
NRTL
N263
T:
PA
52
0
Imager
Imaging Overview
If your Falcon has the Imager module installed, the Imaging Control Panel
> Settings > System >
icon will be available on your Settings screen. Tap
Imager.
See Sample Imager Settings, p. 2-18, to view sample settings for different conditions.
Image Capture
The Capture page provides you with configuration options for previewing and
capturing an image with the Falcon.
Capture an image as follows:
1. Aim the Falcon toward the image you want to capture. The screen
will display a preview of the image, making use of the current settings
(to change the settings, see Image Settings, p. 2-18).
2. Tap the Capture button (refer to Figure 2-12A) or press and hold the
trigger.
2-14
Falcon® 4400 Series with Windows Mobile®
Settings
Figure 2-12. Image Capture Settings
A
B
3. An hourglass will appear, indicating the image capture process has
begun (see Figure 2-12B). Continue to hold the Falcon steady until
you hear the capture sound, signifying that the image capture is complete.
4. A File Save message showing the
image file name will appear,
unless that option has been previously deselected in the File settings (in that case, the file will
automatically save without
prompting). See Image File,
p. 2-16, to change settings.
5. Tap Yes to save the image, or No
to discard it.
Product Reference Guide
2-15
Configuration Settings
Image File
1. Specify where you want images to
be saved in the File Folder field. If
you do not select a folder, images
will be saved to the default folder
“\Images.” Use the … button to
browse to a different folder.
2. Use File Format to select the image
format you want. You can choose
between the following graphics
formats:
• TIFF (1-bit monochrome)
• TIFF (8-bit grayscale)
• JPEG (8-bit grayscale)
• BMP (1-bit monochrome)
• BMP (8-bit grayscale)
3. Check Confirm before Saving File to automatically get a File Save message when saving images (see Figure 2-12B). If unchecked, the file will
automatically save to the default file folder without prompting.
4. Check Exit after Image Capture to cause the Imaging Control Panel to
close automatically after saving the image to a file.
5. Enable Long Range Filter enhances pictures taken from very long distances (greater than 10 feet or 3 meters).
6. Enable Aimer Illumination turns on the aiming LEDs to provide more
light for an image capture.
2-16
Falcon® 4400 Series with Windows Mobile®
Settings
Image Size
On the Size tab, modify the image property settings.
1. Tap the Width and Height controls
to adjust the image, or enter a
value using the on-screen keyboard or the Falcon’s keypad.
• Width can be as much as 640
pixels.
• Height can be as much as 480
pixels.
Reducing the height and width
results in cropping of the image to
the center.
2. Use Scale to scale the image. Scaling changes the x,y dimensions of the image. For example, scaling a
640 x 480 image to 50% results in an image size of 320 x 240. See
Imaging Controls, p. E-31, for further information.
Reducing the scale of an image results in reduced image size, which decreases
the time needed to capture an image.
3. Rotate lets you to change the orientation of the image, in 90° increments.
Product Reference Guide
2-17
Configuration Settings
Image Settings
1. JPEG Quality sets the desired quality when the JPEG image format
is selected. Selecting a higher
quality results in a higher quality
image, but a larger file.
2. Brightness provides you with
options for the brightness level
the imager will use when taking
images.
3. Edge Sharpness specifies how
much the imager will attempt to
sharpen edges in images it takes.
Selecting the highest position on
the slider gives the sharpest edges,
but also increases noise in the
image.
4. Gamma Correction measures the brightness of midtone values produced by the image. You can brighten or darken an image using
gamma correction. A higher gamma correction yields an overall
brighter image. The lower the setting, the darker the image. Move the
slider to change the amount of correction the imager applies when
taking images.
Sample Imager Settings
To obtain the best possible results, you can modify the settings to suit specific
conditions or purposes. Table 2-1 shows samples of recommended settings for
common usages. These settings are suggested only, you will need to take into
account your particular environment and conditions to determine optimal settings for your specific situation.
2-18
Falcon® 4400 Series with Windows Mobile®
Settings
Table 2-1. Sample Imager Settings
Condition
Distance >10 ft (3 m)
Low light
Printed Text
Signature
Product Reference Guide
Item
Recommended
Setting
Long Range filter
On
Illumination
Off
Illumination
On
Brightness
100%
Gamma Correction
20
Illumination
On
Sharpness
100%
File format
8-bit
Illumination
On
Sharpness
100%
File format
1-bit
2-19
Configuration Settings
Keyboard
Depending upon which keypad your Falcon has, you will see a different keyboard control panel as shown below.
26-Key Keypad
1. Tap
> Settings > System >
Keyboard to open the Keyboard
control panel.
2. Adjust the slider for Multi-Tap
Timeout according to your personal preferences.
3. Use the box provided to test the
timeout delay.
4. Tap OK to exit the Keyboard control panel.
2-20
Falcon® 4400 Series with Windows Mobile®
Settings
48, 52, 5250 and 52-Key Numbers Up Keypads
The control panel for the 48, 52, 5250 and 52-key Numbers Up (NU) keypads has some additional options and an additional tab for key mapping.
1. Tap
panel.
> Settings > System > Keyboard to open the Keyboard control
2. On the Options tab, adjust the slider for Initial Delay. This configures
the time to hold down a key before it repeats.
Figure 2-13. 48, 52, 5250 and 52-Key Control Panels
3. You can also adjust the slider for Repeat Rate. This configures how fast
the keys repeat.
4. Use the box provided to test the selected repeat rate setting.
5. On the Load Map tab, browse to or type in the path and keyboard map
file name, or change to the Default Map.
For Example, type "\Windows\kbd52_5250.kmf" for the 52
keypad 5250 Terminal Emulation.
6. Use the box provided to test the test the current keyboard mapping.
Tap OK to save your changes and exit the Keyboard control panel.
Persistent Registry
Persistent Registry saves the RAM-based registry to persistent storage.
> Settings > System > Persistent Registry to adjust the settings.
Tap
Product Reference Guide
2-21
Configuration Settings
1. Tap Persist to persist the registry.
2. Tap Persist registry settings to automatically persist the settings at the
time specified in the dropdown box
3. Tap Clear to delete all persistent registry files from the FlashDisk.
Automatically persisting the registry at frequent intervals may slow system performance.
Power
Tap
> Settings > System > Power to adjust power management settings. Use
this control panel to check the charge on the battery or to change the Power
settings.
Battery Tab
The Battery tab provides power indicators for Main battery and Backup battery as
shown in Figure 2-14. Save your settings by tapping OK, or press <ENTER> on
the keypad.
Advanced Tab
You can determine the idle duration and suspend mode initiation to save battery power using the Advanced tab, as shown in Figure 2-14. Save your settings
by tapping OK, or press <ENTER> on the keypad.
2-22
Falcon® 4400 Series with Windows Mobile®
Settings
Figure 2-14. Power Tabs
Connections
In the Connections screen you can view
or change Internet, intranet and network
settings. See the help system on your
device for more information.
Bluetooth® Device Properties
The Bluetooth Device Properties icon will only be visible if Bluetooth hardware
has been installed on the unit.
Product Reference Guide
2-23
Configuration Settings
This control allows you to enable and disable your device’s Bluetooth interface.
It allows selecting a Bluetooth device to connect with and allows for assignment of COM ports.
Tap
panel.
> Settings > System and select Bluetooth to open the Bluetooth control
Mode tab
1. Select the checkbox forTurn on
Bluetooth to enable Bluetooth on
the device.
2. Select “Make this device visible
to other devices” to allow other
devices to discover and view this
device.
Devices tab
1. Select the Devices tab to display
available devices.
If there are devices that you have
previously connected to, they will
already be listed.
2-24
Falcon® 4400 Series with Windows Mobile®
Settings
2. Tap a device to display and modify the settings. Tap Save to keep
the modifications.
3. To search for new devices, tap on
Add new device. The Falcon will
search for Bluetooth Devices
within range.
Product Reference Guide
2-25
Configuration Settings
4. Once scanning is complete, available Bluetooth Device Profiles
will be displayed.
5. Select a device to connect, and
tap Next.
2-26
Falcon® 4400 Series with Windows Mobile®
Settings
6. Enter a password, if needed to
connect to the device.
7. Click Yes or No to whether you
want to add the selected device to
your device list.
Product Reference Guide
2-27
Configuration Settings
8. The settings will be displayed. Click Finish to close the dialog.
The screen will display the settings for the selected device.
COM Ports tab
Tap the COM Ports tab to create a new outgoing or incoming port. Tap and hold an
existing port to view or edit settings.
2-28
Falcon® 4400 Series with Windows Mobile®
Settings
Wi-FI
Using the Summit Client Utility
The Summit Client Utility (SCU) is an application designed for end users and
administrators of mobile devices that use a Summit radio module. For further
information beyond the scope of this manual, you can download the complete
Summit User’s Guide from www.summitdatacom.com.
Reference the QRG for details about the basic functions of this utility. After
completing an administrator login to the utility, you can perform these additional tasks:
•
Create, rename, edit, and delete profiles
•
Alter global settings, which apply to every profile
SCU provides a graphical user interface (GUI) for access to all of its functions.
Access to these functions also is available through an application programming
interface (API), which an application programmer can use to enable another
utility to manage the radio.
To initialize SCU:
1. Go to
> Settings > Connections.
2. Tap on the Wi-fi icon.
SCU Tabs
SCU has five tabs: Main, Profile, Status, Diags (Troubleshooting), and Global
Settings. Tabs enable easy navigation. Each tab is described in more detail in
this section.
Main Tab
Reference Figure 2-15 on page 2-30 to view the features of the Main Tab.
•
Enable/Disable Radio: Select or deselect to enable or disable the radio.
•
Active Profile: Displays the name of the active configuration profile.
An administrator can use the selection list to select a different profile.
•
Association Status: Indicates if the radio is associated to an access point
and, if not, what the radio’s status is.
Product Reference Guide
2-29
Configuration Settings
Figure 2-15. Main tab
Enable/Disable Radio
Active Profile
Association Status
Regulatory Domain
Software Versions
About SCU
Tabs
•
Regulatory Domain: Indicates the regulatory domain or domains for
which the radio is configured. “Worldwide” means that the radio can
be used in any domain. The domain cannot be configured by an
administrator or user.
•
Software Versions: Indicates the version of the device driver and the
version of SCU that are running on the device.
•
About SCU: Supplies information on SCU.
Profile Tab
Profile settings are radio and security settings that are stored in the registry as
part of a configuration profile. When a profile is selected, its settings become
active. An administrator can define, edit, or delete up to 20 profiles in the Profile tab in SCU. Profile changes made are saved only when the Commit button
is pressed.
Figure 2-16 on page 2-31 is an example of a Profile tab. Here are the highlights:
•
Profile: Use to select the profile to be viewed or edited. If “ThirdParty-
Config” is selected then, after the device goes through a power cycle,
WZC is used for configuration of the radio.
•
Actions: Four actions are available to an administrator:
- Rename: Give the profile a new name, one that is not assigned to
another profile
2-30
Falcon® 4400 Series with Windows Mobile®
Settings
- Delete: Delete the profile, provided that it is not the active profile
- New: Create a new profile with default settings and give it a name
(and then change settings using other selections on the tab)
- Commit: Ensure that changes to profile settings made on the tab are
saved in the profile
Figure 2-16. Profile tab
Profile
Actions
Radio Attributes & Settings
Security Settings
3. Radio attribute and setting: Attributes in the list box can be selected
individually. When an attribute is selected, the current setting or an
appropriate selection box with the current setting highlighted appears
on the right. For example, selecting SSID causes an edit box to
appear; selecting transmit power causes SCU to display a drop-down
list box with available settings.
4. Security settings: The items at the bottom of the tab enable the administrator to configure the settings for EAP Type (used for 802.1X
authentication) and Encryption.
To connect a Summit radio to a typical business WLAN, you must select a
profile that specifies the SSID, EAP type, and encryption type supported by
the WLAN:
Product Reference Guide
•
SSID: The name or identification of the WLAN.
•
EAP type: The protocol used to authenticate the device and its user if
the WLAN uses the Enterprise version of Wi-Fi Protected Access
(WPA) and WPA2. SCU supports four EAP types: PEAP with EAP-
2-31
Configuration Settings
MSCHAP (PEAP-MSCHAP), PEAP with EAP-GTC (PEAP-GTC),
LEAP, and EAP-FAST
•
Encryption: Specifies the type of key used to encrypt and decrypt
transmitted data and how that key is specified or derived. Encryption
options include:
- WPA2 or WPA with dynamic keys (derived from the EAP authentication process)
- WPA2 or WPA with pre-shared keys
- Static WEP keys
Consult the Summit User’s Guide for details on all profile settings, including
security settings.
Status Tab
The Status tab shown in Figure 2-17 on page 2-33 provides status information
on the radio. Status items include IP address and MAC address for the client
radio, IP address and MAC address for the AP, signal strength, channel, transmit power, and data rate. A sample Status tab is shown in Figure 2-17 on page
2-33.
•
Client info: Name of active profile, client name, client IP address, and
client MAC address
•
AP info: AP name, AP IP address, and AP MAC address
•
Connection info: Channel, transmit power, and bit rate
One status item, the radio association state, is shown on both the Status tab
and the Main tab. Potential values are: Down (not recognized), Not Associated, Associated, or [EAP type] Authenticated.
2-32
Falcon® 4400 Series with Windows Mobile®
Settings
Figure 2-17. Status tab
Client info
AP info
Connection info
Diags Tab
A sample Diags, or troubleshooting, tab is shown in Figure 2-18 on page 2-33.
Figure 2-18. Diags tab, with ping active
Ping address
Ping results
Here are the functions available on the Diags tab:
• (Re)connect: Disable and enable the radio, apply or reapply the
current profile, and attempt to associate and authenticate to the
wireless LAN, logging all activity in the output area at the bottom.
Product Reference Guide
2-33
Configuration Settings
•
•
•
Release/Renew: Obtain a new IP address through DHCP release/
renew, and log all activity in the output area at the bottom.
Start Ping: Start a continuous ping to the address in the edit box
next to it. Once the button is clicked, its name and function will
change to Stop Ping. Leaving the Diags tab also will stop the ping,
as will pressing any other button on the screen.
Diagnostics: Attempt to (re)connect to an AP, and provide a more
thorough dump of data than is obtained with (Re)connect. The
dump will include radio state, profile settings, global settings, and
a BSSID list of APs in the area.
Global Settings Tab
Global settings include:
• Radio and security settings that apply to all profiles
• Settings that apply to SCU itself
An administrator can define and change most global settings on the Global
Settings tab in SCU. Figure 2-19 shows a sample Global Settings tab.
Figure 2-19. Global Settings tab
The default setting for each global setting ensures reliable operation in most
environments. Consult the user’s guide for details on all global settings.
2-34
Falcon® 4400 Series with Windows Mobile®
Chapter 3
Software Programs
Overview
"Programs" starting on page 3-1
"Installing Programs" starting on page 3-2
Firmware Update Utility:
•
Retrieving a Firmware Image Update, p. 3-3.
•
Installing FUU on the Host PC, p. 3-4.
•
Updating the Falcon Firmware, p. 3-4.
"AutoStart" starting on page 3-6
Programs
The Falcon comes with a number of factory-installed programs. To open
them, tap
> Programs to open the Programs screen, then tap the icon for
the program you wish to open. The programs available to you may vary,
depending on your initial configuration.
See the Microsoft help on your device for further information about Microsoft
programs.
Product Reference Guide
3-1
Software Programs
Figure 3-1. Programs screen
Installing Programs
In order to install a program, your Falcon must be connected to a PC. See the
Falcon 4400 QRG for instructions on getting connected. Then, follow the
installation instructions for the program you want to install. Once the software
is installed on your desktop computer, the installer will transfer the software to
your Falcon.
Installing Programs with FMU
You can quickly install programs on multiple Falcons using the Falcon Management Utility (FMU). For more information, refer to the FMU User’s Guide
on your Product CD.
3-2
Falcon® 4400 Series with Windows Mobile®
Firmware Update Utility
Firmware Update Utility
The Falcon is equipped with a field-upgradeable firmware mechanism. Firmware updates for the Falcon can be found on the Datalogic Mobile website
(www.mobile.datalogic.com). After you have downloaded the desired update
to your PC, there are several ways you can update the firmware on the Falcon.
•
Use the Falcon Management Utility (FMU) if you have multiple Falcons to update. Refer to the FMU User’s Guide for more information.
•
If FMU is not available or you have only a few Falcons to update, use
the Firmware Update Utility (FUU), described below, to install or
update the firmware using an ActiveSync connection. Refer to the
help system on your device for more information.
The following sections provide procedures for the retrieval and installation of
the most current firmware image onto a Falcon.
Retrieving a Firmware Image Update
The following instructions use Internet Explorer to retrieve the most current
firmware image.
1. Launch Internet Explorer on your PC and go to the Datalogic Mobile
website.
2. Navigate to the Downloads section of the website.
3. Select the file you want to download, then click Save to start copying
the files to your local machine (or local network location).
Product Reference Guide
3-3
Software Programs
Installing FUU on the Host PC
The Firmware Update Utility (FUU) provides administrators with a field
upgrade mechanism. You must have Microsoft® ActiveSync already loaded
and running on the host PC to use FUU. Refer to the help system on your
device for more information about ActiveSync.
Prior to installing FUU, you must remove any previous versions of FUU installed
on the host PC.
Install Datalogic’s Falcon® Firmware Update Utility on your PC by completing the following steps:
1. Insert the CD ROM shipped with your Falcon and click on the link
to Firmware Update Utility.
OR
Go to the Datalogic website and download the most current version of
the Firmware Update Utility. Unzip the file, then double-click to run
FUU_Setup.exe.
2. Follow the instructions on the screen to complete the installation of
FUU.
Updating the Falcon Firmware
After copying the update package (*.fpk file) to the host PC (see Retrieving
a Firmware Image Update, p. 3-3) and installing FUU (Installing FUU on the
Host PC, p. 3-4), you can upgrade the firmware on your Falcon.
The following steps require that you have already established an ActiveSync connection between the host computer and the Falcon. For information on establishing an ActiveSync connection with the Falcon, refer to the help system on your
device.
1. On the PC, click Start > All Programs > Firmware Update Utility.
2. Verify that ActiveSync is selected from the Communicate Using dropdown list.
3. Browse (...) to the location where you saved the firmware file for your
terminal.
3-4
Falcon® 4400 Series with Windows Mobile®
Firmware Update Utility
4. Select the current *.fpk file and click the Open button.
5. Verify that the Falcon is turned on. Insert the device into a powered
dock connected to the host computer.
6. Click the Update Terminal button on the FUU utility on the host PC.
7. FUU will compare the selected firmware image with the firmware
already loaded on the Falcon; if the images are different, FUU will proceed to update the firmware image on your Falcon.
Product Reference Guide
3-5
Software Programs
Please be patient and do not remove the Falcon from the Dock until the procedure
is complete. The firmware image of the Falcon can take as long as:
• 3 minutes to download using a USB connection.
• 22 minutes to download using a serial connection with 115K baud rate.
• 130 minutes to download using a serial connection with 19.2K baud rate.
8. After the firmware of your Falcon has been updated, the Falcon will
prompt you for input. Follow the on-screen instructions.
AutoStart
The AutoStart program provides three functions:
•
Allows you to create a list of applications (with optional command
line arguments) to run automatically prior to loading CAB files.
•
Automatically reinstalls specified CAB files when the Falcon is Hard
Reset.
•
Allows you to create a list of applications (with optional command
line arguments) to run automatically after loading CAB files.
AutoStart launches each time the Falcon is rebooted. AutoStart first runs
PreAuto.ini (reference Table 3-2 for the location), executing each line
with the specified command line arguments. It will take into account any
AutoStart options at the begining of the line.
Upon a Cold Reset, AutoStart installs all the CAB files located in the
AutoStart CAB folder. If the AutoStart CAB folder does not exist, no CAB
files will be installed.
Table 3-1. AutoStart CAB folder location
Product
F4400
Operating System
Windows CE
Windows Mobile
Location
\FlashFX Disk
\FlashDisk
AutoStart will then run the Autostart.ini (reference Table 3-2 for the
location), executing each line with the specified command line arguments. It
will take into account any AutoStart options at the beginning of the line.
3-6
Falcon® 4400 Series with Windows Mobile®
AutoStart
Table 3-2. PreAuto.ini and Autostart.ini location
Product
Operating System
Location
\FlashFX Disk
\FlashDisk
Windows CE
F4400
Windows Mobile
Installing CAB files
Copy any CAB files you want to install into the AutoStart CAB folder. These
CAB files will then be automatically installed in alphabetical order the next
time you start the device.
How AutoStart Uses Wceload
If you intend to create highly interactive installers, you should either install the CABs manually or
review the section on “Interactive CAB Install” in this chapter.
In certain environments, CAB files will be deleted after execution. To prevent the CAB file from
being deleted, write protect the file before copying the file onto the device.
CAUTION
CAB files are installed by AutoStart using the Wceload.exe application.
Table 3-3 on page 3-7 shows available command line options:
Table 3-3. AutoStart command line options
Option
/noui
/silent
Description
Specifies that you will not be prompted for any input during the installation. If
the CAB file is signed, any responses will automatically be answered ‘Yes.’ If
the CAB is unsigned, then any responses will be answered ‘No.’
Suppresses dialog boxes during the installation.
Please refer to the Microsoft documentation on your device for further details
on Wceload.exe.
Sample:
\Windows\Wceload.exe /delete 1 /noui /silent
“\FlashDisk\CAB\<cab file>”
Product Reference Guide
3-7
Software Programs
Interactive CAB Install
If the CAB installer requires user interaction that must be performed during
the AutoStart CAB installation process, you can specify a special file name to
disable the silent mode installation. If this mode is specified, the CAB file will
be installed with Wceload without any command line arguments specified.
An example of what AutoStart would execute is:
\Windows\Wceload.exe <cab file>
To force this mode of installation via AutoStart, rename the CAB file to
include a ‘_’ character before the “.cab” extension of the file.
Example:
“File.cab” should be renamed “File_.cab” to force AutoStart to not
install the CAB in silent mode. This specially-named CAB file should be
placed in the AutoStart folder with other CAB files intended for installation
on the next reboot.
Autostart.ini
Autoexec.ini, which uses AutoCE on some older models, has been deprecated. These files should
be renamed to Autostart.ini and reformatted as described in AutoStart, p. 3-6.
In the following section, all references to AutoStart.ini also pertain to PreAuto.ini.
Autostart.ini and PreAuto.ini are text files that AutoStart will run
upon startup of the Falcon, and after any CAB files are installed. This file
should be placed in the AutoStart folder. AutoStart will run the
Autostart.ini file on each reboot of the device.
Line Formatting
Each line of the Autostart.ini can consist of Autostart options, an executable, and any command line arguments.
< Autostart option(s)> <full path to executable>
<command line arguments>
Sample:
- \windows\pword.exe \file.doc
Table 3-4 breaks down the sample Autostart.ini line.
3-8
Falcon® 4400 Series with Windows Mobile®
AutoStart
Table 3-4. Autostart.ini line formatting
Autostart
option(s)
-
Full path to executable
\windows\pword.exe
Command line arguments
\file.doc
Spaces must be placed between each component of the line in the
Autostart.ini.
If the executable path is in a folder that contains spaces in the name, quotes are
required to distinguish what the actual executable name is. The following is an
example of this:
“\Program Files\ScannerApp.exe” /run (valid)
\Program Files\ScannerApp.exe /run (invalid)
The second line is an invalid line because there is no way to distinguish the
executable from the argument.
AutoStart Options
Table 3-5 shows options you can use when writing a line in the
Autostart.ini or PreAuto.ini file.
Table 3-5. Options for Autostart.ini and PreAuto.ini
Description
Character
Comment: This line will not be exe- ‘#’ OR ‘ ‘
cuted.
(space)
Comments
This may only be used as the first
character of the line. If the comment
option is specified in the options
elsewhere, it is ignored.
Do not wait on line completion:
This will cause the line to execute
‘-’
and immediately move onto the
next line.
Query: Request user confirmation
‘?’
when running the executable.
Execute only on Cold Reset
Product Reference Guide
This will halt parsing the
Autostart.ini until the confirmation is
answered. This is intended for
debugging the Autostart.ini file.
‘!’
3-9
Software Programs
Cold Reset Only: This will cause the line to execute only after a Cold
Reset.
An empty line will be treated as a comment line.
Combining Options
Autostart options can be combined together as shown in the following sample:
?- \Windows\Pword.exe
This line would:
•
Request confirmation before executing the line. The next line would
not be processed before the confirmation is answered.
•
Run the next line without waiting on the current line to complete
execution.
Query Option
The query option is intended for use when debugging the
autostart.ini. When a line with this option is executed, the following
dialog will appear with the specified executable and command line arguments.
The populated fields shown in the AutoStart Execute Query are described in
Table 3-6 on page 3-11.
3-10
Falcon® 4400 Series with Windows Mobile®
AutoStart
AutoStart Execute Query
Table 3-6. AutoStart Query options
Field
Line Number
Exe
Args
Description
This is the line number in the script being executed.
The executable as parsed by AutoStart.
The argument as parsed by AutoStart.
The fields may be broken up into multiple lines (as shown in the example) due to limited space in
the dialog.
Parentheses are used to surround the given field and make it very clear what
the value of the field is.
Table 3-7 describes the results of each choice:
Table 3-7. AutoStart Query actions
Button
Yes
No
Cancel
Action
The current line will execute.
The current line will not execute. AutoStart will continue parsing the
Autostart.ini.
The current line will not execute and AutoStart will discontinue
parsing the Autostart.ini.
Autostart.ini Samples
Table 3-8 on page 3-12 is a collection of sample Autostart.ini lines.
Product Reference Guide
3-11
Software Programs
Table 3-8. Sample Autostart.ini lines
Line
? \windows\wceload.exe “\My
Documents\FDU.cab”
Description
This will confirm the execution of \Windows\wceload.exe with specified argument “\My Docu-
ments\FDU.cab”
\Program Files\App.exe
(invalid) This will execute \Program with the argument Files\App.exe.
\Program Files\App.exe /run
(invalid) This will execute \Program with the argument Files\App.exe /run.
“\Program Files\App.exe” /run
This will execute the program \Program
Files\App.exe with the argument /run.
This will confirm the execution of \Windows\Pword.exe. If the execution is confirmed,
AutoStart will immediately process the next line.
This will execute the program \Program
!”\Program Files\App.exe” /run Files\App.exe with the argument /run ONLY
after a Cold Reset.
?- \Windows\Pword.exe
3-12
Falcon® 4400 Series with Windows Mobile®
Appendix A
Accessories
Overview
This appendix covers the following topics:
•
"Power Supplies" on page A-2.
• "Battery Pack" on page A-2.
• "Single-Slot Dock" on page A-2.
• "Four-Slot Dock" on page A-3.
• "Battery Charger" on page A-3.
• "Serial Charging Cable" on page A-4.
• "USB Cable" on page A-3.
• "Printer Cable" on page A-4.
• "Serial Printer Adapter" on page A-4
•
"Holsters and Softcases" starting on page A-6.
• "Holsters" starting on page A-6.
• "Softcases" starting on page A-7.
•
"Installing the Handle or Handstrap" starting on page A-8.
• "Installing a Handle on the Falcon 4410" on page A-9.
• "Installing the Handstrap on the Falcon 4420" on page A-8.
•
"Tethered Stylus" on page A-11.
Contact your Datalogic reseller for accessories and supplies for the Falcon; you
can see the options in this appendix, or check the Datalogic Mobile website.
Product Reference Guide
A-1
Accessories
Power Supplies
Use only the correct battery chargers and docks with this Windows Mobile Falcon.
The technology used for these models is incompatible with other Datalogic Falcon
chargers and docks.
Battery Pack
Figure A-1. Battery Pack
Single-Slot Dock
Figure A-2. Single-Slot Dock
Battery Pack in
Spare Battery
Charging Slot
Power LED
A-2
USB/Serial Connector
Spare Battery
LED
Falcon® 4400 Series with Windows Mobile®
Power Supplies
Four-Slot Dock
Figure A-3. Four-Slot Dock
Battery Charger
Figure A-4. Four-Slot Battery Charger
USB Cable
See "Cable & Connector Configurations" on page D-1.
Product Reference Guide
A-3
Accessories
Serial Charging Cable
See "Cable & Connector Configurations" on page D-1.
Printer Cable
See "Cable & Connector Configurations" on page D-1.
Serial Printer Adapter
The Serial Printer Adapter attaches to the bottom of a Falcon unit and allows
you to print directly to a printer.
Figure A-5. Serial Printer Adapter
To attach the printer adapter to a Falcon, you must remove the strap studs, as
well as the optional strap stud bumpers, if present. Use the procedure that follows.
A-4
Falcon® 4400 Series with Windows Mobile®
Power Supplies
Removing Strap Studs/Bumpers
Figure A-6. Strap Studs
Strap Stud
Bumpers
Strap Studs
1. Loosen and pull off the strap stud bumpers (if present). If necessary,
pry off using a screwdriver.
2. Use a 5/64” Allen wrench (included with the printer adapter) to
loosen and remove each Strap Stud.
Once you have removed the strap studs, attach the adapter to the Falcon by
tightening the thumbscrews on the adapter.
Figure A-7. Attaching the Serial Printer Adapter
Product Reference Guide
A-5
Accessories
Holsters and Softcases
A holster and a softcase are available that will work with both the Falcon 4410
and the handled Falcon 4420 models.
Holsters
Figure A-8. Three Holster Views
A-6
•
Quick release swivel belt
mount (clip on both sides for
left or right mount)
•
Heavy duty nylon
Falcon® 4400 Series with Windows Mobile®
Holsters and Softcases
Softcases
Figure A-9. Softcase for Handled Falcon 4420
•
Belt clip option
•
Stylus holder
•
Open cover
•
Heavy duty nylon
•
Scanner window
Product Reference Guide
A-7
Accessories
Installing the Handle or Handstrap
The Falcon 4420 comes from the factory with the handle installed. The Falcon
4410 comes with a handstrap. These can be exchanged with a change-out kit.
The handle is removable and can be replaced with a handstrap. When you
replace the handle with the handstrap, you lose the ability to press the trigger
on the handle and must use the <Scan> key on the Falcon keypad instead.
The <Scan> key is not available on models with the 48-key keypad.
To remove the handle and replace it with the handstrap refer to the following
sections. Reverse the same directions to replace the handstrap with the handle.
Installing the Handstrap on the Falcon 4420
Install a handstrap on the Falcon 4420 by completing the following steps:
1. Remove the handle as shown in Figure A-11 by removing the screws
located just above the battery cover’s latch dials.
2. Insert the top tab of the handstrap cover into the slot at the top of the
handle recess. (refer to Figure A-10)
A-8
Falcon® 4400 Series with Windows Mobile®
Installing the Handle or Handstrap
Figure A-10. Removing/Replacing a Handstrap
Retaining
Pin
Cover
Plate
Handstrap
Cover
Plate
Handstrap
PDT
Retaining Pin
is threaded
through loop
in strap and
seated in sockets
3. Replace the screws located just above the battery cover’s latch dials.
4. Connect the handstrap hook onto one of the strap studs at the base of
the Falcon.
5. The process is complete upon successful test of the scanning function.
Installing a Handle on the Falcon 4410
Install the handle on the Falcon 4410 by completing the following steps:
1. Remove the handstrap as shown in Figure A-10 by removing the
screws located just above the battery cover’s latch dials.
Product Reference Guide
A-9
Accessories
Figure A-11. Removing/Replacing the Handle
Handle
PDT
2. Insert the top tab of the handle into the slot at the top of the handle
recess (refer to Figure A-11).
3. Replace the screws located just above the battery cover’s latch dials.
4. The process is complete upon successful test of the trigger function.
A-10
Falcon® 4400 Series with Windows Mobile®
Tethered Stylus
Tethered Stylus
An optional Tethered Stylus is available
for use on any of the Falcon 4400
series models. The Tether attaches the
stylus to the Falcon unit, preventing
the stylus from accidentally being lost
or misplaced.
Tether
Installing a Tethered Stylus
If your Falcon did not come with a Tethered Stylus, it can be easily installed.
Install a Tethered Stylus on the Falcon 44xx as follows:
1. Turn the Falcon face-down. Ensure that power is OFF.
2. Using a Phillips screwdriver, remove the 6 mm screw at the bottom of
the Stylus holder.
3. Use the longer 16 mm screw included with the Tethered Stylus kit to
attach the Tethered Stylus to the Falcon.
CAUTION
Do not use the 16mm long screw that came with the Tethered Stylus without the
Tether. Damage to internal components could occur if the screw is used without
the Tether, since the screw is longer than the standard 6 mm screw used without
the Tether.
4. Slide the other end of the Tether through the Stylus.
This completes installation of the Tethered Stylus.
Product Reference Guide
A-11
Accessories
Figure A-12. Installing/Removing a Tethered Stylus
Tether
Screw
Removing a Tethered Stylus
If you want to remove the Tether from your Falcon 44xx, complete the following steps:
1. Turn the Falcon face down. Ensure that power is OFF.
2. Using a Phillips screwdriver, remove the 16 mm screw at the bottom
of the Stylus holder that attaches the Tether to the PDT.
3. Use the shorter 6 mm screw included with your Falcon to reattach the
Stylus Holder to the Falcon.
CAUTION
Do not use the 16 mm long screw that came with the Tethered Stylus without the
Tether. Damage to internal components could occur if the screw is used without
the Tether, since the screw is longer than the standard 6 mm screw used without
the Tether.
Removal of the Tethered Stylus is complete.
A-12
Falcon® 4400 Series with Windows Mobile®
Appendix B
Falcon® Desktop Utility
Overview
Falcon® Desktop Utility (FDU) allows Datalogic Falcon® Windows® administrators to configure Falcon Windows® Mobile Falcons to control individual
user access. This includes:
•
Prevent users from changing Falcon OS settings.
•
Define keys to access specific functionality/programs.
•
Restrict which applications can be executed on the terminal.
•
Internet Explorer access restriction, configuration and customized
recovery mechanisms.
This section covers the following information:
•
Product Reference Guide
"Falcon Desktop Utility" on page B-2
• "Administrative Options (Admin Tab)" on page B-5.
• "Setting Hot Keys" on page B-9.
• "Internet Explorer Configuration" on page B-12
• "Modifying Windows Controls" on page B-13
• "Add Application" on page B-15
B-1
Falcon® Desktop Utility
Falcon Desktop Utility
Getting Started
Before you begin, your Falcon must be connected to your PC. See the Falcon
4400 QRG for information on how to connect your Falcon.
After you are connected, you must install FDU.
Installation
The installer for FDU will automatically launch the Application Manager
associated with ActiveSync if the "Install FDU via ActiveSync when finished"
checkbox was checked during the installation. Follow the on-screen instructions to complete the installation.
Using the CAB file (other methods)
Terminal file system access is required. To copy the file to the device we recommend using the Falcon Management Utility or ActiveSync.
FDU can be installed to remote Falcons using FMU by transferring the
FDU_WM.cab file from the directory at c:\Program
Files\PSC\Falcon Desktop Utility\ to anywhere on a Falcon
running Windows Mobile, then manually launching that CAB file.
Installation on docked Falcons via ActiveSync
ActiveSync 4.0 must be installed and connected to your Falcon before beginning
this installation.
1. Place your Falcon in the Dock and ensure that it is connected to your
PC via ActiveSync.
2. Click the FDU link on the Product CD to launch the installer.
3. Click Next.
4. Read and agree to the End User License Agreement and the Microsoft
Addendum to the EULA by clicking “I Agree to the Terms Specified
in the License Agreement”, then click Next.
5. Specify the destination folder for this installation, or accept the
default and click Next.
B-2
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
6. Specify the group name or use the default, then click Next, then Next
again to install the files on your PC.
7. Check the “Install FDU via ActiveSync when finished” checkbox,
then click Finish.
ActiveSync will launch automatically and display a dialog directing to you to
follow instructions on your Falcon to finish the installation.
8. On your Falcon, verify that the installation succeeds, then tap Restart.
9. On your PC, click OK to verify that you have followed the instructions on your Falcon.
Once FDU has been installed in ActiveSync, you can install FDU on additional docked Falcons as follows:
1. Place the Falcon in the Dock and connect to ActiveSync.
2. Select Add/Remove Programs from the Tools menu in the ActiveSync
window.
3. Check the Falcon Desktop Utility checkbox in the list, then click OK.
4. On your Falcon, verify that the installation succeeds, then tap Restart.
5. On your PC, click OK to verify that you have followed the instructions on your Falcon.
Installation on wireless Falcons via FMU
FMU is required to support wireless installation. You must have already installed
FMU on your server. Please see the FMU User’s Guide on your Product CD for
information on installing and using FMU.
1. Click the FDU link on the Product CD to launch the installer.
2. Click Next.
3. Read and agree to the End User License Agreement and the Microsoft
Addendum to the EULA by clicking “I Agree to the Terms Specified
in the License Agreement”, then click Next.
4. Specify the destination folder for this installation, or accept the
default and click Next.
5. Specify the group name or use the default, then click Next, then Next
again to install the files on your PC.
6. Ensure the “Install FDU via ActiveSync when finished” checkbox is
not checked, then click Finish.
Product Reference Guide
B-3
Falcon® Desktop Utility
7. In FMU, create a package for the FDU_WM.cab file, add this file to
the package, and specify any convenient installation path on your Falcon.
8. Add this new package to your group.
9. Update your Falcon or group of Falcons to transfer the
FDU_WM.cab file to your Falcon..
10. On each Falcon, tap the FDU_WM.cab file icon to run the installer.
11. When prompted, tap Restart to finish installation.
Using FDU
Open the FDU by tapping
> Settings > System > Falcon Config.
Figure B-1. Accessing FDU
Falcon Config icon
This option is available from all screens:
Table B-1. Option Available on all Screens
Command
OK
Description
Tap the OK button to apply the settings and modifications you have made in
the FDU tabs. OK saves every modification.
FMU
Access the FMU (Falcon Management Utility) from the FMU tab.
B-4
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
Figure B-2. FMU Client Tab Fields
See the FMU User’s Guide (included on your Datalogic Product CD) for complete information about setting up and using FMU.
Administrative Options (Admin Tab)
Tap
> Settings > System > Falcon Config to open the Administrative Options
control panel.
Figure B-3. Setting a Password/Admin Tab Fields
Product Reference Guide
B-5
Falcon® Desktop Utility
Table B-2. Setting a Password/ Admin Tab Fields
Command
Enable Falcon
Desktop
Description
Tap this checkbox to activate the FDU functions such as Hot Key assignments, IE Restrictions, Windows Settings, and the authorized application menu.
Enter Password Enter a password in the text box. This allows the user to specify a password when this utility is launched. By default there is no password. A
password can consist of all standard keyboard characters.
Re-Enter
Password
Carefully re-enter the password in the second text box.
Set Password
Tap the Set Password button to enable the password.
Restore Defaults Tap the Restore Defaults button to reset the default values of all the
functions on all the tabs. After you select this option, you will receive a
prompt to verify this selection.
Alphanumeric characters used within a password should not be defined as Hot
Keys.
B-6
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
Setting a Password
Set a password as follows:
1. Enter a password in the field. This allows the user to specify a password when this utility is launched. By default there is no password set.
Be sure to record the Password for future reference.
2. Re-enter the password in the second field.
3. Tap Set Password to enable the password.
4. Tap OK close Set Password Confirmation.
You must tap Set Password prior to exiting FDU in order to store and activate your
new password. It is not necessary to select Enable Falcon Desktop.
If you tap Restore Defaults all custom settings will be removed and restored to the
factory default settings, except a previously set password.
CAUTION
Changing a Password
Change to a new password by completing the steps below:
1. Enter a new value in the Enter Password field.
2. Re-enter the new value in the Re-enter Password field.
3. Tap Set Password.
Removing a Password
Remove a password by completing the steps below:
1. Enter blanks in both Password fields.
2. Tap Set Password.
Password Request Dialog Box
Once the password is set, the next time you open the Falcon Desktop Utility, the
FDU Password dialog box opens.
Product Reference Guide
B-7
Falcon® Desktop Utility
This dialog box will only open if a password was defined.
Figure B-4. Setting a Password
Table B-3. Setting a Password
Command
Description
Enter Password
Enter your password using the keypad, or using the stylus on the soft
input panel (SIP) in the text box.
OK
Tap the OK button to accept the password.
X
Select/tap the X button to cancel the specified Hot Key.
Complete the Falcon Config Admin dialog:
1. Enter your password using either the keypad on the unit, or using the
stylus on the on-screen keyboard.
If you enter an incorrect password, the system will prompt you to
input the correct one.
2. Tap OK to verify the password.
B-8
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
Setting Hot Keys
You can use the Hot Keys (HKeys) tab to associate specific keys, such as <F1><F10>, with specific applications. You can also create new Hot Key combinations
(see "Adding a New Hot Key" on page B-10). Select the HKeys tab to access these
options.
New and Delete options for Hot Keys are only available on the Falcon 4400 Series
units.
For example, you could set <F2> to launch a sample application like:
\Windows\pword.exe.
Figure B-5. Hot Keys Tab
Table B-4. Hot Keys Tab
Command
Description
Hot Key
This drop-down list displays the available function keys to define. Select the
desired one from the list.
New
Tap to specify a new Hot Key, not on the Hot Key list. This opens a new
dialog, shown on page B-10.
Delete
Tap to delete the selected Hot Key. You can only delete the Hot Keys you
have added. You cannot delete <F1> -<F10>.
Associated
Function
This drop-down list displays the available functions. Select either
Application or Action.
Product Reference Guide
B-9
Falcon® Desktop Utility
Command
Action
Description
Specify an action to associate with a Hot Key. This list includes: Toggle
Taskbar, FDU Admin, and Application Switcher. This option is only available when Action is selected in the Associated Function drop-down list.
The <F6> is the key initially assigned to FDU Admin. If you wish to assign this
key to a different function, you must first select an unassigned Hot Key and
assign it to the Action - FDU Admin. You can then go back and reassign the
FKey to something else.
Table B-5. Falcon Models/Hot Keys Available
Falcon 4400 Series
26-key models
48-key models
52-key models
Alpha-numeric
Alt + Alpha-numeric
Alt + Alpha-numeric
F1-F19
Alt + F1-F10
Alt + F1-F20
F1-F10
F1-F20
Alpha-numeric
Alpha-numeric
The administrator is responsible for verifying that these keys don’t override existing functions. To prevent FDU Hot Keys from overriding existing application keys,
select “No Action” in the Action combo box.
Adding a New Hot Key
When you select New on the HKeys tab, this opens the Add New Hot Key dialog
box.
Complete the following steps to define a new Hot Key:
1. Enter the key combination to define a new Hot Key in the Enter Key
textbox.
2. The Note displays important information indicating Hot Keys that
should not be used.
B-10
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
Figure B-6. Add a New Hot Key Dialog
Note
Table B-6. Adding a New Hot Key Dialog
Command
Description
Enter Key
Enter the desired key combination in this text box to define a Hot Key.
OK
Tap the OK button to add the specified Hot Key.
X
Tap the X button to cancel the specified Hot Key.
You cannot add a Hot Key that is already defined. If you attempt to do so, you will
receive an error message.
3. Tap OK to save the New Hot Key. If you tap X, the key will not be saved.
It is possible for the keyboard wedge to activate assigned Hot Keys using alphanumeric characters. Bar codes containing characters associated with assigned
Hot Keys will trigger the action or application assigned to that Hot Key.
CAUTION
Product Reference Guide
B-11
Falcon® Desktop Utility
Internet Explorer Configuration
Tap the IE (Internet Explorer) tab to access the IE Configuration option. Use the
IE Error Redirection option to provide customized recovery from common IE
errors. When an error occurs, the browser can redirect access to a specified
error page with instructions on how to recover from the problem.
Figure B-7. IE Configuration Tab / IE Window Features
IE Address Bar
Refresh
Table B-7. IE Tab Fields
Command
B-12
Description
Error Type
The Error Types drop-down list displays available IE Error Types:
(400) Invalid Syntax, (403) Request Forbidden, (404) Object Not
Found, (406) No Response Format, (410) Page Doesn't Exist, (500)
Internal Server Error, (501) Server Can't Do That, Generic Error,
Server Is Busy, Couldn't Find Server, URL Syntax Error, Request
Cancelled, Not Available Offline
Error Page
Enter a URL for a website or html file with the specified error.
Browse Button
Tap
Assign as Default
Tap to set a specified error page as the default. A confirmation dialog
opens to ask if the default error page applies to all errors.
Home Page
Enter a URL to set for IE home page.
to browse for files.
Falcon® 4400 Series with Windows Mobile®
Falcon Desktop Utility
Command
Description
Enable Address Bar Enable/disable visibility of the IE address bar.
Warn when leaving Check to receive a security warning when you leave a secure web
a secure page
page.
Warn when security
Check to receive a warning when security blocks a web page.
blocks page
Enable cookies
Select whether to allow cookies to be saved on your device.
Modifying Windows Controls
Tap the Win (Windows Controls) tab to access the Windows Controls option.
Use Windows controls to allow or restrict access to Windows system functions.
You can disable normal Windows functions such as the taskbar, leaving nothing but a blank workspace. This allows applications to be run on the full
screen and prevents users from accidental or unauthorized use of the taskbar,
Internet Explorer, and any other resident applications.
Figure B-8.
Product Reference Guide
B-13
Falcon® Desktop Utility
Table B-8. Win Tab Fields
Command
Description
Show Taskbar
Tap Show Taskbar to specify that the taskbar is shown or hidden.
Taskbar Enabled
Tap Taskbar Enabled to specify whether the taskbar is accessible. This option is only available when the Show Taskbar is
checked.
Application Selector Setup
Use the Application Selector (AppSelect tab) function to edit, add, or delete
applications for the application selector.
Figure B-9. AppSelect Tab
Table B-9. AppSelect Tab Fields
Command
Description
Enable Application Tap Enable Application Selector to enable/disabled the application
selector. When this is enabled, the Application Selector replaces
Selector
the desktop and allows only authorized use of applications.
B-14
Authorized
Applications
This is a list of applications that the user may access.
New
Tap New to create a new application entry.
Falcon® 4400 Series with Windows Mobile®
Application Selector Setup
Command
Description
Edit
Tap Edit to edit the selected entry.
Delete
Tap Delete to delete the selected entry.
Up/Down
Tap Up/Down to move an entry up or down in the listview.
Add Application
Add Application opens when you tap either New or Edit.
From Add Application, the administrator can configure and add or change a
new application entry in the list.
Applications with Run Application at Startup enabled will start automatically
when the Application Selector starts up.
Figure B-10. Add Application
Table B-10. Add Application Fields
Command
Description
Application Title
Enter the name of the application in this textbox in the way you wish it to
appear for the user.
Executable
Displays the path for the executable file which you want to run.
Browse Button
Tap
Product Reference Guide
to browse for the desired executable file.
B-15
Falcon® Desktop Utility
Command
Description
Arguments
Enter any command line arguments to be used when an application is
executed.
Icon File
Displays the path/link to the desired icon file.
Browse Button
Tap
to browse for the desired icon file.
Run Application at Tap to force this application to auto start when the Application Selector
starts up. Applications will be started in the order listed in the authoStartup
rized application list.
Delay
Enter a delay duration in seconds in the combo box.
This option delays auto start of application(s) to allow drivers to load
prior to starting applications
Application Selector
The administrator can choose whether the user has access to the Today screen
or not. The Application Selector can replace the Today screen and limit the
user to the specified list of applications.
Figure B-11. Application Selector
The user taps the desired application to open it.
The administrator can customize this list as shown in "Application Selector
Setup" on page B-14.
B-16
Falcon® 4400 Series with Windows Mobile®
Application Switcher User Interface
Application Switcher User Interface
The application switcher provides the same functionality as the standard Windows® Alt+Tab function. This allows the user to cycle through the various
open applications.
The <Esc> key can be used to close the Application Switcher.
The application switcher is activated
via an assigned Action key specified in
the Hot Key tab. (Refer to "Setting Hot
Keys" on page B-9.) When the
assigned Hot Key is pressed, the dialog
shown to the right will be displayed.
Press the Hot Key assigned to open the application switcher. Press the assigned
Hot Key to cycle through the running applications when the dialog is open.
Press Enter to switch to the selected application or <Esc> to close the application switcher.
Product Reference Guide
B-17
Falcon® Desktop Utility
NOTES
B-18
Falcon® 4400 Series with Windows Mobile®
Appendix C
SNMP Interface
Overview
SNMP
SNMP (Simple Network Management Protocol) is the standard protocol for
managing devices on a network. The Falcon Management Utility (FMU)
makes use of SNMP to send and receive configuration information to the Datalogic Mobile terminals. Since the networked terminals are constantly running
SNMP, this allows FMU to interface with the terminal at any time, without
requiring user intervention on the terminal.
With SNMP running on the terminal, other SNMP based network management tools such as HP Openview® and CastleRock SNMPpc® may also be
used to interface with the terminals. To support this capability, Datalogic has
released the Management Information Base (MIB) for the Datalogic Windows-based terminals. The MIB is used by the management tools to allow
them to better support the configuration values provided on the terminals,
such as scanner controls and terminal type information.
The MIB is available at www.mobile.datalogic.com.
For more information on SNMP, go to: www.microsoft.com.
Product Reference Guide
C-1
SNMP Interface
SNMP Concepts
Simple Network Management Protocol (SNMP) is a standardized protocol for
network management services using a client/server model. The network management program (client) issues queries and commands to the remote device
(agent/server). The protocol itself defines a number of variable types and structures, and the rules for using them for data transfer. Using these variable types
and rules, there are a number of standard variables that are supported by all
SNMP agents. These standards include network addressing (IP address, subnet mask, etc.), and network statistics (total packets, bad packets, etc.).
FMU uses Simple Network Management Protocol (SNMP) to perform many
of its functions. When the Terminal Configuration or Terminal Report function is selected, SNMP is used to query the Terminal for its current Configuration settings, as well as current status information such as battery status and
memory usage. In the same function, SNMP is used to update Terminal Configuration settings when directed to. SNMP is also used by the FMU Servers
to perform the automated Group Configuration update. The Server issues
SNMP queries to discover the current Terminal Configuration, then uses
SNMP commands to update any Configuration settings that need it.
MIB Files
A Management Information Base (MIB) is a file that defines a set of SNMP
variables, their types and usage. There are a number of standard MIBs available, depending on the information being managed.
Datalogic MIBs
Beyond the standard values, SNMP allows manufacturers to define their own
private MIBs. For example, Datalogic has been assigned an MIB by the Internet Assigned Numbers Authority that allows Datalogic to define SNMP values
relating specifically to devices that we manufacture. Within the Datalogic
MIB, several categories of values have been defined including scanner Configurations, Terminal power Configurations and Terminal network parameters.
The format of an MIB follows rules laid out in the appropriate standards,
allowing the manufacturers of network management tools such as HP OpenView and CastleRock SNMPc to make use of the MIBs developed by manufacturers. So by following the procedures used by the management tool, the
MIB can be processed by the tool allowing the proper display of SNMP values
retrieved from the agent.
C-2
Falcon® 4400 Series with Windows Mobile®
Overview
For example, if the Datalogic MIB is loaded into OpenView, the administrator
can then view all of the values defined by DatalogicDatalogic using the names
assigned by Datalogic, as well as a brief explanation of what each value represents. This will also allow the administrator to update most values, and provides range checking information for the tool to take advantage of. The
current Datalogic MIB can be found on the Datalogic Mobile website at
www.mobile.datalogic.com in the Downloads area.
Additional Resources
Additional information on SNMP can be found at the following websites:
www.snmplink.org
www.snmpworld.com
www.simpleweb.com
Product Reference Guide
C-3
SNMP Interface
NOTES
C-4
Falcon® 4400 Series with Windows Mobile®
Appendix D
Cable & Connector Configurations
Introduction
The following pages contain information about standard interface cables for
use in interconnecting the Dock to power and/or peripheral devices.
General Specifications
Wire Requirements
•
Cable length should not exceed 15 feet.
•
Wire gauge = Standard for RJ-45 connectors (28-26 AWG).
Supply Voltage
Current power supply voltage = 12V, 2.5 amp.
USB Cable
Figure D-1 on page D-1 illustrates the connector configuration of the USB
cable for the Falcon.
Figure D-1. USB Connector Configurations
4
2
3
1
5
PC END
FALCON END
72.0" ±2.0"
Product Reference Guide
D-1
Cable & Connector Configurations
Serial Cable
Figure D-2 illustrates the connector configuration of the Serial cable for the
Falcon.
Figure D-2. Serial Connector Configurations
HRS
72 inches +/- 2
Falcon End
PC End
Printer Cable
Figure D-3 illustrates the connector configuration of the Printer cable for the
Falcon.
Figure D-3. Printer Connector Configurations
HRS
6 inches +/- 1
Printer Cable End
D-2
Falcon End
Falcon® 4400 Series with Windows Mobile®
Appendix E
Programming Parameters
Overview
This section contains information about programmable settings for the Falcon
4400 Windows Mobile Falcon. Use the Falcon Management Utility (FMU),
the Scanner Control Panel applet, the Imaging or OCR Control Panel applets,
or the bar codes provided in Appendix F to program the Falcon.
Table E-2 starting on page E-3 provides the following information:
•
Code Parameter is the “human” name for the programming option.
•
I.D. # is the “decoder” name for the programming option. For example,
to set a Code 39 minimum label length, use I.D. 0120. Programming I.D. numbers given in this appendix can be used with all programming methods.
•
Type tells what kind of setting to use for each code parameter.
•
On/Off is a toggle. 1 turns the parameter on, and 0 turns it off.
•
Acceptable Input gives the settings or range of settings for each code
parameter.
•
Defaults indicates how the parameter is set when the predefined
default FF39, FF3A, or FF3B is selected.
• Minimum (FF39) turns every on/off parameter off and sets all minimum and Maximum Label Lengths to the lowest values.
• Maximum (FF3A) turns every on/off parameter on, sets all Minimum Label Lengths to the lowest values, and sets all Maximum
Label Lengths to the highest values. Use this default for troubleshooting; it provides the best settings for reading an unknown bar
code symbology and can identify the symbology of scanned bar
codes.
• Factory (FF3B) is the factory setting installed on the Falcon. This
default set will work for most applications. To reset the Falcon to
the original defaults, scan the Factory bar code on page F-3.
Product Reference Guide
E-1
Programming Parameters
•
Scanner Type shows, with a checkmark, which modules support the
specified parameter.
Programming Codes Without Parameters
The following table describes the functions of special bar codes that take no
parameters:
Table E-1. Programming Codes Without Parameters
Code
Parameter
Function
FF39
Turns every On/Off parameter off and sets all minimum and
Maximum Label Lengths to the lowest values.
Defaults
Maximum
FF3A
Turns every On/Off parameter on and sets all minimum and
Maximum Label Lengths to the highest values. This default set
is normally used only for troubleshooting. It gives the best
chance of reading an unknown bar code symbology and also
identifies the symbology of each bar code scanned.
Defaults
Factory
FF3B
This is the default parameter settings that was installed at the
factory. This default set will work for most applications.
Defaults
Registry
FF3C
This restores all parameter settings to the values that exist in
the registry. This is useful for restoring parameters to a known
working set of values which have been saved using code
parameter FF3F.
Exit and
Restore
FF3D
Stops a label programming sequence and restores all parameter settings to the values that exist in the registry.
Exit and
Save
FF3E
Stops a label programming sequence. The last valid parameter
settings are left intact.
FF3F
Stops a label programming sequence and writes all parameter
settings into the registry. This can be used to save a customized set of parameter settings for restoring later via parameter
FF3C.
Defaults
Minimum
Exit and
Commit
E-2
I.D. #
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Bar Code Parameters
The following table lists the standard customer programmable settings for the
Falcon.
Table E-2. Programmable Standard Bar Code Settings
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Codabar
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Codabar symbology.
0
3
0
0
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
3
0
1
On or
Off
Off
On
Off
9
Enable
Checksum
Requires the use of checksum
characters to verify a bar code.
0
3
0
2
On or
Off
Off
Off
Off
9
9
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission
0
3
0
3
On or
Off
Off
Off
Off
9
9
Concatenate
Allows the decoder to retain and
join together a series of specially
formatted labels, and then send a
single transmission of the entire
result.
0
3
0
4
On or
Off
Off
Off
Off
Product Reference Guide
9
E-3
Programming Parameters
Defaults
I.
D.
#
Acceptable
Input
Send Start/
Stop
Instructs the decoder to transmit
the decoded start and stop characters of Codabar labels. The start
and stop characters will both be
translated as A, B, C, or D.
0
3
0
5
Convert to
CLSI
Restricts the Codabar decoder to
only read labels that conforms to
CLSI specifications. Label length
must be 14, and the data is split
into fields of 1, 4, 5, and 4 characters separated by spaces.
Allow Wide
Intercharacter Gaps
Code Parameter/ Description
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
On or
Off
Off
On
Off
9
9
0
3
0
6
On or
Off
Off
Off
Off
9
Allows wide gaps to appear
between characters in a label.
0
3
0
7
On or
Off
Off
On
On
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
3
2
0
01 - 50
01
01
04
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Codabar label.
The length includes check and data
characters. Maximum Label Length
should be greater than or equal to
Minimum Label Length.
0
3
2
1
01 - 50
01
50
20
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
3
2
2
01 - 04
01
02
01
9
E-4
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
User ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
I.
D.
#
Acceptable
Input
0
3
2
3
Any
single
ASCII
character
(00 =
Off)
Code 39
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
'I'
'I'
'I'
9
9
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Code 39 symbology.
0
1
0
0
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
1
0
1
On or
Off
Off
On
Off
9
Enable
Checksum
Requires the use of checksum
characters to verify a bar code.
0
1
0
2
On or
Off
Off
Off
Off
9
9
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission.
0
1
0
3
On or
Off
Off
Off
Off
9
9
Full ASCII
Mode
Supports the entire ASCII character
set by replacing various encoded
ASCII characters with their corresponding ASCII equivalents.
0
1
0
5
On or
Off
Off
On
On
9
9
Product Reference Guide
E-5
Programming Parameters
Defaults
I.
D.
#
Acceptable
Input
Concatenate
Allows the decoder to retain and
join together a series of specially
formatted labels, and then send a
single transmission of the entire
result.
0
1
0
4
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
Code Parameter/ Description
Scanner Type
Laser/
Linear
Imager
2D
Imag
er
Min
Max
Factory
On or
Off
Off
Off
Off
0
1
2
0
01 - 50
01
01
01
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Code 39 label.
The length includes check and data
characters. Maximum Label Length
should be greater than or equal to
Minimum Label Length.
0
1
2
1
01 - 50
01
50
20
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
1
2
2
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
0
1
2
3
Any
single
ASCII
character
(00 =
Off)
'C'
'C'
'C'
9
E-6
9
9
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Code 93
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Code 93 symbology.
0
4
0
0
On or
Off
Off
On
Off
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
4
0
1
On or
Off
Off
On
Off
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
4
2
0
01 - 50
01
01
02
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Code 93 label.
The length includes check and data
characters. Maximum Label Length
should be greater than or equal to
Minimum Label Length.
0
4
2
1
01 - 50
01
50
20
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
4
2
2
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
0
4
2
3
Any
single
ASCII
character
(00 =
Off)
'L'
'L'
'L'
9
Product Reference Guide
9
E-7
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Code 128
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Code 128
symbology.
0
4
0
8
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
4
0
9
On or
Off
Off
On
Off
9
Enable
UCC/EAN128
Instructs the decoder to recognize
UCC-128 versions of Code 128
labels and process them differently
by changing the Code ID, and
replacing each occurrence of the
FNC1 character with GS (ASCII
29) characters.
0
4
0
C
On or
Off
Off
On
Off
9
9
ISBT Concatenation
Instructs the decoder to concatenate Code 128 labels conforming to
the ISBT 128 standard.
0
4
0
E
On or
Off
Off
Off
9
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
4
2
4
01 - 50
01
01
02
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Code 128
label. The length includes check
and data characters. Maximum
Label Length should be greater
than or equal to Minimum Label
Length.
0
4
2
5
01 - 50
01
50
20
9
9
E-8
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
Read Verification
Sets the number of times a label
must be read before it is transmitted.
User ID
Specifies the symbology identifier
(if any) sent when parameter Send
Code ID (Index 0025) is set to 3.
ASCII code zero (null) is used to
indicate that an identifier is not to
be sent for the symbology.
Scanner Type
I.
D.
#
Acceptable
Input
Min
Max
Factory
Laser/
Linear
Imager
0
4
2
6
01 - 04
01
02
01
9
0
4
2
7
Any
single
ASCII
character
(00 =
Off)
'K'
'K'
'K'
9
9
9
European Article Numbering-13
(EAN-13)
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the EAN-13 symbology.
0
5
1
0
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
5
1
1
On or
Off
Off
On
Off
9
Send
Check
Digit
Includes a check digit in the label
which is transmitted.
0
5
1
2
On or
Off
Off
On
Off
9
Send System Digit
This instructs the decoder to
include the system digit in the label
transmission. For UPC-E, the system digit is zero.
0
5
1
3
On or
Off
Off
On
On
9
Product Reference Guide
2D
Imag
er
9
E-9
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
Convert
EAN-13 to
ISBN
This instructs the decoder to identify ISBN labels and append the
check digit (per ISBN guidelines) to
the end of the label.
0
5
1
4
On or
Off
Off
Off
Off
9
Convert
EAN-13 to
ISSN
This instructs the decoder to identify ISSN labels and append the
check digit (per ISSN guidelines) to
the end of the label.
0
5
1
5
On or
Off
Off
Off
Off
9
Enable
EAN 4Digit Price/
Weight
Check
Digit
Requires the use of a 4-digit price/
weight check digit to verify a bar
code.
0
5
1
6
On or
Off
Off
Off
Off
9
Enable
EAN 5Digit Price/
Weight
Check
Digit
Requires the use of a 4-digit price/
weight check digit to verify a bar
code.
0
5
1
7
On or
Off
Off
Off
Off
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
5
2
4
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
0
5
2
5
Any
single
ASCII
character
(00 =
Off)
'M'
'M'
'M'
9
E-10
2D
Imag
er
9
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
European Article Numbering-8
(EAN-8)
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the EAN-8 symbology.
0
5
1
8
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
5
1
9
On or
Off
Off
On
Off
9
Send
Check
Digit
Instructs the terminal to include the
check digit in the label transmission.
0
5
1
A
On or
Off
Off
On
Off
9
Convert
EAN-8 to
EAN-13
Instructs the decoder to expand
EAN-8 labels to their EAN-13
equivalents. Any EAN-13 parameters will then apply to the result.
0
5
1
B
On or
Off
Off
On
Off
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
5
2
6
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
0
5
2
7
Any
single
ASCII
character
(00 =
Off)
'G'
'G'
'G'
9
Product Reference Guide
9
9
E-11
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Interleaved 2 of 5
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Interleaved 2
of 5 symbology.
0
2
1
0
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
2
1
1
On or
Off
Off
On
Off
9
Enable
Checksum
Requires the use of checksum
characters to verify a bar code.
0
2
1
2
On or
Off
Off
Off
Off
9
9
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission.
0
2
1
3
On or
Off
Off
Off
Off
9
9
Enable
Case Code
Restricts Interleaved 2 of 5 label
lengths to only 6 and 14 data characters. Enabling this parameter
overrides the minimum and maximum length values.
0
2
1
4
On or
Off
Off
Off
Off
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
2
2
8
02 - 50
02
02
06
9
E-12
9
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Scanner Type
I.
D.
#
Acceptable
Input
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Interleaved 2
of 5 label. The length includes
check and data characters. Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
2
2
9
02 - 50
02
50
10
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
2
2
A
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
0
2
2
B
Any
single
ASCII
character
(00 =
Off)
'B'
'B'
'B'
9
9
9
Code Parameter/ Description
Matrix 2 of 5
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Matrix 2 of 5
symbology.
0
2
0
8
On or
Off
Off
On
Off
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
2
0
9
On or
Off
Off
On
Off
9
Enable
Checksum
Requires the use of checksum
characters to verify a bar code.
0
2
0
A
On or
Off
Off
Off
Off
9
Product Reference Guide
E-13
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission.
0
2
0
B
On or
Off
Off
Off
Off
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
2
2
4
01 - 50
01
01
06
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Matrix 2 of 5
label. The length includes check
and data characters. Maximum
Label Length should be greater
than or equal to Minimum Label
Length.
0
2
2
5
01 - 50
01
50
10
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
2
2
6
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
0
2
2
7
Any
single
ASCII
character
(00 =
Off)
'D'
'D'
'D'
9
E-14
9
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
MSI
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the MSI symbology.
0
6
0
8
On or
Off
Off
On
Off
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
6
0
9
On or
Off
Off
On
Off
9
Require
2 Check
Digits
An MSCI label must contain 2
check digits.
0
6
0
A
On or
Off
Off
Off
Off
9
Send
Check Digits
This instructs the decoder to
include any enabled check digit(s)
in the label which is transmitted.
0
6
0
B
On or
Off
Off
On
Off
9
2nd Check
Digit Mod
11
Instructs the decoder to interpret
any second MSI check digit as
modulo 11 instead of modulo 10.
0
6
0
C
On or
Off
Off
Off
Off
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
6
2
4
01 - 15
01
01
04
9
9
Maximum
Label
Length
This feature specifies the maximum
allowable length of an MSI label.
The length includes check and data
characters. Maximum Label Length
should be greater than or equal to
Minimum Label Length.
0
6
2
5
01 - 15
01
15
10
9
9
Product Reference Guide
9
E-15
Programming Parameters
Defaults
Code Parameter/ Description
Read Verification
Sets the number of times a label
must be read before it is transmitted.
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
Scanner Type
I.
D.
#
Acceptable
Input
Min
Max
Factory
Laser/
Linear
Imager
0
6
2
6
01 - 04
01
02
01
9
0
6
2
7
Any
single
ASCII
character
(00 =
Off)
'H'
'H'
'H'
9
9
9
Pharmacode 39 (Code 32)
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Pharmacode
39 (Code 32) symbology.
0
1
1
0
On or
Off
Off
On
Off
9
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission.
0
1
1
2
On or
Off
Off
Off
Off
9
Send Start/
Stop
Instructs terminals to prefix a Pharmacode 39 label with an “A” prior to
transmission.
0
1
1
3
On or
Off
Off
On
Off
9
User ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
0
1
2
7
Any
single
ASCII
character
(00 =
Off)
'Y'
'Y'
'Y'
9
E-16
2D
Imag
er
9
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
RSS-14
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
RSS-14
Enable
Enables/disables the RSS-14 symbology.
0
8
0
0
On or
Off
Off
On
On
9
RSS-14 to
UCC-EAN
128
Instructs the decoder to transmit
the label data as one or more UCC128 labels. The transmission will
use the UCC-128 AIM identifier.
0
8
0
4
On or
Off
Off
On
Off
9
If RSS-14, RSS-Expanded, RSS-Limited, or RSS-Composite symbologies are enabled for UCC-EAN
128, then that setting is also enabled for all other RSS symbologies.
NOTE: For the 2D Imager, RSS-Expanded User Code ID is used for RSS-14
RSS Limited
Enter 1 for On
and 0 for Off.
RSS Limited
Enable
Enables/disables the RSS Limited
symbology.
0
8
0
8
On or
Off
Off
On
On
9
RSS Limited to
UCC-EAN
128
Instructs the decoder to transmit
the label data as one or more UCC128 labels. The transmission will
use the UCC-128 AIM identifier.
0
8
0
C
On or
Off
Off
On
Off
9
If RSS-14, RSS-Expanded, RSS-Limited, or RSS-Composite symbologies are enabled for UCC-EAN
128, then that setting is also enabled for all other RSS symbologies.
NOTE: For the 2D Imager, RSS-Expanded User Code ID is used for RSS-Limited
Product Reference Guide
E-17
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
RSS Expanded
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
RSS
Expanded
Enable
Enables/disables the RSS
Expanded symbology.
0
8
1
0
On or
Off
Off
On
On
9
RSS
Expanded
to UCCEAN 128
Instructs the decoder to transmit
the label data as one or more UCC128 labels. The transmission will
use the UCC-128 AIM identifier.
0
8
0
4
On or
Off
Off
On
Off
9
RSS
Expanded
Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
8
2
4
1 - 74
1
74
1
9
RSS
Expanded
Maximum
This feature specifies the maximum
allowable length of a label. The
length includes check and data
characters, if applicable. Maximum
Label Length should be greater
than or equal to Minimum Label
Length.
0
8
2
5
1 - 74
1
74
74
9
RSS
Expanded
User
Code ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
0
8
2
7
Any
single
ASCII
character (00
= Off)
‘R’
‘R’
‘R’
9
E-18
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Standard 2 of 5
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Standard 2 of
5 symbology.
0
2
0
0
On or
Off
Off
On
Off
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
2
0
1
On or
Off
Off
On
Off
9
Enable
Checksum
Requires the use of checksum
characters to verify a bar code
0
2
0
2
On or
Off
Off
Off
Off
9
Send
Checksum
Instructs the terminal to include the
checksum in the label transmission.
0
2
0
3
On or
Off
Off
Off
Off
9
Use 2-bar
Start/Stop
Allows the terminal to recognize
labels that are printed using only
two bars for start/stop characters.
0
2
0
4
On or
Off
Off
Off
Off
9
9
Minimum
Label
Length
Set the minimum label length to be
less than or equal to maximum
label length.
0
2
2
0
01 - 50
01
01
06
9
9
Product Reference Guide
E-19
Programming Parameters
Defaults
Scanner Type
I.
D.
#
Acceptable
Input
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
Maximum
Label
Length
This feature specifies the maximum
allowable length of a Standard 2 of
5 label. The length includes check
and data characters. Maximum
Label Length should be greater
than or equal to Minimum Label
Length.
0
2
2
1
01 - 50
01
50
10
9
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
2
2
2
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology.
0
2
2
3
Any
single
ASCII
character
(00 =
Off)
'F'
'F'
'F'
9
9
9
Code Parameter/ Description
Trioptic
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the Trioptic symbology.
0
1
0
8
On or
Off
Off
On
Off
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
1
0
9
On or
Off
Off
On
Off
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
1
2
4
01 - 04
01
02
01
9
E-20
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
User ID
I.
D.
#
Acceptable
Input
0
1
2
5
Any
single
ASCII
character
(00 =
Off)
Specifies the symbology identifier
(if any) that is sent when parameter
Send Code ID (Index 0025) is set to
3. ASCII code zero (null) is used
to indicate that an identifier is not to
be sent for the symbology
Universal Product Code-A (UPCA)
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
'X'
'X'
'X'
9
9
9
Enter 1 for On
and 0 for Off.
Enable
Enables/disables the UPC-A symbology.
0
5
0
0
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
5
0
1
On or
Off
Off
On
Off
9
Send
Check
Digit
Includes check digit in the label
which is transmitted.
0
5
0
2
On or
Off
Off
On
Off
9
9
Send System Digit
Includes the system digit in the
label transmission. For UPC-A, the
system digit is always zero.
0
5
0
3
On or
Off
Off
On
On
9
9
Convert
UPC-A to
EAN-13
Instructs the decoder to expand
UPC-A labels to their EAN-13
equivalents. Any EAN-13 parameters will then apply to the result.
0
5
0
4
On or
Off
Off
On
Off
9
Product Reference Guide
E-21
Programming Parameters
Defaults
Code Parameter/ Description
Read Verification
Sets the number of times a label
must be read before it is transmitted.
User ID
Specifies the symbology identifier
(if any) sent when parameter Send
Code ID (Index 0025) is set to 3.
ASCII code zero (null) is used to
indicate that an identifier is not to
be sent for the symbology.
Scanner Type
I.
D.
#
Acceptable
Input
Min
Max
Factory
Laser/
Linear
Imager
0
5
2
0
01 - 04
01
02
01
9
0
5
2
1
Any
single
ASCII
character
(00 =
Off)
'A'
'A'
'A'
9
9
9
Universal Product Code-E (UPCE)
2D
Imag
er
Enter 1 for On
and 0 for Off.
Enable
System
Digit 0
Enables/disables UPC-E labels
with a system digit of zero.
0
5
0
8
On or
Off
Off
On
On
9
Enable
Aggressive
Decoding
Enables more aggressive decoding
algorithms to be used in order to
scan hard to read labels.
0
5
0
9
On or
Off
Off
On
Off
9
Send
Check
Digit
Includes the check digit in the label
which is transmitted.
0
5
0
A
On or
Off
Off
On
Off
9
9
Send System Digit
This instructs the decoder to
include the system digit in the label
transmission. For UPC-E, the system digit is zero.
0
5
0
B
On or
Off
Off
On
Off
9
9
E-22
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Convert
UPC-E to
UPC-A
Instructs the decoder to expand
UPC-E labels to their UPC-A equivalents. Any UPC-A parameters will
then apply to the result.
0
5
0
C
On or
Off
Off
On
Off
9
Read Verification
Sets the number of times a label
must be read before it is transmitted.
0
5
2
2
01 - 04
01
02
01
9
User ID
Specifies the symbology identifier
(if any) that is sent by the decoder
when parameter Send Code ID
(Index 0025) is set to 3. ASCII
code zero (null) is used to indicate
that an identifier is not to be sent for
the symbology.
0
5
2
3
Any
single
ASCII
character
(00 =
Off)
'E'
'E'
'E'
9
9
UPC/EAN Extensions
Enter 1 for On
and 0 for Off.
Enable 2Digit
Extensions
Requires a 2 digit extension (supplemental label) to be verified for a
successful decode of a label.
0
5
1
C
On or
Off
Off
On
On
9
9
Enable 5Digit
Extensions
Requires a 5 digit extension (supplemental label) to be verified for a
successful decode of a label.
0
5
1
D
On or
Off
Off
On
On
9
9
Enable
Code 128
Extensions
Enables/disables Code 128 extensions.
0
5
1
E
On or
Off
Off
On
On
Product Reference Guide
9
E-23
Programming Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Scanner Type
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
9
Require
Extensions
Instructs the decoder to require any
enabled UPC/EAN extensions (supplemental labels) to be with a label
in order for a scan to be successful.
0
5
1
F
On or
Off
Off
Off
Off
9
Read Verification
Sets the number of times an extension (supplemental label) must be
read before it is included in the
transmission of the base UPC/EAN
label.
0
5
2
8
01 - 04
01
01
01
9
Table E-3. Programmable 2D Symbologies
Defaults
Code Parameter/ Description
I.
D.
#
Accept
able
Input
Aztec Code
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
Aztec
Code
Enable
Enables/disables the Aztec symbology.
0
B
1
8
On or
Off
Off
On
On
9
Enable
Aztec
Runes
Enables/disables Aztec runes,
which are the smallest type of
Aztec Code symbol with the ability
to encode a very short message.
0
B
1
A
On or
Off
Off
On
Off
9
Aztec
Code Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
B
2
C
1 - 3750
1
3750
1
9
E-24
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Scanner Type
I.
D.
#
Accept
able
Input
Min
Max
Factory
Aztec
Code Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
B
2
D
1 - 3750
1
3750
3750
9
Aztec
Code User
ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
B
2
F
Any single
ASCII
character (00 =
Off)
‘d’
‘d’
‘d’
9
Code Parameter/ Description
DataMatrix
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
Datamatrix
Enable
Enables/disables the Datamatrix
symbology.
0
B
0
0
On or
Off
Off
On
On
9
Datamatrix
Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
B
2
0
1 - 1500
1
1500
1
9
Datamatrix Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
B
2
1
1 - 1500
1
1500
1500
9
Product Reference Guide
E-25
Programming Parameters
Defaults
Code Parameter/ Description
Datamatrix User
Code ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
I.
D.
#
Accept
able
Input
0
B
2
3
Any single
ASCII
character (00 =
Off)
Composite
Scanner Type
Laser/
Linear
Imager
2D
Imag
er
Min
Max
Factory
‘V’
‘V’
‘V’
9
Enter 1 for On
and 0 for Off.
Composite Enable
Enables/disables the Composite
symbology.
0
A
1
0
On or
Off
Off
On
Off
9
Composite to
UCC/EAN128
Instructs the decoder to transmit
the label data as one or more
UCC-128 labels. The transmission will use the UCC-128 AIM
identifier.
0
A
1
4
On or
Off
Off
Off
Off
9
Composite
Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
A
2
8
1 - 2435
1
2435
1
9
Composite Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
A
2
9
1 - 2435
1
2435
2435
9
E-26
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
Composite
User ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
I.
D.
#
Accept
able
Input
0
A
2
B
Any single
ASCII
character (00 =
Off)
Scanner Type
Min
Max
Factory
‘b’
‘b’
‘b’
Laser/
Linear
Imager
2D
Imag
er
NOTE: For the 2D Imager, RSS-Expanded User Code ID is used for Composite
Maxicode
Enter 1 for On
and 0 for Off.
Maxicode
Enable
Enables/disables the Maxicode
symbology.
0
B
0
8
On or
Off
Off
On
On
9
Minimum
Label
Length
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
B
2
4
1 - 138
1
138
1
9
Maxicode
Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
B
2
5
1 - 138
1
138
138
9
Maxicode
User ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
B
2
7
Any single
ASCII
character (00 =
Off)
‘W’
‘W’
‘W’
9
Product Reference Guide
E-27
Programming Parameters
Defaults
Code Parameter/ Description
OCR
I.
D.
#
Accept
able
Input
Also see "OCR Configuration" on
page E-37
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
OCR Font
Selects which OCR font (if any)
the decoder will be allowed to read
with an imager
0
C
2
2
0
(None),
1 (OCRA),
2 (OCRB),
3 (U.S.
Currency),
4 (MICR
E 13 B)
OCR
Enable
Mod 36
Check
Digit
Enables use of an OCR Mod 36
check digit in a template.
0
C
0
2
On or
Off
Off
On
Off
9
0
0
0
9
OCR
Check
Digit Mod
36
Specifies check digit type:
0 Mod 10,
1 Mod 32
0
C
0
3
0 or 1
Off
Off
Off
9
OCR User
ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
C
2
1
Any single
ASCII
character (00 =
Off)
‘e’
‘e’
‘e’
9
E-28
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Code Parameter/ Description
I.
D.
#
Accept
able
Input
PDF 417
Min
Max
Scanner Type
Factory
Laser/
Linear
Imager
2D
Imag
er
Enter 1 for On
and 0 for Off.
PDF-417
Enable
Enables/disables the PDF 417
symbology.
0
A
0
0
On or
Off
Off
On
On
9
PDF-417
Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
A
2
0
1 - 2710
1
2710
1
9
PDF-417
Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
A
2
1
1 - 2710
1
2710
2710
9
PDF-417
User Code
ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
A
2
3
Any single
ASCII
character (00 =
Off)
‘S’
‘S’
‘S’
9
Off
9
MicroPDF 417
MicroPDF417
Enable
Enables/disables the MicroPDF
417 symbology.
Product Reference Guide
Enter 1 for On
and 0 for Off.
0
A
0
8
On or
Off
Off
On
E-29
Programming Parameters
Defaults
Code Parameter/ Description
Scanner Type
I.
D.
#
Accept
able
Input
Min
Max
Factory
Laser/
Linear
Imager
2D
Imag
er
MicroPDF417 Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
A
2
4
1 - 366
1
366
1
9
MicroPDF417 Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
A
2
5
1 - 366
1
366
366
9
MicroPDF417 User
Code ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
A
2
7
Any single
ASCII
character (00 =
Off)
‘a’
‘a’
‘a’
9
QR Code
Enter 1 for On
and 0 for Off.
QR Code
Enable
Enables/disables QR Code symbology.
0
B
1
0
On or
Off
Off
On
Off
9
QR Code
Minimum
Set the minimum bar code label
length to be less than or equal to
maximum label length.
0
B
2
8
1 - 3500
1
3500
1
9
E-30
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Defaults
Scanner Type
I.
D.
#
Accept
able
Input
Min
Max
Factory
QR Code
Maximum
This feature specifies the maximum allowable length of a label.
The length includes check and
data characters, if applicable.
Maximum Label Length should be
greater than or equal to Minimum
Label Length.
0
B
2
9
1 - 3500
1
3500
3500
9
QR Code
User ID
Specifies the symbology identifier
(if any) that is sent when parameter Send Code ID (Index 0025) is
set to 3. ASCII code zero (null) is
used to indicate that an identifier is
not to be sent for the symbology.
0
B
2
B
Any single
ASCII
character (00 =
Off)
‘c’
‘c’
‘c’
9
Code Parameter/ Description
Laser/
Linear
Imager
2D
Imag
er
Table E-4. Imaging Controls
Code Parameter/ Description
I.
D.
#
Imaging Controls
Acceptable
Input
Defaults
Min
Max
Factory
Enter 1 for On and 0 for Off.
Imager Illuminate
Enable
Instructs the PDT to illuminate the scanning
area (independent of any targeting beam)
when using an imager.
0
0
0
8
On or
Off
On
On
On
Imager Aim
Mode
Toggles between two different operating
modes for the targeting beam:
Concurrent (Off): The targeting beam is
turned on at the same time as an enabled
illumination beam.
Interlaced (On): Toggles the aimer and illumination beam.
0
0
0
9
On or
Off
On
On
On
Product Reference Guide
E-31
Programming Parameters
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Defaults
Min
Max
Factory
Imager Aim
Enable
Instructs the PDT to make use of a targeting beam when an imager is installed
0
0
0
A
On or
Off
On
On
On
Image LED
Enable
Instructs the imager to use LED illumination
when taking images.
0
C
0
8
On or
Off
Off
Off
Off
Image LR Filter Enable
Instructs the imager to use a filter that
improves the quality of images taken at
longer distances.
0
C
0
9
On or
Off
Off
Off
Off
Imaging
Width
Specifies the width of images taken with an
imager
0
C
2
3
1 to 640
(in pixels)
640
640
640
Imaging
Height
Specifies the height of images taken with
an imager.
0
C
2
4
1 to 480
(in pixels)
480
480
480
0
C
2
5
0 to 3 (0
to 270
degrees
in 90
degree
increments)
0
0
0
Imaging
Rotation
E-32
Specifies how much the imager will rotate
images it takes.
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
I.
D.
#
Acceptable
Input
Imaging
Scale
Specifies how much the imager is to scale
images it takes. It is the percentage of the
original image that is used to create the
final image. Scales the x,y dimensions of
the image.
Code Parameter/ Description
Defaults
Min
Max
Factory
0
C
2
6
0=
100%
1 = 50%
(1/4
size)
2 = 33%
(1/9
size)
3 = 25%
(1/16
size)
0
0
0
Imaging Format
Specifies the storage format an imager will
use when taking images.
0 (TIFF monochrome)
1 (TIFF 8 bit grayscale)
2 (JPEG 8 bit grayscale)
3 (BMP monochrome)
4 (BMP 8 bit grayscale)
0
C
2
7
0 to 4
2
2
2
Imaging
Brightness
Specifies the brightness level an imager will
use when taking images
0
C
2
8
0 to 99
(low to
high)
50
50
50
Imaging
Edge Sharpness
Specifies how much (if at all) an imager will
attempt to sharpen edges in images it
takes.
0
C
2
9
0 (off), 1
to 99
(dull to
sharp)
0
0
0
JPEG
Imaging
Quality
Specifies the level of quality an imager will
use when taking images. Lower levels
result in images which have greater levels
of lost detail, but have smaller storage
requirements and transmit faster.
0
C
2
A
0 to 99
(lower to
higher)
50
99
99
Product Reference Guide
E-33
Programming Parameters
Code Parameter/ Description
Specifies the amount of correction the
imager applies when taking images.
Gamma correction attempts to match the
way the imager responds to light levels to
that of the human eye.
Imaging
Gamma Correction
I.
D.
#
Acceptable
Input
0
C
2
B
0 (none),
1 to 99
(less to
more)
Defaults
Min
Max
Factory
0
0
0
Table E-5. Other Controls
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Other Controls
Enable Label
Programming
Beeper Volume
Long Range
Trigger Mode
Spotting Beam
Enable
E-34
Defaults
Min
Max
Factory
Enter 1 for On and 0 for Off.
Enables/disables the ability to perform
label programming.
F
F
0
0
On or Off
On
On
On
Adjusts the beeper volume.
F
F
2
0
00 = Off
00 - 09
(01 = Lowest;
07 = Highest;
08 = Higher;
09 = Lower)
07
07
07
Selects the Long Range Trigger mode.
0
0
0
0
On = Release
Scan Off =
Spot Timeout
Off
Off
Off
Enables/disables the Spotting Beam
0
0
0
1
On or Off
On
On
On
Falcon® 4400 Series with Windows Mobile®
Bar Code Parameters
Code Parameter/ Description
I.
D.
#
Acceptable
Input
Defaults
Min
Max
Factory
00 = 0.25 sec.
01 = 0.5 sec.
02 = 1.0 sec.
03 = 1.5 sec.
04 = 2.0 sec.
01
01
01
Spotting Beam
Timeout
Sets the duration of the spotting beam
before it automatically turns off.
0
0
2
3
Release Scan
Timeout
Sets the duration of the scan before it
turns off.
0
0
2
4
1-10
02
02
02
Number of
Good-Read
Beeps
Determines the number of beeps for a
good read indicator.
0
0
2
0
01 - 04
01
01
01
Good-Read
Beep Tone
Adjusts the pitch of the beeper frequency.
0
0
2
1
00 - 07
(00 = Lowest;
07 = Highest)
00
00
00
Good-Read
Beep Duration
Determines the duration of a good read
beep.
0
0
2
2
00 = 0.07 sec.
01 = 0.13 sec.
02 = 0.18 sec.
03 = 0.36 sec.
00
00
00
Send Symbology Identifiers
Specifies the symbology identifier (if any)
that is sent by the decoder when parameter Send Code ID (Index 0025) is set to 3.
ASCII code zero (null) used to indicate
an identifier not to be sent for the symbology.
0
0
2
5
00 = Off
01 = DLM
IDs*
02 = AIM IDs
03 = User IDs
00
01
00
Indicates a label prefix.
0
0
2
6
Any single
ASCII character
(00 = Off)
No
ne
Non
e
None
Label Prefix
Product Reference Guide
E-35
Programming Parameters
Code Parameter/ Description
Label Suffix
Indicates a label suffix.
I.
D.
#
Acceptable
Input
0
0
2
7
Any single
ASCII character
(00 = Off)
Defaults
Min
Max
Factory
CR
CR
CR
Table E-6. Datalogic Mobile Label IDs
Datalogic Mobile Label IDs
UPC-A = A
Code 128 = K
Trioptic = X
UPC-E = E
I 2 of 5 = B
Pharmacode 39 = Y
EAN-8 = G
S 2 of 5 = F
RSS-14 = P
EAN 13 = M
M 2 of 5 = D
RSS Limited = Q
Code 39 = C
Code 93 = L
RSS Expanded = R
Codabar = I
MSI = H
E-36
Falcon® 4400 Series with Windows Mobile®
OCR Configuration
OCR Configuration
The Falcon provides limited support for OCR configuration. OCR configuration is performed with a combination of PDT parameters and registry settings.
For purposes of configuration, OCR is considered one symbology. Only one
font can be active at a time.
OCR Data Output
OCR data is outputted to the system as though it were bar code data. Characters of the OCR fonts are outputted as printed. Only A-Z, 0-9 are supported.
The maximum number of OCR rows is three. The maximum number of characters per row is 16. This means that the overall maximum number of OCR
characters is 48 characters.
Check digits are not outputted with OCR data. See "OCR Check Characters"
starting on page E-42 for more information.
OCR Templates
You can specify a null-terminated string that defines the length and content of
OCR strings that can be read. This string can be used to specify a single template or multiple templates that are concatenated together. You can also stipulate two template variables that specify a configurable class of characters.
By default, a single template is defined that allows for any 8-digit OCR string
to be read.
Product Reference Guide
E-37
Programming Parameters
The list box displays templates, with
each list item displayed as a one-line
string.
•
Use the Char Type spin box to
select allowable characters.
•
Use the Number to set length.
•
Select/deselect the Check Digit
checkbox.
•
Tap the “Add” button to add a
new list item that conforms to
the three controls above this
button.
•
Tap “Delete” to remove the
selected item from the list box.
•
Tap “Custom” to add a template that does not match a standard. See
Table E-7 on page E-39.
Printable template characters (0x20 – 0x7E) are represented by themselves,
and template control characters are printed according to template characters
shown in Table E-7 on page E-39.
Template separator characters are not printed; templates are displayed as separate list items.
Building a Single Template
A template allows you to specify the format of an OCR string that can be read.
The imager will only decode OCR strings that match a specified template.
This template can be made up of any combination of characters that are specified in Table E-7. The “Character” column shows what is entered into Custom
to make a custom template. The one exception is the check digit character
(0x03). See "OCR Check Characters" starting on page E-42 for more information about OCR check digit.
E-38
Falcon® 4400 Series with Windows Mobile®
OCR Configuration
Table E-7. Template Characters
Character
Hex
Description
\A or \a
0x01
Represents any letter or number (A-Z, 0-9)
\C or \c
0x03
Represents a check digit
\D or \d
0x04
Represents any digit (0-9)
\E or \e
0x05
Represents any font character (A-Z, 0-9)
\G or \g
0x06
Custom character class 1 variable
CTL-H
0x07
Custom character class 2 variable
\R or \r
0x0A
Represents start of new template
\L or \l
0x0C
Represents any upper case character (A-Z)
\N or \n
0x0D
Represents the start of a new row
SP to ‘7E’
0x20 to 0x7E
These characters represent themselves
Template examples can be found in Table E-8. Template characters are shown
in hexadecimal format with spaces used as character delineators. The sample
column shows an example of an OCR string that matches the template format.
Table E-8. Single Template Examples
Template (HEX)
04 04 04 04 04 04 04 04
04 04 04 41 42 43 04 04 04
05 05 05 20 05 04 04 04
04 04 04 04 04 04 04 04 03
Product Reference Guide
Sample
Description
A string of any 8 digits.
A string starting with any 3 digits, followed by
“ABC”, ending with any 3 digits
A string starting with any 3 digits, followed by a
space, followed by any character, and ending
with any 3 digits.
A string of any 8 digits with check digit.
E-39
Programming Parameters
Multiple Rows
A single template can specify up to three rows. The \N character is used to
delineate the start of a new row. Table E-9 gives some examples of multiple
row templates.
Table E-9. Multiple Row Template Examples
Template (HEX)
Sample
Description
04 04 04 04 04 04 04 04 0D 0C
0C 0C 0C 0C 0C 0C 0C
A string with one row of 8 digits and one row of
8 upper case letters
41 05 05 05 05 0D 42 05 04 0D
43 04 04 04 04
A string with one row starting with an “A” and
ending with any 4 characters, one row starting
with a “B” and ending with 2 digits, and one row
starting with a “C” and ending with 4 digits.
41 0D 42 0D 43
A string with three rows, the first being “A”, the
second being “B”, and the last being “C”.
Multiple Templates
Multiple templates can be created by concatenating templates together. The \R
character is used to concatenate templates. When this character is present it
signifies that the next characters specify a new template. Logically the \R character is an OR statement meaning that if an OCR string matches any of the
specified templates it will be read. Any number of templates can be concatenated as long as the total number of template characters is no greater than 128.
Table E-10 shows some examples of multiple templates.
E-40
Falcon® 4400 Series with Windows Mobile®
OCR Configuration
Table E-10. Multiple Template Examples
Template (HEX)
Sample
Description
or
04 04 04 04 0C 0C 04 04 0A 04
04 04 04 04 04 04 04
A string starting with any 4 digits, followed by
any 2 upper case letters, ending with 2 digits.
OR
A string of any 8 digits.
A string of any 2 characters.
or
05 05 0A 05 05 05 05 0A 05 05 05
05 05 05
OR
A string of any 4 characters.
or
OR
A string of any 6 characters.
04 04 04 04 03 0D 04 04 04 04 03
0D 04 04 04 04 03 0A 05 05 05 05
0D 04 04 04 04
Product Reference Guide
A string with 3 rows with each row having any 4
digits and a check character.
or
OR
Two strings, the first having any 4 characters,
and the second having any 4 digits.
E-41
Programming Parameters
Custom Character Classes
A custom character class (CCC) is a string of up to 50 printable characters that
is associated with a template variable. When a template variable is specified in
a template only characters in the associated CCC string will be allowed in the
specified character position. The variable \G is associated with custom character class 1 (CCC1) and the variable \H is associated with custom character
class 2 (CCC2). Table E-11 gives some examples of how CCCs are used. The
CCC strings must specify at least one character for the associated variable to be
used in a template.
Table E-11. Custom Character Class Examples
Template (HEX)
06 06 06 06 06 06
CCC1
CCC2
AB
N/A
06 06 06 07 07 07
AB
CDE12
06 06 06 07 07 07
AB
NULL
07 4D 06 04 05
BDA1
12
Sample
Description
A string of 6 characters where each
character is either “A” or “B”.
A string starting with 3 characters that
can be any combination of “A” and
“B”, and ending with 3 characters that
can be any combination of “C”, “B”,
“E”, “1”, or “2”.
N/A
Error, CCC2 not defined.
A string starting with “1” or “2”, followed by “M”, followed by either “B”,
“D”, “A”, or “1”, followed by any character.
OCR Check Characters
OCR can be configured to use either a Modulo 10 or Modulo 36 check digits
using the PDT parameters. A check digit is used to verify the contents of a bar
code by calculating the total of the data. By default, OCR is configured to use
Modulo 10 check digits. This setting is global to all check digits. The following must be true for the placement of a check digit to be considered valid:
E-42
•
The check digit must be put at the end of a row.
•
There can be no more than 1 check character in a row.
•
Rows with check digits can only have the characters 0-9 and A-Z.
Falcon® 4400 Series with Windows Mobile®
OCR Configuration
Modulo 10 Check Digit
Modulo 10 allows you to set a check digit for the numbers 0 through 9, with
values corresponding to the numbers.
The general formula for calculating a Modulo 10 check digit is as follows:
(dn + . . . + d3 + d2 + d1 + d0) modulo 10 = 0
Modulo 10 Example
1212121212
(1 + 2 + 1 + 2 + 1 + 2 + 1 + 2 + 1 + 2 + x) modulo 10 = 0
(15 + x) modulo 10 = 0
(15 + 5) modulo 10 = 0
x = 5, so the check digit would be 5.
The final string including the check digit would be 12121212125.
Modulo 36
Modulo 36 allows you to set a check digit for the characters 0 - 9 and A -Z.
The numbers correspond to the values just as in Modulo 10 and the values for
alphabetic characters start at 10 for A and end with Z at 35, as shown in
Table E-12.
Table E-12. Modulo 36 character values
A
B
C
D
E
F
G
H
I
10
11
12
13
14
15
16
17
18
J
K
L
M
N
O
P
Q
R
19
20
21
22
23
24
25
26
27
S
T
U
V
W
X
Y
Z
28
29
30
31
32
33
34
35
The general formula for calculating a Modulo 36 check digit is as follows:
(dn + . . . + d3 + d2 + d1 + d0) modulo 36 = 0
Product Reference Guide
E-43
Programming Parameters
Modulo 36 Example
ABCD123
A
C
B
D
1
2
3
(10 + 11 + 12 + 13 + 1 + 2 + 3 + x) modulo 36 = 0
(52 + x) modulo 36 = 0
(52 + 20) modulo 36 = 0
x = 20, so using the value from Table E-12, the check digit would be K. The
final string including the check digit would be ABCD123K.
Table E-13. ASCII/Hex Conversion Table
ASCII
Hex
ASCII
Hex
ASCII
Hex
NUL
00
SP
20
@
40
SOH
01
!
21
A
41
a
61
STX
02
“
22
B
42
b
62
ETX
03
#
23
C
43
c
63
EOT
04
$
24
D
44
d
64
ENQ
05
%
25
E
45
e
65
ACK
06
&
26
F
46
f
66
BEL
07
&
26
G
47
g
67
BS
08
(
28
H
48
h
68
HT
09
)
29
I
49
i
69
LF
0A
*
2A
J
4A
j
6A
VT
0B
+
2B
K
4B
k
6B
FF
0C
,
2C
L
4C
l
6C
CR
0D
-
2D
M
4D
m
6D
SO
0E
.
2E
N
4E
n
6E
SI
0F
/
2F
O
4F
o
6F
DLE
10
0
30
P
50
p
70
DC1
11
1
31
Q
51
q
71
DC2
12
2
32
R
52
r
72
DC3
13
3
33
S
53
s
73
DC4
14
4
34
T
54
t
74
NAK
15
5
35
U
55
u
75
SYN
16
6
36
V
56
v
76
E-44
ASCII
Hex
60
Falcon® 4400 Series with Windows Mobile®
OCR Configuration
ASCII
Hex
ASCII
Hex
ASCII
Hex
ASCII
Hex
ETB
17
7
37
W
57
w
77
CAN
18
8
38
X
58
x
78
EM
19
9
39
Y
59
y
79
SUB
1A
:
3A
Z
5A
z
7A
ESC
1B
;
3B
[
5B
{
7B
FS
1C
<
3C
\
5C
|
7C
GS
1D
=
3D
]
5D
}
7D
RS
1E
>
3E
^
5E
~
7E
US
1F
?
3F
_
5F
DEL
7F
Product Reference Guide
E-45
Programming Parameters
NOTES
E-46
Falcon® 4400 Series with Windows Mobile®
Appendix F
Programming Bar Codes
Overview
This appendix provides bar codes for common setup parameters for programming the Falcon 44xx. Factory default settings are underlined.
To make settings that are not provided in the chapter, you can design custom
bar codes or use the Falcon Management Utility (FMU) to program the Falcon. Refer to Configuration Settings, on page 2-1.
1D Symbologies
Symbologies and bar code setup parameters included in this appendix are:
• "Predefined Defaults" on page F-3.
• "Codabar" starting on page F-3.
• "Code 39" starting on page F-5.
• "Code 93" starting on page F-8.
• "Code 128" on page F-10.
• "EAN-13" starting on page F-12.
• "EAN-8" on page F-14.
• "Interleaved 2 of 5" on page F-15
• "Matrix 2 of 5" on page F-17
• "MSI" starting on page F-19.
• "Pharmacode 39 (Code 32)" on page F-21.
• "RSS-14" on page F-21.
• "RSS Limited" on page F-22.
• "RSS Expanded" on page F-22.
• "Standard 2 of 5" starting on page F-24.
• "Trioptic" on page F-26.
• "UPC-A" starting on page F-26.
Product Reference Guide
F-1
Programming Bar Codes
•
•
"UPC-E" on page F-28.
"UPC/EAN Extensions" on page F-29.
2D Symbologies
•
•
•
•
•
•
•
•
"Aztec Code" starting on page F-30.
"DataMatrix" starting on page F-32.
"Composite" starting on page F-34.
"Maxicode" starting on page F-36.
"OCR" on page F-38.
"PDF-417" starting on page F-39.
"MicroPDF-417" starting on page F-41.
"QR Code" starting on page F-43.
•
"Other Controls" starting on page F-45.
Depending on which Falcon model you have, some programming parameters may
not be available on your unit. Refer to Table E-2 on page E-3 and Table E-3 on
page E-24 for specific details on which parameters are applicable.
F-2
Falcon® 4400 Series with Windows Mobile®
Predefined Defaults
Predefined Defaults
Minimum
Registry
*
/
/
F F 3 9 F F 3 F
Maximum
*
/
/
F F 3 A F F 3 F
*
*
*
Restore
From
Registry
/
/
F F 3 C F F 3 F
*
/
/
F F 3 D *
*
/
/
F F 3 F
*
Save To
Registry
Factory
*
/
/
F F 3 B F F 3 F
*
*
Codabar
ENABLE
O
n
*
/
/
0 3 0 0 1 F F 3 E *
O
f
f
*
/
/
0 3 0 0 0 F F 3 E *
O
f
f
*
/
/
0 3 0 1 0 F F 3 E *
O
f
f
*
/
/
0 3 0 2 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 3 0 1 1 F F 3 E *
ENABLE CHECKSUM
O
n
*
/
/
0 3 0 2 1 F F 3 E *
SEND CHECKSUM
O
n
*
/
/
0 3 0 3 1 F F 3 E *
Product Reference Guide
O
f
f
*
/
/
0 3 0 3 0 F F 3 E *
F-3
Programming Bar Codes
CONCATENATE
O
n
*
/
/
0 3 0 4 1 F F 3 E *
O
f
f
*
/
/
0 3 0 4 0 F F 3 E *
SEND START/STOP
O
n
*
/
/
0 3 0 5 1 F F 3 E *
O
f
f
*
/
/
0 3 0 5 0 F F 3 E *
*
/
/
0 3 0 6 0 F F 3 E *
*
/
/
0 3 0 7 0 F F 3 E *
*
/
/
0 3 2 0 3 0 F F 3 E *
*
/
/
0 3 2 0 4 0 F F 3 E *
*
/
/
0 3 2 0 5 0 F F 3 E *
CONVERT TO CLSI
O
n
*
/
/
0 3 0 6 1 F F 3 E *
O
f
f
ALLOW WIDE INTERCHARACTER GAPS
O
n
*
/
/
0 3 0 7 1 F F 3 E *
O
f
f
MINIMUM LENGTH
3
0
1
*
/
/
0 3 2 0 0 1 F F 3 E *
4
0
4
*
/
/
0 3 2 0 0 4 F F 3 E *
1
0
5
0
*
/
/
0 3 2 0 1 0 F F 3 E *
*
/
/
0 3 2 0 2 0 F F 3 E *
2
0
F-4
Falcon® 4400 Series with Windows Mobile®
Code 39
MAXIMUM LENGTH
3
0
1
*
/
/
0 3 2 1 0 1 F F 3 E *
1
0
*
/
/
0 3 2 1 3 0 F F 3 E *
*
/
/
0 3 2 1 4 0 F F 3 E *
*
/
/
0 3 2 1 5 0 F F 3 E *
*
/
/
0 3 2 2 0 3 F F 3 E *
*
/
/
0 3 2 2 0 4 F F 3 E *
4
0
*
/
/
0 3 2 1 1 0 F F 3 E *
5
0
2
0
*
/
/
0 3 2 1 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 3 2 2 0 1 F F 3 E *
2
4
*
/
/
0 3 2 2 0 2 F F 3 E *
Code 39
ENABLE
O
n
*
/
/
0 1 0 0 1 F F 3 E *
O
f
f
*
/
/
0 1 0 0 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 1 0 1 1 F F 3 E *
Product Reference Guide
O
f
f
*
/
/
0 1 0 1 0 F F 3 E *
F-5
Programming Bar Codes
ENABLE CHECKSUM
O
n
*
/
/
0 1 0 2 1 F F 3 E *
O
f
f
*
/
/
0 1 0 2 0 F F 3 E *
*
/
/
0 1 0 3 0 F F 3 E *
*
/
/
0 1 0 5 0 F F 3 E *
*
/
/
0 1 0 4 0 F F 3 E *
SEND CHECKSUM
O
n
*
/
/
0 1 0 3 1 F F 3 E *
O
f
f
FULL ASCII MODE
O
n
*
/
/
0 1 0 5 1 F F 3 E *
O
f
f
CONCATENATE
O
n
*
/
/
0 1 0 4 1 F F 3 E *
O
f
f
MINIMUM LENGTH
1
*
/
/
0 1 2 0 0 1 F F 3 E *
1
0
*
/
/
0 1 2 0 3 0 F F 3 E *
*
/
/
0 1 2 0 4 0 F F 3 E *
*
/
/
0 1 2 0 5 0 F F 3 E *
4
0
*
/
/
0 1 2 0 1 0 F F 3 E *
2
0
5
0
*
F-6
3
0
/
/
0 1 2 0 2 0 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Code 39
MAXIMUM LENGTH
3
0
1
*
/
/
0 1 2 1 0 1 F F 3 E *
1
0
*
/
/
0 1 2 1 3 0 F F 3 E *
*
/
/
0 1 2 1 4 0 F F 3 E *
*
/
/
0 1 2 1 5 0 F F 3 E *
*
/
/
0 1 2 2 0 3 F F 3 E *
*
/
/
0 1 2 2 0 4 F F 3 E *
4
0
*
/
/
0 1 2 1 1 0 F F 3 E *
5
0
2
0
*
/
/
0 1 2 1 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 1 2 2 0 1 F F 3 E *
2
4
*
/
/
0 1 2 2 0 2 F F 3 E *
Product Reference Guide
F-7
Programming Bar Codes
Code 93
ENABLE
O
n
*
/
/
0 4 0 0 1 F F 3 E *
O
f
f *
/
/
0 4 0 0 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 4 0 1 1 F F 3 E *
O
f
f
*
/
/
0 4 0 1 0 F F 3 E *
*
/
/
0 4 2 0 3 0 F F 3 E *
*
/
/
0 4 2 0 4 0 F F 3 E *
*
/
/
0 4 2 0 5 0 F F 3 E *
*
/
/
0 4 2 1 3 0 F F 3 E *
*
/
/
0 4 2 1 4 0 F F 3 E *
MINIMUM LENGTH
3
0
2
*
1
0
*
/
/
/
/
0 4 2 0 0 2 F F 3 E *
0 4 2 0 1 0 F F 3 E *
2
0
4
0
5
0
*
/
/
0 4 2 0 2 0 F F 3 E *
MAXIMUM LENGTH
3
0
2
*
/
/
0 4 2 1 0 2 F F 3 E *
1
0
4
0
*
F-8
/
/
0 4 2 1 1 0 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Code 93
2
0
5
0
*
/
/
0 4 2 1 2 0 F F 3 E *
*
/
/
0 4 2 1 5 0 F F 3 E *
*
/
/
0 4 2 2 0 3 F F 3 E *
*
/
/
0 4 2 2 0 4 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 4 2 2 0 1 F F 3 E *
2
4
*
/
/
0 4 2 2 0 2 F F 3 E *
Product Reference Guide
F-9
Programming Bar Codes
Code 128
ENABLE
O
n
*
/
/
0 4 0 8 1 F F 3 E *
O
f
f
*
/
/
0 4 0 8 0 F F 3 E *
O
f
f
*
/
/
0 4 0 9 0 F F 3 E *
*
/
/
0 4 0 C 0 F F 3 E *
*
/
/
0 4 0 E 0 F F 3 E *
*
/
/
0 4 2 4 3 0 F F 3 E *
*
/
/
0 4 2 4 4 0 F F 3 E *
*
/
/
0 4 2 4 5 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 4 0 9 1 F F 3 E *
ENABLE UCC/EAN-128
O
n
*
/
/
0 4 0 C 1 F F 3 E *
O
f
f
ISBT CONCATENATION
O
n
*
/
/
0 4 0 E 1 F F 3 E *
O
f
f
MINIMUM LENGTH
3
0
1
*
/
/
0 4 2 4 0 1 F F 3 E *
4
0
2
*
/
/
0 4 2 4 0 2 F F 3 E *
1
0
5
0
*
F-10
/
/
0 4 2 4 1 0 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Code 128
2
0
*
/
/
0 4 2 4 2 0 F F 3 E *
MAXIMUM LENGTH
3
0
1
*
/
/
0 4 2 5 0 1 F F 3 E *
1
0
*
/
/
0 4 2 5 3 0 F F 3 E *
*
/
/
0 4 2 5 4 0 F F 3 E *
*
/
/
0 4 2 5 5 0 F F 3 E *
*
/
/
0 4 2 6 0 3 F F 3 E *
*
/
/
0 4 2 6 0 4 F F 3 E *
4
0
*
/
/
0 4 2 5 1 0 F F 3 E *
5
0
2
0
*
/
/
0 4 2 5 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 4 2 6 0 1 F F 3 E *
2
4
*
/
/
0 4 2 6 0 2 F F 3 E *
Product Reference Guide
F-11
Programming Bar Codes
EAN-13
ENABLE
O
n
*
/
/
0 5 1 0 1 F F 3 E *
O
f
f
*
/
/
0 5 1 0 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 5 1 1 1 F F 3 E *
O
f
f
*
/
/
0 5 1 1 0 F F 3 E *
SEND CHECK DIGIT
O
n
*
/
/
0 5 1 2 1 F F 3 E *
O
f
f
*
/
/
0 5 1 2 0 F F 3 E *
O
f
f
*
/
/
0 5 1 3 0 F F 3 E *
O
f
f
*
/
/
0 5 1 4 0 F F 3 E *
*
/
/
0 5 1 5 0 F F 3 E *
SEND SYSTEM DIGIT
O
n
*
/
/
0 5 1 3 1 F F 3 E *
CONVERT EAN-13 TO ISBN
O
n
*
/
/
0 5 1 4 1 F F 3 E *
CONVERT EAN-13 TO ISSN
O
n
*
F-12
/
/
0 5 1 5 1 F F 3 E *
O
f
f
Falcon® 4400 Series with Windows Mobile®
EAN-13
ENABLE EAN 4-DIGIT PRICE/WEIGHT CHECK DIGIT
O
n
*
/
/
0 5 1 6 1 F F 3 E *
O
f
f
*
/
/
0 5 1 6 0 F F 3 E *
ENABLE EAN 5-DIGIT PRICE/WEIGHT CHECK DIGIT
O
n
*
/
/
0 5 1 7 1 F F 3 E *
O
f
f
*
/
/
0 5 1 7 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 5 2 4 0 1 F F 3 E *
2
*
/
/
0 5 2 4 0 3 F F 3 E *
*
/
/
0 5 2 6 0 4 F F 3 E *
4
*
/
/
0 5 2 4 0 2 F F 3 E *
Product Reference Guide
F-13
Programming Bar Codes
EAN-8
ENABLE
O
n
*
/
/
0 5 1 8 1 F F 3 E *
O
f
f
*
/
/
0 5 1 8 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 5 1 9 1 F F 3 E *
O
f
f
*
/
/
0 5 1 9 0 F F 3 E *
SEND CHECK DIGIT
O
n
*
/
/
0 5 1 A 1 F F 3 E *
O
f
f
*
/
/
0 5 1 A 0 F F 3 E *
*
/
/
0 5 1 B 0 F F 3 E *
CONVERT EAN-8 TO EAN-13
O
n
*
/
/
0 5 1 B 1 F F 3 E *
O
f
f
READ VERIFICATION
3
1
*
/
/
0 5 2 6 0 1 F F 3 E *
2
/
/
0 5 2 6 0 3 F F 3 E *
*
/
/
0 5 2 6 0 4 F F 3 E *
4
*
F-14
*
/
/
0 5 2 6 0 2 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Interleaved 2 of 5
Interleaved 2 of 5
ENABLE
O
n
*
/
/
0 2 1 0 1 F F 3 E *
O
f
f
*
/
/
0 2 1 0 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 2 1 1 1 F F 3 E *
O
f
f *
/
/
0 2 1 1 0 F F 3 E *
ENABLE CHECKSUM
O
n
*
/
/
0 2 1 2 1 F F 3 E *
O
f
f
*
/
/
0 2 1 2 0 F F 3 E *
O
f
f
*
/
/
0 2 1 3 0 F F 3 E *
O
f
f
*
/
/
0 2 1 4 0 F F 3 E *
SEND CHECKSUM
O
n
*
/
/
0 2 1 3 1 F F 3 E *
ENABLE CASE CODE
O
n
*
/
/
0 2 1 4 1 F F 3 E *
MINIMUM LENGTH
3
0
2
*
/
/
0 2 2 8 0 2 F F 3 E *
*
/
/
0 2 2 8 3 0 F F 3 E *
*
/
/
0 2 2 8 4 0 F F 3 E *
4
0
6
*
/
/
0 2 2 8 0 6 F F 3 E *
Product Reference Guide
F-15
Programming Bar Codes
1
0
2
0
*
/
/
0 2 2 8 1 0 F F 3 E *
*
/
/
0 2 2 8 2 0 F F 3 E *
5
0
*
/
/
0 2 2 8 5 0 F F 3 E *
*
/
/
0 2 2 9 3 0 F F 3 E *
*
/
/
0 2 2 9 4 0 F F 3 E *
*
/
/
0 2 2 9 5 0 F F 3 E *
*
/
/
0 2 2 A 0 3 F F 3 E *
*
/
/
0 2 2 A 0 4 F F 3 E *
MAXIMUM LENGTH
3
0
2
*
/
/
0 2 2 9 0 2 F F 3 E *
4
0
1
0
*
/
/
0 2 2 9 1 0 F F 3 E *
2
0
5
0
*
/
/
0 2 2 9 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 2 2 A 0 1 F F 3 E *
2
4
*
F-16
/
/
0 2 2 A 0 2 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Matrix 2 of 5
Matrix 2 of 5
ENABLE
O
n
*
/
/
0 2 0 8 1 F F 3 E *
O
f
f
*
/
/
0 2 0 8 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 2 0 9 0 F F 3 E *
O
f
f *
/
/
0 2 0 9 1 F F 3 E *
ENABLE CHECKSUM
O
n
*
/
/
0 2 0 A 1 F F 3 E *
O
f
f
*
/
/
0 2 0 A 0 F F 3 E *
*
/
/
0 2 0 B 0 F F 3 E *
SEND CHECKSUM
O
n
*
/
/
0 2 0 B 1 F F 3 E *
O
f
f
MINIMUM LENGTH
3
0
1
*
/
/
0 2 2 4 0 1 F F 3 E *
*
/
/
0 2 2 4 3 0 F F 3 E *
*
/
/
0 2 2 4 4 0 F F 3 E *
*
/
/
0 2 2 4 5 0 F F 3 E *
4
0
6
*
/
/
0 2 2 4 0 6 F F 3 E *
1
0
5
0
*
/
/
0 2 2 4 1 0 F F 3 E *
*
/
/
0 2 2 4 2 0 F F 3 E *
2
0
Product Reference Guide
F-17
Programming Bar Codes
MAXIMUM LENGTH
3
0
1
*
/
/
0 2 2 5 0 1 F F 3 E *
*
/
/
0 2 2 5 3 0 F F 3 E *
*
/
/
0 2 2 5 4 0 F F 3 E *
*
/
/
0 2 2 5 5 0 F F 3 E *
*
/
/
0 2 2 6 0 3 F F 3 E *
*
/
/
0 2 2 6 0 4 F F 3 E *
4
0
1
0
*
/
/
0 2 2 5 1 0 F F 3 E *
2
0
5
0
*
/
/
0 2 2 5 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 2 2 6 0 1 F F 3 E *
2
4
*
F-18
/
/
0 2 2 6 0 2 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
MSI
MSI
ENABLE
O
n
*
/
/
0 6 0 8 1 F F 3 E *
O
f
f
*
/
/
0 6 0 8 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 6 0 9 1 F F 3 E *
O
f
f *
/
/
0 6 0 9 0 F F 3 E *
REQUIRE 2 CHECK DIGITS
O
n
*
/
/
0 6 0 A 1 F F 3 E *
O
f
f
*
/
/
0 6 0 A 0 F F 3 E *
O
f
f
*
/
/
0 6 0 B 0 F F 3 E *
O
f
f
*
/
/
0 6 0 C 0 F F 3 E *
SEND CHECK DIGITS
O
n
*
/
/
0 6 0 B 1 F F 3 E *
2ND CHECK DIGIT MOD 11
O
n
*
/
/
0 6 0 C 1 F F 3 E *
MINIMUM LENGTH
1
0
1
*
/
/
0 6 2 4 0 1 F F 3 E *
1
2
4
*
/
/
0 6 2 4 0 4 F F 3 E *
Product Reference Guide
*
/
/
0 6 2 4 1 0 F F 3 E *
*
/
/
0 6 2 4 1 2 F F 3 E *
F-19
Programming Bar Codes
1
5
7
*
/
/
0 6 2 4 0 7 F F 3 E *
*
/
/
0 6 2 4 1 5 F F 3 E *
*
/
/
0 6 2 5 1 0 F F 3 E *
*
/
/
0 6 2 5 1 2 F F 3 E *
*
/
/
0 6 2 5 1 5 F F 3 E *
*
/
/
0 6 2 6 0 3 F F 3 E *
*
/
/
0 6 2 6 0 4 F F 3 E *
MAXIMUM LENGTH
1
0
1
*
/
/
0 6 2 5 0 1 F F 3 E *
1
2
4
*
/
/
0 6 2 5 0 4 F F 3 E *
1
5
7
*
/
/
0 6 2 5 0 7 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 6 2 6 0 1 F F 3 E *
2
4
*
F-20
/
/
0 6 2 6 0 2 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Pharmacode 39 (Code 32)
Pharmacode 39 (Code 32)
ENABLE
O
n
*
/
/
0 1 1 0 1 F F 3 E *
O
f
f
*
/
/
0 1 1 0 0 F F 3 E *
O
f
f
*
/
/
0 1 1 2 0 F F 3 E *
O
f
f
*
/
/
0 1 1 3 0 F F 3 E *
*
/
/
0 8 0 0 0 F F 3 E *
*
/
/
0 8 0 4 0 F F 3 E *
SEND CHECKSUM
O
n
*
/
/
0 1 1 2 1 F F 3 E *
SEND START/STOP
O
n
*
/
/
0 1 1 3 1 F F 3 E *
RSS-14
ENABLE
O
n
*
/
/
0 8 0 0 1 F F 3 E *
O
f
f
ENABLE RSS-14 to UCC-128
O
n
*
/
/
0 8 0 4 1 F F 3 E *
Product Reference Guide
O
f
f
F-21
Programming Bar Codes
RSS Limited
ENABLE
O
n
*
/
/
0 8 0 8 1 F F 3 E *
O
f
f
*
/
/
0 8 0 8 0 F F 3 E *
*
/
/
0 8 0 C 0 F F 3 E *
ENABLE RSS Limited to UCC-128
O
n
*
/
/
0 8 0 C 1 F F 3 E *
O
f
f
RSS Expanded
ENABLE
O
n
*
/
/
0 8 1 0 1 F F 3 E *
O
f
f
*
/
/
0 8 1 0 0 F F 3 E *
*
/
/
0 8 1 4 0 F F 3 E *
ENABLE RSS Expanded to UCC-128
O
n
*
/
/
0 8 1 4 1 F F 3 E *
O
f
f
MINIMUM LENGTH
4
5
1
*
/
/
0 8 2 4 0 1 F F 3 E *
1
5
/
/
0 8 2 4 4 5 F F 3 E *
*
/
/
0 8 2 4 6 0 F F 3 E *
6
0
*
F-22
*
/
/
0 8 2 4 1 5 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
RSS Expanded
3
0
7
4
*
/
/
0 8 2 4 3 0 F F 3 E *
*
/
/
0 8 2 4 7 4 F F 3 E *
*
/
/
0 8 2 5 4 5 F F 3 E *
*
/
/
0 8 2 5 6 0 F F 3 E *
*
/
/
0 8 2 5 7 4 F F 3 E *
MAXIMUM LENGTH
4
5
1
*
/
/
0 8 2 5 0 1 F F 3 E *
1
5
6
0
*
/
/
0 8 2 5 1 5 F F 3 E *
3
0
7
4
*
/
/
0 8 2 5 3 0 F F 3 E *
Product Reference Guide
F-23
Programming Bar Codes
Standard 2 of 5
ENABLE
O
n
*
/
/
0 2 0 0 1 F F 3 E *
O
f
f
*
/
/
0 2 0 0 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 2 0 1 1 F F 3 E *
O
f
f
*
/
/
0 2 0 1 0 F F 3 E *
ENABLE CHECKSUM
O
n
*
/
/
0 2 0 2 1 F F 3 E *
O
f
f
*
/
/
0 2 0 2 0 F F 3 E *
O
f
f
*
/
/
0 2 0 3 0 F F 3 E *
O
f
f
*
SEND CHECKSUM
O
n
*
/
/
0 2 0 3 1 F F 3 E *
USE 2-BAR START/STOP
O
n
*
/
/
0 2 0 4 1 F F 3 E *
/
/
0 2 0 4 0 F F 3 E *
MINIMUM LENGTH
3
0
1
*
/
/
0 2 2 0 0 1 F F 3 E *
/
/
0 2 2 0 3 0 F F 3 E *
*
/
/
0 2 2 0 4 0 F F 3 E *
4
0
6
*
F-24
*
/
/
0 2 2 0 0 6 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
Standard 2 of 5
1
0
5
0
*
/
/
0 2 2 0 1 0 F F 3 E *
*
/
/
0 2 2 0 2 0 F F 3 E *
*
/
/
0 2 2 0 5 0 F F 3 E *
*
/
/
0 2 2 1 3 0 F F 3 E *
*
/
/
0 2 2 1 4 0 F F 3 E *
*
/
/
0 2 2 1 5 0 F F 3 E *
*
/
/
0 2 2 2 0 3 F F 3 E *
*
/
/
0 2 2 2 0 4 F F 3 E *
2
0
MAXIMUM LENGTH
3
0
1
*
/
/
0 2 2 1 0 1 F F 3 E *
4
0
1
0
*
/
/
0 2 2 1 1 0 F F 3 E *
2
0
5
0
*
/
/
0 2 2 1 2 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 2 2 2 0 1 F F 3 E *
2
4
*
/
/
0 2 2 2 0 2 F F 3 E *
Product Reference Guide
F-25
Programming Bar Codes
Trioptic
ENABLE
O
n
*
/
/
0 1 0 8 1 F F 3 E *
O
f
f
*
/
/
0 1 0 8 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 1 0 9 1 F F 3 E *
O
f
f
*
/
/
0 1 0 9 0 F F 3 E *
*
/
/
0 1 2 4 0 3 F F 3 E *
*
/
/
0 1 2 4 0 4 F F 3 E *
*
/
/
0 5 0 0 0 F F 3 E *
O
f
f *
/
/
0 5 0 1 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 1 2 4 0 1 F F 3 E *
2
4
*
/
/
0 1 2 4 0 2 F F 3 E *
UPC-A
ENABLE
O
n
*
/
/
0 5 0 0 1 F F 3 E *
O
f
f
ENABLE AGGRESSIVE DECODING
O
n
F-26
*
/
/
0 5 0 1 1 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
UPC-A
SEND CHECK DIGIT
O
n
*
/
/
0 5 0 2 1 F F 3 E *
O
f
f
*
/
/
0 5 0 2 0 F F 3 E *
O
f
f
*
/
/
0 5 0 3 0 F F 3 E *
O
f
f
*
/
/
0 5 0 4 0 F F 3 E *
SEND SYSTEM DIGIT
O
n
*
/
/
0 5 0 3 1 F F 3 E *
CONVERT UPC-A TO EAN-13
O
n
*
/
/
0 5 0 4 1 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 5 2 0 0 1 F F 3 E *
2
*
/
/
0 5 2 0 0 3 F F 3 E *
*
/
/
0 5 2 0 0 4 F F 3 E *
4
*
/
/
0 5 2 0 0 2 F F 3 E *
Product Reference Guide
F-27
Programming Bar Codes
UPC-E
ENABLE SYSTEM DIGIT 0
O
n
*
/
/
0 5 0 8 1 F F 3 E *
O
f
f
*
/
/
0 5 0 8 0 F F 3 E *
ENABLE AGGRESSIVE DECODING
O
n
*
/
/
0 5 0 9 1 F F 3 E *
O
f
f *
/
/
0 5 0 9 0 F F 3 E *
SEND CHECK DIGIT
O
n
*
/
/
0 5 0 A 1 F F 3 E *
O
f
f
*
/
/
0 5 0 A 0 F F 3 E *
O
f
f
*
/
/
0 5 0 B 0 F F 3 E *
O
f
f
*
/
/
0 5 0 C 0 F F 3 E *
SEND SYSTEM DIGIT
O
n
*
/
/
0 5 0 B 1 F F 3 E *
CONVERT UPC-E TO UPC-A
O
n
*
/
/
0 5 0 C 1 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 5 2 2 0 1 F F 3 E *
2
*
/
/
0 5 2 2 0 3 F F 3 E *
*
/
/
0 5 2 2 0 4 F F 3 E *
4
*
F-28
/
/
0 5 2 2 0 2 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
UPC/EAN Extensions
UPC/EAN Extensions
ENABLE 2-DIGIT EXTENSIONS
O
n
*
/
/
0 5 1 C 1 F F 3 E *
O
f
f
*
/
/
0 5 1 C 0 F F 3 E *
ENABLE 5-DIGIT EXTENSIONS
O
n
*
/
/
0 5 1 D 1 F F 3 E *
O
f
f
*
/
/
0 5 1 D 0 F F 3 E *
*
/
/
0 5 1 E 0 F F 3 E *
ENABLE CODE 128 EXTENSIONS
O
n
*
/
/
0 5 1 E 1 F F 3 E *
O
f
f
REQUIRE EXTENSIONS
O
n
*
/
/
0 5 1 F 1 F F 3 E *
O
f
f
*
/
/
0 5 1 F 0 F F 3 E *
READ VERIFICATION
3
1
*
/
/
0 5 2 8 0 1 F F 3 E *
2
*
/
/
0 5 2 8 0 3 F F 3 E *
*
/
/
0 5 2 8 0 4 F F 3 E *
4
*
/
/
0 5 2 8 0 2 F F 3 E *
Product Reference Guide
F-29
Programming Bar Codes
2D Symbologies
Aztec Code
ENABLE
O
n
*
/
/
0 B 1 8 1 F F 3 E *
O
f
f
*
/
/
0 B 1 8 0 F F 3 E *
*
/
/
0 B 1 A 0 F F 3 E *
ENABLE AZTEC CODE RUNES
O
n
*
/
/
0 B 1 A 1 F F 3 E *
O
f
f
MINIMUM LENGTH
1
*
/
/
0 B 2 C 0 1 F F 3 E *
*
/
/
0 B 2 C 7 5 0 F F 3 E *
*
/
/
0 B 2 C 1 5 0 0 F F 3 E *
*
/
/
0 B 2 C 2 2 5 0 F F 3 E *
750
1500
2250
F-30
Falcon® 4400 Series with Windows Mobile®
Aztec Code
3000
*
/
/
0 B 2 C 3 0 0 0 F F 3 E *
*
/
/
0 B 2 C 3 7 5 0 F F 3 E *
*
/
/
0 B 2 D 0 1 F F 3 E *
*
/
/
0 B 2 D 7 5 0 F F 3 E *
*
/
/
0 B 2 D 1 5 0 0 F F 3 E *
*
/
/
0 B 2 D 2 2 5 0 F F 3 E *
*
/
/
0 B 2 D 3 0 0 0 F F 3 E *
*
/
/
0 B 2 D 3 7 5 0 F F 3 E *
3750
MAXIMUM LENGTH
1
750
1500
2250
3000
3750
Product Reference Guide
F-31
Programming Bar Codes
DataMatrix
ENABLE
O
n
*
/
/
0 B 0 0 1 F F 3 E *
O
f
f
*
/
/
0 B 0 0 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 B 2 0 0 1 F F 3 E *
*
/
/
0 B 2 0 3 0 0 F F 3 E *
*
/
/
0 B 2 0 6 0 0 F F 3 E *
*
/
/
0 B 2 0 9 0 0 F F 3 E *
*
/
/
0 B 2 0 1 2 0 0 F F 3 E *
*
/
/
0 B 2 0 1 5 0 0 F F 3 E *
300
600
900
1200
1500
F-32
Falcon® 4400 Series with Windows Mobile®
DataMatrix
MAXIMUM LENGTH
1
*
/
/
0 B 2 1 0 1 F F 3 E *
*
/
/
0 B 2 1 3 0 0 F F 3 E *
*
/
/
0 B 2 1 6 0 0 F F 3 E *
*
/
/
0 B 2 1 9 0 0 F F 3 E *
*
/
/
0 B 2 1 1 2 0 0 F F 3 E *
*
/
/
0 B 2 1 1 5 0 0 F F 3 E *
300
600
900
1200
1500
Product Reference Guide
F-33
Programming Bar Codes
Composite
ENABLE
O
n
*
/
/
0 A 1 0 1 F F 3 E *
O
f
f
*
/
/
0 A 1 0 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 A 2 8 0 1 F F 3 E *
*
/
/
0 A 2 8 5 0 0 F F 3 E *
*
/
/
0 A 2 8 1 0 0 0 F F 3 E *
*
/
/
0 A 2 8 1 5 0 0 F F 3 E *
*
/
/
0 A 2 8 2 0 0 0 F F 3 E *
*
/
/
0 A 2 8 2 4 3 5 F F 3 E *
500
1000
1500
2000
2435
F-34
Falcon® 4400 Series with Windows Mobile®
Composite
MAXIMUM LENGTH
1
*
/
/
0 A 2 9 0 1 F F 3 E *
*
/
/
0 A 2 9 5 0 0 F F 3 E *
*
/
/
0 A 2 9 1 0 0 0 F F 3 E *
*
/
/
0 A 2 9 1 5 0 0 F F 3 E *
*
/
/
0 A 2 9 2 0 0 0 F F 3 E *
*
/
/
0 A 2 9 2 4 3 5 F F 3 E *
500
1000
1500
2000
2435
Product Reference Guide
F-35
Programming Bar Codes
Maxicode
ENABLE
O
n
*
/
/
0 B 0 8 1 F F 3 E *
O
f
f
*
/
/
0 B 0 8 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 B 2 4 0 1 F F 3 E *
*
/
/
0 B 2 4 2 5 F F 3 E *
*
/
/
0 B 2 4 5 0 F F 3 E *
*
/
/
0 B 2 4 7 5 F F 3 E *
*
/
/
0 B 2 4 1 0 0 F F 3 E *
*
/
/
0 B 2 4 1 3 8 F F 3 E *
25
50
75
100
138
F-36
Falcon® 4400 Series with Windows Mobile®
Maxicode
MAXIMUM LENGTH
1
*
/
/
0 B 2 5 0 1 F F 3 E *
*
/
/
0 B 2 5 2 5 F F 3 E *
*
/
/
0 B 2 5 5 0 F F 3 E *
*
/
/
0 B 2 5 7 5 F F 3 E *
*
/
/
0 B 2 5 1 0 0 F F 3 E *
*
/
/
0 B 2 5 1 3 8 F F 3 E *
25
50
75
100
138
Product Reference Guide
F-37
Programming Bar Codes
OCR
ENABLE
O
n
*
/
/
0 C 2 2 1 F F 3 E *
O
f
f
*
/
/
0 C 2 2 0 F F 3 E *
OCR FONT
OCR-A
*
/
/
0 C 2 2 1 F F 3 E *
*
/
/
0 C 2 2 2 F F 3 E *
*
/
/
0 C 2 2 3 F F 3 E *
*
/
/
0 C 2 2 4 F F 3 E *
OCR-B
MICR
US Currency
ENABLE OCR CHECK DIGIT
On
Off
*
/
/
0 C 0 2 1 F F 3 E *
*
/
/
0 C 0 2 0 F F 3 E *
*
/
/
0 C 0 3 0 F F 3 E *
ENABLE MOD 36 CHECK DIGIT
On
Off
*
F-38
/
/
0 C 0 3 1 F F 3 E *
Falcon® 4400 Series with Windows Mobile®
PDF-417
PDF-417
ENABLE
O
n
*
/
/
0 A 0 0 1 F F 3 E *
O
f
f
*
/
/
0 A 0 0 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 A 2 0 0 1 F F 3 E *
*
/
/
0 A 2 0 5 0 0 F F 3 E *
*
/
/
0 A 2 0 1 0 0 0 F F 3 E *
*
/
/
0 A 2 0 1 5 0 0 F F 3 E *
*
/
/
0 A 2 0 2 0 0 0 F F 3 E *
*
/
/
0 A 2 0 2 7 1 0 F F 3 E *
500
1000
1500
2000
2710
Product Reference Guide
F-39
Programming Bar Codes
MAXIMUM LENGTH
1
*
/
/
0 A 2 1 0 1 F F 3 E *
*
/
/
0 A 2 1 5 0 0 F F 3 E *
*
/
/
0 A 2 1 1 0 0 0 F F 3 E *
*
/
/
0 A 2 1 1 5 0 0 F F 3 E *
*
/
/
0 A 2 1 2 0 0 0 F F 3 E *
*
/
/
0 A 2 1 2 7 1 0 F F 3 E *
500
1000
1500
2000
2710
F-40
Falcon® 4400 Series with Windows Mobile®
MicroPDF-417
MicroPDF-417
ENABLE
O
n
*
/
/
0 A 0 8 1 F F 3 E *
O
f
f
*
/
/
0 A 0 8 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 A 2 4 0 1 F F 3 E *
*
/
/
0 A 2 4 7 0 F F 3 E *
*
/
/
0 A 2 4 1 5 0 F F 3 E *
70
150
230
*
/
/
0 A 2 4 2 3 0 F F 3 E *
*
/
/
0 A 2 4 3 0 0 F F 3 E *
*
/
/
0 A 2 4 3 6 6 F F 3 E *
300
366
Product Reference Guide
F-41
Programming Bar Codes
MAXIMUM LENGTH
1
*
/
/
0 A 2 5 0 1 F F 3 E *
*
/
/
0 A 2 5 7 0 F F 3 E *
*
/
/
0 A 2 5 1 5 0 F F 3 E *
*
/
/
0 A 2 5 2 3 0 F F 3 E *
*
/
/
0 A 2 5 3 0 0 F F 3 E *
*
/
/
0 A 2 5 3 6 6 F F 3 E *
70
150
230
300
366
F-42
Falcon® 4400 Series with Windows Mobile®
QR Code
QR Code
ENABLE
O
n
*
/
/
0 B 1 0 1 F F 3 E *
O
f
f
*
/
/
0 B 1 0 0 F F 3 E *
MINIMUM LENGTH
1
*
/
/
0 B 2 8 0 1 F F 3 E *
*
/
/
0 B 2 8 7 0 0 F F 3 E *
*
/
/
0 B 2 8 1 4 0 0 F F 3 E *
*
/
/
0 B 2 8 2 1 0 0 F F 3 E *
*
/
/
0 B 2 8 2 8 0 0 F F 3 E *
*
/
/
0 B 2 8 3 5 0 0 F F 3 E *
700
1400
2100
2800
3500
Product Reference Guide
F-43
Programming Bar Codes
MAXIMUM LENGTH
1
*
/
/
0 B 2 9 0 1 F F 3 E *
*
/
/
0 B 2 9 7 0 0 F F 3 E *
*
/
/
0 B 2 9 1 4 0 0 F F 3 E *
*
/
/
0 B 2 9 2 1 0 0 F F 3 E *
*
/
/
0 B 2 9 2 8 0 0 F F 3 E *
*
/
/
0 B 2 9 3 5 0 0 F F 3 E *
700
1400
2100
2800
3500
F-44
Falcon® 4400 Series with Windows Mobile®
Imager Labels
Imager Labels
ILLUMINATION ENABLE
O
n
*
/
/
0 0 0 8 1 F F 3 E *
O
f
f
*
/
/
0 0 0 8 0 F F 3 E *
*
/
/
0 0 0 9 0 F F 3 E *
*
/
/
0 0 0 A 0 F F 3 E *
*
/
/
0 C 0 8 0 F F 3 E *
AIM MODE
O
n
*
/
/
0 0 0 9 1 F F 3 E *
O
f
f
AIM ENABLE
O
n
*
/
/
0 0 0 A 1 F F 3 E *
O
f
f
LED ENABLE
O
n
*
/
/
0 C 0 8 1 F F 3 E *
O
f
f
Other Controls
BEEPER VOLUME
Off
*
/
/
F F 2 0 0 0 F F 3 E *
*
/
/
F F 2 0 0 1 F F 3 E *
Lowest
Product Reference Guide
F-45
Programming Bar Codes
Medium
*
/
/
F F 2 0 0 4 F F 3 E *
*
/
/
F F 2 0 0 7 F F 3 E *
*
/
/
F F 2 0 0 8 F F 3 E *
*
/
/
F F 2 0 0 9 F F 3 E *
Highest
Higher
(Increases the current
value one increment
higher)
Lower
(Decreases the current
value one increment lower)
NUMBER OF GOOD-READ BEEPS
1
*
/
/
0 0 2 0 0 1 F F 3 E *
*
/
/
0 0 2 0 0 2 F F 3 E *
*
/
/
0 0 2 0 0 3 F F 3 E *
*
/
/
0 0 2 0 0 4 F F 3 E *
2
3
4
F-46
Falcon® 4400 Series with Windows Mobile®
Other Controls
GOOD-READ BEEP TONE
Lowest
*
/
/
0 0 2 1 0 0 F F 3 E *
*
/
/
0 0 2 1 0 3 F F 3 E *
*
/
/
0 0 2 1 0 7 F F 3 E *
Medium
Highest
GOOD-READ BEEP DURATION (IN SECONDS)
0.07
*
/
/
0 0 2 2 0 0 F F 3 E *
*
/
/
0 2 2 0 0 1 F F 3 E *
*
/
/
0 0 2 2 0 2 F F 3 E *
*
/
/
0 0 2 2 0 3 F F 3 E *
0.13
0.18
0.36
Product Reference Guide
F-47
Programming Bar Codes
Long Range Trigger Mode
Spot Timeout
*
/
/
0 0 0 0 0 F F 3 E *
*
/
/
0 0 0 0 1 F F 3 E *
*
/
/
0 0 0 1 1 F F 3 E *
*
/
/
0 0 0 1 0 F F 3 E *
*
/
/
0 0 2 3 0 0 F F 3 E *
*
/
/
0 2 2 0 0 1 F F 3 E *
*
/
/
0 0 2 3 0 2 F F 3 E *
*
/
/
0 0 2 3 0 3 F F 3 E *
Release Scan
Spotting Beam Enable
On
Off
Spotting Beam Timeout
0.25
0.5
1.0
1.5
F-48
Falcon® 4400 Series with Windows Mobile®
Other Controls
2.0
*
/
/
0 0 2 3 0 4 F F 3 E *
Release Scan Timeout (IN SECONDS)
1
*
/
/
0 0 2 4 0 1 F F 3 E *
*
/
/
0 0 2 4 0 2 F F 3 E *
*
/
/
0 0 2 4 0 3 F F 3 E *
*
/
/
0 0 2 4 0 5 F F 3 E *
*
/
/
0 0 2 4 1 0 F F 3 E *
2
3
5
10
SEND SYMBOLOGY IDENTIFIERS
Off
*
/
/
0 0 2 5 0 0 F F 3 E *
*
/
/
0 0 2 5 0 1 F F 3 E *
*
/
/
0 0 2 5 0 2 F F 3 E *
DLM IDs
AIM IDs
Product Reference Guide
F-49
Programming Bar Codes
User IDs
*
/
/
0 0 2 5 0 3 F F 3 E *
*
/
/
0 0 2 6 $ M F F 3 E *
*
/
/
0 0 2 6 $
*
/
/
0 0 2 6 % U F F 3 E *
*
/
/
0 0 2 7 $ M F F 3 E *
*
/
/
0 0 2 7 $
*
/
/
0 0 2 7 % U F F 3 E *
LABEL PREFIX
(CR)
(TAB)
I
F F 3 E *
None
LABEL SUFFIX
(CR)
(TAB)
I
F F 3 E *
None
F-50
Falcon® 4400 Series with Windows Mobile®
Appendix G
SDK Installation
About the Software Development Kit (SDK):
Microsoft provides most of the SDK functionality required to support Windows Mobile 5.0. Visit their Windows Mobile site to find documentation and
download the Windows Mobile 5.0 Developer Evaluation Kit.
http://msdn.microsoft.com/mobility/windowsmobile
Select Downloads and locate the Windows Mobile 5.0 SDK for Pocket PC.
Follow the instructions to obtain the most recent version.
To use the additional Datalogic SDK functionality, run the Falcon Windows
Mobile SDK installer from the link on your Falcon 4400 Product CD. This
will add the decoder and unit support files required to interface with the additional Datalogic functions.
A START menu group is added for support of the SDK named “Falcon SDK
for Windows Mobile.” It contains a shortcut called “Help” that will
open the help file.
The files loaded are:
dcd_api.h, decoder.lib, decoder.exp
unit_api.h, unitapi.lib, unitapi.exp
1. In your project, add the appropriate lib files to the list of import
libraries.
2. In each source file which makes calls to the decoding API, or unit
API, include the appropriate header file.
We also provide C++ sample code to demonstrate the use of these SDK functions.
See UnitAPITest and DCDtest, these are complete Visual Studio 2005 Beta 2
projects ready to run.
Product Reference Guide
G-1
SDK Installation
New Functions
Two new functions have been added to this SDK:
1. Get the current Datalogic defined OS ID
int cdecl UnitGetOSType( void );
These defined values are located in unit_api.h
/*** Operating System IDs ***/
#define OS_WINCE_NET0x00// Windows CE 4.2 or 5.0
#define OS_WIN_MOBILE0x01// Windows Mobile
2. Get the current Datalogic defined language type
int cdecl UnitGetLanguage( void );
These defined values are located in unit_api.h
// Translated language IDs: image that has been translated into a specific language
#define LANG_ENGLISH_T
G-2
0x20 // World Wide English
#define LANG_CHN_SMPL_T
0x21 // Simplified Chinese
#define LANG_CHN_TRAD_T
0x22 // Traditional Chinese
#define
LANG_FRENCH_T
0x23 // French
#define
LANG_GERMAN_T
0x24 // German
#define
LANG_ITALIAN_T
0x25 // Italian
#define
LANG_SPANISH_T
0x26 // Spanish
Falcon® 4400 Series with Windows Mobile®
Appendix H
Glossary
Many definitions for this Glossary were taken directly from the Microsoft Developer’s Network
website at http://msdn.microsoft.com/library/default.asp.
1D bar code
A traditional linear bar code. The code itself contains no information about the item to
which it is assigned but represents a string of identifying numbers or letters.
2D bar code
Two-dimensional (2D) bar codes permit the encoding of information about an item in addition to an identifying code. Two axes, or directions, are used for recording and reading the
codes and the bar size is reduced, increasing the space available for data.
active notification
The state of a user notification from the time the user is notified until the user handles the
event.
active window
The window in which a user is currently working or directing input. An active window is typically on top and is distinguished by the color of its title bar.
ActiveSync
Microsoft Windows Communication application that synchronizes a Windows CE .NET or
Windows Mobile device with a Microsoft Windows-based host PC. ActiveSync can use RS232, USB, and Wireless networks.
ASCII
American Standard Code for Information Interchange; a code for information exchange
between computers made by different companies; a string of 7 binary digits represents
each character; used in most microcomputers. Any member of the standard code for representing characters by binary numbers. Refer to Table E-13 on page E-44.
Batch units
Batch Falcon units are synchronized and updated using Microsoft ActiveSync software and
a dock for communication with the host PC.
Bluetooth
A specification for short-range radio links between mobile computers, mobile phones, digital cameras, and other portable devices.
calibration
See Touchscreen calibration.
checksum
A number used to verify the contents of a data file. This number is generated by calculating
the contents of the data. If the calculated checksum is different from the expected checksum, the data has errors in it.
CLSI
CLSI, Inc., developer of the “LIBS 100 scanning and decoding system”. The “Convert to
CLSI” parameter refers to formatting a Codabar barcode label in the manner defined by
CLSI, Inc.
Product Reference Guide
H-1
Glossary
Concatenate
Arranges (strings of characters) into a connected list.
control
A standardized part of the window that can be manipulated to perform an action or display
information. The most common controls are buttons to select options and scroll bars that
for moving through a document or positioning text in a window.
context sensitive
help
Tap
> Help to open a help dialog about the specific windows application you are
using. Context sensitive help can tell where you are in a program and can provide assistance with the specific problems you might be having.
control panel
Control Panels are several different applets that allow you to configure the Falcon to meet
your specific requirements. There are control panels for scanning, keyboard, display, etc.
Access the control panels by tapping
> Settings.
device manager
A tool to track all loaded device drivers and their interfaces. It issues notification of the
appearance, disappearance of device interfaces, loads and tracks drivers by reading and
writing registry values, and unloads drivers when their devices are no longer needed.
A registry key on a device that a desktop computer uses to identify the device when it is
connected. The key defines values for synchronization, file conversions, and backup and
device partnership
restore information, which enable multiple devices to connect to the same desktop computer. A device partnership is created the first time you connect a device to a host PC.
direction key
A large navigation button on the Falcon keypad with 4 arrows: pointing up, down, left, and
right that allows you to move the cursor or highlighted text entry during menu selection.
Press and release one edge of the key to move the display screen one line or one character in the direction of the arrow.
embedded
Broadly, software code or commands built into a device, as opposed to software that is
added. In a narrower sense, code that is typically stored in ROM and dedicated to either
controlling a device or providing a specific functionality.
FAST
Part of Datalogic’s Falcon Management Utility (FMU) application for the Falcon that
updates the operating system and applications automatically from a server using the wireless network system.
firmware
Operating System on the Falcon.
Falcon Desktop
Utility (FDU)
Falcon Desktop Utility (FDU) allows Datalogic administrators to configure Falcon WindowsCE .NET and Windows Mobile Falcons to control individual user access.
Falcon Management Utility (FMU)
A Datalogic Windows-based management application for managing the configuration settings and updating the operating system and applications automatically from a server
using the wireless network system on the Falcon.
Firmware Update
Utility (FUU)
A Datalogic Windows-based field upgradeable firmware mechanism. Use the Firmware
Update Utility (FUU), described starting on page 3-3, to install or update the firmware
using an ActiveSync connection.
H-2
Falcon® 4400 Series with Windows Mobile®
GPS
host PC system
Global Positioning System. Windows Mobile-based Falcons can be set up to work with a
GPS system.
PC using the Microsoft Windows operating system and Falcon Management Utility
(FMU) and/or ActiveSync.
input panel
Refer to on-screen keyboard.
ISBN
International Standard Book Number. A unique number assigned to each book to allow
ease of ordering from any source: local bookstore, online book dealers, or directly from the
publisher. The ISBN number is usually printed on the back cover of a book, near the barcode but can also appear within the book.
ISSN
International Standard Serial Number. An ISSN consists of eight digits comprising two
groups of four digits each, separated by a hyphen. The eighth digit is a check digit used as
a computer validity check; it consists of a number between 0 and 9 or an uppercase X (for
the arabic numeral 10).
MIB (Management
Information Base)
A Management Information Base (MIB) is a file that defines a set of SNMP (Simple
Network Management Protocol) variables, their types and usage. There are a number of standard MIBs available, depending on the information being managed. The MIB is
used by the management tools to allow them to better support the configuration values
provided on the terminals, such as scanner controls and terminal type information.
mounted file system
A file system located on a removable medium, such as a PC Card storage device. The
operating system loads, or mounts, the file system when the medium is inserted into the
device. It unloads, or unmounts, the file system when the medium is removed or when the
user issues a command to do so.
Network ID
Here used to mean that you should configure the Windows user settings, such as the user
name, password, and domain name. Microsoft’s definition includes some wireless network
IDs as equivalent to SSIDs.
non-persistent
state
A non-persistent state affects only the next keypress. FN state is a non-persistent state.
on-screen keyboard
Tap the Keyboard icon in the soft key bar to open the on-screen keyboard. Use this virtual
QWERTY keyboard like you would a computer’s keypad to enter alphanumeric and symbols in the current application.
portable data
assistant (PDA)
A handheld Windows Mobile-based computer that can be synchronized with a host PC to
share files and data. Sometimes contains an infrared device to beam information to
another unit.
portable data terminal (PDT)
An industrial strength handheld computer with a keypad, direction keys, and a bar code
scanner used in inventory, retail, and warehouse activities to collect data and upload it to a
host PC.
Product Reference Guide
H-3
Glossary
persistent state
A state which is maintained after releasing a key. Alpha mode is a persistent mode. Also
called a “sticky” state. A persistent state must be turned off by pressing the key again.
PRG
Product Reference Guide.
program memory
Memory that is used for stack and heap storage for both system and nonsystem applications. Nonsystem applications are taken from storage memory, uncompressed, and loaded
into program memory for execution.
RF card
A small card shaped device installed in a Falcon that allows wireless connection and communication with a network.
QRG
Quick Reference Guide.
RAM (random
access memory)
You can add applications and data files to RAM. RAM is not persistent and will be cleared
when you remove or replace the battery.
ROM (read only
memory)
The operating system and applications are pre-installed on ROM and cannot be removed
or modified. These applications are persistent.
RTC
Real Time Clock on the PC or mobile computer.
shortcut menu
A menu that is displayed for a selected object. The menu contains commands that are contextually relevant to the selection.
SNMP is the standard protocol for managing devices on a network. Simple Network ManSNMP (Simple Netagement Protocol (SNMP) is a standardized protocol for network management services
work Management
using a client/server model. The network management program (client) issues queries and
Protocol)
commands to the remote device
soft key bar
A bar at the bottom of the screen that can contain buttons, combo boxes, and menu bars.
Windows Mobile–based applications have a soft key bar rather than a separate menubar
and toolbar to efficiently use available screen space.
splash screen
An initial screen displayed by software, usually containing a logo, version information,
author credits, or a copyright notice.
start button
Tap the Start button (
) to open the Start menu. The Start menu contains a list of the
resident applications, and provides access to Programs, Settings, Help and other functions.
status bar
An area that displays state information for the content in the window, typically placed at the
bottom of a window.
status icons
A graphic representation of the status of a feature or function.
strap studs
The Falcon 4410 comes with a handstrap that connects to the strap studs.
H-4
Falcon® 4400 Series with Windows Mobile®
stylus
The Falcon’s equivalent of a PC’s mouse. Use on a touch-sensitive display. Only a plastic
tipped stylus should be used on a touch-sensitive display.
Use to navigate the touchscreen display, select characters in the on-screen keyboard,
select applications, and select tabs, fields and text within applications and dialogs.
suspend mode
The Falcon will go into a suspend or sleep mode when it is idle for a period of time. Suspend mode works and looks just like you have turned the unit off. Press <POWER> to suspend (put to sleep) the Falcon. Press <POWER> again for the Falcon to resume its
previous state.
Symbology
A symbology is a protocol for arranging the bars and spaces that make up a particular kind
of bar code. A bar code is made up of numbers, letters, and computer-recognized characters that can be represented in a combination of bars and spaces. There is not one standard bar code; there are currently over 400 barcode symbologies that serve different uses,
industries, or geographic needs.
keyboard Indicators
The Keyboard Indicators are located at the top of the display in the Title bar and contain
status icons and symbols indicating open features and active applets.
Title bar
The bar at the top of the screen on a Window Mobile device which displays the Start icon,
the current program, connection status, volume and time/date information.
Today screen
The initial screen visible at startup, the Today screen contains configurable links and shortcuts to common programs and tasks.
Touchscreen calibration
You may need to calibrate the touch screen. One way to know that the touch screen needs
to be calibrated is that you will notice that when you attempt to select one item with the stylus, another item is erroneously selected.
touchscreen display
A graphical computer interface display screen that allows the user to enter and select items
with a stylus.
Tracert
Trace Route. A utility/command to determine TCP/IP packet routing.
Uniform Resource
Locator (URL)
The address of a resource on the Internet. URL syntax is in the form protocol://host/
localinfo, where protocol specifies the means of returning the object, such as HTTP or FTP.
Host specifies the remote location where the object resides and localinfo is a string, often a
file name, passed to the protocol handler at the remote location. Also called a Uniform
Resource Identifier.
USB
Universal Serial Bus is a protocol for connecting PCs with peripheral devices, including
PDTs, PDAs, Falcon mobile computers, cameras, printers, mice, scanners, etc.
Web Server
The web server can perform several different actions, including generating a web page
containing statistics relating to performance of the mobile computer and creating an interface for interaction with the terminal to configure system behavior.
XPING
XPing is a protocol that sends a message to another computer and waits for acknowledgment, often used to check if another computer on a network is reachable.
Product Reference Guide
H-5
Glossary
NOTES
H-6
Falcon® 4400 Series with Windows Mobile®
Index
... (browse) B-12, B-15, B-16
26-key keypad 2-20
2D symbologies F-30
403 Request Forbidden B-12
404 Object Not Found B-12
406 No Response Format B-12
410 Page Doesn’t Exist B-12
48-key keypad 2-21
500 Internal Server Error B-12
501 Server Can’t Do That B-12
52-key keypad 2-21
52-key NU keypad 2-21
A
accessories A-1
handle A-8
handstrap A-8
holster A-6
overview A-1
softcase A-7
action B-10, B-17
active notification H-1
active window H-1
ActiveSync H-1
connection 3-3, 3-4, H-2, H-3
add
new hotkey B-10
program B-15
address bar, enable B-13
Admin tab B-5
application
adding B-15
authorized B-14
enable selector B-14
selector B-14, B-16
Product Reference Guide
title B-15
applications
adding 3-2
overview 3-1
AppSelect tab B-14
arguments B-16
Assign as Default B-12
associated function B-9
audio, decoding properties 2-6
authorized applications B-14
Autoexec.ini 3-8
AutoStart 3-6
Autostart.ini 3-8
Installing CAB files 3-7
Wceload 3-7
Autostart.ini 3-8
B
Backlight 2-4
bar codes 2-8
Codabar F-10
Code 128 F-10
Code 39 F-5
Code 93 F-8
Composite F-34
DataMatrix F-32
decoding 2-9
EAN-13 F-12
EAN-8 F-14
Interleaved 2 of 5 F-15
label suffix F-50
Matrix 2 of 5 F-17
Maxicode F-36
MicroPDF F-41
MSI F-19
i
Index
parameters E-3
PDF F-39
Pharmacode 39 (Code 32) F-21
predefined defaults F-3
programming F-1
RSS F-21, F-22
Standard 2 of 5 F-24
symbologies 2-6, 2-7, 2-9, 2-10, 2-13
Trioptic F-26
UPC/EAN Extensions F-29
UPC-A F-26
UPC-E F-28
without parameters E-2
battery
CAUTIONS 1-3, 1-4
disposal 1-4
failure 1-3
window 1-3
lithium-ion 1-3
tab 2-22
WARNINGS 1-2
battery charger
four-slot A-3
beep
duration, good-read E-35, F-47
good-read number E-35, F-46
tone, good-read E-35, F-47
volume E-34, F-45
Brightness
Imager 2-8
button
new B-15
OK B-4, B-8, B-11
X B-8, B-11
C
calibration H-1
checksum H-1
Codabar 2-10, E-3, F-10
Code 128 2-10, E-8, F-10
Code 39 2-10, 2-11, E-5, F-5
Code 93 2-10, 2-11, E-7, F-8
code parameters E-1, E-2
cold reset
reinstall applications 3-6
command bar H-4
configuration
Backlight 2-4
decoding 2-5
default tab 2-13
general tab 2-5
symbologies tab 2-10, 2-13
overview 2-1
power 2-22
settings 2-1
configure
connectors D-1
connector configurations D-1
context sensitive help H-2
control H-2
control panel H-2
Backlight 2-4
battery 2-22
decoding 2-5
options 2-6, 2-8, 2-9, 2-10
power 2-22
power gauge 2-22
controls, other E-34
Couldn't Find Server B-12
D
CAB files
Installing 3-7
Interactive 3-8
cable
serial D-1, D-2
decoding
configuration 2-5
decoding options 2-7
decoding properties 2-6, 2-7
audio 2-6
configure 2-6
ii
Falcon® 4400 Series with Windows Mobile®
Index
decoding options 2-7
devices 2-9
general options 2-7
settings 2-6
spot beam 2-8
trigger 2-8
default parameters E-1
factory E-1, E-2
maximum E-1, E-2
minimum E-1, E-2
predefined, bar codes F-3
registry E-2
defaults, restore B-6, B-7
delay B-16
delete B-9, B-15
device 2-9
device manager H-2
device partnership H-2
disable 2-8
dock
which Datalogic dock to use
document
conventions 0-vi
overview 0-v
501 Server Can’t Do That B-12
Couldn’t Find Server B-12
generic B-12
Generic Error B-12
Not Available Offline B-12
page B-12
Request Cancelled B-12
Server Is Busy B-12
type B-12
(406) No Response Format B-12
URL Syntax Error B-12
Error Type
(410) Page Doesn’t Exist B-12
(500) Internal Server Error B-12
exit and
commit E-2
restore E-2
save E-2
A-2
E
EAN-13 2-10, E-9, F-12
EAN-8 2-10, E-11, F-14
edit B-15
embedded H-2
enable 2-11
address bar B-13
application selector B-14
checksum 2-11
Falcon Desktop B-6
read-ahead 2-9
enter key B-11
error
400 Invalid Syntax B-12
403 Request Forbidden B-12
404 Object Not Found B-12
Product Reference Guide
F
F2 key B-9
factory F-3
defaults 2-13
failure, battery 1-3
Falcon 4400
dock A-2
power 1-1
Falcon Config 2-13
Falcon Desktop Utility B-2
Falcon Information 2-13
serial number 2-13
Falcon Management Utility 2-13, 3-3, C-1, H-2
FAST H-2
FDU Config B-8
file
MIB C-2
file icons B-16
firmware H-2
retrieving image 3-3
updates link 3-3
updating 3-4
iii
Index
Firmware Update Utility 3-3, H-2
FMU 2-13
formatting conventions 0-vi
Full ASCII conversion 2-11
FUU 3-3, H-2
G
general options 2-7
decoding control panel 2-6, 2-8, 2-9, 2-10
generic error B-12
glossary H-1
good-read
beep duration E-35, F-47
beep tone E-35, F-47
number of beeps E-35, F-46
H
handle A-8
removing A-9
handstrap A-8
installing A-8
holster A-6
Home Page B-12
host PC system H-3
hotkey B-9, B-17
add new B-10
new B-9
I
Imager Brightness 2-8
Imager Options 2-8
input panel H-3
installation
handstrap A-8
software 3-2
Interleaved 2 of 5 2-10, E-12, E-13, F-15
Internet Explorer B-12
redirection B-12
K
key
F2 B-9
hot B-9
navigation H-2
strokes entered by user
Keyboard 2-20
keypad 2-20, 2-21
keypad
26-key 2-20
48-key 2-21
52-key 2-21
52-key NU 2-21
overview B-1
0-vii
L
label
prefix 2-7
programming 2-7
suffix 2-7
long range trigger mode
E-34
I.D. # E-2
icons
file B-16
input state H-5
status H-5
system tray H-5
IE home page B-12
IE Tab B-12
image 2-8
magnetic stripe reader 2-9
Matrix 2 of 5 F-17
maximum default settings 2-13, F-3
MIB H-3
Datalogic C-2
iv
Falcon® 4400 Series with Windows Mobile®
M
Index
files C-2
min/max lengths 2-11
minimum default settings 2-13, F-3
mode
resume 1-1
suspend 1-1
mounted file system H-3
MSI E-15, F-19
N
navigation key H-2
Network
ID H-3
new B-14
button B-15
hotkey B-9
non-persistent state H-3
Not Available Offline B-12
note B-10
O
OCR
Check Characters E-42
OK button B-4, B-8, B-11
other controls E-34
overview B-1
overview, manual 0-v
P
parameters
acceptable input E-1
bar codes E-3
bar codes without E-2
Codabar E-3
Code 128 E-8
Code 39 E-5
Code 93 E-7
code parameters E-1
Product Reference Guide
default E-1
EAN-13 E-9
EAN-8 E-11
ID# E-1
Interleaved 2 of 5 E-12, E-13
label prefix E-35, F-50
label suffix E-36
MSI E-15
on/off E-1
Pharmacode 39 (Code 32) E-16
programming E-1
Standard 2 of 5 E-19
Trioptic E-20
type E-1
UPC/EAN Extensions E-23
UPC-A E-21
UPC-E E-22
password B-6, B-7
enter B-8
re-enter B-7
request B-7
set B-6, B-7
PDF-417 F-39, F-41
persistent
state H-4
Persistent Registry 2-21
Pharmacode 39 (Code 32) 2-10, E-16, F-21
pinouts D-1
pistol trigger 2-8
portable data assistant (PDA) H-3
portable data terminal (PDT) H-3
portable keys 0-vii
portables
keys 0-vii
power 1-1
advanced tab 2-22
battery tab 2-22
check battery 2-22
configuration 2-22
control panel 2-22
Printer Adapter A-4
product registration 0-vi
program memory H-4
v
Index
program, adding B-15
programming
bar codes F-1
parameters E-1
programs
installing 3-2
R
RAM H-4
registry defaults F-3
reinstall applications from cold boot
release scan timeout E-35
Request Cancelled B-12
restore
from registry F-3
restore defaults B-6, B-7
resume 1-1
revert to saved settings 2-13
RF
card H-4
RFID 2-8, 2-9
ROM H-4
RSS-14 F-21, F-22
RTC H-4
Run Program on Startup B-16
S
save new settings 2-13
save to registry F-3
scan key 2-8
select
with the stylus 0-vii
selector
application B-14, B-16
enable application B-14
send
check digit 2-11
checksum 2-11
system digit 2-11
serial
vi
3-6
number 2-14
serial cable D-1, D-2
serial number
Falcon Information 2-13
Serial Printer Adapter A-4
Server Is Busy B-12
set home page B-12
set ID character 2-7
set password B-6, B-7
settings
modifying 2-1
shortcut
menu H-4
Show Taskbar B-14
SNMP C-1, H-4
Concepts C-2
soft input panel H-3
softcase A-7
software
installation 3-2
splash screen H-4
spot beam 2-8
spotting beam
enable E-34
timeout E-35
Standard 2 of 5 2-10, E-19, F-24
start button H-4
status
bar H-4
icons H-4, H-5
strap studs H-4
style conventions 0-vi
stylus H-5
actions 0-vii
Stylus Tether A-11
Summit Client Utility 2-29
suspend mode 1-1, H-5
symbologies 2-7
bar code 2-6, 2-7, 2-10, 2-13
Codabar E-3, F-10
Code 128 E-8, F-10
Code 39 E-5, F-5
Code 93 E-7, F-8
Falcon® 4400 Series with Windows Mobile®
Index
Composite F-34
DataMatrix F-32
EAN-13 E-9, F-12
EAN-8 E-11, F-14
IDs 2-7
Interleaved 2 of 5 E-12, E-13, F-15
Matrix 2 of 5 F-17
Maxicode F-36
MicroPDF-417 F-41
MSI E-15, F-19
PDF F-39
Pharmacode 39 (Code 32) E-16, F-21
RSS F-21, F-22, F-30
send identifiers E-35, F-49
Standard 2 of 5 E-19, F-24
Trioptic E-20, F-26
UPC/EAN Extensions E-23, F-29
UPC-A E-21, F-26
UPC-E E-22, F-28
system tray
icons H-5
keyboard Indicators H-5
keyboard indicators H-5
Up/Down B-15
UPC/EAN Extensions 2-10, E-23, F-29
UPC-A 2-11, E-21, F-26
UPC-E E-22, F-28
URL
Syntax Error B-12
USB H-5
user IDs 2-7
V
volume
beeper
E-34, F-45
W
wake up 1-2
Wceload 3-7
Wi-FI 2-29
Win tab B-13
windows controls
0-vii, B-13
X
T
X button
tap stylus 0-vii
task bar B-13
enabled B-14
task switcher B-17
Tethered Stylus A-11
Timeout
Imager, Imager Timeout 2-8
title
application B-15
trigger 2-8
Trioptic 2-10, E-20, F-26
B-8, B-11
U
unauthorized use B-13
Uniform Resource Locator (URL)
Product Reference Guide
H-5
vii
Index
NOTES
viii
Falcon® 4400 Series with Windows Mobile®
Index
NOTES
Product Reference Guide
ix
Index
NOTES
x
Falcon® 4400 Series with Windows Mobile®
Corporate Headquarters
Datalogic S.p.A.
Via Candini, 2
40012 Lippo di Calderara di Reno
Bologna - Italy
Telephone: +39 051 3147011
Fax: +39 051 726562
www.mobile.datalogic.com
Datalogic Mobile, Inc.
1505 Westec Dr.
Eugene, OR 97402
Telephone: (541) 743-4800
Fax: (541) 743-4900
©2007 Datalogic Mobile, Inc.
R44-2698 (Rev C)
9/07
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
