Initial Setup
(Connection)

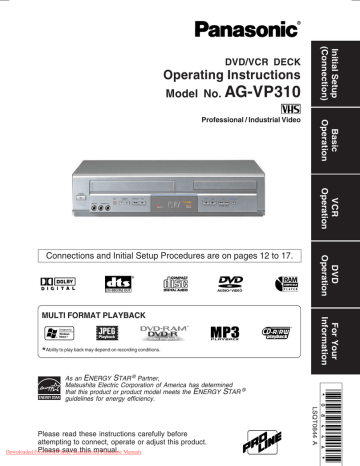

DVD/VCR DECK
Operating Instructions
Model No. AG-VP310
Basic
Operation
Professional / Industrial Video
VCR
Operation
DVD
Operation
Connections and Initial Setup Procedures are on pages 12 to 17.
For Your
Information
MULTI FORMAT PLAYBACK
*Ability to play back may depend on recording conditions.
As an ENERGY STAR ® Partner,
Matsushita Electric Corporation of America has determined
that this product or product model meets the ENERGY STAR ®
guidelines for energy efficiency.
LSQT0844 A
Please read these instructions carefully before
attempting to connect, operate or adjust this product.
Please
save this manual.
Downloaded From
DvDPlayer-Manual.com
Panasonic Manuals
Important Safeguards and Precautions
TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR DAMAGE TO
THIS PRODUCT, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THE MANUAL AND ON THE PRODUCT.
INSTALLATION
OUTDOOR ANTENNA INSTALLATION
1 SAFE ANTENNA AND CABLE CONNECTION
1 POWER SOURCE CAUTION
If an outside antenna or cable system is connected to the equipment, be sure the
Operate only from a power source indicated on the unit or in this
antenna or cable system is grounded so as to provide some protection against
manual. If necessary, have your Electric Utility Service
built up static charges and voltage surges.
Company or Video Products Dealer verify the power source in
Section 810 of the National
your home.
Electrical Code, ANSI/NFPA 70
2 POLARIZED OR GROUNDING PLUG
(in Canada, part 1 of the Canadian Electrical
As a safety feature, this product comes with either a polarized
Code) provides information with respect to
power cord plug (one blade is wider than the other), or a threeproper grounding of the mast and supporting
wire grounding type plug.
structure, grounding of the lead-in wire to an
POLARIZED PLUG CAUTION:
antenna discharge unit, size of grounding conductors,
This plug will only fit into an outlet one way. If you cannot fully insert
location of antenna discharge unit, connection to grounding
the plug, try reversing it. If it still will not fit, have an electrician
electrodes and requirements for the grounding electrode.
install the proper wall outlet. Do not defeat the safety feature by
2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR
tampering with the plug.
CIRCUITS
GROUNDING PLUG CAUTION:
An outside antenna system should be located well away from power lines,
electric light or power circuits and where it will never come into contact with
This plug will only fit into a three-hole grounding outlet. If necessary,
these power sources if it should happen to fall. When installing an outside
have an electrician install the proper outlet. Do not defeat the safety
antenna, extreme care should be taken to avoid touching power lines, circuits or
feature by tampering with the plug.
other power sources as this could be fatal. Because of the hazards involved,
3 POWER CORD
antenna installation should be left to a professional.
Make sure power cords are routed so that they are not likely to
have anything rest on them, roll over them, or be in the way of
USING THE UNIT
walking traffic. If an extension cord is used, make sure it also
If the unit has been in storage or moved to a new location, refer first to the
has either a polarized or grounded plug and that the cords can
INSTALLATION section of these safeguards.
be securely connected. Frayed cords, damaged plugs, and
1 KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND.
damaged or cracked wire insulation are hazardous and should
be replaced by a qualified service technician.
2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR STRONG
IMPACT, unplug the unit and have it inspected by a qualified service technician
Overloaded outlets and extension cords are fire hazards and
before use.
should be avoided.
3 DURING AN ELECTRICAL STORM
4 DO NOT BLOCK VENTILATION HOLES
During a lightning storm, whether indoors or outdoors, or before leaving the unit
Ventilation openings in the cabinet release heat generated during
unused for extended periods of time, disconnect all equipment from the power
operation. If they are blocked, heat build-up inside the unit can
source as well as the antenna and cable system.
cause failures that may result in a fire hazard or heat damage to
cassettes or discs.
4 WHEN THE UNIT IS PLUGGED IN
• Never expose the unit to rain or water. DO NOT OPERATE if liquid has been
For protection, follow these rules:
spilled into the unit. Immediately unplug the unit, and have it inspected by a
a. Never cover ventilation slots or the unit while in use, or
service technician. Fire and shock hazards can result from electrical shorts
operate the unit when placed on a bed, sofa, rug, or other
caused by liquid contact inside.
soft surface.
• Never drop or push any object through openings in the unit. Some internal parts
b. Avoid built-in installation, such as a book case or rack,
carry hazardous voltages and contact can cause electric shock or fire hazard.
unless proper ventilation is provided.
Do not put any foreign object on the disc tray.
5 PLACEMENT: AVOID EXTREMELY HOT LOCATIONS OR
• Avoid placing the unit directly above or below your TV set as this may cause
SUDDEN TEMPERATURE CHANGES
electrical interference. Keep all magnets away from electronic equipment.
Do not place the unit over or near heater or radiator, in direct
5
USING
ACCESSORIES
sunlight, inside closed vehicles, in high temperature [over 104°F
Use only accessories recommended by the manufacturer to avoid risk of fire,
(40°C)], or in over 75% humidity. If the unit is suddenly moved
shock, or other hazards.
from a cold place to a warm one, moisture may condense in the
6 CLEANING THE UNIT
unit and on the tape causing damage. Never subject the unit to
Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently
vibration, impact, or place it so that the surface is tilted as
remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that
internal parts may be seriously damaged.
could over-spray, or seep into the unit and cause electrical shock. Any substance
6 TO AVOID PERSONAL INJURY
such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to
• Do not place unsecured equipment on a
greasy, humid, or dusty areas may adversely affect internal parts.
sloping surface.
• Do not place this unit on any support that
SERVICE
is not firm, level, and adequately strong.
1
DO
NOT
SERVICE
THIS
PRODUCT
YOURSELF
The unit could fall causing serious injury
If, after carefully following the detailed operating instructions, this product
to a child or adult and damage to the unit.
does not operate properly, do not attempt to open or remove covers, or make
• An appliance and cart combination should
any adjustments not described in the manual. Unplug the unit and contact a
be moved with care. Quick stops, excessive force, and
qualified service technician.
uneven surfaces may cause the appliance and cart
2 IF REPLACEMENT PARTS ARE REQUIRED
combination to overturn.
Make sure the service technician uses only parts specified by the
• Carefully follow all operating instructions and use the
manufacturer, or those having the same safety characteristics as the original
manufacturer's recommended accessories when operating
parts. The use of unauthorized substitutes may result in fire, electric shock,
this unit or connecting it to any other equipment.
or other hazards.
3 HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK
After any service or repairs to the unit, request the service technician to
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
conduct a thorough safety check as described in the manufacturer’s service
literature to ensure that the unit is in safe operating condition.
NEC - NATIONAL
ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Safety Precautions/Mesures de sécurité
To prevent fire or shock hazard, do not expose this equipment to rain
or moisture.
To prevent electric shock, match wide blade of plug to wide slot, fully insert.
AVERTISSEMENT:
Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas
exposer cet appareil à la pluie ou à une humidité excessive.
ATTENTION :
Pour éviter les chocs électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This symbol warns the user that uninsulated voltage within the unit may
have sufficient magnitude to cause electric shock. Therefore, it is
dangerous to make any kind of contact with any inside part of this unit.
This symbol alerts the user that important literature concerning the
operation and maintenance of this unit has been included.
Therefore, it should be read carefully in order to avoid any problems.
CAUTION:
UNIT IS A CLASS I LASER PRODUCT.
HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE
YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER
OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION:
LASER RADIATION
WHEN OPEN DO NOT
STARE INTO BEAM.
ATTENTION:
RAYONNEMENT
LASER EN CAS
D’OUVERTURE.
NE PAS REGARDER
DANS LE FAISCEAU.
(Inside of product)
FCC NOTE:
This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when operated in a
residential environment. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, use the equipment in another
location and/or utilize an electrical outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. The user may find
the booklet, “Something About Interference” available from FCC local regional offices helpful.
FCC Caution:
To assure continued compliance, (example- use only shielded interface cables when connecting
to other devices.) Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Region Management Information:
This DECK is designed and manufactured to respond to the
Region Management Information that is recorded on a DVD
disc. If the Region number described on the DVD disc does
not correspond to the Region number of this DECK, this
DECK cannot play this disc.
● The Region number for this DECK is “1”.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
● The Player will play DVD-Video marked with labels
containing “1” or “ALL”.
Example:
1
ALL
1
2
4
Before Using
Congratulations
on your purchase of one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring you
years of enjoyment. Please fill in the information
below. The serial number is on the tag located
on the back of your DECK.
• Date of Purchase
• Dealer Purchased From
• Dealer Address
• Dealer Phone No.
AG-VP310
• Model No.
• Serial No.
Accessories
Remote Control
Batteries 2 “AA”
EUR7724KD0
RF Coaxial Cable
LSJA0418
Head Cleaning
Playing older or damaged tapes may eventually
cause video heads to become clogged.
Video Head Clog Sensor
V I DEO HEADS MAY
NEED CLEAN I NG
During playback, this screen
PLEASE I NSERT HEAD
CLEAN I NG CASSETTE
appears if clogging is detected.
OR REFER TO MANUAL
To remove screen, press PLAY
END
: PLAY
on the remote or DECK.
• Use “dry” type head cleaning cassette only.
(Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape instructions carefully.
Excessive use of tape can shorten head life.
Built-in Head Cleaner
A clean video head helps produce a clear picture.
So, we have equipped your DECK with a built-in, nonchemical head cleaning system that helps prevent
clogging of the video heads. Cleaning is performed
each time you load or unload a video cassette.
• This feature is preventative only, If your video
heads are seriously clogged, consider the use of a
chemical non-abrasive head cleaning kit.
Cleaning DECK
Loading the Batteries
1) Open cover.
2) Insert batteries as
marked.
Use a soft cloth or dusting attachment of a vacuum
cleaner to remove dust from the ventilation holes on
the back sides and bottom of the cabinet. Plastic
surfaces are easily scratched and can be marred by
alcohol and various solvents. Avoid excessive use of
oil-based furniture polishes since the materials used in
the cabinet will accumulate more dust. We recommend
using a non-abrasive, antistatic cleaner and polisher.
Features for a Quality Picture (VCR)
Digital Auto Picture
Automatically controls the video output signal for
less noise depending on the tape condition.
Digital Auto Tracking
3) Close cover.
Continuously analyzes the signal and adjusts for
optimum picture quality.
Battery replacement caution
Manual Tracking Control
• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries. (to reduce picture noise)
Use during Playback and Slow Motion mode to
reduce picture noise.
Record/ Playback Time
Press CH (TRACKING) / on the remote control
Only use tapes with the
mark in this DECK. or on DECK until the picture clears up.
To return to Auto Tracking, press POWER off, then
Type of Video Cassette
on again a few seconds later.
Tape Speed
Setting
T120
T160
T180
R
R
R
R
SLP
(Super Long Play) 6 Hours
8 Hours
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
9 Hours
R
R
R
R
2 Hours
SP
(Standard Play) 2 Hours 40 Minutes 3 Hours
V-Lock Control (to reduce picture jitter)
In Still mode, CH (TRACKING) / operate as a
V-Lock control.
Table of Contents
Basic Operation
For Your Information
Warning and Instruction Displays ..................................... 57
Before Requesting Service.......................................... 58, 59
Index .............................................................................. 60, 61
Memo ............................................................................. 62, 63
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
For Your
Information
DVD Operation
Disc Operation ............................................................ 36 ~ 41
DVD-RAM Operation (DVD-RAM only) .............................. 42, 43
DVD Operation using On-Screen Displays .............. 44 ~ 48
MP3/JPEG Playback Operation ................................. 49 ~ 51
Settings for DVD Operation ....................................... 52 ~ 55
A/V OPTIMIZER ................................................................... 55
Language Code List ........................................................... 56
DVD
Operation
VCR Operation
Timer Recording ........................................................... 24, 25
MTS Broadcast/ VHS Hi-Fi Stereo System ................. 26, 27
Multi-Brand Control Feature ........................................ 28, 29
Tape Operation (Search System) ...................................... 30, 31
Special VCR Features ................................................ 32 ~ 34
Copying Your Tapes (Dubbing) ...................................................... 35
VCR
Operation
VCR
Reset Language, Channels, Clock, VCR’s Output Channel .. 18, 19
Playback/ Record on a Tape........................................ 20, 21
DVD
Basic DVD Operation ................................................... 22, 23
Basic
Operation
DVD / VCR
Important Safeguards and Precautions ......................... 2, 3
Before Using ......................................................................... 4
DECK & Cassette Information ........................................ 6 , 7
Location of Controls .................................................... 8 ~ 10
Displays (On Screen Displays and Multi Function Display) ................. 11
Connections ............................................................... 12 ~ 15
Initial Setup for Basic Connections (Ready to Play) ....... 16, 17
Initial Setup
(Connection)
Initial Setup (Connection)
DECK & Cassette Information
Prevent Accidental Tape Erasure
DVD-RAM discs
DVD-RAM discs must meet the following conditions
for this unit to be able to play them.
Break off the tab to
prevent recording.
Record Tab
Type
Screw driver
Capacity
To record again
• Non-cartridge discs
• Discs that can be removed from
their cartridges (TYPE 2 and 4)
• 12 cm (5”) 9.4 GB (double-sided)
and 4.7 GB (single-sided)
• 8 cm (3”) 2.8 GB (double-sided)
• Remove TYPE 2 and 4 discs from their cartridges
before use, then return them when you are finished.
Read the instructions for the disc carefully.
Cover the hole
with cellophane tape.
Disc formats supported by this DECK
DECK can play back discs bearing any of the
following marks:
Logo
Disc type
DVD-RAM (Version 1.1 of the
Video Recording Format a
unified video recording
standard)
DVD (DVD-Video)
DVD-R (DVD-Video formatted
discs [finalized])
DVD-Audio
CD (CD-DA)
CD-R/CD-RW
• CD-DA format
• WMA/MP3/JPEG file and
finalized.*
• Some parts of the disc, for example where one program
ends and another begins, may not play smoothly.
Disc Handling
Handling precautions
• Sticking a label on the disc may impair DVD-R playback.
• Do not attach sticker to discs. (Do not use discs with
exposed adhesive from tape or left over peeled-off
stickers.)
• Only hold disc by edges as shown below. Fingerprints,
dirt and scratches can cause skipping and distortion.
• Do not write on label side of disc.
• Never use record cleaning
sprays, benzine, thinner,
Disc tray
static electricity prevention
Disc
liquids, or any other solvent.
• Do not try to close disc tray when disc is not
properly placed.
[Discs Played 8cm (3") or 12cm (5")]
*A process that allows play on compatible equipment. To clean disc surface
Discs which cannot be played
• DVD with Region No. other than “1” or “ALL”
• PAL discs (the audio on DVD-Audio can be
played), DVD-ROM, DVD-RW, DVD+R,
DVD+RW, CD-ROM, CDV, CD-G, CVD, SVCD,
SACD, CD-TEXT, Divx Video Disc, Photo-CD
and Video CD
Notes
• Do not use irregularly shaped discs (e.g. heartshaped), as these can damage the unit.
• It may not be possible to play CD-R, CD-RW,
DVD-R and DVD-RAM in all cases due to the
type of disc or condition of the recording.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
With a soft, damp (water only) cloth,
gently wipe from the center hole to the
outer edge as shown below. (Wiping in a
circular pattern will scratch the surface.)
• DVD-RAM, DVD-R :
Clean only with the DVD-RAM disc
cleaner available. Never use cloths or
cleaners for CDs etc.
If disc is brought from a cold to a warm
environment, moisture may form on the disc
Wipe away moisture with a soft, dry, lint-free cloth
before using disc. (See above.)
Improper disc storage
Discs could be damaged if stored or left in areas:
• exposed to direct sunlight.
• that are humid or dusty.
• near heat (i.e. heater, radiator, etc.).
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner
Broadcast Channels:
CABLE Channels:
Input/Output Terminal:
Input Terminal:
Output Terminal:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
Discs Played
(1) DVD-Video Disc
DVD-Audio Disc
DVD-RAM Disc
(2) Compact Disc
(CD-DA)
(CD-R/CD-RW, MP3, WMA, JPEG)
Digital Audio Output:
Pickup:
120 V AC, 60 Hz
Power On: Approx. 28 watts, Power Off: Approx. 0.85 watts
EIA Standard NTSC color
4 rotary heads helical scanning system
1 track (Normal), 2 channel (Hi-Fi Audio Sound)
VHF 2 ~ 13, UHF 14 ~ 69
Midband A through I (14 ~ 22), Superband J through W (23 ~ 36)
Hyperband AA ~ EEE (37 ~ 64), Lowband A-5 ~ A-1 (95 ~ 99)
Special CABLE channel 5A (01), Ultraband 65 ~ 94, 100 ~ 125
Audio/Video Line Input/Output, RF Input/Output
Audio/Video Line Input (Front)
S-Video Output (DVD only), Component Video Output (DVD only)
Audio Output 2 (L), (R)
5 °C ~ 40 °C (41 °F ~ 104 °F)
10 % ~ 75 %
3.85 kg (8.5 lbs).
430 (W) x 95 (H) x 273 (D) mm
16-15/16” (W) x 3-3/4” (H) x 10-3/4” (D) inch
5”
5”
5”
3”
3”
3”
5”
3”
5”
3”
(12 cm) single-sided single-layer
(12 cm) single-sided double-layer
(12 cm) double-sided double-layer (one layer per side)
(8 cm) single-sided single-layer
(8 cm) single-sided double-layer
(8 cm) double-sided double-layer (one layer per side)
(12 cm) 9.4 GB (double-sided) and 4.7 GB (single-sided)
(8 cm) 2.8 GB (double-sided)
(12 cm) disc
(8 cm) disc
Digital Optical Connector
Wavelength: 655 nm (DVD), 790 nm (CD)
Laser power: CLASS II
Note: • Designs and specifications are subject to change without notice.
Definition of Terms (DVD)
Angle:
Some DVD discs feature scenes simultaneously shot from different angles.
The ANGLE button can be used to view the scene from different angles.
(ANGLE Indicator lights on DECK when a scene recorded at different
angles is detected.)
Chapter Number: Titles are subdivided into numbered sections. You can quickly search for
a favorite scene using these numbers.
DVD:
A high-density optical disc on which high-quality pictures and sound have
been digitally recorded. DVD incorporates video compression technology
(MPEG II) and high-density recording technology which allow entire
movies to be recorded with incredible playback quality.
Subtitles:
Written dialogue which appears at the bottom of the screen.
Time Number:
The elapsed play time from the start of a disc or title. Use to quickly find
scenes. (May not work with some discs.)
Title Number:
For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.
Track Number: Numbers assigned to tracks on CDs to allow specific tracks to be quickly
located.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093,
licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation,
and is intended
forManuals
home and other limited viewing uses only unless otherwise
Downloaded From
DvDPlayer-Manual.com
Panasonic
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Initial Setup
(Connection)
Specifications
Location of Controls
Remote Control
Bold: VCR Function / Bold Italic: VCR and DVD Functions
Italic: DVD Function / Normal:
Others
VCR/TV
EJECT /
OPEN / CLOSE
p. 21
pp. 20, 22
TV mode
p. 28
POWER
CHANNEL / /
TRACKING / V-LOCK / 10
pp. 4, 21, 22
NUMBER keys
VOLUME + / p. 28
ADD/DELETE / CLEAR
MENU / PLAY LIST
pp. 19, 39
p. 38, 43
ACTION
SELECT
pp. 18, 52
SET
DVD mode
p. 28
VCR mode
p. 28
PLAY
pp. 20, 22
STOP
pp. 20, 22
SKIP+
SKIP-
REWIND / SEARCH /
SLOW-
p. 23
pp. 20, 23
FAST FORWARD /
SEARCH / SLOW+
Virtual Surround Sound (V.S.S.) /
ENTER
pp . 23, 28
pp. 20, 23
ZOOM
PAUSE / STILL
p. 37
pp. 20, 23
ANGLE
p. 37
TAPE POSITION /STATUS
VOLUME ADJUST
p. 31, 40
SUB TITLE
p. 36
AUDIO (SAP / Hi-Fi)
pp. 27, 36
TITLE /
DIRECT NAVIGATOR
p. 38, 42
RETURN / SEARCH
INPUT
p. 35
DISPLAY
p. 11, 44
RECORD
pp . 22, 30
COMMERCIAL SKIP /
ZERO SEARCH
A/V OPTIMIZER
pp. 30, 55
COUNTER RESET
p. 21
SPEED / PAGE
p. 21, 41
EJECT button: When this button is pressed in VCR mode, the tape is ejected.
This button is inoperative if pressed during recording.
If pressed in DVD mode, the disc tray opens or closes.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
p. 30
PROGRAM
p. 24
If the disc cannot be removed...
First, unplug DECK. Then, prepare a rigid
wire (e.g. an extended paper clip) and,
applying moderate force, insert it straight
into the hole at the base of the tray.
The tray will eject a little. Now, pull the tray
all the way out and remove the disc.
Bold:
VCR Function
Italic:
DVD Function
Bold Italic: VCR and DVD Functions
Normal:
Others
PLAY
Initial Setup
(Connection)
FrontView
View
DECK
Front
ofof
DECK
p. 20
STOP/EJECT
Over 2 inches
p. 20
Remote
Sensor
POWER
Cassette
Compartment
Audio/Video
Input Connector 2
(LINE 2) p. 35
Disc Tray
OPEN/CLOSE
Blue Light
p. 22
p. 32
REC
Multi Function
Display
p. 21
CHANNEL /
TRACKING/V-LOCK
p. 11
FAST FORWARD
/ SEARCH /
SKIP
p. 20, 23
REWIND / SEARCH /
SKIP
pp. 4, 21
p. 20, 23
PLAY
p. 22
STOP
p. 22
Reset All Memory Functions
Returns to factory setting. Use if relocating DECK, or if Initial Setup needs to be redone.
• Make sure a tape is not inserted in the DECK.
1
2
1
2
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
3
Turn DECK Power on.
Press and hold both VCR PLAY
and CHANNEL
on the DECK for
more than 5 seconds.
• The power shuts off.
Perform “Initial Setup (Ready to Play)”
on page 16.
Location of Controls (continued)
Bold:
VCR Function
Italic: DVD Function
Bold Italic: VCR and DVD Functions
Rear View of DECK
AC Power Plug
VHF/UHF Antenna Output Terminal
p.12
• While plugged into an AC outlet,
this DECK consumes 0.85 W of
electrical power in off mode.
VHF/UHF Antenna Input Terminal
p. 12
Component Video Output
Connector (Y, PB, PR)
(DVD Only)
p. 13
Video Output
Connector
p. 12
•
Video Input
Connector
p. 35
•
•
Audio Output 1
Connector (L/R)
p. 12
Optical Digital Audio
Output Connector
(DVD Only)
p. 15
S-Video Out Connector
(DVD Only)
pp. 10, 13
Audio Output 2
Connector (L/R)
p. 13
Audio Input
Connector (L/R)
p. 35
The following table shows the status of the output jacks when in VCR or DVD mode.
Video Output
Audio Out 1
Audio Out 2
VCR
DVD
YES
YES
Component
Video Output
S-VIDEO OUT
N/A
N/A
YES
Note • PROG functions on the remote are not available when using Component Video Output and
S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.
To enjoy PROGRESSIVE SCAN video
(1). Connect Component Video Output to the component video input terminals of a television.
(See p. 13.)
(2). When PROGRESSIVE OUT is set to “ON” in the DVD Main Menu (p. 55), a Progressive
Scan signal is output from the Component Video Output Connector .
Notes
• The screen may shift off-center when using progressive output. Please adjust the screen
position if this occurs. (Refer to your TV manual.)
• If the television is not progressive compatible, a progressive scan picture is not available.
Connect the Video Output or S-Video Output connector (see p. 12, 13) and
set PROGRESSIVE OUT to “OFF” in the DVD Main Menu. (See p. 55.)
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Displays (On Screen & Multi Function)
Function & Channel Displays
CH 0 8
When a function button
is pressed, e.g. PLAY,
or you change
channels, a 5-second
display appears.
Blank Tape/ No Video Signal
Indications
Whenever a blank section of a tape comes
up in Play mode, or when the selected
channel has no broadcast signal with Weak
Signal Display Feature (p. 33) set to OFF,
the TV screen will turn solid blue.
Initial Setup
(Connection)
On Screen Displays (VCR)
Current Time
➛ press DISPLAY.
Channel
Function Status
VCR Status & Clock Displays
To display or remove
screen shown at right,
CH 02
REW
1 2 : 0 0AM
-0 : 1 2 : 3 4
0 : 25
SP
STEREO
SAP
MONO
Rec Time Remaining
(OTR mode only,
see p. 21.)
Broadcast Audio
Being Received
(See pp. 26, 27.)
Counter
Tape Speed
(See p. 4.)
Multi Function Display
VCR mode Indicator
Tape Indicator
DISC Indicator
DVD mode Indicator
Lights up when
DECK is in VCR mode.
Lights up when a tape
is inserted.
Lights up when a
disc is inserted.
Lights up when
DECK is in DVD mode.
Timer Indicator
VCR REC Indicator
Lights up when
DECK is set for
Timer Recording,
or when One
Touch Recording
(OTR) is used.
Flashes when
Timer Recording is
set, but a tape has
not been inserted
into DECK and
when a power
interruption occurs
during Timer
Programming.
Lights up during
recording.
CD/MP3/WMA
Indicator
VCR
TIMER
DVD
REC
Hi - Fi
DIGITAL
DIGIT
Hi-Fi Indicator
Lights up when
Hi-Fi audio is
present in Play
mode.
DTS Indicator
C D MP3 WMA
ANGLE
AM
PM
CD : Lights when an
Audio CD is
inserted or
JPEG file is
played.
MP3/WMA :
Lights when an
MP3 or WMA
file is played.
ANGLE Indicator
AM/PM
Indicator
Lights up when a
scene recorded at
different angles is
detected.
(See p. 37.)
(DVD only)
Lights up when a DTS
formatted DVD is played.
(DVD only)
Clock/ Status/ Channel/ Speed Display
Dolby Digital
Indicator
Lights up when a “Dolby Digital”
formatted DVD is played.
Downloaded(DVD
From DvDPlayer-Manual.com
Panasonic Manuals
only)
Displays current time. Briefly displays DECK
status when you press a function button,
channel number or “L1” or “L2” when you select
channel or line input, and recording speed when
you press SPEED.
Connections
Basic Connections
• If your TV has AUDIO and VIDEO IN terminals, connect them to DECK for higher
quality picture and sound.
• You can enjoy stereo sound even if your TV is not stereo by connecting a stereo
amplifier to DECK.
• Connect DECK and TV with an RF Coaxial Cable a (supplied) or an AV Cable b
(not supplied) as shown in the figure below.
■ DSS Receiver
DECK
■ DECK
TV
■ Cable Box
TV
DECK
TV
Antenna or Cable
DSS
Receiver
IN
IN
IN
OUT
Cable Box
OUT
or
1 Disconnect antenna or cable from TV
and connect to DECK.
2 Connect DECK to TV with RF Coaxial Cable.
a
DVD/VCR DECK
TV
OUT
IN 1
RF COAXIAL CABLE
(supplied)
IN FROM ANT.
VIDEO
VHF/
UHF
L
AUDIO
VHF/UHF
OUT TO TV
AUDIO IN VIDEO
L
IN
R
R
b
AV CABLE (not supplied)
When using “Nut type” RF coaxial cables, tighten with
fingers only. Overtightening may damage terminals.
Note to CABLE system installer
This reminder is provided to call the CABLE system installer’s attention to Article 820-40 of the
NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
You Can
■ With a Cable Box (DECK Cable Box TV)
DVD/VCR DECK
ANT or CATV
TV
IN 1
OUT
IN FROM ANT.
IN
Cable Box
VHF/UHF
OUT TO TV
IN
OUT
VHF/
UHF
R
L
ANT
or
CATV
OUT
Cable Box
IN
IN 1
IN FROM ANT.
OUT
VHF/UHF
OUT TO TV
2-Way Splitter
Cable Box
OUT 1 OUT 2
IN
OUT
A/B Switch
IN 1 IN 2
• view any
(including
scrambled)
channel.
• record
scrambled
channels.
OUT
AUDIO
VIDEO
■ Connect With Two Cable Boxes
DVD/VCR DECK
You Cannot
• use Remote
Control to select
channels without
using Multi-brand
control feature.
You Can
• record and view
both scrambled
and unscrambled
channels if
additional
TV
equipment is
added.
IN OUT
This connection
R
AUDIO
requires: two
L
converter boxes,
VIDEO
an A/B switch,
VHF/
UHF
and a 2-way
splitter.
Initial Setup
(Connection)
Other Connections
You Cannot
• view a channel
other than the
one selected
for any type of
recording.
• set a Timer
recording of a
channel unless
you select it on
the Cable Box.
Connections For DVD Only (enjoying higher picture quality)
1 Connect AUDIO OUT2 (L, R) to the AUDIO IN (L, R) of the TV. (audio input for COMPONENT
or S-VIDEO mode).
2 If your TV has COMPONENT VIDEO INPUT, connect to COMPONENT VIDEO OUT.
3
If your TV does not have COMPONENT VIDEO INPUT but has S-VIDEO INPUT, connect to
S-VIDEO OUT.
When in DVD mode, set your TV to either COMPONENT VIDEO IN or S-VIDEO IN.
Notes • You can watch DVDs through the S-VIDEO or COMPONENT VIDEO, VHF/UHF OUT TO TV,
and VIDEO OUT connections to your TV. The VCR and TUNER pictures are available only
from the VIDEO OUT and VHF/UHF OUT TO TV connections to your TV.
• PROG functions on the remote are not available when using S-VIDEO OUT and COMPONENT
Video Output. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.
• TV must have capability to accept and display a progressive scan signal to use
PROGRESSIVE mode. Consult your TV operating instructions.
DVD/VCR DECK
DVD OUTPUT
COMPONENT
VIDEOOUT
TV
AUDIOOUT2
Y
IN
IN
IN
Y
L
PB
R
AUDIO
PB
L
PR
S-VIDEO OUT
PR
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
or
R
From DECK’s
A/V OUTPUT
VIDEO
S-VIDEO
IN
Connections (continued)
Audio Connections
Ready Checklist
Turn down the volume, then turn DECK, as well as other equipment to be connected,
off before proceeding with connection.
Do not block ventilation holes of any of the equipment and arrange them so that air can
circulate freely.
Read through the instructions before connecting other equipment.
Ensure that you observe the color coding when connecting audio and video cables.
■ Connecting Amplifier (2ch stereo system)
DVD/VCR DECK
AUDIO OUT2
L
R
Speaker
Amplifier
AUDIO IN
R L
Speaker
Enjoying digital audio output from the digital audio output connector
Notes on audio output from the optical digital audio output connector
Disc
Sound recording format
DVD
Dolby Digital
Linear PCM(48 kHz/16 bit)
Optical digital audio output from connector
Dolby Digital bitstream (1-5.1 ch)
or PCM (48 kHz sampling/16 bit only)*1
Linear PCM (2 ch)
(48 kHz sampling/16 bit or 44.1 kHz sampling/
16 bit)*2
Bitstream or PCM (48 kHz sampling/16 bit only)*1
Dolby Digital bitstream (1 - 5.1 ch)
or PCM (48 kHz sampling/16 bit only)
Linear PCM (2 ch)
CD
Linear PCM
Linear PCM (44.1 kHz sampling)
MP3
WMA
MP3
WMA
Linear PCM (It depends on the MP3 file)
Linear PCM (It depends on the WMA file)
Linear PCM
(48/96/192/44.1/88.2/
176.4 kHz 16/20/24bit)
DTS
DVD-RAM
Dolby Digital
*1 The type of audio output from the connector can be selected by the Settings for DVD
Operation. (See p. 53.)
*2 When “LPCM(DVD)” is set to OFF in the DVD Main Menu, 44.1 or 48 kHz sampling/16 bit is
ouput. When set to ON, sampling of sound quality greater than 44.1 or 48 kHz/16 bit is reduced
to 44.1 or 48 kHz/16 bit. (See page 53.)
For your reference:
• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories
Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel)
sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.
• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit,
DVDs are recorded in 44.1 kHz/16 bit ~ 192 kHz/24 bit.
• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from
the same DVD movies that provide full 5.1 channel Dolby Digital soundtracks, as well as from
titles with the Dolby Surround mark. For information on Panasonic or Technics Dolby Pro Logic
Surround Sound Decoders please contact your local dealer.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital bitstream
or DTS bitstream is output from the DECK OPTICAL digital audio output connector.
When DECK is connected to a Dolby Digital decoder or DTS decoder, you can
enjoy theater-quality audio in your home. [An optical digital audio cable (optional)
is required when an optional Dolby Digital decoder or DTS decoder is used.]
Notes on connecting an optical
digital audio cable (optional)
• Firmly connect the cable to the
connector.
Surround
Speaker
Surround
Speaker
[5.1ch Surround system]
Center
Speaker
DVD/VCR DECK
(Rear)
Optical Digital
Audio Cable
(optional)
Decoder with
Dolby Digital /DTS
processing (optional)
Front
Speaker
Front
Speaker
To Optical
Digital Audio
Input Connector
Amplifier
Subwoofer
Caution for optical digital audio output connector:
• When connecting an amplifier (with an Optical Digital Input Connector) which does not
contain the Dolby Digital or DTS decoder, be sure to select “PCM” at “Dolby Digital”
and “PCM” at “dts” of the Settings for DVD Operation “Audio Output” (see p. 53).
Otherwise, any attempt to play DVDs may cause such a high level of noise that it may
be harmful to your ears and damage your speakers.
• When a Dolby Digital/DTS decoder is connected, please select “Bitstream” at “dts” or
“Dolby Digital” of the Settings for DVD Operation “Audio Output”.
If “PCM” is selected, there will be stereo sound. (See p. 53.)
• CDs can be played as usual.
Note:
• Some DTS decoders which do not support DVD-DTS interface may not work properly with DECK.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No’s. 5,451,942,
5,956,674, 5,974,380, 5,978,762, 6,487,535 and other US. and world-wide patents issued and
pending. “DTS” and “DTS 2.0 + Digital Out” are trademarks of Digital Theater Systems, Inc.
Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Initial Setup
(Connection)
■ Connecting Amplifier (5.1 ch Surround system) [Digital connection]
DECK Dolby Digital Decoder Amplifier Speaker
or
DECK DTS (Digital Theater Systems) Decoder Amplifier Speaker
Initial Setup for Basic Connections (Ready to Play)
Before doing Initial Setup
1 Turn TV on.
2
See connections a RF Coaxial Cable Connection and b AV Cable Connection on page 12.
<RF Coaxial Cable Connection>
Set TV to channel 3.
<AV Cable Connection>
Set TV to VIDEO.
3
[DECK ➛ TV]
• Go to “Initial Setup (Ready to Play).” (See below.)
[Cable Box ➛ DECK ➛ TV], [DSS ➛ DECK ➛ TV]
• Turn on Cable Box and set it to your Public Broadcasting Station (PBS) channel
in your time zone.
• If you use a DSS Receiver, it must be turned off.
Initial Setup (Ready to Play)
1
2
Press VCR on remote for VCR mode.
Plug DECK Power Cord into AC wall outlet. DECK comes on and auto channel
and clock set starts.
• If screen below does not appear, check DECK - TV connection and, if TV is tuned to
channel 3, try switching it to channel 4.
• To change VCR’s output channel, please see “VCR’s Output Channel” on page 19.
Plug VCR Power plug
into an AC wall outlet.
CH AUTO SET PROCEEDING
CANCEL : STOP
Notes
AUTO CLOCK SET
PROCEEDING
CANCEL : STOP
• Function buttons are void during Initial Setup.
• To eject a tape during Auto Set, press EJECT on remote
or STOP/EJECT twice on DECK.
Then make settings manually. (See p. 18.)
• If Auto Clock Set takes more than 30 minutes,
press STOP and perform settings manually. (See p. 18.)
Continued on next page...
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
y)
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
EJECT
If “AUTO CLOCK SET IS INCOMPLETE”
appears, manually set clock (below).
ACTION
SELECT
AUTO CLOCK SET
SET
VCR
IS I NCOMPLETE
PLEASE SET CLOCK BY
PRESSING ACT I ON KEY
Manual Clock Set
If Auto Clock Set was incomplete.
1
Press ACTION* on remote to display
CLOCK screen.
SET CLOCK
1 / 1/2004 THU-- 12:00PM
DST : ON
----------------------SELECT :
SET : SET
END
: ACT I ON
STOP/EJECT
2
Press
to select the month and SET to
set. In the same manner, select and set
the date, year, time, and DST (Daylight
Saving Time).
SET CLOCK
6 /20/2004 SUN- -15:30PM
DST : ON
----------------------SELECT :
SET : SET
START : ACT I ON
3
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Press ACTION to start clock and exit.
Initial Setup
(Connection)
3
Settings are made automatically.
When complete, this screen appears.
Reset Language, Channels, Clock,
1
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
Press ACTION*
to display MENU.
• PROGRAM functions are not available
when using COMPONENT Video Output
and S-VIDEO OUT. Please set TV to
either RF INPUT or VIDEO INPUT, and
then press PROGRAM.
SELECT :
SET : SET
EXIT
: ACTION
2
Language
Channels
1) Press
to select
language item.
1) Press
to select
“SET UP CHANNEL,”
and press SET.
Clock
1) Press
to select
“SET CLOCK,” and
press SET.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
2) Press SET repeatedly to
change language item as
shown below.
MENU
PREPARAR VCR
FIJAR RELOJ
FIJAR CANAL
LANGUE/LANGUAGE:ESPAÑOL
SALIDA DE VCR CANAL : 3
2) Press
to select
“ANTENNA,” then
press SET to set your
antenna system
(“TV” or “CABLE.”)
SET CLOCK
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
WEAK S I GNAL D I SPLAY : OFF
ELEGIR :
FIJAR : SET
SALIR
: ACTION
➡
For Spanish
SELECT :
SET : SET
EXIT
: ACT I ON
to select
3) Press
“AUTO SET,” then
press SET.
• If you use a Cable Box,
set it to the PBS channel
in your time zone.
➡
For French
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
For English
3) Press ACTION to exit.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
2) Press
to select
“MANUAL,” and press SET.
(For Auto Clock Set, select
“AUTO CLOCK SET.”)
AUTO CLOCK SET
MANU
NUAL
T I ME ZONE ADJUST : 0
SELECT :
SET : SET
EXIT
: ACT I ON
(“TIME ZONE ADJUST”
appears only when auto
clock is set.)
SET CLOCK
1 / 1/2004 THU-- 12:00PM
DST : ON
----------------------SELECT :
SET : SET
END
: ACT I ON
CH AUTO SET PROCEEDING
CANCEL : STOP
• After Channel Auto Set
is finished, Auto Clock
Set will be performed.
and to
3) Press
select, then set the date,
time, and DST (Daylight
Saving Time).
4) Press ACTION to start
Clock and exit this
mode.
VCR’s Output Channel
*Important: If a remote control button does not work
when pressed, press the VCR button
on the remote and try the button again.
POWER
NUMBER
keys
CH
Time Zone Adjust
1) Press
to select
“SET CLOCK,” and
press SET.
1) Press
to select
“VCR’S OUTPUT CH.,”
and press SET.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
2) Press
to select
“TIME ZONE ADJUST,”
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : 0
SET
VCR
2) Press SET.
I F YOU PRESS ACT I ON
KEY, VCR’ S OUTPUT CH
SW I TCHES TO CH 4.
3) Press ACTION.
SELECT :
EXIT
: ACT I ON
ADD/DLT
ACTION
SELECT
SET : SET
Add or Delete a Channel
To add channel:
Select channel with NUMBER keys
and press ADD/DLT.
CHANNEL 08 ADDED
and press SET to
subtract or add hour(s)
as necessary.
• “TIME ZONE ADJUST”
returns to “0” if clock is
set manually.
➡
3) Press ACTION.
PLEASE TUNE YOUR TV TO
CH 4.
After 3 seconds
To delete channel:
Select channel with CH / or
NUMBER keys and press ADD/DLT.
CHANNEL 08 DELE TED
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:4
SELECT :
SET : SET
EXIT
: ACTION
• To Make Corrections,
repeat steps 1) ~ 3).
DST (Daylight Saving Time)
DECK auto adjusts clock for DST.
(p. 17.)
Spring (First Sunday in April)
DST:ON ➛ Sets clock ahead one hour.
Autumn (Last Sunday in October)
DST:ON ➛ Turns clock back one hour.
• If your area does not observe
Daylight Saving Time, select
DST:OFF.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
• Keep these time changes in mind
when programming DECK for
timer recordings.
Basic
Operation
(Only when Auto Clock is set.)
VCR’s Output
Channel
/
Playback/ Record on a Tape
Ready Checklist
EJECT
VCR/TV
All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
TV is on and tuned to CH 3, 4, or VIDEO.
Remote is in VCR mode. (Press VCR.)
CH
/
Playback a Tape
1
2
Insert a tape.
• DECK power comes on. If Auto VCR/TV (see
p. 32) is set to “OFF,” press VCR/TV on the
remote for VCR mode.
Press PLAY* to play a tape.
VCR
FF/
DVD
PLAY
STOP
• If tape has no rec. tab (p. 6), auto play begins. SLOW+
Special Features During Play
Forward/Reverse Scene Search
➛ Press FF/SLOW+ or REW/SLOW-.
➛ Press PLAY to release.
After search has begun, each additional press of
FF or REW changes speed.
Notes
• Picture interruption may occur with some TVs.
• FF and REW search speed may vary depending
on current tape position.
• After 10 minutes in search mode, VCR returns to
Play mode to protect the tape and the video heads.
Still (Freeze) Picture
➛ Press PAUSE/STILL.
➛ Press PLAY to release.
Frame by Frame Picture
➛ Press PAUSE/STILL in Still mode.
➛ Press PLAY to release.
Slow Motion Picture
➛ Press FF/SLOW+ (increase speed) or
REW/SLOW- (decrease speed) in Still
mode.
➛ Press PLAY to release.
3
REW/
SLOWPAUSE/
STILL
REC
SPEED
Notes
• These features work best in SP or SLP mode.
• The sound will be muted.
• To reduce picture noise, see “Manual
Tracking Control” on page 4.
• After 3 minutes in Still or Slow mode, VCR
stops to protect the tape and the video heads.
Playback using DECK buttons
1 Insert a tape.
2 Press PLAY.
Press STOP to stop a tape.
Rapid Rewind/FF
Press REW/SLOW- or FF/SLOW+ in Stop
mode to rewind or fast forward a tape.
• Rewinds a T-120 tape in approx. 1 minute.
Press EJECT on remote,
or STOP/EJECT on DECK to eject a tape.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Multi Function Display
Press STOP/EJECT to stop
and/ or eject a tape.
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Record on a Tape
This video recorder, equipped with HQ
(High Quality) system, is compatible
with existing VHS equipment.
Only use tapes with the
mark.
Only tapes tested and inspected for
use in 2, 4, 6, and 8 hour machines
are recommended.
Insert a tape with a record tab (p. 6).
1
• DECK power comes on. If Auto VCR/TV (see p. 32)
is set to “OFF,” press VCR/TV on the remote for
VCR mode.
2
Press CH
, or NUMBER keys
to select the channel.
Note
Remove loose or peeling
labels from tapes to prevent
tape jam.
Press SPEED
to select the record speed (p. 4).
3
SP = Standard Play
SLP = Super Long Play
• Speed appears on-screen and on Multi Function Display.
4
5
Press REC
to start recording.
(The VCR REC indicator lights up on Multi Function
Display),
• To edit out unwanted scenes, press PAUSE/STILL
to pause, and again to resume recording.
• You cannot view another channel during recording.
CH 02
0 : 00 : 00
SP
REC T I ME :
Press STOP
to stop recording.
0 : 30
T I ME : PRESS REC KEY
CANCEL : PRESS STOP KEY
<One Touch Recording screen>
One Touch Recording (recording in progress),
➛ press REC repeatedly to set the recording length
(30 min. ~ 4 hours) (see right).
• DECK shuts off after the preset record length.
Normal Rec
4:00
3:00
0:30
2:00
1:00
1:30
Record one station, watch another,
➛ press VCR/TV on the remote
(change to TV mode),
➛ select channels at TV (recording continues).
Select Channels at DECK (In Stop or
Rec. Pause mode)
➛ press VCR/TV on the remote
(change to TV mode),
➛ select channels at DECK.
Record using DECK buttons
4 Press
REC
to start
recording.
1 Insert a tape.
Play a disc while recording a tape.
➛ insert a disc during recording,
➛ press DVD, and then press PLAY.
Notes
• It is not possible to record from DVD/ CD to
VHS tape using DECK.
• Watching one channel and recording another
is not possible when using Cable Box or
DSS Receiver.
After
5 minutes in Pause
mode,
DECK stops to
Downloaded• From
DvDPlayer-Manual.com
Panasonic
Manuals
protect a tape and video heads.
2 Select
Channel.
Multi Function Display
Press STOP/EJECT to stop.
Basic
Operation
• If channel number is over 100, first press 100 key
then the other 2 digits.
• For “LINE” input, see p. 35.
Basic DVD Operation
Ready Checklist
All connections are made. (pp. 12 ~ 15)
DECK is plugged in.
If DECK is connected to an audio amplifier,
turn the stereo system’s power on.
1
2
3
OPEN/
CLOSE
Press POWER* on the remote or DECK.
Press DVD to select DVD mode.
• If a disc is already inserted, go to step 4.
(Depending on the disc, playback may
start automatically.)
Press OPEN/CLOSE,
and then place a disc into the disc tray.
• Hold disc by its edges
only (p. 6) with printed
side up and use guides
1 to place into tray.
2 Use 1 3” (8 cm)
or 2 5” (12 cm) disc.
DVD-RAM ➡ see p. 42
POWER
10
NUMBER
keys
SELECT
MENU
4
Press PLAY to start playing.
Disc tray closes automatically.
CLOSE
SET
STOP
FF/
SLOW+
DVD
PLAY
REW/
SLOW-
SKIP+
SKIPVSS
READING
PAUSE/
STILL
TITLE
RETURN
• You may also close tray by
pressing OPEN/CLOSE .
• Data reading time differs with
each disc.
<Example1>
T I TLE MENU
If an interactive DVD*1 is used
and TITLE MENU appears, go
to step 5.
5
1 Press
POWER.
Press
OPEN/CLOSE.
4 Press PLAY.
3 Insert a disc.
Cas t l es
Love r s
B i r ds
Press
or
NUMBER keys (see
below) to select title,
and press SET or
PLAY to start playing.
Operation using DECK buttons
3, 7
Dogs
<Example2>
• Pressing SET or PLAY
is not necessary when
using NUMBER keys.
Using NUMBER keys starts play automatically.
The number of available titles varies with each disc.
1 digit number
1 •••• 1
<Input
2
digit
number
12
••• 10 ➛ 1 ➛ 2
Example>
| or SKIP- |
to go to next or
Press SKIP+
previous menu screen.
• SKIP function not available with all discs.
Please refer to disc jacket for operation information.
To return to menu (play stops)
Press TITLE, MENU, or RETURN.
6 Press
STOP.
1
* Interactive DVD...
May include multiple camera angles,
stories, etc.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
6
7
Press STOP to stop playing.
Press OPEN/CLOSE to eject the disc.
*Important: If a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
■ Forward/Reverse Scene Search
V.S.S. (Virtual Surround Sound)
Press FF/SLOW+ or REW/SLOW- during play.
Enjoy a surround-like effect if you are
Press PLAY to release.
• Search speed, slow at first, increases with each
additional press of the button up to 5 levels.
■ Forward/Reverse Chapter/Track Skip
using two front speakers only. The effect
is broadened and sound seems to come
from virtual speakers on either side if the
disc has surround signals recorded on it.
Press SKIP+
| or SKIP- |
during play. Press VSS in DVD mode.
Each press skips a chapter (DVD-Video),
• The Surround sound effect can be
track (DVD-Audio/CD) or Program/Play List/ changed by pressing VSS repeatedly as
shown by the figure below.
Marker (DVD-RAM).
VSS OFF
VSS1
VSS OFF (default)
Chapter/Track Chapter/Track
Program/Play List Program/Play List Program/Play List
Reverse Skip
VSS3
Chapter/Track
Reverse Skip
Forward Skip
DVD-RAM
• Pressing SKIP- |
once midway through a
program/play list returns to the start of that
program/play list. Each additional press skips
back one program/play list.
Current playback position
Marker
Forward Skip
■ Still Picture or Pause
VSS2
Note
• Surround sound effect is available in DVD
mode only.
• Turn off the surround effects on the other
equipment.
• V.S.S. will not work, or will have less
effect, with some discs.
• Turn V.S.S. off if it causes distortion.
• Sound will only come from the two front
speakers if V.S.S. is on.
Resume Function
DECK memorizes the point where STOP is
pressed (STOP
is displayed on screen).
Press PLAY to resume play from this point.
• DVD : DECK will enter still picture mode.
Pressing STOP again or opening the tray
• CD : DECK will enter pause mode.
cancels RESUME, however, RESUME is not
■ Frame by Frame Picture (DVD)
canceled when power is turned off and on.
Press PAUSE/STILL in still mode.
• RESUME works only with discs for which
Press PLAY to release.
elapsed play time is displayed during play.
• Each press advances picture one frame.
• When a DVD-RAM still picture is played
• Hold button down for consecutive frame advance.
back, the counter will not be displayed,
• Whether pictures are advanced by “FRAME” or
however RESUME will function.
“FIELD” is selected automatically. (See p. 54.)
Press PAUSE/STILL during play.
Press PLAY to release.
■ Slow Motion Picture (DVD)
Notes
Press FF/SLOW+ or REW/SLOW- in still mode. • Please read the disc jacket for operation
information.
Press PLAY to release.
• Slow motion speed, slow at first, is increased
with each additional press of the button up to
5 levels.
Auto-Power Off Function
Power turns off after DECK has been in
Stop mode (DVD) for about 5 minutes.
When
appears on the
screen
while a button is
Downloaded• From
DvDPlayer-Manual.com
Panasonic
Manuals
being operated, it means that the corresponding
operation is prohibited by DECK or the disc.
• If a single sided disc is placed in upside
down, “THIS TYPE OF DISC CANNOT
BE PLAYED. PLEASE INSERT A
DIFFERENT DISC” is displayed.
• Remove disc and press DECK POWER
off when not in use.
• Disc continues to rotate with menu
displayed even after play is done.
Press STOP to clear menu display when
finished with menu.
Basic
Operation
DVD-Video, DVD-Audio and CD
• Pressing SKIP- |
once midway through a
chapter/track returns to the start of that
chapter/track. Each additional press skips
back one chapter/track.
Current playback position
Timer Recording
Ready Checklist
All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
Clock set correctly. (p. 18)
Tape has record tab intact. (p. 6)
Remote is in VCR mode. (Press VCR.)
Sufficient tape remaining for recording time.
1
POWER
Press PROG*
to display Program.
ADD/DLT
2
P DT START
1 -- --:-2 -- --:-3 -- --:-4 -- --:--
STOP
--:---:---:---:--
CH SPD
-- --- --- --- --
SELECT :
SET : SET
EXIT
: PROG
Example
SELECT
SET
VCR
• See selection order left.
Today
14
1
31
12
DAILY
13
1) Press .
2) Set record DATE,
press
to select:
1~31= one time, or
DAILY=Monday~Friday,
or WEEKLY= same time
each week.
SELECT /
Selection Order
WEEKLY
(SA)
WEEKLY
(SU)
WEEKLY
(MO)
3) Set remaining items,
press SET
to set START/ STOP times,
CH (channel) or LINE
input (p. 35), and tape
speed (SP, SLP).
Then press
to select.
PROG
Press PROG
to end programming.
3
P DT START
1 13 2:00p
2 -- --:-3 -- --:-4 -- --:--
STOP
3:20p
--:---:---:--
CH SPD
02 SLP
-- --- --- --
SET COMPLETED
CANCEL : ADD/DLT
SELECT :
SET : SET
EXIT
: PROG
To Enter More Programs,
press
to select and
press SET
to set an unused program
number, and then repeat
step 2.
Or
Press PROG
to exit.
VCR mode Indicator
VCR REC Indicator
VCR
TIMER
REC
Hi - Fi
TIMER Indicator
<Multi Function Display>
• The “Timer” Indicator lights up on DECK.
• You can set Timer Recording with the power on or off.
• “TIMER REC WILL START SOON” appears on-screen for 2 minutes
before Timer Recording starts. If DECK is in DVD mode, no message
appears, but the VCR REC Indicator, the VCR mode indicator and
“REC” will flash on Multi function Display.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Review, Replace or Clear Program Contents:
(Recording is not in progress)
1
2
Press PROG
to display Program List.
P DT START STOP
1 13 2:00p 3:20p
2 14 7:00p 7:30p
3 -- --:-- --:-4 -- --:-- --:--
CH SPD
02 SLP
10 SP
-- --- --
Press
to select number.
CANCEL : ADD/DLT
SELECT :
SET : SET
EXIT
: PROG
3
To cancel a Timer
Recording in progress...
Hold down STOP in VCR mode for
a few seconds to cancel the Timer
Recording.
(The “TIMER” Indicator goes out
on Multi Function Display.)
• Any future daily or weekly recording
will be performed as programmed.
To Replace program...
CH SPD
02 SLP
10 SP
-- --- --
Repeat Step 2 (p. 24)
to set new programs.
SELECT :
SET : SET
EXIT
: PROG
or
To Clear program...
P DT START
1 -- --:-2 14 7:00p
3 -- --:-4 -- --:--
STOP
--:-7:30p
--:---:--
CH SPD
-- -10 SP
-- --- --
Press ADD/DLT.
SELECT :
SET : SET
EXIT
: PROG
4
Press PROG
to end the programming.
Notes
• If you are using a Cable Box, the VCR’s channel for Timer Recording must be set to
the Cable Box input channel and Cable Box must be manually set to the desired
channel. Cable Box power must be left on.
• 2 minutes before Timer Recording is performed, “PLEASE PREPARE FOR TIMER
REC” appears and Timer Indicator flashes.
Be sure a cassette with record tab is loaded and DECK is in Stop mode.
• If a power interruption occurs while programming the timer, the timer program(s) may be
canceled. If “TIMER PROGRAMS WERE LOST DUE TO POWER INTERRUPTION”
appears on-screen, please re-enter the timer programs.
• If the start time for Timer Recording comes up during recording and playing back,
Timer Recording will not be performed.
Important notes when using DSS Receiver
• When recording programs via DSS Receiver, DSS Receiver must be left on.
• When recording programs via an antenna or cable, DSS Receiver must be turned off.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
VCR
Operation
P DT START STOP
1 13 2:00p 3:20p
2 14 7:00p 7:30p
3 -- --:-- --:-4 -- --:-- --:--
MTS Broadcast/ VHS Hi-Fi Stereo System
Connection
Make the Audio/Video Connection as shown on pp. 12 ~ 15.
• You can use TV connected to a Stereo amplifier and speakers instead of Stereo TV.
Receivable Broadcast Types
The following are possible audio broadcast types and onscreen displays.
The signal being received is indicated with a “ ” mark while
the selected audio mode is indicated with an arrow.
To display the broadcast signal being received,
➛ press DISPLAY*.
MTS Stereo and SAP broadcast
Multi-channel Television Sound
Stereo (main language) and
Secondary Audio Program (sub
language) broadcasts are being
received simultaneously.
Select STEREO or SAP audio mode.
MTS Stereo broadcast
Multi-channel Television Sound
Stereo broadcast. Select STEREO
audio mode.
STOP
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
STEREO
SAP
MONO
AUDIO
STOP
STEREO
SAP
MONO
(SAP/Hi-Fi)
DISPLAY
• If stereo broadcast is weak and
display flickers, select MONO audio
mode for possible better results.
SAP broadcast
Secondary Audio Program (sub
language) broadcast. Select SAP
audio mode for the sub language.
STOP
MONO broadcast
STOP
Normal monaural sound broadcast.
STEREO
SAP
MONO
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
1 2 : 0 0AM
STEREO
SAP
MONO
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
CH 02
0 : 00 : 00
SP
®
Equipped with
-TV
Noise Reduction for
true MTS reproduction.
®
-TV Noise
Reduction is required
for good stereo
separation and audio
®
fidelity.
is a
registered trademark,
®
and is licensed by
Technology Licensing.
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Audio Mode for Recording
1
Press AUDIO (SAP/Hi-Fi)
to display audio mode.
(Display disappears after 5 seconds.)
2
STEREO
SAP
MONO
Press AUDIO (SAP/Hi-Fi) repeatedly
to select desired mode.
• Refer to “Receivable Broadcast Types” on p. 26.
• Arrow indicates selection.
3
Make a recording.
See p. 21.
1
2
3
Start playback.
See p. 20.
Press AUDIO (SAP/Hi-Fi)
to display audio mode.
H I F I : L/R
HIFI : L
HIFI : R
NORMAL
• Arrow indicates
selection.
Press AUDIO (SAP/Hi-Fi) repeatedly
to select desired mode.
• Select “HIFI (L/R)” or “HIFI (L)” or “HIFI (R)” to listen to stereo
recordings in stereo sound.
Select “NORMAL” for monaural sound.
• Display disappears after 5 seconds.
Notes
• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound.
Standard stereo tapes will playback in monaural sound.
• To listen to Hi-Fi stereo playback, the DECK AUDIO (L/R) jacks must be connected to
a stereo TV or an external stereo amplifier and speakers. (See pp. 12, 14.)
• If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
• Hi-Fi and normal audio playback volume level may differ.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
VCR
Operation
Audio Mode for Playback
Multi-Brand Control Feature
Multi-Brand Control Setup
The Remote Control can be set to control some TVs.
1
2
Find your TV Brand Code Number on the
following page.
3
Confirm code entry,
Set up for TV control,
➛ hold down TV button,
➛ enter code with NUMBER keys.
➛ press POWER to turn selected unit on or off.
• See table below for controllable functions in each mode.
Notes
• Repeat setup after remote battery replacement.
• Remote will not control every TV made by the
manufacturer listed. If you get no response, your
particular unit cannot be controlled.
There are NO additional codes for the products
listed. If your product is not listed, then the
remote is not compatible with that product.
Using Multi-Brand Control
After remote is set up, you can select VCR, DVD, or TV
for the desired function.
Press VCR, DVD, or TV on the remote.
(Table below shows available remote buttons for each mode.)
Unit
DVD/VCR
TV
DVD
VCR
All
VOL +/-
TV
EJECT/OPEN/CLOSE *,
DISPLAY, PLAY, STOP,
FF/SLOW+, REW/SLOW-,
VCR/TV, PAUSE/STILL, SKIP,
AUDIO, CM/ZERO, SPEED, REC,
TAPE POSITION, PAGE,
COUNTER RESET
Mode
*
Bold: VCR Function
Italic: DVD Function
POWER, INPUT, NUMBER keys,
ENTER, CH / , VOL +/-
Bold Italic: VCR and DVD Functions
Normal: TV
Notes
• Not all functions listed may be controllable.
• In TV mode, it may be necessary to press ENTER after pressing NUMBER keys
for channel selection.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
TV Brand Code Numbers
Panasonic ......................................... 01,
Quasar .............................................. 01,
RCA .........................................................
GE ...........................................................
Zenith ......................................................
Magnavox ...............................................
Sylvania ..................................................
Sharp ................................................. 06,
Sony ........................................................
02
02
03
03
04
05
05
07
08
Toshiba ...................................................
Sanyo ......................................................
Fisher ......................................................
JVC .........................................................
Hitachi .....................................................
Mitsubishi .......................................... 07,
Samsung ................................................
Gold Star .................................... 15, 16,
09
10
10
11
12
13
14
17
Important Notes
• Some manufacturers use several codes for one brand.
If the first code entered fails, try the next one listed.
• Some TVs require you to turn on the power manually.
TV
NUMBER
keys
VCR
DVD
ENTER
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
VCR
Operation
POWER
Tape Operation
Search System
Zero Search
For each recording, an invisible index
mark is placed on the tape. A program
index and information are also included
for timer recordings. These marks are
used to access or scan recordings.
Index Search
1
Press SEARCH*
to display SEARCH
in Stop or Play
mode, and then
press NUMBER
keys to select
recording number.
INDEX SEARCH
ENTER INDEX NUMBER :1
USING 1- 9 KEYS
FORWARD SEARCH :FF
REVERSE SEARCH :REW
EXIT
:SEARCH
• To calculate
number, see below.
Press FF/SLOW+
or REW/SLOW- on
the remote to start
search.
2
Play begins at
search end.
To search forward
or back 1 index,
press FF/SLOW+ or
REW/SLOW- on the
remote while
screen left is
displayed (10 sec.).
INDEX SEARCH
FORWARD SEARCH : FF
REVERSE SEARCH : REW
• To cancel, press
PLAY or STOP.
To Calculate Index Number
Example 1:
To go to rec. 2 from rec. 4, enter 3 and press REW.
1
2
3
4
5
6
NOTE:
3
4
5
Press DISPLAY during play
to display Counter.
PLAY
1 2 : 0 0AM
0 : 00 : 00
SP
Press COUNTER
RESET on remote at
desired position to
reset to “0:00:00”.
Continue to record, playback etc.
Press STOP.
REW
1 2 : 3 0AM
CH 02
0 : 30 : 30
SP
STOP
1 2 : 3 1AM
CH 02
0 : 00 : 00
SP
Press CM/ZERO
in Stop mode to start
Zero Search.
• DECK will go into FF or REW mode and
stop at the last point the Counter was set
to 0:00:00.
Commercial Skip
DECK fast forwards (skips) over 1, 2, or 3
minutes of recorded tape as desired.
1
Press CM/ZERO in Play mode.
• The skip time can be changed by
pressing CM/ZERO repeatedly as shown
by the figure below.
PLAY
To go to rec. 6 from rec. 2, enter 4 and press FF.
2
1
2
7
Example 2:
1
To quickly return to a specified tape location.
3
4
5
6
7
indicates start points of each recording.
Note
• If Index Search is started very close to an
index mark, that index mark may not be
counted
in the search.
Downloaded From
DvDPlayer-Manual.com
Panasonic Manuals
1st Press
1 min Skip
2nd Press
2 min Skip
3rd Press
3 min Skip
• No indication appears on-screen.
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Tape Select
Tape Position Display
Select your tape length so the tape position
and amount of tape remaining are properly
displayed.
(See “Tape Position Display” section right.)
1
2
Press ACTION
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
Press
to select
“SET UP VCR,” and
press SET.
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
OFF
ON
OFF
ON
ON
T-120
SET : SET
Press
to select
“TAPE SELECT,”
and press SET to
set “T-120,” “T-160”
or “T-180.”
T-120
T-160
DETECTING TAPE POSITION
T-180
SP
• Select “T-120” for tapes 120 minutes or
less, “T-160” if 140 or 160 minutes, and
“T-180” if 180 minutes.
4
Press TAPE POSITION
to detect current tape position.
R 120 M I N.
BEG I N
END
Press ACTION
to return to normal screen.
Repeat Play
Set to playback a recording over and over.
1
2
Press ACTION
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
3
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
SELECT :
END
: ACT I ON
: OFF
: ON
: OFF
: ON
: ON
: T-120
SET : SET
Press
to select “SET UP
VCR,” and press
SET.
Press
to select “REPEAT
PLAY,” and press
SET to set “ON” or
“OFF.”
• Play repeats at tape end or if unrecorded
portion over 30 sec. is detected.
4
Press ACTION
to return to normal screen.
Note
For DvDPlayer-Manual.com
repeat play in DVDPanasonic
mode, Manuals
see page 47.
Downloaded• From
2
• “DETECTING TAPE
POSITION” only
appears the first time a
cassette is inserted
and it takes several
seconds for correct
indication to appear.
• The present tape
position indication and
amount of tape
remaining (according to
tape speed) are
displayed.
Tape remaining time
display may not be
precise.
Press TAPE POSITION
(or wait 5 seconds) to return to
normal screen.
Auto Operation Functions
Auto Play
Insert a tape ➛ Power comes on,
➛ Play starts if there is no record tab
(see p. 6).
Auto Rewind
Play
➛ Tape end ➛ Rewind ➛ Stop
Fast Forward
Play Auto Eject
(Repeat Play must be off)
Play ➛ Tape end ➛ Rewind ➛ Stop
➛ Tape ejects if some programs are set.
VCR
Operation
SELECT :
END
: ACT I ON
:
:
:
:
:
:
Tape position is displayed incorrectly
in the following cases:
• If VHS-C type cassettes, tapes under 30
minutes, tapes over 180 minutes, or
incompatible tapes are used.
• If the correct tape length is not selected.
(See “Tape Select” section left.)
1
SELECT :
SET : SET
EXIT
: ACTION
3
To find out the present tape position and
amount of tape remaining.
Special VCR Features
VCR/TV Selection
Selector Feature
Feature
The VCR/TV selection can be set to auto or manual.
1
2
Press ACTION*
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
3
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
SELECT :
END
: ACT I ON
:
:
:
:
:
:
OFF
ON
OFF
ON
ON
T-120
SET : SET
Press
to select “SET UP VCR,”
and
press SET.
Blue LIGHT ON/OFF Feature
You can turn DECK’s blue light off if you
find it to be glaring.
To turn LIGHT off,
press DISPLAY for 5 seconds
in VCR mode.
To turn LIGHT on, repeat above.
Notes
Press
to select “AUTO VCR/TV,”
and
press SET
to set “ON” or “OFF.”
• This operation is not possible in power
off mode.
• If you unplug DECK, DECK turns to
defult setting (Blue light turns on).
• OFF(Manual): You select “VCR” or “TV” mode using
the VCR/TV button on the remote.
• ON(Auto):
4
“VCR” mode is automatically set when
VCR is turned on, or in Play mode.
Press ACTION
to return to normal screen.
Blue Light
Note
• For more on VCR/TV selection, see “Record one
station, watch another” and “Select channels at DECK”
sections (see p. 21).
VCR Lock Feature
When set to ON, all operations except for timer record
and tape eject are prohibited. Useful for households with
small children.
To turn on, hold down REC on DECK in Stop
mode with no tape inserted for 7 seconds.
(Please ignore “NO CASSETTE” warning.)
VCR LOCK ACT I VATED
To turn off, repeat above.
VCR LOCK OFF
• VCR Lock cancels in 24 hours.
Note
• DVD functions will work even when VCR Lock is set to ON.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
REC
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Weak Signal Display Feature
When “ON,” picture is displayed regardless of signal
strength.
1
2
Press ACTION
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
3
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
WEAK S I GNAL D I SPLAY:OFF
SELECT :
EXIT
: ACT I ON
SELECT
SET
Press
to select “WEAK SIGNAL
DISPLAY,” and
press SET
to set “ON” or “OFF.”
• ON: Picture is displayed regardless of signal
condition, and may not always be clearly visible.
OFF: Screen turns solid blue when signal is weak or
non-existent.
• Selecting ON has no effect on connected equipment
with blue back feature.
4
Press ACTION
to return to normal screen.
Auto Shut-Off Feature
The power shuts off at a preset time.
1
2
DISPLAY
Press ACTION
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
Press
to select “SET UP VCR,” and
press SET.
SELECT :
SET : SET
EXIT
: ACTION
3
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
SELECT :
END
: ACT I ON
:
:
:
:
:
:
OFF
ON
OFF
ON
ON
T-120
SET : SET
Press
to select “AUTO SHUT-OFF.”
Press SET repeatedly to
change shut-off time as
shown below.
2 Hours
OFF
4 Hours
6 Hours
4
Press ACTION
to return to normal screen.
Note
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
• The shut-off countdown will not function during Play or
Record.
VCR
Operation
ACTION
SET: SET
Press
to select “SET UP
CHANNEL,” and
press SET.
Special VCR Features (continued)
Remote Warning Feature
If Multi-brand feature is used (p. 28), and this feature is
set to on, a warning appears whenever an invalid key
is pressed in TV mode.
1
2
Press ACTION*
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
3
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
SELECT :
END
: ACT I ON
4
:
:
:
:
:
:
OFF
ON
OFF
ON
ON
T-120
SET : SET
Press
to select “SET UP VCR,”
and
press SET.
Press
to select
“REMOTE WARNING,” and
press SET
to set “ON” or “OFF.”
Press ACTION
to return to normal screen.
STOP
STILL/
PAUSE
INPUT
REC
Press ACTION
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
SET UP VCR
REPEAT PLAY
REMOTE WARN I NG
AUTO SHUT-OFF
FRONT DISPLAY
AUTO VCR/TV
TAPE SELECT
SELECT :
END
: ACT I ON
:
:
:
:
:
:
OFF
ON
OFF
ON
ON
T-120
SET : SET
Press
to select “SET UP VCR,”
and
press SET.
Press
to select
“FRONT DISPLAY,” and
press SET
to set “ON” or “OFF.”
• ON : When set to “ON,”
Multi Function Display is displayed.
OFF : When set to “OFF,”
Multi Function Display is not displayed.
If a Timer Program is set,
Multi Function Display is displayed.
4
SELECT
SET
Multi Function Display (Front Display) can be set to
ON/OFF.
3
ACTION
• If “OFF,” remote warning will not appear
when invalid key is pressed.
Multi Function Display
(Front Display) ON/OFF Feature
1
2
*Important: If a remote control button does not work
when pressed, press the VCR button
on the remote and try the button again.
Press ACTION
to return to normal screen.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Multi Function Display
(Front Display)
Copying Your Tapes (Dubbing)
Connection
VCR/ Camcorder
(Hi-Fi)
TV
DVD/VCR DECK
OUT
OUT
VIDEO
VIDEO
L
AUDIO
R
L
AUDIO1
R
IN 1
Front of DECK
VIDEO IN 2
IN FROM ANT.
VHF/
UHF
VHF/UHF
OUT TO TV
L-AUDIO IN2-R
(Audio/Video In Terminals
on the front of DECK are
available)
1
Connect VIDEO OUT terminal on Playing VCR to VIDEO IN terminal on DECK.
To monitor the dubbing, also connect TV as shown.
2
Connect “L” and “R” AUDIO OUT terminals on Playing VCR to “L” and “R”
AUDIO IN terminals on DECK.
In place of Playing VCR, you can use other equipment, such as a Camcorder.
Simply connect the unit’s Audio/Video outputs to DECK.
Playing (Source) VCR
3
Insert a pre-recorded tape.
Insert a blank tape with record tab.
Press INPUT to set DECK Input mode to
LINE for Video Input.
(See “Selecting the Input Mode” below.)
Press PLAY, then PAUSE
immediately to enter PLAY/PAUSE
mode.
VCR
Operation
1
2
Recording (Editing) DECK
Press REC, then STILL/PAUSE
immediately to enter REC/PAUSE
mode.
The operation of steps 4 and 5 must be done on the
playing and recording VCRs at the same time.
4
5
Press PLAY to start dubbing.
Playing VCR starts playback.
Press STILL/PAUSE to start dubbing.
DECK starts recording.
Press STOP to stop dubbing.
Press STOP to stop dubbing.
To Monitor Dubbing on TV
Selecting the Input Mode
1 Turn TV on and tune to the Recording
VCR channel (CH 3 or CH 4).
2 If Auto VCR/TV (see p. 32) is set to
“OFF,” press VCR/TV on the remote
for VCR mode.
Method 1: Press INPUT repeatedly.
Channel Number ↔ LINE1 ↔ LINE2
Method 2: Press CH / .
Display will change as below.
1
2
Press
LINE2
Note
• Dubbing tapes protected with Copy
Guard will result in poor quality
recordings.
LINE1
3
(CABLE) (TV)
125 or 69
Press
• “L1” or “L2” lights up on Multi Function Display
(about 4 seconds) when LINE1 or LINE2 is selected.
• LINE1: For rear audio/video connection.
LINE2: For front audio/video connection.
Caution: • Unauthorized exchanging and/or copying of copyrighted recordings may be
copyright infringement.
• Please note that some tapes cannot be dubbed on DECK.
Also, it is not possible to dub DVD/ CD to VHS tapes using DECK.
• When
appears on the screen while a button is being operated, it means
Downloaded From DvDPlayer-Manual.com
Panasonic Manuals operation is prohibited by DECK or the disc.
that the corresponding
Disc Operation
Subtitle Language (DVD only)
You can select a different subtitle language (if offered) than
the one set at the Settings for DVD Operation. (See p. 52.)
1
Press SUB TITLE*
in Play mode to display
the subtitle selection
on-screen.
• Display disappears after
5 seconds.
• When no subtitles are offered,
“-” will be displayed instead of
the language number.
2
Press SUB TITLE,
, or
NUMBER keys to select a
desired language.
Te amo
Subtitle language being played
back (see chart, right).
Notes
Ready Checklist
Please read “Basic DVD Operation”
on page 22.
[Subtitle language]
[Audio sound track language]
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Other
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
JPN
CHI
KOR
MAL
VIE
THA
~
∗
• If after several presses of the button the language does
not change, language selection is not offered on the disc. • Change the No. by pressing
,
• When disc is removed, subtitles revert to initial setting
and press SET.
language. If the initial language is not recorded on the
[Audio attribute 1 type, sampling
disc, the disc’s priority language will appear.
• With DVD-RAM, the subtitle can only be set to ON/OFF. frequency, bit No. of the disc (see p. 53.)]
The subtitle language cannot be selected.
44.1 kHz 16 bit
• Subtitles may not change to the selected language
20 bit Linear PCM disc
LPCM
192 kHz 24 bit
immediately.
Dolby Digital
DTS
Audio Soundtrack Language (DVD only)
1 ch - 5.1 ch
1 ch - 5.1 ch
Dolby Digital disc
DTS disc
Notes
• If, after several presses of the AUDIO
button the language does not change,
language selection is not offered on the
disc.
• When disc is removed, language reverts
to initial setting. If this language is not
recorded on the disc, the language
Press AUDIO
recorded will be heard.
in Play mode to display the
• With DVD-RAM, Audio Soundtrack
audio selection on-screen.
Language cannot be set. Audio stream
• Display disappears after
and Audio mode (LR/L/R) setting can be
5 seconds.
made. Audio stream operation method is
Information of the audio stream
the same as Audio Soundtrack
currently being played back is
Language. Press to move the cursor
displayed. (See page 53.)
to Audio mode, then press AUDIO or
to select LR/ L/ R.
You can change the audio soundtrack language, selected
at the Settings for DVD Operation, to a different language
if available. (See p. 52.)
(This operation works only with discs on which multiple
audio soundtrack languages are recorded.)
1
2
Press AUDIO,
, or
NUMBER keys to select
desired language.
Audio soundtrack language
being played back (see chart,
above right).
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
AUDIO: 1 LR
Dolby Digital 3/2.1ch
SELECT : AUDIO /
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
When
appears on the screen while
a button is being operated, it means
that the corresponding operation is
prohibited by DECK or the disc.
Multiple Angle Viewing (DVD only)
DVDs may contain scenes shot from multiple camera
angles allowing the same scene to be viewed at different
angles. You can view these angles, if available, using the
ANGLE button.
1
Press ANGLE
in Play mode to display the
angle selection on-screen.
ANGLE Indicator
• Display disappears after
5 seconds.
SELECT : ANGLE
Notes
• The ANGLE Indicator lights up on
DECK when a scene recorded at
different angles is detected.
• The angle number can be set
beforehand so that the angle is
switched whenever the ANGLE
Indicator lights up.
2
Press ANGLE repeatedly
or
to select the
desired angle.
SELECT : ANGLE
Number of angle being played back.
Note
This function not available with DVD-RAM.
Vocal Selection for Karaoke Discs (DVD only)
NUMBER
keys
SET
ZOOM
ANGLE
AUDIO
SUB TITLE
Press AUDIO in Play mode
to display the audio screen.
Press
to select
VOCAL and
press AUDIO or
to
select as shown below.
• DVD Karaoke (1 vocal) VOCAL ON VOCAL OFF
• DVD Karaoke (2 vocals) VOCAL V1 VOCAL V2 VOCAL V1+V2 VOCAL OFF
Picture Zoom (DVD only)
You can enlarge specific portions of a picture and
select the zoom ratio using the ZOOM button during
DVD playback.
Press ZOOM repeatedly to change display
as follows.
Notes
• You can enlarge the center portion of the image
to one of 2 magnifications.
• The subtitle cannot be enlarged or
moved.
• During picture zoom, “ZOOM1” or
“ZOOM2” appears on-screen for 5
seconds.
• Zooming, on some discs, may result
in poor picture quality, or may not
■ Use the , , and buttons to move the position
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
operate at all.
up, down, left and right.
DVD
Operation
SELECT
1
2
Disc Operation (continued)
Title Menu (DVD only)
Some DVDs have more than one title, e.g. movies.
If the disc offers a title menu, you can select the desired
title number. (Operation may vary according to the disc.)
1
T I TLE MENU
Dogs
Cas t l es
Love r s
B i r ds
Press TITLE*
in Play mode
to display the title screen.
<Example>
2
T I TLE MENU
Dogs
Cas t l es
Love r s
B i r ds
B i rds
of the world
Press
or
NUMBER keys
to select a title, and
press SET or PLAY
to start playing.
NUMBER
keys
• “Pressing SET or PLAY” is
not necessary when using
NUMBER keys.
CLEAR
ACTION
MENU
SELECT
<Example>
DVD Menu (DVD only)
DVDs may offer a special menu. This menu may include
guides to unique contents, audio/subtitle languages, etc.
Although contents and operation may vary, the following
steps show basic procedure for using the menu.
1
DVD MENU
1 . SUBT I TLE
2 . AUD I O
Press MENU
in Play mode to display
DVD MENU.
3 . ANGLE
<Example>
2
DVD MENU
1 . SUBT I TLE
2 . AUD I O
3 . ANGLE
Press
or
NUMBER keys
to select an item, and
press SET or PLAY
to perform.
• Pressing SET or PLAY is
not necessary when using
NUMBER keys.
Repeat step 2 if there is
more
than one menu.
Downloaded From DvDPlayer-Manual.com Panasonic
Manuals
<Example>
SET
PLAY
STOP
TITLE
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
Program Play (CD only)
Ready Checklist
DECK is in DVD mode, press DVD.
CD is inserted.
You can program specific tracks and order of play.
1
2
Press ACTION
to display DVD MAIN MENU.
DVD MAIN MENU
DISC LANGUAGES
AUDIO OUTPUT
ST I L L MODE
: AUTO
TV MODE
: 4:3 Pan&Scan
PROGRESSIVE OUT: OFF
PLAY MODE
SELECT
SET
END
3
1
2
3
4
5
:
: SET
: ACTION
PROGRAM PLAY
DISC
PROGRAM
6 11 16
5 8
7 12 17
15 6
8 13 18
1 13
9 14 19
3 2
10 15 20
2
CLEAR LAST
CLEAR ALL
SELECT
:
SET
: SET
END
: ACTION
1
2
Do operation steps 1 through 5
at left on this page.
Press DISPLAY to display Disc
Information screen.
(Disc Information Screen)
Press
to select
“PROGRAM PLAY,”
and
press SET to display.
PLAY MODE
PROGRAM PLAY
RANDOM PLAY
SELECT
SET
END
4
:
: SET
: ACTION
Press
to select
“PLAY MODE,” and
press SET
to display.
Program Repeat Play
(CD only)
START
Press
to select a track
number (Track
numbers on disc are
displayed.), and
press SET.
3
4
Press DISPLAY to display
DECK Information screen.
Press SET to enter Select mode.
Cursor move to “OFF.”
(DECK Information Screen)
5
1 6
2 7
3 8
4 9
5 10
PROGRAM PLAY
DISC
PROGRAM
11 16
5 8
12 17
15 6
13 18
1 13
14 19
3 2
15 20
2
CLEAR LAST
CLEAR ALL
SELECT
:
SET
: SET
END
: ACTION
START
Press
to select “START,” and
press SET to start play
of programs in the
sequence selected.
5
Press
6
Press SET to set mode.
Cursor moves to “REPEAT.”
To cancel, select “REPEAT :
OFF” in step 5, then press SET.
to select “DISC.”
(DECK Information Screen)
• To cancel, press STOP
during play, then press
CLEAR.
Notes
• Up to 15 tracks can be programmed.
• “ ” or “ ” (depending on disc) indicates additional
PROGRAM PLAY screen.
Press
for next or previous screen.
• To clear the last program one by one
Press
to move to “CLEAR LAST” and
press SET. (Pressing CLEAR on remote control
also clears last program.)
• To clear all programs
Press
to move to “CLEAR ALL” and press
SET. (Programs are also cleared when the power
is turned off or the disc is removed.)
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
DVD
Operation
• Repeat step 4 to select another track.
• The selected track is added on the right side.
Disc Operation (continued)
Random Play (CD only)
Tracks are played in a random order.
1
2
DECK is in DVD mode, press DVD.
Press ACTION*
to display DVD MAIN MENU.
DVD MAIN MENU
DISC LANGUAGES
AUDIO OUTPUT
ST I L L MODE
: AUTO
TV MODE
: 4:3 Pan&Scan
PROGRESSIVE OUT: OFF
PLAY MODE
SELECT
SET
END
3
Ready Checklist
:
: SET
: ACTION
PLAY MODE
PROGRAM PLAY
RANDOM PLAY
SELECT
SET
END
:
: SET
: ACTION
Press
to select “PLAY MODE,”
and
press SET
to display.
NUMBER
keys
CLEAR
ACTION
Press
to select
“RANDOM PLAY,” and
press SET
to begin random play.
SELECT
SET
• To cancel, press STOP
during play, then press
CLEAR.
STOP
VOLUME
ADJUST
DISPLAY
PAGE
Setting the VOLUME ADJUST (DVD only)
Some DVDs are recorded in lower than average volume levels.
For these DVDs, this DECK can be set so that the average volume is
increased automatically.
Press VOL.ADJ repeatedly to change “OFF” ↔ “ON.”
• “OFF” or “ON” lights up on Multi Function Display (about 3 seconds) when
VOL.ADJ is pressed.
VOLUME ADJUST “OFF”
Some DVD
[Low volume level]
Volume is at the original level.
VOLUME ADJUST “ON”
Volume level is increased
when played back.
• “ON” is set ..... When a DVD is played back, the average volume is increased.
• “OFF” is set .... The volume level recorded on the disc is played back just as it is.
Notes
• While settings can be made with all discs, they may have no effect with some discs.
Please set as you prefer.
• When audio equipment is connected, setting the Sound Output level to “OFF” is recommended.
• If the sound becomes abnormal while playing a disc, set the Sound Output level to “OFF.”
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
DVD-Audio Operation (DVD-Audio only)
This DECK, equipped with a 192 kHz/ 24 bit Audio D/A converter, supports DVD-Audio
recorded with high quality sound.
The DVD-Audio feature includes “Still Image Skip” and “Bonus Group Playback”
functions. (See below.)
Please refer to “Basic DVD Operation” on pages 22 and 23.
Still Image Skip (DVD-Audio only)
DVD-Audio still images (only if contained) can be skipped over.
Press PAGE
in Play or Pause mode to display the still image and page
number.
Each press of PAGE changes page number as shown below.
PAGE : 1
PAGE : 2
• Pressing PAGE on the last page returns to PAGE 1.
SELECT :
Press PAGE
PAGE : 1
Press PAGE
PAGE : 2
PAGE : 3
Press PAGE
.......
Press PAGE
PAGE : XX
SELECT :
• Still Image Skip function not available with all discs.
Note
Bonus Group playback (DVD-Audio only)
1
Press DISPLAY in stop mode to display “On-Screen Displays.”
Note
2
• During playback, Bonus Group tracks cannot be selected.
GROUP
TRACK
: 2
: 1
DVD-AUDIO
00 : 12 : 34
SELECT :
SET
: SET
NEXT : DISPLAY
Press
to select “GROUP,” and press SET.
Press
or NUMBER keys to select bonus group
number, and press SET (see pp. 44, 45.)
Notes • If the proper secret code is already entered, Bonus Group tracks can be
selected. (Secret code enter screen is skipped.)
3
Note
4
BONUS GROUP
ENTER 4-D I G I T CODE
----
Press NUMBER keys
to enter bonus group secret code.
To Make Corrections
Press repeatedly to move the cursor.
Press NUMBER keys to make the correction.
• When the proper secret code has been entered, Bonus Group track 1 playback
begins. If a mistake is made, the secret code enter screen is redisplayed.
CLEAR toPanasonic
return Manuals
to normal
Downloaded From Press
DvDPlayer-Manual.com
screen.
DVD
Operation
Some DVD-Audio discs contain bonus groups. To enjoy these groups you may have to
enter a password. Refer to the disc's jacket.
DVD-RAM Operation (DVD-RAM only)
You can enjoy playing your personally recorded/edited DVD-RAM discs on this DECK.
Note
• This DECK was designed for playback only. DVD-RAM recording is not possible.
Play a DVD-RAM
1
Do steps 1 ~ 3 on page 22.
2
Press D.NAVI* or PLAY LIST to display Direct
Navigator or Play List menu for easy title or
scene selection.
• Play begins from the first program title recorded on
the DVD-RAM.
• See below for “Direct Navigator” or next page for
“Play List information”.
3
4
Press STOP to stop playing.
Press OPEN/CLOSE to eject the disc.
Direct Navigator
If the DVD-RAM features Direct Navigator, a list of recorded titles is displayed. Simply select a title
number and start playback. (Operation can vary with disc used.)
1
2
Press D.NAVI
in Play/Stop mode to display the Direct Navigator
menu.
Press
to select a page and press
to
select a title (Program No.).
Then, press SET or PLAY to start playing.
• “Pressing SET or PLAY” is not necessary when
using NUMBER keys.
Using NUMBER keys starts playing automatically.
The number of available titles varies with each disc.
<Input
1 digit number 1 ••••1
Example> 2 digit number 12 ••• 10 ➛ 1 ➛ 2
3
Press D.NAVI to clear Direct navigator menu.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
Program No.
Recording
time length
Page 1/4
Direct Navigator
No.
1
2
3
4
Date
2002/12/24
5:15:41AM
2002/12/25
4:31:49AM
2002/12/25
8:24:25AM
2002/12/25
12:45:00AM
Page No.
Length
00:01:00
00:03:12
00:15:01
00:03:00
SELECT:
SET
: SET
Recording time
and date
Title
Drama
Pana NEWS
Tigers vs.Giants
Dinosaur
END:TITLE
Titles
(Example)
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
Play List
If the DVD-RAM features a Play List, your preselected list of favorite scenes is displayed for easy
access. (Operation can vary according to how you edited the DVD-RAM.)
1
2
Press PLAY LIST
in Play/Stop mode to display the Play List menu.
Press
to select a page and press
to
select a title (Play List No.).
Then, press SET or PLAY to start playing.
• “Pressing SET or PLAY” is not necessary when
using NUMBER keys.
Using NUMBER keys starts playing automatically.
The number of available titles varies with each disc.
<Input
1 digit number
1 ••••1
2 digit number
12 ••• 10 ➛ 1 ➛ 2
Example>
3
Play List No.
Established
time length Page No.
Play List
No.
Page 1/5
Date
2002/12/24
5:15:41AM
2002/12/25
2 4:31:49AM
2002/12/25
3 8:24:25AM
2002/12/25
4 12:45:00AM
1
Length
00:01:00
Movie Picture
Playback
00:03:12
Still Picture
Playback
00:15:01
00:03:00
SELECT:
SET :SET
Recording time
and date
Press PLAY LIST to clear Play List menu.
Title
Hybrid Playback
Par tial Playback
END:MENU
Titles
(Example)
10
NUMBER
keys
SET
PLAY LIST
STOP
PLAY
D.NAVI
Notes
• Titles of Direct Navigator and Play List cannot be changed using this DECK.
• With Direct Navigator, up to 99 programs can be displayed. With Play List, up to 99 titles (999
scenes) can be displayed.
• While DVD MAIN MENU is displayed, Direct Navigator and Play List display will not appear even
if TITLE or MENU is pressed.
• When
appears on the screen while a button is being operated, it means that the
corresponding operation is prohibited by DECK or the disc.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
DVD
Operation
SELECT
DVD Operation using On-Screen Displays
When DISPLAY is pressed, On-Screen Displays show disc
information (title/chapter/track number, elapsed playing time)
and DECK information (repeat play, play mode).
1
Ready Checklist
DECK is in DVD mode, press DVD.
Press DISPLAY* in Play or Stop mode
to display “On-Screen Displays.”
• Each press of DISPLAY changes the on-screen
display as follows. (Refer to pp. 44 ~ 48.)
➡
Selected Disc information
(See pp. 45, 46.)
➡
Selected DECK information
(See pp. 47, 48.)
➡
NUMBER
keys
Normal Screen
Note
• DISPLAY button does not function while main menu of
DVD, title menu of DVD, Direct Navigator or Play List
is displayed.
2
3
SELECT
Press
(or
)
to select an item, and
press SET.
SET
Press
or NUMBER keys
to select the setting, and press SET.
<Example of DVD-Video> • When numbers are
displayed (e.g. title
number), NUMBER keys
are also available.
• If the number entered is
not on the disc, the entry
will have no effect.
Re-enter the correct
number.
<Example of DVD-Audio> • For more details, refer to
the disc operation
information.
DISPLAY
To return to normal
screen,
press DISPLAY
repeatedly.
<Example of DVD-RAM>
Note
• When
appears on the screen while
a button is being operated, it means
that the corresponding operation is
prohibited by DECK or the disc.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
Detailed Descriptions of each On-Screen Display
■ Disc information screen (for DVD-Video)
1. TITLE No.
Go directly to a preset title number.
1
2
3
4
A
C
D
• Select “TITLE”, and press SET.
or NUMBER keys, and press SET.
• Change the No. by pressing
2. CHAPTER No.
Go directly to a preset chapter number.
• Select “CHAPTER”, and press SET.
• Change the No. by pressing
or NUMBER keys, and press SET.
• This function does not work with some discs.
3. Disc currently being played
The type of disc currently inserted is displayed.
4. Elapsed playing time
The screen may be changed by selecting the elapsed time.
• Select the elapsed playing time (“xx:xx:xx”), and press SET.
• Change the elapsed time by pressing NUMBER keys.
Enter time starting with seconds.
If the time entered is not on the disc, the entry will have no effect.
Re-enter the correct time.
e.g., press 0 ➛ 1 ➛ 2 ➛ 3 ➛ 4 ➛ 5 ➛ SET for “01 : 23 : 45”.
press 3 ➛ 0 ➛ SET for “00 : 00 : 30”.
• This function does not work with some discs.
DVD
Operation
■ Disc information screen (for DVD-Audio)
A. GROUP No.
Go directly to a preset group number.
• Select “GROUP”, and press SET.
• Change the No. by pressing
or NUMBER keys, and press SET.
B. TRACK No.
Go directly to a preset track number.
B
• Select “TRACK”, and press SET.
• Change the No. by pressing
or NUMBER keys, and press SET.
C. Disc currently being played
The type of disc currently inserted is displayed.
D. Elapsed playing time
The screen may be changed by selecting the elapsed time.
• Select the elapsed playing time (“xx:xx:xx”), and press SET.
• Change the elapsed time by pressing NUMBER keys.
Enter time starting with seconds.
If the time entered is not on the disc, the entry will have no effect.
Re-enter the correct time.
e.g., press 0 ➛ 1 ➛ 2 ➛ 3 ➛ 4 ➛ 5 ➛ SET for “01 : 23 : 45”.
press 3 ➛ 0 ➛ SET for “00 : 00 : 30”.
• This function does not work with some discs.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
DVD Operation using On-Screen Displays (continued)
■ Disc information screen (for CD)
1. TRACK No.
Go directly to a preset track number.
2
3
1
• Select “TRACK”, and press SET*.
• Change the No. by pressing
or NUMBER keys, and press SET.
2. Disc currently being played
The type of disc currently inserted is displayed.
3. Elapsed playing time
■ Disc information screen (for DVD-RAM)
A. Direct Navigation (PROGRAM) or PLAY LIST No.
Go directly to a preset title number.
B
C
A
• Select “PROGRAM” or “PLAY LIST”, and press SET.
• Change the No. by pressing
or NUMBER keys, and press SET.
B. Disc currently being played
The type of disc currently inserted is displayed.
Direct Navigation
(PROGRAM)
B
C
A
C. Elapsed playing time
The screen may be changed by selecting the elapsed time.
• Select the elapsed playing time (“xx:xx:xx”), and press SET.
• Change the elapsed time by pressing NUMBER keys.
Enter time starting with seconds.
If the time entered is not on the disc, the entry will have no effect.
Re-enter the correct time.
e.g., press 0 ➛ 1 ➛ 2 ➛ 3 ➛ 4 ➛ 5 ➛ SET for “01 : 23 : 45”.
press 3 ➛ 0 ➛ SET for “00 : 00 : 30”.
• This function does not work with some discs.
Note
PLAY LIST
• When
appears on the screen while a button is being operated, it means that the
corresponding operation is prohibited by DECK or the disc.
Downloaded From DvDPlayer-Manual.com Panasonic Manuals
*Important: if a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
■ DECK information screen (for DECK)
1
2
1. Operating mode
The current operation is displayed.
2. Repeat Play mode (see p. 48)
Repeat play mode can be selected.
• Select “REPEAT”, and press SET.
• Change the desired mode during play by pressing
, and press SET.
Repeat Play mode
DVD-Video
CHAPTER
TITLE
OFF (NORMAL)
DVD-Audio
TRACK
GROUP
OFF (NORMAL)
DISC
OFF (NORMAL)
ALL PLAY LIST
OFF (NORMAL)
DISC
OFF (NORMA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
