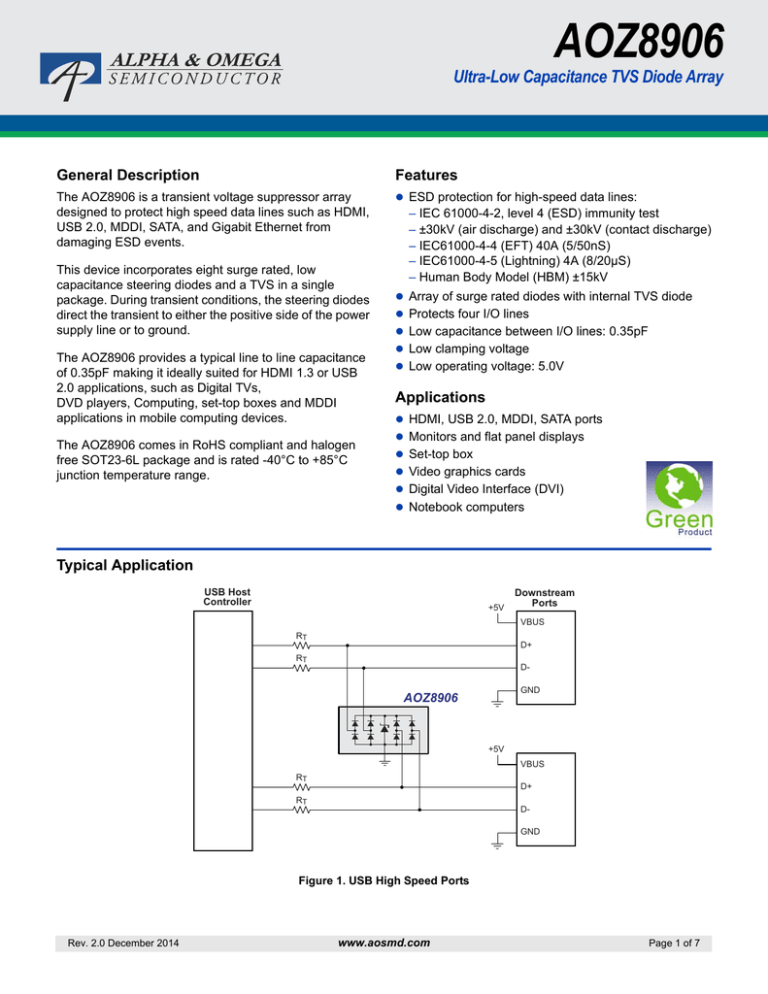

AOZ8906
Ultra-Low Capacitance TVS Diode Array
General Description
Features
The AOZ8906 is a transient voltage suppressor array
designed to protect high speed data lines such as HDMI,
USB 2.0, MDDI, SATA, and Gigabit Ethernet from
damaging ESD events.
 ESD protection for high-speed data lines:
This device incorporates eight surge rated, low
capacitance steering diodes and a TVS in a single
package. During transient conditions, the steering diodes
direct the transient to either the positive side of the power
supply line or to ground.
The AOZ8906 provides a typical line to line capacitance
of 0.35pF making it ideally suited for HDMI 1.3 or USB
2.0 applications, such as Digital TVs,
DVD players, Computing, set-top boxes and MDDI
applications in mobile computing devices.
The AOZ8906 comes in RoHS compliant and halogen
free SOT23-6L package and is rated -40°C to +85°C
junction temperature range.
– IEC 61000-4-2, level 4 (ESD) immunity test
– ±30kV (air discharge) and ±30kV (contact discharge)
– IEC61000-4-4 (EFT) 40A (5/50nS)
– IEC61000-4-5 (Lightning) 4A (8/20µS)
– Human Body Model (HBM) ±15kV
 Array of surge rated diodes with internal TVS diode
 Protects four I/O lines
 Low capacitance between I/O lines: 0.35pF
 Low clamping voltage
 Low operating voltage: 5.0V
Applications
 HDMI, USB 2.0, MDDI, SATA ports
 Monitors and flat panel displays
 Set-top box
 Video graphics cards
 Digital Video Interface (DVI)
 Notebook computers
Typical Application
USB Host
Controller
+5V
Downstream
Ports
VBUS
RT
D+
RT
DGND
AOZ8906
+5V
VBUS
RT
D+
RT
DGND
Figure 1. USB High Speed Ports
Rev. 2.0 December 2014
www.aosmd.com
Page 1 of 7
AOZ8906
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8906CI
-40°C to +85°C
SOT23-6L
RoHS Compliant
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Pin Configuration
CH1
1
6
CH4
VN
2
5
NC
CH2
3
4
CH3
SOT23-6
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
Rating
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2, contact
ESD Rating per IEC61000-4-2, air
(1)
±15kV
(1)
ESD Rating per Human Body Model
±20kV
(2)
±15kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Maximum Operating Ratings
Parameter
Rating
Junction Temperature (TJ)
Rev. 2.0 December 2014
-40°C to +125°C
www.aosmd.com
Page 2 of 7
AOZ8906
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
VRWM
VBR
Parameter
Reverse Working Voltage
Conditions
Min.
(4)
IT = 100µA, between I/O and VN
IR
Reverse Leakage Current
VRWM = 5V, between I/O and VN
VF
Diode Forward Voltage
IF = 15mA
Channel Clamp Voltage
Positive Transients
Channel Clamp Voltage
Positive Transients
Cj
Max.
Units
5.5
V
Between I/O and VN
Reverse Breakdown Voltage
VCL
Typ.
(3)
6.6
0.70
V
0.85
0.1
µA
1
V
2.5
V
4.0
V
6.5
V
4.0
V
(5)
IPP = 1A, tp = 100ns, any I/O pin to Ground
(5)
IPP = 5A, tp = 100ns, any I/O pin to Ground
(5)
Channel Clamp Voltage
Positive Transients
IPP = 12A, tp = 100ns, any I/O pin to Ground
Channel Clamp Voltage
Any I/O Pin to Ground
IPP = 2A, tp = 8/20µs
Channel Input Capacitance
VR = 0V, f = 1MHz, between I/O pins
0.35
0.40
pF
VR = 0V, f = 1MHz, any I/O pin to Ground
0.5
0.75
pF
Notes:
3. The working peak reverse voltage, VRWM, should be equal to or greater than the DC or continuous peak operating voltage level.
4. VBR is measured at the pulse test current IT.
5. Measurements performed using a 100ns Transmission Line Pulse (TLP) system.
Rev. 2.0 December 2014
www.aosmd.com
Page 3 of 7
AOZ8906
Typical Performance Characteristics
Forward Voltage vs. Forward Current
TLP Current vs. Clamping Voltage
(tperiod = 100nS, tr = 1ns)
30
0
25
-05
Forward Current (A)
TLP Current (A)
(tperiod = 100ns, tr = 1ns)
20
15
10
-10
-15
-20
5
-25
0
-30
0
2
4
6
8
10
-22
12
-17
-12
-7
-2
Forward Voltage (V)
Clampling Voltage (V)
Typical Variation of CIN vs. VR
(f = 1MHz, T = 25°C)
Junction Capacitance (pF)
1.0
0.8
0.6
0.4
0.2
0
0
1
2
3
4
5
Working Voltage (V)
Rev. 2.0 December 2014
www.aosmd.com
Page 4 of 7
AOZ8906
Package Dimensions, SOT23-6L
Gauge Plane
D
e1
Seating Plane
0.25mm
c
L
E E1
θ1
e
b
A2
A
.010mm
A1
Dimensions in millimeters
RECOMMENDED LAND PATTERN
2.40
0.80
0.95
0.63
UNIT: mm
Dimensions in inches
Symbols
A
A1
A2
Min.
0.90
0.00
0.80
Nom.
—
—
1.10
Max.
1.25
0.15
1.20
Symbols
A
A1
A2
Min.
0.035
0.00
0.031
Nom.
—
—
0.043
Max.
0.049
0.006
0.047
b
c
D
E
E1
0.30
0.08
2.70
2.50
1.50
0.40
0.13
2.90
2.80
1.60
0.50
0.20
3.10
3.10
1.70
b
c
D
E
E1
0.012
0.003
0.106
0.098
0.059
0.016
0.005
0.114
0.110
0.063
0.020
0.008
0.122
0.122
0.067
e
e1
L
θ1
0.95 BSC
1.90 BSC
0.30
—
0.60
0°
—
8°
e
e1
L
θ1
0.037 BSC
0.075 BSC
0.012
—
0.024
0°
—
8°
Notes:
1. Package body sizes exclude mold flash and gate burrs. Mold flash at the non-lead sides should be less than 5 mils each.
2. Dimension “L” is measured in gauge plane.
3. Tolerance ±0.100mm (4 mil) unless otherwise specified.
4. Followed from JEDEC MO-178C & MO-193C.
6. Controlling dimension is millimeter. Converted inch dimensions are not necessarily exact.
Rev. 2.0 December 2014
www.aosmd.com
Page 5 of 7
AOZ8906
Tape and Reel Dimensions, SOT23-6L
P2
Tape
A
P1
A–A
D1
D0
E1
K0
E2
B0
A0
P0
T
E
A
Feeding Direction
Unit: mm
Package
A0
B0
K0
D0
D1
E
E1
E2
P0
P1
P2
T
SOT-23
3.15
±0.10
3.20
±0.10
1.40
±0.10
1.50
±0.05
1.00
±0.10/-0.0
8.00
±0.30
1.75
±0.10
3.50
±0.05
4.00
±0.10
4.00
±0.10
2.00
±0.05
0.23
±0.03
Reel
W1
S
R
K
M
J
H
N
Unit: mm
Tape Size
Reel Size
M
N
W1
H
S
K
R
J
8 mm
ø177.80
ø177.80
MAX.
ø55.00
MIN.
8.40
+1.50/-0.00
ø13.00
+0.50 / -0.20
1.50
MIN.
10.10
MIN.
12.70
4.00
+0.10/-0.10
Leader/Trailer and Orientation
Unit Per Reel:
3000pcs
Trailer Tape
300mm min.
Rev. 2.0 December 2014
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm min.
Page 6 of 7
AOZ8906
Package Marking
AOZ8906CI
(SOT-23)
BTOW
Part Number Code
Assembly
Lot Code
Week & Year Code
Option & Assembly Location Code
LEGAL DISCLAIMER
Alpha and Omega Semiconductor makes no representations or warranties with respect to the accuracy or
completeness of the information provided herein and takes no liabilities for the consequences of use of such
information or any product described herein. Alpha and Omega Semiconductor reserves the right to make changes
to such information at any time without further notice. This document does not constitute the grant of any intellectual
property rights or representation of non-infringement of any third party’s intellectual property rights.
LIFE SUPPORT POLICY
ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 2.0 December 2014
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
