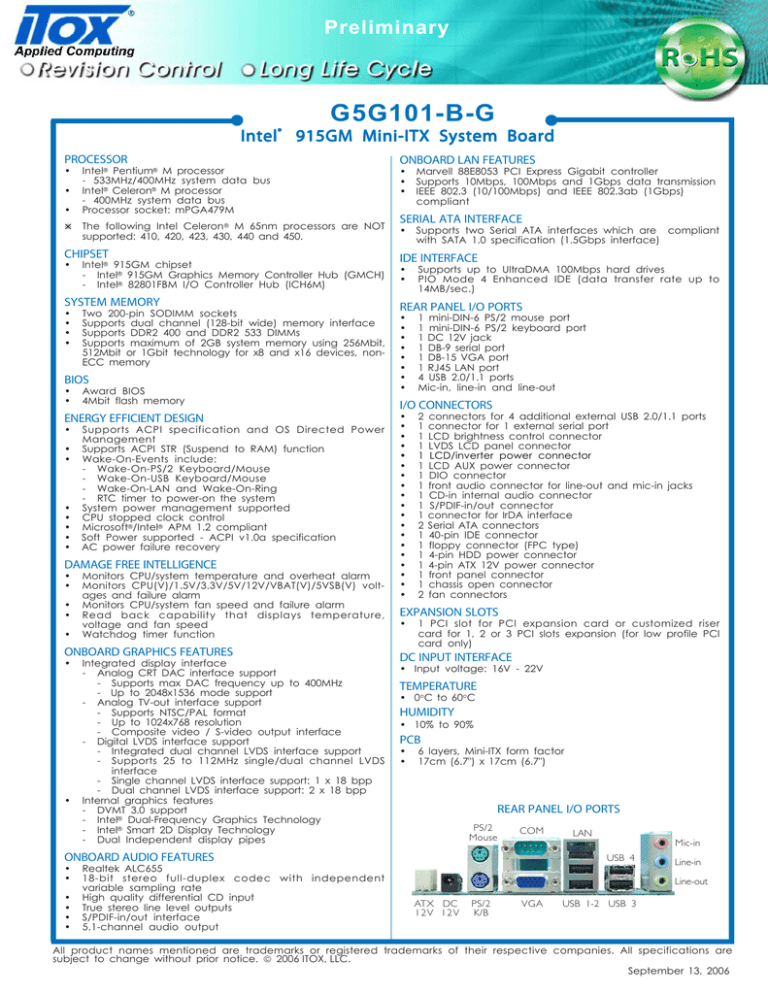

g5g101-b
Preliminary
Intel
®
G5G101-B-G
915GM Mini-ITX System Board
PROCESSOR
•
•
•
Intel® Pentium® M processor
- 533MHz/400MHz system data bus
Intel® Celeron® M processor
- 400MHz system data bus
Processor socket: mPGA479M
The following Intel Celeron ® M 65nm processors are NOT
supported: 410, 420, 423, 430, 440 and 450.
CHIPSET
•
Intel® 915GM chipset
- Intel® 915GM Graphics Memory Controller Hub (GMCH)
- Intel® 82801FBM I/O Controller Hub (ICH6M)
SYSTEM MEMORY
•
•
•
•
Two 200-pin SODIMM sockets
Supports dual channel (128-bit wide) memory interface
Supports DDR2 400 and DDR2 533 DIMMs
Supports maximum of 2GB system memory using 256Mbit,
512Mbit or 1Gbit technology for x8 and x16 devices, nonECC memory
BIOS
•
•
Award BIOS
4Mbit flash memory
ENERGY EFFICIENT DESIGN
•
•
•
•
•
•
•
•
Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-LAN and Wake-On-Ring
- RTC timer to power-on the system
System power management supported
CPU stopped clock control
Microsoft®/Intel® APM 1.2 compliant
Soft Power supported - ACPI v1.0a specification
AC power failure recovery
DAMAGE FREE INTELLIGENCE
•
•
•
•
•
Monitors CPU/system temperature and overheat alarm
Monitors CPU(V)/1.5V/3.3V/5V/12V/VBAT(V)/5VSB(V) voltages and failure alarm
Monitors CPU/system fan speed and failure alarm
Read back capability that displays temperature,
voltage and fan speed
Watchdog timer function
ONBOARD GRAPHICS FEATURES
•
•
Integrated display interface
- Analog CRT DAC interface support
- Supports max DAC frequency up to 400MHz
- Up to 2048x1536 mode support
- Analog TV-out interface support
- Supports NTSC/PAL format
- Up to 1024x768 resolution
- Composite video / S-video output interface
- Digital LVDS interface support
- Integrated dual channel LVDS interface support
- Supports 25 to 112MHz single/dual channel LVDS
interface
- Single channel LVDS interface support: 1 x 18 bpp
- Dual channel LVDS interface support: 2 x 18 bpp
Internal graphics features
- DVMT 3.0 support
- Intel® Dual-Frequency Graphics Technology
- Intel® Smart 2D Display Technology
- Dual Independent display pipes
ONBOARD LAN FEATURES
•
•
•
Marvell 88E8053 PCI Express Gigabit controller
Supports 10Mbps, 100Mbps and 1Gbps data transmission
IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps)
compliant
SERIAL ATA INTERFACE
•
Supports two Serial ATA interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
IDE INTERFACE
•
•
Supports up to UltraDMA 100Mbps hard drives
PIO Mode 4 Enhanced IDE (data transfer rate up to
14MB/sec.)
REAR PANEL I/O PORTS
•
•
•
•
•
•
•
•
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 DC 12V jack
1 DB-9 serial port
1 DB-15 VGA port
1 RJ45 LAN port
4 USB 2.0/1.1 ports
Mic-in, line-in and line-out
I/O CONNECTORS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
connectors for 4 additional external USB 2.0/1.1 ports
connector for 1 external serial port
LCD brightness control connector
LVDS LCD panel connector
LCD/inverter power connector
LCD AUX power connector
DIO connector
front audio connector for line-out and mic-in jacks
CD-in internal audio connector
S/PDIF-in/out connector
connector for IrDA interface
Serial ATA connectors
40-pin IDE connector
floppy connector (FPC type)
4-pin HDD power connector
4-pin ATX 12V power connector
front panel connector
chassis open connector
fan connectors
EXPANSION SLOTS
•
1 PCI slot for PCI expansion card or customized riser
card for 1, 2 or 3 PCI slots expansion (for low profile PCI
card only)
DC INPUT INTERFACE
• Input voltage: 16V - 22V
TEMPERATURE
• 0oC to 60oC
HUMIDITY
• 10% to 90%
PCB
•
•
6 layers, Mini-ITX form factor
17cm (6.7") x 17cm (6.7")
REAR PANEL I/O PORTS
PS/2
Mouse
COM
ONBOARD AUDIO FEATURES
•
•
•
•
•
•
Realtek ALC655
18-bit stereo full-duplex codec with independent
variable sampling rate
High quality differential CD input
True stereo line level outputs
S/PDIF-in/out interface
5.1-channel audio output
LAN
Mic-in
USB 4
Line-in
Line-out
ATX DC
12V 12V
PS/2
K/B
VGA
USB 1-2 USB 3
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice.  2006 ITOX, LLC.
September 13, 2006
