Front Panel Shortcuts

Front Panel Shortcuts

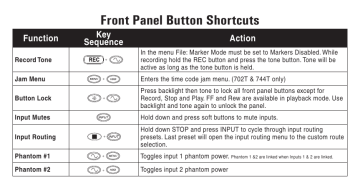

Front Panel Button Shortcuts
Function
Key
Sequence
Record Tone
+
Action
In the menu File: Marker Mode must be set to Markers Disabled. While
recording hold the REC button and press the tone button. Tone will be
active as long as the tone button is held.
Jam Menu
+
Enters the time code jam menu. (702T & 744T only)
Button Lock
+
Press backlight then tone to lock all front panel buttons except for
Record, Stop and Play. FF and Rew are available in playback mode. Use
backlight and tone again to unlock the panel.
Input Mutes
Input Routing
Hold down and press soft buttons to mute inputs.
+
Hold down STOP and press INPUT to cycle through input routing
presets. Last preset will open the input routing menu to the custom route
selection.
Phantom #1
+
Toggles input 1 phantom power. Phantom 1 &2 are linked when Inputs 1 & 2 are linked.
Phantom #2
+
Toggles input 2 phantom power
Function
Key
Sequence
Action
Low-cut #1
+
Toggles Input 1 high-pass filter. Low-cuts 1 &2 are linked when Inputs 1 & 2 are linked.
Low-cut #2
+
Toggles Input 2 high-pass filter.
Connect
FireWire
+
Initiates FireWire connection.
False Take
+
Delete last take prompt.
Increase Take
+
Increments take number to be recorded for the next file.
Take List
+
Take list and circle take identifying screen.
Toggle Drives
Hold the HDD button for 1 second to toggle viewable drives.
Rotary Switch
LED Level
+
Flashlight Mode
+
+
Adjusts levels of LED brightness.
With the power off, hold down these buttons while powering the unit to
enter Flashlight mode. This illuminates all LEDs except for three. Press
power again to exit.
©2008 Sound Devices, LLC
