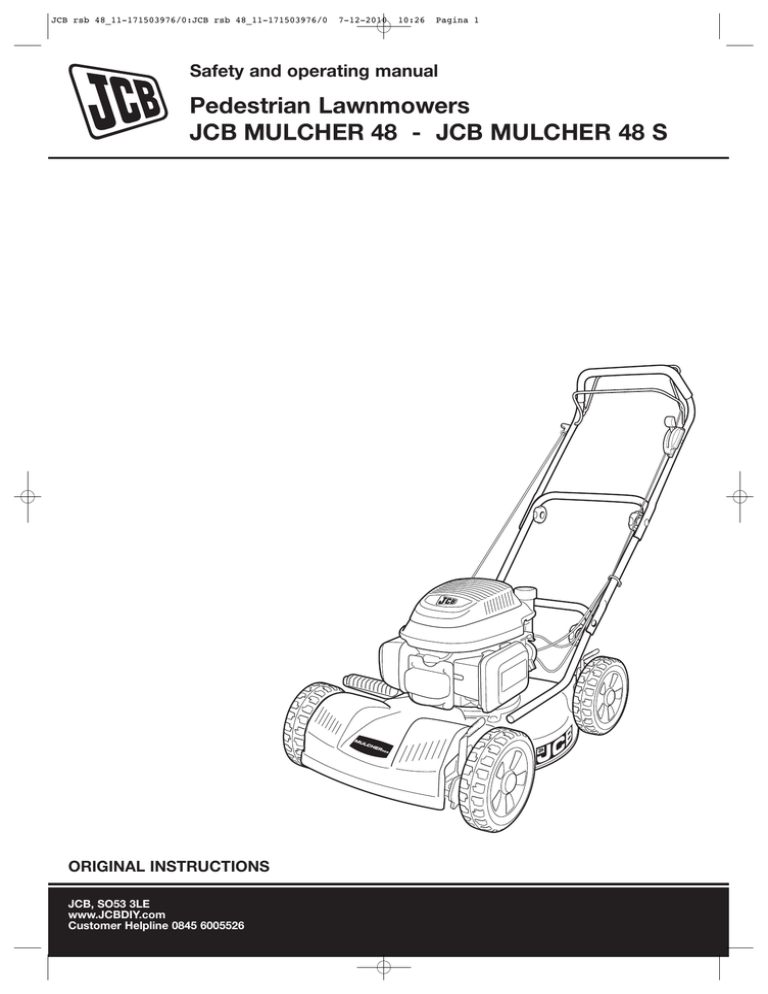

Safety and operating manual
Pedestrian Lawnmowers
JCB MULCHER 48 - JCB MULCHER 48 S
ORIGINAL INSTRUCTIONS
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 2
Identification label, main components and symbols
Identification label
2
7
9
3
4
8
6
5
MULCHER 48 S
MULCHER 48
16
11 12 13
1
1. Conformity mark according to directive
2006/42/CE
2. Type of machine
3. Weight in kg
4. Operating engine power and speed
5. Acoustic power level according to directive
2000/14/CE
6. Serial number
7. Name and address of manufacturer
8. Article Code
9. Year of manufacture
17
16
15
Identification of main components
11.
12.
13.
14.
15.
16.
17.
14
Chassis
Blade
Engine
Handle
Drive engagement lever
Engine brake lever
Throttle control
Symbols of safety requirements
21
22
23
25
2
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
24
Your lawnmower should be used with due care and
attention. Symbols have therefore been placed on
various parts of the machine to remind you of the
main precautions to be taken. Their meaning is
explained below. You are also asked to carefully
read the safety regulations in the applicable chapter
of this handbook.
21. Warning: Read the instruction manual before
using the machine.
22. Beware of thrown objects. Keep other people at
a safe distance whilst working.
23. Warning: Disconnect the spark plug cap and
read the instructions before carrying out any
maintenance or repairs.
24. Danger of cutting yourself. Moving blades. Do
not put hands or feet near or under the opening
of the cutting plate.
25. Warning! Hot surfaces.
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 3
Safety Regulations - To be followed carefully
A) TRAINING
1) Read the instructions carefully. Get familiar with the controls
and proper use of the equipment. Learn how to stop the engine
quickly.
2) Only use the lawnmower for the purpose for which it was
designed, i.e. for cutting grass. Any other use can be hazardous, causing damage to the machine. Examples of improper
use may include, but are not limited to:
– transport of people, children or animals on the machine;
– being transported by the machine;
– using the machine to tow or push loads;
– using the machine for leaf or debris collection;
– using the machine to trim hedges, or for cutting vegetation
other than grass;
– use of the machine by more than one person;
– using the blade on surfaces other than grass.
3) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the
age of the operator.
4) Never use the lawnmower:
– When people, especially children, or pets are nearby.
– If the operator has taken medicine or substances that can
affect his ability to react and concentrate.
5) Remember that the operator or user is responsible for accidents or hazards occurring to other people or their property.
B) PREPARATION
1) While mowing, always wear sturdy footwear and long
trousers. Do not operate the equipment when barefoot or wearing open sandals.
2) Thoroughly inspect the area where the equipment is to be
used and remove all objects which may be thrown by the
machine or damage the cutter assembly and the engine (stones,
sticks, metal wire, bones, etc.)
3) WARNING: DANGER! Engine fuel is highly flammable:
– Store fuel in containers specifically designed for this purpose.
– Refuel using a funnel and outdoors only. Do not smoke while
refuelling or whenever handling the fuel.
– Add fuel before starting the engine. Never remove the cap of
the fuel tank or add fuel while the engine is running or when the
engine is hot.
– If fuel is spilled, do not attempt to start the engine but move
the machine away from the area of spillage and avoid creating
any source of ignition until the fuel has evaporated and the
vapour dispersed.
– Replace all fuel tanks and containers caps securely.
4) Substitute faulty silencers.
5) Before use, always inspect the machine, especially the condition of the blades, and check that the screws and cutting
assembly are not worn or damaged. Replace worn or damaged
blades and screws in sets to preserve balance.
C) OPERATION
1) Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
2) Mow only in daylight or good artificial light.
3) If possible, avoid operating the equipment in wet grass.
4) Always be sure of your footing on slopes.
5) Walk, never run and do not allow yourself to be pulled along
by the lawnmower.
6) Mow across the face of slopes, never up and down.
7) Exercise extreme caution when changing direction on slopes.
8) Do not mow on slopes of more than 15°.
9) Exercise extreme caution when pulling the lawnmower
towards you.
10) Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when
transporting the lawnmower to and from the area to be mowed.
11) Never operate the lawnmower with defective guards.
12) Do not change the engine governor settings or overspeed
the engine.
13) On power-driven models, disengage the drive clutch before
starting the engine.
14) Start the engine carefully, following the instructions and
keeping feet well away from the blade.
15) Do not tilt the lawnmower when starting the engine. Start the
engine on a flat surface that is free of obstacles and tall grass.
16) Do not put hands or feet near or under rotating parts.
17) Never pick up or carry a lawnmower while the engine is running.
18) Stop the engine and disconnect the spark plug wire:
– Before carrying out any work underneath the cutting deck or
before unclogging the chute;
– Before checking, cleaning or working on lawnmower;
– After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower;
– If the lawnmower begins to abnormally vibrate (Immediate
look for the cause of the vibrations and take for necessary controls at a Specialised Centre).
19) Stop the engine:
– Whenever you leave the lawnmower unattended. Remove the
key from models with electric starters.
– Before refuelling.
– Before adjusting the grass cutting height.
20) Reduce the throttle before turning off the engine and turn
the fuel off when you have finished mowing, following the
instructions in the engine handbook.
21) When mowing, always keep to a safe distance from the
rotating blade. This distance is the length of the handle.
D) MAINTENANCE AND STORAGE
1) Keep all nuts, bolts and screws tight to be sure the equipment
is in safe working condition. Regular maintenance is essential
for safety and performance.
2) Never store the equipment with fuel in the tank inside a building where vapour may reach a flame or a spark or a source of
extreme heat.
3) Allow the engine to cool before storing in an enclosed space.
4) To reduce the fire hazard, keep the engine, exhaust silencer,
battery compartment and fuel storage area free of grass, leaves,
or excessive grease. Do not leave containers with grass cuttings
in rooms.
5) If the fuel tank has to be drained, this should be done outdoors and when the engine is cool.
6) Wear strong work gloves when removing and reassembling
the blade.
7) Keep the blade balanced during sharpening. All operations on
the blade (dismantling, sharpening, balancing, remounting
and/or replacing) require a certain familiarity and special tools.
For safety reasons, these jobs are best carried out at a specialized centre.
8) For safety reasons, never use the machine when it has worn
or damaged parts. Parts are to be replaced and not repaired.
Use genuine spare parts. Parts that are not of the same quality
can damage the equipment and impair your safety.
E) TRANSPORTATION AND HANDLING
1) Whenever the machine is to be handled, raised, transported
or tilted you must:
– wear strong working gloves;
– grasp the machine at the points that offer a safe grip, taking
account of the weight and its distribution.
– use an appropriate number of people for the weight of the
machine and the characteristics of the vehicle or the place
where it has to be placed or collected.
2) During transport, fasten the machine securely with ropes or
chains.
3
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 4
Assembly Instructions
Tools required, not supplied
Fittings supplied
1
3
2
4
8
Ref.
1
2
3
4
Description
Q.ty
Round Head square neck Bolt M8 x 60 2
Washer
2
Hanle Fixing Knob
2
Hexagonal Nut M8
2
NOTE - The machine can be supplied with some parts
already assembled.
enough space for machine handling and its packaging,
always making use of suitable equipment.
WARNING - Unpacking and completing the assembly
should be done on a flat and stable surface, with
Disposal of the packaging should be done in accordance with the local regulations in force.
1
1.
Raise the lower part of the pre-fitted handle (A) to
its working position and lock into place using the
lower knobs (B).
2.
Attach the top of the handle (C) using the screws
(1), washers (2), knobs (3) and nuts (4) supplied, as
shown.
A
3.
Fit the cable clamps (D) as shown and secure the
control cables.
Release the blade brake by holding the control lever
against the handle.
Pull the starter rope (E), fit it in the guide spiral (F)
and tighten the nut (G).
B
A
2
3
E
C
F
1
4
3
G
2
1
2
3
4
4
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
D
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 5
Description of controls
Throttle trigger
1
The throttle (where fitted) is controlled by the lever
(1) and positioned as shown on the relative plate.
21
a
22
b
a. Slow
b. Fast
c. Choke
23
c
Blade brake lever
The blade brake is controlled by the lever (1), which
should be held against the handle when starting and
using the lawnmower.
The engine stops when the lever is released.
d. Engine stop
1
d
24
Drive engagement lever (Only JCB Mulcher 48 S)
1
In power-driven models, draw the lever (1) towards
the handle for forward movement.
The lawnmower stops moving forward when the
lever is released.
d. Engine stop
e. Drive on
d
24
e
25
JCB Mulcher 48
Cutting height adjustment
1
The cutting height is adjusted using the levers (1).
The four wheels must be at the same height.
MAKE THIS ADJUSTMENT ONLY WHEN THE
BLADE HAS STOPPED MOVING.
1
1
1
1
1
1
JCB Mulcher 48 S
5
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 6
Operation
IMPORTANT: Before starting the motor for the first
time, carefully read the instructions as set out in the
engine handbook.
CAUTION! Check oil level before starting.
For instructions regarding the engine, read the relevant manual.
Starting the engine
To start, follow the instructions in the engine manual,
pull the blade brake lever (1) against the handle and
firmly pull the starter cable knob (2).
1
2
Grass cutting
1
2
The lawn will look better if it is always cut to the
same height and in alternate directions.
A machine with the MULCHING system cuts the
grass, chops it finely and then blows it down into the
lawn.
The grass clippings need not be collected.
The following rules should be observed to give the
best MULCHING effect:
1. Use a high engine speed (full throttle).
2. Do not mow when the grass is wet.
3. Do not cut the grass too short. Not more than
1/3rd of the length should be cut off.
4. Ensure that the area under the mower casing is
always kept clean.
5. Always use a well-sharpened blade.
1/3
End of operations
2
When you have finishing mowing, release the brake
lever (1) and disconnect the spark plug cap (2).
WAIT FOR THE BLADE TO STOP before carrying out
any type of work on the machine.
1
LAWN CARE RECOMENDATIONS
Each type of grass has different features and may thus
require different ways to care for the lawn; always read
the instructions on seed boxes for mowing height for the
growth conditions in the work area.
Keep in mind that most grass is made up of a stem and
one or more leaves. If leaves are fully cut, the lawn is
damaged and growth is more difficult.
6
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
The following indications generally apply:
– too low a cut causes grass tears and uprooting, with
a “spotted” aspect;
– in the summer, cutting must be higher to avoid the
ground from drying;
– do not cut wet grass; this could reduce blade efficiency due to sticky grass and tear the lawn;
– for particularly high grass, initially mow at maximum
cutting height followed by a second mow after two or
three days.
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 7
Maintenance
IMPORTANT – Regular, careful maintenance is
essential for keeping the safety level and original
performance of the machine unchanged in time.
Store the lawnmower in a dry place.
1) Wear strong working gloves during any cleaning,
maintenance or adjustment operation on the machine.
2) Carefully clean the machines with water after each
cut; remove the grass debris and mud accumulated
inside the chassis to avoid their drying and thus making the next start-up difficult.
3) In models with painted chassis, internal chassis part
paint may detach over time due to the abrasive
action of cut grass; in this case, promptly touch-up
paint with rust-proof paint to prevent rusting that
could corrode the metal.
4) Should it be necessary to access the lower part, only
tilt the machine from the side shown in the engine
handbook; following the relative instructions.
5) Do not drip petrol onto the plastic parts of the motor
or the machine to prevent damaging them and
remove all traces of spilt petrol immediately. The warranty does not cover damage to plastic parts caused
by petrol.
Maintenance on the blade is best if conducted at a
specialised Centre that has the most appropriate
tools.
Only blades with the following codes must be used
on this machine:
81004146/0
2
Blades must always be marked . Given the product evolution, the above mentioned blade may be
replaced in time by others, with similar interchangeable and operating safety characteristics.
Reassemble the blade (2) with the code and markings facing the ground, following the order indicated
in the illustration.
1
Tighten the central screw (1) using a torque wrench
set to 35-40 Nm.
For JCB Mulcher 48 S only:
3
Remove the guard (1) once or twice a year by
unscrewing the screws (2) and releasing the couplings (3).
Then clean carefully using a brush or compressed
air, removing the grass and dirt from the area around
the transmission and belt. Always refit the guard (1).
1
2
7
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
JCB rsb 48_11-171503976/0:JCB rsb 48_11-171503976/0
7-12-2010
10:26
Pagina 8
Environmental protection
Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in
which we live.
– Try not to cause any disturbance to the surrounding
area.
– Scrupulously comply with local regulations and provisions for the disposal of waste materials after cutting.
– Scrupulously comply with local regulations and provi-
sions for the disposal of pakaging, oils, petrol, batteries, filters, damaged parts or any elements which
have a strong impact on the environment; this waste
must not be disposed of as normal waste, it must be
separated and taken to specified waste disposal centres where the material will be recycled.
– At the time of decommissioning, do not pollute the
environment with the machine, hand it over to a disposal centre, in accordance with the local laws in
force.
Specifications
Maximum noise and vibration levels
Operator ear noise pressure level (according to
regulation 81/1051/EEC)................................................ db(A) 76,7
- Measurement uncertainty (2006/42/EC - EN 27574) . db(A) 0,4
Measured acoustic output level (according to
directive 2000/14/EC, 2005/88/EC). .............................. db(A) 90,5
- Measurement uncertainty (2006/42/EC - EN 27574) .. db(A) 0,4
Guaranteed acoustic output level (according to
directive 2000/14/EC, 2005/88/EC) ............................... db(A) 92
Vibration level (according to the standard EN 1033) ..... m/s2 3,7
- Measurement uncertainty (2006/42/EC - EN 12096) .. m/s2 0,3
JCB Mulcher 48
Engine. . . . . . . . . . . . . . . . . . . . . . . . Honda GCV 135
Dimensions (L x W x H) cm . . . . . . . . 142 x 53 x 104
Weight kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cutting width mm . . . . . . . . . . . . . . . . . . . . . . . . . 480
Cutting Heigh (5 positions) mm . . . . . . . . . . . 31 - 75
JCB Mulcher 48 S
Engine. . . . . . . . . . . . . . . . . . . . . . . . Honda GCV 135
Dimensions (L x W x H) cm . . . . . . . . 150 x 53 x 104
Weight kg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cutting width mm . . . . . . . . . . . . . . . . . . . . . . . . . 480
Cutting Heigh (5 positions) mm . . . . . . . . . . . 31 - 75
Warranty Statement
Cutting edge construction technology in your hands
In 1945 JCB began producing construction equipment.
Today, we build the world’s number one diggers, each
one the product of our unswerving focus on innovation,
quality and engineering. JCB lawn mowers are built to
give you the same world beating standards of performance. The same innovation, to always get the job done
better, the same quality, to never let you down, the same
engineering heritage and expertise that you can trust
100%.
JCB lawn mowers are guaranteed against manufacturing defects for a period of 3 years from the date of purchase. If your JCB lawn mower becomes defective
within this warranty period, we guarantee to:
• Replace or repair all defective parts, free of charge, or
• Repair products free of charge, or
• Replace the unit with a new or re-conditioned unit,
free of charge.
Conditions
Your 3 year guarantee is subject to the machine receiving a service at the recommended intervals by an authorised agent and does not cover defects caused by or
8
JCB, SO53 3LE
www.JCBDIY.com
Customer Helpline 0845 6005526
resulting from:
• overload, misuse, or neglect
• normal wear and tear, including accessory wear
• trade or hire use
• repairs attempted by anyone other than an authorised
agent
• damage caused by foreign objects, substances or
accidents
Your 3 year guarantee does not cover:
• battery packs as they are guaranteed for a 12 month
period
• accessories supplied with the lawn mower
• delivery or collection of the machine to a repair agent.
Warranty claims
For guarantee claims, please contact JCB Customer
Services. You will be required to submit proof of purchase.
JCB CUSTOMER HELPLINE 0845 6005526
Terms
This guarantee does not affect your statutory rights.
JCB SO53 3LE (Registered in England under No.
973387).
171503976/0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
