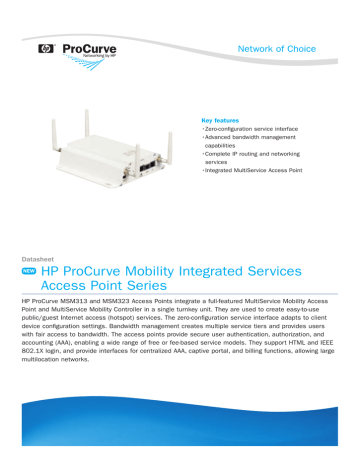

msm 313 & 323
Key features
•Zero-configuration service interface
•Advanced bandwidth management
capabilities
•Complete IP routing and networking
services
•Integrated MultiService Access Point
Datasheet
NEW
HP ProCurve Mobility Integrated Services
Access Point Series
HP ProCurve MSM313 and MSM323 Access Points integrate a full-featured MultiService Mobility Access
Point and MultiService Mobility Controller in a single turnkey unit. They are used to create easy-to-use
public/guest Internet access (hotspot) services. The zero-configuration service interface adapts to client
device configuration settings. Bandwidth management creates multiple service tiers and provides users
with fair access to bandwidth. The access points provide secure user authentication, authorization, and
accounting (AAA), enabling a wide range of free or fee-based service models. They support HTML and IEEE
802.1X login, and provide interfaces for centralized AAA, captive portal, and billing functions, allowing large
multilocation networks.
HP ProCurve Mobility Integrated Services Access Point Series
Features and benefits
Industry-leading warranty
Mobility
•All-in-one simplicity: The HP ProCurve MSM313 and MSM323
Access Points combine a full-featured multiservice access
point and multiservice controller in a single easy-to-deploy
enclosure that is ideally suited for public hotspot networks and
small enterprise deployments.
•Award-winning public/guest Internet access service: The
ProCurve MSM313 and MSM323 Access Points provide highspeed guest Internet access for up to 25 patrons, guests, and
partners. Guest access can be segmented from corporate
applications. Easy, Web-based login via a captive, customized
portal and zero-configuration service adapts to any client
device’s IP address and Web proxy settings.
•High-performance, multiservice networking: The ProCurve
MSM313 and MSM323 Access Points can deliver multiple
services simultaneously: networking policies tailored for Quality
of Service (QoS), authentication, encryption, bandwidth
allocation, and VLANs based on user, device, or application
identity. End-to-end QoS based on TOS/DiffServ, IEEE 802.1p,
and TCP/UDP port. IEEE 802.11e Wireless MultiMedia (WMM)
and SpectraLink Voice Priority (SVP) provide voice performance.
•Rich management features: Activity statistics support per-user
billing by data volume and elapsed session time. There is also
integrated support for leading third-party hotspot billing
services. The self-healing configuration automatically adjusts to
changes in the RF environment. The series provides advanced
IP networking capabilities, including Adaptive NAT, SMTP
redirect, and DHCP services for transparent application
support.
•Location flexibility: The series features a plenum-rated
enclosure and is powered by IEEE 802.3af Power over Ethernet
(PoE) or a power supply accessory (sold separately).
Warranty and support
•ProCurve Lifetime Warranty♦: for as long as you own the
•Rock-solid security: Security policies based on user credentials
product, with next-business-day advance replacement (available
(IEEE 802.1X/EAP), hardware identifiers (MAC address and
in most countries).
WEP key), or HTML login are enforced at the network edge to
•Electronic and telephone support: limited electronic and
safeguard network and information integrity. Standards-based
telephone support is available from HP. Refer to the HP Web
RADIUS interface provides remote authentication, authorization,
site at www.procurve.eu/support for details on the support
and accounting (AAA) system integration and hardware-assisted
provided and the period during which support is available.
encryption using WPA2/AES (IEEE 802.11i), WPA/RC4, and/or
•Software releases: refer to the HP Web site at
WEP. A built-in stateful firewall provides secure connection to
www.procurve.eu/support for details on the software releases
the Internet.
provided and the period during which software releases are
available.
♦
For as long as you own the product, with next-business-day advance replacement (available in most countries). The following hardware products and their related series modules have a one-year
hardware warranty with extensions available: HP ProCurve Routing Switch 9300m Series, HP ProCurve Switch 8100fl Series, and HP ProCurve Network Access Controller 800. The following
hardware mobility products have a one-year hardware limited warranty with extensions available: HP ProCurve M111 Client Bridge, HP ProCurve MSM3xx-R Access Points, HP ProCurve MSM7xx
Mobility and Access Controllers, HP ProCurve RF Manager IDS/IPS Systems, HP ProCurve MSM Power Supplies, and HP ProCurve 1-Port Power Injector. Standalone software, upgrades, or licenses
may have a different warranty duration. For details, refer to the ProCurve Software License, Warranty, and Support booklet at www.procurve.eu/warranty.
2
HP ProCurve Mobility Integrated Services Access Point Series
Specifications
HP ProCurve MSM323 Access Point WW (J9341A)
HP ProCurve MSM313 Access Point WW (J9350A)
2 RJ-45 auto-sensing 10/100 ports (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
1 RJ-11 serial console port
2 RJ-45 auto-sensing 10/100 ports (IEEE 802.3 Type 10Base-T,
IEEE 802.3u Type 100Base-TX)
Duplex: half or full
1 RJ-11 serial console port
Physical characteristics
Dimensions (D x W x H)
Weight
Enclosure
16.56 x 16.26 x 4.78 cm (6.52 x 6.4 x 1.88 in.)
1.36 kg (3.0 lb.)
Indoor, plenum rated
16.56 x 16.26 x 4.78 cm (6.52 x 6.4 x 1.88 in.)
1.36 kg (3.0 lb.)
Indoor, plenum rated
Environment
Operating temperature
Operating relative humidity
Non-operating/Storage temperature
Non-operating/Storage relative humidity
0ºC to 50ºC (32ºF to 122ºF)
5% to 95%, non-condensing
–40ºC to 80ºC (–40ºF to 176ºF)
5% to 95%, non-condensing
0ºC to 50ºC (32ºF to 122ºF)
5% to 95%, non-condensing
–40ºC to 80ºC (–40ºF to 176ºF)
5% to 95%, non-condensing
5 VDC connector (power supply sold separately), IEEE 802.3af PoE
compliant
8.6 W
(4) RP-SMA with diversity
(4) 2 dBi dual-band 2.4/5 GHz omnidirectional
5 VDC connector (power supply sold separately), IEEE 802.3af PoE
compliant
6.5 W
(2) RP-SMA with diversity
(2) 2 dBi dual-band 2.4/5 GHz omnidirectional
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
2.412–2.462 GHz (11 channels)
5.180–5.240 GHz (4 channels)
5.745–5.825 GHz (5 channels)
European Union
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
2.412–2.472
5.180–5.240
5.260–5.320
5.500–5.700
Radio
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
Safety
UL 1950; UL 2043; IEC 60950; EN 60950; CSA 22.2 No. 950-95
UL 1950; UL 2043; IEC 60950; EN 60950; CSA 22.2 No. 950-95
Emissions
EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B;
FCC Part 15, Class B
EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B;
FCC Part 15, Class B
Medical
EN60601-1-2
EN60601-1-2
RF Exposure
FCC Part 15.247; RSS-210; EN 300-328; ETS 301-398
FCC Part 15.247; RSS-210; EN 300-328; ETS 301-398
Notes
Maximum transmit power varies by country.
Maximum transmit power varies by country.
Services
3-year, 4-hour onsite, 13x5 coverage for hardware (UN663E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN664E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN666E)
3-year, 24x7 software phone support, software updates (UN665E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UN675E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN676E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
support (UN678E)
3-year, 24x7 software phone support, software updates (UN677E)
Refer to the HP Web site at www.procurve.eu/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
Refer to the HP Web site at www.procurve.eu/services for details on
the service-level descriptions and product numbers. For details about
services and response times in your area, please contact your local
HP sales office.
Ports
Electrical characteristics
Description
Power consumption
Antenna Connector
Antenna
Frequency band and Operating
FCC (US and Canada)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
GHz
GHz
GHz
GHz
(13 channels)
(4 channels)
(4 channels)
(11 channels)
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300
328; ARIB STD-T66; IDA Registration (Singapore); MIC approval (Korea);
RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU)
HP ProCurve MSM323 Access Point WW (J9341A)
Radio characteristics: Dual a/j/b/g + a/b/g
Data rate
Receiver sensitivity
Transmit power
IEEE
802.11a/j
6 Mbps
–87 dBm
18 dBm
IEEE
802.11a/j
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
IEEE
802.11a/j
54 Mbps
–67 dBm
12 dBm
IEEE
802.11g
6 Mbps
–87 dBm
18 dBm
IEEE
802.11g
54 Mbps
–70 dBm
13 dBm
IEEE
802.11b
1 Mbps
–87 dBm
18.5 dBm
IEEE
802.11b
11 Mbps
–87 dBm
18.5 dBm
HP ProCurve MSM313 Access Point WW (J9350A)
Radio characteristics: IEEE 802.11a/j/b/g
Data rate
Receiver sensitivity
Transmit power
IEEE
802.11a/j
6 Mbps
–87 dBm
18 dBm
3
HP ProCurve Mobility Integrated Services Access Point Series accessories
HP ProCurve 1-Port Power Injector (J9407A)
HP ProCurve MSM323 Access Point WW
(J9341A)
HP ProCurve MSM31x and MSM32x Power Supply (J9405A)
HP ProCurve MSM310/MSM320 AP Mounting Bracket (J9403A)
HP ProCurve MSM313 Access Point WW
(J9350A)
HP ProCurve MSM31x and MSM32x Power Supply (J9405A)
HP ProCurve MSM310/MSM320 AP Mounting Bracket (J9403A)
For more information
To learn more about HP ProCurve Networking, please visit ProCurve.eu
© Copyright 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
4AA2-3169EEE, November 2008
