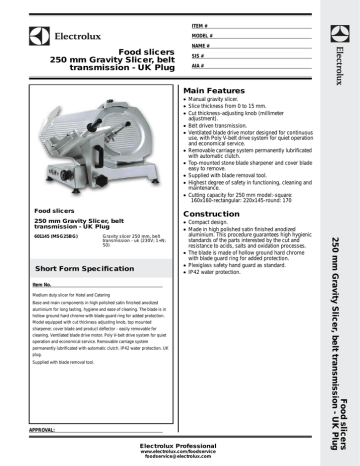

Food slicers 250 mm Gravity Slicer, belt transmission - UK Plug Main Features

Food slicers 250 mm Gravity Slicer, belt transmission - UK Plug Main Features
ITEM #
MODEL #
NAME #
Food slicers
250 mm Gravity Slicer, belt
transmission - UK Plug
SIS #
AIA #
Main Features
• Manual gravity slicer.
• Slice thickness from 0 to 15 mm.
• Cut thickness-adjusting knob (millimeter
adjustment).
• Belt driven transmission.
• Ventilated blade drive motor designed for continuous
use, with Poly V-belt drive system for quiet operation
and economical service.
• Removable carriage system permanently lubrificated
with automatic clutch.
• Top-mounted stone blade sharpener and cover blade
easy to remove.
• Supplied with blade removal tool.
• Highest degree of safety in functioning, cleaning and
maintenance.
• Cutting capacity for 250 mm model:-square:
160x160-rectangular: 220x145-round: 170
Food slicers
Construction
250 mm Gravity Slicer, belt
transmission - UK Plug
Gravity slicer 250 mm, belt
transmission - uk (230V; 1+N;
50)
Short Form Specification
Item No.
Medium duty slicer for Hotel and Catering
Base and main components in high polished satin finished anodized
aluminium for long lasting, hygiene and ease of cleaning. The blade is in
hollow ground hard chrome with blade guard ring for added protection.
Model equipped with cut thickness adjusting knob, top mounted
sharpener, cover blade and product deflector - easily removable for
cleaning. Ventilated blade drive motor. Poly V-belt drive system for quiet
operation and economical service. Removable carriage system
permanently lubrificated with automatic clutch. IP42 water protection. UK
plug.
Supplied with blade removal tool.
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
[email protected]
Food slicers
250 mm Gravity Slicer, belt transmission - UK Plug
601145 (MSG25BG)
• Compact design.
• Made in high polished satin finished anodized
aluminium. This procedure guarantees high hygienic
standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.
• The blade is made of hollow ground hard chrome
with blade guard ring for added protection.
• Plexiglass safety hand guard as standard.
• IP42 water protection.
Food slicers
250 mm Gravity Slicer, belt
transmission - UK Plug
Front
Electric
Supply voltage:
601145 (MSG25BG)
230 V/1N ph/50 Hz
Key Information
External dimensions, Height
370 mm
External dimensions, Width
510 mm
External dimensions, Depth
420 mm
Net weight (kg):
22
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
Side
EI = Electrical connection
Food slicers
250 mm Gravity Slicer, belt transmission - UK Plug
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2014.06.24
