************************************************************************** USACE / NAVFAC / AFCEC / NASA ...

************************************************************************** USACE / NAVFAC / AFCEC / NASA    ...
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-08 88 53 (May 2011)
--------------------------Preparing Activity: NAVFAC
Superseding
UFGS-08 88 53 (April 2006)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************

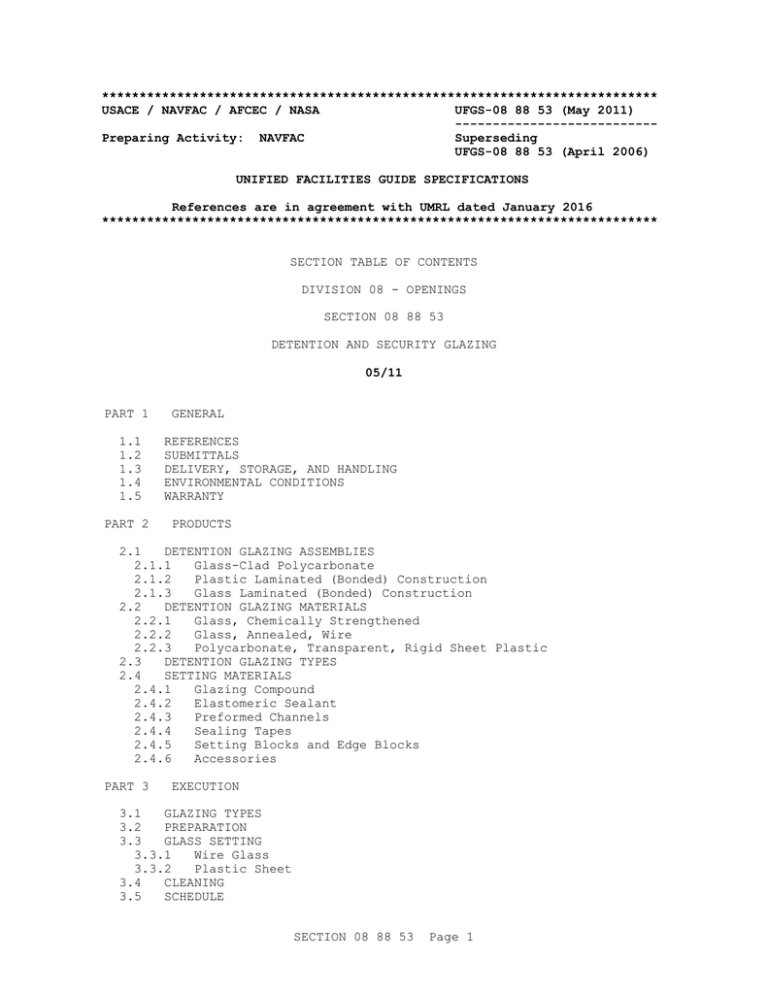

SECTION TABLE OF CONTENTS
DIVISION 08 - OPENINGS
SECTION 08 88 53
DETENTION AND SECURITY GLAZING
05/11
PART 1
1.1
1.2
1.3
1.4
1.5
PART 2
GENERAL
REFERENCES
SUBMITTALS
DELIVERY, STORAGE, AND HANDLING
ENVIRONMENTAL CONDITIONS
WARRANTY
PRODUCTS
2.1
DETENTION GLAZING ASSEMBLIES
2.1.1
Glass-Clad Polycarbonate
2.1.2
Plastic Laminated (Bonded) Construction
2.1.3
Glass Laminated (Bonded) Construction
2.2
DETENTION GLAZING MATERIALS
2.2.1
Glass, Chemically Strengthened
2.2.2
Glass, Annealed, Wire
2.2.3
Polycarbonate, Transparent, Rigid Sheet Plastic
2.3
DETENTION GLAZING TYPES
2.4
SETTING MATERIALS
2.4.1
Glazing Compound
2.4.2
Elastomeric Sealant
2.4.3
Preformed Channels
2.4.4
Sealing Tapes
2.4.5
Setting Blocks and Edge Blocks
2.4.6
Accessories
PART 3
EXECUTION
3.1
GLAZING TYPES
3.2
PREPARATION
3.3
GLASS SETTING
3.3.1
Wire Glass
3.3.2
Plastic Sheet
3.4
CLEANING
3.5
SCHEDULE
SECTION 08 88 53
Page 1
-- End of Section Table of Contents --
SECTION 08 88 53
Page 2
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-08 88 53 (May 2011)
--------------------------Preparing Activity: NAVFAC
Superseding
UFGS-08 88 53 (April 2006)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION 08 88 53
DETENTION AND SECURITY GLAZING
05/11
**************************************************************************
NOTE: This guide specification covers the
requirements for security glazing.
Adhere to UFC 1-300-02 Unified Facilities Guide
Specifications (UFGS) Format Standard when editing
this guide specification or preparing new project
specification sections. Edit this guide
specification for project specific requirements by
adding, deleting, or revising text. For bracketed
items, choose applicable items(s) or insert
appropriate information.
Remove information and requirements not required in
respective project, whether or not brackets are
present.
Comments, suggestions and recommended changes for
this guide specification are welcome and should be
submitted as a Criteria Change Request (CCR).
**************************************************************************
PART 1
1.1
GENERAL
REFERENCES
**************************************************************************
NOTE: This paragraph is used to list the
publications cited in the text of the guide
specification. The publications are referred to in
the text by basic designation only and listed in
this paragraph by organization, designation, date,
and title.
Use the Reference Wizard's Check Reference feature
when you add a RID outside of the Section's
Reference Article to automatically place the
reference in the Reference Article. Also use the
Reference Wizard's Check Reference feature to update
the issue dates.
References not used in the text will automatically
SECTION 08 88 53
Page 3
be deleted from this section of the project
specification when you choose to reconcile
references in the publish print process.
**************************************************************************
The publications listed below form a part of this specification to the
extent referenced. The publications are referred to within the text by the
basic designation only.
AMERICAN ARCHITECTURAL MANUFACTURERS ASSOCIATION (AAMA)
AAMA MCWM-1
(1989) Metal Curtain Wall Manual
ASTM INTERNATIONAL (ASTM)
ASTM C1036
(2010; E 2012) Standard Specification for
Flat Glass
ASTM C158
(2002; R 2012) Strength of Glass by
Flexure (Determination of Modulus of
Rupture)
ASTM C864
(2005; R 2015) Dense Elastomeric
Compression Seal Gaskets, Setting Blocks,
and Spacers
ASTM C920
(2014a) Standard Specification for
Elastomeric Joint Sealants
GLASS ASSOCIATION OF NORTH AMERICA (GANA)
GANA Glazing Manual
(2004) Glazing Manual
GANA Sealant Manual
(2008) Sealant Manual
NATIONAL FIRE PROTECTION ASSOCIATION (NFPA)
NFPA 80
(2016) Standard for Fire Doors and Other
Opening Protectives
U.S. GENERAL SERVICES ADMINISTRATION (GSA)
CID A-A-59502
1.2
(Basic) Plastic Sheet, Polycarbonate
SUBMITTALS
**************************************************************************
NOTE: Review Submittal Description (SD) definitions
in Section 01 33 00 SUBMITTAL PROCEDURES and edit
the following list to reflect only the submittals
required for the project.
The Guide Specification technical editors have
designated those items that require Government
approval, due to their complexity or criticality,
with a "G". Generally, other submittal items can be
reviewed by the Contractor's Quality Control
System.
Only add a ā€œGā€ to an item, if the
submittal is sufficiently important or complex in
SECTION 08 88 53
Page 4
context of the project.
For submittals requiring Government approval on Army
projects, a code of up to three characters within
the submittal tags may be used following the "G"
designation to indicate the approving authority.
Codes for Army projects using the Resident
Management System (RMS) are: "AE" for
Architect-Engineer; "DO" for District Office
(Engineering Division or other organization in the
District Office); "AO" for Area Office; "RO" for
Resident Office; and "PO" for Project Office. Codes
following the "G" typically are not used for Navy,
Air Force, and NASA projects.
An "S" following a submittal item indicates that the
submittal is required for the Sustainability
Notebook to fulfill federally mandated sustainable
requirements in accordance with Section 01 33 29
SUSTAINABILITY REPORTING.
Choose the first bracketed item for Navy, Air Force
and NASA projects, or choose the second bracketed
item for Army projects.
**************************************************************************
Government approval is required for submittals with a "G" designation;
submittals not having a "G" designation are [for Contractor Quality Control
approval.][for information only. When used, a designation following the
"G" designation identifies the office that will review the submittal for
the Government.] Submittals with an "S" are for inclusion in the
Sustainability Notebook, in conformance to Section 01 33 29 SUSTAINABILITY
REPORTING. Submit the following in accordance with Section 01 33 00
SUBMITTAL PROCEDURES:
SD-03 Product Data
Glazing materials
Include glass manufacturer's printed literature for setting and
sealing materials and for cleaning of each type of glazing
material specified.
SD-04 Samples
Glazing materials
Submit samples, 250 mm 10 inches square, factory labeled, for
each type of glazing specified.
SD-08 Manufacturer's Instructions
Glass setting
1.3
DELIVERY, STORAGE, AND HANDLING
Deliver products to the site in their original unopened containers, plainly
labeled with manufacturers' names and brands. Store all glass and setting
materials in safe, dry locations and do not unpack until needed for
SECTION 08 88 53
Page 5
2.2.3
Polycarbonate, Transparent, Rigid Sheet Plastic
**************************************************************************
NOTE: The type, class, and thickness of
polycarbonate glazing material to be used in
detention glazing assemblies is specified in
paragraph entitled "Detention Glazing Types" by
Type. Note that mar-resistant coating is to be
provided in Glazing Types 3, 5, and 5W only.
**************************************************************************
CID A-A-59502, [Type I Grade A] [Type III Grade A] [clear] [transparent],
thickness as specified.
2.3
DETENTION GLAZING TYPES
**************************************************************************
NOTE: Glazing types should be indicated on project
drawings.
**************************************************************************
a.
Type 1:
b.
Type 2: 11 mm 7/16 inch nominal glass-clad polycarbonate: 3 mm 1/8
inch clear chemically-strengthened glass, 1.3 mm 0.050 inch
polyurethane interlayer, 3 mm 1/8 inch polycarbonate sheet, 1.3 mm
0.050 inch polyurethane interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
c.
Type 3: 10 mm 3/8 inch nominal laminated plastic: 4.8 mm 3/16 inch
mar-resistant (hard coat) polycarbonate (threat side), 0.9 mm 0.034 inch
polyurethane interlayer, 4.8 mm 3/16 inch polycarbonate sheet.
d.
Type 4: 11 mm 7/16 inch nominal laminated glass: 3 mm 1/8 inch clear
chemically-strengthened glass, 2.3 mm 0.090 inch polyvinyl butyral
interlayer, 3 mm 1/8 inchclear chemically-strengthened glass, 2.3 mm
0.090 inchpolyvinyl butyral interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
e.
Type 4W: Add a separate (not laminated) 6 mm 1/4 inchannealed wire
glass on staff side to Type 4.
f.
Type 5: 14.3 mm 9/16 inch nominal glass-clad polycarbonate: 3 mm 1/8
inch clear chemically-strengthened glass (threat side), 1.3 mm 0.050
inch polyurethane interlayer, 6 mm 1/4 inch polycarbonate sheet, 1.3 mm
0.050 inch polyurethane interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
g.
Type 5W: Add a separate (not laminated) 6 mm 1/4 inchannealed wire
glass on staff side to Type 5.
h.
Type 6: 8 mm 5/16 inch nominal laminated glass: 3 mm 1/8 inch clear
chemically-strengthened glass, 2.3 mm 0.090 inch polyvinyl butyral
interlayer, 3 mm 1/8 inchclear chemically-strengthened glass.
2.4
Tempered Glass; Conform to Section 08 81 00 GLAZING.
SETTING MATERIALS
Provide types required for the applicable setting method specified in
SECTION 08 88 53
Page 7
2.2.3
Polycarbonate, Transparent, Rigid Sheet Plastic
**************************************************************************
NOTE: The type, class, and thickness of
polycarbonate glazing material to be used in
detention glazing assemblies is specified in
paragraph entitled "Detention Glazing Types" by
Type. Note that mar-resistant coating is to be
provided in Glazing Types 3, 5, and 5W only.
**************************************************************************
CID A-A-59502, [Type I Grade A] [Type III Grade A] [clear] [transparent],
thickness as specified.
2.3
DETENTION GLAZING TYPES
**************************************************************************
NOTE: Glazing types should be indicated on project
drawings.
**************************************************************************
a.
Type 1:
b.
Type 2: 11 mm 7/16 inch nominal glass-clad polycarbonate: 3 mm 1/8
inch clear chemically-strengthened glass, 1.3 mm 0.050 inch
polyurethane interlayer, 3 mm 1/8 inch polycarbonate sheet, 1.3 mm
0.050 inch polyurethane interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
c.
Type 3: 10 mm 3/8 inch nominal laminated plastic: 4.8 mm 3/16 inch
mar-resistant (hard coat) polycarbonate (threat side), 0.9 mm 0.034 inch
polyurethane interlayer, 4.8 mm 3/16 inch polycarbonate sheet.
d.
Type 4: 11 mm 7/16 inch nominal laminated glass: 3 mm 1/8 inch clear
chemically-strengthened glass, 2.3 mm 0.090 inch polyvinyl butyral
interlayer, 3 mm 1/8 inchclear chemically-strengthened glass, 2.3 mm
0.090 inchpolyvinyl butyral interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
e.
Type 4W: Add a separate (not laminated) 6 mm 1/4 inchannealed wire
glass on staff side to Type 4.
f.
Type 5: 14.3 mm 9/16 inch nominal glass-clad polycarbonate: 3 mm 1/8
inch clear chemically-strengthened glass (threat side), 1.3 mm 0.050
inch polyurethane interlayer, 6 mm 1/4 inch polycarbonate sheet, 1.3 mm
0.050 inch polyurethane interlayer, 3 mm 1/8 inch clear
chemically-strengthened glass.
g.
Type 5W: Add a separate (not laminated) 6 mm 1/4 inchannealed wire
glass on staff side to Type 5.
h.
Type 6: 8 mm 5/16 inch nominal laminated glass: 3 mm 1/8 inch clear
chemically-strengthened glass, 2.3 mm 0.090 inch polyvinyl butyral
interlayer, 3 mm 1/8 inchclear chemically-strengthened glass.
2.4
Tempered Glass; Conform to Section 08 81 00 GLAZING.
SETTING MATERIALS
Provide types required for the applicable setting method specified in
SECTION 08 88 53
Page 7
GANA Glazing Manual and GANA Sealant Manual, except as modified in this
section. Do not use metal sash putty, nonskinning compounds, nonresilient
preformed sealers, or impregnated preformed gaskets. Materials exposed to
view shall be gray or neutral color.
2.4.1
Glazing Compound
Use for face glazing metal sash.
glazing assembly.
2.4.2
Verify compatibility with materials in
Elastomeric Sealant
ASTM C920, Type S, Grade NS, Class 12.5, use NT. Use for channel or stop
glazing metal sash. Sealant shall be chemically compatible with setting
blocks, edge blocks, and sealing tapes [, and with plastic sheet]. Color of
sealant shall be white.
2.4.3
Preformed Channels
Neoprene, AAMA MCWM-1, as recommended by the glass manufacturer for the
particular condition. Channels shall be chemically compatible with plastic
sheet.
2.4.4
Sealing Tapes
Preformed, semisolid, polymeric-based material of proper size and
compressibility for the particular condition. Use only where glazing
rabbet is designed for tape and tape is recommended by the glass or sealant
manufacturer. Provide spacer shims for use with compressible tapes. [Tapes
shall be chemically compatible with plastic sheet.]
2.4.5
Setting Blocks and Edge Blocks
ASTM C864 neoprene of 70 to 90 Shore "A" durometer hardness, chemically
compatible with sealants used, and of sizes recommended by the glass
manufacturer.
2.4.6
Accessories
As required to provide a complete installation, including glazing points,
clips, shims, angles, beads, and spacer strips. Provide noncorroding metal
accessories. Provide primer-sealers and cleaners as recommended by the
glass and sealant manufacturers.
PART 3
3.1
EXECUTION
GLAZING TYPES
**************************************************************************
NOTE: Glazing types should be indicated on project
drawings.
**************************************************************************
Locations and types of glass for use in glazed openings as indicated.
3.2
PREPARATION
Determine the sizes to provide the required edge clearances by measuring
the actual opening to receive the glass. Leave labels in place until the
SECTION 08 88 53
Page 8
installation is approved. Securely attach movable items or keep in a
closed and locked position until glazing compound has thoroughly set.
3.3
GLASS SETTING
Items to be glazed shall be either shop or field glazed using glass of the
quality and thickness specified. Preparation and glazing shall conform to
applicable recommendations in the GANA Glazing Manual and
GANA Sealant Manual. Handle and install glazing materials in accordance
with manufacturer's instructions. Use beads or stops furnished with items
to be glazed to secure glass in place.
3.3.1
Wire Glass
Install glass for fire doors in accordance with installation requirements
of NFPA 80.
3.3.2
Plastic Sheet
Conform to manufacturer's recommendations for edge clearance, type of
sealant and tape, and method of installation.
3.4
CLEANING
Clean glass surfaces and remove labels, paint spots, putty, and other
defacement. Glass shall be clean at the time the work is accepted. [Clean
plastic sheet in accordance with manufacturer's instructions.]
3.5
SCHEDULE
Some metric measurements in this section are based on mathematical
conversion of inch-pound measurements, and not on metric measurement
commonly agreed to by the manufacturers or other parties. The inch-pound
and metric measurements are as follows:
PRODUCTS
INCH-POUND
METRIC
Glass thickness
1 inch
25.4 mm
-- End of Section --
SECTION 08 88 53
Page 9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
