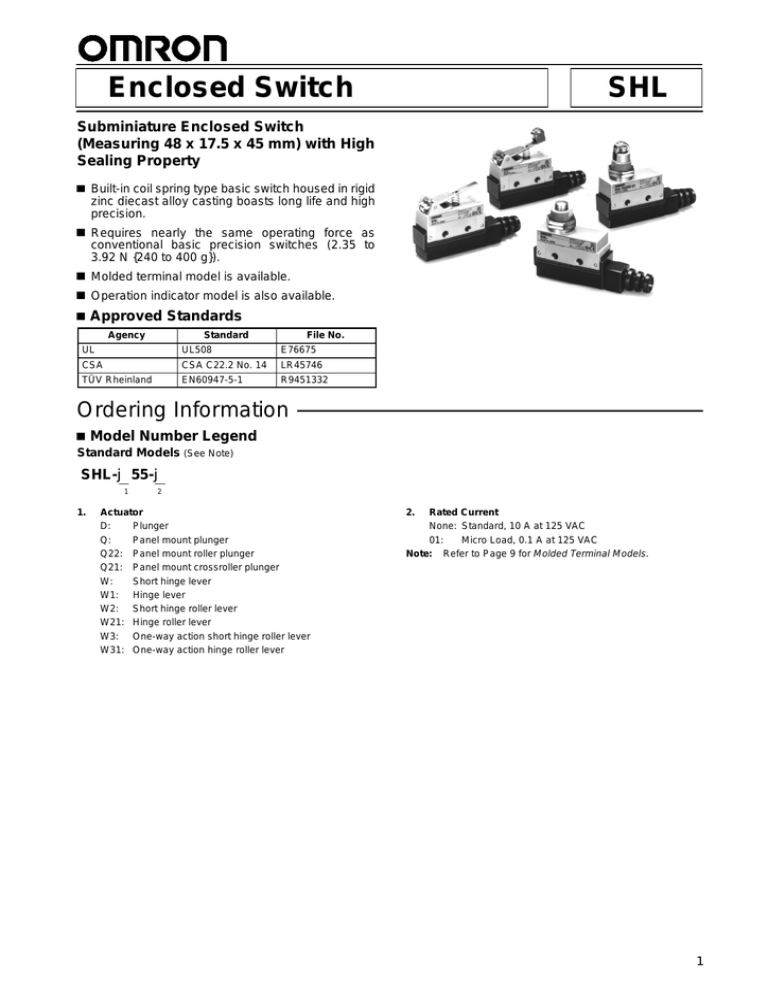

Enclosed Switch

Subminiature Enclosed Switch

(Measuring 48 x 17.5 x 45 mm) with High

Sealing Property

Built-in coil spring type basic switch housed in rigid zinc diecast alloy casting boasts long life and high precision.

Requires nearly the same operating force as conventional basic precision switches (2.35 to

3.92 N {240 to 400 g}).

Molded terminal model is available.

Operation indicator model is also available.

Approved Standards

Agency

UL

CSA

TÜV Rheinland

Standard

UL508

File No.

E76675

CSA C22.2 No. 14 LR45746

EN60947-5-1 R9451332

Ordering Information

Model Number Legend

Standard Models

(See Note)

SHL-j55-j

1 2

1.

Actuator

D: Plunger

Q: Panel mount plunger

Q22: Panel mount roller plunger

Q21: Panel mount crossroller plunger

W: Short hinge lever

W1: Hinge lever

W2: Short hinge roller lever

W21: Hinge roller lever

W3: One-way action short hinge roller lever

W31: One-way action hinge roller lever

SHL

2.

Rated Current

None: Standard, 10 A at 125 VAC

01: Micro Load, 0.1 A at 125 VAC

Note:

Refer to Page 9 for Molded Terminal Models.

1

2

SHL

List of Models

Actuator

Plunger

Panel mount plunger

Panel mount roller plunger

Panel mount crossroller plunger

SHL-D55

SHL-Q55

SHL-Q2255

Standard model

SHL-Q2155

Short hinge lever

Hinge lever

Short hinge roller lever

Hinge roller lever

SHL-W55

SHL-W155

SHL-W255

SHL-W2155

One-way action short hinge roller lever

SHL-W355

One-way action hinge roller lever

SHL-W3155

SHL

Micro voltage/current load model

SHL-D55-01

SHL-Q55-01

SHL-Q2255-01

SHL-Q2155-01

SHL-W55-01

SHL-W155-01

SHL-W255-01

SHL-W2155-01

SHL-W355-01

SHL-W3155-01

Specifications

Ratings

Rated voltage

125 VAC

250 VAC

480 VAC

8 VDC

14 VDC

30 VDC

125 VDC

250 VDC

Non-inductive load

Resistive load Lamp load

NC

10 A

NO NC

1.5 A

NO

10 A

2 A

10 A

1.5 A

---

2 A

10 A

5 A

0.4 A

0.2 A

2 A

1.5 A

0.4 A

0.2 A

3 A

Inductive load

Inductive load Motor load

NC NO NC

2.5 A

NO

2 A

---

5 A

1.5 A

---

2 A

5 A

1.5 A

0.05 A

0.03 A

2 A

1.5 A

0.05 A

0.03 A

Note:

1. The above figures are for steady-state currents.

2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).

3. Lamp load has an inrush current of 10 times the steady-state current.

4. Motor load has an inrush current of 6 times the steady-state current.

Approved Standard Ratings

UL/CSA

A300

Current

120 VAC

240 VAC

10 A 60 A

30 A

Make

6 A

3 A

Break

Inrush current

NC

15 A

Make

Volt-amperes

720 VA

Break

NO

SHL SHL

3. TÜV Rheinland Approved Ratings (EN60947-5-1)

SHL-j55

SHL-j55-01

SHL-j55-L

SHL-j55-01L

SHL-j55-L2

SHL-j55-01L2

SHL-j55-L3

SHL-j55-01L3

SHL-j55-L4Mj

SHL-j55-01L4

SHL-j55-L5

SHL-j55-01L5

Model Category and rating

AC-15 2 A/125 V

DC-12 2 A/48 V

AC-14 0.1 A/125 V

DC-12 0.1 A/48 V

AC-15 2 A/125 V

AC-14 0.1 A/125 V

DC-12 2 A/12 V

DC-12 0.1 A/12 V

DC-12 2 A/24 V

DC-12 0.1 A/24 V

DC-12 2 A/24 V

DC-12 0.1 A/24 V

DC-12 2 A/48 V

DC-12 0.1 A/48 V

Note: For details on the above models, refer to Model Number Legend under Molded Terminal Models.

4. Micro Voltage/Current Load Model

Rated voltage

Micro Load Applicable Ranges

Non-inductive load

Resistive load

NC NO

125 VAC

8 VDC

14 VDC

30 VDC

0.1 A

0.1 A

0.1 A

0.1 A

When using a Limit Switch for opening or closing micro-load circuit

(zones 1 through 3), contact failure may occur if a Limit Switch with ordinary contact specifications is used. Therefore, when using Limit

Switches in the micro-load range, use ones with contact specifications that are suited to each zone.

Use the SHL-j-01 micro-load models within the zones (1 through

3) shown in the following diagram.

5 A

4 A

0.5 A

0.5 A

5 A

0.5 A

4 A

0.5 A

4 A

0.5 A

4 A

0.5 A

4 A

0.5 A

I the

Current (mA)

The above diagram is for standard conditions (5°C to 35°C, 40% to

70%). Since the values vary depending on the operating environment conditions, contact your OMRON representative for further details.

3

SHL SHL

Characteristics

Degree of protections(see note 3)

Life expectancy (see note 4)

Operating speed

Operating frequency (see note 4)

Rated frequency

Insulation resistance

Contact resistance

Dielectric strength

IP67 (EN60947-5-1)

Mechanical: 10,000,000 operations min.

Electrical: 500,000 operations min.

0.1 mm to 0.5 m/s (hinge lever models)

Mechanical: 120 operations/min

Electrical: 30 operations/min

50/60 Hz

100 MΩ min. (at 500 VDC)

15 mΩ (initial value)

1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity

2,000 VAC, 50/60 Hz for 1 min/Uimp at 2.5 kV (EN60947-5-1) between current-carrying metal part and ground, and between each terminal and non-current-carrying metal part

150 V (IEC947-5-1)

1,000 VAC max., 300 VDC max. (EN60947-5-1)

3 (IEC947-5-1)

Rated insulation voltage (U i

)

Switching overvoltage

Pollution degree

(operating environment)

Short-circuit protective device

(SCPD)

Conditional short-circuit current

Conventional enclosed thermal current (I the

)

Protection against electric shock

Vibration resistance

Shock resistance

10 A fuse type gG (IEC269)

100 A (IEC947-5-1)

5 A (IEC947-5-1)

Ambient temperature (see note)

Ambient humidity

Weight

Class II (grounding not required with double insulation)

Malfunction: 10 to 55 Hz, 1.5-mm double amplitude

Destruction: 1,000 m/s

Malfunction:300 m/s

2

2 min.

min.

Operating: --10°C to 80°C (no icing)

Operating: 95% max.

Approx. 62 to 72 g

Note: 1. The above figures are for standard currents.

2. The above ratings may vary depending on the model. Contact your OMRON representative for further details.

3. The head section of the plunger type SHL-D(Q)jj is excluded.

4. Life expectancy values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40% to 70%. Contact your OMRON sales representative for more detailed information on other operating environments.

5. The values are for the plunger-type models.

Contact Form

NC

COM

NO

(COM) 1

2 (NC)

4 (NO)

EN60947-5-1

Operating Characteristics

Model SHL-D55

SHL-D55-01

OF max.

9.81 N

RF min.

1.96 N

PT max.

1.5 mm

OT min.

2 mm

MD max.

0.5 mm

OP

34±0.8 mm

FP max.

---

SHL-Q55

SHL-Q55-01

9.81 N

1.96 N

1.5 mm

2 mm

0.5 mm

34±0.8 mm

---

SHL-Q2255

SHL-Q2255-01

9.81 N

1.96 N

1.5 mm

2 mm

0.5 mm

43±0.8 mm

---

SHL-Q2155

SHL-Q2155-01

9.81 N

1.96 N

1.5 mm

2 mm

0.5 mm

43±0.8 mm

---

SHL-W55

SHL-W55-01

3.14 N

0.78 N

8 mm

3 mm

2.5 mm

21.5±1 mm

29.5 mm

4

SHL

Model SHL-W155

SHL-W155-01

OF max.

2.35 N

RF min.

0.44 N

PT max.

13 mm

OT min.

5 mm

MD max.

4 mm

OP

21.5±1 mm

FP max.

34.5 mm

SHL-W255

SHL-W255-01

3.92 N

0.78 N

8 mm

3 mm

2.5 mm

33±1 mm

41 mm

Engineering Data

Electrical Life Expectancy

Ambient temperature: 5°C to 35°C

Ambient humidity: 40% to 50%

Operating frequency:

30 operations/min.

(cosφ = 1)

250 VAC

SHL-W2155

SHL-W2155-01

2.55 N

0.49 N

13 mm

5.5 mm

4 mm

33.5±1 mm

46.5 mm

SHL-W355

SHL-W355-01

3.92 N

0.78 N

8 mm

3 mm

2.5 mm

44.5±1 mm

52.5 mm

SHL

SHL-W3155

SHL-W3155-01

2.55 N

0.49 N

13 mm

5.5 mm

4 mm

44.5±1 mm

57.5 mm

Switching current (A)

Nomenclature

Movable plunger

Rubber cap (NBR)

Die-cast case (aluminum die-cast)

Seal rubber (NBR)

Terminal protection cover

Screw terminal

Seal rubber (NBR)

5

6

SHL

Dimensions

Note: 1. All units are in millimeters unless otherwise indicated.

2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Plunger

SHL-D55, SHL-D55-01

7.8 dia. (see note)

Two, 4.2 dia.

holes

M14 x 1

Panel Mount Plunger

SHL-Q55, SHL-Q55-01

16.9

Terminal protective cover

7.8 dia. (see note)

Rubber seal

16.9

15 x 15

9.6

Note: Stainless steel pin plunger

15 x 15

M14 x 1

Two hexagon nut

(thickness: 2.5, width: 17)

9.6

Note: Stainless steel pin plunger

Panel Mount Roller Plunger

SHL-Q2255, SHL-Q2255-01

11 dia. × 4.7 (see note)

Two hexagon nut

(thickness: 2.5

width: 17)

16.9

15 x 15

9.6

Note: Sintered stainless alloy roller

Panel Mount Crossroller Plunger

SHL-Q2155, SHL-Q2155-01

11 dia. × 4.7 (see note)

Two hexagon nut

(thickness: 2.5

width: 17)

16.9

M14 × 1

15 x 15

9.6

Note: Sintered stainless alloy roller

SHL

SHL

Short Hinge Lever

SHL-W55, SHL-W55-01

24

21

16.9

3.5

6.8

42.5

16.5

13

35R t = 1 (see note)

16

OP

FP

16.5±0.2 13

Hinge Lever

SHL-W155, SHL-W155-01

t = 1 (see note)

6.8

53R

24

21

16.9

3.5

16

OP

FP

16.5±0.2 13

Short Hinge Roller Lever

SHL-W255, SHL-W255-01

9.5 dia. × 4.8 (see note)

6.8

31R

24

21

16.9

3.5

16

OP

FP

16.5±0.2 13

17.5

15 × 15

17.5

15 × 15

15 × 15

16

9.6

16

9.6

16

9.6

Hinge Roller Lever

SHL-W2155, SHL-W2155-01

9.5 dia. × 4.8 (see note)

6.8

51R

OP

FP

24

21

16.9

3.5

16

16

9.6

16.5±0.2 13

15 × 15

Note: Stainless steel lever

Note: Stainless steel lever

Note: Sintered stainless roller

Note: Sintered stainless roller

SHL

7

SHL

One-way Action Short Hinge Roller Lever

SHL-W355, SHL-W355-01

9.5 dia. × 4.8 (see note)

6.8

35.5R

90°

OP

FP

24

21

16

16.9

3.5

16.5±0.2 13

16

9.6

15 × 15

One-way Action Hinge Roller Lever

SHL-W3155, SHL-W3155-01

6.8

52.5R

90°

9.5 dia. × 4.8 (see note)

OP

FP

24 21

16

16.9

3.5

16.5±0.2 13

Mounting Holes

Two, 4.3 dia. or M4 mounting holes

15 × 15

16

9.6

16.5

Note: Sintered stainless roller

Note: Sintered stainless roller

SHL

8

SHL SHL

Molded Terminal Models

Model Number Legend

SHL-j55-jjMj

1 2 3 4

Items 1 (Actuator) and 2 (Rated Current) are the same as those in Standard Models.

3.

Operation Indicator 4.

Location of Lead Outlet

None: Not provided R: Right-hand

L:

L2:

Neon Lamp: 90 to 250 VAC

LED: 12 V

L3: LED: 24 V

L4: LED: 24 V

L5: LED: 48 V

L:

D:

Left-hand

Underside

Use of the molded terminal model is recommended in locations subject to excessive dust, oil drips, or moisture.

All types of SHL Switches can be fabricated into a molded terminal version. In this case, the molded terminal model will have the same dimensions an operating characteristics as the basic model from which the molded terminal model is fabricated.

Suffix by Location of Lead Outlet

ML

MD

MR

Location of lead outlet

Right-hand

Left-hand

Underside

SHL-j-MR

SHL-j-ML

SHL-j-MD

Model

Note: Three leads (COM, NO, and NC) are provided for terminal connections.

Example:

Basic type: SHL-Q2255

Location of lead outlet: Right-hand

When placing your order for the above Switch specify the model number as SHL-Q2255-MR

Lead Supplies

Leads

VCTF (Vinyl cabtire cable)

Nominal cross-sectional area

0.75 mm

2

No. of conductors/cond.

dia.

30/0.18 dia.

Finished outside diameter

3-core 7 dia.

Terminal connections

Black: COM

White: NO

Red: NC

Standard length

3 m

Operation Indicator-equipped Models

UL, CSA and/or EN (IEC) approved models are available.

The molded terminal model may be equipped with an operation indicator (neon lamp or LED) upon request to facilitate maintenance and inspection.

The operation indicator is designed to illuminate when the Switch is not operating. (Because of the molded terminal model, any change to the

Switch wiring cannot be made.)

AC Operation

A neon lamp indicator is provided.

The operating voltage is 90 to 250 VAC.

Example:

Basic type: SHL-Q2255-01MR

When placing your order for the molded terminal model with an neon lamp operation indicator, specify the model number as SHL-

Q2255-01LMR.

Matte finish

Internal Circuit

Power supply

Built-in switch

Load

Neon lamp

Transparent terminal protection cover

Operating characteristics are the same as the basic model from which the operation indicator equipped model is fabricated.

Dimension are the same as the standard model.

Neon lamp R = 240 kΩ

9

SHL

DC Operation

LED indicator is provided.

As a rectifier stack is incorporated, into the unit and no directionality exists for connection of + and --, this type can also be operated on

AC.

Voltage ratings of LED indicators are as shown in the table below.

The Switch case has a protrusion to facilitate visual confirmation of

LED indicator.

Example:

Basic type: SHL-Q2255-01MR

When placing your order for the molded terminal with an LED indicator rated at 12 V, specify the model number as SHL-

Q2255-01L2MR.

Contact Circuit

Power supply

Built-in switch

Load

Resistor

LED

SHL

L2

L3

L4

L5

Type Voltage rating

12 V

Lamp current Internal resistance

Approx. 2.4 mA 4.3 kΩ

24 V

24 V

48 V

Approx. 2 mA 10 kΩ

Approx. 1.2 mA 18 kΩ

Approx. 2.1 mA 22 kΩ

Precautions

Correct Use

Be sure to connect a fuse with a breaking current 1.5 to 2 times the rated current to the Limit Switch in series in order to protect the Limit Switch from damage due to short-circuiting.

When using the Limit under the EN ratings, use a gI or gG 10-A fuse that conforms to IEC260.

Secure the Switch with two M4 screws and washers. The tightening torque applied to each terminal must be 1.18 to

1.37 N S m. Tighten the screws to the specified torque. An excessive tightening torque may damage the Switch and cause a malfunction.

When mounting the panel mount-type Switch with screws on a side surface, remove the hexagonal nuts from the actuator.

Mounting Holes

Two, 4.3-dia. or

M4 screw holes

Correct Tightening Torque

A loose screw may result in a malfunction. Be sure to tighten each screw to the proper tightening torque as shown below.

1

2

No.

Type

Terminal screw

Panel mounting screw

Torque

0.24 to 0.44 N S m

1.18 to 1.37 N S m

When wiring, use M3 round solderless terminals and apply insulation shielding to the connections. Tighten the terminals screws to

0.24 to 0.44 N S m.

Others

The standard seal rubber for the lead wire outlet is one that allows 6to 8-dia. cables. The appropriate nominal cross-section of the lead wire is 0.75 mm

2

. (When the sealing capability is required over a long period of time, use mold specifications.)

When mounting the panel mount type (SHL-Q55, SHL-Q2255, or SHL-Q2155) on a panel, tighten the hexagonal nuts of the actuator to a torque less than 7.84 N S m.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. C026-E1-8

10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
