www.osram.de

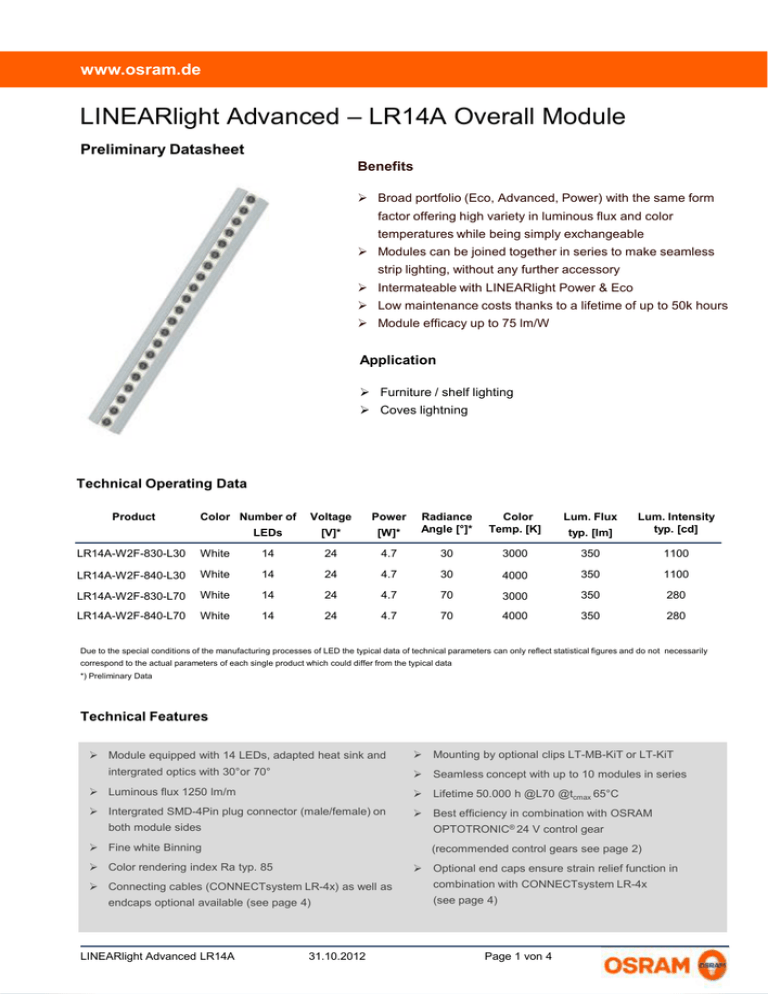

LINEARlight Advanced – LR14A Overall Module
Preliminary Datasheet
Benefits
 Broad portfolio (Eco, Advanced, Power) with the same form
factor offering high variety in luminous flux and color
temperatures while being simply exchangeable
 Modules can be joined together in series to make seamless
strip lighting, without any further accessory
 Intermateable with LINEARlight Power & Eco
 Low maintenance costs thanks to a lifetime of up to 50k hours
 Module efficacy up to 75 lm/W
Application
 Furniture / shelf lighting
 Coves lightning
Technical Operating Data
Product
Color Number of
Voltage
Power
[V]*
[W]*
Radiance
Angle [°]*
Color
Temp. [K]
Lum. Flux
LEDs
typ. [lm]
Lum. Intensity
typ. [cd]
LR14A-W2F-830-L30
White
14
24
4.7
30
3000
350
1100
LR14A-W2F-840-L30
White
14
24
4.7
30
4000
350
1100
LR14A-W2F-830-L70
White
14
24
4.7
70
3000
350
280
LR14A-W2F-840-L70
White
14
24
4.7
70
4000
350
280
Due to the special conditions of the manufacturing processes of LED the typical data of technical parameters can only reflect statistical figures and do not necessarily
correspond to the actual parameters of each single product which could differ from the typical data
*) Preliminary Data
Technical Features
 Module equipped with 14 LEDs, adapted heat sink and
intergrated optics with 30°or 70°
 Mounting by optional clips LT-MB-KiT or LT-KiT
 Seamless concept with up to 10 modules in series
 Luminous flux 1250 lm/m
 Lifetime 50.000 h @L70 @tcmax 65°C
 Intergrated SMD-4Pin plug connector (male/female) on
 Best efficiency in combination with OSRAM
both module sides
OPTOTRONIC® 24 V control gear
 Fine white Binning
(recommended control gears see page 2)
 Color rendering index Ra typ. 85
 Optional end caps ensure strain relief function in
 Connecting cables (CONNECTsystem LR-4x) as well as
endcaps optional available (see page 4)
LINEARlight Advanced LR14A
31.10.2012
combination with CONNECTsystem LR-4x
(see page 4)
Page 1 von 4
www.osram.de
Minimum and Maximum Ratings
Product
Operating Temperature
Storage Temperature
[C°]*
Voltage Range
Reverse Voltage
at Tc-Point [C°]*
[V dc]*
[V dc]*
-30 … 65
-30 … 90
23 … 25
25
LR14A-W2F
*) Exceeding maximum ratings for operating and storage temperature will reduce expected life time or destroy the LED Module.
Exceeding maximum ratings for operating current will cause hazardous overload and will likely destroy the LED Module.
The temperature of the LED module must be measured at the Tc-point according to EN60598-1 in a thermally constant status with a
temperature sensor or a temperature sensitive label. For exact location of the Tc-point see drawing below.
Drawing
Tc
Driver
System recommendation OPTOTRONIC
LED Module
LINEARlight
Advanced
Power
lm/m
OT8
200-240/24
OT20 (S)
200-240/24
OT50*
200-240/24
OT75 (E)
200-240/24
OTi Dali 75
220-240/24
4,7 W
1400
1 module
2 - 4 modules
5 - 9 modules
5 - 10 modules
5 - 10 modules
Length
280 mm
560 - 1120 mm
1400 - 2520 mm
1400 - 2800 mm
1400 - 2800 mm
Luminous flux
400 lm
200 - 600 lm
2000 - 3600 lm
2000 - 4000 lm
2000 - 4000 lm
System recommendation Light Management Systems
LED Module
LINEARlight
Advanced
Power
lm/m
OT DIM
OTi DALI DIM
OTi DALI DIM LI
OT DMX 3x2.5A
DIM
OT DMX 9x2A DIM
SO
4,7 W
1400
10 modules
10 modules
10 modules
3x10 modules
9x7 modules
LINEARlight Advanced LR14A
31.10.2012
Page 2 von 4
www.osram.de
Safety Information
 The LED module itself and all its components must not be mechanically stressed.
 Assembly must not damage or destroy conducting paths on the circuit board.
 To avoid mechanical damage of the path on the circuit board the plastic washer should be inserted between
the screw head and circuit board while the assembly with using of metal screws and plastic washers.
Alternatively, the use of plastic screws is possible.
 To avoid mechanical damage to the connecting cables, the module should be attached securely to the
intended substrate. Heavy vibration should be avoided.
In order to drive OSRAM LED-Modules safely, it is absolutely necessary to operate them with an electronically
stabilised power supply protecting against short circuits, overload and overheating.
To also ease the luminaire/installation approval, electronic control gear for LED or LED modules should carry the CE mark
and be ENEC certified. In Europe the declarations of conformity must include the following standards:
CE: EC 61347-2-13, EN 55015, IEC 61547 and IEC 61000-3-2 - ENEC: 61347-2-13 and IEC/EN 62384.
Also check for the mark of an independent authorized certification institute.
Please see the relevant brochure for more detailed information (see "Related and Further Information").
OSRAM OPTOTRONIC® electronic control gear complies to all relevant standards and guarantees safe operation.
 Installation of LED modules (with power supplies) needs to be made with regard to all applicable electrical
and safety standards. Only qualified personnel should be allowed to perform installations.
 Observe correct polarity!
Depending on the product incorrect polarity will lead to emission of red or no light. The module can be
destroyed! Correct polarity immediatelly! (see "reverse voltage", page 2).
 Parallel connection is highly recommended as safe electrical operation mode. Serial connection is not
recommended. Unbalanced voltage drop can cause hazardous overload and damage the LED module.
 Pay attention to ESD steps when mounting the module.
 Asymmetrical voltage drops can cause a strong overload and destruction of single modules.
 Use only LR-4PIN CONNECTsystem for electrical installation. Three types of connectors are available: LR4PIN - Feeder with 500 mm cable length. LR-4CONN-45 - Connector for through wiring with 45 mm cable
length. LR-4CONN-250 Connector for through wiring with 250 mm cable length.
 The LED module can typically survive levels of up to 4 Amperes. As a general design precaution, if the
maximum output current of th power supply is more than 4 Amperes, fast-blow fuses should be incorporated
into the wiring plan.
 Electrical contact is achieved with the contact cables. A maximum number of 10 modules can be installed
consecutively from one power feed. Operation with more than 10 consecutive modules will reduce
photometric performance and exceed the current carrying capacity of the module.
 While installation of up to 14 modules on one OPTOTRONIC® 75W .middle feeding has to be done.
 The module, as manufactured, has no conformal coating and therefore offers no inherent protection against
corrosion.
 Damage by corrosion will not be honored as a materials defect claim. It is the user's responsibility to provide
suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
 If the IP assessment of the device should be higher than IP20, the design of the mounting should be
accordingly to IP standards while the application.
 It’s recommended that a person cannot look direct for a long time in the light by a distance of 30cm or less.
LINEARlight Advanced LR14A
31.10.2012
Page 3 von 4
www.osram.de
Mounting Information
 The housing of LINEARlight Advanced is already an optimal heat sink. Another heat sink is not required.
 Alternatively two mounting brackets LT MB can be used for the fastening. When the holding clamp are
mounted on the desired place, the module can be fasten with snapping (not suitable for vertical mounting).
 To connect one module, the feeder LR-4PIN-500 must be plugged in the "INPUT" side of the module.
While mounting of two or more boards please connect the “OUTPUT” side of the first board with the
“INPUT” side of the following board using plug connector LR-4CONN-45 / 250. Please connect all the other
possible modules as described above.
Ordering Number
Product group
Product
EAN*
S-Unit*
LINEARlight Advanced 30°
LR14A-W2F-830-L30 4008321 971678
8
LINEARlight Advanced 30°
LR14A-W2F-840-L30 4008321 971692
8
LINEARlight Advanced 70°
LR14A-W2F-830-L70 4008321 978424
8
LINEARlight Advanced 70°
LR14A-W2F-840-L70 4008321 978448
8
CONNECTsystem feeder
LR-4PIN-500
4008321 971852
16
CONNECTsystem
LR-4CONN-45
4008321 971814
16
CONNECTsystem
LR-4CONN-250
4008321 994400
16
LINEARlight Track Mounting bracket
LD-MB
4008321 225672
16
LINEARlight Track KiT
LT-Kit
4008321 813404
40
*) EAN: Ordering number per single module
S-Unit: Modules per shipping unit
Note: Typical performance data are subject to change without any further notice, particularly as LED technology evolves.
Sales and Technical Support
OSRAM AG
Hellabrunner Strasse 1
D - 81536 München Germany
www.osram.com
+49 (0)89 6213-0
Sales and technical support is given by the local
OSRAM subsidiaries.
On our world wide homepage all OSRAM
subsidiaries are listed with complete address
and phone numbers.
Related and Further Information
 A new approach to light
153 S006 GB
 OSRAM LED Systeme
www.osram.de/led-systeme
 OPTOTRONIC® Technical Guide
130 T008 DE www.osram.de/evg-downloads
 OPTOTRONIC® Datasheets
http://catalog.myosram.com
 Eulumdat Files
www.osram.de/led-systeme-downloads
 New standards for LED control gear
LINEARlight Advanced LR14A
www.osram.de/evg-downloads
31.10.2012
Page 4 von 4
