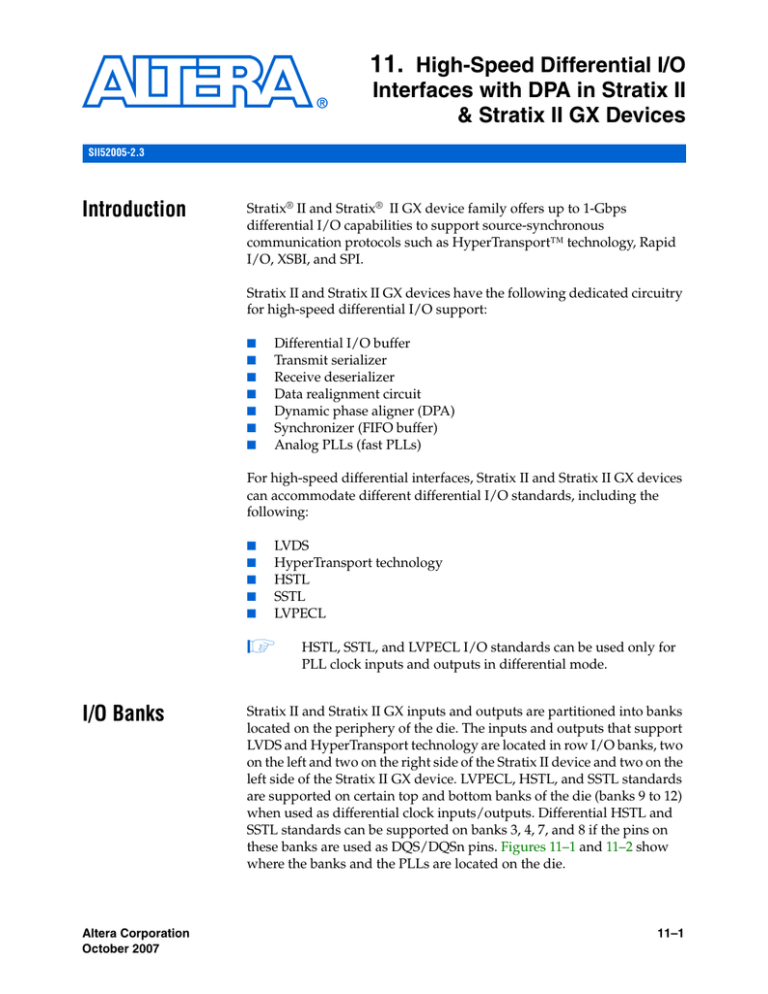

11.

High-Speed Differential I/O

Interfaces with DPA in Stratix II

& Stratix II GX Devices

SII52005-2.3

Introduction

I/O Banks

Altera Corporation

October 2007

Stratix

®

II and Stratix

®

II GX device family offers up to 1-Gbps differential I/O capabilities to support source-synchronous communication protocols such as HyperTransport™ technology, Rapid

I/O, XSBI, and SPI.

Stratix II and Stratix II GX devices have the following dedicated circuitry for high-speed differential I/O support:

Differential I/O buffer

Transmit serializer

Receive deserializer

Data realignment circuit

Dynamic phase aligner (DPA)

Synchronizer (FIFO buffer)

Analog PLLs (fast PLLs)

For high-speed differential interfaces, Stratix II and Stratix II GX devices can accommodate different differential I/O standards, including the following:

1

LVDS

HyperTransport technology

HSTL

SSTL

LVPECL

HSTL, SSTL, and LVPECL I/O standards can be used only for

PLL clock inputs and outputs in differential mode.

Stratix II and Stratix II GX inputs and outputs are partitioned into banks located on the periphery of the die. The inputs and outputs that support

LVDS and HyperTransport technology are located in row I/O banks, two on the left and two on the right side of the Stratix II device and two on the left side of the Stratix II GX device. LVPECL, HSTL, and SSTL standards are supported on certain top and bottom banks of the die (banks 9 to 12) when used as differential clock inputs/outputs. Differential HSTL and

SSTL standards can be supported on banks 3, 4, 7, and 8 if the pins on

these banks are used as DQS/DQSn pins. Figures 11–1

and

11–2 show

where the banks and the PLLs are located on the die.

11–1

I/O Banks

Figure 11–1. Stratix II I/O Banks

Note (1)

,

(2)

,

(3)

,

(4)

,

(5)

,

(6)

, and

(7)

PLL7

DQS8T

VREF0B3

DQS7T

VREF1B3 VREF2B3

DQS6T

VREF3B3

DQS5T

VREF4B3

Bank 3

PLL11 PLL5

Bank 11 Bank 9

DQS4T

VREF0B4

DQS3T

VREF1B4

DQS2T

VREF2B4

DQS1T

VREF3B4

DQS0T

VREF4B4

Bank 4

PLL10

This I/O bank supports LVDS and LVPECL standards for input clock operations. Differential

HSTL and differential SSTL standards are supported for both input and output operations.

I/O banks 3, 4, 9 & 11 support all single-ended I/O standards and differential I/O standards except for

HyperTransport technology for both input and output operations.

This I/O bank supports LVDS and LVPECL standards for input clock operations. Differential

HSTL and differential SSTL standards are supported for both input and output operations.

PLL1

PLL2

I/O banks 1, 2, 5 & 6 support LVTTL, LVCMOS,

2.5-V, 1.8-V, 1.5-V, SSTL-2, SSTL-18 Class I,

HSTL-18 Class I, HSTL-15 Class I, LVDS, and

HyperTransport standards for input and output operations. HSTL-18 Class II, HSTL-15-Class II,

SSTL-18 Class II standards are only supported for input operations.

PLL4

PLL3

I/O banks 7, 8, 10 & 12 support all single-ended I/O standards and differential I/O standards except for

HyperTransport technology for both input and output operations.

This I/O bank supports LVDS and LVPECL standards for input clock operations. Differential

HSTL and differential SSTL standards are supported for both input and output operations.

This I/O bank supports LVDS and LVPECL standards for input clock operations. Differential

HSTL and differential SSTL standards are supported for both input and output operations.

PLL8

Bank 8

VREF4B8

DQS8B

VREF3B8

DQS7B

VREF2B8 VREF1B8

DQS6B

VREF0B8

DQS5B

Bank 12 Bank 10

PLL12 PLL6

Bank 7

VREF4B7

DQS4B

VREF3B7

DQS3B

VREF2B7

DQS2B

VREF1B7

DQS1B

VREF0B7

DQS0B

PLL9

Notes to

Figure 11–1

:

(1)

Figure 11–1

is a top view of the silicon die that corresponds to a reverse view for flip-chip packages. It is a graphical representation only. See the pin list and Quartus II software for exact locations.

(2) Depending on the size of the device, different device members have different numbers of V

REF

groups.

(3) Banks 9 through 12 are enhanced PLL external clock output banks. These PLL banks utilize the adjacent V

REF

group when voltage-referenced standards are implemented. For example, if an SSTL input is implemented in PLL bank

10, the voltage level at VREFB7 is the reference voltage level for the SSTL input.

(4) Differential HSTL and differential SSTL standards are available for bidirectional operations on DQS pin and input-only operations on PLL clock input pins; LVDS, LVPECL, and HyperTransport standards are available for input-only operations on PLL clock input pins. See the

Selectable I/O standards in Stratix II & Stratix II GX Devices

chapter in volume 2 of the Stratix II Device Handbook for more details.

(5) Quartus II software does not support differential SSTL and differential HSTL standards at left/right I/O banks. See the

Selectable I/O standards in Stratix II & Stratix II GX Devices

chapter in volume 2 of the Stratix II Device Handbook if you need to implement these standards at these I/O banks.

(6) Banks 11 and 12 are available only in EP2S60, EP2S90, EP2S130, and EP2S180 devices.

(7) PLLs 7, 8, 9, 10, 11, and 12 are available only in EP2S60, EP2S90, EP2S130, and EP2S180 devices.

11–2

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Figure 11–2. Stratix II GX I/O Banks

Note (1)

,

(2)

,

(3)

,

(4)

,

(5)

,

(6)

, and

(7)

PLL7

DQS

×8

DQS

×8

DQS

×8

DQS

×8

VREF0B3 VREF1B3 VREF2B3 VREF3B3 VREF4B3

Bank 3

PLL11

Bank 11

PLL5

Bank 9

DQS

×8

DQS

×8

DQS

×8

DQS

×8

DQS

×8

VREF0B4 VREF1B4 VREF2B4 VREF3B4 VREF4B4

Bank 4

This I/O bank supports LVDS and LVPECL standards for input clock operations. Differential HSTL and differential SSTL standards are supported for both input and output operations. (3)

I/O Banks 3, 4, 9, and 11 support all single-ended

I/O standards for both input and output operations.

All differential I/O standards are supported for both input and output operations at I/O banks 9 and 11.

This I/O bank supports LVDS and LVPECL standards for input clock operation. Differential HSTL and differential SSTL standards are supported for both input and output operations. (3)

PLL1

PLL2

I/O banks 1 & 2 support LVTTL, LVCMOS, 2.5 V, 1.8 V,

1.5 V, SSTL-2, SSTL-18 class I, LVDS, pseudo-differential SSTL-2, pseudo-differential SSTL-18 class I standards, HSTL-18 class I, and HSTL-15 class I for both input and output operations. HSTL, SSTL-18 class II, pseudo-differential HSTL, pseudo-differential SSTL-18 class II, HSTL-15 class II, and HSTL-18 class II standards are only supported for input operations. (4)

I/O banks 7, 8, 10 and 12 support all single-ended I/O standards for both input and output operations. All differential

I/O standards are supported for both input and output operations at I/O banks 10 and 12.

This I/O bank supports LVDS and LVPECL standards for input clock operation.

This I/O bank supports LVDS and LVPECL standards for input clock

Differential HSTL and differential operation. Differential HSTL and differential

SSTL standards are supported

SSTL standards are supported for both input and output operations. (3) for both input and output operations. (3)

PLL8

Bank 8

VREF4B8 VREF3B8 VREF2B8 VREF1B8 VREF0B8

DQS

×8

DQS

×8

DQS

×8

DQS

×8

Bank 12

PLL12

Bank 10

PLL6

Bank 7

VREF4B7 VREF3B7 VREF2B7 VREF1B7 VREF0B7

DQS

×8

DQS

×8

DQS

×8

DQS

×8

DQS

×8

Notes to

Figure 11–2

:

(1)

Figure 11–2 is a top view of the silicon die which corresponds to a reverse view for flip-chip packages. It is a

graphical representation only.

(2) Depending on size of the device, different device members have different number of V

REF

groups. Refer to the pin list and the Quartus II software for exact locations.

(3) Banks 9 through 12 are enhanced PLL external clock output banks.

(4) Horizontal I/O banks feature transceiver and DPA circuitry for high speed differential I/O standards.

(5) Quartus II software does not support differential SSTL and differential HSTL standards at left/right I/O banks.

Refer to the “Differential Pin Placement Guidelines” on page 11–21

if you need to implement these standards at these I/O banks.

(6) Banks 11 and 12 are available only in EP2SGX60C/D/E, EP2SGX90E/F, and EP2SGX130G.

(7) PLLs 7, 8, 11, and 12 are available only in EP2SGX60C/D/E, EP2SGXE/F, and EP2SGX130G.

Altera Corporation

October 2007

11–3

Stratix II GX Device Handbook, Volume 2

I/O Banks

Table 11–1

lists the differential I/O standards supported by each bank.

Table 11–1. Supported Differential I/O Types

Bank

Type

Row I/O (Banks 1, 2, 5 and 6)

Clock Inputs

Clock

Outputs

(2)

v v

Column I/O (Banks, 3, 4 and 7 through 12)

Data or

Regular I/O

Pins

Clock Inputs

Differential HSTL

Differential SSTL

LVPECL

LVDS

HyperTransport technology v v v v

Note to Table 11–1

:

(1) Used as both inputs and outputs on the DQS/DQSn pins.

(2) Banks 5 and 6 are not available in Stratix II GX devices.

v v v v

Clock

Outputs

v v v v

Data or

Regular I/O

Pins

(1)

(1)

Table 11–2

shows the total number of differential channels available in

Stratix II devices. The available channels are divided evenly between the left and right banks of the die. Non-dedicated clocks in the left and right banks can also be used as data receiver channels. The total number of receiver channels includes these four non-dedicated clock channels. Pin migration is available for different size devices in the same package.

Table 11–2. Differential Channels in Stratix II Devices (Part 1 of 2)

Notes (1)

,

(2)

, and

(3)

Device

EP2S15

EP2S30

EP2S60

EP2S90

EP2S130

484-Pin

FineLine BGA

38 transmitters

42 receivers

38 transmitters

42 receivers

38 transmitters

42 receivers

484-Pin Hybrid

FineLine BGA

38 transmitters

42 receivers

672-Pin

FineLine BGA

780-Pin

FineLine BGA

1,020-Pin

FineLine BGA

1,508-Pin

FineLine BGA

Within the

1,508-pin Fin

38 transmitters

42 receivers

58 transmitters

62 receivers

58 transmitters

62 receivers

64 transmitters

68 receivers

64 transmitters

68 receivers

84 transmitters

84 receivers

90 transmitters

94 receivers

88 transmitters

92 receivers

118 transmitters

118 receivers

156 transmitters

156 receivers

11–4

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Table 11–2. Differential Channels in Stratix II Devices (Part 2 of 2)

Notes (1)

,

(2)

, and

(3)

Device

EP2S180

484-Pin

FineLine BGA

484-Pin Hybrid

FineLine BGA

672-Pin

FineLine BGA

780-Pin

FineLine BGA

1,020-Pin

FineLine BGA

1,508-Pin

FineLine BGA

Within the

1,508-pin Fin

88 transmitters

92 receivers

156 transmitters

156 receivers

Notes to

Table 11–2

:

(1) Pin count does not include dedicated PLL input pins.

(2) The total number of receiver channels includes the four non-dedicated clock channels that can optionally be used as data channels.

(3) Within the 1,508-pin FineLine BGA package, 92 receiver channels and 92 transmitter channels are vertically migratable.

Table 11–3

shows the total number of differential channels available in

Stratix II GX devices. Non-dedicated clocks in the left bank can also be used as data receiver channels. The total number of receiver channels includes these four non-dedicated clock channels. Pin migration is available for different size devices in the same package.

Table 11–3. Differential Channels in Stratix II GX Devices

Notes (1)

,

(2)

,

(3)

Device

EP2SGX30

780-Pin FineLine

BGA

29 transmitters

31receivers

29 transmitters

31 receivers

1,152-Pin FineLine

BGA

1,508-Pin FineLine

BGA

EP2SGX60

EP2SGX90

EP2SGX130

42 transmitters

42 receivers

45 transmitters

47 receivers

59 transmitters

59 receivers

71 transmitters

73 receivers

Notes to

Table 11–3

:

(1) Pin count does not include dedicated PLL input pins.

(2) The total number of receiver channels includes the four non-dedicated clock channels that can optionally be used as data channels.

(3) EP2SGX30CF780 devices with four transceiver channels are vertically migratable to

EP2SGX60CF780 devices with four transceiver channels. EP2SGX30DF780 devices with eight transceiver channels are vertically migratable to EP2SGX60DF780 devices with eight transceiver channels. EP2SGX60EF1152 devices with 12 transceiver channels are vertically migratable to EP2SGX90EF1152 devices with 12 transceiver channels. EP2SGX90FF1508 devices with 16 transceiver channels are vertically migratable to EP2SGX130GF1508 devices with 20 transceiver channels.

Altera Corporation

October 2007

11–5

Stratix II GX Device Handbook, Volume 2

Differential Transmitter

Differential

Transmitter

The Stratix II and Stratix II GX transmitter has dedicated circuitry to provide support for LVDS and HyperTransport signaling. The dedicated circuitry consists of a differential buffer, a serializer, and a shared fast

PLL. The differential buffer can drive out LVDS or HyperTransport signal levels that are statically set in the Quartus

®

II software. The serializer takes data from a parallel bus up to 10 bits wide from the internal logic, clocks it into the load registers, and serializes it using the shift registers before sending the data to the differential buffer. The most significant bit

(MSB) is transmitted first. The load and shift registers are clocked by the diffioclk

(a fast PLL clock running at the serial rate) and controlled by the load enable signal generated from the fast PLL. The serialization factor can be statically set to

× 4, × 5, × 6, × 7, × 8, × 9, or × 10 using the

Quartus II software. The load enable signal is automatically generated by the fast PLL and is derived from the serialization factor setting.

Figure 11–3

is a block diagram of the Stratix II transmitter.

Figure 11–3. Transmitter Block Diagram

Serializer

10

Internal

Logic

TX_OUT diffioclk

Fast PLL load_en

Each Stratix II and Stratix II GX transmitter data channel can be configured to operate as a transmitter clock output. This flexibility allows the designer to place the output clock near the data outputs to simplify board layout and reduce clock-to-data skew. Different applications often require specific clock to data alignments or specific data rate to clock rate factors. The transmitter can output a clock signal at the same rate as the data with a maximum frequency of 717 MHz. The output clock can also be divided by a factor of 2, 4, 8, or 10, depending on the serialization factor. The phase of the clock in relation to the data can be set at 0° or 180°

(edge or center aligned). The fast PLL provides additional support for

11–6

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

other phase shifts in 45° increments. These settings are made statically in the Quartus II MegaWizard

®

software.

Figure 11–4

shows the transmitter in clock output mode.

Figure 11–4. Transmitter in Clock Output Mode

Transmitter Circuit

Parallel Series

Internal

Logic tx_outclock

Altera Corporation

October 2007

diffioclk load_en

The serializer can be bypassed to support DDR (

× 2) and SDR (× 1) operations. The I/O element (IOE) contains two data output registers that each can operate in either DDR or SDR mode. The clock source for the registers in the IOE can come from any routing resource, from the fast

PLL, or from the enhanced PLL.

Figure 11–5 shows the bypass path.

Figure 11–5. Serializer Bypass

Internal Logic

IOE Supports SDR, DDR, or

Non-Registered Data Path

IOE

Serializer tx_out

Not used (connection exists)

11–7

Stratix II GX Device Handbook, Volume 2

Differential Receiver

Differential

Receiver

The receiver has dedicated circuitry to support high-speed LVDS and

HyperTransport signaling, along with enhanced data reception. Each receiver consists of a differential buffer, dynamic phase aligner (DPA), synchronization FIFO buffer, data realignment circuit, deserializer, and a shared fast PLL. The differential buffer receives LVDS or HyperTransport signal levels, which are statically set by the Quartus II software. The DPA block aligns the incoming data to one of eight clock phases to maximize the receiver’s skew margin. The DPA circuit can be bypassed on a channel-by-channel basis if it is not needed. Set the DPA bypass statically in the Quartus II MegaWizard Plug-In Manager or dynamically by using the optional RX_DPLL_ENABLE port.

The synchronizer circuit is a 1-bit wide by 6-bit deep FIFO buffer that compensates for any phase difference between the DPA block and the deserializer. If necessary, the data realignment circuit inserts a single bit of latency in the serial bit stream to align the word boundary. The deserializer includes shift registers and parallel load registers, and sends a maximum of 10 bits to the internal logic. The data path in the receiver is clocked by either the diffioclk signal or the DPA recovered clock. The deserialization factor can be statically set to 4, 5, 6, 7, 8, 9, or 10 by using the Quartus II software. The fast PLL automatically generates the load enable signal, which is derived from the deserialization factor setting.

Figure 11–6

shows a block diagram of the receiver.

Figure 11–6. Receiver Block Diagram

Up to 1 Gbps

+

D

DPA Bypass Multiplexer

Q

Data

Realignment

Circuitry

Dedicated

Receiver

Interface

data retimed_data

DPA

DPA_clk

Synchronizer

Eight Phase Clocks

8 rx_inclk

Fast

PLL diffioclk load_en

10

Internal

Logic

Regional or

Global Clock

11–8

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

The deserializer, like the serializer, can also be bypassed to support DDR

(

× 2) and SDR (× 1) operations. The DPA and data realignment circuit cannot be used when the deserializer is bypassed. The IOE contains two data input registers that can operate in DDR or SDR mode. The clock source for the registers in the IOE can come from any routing resource, from the fast PLL, or from the enhanced PLL.

Figure 11–7

shows the bypass path.

Figure 11–7. Deserializer Bypass

rx_in

IOE Supports SDR, DDR, or

Non-Registered Data Path

IOE

Deserializer

PLD Logic

Array

DPA

Circuitry

Receiver Data Realignment Circuit

The data realignment circuit aligns the word boundary of the incoming data by inserting bit latencies into the serial stream. An optional

RX_CHANNEL_DATA_ALIGN

port controls the bit insertion of each receiver independently controlled from the internal logic. The data slips one bit for every pulse on the RX_CHANNEL_DATA_ALIGN port. The following are requirements for the RX_CHANNEL_DATA_ALIGN port:

The minimum pulse width is one period of the parallel clock in the logic array.

The minimum low time between pulses is one period of parallel clock.

There is no maximum high or low time.

Valid data is available two parallel clock cycles after the rising edge of RX_CHANNEL_DATA_ALIGN.

11–9

Stratix II GX Device Handbook, Volume 2

Differential Receiver

Figure 11–8

shows receiver output (RX_OUT) after one bit slip pulse with the deserialization factor set to 4.

Figure 11–8. Data Realignment Timing

inclk rx_in

3 2 rx_outclock rx_channel_data_align rx_out

3210

1 0 3 2

321x

1 0 3 2 1 0 xx21 0321

Figure 11–9. Receiver Data Re-alignment Rollover

inclk rx_channel_data_align

The data realignment circuit can have up to 11 bit-times of insertion before a rollover occurs. The programmable bit rollover point can be from

1 to 11 bit-times independent of the deserialization factor. An optional status port, rx_cda_max, is available to the FPGA from each channel to indicate when the preset rollover point is reached.

Figure 11–9

illustrates a preset value of four bit-times before rollover occurs. The rx_cda_max signal pulses for one rx_outclk cycle to indicate that the rollover has occurred.

rx_outclk rx_cda_max

Dynamic Phase Aligner

The DPA block takes in high-speed serial data from the differential input buffer and selects one of eight phase clocks to sample the data. The DPA chooses a phase closest to the phase of the serial data. The maximum phase offset between the data and the phase-aligned clock is 1/8 UI, which is the maximum quantization error of the DPA. The eight phases

11–10

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

are equally divided, giving a 45-degree resolution.

Figure 11–10 shows

the possible phase relationships between the DPA clocks and the incoming serial data.

Figure 11–10. DPA Clock Phase to Data Bit Relationship

D0 rx_in

D1 D2 D3

45˚

90˚

135˚

180˚

225˚

270˚

315˚

T vco

0.125T

vco

D4 Dn

Each DPA block continuously monitors the phase of the incoming data stream and selects a new clock phase if needed. The selection of a new clock phase can be prevented by the optional RX_DPLL_HOLD port, which is available for each channel.

The DPA block requires a training pattern and a training sequence of at least 256 repetitions of the training pattern. The training pattern is not fixed, so you can use any training pattern with at least one transition on each channel. An optional output port, RX_DPA_LOCKED, is available to the internal logic, to indicate when the DPA block has settled on the closest phase to the incoming data phase. The RX_DPA_LOCKED de-asserts, depending on what is selected in the Quartus II MegaWizard

Plug-In, when either a new phase is selected, or when the DPA has moved two phases in the same direction. The data may still be valid even when the RX_DPA_LOCKED is deasserted. Use data checkers to validate the data when RX_DPA_LOCKED is deasserted.

An independent reset port, RX_RESET, is available to reset the DPA circuitry. The DPA circuit must be retrained after reset.

Altera Corporation

October 2007

11–11

Stratix II GX Device Handbook, Volume 2

Differential I/O Termination

Synchronizer

The synchronizer is a 1-bit

× 6-bit deep FIFO buffer that compensates for the phase difference between the recovered clock from the DPA circuit and the diffioclk that clocks the rest of the logic in the receiver. The synchronizer can only compensate for phase differences, not frequency differences between the data and the receiver’s INCLK. An optional port,

RX_FIFO_RESET

, is available to the internal logic to reset the synchronizer. The synchronizer is automatically reset when the DPA first locks to the incoming data. Altera

®

recommends using RX_FIFO_RESET to reset the synchronizer when the DPA signals a loss-of-lock condition beyond the initial locking condition.

Differential I/O

Termination

f

Stratix II and Stratix II GX devices provide an on-chip 100-

Ω differential termination option on each differential receiver channel for LVDS and

HyperTransport standards. The on-chip termination eliminates the need to supply an external termination resistor, simplifying the board design and reducing reflections caused by stubs between the buffer and the termination resistor. You can enable on-chip termination in the Quartus II assignments editor. Differential on-chip termination is supported across the full range of supported differential data rates.

For more information, refer to the High-Speed I/O Specifications section of the DC & Switching Characteristics chapter in volume 1 of the Stratix II

Device Handbook or the High-Speed I/O Specifications section of the

DC & Switching Characteristics

chapter in volume 1 of the Stratix II GX

Device Handbook.

Figure 11–11

illustrates on-chip termination.

Figure 11–11. On-Chip Differential Termination

LVDS/HT

Transmitter

Stratix II Differential

Receiver with On-Chip

100

Ω Termination

Z

0

= 50

Ω

R

D

Z

0

= 50

Ω

On-chip differential termination is supported on all row I/O pins and on clock pins CLK[0, 2, 8, 10]. The clock pins CLK[1, 3, 9, 11], and FPLL[7..10]CLK, and the clocks in the top and bottom I/O banks

(CLK[4..7, 12..15]) do not support differential on-chip termination.

11–12

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Fast PLL

f

The high-speed differential I/O receiver and transmitter channels use the fast PLL to generate the parallel global clocks (rx- or tx- clock) and high-speed clocks (diffioclk).

Figure 11–12 shows the locations of the

fast PLLs. The fast PLL VCO operates at the clock frequency of the data rate. Each fast PLL offers a single serial data rate support, but up to two separate serialization and/or deserialization factors (from the C0 and C1 fast PLL clock outputs) can be used. Clock switchover and dynamic fast

PLL reconfiguration is available in high-speed differential I/O support mode.

For additional information on the fast PLL, refer to the

PLLs in Stratix II

& Stratix II GX Devices

chapter in volume 2 of the Stratix II Handbook or the

PLLs in Stratix II & Stratix II GX Devices

chapter in volume 2 of the

Stratix II GX Handbook.

Figure 11–12 shows a block diagram of the fast PLL in high-speed

differential I/O support mode.

Figure 11–12. Fast PLL Block Diagram

Global or regional clock (2)

Clock (1)

Switchover

Circuitry

Phase

Frequency

Detector

VCO Phase Selection

Selectable at each PLL

Output Port

Post-Scale

Counters

÷c0 diffioclk0 (3) loaden0 (4)

4

÷n PFD

Charge

Pump

Loop

Filter

VCO

(5)

÷k

8

÷c1 diffioclk1 (3) loaden1 (4)

Clock

Input

4

Global clocks

÷c2

Global or regional clock (2)

4 8

Regional clocks

÷c3

÷m

Shaded Portions of the

PLL are Reconfigurable

8 to DPA block

Notes to

Figure 11–12

:

(1) Stratix II fast PLLs only support manual clock switchover.

(2) The global or regional clock input can be driven by an output from another PLL, a pin-driven dedicated global or regional clock, or through a clock control block provided the clock control block is fed by an output from another

PLL or pin-driven dedicated global or regional clock.

(3) In high-speed differential I/O support mode, this high-speed PLL clock feeds the SERDES. Stratix II devices only support one rate of data transfer per fast PLL in high-speed differential I/O support mode.

(4) This signal is a high-speed differential I/O support SERDES control signal.

(5) If the design enables this ÷2 counter, the device can use a VCO frequency range of 150 to 520 MHz.

Altera Corporation

October 2007

11–13

Stratix II GX Device Handbook, Volume 2

Clocking

Clocking

The fast PLLs feed in to the differential receiver and transmitter channels through the LVDS/DPA clock network. The center fast PLLs can independently feed the banks above and below them. The corner PLLs

can feed only the banks adjacent to them. Figures 11–13 and

11–14

show the LVDS and DPA clock networks of the Stratix II devices.

Figure 11–13. Fast PLL and LVDS/DPA Clock for EP2S15, EP2S30, and EP2S60 Devices

Note (1)

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

DPA

Clock

LVDS

Clock

4

4 4

2

2

Fast

PLL 1

Fast

PLL 2

Fast

PLL 4

Fast

PLL 3

2

2

4 4

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant DPA

Clock

LVDS

Clock

4

Note to Figure 11–13 :

(1)

Figure 11–13

applies to EP2S60 devices in the 484 and 672 pin packages.

11–14

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Figure 11–14. Fast PLL and LVDS/DPA Clocks for EP2S60, EP2S90, EP2S130 and EP2S180 Devices

Note (1)

Fast

PLL 7

Fast

PLL 10

2

2

4

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

DPA

Clock

LVDS

Clock

4

4

2 2

Fast

PLL 1

Fast

PLL 4

Fast

PLL 2

Fast

PLL 3

2 2

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

2

Fast

PLL 8

Note to Figure 11–14 :

(1)

Figure 11–14

applies only to the EP2S60 in the 1020 Stratix II GX device.

DPA

Clock

LVDS

Clock

4

Fast

PLL 9

2

Figures 11–15 and

11–16

show the Fast PLL and LVDS/DPA clock of the

Stratix II GX devices.

Figure 11–15. Fast PLL and LVDS/DPA Clock for EP2SGX30C/D and EP2SGX60C/D Devices

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

4

2

2

Fast

PLL 1

Fast

PLL 2

No Fast PLLs on

Right Side of

Stratix II GX Devices

4

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

Altera Corporation

October 2007

11–15

Stratix II GX Device Handbook, Volume 2

Clocking

Figure 11–16. Fast PLL and LVDS/DPA Clocks for EP2SGX60E, EP2SGX90 and EP2SGX130 Devices

Fast

PLL 7

2

4

LVDS

Clock

DPA

Clock

Quadrant Quadrant

4

2

Fast

PLL 1

No Fast PLLs on

Right Side of

Stratix II GX Devices

Fast

PLL 2

2

Quadrant Quadrant

LVDS

Clock

DPA

Clock

4

2

Fast

PLL 8

Source Synchronous Timing Budget

This section discusses the timing budget, waveforms, and specifications for source-synchronous signaling in Stratix II and Stratix II GX devices.

LVDS and HyperTransport I/O standards enable high-speed data transmission. This high data transmission rate results in better overall system performance. To take advantage of fast system performance, it is important to understand how to analyze timing for these high-speed signals. Timing analysis for the differential block is different from traditional synchronous timing analysis techniques.

Rather than focusing on clock-to-output and setup times, source-synchronous timing analysis is based on the skew between the data and the clock signals. High-speed differential data transmission requires the use of timing parameters provided by IC vendors and is strongly influenced by board skew, cable skew, and clock jitter. This section defines the source-synchronous differential data orientation timing parameters, the timing budget definitions for Stratix II and

Stratix II GX devices, and how to use these timing parameters to determine a design's maximum performance.

11–16

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Differential Data Orientation

There is a set relationship between an external clock and the incoming data. For operation at 1 Gbps and SERDES factor of 10, the external clock is multiplied by 10, and phase-alignment can be set in the PLL to coincide with the sampling window of each data bit. The data is sampled on the falling edge of the multiplied clock.

Figure 11–17 shows the data bit

orientation of the

× 10 mode.

Figure 11–17. Bit Orientation in the Quartus II Software

inclock/outclock data in

MSB n-1 n-0 9 8 7 6

10 LVDS Bits

5 4 3 2 1

LSB

0 high-frequency clock

Differential I/O Bit Position

Data synchronization is necessary for successful data transmission at

high frequencies. Figure 11–18

shows the data bit orientation for a channel operation. These figures are based on the following:

SERDES factor equals clock multiplication factor

Edge alignment is selected for phase alignment

Implemented in hard SERDES

For other serialization factors use the Quartus II software tools and find the bit position within the word. The bit positions after deserialization are

listed in Table 11–4

.

Figure 11–18 also shows a functional waveform. Timing waveforms may

produce different results. Altera recommends performing a timing simulation to predict actual device behavior.

Altera Corporation

October 2007

11–17

Stratix II GX Device Handbook, Volume 2

Clocking

Figure 11–18. Bit Order for One Channel of Differential Data

Transmitter Channel

Operation (x8 Mode)

tx_outclock tx_out

X X X X X

Previous Cycle

X X X

7

MSB

6 5

Current Cycle

4 3 2 1 0

LSB

X

Next Cycle

X X X X X X X

Receiver Channel

Operation (x4 Mode)

rx_inclock

3 rx_in

2 1 0 X X X X X X X X X X X X rx_outclock rx_out [3..0]

X X X X X X X X X X X X 3210

Receiver Channel

Operation (x8 Mode)

rx_inclock rx_in

7 6 5 4 3 2 1 0 X X X X X X X X X X X X X X X X X X X X X X X X rx_outclock rx_out [7..0]

X X X X X X X X X X X X X X X X X X X X 7 6 5 4 3 2 1 0 X X X X

11–18

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Table 11–4

shows the conventions for differential bit naming for

18 differential channels. The MSB and LSB positions increase with the number of channels used in a system.

Table 11–4. LVDS Bit Naming

Receiver Channel Data

Number

13

14

15

16

9

10

11

12

17

18

7

8

5

6

3

4

1

2

Internal 8-Bit Parallel Data

MSB Position

103

111

119

127

71

79

87

95

135

143

39

47

55

63

7

15

23

31

LSB Position

96

104

112

120

64

72

80

88

128

136

32

40

48

56

0

8

16

24

Receiver Skew Margin for Non-DPA

Changes in system environment, such as temperature, media (cable, connector, or PCB) loading effect, the receiver's setup and hold times, and internal skew, reduce the sampling window for the receiver. The timing margin between the receiver’s clock input and the data input sampling

window is called Receiver Skew Margin (RSKM). Figure 11–19

shows the relationship between the RSKM and the receiver’s sampling window.

11–19

Stratix II GX Device Handbook, Volume 2

Clocking

TCCS, RSKM, and the sampling window specifications are used for high-speed source-synchronous differential signals without DPA. When using DPA, these specifications are exchanged for the simpler single DPA jitter tolerance specification. For instance, the receiver skew is why each input with DPA selects a different phase of the clock, thus removing the requirement for this margin.

Figure 11–19. Differential High-Speed Timing Diagram and Timing Budget for Non-DPA

Timing Diagram

External

Input Clock

Time Unit Interval (TUI)

Internal

Clock

Receiver

Input Data

TCCS

RSKM

Samplin g

Window (SW)

TCCS

RSKM t

SW

(min)

Bit

n

Internal

Clock

Fallin g Ed g e t

SW

(max)

Bit

n

TUI

Timing Budget

External

Clock

Internal

Clock

Synchronization

Transmitter

Output Data

TCCS

Receiver

Input Data

RSKM

Clock Placement

T

SWEND

RSKM

TCCS

2

T

SWBEGIN

Samplin g

Window

11–20

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Differential Pin

Placement

Guidelines

In order to ensure proper high-speed operation, differential pin placement guidelines have been established. The Quartus II compiler automatically checks that these guidelines are followed and will issue an error message if these guidelines are not met. PLL driving distance information is separated into guidelines with and without DPA usage.

High-Speed Differential I/Os and Single-Ended I/Os

When a differential channel or channels of side banks are used (with or without DPA), you must adhere to the guidelines described in the following sections.

Single-ended I/Os are allowed in the same bank as the LVDS channels (with or without DPA) as long as the single-ended I/O standard uses the same V

CCIO

as the LVDS bank.

Single-ended inputs can be in the same LAB row. Outputs cannot be on the same LAB row with LVDS I/Os. If input registers are used in the IOE, single-ended inputs cannot be in the same LAB row as an

LVDS SERDES block.

LVDS (non-SERDES) I/Os are allowed in the same row as LVDS

SERDES but the use of IOE registers are not allowed.

Single-ended outputs are limited to 120 mA drive strength on LVDS banks (with or without DPA).

LVTTL equation for maximum number of I/Os in an LVDS bank:

• 120 mA = (number of LVTTL outputs) × (drive strength of each LVTTL output)

SSTL-2 equation:

• 120 mA = (number of SSTL-2 I/Os) × (drive strength of each output) ÷ 2

LVTTL and SSTL-2 mix equation:

• 120 mA= (total drive strength of all LVTTL outputs) + (total drive strength of all SSTL2 outputs) ÷ 2

Single-ended inputs can be in the same LAB row as a differential channel using the SERDES circuitry; however, IOE input registers are not available for the single-ended I/Os placed in the same LAB row as differential I/Os. The same rule for input registers applies for non-

SERDES differential inputs placed within the same LAB row as a

SERDES differential channel. The input register must be implemented within the core logic. The same rule for input registers applies for non-SERDES differential inputs placed within the same

LAB row as a SERDES differential channel.

Altera Corporation

October 2007

11–21

Stratix II GX Device Handbook, Volume 2

Differential Pin Placement Guidelines

Single-ended output pins must be at least one LAB row away from differential output pins, as shown in

Figure 11–20 .

Figure 11–20. Single-Ended Output Pin Placement with Respect to Differential I/O Pins

Single-Ended Output Pin

Differential I/O Pin

Single_Ended Input

Single-Ended Outputs

Not Allowed

Row Boundary

DPA Usage Guidelines

The Stratix II and Stratix II GX device have differential receivers and transmitters on the Row banks of the device. Each receiver has a dedicated DPA circuit to align the phase of the clock to the data phase of its associated channel. When a channel or channels of left or right banks are used in DPA mode, the guidelines listed below must be adhered to.

Fast PLL/DPA Channel Driving Distance

Each fast PLL can drive up to 25 contiguous rows in DPA mode in a single bank (not including the reference clock row). The unbonded

SERDES I/O rows are included in the 25 row calculation. These channels can be anywhere in the bank, their distance from the PLL is not relevant, but the channels must be within 25 rows of each other.

11–22

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Unused channels can be within the 25 row span, but all used channels must be in DPA mode from the same fast PLL. Center fast

PLLs can drive two I/O banks simultaneously, up to 50 channels (25 on the upper bank and 25 on the lower bank) as shown in

Figure 11–21 .

If one center fast PLL drives DPA channels in the upper and lower banks, the other center fast PLL cannot be used for DPA.

Figure 11–21. Driving Capabilities of a Center Fast PLL

DPA

DPA

DPA

DPA

DPA

Ref CLK

Fast PLL

Fast PLL

Ref CLK

DPA

DPA

DPA

DPA

Top Channels Driven by Center PLL

Ref Clk

Center PLL

Used for DPA

Center PLL

Used for DPA

Ref Clk

Bottom Channels

Driven by Center PLL

DPA

11–23

Stratix II GX Device Handbook, Volume 2

Differential Pin Placement Guidelines

Using Corner and Center Fast PLLs

If a differential bank is being driven by two fast PLLs, where the corner PLL is driving one group and the center fast PLL is driving another group, there must be at least 1 row of separation between the two groups of DPA channels (see

Figure 11–22 ). The two groups can

operate at independent frequencies. Not all the channels are bonded out of the die. Each LAB row is considered a channel, whether or not it has I/O support.

No separation is necessary if a single fast PLL is driving DPA channels as well as non-DPA channels as long as the DPA channels are contiguous.

Figure 11–22. Usage of Corner and Center Fast PLLs Driving DPA Channels in a Single Bank

Fast PLL

Ref CLK

Corner PLL

Used for DPA

Ref Clk

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Channels Driven by Corner PLL

Diff I/O

Unused

Diff I/O

One Unused

Channel for Buffer

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Ref CLK

Fast PLL

Channels Driven by Center PLL

Ref Clk

Center PLL

11–24

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Using Both Center Fast PLLs

Both center fast PLLs can be used for DPA as long as they drive DPA channels in their adjacent quadrant only. See

Figure 11–23 .

Both center fast PLLs cannot be used for DPA if one of the fast PLLs drives the top and bottom banks, or if they are driving cross banks

(e.g., the lower fast PLL drives the top bank and the top fast PLL drives the lower bank).

Figure 11–23. Center Fast PLL Usage When Driving DPA Channels

DPA

DPA

DPA

DPA

DPA

Ref CLK

Fast PLL

Channels Driven by the Upper Center PLL

Fast PLL

Ref CLK

DPA

DPA

DPA

DPA

Ref Clk

Center PLL

Driving Top Bank

Center PLL

Driving Lower Bank

Ref Clk

Channels Driven by the Lower Center PLL

DPA

11–25

Stratix II GX Device Handbook, Volume 2

Differential Pin Placement Guidelines

Non-DPA Differential I/O Usage Guidelines

When a differential channel or channels of left or right banks are used in non-DPA mode, you must adhere to the guidelines in the following sections.

Fast PLL/Differential I/O Driving Distance

As shown in Figure 11–24

, each fast PLL can drive all the channels in the entire bank.

Figure 11–24. Fast PLL Driving Capability When Driving Non-DPA Differential

Channels

Fast PLL

Ref CLK

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Corner PLL

Ref CLK

Diff I/O

Diff I/O

Diff I/O

Each PLL Can Drive the Entire Bank

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Ref CLK

Fast PLL

Ref CLK

Center PLL

11–26

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Using Corner and Center Fast PLLs

The corner and center fast PLLs can be used as long as the channels driven by separate fast PLLs do not have their transmitter or receiver channels interleaved.

Figure 11–25 shows illegal placement of

differential channels when using corner and center fast PLLs.

If one fast PLL is driving transmitter channels only, and the other fast

PLL drives receiver channels only, the channels driven by those fast

PLLs can overlap each other.

Center fast PLLs can be used for both transmitter and receiver channels.

Figure 11–25. Illegal Placement of Interlaced Duplex Channels in an I/O Bank

Fast PLL

Ref CLK

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Corner PLL

Ref CLK

Interleaved Duplex

Channel is Not Allowed

Duplex Channel Driven by Center PLL

Duplex Channel Driven by Corner PLL

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Diff I/O

Ref CLK

Fast PLL

Ref CLK

Center PLL

Board Design

Considerations

f

This section explains how to achieve the optimal performance from the

Stratix II and Stratix II GX high-speed I/O block and ensure first-time success in implementing a functional design with optimal signal quality.

For more information on board layout recommendations and I/O pin terminations, refer to

AN 224: High-Speed Board Layout Guidelines

.

Altera Corporation

October 2007

11–27

Stratix II GX Device Handbook, Volume 2

Conclusion

Conclusion

f

To achieve the best performance from the device, pay attention to the impedances of traces and connectors, differential routing, and termination techniques.

Use this section together with the

Stratix II Device Family Data Sheet

in volume 1 of the Stratix II Device Handbook.

The Stratix II and Stratix II GX high-speed module generates signals that travel over the media at frequencies as high as one Gbps. Board designers should use the following guidelines:

Base board designs on controlled differential impedance. Calculate and compare all parameters such as trace width, trace thickness, and the distance between two differential traces.

Place external reference resistors as close to receiver input pins as possible.

Use surface mount components.

Avoid 90° or 45° corners.

Use high-performance connectors such as HMZD or VHDM connectors for backplane designs. Two suppliers of highperformance connectors are Teradyne Corp (

www.teradyne.com

) and Tyco International Ltd. (

www.tyco.com

).

Design backplane and card traces so that trace impedance matches the connector’s or the termination’s impedance.

Keep an equal number of vias for both signal traces.

Create equal trace lengths to avoid skew between signals. Unequal trace lengths also result in misplaced crossing points and system margins when the TCCS value increases.

Limit vias, because they cause impedance discontinuities.

Use the common bypass capacitor values such as 0.001, 0.01, and

0.1

μF to decouple the fast PLL power and ground planes. You can also use 0.0047

μF and 0.047 μF.

Keep switching TTL signals away from differential signals to avoid possible noise coupling.

Do not route TTL clock signals to areas under or above the differential signals.

Route signals on adjacent layers orthogonally to each other.

Stratix II and Stratix II GX high-speed differential inputs and outputs, with their DPA and data realignment circuitry, allow users to build a robust multi-Gigabit system. The DPA circuitry allows users to compensate for any timing skews resulting from physical layouts. The data realignment circuitry allows the devices to align the data packet between the transmitter and receiver. Together with the on-chip differential termination, Stratix II and Stratix II GX devices can be used as a single-chip solution for high-speed applications.

11–28

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

High-Speed Differential I/O Interfaces with DPA in Stratix II & Stratix II GX Devices

Referenced

Documents

This chapter references the following documents:

AN 224: High-Speed Board Layout Guidelines

DC & Switching Characteristics chapter in volume 1 of the Stratix II

Device Handbook

DC & Switching Characteristics

chapter in volume 1 of the

Stratix II GX Device Handbook

PLLs in Stratix II & Stratix II GX Devices

chapter in volume 2 of the

Stratix II Handbook

PLLs in Stratix II & Stratix II GX Devices

chapter in volume 2 of the

Stratix II GX Handbook

Selectable I/O standards in Stratix II & Stratix II GX Devices

chapter in volume 2 of the Stratix II Device Handbook

Stratix II Device Family Data Sheet

in volume 1 of the Stratix II Device

Handbook

Document

Revision History

Table 11–5

shows the revision history for this chapter.

Table 11–5. Document Revision History (Part 1 of 2)

Date and

Document Version

Changes Made

October 2007, v2.3 Updated Figure 11–2

.

Added

“Referenced Documents”

section.

Minor text edits.

August 2007, v2.2

Added

Figure 11–9 .

Updated “Receiver Data Realignment Circuit”

.

For the Stratix II GX Device Handbook only:

Formerly chapter 10. The chapter number changed due to the addition of the Stratix II GX Dynamic

Reconfiguration chapter.

May 2007, v2.1

Updated entire chapter to include Stratix II GX information.

Changed chapter part number.

Fixed two types in

“High-Speed Differential I/Os and Single-Ended I/Os”

section

Summary of Changes

Altera Corporation

October 2007

11–29

Stratix II GX Device Handbook, Volume 2

Document Revision History

Table 11–5. Document Revision History (Part 2 of 2)

Date and

Document Version

February 2007 v2.0

April 2006, v1.2

February 2006, v1.1

October 2005 v1.0

Changes Made

This chapter changed from High-Speed, Source-

Synchronous Differential I/O Interfaces in Stratix II

GX Devices to “High-Speed Differential I/O

Interfaces with DPA in Stratix II and Stratix II GX

Devices”.

Added the “Document Revision History” section to this chapter.

Added “and Stratix II GX” after each instance of

“Stratix II”.

Updated Figures 10–4, 10–20, 10–22.

Updated Note (4) of Figure 10–2.

Updated Table 10–1.

Updated the following sections:

“I/O Banks”

“Differential I/O Termination”

“Fast PLL ”

“Differential I/O Bit Position”

“DPA Usage Guidelines”

“Fast PLL/DPA Channel Driving Distance”

Updated Note (1) of Tables 10–2 and 10–3.

Added Note (5) to Figure 10–11.

Added Table 10–3.

Added Figures 10–14, 10–15, 10–19.

Deleted old section called High-Speed Differential

I/Os and Single-Ended I/Os and added a new

“High-Speed Differential I/Os and Single-Ended

I/Os” section.

Deleted DPA and Single-Ended I/Os section.

Updated title and added Note (1) to Figure 10–12.

Added Note (1) to Figure 10–13.

Updated all the MegaWizard Plug-In Manager figures to match the Quartus II software GUI.

Updated “Dedicated Source-Synchronous

Circuitry” section, including Table 10–3.

Updated chapter number from 9 to 10.

Updated Figures 10–11 and 10–12.

Added chapter to the Stratix II GX Device

Handbook.

Summary of Changes

11–30

Stratix II GX Device Handbook, Volume 2

Altera Corporation

October 2007

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
