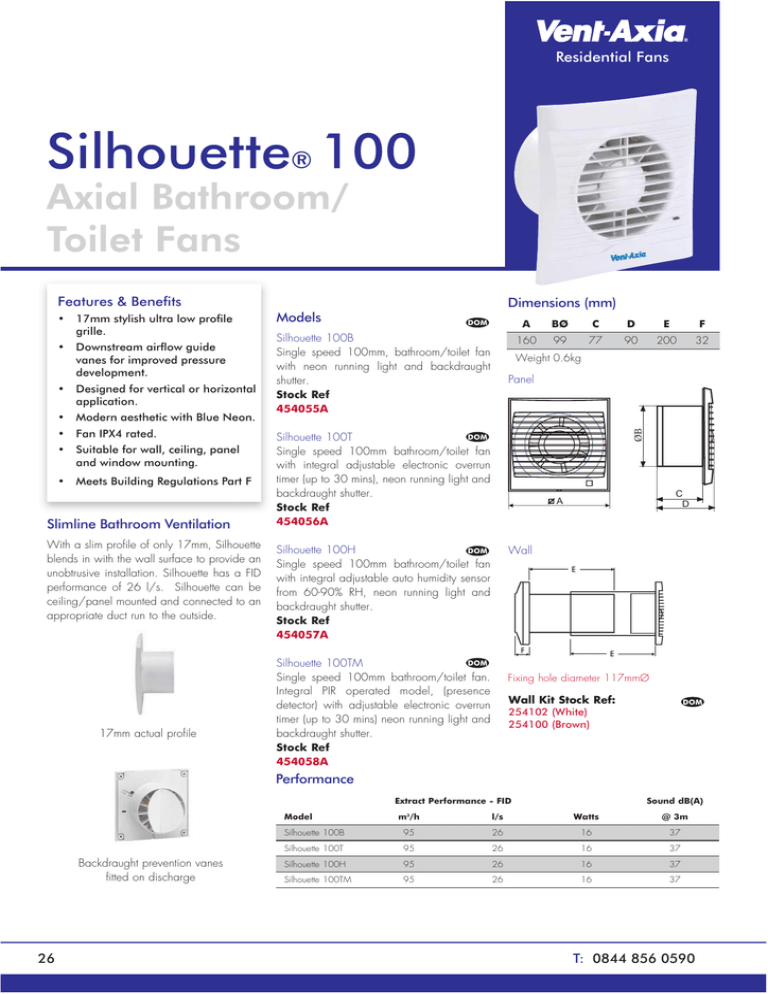

Vent-Axia Silhouette Catalogue Page

Vent-Axia Silhouette Catalogue Page
Residential Fans
Silhouette® 100
Axial Bathroom/
Toilet Fans
Features & Benefits
• Downstream airflow guide
vanes for improved pressure
development.
• Designed for vertical or horizontal
application.
• Modern aesthetic with Blue Neon.
• Fan IPX4 rated.
• Suitable for wall, ceiling, panel
and window mounting.
• Meets Building Regulations Part F
Slimline Bathroom Ventilation
With a slim profile of only 17mm, Silhouette
blends in with the wall surface to provide an
unobtrusive installation. Silhouette has a FID
performance of 26 l/s. Silhouette can be
ceiling/panel mounted and connected to an
appropriate duct run to the outside.
17mm actual profile
Dimensions (mm)
Models
DOM
Silhouette 100B
Single speed 100mm, bathroom/toilet fan
with neon running light and backdraught
shutter.
Stock Ref
454055A
A
BØ
C
D
E
F
160
99
77
90
200
32
Weight 0.6kg
Panel
ØB
• 17mm stylish ultra low profile
grille.
DOM
Silhouette 100T
Single speed 100mm bathroom/toilet fan
with integral adjustable electronic overrun
timer (up to 30 mins), neon running light and
backdraught shutter.
Stock Ref
454056A
C
D
A
DOM
Silhouette 100H
Single speed 100mm bathroom/toilet fan
with integral adjustable auto humidity sensor
from 60-90% RH, neon running light and
backdraught shutter.
Stock Ref
454057A
Wall
DOM
Silhouette 100TM
Single speed 100mm bathroom/toilet fan.
Integral PIR operated model, (presence
detector) with adjustable electronic overrun
timer (up to 30 mins) neon running light and
backdraught shutter.
Stock Ref
454058A
Fixing hole diameter 117mmØ
Wall Kit Stock Ref:
254102 (White)
254100 (Brown)
DOM
Performance
Extract Performance - FID
Backdraught prevention vanes
fitted on discharge
26
Sound dB(A)
m3/h
l/s
Watts
@ 3m
Silhouette 100B
95
26
16
37
Silhouette 100T
95
26
16
37
Silhouette 100H
95
26
16
37
Silhouette 100TM
95
26
16
37
Model
T: 0844 856 0590
