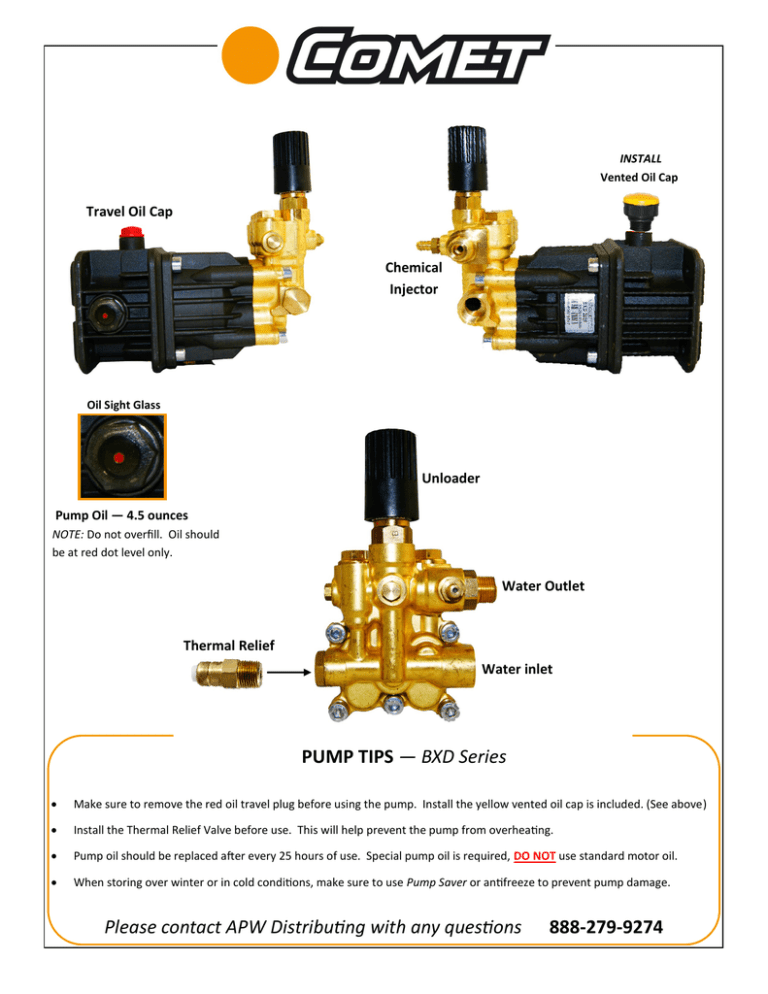

bxd sheet
INSTALL
Vented Oil Cap
Travel Oil Cap
Chemical
Injector
Oil Sight Glass
Unloader
Pump Oil — 4.5 ounces
NOTE: Do not overfill. Oil should
be at red dot level only.
Water Outlet
Thermal Relief
Thermal Relief
Water inlet
PUMP TIPS — BXD Series

Make sure to remove the red oil travel plug before using the pump. Install the yellow vented oil cap is included. (See above)

Install the Thermal Relief Valve before use. This will help prevent the pump from overheating.

Pump oil should be replaced after every 25 hours of use. Special pump oil is required, DO NOT use standard motor oil.

When storing over winter or in cold conditions, make sure to use Pump Saver or antifreeze to prevent pump damage.
Please contact APW Distributing with any questions
888-279-9274
