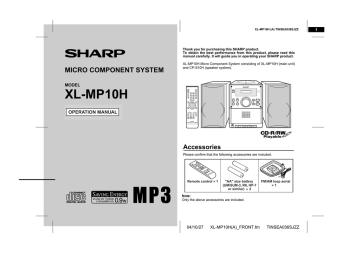

XL-MP10H (A) TINSEA036SJZZ
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
MICRO COMPONENT SYSTEM
XL-MP10H Micro Component System consisting of XL-MP10H (main unit)
and CP-S10H (speaker system).
MODEL
XL-MP10H
OPERATION MANUAL
Accessories
Please confirm that the following accessories are included.
Remote control
1
"AA" size battery
(UM/SUM-3, R6, HP-7
or similar) 2
FM/AM loop aerial
1
Note:
Only the above accessories are included.
04/10/27
XL-MP10H(A)_FRONT.fm
TINSEA036SJZZ
1
Important Instruction
XL-MP10H
Special notes
Contents
Warning:
! When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY position, the unit may be
brought into operation by the timer mode or remote control.
! This unit contains no user serviceable parts. Never remove covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any
service operation and when not in use for a long period.
! To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as
vases, should be placed on the apparatus.
CAUTION
! This product is classified as a CLASS 1 LASER product.
! Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
" General Information
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Page
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5
" Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
" Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
" Disc Playback
Listening to a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Advanced disc playback . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 15
" Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Listening to the memorised station . . . . . . . . . . . . . . . . . . . . . 17
" Tape Playback
Listening to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
" Tape Recording
Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . . 19, 20
" Advanced Features
2
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without permission of the relevant licensees or owners of the copyright is prohibited by law. SHARP is
not in a position to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be
implied as giving that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
" References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 24
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
Precautions
XL-MP10H
! Please ensure that the equipment is positioned in a well ventilated area and that there is at least 10 cm of free space along the
sides and back. There must also be a minimum of 20 cm of free
space on the top of the unit.
10 cm
10 cm
20 cm
10 cm
! Use the unit on a firm, level surface free from
vibration.
! Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which
generate electrical noise.
! Do not place anything on top of the unit.
! Do not expose the unit to moisture, to temperatures higher than
60°C or to extremely low temperatures.
! If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
! In case of an electrical storm, unplug the
unit for safety.
1
! Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
! Do not remove the outer cover, as this
may result in electric shock. Refer internal service to your local SHARP service
facility.
! The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
! No naked flame sources, such as lighted candles, should be
placed on the apparatus.
! Attention should be drawn to the environmental aspects of battery disposal.
! This unit should only be used within the range of 5°C - 35°C.
Warnings:
! The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other
than that which is specified.
! CD players use a laser pickup which can damage the eyes if
viewed directly. Do not look at the pickup, and do not touch
the pickup directly.
General Information
" General
" Volume control
The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels.
3
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
General Information
XL-MP10H
Controls and indicators
1
9
2
3
4
5
6
7
10
11
12
13
14
8
15 16 17 18 19 20 21
22 23
28
29
30
24
25 26 27
31
32
Reference page
1. Disc Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Bass/Treble Selector Button . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Function Selector Button . . . . . . . . . . . . . . . . . . . . 11, 16, 18
5. Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
6. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
7. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9. Disc Eject Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
11. Disc Track Up or Fast Forward,
Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 17
12. Disc Play or Pause, Tuning Up Button . . . . . . . . . . . . . 11, 16
13. Disc Stop, Tuning Down Button . . . . . . . . . . . . . . . . . . 11, 16
14. Disc Track Down or Fast Reverse,
Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . 13, 17
15. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
16. Tape Record Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 20
17. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
18. Tape Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
19. Tape Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . . 18
20. Tape Stop/Eject Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
21. Tape Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
34
22. Tape Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
23. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
24. Disc Random Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . 14
25. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
26. MP3 Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
27. WMA Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
28. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
29. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
30. Disc Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
31. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 16
32. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 16
35
33. FM/AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 6
34. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
35. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
33
4
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
1
1. Full-Range Speaker
2. Speaker Wire
1
2
3
4
5
6
7
17
18
8
9
19
20
21
10
11
12
13
14
15
22
23
24
25
26
27
Reference page
3. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7. Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8. Disc Fast Reverse, Tuning Down Button . . . . . . . . . . . 13, 16
9. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10. Disc Track Down, Tuner Preset Down,
Time Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 13, 17
11. Disc Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
12. Treble Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 8
13. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 15, 17
14. Disc Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
15. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
16. Tuner and Band Selector Button . . . . . . . . . . . . . . . . . . . . 16
17. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . 12, 13
18. Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
19. Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
20. Disc Fast Forward, Tuning Up Button . . . . . . . . . . . . . 13, 16
21. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
22. Disc Track Up, Tuner Preset Up,
Time Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 13, 17
23. Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
24. Bass Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 8
25. Disc Random Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . 14
26. Disc Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
27. Tape Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
General Information
Note:
The speaker grilles are not removable.
16
5
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
System connections
" Aerial connection
Connect the FM/AM loop aerial to the ANTENNA socket.
Position the FM aerial wire and rotate the AM loop aerial for optimum reception. Place the AM loop aerial on a shelf, or attach it to a
stand or a wall.
Make sure to unplug the AC power lead
before making any connections.
AM loop aerial
Preparation for Use
FM aerial
Right speaker
Left speaker
Notes:
! Placing the aerial on the unit or near the AC power lead may
cause noise pickup. Place the aerial away from the unit for better
reception.
! Do not connect the attached FM aerial to an external aerial as
this may cause trouble.
Installing the AM loop aerial:
< Assembling >
< Attaching to the wall >
Wall
Screws (not supplied)
" Speaker connection
Connect the wire with the white line to the minus (-) terminal and the
plain wire to the plus (+) terminal.
Wall socket
(AC 230 - 240 V, 50 Hz)
White line
Plain
Caution:
! Do not let the bare speaker wires touch each
other.
! Use speakers with an impedance of 4 ohms or
more, as lower impedance speakers can damage
the unit.
! Do not mistake the right and the left channels.
The right speaker is the one on the right side
when you face the unit.
Incorrect
Placing the speaker system:
There is no distinction between the right and the left speakers.
6
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H (A) TINSEA036SJZZ
2
XL-MP10H
" AC power connection
" To turn the power on
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket.
Press the ON/STAND-BY button to turn the power on.
Note:
Unplug the AC power lead from the wall socket if the unit will not be
in use for a prolonged period of time.
2
After use:
Press the ON/STAND-BY button to enter the power stand-by
mode.
" Battery installation
1
2
3
Remove the battery cover.
Insert the supplied batteries according to the direction indicated in the battery compartment.
When inserting or removing the batteries, push them toward the
battery terminals.
Replace the cover.
Notes concerning use:
! Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 "AA" size batteries (UM/
SUM-3, R6, HP-7 or similar).
! Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
! Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit.
! Keep the remote control away from moisture, heat, shock, and
vibrations.
" Test of the remote control
Precautions for battery use:
! Replace all old batteries with new ones at the same time.
! Do not mix old and new batteries.
! Remove the batteries if the unit is not to be used for long periods
of time. This will prevent potential damage due to battery leakage.
Caution:
! Do not use rechargeable batteries (nickel-cadmium battery, etc.).
! Installing the batteries incorrectly may cause the unit to malfunction.
Battery removal:
Remove the battery cover. Push each battery toward the
terminal and take them out.
Check the remote control after
checking all the connections (see
pages 6 - 7).
Point the remote control directly at
the remote sensor on the unit.
The remote control can be used
within the range shown:
Press the ON/STAND-BY button.
Does the power turn on? Now, you
can enjoy music.
Remote sensor
Preparation for Use
Remote control
0.2 m - 6 m
battery
7
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
Sound control
" Adjusting the volume
Main unit operation:
When the VOLUME control is turned clockwise, the volume will
increase. When it is turned anti-clockwise, the volume will decrease.
Remote control operation:
Press the VOLUME (- or +) button to increase or decrease the volume.
0 1
2 ..... 28 29 30
Basic Operation
" Adjusting the bass
Main unit operation:
1 Press the BASS/TREBLE button to select "BASS".
2 Within 5 seconds, turn the VOLUME control to adjust the bass.
Remote control operation:
Press the BASS (- or +) button to adjust the bass.
-3
...
0
...
4
" Adjusting the treble
Main unit operation:
1 Press the BASS/TREBLE button to select "TRE".
2 Within 5 seconds, turn the VOLUME control to adjust the treble.
Remote control operation:
Press the TREBLE (- or +) button to adjust the treble.
-3
...
0
...
4
8
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
Setting the clock
XL-MP10H
3
Within 1 minute, press the PRESET ( or ) button to adjust the hour and then press the MEMORY button.
3
Press the PRESET ( or ) button once to advance the time
by 1 hour. Hold it down to advance continuously.
This may be operated only with the remote control.
In this example, the clock is set for the 24-hour (0:00) display.
1
2
Press the CLOCK button and within 5 seconds, press the
MEMORY button.
Within 1 minute, press the PRESET ( or ) button to select 24-hour or 12-hour display and then press the MEMORY button.
"0:00"
"AM 12:00"
The 24-hour display will appear.
(0:00 - 23:59)
The 12-hour display will appear.
(AM 12:00 - PM 11:59)
Within 1 minute, press the PRESET ( or ) button to adjust the minutes and then press the MEMORY button.
Press the PRESET ( or ) button once to advance the time
by 1 minute. Hold it down to advance continuously.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The "0:00" or time will flash when the AC power supply is restored
after a power failure or unplugging the unit.
Readjust the clock as follows.
Basic Operation
4
To readjust the clock:
Perform "Setting the clock" from the beginning. If the "0:00" is not
flashing in step 1, step 2 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 24 for details.]
2 Perform "Setting the clock" from the beginning.
9
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
Listening to a disc
Disc Playback
This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on
them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the equipment used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands for
MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound
quality.
! The MP3 track indicator will light up when an MP3 track is read.
! This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
! During VBR file playback, time counter in the display may differ
from its actual playback time.
WMA:
WMA files are ASF (Advanced Systems Format) audio files which
are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.
! The WMA track indicator will light up when a WMA track is read.
! Supported bit rates for WMA files range from 64 kbps to 160
kbps.
10
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
Press the ON/STAND-BY button to turn the power on.
3
Press the
ment.
4
Place the disc on the spindle, label
side up.
5
6
Press the
Press the FUNCTION button until "CD DISC" appears on
the display.
When operating with the remote control, press the CD button.
CD EJECT button to open the disc compart-
Close the disc compartment by firmly pushing the corner
marked "PUSH CLOSE".
[MP3]
MP3 track indicator
( ) button to start playback from track 1.
Disc play indicator
To interrupt playback:
Main unit operation:
Press the
button.
To resume playback from the same
point, press the
button again.
Remote control operation:
Press the button.
To resume playback from the same point, press the
[CD]
Total number
of tracks
[WMA]
Total playing
time
WMA track indicator
Total number of tracks
! Due to the structure of its disc information, it takes longer
(approximately 20 to 90 seconds) to read a CD-R/RW disc
recorded in the MP3 or WMA format than a normal CD.
button.
To stop playback:
Press the button.
To remove the disc:
Whilst in the stop mode, press the
Total number of tracks
4
When the last track on the disc has finished playing, the unit will
stop automatically.
CD EJECT button.
Disc Playback
1
2
Caution:
! Do not play discs with special shapes (heart or octagon shaped)
as it may cause malfunctions.
! If a disc is damaged, dirty, or loaded upside down, "NO DISC"
will appear on the display.
! Keep foreign objects out of the disc compartment.
! Subjecting the unit to shock or vibration may cause mistracking.
! When the unit is not being used, be sure to close the disc compartment. If it is left open, the lens may be covered with dust and
the unit may not operate properly.
! If TV or radio interference occurs during disc operation, move the
unit away from it.
11
04/10/21
XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
Listening to a disc (continued)
! Care of compact discs
Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collection and player.
" Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
" Keep your discs away from direct sunlight, heat, and excessive
moisture.
" Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the centre, along the radius.
Disc Playback
NO
! To change the display (CD-R/RW discs
recorded in the MP3 or WMA format only)
Whilst in the stop mode or playback mode, press the DISPLAY button.
Each time the button is pressed, the display will change as follows.
[When in the stop mode]
Total number
of tracks
Folder name
Track name
YES
Correct
1st track
" To check the total number of tracks, press the
button.
[When in the playback mode]
! Headphones
" Before plugging in or unplugging the headphones, reduce the
volume.
" Be sure your headphones have a 3.5 mm diameter plug and
impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
" Plugging in the headphones disconnects the speakers automatically. Adjust the volume using the VOLUME control.
Track
number
Elapsed
playback
time
Album name
Folder name
Track name
Artist name
Title name
12
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Advanced disc playback
XL-MP10H
! To locate the beginning of a track
To move to the beginning of the next track:
Press the
button for less than 0.5 seconds during playback.
To restart the track being played:
Press the
button for less than 0.5 seconds during playback.
Note:
You can skip to any track by pressing the
edly until the desired track number appears.
or
4
button repeat-
Sound will be heard for a CD, but not for CD-R/RW discs recorded
in the MP3 or WMA format. (Check the displayed playback time for
these discs.)
! To select the desired folder or track by name
(CD-R/RW discs recorded in the MP3 or WMA
format only)
1
Whilst in the stop mode, press
the DISPLAY button on the remote control to display the folder
name.
2
3
Select the desired folder by pressing the
4
5
Select the desired track by pressing the
or
button.
Press the DISPLAY button to display the track name.
Press the
playback.
(
or
button.
For fast forward:
Press and hold down the
For fast reverse:
Press and hold down the
button during playback.
button during playback.
Notes:
or
button is
" Normal playback will resume when the
released.
" When the end of the last track is reached during fast forward,
"END" will appear on the display and disc operation will be
paused. When the beginning of the first track is reached during
fast reverse, the disc will start playback automatically.
or
button on the main unit allows you to locate the
" The
desired portion.
Disc Playback
! To locate the desired portion
) button to begin
13
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
XL-MP10H
Advanced disc playback (continued)
! Direct search of the track
! Repeat play
By using the direct search buttons, the desired tracks can be
played.
All tracks or a programmed sequence can be continuously
repeated.
To repeat all tracks:
1 Press the REPEAT button.
2 Press the ( ) button.
To repeat a desired track:
1 Perform steps 1 - 3 in the "Programmed play" section on page 15
and then press the REPEAT button.
2 Press the ( ) button.
To repeat random play:
Press the REPEAT button during random play.
1
Whilst in the stop mode, use
the direct search buttons on
the remote control to select the
desired track.
Selected track number
Disc Playback
" The direct search buttons allow you to select up to number 9.
" When selecting number 10 or higher, use the "+10" button.
A. For example, to choose 13
1 Press the "+10" button once.
2 Press the "3" button.
B. For example, to choose 30
1 Press the "+10" button three times.
2 Press the "0" button.
2
Press the ( ) button to start playback.
Playback of the selected track is started. When the last track on
the disc has finished playing, the unit will stop automatically.
To stop playback:
Press the button.
Notes:
" The selected track can be started simply by pressing the direct
search buttons during playback. [It is not necessary to press the
( ) button.]
" A track number higher than the number of tracks on the disc cannot be selected.
" During random play, direct search is not possible.
" For CD-R/RW discs recorded in the MP3 or WMA format, you
can select the track number but cannot select the folder by pressing the direct search buttons.
To cancel repeat play:
Press the REPEAT button again. " " will go out.
Caution:
After performing repeat play, be sure to press the
wise, the disc will play continuously.
button. Other-
! Random play
The tracks can be played in random order automatically.
Whilst in the stop mode, press the
RANDOM button and the ( ) button sequentially to begin random
play.
To cancel random play:
Whilst in the stop mode, press the RANDOM button again.
Notes:
" When you press the RANDOM button during playback, the main
unit switches to random play.
" Random play will stop automatically when all tracks are played
once. (The same track will not be played back twice.)
" In random play, the unit will select and play tracks automatically.
(You cannot select the order of the tracks.)
button during random play, you can move to
" If you press the
the next track by the random operation. On the other hand, the
button does not allow you to move to the previous track. The
beginning of the track being played will be located.
14
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
XL-MP10H
! Programmed play
You can choose up to 32 selections for playback in the order you
like.
Whilst in the stop mode, use the
direct search buttons to select the
desired track.
Selected track number
You can also select a track by pressing the
or
button.
2
4
Press the MEMORY (MEMORY/
SET) button to save the track
number.
Disc Playback
1
Notes:
" Opening the disc compartment automatically cancels the programmed sequence.
" Even if you press the ON/STAND-BY button to enter the stand-by
mode or change the function from CD to another, the programmed selections will not be cleared.
" During the programme operation, random play is not possible.
" For CD-R/RW discs recorded in the MP3 or WMA format, you
can select the track number but cannot select the folder by pressing the direct search buttons.
Playback order
When the track is memorised, "MEMORY" will appear.
3
Repeat steps 1 - 2 for other tracks. Up to 32 tracks can be
programmed.
If you make a mistake, the programmed tracks can be cleared
by pressing the CLEAR button.
4
Press the
(
) button to start playback.
To clear the programmed selections:
Whilst the "MEMORY" indicator is lit, set the CD to the stop mode
and then press the CLEAR button.
Each time the button is pressed, one track will be cleared, beginning
with the last track programmed. When all the tracks are cleared,
"MEMORY" will disappear.
Adding tracks to the programme:
If a programme has been previously stored, the "MEMORY" indicator will be displayed. Then follow steps 1 - 2 to add tracks. The new
tracks will be stored after the last track of the original programme.
15
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Radio
XL-MP10H
Listening to the radio
1
2
Press the ON/STAND-BY button to turn the power on.
3
Press the TUNING ( or ) button to tune in to the desired
station.
Manual tuning:
Press the TUNING button as many times as required to tune in
to the desired station.
Auto tuning:
When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.
Press the FUNCTION button until "FM" or "AM" appears on
the display.
When operating with the remote control, press the TUNER
(BAND) button to select "FM" or "AM".
Notes:
" When radio interference occurs, auto scan tuning may stop automatically at that point.
" Auto scan tuning will skip weak signal stations.
" To stop the auto tuning, press the TUNING button again.
To receive an FM stereo transmission:
Press the FUNCTION [TUNER (BAND)] button to display the "ST"
indicator.
" " " will appear when an FM broadcast is in stereo.
" If the FM reception is weak, press the FUNCTION [TUNER
(BAND)] button to extinguish the "ST" indicator. The reception
changes to monaural, and the sound becomes clearer.
FM stereo mode indicator
FM stereo receiving indicator
Note:
This product can receive FM stereo/FM monaural and AM monaural
broadcasts. AM stereo broadcasts will not be played in stereo.
16
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Listening to the memorised station
XL-MP10H
! Memorising a station
! To recall a memorised station
You can store 40 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)
Press the PRESET ( or
select the desired station.
) button for less than 0.5 seconds to
1
2
Perform steps 1 - 3 in "Listening to the radio" on page 16.
To select a preset station with the direct number buttons:
Press the corresponding number ("0" - "+10").
Press the MEMORY/SET (MEMORY) button to enter the preset tuning saving mode.
Example:
To select 28, press "+10", "+10" and "8".
3
Within 5 seconds, press the PRESET ( or ) button to select the
preset channel number.
4
5
Within 5 seconds, press the MEMORY/SET (MEMORY) button to
store that station in memory.
If the "MEMORY" and preset number indicators go out before
the station is memorised, repeat the operation from step 2.
Repeat steps 1 - 4 to set other stations, or to change a preset station.
When a new station is stored in memory, the station previously
memorised will be erased.
Note:
The backup function protects the memorised stations for a few
hours should there be a power failure or the AC power lead disconnection.
The stations saved in memory can be scanned automatically. (Preset memory scan)
1 Press the PRESET ( or ) button for more than 0.5 seconds.
The preset number will flash and the programmed stations will be
tuned in sequentially, for 5 seconds each.
2 Press the PRESET ( or ) button again when the desired station is located.
Radio
Store the stations in memory, in order, starting with preset
channel 1.
5
! To scan the preset stations
! To clear a memorised station
1
2
3
Recall the memorised station.
Whilst it is displayed, press the
MEMORY/SET (MEMORY) button.
Within 5 seconds, press the CLEAR
button on the remote control.
! To erase entire preset memory
1
2
Press the ON/STAND-BY button to enter the power stand-by
mode.
Whilst pressing down the MEMORY/SET button and the PRESET button, press the ON/STAND-BY button until "TUCL" appears.
17
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
XL-MP10H
Listening to a cassette tape
Tape Playback
Before playback:
" For playback, use normal or low-noise tapes for
the best sound. (Metal or CrO tapes are not recommended.)
" Do not use C-120 tapes or poor-quality tapes, as they
may cause malfunctions.
" Before loading a tape into the cassette compartment,
tighten the slack with a pen or a pencil.
1
2
Press the ON/STAND-BY button to turn the power on.
3
4
Press the
5
6
Close the cassette compartment.
Press the FUNCTION button until "TAPE" appears on the
display.
When operating with the remote control, press the TAPE button.
button to open the cassette compartment.
Load a cassette into the cassette compartment with the
side to be played facing toward you.
Press the
button to start playback.
To stop playback:
Press the
button.
Fast forward/rewind:
To advance the tape, press the
button, then press the
button. To rewind, press the
button, then press the
button.
To interrupt playback:
Press the button during playback.
Press the button again to resume playback.
Caution:
" Do not press the button whilst the fast forward or rewind operations are in progress. The
or
button will not be released
when the tape end is reached. Once this occurs, press the
button.
" Before changing from one tape operation to another, press the
button.
18
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Recording on a cassette tape
Erase-prevention tab of cassette tapes:
" When recording on a cassette tape,
make sure that the erase-prevention
tabs are not removed. Cassettes have
removable tabs that prevent accidental recording or erasing.
Tab for
" To protect the recorded sound, reside B
move the tab after recording. Cover
the tab hole with adhesive tape to
record on the tape without the tab.
Side A
Tab for
side A
6
! Recording from a disc
1
2
Press the ON/STAND-BY button to turn the power on.
3
4
Load the desired disc.
5
6
Press the
7
8
Press the
Press the FUNCTION button until "CD DISC" appears on
the display.
When operating with the remote control, press the CD button.
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
Tape Recording
Before recording:
" When recording important selections, make a preliminary test to
ensure that the desired material is properly recorded.
" SHARP is not liable for damage or loss of your recording arising
from malfunction of this unit.
" The volume and sound controls can be adjusted with no effect on
the recorded signal (Variable Sound Monitor).
" For recording, use only normal tapes. Do not use metal or
CrO tapes.
" Do not use C-120 tapes or poor-quality tapes, as they may cause
malfunctions.
XL-MP10H
button.
Press the
button, which also
engages the button.
Press the
button again to cancel the pause mode.
( ) button to start recording.
19
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
XL-MP10H
Recording on a cassette tape (continued)
To perform programmed recording:
1 Programme tracks (see page 15).
2 Press the button.
3 Press the button, which also engages the button.
4 Press the button again to cancel the pause mode.
5 Press the
( ) button to start recording.
To interrupt recording:
Press the button.
To resume recording, press the
Tape Recording
To stop recording:
Press the
button.
The tape will stop.
button.
! Recording from the radio
1
2
Tune in to the desired station (see page 16).
3
4
Press the
5
Press the
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
button.
Press the
button, which also
engages the button.
button again to begin recording.
To stop recording:
Press the
button.
Note:
If you hear a whistling noise whilst recording an AM station, move
the AM loop aerial.
! Erasing recorded tapes
1
2
3
Load the tape to be erased into the cassette compartment with
the side to be erased facing toward you.
Press the FUNCTION button until "TAPE" appears on the display.
When operating with the remote control, press the TAPE button.
Press the button, which also engages the button to begin
erasing.
20
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Timer and sleep operation
Timer playback:
The unit turns on and plays the desired source (disc or tuner) at a
preset time.
! Timer playback
1
2
Press the ON/STAND-BY button to turn the power on.
3
Adjust the volume using the VOLUME buttons.
Do not turn the volume up too high.
4
Press the TIMER button and within 6 seconds, press the
MEMORY button.
Sleep operation:
The radio or disc can be turned off automatically.
Note:
The timer and sleep operations are not available during tape mode.
Before setting timer:
1
2
Press the CD or TUNER (BAND) button to select the desired function.
When you selected the TUNER (BAND), tune in to the desired
station.
Check that the clock is set to the correct time (refer to page 9).
Load a disc to be played.
5
Within 1 minute, press the PRESET ( or ) button to
specify the hour to start, then press the MEMORY button.
6
Within 1 minute, press the PRESET ( or ) button to
specify the minutes to start, then press the MEMORY button.
" The timer playback starting time, function, and volume will be
displayed, and then the unit will enter the stand-by mode automatically.
" " " will appear and the current time will be displayed.
Advanced Features
This may be operated only with the remote control.
XL-MP10H
To cancel the timer playback:
Press the ON/STAND-BY button to turn the power on.
Continued to the next page
21
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
7
XL-MP10H
Timer and sleep operation (continued)
7
Advanced Features
8
The volume will increase gradually until it reaches the volume
you were listening at before your system enters the timer standby mode.
To cancel the sleep operation:
Press the ON/STAND-BY button whilst "SLEEP" is indicated.
To cancel the sleep operation without setting the system to the
stand-by mode, press the SLEEP button until "OFF" appears on the
display.
The unit will enter the stand-by mode one hour after the
timer playback starts. However, when disc playback time is
one hour or less, it will enter the stand-by mode after completing playback.
To confirm the remaining sleep time:
Press the SLEEP button once whilst the sleep timer is set.
The remaining sleep time is displayed for about 3 seconds.
When the preset time is reached, playback will start.
To reset or change the timer setting:
Perform "Timer playback" from the beginning.
! To use timer and sleep operation together
! Sleep operation
Example: To fall asleep and wake up to the same radio station
You can play back the same source only (the function cannot be
switched).
1
2
Play back the desired sound source.
1
2
Press the SLEEP button.
To change the sleep time:
Press the SLEEP button repeatedly to select the desired sleep
time. The time will decrease as follows.
The amount of sleep time can also be changed whilst in the
sleep mode.
Set the sleep time (steps 1 - 2 on the left).
Whilst the sleep timer is set, set the desired playback time
(steps 4 - 6, page 21).
Sleep timer setting
Timer playback setting
5 minutes - 3 hours
(Maximum: 3 hours - Minimum: 5 minutes)
3:00
OFF
3
2:00
5
1:30
15
10
Sleep operation will
automatically stop.
1:00
30
Timer playback
start time
Your system will enter the power stand-by mode automatically after the preset time has elapsed.
The volume will turn down 40 seconds before the sleep operation finishes.
22
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Troubleshooting chart
! Tuner
Symptom
" The radio makes unusual
noises continuously.
! General
Symptom
Possible cause
" The clock is not set to the " Did a power failure occur? Reset
correct time.
the clock. (Refer to page 9.)
" When a button is pressed, " Set the unit to the power standthe unit does not respond.
by mode and then turn it back on.
" No sound is heard.
! Cassette deck
" If the unit still malfunctions, reset
it. (Refer to page 24.)
Symptom
" Cannot record.
" Is the volume level set to "0"?
" Are the headphones connected?
" Cannot record tracks with " Is it a normal tape? (You cannot
proper sound quality.
record on a metal or CrO tape.)
" Are the speaker wires disconnected?
! CD player
Symptom
Possible cause
" Is the unit placed near the TV or
computer?
" Is the FM/AM loop aerial placed
properly? Move the aerial away
from the AC power lead if located
nearby.
Possible cause
" Playback does not start.
" Is the disc loaded upside down?
" Playback stops in the mid- " Does the disc satisfy the standle or is not performed
dards?
properly.
" Is the disc distorted or
scratched?
" Playback sounds are
" Is the unit located near excessive
skipped, or stopped in the
vibrations?
middle of a track.
" Is the disc very dirty?
Possible cause
" Is the erase-prevention tab removed?
" Cannot erase completely.
" Sound skipping.
" Is there slack in the tape?
" Is the tape stretched?
" Cannot hear treble.
" Are the capstans, pinch rollers,
or heads dirty?
" Sound fluctuation.
References
Many potential problems can be resolved by the owner without calling a service technician.
If something is wrong with this product, check the following before
calling your authorised SHARP dealer or service centre.
XL-MP10H
! Remote control
Symptom
Possible cause
" The remote control does
not operate.
" Is the AC power lead of the unit
plugged in?
" Is the battery polarity correct?
" Are the batteries dead?
" Is the distance or angle incorrect?
" Has condensation formed inside
the unit?
" Does the remote control sensor
receive strong light?
23
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
8
Maintenance
XL-MP10H
! If trouble occurs
! Cleaning the CD pickup lens
When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is operated incorrectly, it may
malfunction.
Do not touch the laser pickup lens. If fingerprints or dust accumulate on the pickup,
clean it gently with a dry cotton swab.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
References
Note:
If neither operation above restores the unit, clear all the memory by
resetting it.
! Clearing all the memory (reset)
1
2
Press the ON/STAND-BY button to enter the power stand-by
mode.
Whilst pressing down the MEMORY/SET button and the CLEAR
button, press the ON/STAND-BY button until "CL" appears.
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD programme.
! Condensation
Sudden temperature changes, storage or operation in an extremely
humid environment may cause condensation inside the cabinet (CD
pickup, tape heads, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on with no disc (or cassette) in the unit until normal
playback is possible (about 1 hour). Wipe off any condensation on
the transmitter with a soft cloth before operating the unit.
! Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap
solution, then with a dry cloth.
Caution:
" Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
" Do not apply oil to the inside of the unit. It may cause malfunctions.
! Cleaning the tape-handling parts
" Dirty heads, capstan or pinch roller can cause poor sound and
tape jams. Clean these parts with a cotton swab moistened with
commercial head/pinch roller cleaner or isopropyl alcohol.
" When cleaning the heads, pinch roller, etc., unplug the unit which
contains high voltages.
Erase head
Recording/
C
A
B
D
Playback head
Capstan
Pinch roller
" After long use, the deck's heads and capstan may become
magnetised, causing poor sound. Demagnetise these parts once
every 30 hours of playing/recording time by using a commercial
tape head demagnetiser. Read the demagnetiser's instructions
carefully before use.
24
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
Specifications
! General
Power source
Power
consumption
Dimensions
Weight
AC 230 - 240 V, 50 Hz
Power on: 25 W
Power stand-by: 0.9 W
Width: 160 mm
Height: 242 mm
Depth: 250 mm
2.3 kg
! Amplifier
Output power
Output terminals
RMS: 10 W (5 W + 5 W) (10 % T.H.D.)
Speakers: 4 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
! Tuner
Frequency range
FM: 87.5 - 108.0 MHz
AM: 522 - 1,620 kHz
! CD player
Type
Signal readout
Compact disc player
Non-contact, 3-beam semiconductor laser
pickup
1-bit D/A converter
20 - 20,000 Hz
D/A converter
Frequency
response
Dynamic range
90 dB (1 kHz)
! Cassette deck
Frequency
response
Signal/noise ratio
Wow and flutter
125 - 8,000 Hz (normal tape)
50 dB (recording/playback)
0.3 % (WRMS)
! Speaker
Type
Maximum input
power
Rated input power
Impedance
Dimensions
Weight
10 cm full-range speaker
10 W
References
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
XL-MP10H
5W
4 ohms
Width: 130 mm
Height: 240 mm
Depth: 161 mm
1.4 kg/each
25
04/10/21
XL-MP10H(A)E2.fm
TINSEA036SJZZ
8
MEMO
04/10/27
XL-MP10H(A)_MEMO.fm
TINSEA036SJZZ
FOR LOCATION ENQUIRIES WITHIN
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
NEW ZEALAND
REGARDING YOUR LOCAL
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
VISIT OUR WEBSITE AT
www.sharp.net.au
www.sharp.net.nz
OR CALL SHARP CUSTOMER CARE
CONTACT YOUR SELLING DEALER/RETAILER
OR CALL
1300 135 022
SHARP CUSTOMER SERVICES
TELEPHONE: 09 573 0111
FACSIMILE: 09 573 0113
(LOCAL CALL COST APPLY WITHIN AUSTRALIA)
SHARP CORPORATION OF AUSTRALIA PTY LTD
SHARP CORPORATION OF NEW ZEALAND LIMITED
SPform019(JUNE 2004)
04/10/27
XL-MP10H(A)_WA.fm
0410B
TINSEA036SJZZ
WARRANTY
Consumer Electronic Products
Congratulations on Your Purchase!
This Sharp product is warranted against faults in materials and manufacture for a period of twelve(12) months from the
date of original purchase.
If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre.
These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not
attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused
by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin
infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim.
OF
N
IO D
AT ITE
R
O IM ive
RP D L Dr
CO LAN ston d
P A n n
AR ZE Joh kla
SH EW go Auc
N Hu se,
F
O
59 enro
P
ON D
TI ITE
A
IM
OR . L 5
P
Y
R T 40
8
CO P 9 ive 4
P LIA 03 Dr 21
AR TRA 003 ood SW
H
N
S US 40 gw d
A BN ntin oo
A Hu ingw
1 unt
H
IMPORTANT
DO NOT RETURN THIS DOCUMENT TO SHARP
Date of Purchase
Retailer
SP
fo
rm
01
4
Model No.
Serial No.
(J
U
N
E
For your reference, please enter the particulars of your purchase below and retain,
with your purchase documentation.
20
04
)
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and
remedies under any relevant legislation in the country of sale.
IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand
0410A
TINSEA036SJZZ
04L N HK 1
SHARP CORPORATION
0401_A5
04/10/13
XL-MP10H(A)_BACK.fm
TINSEA036SJZZ
Download PDF
