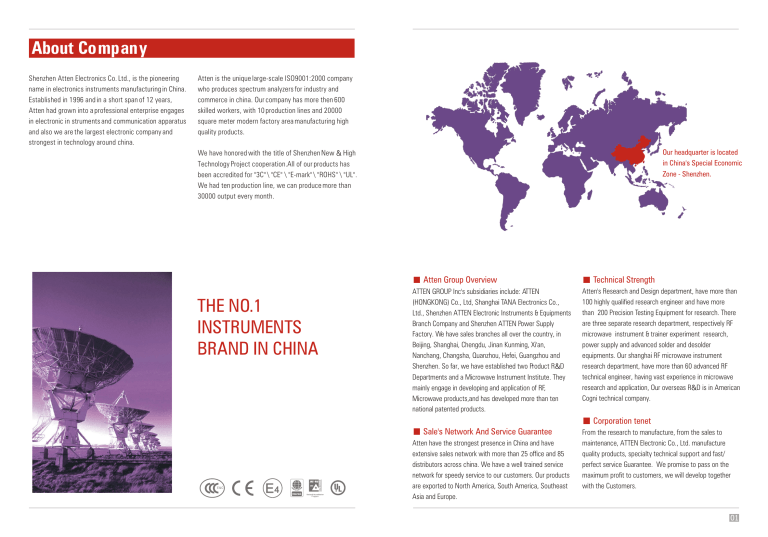

About Company
Shenzhen Atten Electronics Co. Ltd., is the pioneering
name in electronics instruments manufacturing in China.
Established in 1996 and in a short span of 12 years,
Atten had grown into a professional enterprise engages
in electronic in struments and communication apparatus
and also we are the largest electronic company and
strongest in technology around china.
Atten is the unique large-scale ISO9001:2000 company
who produces spectrum analyzers for industry and
commerce in china. Our company has more then 600
skilled workers, with 10 production lines and 20000
square meter modern factory area manufacturing high
quality products.
Our headquarter is located
in China's Special Economic
Zone - Shenzhen.
We have honored with the title of Shenzhen New High
Technology Project cooperation.All of our products has
been accredited for "3C" \ "CE" \ "E-mark" \ "ROHS" \ "UL".
We had ten production line, we can produce more than
30000 output every month.
Atten Group Overview
THE NO.1
INSTRUMENTS
BRAND IN CHINA
ATTEN GROUP Inc's subsidiaries include: ATTEN
(HONGKONG) Co., Ltd, Shanghai TANA Electronics Co.,
Ltd., Shenzhen ATTEN Electronic Instruments & Equipments
Branch Company and Shenzhen ATTEN Power Supply
Factory. We have sales branches all over the country, in
Beijing, Shanghai, Chengdu, Jinan Kunming, Xi'an,
Nanchang, Changsha, Quanzhou, Hefei, Guangzhou and
Shenzhen. So far, we have established two Product R D
Departments and a Microwave Instrument Institute. They
mainly engage in developing and application of RF,
Microwave products,and has developed more than ten
national patented products.
Technical Strength
Atten's Research and Design department, have more than
100 highly qualified research engineer and have more
than 200 Precision Testing Equipment for research. There
are three separate research department, respectively RF
microwave instrument & trainer experiment research,
power supply and advanced solder and desolder
equipments. Our shanghai RF microwave instrument
research department, have more than 60 advanced RF
technical engineer, having vast experience in microwave
research and application, Our overseas R D is in American
Cogni technical company.
Corporation tenet
Sale's Network And Service Guarantee
Atten have the strongest presence in China and have
extensive sales network with more than 25 office and 85
distributors across china. We have a well trained service
network for speedy service to our customers. Our products
are exported to North America, South America, Southeast
Asia and Europe.
From the research to manufacture, from the sales to
maintenance, ATTEN Electronic Co., Ltd. manufacture
quality products, specialty technical support and fast/
perfect service Guarantee. We promise to pass on the
maximum profit to customers, we will develop together
with the Customers.
01
Contents
Power Supply
RF Instruments
NEW
Spectrum Analyzer
04
Programmable Power Supply
31
AT6000D Series
AT6000 Series
AT5000 Series
Return Loss Bridge , Impedance Transformer
05
08
09
Regulated DC Power Supply
33
Frequency Counter , Frequency Expander
11
AZ530 Series Probes
12
NEW
APS3003S/APS3005S, APS3003S-3D/APS3005S-3D
NEW
TPR3003T-3C / TPR3005T-3C, TPR3003T / TPR3005T
10
Digital Oscilloscope
14
ADS1000 Series
ADS2000 Series
14
17
Analog Oscilloscope
20
AT7328 , AT7340 , AT7328S , AT7340S
20
Vector Network Analyzer
21
Signal Generator
23
PVR3003B / PVR3005B
Switching Power Supply
KPS-150 / KPS-300 / KPS-600 / KPS-900
KPS3030DA / KPS3050DA ,KPS2054
Soldering / Rework Tools
Advanced Soldering Station
38
NEW
AT60D , AT80D , AT100D
NEW
AT306DH
AT306H
AT969D
AT969A
AT201D / AT204D
38
39
40
41
42
43
NEW
NEW
NEW
Educational Training Kits
AT3000 Waveguide Training System
25
AT3030/AT3020 RF Training System Kit
27
AT3200 Antenna Training System
NEW
AT437C Power Meter
29
36
Hot Air Rework Station
NEW
AT860D
AT850D , AT850B , AT8502 , AT8305
44
45
30
RF Microwave Components
02
ATS Series Attenuator
48
VCO / YTO , Programmable Attenuator
49
03
RF Instruments
ATTEN RF Microwave instrument series, The R D centre of
ATTEN Group, is developed on the basis of Shanghai Radio
26th factory. The RF & Microwave institute has more than 60
senior experts in RF technology which is established in
Shanghai, and all of them have more than 40 years experience
in RF Microwave technology, and they take charge of the
research and applications for the RF & Microwave technology,
and get several great achievements.
Spectrum Analyzer
Now we have products such as spectrum analyzers, RF
signal generator,oscilloscope, frequency meter, attenuators
and so on. We have different customers in different area.
Such as Zhejiang university, Nanjing university of Posts &
Telecommunications, Beijing university of Posts And
Telecommunications, ZTE, FOXCONN, and so on.
AT6000D Series (AT6060D / AT6030D)
Spectrum Analyzer
AT spectrum analyzer can carry out good inspection to the
faults of cable system and wireless system including remote
control, cordless phone, cable TV and communication
equipment, as well as good comparison and analysis to
frequency of signals.
AT5010 spectrum analyzer can test mobile phone, RF
circuits, for example, control signal of logic circuit,baseband
signal, local oscillator signal of RF circuit, IF signal and
transmission signal, It is very quick and accurate to use
AT5010 spectrum analyzer to overhaul the fault of mobile
phone which can not enter the network, and determine the
fault point.
AT6060D: 6GHz
AT6030D: 3GHz
Specifications
Electromagnetic Compatible (EMC) Testing:
GPIB(option), RS-232C(option), Printer (supports nearly all types of Printer)
REFin, REFout functions
measure the function of harmful electromagnetic wave to be
transmitted by various electronice quipments. In addition, it
can output AM/FM demodulation signal from socket PHONE,
identify the broadcast signal affected by noise.From
authorization aspect,it is very effective measurement function
for the evaluation and research in advance to carry out the
measurement of radioactive noise.
Widely used for production, development, education and
scientific research. True form of signal (such as RF-pulse
signal) can be observed from ATTEN spectrum analyzer clearly,
where figures are expanded by Fourier series, good for
apprehend in education and research.
The RF & Microwave research department for cuses on:
As RF & microwave tech. Popularizer,
we will give you good solution for your problems.
04
Large capacity internal memory for storing measured data
Stores measured data up to 900 events
Stores Setup data up to 3,000 events
USB Host Port
Supports USB Printer
Stores data and applied Image file(GIF) into USB Flash memory
Ethernet Port and Software(option) for Internet remote control
Measures wide frequency : 9 kHz ~ 3.0 Ghz(6.0Ghz)
Superior Resolution : Minimum 1 Hz
Wide Input Dynamic Range : -130 dBm ~ 20 dBm
Easy and simple Key Buttons
CDMA measurement functions :ACPR, ACLR, OBW, Channel Power
Resolution Bandwith(RBW) :1 kHz ~ 3 MHz(1-3 Step), 9 kHz, 120 kHz
Simple usage and convenience 8 Markers, Trace function, Trigger function
Supports various types of convenient interface
05
Technical Specifications
High definition color TFT LCD
Frequency
High definition color 640x480 TFT LCD enables high precision
measurement and natural data display.
Range : 9kHz to 3.0GHz(6.0GHz)
Resolution: Minimum 1Hz
Span Range: 100 Hz/div to 300 MHz/div Selection of 1, 2, 5
steps(automatic),ZERO Span, FULL Span
(9KHz to 3.0GHz)
Frequency Selection: Start, Stop, Center, Span setup
Span Accuracy: 3% of the Indicated Span Width
Readout Accuracy:
(Indicated frequency Reference
frequency accuracy Span Span
accuracy 50% of RBW)
Phase Noise :
100dBc/Hz (@ 10kHz offset)
Simple and easy to use KEY
Keys are allocated for user's conveniences so that users
can be easily familiar with them. And they provide
various functions.
USB Interface
Can store measured data into the USB Memory through its
built-in USB Host that supports USB 1.1 and 2.0(GIF Format)
Can convert measured data to MS Excel as it also
supports the CSV file format.
Supports nearly all types of printers such as Centronics
printer and USB Interface printer
Firmware can be upgraded through USB
Large Internal Memory Space
Waveform : stores maximum 900 waveforms
State : stores maximum 3,000 states Easily stores/calls
waveforms and states of the equipment based on various
types of application and usage
CDMA Measurement
Channel Power(CHP) Measurement
The PSA-6000 model provides power measurement
functions for mobile communication and simple menus.
Measured values are automatically displayed at the bottem
of trace.
OBW Measurement
Measures the Occupied Bandwidth(OBW) of modulation
signal in the unit of %.
ACP Measurement
Measures the Influence of transmitted power on the
Adjacent Channel, or the ratio of power to the Adjacent
Channel throughout the mobile communication system
using multi-channel.
06
Amplitude
Range : +20 dBm ~ -105 dBm,
+20 dBm ~ -130 dBm(Pre Amp ON)
Average Noise Level (1kHz RBW, 10Hz VBW) :
105 dBm150 kHz ~ 2.7 GHz
127 dBm(Pre Amp On) 20 MHz ~ 2.7 GHz
100 dBm, -123 dBm(Pre Amp On) 2.7 GHz ~ 3 GHz
130dBm(Pre Amp On) ; Typically
Amplitude Unit : dBm, dBmV, dB V, V, mV, V, W, mW, uW
Display Scale linearity:
1.5 dB/70 dB (10dB/div),
1.5dB/40dB (5dB/div)
0.5 dB/8 dB (1dB/div),
0.5dB/16dB (2dB/div)
Frequency Response (0 dB attenuation) :
3.5 ~ 1.5 dB (100kHz ~ 10MHz)
1.5 dB (10MHz ~ 3GHz)
Reference Level
Range : -90 dBm to +20 dBm
Resolution : 0.1 dB steps
Accuracy : 1.5 dB
Second Harmonic Distortion :
60 dBc, -40 dBm input
Intermodulation Distortion :
70 dBc, -40 dBm input
Residual Spurious :
85 dBm (Input terminated,
0 dB attenuation)
Other Input Spurious :
60 dBc, -30 dBm input
Resolution Bandwidth
Selections : 1kHz, 3kHz, 10kHz, 30kHz, 100kHz, 300kHz,
1MHz, 3MHz, 9kHz, 120kHz
Accuracy :
20%
Selectivity : 60 dB / 3 dB ratio < 15 : 1
60 dB / 6 dB ratio < 12 : 1 (9 kHz, 120 kHz)
Switching Error :
1.0 dB (1kHz Reference RBW)
Video Bandwidth : 10 Hz to 3 MHz in 1-3-10 steps
Sweep
Rate: 100 ms to 1000 sec,40ms to 1000sec(zero span)
Accuracy :
20%
Trigger Source : External(rear), Video, Free Run, Line
Trigger Modes : continuous, single
Trigger Level : TTL level
Storage
Trace Storage : maximum 900 waveforms
Setup Storage : maximum 3,000 states
Screen Display
USB Storage Device : Supports 1.1 and 2.0, for storing
image file, supports GIF format
Ethernet(Option) : 10-Base-T Ethernet,
Supports internet remote control
GPIB Interface(Option) : IEEE488 bus
General Specifications
System size : 350(W) X 195(H) X 370(D)mm
System weight : 10kg
Input Voltage : 100~240 VAC at 50/60Hz
Operating Temperature : 0 to 40
storage temperature: -20 to 70
RF emissions : EN 55011, FCC PART15 Section 15.101
RF Immunity : EN 61326
Accessories
Type : 6.4" color TFT LCD
Display Resolution : 640(H) x 480(V) active display area
Marker Modes : Peak search, Delta marker, Marker to
Center, Marker to Reference (8 markers maximum)
Power Cord
Operating Manual
Antenna
SMA cable
BNC cable
Input
Options
RF Input Connector : N-type Female, 50 ohm nominal
VSWR : 150 kHz to 3.0 GHz,
VSWR <1.5 : 1 (with 0 dBm Reference Level)
Maximum input level : 0 Vdc, +20 dBm
TRACKING GENERATOR
CDMA(CDMA2000, WCDMA) SIGNAL GENERATOR
GPIB Interface(IEEE 488 Bus)
ETHERNET Interface , for Internet Remote Control
SOFT CARRYING CASE
General KIT SET
RETURN LOSS BRIDGE KIT SET
Standard Frequency(10MHZ, REF.)
Temperature Stability :
0.5 ppm
Aging :
0.5 ppm / Year
Connector : BNC female
Input Level : -5 dBm to +15 dBm
Output Level : 10 MHz, +8 dBm nominal
Interface
RS-232C
Printer
Driver : PCL Command, HP, EPSON,
SAMSUNG,CANON Laser-Jet, Desk-Jet.
Connector : for standard 25 pin female D-Sub
parallel printer, supports USB
USB HostPrinter Driver :
PCL Command, HP, EPSON,SAMSUNG CANON
Laser-Jet, Desk-Jet
07
Spectrum Analyzer
Spectrum Analyzer
AT6000 Series (AT6011 / AT6010)
AT5000 Series (AT5011+ / AT5010+),(AT5006 / AT5005)
AT6011 Specifications
At6011 Spectrum Analyzer is a low cost, high performance
digital synthesized RF measurement instrument with Tracking
Generator and frequency upto 1GHz. It uses VCO phase locked
technique. It is rugged and easy to control operating panel.
It's the most stable Spectrum Analyzer you can find with
good noise floor performance.
AT6011 With Tracking Generator
Output : N connector
Output Impedance: 50ohm
Frequency range : 0.15MHz~1050MHz
Output level range : -50dBm~+0dBm
(in 10dB steps and vary)
Frequency response: 2dB
Output attenuator : 0~40dBm (4*10dB)
Output attenuator accuracy: 2dB RF interfere : >20dBc
08
AT6010 Specifications
Frequency range: 0.15 to 1050MHz
CF adjust range: 0~1050MHz
Resolution of frequency display: 10kHz
RBW: 400kHz and 20kHz
Video filter bandwidth: 4kHz
Average noise level: -90dBm (20kHz Bandwidth)
Amplitude range: -100dBm to +13dBm
Sweep rate: 40Hz
Reference level: -27dBm to +13dBm
Frequency generator: TCXO DDS
Input attenuator accuracy: 2dB/10dB
Signal input connector: N type
Stability: 10ppm/year
Aging: 2ppm/year
Accuracy: 10kHz
Display: CRT 8x10 Div
Third order intermod:
-90dBc (two signals>3MHz apart)
Scan width: 100kHz/div~100MHz/div,
1-2-5 steps and 0 step
Log scale fidelity: 2dB (CF: 500MHz 10dBm attn
zero scan RBW: 400kHz) 500MHz
+
+
AT5011 / AT5010 Specifications
AT5010+ /AT 5011+ is the perfect instrument for analyzing
any kind of signal within the frequency range of 0.15 to
1050 MHz, and is best suited for meeting the RF measurement
needs of education and industry.
Frequency range: 0.15 to 1050MHz
Center frequency display accuracy: 100kHz
Marker accuracy: 0.1% span +100kHz
Resolution of frequency display: 100kHz (4.5 digit LED)
Frequency scanwidth accuracy: 10%
Frequency stability: better than 150kHz/hour
IF Bandwidth (-3dB): 400kHz and 20kHz;
Video-Filter (ON): 4kHz
Sweep rate: 43Hz
Amplitude range: -100dBm to +13dBm
Screen display range: 80dB (10dB/div.)
Reference level: -27dBm to +13dBm (in 10dB steps)
Reference level accuracy: 2dB
Average noise level: -90dBm (20kHz Bandwidth)
Distortion: <-50dBc of 2nd and 3rd harmonic
Third order intermod.: -60dBc (two signals>3MHz apart)
Sensitivity: Better than -90dBm
Log scale fidelity: 2dB (without attn.) 500MHz
Input attenuator: 0 to 40dB (4x10dB steps)
Input attenuator accuracy: 2dB/10dB
Max. input level: +10dBm, 25V DC (0dB attn.)
+20dBm (40dB attn.)
Frequency scanwidth: 100kHz/div. To 100MHz/div,
in 1-2-5 steps and 0Hz/div.
(Zero Scan)
AT5006 / AT5005 Specifications
AT5005/AT5006 is the perfect instrument for analyzing any
kind of signal within the frequency range of 0.15 to 500 MHz,
and is best suited for meeting the RF measurement needs of
education and industry.
Frequency Range : 150 KHz to 500 Mhz.
4 Digit Display : Centre & Marker.
Frequency, 0.1 MHz Resolution.
Amplitude Range : -100 dBm to +13 dBm.
Filters : 20 KHz, 250 KHz & Video Filter.
Built-in Tracking Generator : 0.15 MHz to 500 Mhz
(Model 8005TG only).
Output Power : +1 dBm to -50 dBm (50 ohms).
AT5006 Tracking Generator
Output Frequency Range: 150KHz to 500MHz.
Output Power Level: -50dBm to +1dBm
( in 10dB steps & Variable ).
Output Attenuator: 0 to 40 dB (4 x 10 dB steps).
Output Attenuator Accuracy: 1dB.
Output Flatness (150KHz to 500MHz): 1.5dB.
Spurious Outputs:
Harmonic Spurs & Non
harmonic Spurs( RFI ): <20dBc.
Output Impedance: 50 ohms (BNC female).
MISCELLANEOUS
AM/Demodulator : Earphones
09
Return Loss Bridge / Impedance Transformer
Frequency Counter / Frequency Expander
AT-TQQ-1 / AT-RLB-6031
AT-F1000C / F2700C, AT5000-F1 / F2 / F3
AT-TQQ-1 Specifications
AT-RLB-6031 Specifications
Frequency Counter Specifications
Frequency Range: 10MHz~1GHz
Frequency range: 15MHz~3GHz
characteristic impedance: 50
Directional: 29dB
Insertion loss: (Source-Load) 7 dB
Insertion loss: (Load-Mismatch connector) 8dB
Power: 1.5W
Connector type: N
Standing Wave(Source): 15 dB
Standing Wave(Reflection): 7 dB
Standing wave(Load): 15 dB
Features
Characteristic Impedance: 50
Directivity:
29dB
Insertion Loss (Nominal): 6.5dB (From "Input" to"Output" )
Connector Type: "Input": L16G~50K,
"Output": L16G~50K,
"Test": L16G~50K
Dimensions: 110(L)x70(W)x24(H)mm
Weight: approx. 230g
Impedance Transformer Specifications
Frequency Range: DC~1000MHz
VSWR: 1.20(BNC-50 -J), 1.35(BNC-75
Rated Power: 250mW
Connector: BNC~50J/BNC~75K
Dimensions: 22x80( x1, mm)
Weight: 105g
10
8-Digit LED display
Few switches, for easy operation
Quickness, high resolution
Gate time: 0.01S/0.1S/1S
Accuracy: 1Hz 1 Count Figure Time Base
Frequency Expander Specifications
Input Impedance: 50
Power Source: 220V 10 , 50~60Hz
Power Consumption: 5W
Dimension: 210(L)x207(W)x85(H)mm
Weight: approx. 2kg
AT5000-F1: 1050~2050MHz
Accuracy
Input sensitivity:
10Hz~8MHz: 75mV (Channel 1)
8MHz~10MHz:30mV(Channel 1)
10MHz~100MHz: 30mV (Channel 1)
F1000C 100MHz~1000MHz: 30mV (Channel 2)
F2700C 100MHz~2400MHz: 30mV (Channel 2)
2.4~2.7GHz: 30mV (Channel 2)
Input impedance: 1M at Channel 1, 50 at Channel 2
Max input voltage: 250Vrms Channel 1,5Vrms Channel 2
Max aging rate: 5ppm/year
Power input: AC 220V 10% (50/60Hz)
Power consumption: approx. 5W
Dimensions: 230(W)x210(H)x76(D)mm
Weight: 1.8kg
AT5000-F2: 2050~3050MHz
AT5000-F3: 3050~4050MHz
AT-F1000C: 10Hz to 1000MHz
-K)
AT-F2700C: 10Hz to 2700MHz
11
Magnetic Field Probes
Conducted Interference Test Interface
AZ530-E / AZ530-H / AZ530-M
AT166 Conducted Interference Test Interface
AZ530-M:0.1~1000MHz
AZ530-H :0.1~1000MHz
AZ530-E :0.1~1000MHz
Magnetic Field Probes
AZ 500 Series is the ideal toolkit for the investigation of RF
electromagnetic fields. It is indispensable for EMI precom
pliance testing during product development, prior to third
party testing.
The set includes 3 hand-held probes with a built-in
pre-amplifier covering the frequency range from 100kHz to
over 1000MHz.
The probes one magnetic field probe, one electric field probe,
and one high impedance probe are all matched to the 50W
inputs of spectrum analyzer or RF-receivers. The power can
be supplied either from batteries, Ni-Cads or through a power
cord directly connected to an SA3010/ SA3011 series
spectrum analyzer. Signal feed is via a 1.5 m BNC-cable.
When used in conjunction with a spectrum analyzer or a
measuring receiver, the probes can be used to locate and
qualify EMI sources, as well as evaluate EMC problems at
the breadboard and prototype level. They enable the user to
evaluate radiated fields and perform shield effectiveness
comparisons.
Mechanical screening performance and immunity test on
cables and components are easily performed.
12
Models
AZ530-H: High Impedance (Active FET Probe)
AZ530-M: Magnetic Field Probe
AZ530-E: Electric Field Probe
Frequency Range : 0.1MHz to 1000MHz (lower frequency
limit depends on probe type).
Output Impedance : 50 .
Output Connector : BNC - jack.
Input Capacitance : 2pF (High Impedance Probe).
Max. Input Level : +10dBm (without destruction).
1dB - Compression : -2dBm (frequency range Point dependent).
DC Input Voltage : 20V max.
Supply Voltage : 6V DC
4 AA size batteries
Supply-power of analyzer.
(Batteries or Ni-Cads are not included).
Supply Current : 8mA (M-Field Probe)
5mA (E-Field Probe)
24mA (H-High Impedance Probe).
Probe Dimensions : 40 (W) x 19 (D) x 195 (L) mm.
Housing : Plastic (electrically shielded internally).
Accessories : BNC Cable (1.5m) - 1 Number
Power Supply Cable - 1 Number
AT166 Conducted Interference
Test Interface Description
Electromagnetic compatibility (EMC) is the ability of
electronic and electrical equipment and systems to operate
without adversely affecting other electrical or electronic
equipment or being affected by other sources of interference
such as powerline transients RF signals, digital pulses,
lighting, or cosmic influences.
CCC, CE Certification Measurement
before Submission
(Best solution for pre-authentication)
Conduction Interference
Testing
Radiation Interference
Testing
AT5010 Spectrum Analyzer
Electromagnetic compatibility (EMC) is the ability of
electronic and electrical equipment and systems to without
adversely affecting other electrical or electronic operate
equipment or being affected by other sources of interference
such as powerline transients, RF signals, digital pulses,
lightning, or cosmic influences.
EMI causes undesirable effects in telecommunications,data
processing equipment, television, radios, automotive
electronics, avionics, space systems, medical devices,
and numerous other electronic devices.
AZ530-E Electric Probe
AT166 Conducted Interference
Test Interface
DUT Connecting
13
Digital Oscilloscope
The digital storage oscilloscope is unlike any other electronic
consumer product,as intended clients of digital storage
oscilloscopes are professional electronic engineers.
Therefore, ultra stability and top performance are much
more important than an attractive interface. Many years
of experience make the design of the ADS series attuned
to the most tactual and original needs of users. At the
roots of its design, the ADS series digital storage
oscilloscopes combine mature and steady hardware
configuration, high-powered digital signal processing
technology and functionality concepts with a mainstream
display interface and the operation panel.
In our design we did not attempt to match the specifications
and usability of other comparable products currently on the
market, but rather to exceed them in every respect, often
outperforming same level products internationally. The
ADS series, with its intuitive logical and convenient user
interface and attractive price is very affordable and well
received by customers worldwide.
The ADS series product matrix is comprehensive and is
designed to satisfy all customers' needs regardless of the
application.
Specifications
Dual channel-channel bandwidth: 25MHZ-100MHZ.
The real time sampling rate is 1GSa/s.
Memory depth of ADS1000CA is 2M.pts
Use Colored TFT LCD, the waveform display is clearer and stable.
Screen saver function: 1 minute to 5 hours
The volume exquisite and it is convenient for carrying.
Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes.
Unique Digital Filter function and Waveform recorder function
Pass/Fail function
Thirty two parameters Auto measure function.
Cursor measure covers Manual mode, Track mode and Auto mode.
Channel waveform and it is FFT waveform display on split screen.
Pop-up Menu display pattern is more convenient for users using it.
Multiple Language User Interface.
Support Multilingual online help system.
Digital Oscilloscope
ADS1000 Series
NEW
Model/Index
Bandwidth
Real Time Sampling
Equivalent Sampling Rate
Memory Depth
Rise Time
Input Impedance
Sec/div Range
XY Mode
Vertical Sensitivity
Model/Index
Bandwidth
Real Time Sampling
Equivalent Sampling Rate
Rise Time
Input Impedance
Sec/div Range
Display
14
ADS1042CA
40MHZ
ADS1022CA
25MHZ
1GSa/s 2ch
50GSa/s
Deep Save
Not Support
2Mpts
1Mpts
<14ns
Common Save
40kpts
20kpts
20kpts
<8.8ns
1M ||13pF
10ns/div-50s/div
25ns/div-50s/div
Roll: 100ms-50s/div
Phase Error: 3 degrees
Support the sampling rate : 5KSa/s 500MSa/s (in a 1-2-5 sequence)
2mv-10v/div(1-2-5 Sequence
ADS1042C
40MHZ
ADS1022C
25MHZ
500MSa/s
50GSa/s
<8.8ns
<14ns
1M ||13pF
10ns/div-50s/div
25ns/div-50s/div
Roll: 100ms-50s/div
Color TFT(320*234)5.7" LCD
15
Digital Oscilloscope
ADS2000 Series
Model/Index
The Common Specifications Of All ADS1000 Series Products
Display
Channels
Vertical Sensitivity
Vertical Resolution
Memory Depth
Waveform Capture Rate
Input coupling
Input Max voltage
Trigger Types
Trigger Modes
Trigger Source
Save/Recall
12 divides full screen display
2
2mv-5v/div(1-2-5 Sequence)
8bit
Each channel : at least 4k/CH
The highest capture rate exceed 1000 times/sec
DC, AC, GND
400V(Vpp)
Edge, Pulse, Video, Slope, Alternative, Delay
Auto, Normal, Single
CH1,CH2,Ext,Ext/5,AC Line
Auto Measure Types
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms,
Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period,
Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase,
FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Cousor measure
Sample Types
Averages
Math
Manual, Track, Auto
Real Time, Equivalent Time
4,16,32,64,128,256
+, ,*, / ,Invert
FFT Window: Hanning,Hanmming,Blackman,Rectangular
Sampling Points: 1024 points
Phase Error: 3 degrees
Support the sampling rate : 5KSa/s 200MSa/s (in a 1-2-5 sequence)
Main, Window, Window Zoom, Roll, X-Y
2Sec, 5Sec, 10Sec, 20Sec, Infinite
Simplified Chinese, Traditional Chinese, English, Arabic, French,
German, Russian, Spanish, Portuguese, Japanese, Korean
XY Mode
Display Model
Menu Display
Display Language
Power Source Voltage
Size and Weight
Accessories
Options
16
Provide two groups reference waveforms, twenty groups capture
waveforms and twenty groups setups internal save/recall function and
USB flash drive Save/Recall function
100-240VAC,47HZ-440HZ,50VA Max
305mm x 154mm x133mm, about2.3kg
(1:1,10:1)Problex2, EasyScope3.0 Computer Software System,
Power Cord, USB cable,User Manual, EasyDsoLib software package,
USB Host: Support USB flash drive storage
USB Device: Support PictBridge compatible printers and PC Remote control
GPIB Communication Module, Serial Interface Communication Module,
Pass/Fail Interface Module
25MHz~ 200MHz
Product Summary
The most powerful homemade digital oscilloscope at present, the perfect combo with top performance and powerful
function, which represent the highest level presently available in homemade digital storage oscilloscopes.
ADS2000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital
signal processing technology and functionality concepts with a mainstream display interface and the operation panel.
In our design we did not attempt to match the specifications and usability of other comparable products currently on the
market, but rather to exceed them in every respect, often outperforming same level products internationally.
The ADS2000 series, with it intuitive logical and convenient user interface and attractive price is very affordable.
ADS2000 series is attuned to the most tactual and original needs of users who consider ultra stability and top
performance are much more important than an attractive interface
17
Specifications
The highest real time sampling rate is 1GSa/s(500MSa/s), equivalent time sampling rate is 50GSa/s
Dual channel bandwidth: 25MHz-200MHz.
USB Host/Device, support USB flash device storage and EasyScope2.0 software system
Support PictBridge compatible printers
Thirty two parameters can be displayed in the menu area.
All measure function displays waveform parameters on the screen area according to measure kinds
Cousor measure covers manual mode, track mode and auto mode
Support two groups reference waveforms, twenty groups captured waveforms and twenty groups setups
internal Storage/Recall function and USB flash drive storage function
Digital Filter function
Pass/Fail function
Waveform recorder function
Support Multilingual online help
The highest successive waveform capture rate exceed 1000 times/sec
Vertical Sensitivity: 2mV-5V/div; Time base range: 2.5ns-50s/div
FFT function
Model / Index
Bandwidth
Real time sampling
Display
Rise time
Input impedance
Sec/div Range
Model / Index
Bandwidth
Real time sampling
Display
Rise time
Input impedance
Sec/div Range
18
ADS2202CA/SA
ADS2152CA/SA
ADS2102CA/SA
200MHz
150MHz
100MHz
The highest sampling rate of each channel is 1GSa/s
Color (320*240) 5.7" LCD / Monochrome (320*240) 5.7" LCD
<1.8ns
<3.5ns
<2.3ns
1M| |13Pf 50
1M| |13Pf 50
1M ||13Pf
2.5nS/div-50S/div
2.5nS/div-50S/div
2.5nS/div-50S/div
Roll: 100mS/DIV ~ 50S/DIV (in 1-2-5 sequence)
ADS2202C/S
200MHz
ADS2102C/S
ADS2062C/S
ADS2042C
ADS2152C/S
150MHz
100MHz
60MHz
40MHz
The highest sampling rate of each channel is 500MSa/s
Color (320*240) 5.7" LCD / Monochrome (320*240) 5.7" LCD
<2.3ns
<3.5ns
<5.8ns
<1.8ns
<8.8ns
1M| |13Pf 50
1M ||13Pf
2.5nS/div
2.5nS/div
2.5nS/div
5nS/div
10nS/div
~50S/div
~50S/div
~50S/div
~50S/div
~50S/div
Roll: 100mS/DIV ~ 50S/DIV (in 1-2-5 sequence)
Model / Index
The Common Specifications
Channels
Vertical Sensitivity
Vertical Resolution
Equivalent Sampling Rate
Memory Depth
Waveform Capture Rate
Save/Recall
2
2mV 5V/div(1-2-5 Sequence )
8 bit
The highest sampling rate of each channel is 50GSa/s
Each channel : at least 4k/ CH
The highest capture rate exceed 1000 times/sec
Provide two groups ref waveforms, twenty groups capture waveforms and twenty groups
setups internal save/recall function and USB flash drive Save/Recall function
MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y
Edge trigger, Pulse trigger, Video trigger
Auto, Normal, Single
+, -, * , /,Invert
Window: Hanning, Hamming, Blackman, Rectangular
FFT
Sampling points: 1024points
Display Model
Trigger Types
Trigger Modes
Math Operation
Auto Measure Types
ADS2062CA/SA
60MHz
<5.8ns
1M ||13Pf
5nS/div~50S/div
Cursor Measure
Sample Types
Averages
Display language
XY Mode
Input Voltage
Size and Weight
Accessories
ADS2022C
25MHz
Options
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot,
RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty,
Bwid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Manual mode, Track mode, Auto mode
Real time , Equivalent time
4, 16, 32, 64, 128, 256
Manifold languages
Phase Error: 3 degrees
Support the sampling rate: 5KSa/s 200MSa/s (in a 1-2-5 sequence)
100 240 VAC, 47Hz 440Hz,50VA Max
300mm x 150mm x 290mm, about4.6kg
(1:1,10:1)Problex2, EasyScope Computer Software System, Power Cord, User Manual
USB Host: Support USB flash drive storage
USB Device: Support PictBridge compatible printers and PC Remote control
GPIB Communication Module, Serial Interface Communication Module,
Pass/Fail Interface Module
<14ns
25nS/div
~50S/div
19
Analog Oscilloscope
Vector Network Analyzer
AT7328 / AT7340 / AT7328S / AT7340S
ATN3021/ATN3022
AT7340S / AT7328S Specifications
Band width: DC 0~40MHz / DC 0~20MHz Dual channel,
import oscilloscope tube,code switch, it is CRT readout,
and you can read out the frequency value directly.
Rise time: app. 9.5nS/17.5nS (5MAG: app. 50nS)
Vertical sensitivity: 5mV~20V/DIV,
20 steps in 1-2-5 sequence Accuracy 3%
Trigger mode: auto, normal, TV, TV-H
Sweep time: 0.2 sec~0.5Sec/DIV,
20 steps in 1-2-5 sequence
Horizontal sweep MAG: x10
Vertical mode: CH1/CH2/DUAL/ADD
Deflection coefficient: 5mV~5VDIV: 0.5DIV,
1mV~2mV/DIV 2DIV
AT7340 / AT7328 Specifications
TEST METHOD:
Band width: DC 0~40MHz / DC 0~20MHz
Rise time: app. 9.5nS/ app. 17.5nS
Vertical sensitivity: 5mV~5V/DIV, 20 steps in 1-2-5
sequence Accuracy 3%
Trigger mode: auto, normal, TV, TV-H
Sweep time: 0.2 sec~0.5Sec/DIV,
20 steps in 1-2-5 Sequence
Horizontal sweep MAG: x10
Vertical mode: CH1/CH2/DUAL/ADD
Deflection coefficient: 5mV~5VDIV: 0.5DIV
Can do the full-span scan, List scan and Point-frequency scan.
TEST FUNCTION:
Can test the Transmission parameter (the amplitudefrequency characteristic, insertion loss, phase, the gain of
amplifier, the gain of antenna,group delay, option for the
antenna orientation chart measurement) and Reflection
testing (test standing wave, return loss, impendence,
reflection phase, electric length,display the smith circuital
chart function,opt permittivity & testing function),timedomain fault orientation function.
TEST FORMAT:
Display as the logarithm amplitude and the amplitude phase
at the same time. Reflection testing displays the logarithm
display,standing wave ratio display, the Smith circular
chart display.
DISPLAY OUTPUT: 5"CRT kinescope display.
RECORD DEVICE: Printer or U disc.
20
Using Range And Relevant Capability
Suitable for radio, television, telecommunications, radar
etc.feedback system's testing and higher education
college's RF microwave teaching experiment.
After selection can test the 50 ,75 ,100
Optional time-domain fault orientation function can check
the fault location of coaxial cable in the feedback system.
Testing range is: 0-1200m, orientation true. The resolution
is about 3mm when the length about 10m, the
resolution is 1cm when the length about 30m.
Match the relevant testing accessory (impedance
transformer, difference bridge etc) can test the transmission
line's characteristicimpedance, insertion loss, time-lapse,
phase shift etc. Specifications of the coaxial cable, wisted
pair, coaxial connector and transmission line. It can also be
used to detect the therefore cable's leakage and shield
capability.
Relevant probe, can test the permittivity constant of the
relevant liquid, plane solid and powder etc.
21
Signal Generator
Item No.
Signal source
Display
The
characteristic
of
Measurement
Frequency span
ATN3021
30~3200MHz
Frequency accuracy
10-5
Resolution of Frequency
0.025MHz
The Resolution of Insertion-loss
The indeterminacy of 0.01dB/div is 4% of 0.2dB
The resolution of reflection
The indeterminacy of 0.002 is 0.01(the surplus standing wave is 1.02)
The resolution of phase
0.1
Frequency range
30-3200MHz
The bate of the mixed wave
40dB
Group delay
1ns-40
Time-domain fault orientation
0~1200 m divided 9 degree
Test Antenna orientation chart(option)1
Dynamic range
Port Characteristic
Others
ATN3022
,the indeterminacy is about 5
AT8010D Standard Signal Generator
dB in 50dB
/div
s
one record (totally 361 dot)
Insertion loss
80dB
Return loss
50dB
Gain
-20-30dB
Reflection bridge direction
35dB
Load return loss
40dB
AT8010D Standard Signal Generator
N type dual channel
Testing port
N type single channel
Dimension
430(width)*133(height)*450(length)
Weight
13kg
Standard accessory
50
Optional accessory
75 N testing kit, SMA testing kit,
TV frequency modulation anti-interfere special bridge
N kit
Frequency range: 5KHz-1100MHz
Cover full range of VHF
100 groups setting storage permanence
Compact design
Converse protection
Fit for: TV-SET,FM/AM radio,wireless phone,communications
equipment,car stereo, and radio and so on.
Specifications
50
N Kit
50
SMA Kit
75
N Kit
(30~3200MHz/30~6000MHz)
(30~3200MHz/30~6000MHz)
(5~2500MHz)
Reflection bridge (1 pcs)
10dB attenuator(SWR=1.4) (2pcs)
Matched load (1pcs five head)
Protection connector (1pcs)
Matched load (1pcs K head)
Circuit opener JK (each 1 pcs)
Unmatched load(1pcs)
Circuit-shorter JK (each 1pcs)
Reflection bridge (1 pcs)
10dB attenuator(SWR=1.4) (1pcs)
Matched load J head (1pcs)
Protection connector (1pcs)
Matched load K head (1pcs)
Circuit opener JK (each 1 pcs)
Unmatched load(1pcs)
Circuit-shorter JK (each 1pcs)
Reflection bridge (1pcs)
Impedance transformer (50 -75 1pcs)
Matched load J head (1pcs)
Protection connector (1pcs)
Matched load K head (1pcs)
Circuit opener JK (each 1 pcs)
Unmatched(1.4) load(1pcs)
Circuit-shorter JK (each 1pcs)
Dual male (1pcs) / Dual female(1pcs)
22
Frequency
Range: 5KHz-1100MHz
Display: LCD.16 Digit. 2 Rows
Resolution: 5KHz-499.9MHz:1KHz,1.25KHz
Accuracy: 500Mhz-1100MHz:2.5KHz 1.0 x 10(-6)
Output level
Range: 14dB V-126dB VEMF at 100MHz
Display:LCD.16Digit.2 Rows
Resolution:0.1dB
Accuracy: 1.5dB(100.0dB V-126dB V)
2dB(-14dB V-100dB V)
Output Impedance:50
Modulation
Inner Modulation: 1KHz or 400Hz 2%
Outer modulation
Input Impedance: 100K
Input Level: 0-2Vrms
Frequency Range: FM:20Hz-100KHz AM:20Hz-10KHz
Frequency Response: 1dB ref,1KHz
FM
Range: 0.0-100KHz
Resolution: 0.1KHz
Accuracy: 3%
AM
Range: 0.0-99.9%
Resolution: 0.1%
Accuracy: 5%
Others
Input Power: AC110/220V 10% 50/60Hz
Volume: 134(H)*300(W)*330(D)
Weight: About 8.5Kg
23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
