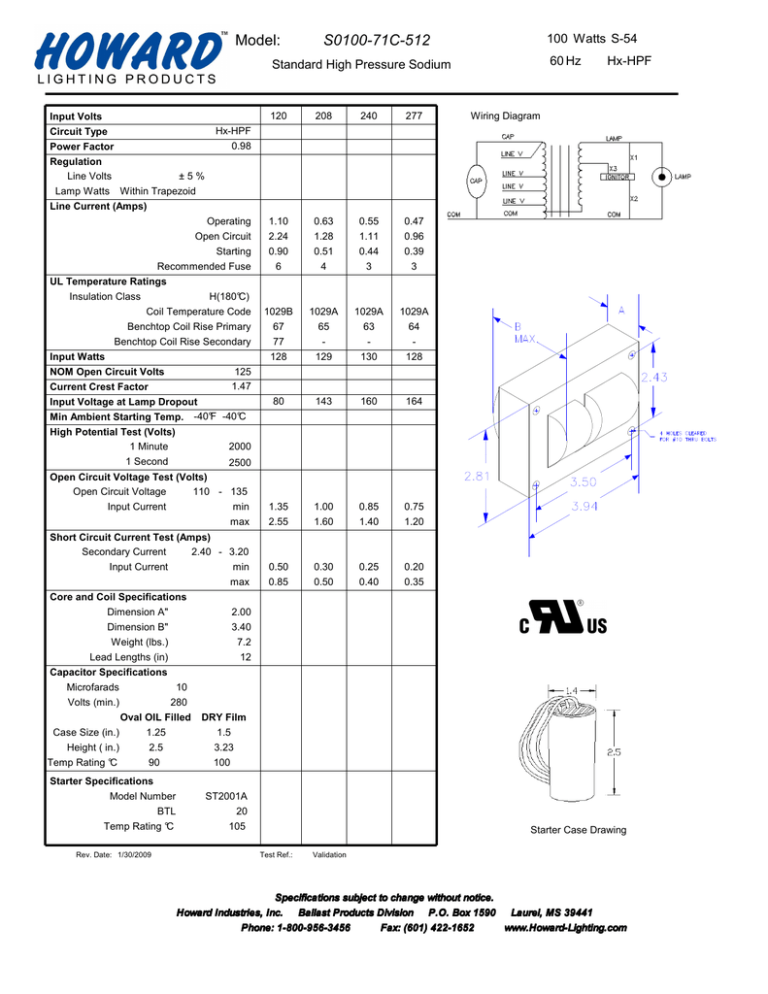

S0100-71C-512 Model: S-54 100

S0100-71C-512 Model: S-54 100
Model:
100 Watts S-54
S0100-71C-512
60 Hz
Standard High Pressure Sodium
Input Volts
120
208
240
277
Hx-HPF
Wiring Diagram
Hx-HPF
Circuit Type
0.98
Power Factor
Regulation
Line Volts
±5%
Lamp Watts
Within Trapezoid
Line Current (Amps)
Operating
1.10
0.63
0.55
0.47
Open Circuit
2.24
1.28
1.11
0.96
Starting
0.90
0.51
0.44
0.39
6
4
3
3
Recommended Fuse
UL Temperature Ratings
Insulation Class
H(180°C)
Coil Temperature Code
1029B
1029A
1029A
1029A
Benchtop Coil Rise Primary
67
65
63
64
Benchtop Coil Rise Secondary
77
-
-
-
128
129
130
128
80
143
160
164
min
1.35
1.00
0.85
0.75
max
2.55
1.60
1.40
1.20
min
0.50
0.30
0.25
0.20
max
0.85
0.50
0.40
0.35
Input Watts
125
1.47
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -40°F -40°C
High Potential Test (Volts)
1 Minute
2000
1 Second
2500
Open Circuit Voltage Test (Volts)
110 - 135
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
2.40 - 3.20
Input Current
Core and Coil Specifications
Dimension A"
2.00
Dimension B"
3.40
Weight (lbs.)
7.2
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
10
Volts (min.)
280
Case Size (in.)
Height ( in.)
Temp Rating °C
Oval OIL Filled
1.25
DRY Film
1.5
2.5
3.23
90
100
Starter Specifications
Model Number
ST2001A
BTL
20
Temp Rating °C
105
Rev. Date: 1/30/2009
Starter Case Drawing
Test Ref.:
Validation
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
Phone: 1-800-956-3456
Fax: (601) 422-1652
www.Howard-Lighting.com
