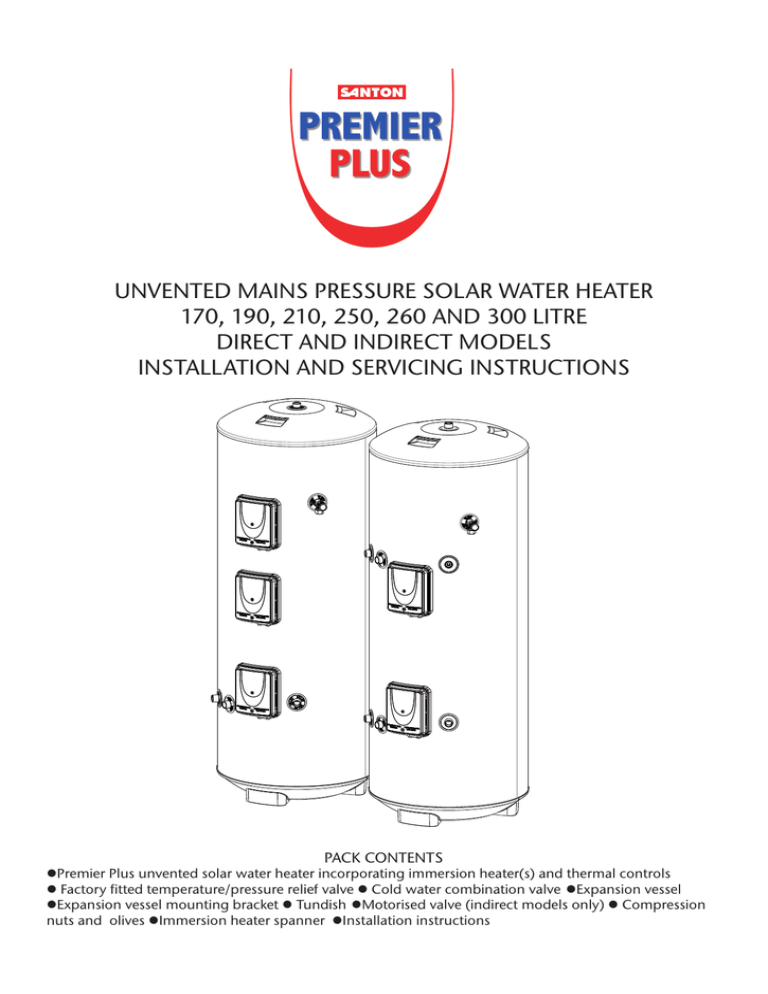

UNVENTED MAINS PRESSURE SOLAR WATER HEATER

170, 190, 210, 250, 260 AND 300 LITRE

DIRECT AND INDIRECT MODELS

INSTALLATION AND SERVICING INSTRUCTIONS

PACK CONTENTS

Premier Plus unvented solar water heater incorporating immersion heater(s) and thermal controls

Factory fitted temperature/pressure relief valve  Cold water combination valve Expansion vessel

Expansion vessel mounting bracket  Tundish Motorised valve (indirect models only)  Compression nuts and olives Immersion heater spanner

Installation instructions

SANTON PREMIER PLUS SOLAR INSTALLATION AND SERVICING INSTRUCTIONS.

PLEASE LEAVE THIS MANUAL WITH THE UNIT FOR FUTURE

REFERENCE.

CONTENTS

SECTION CONTENT PAGE

1 INTRODUCTION ................................................................... 4

2 GENERAL REQUIREMENTS ..................................................... 5

3 INSTALLATION - GENERAL ........................................................ 6

4 INSTALLATION - SOLAR PRIMARY ........................................... 13

5

6

7

8

9

10

11

INSTALLATION - DIRECT UNITS ................................................. 13

INSTALLATION – AUXILLARY HEATING COIL ............................. 14

COMMISSIONING ..................................................................... 16

MAINTENANCE ........................................................................ 17

USER UNSTRUCTIONS .............................................................. 19

FAULT FINDING AND SERVICING ............................................... 20

GUARANTEE ............................................................................. 25

2

THE BENCHMARK SCHEME

Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that customers are provided with the correct equipment for their needs, that it is installed, commissioned and serviced in accordance with the manufacturer’s instructions by competent persons and that it meets the requirements of the appropriate Building

Regulations. The Benchmark Checklist can be used to demonstrate compliance with Building Regulations and should be provided to the customer for future reference.

Installers are required to carry out installation, commissioning and servicing work in accordance with the Benchmark

Code of Practice which is available from the Heating and Hotwater Industry Council who manage and promote the

Scheme. Visit www.centralheating.co.uk for more information.

IMPORTANT NOTE TO USER: PLEASE REFER TO THE USER INSTRUCTIONS SECTION ON PAGES 24 AND 25 FOR

IMPORTANT INFORMATION WITH RESPECT TO THE BENCHMARK SCHEME

IMPORTANT: PLEASE READ ALL THESE INSTRUCTIONS BEFORE COMMENCING INSTALLATION

THE INFORMATION CONTAINED IN THESE INSTRUCTIONS DETAILS HOW TO CONNECT THE

PREMIER PLUS SOLAR CYLINDER TO A SOLAR PRIMARY CIRCUIT. OTHER CONTROLS WILL

BE NECESSARY TO PROVIDE CONTROL OVER THE SOLAR PRIMARY CIRCUIT, REFER TO THE

INSTRUCTIONS SUPPLIED WITH THE SOLAR CONTROLS AND ANCILLARY EQUIPMENT FOR

DETAILS OF HOW TO INTEGRATE THEM WITH THE PREMIER PLUS SOLAR CYLINDER.

GENERAL REQUIREMENTS

IMPORTANT: THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE

AND PERSONS WITH REDUCED PHYSICAL SENSORY OR MENTAL CAPABILITIES OR LACK OF

EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISORY OR INSTRUCTION

CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS

INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER

MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

WARNING: Do not switch on if there is a possibility that the water in the heater is frozen.

OPERATIONAL SUMMARY (Indirect models in conformance with BS EN 12897:2006)

Maximum mains water supply pressure (to 3 bar pressure reducing valve) 1.6MPa (16 bar)

Operating pressure (pressure reducing valve set pressure - non adjustable) 0.35MPa (3.5 bar)

Expansion vessel pressure

Expansion relief valve setting

T&P relief valve setting

Primary coil operating pressure (max)

Immersion heater rating (a.c. supply only)

0.35MPa (3.5 bar)

0.6MPa (6 bar)

1.0MPa/90 °C (10 bar)

1.0MPa (10 bar)

3kW @ 240V 50Hz

2.8kW @ 230V 50Hz

Primary Coil ratings

(Based on a primary flow rate of 15L/min and a flow temperature of 80 °C)

Pressure drop across coils

Storage capacity

Weight when full

See Table 2, Page 4

See Table 2, Page 4

See Table 2, page 4

0.02MPa (0.2bar)

Note: Although the primary coil pressure rating is 1.0Mpa (10 bar) the 2 port zone valve supplied with the cylinder is only rated 0.86MPa (8.6 bar). If the cylinder is to be plumbed into a system delivering 1.0MPa (10 bar) a suitable 2 port zone valve will have to be sourced.

3

4

1.0 INTRODUCTION

The Santon Premier Plus Solar is a purpose designed unvented solar water heater. The unit has a stainless steel inner vessel which ensures an excellent standard of corrosion resistance. The outer casing is a combination of resilient thermoplastic mouldings and corrosion proofed steel (Plastisol) sheet. All Premiers are insulated with CFC/HCFC free polyurethane foam to meet the latest European heat loss requirements (see Table 3).

The unit is supplied complete with all the necessary safety and control devices needed to allow connection to the

PremierPlus solar cylinder. All these components are pre-adjusted.

This appliance complies with the requirements of the CE marking directive and is KIWA approved to show compliance with Building Regulations (Section G3).

The following instructions are offered as a guide to installation which must be carried out by a competent plumbing and electrical installer in accordance with Building Regulation G3, The Building Standards

NOTE: Prior to installation the unit should be stored in an upright position in an area free from excessive damp or humidity.

Table 2: Unit weights

Model reference

Type

DIRECT PES170D

PES210D

PES260D

PES300D

INDIRECT PES190I

PES210I

PES250I

PES300I

Nominal capacity

(litres)

170

210

260

300

190

210

250

300

Weight of unit full

(kg)

210

259

308

362

240

264

308

367

Table 3: Standing heat losses

Nominal

Capacity

(litres)

170

190

210

250

260

300

Standing Heat Loss per day

(kWh/24h) per year

(kWh/365d)

1.40

1.52

1.70

1.96

1.98

2.28

511

555

621

715

723

832

2.0 GENERAL REQUIREMENTS

2.1 COMPONENTS SUPPLIED

1. Premier Plus unvented solar water heater incorporating immersion heater(s) and thermal controls

2. Factory fitted temperature/pressure relief valve

3. Cold water combination valve.

4. Expansion vessel and mounting bracket.

5. Tundish.

6. Motorized valve (indirect models only).

7. Compression nuts and olives

8. Immersion heater key spanner

2.2 SITING THE UNIT

The Santon Premier Plus Solar must be installed vertically. Although location is not critical, the following points should be considered:

• The Santon Premier Plus Solar should be sited to ensure minimum dead leg distances, particularly to the point of most frequent use.

• Avoid siting where extreme cold temperatures will be experienced. All exposed pipe-work should be insulated.

• The discharge pipe-work from the safety valves must have minimum fall of 1:200 from the unit and terminate in a safe and visible position.

• Access to associated controls and immersion heaters should be possible to allow for periodic servicing and maintenance.

• Ensure that the base chosen for the Santon Premier Plus Solar is level and capable of permanently supporting the weight when full of water (see Table 2)

2.3 OUTLET/TERMINAL FITTINGS (TAPS, ETC.)

The Santon Premier Plus Solar can be used with most types of terminal fittings. It is advantageous in many mixer showers to have balanced hot and cold water supplies. In these instances a balanced pressure cold water connection should be placed between the cold water combination valve and the Premier Plus water heater. Outlets situated higher than the Santon PremierPlus Solar will give outlet pressures lower than that at the heater, a 10m height difference will result in a 1 bar pressure reduction at the outlet.

2.4 LIMITATIONS

The Premier Plus unvented solar water heater should not be used in association with any of the following:

• Solid fuel boilers or any other boiler in which the energy input is not under effective thermostatic control unless additional and appropriate safety measures are installed.

• Ascending spray type bidets or any other class 1 back syphonage risk requiring that a type A air gap be employed.

• Steam heating plants unless additional and appropriate safety devices are installed.

• Situations where maintenance is likely to be neglected or safety devices tampered with.

• Water supplies that have either inadequate pressure or where the supply may be intermittent.

• Situations where it is not possible to safely pipe away any discharge from the safety valves.

• In areas where the water consistently contains a high proportion of solids, e.g. suspended matter that could block the strainer, unless adequate filtration can be ensured.

The PremierPlus solar cylinder is to be used for the storage of wholesum water (max 250mg/l Chloride)

5

6

3.0 INSTALLATION – GENERAL

3.1 PIPE FITTINGS

All pipe fittings are made via 22mm compression fittings directly to the unit. The fittings are threaded 3/4”BSP male parallel should threaded pipe connections be required.

3.2 COLD FEED

A 22mm cold water supply is recommended however, if a 15mm (1/2”) supply exists which provides sufficient flow this may be used (although more flow noise may be experienced).

A stopcock or servicing valve should be incorporated into the cold water supply to enable the Santon PremierPlus solar and its associated controls to be isolated and serviced.

3.3 COLD WATER COMBINATION VALVE (FIG 1)

The cold water combination valve can be connected anywhere on the cold water mains supply prior to the expansion vessel (see Fig. 5).

The cold water combination valve is installed as a complete one-piece unit. The valve incorporates the pressure reducer, strainer, expansion valve and check valve. Ensure that the valve is installed with the direction of flow arrows pointing in the right direction. No other valves should be placed between the cold water combination valve and the PremierPlus solar unit. The expansion valve connection must not be used for any other purpose.

3.4 DRAIN TAP

A suitable draining tap should be installed in the cold water supply to the PremierPlus solar unit between the cold water combination valve and the heater at as low a level as possible. It is recommended that the outlet point of the drain pipework be at least 1 metre below the level of the heater (this can be achieved by attaching a hose to the drain tap outlet spigot).

3.5 EXPANSION VESSEL

The expansion vessel accommodates expansion that results from heating the water inside the unit. The unit is precharged at 3.5 bar. The expansion vessel must be connected between the cold water combination valve and the

Santon PremierPlus solar (see Fig. 5). The location of the expansion vessel should allow access to recharge the pressure as and when necessary, this can be done using a normal car foot pump. It is recommended that the expansion vessel is adequately supported. An expansion vessel wall mounting bracket is supplied for this purpose.

NOTE: DO NOT USE THE POTABLE WATER EXPANSION VESSEL SUPPLIED WITH THE PREMIER PLUS SOLAR

FOR ANY OTHER PURPOSE. IT IS NOT SUITABLE FOR USE ON A SOLAR PRIMARY CIRCUIT.

3.6 SECONDARY CIRCULATION

If secondary circulation is required it is recommended that it be connected to the Premier as shown in Fig. 2

The secondary return pipe should be in 15mm pipe and incorporate a check valve to prevent backflow. A suitable

WRAS approved bronze circulation pump will be required. On large systems, due to the increase in system water content, it may be necessary to fit an additional expansion vessel to the secondary circuit. This should be done if the capacity of the secondary circuit exceeds 10 litres.

Pipe capacity (copper)

15mm o/d = 0.13 l/m (10 litres = 77m)

22mm o/d = 0.38 l/m (10 litres = 26m)

28mm o/d = 0.55 l/m (10 litres = 18m)

‘In direct electric installations where a secondary circulation is required particular attention should be paid by the installer to maintain the return water temperature (guidelines state that a minimum of 55°C return temperature is advisable) . Factors such as, but not limited to, secondary circulation flow rates, minimising heat loss of all secondary circuit pipework and timed operation during periods of high demand are critical to the correct operation and longevity of the heating element(s) and thermostats.

Secondary circulation is not recommended for direct electric units using off-peak tariffs where the secondary circulation is not controlled in conjunction with the heat source as performance can be affected.’

3.7 OUTLET

The hot water outlet is a 22mm compression fitting located at the top of the cylinder. Hot water distribution pipework should be 22mm pipe with short runs of 15mm pipe to terminal fittings such as sinks and basins. Pipe sizes may vary due to system design.

FIG. 1 Cold Water Combination Valve

Expansion valve Expansion valve outlet (15mm)

FIG. 2 Secondary circulation connection

Cold mains connection

(22mm)

Outlet connection

(22mm)

Pressure reducing valve cartridge

(3.5bar)

FIG. 3 General Dimensions and features

4

3

5

6

7

8

1. SOLAR PRIMARY RETURN

2. SOLAR PRIMARY FLOW

3. AUXILLARY BOILER RETURN

(INDIRECT MODELS ONLY)

4. AUXILLARY BOILER FLOW

(INDIRECT MODELS ONLY)

5. T&P VALVE

6. SECONDARY RETURN

7. BOOST IMMERSION HEATER

(DIRECT MODELS ONLY)

8. AUXILLARY CONTROL HOUSING

9. INLET

10. SOLAR CONTROL HOUSING

Ø550

2

1

9

81

10

20°

25°

30°

45°

NOMINAL

CAPACITY

(litres)

170

190

210

210

260

250

300

300

E = DIRECT

B = INDIRECT

E

E

E

E

TYPE

B

B

B

DIMENSIONS (mm)

A B

1221

1372

1473

1473

1792

1731

2038

2038

1099

1384

1624

C D E

784

1012

1143

1440

808

865 925

808

922 1095

905

1066 1279

999

1256 1592

SOLAR

SURFACE

AREA

(sq.m)

F

924 1.1

1085 1.1

1183 1.1

1186 1.1

1498 1.1

1438 1.1

1749 1.1

1752 1.1

HOT WATER

DRAW-OFF

(Litres ) to

40°C

AUXILLARY

VOLUME

(litres)

AUXILLARY COIL

SURFACE

AREA

(sq.m)

RATING

(kW)

HOT WATER

DRAW-OFF

(Litres ) to

40°C

HEATING

TIME

DIRECT

(MINS)

161

202

231

276

B

NOTES:

1. Testing conformes to BS EN 12897 : 2006.

2. Direct heating times assume use of lower element only and auxillary cylinder volume being heated.

3. Coil primary flow rate of 15L/min with a flow temperature at 80°C ± 2°C.

120

120

145

175

0.61

0.68

0.79

0.79

14.7

15.0

16.2

18.8

132.5

136

166

181

126

147

178

210

7

8

INSTALLATION - DISCHARGE

It is a requirement of Building Regulation G3 that any discharge from an unvented system is conveyed to where it is visible, but will not cause danger to persons in or about the building. The tundish and discharge pipes should be fitted in accordance with the requirements and guidance notes of Building Regulation G3. The G3 Requirements and

Guidance section 3.50 - 3.63 are reproduced in the following sections of this manual. For discharge pipe arrangements not covered by G3 Guidance advice should be sought from your local Building Control Officer. Any discharge pipe connected to the pressure relief devices (Expansion Valve and Temperature/Pressure Relief Valve) must be installed in a continuously downward direction and in a frost free environment.

Water may drip from the discharge pipe of the pressure relief device. This pipe must be left open to the atmosphere.

The pressure relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked.

G3 REQUIREMENT

“...there shall be precautions...to ensure that the hot water discharged from safety devices is safely conveyed to where it is visible but will not cause danger to persons in or about the building.”

Notes:

Discharge pipe-work D2 can now be a plastic pipe but only pipes that have been tested to a minimum 110°C must be used.

Discharge pipe D2 can now be plumbed into the soil stack but only soil stacks that can handle temperatures of 99°C or greater should be used.

The following extract is taken from the latest G3 Regulations

Discharge pipe D1

3.50 Safety devices such as temperature relief valves or combined temperature and pressure and pressure relief valves (see paragraphs 3.13 or 3.18) should discharge either directly or by way of a manifold via a short length of metal pipe (D1) to a tundish.

3.51 The diameter of discharge pipe (D1) should be not less than the nominal outlet size of the temperature relief valve.

3.52 Where a manifold is used it should be sized to accept and discharge the total discharge form the discharge pipes connected to it.

3.53 Where valves other than the temperature and pressure relief valve from a single unvented hot water system dischargeby way of the same manifold that is used by the safety devices, the manifold should be factory fitted as part of the hot water storage system unit or package.

Tundish

3.54 The tundish should be vertical, located in the same space as the unvented hot water storage system and be fitted as close as possible to, and lower than, the valve, with no more than 600mm of pipe between the valve outlet and the tundish (Fig. 5 & Table 3, page 10).

Note: To comply with the Water Supply (Water Fittings) Regulations, the tundish should incorporate a suitable air gap.

3.55 Any discharge should be visible at the tundish. In addition, where discharges from safety devices may not be apparent, e.g. in dwellings occupied by people with impaired vision or mobility, consideration should be given to the installation of a suitable safety device to warn when discharge takes place, e.g. electronically operated.

Discharge pipe D2

3.56 The discharge pipe (D2) from the tundish should:

(a) have a vertical section of pipe at least 300mm long below the tundish before any elbows or bends in the

pipework (see Diagram 1, G3), (Fig. 5, page 10); and

(b) be installed with a continuous fall thereafter of at least 1 in 200.

3.57 The discharge pipe (D2) should be made of:

(a) metal; or

(b) other material that has been demonstrated to be capable of safely withstanding temperatures of the water

discharged and is clearly and permanently marked to identify the product and performance standard (e.g. as

specified in the relevant part of BS 7291).

3.58 The discharge pipe (D2) should be at least one pipe size larger than the nominal outlet size of the safety device unless its total equivalent hydraulic resistance exceeds that of a straight pipe 9m long, i.e. for discharge pipes between 9m and 18m the equivalent resistance length should be at least two sizes larger than the nominal outlet size of the safety device; between 18 and 27m at least 3 sizes larger, and so on; bends must be taken into account in calculating the flow resistance. (See Diagram 1, Table 1, G3), (Fig. 5 &

Table 3, page 10) and the worked example.

Note: An alternative approach for sizing discharge pipes would be to follow Annex D, section D.2 of BS 6700:2006

Specification for design, installation, testing and maintenance of services supplying water for domestic use within buildings and their curtilages.

(D2) to be connected.

3.60 The discharge pipe should not be connected to a soil discharge stack unless it can be demonstrated that that the soil discharge stack is capable of safely withstanding temperatures of the water discharged, in which case, it should:

(a) contain a mechanical seal, not incorporating a water trap, which allows water into the branch pipe without

allowing foul air from the drain to be ventilated through the tundish;

(b) be a separate branch pipe with no sanitary appliances connected to it;

(c) if plastic pipes are used as branch pipes carrying discharge from a safety device they should be either

polybutalene (PB) to Class S of BS 7291-2:2006 or cross linked polyethylene (PE-X) to Class S of BS 7291-

3:2006; and

(d) be continuously marked with a warning that no sanitary appliances should be connected to the pipe.

Note:

1. Plastic pipes should be joined and assembled with fittings appropriate to the circumstances in which they are

used as set out in BS EN ISO 1043-1.

2. Where pipes cannot be connected to the stack it may be possible to route a dedicated pipe alongside or in close

proximity to the discharge stack.

Termination of discharge pipe

3.61 The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk to persons in

the vicinity of the discharge.

3.62 Examples of acceptable discharge arrangements are:

(b) to a trapped gully with the end of the pipe below a fixed grating and above the water seal;

(c) downward discharges at low level; i.e. up to 100mm above external surfaces such as car parks, hard standings,

grassed areas etc. are acceptable providing that a wire cage or similar guard is positioned to prevent contact,

whilst maintaining visibility; and

(d) discharges at high level: e.g. into a metal hopper and metal downpipe with the end of the discharge pipe clearly visible or onto a roof capable of withstanding high temperature discharges of water and 3m from any plastic guttering system that would collect such discharges.

3.63 The discharge would consist of high temperature water and steam. Asphalt, roofing felt and non-metallic rainwater goods may be damaged by such discharges.

Worked example of discharge pipe sizing

Fig. 5, page 10: shows a G1/2 temperature relief valve with a discharge pipe (D2) having 4 No. elbows and length of

7m from the tundish to the point of discharge.

From Table 3, page 10:

Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2) from a G1/2 temperature relief valve is 9.0m.

Subtract the resistance for 4 No. 22mm elbows at 0.8m each = 3.2m

Therefore the permitted length equates to: 5.8m

5.8m is less than the actual length of 7m therefore calculate the next largest size.

Maximum resistance allowed for a straight length of 28mm pipe (D2) from a G1/2 temperature relief valves equates to

18m.

Subtract the resistance of 4 No. 28mm elbows at 1.0m each = 4.0m

Therefore the maximum permitted length equates to: 14m

As the actual length is 7m, a 28mm (D2) copper pipe will be satisfactory.

WARNINGS:

Under no circumstances should the factory fitted temperature/pressure relief valve be removed other than by a competent person. To do so will invalidate any guarantee or claim.

The cold water combination valve assembly must be fitted on the PremierPlus water supply to the PremierPlus cylinder.

No control or safety valves should be tampered with or used for any other purpose.

The discharge pipe should not be blocked or used for any other purpose.

The tundish should not be located adjacent to any electrical components.

9

10

Table 4

Valve outlet size Minimum size of discharge pipe

D1

G1/2

G3/4

G1

15mm

22mm

28mm

Minimum size of discharge pipe

D2 from tundish

22mm

28mm

35mm

28mm

35mm

42mm

35mm

42mm

54mm

Maximum resistance allow ed, expressed as a length of straight pipe (I.E. no elbow s or bends)

up to 9m up to 18m up to 27m up to 9m up to 18m up to 27m up to 9m up to 18m up to 27m

Resistance created by each elbow or bend

0.8m

1.0m

1.4m

1.0m

1.4m

1.7m

1.4m

1.7m

2.3m

Fig 4 - Typical discharge

Safety device

(e.g. Temperature relief valve)

Metal discharge pipe (D1) from

Temperature relief valve to tundish

Tundish

600mm maximum

300mm minimum

Discharge below fixed grating

(Building Regulation

G3 section 3.61 gives alternative points of discharge)

Fixed grating

Discharge pipe (D2 from tundish, with continuous fall. See Building

Regulation G3 section 3.56,

Table 4 and worked example)

Trapped gully

FIG. 5 Typical installation - schematic

Fig 6 - Direct Electrical connections (schematic)

Direct Wiring Layout

1.5mm² 3 Core

HOFR sheathed cable

N L

Fig 7 - Adjustment details

THERMAL CUT-OUT RESET BUTTON

SPINDLE POSITIONS

= MINIMUM TEMP 10 °C

= MAXIMUM TEMP 72°C

= APPROX 60 °C

ROTATE SPINDLE CLOCKWISE

FOR TEMPERATURE INCREASE

AND COUNTER CLOCKWISE

FOR TEMPERATURE DECREASE

TEMPERATURE ADJUSTING

SPINDLE

11

Fig. 8

Control Housing Details

12

Fig. 9

Element Connections

Indirect control wiring

1 2 3 L N

1.5mm² 3 Core

HOFR sheathed cable

THERMAL CUT-OUT

PROBE

CONTROL ASSEMBLY

SOLAR CONTROLLER

POWER SUPPLY TO

SOLAR CONTROLLER

L

N

E

4.0 INSTALLATION - SOLAR PRIMARY

4.1 CONNECTION TO PRIMARY CIRCUIT

The lower (solar) coil of the Premier Plus Solar must be connected to a fully pumped solar primary circuit. The connections are suitable for 22mm copper pipe direct to the compression fittings provided. The connections are also threaded 3/4” BSP male parrallel should BSP be required.

The solar primary circuit should have its own dedicated circulating pump and safety controls which must be installed as per the manufacturers’ instructions.

4.2 CONTROL OF PRIMARY CIRCUIT

Temperature control of the PremierPlus solar must be carried out using a suitable proprietory solar controller/ programmer. The cylinder temperature sensing probe (supplied with the solar controller) should be fully insterted into the pocket provided on the PremierPlus solar and its cable secured using the cable clamps on the controls housing. (see Fig.8)

Connection to the solar controller should be in accordance with manufacturers instructions. The solar controller should be programmed to give a cylinder temperature of approximately 60°C (maximum 70°C).

The solar controller and solar primary circulation pump must be wired via the over-temperature thermal cut-out mounted in the lower solar controls housing (see Fig. 9). This will ensure that the heat input to the solar coil is interrupted in the event of the cylinder over-heating. There must also be suitable check (non-return) valves installed in the solar primary flow and return to prevent the possibility of any thermo-syphoning if the solar circulation is

stopped.

5.0 INSTALLATION - DIRECT UNITS

5.1 PLUMBING CONNECTIONS

Direct units require the following pipework connections.

Cold water supply to and from inlet controls.

Outlet to hot water draw off points.

Discharge pipework from valve outlets to tundish.

5.2 ELECTRICAL SUPPLY (FIG. 6)

Premier Plus solar units are fitted with two 3kW immersion heaters (Except 170Ltr) as standard. It is recommended that these should be wired via a suitable controller to BSEN 60730. The Premier Plus Solar MUST be earthed.

All wiring to the unit must be installed in accordance with the latest IEE Wiring Regulations and the circuit must be protected by a suitable fuse and double pole isolating switch with a contact separation of at least 3mm in both poles. The Live and Neutral connections are made directly onto the combined thermostat and thermal cut-out located under the terminal cover(s) mounted on the side of the unit. The Earth connection should be made to the earth connection located to the side of the immersion heater boss(es). The supply cable must be routed through the cable gland located on the unit casing beneath the terminal housing.

DO NOT

operate the immersion heaters until the Santon Premier Plus Solar has been filled with water.

5.3 SAFETY

DISCONNECT FROM THE MAINS SUPPLY BEFORE REMOVING ANY COVERS.

Never attempt to replace the immersion heater(s) other than with the recommended Santon immersion heater(s).

DO NOT BYPASS THE THERMAL CUT-OUT(S) IN ANY CIRCUMSTANCES. Ensure the two male spade terminations on the underside of the combined thermostat and thermal cut-out are pushed firmly onto the corresponding terminations on the element plate assembly.

In case of difficulty contact Santon service,

Tel: 0844 8711530.

13

14

6.0 INSTALLATION - AUXILLARY HEATING COIL

6.1 PLUMBING CONNECTIONS

Indirect units require the following pipework connections.

Cold water supply to and from inlet controls.

Outlet to hot water draw off points.

Discharge pipework from valve outlets to tundish

Connection to the auxillary primary circuit.

Primary connections are 22mm compression. However, 3/4”BSP parallel threaded fittings can be fitted to the primary coil connections if required.

6.2 ELECTRICAL SUPPLY (FIG. 6)

All Indirect units are fitted with a 3kW immersion heater and a combined thermostat and thermal cut-out to control the primary heating source. The PremierPlus Solar MUST be earthed.

All wiring to the unit must be installed in accordance with the latest IEE Wiring Regulations and the supply circuits must be protected by a suitable fuse and double pole isolating switch with a contact separation of at least 3mm in both poles. All connections are made to the terminal block located under the terminal cover mounted on the side of the unit. The supply cable(s) must be routed through the cable grip(s) in the terminal housing.

DISCONNECT FROM MAINS SUPPLY BEFORE REMOVING ANY COVERS. DO NOT BYPASS THE THERMAL CUT-OUTS IN

ANY CIRCUMSTANCES. Ensure the thermostat and thermal cut-out sensing bulbs are pushed fully into the pockets on the element plate assembly.

6.3 BOILER SELECTION

The boiler should have a control thermostat and non self-resetting thermal cut-out and be compatible with unvented storage water heaters.

Where use of a boiler without a thermal cut-out is unavoidable a “low head” open vented primary circuit should be used. The Feed and Expansion cistern head above the PremierPlus solar should not exceed 2.5m.

6.4 AUXILLARY CIRCUIT CONTROL

The 2 port motorised valve supplied with the PremierPlus solar indirect units MUST be fitted to the primary auxillary circuit flow to the PremierPlus solar heat exchanger and wired in series with the indirect thermostat and thermal cut-out fitted to the unit.

Primary circulation to the PremierPlus Solar heat exchangers must be pumped, gravity circulation WILL NOT

WORK.

Figure 10 - 2 port valve in conjunction with a 3 port mid-position valve system (“Y” Plan)

L N

PROGRAMMER

HTG

ON

DHW

ON

DHW

OFF

PREMIERPLUS INDIRECT

THERMAL CONTROLS

(SUPPLIED FITTED)

1 2 3

PREMIERPLUS (DHW) 2-PORT

VALVE (SUPPLIED)

Bl Br G O GY

KEY

Bl

Br

G

BLUE

BROWN

GREY

O

GY

ORANGE

GREEN/YELLOW

DHW DOMESTIC HOT WATER

HTG HEATING

1 2 3 4 5 6 7 8 9

10

11 12 13 14 15 16

WIRING CENTRE

(SUPPLIED)

L

N

1 3 2

Bl W G O GY

N L N L

ROOM STAT

NOTES:

1. A DOUBLE POLE ISOLATING SWITCH MUST BE INSTALLED IN THE MAINS SUPPLY.

2. ALL EARTH CONNECTIONS MUST BE LINKED BACK TO THE MAINS EARTH SUPPLY.

3. ASSUMES BASIC BOILER WITH EXTERNAL PUMP.

3-PORT MID POSITION VALVE BOILER PUMP

4. USE COPPER LINKS SUPPLIED TO MAKE CONNECTIONS BETWEEN TERMINALS.

5. DO NOT MOUNT WIRING CENTRE ON CYLINDER.

6. THE ABOVE DIAGRAM IS FOR GUIDANCE ONLY, SANTON ACCEPT NO LIABILITY FOR ANY LOSS OR DAMAGE ARISING FROM ANY ERRORS OR OMISSIONS.

THAT MAY BE INADVERTENTLY CONTAINED WITHIN THIS DIAGRAM. THE VARIOUS EQUIPMENT MANUFACTURERS SHOULD BE CONSULTED TO CONFIRM THE

CORRECT OPERATION OF THEIR PRODUCTS WITHIN THE SYSTEM.

Figure 11 - 2 x 2 port valve system (“S”Plan)

PROGRAMMER

L N

HTG

ON

DHW

ON

KEY

Bl

Br

BLUE

BROWN

G

O

GREY

ORANGE

GY GREEN/YELLOW

DHW DOMESTIC HOT WATER

HTG HEATING

PREMIERPLUS INDIRECT

THERMAL CONTROLS

(SUPPLIED FITTED)

1 2 3

PREMIERPLUS (DHW)

ZONE VALVE

(SUPPLIED)

Bl Br G O GY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

WIRING CENTRE

(SUPPLIED)

L

N

1 3 2 Bl Br G O GY N L N L

ROOM STAT

NOTES:

1. A DOUBLE POLE ISOLATING SWITCH MUST BE INSTALLED IN THE MAINS SUPPLY.

2. ALL EARTH CONNECTIONS MUST BE LINKED BACK TO THE MAINS EARTH SUPPLY.

ZONE VALVE (HTG) BOILER

3. USE COPPER LINKS SUPPLIED TO MAKE CONNECTIONS BETWEEN TERMINALS.

4. DO NOT MOUNT WIRING CENTRE ON CYLINDER.

5. THE ABOVE DIAGRAM IS FOR GUIDANCE ONLY, SANTON ACCEPT NO LIABILITY FOR ANY LOSS OR DAMAGE ARISING FROM ANY ERRORS OR OMISSIONS.

THAT MAY BE INADVERTENTLY CONTAINED WITHIN THIS DIAGRAM. THE VARIOUS EQUIPMENT MANUFACTURERS SHOULD BE CONSULTED TO CONFIRM THE

CORRECT OPERATION OF THEIR PRODUCTS WITHIN THE SYSTEM.

PUMP

15

16

7.0 COMMISSIONING

7.1 FILLING THE UNIT WITH WATER

Check Expansion Vessel pre-charge pressure. The vessel is supplied pre-charged to 3.5 bar to match the con- trol pressure of the Pressure Reducing Valve. The pre-charge pressure is checked using a car tyre gauge by unscrewing the plastic cap opposite the water connection.

Check all connections for tightness including the immersion heater(s). An immersion heater key spanner is supplied for this purpose.

Ensure the drain cock is

CLOSED.

Open a hot tap furthest from the Santon PremierPlus solar.

Open the mains stop cock to fill the unit. When water flows from the tap, allow to run for a few minutes to thoroughly flush through any residue, dirt or swarf, then close the tap.

Open successive hot taps to purge the system of air.

7.2 SYSTEM CHECKS

Check all water connections for leaks and rectify as necessary.

Remove the Pressure Reducing Valve headwork to access the strainer mesh, clean and re-fit.

Manually open, for a few seconds, each relief valve in turn, checking that water is discharged and runs freely through the tundish and out at the discharge point.

Ensure that the valve(s) reseat satisfactorily.

7.3 SOLAR PRIMARY CIRCUIT

Fill the solar primary circuit following the instructions provided with the solar hydraulic controls. The cylinder temperature control probe supplied with the solar controller must be fully inserted into the pocket in the lower controls housing and the cable securely clamped. Heating by the solar primary circuit is controlled by the solar controller, refer to the manufacturers installation instructions for details of how to set up and connect the solar primary circuit.

The solar controller should be programmed to give a maximum storage temperature in the PremierPlus solar of

70 o

C, 60 o

C is recommended to minimise scaling.

7.4 DIRECT UNITS

Switch on electrical supply to the immersion heater(s) and allow the PremierPlus solar to heat up to normal working temperature (60ºC recommended, see Fig 7, page 11 for adjustment details). If necessary the temperature can be adjusted by inserting a flat bladed screwdriver in the adjustment knob on top of the immersion heater thermostat and rotating.

The adjustment range on the spindle represents a temperature range of 10 o

to 72 o

C. Check the operation of thermostat(s) and that no water has issued from the expansion relief valve or temperature/pressure relief valve during the heating cycle.

7.5 Secondary Heating Coil

Fill the indirect secondary circuit following the boiler manufacturer’s commissioning instructions. To ensure the

PremierPlus solar auxillary heat exchanger is filled, the 2 port motorised valve (supplied) should be manually opened by moving the lever on the motor housing to the FLUSHING ONLY setting. When the circuit is full return the lever to the NORMAL USE position. Switch on the boiler, ensure the programmer is set to Domestic Hot Water and allow the Premier Plus Solar to heat up to a normal working temperature (60 o

C recommended, see Fig 7 for adjustment details). If necessary the temperature can be adjusted by inserting a flat bladed screwdriver in the adjustment knob

(located on top of the thermostat mounting bracket - see Fig.7, page 11) and rotating. The minimum thermostat setting is 10 o

C. The adjustment range on the spindle represents a temperature range of 10 o

to 72 o

C. Check the operation of the indirect thermostat and 2 port motorised valve and that no water has issued from the expansion relief valve or temperature/pressure relief valve during the heating cycle.

7.6 BENCHMARK

TM

LOG BOOK

On completion of the installation and commissioning of the PremierPlus solar the Benchmark

TM

“Installation, Commissioning and Service Record Log Book” should be completed and signed off by the competent installer or commissioning engineer in the relevant sections.

The various system features, location of system controls, user instructions and what to do in the event of a system failure should be explained to the customer. The customer should then countersign the Benchmark

TM

log book to accept completion.

The log book should be left with the customer along with these instructions. The log book includes sections that should be filled out when any subsequent service or maintenance operation is carried out on the Premier Plus system.

8.0 MAINTENANCE

8.1 MAINTENANCE REQUIREMENTS

Unvented hot water systems have a continuing maintenance requirement in order to ensure safe working and optimum performance. It is essential that the relief valve(s) are periodically inspected and manually opened to ensure no blockage has occurred in the valves or discharge pipework. Similarly cleaning of the strainer element and replacement of the air in the expansion vessel will help to prevent possible operational faults.

The maintenance checks described below should be performed by a competent installer on a regular basis, e.g. annually to coincide with boiler maintenance.

8.2 SAFETY VALVE OPERATION

Manually operate the temperature/pressure relief valve for a few seconds. Check water is discharged and that it flows freely through the tundish and discharge pipework. Check valve reseats correctly when released. NOTE: Water discharged may be very hot!

Repeat the above procedure for the expansion valve.

8.3 STRAINER

Turn off the cold water supply, boiler and immersion heaters. The lowest hot water tap should then be opened to de-pressurise the system. Remove the pressure reducing valve by unscrewing it housing. Pull the reducing valve cartridge from the check valve housing to access the strainer mesh. Wash any particulate matter from the strainer under clean water. Re-assemble ensuring the seal is correctly fitted, DO NOT use any other type of sealant.

8.4 DESCALING IMMERSION HEATER(S)

Before removing the immersion heater(s) the unit must be drained. Ensure the water, electrical supply, boiler and solar primary circuit are OFF before draining. Attach a hosepipe to the drain cock having sufficient length to take water to a suitable discharge point below the level of the unit. Open a hot tap close to the unit and open drain cock to drain unit.

Direct models:

Open the cover(s) to the immersion heater housing(s) and disconnect wiring from the thermostat mounted on top of the immersion heater(s). Remove the thermostat capillary sensors by carefully pulling outwards from the immersion heater. Unscrew immersion heater backnut(s) and remove immersion heater from the unit. A key spanner is supplied with the PremierPlus solar unit for easy removal/tightening of the immersion heater(s). Over time the immersion heater gasket may become stuck to the mating surface. To break the seal insert a round bladed screwdriver into one of the pockets on the immersion heater and gently lever up and down.

Indirect models:

Open the cover(s) to the immersion heater housing(s) and disconnect wiring from immersion heater(s). Remove thermostat capillary sensors from the pockets on the immersion heater. Unscrew immersion heater backnut(s) and remove immersion heater from the unit. A key spanner is supplied with the Premier Plus Solar unit for easy removal/ tightening of the immersion heater(s). Over time the immersion heater gasket may become stuck to the mating surface. To break the seal insert a round bladed screwdriver into one of the pockets on the immersion heater and gently lever up and down.

Carefully remove any scale from the surface of the element(s). DO NOT use a sharp implement as damage to the element surface could be caused. Ensure sealing surfaces are clean and seals are undamaged, if in doubt fit a new gasket.

Replace immersion heater(s) ensuring the lower (right angled) element hangs vertically downwards towards the base of the unit. It may be helpful to support the immersion heater using a round bladed screwdriver inserted into one of the thermostat pockets whilst the backnut is tightened. Replace thermostats capillaries into pockets, rewire, check, close and secure immersion heater housing cover(s).

8.5 PREMIER PLUS SOLAR EXPANSION VESSEL CHARGE PRESSURE

Remove the dust cap on top of the vessel. Check the charge pressure using a tyre pressure gauge. The pressure

(with system de-pressurised) should be 3.5bar. If it is lower than the required setting it should be re-charged using a tyre pump (Schrader valve type). DO NOT OVER CHARGE. Re-check the pressure and when correct replace the dust cap.

8.6 RE-COMMISSIONING

Check all electrical and plumbing connections are secure. Close the drain cock. With a hot tap open, turn on the cold water supply and allow unit to refill. DO NOT switch on the immersion heater(s) or boiler until the unit is full.

17

18

When water flows from the hot tap allow to flow for a short while to purge air and flush through any disturbed particles. Close hot tap and then open successive hot taps in system to purge any air.

When completely full and purged check system for leaks. The heating source (immersion heater(s), boiler or solar primary circuit) can then be switched on.

8.7 BENCHMARK

TM

LOG BOOK

On completion of any maintenance or service of the Premier Plus the Benchmark

TM

“Installation, Commissioning and

Service Record Log Book” should be filled in to record the actions taken and the date the work was undertaken.

9.0 USER INSTRUCTIONS

10.1 WARNINGS

IF WATER ISSUES FROM THE TEMPERATURE/PRESSURE RELIEF VALVE ON THE SANTON PREMIER PLUS SOLAR

SWITCH OFF ELECTRICAL SUPPLY TO THE IMMERSION HEATER(S) (DIRECT UNITS),SHUT DOWN THE BOILER

(INDIRECT UNITS) AND SHUT DOWN THE SOLAR PRIMARY CIRCUIT. DO NOT TURN OFF ANY WATER SUPPLY.

CONTACT A COMPETENT INSTALLER FOR UNVENTED WATER HEATERS TO CHECK THE SYSTEM.

DO NOT TAMPER WITH ANY OF THE SAFETY VALVES FITTED TO THE SANTON PREMIER PLUS SYSTEM. IF A

FAULT IS SUSPECTED CONTACT A COMPETENT INSTALLER.

10.2 TEMPERATURE CONTROLS - SOLAR

Temperature control of the solar primary coil is by means of solar differential temperature controller. This will usually have been set during commissioning to give a storage temperature of approximately 60 o

C. Refer to user instructions supplied with the controller for details of how to adjust this if required.

10.3 TEMPERATURE CONTROLS – DIRECT UNIT IMMERSION HEATER(S)

A combined adjustable thermostat and thermal cut-out is provided for each immersion heater. The thermostat is factory set to give a water storage temperature of approx. 55 o

to 60 o

C. Access to the thermostat can be made by opening the immersion heater cover - DISCONNECT THE ELECTRICAL SUPPLY BEFORE OPENING THE COVER(S).

Temperature adjustment is made by inserting a flat bladed screwdriver in the slot on the adjustment disc on top of the thermostat and rotating. The adjustment range on the spindle represents a temperature range of 10 o

to 72 o

C

(see Fig 7, page 11 for details). If in any doubt contact a competent electrician.

DO NOT bypass the thermal cut-out(s) in any circumstances.

10.4 TEMPERATURE CONTROLS – INDIRECT UNITS (Fig. 8)

The Santon PremierPlus solar Indirect units are fitted with an Indirect thermostat and thermal cut-out. These controls must be wired in series with the 2 port motorised zone valve supplied to interupt the flow of primary water around the heat exchanger coil when the control temperature has been reached. The controls are located within the upper grey terminal housing along with the immersion heater thermostat. The thermostat is factory set to give a water storage temperature of approx. 55 o

to 60 o

C. Access to the thermostat can be made by opening the terminal housing cover - DISCONNECT THE ELECTRICAL SUPPLY BEFORE OPENING THE COVER. Temperature adjustment is made by inserting a flat bladed screwdriver in the adjustment knob and rotating. The minimum thermostat setting is 10 o

C.

The adjustment range on the spindle represents a temperature range of 10 o

to 72 o

C (see Fig 7, page 11 for details).

If in any doubt contact a competent electrician.

On indirect units an immersion heater is also provided for use should the indirect heat source be shut down for any purpose. The immersion heater control temperature is set using the immersion heater controls, see 10.3 for details

DO NOT bypass the thermal cut-out(s) in any circumstances.

10.5 FLOW PERFORMANCE

When initially opening hot outlets a small surge in flow may be noticed as pressures stabilise. This is quite normal with unvented systems. In some areas cloudiness may be noticed in the hot water. This is due to aeration of the water, is quite normal and will quickly clear.

10.6 OPERATIONAL FAULTS

Operational faults and their possible causes are detailed in Section 9.0. It is recommended that faults should be checked by a competent installer.

The air volume within the expansion vessel will periodically require recharging to ensure expanded water is accommodated within the unit. A discharge of water INTERMITTENTLY from the expansion valve will indicate the air volume has reduced to a point where it can no longer accommodate the expansion.

19

20

10.0 FAULT FINDING & SERVICING

IMPORTANT

After servicing, complete the relevant service interval record section of the Benchmark Checklist located on page

24 and 25 of this document.

Servicing should only be carried out by competent persons in the installation and maintenance of unvented water heating systems.

Any spare parts used MUST be authorised Santon parts.

Disconnect the electrical supply before removing any electrical equipment covers.

NEVER bypass any thermal controls or operate system without the necessary safety valves.

Water contained in the PremierPlus cylinder may be very hot, especially following a thermal control failure. Caution must be taken when drawing water from the unit.

SPARE PARTS

A full range of spare parts are available for the PremierPlus cylinder range (See Table 6 Page 22). Refer to the technical data label on the unit to identify the model installed and ensure the correct part is ordered. You will need to quote the serial number which is printed on the data label.

FAULT FINDING

The fault finding chart (below) will enable operational faults to be identified and their possible causes rectified. Any work carried out on the PremierPlus cylinder unvented water heater and its associated controls MUST be carried out by a competent installer for unvented water heating systems. In case of doubt contact service support (see contact details on back page).

WARNING

DO NOT TAMPER WITH ANY OF THE SAFETY VALVES OR CONTROLS SUPPLIED WITH THE PREMIERPLUS CYLINDER AS

THIS WILL INVALIDATE ANY GUARANTEE.

Table 5 - Fault finding chart

Water discharges from expansion valve

Water discharges from T&P relief valve

Fault

No hot water flow

Water from hot tap is cold

Milky water

Possible Cause Remedy

Mains water supply off

Strainer blocked

Indirect programmer set to central heating only

Indirect boiler not working

Check and open stop cock

Turn off water supply. Remove strainer and clean

Check and refit as required Cold water combination valve incorrectly fitted

Direct immersion heater not switched on Check and switch on

Direct immersion heater thermal cut-out has operated

Check, reset by pushing button on thermostat

Check, set to domestic hot water programme

Indirect thermal cut-out has operated

Check boiler operation. If fault is suspected consult boiler manufacturer’s instructions

Check, reset by pushing button on thermostat

Check operation of indirect thermostat

Indirect motorised valve not connected correctly

INTERMITTENTLY

Expansion vessel charge pressure has reduced below 3.5bar, or set to high

CONTINUALLY cold water combination valve pressure reducer not working correctly.

Expansion valve seat damaged

Thermal control failure

NOTE: water will be very hot

Oxygenated water

Check wiring and/or plumbing connections to motorised valve

See Maintenance section for re-charging of expansion vessel procedure

Check pressure from cold water combination valve. If greater than 3.5bar replace pressure reducing valve

Remove expansion valve cartridge, check condition of seat. If necessary fit new expansion valve

Switch off power to immersion heater(s) and shut down boiler.

DO NOT turn off water supply. When discharge stops check all thermal controls, replace if faulty

Water from a pressurised system releases oxygen bubbles when flowing. The milkiness will disappear after a short while

21

22

Table 6 - Spares List

DESCRIPTION

1 Immersion heater (lower)

2 Immersion heater (upper)

3 Immersion heater gasket

4 Immersion heater backnut

5 Immersion heater key

6 Tundish

7 Expansion valve - 6bar

8

Cold water combination valve complete

9

Cold water combination body

PART NO.

95 606 984

95 606 986

95 611 822

95 607 869

95 607 861

95 605 838

95 605 899

95 605 897

95 605 900

95 605 898

95 605 810

12

Expansion vessel 12 litre

(100, 120 and 150 litre models)

95 607 863

95 607 864

15 Blanking plate assembly

16 Nut & olive pack (4 of each)

17

Direct Combined thermostat and Thermal cut-out

18

Indirect Combined thermostat and Thermal cut-out

19 6 Way Terminal block

20

21

22

3 Way Terminal block

23

Motorised 2 port valve

Terminal Shroud

Solar Temperature probe pocket plate

24 Thermal Cut-out

25 Control Cover

95 607 612

95 605 881

95 607 838

95 612 717

95 612 716

95 607 933

95 607 932

95 605 819

95 606 993

95 607 064

95 612 698

95 614 137

Fig. 12

10

9

Cold Mains

Connection (22mm)

7

8

Outlet Connection

(22mm)

Outlet Connection

(15mm)

Fig. 13 - Indirect Solar

18 17 1

3

22

24

19

25 4 23

20

23

24

Fig. 14 - Direct Solar

4

3

2

17

17 22 20

24

1

23

11.0 GUARANTEE

WARNING: Should the factory fitted temperature and pressure relief valve be tampered with or removed your guarantee will be invalidated. Neither the Distributor nor Manufacturer shall be responsible for any consequential damage howsoever caused.

Guarantee Terms

Santon guarantees the PremierPlus against faulty manufacture or materials for a period of 2 year from the date of purchase including parts and labour. This 2 year guarantee is extended to 5 years for the cold water control valve and to 30 years for the stainless steel inner vessel.

These guarantees are valid provided that:

The PremierPlus has been installed by a competent installer and as per the instructions contained in the installation manual and all relevant Codes of Practice and Regulations in force at the time of installation.

Any disinfection has been carried out in accordance with BS 6700.

The PremierPlus has not been modified in any way other than by heateam approved engineers.

The PremierPlus has only been used for the storage of wholesome water (max. 250mg/l chloride).

The PremierPlus has not been subjected to frost, nor has it been tampered with or been subjected to misuse or neglect.

No factory fitted parts have been removed for unauthorised repair or replacement.

The BenchmarkTM Commissioning Checklist Service Record included in this product Guide has been completed.

Regular maintenance has been carried out by a competent person in accordance with the requirements set out in the maintenance section of the installation manual and any replacement parts used should be authorised Santon spare parts.

Annual Services are available from Heateam, the service division of Santon. Please contact Heateam on Tel: 0844 871 1530 for further details.

Within 60 days of purchase the owner completes and returns the certificate supplied to register the product. Evidence of purchase and date of supply must be submitted upon making a claim.

This guarantee is not valid for installations outside the United Kingdom.

For installations outside of the United Kingdom, please contact either the Santon Export Department on Tel: +44 1603

420271 or Baxi International on Tel: +44 1926 478323 for further details of the guarantee terms and conditions applicable.

This guarantee does not affect your statutory rights.

The unit is not guaranteed against damage due to frost. This guarantee does not affect your statutory rights.

ENVIROMENTAL

Products are manufactured from many recyclable materials. At the end of their useful life they should be disposed of at

Local Authority Recycling Centre in order to realise the full environmental benefits.

Insulation is by means of an approved CFC/HCFC free polyurethane foam with an ozone depletion factor of zero.

25

26

27

SPARES STOCKISTS

Electric Water Heating Co.

2 Horsecroft Place

Pinnacles

Harlow

Essex

CM19 5BT

Tel: 0845 0553811

E-Mail: [email protected]

SPD

Special Product Division

Units 9 & 10

Hexagon Business Centre

Springfield Road

Hayes

Middlesex

UB40 0TY

Tel: 0208 5730574

Parts Center

Network 65 Business Park

Bentley Wood Way

Burnley

Lancashire

BB11 5ST

Tel: 01282 834403 www.partscenter.co.uk

Newey & Eyre

Specialist Products Division

Please Contact your Local Branch

UK Spares Ltd

Unit 1155

Aztec West

Almondsbury

Bristol

BS32 4TF

Tel: 01454 620500

William Wilson Ltd

Unit 3A

780 South Street

Whiteinch

Glasgow

G14 0SY

Tel: 0141 434 1530

28

Santon

Hurricane Way

Norwich

Norfolk

NR6 6EA

The policy of PremierPlus is one of continuous product development and, as such, we reserve the right to change specifications and guarantee terms and conditions without notice.

Customer Service

Tel:

Fax:

E-mail:

0844 871 1530

0844 871 1528 [email protected]

© 2011

36006154_issue_02

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
