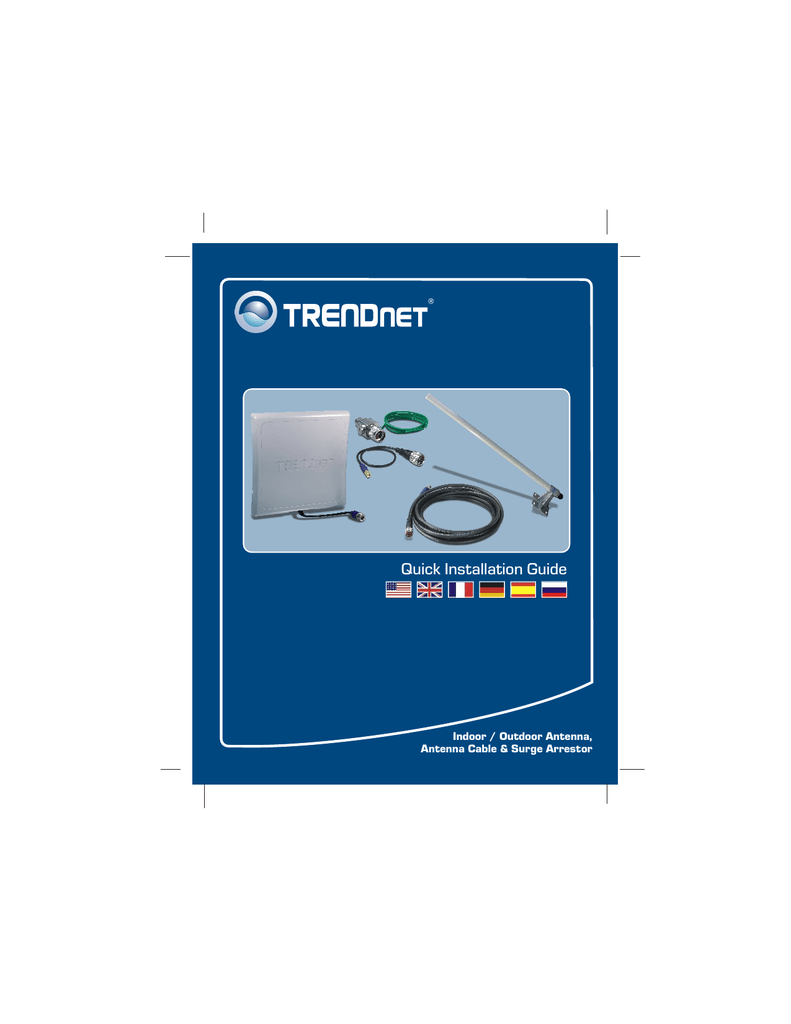

Quick Installation Guide
Indoor / Outdoor Antenna,
Antenna Cable & Surge Arrestor
Table of Contents
Español ........................................................................................................................... 1
1. Instalación de la antena exterior .........................................................................
1
2. Cómo instalar un protector de sobretensiones ...................................................
3. Cinta adhesiva a prueba de agua para instalació exterior ..................................
4
4. Instalación de antena interior ..............................................................................
5
6
Version 10.27.2006
1. Instalación de la antena exterior
Antes de la instalación, compruebe que tiene los productos requeridos y que el contenido de cada producto está completo.
TEW-ASAK
Cable de Jumper
Protector de sobretensiones
TEW-L406/TEW-L412
TEW-L406 – Cable (6 metros)
TEW-L412 – Cable (12 Metros)
Una de las siguientes antenas:
TEW-AO08O
TEW-AO10O
TEW-AO09D TEW-AO14D TEW-AO19D
1
Español
1. Desconecte la antena dipolo por defecto de su punto de acceso interior o enrutador.
2. Conecte el manguito azul (SMA inverso) del cable de jumper a su dispositivo Wi-Fi.
3. Conecte el manguito negro (tipo N) del cable de jumper al protector de sobretensiones. Por favor consulte la
sección 2 “Cómo instalar un protector de sobretensiones”
2
Español
4. Conecte la parte restante del protector de sobretensiones al manguito azul
(tipo N) del cable de antena.
(TEW-L406/TEW-L412)
5. Conecte el cable verde al objeto de tierra.
1. Elemento conductor
2. Sistema eléctrico de puesta a tierra
3. Base de instalación
6. Conecte la parte restante del manguito negro (tipo N) del cable de antena a la antena.
7. La instalación de la antena exterior ha finalizado.
3
Español
2. Cómo instalar un protector de
sobretensiones
1. Antes de instalar la antena, compruebe que el cable exterior de pérdida baja
(TEW-L406/TEW-L412) puede alcanzar la ubicación del punto de acceso o enrutador. Conecte el manguito azul del adaptador de cable incluido al dispositivo Wi-Fi (SMA inverso) y el manguito negro de los adaptadores de cable (tipo N) al protector de sobretensiones.
2. Tome el tornillo de metal tipo L y marque su lugar de fijación en la pared.
3. Fíjelo a la pared.
4. Coloque el protector dentro del soporte de sujeción.
Coloque la arandela
Enrosque la tuerca
4
Español
3. Cinta adhesiva a prueba de agua para
instalació exterior
Si su protector de sobretensiones se instala en exteriores, recuerde envolver firmemente ambos conectores con la cinta adhesiva a prueba de agua incluida.
5
Español
4. Instalación de antena interior
Antes de la instalación, compruebe que tiene los productos requeridos y que el contenido de cada producto está completo.
TEW-L202/TEW-L208
TEW-L202 – Cable (2 metros)
TEW-L208 – Cable (8 Metros)
Una de las siguientes antenas:
TEW-AO08O
TEW-AO10O
TEW-AO09D
Nota: Las siguientes antenas interiores vienen con cables o se conectan directamente a su dispositivo Wi-Fi. No requieren cables adicionales para el ensamblado:
TEW-AI86D TEW-AI86DB TEW-AI75O TEW-AI75OB
6
Español
1. Desconecte la antena dipolo de su punto de acceso o enrutador.
2. Conecte directamente el manguito azul
(SMA inverso) del cable interior
(TEW-L202/TEW-L208) al dispositivo
WiFi.
3. Conecte la parte restante del manguito negro (tipo N) del cable de antena al manguito azul de la antena (tipo N).
4. La instalación de antena interior ha finalizado.
7
Español
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.
TEW-ASAK, TEW-L202, TEW-L208,TEW-L406, TEW-L412 - 3 Year Warranty
TEW-AO08O, TEW-AO10O, TEW-AO09D, TEW-AO14D, TEW-AO19D- 3 Year Warranty
If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product. All products that are replaced will become the property of TRENDnet. Replacement products may be new or reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center.
This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable warranty period for a Return Material Authorization
(RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-authorized by
TRENDnet with RMA number marked on the outside of the package, and sent prepaid, insured and packaged appropriately for safe shipment.
8
WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT
OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY
SHALL BE, AT TRENDnet'S OPTION, REPAIR OR REPLACEMENT. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN
FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. TRENDnet NEITHER ASSUMES NOR AUTHORIZES
ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF
TRENDnet'S PRODUCTS.
TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING
AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE
PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY
THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY
OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW
TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY
LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL,
OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR
INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS
LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE
PRICE PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR
DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN
SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
AC/DC Power Adapter, Cooling Fan, Power Supply, and Cables carry 1 Year
Warranty
9
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.
Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
TRENDnet Technical Support
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com
20675 Manhattan Place
Torrance, CA 90501
USA
Copyright ©2006. All Rights Reserved. TRENDnet.
