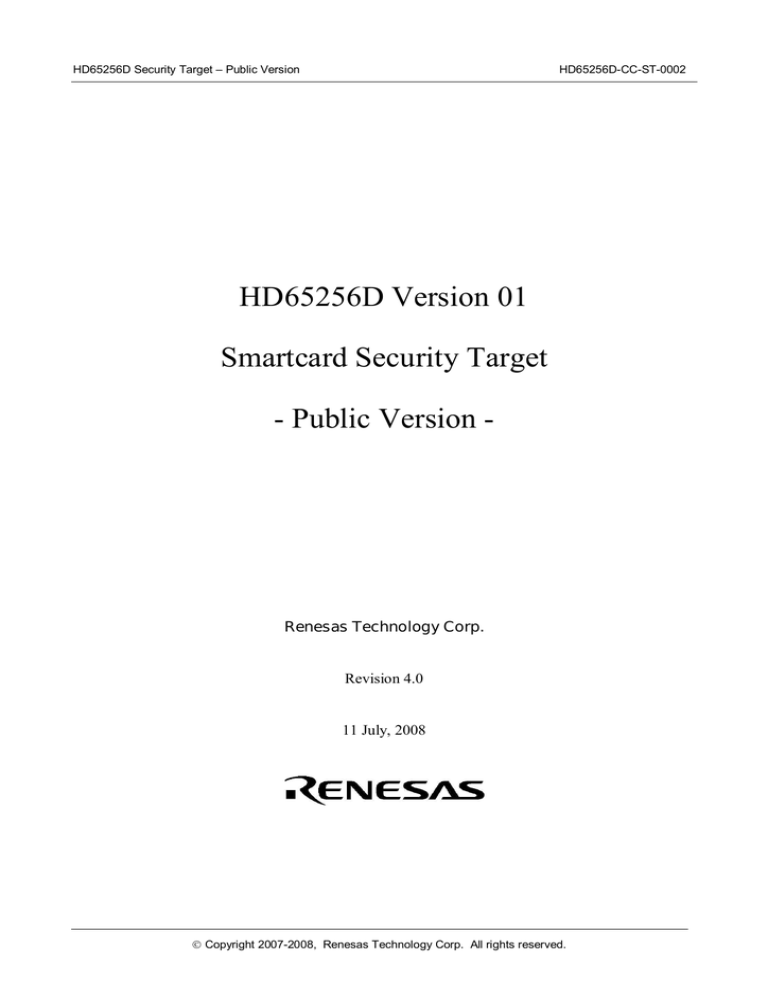

Security Target: 0490b
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
HD65256D Version 01
Smartcard Security Target
- Public Version -
Renesas Technology Corp.
Revision 4.0
11 July, 2008
Copyright 2007-2008, Renesas Technology Corp. All rights reserved.
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Revision
Revision
Date
Rev. 1.0
28 Sept.,
2006
Rev. 2.0
23 Feb.,
2007
0.4
Small modifications in reference information
Rev. 3.0
12 Apr.,
2007
0.4, 1.2
Updated the information of [EEPOPT].
1.1
Updated the information about ST.
11 July,
2008
0.4
Updated the information of [EEPOPT]
Rev.4.0
Revision 4.0, 11 July, 2008
Section
Description
Release
Page ii
HD65256D Security Target – Public Version
0
Preface
0.1
Objectives of Document
HD65256D-CC-ST-0002
This document defines the Security Target for evaluation of the Renesas HD65256D. It is intended to
comply with the BSI-PP-0002 Protection Profile (see [BSI-PP-0002]). Although no evaluated conformance
claim is made, it is also intended to conform as far as possible with the requirements of the IC package of the
SCSUG Protection Profile, and to provide support for operating system and application software that aims to
meet SCSUG requirements.
0.2
Scope of Document
This document defines the Security Target as required by [CC/1]. This is a Public version of the document
used in the evaluation process.
0.3
Intended Readership
Developers concerned with certification of the TOE.
Developers of Smartcard Embedded Software to run on the TOE.
Evaluators and certifiers of the TOE.
0.4
Related Documents
A reference of the form [REF, n] refers to section n of REF.
Literature
[BSI-PP-0002]
Smartcard IC Platform Protection Profile, v1.0, Eurosmart, July 2001
[AIS31]
Functionality classes and evaluation methodology for physical random number generators,
AIS 31, v3.1 (part of Bundesamt für Sicherheit in der Informationstechnik Application Notes
and Interpretation of the Scheme), Certification Body of the BSI
[AIS20]
Functionality classes and evaluation methodology for deterministic random number
generators, AIS 20, v1 (part of Bundesamt für Sicherheit in der Informationstechnik
Application Notes and Interpretation of the Scheme), Certification Body of the BSI
[CC/1]
ISO/IEC 15408-1:1999 (E) Information Technology – Security techniques – Evaluation
criteria for IT security – Part 1: Introduction and general model, 1999-12-01
[CC/2]
ISO/IEC 15408-2:1999 (E) Information Technology – Security techniques – Evaluation
criteria for IT security – Part 2: Security functional requirements, 1999-12-01
[CC/3]
ISO/IEC 15408-3:1999 (E) Information Technology – Security techniques – Evaluation
criteria for IT security – Part 3: Security assurance requirements, 1999-12-01
Note: the combination of all 3 parts of ISO 15408 is also referred to in this document as "Common
Criteria" or "CC".
[PA]
Smartcard Integrated Circuit Platform Augmentations, v1.0, Atmel, Hitachi Europe, Infineon
Technologies & Philips Semiconductors, March 2002
Documents and User Guidance
[HM]
Renesas 32-bit Smart Card Microcomputer AE-5 Series AE56D (HD65256D) Hardware
Manual, Rev. 1.1, Renesas Technology Corp., 10 August, 2006
[OPT]
Option List for Mask ROM Data (for HD65256D [AE56D]) (about Mask ROM data), v.1.0R,
Renesas Technology Corp., 5 July 2005
Revision 4.0, 11 July, 2008
Page iii
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
[EEPOPT] Option List for EEPROM Write (for HD65256D [AE56D]), v.1.30R, Renesas Technology
Corp., 18 October, 2007
[PM]
H8SX Software Manual (Renesas 32-bit CISC Microcomputer H8SX Family), Revision 3.0,
Renesas Technology Corp., 14 September, 2004
[UGM1]
HD65256D User Guidance Manual – Information for software developers using the
HD65256D in security–conscious applications, Rev. 1.10, Renesas Technology Corp., 20
July, 2006
[UGM2]
KURA Chip User Guidance Manual – Information for users of the security chip, Rev. 1.00,
Renesas Technology Corp., 7 June, 2006
0.5
Document Structure
This document follows the structure set out in [CC/1].
Note that sub-sections are structured to show parts that originate from [BSI-PP-0002], [PA] and other
sources.
0.6
Outstanding Issues
None.
0.7
Glossary
Term
Meaning
CBC
Cipher Block Chaining
A mode of DES encryption.
Common Criteria (ISO 15408)
Central Processing Unit
Cyclic Redundancy Check
Data Encryption Standard
Differential Fault Analysis
Differential Power Analysis
Evaluation Assurance Level
Electronic Code Book
A mode of DES encryption.
Electronically Erasable Programmable Read-Only Memory
Software held in the chip, having been developed by users of the TOE. Such software
generally includes an operating system and may include all or part of applications. There
are two types of Embedded Software:
Hard-coded – held in ROM
Soft-coded – held in EEPROM or RAM.
The chip does not depend on such software, and Embedded Software is not part of the
TOE. However, hard-coded Embedded Software will be included in the ROM of any
issued TOE at manufacturing time.
Note that Embedded Software includes all software on a TOE other than the IC
Dedicated Software.
Embedded Software is also referred to as ‘Smartcard Embedded Software’ (especially in
[BSI-PP-0002]).
An interrupt generated by the TOE whenever an attempt is made to write to EEPROM.
Firewall Management Unit – a feature of the TOE that limits the memory areas available.
Hardware random number generator (physical random number generator)
Integrated Circuit
Software developed by Renesas and embedded in the IC. (Adopted from [BSP-PP-0002])
Software developed by Renesas for testing the TOE during manufacture. This software is
part of the TOE, but is not available for general use by operating systems, applications or
end-users in phase 7 of the lifecycle (see section 2.3).
Integrated Security Concept
CC
CPU
CRC
DES
DFA
DPA
EAL
ECB
EEPROM
Embedded Software
EWE
FMU
HW RNG
IC
IC Dedicated Software
IC Dedicated Test
Software
ISC
Revision 4.0, 11 July, 2008
Page iv
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Term
Meaning
IT
LNRRT
LSERB
LSI
LUART
Manufacturing
Identification Data
Information Technology
Local NRz Receive/Transmit
Local SERial Bus
Large Scale Integration
Local UART
Some basic data injected into EEPROM, enabling traceability of an IC to the lot and line
in which it was manufactured, the Smartcard Embedded Software present, and the
versions of masks and specifications applicable.
Micro Computer Unit
A form supplied by Renesas and filled in by a TOE customer, specifying various options
for the manufacture of TOE ICs for that customer. The aspect of particular interest to this
security target is :
Selection of whether pre-personalisation data injection is required
The option list also describes the content and structure of the manufacturing identification
data that Renesas will inject (see section 2.4.2).
Protection Profile
Random Access Memory
Refer to Renesas Technology Corp. (http://www.renesas.com/)
A state in which the chip does not execute instructions or engage in input/output. The
chip can exit the reset state by receiving an external reset.
See also section 6.1.
Random number generator
Read-Only Memory
Security Function Policy
Security Functional Requirement
(as used in [BSI-PP-0002]) Composition of the TOE, the Smartcard Embedded Software,
User Data and the package (the smartcard carrier).
Strength of Function
Security Target
Target of Evaluation. TOE consists of the chip (IC) and other materials and data.
However, the term is sometimes used to indicate just the chip.
The point at which the TOE is delivered, as shown in section 2.3. This may be either in
the form of wafers (at the end of phase 3) or as packaged modules (at the end of phase 4).
(As defined in section 8.7 of [BSI-PP-0002]) The IC developer and manufacturer. If the
TOE is delivered after phase 4 (i.e. as packaged modules, rather than wafers) then this is
also the packager.
For the HD65256D, the TOE Manufacturer refers to Renesas.
TSF Scope of Control
TOE Security Functions
Data created by and for the TOE and that might affect the operation of the TOE.
All data managed by the Smartcard Embedded Software in the application context. User
data comprises all data in the final smartcard IC except for the TSF data.
The mode of operation after TOE Delivery. The TOE is set to this mode just before
delivery, which renders the IC Dedicated Test Software permanently unavailable.
Watchdog Timer – a feature of the chip that enables embedded software to be regularly
executed during the operation of the IC. This allows checks to be made on the execution
environment to help detect potential attacks or insecure conditions.
MCU
Option List
PP
RAM
Renesas
Reset state
RNG
ROM
SFP
SFR
Smartcard
SOF
ST
TOE
TOE Delivery
TOE Manufacturer
TSC
TSF
TSF Data
User Data
User Mode
WDT
Revision 4.0, 11 July, 2008
Page v
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Table of Contents
1.
ST Introduction ...............................................................................................................1
1.1
ST Identification ..................................................................................................1
1.2
TOE Identification ...............................................................................................1
1.3
ST Overview........................................................................................................2
1.4
CC Conformance Claim .......................................................................................3
2.
TOE Description .............................................................................................................4
2.1
HD65256D Product Description...........................................................................4
2.1.1 Hardware..................................................................................................4
2.1.2 Software...................................................................................................6
2.1.3 Documents ...............................................................................................7
2.2
TOE Intended Usage ............................................................................................7
2.3
TOE Lifecycle .....................................................................................................7
2.3.1 Test and User Modes..............................................................................10
2.3.2 TOE Delivery.........................................................................................10
2.4
TOE Environments ............................................................................................10
2.4.1 Development Environment .....................................................................10
2.4.2 Injection of Manufacturing Identification and Secret Data ......................11
3.
TOE Security Environment............................................................................................13
3.1
Assets ................................................................................................................13
3.2
Assumptions ......................................................................................................14
3.2.1 Assumptions from [BSI-PP-0002] ..........................................................14
3.2.2 Assumptions from [PA]..........................................................................15
3.2.3 Other Assumptions .................................................................................15
3.3
Threats...............................................................................................................15
3.3.1 Threats Defined in [BSI-PP-0002]..........................................................15
3.3.2 Other Threats..........................................................................................18
3.4
Organisational Security Policies.........................................................................20
3.4.1 Policy Requirement from [BSI-PP-0002]................................................20
3.4.2 Policy Requirement from [PA] ...............................................................20
4.
Security Objectives........................................................................................................22
4.1
TOE Security Objectives....................................................................................22
4.1.1 Objectives from [BSI-PP-0002]..............................................................22
4.1.2 Objectives Based on [PA].......................................................................24
4.1.3 Other Objectives.....................................................................................25
4.2
Environment Security Objectives .......................................................................26
4.2.1 Environment Security Objectives from [BSI-PP-0002] ...........................26
4.2.2 Other Environment Security Objectives..................................................28
5.
IT Security Requirements ..............................................................................................29
5.1
TOE Security Requirements...............................................................................29
5.1.1 TOE Security Functional Requirements from [BSI-PP-0002] .................30
5.1.2 TOE Security Functional Requirements Based on [PA] ..........................35
5.1.3 Other TOE Security Functional Requirements ........................................36
5.1.4 TOE Security Assurance Requirements ..................................................38
5.2
Security Requirements for the Environment .......................................................39
5.2.1 Security Requirements for the IT Environment from [PA] ......................39
5.2.2 Security Requirements for the Non-IT Environment ...............................41
Revision 4.0, 11 July, 2008
Page vi
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
6.
TOE Summary Specification .........................................................................................43
6.1
TOE Security Functions .....................................................................................43
6.2
Correspondence Between TOE Security Function and SFR................................47
6.3
Assurance Measures...........................................................................................47
7.
PP Claims......................................................................................................................49
7.1
PP Reference......................................................................................................49
7.2
PP Tailoring .......................................................................................................49
7.3
PP Additions ......................................................................................................49
8.
Rationale .......................................................................................................................50
8.1
Security Objectives Rationale ............................................................................50
8.2
Security Requirements Rationale .......................................................................52
8.2.1 Dependencies .........................................................................................56
8.3
TOE Summary Specification Rationale ..............................................................58
8.4
Assurance Requirements and Strength of Function Rationale .............................59
8.5
Mutual Support and Internal Consistency...........................................................59
8.6
PP Claims Rationale...........................................................................................59
Revision 4.0, 11 July, 2008
Page vii
HD65256D Security Target – Public Version
Revision 4.0, 11 July, 2008
HD65256D-CC-ST-0002
Page viii
HD65256D Security Target – Public Version
1.
HD65256D-CC-ST-0002
ST Introduction
The ST aims to provide potential users of the TOE with
A definition of the main properties of the IC that are evaluated and certified independent of
any software
Confidence in IC properties that can be used to build an integrated TOE (i.e. IC + operating
system + other application software).
1.1
ST Identification
Title:
HD65256D Version 01 Smartcard Security Target – Public Version –
Revision:
4.0
Provided by:
Renesas Technology Corp.
This Security Target applies to the Renesas HD65256D integrated circuit (version 01)
(as defined in detail in the configuration list for the evaluation).
This public version of the HD65256D Security Target (also known as “ST-lite”) is abridged
from the evaluated version of the full Security Target (revision 5.0) with the approval of the
Certification Body.
1.2
TOE Identification
The TOE configuration is summarised in the table below:
Table 1-1: TOE Configuration
Item Type
Hardware
Software
Software
Document
Document
Document
Document
Document
Item
Version
Form of delivery
HD65256D smartcard
integrated circuit
IC Dedicated Test Software
Test ROM software
RNG online test software
01
Hardware Manual*
User Guidance Manual (for
software developers)*
User Guidance Manual (for
chip users)*
Option List for Mask ROM
Data*
Option List for EEPROM
Write*
1.1
1.10
Hardcopy: provided as a part of
[UGM1]. (This is implemented in the
Embedded Software by the user)
Hardcopy
Hardcopy
1.00
Hardcopy
1.0R
Electronic data/Hardcopy
1.30R
Electronic data/Hardcopy
Revision 4.0, 11 July, 2008
0.10
2.20
Wafer or packaged module (see
section 2.3)
Included in HD65256D test ROM
Page 1 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Note: These documents are written in Japanese. In order to support evaluation of the TOE, English versions of those
documents are provided to the evaluation body.
Further description of the TOE is provided in section 2.1.
TOE
RNG online test software
(implemented on hardware)
ROM
IC Dedicated Test Software
(implemented on hardware)
Embedded Software
(implemented on hardware)
(out of the scope of TOE)
Chip
Hardware Manual
EEPROM Injection Option List
Option List
User Guidance for User
User Guidance for Software Developer
RNG online test software
(source code sample)
Figure 1-1: Configuration of the TOE
Figure 1-1 shows the configuration of the TOE. The TOE consists of hardware, software, and
documents. The software (as part of the TOE) is provided as being implemented on the
hardware. Among software, the Embedded Software is outside the scope of the TOE. The RNG
online test software is provided to the developer of the Embedded Software as a source code
sample in [UGM1], and it is implemented in the TOE as the embedded software by the
Embedded Software developer.
1.3
ST Overview
This document is the ST for the Renesas HD65256D IC product, intended for use as a smart card
IC. The TOE complies with the Eurosmart Protection Profile developed by the Secure
Semiconductor Vendor Group [BSI-PP-0002]. However, the TOE also provides a number of
additional security features that have been based on a long history of assisting software
developers to implement secure Smartcard Embedded Software. These TOE-specific security
features have been added to the ST.
The TOE is ideally suited for high security applications. Security has been built in from the start,
forming an integral part of the whole Smartcard design concept. The whole development
process (including secure chip design environment, secure production facilities and secure
handling during shipment to the customer) is constantly reviewed in order to maximise the
Revision 4.0, 11 July, 2008
Page 2 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
overall security package. The TOE can be delivered as packaged modules ready for embedding
into a mobile equipment.
Many security features such as integrated sensors, distributed layout, random number generation,
DES coprocessor and power analysis attack protection are all included providing a strong onchip hardware security structure.
Uniquely, Renesas smartcard devices are fabricated using a MONOS (Metal Oxide Nitride
Oxide Silicon) EEPROM structure. MONOS advantages compared to standard EEPROM
structures are high resistance to radiation disturbance, high reliability and endurance.
The TOE fulfils the requirements of Smart Card applications requiring large memory, high
security and high speed secure authentication, data encryption or electronic signature. Examples
include: e-money, e-ticket, and ID card.
Applications such as e-money are ever expanding in scope and consequently the need for greater
memory storage for both data and program code is ever increasing. The TOE provides a
significant increase in ROM for program storage over previous devices whilst ensuring a balance
of EEPROM for data storage.
The move from single to multi-application on a single component is also rising due in part to
new systems such as e-money and e-ticket. This requires not only additional memory for
application data storage but also features such as FMU in order to provide data integrity between
applications.
1.4
CC Conformance Claim
This ST is compliant with [CC/1], [CC/2] and [CC/3].
Because the ST conforms to [BSI-PP-0002], it includes extended functionality classes defined in
section 8 of [BSI-PP-0002]. The ST is therefore [BSI-PP-0002] conformant, [CC/2] extended
and [CC/3] conformant. In addition, this ST includes some additional assumptions, threats,
objectives and SFRs defined in [PA]. Therefore, this ST is also [PA] conformant. This ST deals
with a life cycle that contains a phase which is outside of the scope of the life cycle of smartcard
LSI defined in [BSI-PP-0002] (see section 2.3).
The Assurance level is EAL4 augmented (for augmentations see section 5.1.4).
The strength of function is SOF-high.
Revision 4.0, 11 July, 2008
Page 3 of 59
HD65256D Security Target – Public Version
2.
HD65256D-CC-ST-0002
TOE Description
2.1
HD65256D Product Description
The TOE consists of the hardware shown in Figure 2-1, along with IC Dedicated Test Software,
some embedded software, and reference and guidance documents. IC Dedicated Test Software
is used in IC production only, and is not available to users.
As well as the functional interfaces, the IC surface is also considered as a TOE interface for
some potential physical attacks, as described in section 3.3 of [BSI-PP-0002].
A block diagram of the chip is shown in Figure 2-1 below:
CPU
System control logic
V CC
V SS
WDT
(Optional)
Security logic
Address Bus
FMU
Data Bus
ROM
RAM
EEPROM
DES coprocessor
SCK
Interval timer 2/3
Clock
generator
RNG
CRC coprocessor
LSERB
LUART
TCK
LNRRT
LSB
TXD
RXD
TDT
RDT
Interval timer 1
Figure 2-1: Internal Block Diagram of the TOE
2.1.1
Hardware
The TOE is an integrated circuit for smartcard based around the high-speed CPU core (derived
from Renesas’ widely used H8SX general purpose core). As can be seen from the block diagram
in Figure 2-1, the MCU comprises the following major blocks in addition to the CPU: ROM,
RAM, EEPROM, random number generator (RNG), CRC coprocessor, DES coprocessor, three
interval timers, WDT (optional), FMU, and three types of interfaces (LSERB, LUART, LNRRT).
For operation of the TOE, two kinds of external clocks (SCK, TCK) are input from outside of the
Revision 4.0, 11 July, 2008
Page 4 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
chip. SCK is used for operation of internal circuits of the chip (6.70MHz to 6.86MHz). TCK is
used for data transmission (input/output) via contactless interfaces and for operation of the
Interval timer 1 (212kHz or 424kHz).
CPU: the CPU can operate with 2.2V to 3.3V supply and a maximum internal clock frequency
of 13.72MHz and is upwards compatible with the H8/300 core:
The instruction set is implemented with 16-bit variable instruction lengths (2 to 14 bytes)
and permits register to register arithmetic and logic operations.
A linear address space of up to 16 Mbytes is possible.
Signed or unsigned multiply instruction (8 x 8, 16 x 16, or 32 x 32-bits)
Signed or unsigned divide instruction (16
8, 16
16, 32
16, 32
32-bits)
Special EEPROM write instruction and high-speed block transfer instruction
Memory: the TOE has a memory mapped architecture and allows the EEPROM to be used for
both data and program storage. There is a special block of RAM dedicated for coprocessor use,
that can be used as normal RAM when not required by the coprocessor.
ROM
RAM
EEPROM
o on-chip charge pump and independent oscillator
o special write instruction, and interrupt generation on writing
o page write/erase
o individual page protection
RNG: this can generate 64-bit random numbers. Using the RNG enables a unique value to be
generated inside the chip, which improves the system security. Note that the RNG generates a
64-bit (16-bit × 4) random number at one time, but it is provided to the user of the TOE by 16
bits.
DES coprocessor: this hardware coprocessor can be used to provide either DES or triple-DES
functions to the users’ software with very little software overhead. Countermeasures against
information leakage have been integrated into the coprocessor unit to make it highly resistant to
such attacks with minimal software overheads or execution time penalties.
These
countermeasures are always active and make no additional requirements on Smartcard
Embedded Software.
Interval timer 1: this counter operates in synchronisation with TCK. The first interval interrupt
after start-up of this timer is issued in arbitrary terms, and from the second time onwards,
interval interrupts are issued periodically in a specified term.
Revision 4.0, 11 July, 2008
Page 5 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Interval timer 2: this counter operates with eight types of input clocks that are synchronous
with SCK, and issue interval interrupts periodically in arbitrary terms.
Interval timer 3: this counter operates in synchronisation with SCK, and issues interval
interrupts in arbitrary but in ten minutes terms.
WDT: the watchdog timer is a powerful tool to help the user software detect and respond to
unauthorised program execution. Use of the WDT is optional and should be selected using
[OPT].
FMU: this memory management function monitors memory access permissions for the user
software and enables the limiting of program execution from RAM and EEPROM.
CRC coprocessor: CRC (Cyclic Redundancy Check) coprocessor generates codes for detecting
errors in data blocks. The CRC codes are created using a generator polynomial CRCCCITT(X16+X12+X5+X0).
LSERB: half-duplex serial interfaces synchronous with SCK.
LUART: half-duplex asynchronous mode interfaces. There are two 256B buffers; one for
sending and another for receiving.
LNRRT: half-duplex serial interfaces synchronous with TCK. These interfaces are available for
transmissions using NRZ coding. There are two 256B buffer; one for sending and another for
receiving.
System control logic: System control logic generates a signal to control the interface between
the CPU subsystem and each other subsystem.
Security logic: the IC incorporates specialised security logic to help to ensure the correct
operation of the TOE.
Some security features, such as FMU, allow the Smartcard Embedded Software to determine the
events to be monitored and the actions to be taken; many of them however are independent of
software and are designed to operate automatically when required, to return the TOE to a secure
state. The IC also provides protection features to resist leakage attacks.
Physical security of the IC is enhanced by the presence of shielding over critical areas, and by
the use of design techniques that obscure the function and operation of the physical layout.
Full details of the operation of the chip and guidance for its use are given in [HM], [OPT],
[EEPOPT], and [UGM1].
2.1.2
Software
The TOE includes the following software:
IC Dedicated Test Software:
The IC Dedicated Test Software is integrated into the TOE hardware. It is used for mode
transition and testing during IC production, and is not available to users.
Revision 4.0, 11 July, 2008
Page 6 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
The RNG On-line Test Software:
The RNG On-line Test Software is provided to perform the on-line test for randomness, as
required in [AIS31]. To enable users to deploy the software as necessary, this software is
supplied as a listing in [UGM1]. Note that the use of this software is part of the intended method
of use of the TOE under certain conditions, and it is therefore part of the evaluated configuration.
All other Smartcard Embedded Software (e.g. an operating system) is outside the scope of the
TOE. The Smartcard Embedded Software is supplied to Renesas by the customer in a secure
manner, and is then protected by Renesas’ secure production environment.
2.1.3
Documents
The TOE Hardware Manual [HM] is supplied as the basic reference for users who are
developing Smartcard Embedded Software. Guidance for the secure use of the HD65256D in
applications is given in the User Guidance Manual (for Software Developer) [UGM1]. There is
another guidance manual which is intended for users of the TOE [UGM2]. Options and contents
of the identification data stored in the EEPROM are described in [OPT] and [EEPOPT].
2.2
TOE Intended Usage
The TOE is intended for use in a range of high security applications, including high speed secure
authentication, data encryption or electronic signature. Examples include: e-money and e-ticket.
2.3
TOE Lifecycle
The design and manufacturing lifecycle for the TOE is shown in Figure 2-2 (and in section 8.1.1
of [BSI-PP-0002]). The TOE can be delivered only at the end of phase 4, as shown in the figure.
TOE lifecycle in this ST is augmented from the basic lifecycle of smartcard IC defined in [BSIPP-0002]; a part of phase 5 is included in the TOE lifecycle.
Revision 4.0, 11 July, 2008
Page 7 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Initial personalisation
requirements
Initial personalisation
command and data
Pre-personalisation
requirements
Embedded Software
Pre-personalisation data
Smartcard
Embedded Software
IC sensitive information,
software, and tools
Phase 1
IC Design
IC Dedicated Software
Smartcard IC
Database Construction
Phase 2
IC Photomask
Fabrication
Pre-personalisation
requirements
IC Manufacturing
IC Testing &
Pre-personalisation
Phase 3
IC Packaging
Testing
Initial personalisation
requirements
Phase 4
Smartcard Finishing Process
Testing
Phase 5
Personalisation
Testing
Phase 6
Smartcard Product End-Usage
End of Life Process
Phase 7
Figure 2-2: Design and Manufacturing Lifecycle
The stages shown are as listed below. This Security Target addresses phases 2, 3 and 4 in Figure
2-2. In addition, Initial personalisation related process in phase 5 is also covered.
Revision 4.0, 11 July, 2008
Page 8 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Phase 1: Smartcard Embedded Software development – this phase is outside the scope of the
TOE, but the results of the software development are inputs to the manufacture of a customerspecific instance of the TOE. Renesas deliver information about the TOE (such as [HM]) to
the embedded software developer to enable the Smartcard Embedded Software to be written.
Development tools (such as emulators) and IC samples are also available to developers.
Information and tools are released only under Non-Disclosure Agreement to ensure their
distribution is controlled and limited (this ensures, for example, secure disposal of scrap).
The embedded software for incorporation in the ROM mask is sent via a secure delivery
method from the software developer to Renesas, and its secure handling is then ensured by
Renesas. Similarly, pre-personalisation data is sent by a secure route to Renesas for injection
during the manufacturing stage. Injection of data is described further in section 2.4.2. Secure
receipt and handling of this data by Renesas is included within the scope of this security target.
Phase 2: IC design, IC Dedicated Test Software – this includes system design through logic,
circuit and layout design. The Dedicated Test Software is also developed in this phase, to
enable testing of the IC at various phases of its manufacture. The Smartcard Embedded
Software is received from phase 1.
The security of the development environments for the IC and its dedicated software, along
with the secure handling of masks are primary concerns of this security target.
Phase 3: Mask fabrication and IC wafer manufacturing – The masks used to manufacture the
various IC layers are created from the layout design during phase 2; ROM masks for the
Smartcard Embedded Software in a particular instance of the TOE are fabricated after receipt
of the software in phase 2. Also, in this phase, wafers containing TOE dies with Smartcard
Embedded Software are produced. At the end of this process each die is tested and has its
pre-personalisation data injected into EEPROM (see section 2.4.2).
The secure fabrication and handling of masks, and the security of manufacture, including
handling of masks, test software, and pre-personalisation data are primary concerns of this
security target.
Phase 4: IC Packaging – each wafer is cut into individual dies and its protective packaging
applied, along with its contacts. The resulting module is then tested in Test Mode to ensure
correct operation, after which it is set to User Mode.
Phase 5: Smartcard finishing process – there are two major processes in phase 5. In the first
process, the final testing of the Smartcard Embedded Software and the Initial Personalisation
are performed. In the Initial Personalisation, the Smartcard Embedded Software is set to User
Mode to make the TOE ready for Personalisation. In the second process, the TOE is loaded
into a handset. This Security Target includes the Initial Personalisation in the first process as
a part of the life cycle of the TOE.
The TOE is delivered at a point between the Initial Personalisation and TOE loading to
handsets.
Phases 6-7: Smartcard personalisation and end-usage – these stages, and their security
features, are determined by the customer, and are outside the scope of this security target.
Revision 4.0, 11 July, 2008
Page 9 of 59
HD65256D Security Target – Public Version
2.3.1
HD65256D-CC-ST-0002
Test and User Modes
During manufacturing and production (phases 2-4), the chip makes some mode transitions which
affect the interface presented. These modes are as follows:
Test mode makes the IC Dedicated Test Software available, which is used to ensure that only
correctly working ICs are delivered.
User mode makes the IC Dedicated Test Software unavailable and the TOE now provides
only the functionality described in [HM]. The software interface presented will be
determined by the Smartcard Embedded Software.
As explained under the individual lifecycle phases above, the chip is always in test mode in
phases 2 and 3. Then the chip will be in the constrained test mode during phase 4, making a
limited set of test functions available to test the correct operation of modules after packaging.
However, the TOE is always in User Mode after being assembled into a module format, and the
transition from User Mode to Test Mode is designed to be very difficult.
2.3.2
TOE Delivery
As noted above, the TOE is delivered after the Initial Personalisation in phase 5. The chip will
be delivered in User Mode, and Renesas will apply secure delivery procedures for the transport
of the TOE from Renesas premises.
2.4
TOE Environments
2.4.1
Development Environment
Renesas’ development environment for the TOE has implemented security measures specifically
to ensure the security of the TOE and of Smartcard Embedded Software and injection data used
in manufacturing ICs for customers. As indicated in section 2.3, there are three areas of the
development environment:
Design sites
Mask manufacture site
Manufacturing sites
These provide the following main security properties:
Design sites
Confidentiality and integrity of logical and physical design
Testing of TOE security functionality
Confidentiality and integrity of IC Dedicated Test Software
Confidentiality and integrity of customer ROM code, injection data and commands and
data for initial personalisation (i.e. the Smartcard Embedded Software for an instance of
the TOE)
Revision 4.0, 11 July, 2008
Page 10 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Mask manufacture site
Confidentiality and integrity of customer ROM code and mask
Confidentiality and integrity of design and base masks
Manufacturing sites
Confidentiality and integrity of base masks
Confidentiality and integrity of customer ROM mask
Confidentiality and integrity of test software
Confidentiality and integrity of injection data
Confidentiality and integrity of commands and data for initial personalisation
Production of authentic TOE ICs, correctly implementing the design and including the
customer Smartcard Embedded Software in ROM.
Proper initial personalisation through secure and proper use of commands and data
provided from customers for the initial personalisation.
Security issues for each of these areas are addressed by processes and procedures put in place by
Renesas and within the scope of evaluation. The security measures include IT security to protect
information stored on Renesas computer systems, as well as physical security measures for
secure storage to ensure that design and manufacturing information and objects are only
accessible to authorised staff with a need to know the information. Renesas' integrated security
concept (ISC) covers the entire development process, from specification, through design and
implementation to manufacturing and shipping. ISC is implemented through the use of
standards and procedures that form part of the quality system at the heart of Renesas' business.
The rigorous adoption and adherence to procedures, including those relating to security, is an
integral part of the quality system at the heart of Renesas’ business.
The security of the IC Dedicated Test Software at design and manufacturing sites is ensured by
the same level of security measures as for the hardware design. This ensures that only authorised
persons have access to the software and its related information.
Smartcard Embedded Software is received from customers via a secure delivery procedure.
Once received by Renesas, this software is also handled with the same level of security as for
design information. As a further measure, the group handling customer software is separate
from the IC design team.
2.4.2
Injection of Manufacturing Identification and Secret Data
In general, although there will be a substantial amount of operating system and application
software held in ROM, an IC will also require software to be added after it leaves the
manufacturing environment. Operating system software may require additional parts or patches
to be loaded, and increasingly applications are expected to be loaded and deleted after a smart
card has been issued to users. In order to enable such addition (and deletion) of software to be
done securely, there is a generic requirement for identification data and secret data, determined
by the IC purchaser, to be injected during manufacture.
Revision 4.0, 11 July, 2008
Page 11 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
The TOE supports this requirement by injecting identification data during the manufacturing
process; this data uniquely identifies each IC. In addition, customers may choose to inject
further data. The details of the data content and its location in memory are shown in [EEPOPT].
Revision 4.0, 11 July, 2008
Page 12 of 59
HD65256D Security Target – Public Version
3.
3.1
HD65256D-CC-ST-0002
TOE Security Environment
Assets
This section defines the primary and secondary assets to be protected by the TOE. Section 3.1 of
[BSI-PP-0002] gives the assets relating to the threats, and these are summarised below.
The primary assets to be protected are classified as:
User Data – this includes injection/pre-personalisation data, data generated and managed by
the Smartcard Embedded Software, and initial personalisation commands and data (subject to
adequate protection by the software, see A.Key-Function, A.Plat-Appl and A.Resp-Appl in
section 3.2)
Smartcard Embedded Software, comprising
Hard-coded Embedded Software – this is fixed and generally consists of parts or all of the
operating system, and parts or all of a number of applications
Soft-coded Embedded Software – this may include parts of the operating system or
applications.
Both of these types of asset need to have their confidentiality and integrity protected.
A further primary asset is:
Correct operation of the TOE (including its random number generator).
In particular this means that the Smartcard Embedded Software will be correctly executed, which
includes the correct operation of the TOE’s functions.
Because random numbers are likely to be used by embedded software for generating
cryptographic keys, another primary asset is:
the random numbers generated by the TOE1
Secondary assets are critical information about the TOE, including logical design data, physical
design data, IC Dedicated Test Software and TSF data.
In addition, the following will also contain information about the TOE.
Initialisation Data and Pre-personalisation Data, specific development aids, test and
characterisation related data, material for software development support, and photomasks.
1
The confidentiality of random numbers is generally protected by embedded software (which is responsible for
requesting random numbers). However, it is important that random numbers should not be subject to leakage (cf.
T.Leak-Inherent), because of their potential role in cryptographic key generation.
Revision 4.0, 11 July, 2008
Page 13 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Such information and the ability to perform manipulations assist in threatening the primary
assets.
Assets relating specifically to the Organisational Security Policy P.Process-TOE and Assumption
A.Process-Card are given in section 3.1 of [BSI-PP-0002].
3.2
3.2.1
Assumptions
Assumptions from [BSI-PP-0002]
The following assumptions are made:
A.Process-Card
Protection during Packaging, Finishing and Personalisation
It is assumed that security procedures are used by the recipient after
delivery of the TOE by Renesas up to delivery to the end-user to maintain
confidentiality and integrity of the TOE and of its manufacturing and test
data (to prevent any possible copy, modification, retention, theft or
unauthorised use).
The exact requirements of this assumption will depend on the Smartcard Embedded Software.
This means that the phases after TOE Delivery (refer to section 2.3) are assumed to be protected
appropriately. For a preliminary list of assets to be protected, see section 3.1 of [BSI-PP-0002].
A.Plat-Appl
Usage of Hardware Platform
The Smartcard Embedded Software is designed so that the requirements
from the following documents are met:
(i)
The TOE hardware manual [HM], user guidance manual [UGM1],
and the hardware application notes
(ii) Findings of the TOE evaluation reports relevant for the Smartcard
Embedded Software.
A.Resp-Appl
Treatment of User Data
All User Data is owned by Smartcard Embedded Software. Therefore, it is
assumed that security relevant User Data (especially cryptographic keys)
are treated by the Smartcard Embedded Software as defined for the
specific application context.
This assumption requires that the Smartcard Embedded Software define and positively manage
its security relevant User Data, in the manner required by the application context. Without this,
the protection provided by the TOE itself may be of no use if the Smartcard Embedded Software
itself allows data to be compromised.
Examples of embedded software security concerns are given in section 8.2 of [BSI-PP-0002].
Revision 4.0, 11 July, 2008
Page 14 of 59
HD65256D Security Target – Public Version
3.2.2
HD65256D-CC-ST-0002
Assumptions from [PA]
A.Key-Function
Usage of Key-dependent Functions
Key-dependent functions (if any) shall be implemented in the Smartcard
Embedded Software in a way that they are not susceptible to leakage
attacks (as described under T.Leak-Inherent and T.Leak-Forced).
Note that here the routines which may compromise keys when being
executed are part of the Smartcard Embedded Software. In contrast to this
the threats T.Leak-Inherent and T.Leak-Forced address (i) the
cryptographic routines which are part of the TOE and (ii) the processing of
User Data including cryptographic keys.
Note here that the functions considered in this assumption are part of the Smartcard Embedded
Software; T.Leak-Inherent and T.Leak-Forced address the cryptographic functions that are part
of the hardware.
To assist embedded software developers to implement leak-resistant code, guidance on secure
software implementation is given in [UGM1].
3.2.3
Other Assumptions
A variety of keys and other security-critical data may be injected for use by Smartcard
Embedded Software. These may include shared private keys, public/private key pairs, etc. This
information could contribute to a cloning attack, or to breaking the security of an instance of the
TOE (e.g. by compromising its keys). The integrity of this data is also vital to ensuring the
security of the TOE (e.g. preventing unauthorised changes to mask code, IC design or keys). All
data supplied for injection/pre-personalisation is assumed to be supported off-card in a secure
manner:
A.InjDatSupp
Injected Data Support
Data for injection/pre-personalisation will be supplied from the various
bodies controlling the operations of the system in which the TOE is
functioning, based on [EEPOPT]. It is assumed that the generation,
distribution, maintenance, and destruction of this data is adequately secure.
3.3
3.3.1
Threats
Threats Defined in [BSI-PP-0002]
This section adopts the threats to ICs defined in section 3.3 of [BSI-PP-0002].
The TOE has the following high-level security concerns, as in section 3.3 of [BSI-PP-0002]:
SC1
manipulation of User Data and of the Smartcard Embedded Software (while being
executed/processed and while being stored in the TOE’s memories).
Revision 4.0, 11 July, 2008
Page 15 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
SC2
disclosure of User Data and of the Smartcard Embedded Software (while being processed
and while being stored in the TOE’s memories).
SC3
deficiency of random numbers.
These high-level security concerns are refined below by defining specific threats. Note that
manipulation of the TOE is only a means to threaten User Data or the Smartcard Embedded
Software and does not in itself represent a successful attack.
These security concerns are derived from considering the end-usage phase (phase 7) since
Phase 1 and phases from TOE Delivery up to the end of phase 6 are covered by assumptions,
and
The development and production environment starting with phase 2 and ending with TOE
Delivery are covered by an organisational security policy
3.3.1.1
Threats Derived from SC1-SC3
See section 3.3 of [BSI-PP-0002], and the example attack scenarios in section 8.3 of [BSI-PP0002]. For completeness, the threats are summarised below.
T.Leak-Inherent
Inherent Information Leakage
An attacker may exploit information which is leaked from the TOE
during usage of the Smartcard in order to disclose confidential data
(User Data or TSF Data).
No direct contact with the Smartcard internals is required here.
Leakage may occur through emanations, variations in power
consumption, I/O characteristics, clock frequency, or by changes in
processing time requirements.
Differential Power Analysis (DPA) is an example of an attack based on the inherent leakage
threat.
T.Phys-Probing
Physical Probing
An attacker may perform physical probing of the TOE in order to:
(i)
disclose User Data
(ii)
disclose/reconstruct the Smartcard Embedded Software
(iii) disclose other critical operational information especially TSF
data.
Physical probing requires direct contact with the TOE circuit structures. Before attacks based on
this threat can be mounted, hardware security mechanisms and layout characteristics need to be
identified. Determination of software design, including treatment of User Data, may also be a
pre-requisite.
Revision 4.0, 11 July, 2008
Page 16 of 59
HD65256D Security Target – Public Version
T.Phys-Manipulation
HD65256D-CC-ST-0002
Physical Manipulation
An attacker may physically modify the Smartcard in order to
(i)
modify security features or functions of the TOE
(ii)
modify security functions of the Smartcard Embedded
Software
(iii) modify User Data.
Modification may be achieved through techniques commonly employed in IC failure analysis
and IC reverse-engineering. The modification may result in the deactivation of a security
function. As with T.Phys-Probing, before attacks based on this threat can be mounted, hardware
security mechanisms and layout characteristics need to be identified. Determination of software
design including treatment of User Data may be a pre-requisite. Changes to circuitry or data can
be permanent or temporary.
In contrast to malfunctions (see T.Malfunction), the attacker needs to gather significant
knowledge about the TOE’s internal construction in order to launch a manipulation attack.
T.Malfunction
Malfunction due to Environmental Stress
An attacker may cause a malfunction of the TSF or of the Smartcard
Embedded Software by applying environmental stress in order to
(i)
deactivate or modify security features or functions of the TOE
(ii)
deactivate or modify security functions of the Smartcard
Embedded Software.
This may be achieved by operating the IC outside its normal
operating conditions.
Unlike T.Phys-Manipulation, attacks based on environmental stress can be launched without
significant knowledge of the IC’s internal construction on the part of the attacker. However, to
exploit the attack, the attacker needs information about the functional operation.
T.Leak-Forced
Forced Information Leakage
An attacker may exploit information which is leaked from the TOE
during usage of the smartcard in order to disclose confidential data
(User Data or TSF Data), even if the information leakage is not
inherent but caused by the attacker.
This threat pertains to attacks where methods described in
“Malfunction due to Environmental Stress” (T.Malfunction) and/or
“Physical Manipulation” (T.Phys-Manipulation) are used to cause
leakage from signals which normally do not contain significant
information about secrets.
Differential Fault Analysis (DFA) is an example of an attack based on the forced leakage threat.
Revision 4.0, 11 July, 2008
Page 17 of 59
HD65256D Security Target – Public Version
T.Abuse-Func
HD65256D-CC-ST-0002
Abuse of Functionality
An attacker may use functions of the TOE which may not be used
after TOE Delivery in order to
(i)
disclose or manipulate User Data
(ii)
manipulate (explore, bypass, deactivate or change) security
features or functions of the TOE or of the Smartcard
Embedded Software
(iii) enable an attack.
For the TOE, T.Abuse-Func concerns the threat of unauthorised access to the IC Dedicated Test
Software, which is rendered inaccessible by placing the IC into User Mode before TOE Delivery
(see section 2.3).
T.RND
Deficiency of Random Numbers
An attacker may predict or obtain information about random
numbers generated by the TOE, for instance because of a lack of
entropy of the random numbers provided.
An attacker may gather information about the random numbers
produced.
Malfunctions or premature ageing are also considered as they may
assist in giving the attacker information about random numbers.
Attacks on random number generation are significant because the random numbers generated
may be used as secrets - e.g. to generate cryptographic keys.
Under the threat T.RND, the attacker is assumed to take advantage of statistical properties of the
random numbers generated by the TOE without specific knowledge about the RNG itself.
3.3.2
Other Threats
The TOE makes available facilities that are useful for embedded software to use in addressing
the threats that it may face. This introduces an additional high-level security concern for the
TOE:
SC4
attacks on the Smartcard Embedded Software may be made, and the software may not be
able to detect or respond to the attacks.
T.NoSWDetect
Inability of the TOE to detect an attack
In a multi-layered or multi-application software environment, there
may be attacks on one part of the Smartcard Embedded Software
arising from another part. Smartcard Embedded Software execution
may also be attacked via various means, with the intention of
corrupting software execution in a specific or random way. If the
Revision 4.0, 11 July, 2008
Page 18 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
TOE cannot detect such attacks, then it cannot apply any
countermeasures to protect itself.
The TOE is concerned in particular to detect the following:
(i)
Attempts to access memory outside an area defined for the
software being executed
(ii)
Attempts to make an illegal access
(iii) Attempts to execute code from a type of memory not permitted
by the software environment2
(iv) Attempts to write to EEPROM addresses containing data that
should not be changed
(v)
Attempts to execute an illegal instruction code
(vi) Attempts to alter registers controlling the operation of the TOE.
For the purposes of this threat, an illegal access is one that is marked “ ” in the tables titled
“Access” in the TOE memory map (section 3 of [HM]). In addition, among the accesses marked
“○” in the tables, if a type of access allowed is noted under the circle, an access other than the
allowed type of access is also an illegal access.
This threat applies whether the “attack” is deliberate or due to errors, but all the attacks covered
are launched from software. Inducing errors by external means, as covered in T.PhysManipulation, may also give rise to the same sort of error conditions as listed for T.NoSWDetect.
T.NoSWResponse
Inability of Smartcard Embedded Software to respond to an attack
If Smartcard Embedded Software cannot detect a potential attack, or
other dangerous condition, and has no ability to take action when
such a condition is detected then there is a danger that it will not be
able to prevent the attack continuing.
This threat does not address the particular details of individual attacks, but recognises that
Smartcard Embedded Software may make checks on its own state to enhance protection against
a variety of attacks (including those aimed at inducing errors by software or external means).
For such checks to be useful, there must also be ways for the software to respond to the attack
(e.g. by preventing further processing).
2
The “software environment” is a term used to capture the definition of acceptable memory use for the software system
using the TOE. This would usually be at the level of operating system software.
Revision 4.0, 11 July, 2008
Page 19 of 59
HD65256D Security Target – Public Version
3.4
3.4.1
HD65256D-CC-ST-0002
Organisational Security Policies
Policy Requirement from [BSI-PP-0002]
The following policy requirement is taken from section 3.4 of [BSI-PP-0002].
P.Process-TOE
Protection during TOE Development and Production
The TOE Manufacturer must ensure that the development and production
of the Smartcard Integrated Circuit (Phase 2 up to TOE Delivery) is secure
so that no information is unintentionally made available for the operational
phase of the TOE. For example, the confidentiality and integrity of design
information and test data shall be guaranteed; access to samples,
development tools and other material shall be restricted to authorised
persons only; scrap will be destroyed etc. This not only pertains to the
TOE but also to all information and material exchanged with the developer
of the Smartcard Embedded Software and therefore especially to the
Smartcard Embedded Software itself.
This includes the delivery
(exchange) procedures for Phase 1 and the Phases after TOE Delivery as
far as they can be controlled by the TOE Manufacturer.
An accurate identification must be established for the TOE. This requires
that each instantiation of the TOE carries this unique identification.
Assets relating specifically to P.Process-TOE are given in section 3.1 of [BSI-PP-0002].
Renesas implement the security measures to satisfy this policy requirement, and these are
assessed as part of evaluation and certification against this ST. However, since they are not
directly relevant to users of the TOE, the detailed measures and processes that implement the
policy are not given here.
Note that the inclusion of identification information in EEPROM is described in more detail in
section 2.4.2. This part of the policy establishes a basis for evaluation and security of software
running on the chip, by ensuring that a TOE can be identified. Note that procedural measures
(including Renesas’ secure delivery procedures) will generally be required to ensure that TOE
ICs are genuine, unless the Smartcard Embedded Software contains functionality to authenticate
the IC3.
P.Process-TOE covers identification of hard-coded Embedded Software (via identification of the
ROM mask); soft-coded Embedded Software will generally need to provide its own
identification.
3.4.2
Policy Requirement from [PA]
As an additional policy, the TOE provides specific security functionality which can be used by
the Smartcard Embedded Software for cryptographic algorithm implementation. The policy
3
For example, a hash or digital signature over a known area of memory might be provided by software.
Revision 4.0, 11 July, 2008
Page 20 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
P.Add-Functions is therefore adopted from [PA]. In the following policy, specific security
functionality is listed which is not derived from threats identified for the TOE’s environment
because it can only be decided in the context of the smartcard application, against which threats
the Smartcard Embedded Software will use the specific security functionality.
P.Add-Functions
Additional Specific Security Functionality
The TOE shall provide the following specific security functionality to the
Smartcard Embedded Software:
Data Encryption Standard (DES)
Revision 4.0, 11 July, 2008
Page 21 of 59
HD65256D Security Target – Public Version
4.
HD65256D-CC-ST-0002
Security Objectives
4.1
4.1.1
TOE Security Objectives
Objectives from [BSI-PP-0002]
The TOE shares the following high-level security considerations from section 4.1 of [BSI-PP0002]:
SG1
maintain the integrity of User Data and of the Smartcard Embedded Software (when
being executed/processed and when being stored in the TOE’s memories).
SG2
maintain the confidentiality of User Data and of the Smartcard Embedded Software
(when being processed and when being stored in the TOE’s memories).
SG3
provide random numbers.
These high-level security considerations are refined below by defining security objectives as
required by the Common Criteria. Note that maintaining the integrity of the TOE is a means to
achieve these objectives.
O.Leak-Inherent
Protection against Inherent Information Leakage
The TOE must provide protection against disclosure of confidential data
(User Data or TSF Data) stored and/or processed in the smartcard IC by
measurement and analysis of
The shape and amplitude of signals (for example on the power, clock,
or I/O lines)
the time between events found by measuring signals (for example on
the power, clock, or I/O lines).
This objective pertains to measurements with subsequent complex signal processing whereas
O.Phys-Probing is about direct measurements on elements on the chip surface.
Note that this objective relates to security features provided by the TOE itself, and Smartcard
Embedded Software should ensure that the security features are appropriately used in
conjunction with any additional leakage countermeasures implemented in software (cf. A.PlatAppl and A.Resp-Appl in section 3.2.1).
O.Phys-Probing
Protection against Physical Probing
The TOE must provide protection against disclosure of User Data, against
the disclosure/reconstruction of the Smartcard Embedded Software, and
against the disclosure of other critical operational information. This
includes protection against
measuring through galvanic contacts, which is direct physical probing
on the chip’s surface other than on pads being bonded (using standard
tools for measuring voltage and current)
Revision 4.0, 11 July, 2008
Page 22 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
measuring not using galvanic contacts but other types of physical
interaction between charges (using tools used in solid-state physics
research and IC failure analysis).
The TOE must be designed and fabricated so that it requires a high
combination of complex equipment, knowledge, skill, and time to be able
to derive detailed design information or other information which could be
used to compromise security through such a physical attack.
O.Phys-Probing assumes that the attacker has first performed reverse-engineering to understand
the design and its properties and functions.
O.Malfunction
Protection against Malfunctions
The TOE must ensure its correct operation.
The TOE must prevent itself from being operated outside the normal
operating conditions where reliability and secure operation has not been
proven or tested. This is to prevent errors. The environmental conditions
may include voltage, clock frequency, temperature, or external energy
fields.
An attacker may also attempt to cause the chip to malfunction by using a direct galvanic contact
on elements on the chip surface. This is considered as being a manipulation (see
O.Phys-Manipulation) provided that detailed knowledge about the TOE’s internal construction is
required and the attack is performed in a controlled manner.
O.Phys-Manipulation
Protection against Physical Manipulation
The TOE must provide protection against physical manipulation of the
TOE (including its software and TSF data), the Smartcard Embedded
Software and User Data. This includes protection against
reverse-engineering (understanding the design and its properties and
functions)
manipulation of the hardware and any data
controlled manipulation of memory contents (User Data).
The TOE must be designed and fabricated so that it requires a high
combination of complex equipment, knowledge, skill, and time to be able
to derive detailed design information or other information which could be
used to compromise security through such a physical attack.
O.Leak-Forced
Protection against Forced Information Leakage
The Smartcard must be protected against disclosure of confidential data
(User Data or TSF data) processed in the Card (using methods as described
under O.Leak-Inherent) even if the information leakage is not inherent but
caused by the attacker
Revision 4.0, 11 July, 2008
Page 23 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
by forcing a malfunction (cf. O.Malfunction) and/or
by a physical manipulation (cf. O.Phys-Manipulation).
This objective includes resistance to attacks where T.Phys-Manipulation and T.Leak-Inherent are
combined.
O.Abuse-Func
Protection against Abuse of Functionality
The TOE must prevent abuse of IC Dedicated Test Software (which may
not be used after TOE Delivery) that would
(i)
disclose critical User Data
(ii)
manipulate critical User Data of the Smartcard Embedded Software
(iii) manipulate Soft-coded Smartcard Embedded Software
(iv) bypass, deactivate, change or explore security features or functions
of the TOE.
O.Identification
TOE Identification
The TOE must provide a means to store Initialisation Data and Prepersonalisation Data in its non-volatile memory. The Initialisation Data
(or parts of them) are used for TOE identification.
The TOE identification data is described in section 2.4.2.
O.RND
Random Numbers
The TOE will ensure the cryptographic quality of random number
generation. For instance, random numbers shall not be predictable and
shall have sufficient entropy.
The TOE will ensure that no information about the produced random
numbers is available to an attacker since they might be used, for instance,
to generate cryptographic keys.
4.1.2
Objectives Based on [PA]
This section includes an objective for the TOE to provide a DES function, which is based on
O.Add-Functions in [PA].
O.Add-Functions
Additional Specific Security Functionality
The TOE must provide the following specific security functionality to the
Smartcard Embedded Software:
Data Encryption Standard (DES)
Revision 4.0, 11 July, 2008
Page 24 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Note that to achieve an adequate strength of function for an application context, Smartcard
Embedded Software may require use of triple-DES. The TOE Hardware enables this using
repeated application of the DES coprocessor – this is discussed in section 16.3.1 of [HM] and in
section 5.1.2.1 of this document.
4.1.3
Other Objectives
The TOE offers additional facilities to protect embedded software from corrupted, erroneous, or
malicious software. The same facilities may protect from some results of attempts at physical
manipulation (cf. O.Phys-Manipulation).
A further high-level security consideration is therefore derived from SC4 in section 3.3.2.
SG4
software should be given the ability to detect and respond to attacks.
This leads to objectives that
O.SWDetect
Detection of potential attacks by the TOE
The following conditions shall be detected as an aid to identifying
potential attacks:
(i) Attempts to access memory outside an area defined for the software
being executed
(ii) Attempts to make an illegal access
(iii) Attempts to execute code from a type of memory not permitted by the
software environment4
(iv) Attempts to write to EEPROM addresses containing data that should
not be changed
(v) Attempts to execute an illegal instruction code
(vi) Attempts to alter registers controlling the operation of the TOE.
The Smartcard Embedded Software itself will determine the memory area for (i), the types of
memory permitted for (iii), and the protected EEPROM addressed for (iv).
O.SWResponse
Response to potential attacks by Smartcard Embedded Software
The TOE shall allow Smartcard Embedded Software to:
(i) periodically interrupt processing to execute a known piece of
Smartcard Embedded Software
4
The “software environment” is a term used to capture the definition of acceptable memory use for the software system
using the TOE. This would usually be at the level of operating system software.
Revision 4.0, 11 July, 2008
Page 25 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
(ii) cause the processor to enter the reset state.
Executing a known piece of embedded software periodically gives embedded software the ability
to check the execution state for any conditions that it wishes to monitor (in addition to those
indicated under O.SWDetect above) and stop execution, or take some other action, if it detects a
potential attack or other dangerous condition.
4.2
4.2.1
Environment Security Objectives
Environment Security Objectives from [BSI-PP-0002]
Phase 1
OE.Plat-Appl
Usage of Hardware Platform
The Smartcard Embedded Software shall be designed so that the
requirements from the following documents are met:
(i) The TOE hardware manual [HM], user guidance manual [UGM1],
and the TOE application notes.
(ii) Findings of the TOE evaluation reports relevant to the Smartcard
Embedded Software.
Because the TOE implements additional specific security functionality (as in O.Add-Functions),
OE.Plat-Appl covers the use of these functions by Smartcard Embedded Software as follows:
If required, the Smartcard Embedded Software shall use these
cryptographic services of the TOE and their interface as specified. When
key-dependent functions implemented in the Smartcard Embedded
Software are just being executed, the Smartcard Embedded Software must
provide protection against disclosure of confidential data (User Data)
stored and/or processed in the TOE by using the methods described under
“Inherent Information Leakage (T.Leak-Inherent)” and “Forced
Information Leakage (T.Leak-Forced)“.
OE.Resp-Appl
Treatment of User Data
Security relevant User Data (especially cryptographic keys) are treated by
the Smartcard Embedded Software as required by the security needs of the
specific application context.
Because the TOE implements additional specific security functionality (as in O.Add-Functions),
OE.Resp-Appl covers the use of these functions by Smartcard Embedded Software as follows:
By definition cipher or plain text data and cryptographic keys are User
Data.
The Smartcard Embedded Software shall treat these data
appropriately, use only proper secret keys (chosen from a large key space)
as input for the cryptographic function of the TOE and use keys and
functions appropriately in order to ensure the strength of cryptographic
operation.
Revision 4.0, 11 July, 2008
Page 26 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
This means that keys are treated as confidential as soon as they are
generated. The keys must be unique with a very high probability, as well
as cryptographically strong. For example, it must be ensured that it is not
possible to derive the private key from a public key if asymmetric
algorithms are used. If keys are imported into the TOE and/or derived
from other keys, quality and confidentiality must be maintained. This
implies that appropriate key management has to be realised in the
environment.
From Phase 2 until TOE Delivery
OE.Process-TOE
Protection during TOE Development and Production
The TOE Manufacturer must ensure that the development and production
of the Smartcard Integrated Circuit (Phases 2 and 3 up to TOE Delivery) is
secure so that no information is unintentionally made available for the
operational phase of the TOE. For example, the confidentiality and
integrity of design information and test data must be guaranteed, access to
samples, development tools and other material must be restricted to
authorised persons only, scrap must be destroyed. This not only pertains
to the TOE but also to all information and material exchanged with the
developer of the Smartcard Embedded Software and therefore especially to
the Smartcard Embedded Software itself. This includes the delivery
(exchange) procedures for Phase 1 and the Phases after TOE Delivery as
far as they can be controlled by the TOE Manufacturer.
An accurate identification must be established for the TOE. This requires
that each instantiation of the TOE carries this unique identification. In
order to make this practical, electronic identification shall be possible.
Assets relating specifically to the Organisational Security Policy P.Process-TOE (which is the
source of this objective) are given in section 3.1 of [BSI-PP-0002].
From TOE Delivery until the beginning of Phase 7
OE.Process-Card
Protection during Packaging, Finishing and Personalisation
Security procedures shall be used after TOE Delivery up to delivery to the
end-user to maintain confidentiality and integrity of the TOE and of its
manufacturing and test data (to prevent any possible copy, modification,
retention, theft or unauthorised use).
This means that Phases after TOE Delivery up to the end of Phase 6 must
be protected appropriately.
Assets relating specifically to the assumption A.Process-Card (which is the source of this
objective) are given in section 3.1 of [BSI-PP-0002].
The precise nature of the protection required will depend on the application context.
Revision 4.0, 11 July, 2008
Page 27 of 59
HD65256D Security Target – Public Version
4.2.2
HD65256D-CC-ST-0002
Other Environment Security Objectives
For injected/pre-personalisation data, the sources and holders of the data need to support its
security requirements.
OE.InjDatSupp
Injected Data Support
All data for injections/pre-personalisation shall be generated, distributed,
maintained and destroyed in an adequately secure fashion. In general, the
data shall be protected for both confidentiality and integrity.
Renesas ensures a secure interface with suppliers of this data by using the injection approach in
section 2.4.2. Transmission of data to Renesas is secured by a variety of measures dependent on
the transmission medium (e.g. ROM data may be sent by encrypted e-mail). The data is securely
stored within the Renesas environment according to the medium.
Revision 4.0, 11 July, 2008
Page 28 of 59
HD65256D Security Target – Public Version
5.
HD65256D-CC-ST-0002
IT Security Requirements
5.1
TOE Security Requirements
The functional requirements for the TOE come from 3 sources:
[BSI-PP-0002]
These SFRs cover the core smart card IC requirements:
operating state – FRU_FLT.2 describes the usual operating conditions
and requires the TOE to maintain a secure state; FPT_FLS.1 requires a
secure response to exceptional operating conditions; FPT_SEP.1
requires the TOE to ensure that the secure responses to operating
conditions are independent of software (since, for example, some
software could be malicious)
controls over IC Dedicated Test Software – FMT_LIM.1 and
FMT_LIM.2 require that the use of IC Dedicated Test Software for
manufacturing tests must not allow security to be compromised after
TOE Delivery
storage of identification/pre-personalisation data – FAU_SAS.1
requires that the TOE be capable of storing such data
protection against physical attacks – FPT_PHP.3 requires the TOE to be
protected against physical tampering attacks
Protection against leakage – FDP_ITT.1 and FPT_ITT.1 require
protection of data against leakage as it moves between components on
the IC, and FDP_IFC.1 provides the policy of protection for data
Random number generation – FCS_RND.1 requires generation of good
quality random numbers
[PA]
This SFR covers DES cryptographic requirements.
DES – FCS_COP.1 requires the implementation of DES in ECB mode
TOE features
Revision 4.0, 11 July, 2008
Some SFRs introduced from [BSI-PP-0002] are given a wider scope to
reflect additional security features of the TOE and functions which support
secure features in embedded software:
Page 29 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Additional failure detection – the scope of FPT_FLS.1 includes
additional software failure conditions trapped by the TOE support to
embedded software to run tests at certain points during execution
(enabling measures such as state integrity tests) and the ability of
embedded software to cause a hardware reset (this is covered under
FPT_FLS.1 in section 5.1.1.1).
Controlled writes – FDP_ACC.1 [CRP] and FDP_ACF.1 [CRP] are
added to represent the way in which some registers are protected
against changes other than from embedded software executing in ROM;
FDP_ACC.1 [WPP] and FDP_ACF.1 [CRP] specify the ability to
prevent writing to chosen EEPROM pages.
Note that all SFRs are drawn from [CC/2] except for FCS_RND.1, FMT_LIM.1 & 2, and
FAU_SAS.1, which are all defined in section 8 of [BSI-PP-0002].
5.1.1
TOE Security Functional Requirements from [BSI-PP-0002]
In the specifications of SFRs listed below, ‘Refinement’ sections are taken from [BSI-PP-0002];
‘Application Notes’ add information specific to the TOE.
5.1.1.1
Operating Conditions
operating conditions
The TOE implements a pair of security functional requirements that ensure it operates within
conditions under which it can maintain a secure state. This is represented in [BSI-PP-0002, fig
14], reproduced below:
Failure with preservation
of secure state (FPT_FLS.1)
max.
Technical limits
without reduction
due to FPT_FLS.1
Limited
fault tolerance
(FRU_FLT.2)
min.
min.
max.
Usable limits
of the product
as enforced
due to FPT_FLS.1
operating conditions
Figure 5-1: Paradigm Regarding Operating Conditions
Erroneous software conditions (some of which could arise from corruptions due to operating
conditions) are dealt with under FPT_FLS.1.
Revision 4.0, 11 July, 2008
Page 30 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FRU_FLT.2
Limited fault tolerance
Hierarchical to:
FRU_FLT.1
FRU_FLT.2.1
The TSF shall ensure the operation of all the TOE’s capabilities
when the following failures occur: exposure to operating conditions
which are not detected according to the requirement Failure with
preservation of secure state (FPT_FLS.1).
Dependencies:
FPT_FLS.1 Failure with preservation of secure state
Refinement:
The term “failure” above means “circumstances”.
prevents failures for the “circumstances” defined above.
The TOE
FRU_FLT.2 thus states the condition for normal secure operation of the TOE functions
(including coprocessors) within its expected operating conditions.
FPT_FLS.1
Failure with preservation of secure state
Hierarchical to:
No other components
FPT_FLS.1.1
The TSF shall preserve a secure state when the following types of
failures occur: exposure to operating conditions which may not be
tolerated according to the requirement Limited fault tolerance
(FRU_FLT.2) and where therefore a malfunction could occur.
Dependencies:
ADV_SPM.1 Informal TOE security policy model
Refinement 1:
The term “failure” above also covers “circumstances”. Then the
TOE prevents failures for the “circumstances” defined above.
The refinement above is defined in [BSI-PP-0002]. An additional refinement is made here to
capture features specific to the TOE.
Refinement 2:
The term “failure” above also covers the following:
(i) Attempts to access memory outside an area defined for the
software being executed
(ii) Attempts to make an illegal access
(iii) Attempts to execute code from a type of memory not permitted
by the software environment5
(iv) Attempts to execute an illegal instruction code
(v) Processor halted by Smartcard Embedded Software
5
The “software environment” is a term used to capture the definition of acceptable memory use for the software system
using the TOE. This would usually be at the level of operating system software.
Revision 4.0, 11 July, 2008
Page 31 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Application notes:
1.
The TOE is required to implement an interrupt whenever a write to EEPROM takes place, to
enable detection of failure conditions and preservation of a secure state by Smartcard
Embedded Software.
FPT_SEP.1
TSF domain separation
Hierarchical to:
No other components
FPT_SEP.1.1
The TSF shall maintain a security domain for its own execution that
protects it from interference and tampering by untrusted subjects.
FPT_SEP.1.2
The TSF shall enforce separation between the security domains of
subjects in the TSC.
Dependencies:
No dependencies.
Refinement:
The components which support the SFRs “Limited fault tolerance
(FRU_FLT.2)” and “Failure with preservation of secure state
(FPT_FLS.1)” shall be protected from interference of the Smartcard
Embedded Software.
5.1.1.2
Protection Against Abuse of Functionality
The TOE controls access to test mode. Following [BSI-PP-0002], this is specified using the
extended functional family FMT_LIM, defined in section 8.5 of [BSI-PP-0002].
FMT_LIM.1
Limited capabilities
Hierarchical to:
No other components
FMT_LIM.1.1
The TSF shall be designed in a manner that limits their capabilities
so that in conjunction with “Limited availability (FMT_LIM.2)” the
following policy is enforced: Deploying Test Features after TOE
Delivery does not allow User Data to be disclosed or manipulated,
TSF data to be disclosed or manipulated, software to be
reconstructed and substantial information about construction of TSF
to be gathered which may enable other attacks.
Dependencies:
FMT_LIM.2 Limited availability.
Application notes:
1.
The “capabilities” referred to in FMT_LIM.1 are the functions implemented in the IC
Dedicated Test Software.
Revision 4.0, 11 July, 2008
Page 32 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FMT_LIM.2
Limited availability
Hierarchical to:
No other components
FMT_LIM.2.1
The TSF shall be designed in a manner that limits their availability so
that in conjunction with “Limited capabilities (FMT_LIM.1)” the
following policy is enforced: Deploying Test Features after TOE
Delivery does not allow User Data to be disclosed or manipulated,
TSF data to be disclosed or manipulated, software to be reconstructed
and substantial information about construction of TSF to be gathered
which may enable other attacks.
Dependencies:
FMT_LIM.1 Limited capabilities.
Application notes:
1.
The “availability” referred to in FMT_LIM.2 are the functions implemented in the IC
Dedicated Test Software.
5.1.1.3
Storage of Production Data
The TOE stores identification/pre-personalisation data as described in section 2.4.2. This is
included in [BSI-PP-0002] as the CC Part 2 extended functional component FAU_SAS.1,
replacing FAU_GEN.1, and defined in section 8.6 of [BSI-PP-0002].
FAU_SAS.1
Audit storage
Hierarchical to:
No other components
FAU_SAS.1.1
The TSF shall provide test personnel before TOE Delivery with the
capability to store the Initialisation Data and/or Pre-personalisation
Data and/or supplements of the Smartcard Embedded Software in
the audit records.
Dependencies:
No dependencies
Application notes:
1.
The data covered by “Initialisation Data and/or Pre-personalisation Data and/or
supplements of the Smartcard Embedded Software” is as identified in section 2.4.2.
The function Audit storage (FAU_SAS.1) is subject to the limitations as specified by Limited
availability (FMT_LIM.2) above.
5.1.1.4
Protection against Physical Manipulation and Probing
FPT_PHP.3
Resistance to physical attack
Hierarchical to:
No other components
Revision 4.0, 11 July, 2008
Page 33 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FPT_PHP.3.1
The TSF shall resist physical manipulation and physical probing to
the TSF by responding automatically such that the TSP is not
violated.
Dependencies:
No dependencies
Refinement:
The TOE will implement appropriate measures to continuously
counter physical manipulation and physical probing. Due to the
nature of these attacks (especially manipulation) the TOE can by no
means detect attacks on all of its elements. Therefore, permanent
protection against these attacks is required ensuring that the TSP
could not be violated at any time. Hence, “automatic response”
means here (i) assuming that there might be an attack at any time and
(ii) countermeasures are provided at any time.
5.1.1.5
Protection against Leakage
FDP_ITT.1
Basic internal transfer protection
Hierarchical to:
No other components
FDP_ITT.1.1
The TSF shall enforce the Data Processing Policy to prevent the
disclosure of user data when it is transmitted between physicallyseparated parts of the TOE.
Dependencies:
[FDP_ACC.1 Subset access control, or FDP_IFC.1 Subset
information flow control]
Refinement:
The different memories, the CPU and other functional units of the
TOE (e.g. a cryptographic co-processor) are seen as physicallyseparated parts of the TOE.
The Data Processing Policy is defined under FDP_IFC.1 below.
FPT_ITT.1
Basic internal TSF data transfer protection
Hierarchical to:
No other components
FPT_ITT.1.1
The TSF shall protect TSF data from disclosure when it is
transmitted between separate parts of the TOE.
Dependencies:
No dependencies.
Refinement:
The different memories, the CPU and other functional units of the
TOE (e.g. a cryptographic co-processor) are seen as separated parts
of the TOE.
This requirement is equivalent to FDP_ITT.1 above but refers to
TSF data instead of User Data. Therefore, it should be understood as
to refer to the same Data Processing Policy defined under
FDP_IFC.1 below.
Revision 4.0, 11 July, 2008
Page 34 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FDP_IFC.1
Subset information flow control
Hierarchical to:
No other components
FDP_IFC.1.1
The TSF shall enforce the Data Processing Policy on all confidential
data when they are processed or transferred by the TOE or by the
Smartcard Embedded Software.
Dependencies:
FDP_IFF.1 Simple security attributes
Data Processing Policy
User Data and TSF data shall not be accessible from the TOE except
when the Smartcard Embedded Software decides to communicate
the User Data via such an external interface. The protection shall be
applied to confidential data only, but without the distinction of
attributes controlled by the Smartcard Embedded Software.
5.1.1.6
Cryptographic Support
The TOE generates random numbers that can be used for cryptographic key generation. To
capture the functional requirement, the family FCS_RND, defined in section 8.4 of [BSI-PP0002] is used.
FCS_RND.1
Quality metric for random numbers
FCS_RND.1.1
The TSF shall provide a mechanism to generate random numbers
that meet the requirements of the monobit, poker, runs, long run, and
autocorrelation tests in [AIS31].
5.1.2
TOE Security Functional Requirements Based on [PA]
5.1.2.1
Cryptographic Support
The TOE provides a DES coprocessor. The DES coprocessor can be used to implement single or
triple DES.
FCS_COP.1
Cryptographic operation
FCS_COP.1 is iterated here to address both the DES encryption and decryption (FCS_COP.1
[DES]).
DES Encryption and Decryption
FCS_COP.1 [DES]
Hierarchical to:
No other components
FCS_COP.1.1 [DES]
The TSF shall perform encryption and decryption in accordance with
a specified cryptographic algorithm Data Encryption Standard
(DES) and cryptographic key sizes of 56 bit that meet the following
standards:
Revision 4.0, 11 July, 2008
Page 35 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
U.S. Department of Commerce / National Bureau of Standards
Data Encryption Standard (DES), FIPS PUB 46-3, 1999 October 25
Dependencies:
[FDP_ITC.1 Import of user data without security attributes or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction
FMT_MSA.2 Secure security attributes
Application notes:
1.
Although the TOE provides a DES coprocessor, DES is only ever used as an encryption
function in the context of particular Smartcard Embedded Software, and for this reason it is
noted that application software may need to use triple DES to achieve a suitable strength. In
this case, Smartcard Embedded Software shall use the TOE to implement triple DES, as
described in the guidance for software developers in section 16.3.1 of [HM].
5.1.3
Other TOE Security Functional Requirements
FDP_ACC.1
Subset access control
FDP_ACC.1 is iterated here to address both the control over software to write to certain
controlled registers (FDP_ACC.1 [CRP]) and software to write to protected pages of EEPROM
memory (FDP_ACC.1 [WPP]).
FDP_ACC.1 [CRP]
Hierarchical to:
No other components
FDP_ACC.1.1 [CRP]
The TSF shall enforce the Controlled-Register Policy on software to
set bits in defined, security-relevant registers.
Here,
policy
Subjects
Objects
Operations
:
:
:
:
Controlled-Register Policy
software
bits in defined, security-relevant registers
to set
Controlled-Register Policy
The ability to set the values in the controlled registers is restricted to
software instructions executed in ROM.
Dependencies:
FDP_ACF.1 Security attribute based access control
Application Notes:
1.
The controlled registers are those defined in FDP_ACC.1.1 [CRP].
FDP_ACC.1 [WPP]
Hierarchical to:
Revision 4.0, 11 July, 2008
No other components
Page 36 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FDP_ACC.1.1 [WPP]
The TSF shall enforce the Write-Protect Policy on software to write
to EEPROM.
Here,
Write-Protect Policy
software
EEPROM
to write
policy
Subjects
Objects
Operations
:
:
:
:
Write-Protect Policy
An attempt to write to EEPROM shall fail, leaving the previous
memory contents unaltered if the relevant EEPROM page is write
protected.
Once a page is write-protected, this protection cannot be removed.
Dependencies:
FDP_ACF.1 Security attribute based access control
Application Notes:
1.
The setting of write protection is described in [HM].
2.
All modes of EEPROM write (see [HM]) are covered by this policy.
FDP_ACF.1
Security attribute based access control
FDP_ACF.1 is iterated here to address both the security attribute based access control over
software to write to certain controlled registers (FDP_ACF.1 [CRP]) and software to write to
protected pages of EEPROM memory (FDP_ACF.1 [WPP]).
FDP_ACF.1 [CRP]
Hierarchical to:
No other components
FDP_ACF.1.1 [CRP]6
The TSF shall enforce the Controlled-Register Policy to objects
based on the following:
Subject: software running on the ROM
Object: control registers relating to the FMU
attributes: to have read and/or write access normally
FDP_ACF.1.2 [CRP]
6
The TSF shall enforce the following rules to determine if an
operation among controlled subjects and controlled objects is
allowed: evaluate the corresponding permission control information:
“The ability to set the values in the controlled registers is restricted
to software operations executed from the ROM.” before, during or
FDP_ACF.1.1 is changed as follows according to Final Interpretation 103
FDP_ACF.1.1 The TSF shall enforce the [assignment: access control SFP] to objects based on the following: [assignment: list of
subjects and objects controlled under the indicated SFP, and. for each, the SFP-relevant security attributes, or named groups of
SFP-relevant security attributes].
Revision 4.0, 11 July, 2008
Page 37 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
after the access so that accesses to be denied can not be utilised by
the subject attempting to perform the operation.
FDP_ACF.1.3 [CRP]
The TSF shall explicitly authorise access of subjects to objects based
on the following additional rules: none.
FDP_ACF.1.4 [CRP]
The TSF shall explicitly deny access of subjects to objects based on
the following additional rules: none.
Dependencies:
FDP_ACC.1 Subset access control
FMT_MSA.3 Static attribute initialisation
FDP_ACF.1 [WPP]
Hierarchical to:
No other components
FDP_ACF.1.1 [WPP]5
The TSF shall enforce the Write Protect Policy to objects based on
the memory area where the access is performed and the operation to
be performed.
FDP_ACF.1.2 [WPP]
The TSF shall enforce the following rules to determine if an
operation among controlled subjects and controlled objects is
allowed: evaluate the corresponding permission control information:
“An attempt to write to EEPROM shall fail, leaving the previous
memory contents unaltered if write protection is set for the relevant
EEPROM page. Once a page is write-protected, this protection
cannot be removed.” before, during or after the access so that
accesses to be denied can not be utilised by the subject attempting to
perform the operation.
FDP_ACF.1.3 [WPP]
The TSF shall explicitly authorise access of subjects to objects based
on the following additional rules: none.
FDP_ACF.1.4 [WPP]
The TSF shall explicitly deny access of subjects to objects based on
the following additional rules: none.
Dependencies:
FDP_ACC.1 Subset access control
FMT_MSA.3 Static attribute initialisation
5.1.4
TOE Security Assurance Requirements
The assurance level for this Security Target is EAL4 augmented, as in section 5.1.2 of [BSI-PP0002].
The augmentations to EAL4 are:
ADV_IMP.2 - this adds the full implementation representation of the security functions to
the evaluation scope
Revision 4.0, 11 July, 2008
Page 38 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
ALC_DVS.2 - this increases the confidence in the vital area of developer security measures
to the highest CC level
AVA_MSU.3 - this adds evaluator testing of the potential for misconfiguration of the TOE
within the evaluation scope
AVA_VLA.4 - this increases the scope of vulnerability analysis and penetration testing to
the highest CC level.
The minimum strength of function is SOF-high. In addition, the quality of the mechanisms
contributing to the information leakage resistance of the DES coprocessor can be analysed using
probabilistic methods based on measurement of the power consumption of the TOE - SOF-high
is also claimed for this mechanism. Also note that the strength of the cryptographic algorithms is
out of the scope of the TOE.
Refinements of the assurance requirements required by [BSI-PP-0002], and implemented by
Renesas for the TOE, are described in section 5.1.3 of [BSI-PP-0002].
5.2
5.2.1
Security Requirements for the Environment
Security Requirements for the IT Environment from [PA]
In section 5.2.1 of [BSI-PP-0002], only non-IT security requirements are placed on the
environment (see section 5.2.2). Although these requirements are applicable to Smartcard
Embedded Software, it is not necessary or appropriate to place specific functional requirements.
However, the following requirements for the environment are adopted from [PA].
The security functional requirement “Cryptographic operation (FCS_COP.1)” met by the TOE
has the following dependencies
- [FDP_ITC.1 Import of user data without security attributes or FCS_CKM.1 Cryptographic
key generation],
- FCS_CKM.4 Cryptographic key destruction,
- FMT_MSA.2 Secure security attributes.
These requirements all address the appropriate management of cryptographic keys used by the
specified cryptographic function. All requirements concerning key management shall be
fulfilled by the environment since the Smartcard Embedded Software is designed for a specific
application context and uses the cryptographic functions provided by the TOE. Note that,
however, for FCS_COP.1, the dependencies are unfulfilled because the environment is unknown
(it is an issue for the user of the chip of course).
The environment shall meet the requirement “Import of user data without security attributes
(FDP_ITC.1)” or “Cryptographic key generation (FCS_CKM.1)” as specified below. Note that,
however, for FDP_ITC.1, the operations are deliberately uncompleted and dependencies
unfulfilled because the environment is unknown (it is an issue for the user of the chip of course).
FDP_ITC.1
Revision 4.0, 11 July, 2008
Import of user data without security attributes
Page 39 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Hierarchical to:
No other components.
FDP_ITC.1.1
The TSF shall enforce the [assignment: access control SFP and/or
information flow control SFP] when importing user data, controlled under
the SFP, from outside of the TSC.
FDP_ITC.1.2
The TSF shall ignore any security attributes associated with the user data
when imported from outside the TSC.
FDP_ITC.1.3
The TSF shall enforce the following rules when importing user data
controlled under the SFP from outside the TSC: [assignment: additional
importation control rules].
Dependencies:
[FDP_ACC.1 Subset access control, or
FDP_IFC.1 Subset information flow control]
FMT_MSA.3 Static attribute initialisation
FCS_CKM.1
Cryptographic key generation
Hierarchical to:
No other components.
FCS_CKM.1.1
The TSF shall generate cryptographic keys in accordance with a specified
cryptographic key generation algorithm [assignment: cryptographic key
generation algorithm] and specified cryptographic key sizes [assignment:
cryptographic key sizes], that meet the following: [assignment: list of
standards].
Dependencies:
[FCS_CKM.2 Cryptographic key distribution or FCS_COP.1
Cryptographic operation]
FCS_CKM.4 Cryptographic key destruction
FMT_MSA.2 Secure security attributes
The environment shall meet the requirement “Cryptographic key destruction (FCS_CKM.4)” as
specified below. Note that, however, for FCS_CKM.4, the operations are deliberately
uncompleted and dependencies unfulfilled because the environment is unknown (it is an issue for
the user of the chip of course).
FCS_CKM.4
Cryptographic key destruction
Hierarchical to:
No other components.
FCS_CKM.4.1
The TSF shall destroy cryptographic keys in accordance with a specified
cryptographic key destruction method [assignment: cryptographic key
destruction method] that meets the following: [assignment: list of
standards].
Dependencies:
[FDP_ITC.1 Import of user data without security attributes or
FCS_CKM.1 Cryptographic key generation]
Revision 4.0, 11 July, 2008
Page 40 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
FMT_MSA.2 Secure security attributes
The environment shall meet the requirement “Secure security attributes (FMT_MSA.2)” as
specified below. Note that, however, for FMT_MSA.2, the operations are deliberately
uncompleted and dependencies unfulfilled because the environment is unknown (it is an issue for
the user of the chip of course).
FMT_MSA.2
Secure security attributes
Hierarchical to:
No other components.
FMT_MSA.2.1
The TSF shall ensure that only secure values are accepted for security
attributes.
Dependencies:
ADV_SPM.1 Informal TOE security policy model
[FDP_ACC.1 Subset access control or FDP_IFC.1 Subset information
flow control]
FMT_MSA.1 Management of security attributes
FMT_SMR.1 Security roles
5.2.2
Security Requirements for the Non-IT Environment
5.2.2.1
Security Requirements for the Non-IT Environment from [BSI-PP-0002]
As in section 5.2.2 of [BSI-PP-0002], this ST applies the following requirements:
RE.Phase-1
Design and Implementation of the Smartcard Embedded Software
The developers shall design and implement the Smartcard Embedded
Software in such way that it meets the requirements from the following
documents:
(i) The TOE hardware manual [HM], user guidance manual [UGM1],
and the hardware application notes.
(ii) Major findings of the hardware evaluation reports relevant for the
Smartcard Embedded Software.
The developers shall implement the Smartcard Embedded Software in a
way that it protects security relevant User Data (especially cryptographic
keys) as required by the security needs of the specific application context.
In particular, the Smartcard Embedded Software shall not disclose secret
User Data to unauthorised users or processes as defined for the application
context. Similarly the Smartcard Embedded Software shall not allow
unauthorised users or processes to use or modify security relevant User
Data.
Revision 4.0, 11 July, 2008
Page 41 of 59
HD65256D Security Target – Public Version
RE.Process-Card
HD65256D-CC-ST-0002
Protection during Packaging, Finishing and Personalisation
The Handset Manufacturer (after TOE Delivery up to the end of Phase 6)
shall use adequate security measures to maintain confidentiality and
integrity of the TOE and of its manufacturing and test data (to prevent any
possible copy, modification, retention, theft or unauthorised use).
Section 8.2.2 of [BSI-PP-0002] gives examples of ways in which Smartcard Embedded Software
may implement security issues. The TOE does not itself require any of these functions to be
implemented in software – this is entirely a decision to be based on the software context.
However, the TOE aims to provide support for software implementation of FDP_SDI.1 and
FPT_AMT.1 (the examples given in [BSI-PP-0002]) through features such as the EWE interrupt
– cf. FPT_FLS.1 in section 5.1.1.1 and SF.ESFunctions in section 6.1.
5.2.2.2
Security Requirements for the Non-IT Environment from [PA]
For implementation of cryptographic functions in Smartcard Embedded Software, the following
requirement from [PA] is included:
RE.Cipher
Cipher Schemes
The developers of Smartcard Embedded Software must not implement
routines in a way which may compromise keys when the routines are
executed as part of the Smartcard Embedded Software. Performing
functions which access cryptographic keys could allow an attacker to
misuse these functions to gather information about the key which is used
in the computation of the function.
Keys must be kept confidential as soon as they are generated. The keys
must be unique with a very high probability, as well as cryptographically
strong. For example, it must be ensured that it is not possible to derive the
private key from a public key if asymmetric algorithms are used. If keys
are imported into the TOE and/or derived from other keys quality and
confidentiality must be maintained. This implies that an appropriate key
management has to be realised in the environment.
Revision 4.0, 11 July, 2008
Page 42 of 59
HD65256D Security Target – Public Version
6.
6.1
1.
HD65256D-CC-ST-0002
TOE Summary Specification
TOE Security Functions
SF.HWProtect
The TOE is protected from attacks on the operation of the IC hardware. The protection
features include detection of out-of-range supply voltages, frequencies or temperatures,
detection of illegal address or instruction, and physical security.
Detection of an error causes the HD65256D to enter a reset state.
Correct operating ranges are defined in [HM].
The memory address and data encryption of SF.HWProtect use probabilistic or
permutational effects and are included in the AVA_SOF analysis. Except for them,
SF.HWProtect does not use probabilistic or permutational effects.
2.
SF.LeakProtect
The TOE Hardware protects against leakage of information from the IC. The protection
features include:
Functions designed to alter the power consumption of the device
DES protection – the DES coprocessor contains additional measures to resist sidechannel attacks.
SF.LeakProtect uses probabilistic or permutational effects and has to be included in the
AVA_SOF analysis with SOF-high.
3.
SF.RNG
The TOE includes a physical random number generator (HW RNG) designed to produce
random numbers for the generation of cryptographic keys and for other critical uses. This
random number generator meets the requirements of application class P2 (as specified in
[AIS31]).
The TOE can be used to generate 64-bit random numbers which satisfy the requirements of
the monobit, poker, runs, long run, and autocorrelation tests in [AIS31]. Note that the RNG
generates a 64-bit (16-bit × 4) random number at one time, but it is provided to the user of
the TOE by 16 bits.
Application Notes
1. The TOE provides a tamper resistant hardware random number generator (see
section 10 of [HM]). However, in order to provide additional assurance to the User
software that the hardware is functioning, [AIS31] requires the use of an on-line test
of the RNG. A suitable test routine is given in section 6 of [UGM1].
Revision 4.0, 11 July, 2008
Page 43 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
SF.RNG uses probabilistic or permutational effects and has to be included in the AVA_SOF
analysis with SOF-high.
4.
SF.DES
The TOE provides a hardware DES coprocessor that carries out DES encryption and
decryption in ECB mode according to the following standard:
a) U.S. Department of Commerce / National Bureau of Standards Data Encryption
Standard, FIPS PUB 46-3, 1999 October 25.
Application Notes
1. The DES coprocessor implements single DES encrypt and decrypt operations, and has
been optimised to allow easy implementation of triple-DES (as described in the
standard) in Smartcard Embedded Software, as described in section 16.3.1 of [HM].
2. Although the TOE provides a DES coprocessor, DES is only actually used as an
encryption function in the context of particular Smartcard Embedded Software. For
some application contexts, triple DES (as described in section 16.3.1 of [HM]) may be
required in order to achieve a suitable strength of function if the Smartcard Embedded
Software is to be evaluated7 – this is a matter for the Smartcard Embedded Software
security target.
3. The TOE implements ECB mode - software can implement other modes such as CBC.
4. To provide secure embedded software, the software developer is required to ensure that
the DES is used in a way that does not compromise the key or plain text (see A.PlatAppl, A.Resp-Appl and A.Key-Function). Guidance for the implementation of secure
Smartcard Embedded Software is given in [UGM1].
SF.DES uses probabilistic or permutational effects but does not need to be included in the
AVA_SOF analysis with SOF-high since the function is beyond the scope of a Common
Criteria evaluation.
5.
SF.FMU
The TOE firewall management unit enables software to control addresses that can be
accessed in the following two ways:
a)
The FMU checks that a target address used in any instruction is within/out of specified
limits.
If a target address is not within accessible areas then the TOE enters the reset state or
FMU interrupt.
7
Although strength of cryptographic functions is beyond the scope of a Common Criteria evaluation, triple DES would
probably be required to achieve SOF-high for Smartcard Embedded Software.
Revision 4.0, 11 July, 2008
Page 44 of 59
HD65256D Security Target – Public Version
b)
HD65256D-CC-ST-0002
In addition, the FMU may enforce a policy that the TOE may not execute code in
either EEPROM or RAM, or both.
Changes to these policies can only be made by software executing in ROM.
Application Notes:
1.
The accessible address registers are defined in section 12.2 of [HM].
SF.FMU does not use probabilistic or permutational effects.
6.
SF.ESFunctions
The scope of the TOE evaluation includes correct operation of aspects such as the CPU
instructions, memory functions and standard peripherals such as memories, registers, I/O
interfaces, and timers as specified in [HM]. In addition, the TOE offers hardware and
software facilities that are designed to enable Smartcard Embedded Software to address
threats to its correct operation by taking control of the operating environment. The
Smartcard Embedded Software developer can rely on the following TOE functionality that
has been specifically evaluated as part of the TOE:
EWE Interrupt
Every time the TOE writes to EEPROM, it generates a non-maskable interrupt (the
EWE interrupt). When this interrupt occurs, execution is passed to a user-definable
address held in the EWE vector. A user can therefore add code at this location to carry
out a variety of checks, for example to confirm the integrity of data, or the context in
which certain areas of EEPROM are being written.
If a new EWE interrupt is received before the previous one has been cleared then the
TOE enters the reset state.
CPU Halt
When the halt bit is set by user software, the TOE will stop execution until an external
reset is received.
SF.ESFunction does not use probabilistic or permutational effects.
7.
SF.TestModeControl
Once the TOE has been set to user mode, test mode functions are made not available.
The user mode is irreversibly set. It is however not impossible to transit back to test mode
though that requires specific knowledge and highly sophisticated techniques.8
8
The potential vulnerability with respect to the possibility of the transition back to user mode is included in the
vulnerability analysis.
Revision 4.0, 11 July, 2008
Page 45 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
SF.TestModeControl uses probabilistic or permutational effects and has to be included in the
AVA_SOF analysis with SOF-high.
8.
SF.EEPAccess
The TOE allows any page of EEPROM to have writes (or erase) disallowed by setting the
page to have a protected state. If a write (or erase) is attempted to a protected page then it
will leave the page content unaltered.
Protection of a page against writes is permanent once set.
SF.EEPAccess does not use probabilistic or permutational effects.
9.
SF.Inject
During manufacture, each TOE is injected with data that uniquely identifies the individual
IC. If specified for the Smartcard Embedded Software included, then additional data (some
of it IC-specific) may also be injected during manufacture.
SF.Inject does not use probabilistic or permutational effects.
The Reset State
The reset state is referred to in several of the Security Functions above. In the reset state,
the chip stops execution until a reset signal is received on the reset line. When a reset occurs,
the following actions are carried out:
The CPU resets to its initial state
Registers are set to their initial values (as defined in [HM])
Execution begins at the location in the reset vector (as defined in [HM]).
Revision 4.0, 11 July, 2008
Page 46 of 59
HD65256D Security Target – Public Version
6.2
HD65256D-CC-ST-0002
Correspondence Between TOE Security Function and SFR
Table below shows the correspondence between SFRs and each of the Security Functions
provided in the section 6.1 above.
Table 6-1: TOE Security Functions Mapping to SFRs
TOE Security Function
SFR
SF.HWProtect,
FRU_FLT.2, FPT_FLS.1, FPT_SEP.1, FPT_PHP.3
SF.LeakProtect
FDP_ITT.1, FPT_ITT.1, FDP_IFC.1
SF.RNG
FCS_RND.1
SF.DES
FCS_COP.1 [DES]
SF.FMU
FRU_FLT.2, FPT_FLS.1, FPT_SEP.1, FPT_PHP.3, FDP_ACC.1
[CRP], FDP_ACF.1 [CRP]
SF.ESFunctions,
FRU_FLT.2, FPT_FLS.1, FPT_SEP.1, FPT_PHP.3
SF.TestModeControl
FMT_LIM.1, FMT_LIM.2
SF.EEPAccess
FPT_FLS.1, FPT_SEP.1, FDP_ACC.1 [WPP], FDP_ACF.1 [WPP]
SF.Inject
FAU_SAS.1
6.3
Assurance Measures
The TOE meets the requirements for EAL4 (as defined in [CC/3]) and the following
augmentations:
ADV_IMP.2
ALC_DVS.2
AVA_MSU.3
AVA_VLA.4
It also meets the requirements of the refinements made to the assurance requirements in section
5.1.3 of [BSI-PP-0002].
The table below maps assurance requirements to the documents describing the relevant
requirements:
Revision 4.0, 11 July, 2008
Page 47 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Table 6-2: Documents Meeting Assurance Requirements
Document
[CC/3] Evidence Item
Related Assurance
Components
Security Policy Model
ADV_SPM
Security Function
ADV_FSP
Functional Specification
ADV_FSP
User Guidance and
administrator guidance documentation
AGD_USR,
AGD_ADM
User Guidance Manual
User Guidance and
administrator guidance documentation
AGD_USR,
AGD_ADM
ADO_IGS
Correspondence Mapping
Correspondence analysis between TOE
Summary Specification and functional
ADV_RCR
specification, high level design, low level
design and implementation
High-Level and Low-Level
Design Documentation Set
High-level design, low-level design
ADV_HLD,
ADV_LLD
Source Code*
Implementation
ADV_IMP
Test Documentation Set
Testing, test depth and test coverage
ATE
documentation
Security Policy Model
Hardware Manual
Development tools documentation
ALC
Configuration management documentation
ACM
Delivery procedures
ADO_DEL
Misuse Analysis
Misuse Analysis
AVA_MSU
Strength of Function
Analysis
Strength of Function Analysis
AVA_SOF
Vulnerability Analysis
Vulnerability Analysis
AVA_VLA
Site Information
Note: The source code exists in an electronic data form.
Revision 4.0, 11 July, 2008
Page 48 of 59
HD65256D Security Target – Public Version
7.
7.1
HD65256D-CC-ST-0002
PP Claims
PP Reference
This ST conforms to [BSI-PP-0002]. As a notable point, however, this ST includes the initial
personalisation process in phase 5 as a part of the TOE lifecycle.
Note that [PA] is used to define additional requirements relating to cryptographic functions.
This ST is also [PA] conformant.
7.2
PP Tailoring
FCS_RND.1 is completed with a quality metric – see section 5.1.1.6.
7.3
PP Additions
The inclusions from [BSI-PP-0002] are clearly shown in the relevant section titles. All other
assumptions, threats, objectives and SFRs, in sections 3.2.2, 3.2.3, 3.3.2, 3.4.2, 4.1.2, 4.1.3, 4.2.2,
5.1.2, 5.1.3, 5.2.1, and 5.2.2.2 are additional to those in the PP.
Revision 4.0, 11 July, 2008
Page 49 of 59
HD65256D Security Target – Public Version
8.
8.1
HD65256D-CC-ST-0002
Rationale
Security Objectives Rationale
The way in which [BSI-PP-0002] assumptions, organisational security policy and threats are met
by objectives is given in section 7.1 of [BSI-PP-0002]. The table below includes the mapping
from section 7.1 of [BSI-PP-0002] and adds the rationale for the additional assumptions, policy
and threats in this Security Target.
Table 8-1: Coverage of Security Assumptions, Policies and Threats by Objectives
Assumption/Threat/
Organisational Security Policy
A.Key-Function
A.Plat-Appl
A.Process-Card
A.Resp-Appl
A.InjDatSupp
P.Add-Functions
P.Process-TOE
T.Leak-Inherent
T.Phys-Probing
T.Phys-Manipulation
T.Malfunction
T.Leak-Forced
T.Abuse-Func
T.NoSWDetect
T.NoSWResponse
T.RND
Addressed by Objective
OE.Plat-Appl, OE.Resp-Appl
OE.Plat-Appl
OE.Process-Card
OE.Resp-Appl
OE.InjDatSupp
O.Add-Functions
OE.Process-TOE, O.Identification
O.Leak-Inherent
O.Phys-Probing
O.Phys-Manipulation
O.Malfunction
O.Leak-Forced
O.Abuse-Func
O.SWDetect
O.SWResponse
O.RND
A.Key-Function is enforced by OE.Plat-Appl and OE.Resp-Appl, which directly requires the
embedded software to use the features in TOE documentation to take measures to ensure that
keys are not compromised by the way in which the TOE’s cryptographic functions are used.
Note that this recognises the fact that measures in hardware are only part of the solution for
software TOEs, which must also ensure that their algorithms protect keys.
A.Plat-Appl is enforced by a directly corresponding requirement on the environment in OE.PlatAppl. (Note that as in section 7.1 of [BSI-PP-0002] this applies to Phase 1 of the lifecycle.)
A.Process-Card is enforced by a directly corresponding requirement on the environment in
OE.Process-Card. (Note that as in section 7.1 of [BSI-PP-0002] this applies to Phases 4-6 of the
lifecycle.)
A.Resp-Appl is enforced by a directly corresponding requirement on the environment in
OE.Resp-Appl. (Note that as in section 7.1 of [BSI-PP-0002] this applies to Phase 1 of the
lifecycle.)
Revision 4.0, 11 July, 2008
Page 50 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
A.InjDatSupp is enforced by a directly corresponding requirement on the environment in
OE.InjDatSupp.
OE.Process-TOE requires the TOE Manufacturer to implement those measures assumed in
P.Process-TOE. Therefore, the organisational security policy is covered by this objective, as far
as organisational measures are concerned. The only issue not completely covered by these
measures is the fact that the TOE has to support the possibility of unique identification. This is
the content of O.Identification. Therefore, the organisational security policy is covered by
OE.Process-Card and O.Identification. (Note that as in section 7.1 of [BSI-PP-0002] this applies
to Phases 2-3 of the lifecycle.)
The basic rationale for T.Leak-Inherent, T.Phys-Probing, T.Phys-Manipulation, T.Malfunction,
T.Leak-Forced, and T.Abuse-Func is given in section 7.1 of [BSI-PP-0002]: for all threats the
corresponding
objectives
O.Leak-Inherent,
O.Phys-Probing,
O.Phys-Manipulation,
O.Malfunction, O.Leak-Forced, and O.Abuse-Func are stated in a way, which directly
corresponds to the description of the threat. It is clear from the description of each objective,
that the corresponding threat is removed if the objective is valid. More specifically, in every
case the ability to use the attack method successfully is countered, if the objective holds.
Since O.Add-Functions requires the TOE to implement exactly the same specific security
functionality as required by P.Add-Functions, the organisational security policy is covered by the
objective. The text below gives further rationale from [PA].
Compared to [BSI-PP-0002] a clarification has been made for the security objective “Usage of
Hardware Platform (OE.Plat-Appl)”: If required the Smartcard Embedded Software shall use
these cryptographic services of the TOE and their interface as specified. In addition, the
Smartcard Embedded Software must implement functions which perform operations on keys (if
any) in such a manner that they do not disclose information about confidential data. This
addition ensures that the assumption A.Plat-Appl is still covered by the objective OE.Plat-Appl
although additional functions are being supported according to O.Add-Functions.
Compared to [BSI-PP-0002] a clarification has been made for the security objective “Treatment
of User Data (OE.Resp-Appl)”: By definition, encryption data, plain text data, and cryptographic
keys are User Data. So, the Smartcard Embedded Software will protect such data if required,
and the keys and functions are used appropriately in order to ensure the strength of cryptographic
operation. Quality and confidentiality must be maintained for keys that are imported and/or
derived from other keys. This implies that appropriate key management has to be realised in the
environment. These measures make sure that the assumption A.Resp-Appl is still covered by the
security objective OE.Resp-Appl although additional functions are being supported according to
P.Add-Functions.
The justification of the additional policy and the additional assumption show that they do not
contradict to the rationale already given in [BSI-PP-0002] for the assumptions, policy and
threats defined there.
Smartcard Embedded Software may implement measures using the ability given by the TOE to
embedded software to detect and respond to the results of attacks based on these threats, in
O.SWDetect and O.SWResponse. This can help address some of the core threats – T.PhysManipulation, T.Malfunction and T.Abuse-Func by detecting the results of attempts to tamper
Revision 4.0, 11 July, 2008
Page 51 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
with the operation of the IC, and using additional defensive measures at the level of the target of
the attack9. However, since no assumptions are made about the content of Smartcard Embedded
Software (and hence the use made of these features), these objectives are not included for the
core threats in the table above.
T.NoSWDetect and T.NoSWResponse
O.SWResponse respectively.
are
directly addressed
by O.SWDetect
and
T.RND is addressed by O.RND.
8.2
Security Requirements Rationale
The way in which [BSI-PP-0002] objectives are implemented by SFRs and requirements on the
environment is given in section 7.2 of [BSI-PP-0002]. The table below includes the mapping
from section 7.2 of [BSI-PP-0002] and adds the rationale for the additional SFRs in this Security
Target.
Table 8-2: Coverage of Objectives by SFRs
Objective
O.Leak-Inherent
O.Phys-Probing
O.Phys-Manipulation
O.Malfunction
O.Leak-Forced
O.Abuse-Func
Addressed by SFR
FDP_ITT.1,
FPT_ITT.1,
FDP_IFC.1
FPT_PHP.3
FPT_PHP.3
FRU_FLT.2,
FPT_FLS.1,
FPT_SEP.1
FDP_ITT.1,
FPT_ITT.1,
FDP_IFC.1,
FRU_FLT.2,
FPT_FLS.1,
FPT_SEP.1,
FPT_PHP.3
FMT_LIM.1,
FMT_LIM.2,
FDP_ITT.1,
FPT_ITT.1,
FDP_IFC.1,
FPT_PHP.3,
FRU_FLT.2,
FPT_FLS.1,
FPT_SEP.1
Security Requirements for the
Environment
RE.Phase-1
RE.Phase-1
RE.Phase-1
RE.Phase-1
9
An attacker only stands to gain in a material sense if the applications themselves are attacked, since these represent the
only assets that yield direct benefits to the attacker.
Revision 4.0, 11 July, 2008
Page 52 of 59
HD65256D Security Target – Public Version
Objective
O.Identification
O.RND
O.Add-Functions
O.SWDetect
O.SWResponse
OE.Plat-Appl
HD65256D-CC-ST-0002
Addressed by SFR
FAU_SAS.1
FCS_RND.1,
FDP_ITT.1,
FPT_ITT.1,
FDP_IFC.1,
FPT_PHP.3,
FRU_FLT.2,
FPT_FLS.1,
FPT_SEP.1
FCS_COP.1 [DES]
RE.Phase-1
RE.Cipher
RE.Phase-1
Assurance Components:
refer to below
RE.Process-Card, possibly
supported by RE.Phase-1
OE.Process-Card
OE.InjDatSupp
RE.Phase-1
FPT_FLS.1,
FDP_ACC.1 [CRP],
FDP_ACC.1 [WPP],
FDP_ACF.1 [CRP],
FDP_ACF.1 [WPP]
FPT_FLS.1
OE.Process-TOE
OE.Resp-Appl
Security Requirements for the
Environment
FDP_ITC.1,
FCS_CKM.1,
FCS_CKM.4,
FMT_MSA.2
RE.Phase-1
RE.Phase-1
♣ Assurance Components: Delivery (ADO_DEL); Installation, generation, and startup (ADO_IGS) (using Administrator
Guidance (AGD_ADM), User guidance (AGD_USR)); CM automation (ACM_AUT); CM Capabilities (ACM_CAP); CM
Scope ACM_SCP); Development Security (ALC_DVS); Life Cycle Definition (ALC_LCD); Tools and Techniques
(ALC_TAT)
Reference is made to section 7.2 of [BSI-PP-0002] for the basic rationale. The remainder of this
section deals with the additional parts of the rationale introduced for this Security Target.
It is noted that the features covered by FDP_ACC.1 and FDP_ACF.1 address potential physical
manipulation and malfunction attacks because they constrain the ways in which execution can
occur. Furthermore, these access control measures directly protect parameters controlling some
of the other security measures provided under FPT_FLS.1 from external attacks (e.g. only
Smartcard Embedded Software in ROM can set firewall management unit parameters, hence
attacks based on changing these parameters in other conditions induced by attackers will be
prevented).
O.Phys-Manipulation and O.Malfunction can be further addressed by Smartcard Embedded
Software by using the TOE’s features that allow embedded software to detect and respond to
execution states that could represent attacks (included under FPT_FLS.1). However, this
depends on the Smartcard Embedded Software and is therefore beyond the scope of the TOE.
Revision 4.0, 11 July, 2008
Page 53 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
The DES requirement of O.Add-Functions is directly implemented by FCS_COP.1.1.
Additional security requirements on the environment, relating to the use of this functionality, are
included in RE.Phase-1 and RE.Cipher. Rationale for this is excerpted from [PA] as follows.
The security functional requirement “Cryptographic operation (FCS_COP.1)” exactly requires
those functions to be implemented which are demanded by O.Add-Functions. Therefore,
FCS_COP.1 is suitable to meet the security objective.
Nevertheless, the developer of the Smartcard Embedded Software must ensure that the additional
functions are used as specified and that the User Data processed by these functions are protected
as defined for the application context. These issues are addressed by the requirement
RE.Phase-1 and more specifically by the security functional requirements specified below.
[FDP_ITC.1 Import of user data without security attributes or FCS_CKM.1 Cryptographic
key generation],
FCS_CKM.4 Cryptographic key destruction,
FMT_MSA.2 Secure security attributes.
which will be fulfilled in the environment (addressed by the security environment objective
OE.Resp-Appl), and the details are not known.
The security functional requirements required to meet the security objectives O.Leak-Inherent,
O.Phys-Probing, O.Malfunction, O.Phys-Manipulation and O.Leak-Forced define how to
implement the specific security functionality. However, key-dependent functions could be
implemented in the Smartcard Embedded Software. In this case RE.Cipher requires that these
functions ensure that confidential data (User Data) cannot be disclosed while they are just being
processed by the Smartcard Embedded Software. Therefore, with respect to the Smartcard
Embedded Software the issues addressed by the objectives just mentioned are addressed by the
requirement RE.Cipher.
The use of cryptographic algorithms requires use of appropriate keys - otherwise they do not
provide security. The requirement RE.Cipher addresses these specific issues since cryptographic
keys and other data are provided by the Smartcard Embedded Software. RE.Cipher requires that
keys must be kept confidential. They must be unique with a very high probability,
cryptographically strong etc. If keys are imported into the TOE (usually after TOE Delivery), it
must be ensured that quality and confidentiality is maintained. Therefore, with respect to the
environment the issues addressed (i) by the objectives just mentioned and (ii) implicitly by
O.Add-Functions, are addressed by the requirement RE.Cipher.
The justification of the security objective O.Add-Functions and the additional requirements (both
for the TOE and its environment) show that they do not contradict to the rationale already given
in [BSI-PP-0002] for the assumptions, policy and threats defined there.
O.SWDetect is implemented by the exception conditions recognised under FPT_FLS.1 and the
opportunities provided to test for violations of secure state (or to maintain velocity check
parameters) by the EEPROM write interrupts in FPT_FLS.1. As noted for O.Phys-Manipulation
and O.Malfunction above, the access control provisions in FDP_ACC.1 and FDP_ACF.1 provide
protection for the ways in which these detection features are used.
Revision 4.0, 11 July, 2008
Page 54 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
O.SWResponse is implemented by the ability of Smartcard Embedded Software to cause a reset
(by setting the halt bit to halt the processor, as noted under FPT_FLS.1), and the opportunity for
other protective measures as part of the EWE interrupt routines provided under FPT_FLS.1.
RE.Phase-1 contributes to OE.InjDatSupp. It is because the Smartcard Embedded Software is
required by RE.Phase-1 to have a certain configuration so that the injected data shall be
generated, distributed, maintained and destroyed in an adequately secure fashion.
The assignment/selection operations performed on the SFRs drawn from [BSI-PP-0002] are
shown in [BSI-PP-0002] itself. The additional operations performed in this ST are as follows:
Table 8-3: Completion of SFRs
SFR
FCS_RND.1
FCS_COP.1
[DES]
FDP_ACC.1
[CRP]
FDP_ACC.1
[WPP]
Operation required
Operation performed
[assignment: a defined quality metric] The requirements of the monobit, poker,
runs, long run, and autocorrelation tests
in [AIS31].
[assignment: list of cryptographic
Encryption and decryption
operations]
[assignment: cryptographic
DES
algorithm]
[assignment: cryptographic key sizes] 56 bit
[assignment: list of standards]
U.S. Department of Commerce /
National Bureau of Standards
Data Encryption Standard (DES), FIPS
PUB 46-3, 1999 October 25
[assignment: access control SFP]
Controlled-Register Policy
[assignment: list of subjects, objects, Any attempt to set bits in defined,
and operations among subjects and
security-relevant registers
objects covered by the SFP].
[assignment: access control SFP]
[assignment: list of subjects, objects,
and operations among subjects and
objects covered by the SFP].
Revision 4.0, 11 July, 2008
Write-Protect Policy
Software to write to EEPROM.
Page 55 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
SFR
Operation required
Operation performed
FDP_ACF.1
[CRP]
[assignment: access control SFP]
[assignment: security attributes,
named groups of security attributes]
Controlled-Register Policy
Subject: software running on the ROM
Object: control registers relating to the
FMU
Attributes: to have read and/or write
access normally
Evaluate the corresponding permission
control information: “The ability to set
the values in the controlled registers is
restricted to software operations
executed from the ROM.” before, during
or after the access so that accesses to be
denied can not be utilised by the subject
attempting to perform the operation
None
[assignment: rules
governing access among controlled
subjects and controlled objects using
controlled operations on controlled
objects]
FDP_ACF.1
[WPP]
[assignment: rules, based on security
attributes, that explicitly authorise
access of subjects to objects]
[assignment: rules, based on security
attributes, that explicitly deny access
of subjects to objects]
[assignment: access control SFP]
[assignment: security attributes,
named groups of security attributes]
[assignment: rules
governing access among controlled
subjects and controlled objects using
controlled operations on controlled
objects]
[assignment: rules, based on security
attributes, that
explicitly authorise access of
subjects to objects]
[assignment: rules, based on security
attributes, that explicitly deny access
of subjects to objects]
8.2.1
None
Write-Protect Policy
The memory area to be accessed and the
operation to be performed
Evaluate the corresponding permission
control information: “An attempt to
write to EEPROM shall fail, leaving the
previous memory contents unaltered if
protection is set for the relevant
EEPROM page. Once a page is writeprotected, this protection cannot be
removed.” before, during or after the
access so that accesses to be denied can
not be utilised by the subject attempting
to perform the operation
None
None
Dependencies
The basic dependencies are shown in section 7.2.2 of [BSI-PP-0002] and are applicable to this
ST – these are summarised in the table below:
Revision 4.0, 11 July, 2008
Page 56 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Table 8-4: Dependencies from [BSI-PP-0002, 7.2.2]
SFR
FRU_FLT.2
FPT_FLS.1
FPT_SEP.1
FMT_LIM.1
FMT_LIM.2
FAU_SAS.1
FPT_PHP.3
FDP_ITT.1
FDP_IFC.1
FPT_ITT.1
FCS_RND.1
Dependencies
FPT_FLS.1
ADV_SPM.1
None
FMT_LIM.2
FMT_LIM.1
None
None
FDP_ACC.1 or
FDP_IFC.1
FDP_IFF.1
None
None
Fulfilled by Security Requirements in
[BSI-PP-0002]?
Yes
Yes (Part of EAL4)
No dependency
Yes
Yes
No dependency
No dependency
Yes
See discussion in [BSI-PP-0002, 7.2.2]
No dependency
No dependency
The additional dependencies relating to the new SFRs introduced in this ST are analysed below.
Table 8-5: Additional SFR Dependencies
SFR
FCS_COP.1 [DES]
FDP_ITC.1
FCS_CKM.1
FCS_CKM.4
FMT_MSA.2
FDP_ACC.1 [CRP]
FDP_ACC.1 [WPP]
FDP_ACF.1 [CRP]
Dependencies
[FDP_ITC.1 or FCS_CKM.1]
FCS_CKM.4
FMT_MSA.2
[FDP_ACC.1, or FDP_IFC.1]
FMT_MSA.3
FCS_CKM.4
FMT_MSA.2
[FDP_ITC.1 or FCS_CKM.1]
FMT_MSA.2
ADV_SPM.1
[FDP_ACC.1 or FDP_IFC.1]
FMT_MSA.1
FMT_SMR.1
FDP_ACF.1
FDP_ACF.1
FDP_ACC.1
FMT_MSA.3
FDP_ACC.1
FDP_ACF.1 [WPP]
FMT_MSA.3
Fulfilled by Security
Requirements in this ST?
Yes (by the environment)
No additional requirement – see
discussion below
No additional requirement – see
discussion below
No additional requirement – see
discussion below
No additional requirement – see
discussion below
Yes
Yes
Yes
No additional requirement – see
discussion below
Yes
No additional requirement – see
discussion below
The dependencies defined for FCS_COP.1 in [CC/2] are discharged by the requirements on the
environment, as described in [PA].
Revision 4.0, 11 July, 2008
Page 57 of 59
HD65256D Security Target – Public Version
HD65256D-CC-ST-0002
Hence there is no further functional requirement on the TOE arising from the dependencies of
FCS_COP.1.
The dependencies defined for FDP_ITC.1, FCS_CKM.1, FCS_CKM.4, and FMT_MSA.2 are
not resolved because they will be fulfilled in the environment, where the appropriate decisions
will be made.
The dependency defined for FDP_ACF.1 in [CC/2] is discharged as follows:
FDP_ACF.1 [CRP] is simply applied for the control of the access to registers, and it does
not require setting of the initial value of security attributes, which is required under
FMT_MSA.3. Also, FDP_ACF.1 [WPP] simply covers the control of the access to the
EEPROM, and it also does not require setting of the initial value of security attributes,
which is required under FMT_MSA.3. Therefore, the dependency on the component
FMT_MSA.3 is discharged.
The discussion in sections 8.2 and 8.3, and the rationale in section 7.2 of [BSI-PP-0002], show
how the security functional requirements support each other in meeting the security objectives of
this ST. Together with the discussion of dependencies above this shows that the security
functional requirements build a mutually supportive whole.
8.3
TOE Summary Specification Rationale
The table below shows the ways in which the SFRs are implemented by TOE security functions.
Table 8-6: SFR Mapping to TOE Security Functions
SFR
FRU_FLT.2
FPT_FLS.1
FPT_SEP.1
FMT_LIM.1
FMT_LIM.2
FAU_SAS.1
FPT_PHP.3
FDP_ITT.1
FPT_ITT.1
FDP_IFC.1
FCS_RND.1
FCS_COP.1 [DES]
FDP_ACC.1 [CRP]
FDP_ACC.1 [WPP]
FDP_ACF.1 [CRP]
FDP_ACF.1 [WPP]
TOE Security Function
SF.HWProtect, SF.FMU, SF.ESFunctions
SF.HWProtect, SF.FMU, SF.ESFunctions, SF.EEPAccess
SF.HWProtect, SF.FMU, SF.ESFunctions, SF.EEPAccess
SF.TestModeControl
SF.TestModeControl
SF.Inject
SF.HWProtect, SF.FMU, SF.ESFunctions
SF.LeakProtect
SF.LeakProtect
SF.LeakProtect
SF.RNG
SF.DES
SF.FMU
SF.EEPAccess
SF.FMU
SF.EEPAccess
Details of the TOE summary specification rationale are not given in this version of the Security
Target.
Revision 4.0, 11 July, 2008
Page 58 of 59
HD65256D Security Target – Public Version
8.4
HD65256D-CC-ST-0002
Assurance Requirements and Strength of Function Rationale
This ST follows the rationale given in section 7.2.3 of [BSI-PP-0002] for the choice of EAL4,
assurance augmentations and the strength of function SOF-high.
8.5
Mutual Support and Internal Consistency
The discussion of security functional requirements, TOE Summary Specification and assurance
components in the sections above shows that mutual support and consistency are present for both
groups of requirements. The arguments given for the adequacy of the assurance components for
the TOE functionality also shows that the functional and assurance requirements support each
other and that there are no inconsistencies between these groups.
For the additional functionality included in O.Add-Functions, the security functional
requirements required to meet the security objectives O.Leak-Inherent, O.Phys-Probing,
O.Malfunction, O.Phys-Manipulation and O.Leak-Forced also protect the cryptographic
algorithms implemented according to the security functional requirement FCS_COP.1.
Therefore, these security functional requirements support the secure implementation and
operation of FCS_COP.1.
8.6
PP Claims Rationale
This ST implements all of the requirements of [BSI-PP-0002] by inclusion (as shown in each of
the relevant sections), and hence no further rationale is required.
** End of Document **
Revision 4.0, 11 July, 2008
Page 59 of 59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
