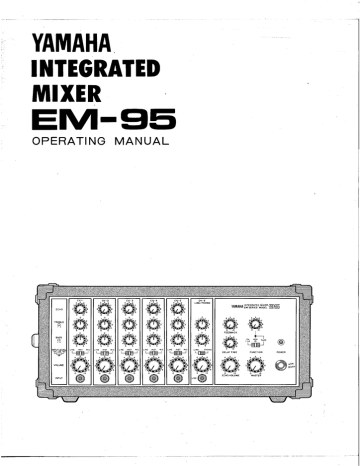

YAMAHA В
— INTEGRATED
MIXER ——
EM-935
OPERATING MANUAL
INTEGRATED MIXER
YAMAHA EM SERIES MODEL 95
TREBLE
CH AUX
1.6 IN TAPE
INPUT LEVEL LINE INST LINE INST LINE INST LINE PHONO
-20 -35 -50 FUNCTION
de
VOLUME
E ae Ts TN 2 ;
A ; étre = rase vs Cone sa AE E : ая :
AT na ce SAFE ah ' TE ses ¥ “airs ET RENTA | Smid AT ATE НЫ AS В
МЕРЛО СООО СОАО A A DA HSN I EE A NC AA A. Eo O TAL ECON ETA SAE -
Re y
This instruction manual was prepared to assist you in getting the most out of your EM-95. While you may already have
begun using the unit, we urge you to read this manual thoroughly, and to re-read it as you become more familiar with the
EM-95's features and functions.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. .
TABLE OF CONTENTS
INTRODUCTION ©. oii viet teeta
—
SPECIFICATIONS . 222244444444 0 6 4 4 4 4 41 66 2
BRIEF OPERATING INSTRUCTIONS
FRONT PANEL ............... Cee eee 3
REAR PANEL . .... 4 44 4 1 1 4 200 5
GETTING THE MOST FROM THE BUILT-IN
ANALOG DELAY LINE ..... ... 2. e. ener 7
SETTING UP ..... aerea ne aa oa e oo 7
APPLICATIONS . ... aaa. 8
BLOCK DIAGRAM 21242 4 44 24 44 6 8 4 4 44 6 6 0040 10
INTRODUCTION
The Yamaha EM-95 is an integrated mixer | О e
with a built-in power amplifier, 195 milli- NA A AA FESS
second analog delay line, and RIAA phono я le te | he
preamp. There are| five regular mic/instru-
ment/line input channels. Each of these
channels has a two-frequency equalizer, an
echo (delay) send, a 3-position input
selector for use with mics, instruments and
lines, and a rotary volume control. A sixth | | e ve И 6
input channel is switchable for either of me =
two auxiliary line inputs or a phonograph
input (mono or stereo). The mixer’s solid state power amplifier
delivers 65 watts (RMS) into 8 ohms or 100 watts into 4 ohms, and there are two parallel speaker outputs,
each having both a phone jack and push-terminals. This provides the greatest compatibility, speed and ease of set up. There
are also line output and recorder output jacks for feeding additional amplifiers, other mixers, tape recorders, and so forth.
EE Lr nT ERE
= cn
NO TE: In this manual, where a specific signal level is described in dB, 0dB
is referenced to O. 775 volts RMS. | |
SPECIFICATIONS
GENERAL SPECIFICATIONS
MAXIMUM OUTPUT POWER
FREQUENCY RESPONSE
TOTAL HARMONIC
DISTORTION (THD)
INTERMODULATION
DISTORTION
* HUM and NOISE
(20 Hz to 20 kHz,
150 ohms source)
MAXIMUM VOLTAGE GAIN
(Input Selectors set
at Mic position),
EQUALIZATION
CROSSTALK
ANALOG DELAY LINE
POWER REQUIREMENTS
POWER CONSUMPTIONS
DIMENSIONS
WEIGHT
100 watts into 4 ohms, or
65 watts into 8 ohms, continuous average sine wave (RMS).
+ 1dB, 30 Hz to 10 kHz or
+1, —3dB, 20 Hz to 20 kHz, (BOW, 462)
@50 watts into 4 ohms.
Less than 0.5% 50 Hz to 15 kHz,
Less than 0.2% @1 kHz,
@50 watts into 4 ohms.
Less than 0.5%, (70 Hz : 7kHz = 4 : 1)
@50 watts into 4 ohms.
** _116dB Equivalent input noise;
—38dB residual output noise, Master Volume
and one Input Volume at max.
—42dB residual output noise, Master Volume at max
and all Input Volume controls at min.
77dB, Channel In to Speaker Out.
51dB, Channel In to Line Out.
47dB, Channel In to Record Out.
52dB, Aux In, Tape In to Speaker Out.
77dB, Phono In to Speaker Out.
48dB, Line to Speaker Out.
BASS + 12dB @100 Hz, shelving.
TREBLE = 12dB ®10 kHz, shelving.
—60dB @1 kHz, adjacent inputs.
70 to 195 milliseconds, continuously variable,
and with variable feedback.
US & Canadian models 120 volts, 50/60 Hz
General model 110, 130, 220 or 240 volts, 50/60 Hz
“US & Canadian models 160 watts
General model 270 watts
500mm W x 225mm D x 252mm H
(19-11/16"W x 8-7/8"D x 9-15/16''H)
13 kg (29 pounds)
* Compensated with a —6dB/octave filter @12.47 kHz.
** In these specifications, OdB is referenced to 0.775 volts RMS.
INPUT CHARACTERISTICS
INPUTS (1 ~ bCH) |
MIC 50k <2 150 - 3kQ —B0dB (2.5mV) —22dB (62mV) В
INST Sources —35dB (14mV) — 7dB (346mV) Phone Jack
LINE —20dB (78mV) + 8dB (1.93V)
INPUTS (CHG) | |
PHONO 47kQ mag. cart. —50dB (2.5mV) —22dB (62mV) 2 x Pin Jack
LINE 50k $2 bk{2 —20dB (78mV) + 8dB (1.93V) Phone Jack
FUNCTION INPUTS
AUX IN 50k92 <a —20dB (78mV) — Phone Jack
TAPE IN 50kQ BKO —20dB (78mV) — 2 x Pin Jack
OUTPUT CHARACTERISTICS
SPEAKER _ 402 100W Phone Jack
1 and/or 2 0.20 4%) & up 8% 65W Terminals
LINE OUT 1002 10kQ 8 up — OdB (775mV) Phone Jack
REC, OUT 2.2kQ 10k? 8 up — -0dB (775mV) Pin Jack
In these specifications, OdB is referenced to 0.775 volts RMS,
Specifications are subject to change without notice.
BRIEF OPERATING INSTRUCTIONS _
NOTE: Make all signal and speaker connections before turning on the AC POWER switch.
| 9 ©®O®O |
FIG.1. FRONT PANEL |
O | 7 7 YN: 7 7 LINE/PHONO AE со мне
4 et
3 io ner A KO HE HB EB JE gg HE постом Se
| ans || as || a AA A A al
| DOS E
INPUT CHANNEL (Typical of Input channels 1 through 5)
O INPUT
This 1/4” (6.3 mm) tip-sleeve phone jack accepts signal for the channel input. The inputs are un-
balanced.
@ VOLUME
This control sets the channel's mix level.
O INPUT LEVEL Selector Switch
This slide-switch adjusts the input jack's sensitivity for best results with different input sources.
“Line” position is for tape machine outputs and high level synthesizers with nominal —20 dB out-
put level. “Inst” position is for guitars, electric pianos, and other keyboards with nominal —35 dB
output level, “Mic” position is for high or low impedance microphones with nominal —50 dB out-
put level.
O BASS and TREBLE
Two knobs per input channel allow +12 dB of equalization (tone control), with “flat’’ response at
center position. The knee of the EQ curve is 100 Hz for the Bass control, and 10 kHz for the Treble
control.
O ECHO | o |
This knob feeds the mix bus that drives the built-in analog delay tine. The feed is post-EQ and
Volume controls. | |
BRIEF OPERATING INSTRUCTIONS
LINE / PHONO CHANNEL
Note: Phono input jacks for this sixth channel are located on the EM-95 rear panel.
O LINE
Input jack for line input only.
O VOLUME
This control sets the Line input or Phono input mix level.
O LINE/?HONO Selector Switch
Switch to select either Line or Phono for Channel 6 input.
* The EM-95 is monaural. Even if a stereo source is used the output will be in mono.
© BASS and TREBLE
These two knobs are identical to the input channel EQ controls, except they affect only the selected
auxiliary input source.
MASTER CONTROLS
@ FUNCTION Switch |
Selects the mixed output of channels 1 — 6, the Aux input, or the Tape input as the output of the
EM-95. When the switch is in the Aux or the Tape position, the LED lights.
*When this switch is in the Aux or the Tape position, the signals input to channels 1 — 6 are not
output.
* The EM-95 is monaural. Even if a stereo source is used the output will be in mono.
® FUNCTION VOLUME
Sets the volume level for signals from the Tape and Aux inputs. When these inputs are not being
used, set the control to “0”.
® ECHO VOLUME |
This control sets the level of the signal from the built-in analog delay line that is mixed back with
the “direct” sound in the Speaker, Record and Line outputs. (It is an echo return control.)
O DELAY TIME
This control continuously varies the length of delay from 70 to 195 milliseconds.
® FEEDBACK a
This control adjusts the amount of output from the delay line which is mixed back into the delay
circuitry. Increasing the amount of Feedback lengthens the duration of an echo. If Feedback is set
high enough, oscillation (howl or run-away echo) can occur. This undesirable condition can be
remedied by lowering the Feedback setting.
® MASTER
This control adjusts the level at the Speaker outputs and the Line output, but does not affect the -
Record output level. * |
® POWER Switch and Indicator
A rocker switch turns the AC power On and Off. The red pilot lamp above the switch is On when
- power is On. )
BRIEF OPERATING INSTRUCTIONS
FIG. 2. REAR PANEL
SOBIIEIPISIIADOIIPPADODEIATOADOA
002330730030007209703905305300020008
зоозоеооооо оз ооооооо ооо
eevee
особое *
YAMAHA
INTEGRATED MIXER EM SERIES PHONE JACK TAKES PRIGRITY
LINE QUT
Cab
5 5
а НЫ 160 НЫ ‘2 a 1840 8
Vor $4.80 1902880 |
Max, Aus Soret 10Cw/4N i
—2 — — НЭ
EE
CLASSE 2 WIRING MAY BE Je
О | | | ; US and Canadian Models
REAR PANEL
O POWER CORD
This 3-wire cord is for connection to any 120 volts AC, 50 or 60 Hz grounded outlet of US 8
Canadian models, and to any one of 110, 130, 220 and 240 volts AC, 50/60 Hz of General model.
@ SPEAKER OUTPUTS 1 & 2
‘There are two sets of parallel-wired speaker outputs (#1 and #2), each of which has a 1/4” (6.3mm)
tip/sleeve phone jack and a pair of push-terminals. If a phone jack is used, the associated push
terminals are automatically disconnected from the amplifier. The minimum overall load impedance
is 4 ohms.
When a single 4 ohms speaker is connected to either the #1 or #2 output, the amplifier will deliver
up to 100 watts continuous average (RMS) power. When a single 8 ohms speaker is connected to
either the #1 or #2 output, the amplifier will deliver up to 65 watts continuous power. If using a
pair of 8 or 16 ohms speakers, connect one each to the #1 and #2 outputs. We recommend using 18
gauge “zip cord” or even heavier wire; strip 1/3” of insulation, twist the strands, press in the tab on
the speaker output terminal, insert the bared wire in the center hole, and release the tab.
| CAUTIONS
1. Do not connect more than one 4 ohms speaker to the mixer since the amplifi-
er will be overloaded.
2. Never plug the speaker output into anything but a speaker load or a direct
box made for high power levels, and never patch an output directly back 1 to an
input unless directed to do so by this manual.
BRIEF OPERATING INSTRUCTIONS
O LINE OUT
This unbalanced 1/4” (6.3 _mm) tip/sleeve phone jack carries the mixed signal from all the input
channels, including the auxiliary input, and from the delay line. The level is controlled by the
Master volume control, and is nominally 0 dB. This jack is designed for medium to high impedance
inputs, such as other mixers, power amplifiers, or tape recorders.
O REC OUT |
This pair of RCA-type pin jacks (phono jacks) both carry the same signal, which differs from the
Line output in that it is not affected by the Master volume control.
Record Out has a nominal level of —3 dB, and is designed to feed high impedance line inputs such as
tape recorders or power amplifiers which have their own volume controls. Use one jack to feed
single-channel equipment, or both jacks to feed dual-channel equipment (or two different pieces of
single-channel equipment).
O AUX IN and TAPE
The EM-95 is provided with an Aux In phone jack and a Tape phono jack, to allow the mixer to be
used with a variety of equipment. A front panel Function switch selects either the Aux In signal or
the Tape signal. An FM tuner, a second tape deck, or some other audio component can be connect-
ed.
O PHONO |
This input is a pair of RCA-type pin jacks that are intended for direct connection of a magnetic
phonograph cartridge. The jacks are mixed internally, via isolation resistors, to mono, and feed a
built-in RIAA preamplifier. Thus, the Phono Input is suitable for inputs from mono or stereo
cartridges, but should not be used with a microphone or other source. The Phono input is “live”
only when the front panel channel 6 input selector switch is set to “Phono” position. Nominal
sensitivity is —50 dB, with an actual input impedance of 47 kohms.
NOTE: Even if only one of the two Phono inputs is used, both of the supplied shorting plugs
should be removed.
A ground post is located above the input jacks, and should be used to ground the phonograph
chassis to the mixer chassis to reduce hum. Unscrew the knurled sleeve, and slide a stripped end of
the ground wire through the hole in the center post. The other end of the wire should be connected
to the phonograph chassis. |
VOLTAGE SELECTOR
VOLTAGE
(SELECTOR У
The line voltage selector on the rear ‘panel selects one of four regulating positions for each
nominal line voltage. To select the correct nominal line voltage and selector position, refer to
Table 1.
If voltage
110V, 115V |120V, 125V, 127V | 220V,225V j|230V, 240V, 250V
in your area is:
Set voltage
110V 130V 220V | 240V
selector to:
~ Table 1
CAUTION: THIS EQUIPMENT MAY BE DAMAGED IF OPERATED WITH THE LINE
VOLTAGE SELECTOR SET TO AN INCORRECT POSITION.
GETTING THE MOST FROM THE BUILT-IN ANALOG
DELAY LINE
WHAT IS AN ANALOG DELAY LINE ?
An analog delay line is an electronic circuit that provides echo and related effects by slowing down audio signals---a more
capable space-age alternative to older style tape-loop echo machines and reverb springs. The term “analog” means that the
audio signal retains its original voltage levels throughout the electronics. Since there are no moving parts in the delay,
maintenance is unnecessary. Moreover, the normal shocks or vibration encountered in touring and in high sound level
environments do not affect the sound.
ECHO AND REVERB EFFECTS ?
“Echo” and “reverb” are often confused with one
another, and there is some overlap in their definitions.
Generally speaking, “echo” consists of one or more
distinct, delayed sound images with recognizable attacks.
““Reverb’’ also consists of multiple delayed sound images,
but they smear together and have no discretely discern-
able attacks.
To get a single echo from the delay line, set the Feedback
contro! at zero, and adjust the time delay as desired. For
multiple echoes, turn up the Feedback control. If the
input program has little or no sharp musical attacks (i.e.,
legato string lines or melodic vocal backups), then the
multiple echoes with a long delay time can sound like a
reverb. When there are more sharp attacks and decays in
the program material, the effect will be more repetitive.
MANUAL PITCH BEND WITH FEEDBACK?
It is possible to obtain changes in pitch (frequency) by
using the delay line! Simply set the Feedback at about #5,
and vary the Delay Time up and down between #0 and
#10, or anywhere on the scale. If you move the Delay
control up or down and then hold it at the new setting,
the pitch will increase or decrease, then stay constant
until the delay dies out or a new sound is introduced.
SETTING UP
Before turning on the mixer's AC power switch, connect
all inputs, outputs and speakers, and be sure the Feedback
control is at #0. If other electronic equipment or electro-
nic instruments are connected to the EM-95's inputs, turn
on that equipment before turning on the mixer. This will
not only avoid annoying hum, it will help prevent turn-on
transients from damaging speakers or other equipment.
Set the input Line/Inst/Mic selector switches (Line/Phono
selector on channel 6) to complement the type of device
that is plugged into the Input Jack below. If the AUX IN
or TAPE input is to be used, set the CH1 ~ 6/AUX IN/
TAPE selector as appropriate (if neither is used the switch
setting. should be CH1 - 6 and the FUNCTION volume
set at minimum). |
various effects).
FIG. 3. ECHO/REVERB DELAY CONTROL SETTINGS.
INTEGRATED MIXER
YAMAHA Cuente MIXER SS
Set in shaded area for multiple —m )
echos, or at “0” for a single echo. FEEDBACK
Set as desired for a 5Пог{ ог — — — =
long delay.
Adjust to balance total echo-———m |
effect proportion to overall
program mix.
FIG. 4. PITCH BEND DELAY CONTROL SETTINGS.
YAMAHA Eu Seres mover DS
Set at approximately this
range. Do not adjust during
the effect.
Move control up and down to ——m=
achieve pitch shift.
Adjust as desired, usually toward——=r Дл М
high end of control scale. ooo aer
If runaway Feedback (Howling) should occur, immediate-
ly turn down the EM-95 Feedback control.
Initially, set the channel Volume controls at #0, and the
Master volume control at about #3. Turn all channel Echo
controls and master Echo Volume to #0, and center the
Bass and Treble controls. One channel at a time, bring up
the Volume controls until the desired mix balance is
achieved; these volume controls should be set somewhere
between #5 and #8. Then, if the overall volume is too
low or too high, readjust the Master volume accordingly.
Once the overall volume and balance are thus set, adjust
the Bass and Treble controls as desired.
If you want to add echo effects to one or more channels,
first set the master Echo Volume control at about #5.
Then set the channel Echo controls to between #0 and
#10, depending on how much effect you want each
channel to contribute. Now experiment with the delay
time and feedback controls to achieve the effect quality
you want. (See FIG. 3 and 4, and the associated
descriptions for suggested starting points to achieve
Finally, readjust the Echo Volume
control as required,
APPLICATIONS
FIG. 5. USING THE EM-95 FOR A VOCAL SOUND REINFORCEMENT SYSTEM.
EM-95 (FRONT PANEL) (REAR PANEL)
[olo]olole]
©0|0/9/0/0/| © © +
оо || 0 || 0 || | m m o
[$$ | $ | $ | & 0
a
VOCALIST
MICROPHONES
SELF-POWERED
e SPEAKER
(A4115H)
| |
у
SPEAKERS
* Optional
FIG. 6. USING THE EM-95 FOR A SOLO PERFORMER SOUND REINFORCEMENT SYSTEM.
EM-9
(FRONT PANEL)
===
—
5
©
O
=
$
¡POFOGO
Os 0GO
e08GGO
© OO
© 8 ©
© o
©0600]
OGG
ANOTHER
e... INSTRUMENT or
INSTRUMENT
MICROPHONE
о о ©
RHYTHM MACHINE
Use external amp for house speaker and
EM-95 amp for stage monitor.
(REAR PANEL)
>
TAPE RECORDER
(for making reference
recording)
C3
al
SY
Ll
==
PHONOGRAPH
(for background
music between sets)
APPLCATIONS
FIG. 7. USING THE EM-95 FOR A KEYBOARD SOUND REINFORCEMENT SYSTEM.
EM-95 (FRONT PANEL)
(REAR PANEL)
LAE EIEN EN EN NTRIS EES EERE RE ERLN.
ELECTRIC GRAND
MONOPHONIC
SYNTHESIZER
ÔS
uv
u
‘м &
©
U И
L
POLYPHONIC
SYNTHESIZER
SYMPHONIC
ENSEMBLE
€
< vs =
ELECTRONIC
PIANO
NN
cr)
(S4115H)
FIG.8. USING THE EM-95 FOR AN INSTITUTIONAL PUBLIC ADDRESS SYSTEM.
From film projector line output.
(To amplify projector sound.)
EM-95 (FRONT PANEL) (REAR PANEL)
— —
OOOO
OOOO ©
ONONONOIONONO mo
m || oo |) m! m 0 || |
OQIOIDIDIOIDI O © ©
| ® || @ | ® || @ | © Q
| | ||
U
7
A
—
PHONOGRAPH
MICROPHONES
For playing recorded programs
у and background music or for
recording a presentation.
и SPEAKER (S) TAPE RECORDER/ (Do not switch so output
PLAYER
is derived from input source.)
BLOCK DIAGRAM
/
DW
SZ ©
Ш
3
>
CE аДеЛД
NOLLINN 3
HQLWOIONL YIMOd
TT Y
—— Wo -
| A1ddns т
DV YIMOd |[——m0£+ — — — — —
20 mg
YIMOdS JWIL AV 130 pelvic 0337
| X
3 YOLVNIN39 —= Jasa)
3WNTOA 2190 19 182 В
OHO3
| X <“H goonvax3 | 367 | 40553400 | af |
om | _ I
AZ NOIL03L O ¥—
— ERFEEM ONORd
tno ANJA © _ SEE от
| — EI 7
TVNINHZL 3 | O w el 081809 NI NI
5 : 031 SNL > Эно
MOV dS [rn | 1 | M H015313S LNdNI
!
A _- | ES CONO op” сно-ёно INC
| TVNIWNHZL | wt |
| I
| . |
your as [ odo GIFFEN ERFEEM
|
А \ \ -
| \ ЭМ
\ .
AÑA 4 va TOYLNOO| | «Ч ВВ LSNI NI HO
Ва | -ano1 + ОТД ,
HO ЗАЗ LNdNI
10
~ (Y YAMAHA
NIPPON GAKKI CO, LTD. HAMAMATSU, JAPAN
SERVICE
The EM-95 mixer is supported by Yamaha's worldwide network of factory trained dealer service
personnel. In the event of a problem, contact your nearest Yamaha dealer.
[OMD-41] 8192 A & Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
