SL 88
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com

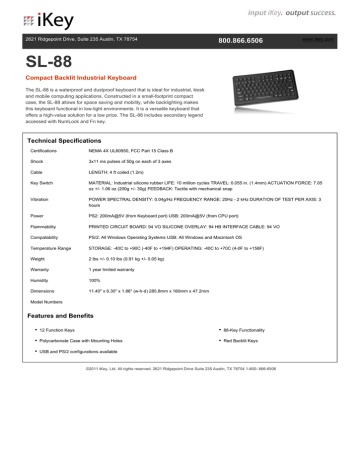

SL-88
Compact Backlit Industrial Keyboard
The SL-88 is a waterproof and dustproof keyboard that is ideal for industrial, kiosk
and mobile computing applications. Constructed in a small-footprint compact
case, the SL-88 allows for space saving and mobility, while backlighting makes
this keyboard functional in low-light environments. It is a versatile keyboard that
offers a high-value solution for a low price. The SL-88 includes secondary legend
accessed with NumLock and Fn key.
Technical Specifications
Certifications
NEMA 4X UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 4 ft coiled (1.2m)
Key Switch
MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05
oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS2: 200mA@5V (from Keyboard port) USB: 200mA@5V (from CPU port)
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatability
PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (4-0F to +158F)
Weight
2 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)
Warranty
1 year limited warranty
Humidity
100%
Dimensions
11.40" x 6.30" x 1.86" (w-h-d) 285.8mm x 160mm x 47.2mm
Model Numbers
Features and Benefits
12 Function Keys
88-Key Functionality
Polycarbonate Case with Mounting Holes
Red Backlit Keys
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
