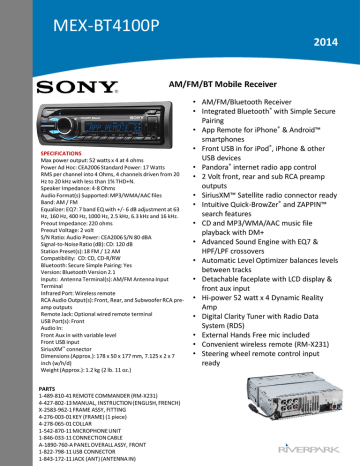

MEXBT4100P PID
MEX-BT4100P
2014
AM/FM/BT Mobile Receiver
SPECIFICATIONS
Max power output: 52 watts x 4 at 4 ohms
Power Ad Hoc: CEA2006 Standard Power: 17 Watts
RMS per channel into 4 Ohms, 4 channels driven from 20
Hz to 20 kHz with less than 1% THD+N.
Speaker Impedance: 4-8 Ohms
Audio Format(s) Supported: MP3/WMA/AAC files
Band: AM / FM
Equalizer: EQ7: 7 band EQ with +/- 6 dB adjustment at 63
Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
S/N Ratio: Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB): CD: 120 dB
Station Preset(s): 18 FM / 12 AM
Compatibility: CD: CD, CD-R/RW
Bluetooth: Secure Simple Pairing: Yes
Version: Bluetooth Version 2.1
Inputs: Antenna Terminal(s): AM/FM Antenna Input
Terminal
Infrared Port: Wireless remote
RCA Audio Output(s): Front, Rear, and Subwoofer RCA preamp outputs
Remote Jack: Optional wired remote terminal
USB Port(s): Front
Audio In:
Front Aux in with variable level
Front USB input
SiriusXM™ connector
Dimensions (Approx.): 178 x 50 x 177 mm, 7.125 x 2 x 7
inch (w/h/d)
Weight (Approx.): 1.2 kg (2 lb. 11 oz.)
PARTS
1-489-810-41 REMOTE COMMANDER (RM-X231)
4-427-802-13 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
X-2583-962-1 FRAME ASSY, FITTING
4-276-003-01 KEY (FRAME) (1 piece)
4-278-065-01 COLLAR
1-542-870-11 MICROPHONE UNIT
1-846-033-11 CONNECTION CABLE
A-1890-760-A PANEL OVERALL ASSY, FRONT
1-822-798-11 USB CONNECTOR
1-843-172-11 JACK (ANT) (ANTENNA IN)
• AM/FM/Bluetooth Receiver
• Integrated Bluetooth® with Simple Secure
Pairing
• App Remote for iPhone® & Android™
smartphones
• Front USB in for iPod®, iPhone & other
USB devices
• Pandora® internet radio app control
• 2 Volt front, rear and sub RCA preamp
outputs
• SiriusXM™ Satellite radio connector ready
• Intuitive Quick-BrowZer® and ZAPPIN™
search features
• CD and MP3/WMA/AAC music file
playback with DM+
• Advanced Sound Engine with EQ7 &
HPF/LPF crossovers
• Automatic Level Optimizer balances levels
between tracks
• Detachable faceplate with LCD display &
front aux input
• Hi-power 52 watt x 4 Dynamic Reality
Amp
• Digital Clarity Tuner with Radio Data
System (RDS)
• External Hands Free mic included
• Convenient wireless remote (RM-X231)
• Steering wheel remote control input
ready
