Audio-Technica Europe

A Division of Audio-Technica Ltd

Technica House

Unit 5, Millennium Way

Leeds LS11 5AL England

Tel. : + 44 (0) 113 277 1441

Fax : + 44 (0) 113 270 4836 e-mail : [email protected]

www.eu.

audio-technica

.com

©2015 Audio-Technica Ltd - Printed in U.K.

E&OE*: Published specifications may be subject to change without notice.

(*Errors and Omissions Excepted)

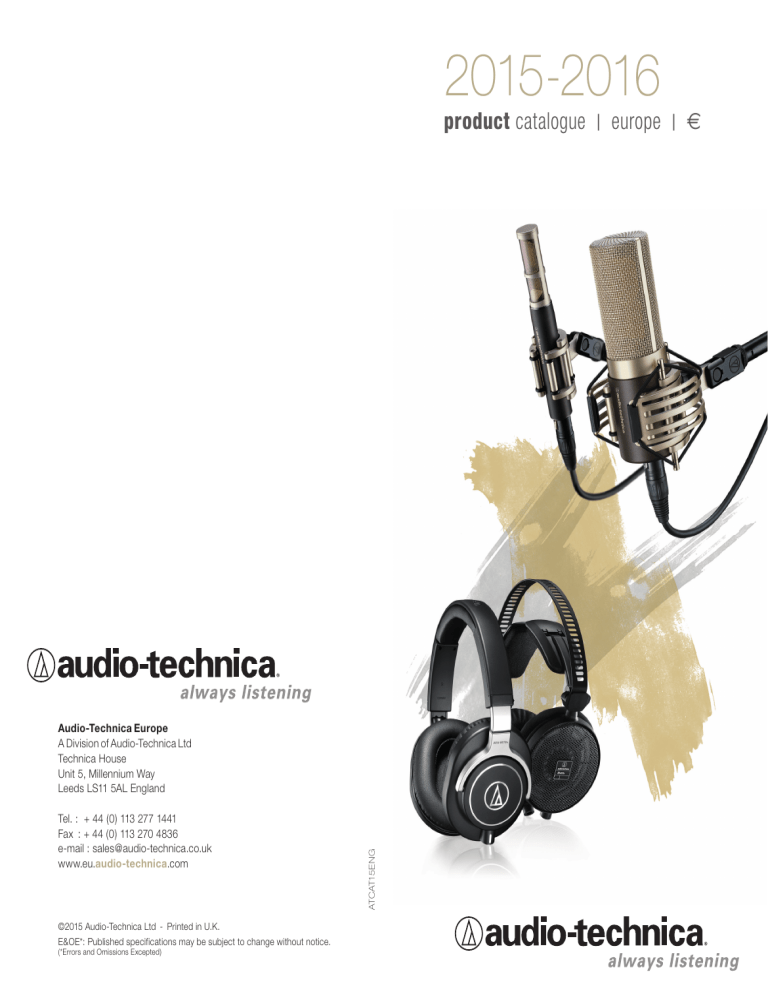

2015-2016

product

catalogue I europe I

e

www.

audio-technica

.com

Supports

• Using Microphones • A Brief Guide to Microphones • Wireless Quick Tips

• Wireless Basics • Advanced Wireless Topics

Current Happenings

• Current Happenings • Press Releases • Audio-Technica endorsement

• Product launch • Trade Shows & Conventions

Terms, Sales Policies & Limited Warranty

Prices and Sales Policy in the UK

(1)

Prices featured in this catalogue are intended as an indication only of the current average prices for our products in continental Europe.

The price indications include VAT (20%).

Please note that due to currency exchange rate fluctuations, varying taxation systems, differences in overheads and operating costs between European countries, prices may vary from country to country.

As our prices are recommended prices only, product prices may also vary between dealers and between distributors.

Audio-Technica Product Availability and Sales Policies in Europe

The Audio-Technica products featured in this catalogue are available throughout Great Britain, Western and Eastern Europe, Africa and the

Middle East.

They are supplied through the European Division of Audio-Technica

Ltd, Leeds, UK. Our products are available through a network of authorised distributors, as well as from dealers.

The European Division of Audio-Technica Ltd does not sell directly to

European end users.

Limited Warranty

All Audio-Technica products purchased from Audio-Technica Ltd are guaranteed for TWO years from date of purchase to be free of defects in materials and workmanship. In the event of such defect, the product will be repaired or replaced without charge.

Such products should be returned to Audio-Technica Ltd or to the authorised distributor together with proof of purchase. Before return to Audio-Technica Ltd European Division, prior authority must be sought from Audio-Technica Ltd. Contact your local Audio-Technica authorised distributor or dealer before trying to obtain a return authorisation number from Audio-Technica Ltd.

Wherever Audio-Technica has an authorised distributor, warranty terms will be exercised by the local Audio-Technica distributor.

Please contact your local distributor for the warranty details. Shall the warranty period from the distributor/dealer exceed the Audio-

Technica warranty period it will remain the responsibility of the distributor. Shall the standard warranty terms of the distributor/dealer expire before those of Audio-Technica, the Audio-Technica terms will apply and the balance of the warranty period will be the European

Division of Audio-Technica Ltd. The Audio-Technica warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use the product in accordance with the instructions. This warranty is void in the event of unauthorised repair or modification, or removal or defacing of the product label and / or serial number.

Download

• Download our European catalogue in 20 languages it contains specifications, prices and pictures of the entire range • Download product photos with 300 dpi downloadable files • Download product literature in PDF format including spec sheets • Download manuals, brochures, etc.

• Download PDFs of the latest Audio-Technica advertisements.

index

contents page

Professional studio headphones

2

Studio microphones

(lifetime warranty*) 10

50 Series

40 Series

20 Series

Live sound microphones

(lifetime warranty*) 34

Artist Elite

®

Artist Series

Multipurpose microphones

44

Pro Series

Midnight Blues

®

ATR Series

Broadcast & Production

Microphones

Windscreens

52

Installed sound microphones

72

Unipoint

®

Propoint

®

Engineered Sound (5 years warranty*)

Dante

®

(5 years warranty*)

Smartmixers

®

88

Infrared conference system

90

Wireless systems

and

Wireless accessories

92

Turntables

114

Accessories

and

Windscreens

116

*Find warranty informations at:

http://http://eu.audio-technica.com/en/support/warranty

Engineered Sound + Network Audio Microphones

Extended 5-Year Warranty

For over 50 years, Audio-Technica has been designing and manufacturing professional audio equipment to the most exacting standards.

Our

Engineered Sound

and

Network Audio microphones

are no exception.

Our full range of engineered sound microphones as well as the

ATND971

and

ATND8677

network audio microphones now come with a

5-year warranty

, guaranteeing your new microphone against material or manufacturing defects for

5 years from date of purchase.

All prices shown are Euro including 20% VAT. Prices are subject to change without notice.

headphones professional studio monitor headphones professional studio monitor

ATH-R70x

389,00 e

Professional open-back reference headphones

The

ATH-R70x

is Audio-Technica’s first pair of professional open-back reference headphones.

Together with the

ATH-M70x

, they stand as a flagship model in Audio-Technica’s professional headphone lineup.

They incorporate a new, improved design of our popular 3D wing support system to provide even greater comfort during the prolonged use often required in professional settings.

Robust yet lightweight, and equipped with a unique, dual-sided detachable cable that automatically maintains proper stereo orientation (no matter how it’s attached), the

R70x

headphones are built for lasting comfort, convenience and audio purity.

ATH-M70x

339,00 e

Professional monitor headphones

The latest addition to the critically acclaimed

M-Series

line, the

ATH-M70x

professional monitor headphones feature proprietary 45 mm large-aperture drivers and are tuned to accurately reproduce extreme low and high frequencies (5 to

40,000 Hz) while maintaining perfect balance. They are ideal for studio mixing and tracking, FOH, DJing, mastering, postproduction, audio forensics and personal listening. Crafted for lasting durability with space-saving design, the headphones provide excellent sound isolation and are equipped with 90° swiveling earcups for easy, one-ear monitoring.

Included accessories:

1.2 m-3 m coiled cable, 3 m straight cable,

1 m straight cable, 6.3 mm (1/4”) adapter, protective case.

Included accessories:

Unique, dual-sided detachable locking cable is L/R signal independent, always ensuring proper stereo orientation; protective carrying pouch.

Specifications

Type:

Driver Diameter:

Frequency Response:

Maximum Input Power:

Sensitivity:

Impedance:

ATH-R70x

Open-back dynamic

45 mm

5-40,000 Hz

1,000 mW

98 dB

470 ohms

2

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

Type:

Driver Diameter:

Frequency Response:

Maximum Input Power:

Sensitivity:

Impedance:

ATH-M70x

Closed-back dynamic

45 mm

5-40,000 Hz

2,000 mW

97 dB

38 ohms

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

3

headphones professional studio monitor headphones professional studio monitor

ATH-M50xWH

ATH-M50x

189,00 e

Professional studio monitor headphones

This is the most critically acclaimed model in the

M-Series

line, praised by top audio engineers and pro audio reviewers year after year.

• Exceptional clarity throughout an extended frequency range, with deep, accurate bass response.

• 90° swiveling earcups for easy, one-ear monitoring.

Included accessories:

Cables included: studio

1.2 m – 3.0 m coiled

studio

3.0 m straight

4

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

portable

1.2 m short/straight

ATH-M50xDG

LIMITED EDITION

ATH-M50xWH

189,00 e

Professional studio monitor headphones

White version of

M50x

supplied with white cables and white pouch.

ATH-M50xDG

219,00 e

Professional studio monitor headphones

Limited Edition

M50x

in distinctive Dark Green.

Specifications

Type:

Driver Diameter:

Frequency Response:

Maximum Input Power:

Sensitivity:

Impedance:

Weight:

ATH-M50x / M50xWH / M50xDG

Closed-back dynamic

45 mm

15-28,000 Hz

1,600 mW at 1KHz

99 dB

38 ohms

285 g without cable/connector

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

5

headphones professional studio monitor headphones professional studio monitor

ATH-M30x

ATH-M40x

129,00 e

Professional headphones

The high-performance

M40x

professional headphones are tuned flat for incredibly accurate audio monitoring across an extended frequency range.

• Tuned flat for incredibly accurate sound monitoring across the entire frequency range.

• Circumaural design contours around the ears for excellent sound isolation in loud environments.

• 90° swiveling earcups for easy, one-ear monitoring

Cables included: studio

1.2 m – 3.0 m coiled

studio

3.0 m straight

Specifications

Type:

Driver Diameter:

Frequency Response:

Maximum Input Power:

Sensitivity:

Impedance:

Weight:

ATH-M40x

Closed-back dynamic

40 mm

15-24,000 Hz

1,600 mW at 1KHz

98 dB

35 ohms

240 g without cable/connector

6

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATH-M20x

ATH-M30x

89,00 e

Professional monitor headphones

Featuring strong mid-range definition, these versatile monitoring headphones are ideal in a variety of situations.

• Tuned for enhanced detail, with excellent mid-range definition.

• Circumaural design contours around the ears for excellent sound isolation in loud environments.

ATH-M20x

64,00 e

Professional monitor headphones

The

ATH-M20x

professional monitor headphones are a great introduction to the critically acclaimed M-Series line.

• Tuned for enhanced low-frequency performance.

Specifications

Type:

Driver Diameter:

Frequency Response:

Maximum Input Power:

Sensitivity:

Impedance:

Weight:

ATH-M30x ATH-M20x

Closed-back dynamic Closed-back dynamic

40 mm

15-22,000 Hz

1,300 mW at 1KHz

96 dB

47 ohms

220 g without cable

40 mm

15-20,000 Hz

700 mW at 1KHz

96 dB

47 ohms

190 g without cable

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

7

headphones dj headphones headphones broadcast stereo headset

BPHS1 included accessories: cable, 3 windscreens, spare connector screw

BPHS1-XF4 included accessories: cable, 3 windscreens, spare connector screw

ATH-PRO700MK2

ATH-PRO500MK2

ATH-PRO700MK2

229,00 e

Professional DJ monitor headphones

Surround your senses with Audio-Technica’s sophisticated technology and superior components of the

PRO700MK2

headphones.

ATH-PRO500MK2

189,00 e

Professional monitor headphones

Designed with the DJ in mind, Audio-Technica’s

PRO500MK2

headphones deliver amazing sonic performance with 53 mm large-diameter drivers, low-profile acoustic-efficient housings, swiveling earpieces, and compact foldable design.

Specifications

Type

Driver Diameter:

Frequency Response

Max. Input Power

Impedance

Weight

Cable

Connector

PRO700MK2 PRO500MK2

Closed-back dynamic Closed-back dynamic

53 mm

5-35,000 Hz

3,500 mW

68 ohms

53 mm

10-30,000Hz

1,600 mW

38 ohms

305 g 290 g

1.2 - 3.0 m detachable coiled cable 1.2 m detachable straight cable

3.5 mm gold-plated stereo plug with 6.3 mm adapter

8

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

cardioid

BPHS1

The

BPHS1

is a rugged broadcast stereo headset with closed-back circumaural (around-the-ear) ear cups and a professional boom-mounted microphone that can be worn from either side. It is designed for news and sports broadcasting, announcing and interviews. Generously padded circumaural ear cups provide acoustic isolation and long-wearing comfort.

BPHS1

219,00 e

Broadcast stereo headset

• Cable termination: 3-pin XLRM-type connector for microphone, 6.3 mm phone plug outputs for headphones.

BPHS1-XF4

219,00 e

Communication headset

• Cable terminations: 4-pin XLRF-type connector for usage with intercom systems, mono headphone signal.

Specifications

BPHS1

Headphone Type

Closed-back Dynamic

Headphone Driver

Microphone Element

Microphone Polar Pattern

Frequency Response

Open Circuit Sensitivity

Maximum Input Power

Impedance

Weight

40 mm, neodymium magnet,

copper-clad aluminum wire voice coil

Dynamic

Cardioid

Headphone: 20

Microphone: 40

-

20,000 Hz

-

20,000 Hz

Microphone: – 57 dB (1.4 mV) re 1V at 1 Pa

Headphone: 100 dB

1,600 mW at 1 kHz

Headphone: 65 ohms

Microphone: 560 ohms

264 g

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

9

50 series studio microphones

AT5040

cardioid

Audio-Technica’s premier studio vocal microphone, the

AT5040

cardioid condenser offers remarkably musical high-fidelity performance, with profound realism and depth, presence and purity of sound. The

AT5040

provides unprecedented dynamic range, exceptionally low noise, high-SPL capability and advanced internal shock mounting. Includes custom

AT8480

shock mount and hard-shell carrying case.

AT5040

3 499,00 e

Cardioid condenser microphone

Designed as a first-choice vocal microphone, the

AT5040

features an extremely smooth top end with controlled sibilance.

Large-diaphragm characteristics and fast transient response also make it ideal for recording acoustic instruments such as piano, guitar, strings and saxophone.

AT5040 accessories:

AT8480 shock mount for 5/8”-27 threaded stands; protective carrying case.

10

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

50 series studio microphones

Four-part rectangular element

The first of our design criteria for the

AT5040

was purity of sound. To achieve this, Audio-Technica engineers developed a four-part rectangular element, the pinnacle of our recent breakthroughs in sound-capture technology. Four exquisitely matched ultra-thin diaphragms function together (with outputs proprietarily summed) as Audio-Technica’s largest-ever element, providing combined surface area twice that of a standard one-inch circular diaphragm.

By using four diaphragms in a single capsule, the

AT5040

delivers the benefits of an exceptionally large diaphragm – along with an extremely low noise floor – without increased weight, decreased transient response or other drawbacks that typically restrict diaphragm size.

Another key

AT5040

design feature is advanced internal shock mounting that effectively decouples the capsule from the microphone body. For additional isolation, each

AT5040

is also provided with Audio-Technica’s innovative new

AT8480

shock mount.

Advanced circuit design

To ensure optimum performance of the capsule, the

AT5040’s

circuitry utilizes only discrete electronic components. Every component for the circuit board assembly is carefully selected based on its sound quality.

Our method of combining the outputs of four independent elements in this patent-pending design is quite unique. By means of this proprietary summing method we have been able to quadruple the microphone’s sensitivity to -25 dBv, while only doubling its noise level to a very low 5 dB SPL. This high sensitivity allows the

AT5040

to function optimally with a wide range of microphone preamplifiers. All this while still providing significant headroom, enough to accept 142dB SPL at 1kHz of maximum sound pressure level.

100% quality control

Every

AT5040

is hand assembled and individually inspected for 100% quality control. Each microphone is enclosed in an elegant housing of aluminum and brass with high-quality gray finish for durability and low reflectivity.

Discrete components have been selected for optimized capsule performance; in fact, every aspect of the microphone has been carefully considered to minimize any effects on the audio signal.

Specifications

AT5040

Element

Frequency Response

Fixed-charge back plate, permanently polarized condenser

20

-

20,000 Hz

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Noise

–25 dB (56.2 mV) re 1V at 1 Pa

50 ohms

142 dB SPL, 1 kHz at 1% T.H.D.

5 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

137 dB, 1 kHz at Max SPL

89 dB, 1 kHz at 1 Pa

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

11

50 series

AT5045

cardioid studio microphones

50 series studio microphones

Available as a single mic or as stereo pairs, the

AT5045

is a premier condenser instrument microphone that offers the performance of a large-diameter, side-address condenser in a convenient, stick-type body. In fact, despite the space limitations imposed by its housing, the

AT5045

boasts

Audio-Technica’s largest single diaphragm. The microphone’s circuitry has been honed to the essentials, allowing the

AT5045

to achieve an unprecedented dynamic range that’s one of the widest of any microphone on the market.

100% quality control

Every

AT5045

is hand assembled and individually inspected for 100% quality control. Each microphone is enclosed in an elegant housing of aluminum and brass with a high-quality gray finish for durability and low reflectivity. Discrete components have been selected for optimized performance. The circuitry and capsule assembly are mounted as a single block within a floating internal shock mount, effectively decoupling the capsule from the microphone body for excellent vibration isolation. In fact, every aspect of the microphone has been carefully considered to minimize any negative effects on the audio signal.

The

AT5045

instrument mic comes with Audio-Technica’s innovative

AT8481

isolation clamp, an

AT8165

windscreen and a protective carrying case that holds a single

AT5045

microphone or a stereo pair of

AT5045

microphones.

Audio-Technica’s premier studio instrument microphone, the

AT5045

cardioid condenser offers large-diaphragm, side-address performance in a stick-type body.

The

AT5045

provides unprecedented dynamic range, exceptionally low noise, high-SPL capability and advanced internal shock mounting.

AT5045

1 789,00 e

Cardioid condenser instrument microphone

Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments.

AT5045 accessories:

AT8481 shock mount for 5/8”-27 threaded stands;

AT8165 windscreen; protective carrying case.

AT5045P

3 229,00 e

Pair of cardioid condenser instrument microphones

AT5045P accessories:

2 microphones,

2 AT8481 shock mount for 5/8”-27 threaded stands;

2 AT8165 windscreen; protective carrying case.

12

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

AT5045

Element

Fixed-charge back plate, permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Open circuit Sensitivity

Impedance

Maximum Input Sound Level

Noise

–35 dB (17.7 mV) re 1V at 1 Pa

100 ohms

149 dB SPL, 1 kHz at 1% T.H.D.

8 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

141 dB, 1 kHz at Max SPL

86 dB, 1 kHz at 1 Pa

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

13

40 series studio microphones

40 series studio microphones

AT4080

figure-of-eight

AT4081

figure-of-eight

With the groundbreaking

AT4080

, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics.

Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica’s innovative

MicroLinear™ ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. With 18 patents pending,

Audio-Technica’s innovative ribbon transducer advances the evolution of ribbon microphone design.

Experience the difference.

AT4080

999,00 e

Bidirectional active ribbon microphone

AT4080 accessories:

AT8449/SV shock mount for

5/8”-27 threaded stands; microphone dust cover; protective carrying case.

Specifications

AT4080

Element

Ribbon

Frequency Response

20

-

18,000 Hz

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

– 39 dB (11.2 mV) re 1V at 1 Pa

100 ohms

150 dB SPL, 1 kHz at 1% T.H.D.

22 dB SPL

128 dB, 1 kHz at Max SPL

72 dB, 1 kHz at 1 Pa

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

14

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

With its low-profile stick design, this microphone is a natural for use on a wide range of instruments (horns, strings, drum overheads, orchestras and more) and guitar cabinets in recording studios and live-sound settings.

Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica’s innovative

MicroLinear™ ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. With 18 patents pending,

Audio-Technica’s innovative ribbon transducer advances the evolution of ribbon microphone design.

Experience the difference.

AT4081

699,00 e

Bidirectional active ribbon microphone

AT4081 accessories:

AT8471 isolation clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-

16 threaded adapter; windscreen; protective carrying case.

Specifications

AT4081

Capsule

Ribbon

Frequency Response

30

-

18,000 Hz

Open Circuit Sensitivity

Impedance

– 42 dB (7.9 mV), re 1V at 1 Pa

100 ohms

Maximum Input Sound Level

150 dB SPL, 1 kHz at 1% T.H.D.

Noise

25 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

125 dB, 1 kHz at Max SPL

69 dB, 1 kHz at 1 Pa

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

15

40 series studio microphones

40 series studio microphones

AT4060a

cardioid

AT4050ST

cardioid figure-of-eight

The

AT4060a

is a large-diaphragm cardioid condenser tube microphone. It is designed for use in the most demanding studio applications.

• Hand-selected tubes are individually tested and aged to maintain peak performance.

• Wide dynamic range, low self-noise and high max SPL capability.

• Large coupling transformer provides superior low-frequency linearity.

• The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use.

AT4060a

1 799,00 e

Cardioid condenser tube microphone

AT4060a accessories:

AT8560a tube microphone powering unit;

AT8447 shock mount for 5/8”-27 threaded stands; 7,6m cable with 6-pin XLR-type connectors; protective mic carrying case.

Specifications

Element

AT4060a

Frequency Response

20

-

20,000 Hz

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Noise

Externally polarized (DC bias) condenser

–34 dB (19.9 mV) re 1V at 1 Pa

200 ohms

150 dB SPL, 1 kHz at 1% T.H.D.; 149 dB SPL, 1 kHz at 0.5% T.H.D.

19 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

Power Requirements

Output Connector

131 dB, 1 kHz at Max SPL

75 dB, 1 kHz at 1 Pa

AT8560a tube microphone powering unit (100-240V AC)

3-pin XLRM-type (on tube microphone powering unit)

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

16

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Offering the realism of a live sound field, the

AT4050ST

is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation; a remarkable flexibility.

AT4050ST

1 549,00 e

Stereo condenser microphone with shock mount

AT4050ST accessories: AT8449 shock mount for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; microphone dust cover; protective carrying case.

Specifications

AT4050ST

Element

Externally-polarized (DC bias) condenser

Frequency Response

Low Frequency Roll-off

Open Circuit Sensitivity

20

-

18,000 Hz

80 Hz, 12 dB/octave

Stereo 90°: – 42 dB (7.9 mV) dB re 1V at 1 Pa

Stereo 127°: – 41 dB (8.9 mV) dB re 1V at 1 Pa

Mid: – 36 dB (15.8 mV) dB re 1V at 1 Pa

Side: – 36 dB (15.8 mV) dB re 1V at 1 Pa

Impedance

Max. Input Sound Level

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

50 ohms

Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;

159 dB SPL, with 10 dB pad (nominal)

Stereo 90°: 25 dB SPL

Stereo 127°: 16 dB SPL

Mid: 15 dB SPL

Side: 17 dB SPL

Mid: 134 dB, 1 kHz at Max SPL

Side: 32 dB, 1 kHz at Max SPL

Stereo 90°: 69 dB, 1 kHz at 1 Pa

Stereo 127°: 78 dB, 1 kHz at 1 Pa

Mid: 79 dB, 1 kHz at 1 Pa

Side: 77 dB, 1 kHz at 1 Pa

90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal)

Output Connectors

Integral 5-pin XLRM-type

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

17

40 series studio microphones

AT4050

cardioid omnidirectional figure-of-eight

40 series

AT4047MP

cardioid omnidirectional figure-of-eight studio microphones

The

AT4050

offers a remarkable combination of high

SPL capability with transparent airy upper and mid range frequencies complemented by a rich low-end quality.

Numerous legendary studio engineers agree that it is the perfect studio tool for use on vocals, piano, strings, drum overheads, guitar amps and ensembles.

AT4050SM

799,00 e

Multi-pattern condenser microphone with

AT8449

shock mount.

AT4050SC

849,00 e

Multi-pattern condenser microphone with

AT8430

stand clamp.

AT4050 accessories:

Protective carrying case; microphone dust cover; AT8449 shock mount (AT4050SM);

AT8430 stand clamp (AT4050SC)

Specifications

AT4050SM / AT4050SC

Element

Externally polarized condenser

Frequency Response

20

-

18,000 Hz

Open Circuit Sensitivity

– 36 dB (15.8 mV), re 1V at 1 Pa*

Impedance

100 ohms

Maximum Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Noise

Low Frequency Roll-Off

Power Requirement

149 dB SPL, 1 kHz, T.H.D. 1% 159 dB SPL, with 10 dB pad (nominal)

77 dB, 1 kHz at 1 Pa*

132 dB, 1 kHz at Max SPL

17 dB SPL

80 Hz, 12 dB/octave

48V DC, 4.2 mA

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

18

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Audio-Technica’s

AT4047MP

delivers vintage sound in a multipattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformercoupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

AT4047MP

899,00 e

Multi-pattern condenser microphone – vintage sound

AT4047MP accessories:

AT8449/SV shock mount for 5/8”-27 threaded stands; microphone dust cover; protective carrying case.

Specifications

Element

AT4047MP

Externally-polarized (DC bias) condenser

Frequency Response

20

-

18,000 Hz

Low Frequency Roll-off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

80 Hz, 12 dB/octave

– 42 dB (7.9 mV), re 1V at 1 Pa*

100 ohms

155 dB SP L, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)

14 dB

141 dB, 1 kHz at Max SPL

80 dB, 1 kHz at 1 Pa

Polar selection; Flat, roll-off; 10 dB pad (nominal)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

19

40 series studio microphones

40 series studio microphones

AT4033a

cardioid

AT4040

AT4040SC

cardioid

AT4047SV

cardioid

The precision engineered large diaphragm of the

AT4047SV

provides a warm, vintage sonic characteristic reminiscent of early F.E.T. studio microphone designs. The dual diaphragm design maintains a precise polar pattern across the full frequency range.

AT4047SVSM

789,00 e

Cardioid condenser microphone with

AT8449SV

shock mount.

AT4047SVSC

P.O.A. Cardioid condenser microphone with

AT8430

stand clamp.

Specifications

Element

AT4047SVSM / AT4047SVSC

Externally polarized (DC bias) condenser

Frequency Response

20

-

18,000 Hz

Open Circuit Sensitivity

– 35 dB (17.7 mV) ± 2 dB, re 1V at 1 Pa*

Impedance

250 ohms

Max. Input Sound Level

Signal-to-Noise Ratio

149 dB SPL, 1 kHz, T.H.D. 1% 159 dB SPL, with 10 dB pad (nominal)

85 dB, 1 kHz at 1 Pa*

Dynamic Range

Noise

Low Frequency Roll-Off

Power Requirement

Accessories Furnished

140 dB,1 kHz at Max SPL

9 dB SPL

80 Hz, 12 dB/octave

Phantom 48 V, 3.0 mA

Protective carrying case AT8449SV shock mount (with AT4047SVSM); or AT8430 stand clamp (with AT4047SVSC)

*1 Pascal = 10 dynes/cm

2 = 10 microbars = 94 dB SPL

20

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

A strong up front crisp sound characterizes the sonic signature that created this studio classic.

AT4033aSM

489,00 e

Cardioid condenser microphone with shock mount

A marriage of technical precision and artistic inspiration, the

AT4040

features an advanced large diaphragm, tensioned specifically to provide smooth, natural sonic characteristics.

AT4040

459,00 e

Cardioid condenser microphone with

AT8449

shock mount.

AT4040SC

P.O.A. with

AT8430

stand clamp.

Specifications

Element

AT4033aSM AT4040 / SC

Permanently polarized condenser Externally polarized condenser

Frequency Response

30

-

20,000 Hz 20

-

20,000 Hz

Open Circuit Sensitivity

– 32 dB (25.1 mV), re 1V at 1 Pa* – 32 dB (25.1 mV), re 1V at 1 Pa*

Impedance

100 ohms 100 ohms

Max. Input Sound Level

145 dB SPL, 1 kHz at 1% T.H.D.

155 dB SPL,

with 10 dB pad (nominal)

145 dB SPL, 1 kHz at 1% T.H.D.

155 dB SPL

, with 10 dB pad (nominal)

Signal-to-Noise Ratio

Dynamic Range

77 dB, 1 kHz at 1 Pa*

128 dB, 1 kHz at Max SPL

Noise

17 dB SPL

Low Frequency Roll-Off

80 Hz, 12 dB/octave

Accessories Furnished

Protective carrying case

AT8449 shock mount

82 dB, 1 kHz at 1 Pa*

133 dB, 1 kHz at Max SPL

12 dB SPL

80 Hz, 12 dB/octave

Protective carrying case

AT8449 shock mount (AT4040SM)

AT8430 stand clamp (AT4040SC)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

21

40 series studio microphones

40 series studio microphones

AT4041

cardioid

AT4041

349,00 e

Cardioid condenser microphone

The

AT4041

features a transformerless output for a very high SPL handling capability. The surface of the back plate is precision milled, reducing unnatural frequency response peaks and distortion.

AT4041 accessories:

Protective carrying case;

AT8405a snap-in clamp;

AT8159 foam windscreen.

Specifications

AT4041

Element

Permanently polarized Condenser

Frequency Response

20

-

20,000 Hz

Open Circuit Sensitivity

Impedance

Maximum Input Sound Level

Signal-to-Noise Ratio

– 36 dB (15.8 mV), re 1V at 1 Pa*

100 ohms

145 dB SPL, 1 kHz at 1% T.H.D.

70 dB, 1 kHz at 1 Pa*

Dynamic Range

Noise

121 dB, 1 kHz at Max SPL

24 dB SPL

Low Frequency Roll-Off

80 Hz, 12 dB/octave

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

22

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT4021

cardioid

AT4022

omnidirectional

Included accessories:

AT8405a stand clamp,

AT8159 windscreen, case.

AT4021

399,00 e

Cardioid condenser microphone

The

AT4021

offers a flat, extended frequency response, high maximum SPL and wide dynamic range. Its low self-noise is perfectly suited for the most sophisticated recording equipment. Its low-mass diaphragm improves transient response and reduces handling and mechanical noise transfer.

AT4022

449,00 e

Omnidirectional condenser microphone

The low-profile

AT4022

is outstanding for piano, acoustic guitar and other acoustic instruments. Offering a flat, extended frequency response and wide dynamic range, it handles high SPLs with ease. Its low-mass diaphragm improves transient response and reduces handling/ mechanical noise transfer.

Specifications

AT4021

Element

AT4022

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll Off

80 Hz, 12 dB/octave

Open Circuit Sensitivity

– 34 dB (19.9 mV) re 1V at 1 Pa*

Impedance

250 ohms

20

-

20,000 Hz

80 Hz, 12 dB/octave

– 34 dB (19.9 mV) re 1V at 1 Pa*

250 ohms

Max. Input Sound Level

146 dB SPL, 1 kHz at 1% T.H.D.; 146 dB SPL, 1 kHz at 1% T.H.D.;

156 dB SPL

, with 10 dB pad (nominal)

156 dB SPL

, with 10 dB pad (nominal)

Noise

14 dB SPL

Dynamic Range

(typical) 132 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

Switches

80 dB, 1 kHz at 1 Pa*

Flat, roll-off; 10 dB pad

13 dB SPL

133 dB, 1 kHz at Max SPL

81 dB, 1 kHz at 1 Pa*

Flat, roll-off; 10 dB pad

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

23

40 series studio microphones

AT4900b-48

40 series studio microphones

Microphone components

AT4900B-48

379,00 e

Electronics / body only

AT4049B-EL

249,00 e

Omnidirectional element only

AT4051B-EL

249,00 e

Cardioid element only

AT4053B-EL

249,00 e

Hypercardioid element only

AT4049b-EL

AT4051b-EL

AT4053b-EL

24

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT4049B AT4051B AT4053B

omnidirectional cardioid hypercardioid

Modular microphones

AT4049B

599,00 e

Omnidirectional condenser microphone

• Recommended for professional recording and critical applications in broadcast.

• Omnidirectional polar pattern provides maximum ambient pickup.

AT4051B

599,00 e

Cardioid condenser microphone

• Ideal for professional recording and critical applications in broadcast.

• High front-to-back rejection ratio. Cardioid polar pattern improves isolation of desired sound source.

AT4053B

599,00 e

Hypercardioid condenser microphone

• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.

Included accessories:

AT8405a stand clamp,

AT8159 windscreen, carrying case.

Specifications

Element

AT4049b / AT4051b / AT4053b

Externally polarized (DC bias) condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll-Off

80 Hz, 12 dB/octave

Open Circuit Sensitivity

– 34 dB (19.9 mV) re 1V at 1 Pa*

Impedance

50 ohms

Max. Input Sound Level

(nominal)

145 dB SPL, 1 kHz at 1% T.H.D.;

155 dB SPL, with 10 dB pad (nominal)

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

(nominal)

16 dB SPL

129 dB, 1 kHz at Max SPL

78 dB, 1 kHz at 1 Pa*

Flat, roll-off; 10 dB pad (nominal)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

25

20 series studio microphones

20 series studio microphones

AT2050

cardioid omnidirectional figure-of-eight

26

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

The

AT2050

’s dual large-diaphragm design provides consistent, superior performance in switchable cardioid, omnidirectional and figure-of-eight polar pattern settings.

AT2050

309,00 e

Multi-pattern condenser microphone

Included accessories:

AT8458 Shock mount for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

Element

AT2050

Externally polarized (DC Bias) condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll-Off

80 Hz, 12 dB/octave

Open Circuit Sensitivity

– 42 dB (10.0 mV) re 1V at 1 Pa*

Impedance

120 ohms

Max. Input Sound Level

149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL with 10 dB pad (nominal)

Noise

17 dB SPL

Dynamic Range

(typical) 132 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

Switches

77 dB, 1 kHz at 1 Pa*

Polar selection; Flat, roll-off; 10 dB pad (nominal)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

27

20 series studio microphones

AT2035

cardioid

20 series studio microphones

AT2020

cardioid

Designed for critical home/project/professional studio applications and live performance, the

AT2035

delivers exceptional detail and low noise.

AT2035

199,00 e

Cardioid condenser microphone

The

AT2020

sets a standard for price performance in a sideaddress studio condenser way ahead of its time.

AT2020

129,00 e

Cardioid condenser microphone

Included accessories:

AT8458 shock mount for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

Element

AT2035

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll Off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

80 Hz, 12 dB/octave

– 33 dB (25.1 mV) re 1V at 1 Pa*

120 ohms

148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)

12 dB SPL

136 dB, 1 kHz at Max SPL

82 dB, 1 kHz at 1 Pa*

Flat, roll-off; 10 dB pad (nominal)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

28

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Included accessories:

AT8466 stand mount for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

Element

AT2020

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Open Circuit Sensitivity

– 37 dB (14.1 mW), re 1V at 1 Pa*

Impedance

100 ohms

Max. Input Sound Level

Noise

144 dB SPL, 1 kHz at 1% T.H.D.

20 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

124 dB, 1 kHz at max SPL

74 dB, 1 khz at 1 Pa*

*1 pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

29

20 series studio microphones

20 series studio microphones

AT2022

stereo

AT2031

cardioid

Included accessories:

AT8405a stand clamp; windscreen; soft protective pouch

The

AT2031

is the ideal microphone for stringed instruments in critical studio and live applications. Its permanently polarized element offers extended frequency response with a slight rise in the high frequency range for a more detailed sound.

AT2031

139,00 e

Cardioid condenser microphone

Specifications

Element

AT2031

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

150 Hz, 6 dB/octave

– 34 dB (19.9 mV) re 1V at 1 Pa*

Impedance

85 ohms

Max. Input Sound Level

Noise

141 dB SPL, 1 kHz at 1% T.H.D.

17 dB SPL

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

124 dB, 1 kHz at max SPL

77 dB, 1 khz at 1 Pa*

Flat, roll-off

*1 pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

30

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

The new

AT2022

is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide

(120°) stereo operation. The capsules also fold flat for storage and transportation.

AT2022

299,00 e

X/Y Stereo Microphone

AT2022 accessories:

AT8405a stand clamp, AA battery, fuzzy windscreen, 5 m cable that terminates in a 3.5 mm stereo plug, pouch.

Specifications

Element

AT2022

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Low Frequency Roll-off

Open Circuit Sensitivity

150 Hz, 6 dB/octave

– 41 dB (8.9mW), re 1V at 1 Pa*

Channel balance

< 2.5 dB

Impedance

200 ohms

Max. Input Sound Level

Noise

Dynamic Range

(typical)

Signal-to-Noise Ratio

122 dB SPL, 1kHz at 1% T.H.D.

19 dB SPL

103 dB, 1kHz at Max SPL

75 dB, 1kHz at 1 Pa*

*1 pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

31

20 series studio microphones

AT2020USB+

cardioid

20 series studio microphones

AT2010

cardioid

Equipped with a USB output, the AT2020USB+ is designed for digitally capturing music or any acoustic audio source using your favorite recording software. The microphone offers the critically acclaimed, award-winning sound of the AT2020.

AT2020USB+

189,00 e

USB cardioid condenser microphone

AT2020USB+ accessories: tripod desk stand, pivoting stand mount, threaded adapter,

3.1 m USB cable, pouch.

The

AT2010

is designed to bring the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances.

AT2010

129,00 e

Cardioid condenser handheld microphone

AT2010 accessories:

AT8470 stand clamp, threaded adapter, pouch.

Specifications

Element

AT2020USB+

Fixed-charge back plate permanently polarized condenser

Frequency Response

20

-

20,000 Hz

Power Requirements

USB Power (5V DC)

Bit Depth

Sample Rate

Volume Control

Headphone Output Power

Headphone Jack

16 bit

44.1/48 kHz

Mix control: headphone volume control

130 mW (at 1 kHz, 10% T.H.D., 32 ohm load)

3.5 mm (1/8”) TRS (stereo)

32

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

Element

AT2010

Fixed-charge back plate permanently polarized condenser

Frequency Response

40

-

20,000 Hz

Open Circuit Sensitivity

– 48 dB (3.9mW), re 1V at 1 Pa*

Impedance

100 ohms

Max. Input Sound Level

136 dB SPL, 1kHz at 1% T.H.D.

Noise

Dynamic Range

(typical)

23 dB SPL

113 dB, 1kHz at Max SPL

Signal-to-Noise Ratio

71 dB, 1kHz at 1 Pa*

*1 pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

33

artist elite

® live sound microphones artist elite

® live sound microphones

AE5400

cardioid

AE3300

cardioid

AE6100

hypercardioid

AE4100

cardioid

• Superior anti-shock engineering ensures low handling noise and quiet performance.

• Robust design for enduring dependability on the road.

AE5400

459,00 e

Cardioid condenser microphone

• Pristine sound quality demanded by the most discriminating microphone user.

• Large-diaphragm element and true condenser design.

AE3300

389,00 e

Cardioid condenser microphone

• Exacting detail, brilliant clarity and uncoloured realism.

• Well-tempered polar pattern with outstanding rejection qualities.

Specifications

AE5400 AE3300

Element

Externally polarized condenser Electret condenser

Frequency Response

20

-

20,000 Hz 30

-

18,000 Hz

Open Circuit Sensitivity

– 40 dB (10.0 mV), re 1V at 1 Pa* – 42 dB (7.9 mV), re 1V at 1 Pa*

Impedance

150 ohms 150 ohms

Max. Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Noise

Low Frequency Roll-Off

147 dB SPL, 1 kHz at 1% T.H.D.

157 dB SPL, with 10 dB pad

80 dB, 1 kHz at 1 Pa*

133 dB, 1 kHz at Max SPL

14 dB SPL

80 Hz, 12 dB/octave

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

147 dB SPL, 1 kHz at 1% T.H.D.

157 dB SPL, with 10 dB pad

75 dB, 1 kHz at 1 Pa*

128 dB, 1 kHz at Max SPL

19 dB SPL

80 Hz, 12 dB/octave

34

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

• Superior anti-shock engineering for low handling noise.

• Tough, durable, resilient – built for the road.

AE6100

229,00 e

Hypercardioid dynamic microphone

• Great presence with excellent monitor cut.

• Maximum feedback rejection.

AE4100

229,00 e

Cardioid dynamic microphone

• Aggressive sound that stays up-front in the mix.

• Optimized for the stage with excellent isolation properties.

AE5400:

The same largediaphragm element used in the

AT4050

.

AE3300:

The same element used in the legendary

AT4033

.

Included accessories:

AT8470 Quiet-Flex™ stand clamp;

5/8”-27to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

AE6100 AE4100

Element

Dynamic Dynamic

Frequency Response

60

-

15,000 Hz 90

-

18,000 Hz

Open Circuit Sensitivity

– 55 dB (1.7 mV), re 1V at 1 Pa* – 55 dB (1.7 mV), re 1V at 1 Pa*

Impedance

250 ohms 250 ohms

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

35

artist elite

® live sound microphones artist elite

® live sound microphones

AE3000

cardioid

AE5100

cardioid dynamic

AE2500

cardioid condenser

AE3000

319,00 e

Cardioid condenser microphone

• Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound.

Included accessories:

AT8471 isolation clamp, threaded adapter, pouch.

AE2500 accessories: protective pouch;

AT8471 Isolation clamp; cable 5 m dual shielded,

8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors 5/8”-27 to 3/8”-16 threaded.

AE2500

729,00 e

Dual-element cardioid microphone

• Revolutionary, first-of-its-kind dual-element design represents a ground-breaking transducer achievement.

Specifications

AE2500

Element

Frequency Response

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Signal-to-Noise Ratio

Dynamic Range

Low Frequency Roll-Off

Condenser, dynamic

Dynamic : 30

Condenser : 20

-

10,000 Hz

-

17,000 Hz

Dynamic : – 54 dB (1.9 mV)

Condenser : – 51 dB (2.8 mV), re 1V at 1 Pa*

Dynamic : 600 ohms

Condenser : 100 ohms

Condenser : 148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

Condenser : 70 dB, re 1V at 1 Pa*

Condenser : 124 dB, 1 kHz at Max SPL

80 Hz, 12 dB/octave

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

36

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AE5100

339,00 e

Cardioid condenser microphone

• Large-diaphragm capsule delivers accurate, uncoloured and extremely natural response.

Included accessories:

AT8471 isolation clamp, threaded adapter, AT8136 windscreen, pouch.

Specifications

AE3000 AE5100

Element

Electret condenser

Frequency Response

20

-

20,000 Hz

Electret condenser

20

-

20,000 Hz

Open Circuit Sensitivity

– 43 dB (7 mV), re 1V at 1 Pa* – 36 dB (15.8 mV), re 1V at 1 Pa*

Impedance

100 ohms 150 ohms

Max. Input Sound Level

148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

148 dB SPL, 1 kHz at 1% T.H.D.

158 dB SPL, with 10 dB pad

Signal-to-Noise Ratio

Dynamic Range

Low Frequency Roll-Off

83 dB, re 1V at 1 Pa*

137 dB, 1 kHz at Max SPL

80 Hz, 12 dB/octave

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

83 dB, re 1V at 1 Pa*

137 dB, 1 kHz at Max SPL

80 Hz, 12 dB/octave

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

37

artist series live sound microphones artist series live sound microphones

ATM710

cardioid

ATM610a

hypercardioid

ATM510

cardioid

The studio quality performance of the

ATM710

is brought to the stage with an extremely tight cardioid pattern making feedback and stage sound easier to manage.

ATM710

199,00 e

High-fidelity handheld condenser

• Superior anti-shock engineering for low handling noise.

• Condenser design for studio-quality performance.

Included accessories:

AT8470 Quiet-Flex™ stand clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

ATM710

Element

Fixed-charge back plate permanently polarized condenser

Frequency Response

40

-

20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

80 Hz, 12 dB/octave

– 40 dB (10.0 mV) re 1V at 1 Pa*

200 ohms

148 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

127 dB, 1 kHz at Max SPL

73 dB, 1 kHz at 1 Pa*

Switches

Flat, roll-off; 10 dB pad

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

38

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATM610a

149,00 e

Hypercardioid dynamic vocal microphone

• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.

• Durable performance for professional applications.

ATM510

119,00 e

Cardioid dynamic vocal microphone

• Tailored for smooth, natural vocal reproduction.

• Excellent off-axis rejection for minimum feedback.

Included accessories:

AT8470 Quiet-Flex™ stand clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch.

Specifications

ATM610a ATM510

Element

Dynamic Dynamic

Frequency Response

40

-

16,000 Hz 90

-

16,000 Hz

Open Circuit Sensitivity

Impedance

– 55 dB (1.7 mV) re 1V at 1 Pa*

300 ohms

– 55 dB (1.7 mV) re 1V at 1 Pa*

300 ohms

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

39

artist series live sound microphones

ATM250DE

cardioid hypercardioid

ATM250

hypercardioid artist series

ATM650

hypercardioid live sound microphones

ATM450

cardioid

ATM250DE

429,00 e

Dual-element instrument microphone

• Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing.

Included accessories:

AT8471 isolation clamp for 5/8”-27 threaded stands;

5/8”-27 to 3/8”-16 adapter; soft protective pouch.

Cable: 5.0 m (16.5’) dual shielded, 8-conductor connector at microphone, two 3-pin XLRM-type output connectors cable, 5-pin XLRF-type.

ATM250

269,00 e

Hypercardioid dynamic instrument microphone

• Frequency response tailored for kick drum, percussion, brass, and other highly dynamic instruments.

Included accessories:

AT8471 isolation clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 adapter; soft protective pouch

Specifications

ATM250DE ATM250

Element

Condenser, dynamic

Frequency Response

40-20,000 Hz (condenser)

40-15,000 Hz (dynamic)

Low Frequency Roll-Off

80 Hz, 12 dB/octave (condenser)

Dynamic

40-15,000 Hz

Open Circuit Sensitivity

– 49 dB (3.5 mV), re 1V at 1 Pa* (condenser) – 54 dB (1.9 mV), re 1V at 1 Pa*

– 53 dB (2.2 mV), re 1V at 1 Pa* (dynamic)

Impedance

50 ohms (condenser)

600 ohms (dynamic) 600 ohms

Max. Input Sound Level

148 dB SPL, 1 kHz at 1% T.H.D. (condenser)

Dynamic Range

(typical) 122 dB, 1 kHz at Max SPL (condenser)

Signal-to-Noise Ratio

68 dB, 1 kHz at 1 Pa* (condenser)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

40

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATM650

139,00 e

Hypercardioid dynamic instrument microphone

• Tailored response for musical instrument pickup–guitar cabinets, snare and other percussion.

Included accessories:

AT8470 isolation clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 adapter; soft protective pouch.

ATM450

269,00 e

Cardioid condenser instrument microphone

• Unique side-address stick design maximizes placement options with minimal obstructions.

Included accessories:

AT8471 isolation clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 adapter; soft protective pouch.

Specifications

Element

ATM650 ATM450

Dynamic

Frequency Response

Low Frequency Roll-Off

80-17,000 Hz

Fixed-charge back plate permanently polarized condenser

40-20,000 Hz

80 Hz, 18 dB/octave

Open Circuit Sensitivity

– 56 dB (1.5 mV), re 1V at 1 Pa* – 41 dB (8.9 mV), re 1V at 1 Pa*

Impedance

300 ohms 200 ohms

Max. Input Sound Level

Dynamic Range

(typical)

152 dB SPL, 1 kHz at 1% T.H.D.

127 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

69 dB, 1 kHz at 1 Pa*

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

41

artist series

ATM350

cardioid live sound microphones artist series live sound microphones

ATM73a

cardioid

ATM75a

cardioid

ATM350

349,00 e

Cardioid condenser clip-on microphone

• Low-profile design for minimum visibility

• Attaches to brass, reeds, piano, double bass, snare, toms, and violin.

ATM350

interchangeable elements

UE-H

109,00 e

Hypercardioid interchangeable element

UE-O

109,00 e

Omnidirectional interchangeable element

Included accessories:

AT8542 power module,

AT8418 UniMount

®

,

AT8468 violin mount, pouch.

Specifications

Element

Frequency Response

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

ATM350

Fixed-charge back plate permanently polarized condenser

40-20,000 Hz

80 Hz, 12 dB/octave

– 49 dB (3.5 mV) re 1V at 1 Pa*

50 ohms

149 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

122 dB, 1 kHz at Max SPL

67 dB, 1 kHz at 1 Pa*

Switches

Flat, roll-off

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

42

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATM73a

269,00 e

Cardioid condenser headworn microphone

• Ideal for drummers, keyboard players or anyone requiring hands-free operation.

ATM73ac

149,00 e

Same as ATM73a but unterminated for wireless and special applications

Includes AT8125 and AT8128 windscreens; no power module.

Included accessories:

AT8531 power module,

AT8125/AT8128 windscreens, battery.

ATM75

229,00 e

Cardioid condenser headworn microphone

• Professional-quality vocal pickup with hands-free operation.

ATM75c

99,00 e

Same as ATM75 but unterminated for wireless and special applications

Includes AT8139L large windscreen and AT8439 cable clothing clip; no power module.

Included accessories:

AT8531 power module, AT8439 cable clip,

AT8139L/AT8139S windscreens, battery

Specifications

Element

Frequency Response

ATM73a ATM75

Fixed-charge back plate Fixed-charge back plate permanently polarized condenser permanently polarized condenser

40-15,000 Hz 100-13,000 Hz

Low Frequency Roll-Off

80 Hz, 18 dB/octave

Open Circuit Sensitivity

Ph: –55 dB (1.7 mV) re 1V at 1 Pa* –51 dB (2.8 mV) re 1V at 1 Pa*

B: –56 dB (1.5 mV) re 1V at 1 Pa* –53 dB (2.2 mV) re 1V at 1 Pa*

Impedance

Phantom: 200 ohms

Battery: 270 ohms

80 Hz, 18 dB/octave

200 ohms

270 ohms

Max. Input Sound Level

Ph: 146 dB SPL, 1 kHz at 1% T.H.D. 132 dB SPL, 1 kHz at 1% T.H.D.

B: 132 dB SPL, 1 kHz at 1% T.H.D. 121 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical) Ph: 111 dB, 1 kHz at Max SPL

B: 97 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

1

59 dB, 1 kHz at 1 Pa*

96 dB, 1 kHz at Max SPL

85 dB, 1 kHz at Max SPL

58 dB, 1 kHz at 1 Pa*

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

43

pro series multipurpose microphones pro series multipurpose microphones

PRO31

cardioid

PRO41

cardioid

PRO61

hypercardioid

PRO25ax

hypercardioid

PRO8HEx

hypercardioid

Dynamic handheld microphones

The Pro Series handheld dynamic microphones feature a

Hi-ENERGY

®

neodymium magnet for improved output and transient response.

PRO31

78,00 e

Cardioid dynamic microphone

• Designed for close-up vocal use.

• Silent on-off operation switch.

PRO31QTR

66,00 e

Cardioid dynamic microphone

• PRO31 including an XLRF to 6,3 m jack cable.

PRO41

78,00 e

Cardioid dynamic microphone

• Provides natural, full-range vocal reproduction.

• Silent on-off operation switch.

PRO61

104,00 e

Hypercardioid dynamic microphone

• Premier Pro Series vocal microphone delivers excellent gain before feedback and outstanding stage presence.

Included accessories:

AT8470 stand clamp, threaded adapter, 15’ XLRF- to XLRM-type cable, pouch

Dynamic instrument microphone

PRO25ax

198,00 e

High-SPL hypercardioid dynamic instrument microphone

• Ideal for kick drum, percussion, brass, and other highly dynamic instruments.

Included accessories:

AT8471 isolation clamp, threaded adapter, pouch.

Headworn microphone

PRO8HEx

104,00 e

Hypercardioid Hi-ENERGY

®

dynamic headworn microphone

• Low-visibility, lightweight headband and cushioned support pads provide stable, comfortable fit.

Included accessories:

AT8139L large windscreen, AT8139S small windscreen, AT8439 cable clip

Specifications

PRO31 / QTR PRO41 PRO61

Elements

Dynamic Dynamic Dynamic

Frequency Response

60-13,000 Hz

Open Circuit Sensitivity

– 55 dB (1.7 mV)

(re 1 V at 1 pa*)

90-16,000 Hz

–55 dB (1.7 mV)

70-16,000 Hz

–55 dB (1.7 mV)

Impedance

600 ohms 300 ohms 300 ohms

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

44

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

PRO25ax PRO8HEx

Elements

Dynamic Dynamic

Frequency Response

Open Circuit Sensitivity

30-12,000 Hz

–54 dB (1.9 mV), re 1 V at 1 pa*

200-18,000 Hz

–55 dB (1.7 mV), 1 V at 1 pa*

Impedance

600 ohms 600 ohms

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

45

pro series multipurpose microphones pro series multipurpose microphones

PRO70

cardioid

PRO35

cardioid

PRO37

cardioid

PRO24

PRO24-CMF

stereo

Condenser instrument microphones

PRO70

169,00 e

Cardioid condenser lavalier / instrument microphone

• Provides articulate, full-sounding voice and instrument pickup

• Excels in pickup of acoustic guitar with included

AT8444

guitar mount.

PRO35

259,00 e

Cardioid condenser clip-on instrument microphone

• Ideal for sax, toms, brass and percussion.

PRO37

239,00 e

Small-diaphragm cardioid condenser microphone

• Ideal for acoustic guitar, overheads, piano and group vocals.

PRO70 accessories: power module (attached),

AT8411 clothing clip,

AT8444 instrument adapter, windscreen, battery, pouch.

PRO35 accessories:

AT8538 power module,

AT8418 UniMount

®

, pouch.

PRO37 accessories:

AT8405a stand clamp, threaded adapter,

AT8159 windscreen, pouch.

Specifications

Elements

PRO70 PRO35 PRO37

Fixed charge back plate permanently polarized condenser

Frequency Response

100-14,000 Hz

Low Frequency Roll-Off

80 Hz, 8 dB / octave

Open Circuit Sensitivity

Ph: – 45 dB (5.6 mV) re 1V at 1 Pa* B: – 45 dB (5.6 mV)

50-15,000 Hz

80 Hz, 18 dB / octave

– 45 dB (5.6 mV)

30-15,000 Hz

– 42 dB (7.9 mV)

Impedance

Ph: 200 ohm-B: 200 ohm 250 ohm 200 ohm

Max. Input Sound Level

123 dB SPL

1 kHz at 1% T.H.D.

145 dB SPL 141 dB SPL

Dynamic Range

(typical) 96 dB, 1kHz at max. SPL 115 dB, 1kHz at max. SPL 112 dB, 1kHz at max. SPL

Signal-to-Noise Ratio

67 dB, 1 kHz at 1 Pa* 64 dB, 1 kHz at 1 Pa* 65 dB, 1 kHz at 1 Pa*

Switch

Off, on-flat, on-roll-off Flat, roll-off

*1 Pascal= 10 dynes/cm 2 = 10 microbars = 94 dB SPL

46

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Stereo condenser microphones

PRO24

129,00 e

Stereo condenser microphone

• Designed for a wide range of stereo applications.

• Battery-free operation when used with recording devices that provide ”plug-in power” at the mic input.

Included accessories:

AT8405a stand clamp & threaded adapter, battery, windscreen, soft protective pouch.

PRO24-CMF

159,00 e

Stereo condenser microphone

• Includes: windscreen, battery, video camera shoe mount, soft protective pouch, fur socks

AT8123

.

Included accessories:

AT8472 video-camera shoe mount, LR44 battery, windscreen, AT8123 fur socks, soft protective pouch.

Specifications

Elements

PRO24 / PRO24CMF

Fixed charge back plate permanently polarized condenser

Frequency Response

Open Circuit Sensitivity

100-17,000 Hz

– 50 dB (3.1 mV), re 1V at 1 Pa*

Impedance

600 ohm

Max. Input Sound Level

119 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

82 dB, 1kHz at max. SPL

57 dB, 1 kHz at 1 Pa*

*1 Pascal= 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

47

midnight blues

® multipurpose microphones midnight blues

® multipurpose microphones

MB 1k

MB 2k MB 3k

MB 4k

cardioid hypercardioid hypercardioid cardioid

The all-metal construction and velvety finish gives a secure, comfortable grip.

Dynamic microphones

MB 1k

49,00 e

Dynamic vocal microphone with high-output

MB 2k

56,00 e

Dynamic instrument microphone

• For amplified and acoustic instruments at an attractive price.

MB 3k

64,00 e

Dynamic vocal microphone with extended response

• Extended frequency response for optimal vocal reproduction.

Cardioid condenser microphone

MB 4k

129,00 e

Cardioid condenser microphone

• A quality studio microphone at a quality price.

Specifications

Elements

MB 1k

Neodymium

Dynamic

MB 2k/MB 3k MB 4k

Neodymium

Dynamic

60-14,000 Hz

Fixed-charge back plate permanently polarized condenser

80-20,000 Hz

Frequency Response

Open Circuit Sensitivity

re 1V at 1 Pa*

80-12,000 Hz

– 53 dB (2.2 mV)

Max. Input Sound Level

1 kHz at 1% T.H.D.

– 54 dB (1.9 mV)

Impedance

600 ohms 600 ohms

Switch

Ph: 200 ohms - B: 250

MagnaLock™ ON/OFF MagnaLock™ ON/OFF ON/OFF ohms

Ph: – 46 dB (5.0 mV)

B: – 48 dB (3.9 mV)

Phantom: 137dB SPL

Battery: 125dB SPL,

Signal-to-Noise-Ratio

Dynamic Range

(typical) – –

70 dB, 1 kHz at 1 Pa*

Ph: 113 dB - B:101 dB**

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

48

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

MB/Dk5

269,00 e

Midnight Blues 5 microphone drum pack

The

MB/Dk5

Drum Pack includes a core selection of five microphones specifically engineered for drum applications.

The four included

MB5k

snare/tom microphones and one

MB6k

kick microphone feature a low-profile design for minimum visibility and versatile placement options around the drum kit. Also included in the package are four

AT8665

drum-rim microphone mounts and a durable carrying case.

MB/Dk7

499,00 e

Midnight Blues 7 microphone drum pack

Studio-quality performance.

The comprehensive

MB/Dk7

Drum Pack expands on the

MB/Dk5

Drum Pack with the addition of two

MB4k

cardioid condenser microphones ideal for drum overhead miking.

MB 5k

cardioid

MB 6k

cardioid

Specifications

MB 5k

Elements

Dynamic

Frequency Response

100-12,000 Hz

MB 6k

Dynamic

60-12,000 Hz

Open Circuit Sensitivity

– 58 dB (1.2 mV), re 1V at 1 Pa* – 59 dB (1.1 mV), re 1V at 1 Pa*

Impedance

500 ohms 500 ohms

*1 Pascal= 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

49

atr series multipurpose microphones atr series multipurpose microphones

ATR6250

stereo dual cardioid

ATR3350

omnidirectional

ATR6250

62,00 e

Stereo condenser video/recording microphone

Capture the realism of live sound with two mics in one. The

ATR6250

provides extremely affordable, high-quality stereo pickup in a single microphone.

ATR3350

36,00 e

Omnidirectional condenser lavalier microphone

Audio-Technica’s newscaster-style omnidirectional

ATR3350

lavalier is engineered for intelligible, accurate voice reproduction.

ATR6550

cardioid

ATR4697

omnidirectional supercardioid

ATR6550

104,00 e

Condenser shotgun microphone

Crisp & intelligible pickup—far away or up close.

• Two range settings: “Normal” for close & medium-distance;

“Tele” for long-distance.

Specifications

Elements

ATR6250 ATR6550

Stereo condenser Condenser

Frequency Response

70-18,000 Hz

Open Circuit Sensitivity

– 50 dB

Impedance

Cables

600 ohms

Camera Cable: 0.2 m long, 3.5 mm (1/8”)

stereo to 3.5 mm (1/8”) stereo

Recording Cable: 3 m long, 3.5 mm (1/8”) stereo to

two 3.5 mm (1/8”) mono plugs

70-18,000 Hz

Normal: – 56 dB

Tele: – 45 dB

Normal: 1,000 ohms

Tele: 2,200 ohms

1 m long, permanently attached cable with 3.5 mm (1/8”)

Accessories Furnished

Professional camera mount;

foam windscreen; two 3.5 mm

(1/8”) to 6.3 mm (1/4”) mono

adapters; AA battery

Camera mount; microphone stand

interchangeable mic-stand base; clamp; foam windscreen; AA battery

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

50

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATR4697

36,00 e

Omnidirectional condenser boundary microphone

Ideal for meetings & teleconferencing, the

ATR4697

is a condenser boundary microphone with an omnidirectional polar pattern.

Specifications

ATR3350 ATR4697

Elements

Condenser Condenser

Frequency Response

50-18,000 Hz

Open Circuit Sensitivity

– 54 dB

50-15,000 Hz

– 46 dB

Impedance

1,000 ohms 1,000 ohms

Cable

6 m terminated with 3.5 mm (1/8”) 1.5 m terminated with 3.5 mm (1/8”)

mini-plug mini-plug

Accessories Furnished

Tie clip; battery; foam windscreen 6.3 mm (1/4”) adapter plug

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

51

broadcast & production microphones broadcast & production microphones

Windscreen information

( see 68 to 71)

BP4071L - BP4071 - BP4073

line + gradient

Line + gradient condenser microphones

Based on extensive in-the-field research and user input,

Audio-Technica’s new

BP4071L

,

BP4071

and

BP4073

microphones are ideal for creating high-quality audio for documentaries and feature films, wildlife recording and theatre sound reinforcement. The highly directional mics offer low selfnoise and extremely focused pickup.

BP4071L

1 366,80 e

Line + gradient condenser microphone, 539 mm long

• Overall length of 539 mm with an extremely narrow, highly directional pickup pattern.

BP4071

1 222,80 e

Line + gradient condenser microphone, 395 mm long

BP4073

1 066,80 e

Line + gradient condenser microphone, 233 mm long

Specifications

Element

Polar Pattern

Frequency Response

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Noise

(A-weighted)

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switches

Accessories Furnished

BP4071L / BP4071 / BP4073

Externally polarized (DC bias) condenser

Line + gradient

20-18,000 Hz / 20-20000 Hz / 20-20000 Hz

80 Hz, 12 dB/octave

– 29 dB (35.5 mV), re 1V at 1 Pa*

50 ohms

141 dB SPL, 1 kHz at 1% T.H.D.

151 dB SPL, with 10 dB pad (nominal)

13 dB SPL

128 dB, 1 kHz at Max. SPL

81 dB, 1 kHz at 1 Pa

Flat, roll-off; 10 dB pad (nominal)

AT8405a stand clamp for 5/8”-27 threaded stands;

5/8”-27 to 3/8”-16 threaded adapter; AT8145 windscreen;

AT8147 windscreen (L); protective carrying case; two O-Rings

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

52

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

BP4027 - BP4029

figure-of-eight line + gradient stereo

Stereo shotgun microphones

Based on models originally developed for the Sydney Olympics in 2000, the new

BP4027

and

BP4029

Stereo Shotgun models are engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing.

BP4027

1 270,80 e

380 mm phantom only stereo shotgun microphone

BP4029

1 114,80 e

236 mm phantom only stereo shotgun microphone

Specifications

Elements

Frequency Response

BP4027 / BP4029

Mid Side

Fixed-charge back plate permanently polarized condenser

30-20,000 Hz / 40-20,000 Hz

Low frequency roll-off

80 Hz, 12 dB/octave

Open circuit sensitivity

(re 1V at 1 Pa*) – 30 dB (31,6mV)

Impedance

Max. Input Sound Level

(1 kHz at 1% T.H.D.)

200 ohms

123 dB SPL

Signal-to-Noise Ratio

(1 kHz at 1 Pa*) 72 dB SPL

Dynamic Range

(typical, 1 kHz at 1% T.H.D.)

101 dB

Switches

Cable

Accessories Furnished

127 dB SPL

68 dB SPL

101 dB

LR stereo

– 34 dB (19,9 mV) – 36 dB (15,8 mV)

126 dB SPL

70 dB SPL

102 dB

Mid Side, LR-Wide, LR-Narrow; flat, roll-off

Dual 0.61m shielded two-conductor, terminated in two XLR3M-type connectors

AT8405a stand clamp for 5/8”-27 threaded stands;

AT8135 foam windscreen, 5/8”-27 to 3/8”-16 threaded adapter; protective carrying case; two O-Rings

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

53

broadcast & production microphones

Windscreen information

( see 68 to 71)

broadcast & production microphones

AT897

AT875R

line + gradient

AT8015

AT8035

line + gradient

Short shotgun sized to stay out of the frame

AT897

279,00 e

279 mm line + gradient condenser microphone

Audio-Technica’s

AT897

is designed for field audio acquisition in film/TV/video production, professional recording, and broadcast applications.

• Two versatile powering options: phantom and internal AA battery.

Line + gradient condenser short microphone

A small, discrete phantom powered shotgun, for use in field production where a compact, lighter camera mounted line microphone is required. The AT875R is ideal for corporate, event and wild life videographers or field sound engineers.

AT875R

189,00 e

178 mm line + gradient condenser microphone

Specifications

Element

Polar Pattern

AT897 AT875R

Fixed-charge back plate permanently polarized condenser

Line + gradient Line + gradient

Frequency Response

20-20,000 hz

Low Frequency Roll-Off

80 hz, 12 dB/octave

Open Circuit Sensitivity

Phantom: – 40 dB (10.0 mV)

(re 1V at 1 Pa*) Battery: – 41 dB (8.9 mV)

90Hz-20,000Hz

– 30 dB (31.6 mV)

Impedance

Phantom: 200 ohms - Battery: 300 ohms 100 ohms

Max. Input Sound Level

Phantom: 129 dB SPL

(1 kHz at 1% T.H.D.) Battery: 115 dB SPL

127 dB SPL

Dynamic Range

(typical) Phantom: 112 dB, 1 kHz at Max SPL

Battery: 98 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

77 dB, 1 kHz at 1 Pa*

107 dB, 1 kHz at Max SPL

74 dB, 1 kHz at 1 Pa*

Switch

Flat, roll-off (recessed)

Accessories Furnished

AT8405a stand clamp for 5/8”- 27 threaded stands;

AT8134 windscreen; battery; 5/8”- 27 to 3/8”-16 threaded adapter; protective carrying case; two O-Rings

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

54

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Line + gradient condenser microphone

Designed for video production and broadcast (ENG/EFP) audio acquisition, the

AT8015

and

AT8035

provide the narrow acceptance angle desirable for long-distance sound pickup.

They offer excellent sound rejection from the sides and rear, switchable low-frequency roll-off, and the convenience of battery or phantom power operation.

AT8015

430,80 e

460 mm line + gradient condenser microphone

AT8035

394,80 e

369 mm line + gradient condenser microphone

Specifications

Element

Polar Pattern

Frequency Response

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

AT8015 / AT8035

Fixed-charge back plate permanently polarized condenser

Line + gradient

40-20,000 hz

80 hz, 12 dB/octave

Phantom: -38 dB (12.5 mv) - Battery: -39 dB (11.2 mv), re 1V at 1 Pa*

Phantom: 250 ohms / Battery: 300 ohms

Max. Input Sound Level

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switch

Phantom: 132 dB SPL/ Battery: 120 dB SPL, 1 kHz at 1% T.H.D.

Phantom: 110 dB / Battery: 98 db, 1 kHz at Max SPL

72 dB, 1 kHz at 1 Pa*

Flat, roll-off

Accessories Furnished

AT8405a stand clamp for 5/8”- 27 threaded stands;

5/8”- 27 to 3/8”-16 threaded adapter; AT8135 windscreen; battery; protective carrying case; two O-Rings

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

55

broadcast & production

AT898

cardioid microphones

AT899

omnidirectional broadcast & production microphones

Windscreen information

( see 68 to 71)

BP896

omnidirectional

Subminiature condenser microphones

AT898

and

AT899

Systems. With Audio-Technica’s legendary innovations in electro-acoustic design, Audio-Technica’s

Broadcast & Production Subminiature Lavalier Microphones are ideal for applications where quality sound and unobtrusive design are imperative.

AT898

382,80 e

Subminiature cardioid condenser microphone

AT898c

202,80 e

Unterminated version of AT898

AT899

382,80 e

Subminiature omnidirectional condenser microphone

AT899c

190,80 e

Unterminated version of AT899, 1.40 m cable

AT899c-TH

190,80 e

Unterminated version of AT899 in beige

AT899AK

70,80 e

Accessories pack for AT899 and AT898

AT899AK-TH

70,80 e

Accessories pack in beige for AT899c-TH

Specifications

AT898 AT899

Element

Frequency Response

Fixed-charge back plate permanently polarized condenser

200-15,000 Hz 20-20,000 Hz

Low Frequency Roll-Off

Impedance

80 hz, 12 dB/octave

Open Circuit Sensitivity

Phantom: – 43 dB (7.0 mV), re 1V at 1 Pa*

Battery: – 46 dB (5.0 mV), re 1V at 1 Pa*

Phantom: 200 ohms - Battery: 250 ohms

Max. Input Sound Level

(1 kHz at 1% T.H.D.)

Dynamic Range

(typical)

(1 kHz at max SPL)

Phantom: 131 dB SPL

Battery : 115 dB SPL

Phantom: 100 dB

Battery: 84 dB

138 dB SPL

116 dB SPL

108 dB

86 dB

Signal-to-Noise Ratio

Switch

Cable

63 dB, 1 kHz at 1 pa*

flat, roll-off (recessed)

64 dB, 1 kHz at 1 pa*

3.0 m long (permanently attached to microphone),

2.0 mm diameter, 2-conductor, shielded cable

with TA3F output connector that mates with TB3M

jack on power module

Accessories Furnished

AT8537 power module; AT8439 cable clip;

clothing clip base; viper clip base; magnet clip

base and plate with lanyard; three single mic

holders; two double mic holders; two windscreens;

battery; protective carrying case

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

56

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

With a capsule diameter not much bigger than the head of a pin, Audio-Technica’s smallest-ever lavalier microphone virtually disappears in props or clothing to create highestquality audio for broadcast and theatre sound reinforcement.

Offered in wired & wireless models, the

BP896

comes generously equipped with an extensive accessory kit: holders, windscreens, element covers & more.

Subminiature wireless headworn microphones for use with Audio-Technica UniPak

®

wireless systems

BP896cW

299,00 e

Less power module;

1.4 m cable terminated with locking 4-pin connector for audio-technica UniPak

®

wireless systems

BP896cW-TH

299,00 e

Same as BP896cW,

but in “theatre” colour (beige)

BP896

Subminiature headworn microphones for wired applications

442,80 e

Subminiature omnidirectional condenser lavalier microphone, includes AT8539 power module

BP896-TH

442,80 e

Same as BP896,

but in “theatre” colour (beige)

For use with other manufacturer’s wireless transmitters please see complete description at:

eu.audio-technica.com

Specifications

BP896

Element

Frequency Response

Fixed-charge back plate, permanently polarized condenser

20-20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

80 Hz, 18 dB/octave (wired only)

– 49 dB (3.5 mV) re 1V at 1 Pa

250 ohms (wired only)

135 dB SPL, 1 kHz at 3% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

Switch

Cable

104 dB, 1 kHz at Max SPL (wired only)

63 dB, 1 kHz at 1 Pa

Flat, roll-off (wired only)

1.4 m long (permanently attached to microphone),

1.6 mm Ø, 2-conductor shielded cable with locking 4-pin connector (wired only)

Accessories Furnished

BP896: AT8539 power module (wired only); two AT8157 windscreens; six element covers (2 white, 2 beige, 2 black); viper clip base; clothing clip base; 3 black single mic holders; 2 black double mic holders; belt clip (wired only); carrying case

BP896-TH: AT8539 power module (wired only); two AT8157-TH windscreens; six element covers (2 white, 2 beige, 2 black); viper clip base; clothing clip base; 3 beige single mic holders;

2 beige double mic holders; belt clip (wired only); carrying case

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

57

broadcast & production microphones

BP892

MicroSet

®

BP892

omnidirectional broadcast & production microphones

BP893

MicroEarset

®

BP893

Windscreen information

( see 68 to 71)

AT8464

Omnidirectional condenser headworn microphone

Audio-Technica’s high-SPL

BP892 MicroSet ®

offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in a tiny package, the ultra-lightweight

BP892

hooks securely behind either ear and can be worn for hours without fatigue.

Subminiature wireless headworn microphones for use with Audio-Technica UniPak

®

wireless systems

BP892cW

Less power module;

1.4 m cable terminated with locking

369,00 e

4-pin connector for Audio-Technica UniPak ® wireless systems

BP892cW-TH

369,00 e

Same as BP892cW

, but in “theatre” colour (beige)

Subminiature headworn microphones for wired applications

BP892

489,00 e

Includes AT8539

(see description power moduler module).

BP892-TH

489,00 e

Same as BP892, but in “theatre” colour (beige).

Audio-Technica’s dual-ear microphone mount

AT8464

Convert your single ear-worn

BP892

or

AT892 MicroSet

®

49,00 e to a dual-ear-worn unit for maximum stability and comfort.

AT8464-TH

49,00 e

Same as AT8464,

but in “theatre” colour (beige).

For use with other manufacturer’s wireless transmitters please see complete description at:

eu.audio-technica.com

Specifications

BP892

Element

Frequency Response

Fixed-charge back plate, permanently polarized condenser

20-20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

80 Hz, 18 dB/octave (wired only)

– 49 dB (3.5 mV) re 1V at 1 Pa

Impedance

250 ohms (wired only)

Maximum Input Sound Level

135 dB SPL, 1 kHz at 3% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

104 dB, 1 kHz at Max SPL (wired only)

63 dB, 1 kHz at 1 Pa

Switch

Flat, roll-off (wired only)

Accessories Furnished

BP892: AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens; two AT8156 element covers; moisture guard; belt clip

(wired only); carrying case; AT8464 dual-ear microphone mount

BP892-TH: AT8539 power module (wired only); AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH element covers; moisture guard; belt clip

(wired only); carrying case; AT8464-TH dual-ear microphone mount

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

58

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

omnidirectional

Omnidirectional condenser headworn microphone

With its ergonomically molded earpiece and unobtrusive one-inch boom, Audio-Technica’s

BP893 MicroEarset

®

offers inconspicuous placement along with clear, natural vocal pickup. Its lightweight low-profile design makes the microphone ideal for use in theatrical performances, houses of worship and broadcast studios.

Subminiature wireless headworn microphones for use with Audio-Technica UniPak

®

wireless systems

BP893cW

290,00 e

Less power module;

1.4 m cable terminated with locking

4-pin connector for audio-technica UniPak

®

wireless systems.

BP893cW-TH

290,00 e

Same as BP893cW, but in “theatre” colour (beige).

Subminiature wireless headworn microphones for wired applications

BP893

424,00 e

Includes AT8539

(see description power moduler module).

BP893-TH

424,00 e

Same as BP893, but in “theatre” colour (beige).

For use with other manufacturer’s wireless transmitters please see complete description at:

eu.audio-technica.com

Specifications

BP893

Element

Frequency Response

Fixed-charge back plate, permanently polarized condenser

20-20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

80 Hz, 18 dB/octave (wired only)

– 34 dB (19.9 mV) re 1V at 1 Pa

Impedance

245 ohms (wired only)

Maximum Input Sound Level

114 dB SPL, 1 kHz at 3% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

88 dB, 1 kHz at Max SPL (wired only)

68 dB, 1 kHz at 1 Pa

Switch

Flat, roll-off (wired only)

Accessories Furnished

BP893: AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case

BP893-TH: AT8539 power module (wired only); AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH element covers; moisture guard; belt clip (wired only); carrying case

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

59

broadcast & production microphones

BP894

BP894

MicroSet

® cardioid broadcast & production microphones included accessories:

Every BP894 comes with key accessories including a hard-style carry case, two windscreens, moisture guard and a cable clip.

The wired model also includes a belt clip to attach the power module to the wearer’s belt or pocket.

Subminiature cardioid condenser headworn microphone

The

BP894

features a rotating capsule housing with talk-side indicator for use on either ear and perfect polar pattern placement. The

MicroSet BP894

takes headworn microphones to the next level, by allowing the cardioid capsule to be aimed directly at the sound source.

BP894

Subminiature cardioid condenser headworn

539,00 e

microphone, includes AT8539 power module.

BP894-TH

539,00 e

Same as BP894, but in “theater” colour (beige).

BP894cW

Less power module;

1.4 m cable terminated with

409,00 e locking 4-pin connector for A-T UniPak

®

wireless systems.

BP894cW-TH

409,00 e

Same as BP894cW, but in “theater” colour (beige).

For use with other manufacturer’s wireless transmitters please see complete description at:

eu.audio-technica.com

Specifications

BP894

Element

:

Frequency Response

Fixed-charge back plate, permanently polarized condenser

20-20,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

80 Hz, 18 dB/octave (wired only)

–49 dB (3.5 mV) re 1V at 1 Pa

Impedance

250 ohms (wired only)

Maximum Input Sound Level

135 dB SPL, 1 kHz at 3% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

104 dB, 1 kHz at Max SPL (wired only)

63 dB, 1 kHz at 1 Pa

Switch

Flat, roll-off (wired only)

Accessories Furnished

BP894: AT8539 power module (wired only); AT8464 dual-ear microphone mount; AT8440 cable clip; two AT8163 windscreens; moisture guard; belt clip (wired only); carrying case

BP894-TH: AT8539 power module (wired only); AT8464-TH dual-ear microphone mount; AT8440 cable clip; two AT8163-TH windscreens; moisture guard; belt clip (wired only); carrying case

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

60

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT8024

mono stereo

Included accessories:

AT8124 foam windscreen;

AT8124F fuzzy windscreen (fur cover for AT8124); AA battery.

Selectable line-cardioid, mono, and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the

AT8024

delivers audio that is dramatically better than that supplied by the camera’s internal microphone.

AT8024

239,00 e

Stereo/mono camera-mount microphone

Specifications

AT8024

Element

:

Frequency Response

Fixed-charge back plate, permanently polarized condenser

40-15,000 Hz

Low Frequency Roll-Off

Open Circuit Sensitivity

80 Hz, 12 dB/octave

–37 dB (14.1 mV) re 1V at 1 Pa* (Mono & LR Stereo)

Impedance

50 ohms

Maximum Input Sound Level

128 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical)

Signal-to-Noise Ratio

Mono: 106 dB, 1 kHz at Max SPL; Stereo: 104 dB, 1 kHz at Max SPL

Mono: 72 dB, 1 kHz at 1 Pa*; Stereo: 70 dB, 1 kHz at 1 Pa*

Switch

Mono, M-S Stereo; Three-position: attenuator; flat, roll-off

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

61

broadcast & production microphones broadcast & production microphones

AT803

omnidirectional

Omnidirectional clip-on microphones

AT803

218,00 e

Miniature omnidirectional condenser microphone

For lavalier and musical instrument use.

Battery or phantom powered.

AT803 accessories:

AT8531 power module; AT8419 clothing clip;

AT8116 windscreen; battery; protective carrying case.

AT831R

AT831b

cardioid

AT831R accessories:

AT8538 remote power module;

AT8444 guitar adapter; AT8419 clothing clip;

AT8116 windscreen; protective carrying case.

Microphones with power modules

AT831R

270,00 e

Miniature cardioid condenser microphone

(phantom only)

For musical instruments and lavalier use where feedback or room noise is a problem.

AT831b

220,00 e

Miniature cardioid condenser microphone

(both battery and phantom)

Same as

AT831R

but both battery and phantom power.

AT831b accessories:

AT8531 power module; AT8444 guitar adapter;

AT8417 clothing clip; AT8116 windscreen; battery; protective carrying case.

Specifications

AT831R AT831b

Element

Condenser Condenser

Frequency Response

40

-

16,000 Hz 40

-

18,000 Hz

Open Circuit Sensitivity

(re 1V at 1 Pa*)

Impedance

– 42 dB (7.9 mV)

250 ohms

Max. Input Sound Level

(1 kHz at 1% T.H.D.)

141 dB SPL

Signal-to-Noise Ratio

Low Frequency Roll-Off

65 dB, 1 kHz at 1 Pa

80 Hz, 18 dB/octave

Phantom Power Requirements

11-52V DC, phantom only

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

Phantom: – 44 dB (6.3 mV)

Battery: – 46 dB (5.0 mV)

Phantom: 200 ohms

Battery: 270 ohms

Phantom: 135 dB SPL

Battery: 121 dB SPL

65 dB, 1 kHz at 1 Pa

80 Hz, 18 dB/octave

11-52V DC or 1.5V AA/UM3

62

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

MT830R

omnidirectional

MT830R

268,00 e

Miniature omnidirectional condenser microphone

For use as lavalier, or may be worn in clothing or hair.

Phantom power only.

MT830R accessories:

AT8538 power module; clothing clip; windscreens.

Specifications

AT803 MT830R

Element

Condenser Condenser

Frequency Response

30

-

20,000 Hz 30

-

20,000 Hz

Open Circuit Sensitivity

(re 1V at 1 Pa*)

Impedance

Phantom: – 44 dB (6.3 mV)

Battery: – 46 dB (5.0 mV)

Phantom: 200 ohms

Battery: 270 ohms

Max. Input Sound Level

(1 kHz at 1% T.H.D.)

Signal-to-Noise Ratio

Low Frequency Roll-Off

Phantom: 135 dB SPL

Battery: 121 dB SPL

66 dB, 1 kHz at 1 Pa

80 Hz, 18 dB/octave

Power Requirement

11-52V DC or 1.5V AA/UM3

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

– 34 dB (19.9 mV)

200 ohms

131 dB SPL

70 dB, 1 kHz at 1 Pa

80 Hz, 18 dB/octave

11-52V DC, phantom only

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

63

broadcast & production microphones

AT8022

stereo

BP4025

stereo broadcast & production

BP4001

cardioid microphones

BP4002

omnidirectional

AT8022

519,00 e

X/Y stereo microphone

This stereo microphone uses a unique coincident capsule configuration to produce an accurate stereo image in a very small housing. With optional balanced or unbalanced output the

AT8022

is extremely versatile for all stereo microphone applications including field recording, ambient pickup and interviews.

Studio / broadcast stereo microphone

BP4025

649,00 e

Large diaphragm X/Y microphone

A unique large diaphragm coincident capsule configuration offers a pristine stereo image with an exceptional low noise floor. A new standard for top quality broadcast ambient recordings, this microphone is as happy in the studio as it is in the high sound pressure volumes of motoring events offering an astounding 155dB SPL, 80Hz roll off and 10dB pad.

Windscreen information

( see 68 to 71)

Handheld dynamic microphones

BP4001

and

BP4002

dynamic microphone are tailored for extremely clear and articulate reproduction of spoken words.

Designed to provide exceptional isolation from handling noise, the microphone is ruggedly built to withstand the abrasion and jostling expected with life in the field.

BP4001

229,00 e

Cardioid dynamic microphone

Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.

BP4002

229,00 e

Omnidirectional dynamic microphone

Omnidirectional polar pattern provides a natural reproduction of surrounding ambience.

AT8022 accessories:

AT8405a stand clamp for 5/8”-27 threaded stands; windscreen; battery; soft protective pouch.

BP4025 accessories:

AT8405a stand clamp for 5/8”-27 threaded stands; windscreen; soft protective pouch.

Specifications

Element

Channel Balance

Frequency Response

AT8022 BP4025

Fixed-charge back plate permanently polarized condenser

< 2.5 dB

20-15,000 Hz

Low Frequency Roll-Off

80 Hz, 12 dB/octave

Open Circuit Sensitivity

Phantom: – 38 dB (12.5 mV)

(re 1V at 1 Pa*) Battery: –38 dB (12.5 mV)

Impedance

Ph: 250 ohms - B: 300 ohms

< 2.5 dB

20-17,000 Hz

80 Hz, 12 dB/octave

– 32 dB (25.1 mV)

170 ohms

Max. Input Sound Level

Phantom: 128 dB SPL

(1 kHz at 1% T.H.D.) Battery: 120 dB SPL

Dynamic Range

(typical) Phantom: 109 dB

(1 kHz at Max SPL) Battery: 101 dB

Signal-to-Noise Ratio

Switches

75 dB, 1 kHz at 1 Pa*

Battery On/Off; Flat, roll-off

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

145 dB SPL

155 dB SPL, with 10 dB pad

131 dB, 1 kHz at Max SPL

80 dB, 1 kHz at 1 Pa*

10 dB pad (nominal); Flat, roll-off

64

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Included accessories:

AT8470 Quiet-Flex™ stand clamp for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; foam windscreen; carrying case; soft protective pouch

Specifications

BP4001 BP4002

Element

Dynamic Dynamic

Frequency Response

80-18,000 Hz 80-20,000 Hz

Open Circuit Sensitivity

–54 dB (1.9 mV) re 1V at 1 Pa –56 dB (1.5 mV) re 1V at 1 Pa

Impedance

300 ohms 300 ohms

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

65

broadcast & production microphones

AT8031 AT8033

AT808G

cardioid cardioid subcardioid

Handheld general purpose microphones

AT8031

239,00 e

Cardioid condenser handheld microphone

The

AT8031

is ideal for close-up interviews, vocals, overheads, piano, and strings.

AT8033

219,00 e

Cardioid condenser microphone

Ideal for general audio acquisition such as interviews, acoustic guitar, percussion, overheads, vocals and more, the

AT8033

features high-SPL capability and wide frequency response.

Gooseneck microphone

AT808G

169,00 e

Subcardioid moving coil dynamic console microphone 412.7 mm long.

XLRM-type output plugs directly into

XLRF-type panel mount or console connector. broadcast & production microphones

AT8004L

omnidirectional

AT8010

AT8004

omnidirectional omnidirectional

Omnidirectional microphones

AT8010

219,00 e

Omnidirectional condenser microphone

The

AT8010

is ideal for interviews, sportscasting and for use as the ”mono” mic in conjunction with a stereo microphone.

AT8004

149,00 e

Omnidirectional dynamic microphone

The

AT8004

is ideal for interviews, sportscasting and for use as the ”mono” mic in conjunction with a stereo microphone.

AT8004L

159,00 e

Omnidirectional dynamic microphone with extended handle

The

AT8004L

has been optimised for broadcasted interviews;

The length of 239,5mm allows the use of ”customized mic flags” with Broacaster’s logos proudly displayed.

AT8031 accessories:

AT8405a stand clamp, threaded adapter,

AT8114 windscreen, battery, pouch

AT8033 accessories:

AT8405a stand clamp, threaded adapter,

AT8136 windscreen, battery, pouch

Specifications

Element

AT8031 / AT8033

Fixed-charge back plate, permanently polarized condenser

AT808G

Dynamic

Frequency Response

30-20,000 Hz

Open Circuit Sensitivity

Phantom: – 44 dB (6.3 mV), re at 1Pa*

Battery: – 45 dB (5.6 mV), re at 1Pa*

Impedance

200 - 5,000 Hz

– 60 dB (1.0 mV), re at 1Pa*

– 45 dB (5.6 mV), re at 1Pa*

Phantom: 250 ohms - Battery: 300 ohms 800 ohms

Max. Input Sound Level

Phantom: 137 dB SPL, 1 kHz at 1% T.H.D.

Battery: 123 dB SPL, 1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

70 dB, 1 kHz at 1 Pa*

Dynamic Range

Phantom: 113 dB, 1 kHz at Max SPL

Battery: 99 dB, 1 kHz at Max SPL

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

66

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT8010 accessories:

AT8405a stand clamp, threaded adapter,

AT8114 windscreen, battery, pouch

AT8004L-AT8004 accessories:

AT8405a stand clamp, threaded adapter

Specifications

Element

AT8010

Fixed-charge back plate, permanently polarized condenser

AT8004 / L

Dynamic

Frequency Response

Impedance

20-20,000 Hz- 80-16,000 Hz

Open Circuit Sensitivity

Phantom:– 44 dB (6.3 mV), re 1V at 1Pa* – 51 dB (2.8 mV), re 1V at 1Pa*

Battery: – 45 dB (5.6 mV), re 1V at 1Pa*

Phantom: 250 ohms - Battery: 300 ohms 300 ohms

Max. Input Sound Level

Phantom: 137 dB SPL, 1 kHz at 1% T.H.D.

Battery: 123 dB SPL, 1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

70 dB, 1 kHz at 1 Pa*

Dynamic Range

Phantom: 113 dB, 1 kHz at Max SPL

Battery: 99 dB, 1 kHz at Max SPL

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

67

broadcast & production

windshield guide broadcast & production

windshield guide

BPZ-M

SOFT ZEP

BPZ-L

WINDSHIELD

Windsock closed

with“velcro”

BPZ-XL

Foam windscreen

Microphone

FUR SOCKS

SOFT-ZEP SERIES

Soft-Zep for ultimate windnoise protection.

• Comfortable hand grip

• Extremely light weight

• 3/8 inch boom-pole mount

WINDSHIELD SERIES

Complete encapsulated Windshield system, for quick and easy application in the field and superior windnoise reduction.

FUR SOCKS SERIES

Pull-on Fur Socks fit over an existing foam windshield for enhanced windnoise protection.

W

IN

D

lig ht no rm al st ro ng ex tr em e

SOFT-ZEP SERIES

WINDSHIELD SERIES

FUR SOCKS SERIES

l l l l l l l l

(*)NEEDS ADDITIONAL EXTERNAL MOUNTING HARDWARE

M

O

U

N

T

ha nd

h in el d te gr at ed d w ith ha nd

h el ex te rn al

g rip ca m er a m ou nt l

l (*) l l l l l l l st an d m ou nt l l l bo om

p ol e

68

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Soft-Zep Series

The

Soft-Zep

is lightweight, robust and simple to use and has a permanently mounted high quality fur windcover around an open cell foam core and a very comfortable hand grip made from Kraton rubber with soft gel inserts.

BPZ-M

226,00 e

Soft-Zep Series system with permanently mounted fur windcover and pistol grip

Length 310 mm - weight 360g

BPZ-L

226,00 e

Soft-Zep Series system with permanently mounted fur windcover and pistol grip

Length 360 mm - weight 400g

BPZ-XL

226,00 e

Soft-Zep system with permanently mounted fur windcover and pistol grip

Length 490 mm - weight 450g

SOFT-ZEP SERIES

BPZ-M

BPZ-L

BPZ-XL sh ot gu ns

l

A

T

8

0

15

A

T

8

0

3

5

A

T

8

7

5

R

A

T

8

9

7

l l l l

B

P

4

0

7

3

B

P

4

0

71

B

P

4

0

71

L

l l l

B

P

4

0

2

7

B

P

4

0

2

9

l

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

69

broadcast & production

windshield guide broadcast & production

windshield guide

BPF-XLAV

BPF-LAV

Windshield series

Complete encapsulated windshield systems

The

Windshield

is perfect for camera, boom or handheld microphones where speed of mounting and outstanding performance is required.

BPW-120

89,00 e

Complete Windshield system

- Length 120 mm

BPW-180

89,00 e

Complete Windshield system

- Length 180 mm

BPW-250

89,00 e

Complete Windshield system

- Length 250 mm

BPW-330

89,00 e

Complete Windshield system

- Length 330 mm

BPW-365

89,00 e

Complete Windshield system

- Length 365 mm

BPW-470

89,00 e

Complete Windshield system

- Length 470 mm

BPW-1

89,00 e

Windscreen for reporter microphones

- Length 95 mm

WINDSHIELD SERIES sh ot gu ns

A

T

8

0

1

5

A

T

8

0

3

5

A

T

8

7

5

R

BPW-120

BPW-180

l

BPW-250

BPW-330

l l

BPW-365

BPW-470

BPW-1

A

T

8

9

7

l

B

P

4

0

7

3

l

B

P

4

0

7

1

l

B

P

4

0

7

1

L

l

B

P

4

0

2

7

l

B

P

4

0

2

9

l

In te rv ie w

m ik es

A

T

8

0

0

4

l

A

T

8

0

0

4

L

70

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Fur Socks series

Windscreens for broadcast and production microphones

Fur Socks are easily pulled over the existing foam.

BPF-120

44,00 e

Fur Socks for shotgun microphones

- Length 120 mm

BPF-175

44,00 e

Fur Socks for shotgun microphones

- Length 175 mm

BPF-250

44,00 e

Fur Socks for shotgun microphones

- Length 250 mm

BPF-340

46,00 e

Fur Socks for shotgun microphones

- Length 340 mm

BPF-470

46,00 e

Fur Socks for shotgun microphones

- Length 470 mm

BPF-2

44,00 e

Fur Socks for field microphones

- Length 125 mm for

AT8022

,

BP4025

,

BP4001

and

BP4002

BPF-LAV

15,00 e

Fur Socks for lavalier microphones for

AT898

,

AT899

and

BP896

BPF-XLAV

15,00 e

Fur Socks for lavalier microphones for

AT803

,

AT831,

MT350

,

MT830

,

MT838

,

PRO35

,

PRO70

,

ATM350.

FUR-SOCKS SERIES sh ot gu ns

A

T

8

0

1

5

A

T

8

0

3

5

A

T

8

7

5

R

A

T

8

9

7

B

P

4

0

7

3

B

P

4

0

7

1

B

P

4

0

7

1

L

B

P

4

0

2

7

B

P

4

0

2

9

BPF-120

BPF-175

BPF-250

BPF-340

BPF-470

BPF-2

BPF-LAV

BPF-XLAV

l l l l l

l l l l

f e ld

m ic s

A

T

8

0

2

2

B

P

4

0

2

5

B

P

4

0

0

1

B

P

4

0

0

2 la va lie rs

A

T

8

0

3

A

T

8

3

1

M

T

3

5

0

M

T

8

3

0

M

T

8

3

8

A

T

8

9

8

A

T

8

9

9

B

P

8

9

6

l l l l l l l l l l l

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

71

unipoint

® installed sound microphones unipoint

® installed sound microphones

Modular gooseneck microphones

Quick-mount design plugs into any standard XLRF-type surface or cable connector. Adapter-mount design mounts to any 5/8”-27 stand

Interchangeables elements:

Cardioid - UniLine

®

Standard length

è

Long version

è

UE-C

cardioid

UE-H UE-O UE-UL

hypercardioid omnidirectional UniLine

® unipoint

® interchangeables elements

New interchangeable elements are also compatible with first-generation

UniPoint

®

microphones.

UE-C

109,00 e

Cardioid element only.

120° pickup pattern.

UE-H

109,00 e

Hypercardioid element only.

100° pickup pattern.

UE-O

109,00 e

Omnidirectional element only.

360° pickup pattern.

UE-UL

159,00 e

UniLine

®

UniPoint

®

element only.

90° pickup pattern.

UniPoint

®

UniLine

®

element are only compatible with

U853

and

U857

models.

72

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Cardioid

Standard length

UniLine™

Standard length

Cardioid

Long version

UniLine

®

Long version

ç

Quick-mount (XLR) or

Adapter mount

è

ou nt

(X

LR

)

w er on ly)

Q ui ck

-m

(P ha nt om po

U857Q

36,5 cm

289,00 e

A dap

(P

ter

ha

m ou

nt om

nt

po w er on ly)

A da pt er m

(B

ou nt at te ry

at te ry an

- B

d P ha nt om po w er

)

U857QU

48,7 cm

339,00 e

U857QLU U857RLU

60,3 cm

349,00 e

54,3cm

379,00 e

U857QL U857RL U857AL

48,1 cm 42,0 cm 42,0 cm

299,00 e

329,00 e

399,00 e

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

73

unipoint

® installed sound microphones unipoint

® installed sound microphones

U853A

U853R

cardioid

U853AW

U853RW

cardioid

U853AU

U853RU

UniLine ®

U859QL

cardioid

U855QL

cardioid

U859QL

219,00 e

Cardioid condenser quick-mount gooseneck microphone

U855QL

Overall length of 48.0 cm.

109,00 e

Cardioid dynamic gooseneck microphone

Overall length of 44.8 cm.

Specifications

Element

Frequency Response

U859QL U855QL

Polarized condenser

100-16,000 Hz

Open Circuit Sensitivity

Impedance

Max. Input Sound Level

Dynamic Range

(typical)

– 43 dB (7.0 mV)

250 ohms

111 dB

140 dB SPL

, re 1V at 1 Pa*

, 1 kHz at 1% T.H.D.

, 1 kHz at Max SPL

Signal-to-Noise Ratio

Low Frequency Roll-Off

65 dB

, 1 kHz at 1 Pa*

80 Hz

, 18 dB/octave

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

Dynamic

150-16,000 Hz

– 53 dB (2.2 mV)

, re 1V at 1 Pa*

600 ohms

U873R

279,00 e

U873R

Handheld hypercardioid condenser microphone

The

U873R UniPoint

®

hypercardioid condenser microphone is equipped with Audio-Technica’s UniGuard™ technology for unsurpassed immunity from radio frequency interference.

Battery or phantom powered microphones

U853A

349,00 e

U853AU

399,00 e

Cardioid condenser hanging microphone

Low-reflectance black finish.

U853AW

359,00 e

Cardioid condenser hanging microphone

White version of

U853A

.

UniLine™ condenser hanging microphone

Narrow 90º acceptance angle; low-reflectance black finish.

Phantom powered only microphones

U853R

309,00 e

Cardioid condenser hanging microphone

Low-reflectance black finish.

U853RW

319,00 e

Cardioid condenser hanging microphone

White version of

U853R

.

U853RU

349,00 e

UniLine™ condenser hanging microphone

Narrow 90º acceptance angle; low-reflectance black finish.

hypercardioid

Specifications

Element

Frequency Response

U873R

Polarized condenser

70-20,000 Hz

Open Circuit Sensitivity

– 41 dB (8.9 mV), re 1V at 1 Pa*

Impedance

200 ohms

Max. Input Sound Level

Dynamic Range

(typical)

155 dB SPL, 1 kHz at 1% T.H.D.

131 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

Low Frequency Roll-Off

70 dB, 1 kHz at 1 Pa*

80 Hz, 18 dB/octave

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

74

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

U853A / AW / AU U853R / RW / RU

Element

Frequency Response

Permanently polarized condenser

30-20,000 Hz 30-20,000 Hz

Open Circuit Sensitivity

(re 1 V at 1 Pa*)

Impedance

Max. Input Sound Level

(1 kHz at 1% T.H.D.)

Battery:

Battery:

– 43 dB (7.0 mV)

– 39 dB (11.2 mV)

200 ohms

- Battery:

270 ohms 250 ohms

123 dB SPL

Dynamic Range

(Typical)

(1 kHz at Max SPL) Battery:

99dB

Signal-to-Noise Ratio

(1 kHz at 1 Pa*)

70 dB

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

139 dB SPL

115 dB

70 dB

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

75

unipoint

® installed sound microphones

U841A U851A

omnidirectional cardioid unipoint

® installed sound microphones

U891Rx

U891RCx

U891RWx

cardioid cardioid

U851RW

cardioid

PivotPoint™

Engineered for maximum flexibility, the new UniPoint ® boundary mic housing incorporates PivotPoint™ (On all UniPoint

®

boundary microphone models except the U841A), a unique rotating output connector that allows the cable to exit from either the back or the bottom of the microphone.

U841A

359,00 e

Omnidirectional condenser boundary microphone

Operates on battery or phantom power; low-reflectance black finish.

U851A

349,00 e

Cardioid condenser boundary microphone

Operates on battery or phantom power; low-reflectance black finish.

U851R

319,00 e

Cardioid condenser boundary microphone

Operates on phantom power only; low-reflectance black finish.

U851RW

319,00 e

Cardioid condenser boundary microphone

White version of U851R.

Specifications

U841A U851A

Element

Frequency Response

30-20,000 Hz 30-20,000 Hz

U851R / RW

Open Circuit Sensitivity

Phantom:

– 39 dB (11.2 mV)

(re 1V at 1 Pa*) Battery:

– 40 dB (10.0 mV)

– 40 dB (10.0 mV) – 34 dB (19.9 mV)

– 41 dB (8.9 mV)

Impedance

Phantom:

Battery:

200 ohms 200 ohms 200 ohms

270 ohms 270 ohms

Max. Input Sound Level

Phantom:

132 dB

(1 kHz at 1% T.H.D.) Battery:

122 dB

133 dB

123 dB

134 dB

Dynamic Range

(typical)

Phantom:

111 dB

(1 kHz at Max SPL) Battery:

101 dB

Signal-to-Noise Ratio

73 dB

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

111 dB

101 dB

72 dB

30-20,000 Hz

108 dB

68 dB

76

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

U843R

cardioid

U891Rx

359,00 e

Cardioid condenser boundary microphone with switch

Operates on phantom power only; red LED status indicator; low-reflectance black finish.

U891RWx

359,00 e

Cardioid condenser boundary microphone with switch

White version of U891Rx.

U891RCx

389,00 e

Cardioid condenser boundary microphone with switch

Operates on phantom power only; low reflectance.

U843R

499,00 e

Three channel boundary cardioid condenser microphone

Three cardioid condenser elements are mounted in the U843R’s housing, by default set with an angle of 120 degrees between them to give complete 360 degree coverage.

Specifications

Element

Frequency Response

U891Rx / RWx U891RCx U843R

Fixed-charge back plate, permanently polarized condenser

30-20,000 Hz 30-20,000 Hz 70-16,000 Hz

Open Circuit Sensitivity

– 34 dB (19.9 mV)

(re 1V at 1 Pa*)

– 34 dB (19.9 mV) – 37 dB (14.1 mV)

Impedance

200 ohms 200 ohms 200 ohms

Max. Input Sound Level

130 dB 130 dB 134 dB

(1 kHz at 1% T.H.D.)

Dynamic Range

(typical) 104 dB

(1 kHz at Max SPL)

Signal-to-Noise Ratio

68 dB

104 dB

68 dB

105 dB

65 dB

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

77

propoint

® installed sound microphones

PRO 42 PRO 44

cardioid cardioid propoint

® installed sound microphones

PRO 47T

PRO 47TL

PRO 49Q

PRO 49QL

cardioid cardioid included accessories:

AT8146 windscreen,

AT8425 5 /

8

”-27 threaded mounting stud included accessory:

AT8146 windscreen

PRO 45

Included accessories:

AT8146/AT8146(WH) windscreen,

AT8451/AT8451(WH) steel hanger cardioid

Boundary microphones

PRO 42

119,00 e

Miniature unidirectional condenser boundary microphone

PRO 44

154,00 e

Unidirectional condenser boundary microphone

Hanging microphones

PRO 45

129,00 e

Cardioid condenser hanging microphone

PRO 45W

169,00 e

White version of PRO45

Specifications

Element

PRO 42 PRO 44 PRO 45 / W

Fixed-charge back plate, permanently polarized condenser

Frequency Response

Open Circuit Sensitivity

–38 dB (12.5 mV)

(re 1V at 1 Pa*)

Impedance

70-14,000 Hz 70-16,000 Hz

–25 dB (56.2 mV)

70-16,000 Hz

–37 dB (14.1 mV)

100 ohms 100 ohms 100 ohms

Max. Input Sound Level

134 dB

(1 kHz at 1% T.H.D.)

Dynamic Range

(typical) 105 dB

(1 kHz at Max SPL)

114 dB

86 dB

Signal-to-Noise Ratio

65 dB 66 dB

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

134 dB

106 dB

66 dB

78

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Gooseneck microphones

PRO 47T

169,00 e

Cardioid condenser thread-mount gooseneck microphone attaches to 5/8”-27 thread

• Overall length of 31.5 cm

PRO 47TL

179,00 e

Cardioid condenser thread-mount gooseneck microphone attaches to 5/8”-27 thread

Overall length of 40.1 cm

PRO 49Q

144,00 e

Cardioid condenser quick-mount gooseneck microphone

Overall length of 33.2 cm

PRO 49QL

154,00 e

Cardioid condenser quick-mount gooseneck microphone

Overall length of 41.8 cm

Specifications

PRO 47T / TL - PRO 49Q / QL

Element

Condenser

Frequency Response

Open Circuit Sensitivity

70-16,000 Hz

–37 dB (14.1 mV), re 1V at 1 Pa*

Impedance

100 ohms

Maximum Input Sound

134 dB, 1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

Dynamic Range

66 dB 1 kHz at 1 Pa

106 dB, 1 kHz at Max. SPL

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

79

engineered sound

® installed sound microphones engineered sound

® installed sound microphones

Modular gooseneck microphones

Interchangeables elements:

Cardioid - Hypercardioid - MicroLine™

ESE-C

cardioid

ESE-H ESE-O ESE-ML

hypercardioid omnidirectional MicroLine

™ engineered sound

® interchangeables elements

For microphones ES915, ES933, ES935.

ESE-C

82,00 e

Cardioid element only;

standard on all

ES915

,

ES933

and

ES935

models.

120° pickup pattern.

ESE-H

82,00 e

Hypercardioid element only;

standard on all

ES915

,

ES933

and

ES935

models.

100° pickup pattern.

ESE-O

82,00 e

Omnidirectional element only.

360° pickup pattern.

ESE-ML

112,00 e

MicroLine

®

element only;

standard on all

ES915

,

ES933

and

ES935 “ML”

models.

90° pickup pattern.

80

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Length: 6” Length: 12” Length: 18” Length: 21”

ES935

Single gooseneck

ES915

Double gooseneck

ES935S - ES915S

models with mute switch and LED.

Si ng le

goo

(6

” l on g)

se nec k

Dou

(12

bl e g

” l on

oo se

g)

nec k

Dou oo se bl e g

(18

” l on g)

nec k

Dou bl

(2

1”

e g

lo ng

)

oo se nec k

Cardioid

ES935C6

197,3 mm

ES915C12 ES915C18

304,8 mm 457,2 mm

ES915C21

533,4 mm

322, 00 e

342, 00 e

352, 00 e

362, 00 e

Hypercardioid

ES935H6 ES915H12 ES915H18 ES915H21

197,3 mm 304,8 mm

322,

00 e

342,

00 e

457,2 mm

352,

00 e

533,4 mm

362,00 e

MicroLine™

ES935ML6 ES915ML12 ES915ML18 ES915ML21

316,3 mm 423,8 mm 576,2 mm 652,4 mm

352,00 e

372,00 e

382,00 e

392,00 e

Cardioid with mute switch and LED

ES935SC6 ES915SC12 ES915SC18 ES915SC21

197,3 mm

340,00 e

304,8 mm 457,2 mm

360,00 e

370,00 e

533,4 mm

380,00

Hypercardioid

ES935SH6 ES915SH12 ES915SH18 ES915SH21

with mute switch and LED

197,3 mm

340,00 e

304,8 mm

360,00 e

457,2 mm

370,00 e

533,4 mm

380,00

MicroLine™

ES935SML6 ES915SML12 ES915SML18 ES915SML21

with mute switch and LED

316,3 mm

370,00 e

423,8 mm

390,00 e

576,2 mm

400,00 e

652,4 mm

410,00

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

81

engineered sound

® installed sound microphones engineered sound

® installed sound microphones

ES945

omnidirectional

ES933

cardioid hypercardioid

MicroLine

ES947

cardioid

Hanging microphones

ES933C

338,00 e

Cardioid condenser hanging microphone

ES933WC

348,00 e

White version of ES933C (cardioid)

ES933H

338,00 e

Hypercardioid condenser hanging microphone

ES933WH

348,00 e

White version of ES933H (hypercardioid)

ES933ML

368,00 e

MicroLine

®

condenser hanging microphone

ES933WML

378,00 e

White version of ES933ML (MicroLine

®

)

AT8452 hanger

AT8138

ML windscreen

AT8109 windscreen

AT8538 standard power module

ES945

198,00 e

Boundary microphones

Omnidirectional fixed charge condenser boundary microphone.

For table or ceiling mounting (maximum 45 mm pannel thickness), in 24 mm diameter hole.

ES945W

208,00 e

White version of ES945

ES947

228,00 e

Cardioid wide range fixed charge condenser boundary microphone.

For table or ceiling mounting in 15/16” (24 mm) diameter hole.

ES947W

238,00 e

White version of ES947

Specifications

Element

ES933C / WC ES933H / WH ES933ML / WML

Fixed-charge back plate, permanently polarized condenser

Frequency Response

30-20,000 Hz

Open Circuit Sensitivity

– 40 dB (10.0 mV)

(re 1V at 1 Pa*)

80-20,000 Hz

– 40 dB (10.0 mV)

30-20,000 Hz

– 35 dB (17.7 mV)

Impedance

250 ohms 250 ohms 250 ohms

1000 ohms without power module

Max. Input Sound Level

138 dB

(1 kHz at 1% T.H.D.)

Signal-to-Noise Ratio

65 dB

138 dB

65 dB

133 dB

68 dB

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

82

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

Element

ES945 / W ES947 / W

Fixed-charge back plate, permanently polarized condenser

Frequency Response

40-18,000 Hz

Open Circuit Sensitivity

– 42 dB (7.9 mV) re 1 V at 1 Pa

40-12,000 Hz

– 42 dB (7.9 mV) re 1 V at 1 Pa*

Impedance

200 ohms 200 ohms

Maximum Input Sound

142 dB SPL, 1 kHz at 1% T.H.D. 142 dB SPL, 1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

Dynamic Range

64 dB, 1 kHz at 1 Pa*

112 dB, 1 kHz at Max SPL

65 dB, 1 kHz at 1 Pa*

113 dB, 1 kHz at Max SPL

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

83

engineered sound

® installed sound microphones engineered sound

® installed sound microphones

Flush-mount Microphone Socket with Logic I/O

ES945/LED

omnidirectional

ES947/LED

ES947W/LED

half-cardioid

ES945/LED

272,00 e

The ES945/LED features a touch-sensitive capacitive switch and LED status ring.

The

ES945/LED

is available in black only.

ES947/LED

288,00 e

The ES947/LED features a touch-sensitive capacitive switch and LED status ring.

The

ES947/LED

is available in black and white.

ES947W/LED

298,00 e

White version of ES947/LED.

Specifications

ES945/LED ES947/LED

Element

Frequency Response

Impedance

Open Circuit Sensitivity

Fixed-charge back plate, permanently polarized condenser

40-19,000 Hz

– 40 dB (10 mV) re 1V at 1 Pa

200 ohms

Maximum Input Sound Level

142 dB SPL, 1 kHz at 1% T.H.D.

40-13,000 Hz

– 40 dB (10 mV) re 1V at 1 Pa

200 ohms

142 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range

(typical) 113 dB, 1 kHz at Max SPL 114 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

Switch

Output Connector

Accessory Furnished

65 dB, 1 kHz at 1 Pa

Touch-sensitive control: On/Mute

Integral 3-pin XLRM-type

One pair isolators

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

66 dB, 1 kHz at 1 Pa

84

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT8657/LED

238,00 e

The AT8657/LED table-mount microphone adapter

adds functionality to quick-mount gooseneck models from the

Audio-Technica’s Engineered Sound, Unipoint and ProPoint installation mic ranges and

ES945

and

ES947

boundary microphone models.

Specifications

Output Impedance

Switch Logic

I/O Voltage

LED Input

AT8657/LED

360 ohms

High (+5V DC) when pressed;

Low (0V DC) when not pressed

– 0.5V to 5.5V

Red when high (+5V DC), Green when low (0V DC), TTL compatible

Maximum Input Voltage

Switch

Input Connector

Output Connector

Accessories furnished

– 0.5V to 5.5V

Touch-sensitive control: momentary

3-pin XLRF-type

5-pin XLRM-type

One pair surface isolators; gooseneck retaining ring & isolator; mounting nut; screws (3)

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

Rigid-pipe microphones

ES905CL

660,00 e

Cardioid rigid-pipe condenser microphone

Operates on phantom power; ball-in-socket base for flexible positioning.

ES905CL

cardioid

Specifications

Element

ES905CL

Fixed-charge back plate, permanently polarized condenser

Frequency Response

60-20,000 Hz

Open Circuit Sensitivity

– 38 dB (12.5 mV) re 1 V at 1 Pa*

Impedance

250 ohms

Maximum Input Sound

138 dB SPL, 1 kHz at 1% T.H.D.

Signal-to-Noise Ratio

67 dB, 1 kHz at 1 Pa*

Dynamic Range

111 dB, 1 kHz at Max SPL

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

85

Dante

® installed sound microphones

Dante

® installed sound microphones

ATND971

cardioid

Audio-Technica’s

ATND971

Cardioid Condenser Boundary

Network Microphone bridges the gap between audio and IT as the first wired microphone that transmits audio and control data together over Audinate’s Dante™ network protocol.

ATND971

698,00 e

Cardioid condenser boundary network microphone

Specifications

ATND971

Element:

Frequency response:

Fixed-charge back plate, permanently polarized condenser

30-20,000 Hz

Low frequency roll-off:

80 Hz, 18 dB/octave

Maximum input levels:

117 dB SPL, 1 kHz at 1% T.H.D.

Signal-to-noise ratio:

68 dB, 1 kHz at 1 Pa*

Switches:

Local Mode: Touch-sensitive capacitive type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off;

Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB;

Phantom power: 12V DC, off

Remote Mode: Low-cut and Gain via third-party software

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

86

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

The

ATND8677

is a Dante-enabled microphone desk stand for use with any gooseneck microphone with a three-pin

XLRM-type output connector. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup applications.

ATND8677

598,00 e

Microphone desk stand with Dante™ network output

The desk stand provides 12V DC phantom power by default, which can be switched off and on.

Specifications

ATND8677

Frequency response:

20-20,000 Hz

Low frequency roll-off:

80 Hz, 18 dB/octave

Input impedance:

1.4 kW

Maximum input levels:

–10 dBu @ +30 dB gain

–20 dBu @ +40 dB gain

–30 dBu @ +50 dB gain

Signal-to-noise ratio:

68 dB, 1 kHz at 1 Pa*

Switches:

Local Mode: Touch-sensitive capacitive type user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off;

Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB;

Phantom power: 12V DC, off

Remote Mode: Low-cut and Gain via third-party software

*1 Pascal = 10 dynes/cm

2

= 10 microbars = 94 dB SPL

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

87

smart mixer

® installed sound microphones smart mixer

® installed sound microphones

AT-MX341b

848,00 e

Automatic SmartMixer

®

featuring four switchable microphone or line channels

• Four Mic/Line inputs with individual priority pre-select switch for each channel

• Switchable manual mode overrides automatic functions

• TTL logic output signals available to control speaker or camera switching, tally lights, etc.

Rack mount accessories

AT8628B

42,00 e

Joining plate for mounting two AT-MX341a mixers in a single rack space

Accessories

AT8325/1.0

36,00 e

Link cable (included with SmartMixer

®

)

Specifications

AT-MX341b

Input Impedance

Output Impedance

Maximum Input Level

Maximum Output Level

Mic: 4,000 ohms

Line: 30,000 ohms

Mic: 200 ohms

Line: 320 ohms

Mic: –20 dBV

Line: +30 dBV

Line: +14 dBm (600 ohms)

Mic: –40 dBm (600 ohms

Nominal Output Level

Maximum Gain

(0VU)

Line: +4 dBm (600 ohms), +4.4 dBV (open circuit)

Mic: –46 dBm (600 ohms), -44 dBV (open circuit)

>=70 dB

88

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT-MX351a

1 090,00 e

SmartMixer

®

Five-channel Automatic Mixer

• Four automatic Mic/Line inputs, plus Aux in

• Switchable manual mode overrides automatic functions

• Sub-D connector for TTL output, plus closure-control input for external control of each channel

Specifications

AT-MX351a

Input Impedance

Mic: 8,000 ohms

Line: 50,000 ohms

Aux: 50,000 ohms

Link In: 20,000 ohms

Output Impedance

Balanced

Unalanced

Maximum Input Level

Maximum Output Level

Mic: 200 ohms

Line: 300 ohms

Mic: 400 ohms

Link out: 100 ohms

Preamp Out: 750 ohms

Mic: –24 dBV

Line: +27 dBV

Aux: +17 dBV

Nominal Output Level

Balanced

Unbalanced:

+22 dBm

Master Level control at maximum

(fully clockwise)

(0 VU)

Line: +4 dBm (600 ohms), +4.4 dBV (open circuit)

Mic: –46 dBm (600 ohms), –44 dBV (open circuit)

–10 dBV (open circuit)

Preamp Out: –10 dBV (open circuit)

Master Level control at maximum (fully clockwise)

Maximum Monitor Output

Maximum Gain

700 mW, 20 ohm load

73 dB

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

89

infrared conference system infrared conference system

ATIR-T88

ATIR-T85

unidirectional

ATCS-C60

4 788,00 e

Master control unit

• Automatic mode and manual or traditional button press mode are both available.

ATCS-M60

1 198,00 e

Delegate unit

ATCS-60MIC

158,00 e

Dedicated microphone

• Overall length 43 cm

ATCS-L60MIC

168,00 e

Dedicated long microphone

• Overall length 58 cm

ATCS-60MIC

ATCS- L60MIC

hypercardioid

ATCS-C60

ATCS-M60

90

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATCS-V60

ATIR-T88

498,00 e

Handheld microphone

ATIR-T85

498,00 e

Lavalier microphone

ATCS-V60

368,00 e

Voting unit for ATCS-60 IR conference system

The

ATCS-V60

is connected to the

ATCS-M60

delegate unit by the permanently attached cable.

ATCS-A60MX

2 688,00 e

IR transmitter/receiver mixer

ATCS-A60RX

1 198,80 e

IR Receiver antenna (red indicator)

ATCS-A60TX

1 078,00 e

IR Transmitter antenna (green indicator)

ATCS-A60

990,00 e

IR transmitter/receiver unit

ATCS-D60

218,00 e

Distributor

ATCS-B60

1 198,80 e

Battery Charger

LI-240

190,00 e

Lithium-ion battery

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

91

m3 in-ear monitor wireless system

M3R

receiver

EP3

earphones

M3T

transmitter m3 in-ear monitor wireless system

AT8623

AM3

omnidirectional

Audio-Technica’s advanced

M3 IEM system

offers a full range of professional in-ear monitoring features. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.

M3

949,00 e

M3 Wireless in-ear monitor system

Monitor system including 1 stereo transmitter, 1 stereo receiver and EP3 headphones

M3R

599,00 e

M3T

P.O.A.

Stereo receiver for M3 in-ear monitor system

Personal mix control in a lightweight body-pack with backlit

LCD display

Stereo transmitter for M3 in-ear monitor system

Wireless UHF transmitter (frequency-agile) offers LCD display and up to 1321 user-selectable frequencies

EP3

77,00 e

In-ear dynamic headphones offer high-fidelity sound

and excellent isolation.

Add the suffix L or M, to the end of the part number to denote required frequency band.

MCB4

Accessories

AT8623

39,00 e

Joining plate mounts two M3 transmitters in a single 19” rack space

AM3

99,00 e

MCB4

699,00 e

Omnidirectional Condenser Lavalier Microphone

Audio-Technica MCB4 Antenna Combiner

(see the complete description page 113).

M3 specifications

Operating Frequencies

Minimum Frequency Step

Modulation Mode

Dynamic Range

Operating Range

Frequency Response

Band: Frequency Range (UHF) Number of Frequencies

Band L: 575.000 - 608.000 MHz

Band M: 614.000 - 647.000 MHz

25 kHz

FM stereo

1321

1321

90 dB (typical), A-weighted

100 m, typical. Open range environment with no interfering signals.

60 Hz to 13 kHz (±3 dB)

M3 FEATURES

• Up to 16 simultaneous systems per frequency band

• Personal Mix Control allows you to adjust your own mix on stage

• Selectable auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input

Including hard case, extension cable, ear tip L/M/S, ear foam and soft pouch.

92

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

93

artist elite

® wireless system artist elite

® wireless system

AEW-T1000a on the referee for boxing during the summer games 2008.

AEW-T5400a AEW-T3300a AEW-T6100a AEW-T4100a

cardioid cardioid hypercardioid cardioid

• All transmitters offer rugged, ergonomic metal bodies, programmable features, soft touch controls, and 10 mW/35 mW switchable RF power

• Backlit LCD displays on transmitters

• All components store up to five preset configurations, with customized “names” if desired

UHF Series artist elite

®

wireless transmitters

AEW-T5400a

990,00 e

Cardioid large diaphragm condenser UHF transmitter

The same element as AE5400 (using the large-diaphragm element as in the AT4050)

AEW-T3300a

920,00 e

Cardioid condenser UHF transmitter

The same element as AE3300 (used in the legendary AT4033)

AEW-T4100a

760,00 e

UHF Cardioid dynamic transmitter

The same element used in the AE4100

AEW-T6100a

760,00 e

UHF Hypercardioid dynamic transmitter

The same element used in the AE6100.

94

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AEW-T1000a

4000/5000 UniPak™ transmitter

AEW-T1000a

520,00 e

UHF UniPak™ transmitter

Compatible with the

Wireless Essentials ®

Rugged, ergonomic metal housing.

range.

Includes field-replaceable helical and flexible-whip antennas.

Three-position sliding cover limits access to controls as desired: full access, Power/Mute button only, or no access.

Two position mounting clip.

• Locking battery door on UniPak body-pack transmitter.

For use with

AEW-T1000

and all Audio-Technica UniPak™

Wireless Transmitters, see

Wireless Essentials

®

page 108 to 111.

Specifications

AEW-T1000a UniPak™ Handheld Transmitters

RF Power Output

High: 35 mW; Low: 10 mW, nominal High: 35 mW; Low: 10 mW, nominal

Dynamic Range

Microphone:

110 dB, A-weighted

Instrument : ≥ 100 dB, A-weighted

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

95

artist elite

® wireless system artist elite

® wireless system

5000 Series receiver frequency-agile true diversity UHF wireless systems with computer interface

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica’s dual-receiver

Artist Elite

®

5000 Series

provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

• IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers.

• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality.

AEW-R5200

3 200,00 e

Frequency-agile true diversity UHF dual receiver with ethernet connection

See page 112 and 113,

Wireless Accessories.

On-board Ethernet interface and included software on CD permit monitoring and controlling system parameters and operation from an associated computer.

Receiver Specifications

Image Rejection

Signal-to-noise Ratio

Audio Output

Output Connectors

Headphone Output

AEW-R5200

60 dB typical

115 dB at 40 kHz deviation (IEC-weighted), 75 kHz maximum modulation

Microphone: 25 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at “0”)

Instrument: 50 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at “0”)

Microphone: XLRM-type, balanced

Instrument: 1/4” (6.3 mm) TRS balanced phone jack

Connector: 1/4” (6.3 mm) TRS (“stereo”) phone jack.

Power Output: 10 mW + 10 mW into 32 ohms (at 1 kHz, ±5 kHz deviation); maximum output: 220 mW + 220 mW into

32 ohms. Headphones switchable between Channel 1 and Channel 2.

96

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

4000 Series receiver frequency-agile true diversity UHF wireless systems

• IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers

• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality

AEW-R4100

1 190,00 e

Frequency-agile true diversity UHF receiver

Accessories

AT8628B

42,00 e

Joining plate kit allow mounting two AEW-R4100 receivers in a single 19” rack space

See page 112 and 113,

Wireless Accessories.

Overall 4000 and 5000 Series systems specifications

Operating Frequencies

UHF Band C: Frequency Range

541.500 to 566.375 MHz (996 frequencies)

UHF Band D: Frequency Range

655.500 to 680.375 MHz (996 frequencies)

Normal Deviation

Operating Range

±5 kHz

100 m typical

Receiver Specifications

Image Rejection

Signal-to-Noise Ratio

Audio Output

Output Connectors

Headphone Output

AEW-R4100

60 dB typical

115 dB at 40 kHz deviation

(IEC-weighted, 75 kHz maximum modulation)

Microphone: (ATTN switch at “0”) 25 mV

(at 1 kHz, ±5 kHz deviation, 10k ohm load)

Instrument: (ATTN switch at “0”) 50 mV

(at 1 kHz, ±5 kHz deviation, 10k ohm load)

Microphone: XLRM-type (balanced)

Instrument: 1/4” (6.3 mm) TS unbalanced phone jack

Connector: 1/4” (6.3 mm) TRS (“stereo”) phone jack

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

97

3000b series wireless system

ATW-T310b

ATW-R3100b

AEW-T341b

AEW-T371b

cardioid

Audio-Technica’s third-generation

3000b Series

wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation.

ATW-R3100b

299,00 e

UHF diversity receiver with up to 1001 frequencies, with frequency scan function enabling automatic channel assignment.

ATW-T310b

329,00 e

3000b Series UniPak™ transmitter with a new locking battery compartment providing a more secure latch and more robust design. For use with

ATW-T310b

and all Audio-Technica

UniPak™ Wireless Transmitters, see

Wireless Essentials

®

page108 to 111.

ATW-T341b

379,00 e

3000b Series handheld microphone/ transmitter with cardioid dynamic element.

ATW-T371b

479,00 e

3000b Series handheld microphone/ transmitter with cardioid condenser element.

ATW-R3100b Receiver Specifications

Image Rejection

60 dB nominal, 55 dB minimum

Dynamic Range

Audio Output

>110 dB (A-weighted), typical

Unbalanced : +7 dBV, 1/4” phone jack - Balanced :+9 dBV, XLRM-type

UHF band Frequency Range Nbr Frequencies

C Band

541.500 - 566.375 MHz 996

U Band

606.000 - 631.000 MHz 996

D Band

655.500 - 680.375 MHz 996

Not all frequencies are available in all areas. Please check with local regulations.

Specifications

RF Power Output

Dynamic Range

Specifications

RF Power Output

Dynamic Range

Microphone Element

ATW-T310b UniPak™

Transmitter

High: 30 mW, Low: 10 mW

110 dB, A-weighted

ATW-T341b and

ATW-T371b

Handheld Transmitters

High: 30 mW, Low: 10 mW

≥ 110 dB, A-weighted

ATW-T341b Dynamic cardioid - ATW-T371b Condenser cardioid

98

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

3000b series wireless system

ATW-3141b

649,00 e

Handheld transmitter system

• ATW-R3100b receiver

• ATW-T341b handheld cardioid dynamic microphone/transmitter

ATW-3171b

739,00 e

Handheld transmitter system

• ATW-R3100b receiver

• ATW-T371b handheld cardioid condenser microphone/transmitter

ATW-3110b

599,00 e

3000b Series UniPak™ system

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter.

Select a Wireless Essentials

® microphone or cable to complete the system.

ATW-3110b/G

623,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• AT-GcW instrument cable

ATW-3110b/P

658,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak lavalier microphone

® transmitter

• AT829cW cardioid condenser

ATW-3110b/P1

798,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• AT899cW subminiature cardioid condenser lavalier microphone

ATW-3110b/P2

748,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• AT831cW miniature cardioid condenser lavalier microphone

ATW-3110b/P3

708,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• MT838cW omnidirectional cardioid condenser lavalier microphone

ATW-3110b/H

678,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• PRO 8HEcW hypercardioid dynamic headworn microphone

ATW-3110b/HC1

708,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak ® transmitter

• ATM75cW cardioid condenser headworn microphone

ATW-3110b/HC2

798,00 e

• ATW-R3100b receiver

• ATW-T310b UniPak

®

transmitter

• ATM73cW cardioid condenser professional headworn microphone

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

99

2000a series wireless system

Audio-Technica’s second generation of the well known

2000 Series

now offers increased RF power on both the handheld and beltpack transmitters for increased link stability.

Charging contacts on the transmitters allow easy operation with rechargeable batteries.

2000a charger

ATW-CHG2

209,00 e

Plug-in charging unit for two 2000a Series radio transmitters

Accessories

AT8630

39,00 e

Joining plate kit for mounting two ATW-R2100 or ATW-R3100b receivers in a single 19” rack space.

ATW-RM1

79,00 e

Rack-mount hardware kit for Audio-Technica 2000a and

3000b Series wireless systems and for ATW-DA49 antenna distribution system.

Specifications

RF Power Output

ATW-T210a UniPak™

Transmitter

10mW / 30mW

Specifications

RF Power Output

Microphone Element

ATW-T220a

Handheld Transmitter

10mW / 30mW

Dynamic, unidirectional

ATW-R2100a Receiver Specifications

Image Rejection

55 dB nominal, 50 dB minimum

Signal-to-Noise Ratio

Audio Output

>100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz

Unbalanced : 25 mV (100k ohms load), 1/4” phone jack

Balanced : 50mV (Attenuator; 0dB)

12.5mV (Attenuator; -12dB) at 1kHz, +/- 5kHz deviation, 100k ohm load., XLRM-type

UHF band

I Band

D Band

Frequency Range

482.000 - 507.000 MHz

656.125 - 678.500 MHz

U Band

F Band

Plan A: 606.000 - 614.000 MHz

Plan B: 614.000 - 631.000 MHz

856.100 - 864.900 MHz

Not all frequencies are available in all areas. Please check with local regulations.

100

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

2000a series wireless system

ATW-2120a

349,00 e

Handheld transmitter system

• ATW-T220a handheld microphone/ transmitter.

• ATW-R2100a receiver.

ATW-2110a

319,00 e

2000a Series UniPak™ system

• ATW-T210a UniPak™ transmitter.

• ATW-R2100a receiver.

ATW-2110a/G

343,00 e

2000a Series UniPak™ guitar system

• With AT-GcW instrument cable.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/P

378,00 e

UniPak™ system with AT829cW

• AT829cW miniature cardioid condenser microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/P1

518,00 e

UniPak™ system with AT899cW

• AT899cW subminiature omnidirectional condenser microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/P2

468,00 e

UniPak™ system with AT831aW

• AT831aW miniature cardioid condenser microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/P3

428,00 e

UniPak™ system with MT838cW

• MT838cW omnidirectional condenser Lavalier microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/H

398,00 e

UniPak™ system with PRO8HEcW

• PRO8HEcW headworn hypercardioid dynamic microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/HC1

428,00 e

UniPak™ system with ATM75cW

• ATM75cW headworn cardioid condenser microphone.

• ATW-2110a UniPak™ transmitter system.

ATW-2110a/HC2

518,00 e

UniPak™ system with ATM73cW

• ATM73cW professional headworn cardioid condenser microphone.

• ATW-2110a UniPak™ transmitter system.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

101

system 10 wireless system system 10 stompbox

System 10

Audio-Technica’s

System 10

is a digital high-fidelity wireless system, designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference,

System 10

offers extremely easy operation and instantaneous channel selection.

ATW-1101

329,00 e

Complete system

including a 2.4 GHz diversity receiver and a body-pack transmitter UniPak™.

The system is compatible with the

Wireless Essentials

®

range (see pages 108 to 111).

ATW-1102

349,00 e

Complete system including a 2.4 GHz diversity receiver and handheld dynamic unidirectional microphone/transmitter.

Accessories

AT8674

59,00 e

19’’rack mount tray for 4 receivers. Height : 2U – Colour black

AT8675

16,00 e

Blanking plate

can be used with AT8674 to block out half of the rack tray front (9.5”) in case only 2 ATW-R1100 receivers are mounted.

AT8674 AT8675

Overall System

Operating Frequencies:

Dynamic Range:

Operating Range:

Frequency Response:

2.4 GHz ISM band

>109 dB (A-weighted), typical

30 m typical

Open range environment with no interfering signals

20 Hz to 20 kHz

Depending on microphone type

102

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT-GcW

ATW-T1001

ATW-R1500

Stompbox design with multiple output modes.

Receiver may be paired with multiple transmitters to make switching instruments easy.

Audio-Technica’s

System 10 Stompbox

digital high-fidelity guitar wireless system combines the advanced 24-bit operation, easy setup and clear, natural sound quality of other System 10 configurations with unique functionality for guitarists, bassists and other instrumentalists.

ATW-1501

419,00 e

System 10 Digital 2.4 GHz Stompbox wireless system

• Each Stompbox system includes an

ATW-R1500

stompbox receiver, an

ATW-T1001

UniPak body-pack transmitter with an

AT-GcW

guitar cable, and Velcro receiver to an effects pedal board

® strips for adding

Overall System

Operating Frequencies:

Dynamic Range:

Frequency Response:

2.4 GHz ISM band

>109 dB (A-weighted), typical

20 Hz to 20 kHz

Depending on microphone type

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

103

system 10 camera mount system 10 camera mount

ATW-1701

399,00 e

Body-Pack transmitter system

ATW-R1700

receiver and

ATW-T1001

UniPak

®

transmitter.

ATW-1702

419,00 e

Handheld Transmitter system

ATW-R1700

receiver and

ATW-T1002

handheld dynamic unidirectional microphone/transmitter.

Includes

AT8456a

Quiet-Flex™ stand clamp.

The lightweight ‘hot or cold-shoe’ mountable

ATW-R1700

receiver is compact and features an independent headphone monitor output and selectable balanced or unbalanced audio output on 3.5mm mini-jack connectors. Powered by an internal rechargeable Li-Ion battery, the

System 10 camera-mount

unit has both receiver and transmitter battery life indicators and can be used with Audio-Technica’s

System 10

beltpack or dynamic handheld digital wireless microphone transmitters.

Operating in the 2.4 GHz range, immune to TV and DTV interference,

System 10

makes frequency hunting a thing of the past and offers amazingly accurate sound and extremely easy operation with instantaneous channel selection, sync and set-up.

104

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATW-1701/P

449,00 e

Handheld Transmitter system

ATW-R1700

receiver and

ATW-T1001

UniPak

®

transmitter with

ATR35cW

omnidirectional lavalier microphone.

Overall System

Operating Frequencies:

Dynamic Range:

Frequency Response:

2.4 GHz ISM band

>109 dB (A-weighted), typical

20 Hz to 20 kHz

Depending on microphone type

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

105

system 10 pro installation system 10 pro installation

ATW-1301

539,00 e

Body-pack System

ATW-RC13 Rack-mount receiver chassis, ATW-RU13 receiver unit and ATW-T1001 UniPak ® transmitter.

ATW-1302

563,00 e

Handheld System

ATW-RC13 Rack-mount receiver chassis,

ATW-RU13 receiver unit and ATW-T1002 handheld dynamic unidirectional microphone/transmitter.

ATW-1311

910,00 e

Dual Body-pack System

ATW-RC13 Rack-mount receiver chassis, ATW-RU13 x 2 receiver unit and ATW-T1001 UniPak ® transmitter x 2.

Featuring

Remote-Mountable

Receiver Units

ATW-1312

935,00 e

Body-pack / Handheld System

ATW-RC13 Rack-mount receiver chassis, ATW-RU13 x 2 receiver unit, ATW-T1002 handheld dynamic unidirectional microphone/transmitter and ATW-T1001 UniPak

®

transmitter.

System 10 PRO

delivers interference-free operation in the

2.4 GHz range (i.e., outside TV bands) with many innovative features for ultimate versatility. The durable half-rack chassis houses two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 100 m away) via Ethernet cable.

Up to five chassis (10 receiver units) can be linked using the

RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to

10 channels.

106

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATW-1322

959,00 e

Dual Handheld System

ATW-RC13 Rack-mount receiver chassis,

ATW-RU13x2 receiver unit and ATW-T1002 x 2 handheld dynamic unidirectional microphone/transmitter.

Overall System

Operating Frequencies:

Dynamic Range:

Frequency Response:

2.4 GHz ISM band

>109 dB (A-weighted), typical

20 Hz to 20 kHz

Depending on microphone type

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

107

wireless essentials

®

All microphones page 108 to 111 are fitted with a 4-pin

HRS connector, for use with Audio-Technica UniPak™ transmitters.

BP892cW

omnidirectional

MicroSet ® wireless headworn microphones

BP892cW

369,00 e

MicroSet ® headworn omnidirectional condenser microphone

Includes two element covers, two windscreens and cable clip.

BP892cW-TH

369,00 e

MicroSet

®

headworn microphone beige colour

BP892cW with beige colour finish microphone and cable.

wireless essentials

®

PRO92cW

Omnidirectional condenser headworn microphone

omnidirectional

PRO92cW

155,00 e

Omnidirectional condenser headworn microphone

Includes AT8442 clothing clip, storage pouch and AT8158 windscreen.

PRO92cW-TH

155,00 e

Omnidirectional condenser headworn microphone beige colour.

PRO92cW with beige colour finish microphone and cable.

Headworn microphones for A-T UniPak™

AT889cW

323,00 e

Noise cancelling headworn condenser microphone

Humidity and perspiration resistant.

BP894cW

cardioid

409,00 e

Subminiature wireless cardioid condenser headworn microphone

BP894cW

MicroSet

®

subminiature cardioid condenser headworn microphone

Includes two element covers, two windscreens and cable clip.

BP894cW-TH

409,00 e

MicroSet

®

subminiature microphone beige colour

BP894cW with beige colour finish microphone and cable.

PRO8HEcW

107,00 e

Headworn hypercardioid dynamic microphone hypercardioid

BP893cW

omnidirectional

Subminiature wireless headworn microphones for use with Audio-Technica UniPak™ wireless systems

BP893cW

290,00 e

Less power module; 1

.4 m cable terminated with locking

4-pin connector for audio-technica UniPak

®

wireless systems.

BP893cW-TH

290,00 e

Same as BP893cW, but in “theatre” colour (beige).

108

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

ATM75cW

119,00 e

Headworn cardioid condenser microphone.

cardioid

ATM73cW

215,00 e

Headworn cardioid condenser microphone cardioid

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

109

wireless essentials

®

Tie clip and lavalier microphones

ATR35cW

Miniature omnidirectional condenser microphone.

AT829cW

Miniature cardioid condenser microphone supplied with AT8434 clip.

AT831cW

Miniature cardioid condenser microphone

AT803cW

Omnidirectional tie clip microphone for broadcast applications.

Subminiature microphones for A-T UniPak™

AT898cW

Subminiature cardioid condenser microphone

AT899cW

Subminiature omnidirectional condenser microphone

AT899cW-TH

Beige version of AT899cW

BP896cW

Less power module;

1.4 m cable terminated with locking 4-pin connector for A-T UniPak

® wireless systems.

BP896cW-TH

Same as BP896cW,

but in “theater” colour (beige).

MT830cW

Miniature omnidirectional condenser

microphone

MT838cW

Omnidirectional microphone windscreen.

with clip and

Instrument microphones for A-T UniPak™

ATM350cW

Cardioid condenser clip-on instrument microphone

PRO35cW

Cardioid condenser clip-on instrument microphone

110

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

wireless essentials

®

Conference microphones for A-T UniPak™

U851cW

287,00 e

Unidirectional condenser boundary microphone

U841cW

323,00 e

Omnidirectional condenser boundary microphone

U857ALcW

299,00 e

Cardioid condenser gooseneck microphone 42 cm long

Connecting cables for A-T UniPak™ transmitters

XLRW

(same as AT8317)

51,00 e

XLRF cable to HRS connector; 1.50 m

AT

-

GcW

(same as AT8319)

35,00 e

Guitar cable 6.35 mm jack to HRS connector

AT-GcW-PRO

50,00 e

Professional guitar input cable for wireless

AT-GRcW-PRO

50,00 e

Professional guitar input cable for wireless with right-angle connector

Professional ¼” right-angle connector to locking 4-pin connector for use between instrument and Audio-Technica UniPak

® body-pack wireless transmitter.

ATW-RCS1

215,00 e

Remote momentary mute cough switch

Features a large momentory push button switch.

ATW-RMS1

299,00 e

Remote mute switch

Features a toggle switch with positive on-off function.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

111

wireless accessories

Active antenna splitter kit

ATW-49SP

370,80 e

Active Antenna Splitter Kit

• Each kit includes:

2 x one-input, two-output Active Antenna Splitters;

4 x 45 cm BNC-to-BNC RG 58 coaxial antenna cables;

2 x BNC-to-BNC barrel adapters

Active antenna combiner kit

ATW-49CB

370,80 e

Active Antenna Combiner Kit

• Each kit includes:

2 dual-input, one-output Active Antenna Combiners;

2 x 45 cm BNC-to-BNC RG 58 coaxial antenna cables

Specifications

ATW-49SP ATW-49CB

Description

Bandwidth

2-Way Active Antenna Splitter

440 MHz to 900 MHz

2-Input Active Combiner

440 MHz to 900 MHz

Specifications are subject to change without notice.

112

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

wireless accessories

Antenna cables

AC12

24,00 e

AC25

120,00 e

AC50

P.O.A.

AC100

P.O.A.

BNC - BNC

4 m link cable, type RG58

BNC - BNC

8 m link cable, type RG8

BNC - BNC

16 m link cable, type RG8

BNC - BNC

33 m link cable, type RG8

Transmitter accessories

AEW-TB44

70,80 e

Transmitter bag for AEW Series

Holds 4 handheld and 4 body pack transmitters

Antennas

ATW-A49

442,80 e

Pair of wide band dipole antennas for use with 440-900 MHz UHF systems

ATW-A49S

238,80 e

Single wide band dipole antennas for use with 440-900 MHz UHF systems

AC12

Antenna combiner

MCB4

699,00 e

Audio-Technica MCB4 Antenna Combiner allows the signals of up to four M3 Wireless In-Ear Monitor stereo transmitters to be combined into a single transmitting antenna, reducing rack clutter. It is also suitable for many other in-ear wireless systems (with external BNC antenna connections) operating within the 440 to 865 MHz range.

Diversity UHF antenna distribution systems

The UHF active unity-gain antenna distribution systems provides two

“1-in, 4-out” RF channels. Connects a pair of antennas to as many as four diversity receivers.

AEW-DA660D

850,80 e

Active unity-gain distribution amplifier for UHF bands 655.500 MHz to 680.375MHz

AEW-DA550C

850,80 e

Active unity-gain distribution amplifier for UHF bands 541.500 MHz to 566.875 MHz

ATW-DA49

538,80 e

UHF Antenna distribution system

The ATW-DA49 is a UHF (wide-band 440-900 MHz) active unity-gain diversity antenna distribution system.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

113

professional turntables professional turntables

AT-LP120-USBHC

379,00 e

Direct-Drive Professional Turntable (USB & Analog)

This professional stereo turntable features a high-torque direct-drive motor for quick start-ups and a USB output that connects directly to your computer. Other features include: forward and reverse play capability three speeds 33/45/78.

AT-LP1240-USB

599,00 e

Professional DJ direct-drive turntable (USB & Analog)

This superbly made, professional quality DJ turntable is designed primarily for DJ use in nightclubs, touring and mobile applications. As an added benefit, the turntable offers a USB output that allows direct connection to a computer for easy

LP-to-digital conversion.

Included accessories

Specifications

Type

Motor

Drive Method Direct Drive

Speeds

Pitch Variation

Starting Torque

Wow and Flutter

Signal-to-Noise Ratio

Output Level

Phono Pre-Amp Gain

USB Function

Accessories Included

AT-LP120-USBHC

3-speed, fully manual operation

DC motor

Direct drive

33-1/3 RPM, 45 RPM, 78 RPM

+/-10% or +/-20%

>1.6 kgf-cm

<0.2% WRMS (33 RPM)

>50 dB

Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec

Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec

36 dB nominal, RIAA equalized

A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface - USB 1.1 Compliant Windows XP, Vista or MAC OSX

AT-HS10 headshell; AT95E cartridge; AC line cord; dual RCA

(female) to 3.5 mm (1/8”) mini-plug (male) stereo adapter cable; dual RCA (female) to 3.5 mm (1/8”) mini-plug (female) stereo adapter cable; 45 RPM adapter; USB cable; recording software

114

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Specifications

Type

Motor

AT-LP1240-USB

3-speed, fully manual operation

16-pole, 3-phase, brushless DC motor

Drive Method Direct Drive

Direct drive

Speeds

33-1/3 RPM, 45 RPM, 78 RPM

Starting Torque

Wow and Flutter

>4.5 kgf.cm

< 0.1% WRMS (JIS WTD) with 33 RPM

Signal-to-Noise Ratio

Output Level

USB Function

> 55 dB (DIN-B)

Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec (HP-4005)

Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec (HP-4005)

A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable;

Computer interface - USB 1.1 Compliant Windows XP or above or

MAC OSX or above

Accessories Included

Slip mat; dust cover; platter; 45 RPM adapter; counterweight; headshell; power cord; USB cable; dual RCA (female) to 1/8”

(3.5 mm) mini-plug (male) stereo adapter cable; dual RCA (female) to 1/8” (3.5 mm) mini-plug (female) stereo adapter cable; dual

RCA (male) cable with integrated ground wire; stylus target light;

Audacity software (CD)

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

115

accessories

Power supplies

AT8801

128,00 e

Single channel 48V DC phantom supply

(AC power adapter included).

accessories

Condenser microphones remote power modules

AT8531

116,00 e

Belt Pack type power module,

1.5V AA battery & phantom, with low frequency roll-off, input on TA3M, output on integral XLRM 3-pin.

Attenuators

AT8202

88,00 e

Adjustable In-line Attenuator

• Provides –10 dB, –20 dB or –30 dB attenuation.

Unitools

®

Phantom-powered in-line microphone accessories overcome commonly-encountered sound installation challenges quickly, easily and effectively.

AT8681

100 ,00 e

UniMix

®

2-to-1 mic combiner with balance control.

Combines the output from two microphones into one channel. Balance control attenuates each microphone by

6 dB (typical) at midpoint.

• Requires 24V-48V Phantom power.

AT8684

88

,00 e

UniMute

®

mic attenuator with user-definable switch function.

AT8542

100,00 e

Phantom power only in-line power module, with low frequency roll-off, input on TA3M, output on integral XLRM 3-pin.

AT8538

100

,00 e

Phantom power only in-line power module,

with bass roll-off, Input TA3M, output on 3-pin line XLRM.

AT8537

205,00 e

In-Line 1.5V AA battery & phantom power module,

TA3M to XLRM line 3-pin.

Remote switch control interface

ESRSC

193,00 e

The ESRSC is a control interface that enables a contractor to add external control, contact closure, programmable mute functions and status indication to any dynamic or condenser microphone.

116

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

Remote power module for all wireless essentials

AT8539

142,00 e

Phantom power only in-line power module

Input on HRS connector for all wireless essentials.

The AT8539 allows you to convert your wireless microphone into a wired model. Comes equipped with a snap-on belt clip.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

117

accessories

Our genuine Audio-Technica microphone clamps have an

American standard 5/8” female thread, therefore because most

European microphone stands use 3/8” male thread, an adaptor

5/8 male to 3/8”female is needed (use AT8423 or AT8422).

Microphone clamps

AT8405a

Snap-in mic clamp, metal base, for 21 mm body diameter mics.

AT8406a

14,00 e

Tapered slip-in mic clamp, metal base for all tapered mics.

AT8407

21,00 e

Universal mic clamp, spring loaded clip, metal base.

Fits most mics with diameter 15 to 25mm.

AT8470

18,00 e

Quiet-Flex™ stand clamp for tapered Artist Elite

® microphones AT2010, ATM710, ATM610a, ATM510 and Midnight Blues.

AT8471

34,00 e

Microphone isolation stand clamp

Provides effective reduction of stand-transmitted noise dependably maintains positioning while securely holding the microphone compatible with 5/8”-27 threaded stands.

AT8456a

27,00 e

Clamp for wireless handheld microphones in the AEW-, 3000b- and 2000a-series.

Adapters and stand accessories

AT8422

2,00 e

Plastic threaded adapter, to 5/8”threaded mic clamp.

converts 3/8”stands

AT8433

14 ,00 e

Shoe clamp with two locking nuts and 5/8” microphone adaptor.

Fits to the accessory shoe of a camcorder. Enables a microphone clamp to be attached to the camera.

AT8423

5,00 e

Brass threaded adapter, to 5/8”threaded mic clamp.

converts 3/8” stands

AT8459

58,00 e

Swivel mount microphone clamp adapter.

Provides unlimited number of angles/ positions.

Compatable with 5/8”-27 threaded stands.

AT8665

10,00 e

Drum microphone clamp adapter

( 5/8” thread).

AT8472

38,00 e

Slip-in mic clamp for PRO24

or any 21 mm body diameter microphone with camera shoe mount.

118

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

accessories

Our genuine Audio-Technica microphone clamps have an

American standard 5/8” female thread, therefore because most European microphone stands use 3/8” male thread, an adaptor 5/8 male to 3/8”female is needed (use AT8423 or

AT8422).

Clamps, shock mounts for studio microphones

AT8430

185,00 e

Stand clamp with 5/8” - 27 thread for AT4033a / AT4040 / AT4050 / AT4047SV.

AT8447

215,00 e

Shock mount for AT4060.

AT8449

100,00 e

Shock mount for AT4033a / AT4040 / AT4050 /

AT2035 / AT2050 / AT4050ST.

AT8449SV

128,00 e

Shock mount for AT4047SV / AT4047MT.

AT8458

99,00 e

Shock mount for AT3035 / AT3060 / AT2020 /

AT2035 / AT2050.

AT8466

21,00 e

Stand mount for AT2020.

AT8482

299,00 e

Shock mount for AT5045.

Universal shock mounts

AT8410a

77,00 e

Shock mount, spring loaded, fits most mics with diameter 15 to 22 mm.

AT8415

94,00 e

Low-profile shock mount

Fits most mics.

with flexible bands.

Accessories for miniature microphones

AT8418

52,00 e

UniMount

®

microphone instrument mount

ATM350 / AT803 / AT831/ AT829 / PRO35 /

PRO70.

AT8444

45,00 e

Instrument adapter

ATM350 / AT803 / AT831 /

AT829 / PRO35 / PRO70 for acoustic guitar/violin.

AT8468

13,00 e

Violin mount for ATM350

• Permits unobtrusive placement of microphone between the instrument’s bridge and tailpiece.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

119

accessories

Clamps and accessories for tie clip microphones

AT8411

13,00 e

Plastic clothing clip, fits AT803/AT829/ AT831

AT8412

22,00 e

Plastic double clothing clip, fits AT803/ AT831/AT829 accessories

AT899 miniature microphone accessories

AT8461

22,00 e

Clothing clip base for AT899 and AT898 with single and double microphone holders

AT8461-TH

22,00 e

Clothing clip base for AT899 and AT898 with single and double microphone adapters in beige

AT8414

27,00 e

Metal tie tac, fits AT803/AT831/AT829

AT8417

15,00 e

Wire clothing clip, fits AT803/AT831/AT829

AT8419

15,00 e

Wire clothing clip which allows to position the microphone in 45° steps, AT803

AT899AK

70,80 e

Accessory kit for AT899 and AT898 models in black

AT8420

11,00 e

Metal clothing clip, for MT830

AT8434

11,00 e

Plastic clothing clip, for AT829

AT8435

11,00 e

Tie clip for MT350

MT838TC

18,00 e

Tie clip for MT838

AT8442

11,00 e

Clothing clip for PRO92cW

AT8460

22,00 e

Clothing clip for ES943

120

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

AT899AK-TH

70,80 e

Accessory kit for AT899 and AT898, models in beige

Accessories for headworn and miniature microphones

AT8439

8

,00 e

Cable clothing clip for headworn, tie clip, and miniature microphone.

AT8440

36 ,00 e

Cable clothing clip for BP892

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

121

accessories

Desk stands

AT8601

29 ,00 e

Desk stand for all 5/8”-27 mic holders

AT8615A

108

,00 e

QM plug-in desk stand;

XLRF in, XLRM out for all QM mics.

AT8615RS

114

,00 e

Same as AT8615A with switch.

AT8666

118

,00 e

Low-profile microphone desk stand.

AT8666RSC

224

,00 e

Microphone desk stand with switch and external contact closure.

AT8666RSP

194 ,00 e

Microphone desk stand with user programmable switch

122

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

accessories

Suspension accessories for fixed installation microphones

AT8416

81

,00 e

Shockmount for all UniPoint AM and ES range.

AT8438

23

,00 e

Custom stand adapter for U853 and U853W fits 5/8”-27 stands.

AT8451

18 ,00 e

Wire hanger adapter for overhead applications

with U853 and PRO45.

AT8451WH

18 ,00 e

White version of AT8451

AT8452

18

,00 e

Wire hanger adapter for overhead MicroLine

ES933

®

AT8452WH

18

,00 e

White version of AT8452

AT8646AM

51 ,00 e

Shockmount plate with 5/8”-27 threaded adapter mount

AT8646QM

71 ,00 e

Shockmount plate with XLRF connector

AT8647QM/S

127

,00 e

Shockmount plate for quick mount microphones with on/off switch for fixed installation

AT8651

11 ,00 e

Thread mount adapter for old ES range

AT8662

42

,00 e

Shockmount for gooseneck microphone supplied

with U857Q.

AT8663

15

,00 e

Low profile table or wall mount plate

AT8664

15 ,00 e

A-mount cable pass-through adapter for

Unipoint

AT8473

35 ,00 e

Stand clamp permits attachment

AT8474

48 ,00 e

Low-profile isolation mount

(allows mounting above or beneath mounting surface).

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

123

windscreens

Windscreens for 20 and 40 series microphones

AT8137

58

,00 e

Large studio foam windscreen

for AT2020 /

AT4033a / AT4040 / AT4047SV / AT4047MP / AT4050

/ AT4050ST / AT4080

AT8106

60 ,00 e

Metal slip-on pop filter for AT4041

(for ultimate pop and wind protection, use an AT8114 in addition)

AT8159

10 ,00 e

Small egg-shaped foam windscreen

for AT4041

/ PRO37 / AT4021 / AT4022 / AT4049b / AT4051b /

AT4053b

Windscreens for vocal and instrument microphones

AT8101

12

,00 e

Large cylindrical foam windscreen for AT8004 / AT8004L

AT8111

15

,00 e

Thin cylindrical foam windscreen

for ATM650

AT8112

12 ,00 e

Large cylindrical foam windscreen for ATM610 / AE4100 / AE6100

AT8114

15 ,00 e

Ball-shaped foam windscreen for ATM31a / ATM410 / ATM710 / AE3300 / AE5400

AT8115

17 ,00 e

Large-pore egg-shaped foam windscreen for ATM650

AT8118

7

,00 e

Small foam windscreen

for ATM350

AT8120

22 ,00 e

Large foam windscreen for AT8022 / PRO25ax / AT4025 / AE3000

AT8122

12 ,00 e

Small foam windscreen

for U873

AT8123

12

,00 e

Windshield

for PRO24-CMF

AT8136

13

,00 e

Small egg-shaped foam windscreen for ATM10a / ATM33a

Windscreens for shotgun microphones

AT8132

28

,00 e

Shotgun windscreen for AT8035

AT8133

23

,00 e

Shotgun windscreen

for AT875R

AT8134

25 ,00 e

Shotgun windscreen

for BP4073 / AT897 /

BP4029 / ATR55

AT8135

29

,00 e

Shotgun windscreen for AT8015 / BP4071 / BP4027

124

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

windscreens

Headworn microphone windscreens

AT8125

11,00 e

Large foam golfball windscreen

for ATM73.

AT8128

12,00 e

Small foam torpedo windscreen for headworn mic ATM73.

AT8139L

11,00 e

Large foam windscreen for headworn mic ATM75 / PRO8HE.

AT8139S

11,00 e

Small foam windscreen for headworn mic ATM75 / PRO8HE.

AT8142A

4,00 e

Foam temple pads (pair) for headworn mic ATM75 / PRO8HE.

AT8142B

2,00 e

Foam temple pads (pair) for headworn mic ATM73.

AT8143

34,00 e

Coloured windscreen pack suitable for ATM75 / PRO8HE, set of 4 (pink, purple, green and yellow) includes temple pads

Tie clip microphone windscreens

AT8110

20,00 e

Foam windscreen

for ES943.

AT8116

15,00 e

Mini windscreen for AT803 / AT829 / AT831 / PRO70.

AT8129

4,00 e

Miniature foam windscreen

for MT350.

AT8130

9,00 e

Subminiature foam windscreens

(pack of 3) for MT830.

AT8131

4,00 e

Miniature foam windscreen for AT829 / AT803 / AT831 / PRO70.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

125

windscreens

Miniature AT899 and AT898 microphones accessories

AT8150

20,00 e

Element covers

(pack of 3).

AT8150-TH

20,00 e

Beige element covers

(pack of 3).

AT8151

17,00 e

Windscreen

(pack of 3).

AT8151-TH

17,00 e

Beige windscreen

(pack of 3).

Microset headworn and lavalier microphones accessories

AT8156

16,00 e

AT892 element cover

AT8156-TH

16,00 e

Beige version of AT8156

AT8157

15,00 e

AT892 and BP896 windscreen

AT8157-TH

15,00 e

Beige version of AT8157

AT8158

18,00 e

PRO92 windscreen

(pack of 3).

AT8158-TH

18,00 e

Beige version of AT8158

(pack of 3).

126

l European Professional Guide 2015-2016, prices in Euro including VAT

(1)

.

windscreens

Unipoint

®

, Propoint

®

and Engineered Sound

®

windscreens

AT8153

15,00 e

Small 2-stage foam windscreen for use with U853 / U859 / U857.

AT8153WH

26,00 e

White version of AT8153.

AT8102

13,00 e

Small 2-stage foam windscreen for use with U853 / U859 / U857.

AT8102WH

15,00 e

White version of AT8102.

AT8104a

81,00 e

Small metal lockable windscreen with additional outer foam windscreen provided suitable for U853 / U857 / U859.

AT8109

20,00 e

Snap-on foam windscreen for ES Series gooseneck mics.

AT8117

15,00 e

Large high density foam windscreen for U853 outdoor use.

AT8161

88,00 e

Metal windshield with additional outer foam for use with engineered sound gooseneck microphones.

AT8154

16,00 e

Small 2-stage foam windscreen for use with U853 / U859 / U857 with UniLine™ elements.

AT8154WH

30,00 e

White version of AT8154.

AT8138

15,00 e

Windscreen for MicroLine

®

All ML/suffix mics.

AT8138WH

24,00 e

White version of AT8138.

AT8146

13,00 e

Windscreen for PRO47 / PRO49.

AT8146WH

13,00 e

White version of AT8146.

European Professional Guide 2015-2016, prices in Euro including VAT

(1)

. l

127

notes

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
