OCXO

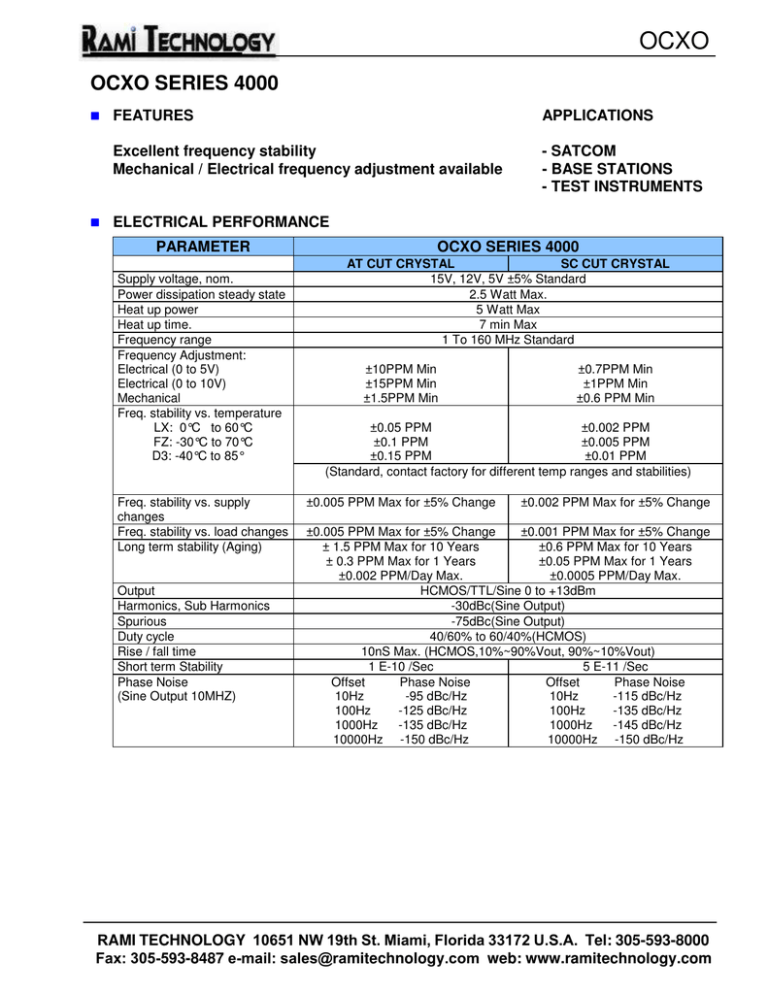

OCXO SERIES 4000
"# FEATURES
APPLICATIONS
Excellent frequency stability
Mechanical / Electrical frequency adjustment available
"# ELECTRICAL
- SATCOM
- BASE STATIONS
- TEST INSTRUMENTS
PERFORMANCE
PARAMETER
Supply voltage, nom.
Power dissipation steady state
Heat up power
Heat up time.
Frequency range
Frequency Adjustment:
Electrical (0 to 5V)
Electrical (0 to 10V)
Mechanical
Freq. stability vs. temperature
LX: 0°C to 60°C
FZ: -30°C to 70°C
D3: -40°C to 85°
Freq. stability vs. supply
changes
Freq. stability vs. load changes
Long term stability (Aging)
Output
Harmonics, Sub Harmonics
Spurious
Duty cycle
Rise / fall time
Short term Stability
Phase Noise
(Sine Output 10MHZ)
OCXO SERIES 4000
AT CUT CRYSTAL
SC CUT CRYSTAL
15V, 12V, 5V ±5% Standard
2.5 Watt Max.
5 Watt Max
7 min Max
1 To 160 MHz Standard
±10PPM Min
±15PPM Min
±1.5PPM Min
±0.7PPM Min
±1PPM Min
±0.6 PPM Min
±0.05 PPM
±0.002 PPM
±0.1 PPM
±0.005 PPM
±0.15 PPM
±0.01 PPM
(Standard, contact factory for different temp ranges and stabilities)
±0.005 PPM Max for ±5% Change
±0.002 PPM Max for ±5% Change
±0.005 PPM Max for ±5% Change
±0.001 PPM Max for ±5% Change
± 1.5 PPM Max for 10 Years
±0.6 PPM Max for 10 Years
± 0.3 PPM Max for 1 Years
±0.05 PPM Max for 1 Years
±0.002 PPM/Day Max.
±0.0005 PPM/Day Max.
HCMOS/TTL/Sine 0 to +13dBm
-30dBc(Sine Output)
-75dBc(Sine Output)
40/60% to 60/40%(HCMOS)
10nS Max. (HCMOS,10%~90%Vout, 90%~10%Vout)
1 E-10 /Sec
5 E-11 /Sec
Offset
Phase Noise
Offset
Phase Noise
10Hz
-95 dBc/Hz
10Hz
-115 dBc/Hz
100Hz
-125 dBc/Hz
100Hz
-135 dBc/Hz
1000Hz
-135 dBc/Hz
1000Hz
-145 dBc/Hz
10000Hz -150 dBc/Hz
10000Hz -150 dBc/Hz
RAMI TECHNOLOGY 10651 NW 19th St. Miami, Florida 33172 U.S.A. Tel: 305-593-8000
Fax: 305-593-8487 e-mail: sales@ramitechnology.com web: www.ramitechnology.com
OCXO
"# HOW
TO ORDER (PART NUMBER)
Prefix
Output
Type
Cut Type
Series
OX
1:TTL
2:HCMOS
3:ACMOS
4:LVCMOS
5:100K ECL
6:SINE
7:10K ECL
8: PECL
9:CUSTOM
0:AT (No Vcontrol )
1: SC (No Vcontrol )
2: AT (Mechanical Adj)
3: SC (Mechanical Adj)
4: AT (Elect Vcontrol)
5: SC (Elect Vcontrol)
6: AT (Mech & Elect.)
7: SC (Mech & Elect.)
4X:4000
40:
Height=
Revision
A
1”/25.4mm
41:
Height=
2”/50.8mm
42:
Height=
4”/101.6mm
44~49:
Odd Height
Temperature Range
First letter Lowest
Temperature,
Second letter Highest
Temperature:
From A=-55°C to
Z=+70°C, Then:
1=+75°C, 2=+80°C,
3=+85°C… in 5°C
steps Example:
LZ: +0°C to +70°C
LX: +0°C to +60°C
FZ: -30°C to +70°C
D3: -40°C to +85°C
Stability
Frequency
Value x
10E-2 in
PPM
In MHZ
Example
28=
0.28PP
M
10=
0.1PPM
Example:
OX6740A-LZ-0.5-10.000
Frequency 10 MHz
Temp Stability = 0.5 x 10E-2 = ±0.005 PPM
Operating Temp Range = 0°C to +70°C
Revision "A"
4=SERIES 4000, 0= 1" Height
SC Cut crystal, Electrical & Mechanical
Frequency Adjustment
Output Sine Wave
Prefix: OCXO
HEIGHT, MAX. “H”:
.15 MIN.
(3.8 MIN.)
H
1.36
(34.54)
5
MARKING
AREA
2.00
(50.8 SQ.)
SPECIFICATION
1” / 25.4 mm (Oxxx40)
2” / 50.8 mm (Oxxx41)
4” / 101.6 mm (Oxxx42)
1
OUTLINE TOLERANCE:
±0.015” / 0.4mm
2
.68
17 3
.03
(0.76)
1.36
34.54
"# MECHANICAL
4
A
3
PIN FUNCTIONS:
[1] N/C OR CONTROL
VOLTAGE
[2] N/C OR VREF OUT
[3] RF OUTPUT
[4] CASE / GROUND
[5] SUPPLY VOLTAGE
