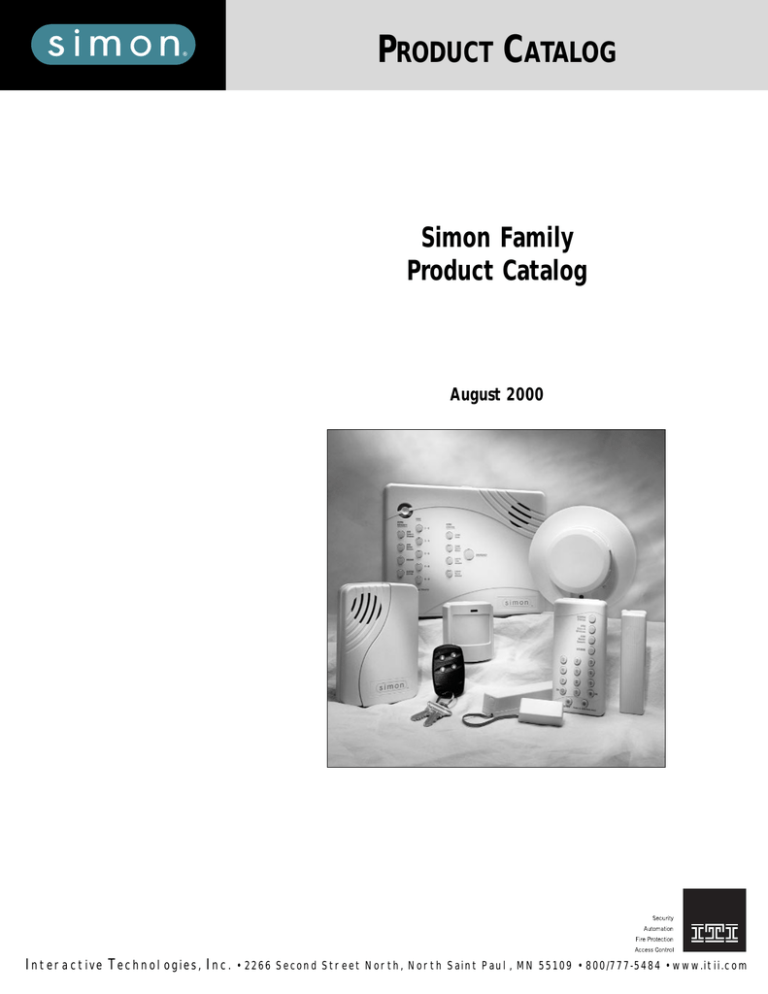

Simon Product Catalog
PRODUCT CATALOG
Simon Family
Product Catalog
August 2000
Interactive Technologies, Inc.
• 2266 Second Street North, North Saint Paul, MN 55109 • 800/777-5484 • www.itii.com
TABLE OF CONTENTS
Simon Security System
Simon System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Sirens and Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
SAW Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Crystal Intrusion Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fire and Smoke Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Environmental Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Crystal Emergency Panic Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
X-10 Lighting and Appliance Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Central Station Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Sales, Print, and Video Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Ordering and Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
INNOVATIVE TECHNOLOGY
Simon Security System
Learn Mode™ Technology
Home Automation
ITI patented Learn Mode technology
increases the ease and reliability of
installations. Each sensor in a system
has its own factory-programmed
identity. ITI control panels “learn” the
identity of each sensor in the system
which eliminates programming
errors in the field and other problems
associated with the wireless systems
of other manufacturers.
ITI systems go beyond burglar and
fire protection. The home automation
features available with some ITI
systems allow the user to turn lights
on and off at the touch of a button
and control their heating and cooling
system to save energy.
Installation Time
ITI Learn Mode systems are easy to
install. Once the sensors are installed,
they are added to the control panel
memory; no sensor programming is
required. Large residential systems
can be installed in a single day by a
relatively inexperienced installer.
Smaller installations, such as
apartments, can be completed in less
than four hours.
Applications
ITI systems are used around the world
to protect people and property. ITI
systems are installed in museums for
collection security, military
installations for equipment security,
utility companies for usage
monitoring, nursing homes for
resident monitoring, and universities
for computer equipment security.
Interactive Technologies, Inc.
Two-Way Voice
ITI has responded to the growing
concern over false alarm prevention
and violent crime by developing its
two-way voice technology. Two-way
voice allows the central station
operator to hear what is happening
during an alarm and speak directly to
the people on the premises.
Reporting and Off-site
Programming Capabilities
ITI systems can report in SIA 2 and
Contact ID formats and can report to
most receivers. With many ITI
systems, system programming
changes can be made over the phone
using ITI ToolBox™ upload/download
software.
Ratings
ITI Technology
The Simon Security System: Affordable, Reliable, and Flexible.
The newest ITI products meet the
following ratings:
UL 985 (Household fire)
UL 1023 (Household burglary
CSFM (California State Fire Marshall)
ULC pending (UL of Canada)
1
2
Interactive Technologies, Inc.
CONTROL PANEL COMPONENTS
Simon Security System
Simon System Configuration
To configure a Simon Security System, start by selecting the control panel components listed on pages 1 thought 3.
Control Panel
Description/Features
Provides security and home automation
system control
24 zones
2 optional hardwire inputs
Voice messages
Optional two-way voice
6 user-access codes
Controls lights on a time schedule or
individually.
Controls lights or appliances on a time
60-776-95R
schedule or when a particular sensor is
Simon Control Panel*
activated
60-776-01-95R
Simon Control Panel with Integrated Controls a garage door opener with the
optional keychain touchpad
Two-Way Voice*
Supports door/window chime
* Transformer included.
Latchkey feature notifies you if children
have not arrived home at the scheduled
time
Remote phone control
Event buffer aids in troubleshooting
60-776-01-95R:
Integrated two-way voice
Provides tabletop mounting base for
control panel
Includes RJ11 cord
Specifications
Accessories
60-787 Two-Way Voice Speaker and
9 VAC Line Carrier Transformer
Optional 9 VDC lithium backup battery Microphone AVM (Audio Voice Module)
6.5-13 VDC @ 250 mA auxiliary power 60-713 9 VDC Lithium Battery
output
Battery test under load every 4 hours
SAW radio receiver
319.5 MHz radio frequency
DTMF or pulse dialing
Belgian gray
32-110°F operating temperature
Wall or table top mounting
9.5" wide x 7.5" high x 1.5" deep
Belgian gray
8.75" wide x 2.5" high x 6.60" deep
60-785 24 Hour Rechargeable Battery
60-795 18-Hour Rechargeable Battery
13-081 RJ31X Telco Jack
466-1598 Simon Specification Sheet
50/pk
49-440 Simon Phone Cord (8 to 8 pin)
49-159 Simon Phone Cord (6 to 6 pin)
60-720
Simon Table Mounting Base
Interactive Technologies, Inc.
3
CONTROL PANEL COMPONENTS
Simon Security System
Power
Description/Features
Provides primary power to the control
panel
Specifications
Accessories
9 VAC power supply
120 VAC @ 60 Hz power requirement
Belgian Gray
32 to 110 °F operating temperature
2.25” wide x 3.5” high x 1.75” deep
60-712
9 VAC Line Carrier Transformer–
UL listed
Provides backup power to the control panel 9 VDC backup power
and hardwired devices when fully charged 1-year battery life*
and AC power is out
Backup battery provides up to 24 hours
backup power
UL approved
* Battery life based on control panel being
tested under load every 4 hours and on
short random AC power outages. If
control panel loses AC power for an
extended period of time the battery may
need to be replaced sooner than one
year.
60-713
9 VDC Lithium Battery 1/pk
60-795
7.2 VDC 18-hour Nmh Battery 1/pk
60-785
7.2 VDC 24-hour Nmh Battery 1/pk
4
Provides backup power to the control panel 7.2 VDC backup power
and hardwired devices when fully charged 3 to 5-year battery life*
and AC power is out
Backup battery provides up to 18 hours
backup power
UL approved
60-785:
provides up to 24 hours backup power
* Battery life based on control panel being
tested under load every 4 hours and on
short random AC power outages. If
control panel loses AC power for an
extended period of time the battery may
need to be replaced sooner than one
year.
Interactive Technologies, Inc.
CONTROL PANEL COMPONENTS
Simon Security System
Wireless Touchpads
Description/Features
Specifications
Wireless, 2-way talking touchpad
3 AAA batteries
Provides convenient operational control of 3 year battery life
10-120 °F operating temperature
the system
Includes emergency panic button
Belgian gray
Light control capability
3.5" wide x 5.23" high x 1" deep
Automatic low battery report
Wall mounted
No supervision, no tamper protection
Provides voice feedback for system status
60-788-95R
Accessories
60-710 1.5 VDC AAA Alkaline
Battery 6/pk
and operation
Simon 2-Way TouchTalk Touchpad
Provides convenient operational control of the system
Includes emergency panic button
Light control capability
Status report control
Optional supervision reporting
2 1.5 VDC AAA alkaline batteries
1 year battery life
Supervisory report every 64 minutes
10-120 °F operating temperature
Belgian gray
2.25" wide x 5" high x 1" deep
60-710 1.5 VDC AAA Alkaline
Battery 6/pk
60-790 HiTech Wallmount Bracket
60-671-95R
SAW HiTech Hand Held Touchpad
Recessed buttons help prevent false alarms 12 VDC, 33 mAh alkaline battery
LED confirms RF transmissions
included
60-694-95R and 60-659-95R:
5-8 year battery life
Single button panic control
10 to 120 °F operating temperature
Provides convenient operational control of Black
the system
Keychain mounting (keychain ring
Light control capability
included)
1.4" wide x 2.25" high x 0.38" deep
60-711 12V 33 mAh Alkaline Battery
466-1050 4-Button Keychain
Touchpad Specification Sheet 50/pk
466-1072 2-Button Crystal Keychain
Touchpad Specification Sheet 50/pk
Provides convenient operational control of 12 VDC, 33 mAh alkaline battery
60-711 12V 33 mAh Alkaline Battery
466-1050 4-Button Keychain
Touchpad Specification Sheet 50/pk
466-1072 2-Button Crystal Keychain
Touchpad Specification Sheet 50/pk
60-659-95R
4-Button SAW Keychain Touchpad
(pictured)
60-694-95R
5-Button SAW Keychain Touchpad
60-707-95R
2-Button SAW Keychain Touchpad
the system
Recessed buttons help prevent false alarms
Green LED confirms RF transmissions
Light control capability (60-606-319.5
only)
included
5-8 year battery life
10 to 120 °F operating temperature
Black
Keychain mounting (keychain ring
included)
1.4" wide x 2.25" high x 0.38" deep
60-606-319.5
4-Button Crystal Keychain Touchpad
(pictured)
60-607-319.5
2-Button Crystal Keychain Touchpad
Interactive Technologies, Inc.
5
SIRENS AND SPEAKERS
Simon Security System
Speakers, Sirens,
Two-Way Voice Support
Description/Features
Specifications
Accessories
Provides additional alarm without wiring 110 dB siren output
Plugs into 120 VAC wall outlet
Receives signals from control panel over AC
lines.
13-398
X-10 Siren
Produces low volume status beeps and full volume alarm sounds without any wiring Plugs into any 120 VAC wall outlet
Receives signals from the control panel over AC power lines
3 status sound settings
Low-battery warning
Status sounds can be turned off
Rechargeable backup battery included
85 dB siren output at 10 feet
120V AC powered
3.6 VDC NiCd battery pack included
Belgian gray
4.3" wide x 3.4" high x 1.5" deep
Produces full volume alarm sounds for large indoor and outdoor areas
Weatherproof housing
115 dB alarm siren output
Only 145 mA max current draw
115 dB max siren output
12 VDC @ 145 mA max current draw
6-12 VDC @ 98 mA operating voltage
22-gauge stranded wire
10 to 120 °F operating temperature
White
Wall mounting
3.56" diameter x 3.25" deep
34-047 SWIS Backup Battery
466-1577 SWIS Specification Sheet
50/pk
60-736-95
Supervised Wireless Interior Siren
(SWIS)
13-046
Hardwire Exterior Piezo Siren
6
Interactive Technologies, Inc.
SIRENS AND SPEAKERS
Simon Security System
Speakers, Sirens,
Two-Way Voice Support
Description/Features
Specifications
Produces low volume status beeps and full volume alarm sounds
Small size with maximum output of 85 dB 85 dB max siren output
12 VDC @ 150 mA max current draw
4.5- 15 VDC @ 75 mA operating voltage
42 to 95 °F operating temperature
Belgian gray
Wall mounting
2.8" wide x 4.8" high x 1.25” deep
Produces low volume status beeps and full volume alarm sounds without running any wires
Uses existing phone line wiring
Replaces an existing phone jack and
provides a jack for a phone
Can be used with any wireless or hardwire
system supplying 6-12 VDC
Status sounds can be turned off
85 dB max siren output
30 mA max current draw
6-12 VDC @ 60 mA operating voltage
10 to 120 °F operating temperature
Belgian gray
Wall mounting with back box or flush
mounting with a single gang box
2.88" wide x 6" high x 1.83” deep
Accessories
13-374
LD 105 Hardwire Piezo Siren
60-683
Phone Jack Siren (Flush Mount)
Plug-in compatibility with Simon 2.0 only 12 VDC @ 10 mA max current draw
Works with both standard (60-776-95R) 18-gauge stranded wire between
60-787
Two-Way Voice Speaker and
Microphone AVM (Audio Voice
Module)
Interactive Technologies, Inc.
and integrated voice (60-776-01-95R)
Simon 2.0 control panels
Simon 2.0 control panels only support one
AVM module
Gives the central station operator the ability
to hear what is happening during an alarm
and speak directly to the people on the
premises
Auto Gain Control circuitry means
microphone requires no adjustments
49-453 Cable Only
speaker and control panel
22-gauge stranded wire for all other
wire runs
40 to 100 °F operating temperature
Belgian gray
Recessed or surface mounting
6.9" wide x 4.9" high x 2.5" deep
7
SAW SENSORS
Simon Security System
SAW Intrusion Sensors
Description/Features
Protects anything that opens and closes,
such as doors, windows, jewelry cases, and
gun cabinets
For low and average traffic areas
Terminal block for hardwire contacts can be
added to the built-in terminal post
Specifications
Two 1.5 VDC AAA alkaline batteries
4-6 year battery life
1 internal reed switch
1 built-in terminal post
10 to 120 °F operating temperature
Supervisory report every 64 minutes
Belgian gray
Flat surface mounting
1.13" wide x 4.25" high x .88" deep
60-670-95R
Belgian Gray Door/Window Sensor
60-670-11-95R
Brown Door/Window Sensor
Passive infrared detection
Detects movement inside an enclosed
structure
Use in large rooms, narrow corridors, and
stairwells
3-minute motion lockout to conserve
battery life
Two sensitivity settings
Small and unobtrusive
60-639-95R
Indoor PIR Motion Sensor
60-807-95R
Indoor PIR Pet Immune Motion
Sensor
60-639-95R:
Provides the best overall human detection
Optional Animal Alley Lens
Mounting kit included to adjust coverage
pattern
60-807-95R:
Pet Immunity up to 40 pounds
Excellent vertical vs. horizontal pattern
recognition
Use for chime notification of movement
outside the premises or to turn on an
exterior light upon approach*
Use in driveways, walkways, etc.
Passive infrared detection
3-minute motion lockout to conserve
battery life
60-639-95R-OD
* This sensor is not intended for intrusion
detection. Do not use this sensor in a police,
panic, or fire sensor group.
Two 1.5 VDC AA alkaline batteries
3-4 year battery life
32 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall mounting
2.5" wide x 3" high x 2" deep
60-807-95R:
Use with pets up to 40 pounds
Accessories
60-710 1.5 VDC AAA Alkaline
Battery 6/pk
60-714 SAW Door/Window Sensor
Terminal Block 10/pk
60-715 Belgian Gray Door/Window
Sensor Spacer 20/pk
60-715-11 Brown Door/Window
Sensor Spacer 20/pk
60-716 Belgian Gray Door/Window
Sensor Magnet Spacer 25/pk
60-716-11 Brown Door/Window
Sensor Magnet Spacer 25/pk
60-799 Sensor Case, White 5/pk
60-799-11 Sensor Case, Brown 5/pk
60-831-10 Magnet & Case, White
10/pk
60-831-11 Magnet & Case, Brown
10/pk
60-600 1.5 VDC AA alkaline battery
60-737 Swivel mount
60-709 Fresnel Animal Alley Lens 3/pk
(only compatible with 60-639-95R)
60-600 1.5 VDC AA Alkaline Battery
Two 1.5 VDC AA alkaline batteries
3-4 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall mounting
3" wide x 3" high x 3" deep (+1.25" with
mounting bracket)
Outdoor PIR Motion Sensor
8
Interactive Technologies, Inc.
CRYSTAL INTRUSION SENSORS
Simon Security System
Crystal Intrusion Sensors
Description/Features
Protects anything that opens and closes,
such as doors, windows, jewelry cases, and
gun cabinets
For low and average traffic areas
Built-in terminal strip for connecting
hardwire contacts
2 internal reed switches allow for vertical
or horizontal mounting
Specifications
Accessories
3.5 VDC ½ AA lithium battery
5-8 year battery life
2 internal reed switches
1.56" wide x 3.25" high x .88" deep
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Flat surface mounting
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
60-189 Belgian Gray Sensor Spacers
20/pk
60-191 Brown Sensor Spacers 20/pk
60-188 Belgian Gray Magnet Spacers
25/pk
60-190 Brown Magnet Spacers 25/pk
60-260 Sensor Case, Belgian Gray 5/pk
60-261 Sensor Case, Brown 5/pk
60-555-10, 11 Magnets (includes
plastic) 10/pk
466-1045 Door/Window Sensor
Specification Sheet 50/pk
3.5 VDC AA lithium battery (permanent)
20-year battery life
2 internal reed switches
1.56" wide x 3.25" high x .88" deep
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Flat surface mounting
60-189 Belgian Gray Sensor Spacers
20/pk
60-191 Brown Sensor Spacers 20/pk
60-188 Belgian Gray Magnet Spacers
25/pk
60-190 Brown Magnet Spacers 25/pk
60-260 Belgian Gray Sensor Case 5/pk
60-261 Brown Sensor Cases 5/pk
60-555-10 Belgian Gray Magnets
(includes plastic) 10/pk
60-555-11 Brown Magnets (includes
plastic) 10/pk
466-1048 Long Life Sensor
Specification Sheet 50/pk
60-362-10-319.5
Belgian Gray Door/Window Sensor
60-362-11-319.5
Brown Door/Window Sensor
Protects anything that opens and closes,
such as doors, windows, jewelry cases, and
gun cabinets
For low and average traffic areas
Built-in terminal strip for connecting
hardwire contacts
2 internal reed switches allow for vertical
or horizontal mounting
60-641-95
Belgian Gray Long-Life
Door/Window Sensor
60-641-11-95
Brown Long-Life Door/Window
Sensor
Installs on anything that opens or closes
Small size and low profile
Provides sharp and clean installations
User replaceable battery
* This sensor does not have a built-in
terminal switch.
60-688-95
Belgian Gray Micro Door/Window
Sensor
60-688-11-95
Brown Micro Door/Window Sensor
Protects doors and windows where the
sensor should be concealed
Sensors are completely concealed when
installed
Fixed lithium battery (soldered)
3 VDC Coin Cell Lithium Battery (CR
60-699 3 VDC 190 mAh Coin Lithium
Battery 10/pk
60-729 Belgian Gray Magnet (includes
plastic) 10/pk
60-729-11 Brown Magnet (includes
plastic) 10/pk
466-1211 Micro Door/Window Sensor
Specification Sheet 50/pk
60-717 Belgian Gray DWS Adapter
(Screw Mount) 25/pk
* Actual battery life depends on how often 60-717-11 Brown DWS Adapter
the sensor is activated.
(Screw Mount) 25/pk
60-745 Belgian Gray Sensor Case 5/pk
60-745-11 Brown Sensor Case 5/pk
2032)
5-8 year battery life*
10 -120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Flat surface mounting
.8" wide x 1.75" high x .5" deep
3.5 VDC ½ AA lithium battery
12-16 year battery life
Recessed mount in 5/8” hole
Magnet can be mounted using 5/8”
sleeve, or 1/2” hole
Supervisory report every 64 minutes
10 to 120 °F operating temperature
466-1501 Micro Recessed
Door/Window Sensor Specification
Sheet 50/pk
60-741-95
Micro Recessed Belgian Gray
Door/Window Sensor
60-741-11-95
Micro Recessed Brown D/W Sensor
Interactive Technologies, Inc.
9
CRYSTAL INTRUSION SENSORS
Simon Security System
Crystal Intrusion
Sensors –Continued
Description/Features
Specifications
Protects anything that opens
60-499-10-319.5
Accessories
3.5 VDC ½ AA lithium battery (send to
and closes where the sensor mounting area
ITI to replace)
is limited, such as narrow casements and 5-8 year battery life
10 to 120 °F operating temperature
window frames
Slim design fits on most windows.
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Flat surface mounting
.31" wide x 4.94" high x
.88" deep
80-089-10 Belgian Gray Sensor
Detects movement inside an enclosed
Case 5/pk
80-089-11 Brown Sensor Case
5/pk
Slim Line Belgian Gray
Door/Window Sensor
60-499-11-319.5
Slim Line Brown D/W Sensor
60-511-01-95
DS924i PIR Motion Sensor
60-511-02-95
DS924i Pet Immune PIR Motion
Sensor
structure
Use in large rooms, narrow corridors, and
stairwells
Passive infrared detection
3 sensitivity settings
Includes masking kit to adjust coverage
pattern
3-minute motion lockout to conserve
battery life
60-511-01-95:
Optional lenses to suit various installation
needs
60-511-02-95:
Adds pet immunity up to 40 pounds
Detects movement inside an enclosed
60-703-95
ITI Crystal PIR Motion Sensor
structure
Use in large rooms, narrow corridors, and
stairwells
Passive infrared detection
3-minute motion lockout to conserve
battery life
Optional pet lens
Two sensitivity settings
Mounting kit included to adjust coverage
pattern
Small and unobtrusive
Responds to frequencies generated by
breaking glass
Installs in rooms with many windows or a
large picture window
Detection coverage of 360° up to 15' away
Detects sound of breaking glass (including
tempered glass) .06" - .25" thick
Sensitivity preset by manufacturer
3.5 VDC ½ AA lithium battery
3-5 year battery life
Standard 70° lens coverage is 35' x 40'
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall mounting
2.75" wide x 4.38" high x 1.75" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
13-286 DS924 70' Long Range Lens
3/pk
13-287 DS924 78° x 35' Pet Lens 3/pk
13-288 DS924 110° x 35' Wide Angle
Lens 3/pk
13-318 DS924 35' Barrier Lens 3/pk
13-319 DS924 85° x 70' Dual Corridor
Lens 3/pk
13-320 DS924 10° x 70' Long Range
Pet Lens 3/pk
13-359 DS924 Mounting Bracket
466-1145 DS924i PIR Specification
Sheet 50/pk
Two 1.9 VDC AA lithium batteries
3-4 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall mounting
2.5" wide x 3" high x 2" deep
60-619 1.9 VDC AA Lithium Batteries
6/pk
60-709 Fresnel Animal Alley Lens 3/pk
3.5 VDC ½ AA lithium battery
5-8 year battery life
Audio microphone
10 to 120 °F operating temperature
Supervisory report every 64 minutes
Belgian gray
Wall or ceiling mounting
4.38" diameter x 2" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
13-332 Sound Sensor Tester
60-459-319.5
Sound Sensor
10
Interactive Technologies, Inc.
CRYSTAL INTRUSION SENSORS
Simon Security System
Crystal Intrusion
Sensors–Continued
Description/Features
Responds to frequencies generated by
60-834-95
FlexGuard® Dual Disturbance Sound Sensor
breaking glass
Installs in rooms with many windows or a
large picture window
Detection coverage up to 25' away in any
direction
Includes a flex and audio microphone
Adjustable flex sensitivity
Test LEDs for flex sensitivity and audio
range settings
Uses two 3.5 VDC AA batteries or one
9 VDC battery
Replaces the Intellisense Sound Sensor
(part number 60-582-10-319.5)
Installs on windows to detect
60-461-10-319.5
Belgian Gray Shock Sensor
openings/closings and breaking glass or
splintering wood
Detects breaking glass or splintering wood
up to 5' away
Shock detector can be mounted inside or
outside sensor case
2 built-in reed switches allow for vertical
or horizontal mounting to detect window
openings/closings
Adjustable sensitivity
Specifications
Two 3.5 VDC AA lithium batteries
3.5 VDC ½ AA lithium battery
5-8 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Window frame mounting
1.56" wide x 4.88" high x .94" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
80-006-10, 11 Belgian Gray, Brown
Sensor Spacer 20/pk
13-005, 011 Belgian Gray, Brown
Surface Mount Litton® Shock Detector
SP3237
60-267 Belgian Gray Sensor Case 5/pk
60-268 Brown Sensor Case 5/pk
13-214 Litton Shock Detector (fits
inside case)
13-215 Belgian Gray Litton Recessed
Mount Shock Detector
3.5 VDC 1/2 AA lithium battery
5-8 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray or brown
Glass mounting with adhesive pads
(included)
1.5" wide x 3.25" high x .88" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
13-067 Glass Guard Adhesive Pad
50/pk
Brown Shock Sensor
60-462-10-319.5
windows, gun cabinets, etc., to detect
breaking glass
5' sensitivity radius
Adheres to glass being protected
Can be mounted anywhere on glass, at
least 1" from glass frame
Built-in terminal strip for connecting
hardwire contacts
60-619 3.5 VDC AA Lithium Battery
6/pk
13-332 Sound Sensor Tester
(included) or one 9 VDC alkaline or
lithium battery
5-8 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall or ceiling mounting
4.13" wide x 4.75" high x 1.25" deep
60-461-11-319.5
Mounts directly onto glass in doors and
Accessories
Belgian Gray Glass Break Sensor
60-462-11-319.5
Brown Glass Break Sensor
Interactive Technologies, Inc.
11
FIRE AND SMOKE
Simon Security System
Fire and Smoke Sensors
Description/Features
Produces an alarm and sends an alarm
60-645-95
System Sensor™ Smoke
Sensor 2300 RF
signal to the control panel when smoke is
detected
Use in bedrooms, hallways, stairwells, etc.
Most suitable for detecting slow
smoldering fires
Photoelectric smoke detector
Built-in siren
Built-in low battery annunciator
60-645-95:
Low battery signal sent to control panel 7
days prior to low battery chirp
Notifies user when sensor needs to be
cleaned
Installer-serviceable chamber cleaning
Specifications
Accessories
32 to 100 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
White
Wall or ceiling mounting
5.5" diameter x 2.5" deep
60-645-95:
Two 3V 2/3 A lithium batteries
5 year battery life
60-506-319.5:
Two 9 VDC alkaline or lithium batteries
1 year alkaline battery life
2 year lithium battery life
60-814 9 VDC Eveready Energizer
Alkaline Battery - UL listed 3/pk
60-811 9 VDC, 550 mAh, Duracell
Alkaline Battery - UL listed 3/pk
60-733 3 VDC 2/3 A Lithium Battery
6/pk
466-1301 2300 RF Smoke
Specification Sheet 50/pk
One 9 VDC alkaline or lithium battery
1 year alkaline battery life
2 year lithium battery life
40 to 100 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Wall or ceiling mounting
4.5" diameter x 2.25" deep
60-814 9 VDC Eveready Energizer
Alkaline Battery - UL listed 3/pk
60-811 9 VDC, 550 mAh, Duracell
Alkaline Battery - UL listed 3/pk
60-813 9 VDC, 1.2 Ah, UltraLife
Lithium Battery - UL listed
3.5 VDC ½ AA lithium battery
5-8 year battery life
Manually activated
Reset with key (included)
40 to 100 °F operating temperature
Supervisory report every 64 minutes
Red case
Wall mounting
3.38" wide x 3.38" high x 1.88" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
60-506-319.5
System Sensor™ Smoke
Sensor 2100 RF
Responds to high temperatures or rapid
temperature changes
Use in kitchens, bathrooms, garages, etc.
Provides detection in spaces up to
2,500 sq. ft.
Activates when temperature increases
15 °F/minute or greater
Fixed temperature sensor activates at
135 °F
60-460-319.5
Rate-of-Rise Heat Sensor
60-460-319.5-LB
Rate-of-Rise Heat Sensor w/Lithium
Battery
Allows a person to activate a fire alarm in
the event of a fire
Use in residential or commercial sites
Manually activated
Built-in transmitter
Clear shield protects activation switch
Easily resets with key
60-589-319.5
Fire Pull Station Sensor
12
Interactive Technologies, Inc.
ENVIRONMENTAL SENSORS
Simon Security System
SAW Environmental
Sensors
Description/Features
Detects water leaks in home or business
Uses two parts: a detector wired to the
transmitter
Specifications
Accessories
60-710 1.5 VDC AAA Alkaline Battery
Two 1.5 VDC AAA alkaline batteries
6/pk
3-5 year battery life
10 to 120 °F operating temperature
Belgian gray
Flat surface mounting
Detector: 0.94" wide x 1.80" high x 0.50"
deep
1.13" wide x 4.25" high x 0.94" deep
60-744-95R
Water Sensor
Detects when temperature drops
below 41 °F
Use to detect furnace failure in home or
business
Two 1.5 VDC AAA alkaline batteries
3-5 year battery life
10 to 120 °F operating temperature
Supervisory report every 64 minutes
Belgian gray
Flat surface mounting
1.13" wide x 4.25" high x 0.88" deep
60-710 1.5 VDC AAA Alkaline Battery
6/pk
3.5 VDC ½ AA lithium battery
5-8 year battery life
10 to 120 °F operating temperature
Tamper switch
Supervisory report every 64 minutes
Belgian gray
Flat surface mounting
1.56" wide x 4.88" high x .94" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
80-006-10 Belgian Gray Sensor
Spacer 20/pk
80-006-11 Brown Sensor Spacer
20/pk
60-742-95R
Freeze Sensor
Crystal Environmental
Sensors
Detects furnace failure in residential or
60-504-10-319.5
Freeze Sensor
commercial sites by detecting when the air
temperature falls below 45 °F
Use in climates where temperatures can
drop below 32 °F
Monitors the temperature in an open area
up to 900 sq. ft.
Sends alarm signal to control panel when
air temperature falls below 45 °F
Sends restore signal to control panel when
temperature increases to 55 to 60 °F
Detects hazardous levels of carbon
60-652-95
Carbon Monoxide Sensor
monoxide gas
Internal siren sounds and red light comes
on when dangerous levels of gas are
present
Transmits alarm signal to control panel
when dangerous levels of gas are present
Sensor adjusts response time to carbon
monoxide levels present
Green light indicates detector is
functioning properly
Plugs into standard outlet
Note:
Gases NOT detected: methane, butane,
heptane, ethyl alcohol, isopropyl alcohol,
carbon dioxide, and propane.
110 VAC @ 60 Hz, 7W power
requirement
102-132 VAC operating voltage
2.5W average standby power
3.5 VDC ½ AA lithium battery for
transmitter
5-8 year sensor battery life
85 dB @ 10' for 4 minutes minimum
internal siren output
Time and CO PPM present for alarm to
Interactive Technologies, Inc.
sound:
<15 minutes @ 400 PPM
<35 minutes @ 200 PPM
<90 minutes @ 100 PPM
40 to 100 °F operating temperature
Supervisory report every 64 minutes
White case, green label
110 VAC grounded non-switched outlet
mounting
6.5" wide x 3.5" high x 2.25" deep
13
PANIC SENSORS
Simon Security System
Crystal Emergency Panic
Sensors
Description/Features
Designed to go just about anywhere, this
60-578-10-95
Water-Resistant Pendant Panic
Sensor
sensor allows a person to activate a
24-hour emergency alarm
Water resistant
Recessed panic button prevents false
alarms
Can be worn around neck
Built-in belt clip allows sensor to be
attached to belt or purse
Can be supervised
Wall mounting option
Allows a person to wear the sensor and
activate a 24-hour emergency alarm
Recessed panic button prevents false
alarms
Can be worn around neck
Can be supervised
Specifications
Accessories
3.5 VDC ½ AA lithium battery
5-8 year battery life
Water and shock resistant
40°-100°F operating temperature
Supervisory report every 64 minutes
Belgian gray, gray button
Necklace cord (included), belt clip
(included), and wall mounting
1.75" wide x 2.25" high x .75" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
80-116 Wall Mount Bracket 5/pk
3.5 VDC ½ AA lithium battery
5-8 year battery life
40°-100°F operating temperature
Supervisory report every 64 minutes
Belgian gray
Necklace (cord included) and belt
holster mounting
1.56" wide x 3.81" high x 1" deep
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
13-161 Black Leather Belt Holster
60-813 3.5 VDC ½ AA Lithium Battery
25/pk
60-452-10-319.5
Pendant Panic Sensor
Allows a person to activate a 24-hour
60-457-10-319.5
Double Button Panic Sensor
60-458-10-319.5
Single Button Panic Sensor
14
emergency alarm
60-457: Two buttons must be pressed
together, reducing the likelihood of false
alarms
60-458: Single button press for easy alarm
activation
Can be supervised
Can be wall mounted
3.5 VDC ½ AA lithium battery
5-8 year battery life
40°-120°F operating temperature
Supervisory report every 64 minutes
Belgian gray
Portable or wall mounting
2.56" wide x 4" high x .94" deep
Interactive Technologies, Inc.
X-10 MODULES AND CENTRAL STATION MONITORING
Simon Security System
X-10 Lighting and
Appliance Control
Description/Features
Specifications
Accessories
15 Amps, 500W
500W appliances
Communicates through existing AC wiring; 120 VAC @ 60 Hz power requirement
no additional wiring needed
Controls appliances such as fans,
dehumidifiers, and stereos, using Simon
scheduling capabilities
13-079
X-10 Appliance Module
Provides system and user control of lamps For use with 300W max incandescent
(up to 300W)
lights only
Communicates through existing AC wiring; 120 VAC @ 60 Hz power requirement
no additional wiring needed
White
Turns lights on during a fire or auxiliary
2.25" wide x 2.75" high x 1.25" deep
alarm
Blinks lights during police alarm
Blinks lights to indicate arming level
Turns lights on for 5 minutes when system
13-204
X-10 Powerhouse Series
Lamp Module
is armed/disarmed
13-403:
Automatic gain control—more reliable.
13-403
X-10 Pro Series Lamp Module
Activates a relay for devices such as garage 120 VAC @ 60 Hz power requirement
door openers, sprinklers, and curtains with Provides isolated relay contacts to
a 4-Button Keychain Touchpad
Built-in low volume siren
Open/close command can be set for
momentary or continuous open/close
control devices rated up to 5A @ 24
VDC (100 VA @ 30 VAC)
Rated for devices up to 30 VDC
White
2.25" wide x 3.5" high x 1.75" deep
13-399
Universal Relay Module
Automates indoor or outdoor lights,
including: porch, patio, hallway, and
stairway lights.
500W appliances
120 VAC @ 60 Hz power requirement
13-397
2-Way Wall Switch Module
13-461
Screw-in Lamp Module
Screws into the light socket
Works with incandescent lights
Turns lights on during a fire or auxiliary
alarm
Blinks lights during police alarm
Blinks lights to indicate arming level
Interactive Technologies, Inc.
For use with 150W max incandescent
lights only
1.25" wide x 2.5" high with a 3/8” bump
on one side.
15
X-10 MODULES AND CENTRAL STATION MONITORING
Simon Security System
Central Station
Monitoring
Description/Features
60-766
CS-5000 Central Station Receiver
Provides control panel monitoring
Monitors all ITI systems
Monitors most communications formats
Provides ITI and SIA (Security Industry
Association) standard format
Communication outputs for computer
automation applications
Built-in CRT
4 telephone line connections
3 RS-232 outputs
Backup batteries
Specifications
Accessories
110 VAC @ 60 Hz or 220 VAC @ 50 Hz 13-352 Okidata® Printer
operating voltage
13-227 Proxima® Surge Suppressor
(not included)
60-417 Phone Line and Card
46-056 Installation and Operator’s
Guide
46-081 CS-5000 Full Color Brochure
12 VDC, 6.5 Ah lead acid backup battery 13-248 12V, 6.5 Ah Backup Battery
Chassis: Rack mountable, anodized
aluminum desktop chassis; "tool-less"
front panel access to all changeable
cards; holds up to 12 line cards
19" wide, 5.75" high, 11.5" deep
Continuous call throughput from 12 line
cards simultaneously receiving SIA DCS
events at 300 baud
Automatic line card interpretations of
Modem, FSK/BFSK, Tone Burst, and
DTMF formats
500 call minimum call history memory.
Built-in test and diagnostics
Includes one line card
Remote Programming
Software
Software application that allows control
60-675-WIN
ITI ToolBox for Windows
16
panels to be programmed from a PC
Uploads control panel information for new
accounts
Downloads control panel information for
new installations
Updates existing control panel
programming
Easy, menu-driven interface
On-line help
Stores database of control panel accounts
on a PC hard disk
Y2K Compliant
Package includes:
Up to two 3.5" high density disks
User’s Guide
On-line help
Minimum system required:
Windows 3.1 or later
60-719 ToolBox Modem Kit
386/25 MHz IBM® or compatible PC
Hayes™ or compatible modem
8 MB free hard disk space
Interactive Technologies, Inc.
SALES, PRINT, AND VIDEO MATERIALS
Simon Security System
Sales, Print, and Video
Materials
Description/Features
Provides an effective way to demonstrate
Express to business and residential
customers.
80-213-2
Simon Demonstration Kit
Specifications
Accessories
Kit Includes:
Control panel with integrated two-way
voice
(2) SAW door/window sensors
(1) 4-button keychain touchpad
(1) X-10 Pro siren
(1) X-10 Pro lamp module
ITI PIR motion detector housing (not
operational)
(1) 9 VAC Class II line carrier transformer
Provides an overview of the Simon Security
System.
Four color
Glossy
8.5” high x 11” wide
8 pages
50/pk
Four color
Glossy
8.5” high x 11” wide
2 pages
50/pk
466-1397
Simon End-User Brochure
466-1401
Simon End-User Feature/Benefit
Sheet
Interactive Technologies, Inc.
17
SALES, PRINT, AND VIDEO MATERIALS
Simon Security System
Sales, Print, and Video
Materials–Continued
Description/Features
Specifications
Accessories
Provides an overview of some wireless SAW
sensors available and their applications
Four color
Glossy
4” wide x 9” high (folded)
16 pages
25/pk
466-1504-SAW
SAW Wireless Sensor Brochure
466-1504-CRY
Crystal Wireless Sensor Brochure
466-1540-01
Simon Installation Video
466-1492-01
Installation and User’s Guides:
Provides complete operating instructions
for the security system.
3-hole punched
8.5” wide x 11” high
One included with each panel.
Installation and User’s Videos:
Provides an overview and basic instructions
for operating. One video is included with
each panel.
15 minutes
Full color
Simon Owner’s Video
466-1574
Simon Installation Instructions
466-1575
Simon Owner’s Manual
Provides installation, setup, and
programming procedures.
3-hole punched
8.5” wide x 11” high
Available upon request
466-1511
Simon Student Training Guide
18
Interactive Technologies, Inc.
ORDERING AND RETURNING PRODUCTS
Simon Security System
Orders
Orders usually ship within one working day. Orders become
effective only when accepted by ITI upon shipment or
written confirmation.
To Order by Phone:
Call Customer Service at 1.800.777.4841
Monday-Friday, 7:00 am-6:00 pm CST
To Order by Fax:
Call 1.800.777.4842
Seven days a week, 24 hours a day.
Returns
Before returning product, call ITI Customer Service to obtain
a Return Merchandise Authorization (RMA) number. The
RMA number must be clearly marked on the outside of the
shipping carton.
For repairs or credits, call Customer Service. If a product is
defective when received, call ITI Technical Services for an
advanced replacement authorization.
For Credits or Repairs:
Call Customer Service at 1.800.777.4841
Monday-Friday, 7:00 am-6:00 pm CST
For an Advanced Replacement or Technical Information:
Call Technical Services at 1.800.777.2624
Monday-Friday, 7:00 am-8:00 pm CST
Return Merchandise with an RMA Number* to:
ITI
2266 North 2nd Street
North St. Paul, MN 55109-2900
* Write the RMA number on the outside of the shipping
carton.
Terms and Conditions
Terms
Payment options include MasterCard®/Visa®, prepay, or COD
until credit is established. Terms are available by contacting
ITI credit. Full description of terms provided on request and
when an account is established with ITI.
Sales Tax
Applicable sales tax is charged unless a Certificate of
Exemption is on file with ITI. GST is added to orders shipped
to Canada.
Shipping
Shipments leave daily from our warehouses via UPS. Air
shipment services are available upon request at the time of
order. All shipments are F.O.B. ITI’s warehouse.
Claims
Title is passed to common carrier or authorized agent upon
delivery of the order. All damage claims must be turned into
the shipping company by the customer receiving the goods.
Original shipping cartons must be saved, because claims are
typically not processed without them. Claims must be made
within 5 days of receipt of merchandise.
Warranty
ITI’s current warranty policies are honored. See the ITI
Limited Warranty for details.
Right to Purchase
You must be an authorized ITI dealer purchase product from
ITI. Possession of this document does not constitute the right
to purchase.
Minimum Order
New dealers may have an initial purchase requirement.
International Sales
All international sales are made through ITI International,
Inc. F.O.B. St. Paul, MN, USA. All prices quoted are payable
in United States dollars.
Disclaimer
All prices, terms, and specifications are subject to change
without notice. Price in effect at time shipment will apply.
Trademarks
ITI, the ITI logo, ToolBox, Learn Mode, Simon, SuperBus, and
Quik Bridge are trademarks of Interactive Technologies, Inc.
All other marks are the property of their respective owners.
Contacting ITI
Phone
Fax
Advanced
Replacement RMAs
800.777.2624
N/A
Corporate Offices
800.777.5484
651.779-4890
Credit
800.777.5484
800.773.4633
Customer Service:
Orders and Repair
RMAs
800.777.4841
800.777.4842
Field and Inside Sales
800.777.1415
651.773.2404
Technical Services
800.777.2624
651.779.4888
Training
800.777.8166
800.777.4842
Web Site
www.itii.com
Pick-Up
Arrangements can be made to pick up orders at the nearest
regional warehouse. Please indicate your order as a Will Call
when placing your order. Place order 24 hours before your
planned pick-up time.
Interactive Technologies, Inc.
19
INDEX
by Product Part Number
13-046 Hardwire Exterior Piezo Siren 6
13-079 X-10 Appliance Module 15
13-204 X-10 Powerhouse Series Lamp Module 15
13-397 2-Way Wall Switch Module 15
13-399 Universal Relay Module 15
13-403 X-10 Pro Series Lamp Module 15
13-461 Screw-in Lamp Module 15
466-1397 Simon End-User Brochure 17
466-1401 Simon End-User Feature/Benefit Sheet 17
466-1492-01 Simon Owner’s Video 18
466-1504-CRY Crystal Wireless Sensor Brochure 18
466-1504-SAW SAW Wireless Sensor Brochure 18
466-1511 Simon Student Training Guide 18
466-1540-01 Simon Installation Video 18
466-1574 Simon Installation Instructions 18
466-1575 Simon Owner’s Manual 18
60-362-10-319.5 Belgian Gray Door/Window Sensor 9
60-362-11-319.5 Brown Door/Window Sensor 9
60-452-10-319.5 Pendant Panic Sensor 14
60-457-10-319.5 Double Button Panic Sensor 14
60-458-10-319.5 Single Button Panic Sensor 14
60-459-319.5 Sound Sensor 10
60-460-319.5 Rate-of-Rise Heat Sensor 12
60-460-319.5-LB Rate-of-Rise Heat Sensor w/Lithium Battery 12
60-461-10-319.5 Belgian Gray Shock Sensor 11
60-461-11-319.5 Brown Shock Sensor 11
60-462-10-319.5 Belgian Gray Glass Break Sensor 11
60-462-11-319.5 Brown Glass Break Sensor 11
60-499-10-319.5 Slim Line Belgian Gray Door/Window Sensor 10
60-499-11-319.5 Slim Line Brown D/W Sensor 10
60-504-10-319.5 Freeze Sensor 13
60-506-319.5 System Sensor Smoke Sensor 2100 RF 12
60-511-01-95 DS924i PIR Motion Sensor 10
60-511-02-95 DS924i Pet Immune PIR Motion Sensor 10
60-589-319.5 Fire Pull Station Sensor 12
60-606-319.5 4-Button Crystal Keychain Touchpad 5
60-607-319.5 2-Button Crystal Keychain Touchpad 5
60-615-10-319.5 Quik Bridge Learn Mode Repeater 11
60-639-95R Indoor PIR Motion Sensor 8
60-639-95R-OD Outdoor PIR Motion Sensor 8
60-641-11-95 Brown Long-Life Door/Window Sensor 9
60-641-95 Belgian Gray Long-Life Door/Window Sensor 9
60-645-95 System Sensor Smoke Sensor 2300 RF 12
60-652-95 Carbon Monoxide Sensor 13
60-659-95R 4-Button SAW Keychain Touchpad 5
60-670-11-95R Brown Door/Window Sensor 8
60-670-95R Belgian Gray Door/Window Sensor 8
60-671-95R SAW HiTech Hand Held Touchpad 5
Interactive Technologies, Inc.
60-675-WIN ITI ToolBox for Windows 16
60-688-11-95 Brown Micro Door/Window Sensor 9
60-688-95 Belgian Gray Micro Door/Window Sensor 9
60-694-95R 5-Button SAW Keychain Touchpad 5
60-703-95 ITI Crystal PIR Motion Sensor 10
60-707-95R 2-Button SAW Keychain Touchpad 5
60-712 9 VAC Line Carrier Transformer 4
60-713 9 VDC Lithium Battery 4
60-720 Simon Table Mounting Base 3
60-736-95 Supervised Wireless Interior Siren (SWIS) 6
60-741-11-95 Micro Recessed Brown D/W Sensor 9
60-741-95 Micro Recessed Begian Gray Door/Window Sensor 9
60-742-95R Freeze Sensor 13
60-744-95R Water Sensor 13
60-766 CS-5000 Central Station Receiver 16
60-776-01-95R Simon Control Panel with
Integrated 2-Way Voice 3
60-776-01-95R Simon Control Panel with
Integrated Two-Way Voice 3
60-776-95R Simon Control Panel 3
60-785 7.2, 24 hr VDC Battery 4
60-788-95R TouchTalk 2-Way RF TouchTalk Touchpad 5
60-795 7.2, 18 hr VDC Battery 4
60-807-95R Indoor PIR Pet Immune Motion Sensor 8
60-834 FlexGuard® Dual Disturbance Sound Sensor 11
80-213-2 Simon Demonstration Kit 17
©Interlogix, Inc. August 2000
Specifications subject to change.
Some features are optional.
Document Number: 466-1242-SM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
