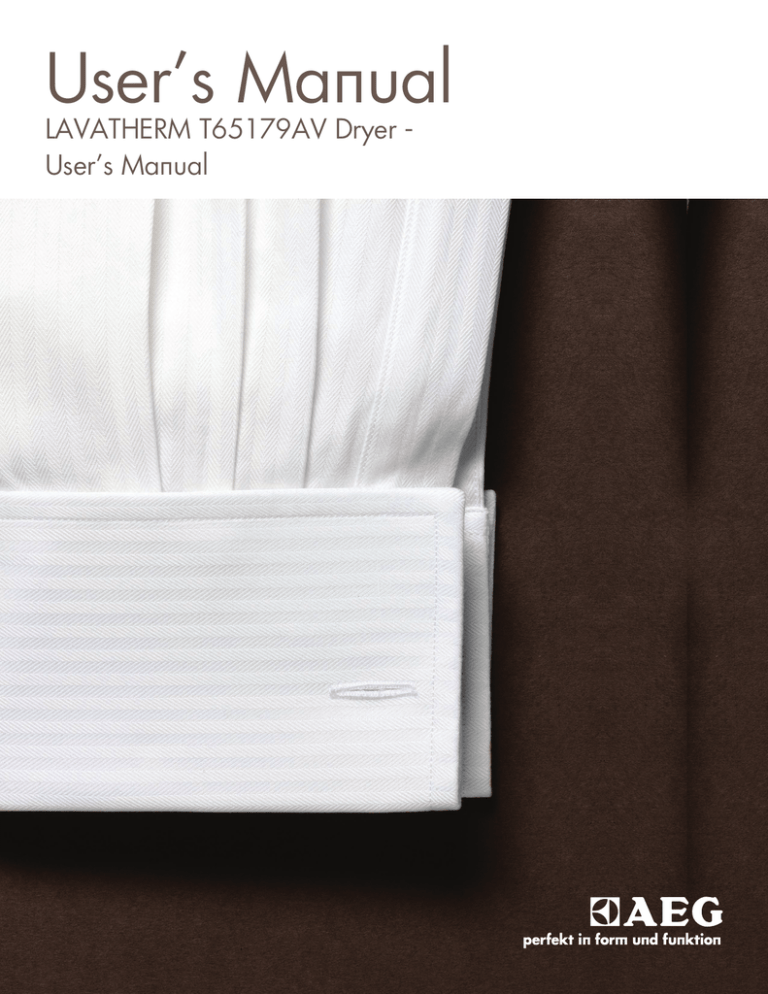

User’s Manual
LAVATHERM T65179AV Dryer User’s Manual
2
CONTENTS
4
7
8
9
10
10
11
13
15
16
18
20
21
SAFETY INFORMATION
ENVIRONMENT CONCERNS
PRODUCT DESCRIPTION
ACCESSORIES
CONTROL PANEL
BEFORE FIRST USE
PROGRAMMES
USING THE APPLIANCE
HINTS AND TIPS
CARE AND CLEANING
TROUBLE SHOOTER AND SERVICE
TECHNICAL INFORMATION
INSTALLATION
SERVICE
When contacting Service, ensure that
you have the following data available.
The information can be found on the
rating plate.
Model
PNC
Serial Number
The following symbols are used in this
user manual:
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice
ENGLISH
3
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
www.aeg.com
4
SAFETY INFORMATION
In the interest of your safety and to
ensure the correct use, before installing and first using the appliance,
read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation
and safety features. Save these instructions and make sure that they
remain with the appliance if it is
moved or sold, so that everyone using it through its life will be properly
informed on appliance use and safety.
- Read the instruction manual before the appliance use.
GENERAL SAFETY
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• This appliance is not intended for use
by persons (including children) with
reduced physical and sensory conditions or lack of experience and
knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Make sure that small children and
pets do not climb inside the drum.
To avoid this, please check into the
drum before using.
• Any objects such as coins, safety
pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be
placed into the machine.
• Items such as foam rubber (latex
foam), shower caps, waterproof textiles (if there is no special drying programme), rubber backed articles and
clothes or pillows fitted with foam
rubber pads must not be dried in the
tumble dryer.
• Make sure that there is access to the
mains plug after the installation.
• Always unplug the appliance after
use, cleaning and maintenance.
• Under no circumstances should you
attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your
local Service Centre. Always insist on
genuine spare parts.
• Items that have been soiled with substances such as cooking oil acetone,
petrol, kerosene, spot removers, turpentine, waxes and wax removers
should be washed in hot water with
an extra amount of detergent before
being dried in the tumble dryer.
• Danger of explosion: Never tumble
dry items that have been in contact
with inflammable solvents (petrol,
methylated spirits, dry cleaning fluid
and the like). As these substances are
volatile, they could cause an explosion. Only tumble dry items washed
with water.
• Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard
and should not be placed in the tumble dryer.
• If you have washed your laundry with
stain remover you must execute an
extra rinse cycle before loading your
tumble dryer.
• Please make sure that no gas lighters
or matches have accidentally been
left in pockets of garments incase
they are loaded into appliance
• The condensed water is not applicable to drink or to prepare food. It can
cause health problems to people and
pets.
• Do not seat or lean on the load door.
The appliance can tilt.
ENGLISH
WARNING!
• Risk of fire! To prevent from
the risk of self combustion
do not stop a tumble dryer
before the end of the drying cycle unless all items are
quickly removed and spread
out so that the heat is dissipated.
• Lint must not be allowed to
accumulate around the tumble dryer.
• Risk of electric shock! Do not spray
down the appliance with jets of water.
• The final part of a tumble dryer cycle
occurs without heat ( cool down cycle ) to ensure that the items are left
at a temperature that ensures that
items will not be damaged.
• The tumble dryer is not to be used if
industrial chemicals have been used
for cleaning.
• Ensure you have good ventilation in
the installation room to avoid the
back flow of gases into the room
from appliances burning other fuels,
including open fires.
INSTALLATION
• This appliance is heavy. Be careful
when you move the appliance.
• When unpacking the appliance,
check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.
• All packaging must be removed before use. Dangerous damage can occur to the product and to property if
this is not adhered to. See relevant
section in the user manual.
• Each electrical work necessary to install this appliance must be done by
a qualified electrician or competent
person.
• The rear surface of the appliance
must be put against the wall
• If the appliance is installed on the
carpet or equivalent, adjust the feet.
5
Air must flow freely below the appliance.
• After the appliance installation, check
that it is not squeeze or stay on the
electrical supply cable.
• If the tumble dryer is put on top of a
washing machine, it is mandatory to
use the stacking kit (optional accessory - see chapter: "ACCESSORIES").
• After having installed the appliance,
check that it is not pressing or standing on its inlet hose.
USE
• This appliance is for domestic use
only. It must not be used for other
functions .
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on each piece of clothing
label.
• Do not dry not washed items in the
tumble dryer.
• Do not put more load than recommended. Obey the maximum load
volume. See the related chapter in
the user manual.
• Clothes which are dripping wet must
not be put in the tumble dryer.
• Garments which have been in contact
with volatile petroleum products
should not be machine dried. If volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the appliance.
• Do not use the tumble dryer if the
power supply cable, the control panel, the working surface or the base
are damaged so that the inside of
the tumble dryer is accessible.
• Fabric softener or equivalent products must be used as specified by the
fabric softener manufacturer.
• Risk of fire! Do not dry the damaged
items which contain padding or fillings (pillows, jackets, duvets, etc.).
The padding or fillings can get out
and cause the fire.
6
•
Hot surface: Do not touch the
door light cover surface when the
light is switched on1).
•
Hot surface: Do not touch the
back of the appliance while it is operating!
CHILD SAFETY
• This machine is not intended for use
by young children or infirm persons
without supervision.
• Children often do not recognise the
hazards associated with electrical appliances. Children should be supervised to ensure that they do not play
with the appliance.
WARNING!
• Danger of suffocation! The
packaging components (e.g.
plastic film, polystyrene) can
be dangerous to children Keep them out of children’s
reach.
1) Only dryers equipped with internal drum light.
• Keep all detergents in a safe place
out of children’s reach.
• Make sure that children or pets do
not climb inside the drum.
DISCARD THE APPLIANCE
• Disconnect the mains plug from the
mains socket.
• Cut off the mains cable and discard
it.
• Discard the door catch. This prevents
children or pets to be closed in the
appliance. There is a risk of suffocation.
ENGLISH
7
ENVIRONMENT CONCERNS
PACKAGING MATERIALS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
on the product or on its
The symbol
packaging indicates that this product
may not be treated as household
waste. Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by inappropriate waste
handling of this product. For more
detailed information about recycling of
this product, please contact your local
council, your household waste disposal
service or the shop where you
purchased the product.
8
PRODUCT DESCRIPTION
1
2
7
3
6
5
4
1 Control panel
2 Load door (reversible)
5 Plastic ring
6 Side/rear ventilation opening
3 Filter
4 Adjustable feet
7 Rating plate
ENGLISH
9
ACCESSORIES
STACKING KIT
Product name: PDSTP10.
Available from your authorized dealer.
To put the appliance higher at the level
which helps to easy load and remove
the laundry .
The drawer can be use for laundry storage e.g. : towels, cleaning products and
more.
Read carefully the instructions supplied
with the accessory.
VENT KIT
Product name: SKP11
Available from your authorized dealer.
Stacking kit can be used only with the
washing machines specified in the leaflet. See leaflet attached.
Read carefully the instructions supplied
with the kit.
PEDESTAL WITH THE DRAWER
Universal kit for vented dryers where an
outdoor outlet is not possible. The tank
collects lint and condensation, thus
avoiding dirt and damage due to moisture in the room where the tumble dryer is placed.
Read carefully the instructions supplied
with the kit.
10
CONTROL PANEL
1
2
9
8
7
6
5
4
3
1 Programme dial
2 Push button Delay start
6 Push button Buzzer
7 Push button Anticrease
3 Indication lamp: clean the filter
4 Push button Start/Pause
8 Push button Sensitive
9 Push button Delicate
5 Function status LED
BEFORE FIRST USE
Clean the tumble dryer drum with a
moist cloth or set a short programme
(e.g. 30 minutes time programme) with
the load of moist cloths.
ENGLISH
11
PROGRAMMES
Programmes
Load1)
Properties
Available
functions
Cottons
Extra dry
7 kg
To dry thick or multi- layered fabrics, e.g. terry towelling items,
bathrobes.
Strong dry
7 kg
To dry thick or multi- layered fabrics, e.g. terry towelling items,
bathrobes.
all2)
Cupboard
dry
7 kg
To dry fabrics of even thicknesses,
e.g. terry towelling items, knitwear,
towels.
all2)
Iron dry
7 kg
To dry normal thickness cotton or
linen laundry, e. g. bedding, table
linen.
all2)
3 kg
To dry thick or multi-layered fabrics, e. g. pullovers, bedding, table
linen.
all2)
Cupboard
dry
3 kg
To dry thin fabrics which are not ironed, e.g. easy care shirts, table
linen, baby clothes, socks, lingerie
with bones or wires.
all2)
Iron dry
3 kg
To dry thin fabrics which are also
to be ironed, e.g. knitwear, shirts.
all2)
Time 30’
1 kg
Time programme to dry individual
items of laundry.
all without
Sensitive
Refresh
1 kg
To refresh or gently cleaning textiles with commercially available
dry cleaning products.
all without
Sensitive
Bed Linen
3 kg
To dry bed linen such as: single
and double sheet, pillowcase, bedspread.
all without
Sensitive
Jeans
7 kg
To dry leisure clothing such as
jeans, sweat-shirts of different material thicknesses (e.g. at the neck,
cuffs and seams).
all2)
Sport
2 kg
To dry sportswear, thin fabrics, microfiber, polyester, which are not
ironed.
all without
Sensitive
all2)
Synthetic
Extra dry
Special
Fabric
mark
12
Programmes
Easy Iron
Wool Refresh
Load1)
Properties
Available
functions
1 kg
(or 5
shirts)
To dry easy care fabrics such shirts
and blouses; for minimum ironing
effort. The results can be different
for to the different types of fabric
and its finish. Put fabrics in the
tumble dryer straight. After the cycle, immediately remove dried fabrics and put on a cloths hanger.
all without
Sensitive
1 kg
To refresh the cloths made of
wool . The cloths become soft and
cosy. We recommend to remove
the cloths immediately after the
programme end.
Buzzer , Delay start
1) maximal weight of dry clothes
2) The Delicate and Sensitive functions cannot be set together.
Fabric
mark
ENGLISH
13
USING THE APPLIANCE
PREPARING THE LAUNDRY
LOADING THE LAUNDRY
Dry only the laundry applicable
to dry in the tumble dryer. Make
sure if the laundry is applicable
to dry in the tumble dryer. Do
the check of the fabric mark on
the clothes.
Fabric
mark
Property
Applicable to dry in the tumble dryer
Applicable to dry in the tumble dryer at standard temperature
Applicable to dry in the tumble dryer at decreased temperature
Not applicable to dry in the
tumble dryer
Correctly prepare the laundry:
• close zips, button up duvet covers
and attach loose ties or ribbons (e.g.
ribbons of aprons) - laundry can tangle
• make sure the pockets are empty remove metal items (paper clips,
safety pins, etc.).
• turn items with 2 fabric layers inside
out (e.g. cotton lined anoraks, the
cotton fabric layer must be external).
Dry only:
• cotton and linen with Cottons programmes
• synthetic and mixtures with Synthetic
programmes
• separately the strong coloured textiles and the light coloured textiles colours can bleed
• cotton jersey and knitwear only with
the applicable programmes - items
can shrink
Do not put more laundry than
the maximum load which is 7kg.
1. Push the appliance door (push
point).
2. Load loosely the laundry.
3. Close the appliance door.
CAUTION!
Do not lock the laundry in between the appliance door and
rubber seal.
SETTING A PROGRAMME
Use the programme dial to set the programme.
SPECIAL FUNCTIONS
Together with the programme you can
set special function or functions.
To activate or deactivate the function
push the applicable push button.
When the function is activated the LED
above the push button comes into the
view.
14
THE DELICATE FUNCTION
STARTING A PROGRAMME
To dry more lightly the sensitive and
temperature sensitive textiles (e.g.
acrylic, viscose). For fabrics with the
on the fabric label. Prosymbol
gramme operates with decreased heat.
THE SENSITIVE FUNCTION
To dry lightly of fabrics that are frequently worn. Programme starts on full
heat setting, which is then decrease as
the programme continue to be lightly
to the laundry.
THE ANTICREASE FUNCTION
Extends anticrease phase (30 minutes)
at the end of the drying cycle to 90 minutes. This function prevents laundry
from creases. Laundry can be removed
during the anticrease phase.
THE BUZZER FUNCTION
When the buzzer function is activated
you can hear the buzzer at the:
• cycle end
• anti-crease phase start and end
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
THE DELAY START FUNCTION
Let to delay the start of a drying
programme by 3, 6 or 9 hours.
1. Set the drying programme and
functions.
2. Push the Delay start button as
many times as necessary.
3. To activate the Delay start function,
push the Start/Pause button. The
LEDs (9H, 6H, 3H) change on each
3 hours.
To activate the programme push the
Start/Pause button. The LED above the
push button changes the colour to red.
CHANGE A PROGRAMME
To change a programme, turn the programme dial to
(off) and then set the
programme again.
AT THE END OF PROGRAMME
When the drying cycle is complete,
LEDs End and Filter are on . If the Buzzer function is on, an acoustic signal
sounds intermittently for about one minute.
The drying cycles (except for the
Wool care programme) are automatically followed by an anticrease phase which continue
around 30 minutes. The laundry
can be removed during the anticrease phase (The laundry
should be taken out towards the
end of the anti-crease phase at
the latest to prevent creases
from forming.) . If Anticrease
function is set, the anti-crease
phase is increased by 60 minutes.
To remove the laundry:
1. Turn the programme dial to
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
(off)
After each drying cycle: clean
the filter
(See chapter CARE AND
CLEANING.)
ENGLISH
15
HINTS AND TIPS
ECOLOGICAL HINTS
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
• Use the condensate as distilled water, e.g. for steam ironing. If necessary clean the condensate before (e.g.
with a coffee filter) to remove possible small pieces of fluff.
• Always keep the airflow slots on the
bottom of the appliance clear.
• Use the load volumes specified in the
programmes chapter.
• Make sure that is good airflow in the
appliance installation position.
• Clean the filter after each drying cycle.
• Spin good the laundry before drying.
AVERAGE LAUNDRY WEIGHTS
bathrobe
1200 g
quilt cover
700 g
man’s work shirt
600 g
man’s pyjamas
500 g
sheet
500 g
tablecloth
250 g
man’s shirt
200 g
night dress
200 g
pillow case
200 g
towelling towel
200 g
blouse
100 g
ladies’ briefs
100 g
men’s underpants
100 g
napkin
100 g
tea cloth
100 g
APPLIANCE SETTINGS
Water hardness
B
A
Water hardness can be different
for different locations. If you
know your local water hardness
you can adjust the sensor in
your appliance to get the better
result of the drying.
1. Turn the programme dial to available programme.
2. Push at the same time the A and B
buttons and hold down until LEDs
show the settings:
– End - low conductivity <300 μS/
cm
– Cooling - medium conductivity
300-600 μS/cm
– Cooling and End - high conductivity >600 μS/cm
3. Push the Start/Pause button again
and again until you set necessary
level.
4. To memorise setting push at the
same time the A and B buttons
Buzzer permanent off
A
B
1. Turn the programme dial to one of
programmes.
2. Push at the same time the A and B
buttons and hold down for approximately 5 seconds.
3. The buzzer is by default always off.
16
CARE AND CLEANING
CLEANING THE FILTER
At the end of each cycle the filter indicator is on to tell you that the filter must
be cleaned.
The filter collects the fluff. The
fluff occurs while the cloths are
dried in the tumble dryer.
1. Open the door.
5. If necessary clean the filter with
warm water using a brush.
Close the filter.
2. Pull the filter.
6. Remove fluff from the filter socket.
For this a vacuum cleaner can be
used .
7. Put the filter inside the filter socket .
3. Open the filter.
CAUTION!
Do not operate the tumble dryer without the filter or with damaged or blocked filter.
Clean the filter after each drying
cycle. Clogged filter increases
the cycle time and causes higher
energy consumption.
CLEANING THE DRUM
WARNING!
Disconnect the appliance before you clean it.
4. Use a moist hand to clean the filter.
Use a standard neutral soap detergent
to clean the inner surface of the drum
and drum ribs. Dry the cleaned surfaces
with a soft cloth.
ENGLISH
CAUTION!
Do not use abrasive materials or
steel wool to clean the drum.
CLEANING THE CONTROL
PANEL AND HOUSING
Use a standard neutral soap detergent
to clean the control panel and housing.
17
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents which
can cause corrosion to clean the
appliance.
18
TROUBLE SHOOTER AND SERVICE
TROUBLE SHOOTER
Problem1)
Tumble dryer does not
work.
Unsatisfactory drying
results.
Door does
not close
Err (Error)
on the display.5)
Possible cause
Remedy
Tumble dryer not connected to
mains supply.
Connect in at mains socket.
Check fuse in fuse box (domestic installation).
Loading door opened.
Close loading door
The Start/Pause button not
pressed.
Push the Start/Pause button.
Incorrect programme set.
Set applicable programme. 2)
The filter clogged.
Clean the filter. 3)
Too high volume of the load.
Respect the maximum load volume.
Airflow slots covered up.
Uncover airflow slots.
Dirt inside the drum.
Clean the drum inside.
High water hardness.
Set applicable water hardness4).
Filter not locked in position.
Put the filter in the correct position.
Laundry locked between the
door and the seal.
Put the load correctly in the
drum.
Attempt to change parameters
after start of the programme.
Turn the tumble dryer off and
on. Set requested parameters.
The function you set is not apTurn the tumble dryer off and
plicable with the set programme on. Set requested parameters.
No drum
light 6)
Defective drum light.
Contact the service centre to replace the drum light.
Abnormally
elapsing
time on the
display5)
Time to end is calculated on the
basis of: type, volume and
dampness of laundry.
Automatic procedure; this is not
a appliance fault.
Drying cycle
too short
Small laundry volume./Too dry
laundry for selected programme.
Select time programme or higher drying level (e.g. Extra Dry ).
The filter clogged.
Clean the filter.
Too high volume of the load.
Respect the maximum load volume.
Laundry insufficiently spun.
Spin adequately the laundry.
Very high room temperature no appliance fault.
Lower the room temperature if
possible.
Drying cycle
too long 7)
ENGLISH
19
1) In case of error message on the display (e.g. E51- only tumble dryer with the display):
Switch the tumble dryer off and on. Set programme. Push the Start/Pause button. Does not
work? - inform local service and quote the error code.
2) follow programme recommendation - see PROGRAMMES chapter
3) see CARE AND CLEANINGchapter
4) see section MACHINE SETTINGS in HINTS AND TIPS chapter
5) only dryers with the display
6) Only dryers with drum light.
7) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle
complete section).
SERVICE
If there are technical faults, first check if
you can remedy the problem yourself
with the help of the operating instructions - see section TROUBLE SHOOTER
If you cannot remedy the problem on
your own, get in touch with the Customer Care Department or one of our
service partners.
To assist you quickly, these data are
necessary:
– Model name
– Product number (PNC)
– Serial number (Ser. No. is on rating
plate attached to the product - to find it
see chapter PRODUCT DESCRIPTION))
– Type of failure
– Any error messages shown by the display.
So that you have the necessary reference numbers from your appliance at
hand, we recommend that you write
them in here:
Mod.
.................................
PNC:
.................................
Ser. No.
.................................
20
TECHNICAL INFORMATION
height x width x depth
844 x 600 x 580 mm (maximal 640 mm)
drum volume
108 l
maximum depth with the load door
opened
1090 mm
maximum width with the load door
opened
950 mm
adjustable height
850 mm (+ 15 mm - feet regulation)
the appliance weight
31,5 kg
maximum load volume
7 kg
voltage
230 - 240 V
frequency
50 Hz
necessary fuse
13 A
total power
2600 W
energy efficiency class
C
energy consumption kWh/cycle 1)
3,9 kWh
annual energy consumption
263,1 kWh
type of use
Domestic
permitted ambient temperature
+ 5°C to + 35°C
1) 7 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121
ENGLISH
21
INSTALLATION
APPLIANCE POSITIONING
• The tumble dryer must be installed in
a clean position, where dirt does not
collect.
• Air must flow freely around the appliance. Make sure that the front airflow
slots in the bottom of the appliance
are not blocked .
• To keep vibration and noise at the
minimum, when the tumble dryer operates, it must be put on a stable and
flat surface.
• When the appliance is put in its permanent position, check if is fully level
with the aid of a spirit level. If it is
not, adjust the feet until it is.
• Do not remove the feet. Do not decrease the floor clearance through
thick carpets, bar of wood or equivalent. This can increase the heat which
can cause interference with the operation of the appliance.
• The temperature of the hot
air which occurs in the tumble
dryer can increase to 60 °C.
The appliance must not be installed on the floor which is
not resistant to high temperatures.
• When the tumble dryer operates, the room temperature
must not be lower than +5 °C
and higher than +35 °C. This
can cause unwanted effect on
the performance of the appliance.
• If it is necessary to move the
appliance, it must be moved
vertically.
• The appliance must not be installed behind a lockable
door, a sliding door, a door
with a hinge on the opposite
side to that of the appliance
in such a way that a full opening of the tumble dryer is restricted.
UNPACKING
CAUTION!
Before use all parts of the transport
packaging must be removed.
1. Open loading door.
2. Pull off adhesive strips from inside
machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
22
THE VENT HOSE
INSTALLATION
There are 3 vent outlets: on the
left, right side and at the rear.
1. Pull the ring nut A from the vent
outlet at the rear.
Make sure that the vent hose
length is less than 2 m, and that
it contains no more than 2
bends.
2. Screw on the ring nut to the hose
and push it into position.
As to the outlet itself, if you have decided on a install wall/window grille, a
good local builder’s merchant can supply you with the necessary fittings and
installation advice.
WARNING!
It is important not to connect
the vent hose to, for example, a
cooker hood, or a chimney or
flue pipe designed to transmit
the exhaust from a fuel burning
appliance.
3. The not used vents must be sealed
with supplied covers.
If the hose is long and the room
temperature low, the moisture
might condense to water inside
the hose. This is an usual occurrence. To prevent this water
from the hose, it is recommend
to drill a small hole (via. 3 mm) in
the lowest point of the hose and
to put a small container below
it. (See picture, point B).
Note that to prevent condensation
problems, it is essential that the dryer
be installed with the flexible hose to
transmit its “exhaust” at least beyond
the kitchen units; preferable outside the
kitchen. In order to prevent the appliance from overheating, it is important
ENGLISH
that the steam exhaust is unobstructed.
Thus, if a permanent hose installed to
an external wall or ceiling, it must be
ensured an exhaust capacity of minimum 150 m3/h. If the dryer is installed
adjacent to kitchen units, make sure
that the vent hose is not squashed. If
the hose is not fully squashed, drying
efficiency will be decreased , resulting
in longer drying times and higher energy consumption. If the hose is fully
squashed, the automatic cut-outs with
which the appliance is fitted can operate. When operating the tumble dryer,
the room temperature must not be lower than +5°C and higher than +35°C, as
it can affect the performance of the appliance.
THE LOAD DOOR REVERSAL
A
23
B
C
A
B
WARNING!
Before changing the door stop,
disconnect the mains plug.
1. Open load door.
2. Unscrew hinge A from the front of
the appliance and remove the load
door.
3. Remove cover plates B. To do this,
put a thin screwdriver into the slots
as shown in the illustration, push
down lightly and remove the cover
plates.
4. Use an applicable tool and apply
pressure to unlock part C, remove
and turn it through 180°, then put
on the other side.
CAUTION!
There is a small spring below
locking block C. To put all parts
together correctly, look at the illustrations:
24
12. Put load door and hinges into recesses on the front of the appliance
and screw down.
Note regarding contact protection: The appliance is only
secure for operations again
once all plastic parts have been
put.
ELECTRICAL CONNECTION
5. Unscrew hinge A from the load
door and turn it through 180°, then
put on the opposite side and screw
down.
6. Turn cover plates B through 180°
and put them on the opposite side.
7. Unscrew cover plates D from the
front of the appliance, turn through
180° and screw down on the opposite side.
E
D
F
F
E
D
8. Unscrew door lock E, push down
lightly and remove from the front of
the appliance.
9. Push snap-in button F in and down,
push cover down lightly and remove from front of the appliance.
10. Change door lock E above to the
opposite side, screw down the
door interlock.
11. On the other side, put cover F and
let snap-in button to lock into position.
• Connect the appliance to a grounded socket. Refer to the applicable
electrical requirements.
• Make sure that the electrical data on
the rating plate agrees with the power supply.
• Always use a correctly installed
shockproof socket.
• Do not use multiple plugs and extension cables. There is a risk of fire.
• All replacements of power supply cable must be carried out by our Service.
• Make sure not to squash or cause
damage to the mains plug and cable
behind the appliance.
• Do not pull the mains cable to disconnect the appliance. Always pull
the mains plug.
• The plug must be dry.
The data about mains voltage, type of
current and the necessary fuse are on
the rating plate and in the “TECHNICAL INFORMATION” chapter. The rating plate is behind the load door (see
the “PRODUCT DESCRIPTION” chapter).
The appliance has a power supply cable with plug fitted with 13 A fuse. If
necessary, replace the fuse in the plug
by 13 A ASTA BS 1363/A approved
fuse.
The wires in the power supply cable are
coloured as follow:
ENGLISH
A
B
C
D
A) green and yellow - ground — earth
(E)
B) brown - live (L)
C) cord clamp
D) blue - neutral (N)
The green and yellow coloured wire
must be connected to the terminal with
mark or the
E mark or the ground
green and yellow coloured terminal.
The blue coloured wire must be connected to the terminal N or black coloured .
25
The brown coloured wire must be connected to the terminal L or red coloured .
The wires of the cable must be no cut
or stray strands of wire present and the
cable clamp must be secure over the
outer sheath.
Permanent connection
The necessary condition of permanent
connection is to install a double-pole
isolating switch directly on the supply
terminals.
The type of switch must be correct for
the necessary load and must align with
applicable electrical requirements.
The switch must not break the yellow
and green coloured ground wire.
Q-
Warranty
AEG products are designed and built to the highest standards.
We expect your appliances to provide many years of trouble free enjoyment.
In the event of an appliance requiring attention, each appliance is covered by a 2
year warranty from the date of purchase.
Refer to warranty policy for complete terms and conditions.
Coverage is for costs of parts and labor for appliances in capital cities &
metropolitan areas. We reserve the right to charge directly for handling
expenses outside the metropolitan region.
AEG products are supported by a national service support system.
Call our customer service department for attention.
Please retain your invoice AEG to quote should you require service
assistance. This will identify your product for our priority service back-up.
Please attach your invoice to this manual for easy future reference.
AEG Canada
871 Cranberry Court
Oakville, Ontario L6L 6J7
Canada
Tel 905-829.3980
Fax 905-829.3985
email marketing@euro-line-appliances.com
For Service & Spares:
EURO-PARTS
1.800.678.8352
Important: Please record details of your purchase below and mail or fax to AEG
-----------------------------------------------------------------------------------------cut along line ------------------------------------------------------------------------------------
Name:
Address:
City :
Where purchased:
Items
Serial No. (s):
TEL No
State:
Zip Code:
Purchase date:
purchased:
33
AEG appliances are imported and distributed in North America by Euro-Line Appliances Inc.
For more information visit
www.euro-line-appliances.com / www.elawest.com
871 Cranberry Court
Oakville, ON L6L 6J7
Canada
Toll Free: 1.800.421.6332
Showroom: 905.829.3980
marketing@euro-line-appliances.com
2912 West 4th Ave
Vancouver, BC V6K 1R2
Canada
Toll Free: 1.855.352-9378
Showroom: 604.235.3980
info@elawest.com
Download PDF

advertising
