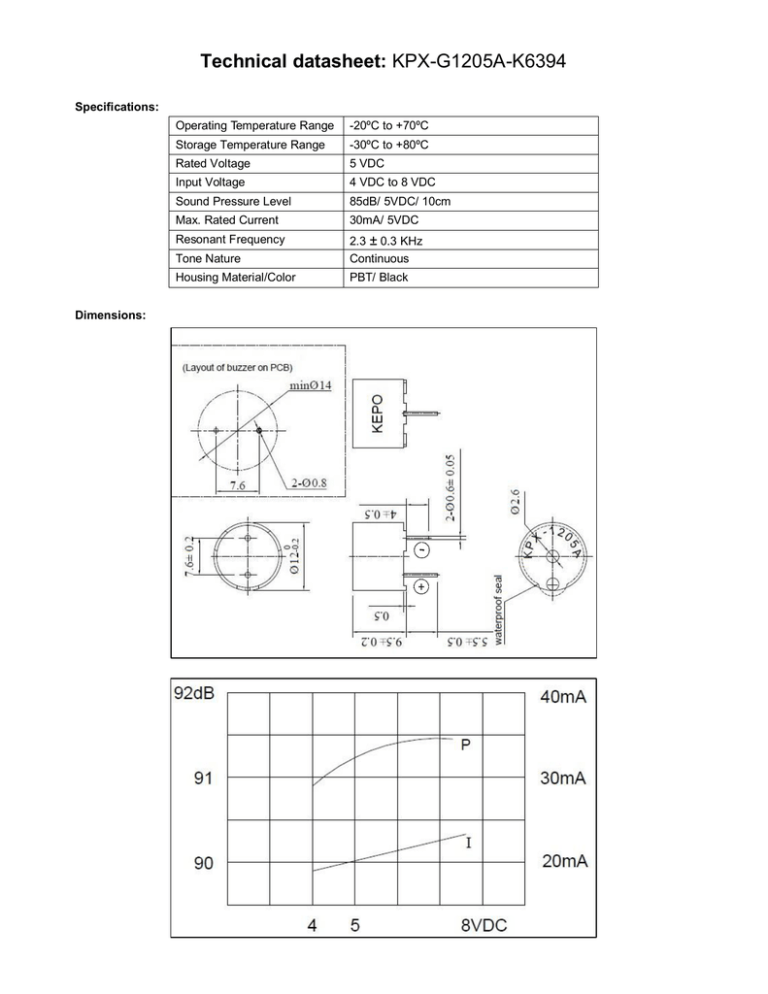

Technical datasheet: KPX-G1205A-K6394
Specifications:
Dimensions:
Operating Temperature Range
-20ºC to +70ºC
Storage Temperature Range
-30ºC to +80ºC
Rated Voltage
5 VDC
Input Voltage
4 VDC to 8 VDC
Sound Pressure Level
85dB/ 5VDC/ 10cm
Max. Rated Current
30mA/ 5VDC
Resonant Frequency
Tone Nature
2.3 ± 0.3 KHz
Continuous
Housing Material/Color
PBT/ Black
