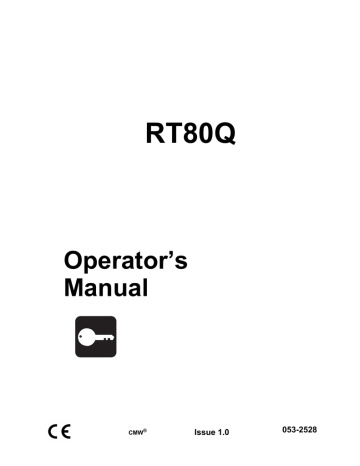

RT80Q
Operator’s
Manual
CMW®
Issue 1.0
053-2528
RT80Q Operator’s Manual
Overview - 1
Overview
Chapter Contents
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Equipment Modification . . . . . . . . . . . . . . . . . . . . . . 3
Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•
Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•
Numbered Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CMW
RT80Q Operator’s Manual
Overview - 2
Serial Number Location
Serial Number Location
Record serial numbers and date of purchase in spaces provided. RT80Q (1) and engine serial numbers (2)
are located as shown.
2
1
t33om083w.eps
Date of manufacture
Date of purchase
RT80Q serial number
Front attachment serial number
Rear attachment serial number
Trailer serial number
Engine serial number
CMW
RT80Q Operator’s Manual
Overview - 3
Intended Use
Intended Use
The RT80Q is a riding trencher designed to install buried service lines of various sizes using a variety of
Ditch Witch attachments.
Attachment
Max. width/diameter
Max. depth
H810 trencher
24” (610 mm)
93” (2.4 m)
H813 trencher
12” (305 mm)
58.4” (1.5 m)
n/a
36” (915 mm)
84” (2.1 m) reel diameter
n/a
12” (305 mm)
69” (1.8 m)
18” (460 mm) bucket
89” (2.2 m)
H832 plow
RC80 reel carrier
H853 combo
A820 backhoe
HD630 saw
See manufacturer’s specifications
This unit is designed for operation in temperatures typically experienced in earth moving and construction
work environments. Provisions may be required to operate in extreme temperatures. Contact your Ditch
Witch dealer. Use in any other way is considered contrary to the intended use.
The RT80Q should be used with genuine Ditch Witch chain, teeth, and sprockets. It should be operated,
serviced, and repaired only by persons familiar with their particular characteristics and acquainted with the
relevant safety procedures.
Equipment Modification
This equipment was designed and built in accordance with applicable standards and regulations.
Modification of equipment could mean that it will no longer meet regulations and may not function properly
or in accordance with the operating instructions. Modification of equipment should only be made by
competent personnel possessing knowledge of applicable standards, regulations, equipment design
functionality/requirements and any required specialized testing.
The protection offered by the Rollover Protective System (ROPS) will be imparied if it has been subjected
to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be
replaced after a roll-over.
CMW
RT80Q Operator’s Manual
Overview - 4
Unit Components
Unit Components
2
3
4
1
5
t33om026w.eps
1. Rollover Protective Structure (ROPS)
4. Engine compartment
2. Operator station
5. Backfill blade (optional)
3. Control console
NOTICE: The protection offered by the Rollover Protective System (ROPS) will be imparied if it has
been subjected to any modification, structural damage, or has been involved in an overturn accident.
The ROPS must be replaced after a roll-over.
CMW
RT80Q Operator’s Manual
Overview - 5
Operator Orientation
Operator Orientation
1. Front of unit
3. Rear of unit
2. Right of unit
4. Left of unit
Right and left sides of machine are determined by
facing front of unit while seated at the controls.
1
4
2
About This Manual
This manual contains information for the proper
use of this machine. See Operation Overview
for basic operating procedures. Cross references
such as “See page 50” will direct you to detailed
procedures.
Bulleted Lists
3
t26om005h.eps
Bulleted lists provide helpful or important
information or contain procedures that do not have to be performed in a specific order.
Numbered Lists
Numbered lists contain illustration callouts or list steps that must be performed in order.
CMW
Overview - 6
RT80Q Operator’s Manual
About This Manual
CMW
RT80Q Operator’s Manual
Foreword - 7
Foreword
This manual is an important part of your equipment. It provides safety information and operation
instructions to help you use and maintain your Ditch Witch equipment.
Read this manual before using your equipment. Keep it with the equipment at all times for future reference.
If you sell your equipment, be sure to give this manual to the new owner.
If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a
dealer, visit our website at www.ditchwitch.com or write to the following address:
The Charles Machine Works, Inc.
Attn: Marketing Department
PO Box 66
Perry, OK 73077-0066
USA
The descriptions and specifications in this manual are subject to change without notice. The Charles
Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have
taken place after this manual was published. For the latest information on Ditch Witch equipment, see your
Ditch Witch dealer.
Thank you for buying and using Ditch Witch equipment.
CMW
RT80Q Operator’s Manual
Foreword - 8
RT80 Quad-Track
Operator’s Manual
Issue number 1.0/OM-06/12
Part number 053-2528
Copyright 2012
by The Charles Machine Works, Inc.
, Ditch Witch, CMW, Roto Witch, and The Underground Authority, are registered
trademarks of The Charles Machine Works, Inc.
This product is covered by one or more of the following patents: U.S. D640290, D640291, and D640292
with other U.S. and foreign patents pending.
CMW
RT80Q Hydrostat Operator’s Manual
Contents - 9
Contents
Overview
1
machine serial number, information about the type of work this machine is designed
to perform, basic machine components, and how to use this manual
Foreword
7
part number, revision level, and publication date of this manual, and factory contact
information
Safety
11
machine safety alerts and emergency procedures
Controls
21
machine controls, gauges, and indicators and how to use them
Operation Overview
67
an overview for completing a job with this machine: planning, setting up, installing
product, and restoring the jobsite; with cross references to detailed procedures
Prepare
71
procedures for inspecting and classifying the jobsite, planning the installation path,
and preparing the jobsite for work
Drive
77
procedures for startup, cold start, driving, and shutdown
Transport
83
procedures for lifting, hauling, and towing
Trench
95
procedures for trenching
Plow
101
procedures for plowing
Reel Carrier
109
procedures for using reel carrier/winder
Saw
113
procedures for sawing
CMW
Contents - 10
RT80Q Hydrostat Operator’s Manual
Backhoe
117
procedures for digging with backhoe
Drill
123
procedures for drilling
Systems and Equipment
131
chain, teeth, sprockets, and optional equipment
Complete the Job
139
procedures for backfilling and restoring the jobsite and rinsing and storing
equipment
Service
141
service intervals and instructions for this machine including lubrication, replacement
of wear items, and basic maintenance
Specifications
187
machine specifications including weights, measurements, power ratings, and fluid
capacities
Support
203
the warranty policy for this machine, and procedures for obtaining warranty
consideration and training
Service Record
a record of major service performed on the machine
CMW
209
RT80Q Operator’s Manual
Safety - 11
Safety
Chapter Contents
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Alert Classifications . . . . . . . . . . . . . . . . . . 13
Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 17
•
Electric Strike Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
•
If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
•
If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
•
If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
•
If Machine Catches on Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CMW
Safety - 12
RT80Q Operator’s Manual
Guidelines
Guidelines
Follow these guidelines before operating any jobsite equipment:
•
Complete proper training and read operator’s manual before using equipment.
•
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
•
Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work
methods for jobsite.
•
Mark jobsite clearly and keep spectators away.
•
Wear personal protective equipment.
•
Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all
personnel before work begins. Safety videos are available from your Ditch Witch dealer.
•
Replace missing or damaged safety shields and safety signs.
•
Use equipment carefully. Stop operation and investigate anything that does not look or feel right.
•
Do not operate unit where flammable gas may be present.
•
Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment
use.
CMW
RT80Q Operator’s Manual
Safety - 13
Safety Alert Classifications
Safety Alert Classifications
These classifications and the icons defined on the following pages work together to alert you to situations
which could be harmful to you, jobsite bystanders or your equipment. When you see these words and
icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT
STAKE.
Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level
means.
indicates a hazardous situation that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme situations.
indicates a hazardous situation that, if not avoided, could result in death or serious injury.
indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
Watch for two other words: NOTICE and IMPORTANT.
NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to
property damage).
IMPORTANT can help you do a better job or make your job easier in some way.
CMW
RT80Q Operator’s Manual
Safety - 14
Safety Alerts
Safety Alerts
Moving digging teeth will kill you or cut off arm or leg. Stay
away.
Turning shaft will kill you or crush arm or leg. Stay away.
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
Moving parts could cut off hand or foot. Stay away.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
CMW
RT80Q Operator’s Manual
Safety - 15
Safety Alerts
Fall possible. Riders can fall from machine and be injured or killed. Only
operator is allowed on machine.
Rollover possible. If machine rolls over, you could be thrown from seat and
killed or crushed. Wear seat belt.
Improper control function could cause death or serious injury. If control does
not work as described in instructions, stop machine and have it serviced.
Looking into fiber optic cable could result in permanent vision damage. Do
not look into ends of fiber optic or unidentified cable.
Pressurized fluid or air could pierce skin and cause injury or
death. Stay away.
Runaway possible. Machine could run over you or others. Learn how to use
all controls. Start and operate only from operator’s position.
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
CMW
RT80Q Operator’s Manual
Safety - 16
Safety Alerts
Moving traffic - hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
Hot pressurized cooling system fluid could cause serious burns. Allow to
cool before servicing.
Flying objects may cause injury. Wear hard hat and safety glasses.
Hot parts may cause burns. Do not touch until cool.
Exposure to high noise levels may cause hearing loss. Wear hearing
protection.
Fall possible. Slips or trips may result in injury. Keep area clean.
Battery acid may cause burns. Avoid contact.
Improper handling or use of chemicals may result in illness, injury, or
equipment damage. Follow instructions on labels and in material safety data sheets
(MSDS).
Breathing crystalline silica dust may cause lung disease. Cutting, drilling, or
working materials such as concrete, sand, or rock containing quartz may result in exposure
to silica dust. Use dust control methods or appropriate breathing protection when exposed
to silica dust.
CMW
RT80Q Operator’s Manual
Safety - 17
Emergency Procedures
Emergency Procedures
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
Before operating any equipment, review emergency procedures and check that all safety precautions have
been taken.
EMERGENCY SHUTDOWN - Turn ignition switch to stop position or push remote engine stop button (if
equipped).
Electric Strike Description
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
When working near electric cables, remember the following:
•
Electricity follows all paths to ground, not just path of least resistance.
•
Pipes, hoses, and cables will conduct electricity back to all equipment.
•
Low voltage current can injure or kill. Many work-related electrocutions result from contact with less
than 440 volts.
Most electric strikes are not noticeable, but indications of a strike include:
•
power outage
•
smoke
•
explosion
•
popping noises
•
arcing electricity
If any of these occur, assume an electric strike has occurred.
CMW
Safety - 18
RT80Q Operator’s Manual
Emergency Procedures
If an Electric Line is Damaged
If you suspect an electric line has been damaged and you are on tractor, DO NOT MOVE. Remain on
tractor and take the following actions. The order and degree of action will depend upon the situation.
•
Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact
utility.
•
Raise attachments and drive from immediate area.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
If you suspect an electric line has been damaged and you are off tractor, DO NOT TOUCH TRACTOR.
Take the following actions. The order and degree of action will depend upon the situation.
•
LEAVE AREA. The ground surface may be electrified, so take small steps with feet close together to
reduce the hazard of being shocked from one foot to the other. For more information, contact your
Ditch Witch dealer.
•
Contact utility company to shut off power.
•
Do not return to jobsite or allow anyone into area until given permission by utility company.
CMW
RT80Q Operator’s Manual
Safety - 19
Emergency Procedures
If a Gas Line is Damaged
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
If you suspect a gas line has been damaged, take the following actions. The order and degree of action will
depend on the situation.
•
Immediately shut off engine(s), if this can be done safely and quickly.
•
Remove any ignition source(s), if this can be done safely and quickly.
•
Warn others that a gas line has been cut and that they should leave the area.
•
Leave jobsite as quickly as possible.
•
Immediately call your local emergency phone number and utility company.
•
If jobsite is along street, stop traffic from driving near jobsite.
•
Do not return to jobsite until given permission by emergency personnel and utility company.
CMW
Safety - 20
RT80Q Operator’s Manual
Emergency Procedures
If a Fiber Optic Cable is Damaged
Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.
If Machine Catches on Fire
Perform emergency shutdown procedure and then take the following actions. The order and degree of
action will depend on the situation.
•
Immediately move battery disconnect switch (if equipped and accessible) to disconnect position.
•
If fire is small and fire extinguisher is available, attempt to extinguish fire.
•
If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.
CMW
RT80Q Operator’s Manual
Controls - 21
Controls
Chapter Contents
Center Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Graphic Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
•
Interlock screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
•
Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
•
Gauge screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Right Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Seat Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Seat Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Trencher Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 51
Plow Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Combo Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Saw Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Backhoe Console . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Drill Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Battery Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . 65
CMW
RT80Q Operator’s Manual
Controls - 22
Center Console
Center Console
4
3
5
6
7
8
9
3
2
10
10
1
2
11
11
1
12
t33om001w.eps
1. Parking brake control
7. Reel carrier switch*
2. Auxiliary power outlet
8. Reel winder mode selector switch*
3. Horn switch
9. Flasher switch*
4. Axle lock switch
10. Ground drive speed switch
5. Graphic display
11. Ignition key switch
6. Work light switch*
12. Ground drive foot control
* option
Item
Description
Notes
1. Parking brake control
To set brake, push handle
down.
Engaged parking brake disables
ground drive.
To release brake, pull handle
up.
CMW
RT80Q Operator’s Manual
Controls - 23
Center Console
Item
Description
Notes
2. Auxiliary outlet
Provides power for other
equipment.
Power output is 12V, 10A.
c00ic179h.eps
3. Horn
To sound horn, press.
c00ic044h.eps
4. Axle lock switch
To lock rear axle, press top.
To unlock rear axle, press
bottom.
NOTICE: To prevent mechanical
damage, stop tractor before operating
axle lock switch.
IMPORTANT: After pressing switch to
unlock axle, it may be necessary to
move tractor 6’ (2 m) in reverse to
fully unlock.
5. Graphic display
Graphic symbols are
displayed for indicators and
conditions previously shown
with gauges.
See more information in “Graphic
Display” on page 26.
!
c00ic604w.eps
CMW
RT80Q Operator’s Manual
Controls - 24
Center Console
Item
Description
Notes
6. Work light switch
To activate lights, press top.
Optional.
To deactivate, press bottom.
c00ic601w.eps
7. Reel carrier switch
To raise, press top.
Optional.
To lower, press bottom.
c00ic205h.eps
8. Reel winder selector
switch
To change backfill blade
joystick to reel winder control
mode, press top.
Optional.
To return to backfill blade
mode, press bottom.
c00ic642w.eps
9. Flasher switch
To activate flashers, press
top.
To deactivate, press bottom.
c00ic600w.eps
CMW
Optional.
RT80Q Operator’s Manual
Controls - 25
Center Console
Item
Description
Notes
10. Ground drive speed
switch
To select High (3), Medium
(2) or Low (1), press
appropriate switch position.
Screen icon displays High, Medium or
Low selection.
To start engine, insert key and
turn clockwise.
To stop engine, turn
counterclockwise.
IMPORTANT: If engine does not start
on first attempt, check that all
interlock requirements have been
met, return switch to STOP, and try
again.
To move tractor forward, push
top of pedal.
Pedal should automatically return to
neutral when released.
3
2
1
c00ic602w.eps
11. Ignition switch
c00ic217h.eps
12. Ground drive foot
control
To move tractor backward,
push bottom of pedal.
To increase speed in either
direction, push pedal farther
from center.
c00ic072c.eps
To reduce speed in either
direction, release pedal.
CMW
RT80Q Operator’s Manual
Controls - 26
Graphic Display
Graphic Display
!
0
3000
0
0
rpm
0
%
V 8
100
18
t33om062w.eps
The graphic display module allows the operator to use keys to toggle between various screens and
functions. The operator can toggle between gauge functions, faults and alerts, setup, and hourmeter
functions.
Item
Description
Interlock screen icon
Screen icon is displayed if
interlock conditions are met.
I
c00ic599w.eps
Operator alert screen icon
!
c00ic605w.eps
CMW
Screen icon is displayed
when non-critical engine
faults are detected.
Notes
RT80Q Operator’s Manual
Controls - 27
Graphic Display
Item
Description
Notes
Ground drive speed screen
icon
Screen icon displays High,
Medium or Low selection.
Control decal shows 1, 2, or 3.
H
M
L
c00ic602w.eps
Cruise control screen icon
Screen icon displays when
cruise control is in operation.
Trip/Hourmeter screen icon
Engine operating time and job
time displayed above screen
icon.
c00ic606w.eps
Engine RPM screen icon
Engine RPM displayed below
screen icon.
c00ic618w.eps
CMW
RT80Q Operator’s Manual
Controls - 28
Graphic Display
Item
Description
Interlock key function
Press to display interlock
screen.
I
c00ic599w.eps
Menu key function
Press to display menu
screen.
c00ic612w.eps
Gauge key function
Press to display upper right
screen gauge functions.
c00ic613w.eps
Gauge key function
c00ic614w.eps
CMW
Press to display lower right
screen gauge functions.
Notes
RT80Q Operator’s Manual
Controls - 29
Graphic Display
Interlock Screen
Operator
Ground Drive Neutral
Attachment Drive Neutral
t33om070w.eps
Item
Description
Notes
Operator presence screen
icon
Icon flashes when operator is
not in seat.
IMPORTANT: This function is part of
the start interlock system. All three
start interlock icons must be on
steady (not flashing) to start engine.
Ground drive neutral
screen icon
Icon flashes when ground
drive hand or foot control is
not in neutral.
IMPORTANT: This function is part of
the start interlock system. All three
start interlock icons must be on
steady (not flashing) to start engine.
c00ic523w.eps
CMW
RT80Q Operator’s Manual
Controls - 30
Graphic Display
Item
Description
Notes
Attachment neutral screen
icon
Icon flashes when attachment
speed/direction control is not
in neutral.
IMPORTANT: This function is part of
the start interlock system. All three
start interlock icons must be on
steady (not flashing) to start engine.
c00ic524w.eps
Exit screen key function
c00ic608w.eps
CMW
To exit selected screen,
press.
RT80Q Operator’s Manual
Controls - 31
Graphic Display
Menu Screen
! Faults and Alerts
Setup
Trip Hour Meter
t33om066w.eps
Item
Description
Notes
Selection screen icon
Indicates menu choice.
Use up and down keys to toggle
between menu items.
c00ic611w.eps
Up key function
To move up the menu, press.
c00ic609w.eps
CMW
RT80Q Operator’s Manual
Controls - 32
Graphic Display
Item
Description
Down key function
To move down the menu,
press.
c00ic610w.eps
Check key function
c00ic611w.eps
CMW
To select a menu item, press.
Notes
RT80Q Operator’s Manual
Controls - 33
Graphic Display
Faults and Alerts
! Faults and Alerts
Setup
Trip Hour Meter
t33om066w.eps
Alerts Menu
! Alerts
! Active Machine
! Stored Machine
t33om067w.eps
CMW
RT80Q Operator’s Manual
Controls - 34
Graphic Display
Active Machine Alerts
Active Machine Faults
!
Faults 0 of 0
SPN:
Unknown
Parameter
0
FMI:
Data Above Normal
(Most Severe)
0
t33om068w.eps
Item
Description
Notes
Clear display key function
To clear the display (but not
the codes), press.
For a list of diagnostic trouble codes,
see “Diagnostic Trouble Codes” on
page 136.
c00ic633w.eps
CMW
RT80Q Operator’s Manual
Controls - 35
Graphic Display
Stored Machine Alerts
Stored Machine Faults
!
Faults 0 of 0
SPN:
Unknown
Parameter
0
FMI:
Data Above Normal
(Most Severe)
0
t33om069w.eps
Item
Description
Notes
Clear display key function
To clear the display (but not
the codes), press.
For a list of diagnostic trouble codes,
see “Diagnostic Trouble Codes” on
page 136.
c00ic633w.eps
CMW
RT80Q Operator’s Manual
Controls - 36
Graphic Display
Setup Menu
M
E
txt
Units
Text/Symbols
Brightness/Contrast
t33om071w.eps
Units
Select Units
E English
M Metric
t33om072w.eps
CMW
M
E
RT80Q Operator’s Manual
Controls - 37
Graphic Display
Text/Symbols
Select Units
txt
txt
Text
No Text
t33om073w.eps
CMW
RT80Q Operator’s Manual
Controls - 38
Graphic Display
Brightness/Contrast
t33om075w.eps
Item
Description
Notes
Brightness screen icon
Keys used to adjust
brightness when check is
above brightness icon.
Bar graph displays screen brightness
level.
Keys used to adjust contrast
when check is above contrast
icon.
Bar graph displays screen contrast
level.
c00ic615w.eps
Contrast screen icon
c00ic640w.eps
CMW
RT80Q Operator’s Manual
Controls - 39
Graphic Display
Trip/Hour Menu
0
Eng Hours
0.0
Job Clock [Hrs]
t33om074w.eps
Item
Description
Notes
Hours/Job Clock screen
icon
Records engine operating
time and job time.
Use engine operating times to
schedule service. Job time can be
reset.
c00ic635w.eps
CMW
RT80Q Operator’s Manual
Controls - 40
Graphic Display
Gauge Screens
Upper Pane
M
!
0
0
3000
rpm
0
0
%
100
psi 0
4
100
t33om085w.eps
Use arrow keys to toggle gauge functions and upper or lower pane.
Item
Description
Notes
Fuel level screen icon
Bar graph displays fuel level
as percent full.
RT80Q fuel tank holds 30 gal (114 L).
c00ic622w.eps
Ground drive speed screen
icon
c00ic523w.eps
CMW
Bar graph displays ground
drive as percent of full speed.
RT80Q Operator’s Manual
Controls - 41
Graphic Display
Item
Description
Attachment speed screen
icon
Bar graph displays
attachment speed as percent
of full speed.
Notes
c00ic524w.eps
CMW
RT80Q Operator’s Manual
Controls - 42
Graphic Display
Lower Pane
M
!
0
0
3000
rpm
0
0
%
100
psi 0
4
100
t33om086w.eps
Use arrow keys to toggle gauge functions and upper or lower pane.
Item
Description
Notes
Volts screen icon
Bar graph displays system
voltage.
Should show 12-14V with engine
running.
Bar graph displays engine oil
pressure.
Normal operating pressure is 15-80
psi (1.03 - 5.5 bar).
Indicator will light if pressure
is too low.
If pressure is low:
c00ic619w.eps
Engine oil pressure screen
icon
c00ic620w.eps
CMW
•
Check oil level.
•
If pressure is still low, consult
engine manual.
RT80Q Operator’s Manual
Controls - 43
Graphic Display
Item
Description
Notes
Engine coolant temperature
screen icon
Bar graph displays engine
coolant temperature.
Normal temperature is 180°-220° F
(82°-104° C).
Engine temperature indicator
will light if temperature is too
high.
If temperature is high:
•
Turn off engine and let it cool.
•
Check cooling system for low fluid
level, seal damage, or leaks.
c00ic621w.eps
CMW
RT80Q Operator’s Manual
Controls - 44
Right Console
Right Console
1
2
3
4
5
7
6
t33om004w.eps
1. Backfill blade lift/tilt or reel winder control
5. Rear steer indicator
2. Backfill blade angle control
6. Cruise control switch
3. Rear steer control
7. Cruise control rpm dial control
4. Throttle
CMW
RT80Q Operator’s Manual
Controls - 45
Right Console
Item
Description
Notes
1. Backfill blade lift/tilt
function control
Backfill blade mode:
Reel winder mode selector switch on
center console changes function to
control reel winder arm lift and winder
direction.
c00ic625w.eps
Reel winder function
control
•
To lower, move forward.
•
To float, move forward to
end.
•
To raise, move backward.
•
To tilt right side down,
move right.
•
To tilt left side down,
move left.
Reel winder mode:
•
To unwind, move forward.
•
To wind, move backward.
•
To lower reel winder arm,
move right.
•
To raise reel winder arm,
move left.
c00ic207h.eps
2. Backfill blade angle
control
Backfill blade:
•
To angle right, move right.
•
To angle left, move left.
c00ic626w.eps
3. Rear steer control
To move rear tracks left,
move right.
NOTICE:
•
Tracks move when you move
control. To stop movement,
release control.
•
Visually verify track position
To center tracks, move to
center position.
To move rear tracks right,
move left.
c00ic627w.eps
CMW
RT80Q Operator’s Manual
Controls - 46
Right Console
Item
Description
4. Throttle
To increase speed, move left.
Notes
To decrease speed, move
right.
5. Rear steer indicator
Displays position of rear
wheels.
c00ic628w.eps
6. Cruise control selector
To turn on, press top. Switch
indicator and display should
indicate that cruise mode is
activated.
To turn off, press top again.
Switch indicator and display
should indicate that cruise
mode is deactivated.
c00ic630w.eps
7. Cruise control rpm dial
control
Turn on cruise control only when:
•
ground drive motor control is in
low (1)
•
ground drive is in neutral
Hand and foot controls must be in
neutral or cruise control switch input
will be ignored.
To decrease engine load
while using cruise control,
turn clockwise.
This typically decreases engine load
temporarily.
To increase engine load while
using cruise control, turn
counterclockwise.
This typically increases engine load
temporarily.
RPM
&2
c00ic629w.eps
CMW
RT80Q Operator’s Manual
Controls - 47
Seat Console
Seat Console
2
2
1
1
t33om002w.eps
1. Ground drive speed control
2. Attachment speed/direction control
Item
Description
Notes
1. Ground drive speed
control
To go faster in either
direction, move farther from
neutral.
NOTICE: Control does not
automatically return to neutral.
To stop, return to center.
IMPORTANT: This control is disabled
in high gear.
c00ic631w.eps
CMW
RT80Q Operator’s Manual
Controls - 48
Seat Console
Item
Description
Notes
2. Attachment speed/
direction control
To go faster in either
direction, move farther from
neutral.
NOTICE: Control does not
automatically return to neutral.
To stop, return to center.
c00ic632w.eps
CMW
RT80Q Operator’s Manual
Controls - 49
Seat Deck
Seat Deck
1
1
2
2
1
1
2
2
3
3
4
4
5
t33om003w.eps
1. Seat belt
4. Seat height adjustment lock
2. Armrest adjustment control
5. Seat pivot control
3. Seat slide control
Item
Description
1. Seat belt
To fasten, insert latch into
buckle. Adjust until seat belt
is low and tight.
Notes
To release, lift top of buckle.
2. Armrest adjustment
control
To raise or lower armrests:
•
Remove knob.
•
Adjust armrest to desired
position.
•
Replace knob.
CMW
RT80Q Operator’s Manual
Controls - 50
Seat Deck
Item
Description
3. Seat slide control
To slide seat forward or
backward, pull, then adjust
seat.
Notes
To lock seat in place, release.
4. Seat height adjustment
lock
To lock seat height, turn
clockwise.
To unlock seat height, turn
counterclockwise.
5. Seat pivot control
To pivot seat to the right, pull.
To lock seat in position,
release.
To return seat to front-facing
position, swing seat left.
CMW
Seat pivots only to the right and can
be locked in any position from 0-90°.
IMPORTANT: Drive tractor with
operator’s seat facing front. If desired,
operate rear attachments with seat
pivoted.
RT80Q Operator’s Manual
Controls - 51
Trencher Controls
Trencher Controls
1
2
t33om008w.eps
1. Trencher slide control*
2. Boom lift control
*optional
Item
Description
Notes
1. Trencher slide control
(H813 only)
To slide trencher right, push.
IMPORTANT: If slide sticks:
To slide trencher left, pull.
•
Lower trencher to ground.
•
Operate trencher slide until
trencher moves slightly.
•
Raise trencher and slide it into
position.
c00ic198h.eps
CMW
RT80Q Operator’s Manual
Controls - 52
Trencher Controls
Item
Description
2. Boom lift control
To lower, push.
To raise, pull.
CMW
Notes
RT80Q Operator’s Manual
Controls - 53
Plow Controls
Plow Controls
1
2
3
4
t33om009w.eps
1. Plow stow lock control
3. Blade steer control
2. Plow swing control
4. Plow lift control
CMW
RT80Q Operator’s Manual
Controls - 54
Plow Controls
Item
Description
Notes
1. Stow lock control
To lock:
Use this control to lock plow in the up
position.
c00ic643w.eps
2. Plow swing control
•
Raise plow fully.
•
Pull stow lock handle.
•
Lower plow slightly to
engage lock.
To unlock:
•
Raise plow slightly.
•
Push stow lock handle to
release lock.
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
•
Do not raise plow with control in
float position.
To float, push to end.
c00ic202h.eps
3. Blade steer control
To steer right, push.
To steer left, pull.
c00ic203h.eps
4. Plow lift control
To raise, pull.
NOTICE:
To lower, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
To float, push to end.
c00ic204h.eps
CMW
RT80Q Operator’s Manual
Controls - 55
Combo Controls
Combo Controls
2
3
4
5
6
1
t33om010w.eps
1. Plow stow lock control
4. Plow lift control
2. Plow swing control
5. Boom lift control
3. Blade steer control
6. Trench/Plow selector control
CMW
RT80Q Operator’s Manual
Controls - 56
Combo Controls
Item
Description
Notes
1. Stow lock control
To lock:
Use this control to lock plow in the up
position.
c00ic643w.eps
2. Plow swing control
•
Raise plow fully.
•
Pull stow lock handle.
•
Lower plow slightly to
engage lock.
To unlock:
•
Raise plow slightly.
•
Push stow lock handle to
release lock.
To swing left, pull.
NOTICE:
To swing right, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
•
Do not raise plow with control in
float position.
To float, push to end.
c00ic202h.eps
3. Blade steer control
To steer right, push.
To steer left, pull.
c00ic203h.eps
4. Plow lift control
To raise, pull.
NOTICE:
To lower, push.
•
If soil conditions allow, operate in
float position.
•
Lower plow into ground before
moving control to float position.
To float, push to end.
c00ic204h.eps
CMW
RT80Q Operator’s Manual
Controls - 57
Combo Controls
Item
Description
5. Boom lift control
To lower, push.
Notes
To raise, pull.
6. Trench/Plow selector
control
To trench, move forward.
To plow, move backward.
c00ic657w.eps
CMW
RT80Q Operator’s Manual
Controls - 58
Saw Controls
Saw Controls
1
2
t33om008w.eps
1. Saw slide control
2. Saw lift control
Item
Description
1. Saw slide control
To slide saw right, push.
To slide saw to center, pull.
EMERGENCY SHUTDOWN:
Release all controls and turn
ignition switch to STOP.
CMW
Notes
RT80Q Operator’s Manual
Controls - 59
Saw Controls
Item
Description
2. Saw lift control
To lower, push.
Notes
To raise, pull.
EMERGENCY SHUTDOWN:
Release all controls and turn
ignition switch to STOP.
c00ic209h.eps
CMW
RT80Q Operator’s Manual
Controls - 60
Backhoe Console
Backhoe Console
4
5
6
7
8
9
3
10
11
2
12
1
a44in001w.eps
1. Stabilizer lock release pedals
7. Ground drive switch
2. Left stabilizer control
8. Remote throttle
3. Boom/Swing control
9. Boom stow lock
4. Remote engine stop switch
10. Bucket/dipper control
5. Remote backfill blade switch
11. Right stabilizer control
6. Work light switch*
12. Swing stow lock
*optional
CMW
RT80Q Operator’s Manual
Controls - 61
Backhoe Console
Item
Description
1. Stabilizer lock
Step on pedal to release.
Notes
Locks automatically as
stabilizer is fully raised.
c00ic646w.eps
2. Left stabilizer control
switch
To lower, press left.
To raise, press right.
3. Boom/Swing control
To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
4. Remote engine stop
switch
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
To lower boom, push.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position.
To stop engine immediately,
press
IMPORTANT: For normal engine
shutdown, use ignition switch.
CMW
RT80Q Operator’s Manual
Controls - 62
Backhoe Console
Item
Description
5. Remote backfill blade
control switch
To lower, press top.
Notes
To raise, press bottom.
6. Work light switch
To turn on, press right.
Optional
To turn off, press left.
7. Remote ground drive
control
To move tractor forward,
push.
To move tractor backward,
pull.
NOTICE:
•
This control is disabled if tractor
seat is occupied.
•
Ground drive must be in low (1)
position.
•
Ensure that backfill blade, if
equipped, and stabilizers are
raised before operating this
control.
•
Do not move more than 30’ (10
m) at a time.
c00ic216h.eps
8. Remote throttle
To increase engine speed,
turn counterclockwise.
To decrease engine speed,
turn clockwise.
To lock, push button, pull up,
then release button.
To unlock, push button, then
push down.
CMW
RT80Q Operator’s Manual
Controls - 63
Backhoe Console
Item
Description
Notes
9. Boom stow lock
To lock:
Use this control to lock boom in the up
position.
c00ic646w.eps
10. Bucket/dipper control
•
Raise boom fully.
•
Pull stow lock handle.
•
Lower boom slightly to
engage lock.
NOTICE: Always lock boom during
transport.
To unlock:
•
Raise boom slightly.
•
Push stow lock handle to
release lock.
To open bucket, move right.
To close bucket, move left.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
To move dipper in, pull.
To move dipper out, push.
11. Right stabilizer control
switch
To lower, press right.
To raise, press left.
12. Boom swing lock
To lock, push down and into
hook.
To unlock, pull up and into
hook.
Backhoe can be locked in several
swing positions. If lock will not
engage, swing backhoe slightly left or
right until lock engages.
NOTICE: Always lock boom during
transport.
CMW
RT80Q Operator’s Manual
Controls - 64
Drill Controls
Drill Controls
1
2
t33om063w.eps
1. Drilling attachment control
2. Drilling attachment
Item
Description
Notes
1. Drilling attachment
control
To rotate clockwise, press
bore.
IMPORTANT: Always rotate
clockwise during drilling and
backreaming. Rotate
counterclockwise only to dislodge a
dry bore bit or reamer that has seized
in the bore hole.
To rotate counterclockwise,
press reverse.
EMERGENCY SHUTDOWN:
Release all controls and turn
ignition switch to STOP.
c00ic655w.eps
CMW
Switch should return to neutral
position when released.
RT80Q Operator’s Manual
Controls - 65
Battery Disconnect
Battery Disconnect
1
t33om012w.eps
1. Battery disconnect switch
Item
Description
Notes
1. Battery disconnect
switch
To connect, move left.
NOTICE: Do not operate battery
switch with engine operating.
To disconnect, move right.
c00ic654w.eps
CMW
Controls - 66
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Operation Overview - 67
Operation Overview
Chapter Contents
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Trenching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Plowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Sawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Digging with Backhoe . . . . . . . . . . . . . . . . . . . . . . 69
Drilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Leaving Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
CMW
Operation Overview - 68
RT80Q Operator’s Manual
Planning
Planning
1. Gather information about jobsite. See 72.
2. Inspect jobsite. See page 73.
3. Classify jobsite. See page 74.
4. Select chain and teeth to match your soil type, if necessary. See page 135.
5. Check supplies and prepare equipment. See page 76.
6. Haul equipment to jobsite. See page 83.
Trenching
1. Start unit. See 78.
2. Position tractor and controls. See page 96.
3. Begin trenching. See page 96 .
4. Engage cruise control if desired. See page 132.
5. Engage optional Trench Depth Meter, if equipped.
6. Complete the installation. See page 139.
7. Shut down tractor. See page 81.
Plowing
1. Start unit. See page 78.
2. Position tractor and controls. See page 103.
•
offset plowing - page 107
•
coordinated plowing - page 107
•
crabbing - page 107
3. Attach product. See page 103.
4. Begin plowing. See page 106.
5. Engage cruise control if desired. See page 132.
6. Complete the installation. See page 139.
7. Shut down tractor. See page 81.
CMW
RT80Q Operator’s Manual
Operation Overview - 69
Sawing
Sawing
1. Start unit. See page 78.
2. Position tractor and controls. See page 114.
3. Begin sawing. See page 114.
4. Complete the installation. See page 139.
5. Backfill the trench. See page 140.
6. Shut down tractor. See page 81.
Digging with Backhoe
1. Start unit. See page 78.
2. Set stabilizers and unstow backhoe. See page 118.
3. Excavate. See page 119.
4. Stow backhoe properly. See page 120.
5. Shut down tractor. See page 81.
Drilling
1. Start unit. See page 78.
2. Dig approach trench and target trench. See page 125.
3. Assemble drill string and position tractor. See page 126.
4. Begin drilling. See page 127.
5. Use drill string guide as needed. See page 127.
6. Add rod. See page 128.
7. Backream. See page 128.
8. Shut down tractor. See page 81.
9. Disassemble joints. See page 129.
Leaving Jobsite
1. Backfill if necessary. See page 140.
2. Rinse equipment. See page 140.
3. Stow tools. See page 140.
4. Haul equipment from jobsite. See page 90.
CMW
Operation Overview - 70
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Prepare - 71
Prepare
Chapter Contents
Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Review Job Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Notify One-Call Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Arrange for Traffic Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Plan for Emergency Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Inspect Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
•
Identify Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Classify Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
•
Inspect Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
•
Select a Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
•
Apply Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Check Supplies and Prepare Equipment . . . . . . . 76
•
Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
•
Fluid Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
•
Condition and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
•
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
CMW
Prepare - 72
RT80Q Operator’s Manual
Gather Information
Gather Information
A successful job begins before you dig. The first step in planning is reviewing information already available
about the job and jobsite.
Review Job Plan
Review blueprints or other plans. Check for information about existing or planned structures, elevations, or
proposed work that may be taking place at the same time.
Notify One-Call Services
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
Arrange for Traffic Control
If working near a road or other traffic area, contact local authorities about safety procedures and
regulations.
Plan for Emergency Services
Have the telephone numbers for local emergency and medical facilities on hand. Check that you will have
access to a telephone.
CMW
RT80Q Operator’s Manual
Prepare - 73
Inspect Site
Inspect Site
Inspect jobsite before transporting equipment. Check for the following:
•
changes in elevation such as hills or other open trenches
•
obstacles such as buildings, railroad crossings, or streams
•
signs of utilities (“Inspect Jobsite” on page 74)
•
traffic
•
access
•
soil type and condition
Identify Hazards
Identify safety hazards and classify jobsite. See “Classify Jobsite” on page 74.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
To help avoid injury:
•
Wear personal protective equipment including hard hat, safety eye wear, and hearing protection.
•
Do not wear jewelry or loose clothing.
•
Notify One-Call and companies which do not subscribe to One-Call.
•
Comply with all utility notification regulations before digging or drilling.
•
Verify location of previously marked underground hazards.
•
Mark jobsite clearly and keep spectators away.
Remember, jobsite is classified by hazards in place -- not by line being installed.
CMW
Prepare - 74
RT80Q Operator’s Manual
Classify Jobsite
Classify Jobsite
Inspect Jobsite
•
Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and
other similar regulations.
•
Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and
Canada) to have underground utilities located before digging. Also contact any utilities that do not
participate in the One-Call service.
•
Inspect jobsite and perimeter for evidence of underground hazards, such as:
– “buried utility” notices
– utility facilities without overhead lines
– gas or water meters
– junction boxes
– drop boxes
– light poles
– manhole covers
– sunken ground
•
Have an experienced locating equipment operator sweep area within 20’ (6 m) to each side of trench
path. Verify previously marked line and cable locations.
•
Mark location of all buried utilities and obstructions.
•
Classify jobsite.
Select a Classification
Jobsites are classified according to underground hazards present.
If working . . .
then classify jobsite as . . .
within 10’ (3 m) of a buried electric line
electric
within 10’ (3 m) of a natural gas line
natural gas
in sand, granite, or concrete which is capable of producing
crystalline silica (quartz) dust
crystalline silica (quartz) dust
within 10’ (3 m) of any other hazard
other
NOTICE: If you have any doubt about jobsite classification, or if jobsite might contain unmarked
hazards, take steps outlined previously to identify hazards and classify jobsite before working.
CMW
RT80Q Operator’s Manual
Prepare - 75
Classify Jobsite
Apply Precautions
Once classified, precautions appropriate for jobsite must be taken.
Electric Jobsite Precautions
Use one or both of these methods.
•
Expose line by careful hand digging or soft excavation.
•
Have service shut down while work is in progress. Have electric company test lines before returning
them to service.
Natural Gas Jobsite Precautions
In addition to positioning equipment upwind from gas lines, use one or both of these methods.
•
Expose lines by careful hand digging or soft excavation.
•
Have gas shut off while work is in progress. Have gas company test lines before returning them to
service.
Crystalline Silica (Quartz) Dust Precautions
Crystalline silica dust is a naturally occuring substance found in soil, sand, concrete, granite, and quartz.
Breathing silica dust particles while cutting, drilling, or working materials may cause lung disease or
cancer. To reduce exposure:
•
Use water spray or other means to control dust.
•
Refer to U.S. Department of Labor Occupational Safety and Health Administration guidelines to learn
more about appropriate breathing protection and permissible exposure limits.
Other Jobsite Precautions
You may need to use different methods to safely avoid other underground hazards. Talk with those
knowledgeable about hazards present at each site to determine which precautions should be taken or if
job should be attempted.
CMW
Prepare - 76
RT80Q Operator’s Manual
Check Supplies and Prepare Equipment
Check Supplies and Prepare Equipment
Supplies
•
fuel
•
keys
•
personal protective equipment, such as hard hat and safety glasses
Fluid Levels
•
fuel
•
hydraulic fluid
•
battery charge
•
engine oil
Condition and Function
•
digging chain and teeth
•
brake pads and disc
•
fan belts
•
light bulbs
•
filters (air, oil, hydraulic)
•
tracks
•
pumps and motors
•
hoses and valves
•
signs, guards, and shields
Accessories
Fire Extinguisher
If required, mount a fire extinguisher near the power unit but away from possible points of ignition. The fire
extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory
requirements.
CMW
RT80Q Operator’s Manual
Drive - 77
Drive
Chapter Contents
Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Safe Slope Operation . . . . . . . . . . . . . . . . . . . . . . . 81
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
CMW
RT80Q Operator’s Manual
Drive - 78
Start Unit
Start Unit
Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow
instructions for new engine break-in.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
•
Read operator’s manual before operating equipment. Follow instructions carefully. Contact Ditch
Witch dealership for operation information or demonstration.
•
Wear hard hat, safety glasses, and other protective equipment required by job. Do not wear jewelry
or loose clothing that can catch on controls.
Runaway possible. Machine could run over you or others. Learn how to
use all controls. Start and operate only from operator’s position.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
CMW
RT80Q Operator’s Manual
Drive - 79
Start Unit
1. Fasten and adjust seat belt.
2. Check that ground drive control and attachment speed/direction control are in neutral.
3. Move throttle to idle.
4. Verify that parking brake is engaged.
5. Turn ignition switch to the run position (key on, engine off). Cold start wait indicator will light (if
equipped).
Explosion possible. Serious injury or equipment damage could
occur. Follow directions carefully.
To help avoid injury: Do not use ether or any other type of aerosol starting fluid when unit is
equipped with cold start option.
6. When cold start wait indicator goes off, turn ignition switch all the way clockwise to start tractor.
Warning alarm will sound. Indicators will light.
•
If engine does not crank, check start interlock display. See page 26 for start interlock information.
•
If engine turns but does not start within 10 seconds, allow starter to cool before trying to start
again.
Improper control function could cause death or serious injury.
To help avoid injury: Stop machine and have it serviced if control does not work
as described in instructions.
IMPORTANT: Machine will not start if start interlock requirements are not met. See page 26 for
start interlock information.
7. Run engine at half-throttle or less for five minutes before operating tractor. During warmup, check that
all controls work properly.
CMW
RT80Q Operator’s Manual
Drive - 80
Drive
Drive
Moving traffic – hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
To help avoid injury:
•
Survey your field of vision when operating the machine.
•
Drive carefully in congested areas. Know machine’s clearance and turning radius.
•
Keep attachments low when operating on slope. Drive slowly and cautiously.
EMERGENCY SHUTDOWN: Turn ignition switch to STOP.
1. Turn on lights as needed.
2. Raise backfill blade and all attachments.
3. Release parking brake.
4. Adjust throttle.
5. When operating in low or medium:
•
if using the hand control, the foot control will only increase speed.
•
any opposing signal from controls causes ground drive to stop.
6. When operating in high, ground drive stops if hand control is moved out of neutral position.
CMW
RT80Q Operator’s Manual
Drive - 81
Safe Slope Operation
Safe Slope Operation
Tipover possible. Machine can tip over and crush you.
To help avoid injury:
• Always operate with heavy end uphill.
• Drive cautiously at all times.
• Never jerk control levers. Use a steady even motion.
• Do not park unit on slope without lowering digging attachment to the
ground, returning all controls to neutral position, shutting down unit, and applying parking brake.
Operating safely on a slope depends upon many factors including:
•
Distribution of machine weight, including front loading and absence of load
•
Height of load
•
Even or rough ground conditions
•
Potential for ground giving way causing unplanned tilt forward, reverse or sideways
•
Nearness of ditches, ruts, stumps or other obstructions and sudden changes in slope
•
Speed
•
Turning
•
Braking performance
•
Operator skill
These varying factors make it impractical to specify a maximum safe operating angle in this manual. It is
therefore important for the operator to be aware of these conditions and adjust operation accordingly.
Maximum engine angle and braking performance are two absolute limits which must never be exceeded.
These maximums are stated below since they are design limits. These design limits usually exceed the
operating limits and must never be used alone to establish safe operating angle for variable conditions.
Maximum engine lubrication angle – 30°
Maximum service brake retarding force – equal to traction of both tracks.
Maximum secondary brake retarding force – equal to traction of one track.
Maximum park brake holding force – equal to traction of both tracks.
CMW
Drive - 82
RT80Q Operator’s Manual
Shut Down
Shut Down
1. When job is complete, move ground drive control to neutral.
2. Set parking brake.
3. Lower all attachments to ground.
4. Move throttle to idle for 3 minutes to cool engine.
5. Turn ignition switch to STOP. If leaving machine unattended, remove key.
6. For maintenance or long-term storage, turn battery disconnect switch, if equipped, to the disconnect
position.
CMW
RT80Q Operator’s Manual
Transport - 83
Transport
Chapter Contents
Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Tie Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
CMW
RT80Q Operator’s Manual
Transport - 84
Lift
Lift
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Tractor
This machine is not configured for lifting. If the machine must be lifted, load machine into a container or
onto a platform appropriate for lifting. See “Specifications” for weight of machine.
Centerline Trencher
Lift points shown with arrows. Use crane
capable of supporting the equipment's size
and weight. See “Specifications” or measure
and weigh equipment before lifting.
CMW
RT80Q Operator’s Manual
Transport - 85
Lift
Traversing Trencher
Lift points shown with arrows. Use crane
capable of supporting the equipment's size
and weight. See “Specifications” or measure
and weigh equipment before lifting.
Combo
Lift points shown with arrows. Use crane capable
of supporting the equipment's size and weight.
See “Specifications” or measure and weigh
equipment before lifting.
Plow linkage has some movement and may
require better support in some situations.
t33om022w.eps
CMW
RT80Q Operator’s Manual
Transport - 86
Lift
Plow
Lift points shown with arrows. Use crane
capable of supporting the equipment's size
and weight. See “Specifications” or measure
and weigh equipment before lifting.
t33om018w.eps
Reel Carrier
Lift points shown with arrows. Use crane
capable of supporting the equipment's size
and weight. See “Specifications” or measure
and weigh equipment before lifting.
CMW
RT80Q Operator’s Manual
Transport - 87
Tie Down
Tie Down
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Points
Tiedown points are identified by tiedown decals. Securing to trailer at other
points is unsafe and can damage machinery.
Tractor
Attach chains at front and rear tiedown points.
Make sure chains are tight before transporting
unit.
t33om014w.eps
Centerline Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with
a trench cleaner, ensure that trench
cleaner shoe is fully up and extra bolt
(found in operator’s manual compartment)
is installed in center hole for additional
support.
t33om087w.eps
CMW
RT80Q Operator’s Manual
Transport - 88
Tie Down
Traversing Trencher
Lower trencher to trailer deck and chain at
attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with
a trench cleaner, ensure that trench
cleaner shoe is fully up and extra bolt
(found in operator’s manual compartment)
is installed in center hole for additional
support.
t33om088w.eps
Combo
Lower attachment to trailer deck and chain at
attachment frame and vibrator box. Make sure
chains are tight before transporting.
NOTICE:
•
Engage attachment stow lock and swing
lock devices in addition to securing at
tiedowns.
•
Unsecured plow can swing outside the
trailer and become a traffic hazzard.
Lower plow and chain to trailer deck
before hauling.
•
If trencher is equipped with a trench
cleaner, ensure that trench cleaner shoe
is fully up and extra bolt (found in
operator’s manual compartment) is
installed in center hole for additional
support.
CMW
t33om027w.eps
RT80Q Operator’s Manual
Transport - 89
Tie Down
Plow
Lower plow to trailer deck and chain at
attachment frame and vibrator box. Make sure
chains are tight before transporting.
NOTICE:
•
Engage attachment stow lock and
swing lock devices in addition to
securing at tiedowns.
•
Unsecured plow can swing outside
the trailer and become a traffic
hazard. Lower plow and chain to
trailer deck before hauling.
t33om019w.eps
Reel Carrier
Lower reel carrier to lowest position and tie down
at attachment arms. Make sure chains are tight
before transporting.
CMW
RT80Q Operator’s Manual
Transport - 90
Haul
Haul
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
•
Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded
machine can slip or cause trailer sway.
•
Ensure that tow vehicle has proper tow capacity rating.
•
Attach trailer to tow vehicle before loading or unloading.
•
Park, load, and unload trailer on level ground.
•
Check that unit and trailer do not exceed size or weight regulations.
•
Load trailer correctly to avoid trailer swaying. Ten to fifteen percent of total vehicle weight
(equipment plus trailer) must be on tongue to help prevent trailer sway.
•
Connect safety chains to tow vehicle. Attach left chain to right side of tow vehicle and vice versa to
cradle hitch. Do not connect to pintle hook or hitch ball.
•
Connect breakaway switch cable to tow vehicle. Do not connect to pintle hook or hitch ball.
Procedure
Inspect Trailer
1. Check hitch for wear and cracks. Lubricate if needed.
2. Check battery for 12V charge.
3. Inspect lights for cleanliness and correct operation. Inspect reflectors and replace if needed.
4. Check trailer tire pressure. Check lug nut torque with a torque wrench. Adjust if needed.
5. Ensure trailer brakes are adjusted to come on with tow vehicle brakes.
6. Check ramps and trailer bed for cracks.
CMW
RT80Q Operator’s Manual
Transport - 91
Haul
Load
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
To help avoid injury:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Block trailer wheels.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Fasten and adjust seat belt.
2. Start tractor. See page 78 for proper start-up procedures.
3. Raise attachments, but keep them low and centered. Check that they are not in float.
4. Release parking brake and verify that parking brake indicator is off.
5. Move ground drive switch to low.
6. Slow engine to low throttle and slowly drive tractor onto trailer.
7. Position tractor on trailer deck for proper weight distribution.
8. Engage parking brake and verify that parking brake indicator is on.
9. Lower attachments to trailer bed and turn tractor off. See page 81 for proper shutdown procedures.
10. Attach chains to tractor and attachments where tiedown decals are located. See page 87.
CMW
RT80Q Operator’s Manual
Transport - 92
Haul
Unload
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
To help avoid injury:
•
Attach trailer to tow vehicle before loading or unloading.
•
Load and unload trailer on level ground.
•
Block trailer wheels.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Lower trailer or ramps.
2. Check that parking brake is engaged and verify that parking brake indicator is on.
3. Check that ground drive controls are in neutral.
4. Remove chains from tiedowns.
5. Fasten and adjust seat belt.
6. Start tractor. See page 78 for proper start-up procedures.
7. Raise attachments, but keep them low and centered. Check that they are not in float.
8. Release parking brake and verify that parking brake indicator is off.
9. Slow engine to low throttle and slowly back unit down trailer or ramps.
CMW
RT80Q Operator’s Manual
Transport - 93
Tow
Tow
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Under normal conditions, tractor should not be towed. If tractor becomes disabled and towing is
necessary:
•
Do not tow for more than 200 yd (180 m).
•
Tow at less than 1 mph (1.6 km/h).
•
Steering will be very difficult.
Procedure
1. Engage parking brake.
2. Block front and rear tracks to prevent unit
from rolling.
3. Attach tow line to all available tie-down
points facing towing vehicle.
4. Activate the tow valve (shown).
•
Under tractor, locate two screws on
bottom of pump housing.
•
Use flat blade screwdriver to turn
each screw 90° counterclockwise until
they contact relief check valves.
t33om076w.eps
5. Remove blocks.
6. Fasten seatbelt and adjust seatbelt.
7. Disengage parking brake.
8. After towing, turn tow screws clockwise 90°.
CMW
Transport - 94
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Trench - 95
Trench
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
CMW
RT80Q Operator’s Manual
Trench - 96
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
To help avoid injury: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
To help avoid injury: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Before Using Trencher
NOTICE: If trencher is equipped with trench
cleaner, check to ensure that shipping bolt
has been removed, as shown.
1. Fasten and adjust seat belt.
2. Start tractor. See page 78 for start-up
procedures.
3. Drive to starting point. Move in line with
planned trench.
t33om080w.eps
CMW
RT80Q Operator’s Manual
Trench - 97
Operation
IMPORTANT:
•
When cutting asphalt, start trench in soil at edge of road and use shortest possible boom at full
depth.
•
Sight along center of hood to a stake driven beyond end of trench line for straight trench.
•
For optimal spoils delivery, adjust the auger positions forward or backward to accommodate terrain
and digging depth.
4. Lower backfill blade.
5. Engage parking brake.
6. Lower boom to just above ground.
7. Check that attachment speed/direction control and ground drive controls are in neutral.
8. If equipped with combo, select trenching control position.
Operation
Breathing crystalline silica dust may cause lung disease. Cutting, drilling,
or working materials such as concrete, sand, or rock containing quartz may result in
exposure to silica dust. Use dust control methods or appropriate breathing protection
when exposed to silica dust.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
To help avoid injury: Expose lines by hand before digging. Cutting high voltage cable can cause
electrocution.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
•
Comply with all utility notification regulations before digging or drilling.
•
Notify companies that do not subscribe to One-Call.
CMW
RT80Q Operator’s Manual
Trench - 98
Operation
Flying objects thrown by machine may strike people. Wear hard hat and
safety glasses.
Moving digging teeth will cause death or serious injury. Stay away.
To help avoid injury:
•
Ensure parking brake is engaged.
•
Allow 3’ (1 m) between digging teeth and obstacle. Machine might jerk when digging starts.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
1. Lower backfill blade to reduce shock when trenching begins.
2. If necessary, adjust throttle to low idle.
3. Move attachment speed/direction control to desired speed. DIGGING CHAIN WILL MOVE.
NOTICE: Always start trenching with attachment speed set at low. If soil conditions permit
optimum digging at higher speeds, select high.
4. Increase engine speed to full throttle.
5. Slowly lower digging boom to depth.
6. Raise backfill blade and release parking brake.
7. Move ground drive control to desired speed.
8. If using optional mechanical trench cleaner:
•
Stop tractor and turn ignition switch to STOP.
•
Lower trench cleaner, if equipped.
•
Restart tractor, fasten seat belt, and continue trenching.
NOTICE:
•
Make sure that shipping bolt is removed before attempting to use trench cleaner.
•
Do not have trench cleaner in working position when starting a trench.
•
Do not back up with trench cleaner in working position.
•
Do not use trench cleaner in conditions where large rocks can get between chain and
cleaner.
CMW
RT80Q Operator’s Manual
Trench - 99
Operation
9. If using optional hydraulic trench cleaner:
•
Trench forward a short distance.
•
Move hydraulic control lever to lower trench cleaner, and continue trenching.
10. Push ground drive control forward to trenching speed.
NOTICE:
•
Do not make sharp turns. Lower boom to full depth when turning.
•
If an object becomes lodged in chain, move attachment speed/direction control to neutral
and raise boom slightly. Reverse chain direction. If object must be removed manually, turn
engine off and engage parking brake.
11. When trench is complete, move ground drive control to neutral.
12. Adjust throttle to low idle.
13. Raise boom.
14. As boom clears top of trench, move attachment speed/direction control to neutral.
15. Drive a short distance away from work site.
16. Shut down tractor. See page 81 for proper shutdown procedures.
17. Return optional trench cleaner to the stowed position.
CMW
Trench - 100
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Plow - 101
Plow
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
CMW
RT80Q Operator’s Manual
Plow - 102
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
To help avoid injury: Keep everyone at least 6’ (2 m) from machine, attachments, and their range of
movement.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
To help avoid injury: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
NOTICE: Do not operate vibrator unless plow is in the ground.
CMW
RT80Q Operator’s Manual
Plow - 103
Setup
Position Tractor
IMPORTANT: If material must be at a constant depth, dig starting and target trenches.
1. Fasten and adjust seat belt.
2. Start tractor. See page 78 for start-up procedures.
3. Drive to starting point. Move in line with planned trench.
4. Engage parking brake and verify parking brake indicator is on.
5. Lower backfill blade, if equipped.
6. If equipped with combo, select the plow control position.
7. Lower plow to starting point of trench.
8. Turn ignition switch to STOP.
Attach Product
To Pull Product
1. Insert material into pulling grip.
2. Tape grip with duct tape.
NOTICE: Keep everyone away from
material being installed.
CMW
Plow - 104
RT80Q Operator’s Manual
Setup
To Feed Product
1. Remove cable guide.
2. Feed cable/marking tape through tube
from top to bottom.
3. Replace cable guide and tighten
fasteners.
4. Secure cable.
NOTICE: Keep everyone away from
material being installed.
CMW
RT80Q Operator’s Manual
Plow - 105
Operation
Operation
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
To help avoid injury: Expose lines by hand before digging. Cutting high voltage cable can cause
electrocution
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE: Do not drive backward with plow in the ground.
CMW
Plow - 106
RT80Q Operator’s Manual
Operation
Start Plowing
1. Fasten and adjust seat belt.
2. Start tractor. See page 78 for start-up procedures.
3. Adjust throttle to low idle.
4. Check that ground drive control is in neutral.
5. Lower reel carrier to lowest position possible, if equipped.
NOTICE: Use extreme caution when operating reel carrier on sloped surfaces.
6. If equipped with backfill blade tilt/attachment swing valve and control, move selector to swing position.
7. If equipped with reel winder, select reel winder on function switch. Lower reel winder arm to disengage
reel winder from product spool.
8. Raise backfill blade.
9. Move ground drive control to forward at plowing speed and lower plow blade into ground.
NOTICE: Do NOT move ground drive to reverse with plow blade in the ground.
10. Increase engine speed to full throttle.
11. Rotate attachment speed/direction control to attachment speed that allows the least tractor vibration at
the highest ground drive possible without track slippage. PLOW WILL VIBRATE.
12. Check cable for damage during plowing. Run continuity checks on electric cable and check pipe
pressure. Damage can result from improper operation, incorrect blade choice, striking underground
obstructions, or other conditions.
Finish Plowing
1. When installation is complete, move ground drive control to neutral.
2. With vibrator running, lower throttle speed and raise plow to ground level.
NOTICE: Do not operate vibrator when plow is out of the ground. This will cause excessive
vibration resulting in rapid wear, and possible damage to the unit and product being installed.
3. Move attachment speed/direction control to neutral.
4. Engage parking brake.
5. Lower backfill blade.
6. Turn ignition switch to STOP and remove product from plow.
7. Start tractor, raise backfill blade and drive a short distance away from work site.
8. Shut down tractor. See page 81 for proper shutdown procedures.
CMW
RT80Q Operator’s Manual
Plow - 107
Operation
Special Plowing
Your Ditch Witch equipment allows you to
plow four ways: normal plowing, offset plowing
(1), coordinated plowing (2), and crabbing (3).
NOTICE: Oversteering blade may damage
blade or cable.
Offset Plow
Offset plowing can be used to plow next to a
road while keeping tracks on a more stable surface or in similar conditions.
1. Use plow swing to move plow to planned trench line.
2. Use blade steer to position blade parallel to direction of tractor frame.
Coordinated Plow
Coordinated plowing can be used to turn a tight circle around a jobsite obstacle or in similar conditions.
1. Move rear steer/center switch to the rear steer position.
2. Use the rear steer switch to position the tracks as shown above (2).
3. Slowly move tractor forward.
4. Plow as normal.
IMPORTANT: When coordinated plowing, keep plow blade straight or in the same angle position as rear
tracks.
Crab Plow
Crab can be used to plow along edge of jobsite or in similar conditions.
1. Move rear steer/center switch to the rear steer position.
2. Use the rear steer switch to position the tracks as shown above (3).
3. Slowly move tractor forward.
4. Plow as normal.
CMW
Plow - 108
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Reel Carrier - 109
Reel Carrier
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
CMW
RT80Q Operator’s Manual
Reel Carrier - 110
Setup
Setup
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Adjust Reel Winder
1. Lower reel carrier.
2. Turn ignition switch to STOP.
3. Remove reel.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
4. While supporting lever arm (3), remove
bolt (1) that attaches hydraulic lift cylinder
to lever arm.
5. Attach cylinder rod to the correct mounting
hole for your diameter reel:
•
For 2-5’ (61-152 cm ) diameter reels,
attach to bottom mounting hole (1).
•
For 5-7’ (152-213 cm ) diameter reels,
attach to top mounting hole (2).
CMW
RT80Q Operator’s Manual
Reel Carrier - 111
Operation
Operation
1. Fasten and adjust seat belt.
1. Drive to beginning of planned plow path.
2. Engage parking brake.
3. Lower backfill blade, if equipped.
4. Lower plow attachment.
5. Adjust throttle.
6. Attach service line to reel.
Moving parts could cut off hand or foot. Stay
away.
7. Move reel winder selector switch to activate reel winder control functions.
8. Lower reel winder arm until track meets reel flange.
9. Wind service line.
10. When finished winding, raise reel winder arm.
11. Adjust throttle.
12. Move reel winder selector switch to activate backfill blade controls.
13. Raise backfill blade, if equipped.
14. Release parking brake.
15. Follow directions in “Setup” on page 102 to begin plowing.
CMW
Reel Carrier - 112
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Saw - 113
Saw
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
•
Before First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
•
Normal Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
CMW
RT80Q Operator’s Manual
Saw - 114
Setup
Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
To help avoid injury: Use attachments or counterweights to make front and rear loads balance when all
attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
To help avoid injury: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Before First Use
NOTICE: Before first use read saw manufacturer’s instructions carefully and be sure you understand
the operation of both the tractor and the saw attachment before operating.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury: Unless otherwise instructed, all service should be performed with tractor off.
CMW
RT80Q Operator’s Manual
Saw - 115
Operation
Operation
Breathing crystalline silica dust may cause lung disease. Cutting, drilling,
or working materials such as concrete, sand, or rock containing quartz may result in
exposure to silica dust. Use dust control methods or appropriate breathing protection
when exposed to silica dust.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away.
To help avoid injury: Expose lines by hand before digging. Cutting high voltage cable can
cause electrocution.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Flying objects thrown by machine may strike people. Wear hard hat and
safety glasses.
Moving digging teeth will kill you or cut off arm or leg. Stay away.
To help avoid injury:
•
Allow 3’ (1 m) between digging teeth and obstacle. Machine might jerk when digging starts.
•
Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
Normal Use
1. Fasten and adjust seat belt.
2. Start tractor. See “Start Unit” on page 78 for start-up procedures.
3. Drive to starting point. Move in line with planned trench.
4. See manufacturer’s instructions for saw operating procedures.
CMW
Saw - 116
RT80Q Operator’s Manual
Operation
5. Engage parking brake.
6. Move gearbox control to 1 (low).
7. Swivel seat to the desired position.
8. Engage axle lock.
9. Lower saw to just above ground.
10. Check that saw is in line with planned trench.
11. Release parking brake.
12. Work slowly and carefully.
13. When trench is complete, move ground drive control to neutral and adjust throttle to low idle.
CMW
RT80Q Operator’s Manual
Backhoe - 117
Backhoe
Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Stow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
CMW
Backhoe - 118
RT80Q Operator’s Manual
Setup
Setup
1. Move attachment speed/direction control to neutral position.
2. Move ground drive control to neutral position.
3. Engage parking brake if not on level ground.
4. Lower rear attachment to 6” (150 mm) above ground.
5. Check that backfill blade is straight and lower it to ground.
6. Ensure ground drive is in low speed.
7. Decrease engine speed to low throttle.
8. Move to backhoe operator’s station.
9. Release seat lock (shown) and move seat
into operating position.
10. Release and lower stabilizers enough to lift
front tires or tracks.
11. Disengage boom and swing stow locks.
12. Adjust engine speed to 1/2 to 3/4 throttle for
digging.
IMPORTANT: Engine speed affects
speed of backhoe operation.
CMW
RT80Q Operator’s Manual
Backhoe - 119
Operation
Operation
Dig
Use boom/swing control and bucket/dipper control to dig hole or trench.
IMPORTANT: For more information about backhoe controls, see “Backhoe Console” on page 60.
•
Keep dipper and boom at right angles as
much as possible for maximum power.
•
Keep bucket in line with dipper as much
as possible.
•
Position bucket so teeth cut soil. As soil is
cut, curl bucket under dipper.
•
Move dipper and bucket together.
Increasing engine speed will not increase
backhoe force.
Move Unit
To move unit from the backhoe operator’s
station using the remote ground drive function:
NOTICE:
•
Remote ground drive is disabled if an
operator is sitting in main operator seat.
•
Remote ground drive is disabled if
ground drive controls are not in neutral.
•
Only use this method to move unit less
than 30’ (10 m) at one time.
1. Raise stabilizers.
2. Use remote ground drive switch to move unit.
3. Lower stabilizers.
CMW
Backhoe - 120
RT80Q Operator’s Manual
Stow
Stow
IMPORTANT: Before returning to tractor operator station, raise stabilizers, return remote throttle to low
idle, and stow and lock boom.
1. When hole or trench is complete, lift boom
while keeping dipper pointed at ground.
2. Curl bucket closed and move dipper fully
toward boom.
3. Lift boom to highest position and engage
stow lock.
CMW
RT80Q Operator’s Manual
Backhoe - 121
4. Raise stabilizers into locked position.
5. Return remote throttle to low idle.
6. Rotate seat into stowed position and
engage seat lock (shown).
CMW
Backhoe - 122
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Drill - 123
Drill
Chapter Contents
Prepare Jobsite and Equipment . . . . . . . . . . . . . 125
•
Approach Trench (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
•
Target Trench (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
•
Drill Pipe and Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Drill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
•
Using Drill String Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Add Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Backream. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Disassemble Joints . . . . . . . . . . . . . . . . . . . . . . . 129
CMW
RT80Q Operator’s Manual
Drill - 124
Drilling Attachment
Drilling Attachment
Turning shaft will kill you or crush arm or leg. Stay away.
To help avoid injury:
•
Do not straddle trench or drill pipe while drilling. Keep everybody at least 10’ (3 m) away from drill
pipe during operation.
•
Keep all persons away from material being installed. If swivel malfunctions, material being installed
can rotate.
•
Use a guide to align drill rod when starting a bore. Guides are available from your Ditch Witch
dealership.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
To help avoid injury: Set up warning barriers and keep people away from equipment and jobsite while
drilling.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Improper control function could cause death or serious injury. If control
does not work as described in instructions, stop machine and have it serviced.
To help avoid injury:
•
Do not alter controls. Improper control function can cause serious injury.
•
Do not tape or tie down switch or lever.
•
Stop drilling and turn off power supply if releasing control does not stop turning shaft. Have unit
repaired.
CMW
RT80Q Operator’s Manual
Drill - 125
Prepare Jobsite and Equipment
Prepare Jobsite and Equipment
Approach Trench (1)
1. Mark path where you intend to drill.
2. Dig an approach trench (1) along the
intended bore path.
IMPORTANT: The approach trench
should be at least:
•
deep enough for pipe to lay flat
and enter soil at correct angle
•
20’ (6 m) long
•
4” (100 mm) wide
Target Trench (2)
1. Select a completion point for the drilling project.
2. Dig a target trench (2) across the anticipated completion point.
IMPORTANT: The actual length of the target trench depends on soil conditions and length of pipe
sections. Make it deep enough for drill bit to enter slightly above the trench floor.
CMW
Drill - 126
RT80Q Operator’s Manual
Prepare Jobsite and Equipment
Drill Pipe and Equipment
1. Assemble at least 20’ (6 m), but not more than 30’ (9 m), of drill rod.
NOTICE: More than 10-15’ (3-4.5 m) of drill rod out of the trench increases the tendency of drill
rod to bend.
2. Install drill bit to the cutting end of the drill string.
3. Put drill string in approach trench.
4. Move tractor to the approach trench and align the drilling attachment with the intended bore path.
5. Turn off engine.
6. Attach drill string to drilling attachment.
CMW
RT80Q Operator’s Manual
Drill - 127
Drill
Drill
IMPORTANT: For location and description of drilling controls see “Drill Controls” on page 64.
EMERGENCY SHUTDOWN: Release drilling control and turn ignition switch to STOP.
1. Start tractor’s engine and begin clockwise (forward) rotation.
2. Slowly advance tractor while maintaining clockwise rotation.
NOTICE:
•
Drilling too quickly causes bit to drift off course and may bend drill rod. After bore path is
established, speed may be slightly increased.
•
If drill rod starts to bend, stop forward movement of unit and back the unit slightly until rod
straightens. Do not drill with bent rod.
•
If drill rod hits an obstruction, rotate drill string counterclockwise to back up slightly.
Using Drill String Guide
Turning shaft will kill you or crush arm or leg. Stay away.
To help avoid injury: Keep everybody at least 10’ (3 m) away from drill rod during
operation. Do not straddle trench or drill rod while drilling.
Use drill string guide to align drill string as it
enters the soil. When using drill string guide,
follow these guidelines:
•
Use only approved Ditch Witch drill string
guide (p/n 179-737).
•
Stand only on the left side of the approach
trench.
•
Keep drill string guide at least 3’ (1 m)
behind bit.
•
Use drill string guide to control only the
first 5’ (1.5 m) of the bore path.
•
After drilling 5’ (1.5 m), stop unit and
remove drill string guide.
•
Do not use drill string guide during
backreaming or any time the drill string is
being pulled back.
CMW
Drill - 128
RT80Q Operator’s Manual
Add Rod
Add Rod
1. Stop drilling attachment.
2. Back up tractor 6" (150 mm) to loosen drill rod in ground.
3. Disconnect drill rod from drilling attachment.
4. Move tractor away from bore.
5. Add one drill rod to continue bore.
Backream
After drill bit enters target trench, the bore hole may be enlarged by changing the drill bit to a backreamer
and drawing it back through the initial bore.
1. Turn tractor ignition switch to STOP.
2. Replace drill bit with backreamer.
3. Start tractor engine and begin clockwise rotation.
IMPORTANT: Always rotate clockwise during backreaming. Rotate counterclockwise only to
dislodge a dry bore bit or reamer that has siezed in the bore hole.
4. Slowly back up tractor while maintaining rotation.
5. When backreamer exits the bore hole, stop rotation immediately.
IMPORTANT:
CMW
•
Do not try to increase hole size too much in one pass. Several passes using successively
larger reamers will save wear on machine.
•
During backreaming, keep drill string straight. Sharp bends in the drill rod at the motor
coupling can cause rod failure.
RT80Q Operator’s Manual
Drill - 129
Disassemble Joints
Disassemble Joints
1. Press tab through hole in female side of
joint using special tool or screwdriver.
2. Pull rods apart.
CMW
Drill - 130
CMW
RT80Q Operator’s Manual
RT80Q Operator’s Manual
Systems and Equipment - 131
Systems and Equipment
Chapter Contents
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
•
Operate Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Chain, Teeth, and Sprockets . . . . . . . . . . . . . . . . 134
•
Chain and Tooth Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
•
Chain Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
•
Chain Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Diagnostic Trouble Codes . . . . . . . . . . . . . . . . . . . . .
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . 136
•
RT80Q Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
•
H810/H813 Trencher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
•
H832 Plow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
•
H853 Combo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
•
RC80 Reel Carrier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
•
HD630 Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
•
Counterweighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Systems and Equipment - 132
RT80Q Operator’s Manual
Cruise Control
Cruise Control
Cruise control is a standard feature that allows the unit to automatically adjust ground drive speed
according to digging conditions. In easier soil conditions, the ground drive speed will increase. When the
unit encounters difficult soil conditions, the ground drive speed will decrease. The unit does this by
adjusting ground drive pump output to maintain a preset engine speed.
Operate Cruise Control
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Plowing
1. First set the following controls:
•
ground drive controls to neutral
•
ground drive switch to low
•
ensure cruise control is off
•
lower plow to desired depth
•
adjust engine to maximum throttle
•
all other controls set as desired
2. Press cruise control switch once and ensure that cruise control switch indicator lights. Icon will also be
shown on graphic display.
3. Set ground drive hand control to maximum speed suitable for digging conditions.
4. Use RPM dial control to select optimum engine speed for digging conditions.
5. When finished plowing, move ground drive control to neutral and press cruise control switch again to
turn off cruise control.
RT80Q Operator’s Manual
Systems and Equipment - 133
Cruise Control
Trenching
1. First set the following controls:
•
ground drive controls to neutral
•
ground drive switch to low
•
ensure cruise control is off
•
all other controls set as desired
2. Move cruise control RPM control to arrow at center.
3. Press cruise control switch once and ensure that cruise control switch indicator lights. Icon will also be
shown on graphic display.
4. Following procedures on “Setup” on page 96, begin trenching to desired depth.
5. When desired depth is reached, ensure throttle is fully open.
6. Slowly move ground drive control forward.
7. Slowly adjust cruise control RPM control to match digging conditions.
IMPORTANT:
•
In harder digging conditions, higher cruise control rpm setting may improve digging
performance.
•
In easier digging conditions, lower cruise control rpm setting may increase ground drive
speed.
8. When finished trenching, move ground drive control to neutral and press cruise control switch again to
turn off cruise control.
9. Allow chain to dig itself free before stopping attachment.
RT80Q Operator’s Manual
Systems and Equipment - 134
Chain, Teeth, and Sprockets
Chain, Teeth, and Sprockets
Chain and Tooth Maintenance
•
Always replace sprockets at the same time you replace the digging chain. Sprockets and chain are
designed to work together. Replacing one without the other will cause premature wear of the new part.
•
Keep digging teeth sharp. Using dull, worn teeth will decrease production and increase shock load to
other trencher components. It can also cause chain stretch, which leads to premature chain wear and
failure.
•
Maintain the proper amount of tension on the digging chain. Overtightening will cause chain stretch
and loss of machine performance. For correct tightening procedure, see “Check Digging Chain
Tension” on page 155.
•
Use the tooth pattern most appropriate for your digging conditions. If you move to a different soil type,
contact your Ditch Witch dealer for information about the most effective chain type and tooth pattern.
Chain Types
Chain type
Features
4-pitch
standard chain
2-pitch
more teeth for smoother cutting
alternating side bar
prevents spoil compaction on chain
bolt-on adapters
allow easy configuration changes
Shark Chain II
versatile, virtually maintenance-free
combination
provides pick and shovel effect
RT80Q Operator’s Manual
Systems and Equipment - 135
Chain, Teeth, and Sprockets
Chain Selection
These charts are meant as a guideline only. No one chain type works well in all conditions. See your Ditch
Witch dealer for soil conditions and chain recommendations for your area. Ask for the latest Chain, Teeth,
and Sprockets Parts Catalog.
•
1 = best
•
2 = better
•
3 = good
•
4 = not recommended
Chain
Sandy
Soil
Soft Soil
Medium
Soil
Hard Soil
Rocky
Soil
Sticky
Soil
4-pitch cup tooth
3
1
2
3
4
1
2-pitch cup tooth
2
3
1
1
3
4
bolt-on adaptor, 2-pitch
4
4
3
2
1
4
bolt-on adaptor/cup tooth
combo
4
3
2
1
2
4
Shark Chain II
4
3
2
1
1
4
alternating side bar
4
4
4
4
4
1
Soil
Description
sandy soil
sugar sand, blow sand, or other soils where sand is the predominant component
soft soil
sandy loam
medium soil
loams, loamy clays
hard soil
packed clays, gumbo, all compacted soils
rocky soil
chunk rock, glacial till, cobble, rip rap, gravel
sticky soil
gumbo, sticky clays
RT80Q Operator’s Manual
Systems and Equipment - 136
Diagnostic Trouble Codes
Diagnostic Trouble Codes
Diagnostic code
Definition
SPN 521999, FMI 31
invalid parameters error
SPN 521998, FMI 31
invalid option parameter settings
SPN 521997, FMI 31
controller internal system error
SPN 521996, FMI 31
internal hardware error
SPN 521995, FMI 31
hardware protection
SPN 521240, FMI 3, 4
6.3 volt power supply
SPN 521239, FMI 3, 4
external 5 volt power supply
SPN 521241, FMI 0,1, 2 ,3, 4
controller internal temperature
SPN 521234, FMI 3, 4
ground drive hand control
SPN 521235, FMI 3, 4
ground drive foot control
ground drive swash plate angle
SPN 521236, FMI 3, 4
sensor
attachment swash plate angle
SPN 521237, FMI 3, 4
sensor
SPN 521231, FMI 3, 4
attachment hand control
SPN 521233, FMI 3, 4
rpm pot
SPN 521248, FMI 5, 6
differential lock solenoid
SPN 521249, FMI 5, 6
ground drive motor (gear) solenoid
SPN 521369, FMI 11
start relay circuit
SPN 521361, FMI 11
backup alarm circuit
SPN 521371, FMI 5, 6
ground drive forward solenoid
SPN 521372, FMI 5, 6
ground drive reverse solenoid
SPN 521373, FMI 5, 6
attachment forward solenoid
SPN 521374, FMI 5, 6
attachment reverse solenoid
SPN 521366, FMI 11
seat indicator circuit
ground drive neutral indicator
SPN 521364, FMI 11
circuit
SPN 521367, FMI 11
cruise indicator circuit
SPN 521368, FMI 11
attachment neutral indicator circuit
RT80Q Operator’s Manual
Systems and Equipment - 137
Optional Equipment
Optional Equipment
See your Ditch Witch dealer for more information about the following optional equipment.
RT80Q Tractor
Equipment
Description
4 post ROPS
replaces standard 2 post ROPS
GPS
allows tracking of position
backup alarm
safety warning feature
flasher light kit
mounts to ROPS
work light kit
mounts to ROPS
H810/H813 Trencher
Equipment
Description
booms
several boom length options are available
hydraulic trench cleaner
removes spoils from the trench floor
mechanical trench cleaner
long auger extensions
for conditions that require spoils to be moved farther from the trench
H832 Plow
Equipment
Description
blades
several blade options are available
tape dispenser
for marking tapes
reel carrier
designed to fit your Ditch Witch equipment and speed cable installation
reel winder
rotates reel carrier spool
cable guides
designed to fit your Ditch Witch equipment and speed cable installation
RT80Q Operator’s Manual
Systems and Equipment - 138
H853 Combo
Equipment
Description
blades
several blade options are available
reel carrier
designed to fit your Ditch Witch equipment and speed cable installation
tape dispenser
for marking tapes
mechanical trench cleaner
removes spoils from the trench floor
RC80 Reel Carrier
Equipment
Description
reel winder
rotates reel carrier spool
HD630 Saw
Equipment
Description
See manufacturer’s information.
Counterweighting
Attachment
Counterweight required
H853 combo
front weights x 15 required or A820 backhoe attachment
H832 plow
front weights x 15 required or A820 backhoe attachment with optional rear
weights x 12
RC80 reel carrier
not approved for use with H810 or HD630
optional rear weights x 12 with H832
H810/H813 trencher
front weights x 15 optional or A820 backhoe attachment
HD630 saw
front weights x 15 required
Counterweights are 110 lb (5.0 kg) each.
RT80Q Operator’s Manual
Complete the Job - 139
Complete the Job
Chapter Contents
Restore Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
•
Backfilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Rinse Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 140
Stow Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
CMW
Complete the Job - 140
RT80Q Operator’s Manual
Restore Jobsite
Restore Jobsite
After product is installed, return spoils to the
trench with optional backfill blade.
Backfilling
1. Position unit at end of trench, several feet
from spoils. Aim tractor at outer edge of
spoils.
2. Adjust backfill blade to fit land contour.
3. Move outer edge of spoils toward trench.
Take two or more passes at spoils rather
than moving all spoils at once.
4. Repeat on other side of trench, if necessary.
5. Engage float and make final pass over
trench.
Rinse Equipment
Spray water onto equipment to remove dirt and mud.
NOTICE: Do not spray water onto operator’s console. Electrical components could be damaged. Wipe
down instead.
Stow Tools
Make sure all tools and accessories are loaded and properly secured on trailer.
CMW
RT80Q Operator’s Manual
Service - 141
Service
Chapter Contents
Service Precautions . . . . . . . . . . . . . . . . . . . . . . . 142
Lubrication Overview . . . . . . . . . . . . . . . . . . . . . . 143
Recommended Lubricants/Service Key . . . . . . 143
•
Approved Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
•
Approved Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
•
Engine Oil Temperature Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
10 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
50 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
100 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
250 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
500 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
1000 Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
2000 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
5000 Hour. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
As Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
RT80Q Operator’s Manual
Service - 142
Service Precautions
Service Precautions
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
•
Perform all service with engine off unless otherwise instructed.
•
Refer to engine manufacturer’s manual for engine maintenance instructions.
•
Lower unstowed attachments to ground before servicing equipment.
Welding
NOTICE: Welding can damage electronics.
•
Disconnect battery at battery disconnect switch, if equipped, or disconnect battery cables before
welding to prevent damage to battery. Do not turn off battery disconnect switch with engine running
or alternator and other electronic devices may be damaged.
•
Connect welder ground clamp close to welding point and make sure no electronic components are in
the ground path.
•
Always disconnect the harness connections to the controllers and other electronic components prior
to welding on machine or attachments.
Cleaning
NOTICE: When cleaning equipment, do not spray electrical components with water.
Changing Attachments
The RT80Q is programmed to operate with the original attachment configuration. If you change
attachments, contact your Ditch Witch dealer to make sure the electronic programming is updated. If you
change attachments without updating the electronic programming, your attachment may not function
correctly.
RT80Q Operator’s Manual
Lubrication Overview
Lubrication Overview
t33om053w.eps
Service - 143
RT80Q Operator’s Manual
Service - 144
Recommended Lubricants/Service Key
Recommended Lubricants/Service Key
Item
Description
DEO
John Deere Plus-50® or eqivalent multi-viscosity diesel engine oils meeting ACEA
specification E4/E5. Other multi-viscosity diesel engine oils meeting API classifications
CI++0, CH-4, or ACEA E3 may be used, but only with 250 hour change intervals.
MPG
Multipurpose grease meeting ASTM D217 and NLGI 5
EPG
Extreme pressure grease meeting ASTM D217 and NLGI 5
MPL
Multipurpose gear oil meeting API service classification GL-5 (SAE 80W90)
THF
Tractor hydraulic fluid, similar to Phillips 66 HG, Mobilfluid 423, Chevron Tractor
Hydraulic Fluid, Texaco TDH Oil, or equivalent
DEAC
Diesel engine Antifreeze/Coolant meeting ASTM D4985 with SCAs meeting John
Deere JDM H24A2
Check level of fluid or lubricant
Check condition
Filter
Change, replace.
Adjust, service, or test
Proper lubrication and maintenance protects Ditch Witch equipment from damage and failure. Service
intervals listed are for minimum requirements. In extreme conditions, service machine more frequently.
Use only recommended lubricants. Fill to capacities listed in “Fluid Capacities” under “RT80Q Tractor” on
page 187.
For more information on engine lubrication and maintenance, see your John Deere® engine manual.
NOTICE:
•
Use only genuine Ditch Witch parts, filters, approved lubricants, TJC, and approved coolants to
maintain warranty.
•
Use the “Service Record” on page 209 to record all required service to your machine.
RT80Q Operator’s Manual
Service - 145
Recommended Lubricants/Service Key
Approved Fuel
The engine is this unit is designed to run on diesel fuel. Use only high-quality fuel meeting ASTM D975 No.
2D, EN590, or equivalent. At temperatures below 32°F (0°C), winter fuel blends are acceptable. See
engine operation manual for more information.
IMPORTANT: Fuel sulfur content should be less than 5000 ppm (0.5%). Worldwide, fuel sulfur
regulations vary widely. Fuel used should always comply with local regulations. If using fuel with sulfur
content above 5000 ppm (0.05%, low sulfur diesel in the U.S.), reduce oil change interval by half.
Biodiesel blends up to 5% (B5) are approved for use in this unit. The fuel used must meet the
specifications for diesel fuel shown above. Extra attention is needed when using biodiesel, especially when
operating in cold weather or storing fuel. Contact your Ditch Witch dealer or the engine manufacturer for
more information.
Approved Coolant
This unit was filled with John Deere Cool-Gard coolant before shipment from factory. Add only John Deere
Cool-Gard (p/n 255-006) or any fully-formulated, ethylene glycol based, low-silicate, heavy-duty diesel
engine coolant meeting ASTM specification D5345 (prediluted) or D4985 (concentrate) and containing
supplemental coolant additives (SCAs) meeting John Deere specification JDM H24A2.
NOTICE: Do not use water or high-silicate automotive-type coolant. This will lead to engine damage or
premature engine failure.
NOTICE: Do not mix heavy-duty diesel engine coolant and automotive-type coolant. This will lead
coolant breakdown and engine damage.
RT80Q Operator’s Manual
Service - 146
Recommended Lubricants/Service Key
Engine Oil Temperature Chart
Temperature range anticipated before next oil change
RT80Q Operator’s Manual
Service - 147
10 Hour
10 Hour
Location
Task
Notes
TRACTOR
Check engine oil level
DEO
Check air filter
Check coolant level
DEAC
Check water separator and fuel filter
Check hydraulic fluid
THF
Check hydraulic hoses
Check radiator/oil cooler
TRENCHER
Lube trencher tail roller
EPG
Lube trencher pivot and headshaft
EPG
Lube trencher auger bearings
EPG
Lube trencher auger shaft
EPG
Check trencher auger bolts
Check digging chain teeth and bits
Check digging chain tension
PLOW
Check boom mounting bolts
250 ft•lb (339 N•m)
Check attachment mounting bolts
200 ft•lb (271 N•m)
Check restraint bar position
400 ft•lb (542 N•m)
Check trench cleaner position
option. 350 ft•lb (475 N•m)
Lube plow pivots
EPG
Check plow vibrator oil
MPL
Check plow arm pins and bushings
Check plow connector pivots
Check attachment mounting bolts
200 ft•lb (271 N•m)
RT80Q Operator’s Manual
Service - 148
10 Hour
Tractor
Check Engine Oil Level
Check engine oil at dipstick (1) before operation
and every 10 hours thereafter. Add DEO at fill (2)
as necessary to keep oil level at highest line on
dipstick.
2
IMPORTANT: If adding oil before the initial
oil change at 250 hours, add only SAE
10W30. After 250 hours, see page 144 for
DEO specifications.
1
t33om029w.eps
Check Hydraulic Fluid
With tractor level, check fluid at sight glass (1)
every 10 hours. Add THF at fill (2) as necessary.
Fluid level should be halfway up sightglass.
IMPORTANT:
•
Tank may be under pressure. Fill cap
includes a 3 psi check valve. Open cap
slowly.
•
Do not open unless adding hydraulic fluid.
t33om023w.eps
RT80Q Operator’s Manual
Service - 149
10 Hour
Check Air Filter
Check air filter restriction indicator (arrow) and
clean dust trap every 10 hours. Change filters
when restriction indicator reaches red zone. Do
not attempt to clean filters.
NOTICE: Only open the air filter canister when
air restriction is indicated.
t33om030w.eps
To change:
1. Remove filter cover and remove primary (1)
and secondary (2) elements.
2. Wipe inside of housing and wash cover.
3. Install new elements.
4. Replace cover.
5. Reset restriction indicator.
Check Coolant Level
With engine cool, check coolant level in auxiliary
tank sight glass every 10 hours. Maintain level so
that coolant is visible in sight glass (arrow) and
no higher than bottom of fill neck. If low, add
approved coolant. Do not overfill.
IMPORTANT: See page 145 for information
on approved coolants.
t33om032w.eps
RT80Q Operator’s Manual
Service - 150
10 Hour
Check Fuel Filter Water Separator
Check water separator every 10 hours. Drain at
plug (arrow) as needed until water is removed
and fuel runs from drain.
t33om031w.eps
RT80Q Operator’s Manual
Service - 151
10 Hour
Check Hydraulic Hoses
Fluid or air pressure could pierce skin and cause injury or death. Stay
away.
To help avoid injury:
•
Before disconnecting a hydraulic line, turn engine off and operate all controls to relieve pressure.
Lower, block, or support any raised component with a hoist. Cover connection with heavy cloth and
loosen connector nut slightly to relieve residual pressure. Catch all fluid in a container.
•
Before using system, check that all connections are tight and all lines are undamaged.
•
Use a piece of cardboard or wood, rather than hands, to search for leaks.
•
Wear protective clothing, including gloves and eye protection.
If you are injured, seek immediate medical attention from a doctor familiar with this type of injury.
Check all hydraulic hoses every 10 hours.
RT80Q Operator’s Manual
Service - 152
10 Hour
Check Radiator/Oil Cooler
Check radiator/oil cooler for dirt, grass, and other
debris every 10 hours. Clean with compressed
air or spray wash as needed. Be careful not to
damage fins with high pressure air or water.
Check more often if operating in dusty or grassy
conditions.
t33om033w.eps
RT80Q Operator’s Manual
10 Hour
Trencher
Lube Trencher Tail Roller
Wipe zerks clean and lube every 10 hours with
EPG. Lube roller zerks on both sides of boom.
Lube Trencher Pivot
Wipe five zerks located on right of trencher pivot
clean and lube every 10 hours with EPG.
Wipe four zerks located on left of trencher pivot
clean and lube every 10 hours with EPG.
Service - 153
Service - 154
RT80Q Operator’s Manual
10 Hour
Lube Trencher Auger Bearings
Lube two auger bearing zerks (one on each side)
every 10 hours with EPG.
Lube Trencher Auger Shaft
Lube four auger shaft zerks (two on each side)
every 10 hours with EPG.
Check Trencher Auger Bolts
Check trencher auger bolts every 10 hours. For
optimal spoils delivery, adjust augers to match
terrain and digging depth.
RT80Q Operator’s Manual
Service - 155
10 Hour
Check Digging Chain Teeth and Bits
Check teeth (1) for wear every 10 hours. Replace
worn teeth, using Ditch Witch replacement parts
and maintaining original tooth pattern.
For more efficient digging, contact your Ditch
Witch dealer for information about the tooth
pattern best suited to your jobsite.
If using rock chain bits, check that bits rotate
freely. Clean chain and check bits after each use.
Replace bit when carbide cap or insert is worn or
adapter can be damaged.
Check chain every 10 hours. Replace worn or
broken chains. If sidebars (2) are bent or loose
on chain pins (3), chain spacers should be used
to join sidebars.
Check Digging Chain Tension
Fluid pressure could pierce skin and cause injury or death. Stay away.
To help avoid injury:
•
Service digging boom grease cylinder only while standing on opposite side of boom.
•
Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
Check digging chain tension every 10 hours.
With boom horizontal, measure distance from
bottom of boom to chain. When properly
adjusted, distance should be 4.5 - 5.5” (114 - 140
mm).
To tighten chain, loosen six bolts on trencher
boom and pump EPG into cylinder. To relieve
chain tension, loosen plug on grease cylinder.
RT80Q Operator’s Manual
Service - 156
10 Hour
Check Boom Mounting Bolts
Check 14 bolts (7 on each side) every 10 hours
and ightened as necessary to keep bolts and
other fasteners tight. Check for looseness or
wear. Check that bolts are tightened to 250 ft•lb
(28 N•m).
Check Attachment Mounting Bolts
Check bolts every 10 hours and torque as
necessary to keep bolts and other fasteners tight.
Check for looseness or wear. Apply Loctite 271®
adhesive. Check that bolts are tightened to 200
ft•lb (271 N•m).
Check Restraint Bar Position
Check restraint bar position every 10 hours, or
anytime the digging chain is adjusted or
replaced. The restraint bar is properly positioned
when the end of bar extends between the center
of the tail roller/sprocket and the end of the
digging chain. Check for looseness or wear.
Tighten bolts as necessary to keep them tight.
Bolts mounting arm to boom should be tightened
to 400 ft•lb (542 N•m). Apply Loctite 271®
adhesive.
t33om89w.eps
RT80Q Operator’s Manual
Service - 157
10 Hour
Check Trench Cleaner Position
Check trench cleaner position (if equipped) every
10 hours, or anytime the digging chain is adjusted
or replaced. The trench cleaner is properly
positioned when there is 3-4 in (76-102 mm)
between the digging teeth and the inside of the
trench cleaner shoe (A).
Check that bolts holding personnel restraint bar/
trench cleaner to arm are tightened to 350 ft•lb
(475 N•m). Apply Loctite 271® adhesive.
A
t33om90w.eps
Service - 158
RT80Q Operator’s Manual
10 Hour
Plow
Lube Plow Pivots
Lube pivots every 10 hours with EPG.
Check Plow Vibrator Oil
Check plow vibrator oil on each side of vibrator
every 10 hours. With vibrator horizontal, oil
should be halfway up sight glass (2). Add MPL as
needed at fill (1).
IMPORTANT: Do not add oil to plow vibrator
when hot. Let plow vibrator cool before
removing fill plug.
RT80Q Operator’s Manual
Service - 159
10 Hour
Check Plow Arm Pins and Bushings
Check plow arm pins and bushings every 10
hours. Tighten as needed.
t33om024w.eps
Check Plow Connector Pivots
Visually check pivots every 10 hours for wear or
damage.
t33om025w.eps
Check Attachment Mounting Bolts
Check mounting bolts every 10 hours and tighten
as necessary to keep bolts and other fasteners
tight. Check for looseness or wear. Apply Loctite
271® adhesive. Check that bolts are tightened to
200 ft•lb (271 N•m).
RT80Q Operator’s Manual
Service - 160
50 Hour
50 Hour
Location
Task
TRACTOR
Check drive belts
Notes
Lube track pivot bearings
MPG
TRENCHER
Check trencher gearbox oil
MPL
PLOW
Change plow vibrator oil (initial)
MPL
Check plow lift cylinder pins and bumpers
Tractor
Check Drive Belts
Check belts every 50 hours for damage or wear.
Replace worn belt. Adjust tension as needed.
See engine manual for procedure and tension
measurement.
t33om017w.eps
Lube Track Pivot Bearings
Lube track pivot bearings at zerk (shown) every 50
hours. Use MPG.
t33om034w.eps
RT80Q Operator’s Manual
Service - 161
50 Hour
Trencher
Check Trencher Gearbox Oil
Check oil at sight tube every 50 hours. Keep oil
level at horizontal line (shown) on housing. If
necessary, add MPL at fill plug.
Plow
Change Plow Vibrator Oil
Change plow vibrator oil after first 50 hours of
operation. Drain oil at drain plug (2). Replace
plug and move plow vibrator to horizontal
position. Add MPL at fill (1) until oil is halfway up
sight glass (2). Refill capacity is 4 qt (3.8 L).
IMPORTANT: Do not drain oil from plow
vibrator when hot. Let plow vibrator cool
before removing drain plug.
Check Plow Lift Cylinder Pins and
Bumpers
Check plow lift cylinder pins and bumpers every
50 hours.
Replace as needed.
t33om079w.eps
RT80Q Operator’s Manual
Service - 162
100 HOUR
100 HOUR
Location
Task
Notes
TRACTOR
Change engine oil and filter
DEO, initial
Check track tension
Check track hub bolts
295 ft•lb (400 N•m).
Inspect track rollers and sprocket
PLOW
Check plow shear mounts
Test plow connector pivots
Tractor
Change Engine Oil and Filter (Initial)
Change engine oil and filter after first 100 hours
of operation. Oil capacity is 8 qts (7.6 L).
To change:
1. While oil is warm, remove drain plug (1).
Drain oil and replace plug.
3
2
1
2. Remove filter (2) and replace with new filter
each time oil is changed. Add DEO at fill (3).
t33om048w.eps
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See "Recommended Lubricants" for more information about DEO specifications.
RT80Q Operator’s Manual
Service - 163
100 HOUR
Check Track Tension
Check track tension every 100 hours.
To check:
1. Elevate unit on jackstands or lifting devices
capable of holding the weight of the tractor.
2. Measure tension using one of the methods
below. Track is tensioned correctly when:
•
there is a 1/4” gap between the tracks and
the middle rollers,
•
or when grease pressure is 1400-1600
psi.
t33om035w.eps
To adjust:
1. Loosen bolts on each cylinder end (2).
2. Pump MPG into zerk (1) until track is correctly tensioned.
3. Tighten bolts on cylinder end (2).
Check Track Hub Bolts
Check track hub bolts. Tighten to 295 ft•lb (400
N•m).
t33om082w.eps
RT80Q Operator’s Manual
Service - 164
100 HOUR
Inspect Track Rollers and Sprocket
Inspect track rollers and sprocket for wear every
100 hours. Replace as needed.
t33om036w.eps
Plow
Check Shear Mounts
Check shear mounts for wear every 100 hours.
Replace as needed.
IMPORTANT: When replacing shear mounts,
it is important to compress the shear mounts
with the washers to prevent the shear mount
from tearing.
t33om054w.eps
RT80Q Operator’s Manual
Service - 165
100 HOUR
Test Plow Connector Pivots
Test upper and lower connector pivots every 100
hours.
To test upper pivot:
1. Lower plow to ground.
2. Use plow lift control to put hydraulic load on
pivot joints. Do not raise plow.
3. As hydraulic load is applied and released,
visually check joints for motion. If motion is
observed, contact your Ditch Witch dealer.
To test lower pivot:
t33om028w.eps
1. Lower plow to ground.
2. Use hydraulic jack to place load on lower arm.
3. As hydraulic load is applied and released, visually check joints for motion. If motion is observed,
contact your Ditch Witch dealer.
IMPORTANT: Lower plow blade to ground and visually inspect bushings and joints. Replace bushings if
there is excessive motion.
RT80Q Operator’s Manual
Service - 166
250 Hour
250 Hour
Location
Task
Notes
TRACTOR
Lube driveshaft U-joints
EPG
Lube axle spindle pins
EPG
Check ground drive gearbox oil
MPL
Check differential oil
MPL
Lube planetary wheel ends
MPL
Tractor
Lube Driveshaft U-joints
Lube driveshaft U-joints every 250 hours with 3-4
shots of EPG.
t33om037w.eps
Lube Axle Spindle Pins
Lube axle spindle pins every 250 hours with 3-4
shots of EPG.
t33om038w.eps
RT80Q Operator’s Manual
Service - 167
250 Hour
Check Ground Drive Gearbox Oil
Check oil level at fill (shown) every 250 hours.
Keep level at raised horizontal line on gearbox.
Add MPL as needed.
t33om039w.eps
Check Differential Oil
Check oil level at fill (shown) every 250 hours.
Add MPL as needed.
t33om040w.eps
Lube Planetary Wheel Ends
Remove track to check oil level in planetary
wheel ends every 250 hours. Add MPL as
needed.
t33om041w.eps
RT80Q Operator’s Manual
Service - 168
500 Hour
500 Hour
Location
Task
TRACTOR
Change fuel filters
Notes
Change engine oil and filter
DEO
Change hydraulic fluid and filter
THF
Check radiator SCA level
PLOW
Change plow vibrator oil
TRENCHER
Adjust headshaft bearings
MPL
Tractor
1
Change Fuel Filters
Change fuel filters (1, 2) every 500 hours.
2
t33om049w.eps
RT80Q Operator’s Manual
Service - 169
500 Hour
Change Engine Oil and Filter
Regular engine oil and filter change interval is
500 hours only if using John Deere Plus-50® or
ACEA E4/E5. Oil capacity is 8 qts (7.6 L).
To change:
1. While oil is warm, remove drain plug (1).
Drain oil and replace plug.
2. Remove filter (2) and replace with new filter
each time oil is changed. Add DEO at fill (3).
3
2
1
t33om048w.eps
NOTICE:
•
Regular oil change interval is 500 hours only if using John Deere Plus-50® or ACEA E4/E5.
•
Oil change interval is 250 hours when using alternative oils meeting API service classifications CI-4,
CH-4, or ACEA E3.
•
See "Recommended Lubricants" for more information about DEO specifications.
RT80Q Operator’s Manual
Service - 170
500 Hour
Change Hydraulic Fluid and Filter
2
3
1
Change hydraulic fluid and filter every 500 hours.
Change hydraulic fluid and filter every 250 hours
if jobsite temperature exceeds 100°F (38°C)
more than 50% of the time.
To change:
1. Remove drain plug (1).
2. Drain fluid and replace plug.
3. Change filter (2).
4. Refill with THF at fill (3).
t33om055w.eps
Test Radiator SCA Level
IMPORTANT:
•
Always check expiration date on 3-Way Heavy Duty Coolant Test Kit. An expired kit will not give
accurate readings.
•
See page 145 for more information on approved coolants.
Test SCA level every 500 hours using 3-Way
Heavy Duty Coolant Test Kit (p/n 256-032). If
SCA levels do not fall within appropriate range,
replenish with a heavy-duty coolant conditioner
such as John Deere coolant conditioner (p/n 256033).
t33om042w.eps
RT80Q Operator’s Manual
Service - 171
500 Hour
Plow
Change Plow Vibrator Oil
1
Change plow vibrator oil every 500 hours. If
normal operating temperature exceeds 100° F
(38° C), change plow vibrator oil every 250
hours.
Drain oil at drain plug (2). Replace plug and
move plow vibrator to horizontal position. Add
MPL at fill (1).
2
IMPORTANT: Do not drain oil from plow
vibrator when hot. Let plow vibrator cool
before removing drain plug.
t33om078w.eps
Add MPL at fill until oil is halfway up sight glass
(1). Refill capacity is 4 qts (3.8 L).
1
t33om077w.eps
Service - 172
RT80Q Operator’s Manual
500 Hour
Trencher
Adjust Headshaft Bearing
Adjust headshaft bearing every 500 hours.
To adjust:
1. Remove cover. Remove bolts attaching
trenching attachment motor to gearbox.
2. Remove bolt and washers in left end of
headshaft.
3. Support gearbox with hoist and slide it off
headshaft.
4. Install spacer (p/n 184-044) in place of
gearbox while checking bearings.
5. Replace bolt on end of headshaft.
6. Remove chain from headshaft sprocket.
7. Turn chain sprocket until headshaft sprocket turns. When properly adjusted, it will take two hands and
some effort. If it turns easily, remove a shim.
RT80Q Operator’s Manual
Service - 173
1000 Hour
1000 Hour
Location
Task
Notes
TRACTOR
Change differential oil
MPL
Change ground drive gearbox oil
MPL
Change planetary wheel end oil
MPL
Change trencher gearbox oil
MPL
TRENCHER
Tractor
Change Differential Oil
Change differential oil every 1000 hours.
To change:
1. Remove drain plug (2).
2. Drain fluid and replace plug.
3. Add MPL at fill (1).
t33om043w.eps
Change Ground Drive Gearbox Oil
Change ground drive gearbox oil every 1000
hours.
To change:
1. Remove drain plug (2).
2. Drain oil and replace plug.
3. Add MPL at fill (1).
t33om044w.eps
RT80Q Operator’s Manual
Service - 174
1000 Hour
Change Planetary Wheel End Oil
Change wheel end oil every 1000 hours.
To change:
1. Position wheel with plug at bottom.
2. Remove plug.
3. Drain oil.
4. Reposition wheel with plug at midway
position.
5. Add MPL until level is at plug opening.
6. Replace plug.
Trencher
Change Trencher Gearbox Oil
Change trencher gearbox oil every 1000 hours.
Drain at plug. Replace drain plug and fill with
MPL to lowest line on sight tube (shown).
t33om050w.eps
RT80Q Operator’s Manual
Service - 175
2000 Hour
2000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are not maintained when using
Cool-Gard or if using approved coolant other than
Cool-Gard; see “5000 Hour” on page 176 if proper
SCA levels are maintained when using Cool-Gard
Tractor
Change Engine Coolant
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read notes carefully above to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See page 145 for list of approved coolants.
If proper SCA levels are not maintained when
using Cool-Gard or if using approved coolant
other than Cool-Gard, drain cooling system at
drain (2) every two years or 2000 hours. Refill at
fill (1) with approved coolant. Cooling system
capacity is 14 qt (13.3 L).
2
t33om051w.eps
1
RT80Q Operator’s Manual
Service - 176
5000 Hour
5000 Hour
Location
Task
Notes
TRACTOR
Change engine coolant
if proper SCA levels are maintained when using CoolGard; see “2000 Hour” on page 175 if proper SCA
levels are not maintained when using Cool-Gard or if
using approved coolant other than Cool-Gard
Tractor
Change Engine Coolant
NOTICE:
•
Coolant change interval depends on coolant used and whether SCA levels are properly maintained.
Read notes carefully above to ensure coolant is changed at the correct interval.
•
The use of non-approved coolant may lead to engine damage or premature engine failure and will
void engine warranty.
•
See page 145 for list of approved coolants.
If proper SCA levels are not maintained when
using Cool-Gard or if using approved coolant
other than Cool-Gard, drain cooling system at
drain (2) every two years or 2000 hours. Refill at
fill (1) with approved coolant. Cooling system
capacity is 14 qt (13.3 L).
2
t33om051w.eps
1
RT80Q Operator’s Manual
Service - 177
As Needed
As Needed
Location
Task
TRACTOR
Adjust parking brake
Notes
Clean radiator fins
Check seatbelt and seatbelt mounting hardware
TRENCHER
PLOW
Replace digging chain
Check restraint bar position
400 ft•lb (542 N•m)
Check trench cleaner position
option. 350 ft•lb (475 N•m)
Clean feed tube
Replace sod cutter and blade
Check plow blade bolts
BACKHOE
Replace pins and bushings
210 ft•lb (285 N•m)
RT80Q Operator’s Manual
Service - 178
As Needed
Tractor
Adjust Parking Brake
Adjust parking brake as needed.
To adjust:
1. Release parking brake.
2. Remove orange sleeve.
3. Twist lever clockwise to tighten.
4. Engage parking brake to test tension. If
tension is too tight, the brake lever will not
engage fully. Repeat steps 1-3 as necessary.
t33om046w.eps
5. Replace orange sleeve.
Check Radiator/Oil Cooler
Check radiator/oil cooler for dirt, grass, and other
debris as needed. Clean with compressed air or
spray wash as needed. Be careful not to damage
fins with high pressure air or water. Check more
often if operating in dusty or grassy conditions.
t33om033w.eps
RT80Q Operator’s Manual
Service - 179
As Needed
Inspect Seat Belt
Check seat belt and mounting hardware as needed. Inspect the webbing, buckle and latch, retractor, and
mounting hardware.
Buckle and Latch
Check that the buckle and latch (1) are not broken
or corroded. When inserting the latch into the
buckle, the latch should insert smoothly until an
audible click is heard. Latch should not release
when the seat belt is tugged.
1
2
3
1
Webbing
Inspect seat belt webbing (2) to ensure that it is
not cut, frayed or showing signs of extreme or
unusual wear. Check the area near the buckle
and latch and anywhere the seat belt has contact
with equipment or seat.
4
SeatBelt.eps
Retractor
Check that the retractor (3) operates smoothly when the belt is pulled and released. Retractor should spool
belt without locking.
Mounting Hardware
Inspect the seat belt mounting bolts (4) on both sides of the seat to ensure they are tight. Replace missing,
damaged, or corroded bolts.
Service - 180
RT80Q Operator’s Manual
As Needed
Trencher
Replace Digging Chain
Visually check digging chains for wear on teeth
(1), rollers, and sidebars (2). Check pins (3) and
bushing wear by measuring distance between
chain pins and comparing it with a new chain.
IMPORTANT: Replace sprockets when a new
chain is installed.
To remove chain:
1. Fasten and adjust seat belt.
2. Start tractor. See page 78 for proper start-up
procedures.
3. Move attachment direction/speed control
until digging chain connector pin is on top of boom.
4. Lower boom to ground.
5. Engage parking brake and verify parking brake indicator is on.
6. Turn ignition switch to STOP.
7. Secure chain by clamping links on either side
of connector pin with chain jaws. Squeeze
jaws to reduce pressure on connector pin.
RT80Q Operator’s Manual
Service - 181
As Needed
8. Loop cable through links nearest connector
pin.
Fluid pressure could pierce skin and cause injury or death. Stay away.
To help avoid injury:
•
Service digging boom grease cylinder only while standing on opposite side of boom.
•
Wear gloves and safety glasses, and cover fitting with cloth when relieving pressure in cylinder.
9. Loosen plug on grease cylinder to relieve chain tension.
10. Stand clear of chain and remove lock key from connector pin. Drive connector pin out of link.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
11. Unclamp links. Slowly release cable and lower chain to ground.
12. Lay chain on ground with teeth down.
RT80Q Operator’s Manual
Service - 182
As Needed
To install chain:
1. Lay chain on ground with teeth down and pointed toward unit.
2. Fasten and adjust seatbelt.
3. Start tractor. See page 78 for start-up procedures.
4. Disengage parking brake and verify parking brake indicator is off.
5. Move ground drive control to reverse.
6. Back unit up until chain extends past head shaft about 1’ (305 mm).
7. Move ground drive control to neutral.
8. Lower backfill blade, if equipped, to ground.
9. Lower boom to horizontal position.
10. Engage parking brake and verify parking brake indicator is on.
11. Turn ignition switch to STOP.
12. Pull rear end of chain over and about 10" (260 mm) past tail roller.
13. Use hoist to pull front end of chain over head shaft sprocket.
14. Move chain down boom until chain connector pin and lock key can be installed. Install connector pin
and lock key.
15. Tighten chain by pumping EPG into grease cylinder.
Check Restraint Bar Position
Check restraint bar position anytime the digging
chain is adjusted or replaced. The restraint bar is
properly positioned when the end of bar extends
between the center of the tail roller/sprocket and
the end of the digging chain. Check for looseness
or wear.
Tighten bolts as necessary to keep them tight.
Bolts mounting arm to boom should be tightened
to 400 ft•lb (542 N•m). Apply Loctite 271®
adhesive.
t33om89w.eps
RT80Q Operator’s Manual
Service - 183
As Needed
Check Trench Cleaner Position
Check trench cleaner position (if equipped)
anytime the digging chain is adjusted or replaced.
The trench cleaner is properly positioned when
there is 3-4 in (76-102 mm) between the digging
teeth and the inside of the trench cleaner shoe
(A).
Check that bolts holding personnel restraint bar/
trench cleaner to arm are tightened to 350 ft•lb
(475 N•m). Apply Loctite 271® adhesive.
A
t33om90w.eps
Time Augers
Ensure that augers are balanced, as shown. If
auger timing is off, unit will bounce from side to
side even in normal digging conditions.
To adjust timing:
1. Remove bolts holding augers to auger shaft
and rotate either auger as needed until
augers are balanced.
2. Reinstall bolts and tighten securely.
Service - 184
RT80Q Operator’s Manual
As Needed
Plow
Clean Feed Tube
Clean feed tube as needed.
Replace Sod Cutter and Blade
Replace worn sod cutter and plow blade as
needed.
RT80Q Operator’s Manual
As Needed
Check Plow Blade Bolts
Check plow blade bolts as needed. If loose, use
Loctite® 242 (blue) and tighten bolts to 210 ft•lb
(285 N•m).
Backhoe
Replace Pins and Bushings
Replace pins (1) and bushings (2) when worn or
damaged.
Service - 185
Service - 186
RT80Q Operator’s Manual
As Needed
RT80Q Operator’s Manual
Specifications - 187
RT80Q Tractor
Specifications
RT80Q Tractor
L2
W2
W1
L1
H1
A1
A2
L5
L4
L3
W4
W2
t33om015w.eps
Dimensions
U.S.
Metric
A2
Angle of approach
31°
31°
H1
Height
103 in
2.6 m
L1
Nose to rear mount length
112.3 in
2.9 m
L2
Length - transport
141.7 in
3.6 m
L4
Wheelbase
63 in
1.6 m
W2
Width
87.3 in
2.2 m
W4
Tread
70 in
1.8 m
L5
Rear axle to attachment mount holes
16.8
427 mm
Specifications - 188
RT80Q Operator’s Manual
RT80Q Tractor
General
Ditch Witch model RT80Q tractor, 4-wheel drive, rigid frame, hydrostatic ground drive through rubber
tracks, 4-wheel steering, hydrostatic attachment drive, riding unit.
Operation
U.S.
Metric
Low
1.5 mph
2.4 km/h
Medium
3.3 mph
5.2 km/h
High
4.6 mph
7.4 km/h
Low
1.3 mph
2.1 km/h
Medium
3.0 mph
4.8 km/h
High
2.2 mph
3.5 km/h
Front steer only
33.5 ft
10.2 m
Coordinated steer
21.5 ft
6.5 m
Ground clearance
15.25 in
387 mm
Basic unit weight
11,580 lb
5253 kg
Maximum allowable tractor weight
19,100 lb
8864 kg
Front counterweight
1650 lb
748 kg
Backfill Blade (optional)
U.S.
Metric
Blade width
80 in
2.03 m
Blade height
14 in
355 mm
Lift height above ground
25.2 in
640 mm
Blade drop below ground
10.9 in
277 mm
Maximum swing angle (left/right)
30°
30°
Tilt angle (up/down)
16°
16°
Forward speeds
Reverse speeds
Vehicle clearance circle (SAE) wall to wall with optional backfill blade
RT80Q Operator’s Manual
Specifications - 189
RT80Q Tractor
Power Plant
U.S.
Metric
Engine: Deutz TD2011L04W, diesel, water cooled, direct injection, 4 cyl. turbocharged. EPA Tier 3; EU
Stage IIIA
Displacement
221 in3
3.62 L
Bore
3.78 in
96 mm
Stroke
4.92 in
125 mm
Engine manufacturer’s gross power rating per SAE J1349
83 hp
62 kW
Estimated net power per SAE J1349
78 hp
58 kW
Rated speed
2600 rpm
2600 rpm
Emmissions Compliance
EPA Tier 3, EU Stage IIIA
Power Train
Ground drive transmission: hydrostatic
Differentials: planetary front and rear with standard rear steering
Parking brake: manual lever disc brake
Tracks: 450x86x36 rubber track, chevron pattern
Attachment drive transmission: hydrostatic, electric rotary knob, speed infinitely variable from zero to
maximum
Hydraulic System
U.S.
Metric
Ground drive pump capacity at 2600 rpm
32 gpm
121 L/min
Ground drive pump relief pressure at 2600 rpm
6000 psi
414 bar
Attachment pump capacity at 2600 rpm
32 gpm
121 L/min
Attachment pump forward relief pressure at 2600 rpm
6000 psi
414 bar
Attachment pump reverse relief pressure at 2600 rpm
6000 psi
414 bar
Auxiliary pump capacity at 2600 rpm, front
7.4 gpm
28 L/min
Auxiliary pump capacity at 2600 rpm, rear
6.5 gpm
25 L/min
Auxiliary pump relief pressure at 2600 rpm
3000 psi
207 bar
Specifications - 190
RT80Q Operator’s Manual
RT80Q Tractor
Fluid Capacities
U.S.
Metric
Fuel tank
30 gal
114 L
Engine oil
8 qt
7.6 L
Hydraulic reservoir
14 gal
53 L
Hydraulic system
20 gal
76 L
Cooling system
14 qt
13.3 L
Battery (2 used)
Group 78U, SAE res. cap 110 min., SAE cold crank @ 0° F (-18° C), 800 amp
Auxiliary power outlet - 12 volt, 10 amp
Vibration Level
Average vibration transmitted to the operator’s hand and whole body while plowing is 5.15 m/s2 and
0.58 m/s2 respectively.
Operator seat complies with ISO 7096.
Noise Levels
Operator ear sound pressure level is 96 dBa per ISO 6394.
Exterior sound power level is 110 dBa per ISO 6393.
Unless otherwise specified, all figures are for standard equipment only. Specifications are called out according to SAE recommended
procedures. Due to selected options, delivered equipment may not necessarily match that described. Specifications are general and
subject to change without notice. If exact measurements are required, equipment should be weighed and measured.
RT80Q Operator’s Manual
Specifications - 191
H810 Trencher
H810 Trencher
t33om056w.eps
Dimensions
U.S.
Metric
A3
Angle of departure
30°
30°
A
Trench depth, maximum
93 in
2.36 m
B
Trench width, maximum
24 in
610 mm
C
Boom travel down
65°
65°
C1
Boom travel up
50°
50°
E1
Centerline of trench to outside edge, left
48.1 in
1.2 m
E2
Centerline of trench to outside edge, right
39.1 in
994 mm
F
Headshaft height, digging chain
36 in
914 mm
H1
Transport height
128 in
3.25 m
L2
Transport length
120 in
3.05 m
L
Headshaft overhang
46 in
1.2 m
N
Soil discharge reach
33 in
843 mm
Attachment weight
1750 lb
794 kg
Specifications - 192
RT80Q Operator’s Manual
H810 Trencher
Operation
U.S.
Metric
Ratio low
170 rpm
170 rpm
Ratio standard
208 rpm
208 rpm
Ratio high (not recommended)
280 rpm
280 rpm
Ratio low
485 ft/min
148 m/min
Ratio standard
592 ft/min
180 m/min
Ratio high (not recommended)
798 ft/min
243 m/min
Headshaft speeds at 2600 engine rpm
Digging chain speeds at 2600 engine rpm
RT80Q Operator’s Manual
Specifications - 193
H813 Trencher
H813 Trencher
t33om057w.eps
Dimensions
U.S.
Metric
A3
Angle of departure
26.6°
26.6°
A
Trench depth, maximum
58.4 in
1.5 m
B
Trench width, maximum
12 in
305 mm
C
Boom travel down
55°
55°
C1
Boom travel up
51°
51°
E1
Centerline of trench to outside edge, left
29.1-72.6 in
739-1844 mm
E2
Centerline of trench to outside edge, right
14.6-58.1 in
371-1476 mm
F
Headshaft height, digging chain
32.6 in
828 mm
H1
Transport height
125.6 in
3.2 m
L2
Transport length, fully raised
93.5 in
2.4 m
L
Headshaft overhang
48 in
1.2 m
N
Soil discharge reach, short auger
17 in
430 mm
Soil discharge reach, long auger
30 in
760 mm
Specifications - 194
RT80Q Operator’s Manual
H813 Trencher
Attachment weight*
2422 lb
Operation
1099 kg
U.S.
Metric
low speed motor
174 rpm
174 rpm
standard speed motor
219 rpm
219 rpm
high speed motor
275 rpm
275 rpm
low speed motor
452 ft/min
168 m/min
standard speed motor
569 ft/min
174 m/min
high speed motor
715 ft/min
218 m/min
low speed motor
352 ft/min
107 m/min
standard speed motor
443 ft/min
135 m/min
high speed motor
557 ft/min
170 m/min
low speed motor
410 ft/min
125 m/min
standard speed motor
515 ft/min
157 m/min
high speed motor
647 ft/min
197 m/min
Headshaft speeds @ 2600 engine rpm
Digging chain speed with 10-tooth, 3.067” (78 mm) pitch headshaft sprocket
Digging chain speed with 12-tooth, 2.0” (50 mm) pitch headshaft sprocket
Digging chain speed with 14-tooth, 2.0” (50 mm) pitch headshaft sprocket
Vibration Level
Average vibration transmitted to the operator’s hand and whole body while trenching in rock is 5.8 m/s2
and 0.81 m/s2 respectively.
*with 4’ (1.2 m) roller boom and 70K chain
RT80Q Operator’s Manual
Specifications - 195
H832 Plow
H832 Plow
L2
L2’
H2
A3’
J
A3
A’ A
H
t33om058w.eps
Dimensions
U.S.
Metric
A
Cover depth*
36 in
915 mm
A’
Penetration*
40 in
1.02 m
A3’
Angle of departure, transport, no blade
46.7°
46.7°
A3
Angle of departure, transport, 24” (610 mm) blade
25.3°
25.3°
Angle of departure, transport, 30” (760 mm) blade
29.8°
29.8°
H
Angle of depression, plow max.
7°
7°
H2
Height transport
97 in
2.46 m
J
Blade ground clearance, 30” (760 mm) blade
33.1 in
840 mm
L2
Attachment length, fully lowered, no blade
96.7 in
2.46 m
L2’
Attachment length, fully raised, no blade
70 in
1.78 m
Plow swing angle
85°
85°
Inclusive blade steer angle
89°
89°
Specifications - 196
RT80Q Operator’s Manual
H832 Plow
Center of plow to outside edge of machine, left
43.7 in
1.11 m
Center of plow to outside edge of machine, right
43.7 in
1.11 m
*Suggested maximum. Plow blade used will be determined by job requirements and soil conditions
Operation
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
157 kN
Pulled
3 in
80 mm
Fed
2 in
50 mm
General
U.S.
Metric
Attachment weight, without plow blade
2230 lb
1012 kg
Maximum material diameter
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
RT80Q Operator’s Manual
Specifications - 197
H853 Combo
H853 Combo
Trencher
N
B
L3
E1
E2
t33om059w.eps
Dimensions
U.S.
Metric
A
Trench depth, maximum
69 in
1.76 m
A3
Angle of departure
29°
29°
B
Trench width
6-12 in
150-300 mm
C1
Boom travel up
49°
49°
C
Boom travel down
56°
56°
F
Headshaft height, digging chain
32.7 in
831 mm
L2
Transport length (48” boom)
92.5 in
2.4 m
H1
Transport height (48” boom)
106 in
2.7 m
E1
Center of trench to outside edge, left*
13 in
330 mm
E2
Center of trench to outside edge, right
76 in
1.93 m
N
Spoil discharge reach, minimum
19 in
480 mm
Specifications - 198
RT80Q Operator’s Manual
H853 Combo
L
Headshaft overhang
42.7 in
1.1 m
*Left edge of machine is defined as outside of digging chain guard
Operation
U.S.
Metric
low speed motor
174 rpm
174 rpm
standard speed motor
219 rpm
219 rpm
high speed motor
275 rpm
275 rpm
low speed motor
452 ft/min
168 m/min
standard speed motor
569 ft/min
174 m/min
high speed motor
715 ft/min
218 m/min
low speed motor
352 ft/min
107 m/min
standard speed motor
443 ft/min
135 m/min
high speed motor
557 ft/min
170 m/min
low speed motor
410 ft/min
125 m/min
standard speed motor
515 ft/min
157 m/min
high speed motor
647 ft/min
197 m/min
Headshaft speeds @ 2600 engine rpm
Digging chain speed with 10-tooth, 3.067” (78 mm) pitch headshaft sprocket
Digging chain speed with 12-tooth, 2.0” (50 mm) pitch headshaft sprocket
Digging chain speed with 14-tooth, 2.0” (50 mm) pitch headshaft sprocket
RT80Q Operator’s Manual
Specifications - 199
H853 Combo
Plow
L2
L2’
H2
A3’
J
A3
A’ A
H
t33om060w.eps
Dimensions
U.S.
Metric
A
Cover depth*
36 in
915 mm
A’
Penetration*
40 in
1.02 m
A3
Angle of departure, transport, 24” (610-mm) blade
25.3°
25.3°
Angle of departure, transport, 30” (760-mm) blade
29.8°
29.8°
A3’
Angle of departure, transport, no blade
46.7°
46.7°
H
Angle of depression, plow max.
7°
7°
H2
Height, transport
97 in
2.6 m
J
Blade ground clearance, 30” (760-mm) blade
33.1 in
841 mm
L2
Attachment length, fully lowered, no blade
96.7 in
2.5 m
L2’
Attachment length, fully raised, no blade
70 in
1.8 m
Plow swing angle, left
0°
0°
Plow swing angle, right
44°
44°
Inclusive blade steer angle
89°
89°
Specifications - 200
RT80Q Operator’s Manual
H853 Combo
Center of plow to outside edge of machine, left
48.3 in
1.2 m
Center of plow to outside edge of machine, right
39 in
993 mm
* Suggested maximum. Plow blade used will be determined by job requirements and soil conditions.
Operational
U.S.
Metric
Plow vibrator force @ 1800 rpm
35,215 lb
157 kN
Pulled
3 in
76 mm
Fed
2 in
51 mm
General
U.S.
Metric
Attachment weight without boom, chain, or plow blade
3455 lb
1567 kg
Maximum material diameter
Counterweight required. Contact your local Ditch Witch dealer for counterweight requirements.
RT80Q Operator’s Manual
Specifications - 201
A820 Backhoe
A820 Backhoe
Dimensions
U.S.
Metric
A
Transport height
113.5 in
2.9 m
C
Ground clearance
36.6 in
929 mm
D
Backhoe length, stowed
57.2 in
1.5 m
F
Digging depth, max.
89 in
2.2 m
G
Digging depth, 2” (0.6 m) flat bottom
88.2 in
2.2 m
J
Operating height, fully raised
152.2 in
3.9 m
K
Loading height
94.2 in
2.4 m
L
Loading reach
56.1 in
1.4 m
M
Reach from swing pivot
142.2 in
3.6 m
N
Swing pivot to centerline axle
40.1 in
1.0 m
P
Bucket rotation
150°
150°
B
Stabilizer spread, transport
67.6 in
1.7 m
Specifications - 202
RT80Q Operator’s Manual
A820 Backhoe
E
Backhoe or basic unit width
120 in
3.1 m
R
Stabilizer spread, operating
91.8 in
2.3 m
U
Leveling angle
6°
6°
U.S.
Metric
Width
12-18 in
305-460 mm
Capacity
1.7-2.6 ft3
0.05-.07 m3
2150 lb
975 kg
@ 48” (1.2 m)
1140 lb
517 kg
@ ground level
1080 lb
490 kg
@ 72” (1.8 m)
1090 lb
494 kg
@ 53” (1.4 m)
1749 lb
793 kg
@ 72” (1.8 m)
2020 lb
916 kg
170°
170°
Using bucket cylinder
6500 lb
29 kN
Using dipperstick cylinder
3600 lb
16 kN
General
Bucket
Backhoe weight with 12” (305 mm) bucket
Lift capacity, boom over end and swing arc, SAE*
Lift capacity, dipperstick over end and swing arc, SAE*
Swing arc
Digging force
*Lift capacities are for a stationary machine supported by stabilizers.
RT80Q Operator’s Manual
Specifications - 203
RC80 Reel Carrier
RC80 Reel Carrier
t33om061w.eps
Dimensions
U.S.
Metric
L5
Distance from backfill blade to outside edge of reel carrier with
maximum diameter reel
73.5 in
1.9 m
N
Maximum reel diameter
84 in
2.1 m
Internal width
54 in
1.2 m
Capacity
2000 lb
907 kg
Attachment weight
1040 lb
472 kg
Specifications - 204
RT80Q Operator’s Manual
RC80 Reel Carrier
RT80Q Operator’s Manual
Support - 205
Procedure
Support
Procedure
Notify your dealer immediately of any malfunction or failure of Ditch Witch equipment.
Always give model, serial number, and approximate date of your equipment purchase. This information
should be recorded and placed on file by the owner at the time of purchase.
Return damaged parts to dealer for inspection and warranty consideration if in warranty time frame.
Order genuine Ditch Witch replacement or repair parts from your authorized Ditch Witch dealer. Use of
another manufacturer's parts may void warranty consideration.
Resources
Publications
Contact your Ditch Witch dealer for publications and videos covering safety, operation, service, and repair
of your equipment.
Ditch Witch Training
For information about on-site, individualized training, contact your Ditch Witch dealer.
CMW
RT80Q Operator’s Manual
Warranty - 206
Warranty
Ditch Witch Equipment and Replacement Parts
Limited Warranty Policy
Subject to the limitation and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for
any Ditch Witch equipment or parts manufactured by The Charles Machine Works, Inc. (CMW) that fail due to a defect in material or
workmanship within one (1) year of first commercial use (Exception: 2 years for all SK5 attachments). Free labor will be provided at
any authorized Ditch Witch dealership for installation of parts under this warranty during the first year following “initial commercial”
use of the serial-numbered Ditch Witch equipment on which it is installed. The customer is responsible for transporting their
equipment to an authorized Ditch Witch dealership for all warranty work.
Exclusions from Product Warranty
•
All incidental or consequential damages.
•
All defects, damages, or injuries caused by misuse, abuse, improper installation, alteration, neglect, or uses other than those for
which products were intended.
•
All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with
manufacturer’s recommendations.
•
All engines and engine accessories (these are covered by original manufacturer’s warranty).
•
Tires, belts, and other parts which may be subject to another manufacturer’s warranty (such warranty will be available to
purchaser).
•
ALL IMPLIED WARRANTIES NOT EXPRESSLY STATED HEREIN, INCLUDING ANY WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY.
IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES, AS DEFINED BY THE UNIFORM COMMERCIAL
CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE FACE HEREOF AND THERE ARE NO IMPLIED
WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED
WARRANTY APPLY INCLUDING THE DUTIES IMPOSED.
Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver
acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working
conditions prior to purchase.
Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part by CMW or its authorized
dealer. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon inquiry. CMW reserves the right
to supply remanufactured replacements parts under this warranty as it deems appropriate.
Extended warranties are available upon request from your local Ditch Witch dealer or CMW.
Some states do not allow exclusion or limitation of incidental or consequential damages, so above limitation of exclusion may not
apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may
not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary
from state to state.
For information regarding this limited warranty, contact CMW’s Product Support department, P.O. Box 66, Perry, OK 73077-0066, or
contact your local Ditch Witch dealer.
First version: 1/91; Latest version: 7/05
CMW
RT80Q Operator’s Manual
Service Record - 209
Service Record
Service Performed
Date
Hours
CMW
Service Record - 210
Service Performed
CMW
RT80Q Operator’s Manual
Date
Hours
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
