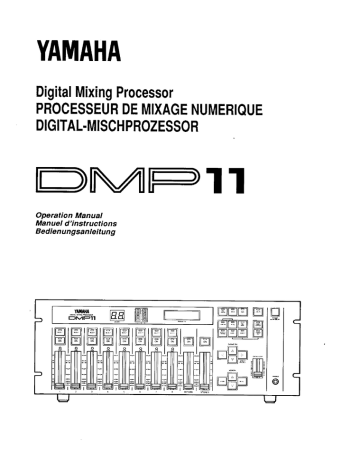

Yamaha DMP11 Owner's manual
YAMAHA
Digital Mixing Processor
PROCESSEUR DE MIXAGE NUMERIQUE
DIGITAL-MISCHPROZESSOR
ONT
Operation Manual
Manuel d’instructions
Bedienungsanleitung
!
a
> ; [0000000]
* = E ] di =
я
11 i k El
A ow
Y "r |
e F
JE 0
14515 1 1 Ni
- Ч = E +
i i ГК 1
Е
>» 5
=
Proa
& в 1) 1
! ki 1 i
Е
1 + Ш 1
1 It 1
U
IF ==
— 14 7 3
=== EE |
— {443 5 5 7 q
Ue
— {4 4 à !
Ci à à à
С
Congratulations on your acquisition of a Yamaha DMP11 Digital
Mixing Processor!
The Yamaha DMPI11 carries on in the tradition of the superlative
Yamaha DMP7 Digital Audio Mixing Processor, providing extraordinary
"music processing’ capability. It effectively integrates an 8 x 2 digital
line-level mixer with top-quality Yamaha digital effects. Each and every
parameter — from fader positions to effects and EQ settings — is fully
programmable. Up to 96 complete system configurations can be stored in
internal memory and recalled at the touch of a button for instant
"scene" changes. What's more, the DMPII is MIDI compatible. MIDI
program change commands from external equipment can be used to
automatically switch scenes, or a MIDI sequence recorder can be used to
store mixdown and effects change operations in real time. If 8 inputs
aren't enough for your requirements, the DMP11 permits digital cascad-
ing of 2 or more units. The DMPI1 is both a revolutionary production
tool and "musical instrument" in its own right.
In order to take full advantage of the tremendous potential offered by the
DMPII, we urge you to read this operation manual thoroughly, and
keep the "OPERATIONS SUMMARY" handy while you are familiariz-
ing yourself with the DMP11.
—— DMP11 Features ——
® All-digital Signal Processing
Analog signals are A/D-converted on entry into the
console, and are handled and processed in digital
form right up to the D/A stage at the stereo outputs.
In addition to providing extraordinary signal process-
ing versatility, this ensures that maximum signal
quality is maintained from input to output.
e 2 Digital Effects Systems
Each DMP11 channel features 2 effect loops that
feed a high- performance internal digital multi-effect
processor. EFFECTS 1 provides access to 20 differ-
ent effects including reverb, gate reverb, delay,
echo, flange, phasing, tremolo, symphonic, pitch
change, etc. Individual parameters controlling each
effect may also be programmed. EFFECT 2 feeds a
5-effect internal system. In addition, EFFECT 1 or
EFFECT 2 can be assigned to a rear-panel EFFECT
SEND jack for external signal processing.
e Reliable Multi-function Faders
Like all other DMP11 parameters, fader settings can
be memorized and recalled as needed. A single set
of faders functions for channel level control and
effect send level contro! to both of the DMP11's
effect systems. Memorized fader settings can be
graphically displayed on the LCD display panel.
e Versatile Digital EQ
Each DMP11 channel offers a versatile 2-band digital
equalizer. Each band permits frequency control, plus
or minus 15 dB gain control, Q adjustment over a
broad 0.1 — 5.0 range, and peaking, shelving or
dynamic mode selection.
e Memory
The DMP11 features 96 internal memories which can
store all console parameters. You can program and
store 96 completely different configurations or
"scenes," and recall them instantly whenever neces-
sary.
e MIDI Control Capability
Different memories (scenes) can be selected simply
by sending the appropriate MIDI program change
number to the DMP11 over a standard MIDI cable. It
can even be connected directly to a MIDI sequence
recorder for real-time storage of mixing and effect
operations. For really complicated operations involv-
ing many simultaneous fades, EQ changes, etc.,
each operation can be individually overdubbed on
the sequence recorder. Then you simply play back
the sequence as you would with any other MIDI com-
patible musical instrument, and the entire mixing/sig-
nal processing process is recreated in fine detail.
Optional MLA7 8-channel Microphone Amplifier.
SOLO mode for individual channel monitoring.
Full stereo panning control.
Stereo master peak meters.
LCD mode and parameter display.
7-segment LED memory number display.
Memory protection.
— CONTENTS ——
PRECAUTIONS essen reee erre 4
CONTROL PANEL AND CONNECTIONS ....................o.... 5
SIGNAL FLOW & FUNCTIONAL CONFIGURATION .......... 8
SECTION 1: GENERAL OPERATION ................._...e.m.... 10
FADER OPERATION..........................ecereeeieanace es 10
CHANNEL ON BUTTONS .......................eemmenmenecnnenas 10
PAN L..........cusconasorrerecsnensesseccacerersrcan sara rare reveneres ecrans 11
PHASE .......oo reece 11
EQUALIZATION -....................e.eneceier mece es 12
INTERNAL EFFECTS SEND . Cerin s……….....13
SELECTING AN EFFECT L LOOP AND EFFECT ......13
SETTING SEND LEVELS
TO THE SELECTED EFFECT ...... 13
SETTING THE RETURN LEVEL
FROM THE SELECTED EFFECT .....14
SETTING RETURN BALANCE
FROM SEND 1 ORSEND 2 ...14
SELECTING PRE- OR POST-FADER
EFFECT SEND .....15
MODIFYING EFFECT PARAMETERS ..................... 15
EFFECT 1 PROGRAMS & PARAMETERS ..................16
EFFECT 2 PROGRAMS & PARAMETERS ..................20
EXTERNAL EFFECTS ovo eee, 21
SOLO eee eee eee steers eee eee, 21
MEMORY .…....…….....….…rccorecercececercecersrer crsrerrerrrrre errr ve 22
INTERNAL MEMORY ...............e. ee 22
MEMORY PROTECT een 22
MEMORY STORE .......................eeeir eme deere 22
MEMORY STORE TO RESET EFFECT
PARAMETER DEFAULT VALUES .....23
MEMORY RECALL -......................e.ei menes 23
EDIT TITLE ................ einen nene 24
FOOT CONTROL ...................—..eeenemc ee 25
OTHER UTILITY FUNCTIONS 25
FADE TIME... uccccececrrrerececrrrrreseces 25
CHANNEL DATA COPY oom, 25
BATTERY CHECK eek nennen nennen 26
OSCILLATOR ernennen 27
INPUT PATCHING.............................rmmm es 27
CASCADING ......................eeee reee 28
SECTION 2: MIDI CONTROL 30
MIDI SCENE CHANGES recrues 30
RECORDING PROGRAM CHANGE NUMBERS
FROM THE DMP11 .....30
MIDI CHANNEL & PROGRAM CHANGE
ASSIGNMENT .....30
REAL-TIME MIDI CONTROL 31
DMP11 PARAMETER CHART ....................—.-...e..... 32
CONTROL CHANGE ASSIGNMENT ....................... 32
CONTROL CHANGE & PROGRAM CHANGE
NUMBER SEND/RECEIVE SELECTION .....33
MIDI ECHO BACK een 4
OMNI RECEIVE ASSIGNMENT .............................. 34
: BULK OUT O 35
MIDI SYSTEM SETUP ….........…..…......……...……svercerrsrerenceceere 36
ERROR MESSAGES .................eereciriennere coa eee. 37
SECTION 3: SYSTEM EXAMPLES ........................ eens 114
SECTION 4: MIDI DATA & SPECIFICATIONS ................118
MIDI DATA FORMAT o.oo eee eee eae en 118
SPECIFICATIONS .......................iieieimeere ee 132
SECTION 5: DATA CHART 136
DIMENSIONS .................—..—eericmeeineinene ener reee 136
EFFECT CHART o.oo eee ever enemas enna 137
INITIAL DATA CHART -.................... eee 139
BLANK CHART .................e..e0.ee nine eee 142
PRECAUTIONS
1. AVOID EXCESSIVE HEAT, HUMIDITY, DUST AND
VIBRATION
Keep the unit away from locations where it is likely to be
exposed to high temperatures or humidity — such as near
radiators, stoves, etc. Also avoid locations which are sub-
ject to excessive dust accumulation or vibration which
could cause mechanical damage.
2. AVOID PHYSICAL SHOCKS
Strong physical shocks to the unit can cause damage.
Handle it with care.
3. DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR
MODIFICATIONS YOURSELF
This product contains no user-serviceable parts. Refer all
maintenance 10 qualified Yamaha service personnel.
Opening the case and/or tampering with the internal cir-
cuitry will void the warranty.
4. MAKE SURE POWER IS OFF BEFORE MAKING OR
REMOVING CONNECTIONS
Always turn the power OFF prior to connecting or discon-
necting cables. This is important to prevent damage to the
unit itself as well as other connected equipment.
5. HANDLE CABLES CAREFULLY
Always plug and unplug cables — including the AC
cord— by gripping the connector, not the cord.
. CLEAN WITH A SOFT DRY CLOTH
Never use solvents such as benzine or thinner to clean
the unit. Wipe clean with a soft, dry cloth.
. ALWAYS USE THE CORRECT POWER SUPPLY
Make sure that the power supply voltage specified on the
rear panel matches your local AC mains supply.
U.S. & Canadian models: 120V AC (105-130V), 60 Hz
General model: 110-120/220-240V AC,
50/60 HZ
. ELECTRICAL INTERFERENCE
Since the DMP11 contains digital circuitry, it may cause
interference and noise if placed too close to TV sets,
radios or similar equipment. If such a problem does
occur, move the DMP11 further away from the affected
equipment.
. BACKUP BATTERY
THE DMP11's internal memory is maintained by a long-
life (approx. 5 years) lithium battery. Have the battery
replaced by a qualified Yamaha service center when its
voltage drops below 2.5 volts. See "BATTERY CHECK"
on page 26 for details.
г FCC CERTIFICATION (USA)
This equipment generates and uses radio fre-
quency energy and if not installed and used proper-
ly, that is, in strict accordance with the manufactur-
er's instructions, may cause interference to radio
and television reception. It has been type tested
and found to comply with the limits for a Class B
computing device in accordance with the specifica-
tions in Subpart J of Part 15 of FCC Rules, which
are designed to provide reasonable protection
against such interference in a residential installa-
tion. However,there is no guarantee that interfer-
ence will not occur in a particular installation. If this
equipment does cause interference to radio or tele-
vision reception, which can be determined by turn-
ing the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
Reorient the receiving antenna.
Relocate the equipment with respect to the receiver.
Move the equipment away from the receiver.
Plug the equipment into a different AC power
outlet so that it and the receiver are on different
branch circuits.
If necessary, the user should consult the dealer
or an experienced radio/television technician for
additional suggestions. The user may find the fol-
lowing booklet prepared by the Federal
Communications Commission helpful:
"How to identify and Resolve Radio-TV interfer-
ence Problems”.
This booklet is available from the U.S.
Government Printing Office, Washington, DC
20402, Stock No. 004-000-00345-4.
J
CONTROL PANEL AND CONNECTIONS
ICONTROL PANEL |
J So
TE Y
rr a aa,
+
U
71
STE
"три
- HIT
SCIEN |
=
J
я
|
4 __
:
F |
o DATA ENTAY |
oe ; _ |
== "ЛЕВ
con z 3
Ie
0 - Щ mos
|| E T ©
ED EE
RETURN STEREO
д à
@ ChannelEffect Send Faders
Depending on the selected mode, these 8 faders function
as level controls for the DMP11's 8 input channels, or as
effect send level controls for the corresponding channels.
O Effect Return Fader
Adjusts effect return level for the DMP11's two internal
effect systems. The currently active effect loop is deter-
mined by the Effect Send Select buttons.
[Detailed instructions on page 14]
© Stereo Master Fader
This is the main stereo program fader, controlling the
overall level of the master stereo program buss.
O Channel ON buttons
These buttons function in the same way as channel
ON/OFF buttons on a conventional mixer, turning the cor-
responding channel ON or OFF. When the ON button
LED is lit, that channel is ON. When the ON button LED is
out, that channel is OFF and its signal will not be applied
to the master stereo or effects busses. The ON buttons
on the effects return and stereo program strips function in
a similar way. The STEREO strip ON button turns the
mixer's stereo output ON or OFF, while the RETURN strip
O ——
@——
O ——
е Г
©
ON button is used to individually turn the DMP11's 2
effect loops ON or OFF.
[Detailed instructions on page 10]
© Channel Select Buttons
The SELECT buttons at the top of each input channel
strip allow selection of a single channel for programming
via the programming buttons to the right of the control
panel. A channel must be selected using its SELECT but-
ton in order to program PAN, PHASE, EQ, and other
parameters.
#
© Parameter Buttons & Data Entry Slider
The group of 4 PARAMETER buttons and the DATA
ENTRY slider are the DMP11's main programming tools.
These are used to select parameters for programming as
well as to set the values of the selected parameters.
© Memory Buttons
The group of 4 MEMORY buttons allows selection of the
DMP11's 96 internal memory locations for storage and
retrieval of data.
[Detailed instructions on page 22]
© Effect Send Select Buttons
These buttons are used to select any one of the DMP11's
two internal effect systems.
[Detailed instructions on page 13]
O Fader Flip Button
The FADER FLIP button sets the 8 channel faders for
channel level control or effect send level control opera-
tion. When the FADER FLIP button LED is off, the faders
function as channel level controls. When the FADER FLIP
button LED is ON, the faders function as effect send lev-
els controls for their respective channels.
[Detailed instructions on page 13]
@ Fader Status Button
This button switches the LCD display panel to show mem-
orized fader settings in graphic form. The FADER STA-
TUS button also accesses a function which allows setting
the faders to positions which match the memorized data.
[Detailed instructions on page 13]
@ Effect Parameter Buttons
Pressing the EFFECT PARAM button makes it possible to
select and edit parameters within the currently selected
effect (selection and editing is performed using the
PARAMETER buttons €) ). Once the desired effect has
been selected, the EFFECT PARAM button can be
pressed, providing access to parameters within the
selected effect which can then be modified as required.
[Detailed instructions on page 15]
@ Ettect Send Pre/Post Selector
This button permits selection of pre-fader or post-fader
effects send status for each of the DMP11's 8 channels.
[Detailed instructions on page 15)
® Solo Button
Pressing this button activates the SOLO monitoring sys-
tem, permitting monitoring of specific input channel sig-
nals, effects send signal, or a group of input channel or
effect send signals. |
[Detailed instructions on page 21]
(P EQ Select Button
These Buttons access the low and hight-band equalizer
parameters for the currently selected channel. Once
selected, the EQ parameters are caled and modified
using the PARAMETER buttons and DATA ENTRY silder.
[Detailed instructions on page 12]
® Utility Button
The utility Button accesses a list of utility functions includ-
ing memory protection, title editing for the DMP11 memo-
ry locations, channel-to-channel data copying, battery
check and others. Each press on the UTILITY button
advances to the next function on the list until the utility
mode is exited after the last function has been called.
© MIDI Button
All the DMP11's MIDI functions are contained in a list
which is accessed by this button : program change num-
ber assignment, control number assignment, bulk dump,
echo back and others.
@ РАМ / PHASE Button
This Button accesses both the panning and phase- rever-
sal functions for the currently selected input channel.
Panning is programmed in 17 discrete steps from full left
to right, while phase can be set to either normal or
reverse allowing phase-matching between input sources.
[Detailed instructions on page 11]
@ Backlit LCD Data Display
This 16-character x 2-line backlit LCD (Liquid Crystal
Display) shows all parameters while programming and
other information where necessary.
® Stereo Program Peak Meter
This left and right-channel meter pair shows levels on the
master stereo program buss.
@D Channel Clip Indicators
The LED indicators located above the 8 channel faders
light when the level of the input signal to the correspond-
ing channel reaches 3 dB below clipping. This makes it
simple to avoid overloading the input circuitry.
@ Memory Number LED Display
Shows the number of the currently selected memory. A
continuously lit number indicates the current active mem-
ory, while a flashing number indicates that a memory
number has been selected but not yet recalled (or the
memory cannot be recalled because it contains no data).
The Memory Number LED display also indicates when
any changes have been made to parameters in the cur-
rent memory location by displaying a dot in the lower
right-hand corner.
Y Phones Jack
The stereo headphones jack delivers the signal appearing
on the DMP11's stereo program buss to any standard pair
of stereo headphones.
| CONNECTOR PANEL |
CAUTION 10 HEDUCE THE RISK CF CE YAMAHA FOOT VOL ~ DIGITAL CASCADE ——
ELECTR SHOCK, 5 NOT DEMOVE COVER NO Г aut IN |
u FACE ABLE PARTS INSIDE
DIGITAL MIXING PROCESSOR E:
O SERVICING TO QUALFIED SERVICE PERSONNEL © MODEL DMPTI O
ATTENTION afin DE REDUIRE LE RISOU 120% BOW Na MT
of ELECT HE PAS ENLEVER LE YAMAHA CORPORATION Pan J
COUVERCLE E ME SE TROUYE AL NTÉFIEUR MADE IN JAPAN
ALUGUNE PIECE POUYANT ETRE REPAREE PAR LUSAGER
SADRESSER & UN REPARATE LE COMPE TENT SER NO r
WARNING 170 REDUCE THE RISK OF FIRE © - @
OR ELECTRIC SHOCK DO MOT EXPOSE THIS L
APPLE TO RUN Of MOISTURE STEREO GUT FECT INPUT
R 48 L 8 7 5 5 4 3 7 T
С li 1 10 LA 10 + Ha
COMPLIES WITH THE LBM OF A CLASS 8 ya a + + + - * - n *
COMPUTING DEVICE PURSUANT TO SLAPRAT J OF у y Г Y ©
PART 14 OF FCC RULES 5 | À T |
I * » » . “ » . a * + . * . - >»
"я x “a 20 rd X "я au da 20 ‘а 20 +d x "4 x
STEREO OUT.
R L r= y à e A or 7
+] (15 od “I Fr # , : ‚ Г eo
ОО 00000 OE
© Input Jacks & Trim Controls
These are standard monaural 1/4" phone jacks which
accept line-level input to the DMP11's eight input chan-
nels. Each INPUT jack has an input level trimmer contro!
which adjusts the nominal input level between approxi-
mately -20 dB and +4 dB. The center detent position of
the input level trimmers provides a nominal input level of -
10 dB. Input impedance is 10 k-ohms.
* Microphone input is also possible using the optional
Yamaha MLA7 8-channel microphone amplifier.
@ Externai Effects Send Jack
Delivers a D/A-converted analog signal from the effect
SEND 1 or SEND 2 system for external signal process-
ing. Assigning SEND 1 or SEND 2 to the EFFECT SEND
jack is described in "CASCADE MODE CONTROL" on
page 29. Nominal output level is +4 dB, and optimum
load impedance is 10 k-ohms or greater.
@ Unbalanced Stereo Output Jacks
Main stereo program outputs from the DMP11. These
outputs are unbalanced 1/4" phone jacks, delivering the
output signal at a nominal +4 dB. Optimum load
impedance is 10 k-ohms or greater.
O Balanced Stereo Output Jacks
Main stereo program outputs from the DMP11. These
U.S. & Canadian models
outputs are balanced XLR type connectors, delivering the
output signal at a nominal +4 dB. Optimum load
impedance is 600 ohms or greater.
© MIDI IN, OUT & THRU Terminals
The MIDI IN terminal receives MIDI control data from
external MIDI equipment, and the MIDI OUT terminal
transmits MID! data from the DMP11 which is to be stored
in or otherwise used by external MIDI equipment. The
MIDI THRU terminal re-transmits any data received at the
MIDI IN terminal, allowing "daisy-chaining” to other MIDI
equipment.
© Digital Cascade IN and OUT Terminals
These 8-pin DIN connectors are used to cascade 2 or
more DMP11 units to increase the available number of
inputs.
[Detailed instructions on page 28]
@ Foot Volume Control Jack
This 1/4" monaural phone jack accepts an external foot
controller such as the Yamaha FC9, permitting foot con-
trol of the signal level delivered from the DMP11's master
stereo buss. A utility function allows the operation of the
foot controller to be exchanged with that of the DATA
ENTRY control so that the foot controller can be used for
real-time control of virtually any of the DMP11's parame-
ters (EQ, effects, etc.).
[Detailed instructions on page 25]
SIGNAL FLOW & FUNCTIONAL CONFIGURATION
Although the DMP11 is a "digital mixer” which deals entirely
with A/D-converted digital signals, its basic signal flow and
functional layout should be quite familiar to anyone who has
worked with even simple audio mixing equipment before.
One aspect of the DMP11 which may be surprising, however,
is its apparent lack of external control hardware (EQ controls,
separate effect send controls, etc.) in relation to the number
of functions it provides.
CLIP
PRE-
EMPHASIS
5
GAIN ON/OFF
(+4^-20) OSCILLATOR
(UTILITY)
Referring to the single-channel block diagram above, input
applied to one of the rear-panel INPUT jacks is first routed
through an analog buffer/variable-gain amp which buffers and
ermits level matching with the source signal. The gain trim-
Bors for each channel are located directly above the corre-
sponding input jacks on the rear panel. The input buffer is fol-
lowed by a pre-emphasis circuit and a 16-bit linear A/D con-
verter, sampling at 44.1 kHz. The first digital processing
stage following A/D conversion is EQ. This is followed by
phase inversion, the main channel fader, and stereo pan sys-
tem which feeds the master stereo program buss. Pre- and
post-fader taps immediately before and after the channel
fader feed the DMP11's two effect systems. Here it is impor-
tant to note that the two effect send level control circuits are
all controlled by what is normally the channel fader. The user
selects one of the two effect sends, and the channel faders
then function as the effect send level controls for the respec-
tive channels. Each effect send level control feeds a sophisti-
cated digital signal processor: the processor in effect send 1
offers a selection of 20 different effects including reverbera-
tion, delay, phasing, flanging, chorus, gate reverb, pitch
change and others.
This is because digital operation allows significant functional
streamlining of the system, assigning a number of related
jobs to a single control or group of controls. Once you're
familiar with the system, you'll find that it actually saves time
and makes operation easier, allowing you to concentrate
more fully on the results to be achieved rather than operating
the equipment involved.
EFFECT SEND STEREO
| 2 LR
CH
EQ CH FADER
ON/OFF ON/OFF Y
С PHASE
CHEFFECT
SEND |
LEVEL
{Post
PRE Г
CH ERFECT
LEVEL
Effect send 2 incorporates 5 internal digital effects. Either
send can also be routed to the outside world via a D/A con-
verter permitting use of external effect and signal processing
units. A single return level fader controls return from both
effect systems — its operation depends on the selected effect
system. The master stereo program buss feeds a variable-
gain stage which can be controlled externally by a foot pedal
and the main stereo master fader. This is immediately fol-
lowed by stereo D/A converters and de-emphasis circuits
which feed the DMP11's main stereo outputs.
aN3S
6129333 Пл CH = va
SISYHIN3I
-30
d dNO
JO
11 dNO
193135 ONIS S193453
JeujouD OL
1n0 30YISYI ©
TYLIOIO
S3NOHd r= <
NN
SISYHAN3
-30
000
Е
a
E
8
=
=
034318
NE
STaNIE —]
CAAIILA) 4 «МО
INMICA 1004 T3A37 30Y25vI 40
<< Pa 1H JANO
Ne —o J9U0U0 WOJJ
1 1 1
avs | . —e NI 30V9SV9
ba ! ЦО
| | YALSVN
300N 30v3SY2
Y AAI e
ZNYAL3E _ 410/80 a
153443 2 №01 ЗЫ я >
30N VE 1 rm
2 Эа & & 3
р
193343 m
3
8
c=
3 о © =-
no ==
a X 38
8 я
6 193443
a
430/NO
13A37 ¡NUNLIN
lias IE
HILIT9
aH va
dono | Y
ossals 0108
3ud
rro
13A371
2 0N35
19344349
A CALTILLA)
HOLY TISO (oz-<»+)
13437
10545545
— )
— nv о LAN
+ 2ovis 2 [19 ws h/]<Y
- ud
dio
3 (ALITH.LN)
HOZ-.>4)
440/80
350
1 19334339
1 ISVHA о I HD
LNdNI
1 E,
30V но
HD
dar
4 HT 2 |
O108 03Yals ON3S 193443
SECTION 1: GENERAL OPERATION
| FADER OPERATION -
In terms of external appearance and operation, the DMP11
faders are exactly the same as those on any other mixer.
There is, however, one significant difference: they have more
than one function. You'll notice that despite the fact that the
DMP11 has two effect systems, and two effect sends for
each channel, corresponding level controls are not provided
on the panel. in the DMP11, the jobs of controlling channel
level and the two effect send levels have been assigned to a
single fader for each channel. The FADER FLIP, SEND 1
and SEND 2 button LEDs tell you which function the channel
faders are currently performing: SEND 1, SEND 2, CHAN-
NEL.
FADER FLIP LED OFF: Channel level.
FADER FLIP LED ON & SEND 1 LED ON: Send 1 level.
FADER FLIP LED ON & SEND 2 LED ON: Send 2 level.
The effect RETURN fader individually controls return level for
each of the two effect systems. The STEREO master fader
does not have any secondary functions. |
FADER STATUS DISPLAY
When you switch to a new memory location or from the chan-
nel level fader mode to an effect send mode, for example, the
physical fader positions will probably not match the memo-
rized fader data. Press the FADER STATUS button and the
memorized fader levels for the selected mode or memory
location will be shown graphically on the LCD display panel.
If you wish to accurately reposition the faders to match the
memorized data press the FADER STATUS button a second
time. A display similar to the following will appear:
12345678 RS
TITTTOL? JT
The numbers on the top row correspond to channel faders 1
through 8, and the characters "R" and "S" corresponding to
the RETURN and STEREO faders. A "o" below a number or
character indicates that the corresponding fader is in the
proper position. An up-arrow indicates that the fader must be
raised, and a down-arrow indicates that the fader must be
lowered. Move the faders with arrow markings in the indicat-
ed direction slowly until the arrow changes to a "o". This
matches the fader position to the memorized data.
Press the FADER STATUS button again to return to the
graphic fader position display.
/ CHANNEL ONBUTTONS _ /
The ON buttons located immediately above each fader sim-
ply turn the signal related to the corresponding fader ON or
OFF. These buttons are alternate-action types, alternating
between ON and OFF states each time the button is pressed.
The button is ON when the red LED built into it is lit. The
channel ON buttons function like channel ON/OFF or MUTE
switches on a conventional mixer. When OFF, the signal
from that channel is shut off and will not appear at the stereo
buss or any of the effect sends. The return channel ON but-
ton turns the return signal from any of the two effects sys-
tems on or off (depending on the selected send), and the
stereo channel ON button turns the DMP11's main stereo
outputs ON or OFF.
10
/ PAN /
The DMP11 permits panning the signal from each input chan-
nel across the stereo buss in 17 discrete steps. The PAN dis-
play on the DMP11's LCD shows two numbers: L=n and Ran,
where "n" is an integer between 0 and 16. À setting of L=8
R=8, for example, corresponding to center pan positioning.
With a setting of L=16 R=0 the signal would be panned full
left, and setting of L=12 R=4 would place the signal approxi-
mately three-quarters right.
‚ L=16/R=0, L=15/R=1, ...L=8/R=8, ...L=1/R=15, L=0/R=16
11
left-most€ ................e..e...... 07-1011 = right-most
SETTING PAN
@ Press PAN/PHASE button.
@ Press SELECT button for channel to be panned.
O Use the DATA ENTRY slider, PARAMETER +/- or
PARAMETER « / > buttons to set desired degree of pan.
um
SELECT
Te
Selected channel
PARAMETER DATA ENTRY
6
I
ch2
R=13
/ PHASE a _ /
Âs in a conventional mixer, the phase inversion function on
the DMP11 allows matching the phases of different sources
to prevent level and response irregularities. Although it is
generally not a problem with line sources, proper phase
matching can be critical with microphone sources (e.g. when
the DMP11 is used with the optional MLA7 8-channel micro-
phone amplifier).
SETTING PHASE
O Press PAN/HASE button twice (once if PAN mode is
already selected).
O Press SELECT button of channel for which PHASE is to
be adjusted.
© Use DATA ENTRY slider or PARAMETER +/- buttons to
select NORMAL or REVERSE phase.
ни
РАМ
PHASE
3
chl
NORMAL
=]
o
Phase
Selected channel
Y
ch2
NORMAL
Phase
PARAMETER
=
|
ch2
REVERSE
DATA ENTRY
I
FENCINUCrDI
POFEINONPEA
Phase
/ EQUALIZATION /
The DMP11 offers a versatile 2-band EQ system on each
channel. The HI and LOW bands can be set to function in
either peaking, shelving or "dynamic” modes. In the peaking
mode, both bands permit Q adjustment over a wide 0.1 —5
range, permitting precise adjustment of a specific range of
frequencies. In the dynamic (DYNA) mode, the center fre-
quency sweeps automatically through the total 32Hz — 18
kHz EQ range.
SETTING EQ
O Press SELECT button on channel for which EQ is to be
adjusted.
W Press either the LOW EQ or HI EQ button to select the
desired EQ range:
LOW EQ : 32 Hz — 18 kHz
HI EQ : 32 Hz — 18 kHz
© If the "EQ OFF" display appears, press the same EQ
band selector a second time to turn that band ON. A band
which is ON can be turned OFF by pressing its selector a
second time.
@ Use the PARAMETER < / ) buttons to select the
parameter to be changed (block cursor flashes over first
character of parameter):
"Е" = Frequency (32 Hz — 18 kHz)
"С" = Gain (-15 dB — + 15 dB)
"Q = Quality Factor (0.1 — 5, only when "PEAK"
mode is selected)
"PEAK" =Peaking EQ
| "SHV" = Shelving EQ
"DYNA" = Dynamic EQ
Currently selected channel.
@ Use DATA ENTRY slider or PARAMETER +/- buttons to
‚set the value of the selected parameter.
E
ED 1
© Selected channel
EQ OFF
— CH-1
Е с
Y
F= 100Hz &=+ OdB
Q= 0.7 PEAK CH-1- Selected channel
Y
100Hz G=+ OdB
O. 7 PEAK CH-1
F
o
4
PARAMETER DATA ENTRY
E
©
F= 100Hz G=+ O0dB
= 2. 0 PEAK CH-1
Selected parameter
en
New value
* Be careful when switching the HI band from shelving to
peaking response. If a high-gain shelving response is
switched to peaking, particularly in the low frequency
range (32 Hz — 1 kHz), the resultant high-gain peak can
cause low-frequency noise.
12
13
/ INTERNAL EFFECTS SEND 7
The DMP11 has two completely independent effect
send/return loops, each of which access its own group of top-
quality internal digital effects. EFFECT 1 access the following
20 internal effects:
1. REV 1 HALL 11. SYMPHONIC
2. REV 2 ROOM 12. EARLY REF. 1
3. REV 3 VOCAL 13. EARLY REF. 2
4. REV 4 PLATE 14. GATE REVERB
5. FLANGE A 15. REVERSE GATE
6. FLANGE B 16. DELAY L&R
7. CHORUS A 17. STEREO ECHO
8. CHORUS B 18. PITCH CHANGE A
9. PHASING 19. PITCH CHANGE B
10. TREMOLO 20. PITCH CHANGE C
EFFECT 2 offers 5 internal effects, and allows access to out-
board effects units via the rear-panel EFFECTS SEND jack.
The 5 internal effects provided for SEND 2 are:
1. STEREO ECHO
2. FLANGE
3. CHORUS
4. PHASING
5. PANPOT
SELECTING AN EFFECT LOOP AND EFFECT
O Press either the SEND 1 or SEND 2 button to select the
desired effect loop.
O Use the DATA ENTRY slider or PARAMETER +/- buttons
to select the desired effect (the effect name will flash on
the LCD)
© Press the EFFECT RECALL button to activate the select-
ed effect (the effect name will stop flashing).
SEND 1 SEND 2
Selected effect loop
Effect?
1 STEREO ECHO
DATA
PARAMETER DATA ENTRY
0080907110
100900014848
Y
Ef fect2, / /
— 2 ЕТАМСЕ —
—flash—{ ~~ /7 7311 UN
ЕЁ Тесс 2
2 FLANGE
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
