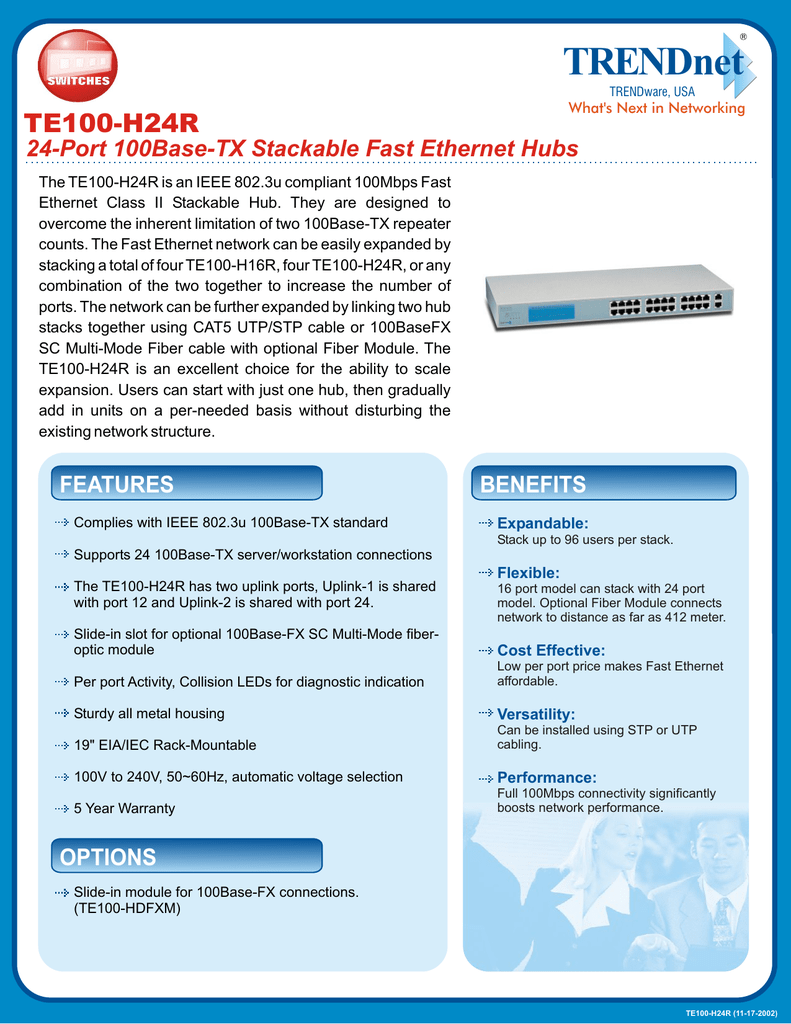

Trendnet TE100-H24R 24-Port 100Base-TX Stackable Fast Ethernet Hubs Datasheet

TRENDnet
TRENDware, USA
What's Next in Networking
TE100-H24R
24-Port 100Base-TX Stackable Fast Ethernet Hubs
The TE100-H24R is an IEEE 802.3u compliant 100Mbps Fast
Ethernet Class II Stackable Hub. They are designed to
overcome the inherent limitation of two 100Base-TX repeater
counts. The Fast Ethernet network can be easily expanded by
stacking a total of four TE100-H16R, four TE100-H24R, or any
combination of the two together to increase the number of
ports. The network can be further expanded by linking two hub
stacks together using CAT5 UTP/STP cable or 100BaseFX
SC Multi-Mode Fiber cable with optional Fiber Module. The
TE100-H24R is an excellent choice for the ability to scale
expansion. Users can start with just one hub, then gradually
add in units on a per-needed basis without disturbing the
existing network structure.
FEATURES
Complies with IEEE 802.3u 100Base-TX standard
BENEFITS
Expandable:
Stack up to 96 users per stack.
Supports 24 100Base-TX server/workstation connections
The TE100-H24R has two uplink ports, Uplink-1 is shared
with port 12 and Uplink-2 is shared with port 24.
Flexible:
16 port model can stack with 24 port
model. Optional Fiber Module connects
network to distance as far as 412 meter.
Slide-in slot for optional 100Base-FX SC Multi-Mode fiberoptic module
Cost Effective:
Per port Activity, Collision LEDs for diagnostic indication
Low per port price makes Fast Ethernet
affordable.
Sturdy all metal housing
Versatility:
19" EIA/IEC Rack-Mountable
Can be installed using STP or UTP
cabling.
100V to 240V, 50~60Hz, automatic voltage selection
Performance:
5 Year Warranty
Full 100Mbps connectivity significantly
boosts network performance.
OPTIONS
Slide-in module for 100Base-FX connections.
(TE100-HDFXM)
TE100-H24R (11-17-2002)
TE100-H24R
24-Port 100Base-TX Stackable Fast Ethernet Hubs
SPECIFICATIONS
Standards:
• IEEE 802.3µ, 100Base-TX,
IEEE802.3µ, 100Base-FX
Weight:
• 2.68 kg / 5.89 lb
Protocol:
• CSMA/CD
Temperature:
• Operating: -10° to 40° C / 14° to 104° F
• Storage: -20° to 70° C / -4° to 158° F
Cabling:
• CAT 5, UTP/STP 62.5/125 micron
multimode fiber (half-duplex, 412 Meters)
Humidity:
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
LED’s:
• Per Hub: Power, FX Link/RX, Activity,
Collision
• Per Port: Link/Rx
Certification:
• FCC, UL, CE
UL
R
Power:
• Internal Power Supply,
(100 - 240V, 50/60Hz)
Dimensions:
• 440 x200 x 44 mm /
17.30" x 7.87" x 1.73" (L x W x H)
NETWORKING SOLUTIONS
PRODUCT INFORMATION
TE100-H16R: 16-port 100Mbps Stackable
Fast Ethernet hub
TE100-H24R: 24-port 100Mbps Stackable
Fast Ethernet hub
TE100-HDFXM: Slide-in Multi-mode fiber SC
type module
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web: www.trendnet.com
Email: [email protected]
