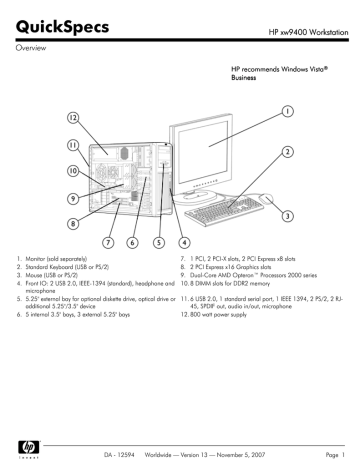

HP xw9400 Workstation
Overview
HP recommends Windows Vista®
Business
1.
2.
3.
4.
Monitor (sold separately)
Standard Keyboard (USB or PS/2)
Mouse (USB or PS/2)
Front IO: 2 USB 2.0, IEEE-1394 (standard), headphone and
microphone
5. 5.25" external bay for optional diskette drive, optical drive or
additional 5.25"/3.5" device
6. 5 internal 3.5" bays, 3 external 5.25" bays
DA - 12594
7. 1 PCI, 2 PCI-X slots, 2 PCI Express x8 slots
8. 2 PCI Express x16 Graphics slots
9. Dual-Core AMD Opteron™ Processors 2000 series
10. 8 DIMM slots for DDR2 memory
11. 6 USB 2.0, 1 standard serial port, 1 IEEE 1394, 2 PS/2, 2 RJ45, SPDIF out, audio in/out, microphone
12. 800 watt power supply
Worldwide — Version 13 — November 5, 2007
Page 1
QuickSpecs
HP xw9400 Workstation
Overview
At A Glance
Up to two Dual-Core AMD Opteron 2000 series processors with 1 GHz HyperTransport™ bus interconnects. Liquid or aircooled options.
Choice of Operating Systems Preloaded:
Genuine Windows® Vista™ Business 32 or 64
Genuine Microsoft Windows Vista™ Business 64-bit downgrade to Microsoft Windows XP Professional x64
Genuine Microsoft Windows Vista™ Business 32-bit downgrade to Microsoft Windows XP Professional
Genuine Windows XP Professional
Genuine Windows XP Professional x64 Edition
Red Hat Enterprise Linux® WS 4 (Update 4 or later) (32- or 64-bit version)
HP Linux Installer Kit (see www.hp.com/workstations/software/linux):
Red Hat Enterprise Linux WS 4 (Update 4 or later) (32- or 64-bit version)
Red Hat Enterprise Linux WS 3 (Update 8) (32 or 64 bit version)
For detailed OS/hardware support information for Linux, see: www.hp.com/support/linux_hardware_matrix
Up to 64 GB of DDR memory, with dual CPUs and 8 GB DIMMs, using integrated CPU memory controllers
Dual PCI Express x16 graphics slots
Support for NVIDIA Scalable Link Interface to link dual graphics cards
Dual integrated NVIDIA Gigabit ethernet
Six channel SATA 3 Gb/s and 8 channel SAS controller, with factory-configured RAID (Factory integrated RAID is Microsoft
Windows only)
Integrated HD audio with internal speaker
Pre-loaded Manageability tools (Microsoft Windows only)
Protected by HP Services, including a 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) standard warranty. Terms
and conditions vary by country. Certain restrictions and exclusions apply.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 2
QuickSpecs
HP xw9400 Workstation
Standard Features - Custom Components
Processor and Speed –
One of the following
Dual-Core AMD Opteron Processor 2000 series with 1 GHz HyperTransport™ Technology bus, 1 MB
L2 cache per core, optional liquid cooling available.
AMD Opteron Processor Model 2210/ 1.80 GHz
AMD Opteron Processor Model 2212/ 2.00 GHz
AMD Opteron Processor Model 2214/ 2.20 GHz
AMD Opteron Processor Model 2216/ 2.40 GHz
AMD Opteron Processor Model 2218/ 2.60 GHz
AMD Opteron Processor Model 2220SE/ 2.80 GHz (configure to order only)
AMD Opteron Processor Model 2220/ 2.80 GHz
AMD Opteron Processor Model 2222SE/ 3.00 GHz – air cooled
AMD Opteron Processor Model 2222SE/ 3.00 GHz – liquid cooled
AMD Opteron Processor Model 2224SE/ 3.20 GHz – air cooled
AMD Opteron Processor Model 2224SE/ 3.20 GHz – liquid cooled
NOTE: Dual Core is a new technology designed to improve performance of multithreaded software
products and hardware-aware multitasking operating systems and may require appropriate operating
system software for full benefit; check with software provider to determine suitability. Not all customers or
software applications will necessarily benefit from use of this technology.
Operating System –
One of the following
Genuine Windows Vista Business 64*
Genuine Windows Vista Business 32*
Genuine Microsoft Windows Vista™ Business 64-bit downgrade to Microsoft Windows XP Professional
x64
Genuine Microsoft Windows Vista™ Business 32-bit downgrade to Microsoft Windows XP Professional
Genuine Windows XP Professional SP2
Genuine Windows XP Professional x64 Edition
(See http://www.hp.com/workstations/pws/windowsxp64/)
* The following components are not yet supported on Microsoft Vista Business and HP Workstations; ATI
graphics, 1394b cards, dual graphics configurations, Scalable Link Interface (SLI) used on NVIDIA
graphics cards, Creative SoundBlaster X-fi, RAID 5 10 or data array
Red Hat Enterprise Linux WS 4 (32-bit/64-bit)
NOTE: The RHEL3 U4 (x86) OS will operate correctly with most options after some manual
configuration steps. Please refer to the Release Notes Chapter in
http://www.hp.com/support/linux_user_manual.
HP Installer CD for Red Hat Enterprise Linux WS 4
See http://www.hp.com/workstations/software/linux/
Click on "Hardware support matrix" under "Related links" for details.
NOTE: An AMD64-enabled workstation should provide leading performance for many 32-bit
applications. Although not all 32-bit applications may run as normal when you decide to change to a
64-bit operating system, many will, providing excellent flexibility. It is advised to pre-test your
applications by visiting Microsoft's 64-bit 120-day free trial
(http://www.microsoft.com/windowsxp/64bit/evaluation/trial.mspx) before you switch to a 64-bit
processor with a 64-bit operating system. AMD64 requires a computer system with a processor, chipset,
BIOS, operating system, device drivers, and applications enabled for a
64-bit processor. Processor will not operate (including 32-bit operation) without a 64-bit enabled BIOS.
Performance will vary depending on your hardware and software configurations.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 3
QuickSpecs
HP xw9400 Workstation
Standard Features - Custom Components
Power Supply Cord*
Specially rated cord supplied
* Use only Power Supply Cord supplied with the HP xw9400 workstation. This is a specially rated power
cord.
1-5 Hard Disk Drives SATA Hard Drive
Windows Vista
Windows XP
Up to 5 SATA drives , or 4 80 GB 7200 rpm SATA 3.0Gb/s drive
32-Bit, 64-Bit
32-Bit, 64-Bit
SAS drives
160 GB 7,200 rpm SATA 3.0Gb/s NCQ Hard
32-Bit, 64-Bit
32-Bit, 64-Bit
Drive
250 GB 7,200 rpm SATA 3.0Gb/s NCQ Hard
32-Bit, 64-Bit
32-Bit, 64-Bit
Drive
500 GB 7,200 rpm SATA 3.0Gb/s NCQ Hard
32-Bit, 64-Bit
32-Bit, 64-Bit
Drive
750 GB 7,200 rpm SATA 3.0Gb/s NCQ Hard
32-Bit, 64-Bit
32-Bit, 64-Bit
Drive
80 GB 10K rpm SATA 1.5Gb/s NCQ Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
160 GB 10K rpm SATA 1.5Gb/s NCQ Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
* NCQ (Native Command Queuing) not supported in Red Hat Enterprise Linux
Serial Attached SCSI (SAS) Hard Drives
146 GB 10K rpm SAS Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
73 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
146 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
300 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
Drive controllers
Windows Vista
Windows XP
32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
Red Hat Linux
WS 3 & WS 4no hardware
RAID
WS3 & WS4no hardware
RAID
Integrated Serial ATA 3 Gb/s controller (6
channels). With RAID 0, RAID 1, RAID 1+0
capability
Integrated 8 channel SAS controller, With RAID 0, 32-Bit, 64-Bit,
32-Bit, 64-Bit
RAID 1, RAID 0+1 capability
RAID 0,1
supported and
factory integrated
NOTE: Hardware Controller supported by Linux except for any of the RAID features. For customers
requiring RAID functionality, consider using Software RAID functionality that is controller independent
and provided within Red Hat Enterprise Linux.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 4
QuickSpecs
HP xw9400 Workstation
Standard Features - Custom Components
Factory Integrated RAID
Windows Vista
HP RAID 0 (Striped Array) Configuration - 750 GB 32-Bit, 64-Bit
HD Drive not supported. 3rd HD Drive can not be
500 GB.
HP RAID 0 Data Array Configuration - 4th HD
Not supported
Drive can't be 750 GB. 5th HD Drive can't be 500
GB
HP RAID 1 (Mirrored Array) Configuration - 2 HD
32-Bit, 64-Bit
Drives only
HP RAID 5 (Parity Array) Configuration - If
Not supported
SATA,only 80 GB or 160 GB drives allowed. If
SAS, controller card required.
Windows XP
32-Bit, 64-Bit
Red Hat Linux
Not supported
32-Bit, 64-Bit
Not supported
32-Bit, 64-Bit
Not supported
32-Bit, 64-Bit
Not supported
HP RAID10 Striped/Mirrored Configuration - Must Not supported
32-Bit, 64-Bit
Not supported
have 4 HD Drives..
NOTE: RAID 0, 1 requires 2 identical hard drives (speeds, capacity, interface); SATA RAID 0, 1 and SCSI
RAID 0, 1 available as options. Hardware RAID is not supported on Linux systems. The Linux kernel, with
built-in software RAID, provides excellent functionality and performance. It is a good alternative to
hardware-based RAID. Please visit
http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00060684/c00060684.pdf
for RAID capabilities with Linux.
Memory One of the following
PC2-4200 (DDR2-533 MHz) Memory DIMMs
DUAL PROCESSOR ONLY
HP 32 GB (8x4 GB) PC2-4200 DDR2-533 ECC
Registered *
PC2-5300 (DDR2-667 MHz) Memory DIMMs
SINGLE PROCESSOR ONLY
HP 1 GB (2x512) PC2-5300P DDR2-667 ECC
Registered SingProc
HP 2 GB (2x1 GB) PC2-5300P DDR2-667 ECC
Registered SingProc
HP 4 GB (2x2 GB) PC2-5300P DDR2-667 ECC
Registered SingProc
HP 4 GB (4x1 GB) PC2-5300P DDR2-667 ECC
Registered SingProc
DUAL PROCESSOR CONFIGS REQUIRED
HP 2 GB (4x512 MB) PC2-5300P DDR2-667
ECC Registered
HP 4 GB (4x1 GB) PC2-5300P DDR2-667 ECC
Registered
HP 6 GB (4x1 GB+4x512) PC2-5300P DDR2667 ECC Registered
HP 8 GB (8x1 GB) PC2-5300P DDR2-667 ECC
Registered
HP 8 GB (4x2 GB) PC2-5300P DDR2-667 ECC
Registered
DA - 12594
Windows Vista
32-Bit, 64-Bit
Windows XP
32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
Worldwide — Version 13 — November 5, 2007
Page 5
QuickSpecs
HP xw9400 Workstation
Standard Features - Custom Components
HP 12 GB (4x2+4x1) PC2-5300P DDR2-667
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
ECC Registered
HP 16 GB (8x2 GB) PC2-5300P DDR2-667 ECC
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
Registered
* Not supported with two fx4500 graphics plus 120W processor and fifth hard drive. Not supported with
two fx4600 graphics.
Removable Storage
(Up to 2 of the following
drives)
HP No Floppy Drive Option
1.44 MB Diskette Drive
HP No Optical Drive Option
Windows Vista
N/A
32-Bit, 64-Bit
N/A
Windows XP
N/A
32-Bit, 64-Bit
N/A
Red Hat Linux
N/A
WS 3, WS 4
N/A
16X/40X DVD-ROM Drive
32-Bit, 64-Bit
WS 3, WS 4
SATA 48X CD-RW/DVD-ROM Combo Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
SATA SuperMulti DVD+/-RW LightScribe** Drive
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
* LightScribe creates a grayscale image similar to black and white photography. LightScribe media
required and sold separately. Double-layer discs can store more data than single layer discs. However,
double-layer discs burned with this drive may not be compatible with many existing single-layer DVD
drives and players
Input Devices
Keyboard - One of the following*
Windows Vista
Windows XP
PS/2 Standard Keyboard
32-Bit, 64-Bit
32-Bit, 64-Bit
USB Standard Keyboard
32-Bit, 64-Bit
32-Bit, 64-Bit
Mouse - One of the following*
PS/2 2-Button Scroll Mouse (mechanical)
32-Bit, 64-Bit
32-Bit, 64-Bit
USB 3-Button Scroll Mouse (optical)
32-Bit, 64-Bit
32-Bit, 64-Bit
USB 3-Button 2.9M Mouse (optical)
32-Bit, 64-Bit
32-Bit, 64-Bit
* Mixing PS/2 and USB Keyboards and Mice are not supported with Linux OS.
Audio
Integrated HD sound with internal speaker
Sound Blaster X-Fi XtremeMusic Audio Card
HP Optical Drive Internal Audio Cable
NIC (Network Interface
Controller)
Integrated dual NVIDIA 10/100/1000 LAN
Broadcom 5751 Netxtreme Gigabit LAN (PCI
Express)
DA - 12594
Red Hat Linux
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
WS 3, WS 4
Windows Vista
32-Bit, 64-Bit
Not supported
32-Bit, 64-Bit
Windows XP
32-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Red Hat Linux
Windows Vista
32-Bit, 64-Bit
32-Bit, 64-Bit
Windows XP
32-Bit, 64-Bit
32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
WS 3, WS 4
Worldwide — Version 13 — November 5, 2007
Page 6
QuickSpecs
HP xw9400 Workstation
Standard Features - Custom Components
Graphics
Windows Vista
32-Bit, 64-Bit
Windows XP
32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
NVIDIA Quadro NVS 285* PCIe (128 MB, VGA &
DVI)
NVIDIA Quadro NVS 290 PCIe (256 MB) *
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 4
NVIDIA Quadro FX 560* PCIe (128 MB)
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
NVIDIA Quadro FX 570 PCIe (256 MB)*
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 4
NVIDIA Quadro FX 1500* PCIe (256 MB)
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
NVIDIA Quadro FX 1700 PCIe (512 MB) *
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 4
NVIDIA Quadro FX 3500* PCIe (256 MB)
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
NVIDIA Quadro FX 4500* PCIe (512 MB)
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
NVIDIA Quadro FX 4600* PCIe (768 MB) - Not
Not supported 32-Bit, 64-Bit
WS 3, WS 4
supported with 120W processors
NVIDIA Quadro FX 5500* PCIe (1 GB)
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
* May use two graphics cards. Must use matching graphics cards and order a second processor. SLI and
dual configurations are not supported for Microsoft Windows Vista.
Graphics Connectors
Windows Vista
Windows XP
Red Hat Linux
NVIDIA Quadro G-Sync Card*
Not supported 32-Bit, 64-Bit
WS 3, WS 4
NVIDIA SLI Graphics Connector **
Not supported 32-Bit, 64-Bit
* Only supported on NVIDIA Quadro FX 45xx and newer series graphics cards.
** Only supported on NVIDIA Quadro FX 3500, 4500 and 5500 and newer series graphics cards.
Miscellaneous
IEEE 1394b FireWire 800 3-Port PCI Card
(1-port 1394a & 2-ports 1394b)
Hood intrusion sensor
SCSI U320 Back Panel Connect
HP xw84/94 SAS Back Panel Connector Kit
HP Workstation Mouse Pad
Software
Symantec AntiVirus 10 (optional preinstall)
Optional Microsoft Office 2007 Trial Edition
Optional Microsoft Office 2007 Small Business
Edition
PDF Complete
HP Performance Tuning Framework
HP Client Manager Software v6.0
Optional HP Protect Tools Security Solutions
DA - 12594
Windows Vista
Not supported
Windows XP
32-Bit, 64-Bit
Red Hat Linux
Not Supported
Yes
Yes
Yes
N/A
32-Bit, 64-Bit
N/A
N/A
N/A
Windows Vista
32-Bit, 64-Bit
32-Bit (English
language only)
32-Bit (English
language only)
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Windows XP
32-Bit, 64-Bit
32-Bit
Red Hat Linux
Not supported
N/A
32-Bit
N/A
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
N/A
Not supported
Not supported
Not supported
Worldwide — Version 13 — November 5, 2007
Page 7
QuickSpecs
HP xw9400 Workstation
After-Market Options
Processors
Graphics
2nd AMD Opteron processor with AMD64 Technology and 1.00 GHz
HyperTransport™ Technology
Dual-Core AMD Opteron Processor Model 2220/ 2.80 GHz, 2 MB L2 cache (1 MB
per core)
Dual-Core AMD Opteron Processor Model 2212/ 2.00 GHz, 2 MB L2 cache (1 MB
per core)
Dual-Core AMD Opteron Processor Model 2214/ 2.20 GHz, 2 MB L2 cache (1 MB
per core)
Dual-Core AMD Opteron Processor Model 2216/ 2.40 GHz, 2 MB L2 cache (1 MB
per core)
Dual-Core AMD Opteron Processor Model 2218/ 2.60 GHz, 2 MB L2 cache (1 MB
per core)
Dual-Core AMD Opteron Processor Model 2220SE/ 2.80 GHz, 2 MB L2 cache (1
MB per core)
Dual-Core AMD Opteron Processor Model 2222SE/ 3.00 GHz, 2 MB L2 cache (1
MB per core) - air cooled
Dual-Core AMD Opteron Processor Model 2222SE/ 3.00 GHz, 2 MB L2 cache (1
MB per core) - liquid cooled
Part Number
RC403AA
EW295AA
EW296AA
EW297AA
EW298AA
RM696AA
RL861AV
RL862AV
Multi display solutions
Windows Vista Windows XP Red Hat Linux
Part Number
NVIDIA Quadro NVS 285* PCIe (128 32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
RD069AA
MB, VGA & DVI)
NVIDIA Quadro NVS 290* PCIe (256 32-Bit, 64-Bit 32-Bit, 64-Bit
WS 4
GN502AA
MB)
NVIDIA Quadro FX 560* PCIe (128
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
ES354AA
MB)
NVIDIA Quadro FX 570* PCIe (256
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 4
GR521AA
MB
NVIDIA Quadro FX 1500* PCIe (256 32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
ES355AA
MB)
NVIDIA Quadro FX 1700* PCIe (512 32-Bit, 64-Bit 32-Bit, 64-Bit
WS 4
GP529AA
MB)
NVIDIA Quadro FX 3500* PCIe (256 32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
ES357AA
MB)
NVIDIA Quadro FX 4600* PCIe (768 Not supported 32-Bit, 64-Bit
WS 3, WS 4
RV706AA
MB)
NVIDIA Quadro FX 5500* PCIe (1
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
RF089AA
GB)
NVIDIA Quadro G-Sync Card**
Not supported 32-Bit, 64-Bit
WS 3, WS 4
ED087AA
NOTE: To run the accelerated graphics driver on RHEL3 U4, download the latest driver. Please refer to
the Release Notes Chapter in http://www.hp.com/support/linux_user_manual.
*May use two graphics cards. Must use matching graphics cards and order a second processor. ** Only
supported on NVIDIA Quadro FX 45xx and newer series graphics cards.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 8
QuickSpecs
HP xw9400 Workstation
After-Market Options
Hard Drives
SATA Hard Drives
80 GB 7200 rpm SATA 3.0Gb/s
Hard Drive
160 GB 7200 rpm SATA 3.0Gb/s
NCQ Hard Drive
250 GB 7200 rpm SATA 3.0Gb/s
NCQ Hard Drive
500 GB 7200 rpm SATA 3.0Gb/s
NCQ Hard Drive
80 GB 10K rpm SATA NCQ Hard
Drive
Windows Vista Windows XP
32-Bit, 64-Bit 32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
Part Number
PY276AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
PV944A
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
EA788AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
PV943A
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
EM172AA
160 GB 10K rpm SATA NCQ Hard
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EW222AA
Drive
SAS Hard Drives
146 GB 10K rpm SAS Hard Drive
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EM173AA
73 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EA329AA
146 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EA330AA
300 GB 15K rpm SAS Hard Drive
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EM174AA
HP xw84/94 SAS Back Panel
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EM164AA
Connector Kit
NOTE: The RHEL3 U4 (x86) OS will operate correctly after some manual configuration steps. Please
refer to the Release Notes Chapter in http://www.hp.com/support/linux_user_manual.
Controller cards
Windows Vista
Windows XP
32-Bit, 64-Bit
Red Hat Linux
Not supported
Part Number
EX830AA
32-Bit, 64-Bit
Not supported
EA327AA
Windows Vista Windows XP
32-Bit, 64-Bit 32-Bit, 64-Bit
Red Hat Linux
WS 3, WS 4
Part Number
DT527A
LSI 8344ELP 8-port SAS HW RAID
Card
IEEE 1394b FireWire 800 4-Port PCI Not supported
Card (2 Ports 1394b & 1 Port 1394a)
Input/Output Devices
Keyboards
HP PS/2 Standard Keyboard
(Carbonite/Silver)
HP USB Standard Keyboard
(Carbonite/Silver)
HP USB Smartcard Keyboard
Pointing Devices
HP PS/2 2-Button Scroll Mouse
(mechanical)
HP USB 2-Button Scroll Mouse
(optical)
HP USB 3-button Mouse (optical)
HP USB 3-Button 2.9M OEM Mouse
(optical)
DA - 12594
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
DT528A
32-Bit, 64-Bit
32-Bit, 64-Bit
Not supported
ED707AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
DD440B
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
DC172B
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
WS 3, WS 4
DY651A
ET424AA
Worldwide — Version 13 — November 5, 2007
Page 9
QuickSpecs
HP xw9400 Workstation
After-Market Options
Networking
HP SpacePilot 3D USB Intelligent
Controller
32-Bit, 64-Bit
32-Bit, 64-Bit
Not supported
EF390AA
NICs
Broadcom 5751 Netxtreme Gigabit
PCIe Adapter
Intel Pro 1000 GT Gigabit PCI
Express NIC
Windows Vista
32-Bit, 64-Bit
Windows XP
32-Bit
Red Hat Linux
WS 3, WS 4
Part Number
EA833AA
32-Bit, 64-Bit
32-Bi
WS 3, WS 4
Memory (DIMMs)
512 MB (1x 512 MB) PC2-5300P
DDR2-667 ECC Address Parity
Registered DIMM
1 GB (1x 1 GB) PC2-5300P DDR2-667
ECC Address Parity Registered DIMM
2 GB (1x 2 GB) PC2-5300P DDR2-667
ECC Address Parity Registered DIMM
4 GB (1x 4 GB) PC2-4200 DDR2-533
ECC Address Parity Registered DIMM
Windows Vista Windows XP
32-Bit, 64-Bit 32-Bit, 64-Bit
Part Number
EV281AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
EV282AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
EV283AA
32-Bit, 64-Bit
32-Bit, 64-Bit
WS 3, WS 4
RP907AA
Monitors (Supported by all TFT displays
Operating Systems
HP LP3065 30-inch Widescreen LCD Monitor
supplied by HP)
HP LP2465 24-inch Widescreen LCD Monitor
HP LP2065 20-inch LCD Monitor
HP L1965 19-inch LCD Monitor
Optical drives
Red Hat Linux
WS 3, WS 4
AG393AA
Part Number
EZ320A4
EF224A4
EF227A4
RA373AA
DVD-ROM Drive
Windows Vista Windows XP Red Hat Linux
Part Number
16X DVD-ROM
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
AA620B
Combo Drive
SATA 48X CD-RW/DVD-ROM
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EW267AA
Combo Drive
DVD+/-RW Drive
SATA SuperMulti DVD+/-RW
32-Bit, 64-Bit 32-Bit, 64-Bit
WS 3, WS 4
EW269AA
LightScribe*
* LightScribe creates a grayscale image similar to black and white photography. LightScribe media
required and sold separately. Double-layer discs can store more data than single layer discs. However,
double-layer discs burned with this drive may not be compatible with many existing single-layer DVD
drives and players.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 10
QuickSpecs
HP xw9400 Workstation
After-Market Options
Removable Storage
HP 16-In-1 Media Card Reader with
PCI Card
HP 512 MB USB 2.0 Drive Key
HP 1 GB USB 2.0 Drive Key
1.44 MB Internal Floppy Drive
HP StorageWorks DAT 40 USB
external tape drive
HP StorageWorks DAT 40 USB
internal tape drive
HP StorageWorks DAT 72 USB
external tape drive
HP StorageWorks DAT 72 USB
internal tape drive
HP StorageWorks DAT 160 USB
external tape drive
HP StorageWorks DAT 160 USB
internal tape drive
Audio Card
Sound Blaster X-Fi
XtremeMusic Audio Card
HP USB Powered Stereo
Speakers
HP Satellite Speakers
Windows Vista Windows XP
TBD
32-Bit, 64-Bit
Red Hat Linux
Not supported
Part Number
EM718AA
TBD
TBD
TBD
32-bit, 64-bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit
32-Bit, 64-Bit
WS 3 & WS 4
WS 3 & WS 4
WS 3 & WS 4
WS 3, WS 4
ED516AA
AG382AA
DY670A
DW023A
32-bit, 64-bit
32-Bit, 64-Bit
WS 3, WS 4
DW022A
32-bit, 64-bit
32-Bit, 64-Bit
WS 3, WS 4
DW027A
32-bit, 64-bit
32-Bit, 64-Bit
WS 3, WS 4
DW026A
32-bit, 64-bit
32-Bit, 64-Bit
WS 3, WS 4
Q1581A
32-bit, 64-bit
32-Bit, 64-Bit
WS 3, WS 4
Q1580A
Windows Vista
Not supported
Windows XP
32-Bit
Red Hat Linux
Not supported
Part Number
EA326AA
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
RD628AA
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
ZD929AA
Security
Rack kits / Chassis
options
HP Business PC Security Lock Kit
HP 2006 Business PC Security Lock Kit
Kensington Security Cable & Lock
Part Number
PV606AA
EV265AA
PC766A
xw8000 Depth Adj Fixed Rail Rack Kit
HP xw8/9 Sliding Rail Rack Kit
HP xw8/9 Bulk 10 Pack PCI Hold Down Kit
HP Internal USB Port Kit
Part Number
AA640A
DY664A
EN764AA
EM165AA
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 11
QuickSpecs
HP xw9400 Workstation
After-Market Options
Software
HP Remote SW for HP 1year Update
Subscription
HP Remote SW Receiver 1year Update
Subscription
HP Remote Graphics SW V3 for HP
Sys LTU
HP Remote Graphics SW V3 Receiver
LTU
HP Remote Graphics SW V3 CDROM Media
HP ProtectTools Quantity 1 Software
HP ProtectTools Quantity 25 Software
HP ProtectTools Quantity 500
Software
DA - 12594
Windows Vista
TBD
Windows XP
32-Bit
Red Hat Linux
Not supported
Part Number
PN680A
TBD
32-Bit
Not supported
PN682A
TBD
32-Bit
Not supported
PY682AA
TBD
32-Bit
Not supported
PY684AA
TBD
32-Bit
Not supported
PY685AA
TBD
TBD
TBD
32-Bit
32-Bit
32-Bit
Not supported
Not supported
Not supported
EM530AA
EM531AA
EM532AA
Worldwide — Version 13 — November 5, 2007
Page 12
QuickSpecs
HP xw9400 Workstation
Mechanical Specifications
Form Factor
Color
Expansion Slots
(see mainboard section for
additional details)
Bays
(see storage section for
additional details)
Front I/O
Rear I/O
USB Keyboard
USB Mouse
PS/2 Keyboard
PS/2 Mouse
Chassis Dimensions
(H x W x D)
System Weight
Temperature
Humidity
Maximum Altitude
(nonpressurized)
Power Supply
Interfaces Supported
Hard Drive Controller
(SAS/SATA) Supported
Cooling
Power Supply Fan
Processor Fan-Heatsink
Memory Fan
Chassis Fan (front)
Chassis Fan (rear)
Minitower
Carbonite/Alloy metallic
2 PCI Express (PCIe) x16 75W+EXT75W (Graphics) slots
2 PCIe x16 (8,4,1) slots
Full-height PCI-X slots at 100 MHz, or 1 slot at 133 MHz, exclusive1 full-length PCI slot
Five 3.5 inch bays
Three 5.25 inch bays
4 ports: 2 USB 2.0, 1 headphone, 1 microphone, 1 IEEE 1394
16 ports: 6 USB 2.0, 1 standard serial 9-pin port, 1 IEEE 1394, 1 PS/2 keyboard, 1 PS/2 mouse, 2 RJ45 to integrated Gigabit LAN, 1 Audio In, 1 Audio Line Out, 1 Mic In, S/PDIF OUT coax
Optional
Optional
1
1
17.9 x 8.3 x 20.7 inches; 45.4 x 21.0 x 52.5 cm
Minimum config - 42 lb (19 kg)
Standard config - 45 lb (20 kg)
Maximum config - 54 lb (24 kg)
Operating
40° to 95° F (5° to 35° C)
Non-operating
-40° to 140° F (-40° to 60° C)
Operating
8% to 85%
Non-operating
8% to 90%
Operating
10,000 feet; 3,000 m
Non-operating
30,000 feet; 9,100 m
800W wide-ranging, active Power Factor Correction
6 SATA interface (6 serial-ATA connectors), 8 SAS interface, 2 EIDE interface (1 EIDE connectors)
supported for optical drives.
Serial Attached SCSI (RAID 0, 1, IME) or SATA 3 Gb/s (RAID 0, 1, 5, 10)
3.62 x 0.98 inches; 92 x 25 mm
3.15 x 0.59 inches; 80 x 15 mm
2.75 x 0.59 inches; 70 x 15 mm
One 3.15 x 0.98 inches; 80x 25 mm)
One 4.72 x 0.98 inches; 120 mm x 25 mm (standard)
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 13
QuickSpecs
HP xw9400 Workstation
Mechanical Specifications
Power Supply
Power Supply
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency
Range
Rated Input Current
Heat Dissipation
(Configuration and
software dependent)
Power Supply Fan
Blue Angel Compliant
(<5W in S5 - Power Off)
FEMP Standby Power
Compliant @115V
(<2W in S5 - Power Off,
with Wake on LAN
disabled)
Power Consumption in ES
Mode - Suspend to RAM
(S3)
(Instantly Available PC)
800 watt custom power supply (Wide Ranging, Active PFC)
90 - 269 VAC
100 - 240 VAC
50/60 Hz
47 - 66 Hz
100 - 240 VAC
50/60 Hz
47 - 66 Hz
13.2A @ 100-120VAC
13.2A @ 100-120VAC
6.6 A @ 200-240VAC
6.6 A @ 200-240VAC
Typical 1950 btu/hr (491 kg-cal/hr)
Maximum 3793 btu/hr (956 kg-cal/hr)
92x32 mm variable speed
N/A
NO
< 10 W
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 14
QuickSpecs
HP xw9400 Workstation
Memory
NVIDIA Nforce Professional 3000 Series
DDR2 SDRAM ECC REGISTERED MEMORY
This chart does not represent all possible memory configurations. Each AMD Opteron processor has an integrated memory
controller that supports ECC Registered 667 MHz (PC2 5300P) DDR2 or ECC Registered 533 MHz (PC2 4200) DDR2 memory.
Main memory is directly connected to the processor through the Direct Connect Architecture. There are 8 DIMM slots in total, with 4
DIMM slots per processor, each processor offering a memory bandwidth transfer rate up to 10.2 GB/s. Over 32 GB requires dual
CPUs, and will require 8 GB DIMMS (when available).
Memory must be added in pairs. Match DIMM pairs by size and type. Use only HP tested and validated memory.
The memory sockets are laid out on the mainboard as below:
Memory configurations for the HP xw9400 Workstation:
In a single processor configuration, install the first DIMM pair in socket set 1 (blue sockets), and the 2nd DIMM pair in socket set 3
(black socket).
In a dual processor configuration, install the first DIMM pair in socket set 1 (blue sockets), the 2nd DIMM pair in socket set 2 (blue
sockets) and, if required, the 3rd pair in socket set 3 (black sockets) and the 4th pair in socket set 4 (black sockets).
MAXIMUM MEMORY
Supports up to 64 GB of DDR2 SDRAM, in a configuration of 32 GB per processor (over 32 GB requires dual CPUs and Quad
Ranked DIMMS when supported).
POSSIBLE MEMORY CONFIGURATIONS
Not all memory configurations possible are represented below.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 15
QuickSpecs
HP xw9400 Workstation
Memory
CPU 1
CPU 2
Socket set 2
Socket set 4
1 GB
2 GB
2 GB
2 GB
4 GB
8 GB
2 GB (dual)
512 MB
512 MB
4 GB (dual)
1 GB
1 GB
4 GB (dual)
512 MB
512 MB
512 MB
512 MB
6 GB (dual)
1 GB
1 GB
512 MB
512 MB
8 GB (dual
2 GB
2 GB
8 GB (dual
1 GB
1 GB
1 GB
1 GB
12 GB (dual)
2 GB
2 GB
1 GB
1 GB
16 GB (dual)
4 GB
4 GB
16 GB (dual)
2 GB
2 GB
2 GB
2 GB
32 GB (dual)
4 GB
4 GB
4 GB
4 GB
64* GB (dual)
8 GB
8 GB
8 GB
8 GB
* 64 GB sizes are expected to be available in Mid 2007.
DA - 12594
Socket set 1
512 MB
512 MB
1 GB
1 GB
512 MB
512 MB
512 MB
512 MB
1 GB
1 GB
2 GB
2 GB
512 MB
512 MB
1 GB
1 GB
512 MB
512 MB
1 GB
1 GB
2 GB
2 GB
1 GB
1 GB
2 GB
2 GB
4 GB
4 GB
2 GB
2 GB
4 GB
4 GB
8 GB
8 GB
Worldwide — Version 13 — November 5, 2007
Socket set 3
512 MB
512 MB
512 MB
512 MB
1 GB
1 GB
1 GB
1 GB
2 GB
4 GB
8 GB
2 GB
4 GB
8 GB
Page 16
QuickSpecs
HP xw9400 Workstation
Storage
Tower configuration
Total Bays
Internal Bays
External Bays
8
Five 3.5 inch bays (4 with acoustic rail assemblies)
Three 5.25 inch bays - top two support full-depth (210 mm maximum) devices. Bottom bay is depth
restricted to 169 mm (including cables). Bays can be converted to internal 3.5 inch drive bays using
optional bracket
Floppy drive bay using optional bracket. Consumes one 5.25 inch bay.
Minitower
Optional Diskette Drive
5.25" Storage Drive Bays
3.5" Storage Drive Bays
with acoustic dampening
rail assemblies
Quantity Supported
1
3
5
Position Supported
3
1, 2, 3
4, 5, 6, 7, 8
Controller
Diskette
IDE
SATA or SAS
SCSI and SATA may be mixed in a
Windows configuration; only the
primary drive may be SATA.
Linux does not support SATA
controller or mixing SATA and SAS
drives.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 17
QuickSpecs
HP xw9400 Workstation
Technical Specifications
ROM Features
Description
Instantly Available PC
Allows for very low power consumption with quick resume time
ROM Based F10 Setup
Review and customize BIOS settings
and Power-on Self Test
Remote System Installation Allows a new or existing system to boot over the network and download software, including the operating
via F12
system
(PXE) (remote boot from
server)
System/Emergency ROM Recovers corrupted system BIOS
Flash Recovery with Video
ROM Revision Levels
Identifies system BIOS revision level and reports in ROM-based F10 setup. Version is stored in an
industry standard memory location (SMBIOS) so that management SW applications can use and report
this information
System Board Revision
Allows management SW to read the revision level of the system board
Level
Revision level is digitally encoded into the hardware and cannot be modified
Auto Setup when new
System automatically detects addition of new hardware
hardware installed
Serial, Parallel, USB,
Enable or disables serial, parallel, USB, audio, and network ports
Audio, Network,
Enable/Disable Port
Control
Removable Media Write/ Prevents ability to boot from removable media on supported devices (and can disable writes to media)
Boot Control
Power-on Password
Prevents an unauthorized person from booting up the workstation
Setup Password
Prevents an unauthorized person from changing the workstation configuration
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Memory Change Alert
Alerts management console if memory is removed or changed
(requires HP Client
Manager Software)
Thermal Alert
Monitors the temperature state within the chassis. Three modes:
(requires HP Client
NORMAL - normal temperature ranges
Manager Software)
ALERTED - excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown
SHUTDOWN - excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console
Remote
System administrators can power on, restart, and power off a client computer from a remote
Wakeup/Shutdown
location.
Enables cost-effective power consumption when the administrator needs to distribute software,
perform security management, or update the ROM
ACPI
Allows the system to enter and wake from a low power mode
(Advanced Configuration
Controls system power consumption, making it possible to place individual cards and peripherals
and Power Interface)
in a low-power or powered-off state without affecting other elements of the system
Supports ACPI 2.0 for full compatibility with 64-Bit operating system
Keyboard-less Operation The system can be operated without a keyboard
SMBIOS
System Management BIOS 2.5, previously known as DMI BIOS, for system management information
Localized ROM Setup
Common BIOS image supports configuration (Setup) in 12 languages, with local keyboard mappings
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 18
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Asset Tag
Ownership Tag
Memory Scrubbing
Memory Remapping
Per-slot Control
Adaptive Cooling
Pre-boot Diagnostics
Industry Standard
ACPI
ASF
ATA (IDE)
ATAPI
BBS
BIOS 32-Bit Services
CD Boot
EDD
PCI
PCI Express
PMM
SATA
SAS
SMBIOS
SPD
USB 1.1
USB 2.0
Allows user or MIS to set unique tag string in ROM
Allows user or MIS to set unique tag string in ROM
Allows memory controller to transparently correct transient ECC errors in the background
Allows system memory lost to PCI devices to be reclaimed above 4 GB, for use with operating systems
that support more than 4 GB (Microsoft Windows XP 64-Bit edition, Linux)
Allows individual slot configuration (option ROM., latency)
Fan control parameters are set according to detected hardware configuration for optimal acoustics
Early (pre-video) critical errors are reported via beeps and blinks on the power LED
Revision Supported by the BIOS
Advanced Configuration and Power Management Interface, Version 2.0c
Alert Standard Format Specification, Version 2.0
AT Attachment 6 with Packet Interface (ATA/ATAPI-6), Revision 3b
ATAPI Removable Media Device BIOS Specification Version 1.0
BIOS Boot Specification v1.01
Standard BIOS 32-Bit Service Directory Proposal v0.4
"El Torito" Bootable CD-ROM Format Specification Version 1.0
Enhanced Disk Drive Specification Version 1.1
BIOS Enhanced Disk Drive Specification Version 3.0
PCI Local Bus Specification, Revision 2.3
PCI Power Management Specification, Revision 1.1
PCI Express Base Specification, Revision 1.0a
POST Memory Manager Specification, Version 1.01
Serial ATA Specification, Revision 1.0a
Serial ATA 3.0Gb/s: Extensions to Serial ATA 1.5Gb/s, Revision 1.0
SAS specification 1.1
System Management BIOS Reference Specification, Version 2.5
PC SDRAM Serial Presence Detect (SPD) Specification, Revision 1.2B
Universal Serial Bus Revision 1.1 Specification
Universal Serial Bus Revision 2.0 Specification
Other Deployment & Management Features
HP Client Management
HP Client Management Solutions help simplify management of Workstations and significantly reduce
Solutions
total ownership costs. HP has two distinct client management product lines.
The first client management product line consists of HP OpenView Configuration Management Solutions
and HP OpenView Client Configuration Manager.
The second client management product line is comprised of the HP Client Premium Suite, HP Client
Foundation Suite, and HP Client Manager
HP Client Manager
To learn more about all of these solutions, visit http://www.hp.com/go/easydeploy
HP Client Manager is available for free for use with all HP business PCs, Notebooks, and Workstations.
It enables central tracking, monitoring, and management of the hardware aspects of HP client systems:
Get valuable hardware inventory information such as CPU, memory, video, and security settings
Monitor system health to fix problems before they occur
Install drivers and BIOS updates without visiting each PC
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 19
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Remotely configure BIOS and security settings
Automate processes to quickly resolve hardware problems
Additional Altiris solutions (fee-based) are available to address Workstation management challenges
through the entire IT lifecycle including:
Inventory assessment
Software license compliance
Personality migration
Software image deployment
Software distribution
Asset management
Problem resolution
Visit http://www.hp.com/go/clientmanager for more information, to download HP Client Manager, and
to evaluate the Altiris solutions
System Software Manager A free utility that detects and updates BIOS, device drivers, and management agent versions on your
(free)
networked PCs and workstations
HP Backup and Recovery HP Backup and Recovery Manager saves your computer's software image on Recovery Discs (CDs or
Manager (included with
DVDs). You have the flexibility to save both the original factory software image that came with your HP
PC)
computer and your software image that includes your customizations and data. These Recovery Discs
enable full recovery of your computer should a critical hardware failure occur. Since HP now provides
this simple tool to create your own Recovery Discs, HP commercial PCs that include HP Backup and
Recovery Manager will not include factory restore CDs. HP Backup & Recovery Manager is preloaded on
new HP commercial desktops, workstations, notebooks, and tablet PCs introduced starting March
2006*. For product availability, visit http://www.hp.com/go/easydeploy.
Replicated Setup
Asset Tag
DIMM Serial Presence
Detect
Hard Drive Serial
Number, Model, and
Manufacturer
Memory Change Alert
(Requires HP Client
Manager)
Ownership Tag
Protocol-level Integrity
Monitoring
NOTE: *Up to 8 GB of the hard drive is reserved for the system recovery software.
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Repository for storing company-specific property asset numbers for easy tracking
Initially set equal to the system serial number
Stored in a protected section of non-volatile memory that can be accessed and modified with the
F10 Setup program
Detects whether or not memory DIMMs are present and their type
Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in
ROM-based F10 setup
Alerts management console if memory is removed or changed
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen
A feature of SATA and SAS, Cyclic Redundancy Checking provides command, data and message transfer
verification and proactive notification of problems with recommendations for enhancing system
performance. It detects all the following errors types:
single bit errors
double bit errors
an odd number of errors
error bursts up to 32-Bits long
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 20
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Drive Self Tests (DPS)
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every sector of the hard
drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through the computer's setup
procedure. It produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously
running systems diagnostic that alerts the user to certain types of failures.
DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)
SMART Technology
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
(Self-Monitoring, Analysis Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as reand Reporting Technology) allocated sector count, spin retry count, calibration retry count.
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user
downtime and potential data loss from hard drive failure.
SMART I - Drive Failure Prediction
SMART II - Off-Line Data Collection
SMART III - Off-Line Read Scanning with Defect Reallocation
Security Features
Access Panel Key Lock
(standard)
Padlock (optional)
Kensington Cable Lock
(optional)
Universal chassis clamp
lock (optional)
HP ProtectTools Security
Manager
Prevents removal of the access panel and all internal components including optical and floppy drives
Prevents entire system theft and discourages access panel removal. 7mm diameter padlock loop at rear
of system.
Prevents entire system theft only. 3mm x 7mm slot at rear of system.
The version without a cable discourages access panel removal and prevents theft of IO devices. The
version with a cable additionally prevents entire system theft and allows multiple systems to be secured
with a single cable.
HP ProtectTools Security Manager can be configured to prevent unauthorized access using Smart Cards,
TPM Embedded security chips, USB tokens and other security technologies. HP ProtectTools Security
Manager is completely customizable, which gives customers the flexibility to choose the level of security
that best meets their needs.
Smart Card security for HP ProtectTools
Initialization and configuration of the Smart Card
Manage Smart Card accounts and security settings
Embedded Security for HP ProtectTools
TPM Embedded Security Chip configuration and management
Credential Manager for HP ProtectTools
Multifactor Windows Authentication
Single sign-on
BIOS configuration for HP ProtectTools
BIOS configuration and security settings from within the HP ProtectTools Security Manager
console
Visit http://h18004.www1.hp.com/products/security/ for more information on HP ProtectTools
Serviceability Features of System
Access panel
Tool-less, one-handed
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 21
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Optical drives
Floppy drive
Hard drives
Expansion cards
Green user touch points
Color-coordinated cables
and connectors
Memory
CPUs
Chassis fan removal
Power supply diagnostic
LED
Power Button
Power LED
Hard drive activity LED
Internal speaker
Dual Color Power and HD
LED on Front of Computer
(Indicates Normal
Operations and Fault
Conditions)
System/Emergency ROM
Flash Recovery
with Video
Configuration Record SW
Over-Temp Warning on
Screen (Requires IM
Agents)
OS CD (Restore OS CD)
Restore CD
Flash ROM
3.3V Aux Power LED on
System PCA
Dual Function 5V Aux
Power LED (ON)/PS_ON
LED (OFF) on System PCA
Diagnostic Power Switch
LED on board
Clear Password Jumper
Clear CMOS Button
CMOS Battery Holder for
easy Replacement
Processor ZIF Socket for
easy Upgrade
DIMM Connectors for
easy Upgrade
Tool-less
Drive requires screws to attach to bracket, once attached to mounting bracket, it latches toollessly to
chassis
Tool-less
Tool-less
Yes, on tool-free internal chassis mechanisms
Yes
Tool-less, can be upgraded without removing any internal components
Tool-less, can be upgraded without removing any internal components
Tool-less
Yes, dual function: AC OK & power OK
Yes, ACPI multi-function
Yes, dual color LED indicates normal operation and faults.
Yes
Yes, used for pre-boot diagnostic beep codes
green – normal
red – fault
Recovers corrupted system BIOS.
Yes
Yes
Restores computer to its original factory shipping Operating System
Restores the computer to its original factory shipping image
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 22
QuickSpecs
HP xw9400 Workstation
Technical Specifications
NIC LEDs (integrated)
(Green & Amber)
ASF 1.0 support (Alert
Standard Format)
Dual function front power
switch
Service and Support
Used to determine NIC status
Industry-standard specification for network alerting in operating system-absent environments
Causes a fail-safe power off when held for 4 seconds
On-site Warranty and Service (Note 1): This three-year, limited warranty and service offering delivers
three years of on-site, next business-day (Note 2) service for parts and labor and includes free telephone
support (Note 3) 8am - 5pm. Global coverage (Note 2) ensures that any product purchased in one
country and transferred to another, non-restricted country will remain fully covered under the original
warranty and service offering.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be
Declarations
labeled with one or more of these marks:
US Federal Energy Management Program (FEMP)
China Energy Conservation Program
IT ECO declaration
Japan PC Green label*
*NOTE:
NOTE: This product conforms to the examination standards (2003 version) under JEITA's 'PC Green
Label System.'
Longevity and Upgrading This product is designed to be upgraded, possibly extending its useful life by several years. Spare parts
are available throughout the warranty period and for up to 5 years after the end of production.
Upgradeability features contained in the product include:
Dual AMD socket F (aka L1, 1207 pins)
8 USB ports
1 PCI slot, 2 PCI-X slots and 4 PCI Express slots
8 expansion bays
8 memory slots
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 23
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Batteries
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Battery size: CR2032 (coin cell)
Battery type: Lithium
System Configuration
Example Configuration
#1
Processor Info
Memory Info
Graphics Info
Disks/Optical/Floppy
2xOpteron 2216 2.4GHz 1MB
4x1GB 667MHz
FX1500 256MB
1x80GB SATA / 2 Optical / 1 Floppy
Energy Consumption
Windows Idle (S0)
Windows Busy Typ(S0)
Windows Busy Max (S0)
Sleep (S3)
Off (S5)
Heat Dissipation**
Windows Idle (S0)
Windows Busy Typ (S0)
Windows Busy Max (S0)
Sleep (S3)
Off (S5)
115 VAC
LAN
LAN
Enabled
Disabled
207W
258W
336W
6.5W
6.1W
3.3W
3.1W
230 VAC
LAN
LAN
Enabled
Disabled
204W
256W
333W
6.5W
6.3W
3.6W
3.2W
100 VAC
LAN
LAN
Enabled
Disabled
208W
264W
343W
6.2W
6.0W
3.1W
2.8W
115 VAC
230 VAC
100 VAC
LAN
LAN
LAN
LAN
LAN
LAN
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
706 btu/hr
645 btu/hr
710 btu/hr
882 btu/hr
872 btu/hr
899 btu/hr
1145 btu/hr
1138 btu/hr
1170 btu/hr
22.2 btu/hr 20.8 btu/hr 22.2 btu/hr 21.5 btu/hr 21.2 btu/hr 20.5 btu/hr
11.3 btu/hr 10.6 btu/hr 12.9 btu/hr 10.9 btu/hr 10.6 btu/hr 9.6 btu/hr
NOTES:
* Energy Star low energy mode
** Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 24
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Declared Noise Emissions (High and entry level configurations)
System Configuration
The entry-level configuration used for the Declared Noise Emissions for the Mini tower Desktop model is
(Entry-level)
based on a "Typically Configured Desktop"
Processor Info
2x 2.4 GHz AMD Opteron processors
Disks/Optical/Floppy
1x 80 GB 7200 rpm SATA / 1 DVD-ROM/ 1 Floppy
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Sound Power
Deskside Sound Pressure
(LWad, bels)
(LpAm, decibels)
Idle
4.4 Bels
26 dB
SATA Hard drive Operating
4.4 Bels
26 dB
(random reads - 30.3 reads/sec)
Floppy Drive Operating
4.8 Bels
32 dB
(continuous copy)
DVD-ROM Operating
5.0 Bels
33 dB
(sequential reads)
System Configuration
(High-end)
Additional Information
The high-end configuration used for the Declared Noise Emissions for the Mini tower Desktop model is
based on a "Typically Configured Desktop"
Processor Info
2x 2.8 GHz AMD Opteron processors
Graphics Info
Quadro FX 3500 with active heatsink
Disks/Optical/Floppy
1x 72 GB 15K rpm SAS / 1 DVD-ROM / 1 Floppy
Declared Noise Emissions
(in accordance with ISO 7779 and ISO 9296)
Sound Power
Deskside Sound Pressure
(LWad, bels)
(LpAm, decibels)
Idle
4.5 Bels
26 dB
SATA Hard drive Operating
4.9 Bels
33 dB
(random reads - 30.3 reads/sec)
Floppy Drive Operating
4.8 Bels
32 dB
(continuous copy)
DVD-ROM Operating
5.0 Bels
34 dB
(sequential reads)
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is >90% recycle-able when properly disposed of at end of life.
Packaging Materials
External
Cardboard carton and insert
2.70 kg
Internal
LDPE Foam
0.35 kg
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 25
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the
Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Diphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-Of-Life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
and Recycling
To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 26
QuickSpecs
HP xw9400 Workstation
Technical Specifications
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental [link to new HP white paper now in progress]
Information
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 27
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Audio
High Definition Integrated Type
Realtek ALC262 Audio
High Definition Codec
SPDIF
External audio jacks
Retasking
Sampling
Wavetable syntheses
(software)
Digital audio
Analog audio
Number of channels on
Line-Out
(mono/stereo)
Internal audio speaker
power rating
Internal speaker
Microphone features
Integrated
Yes
S/PDIF OUT through Coax port, S/PDIF IN on PCA, S/PDIF OUT header on
PCA.
One Front Stereo Analog Microphone-In
One Front Stereo Headphone-Out
One Rear Line-In
One Rear Line-Out
One Rear Stereo Analog Microphone-In
NOTE: All audio ports are retaskable as Line-In, Line-Out, Microphone-In,
or Headphone-Out
44.1 kHz/48 kHz/96 kHz/192 kHz (output only)
Yes - Uses OS soft wavetable
Yes
Yes
Stereo (Left & Right channels)
1.5 W
Yes
Acoustic Echo Cancellation
Noise Suppression
Beam Forming
SoundBlaster X-Fi
Audio Quality
XtremeMusic Audio Card
Signal to Noise Ratio
(SNR)
Total Harmonic Distortion + Noise at 1kHz (20kHz Low-pass filter) =
0.004%
Signal-to-Noise Ratio (20kHz Low-pass filter, A-Weighted)
Stereo Output: 109dB
Front and Rear Channels: 109dB
Center, Subwoofer and Side Channels: 109dB
Sound Conversion
24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate
24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog
7.1 speaker output
24-bit Digital-to-Analog conversion of stereo digital sources at 192kHz to
stereo output
Recording/Sampling Rate 16-bit to 24-bit recording sampling rates: 8, 11.025, 16, 22.05, 24, 32,
44.1, 48 and 96 kHz
ASIO 2.0 support
16-bit/44.1kHz, 16-bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and 24bit/96kHz with direct monitoring
Enhanced SoundFont
up to 24-bit resolution
support
24-bit/96kHz
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 28
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Audio
DACs
Voice Support
Max. Channels in 3D
Positional Audio
EAX® ADVANCED HD™
5.0 support
Connectors
Dimensions
Additional product
features
Minimum System
Requirements
DA - 12594
24-bit/192kHz
128 voices
7.1
Yes including EAX® MacroFX™, EAX® PurePath™ and Environment
FlexiFX™
FlexiJack (Performing a 3-in-1 function, Digital In / Line In / Microphone) via
3.50 mm minijack
Line level out (Front / Rear / Center / Subwoofer / Rear Center) via 3.50 mm
minijacks
AUX_IN line-level analog input via 4-pin Molex connector on card
One AD_Link (26 pin) connector for linking to the X-Fi I/O Console
(upgrade option)
7.25" x5" x .9" (18.415 x 12.7 x 2.286 cm)
THX Certification
Movies
Dolby Digital EX 6.1 Playback
DTS-ES 6.1 Playback
X-Fi 24-bit Crystalizer
Music
CMSS-3D
SuperRip
Pristine audio playback quality with a near
Audio Creation
transparent SRC engine
Up to eight 24 bit hardware effects
ASIO recording with latency as low as one
millisecond
24-bit SoundFont® sampling
3D MIDI
256 MB
System RAM
600MB free space
Hard Disk
Available PCI 2.1 slot for the audio card
CD-ROM/CD-RW or CD/DVD-ROM required
for software installation
Microsoft Windows XP Service Pack 2 (SP2)
Operating System
Worldwide — Version 13 — November 5, 2007
Page 29
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Communications
Integrated NVIDIA LANon-Motherboard
Connector
Controller
Data rates supported
Compliance
Bus architecture
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
RJ-45
NVIDIA Gigabit Controller with Marvell PHY
10/100/1000 Mbps
IEEE 802.3-2000
Integrated plus RGMII interface
DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
1.5 watts @ +3.3V AUX supply
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Operating system driver Microsoft Windows Vista Business 32 and 64, Microsoft Windows NT® 4.0,
support
Microsoft Windows 98, Microsoft Windows 2000, Microsoft Windows XP,
Linux 2.2, Linux 2.4
Management capabilities WOL, PXE and NVIDA control console
Intel Pro/1000 GT
Gigagit NIC (PCIe)
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data path speed
Data transfer mode
Hardware certifications
Power requirement
IEEE support
Network transfer rate
Environmental
Dimensions
Operating system driver
support
DA - 12594
RJ-45
Intel 82541PI Gigabit Controller
Integrated 64 KB
10/100/1000 Mbps
IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI 2.3
32-Bit PCI
32 bit 33/66 MHz - 266 Mb/s full duplex
Bus-master DMA
FCC class , BSMI B for Taiwan, VCCI B for Japan
800 mA @ +5 VDC
802.2 and 802.3ab
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
1000BASE-T, 1000 Mbps
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
4.4 x 2.2 x 0.08 inches; 11.2 x 5.5 x .2 cm
Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP, Red
Hat Enterprise Linux WS 3, Red Hat Enterprise Linux WS 4
Worldwide — Version 13 — November 5, 2007
Page 30
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Communications
Management capabilities ACPI, Wake on LAN, Preboot Execution Environment, WfM Baseline v2.0,
DMI 2.0 support, Windows Management Instrumentation, SNMPmanageable Offline Diagnostics, Intel Boot Agent
IEEE 802.1Q Virtual Local Area Network (VLANs), IEEE 802.3x Flow
Kit contents
Control, Transmission Control Protocol (TCP), Checksum Offload, IEEE
802.1p, Intel Priority Packet II.
Broadcom BCM5751
Connector
NetXtreme Gigabit
Controller
Ethernet Controller (PCIe)
Memory
Data rates supported
RJ-45
Broadcom 5751 PCI-E 1.0a LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
Compliance
Bus architecture
Data path width
Data path speed
Data transfer mode
Hardware certifications
IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI-E 1.0a
X1
2.5Gbit per sec per direction transfer rate
Bus-master DMA
FCC class B, NRTL Mark Canada and United States, C-Tick for Australia,
BSMI for Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia
Power requirement
3.1 watts @ +3.3V AUX supply
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.4 x 2.2 x 0.08 inches; 11.2 x 5.5 x 0.2 cm
Operating system driver Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat
support
Enterprise Linux 3
Management capabilities WOL, PXE , Remote cable management
Alerting
ASF 2.0
Kit contents
Broadcom 5751, CD, Broadcom 5751 Netxtreme Gigabit PCIe NIC,
drivers, quick install guide, product warranty statement
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 31
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Controllers
LSI SAS 8344ELP 3Gb/s
RAID Controller
PCI Bus
PCI Modes
RAID Levels
PCI data burst transfer
rate
SAS Bandwidths
PCI Card Type
PCI Voltage
PCI Form Factor
PCI Power
Bracket
Certification Level
IO Bus
SAS Processor
Internal Connectors
External Connectors
Max. Number of SAS
Devices
LED Indicators
Integrated Mirroring
Environments
Temperature
Relative Humidity
MTBF
Compliances
PCI-Express x4 lanes
Bus Master DMA
0, 1, 5, 10 and 50
1.0 GBps ( half duplex ) 2.0 GBps ( full duplex )
Half Duplex
Single lane - 300 MBps
Wide Port (2 lanes) - 600 MBps
Wide Port (4 lanes) - 1200 MBps
3.3 volt add-in card
Full Duplex
Single SAS Lane - 600 MBps
Wide Port (2 lanes) -1200 MBps
Wide Port (4 lanes) - 2400 MBps
12 V ± 10%
6.6" x 2.731" (Low-profile)
7.5 Watts
Full height and Low-profile
PCI-Express 1.0a
Eight 3Gbps SAS/SATA ports
Intel IOP333 I/O Processor
One SAS SFF8087 x4 internal connector
One SAS SFF8470 x4 external connector
32
On-board activity and fault LEDs
Integrated Mirroring option available
Operating
Storage
0 to 60 C
-45 to +105 C
5 to 90% non-condensing
5 to 90% non-condensing
>200,000 hours
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V3/02.04);Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS
3548); Safety: EN60950
Operating system support Microsoft® Windows® XP Professional, XP Professional x64
Red Hat Linux WS3 and WS4
Kit contents
Controller card, driver CD, LED cables, user documentation and warranty
card.
* Due to the placement of the I/O controller engine on the SAS 8344ELP, external cables from the SAS
8344ELP RAID controller to the storage enclosure may not be longer than two meters; this card also
does not support the use of external fan-out cables. See
http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?
lang=en&cc=us&objectID=c00817918&jumpid=reg_R1002_USEN
for additional information
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 32
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Controllers
LSI SAS3041E Serial
Attach SCSI (SAS) Host
Bus Adapter (HBA)
PCI Bus
PCI Modes
PCI data burst transfer
rate
SAS Bandwidths
PCI Card Type
PCI Voltage
PCI Form Factor
PCI Power
Bracket
Certification Level
IO Bus
SAS Processor
Internal Connectors
External Connectors
Max. Number of SCSI
Devices
LED Indicators
Integrated Mirroring
Environments
Temperature
Relative Humidity
MTBF
Compliances
PCI-Express x4 lanes
Bus Master DMA
1.0 GBps ( half duplex ) 2.0 GBps ( full duplex )
Half Duplex
Single lane – 300 MBps
Wide Port (2 lanes) – 600 MBps
Wide Port (4 lanes) – 1200 MBps
3.3 volt add-in card
12 V ± 10%
6.6" x 2.731" (Low-profile)
Full Duplex
Single SAS Lane – 600 MBps
Wide Port (2 lanes) – 1200 MBps
Wide Port (4 lanes) – 2400 MBps
7.5 Watts
Full height and Low-profile
PCI-Express 1.0a
Four 3Gbps SAS / 1.5Gps SATA ports
LSISAS1064E
Four- SATA x1 connectors
None
128
On-board activity and fault LEDs
Integrated Mirroring option available
Operating
Storage
32° to 140° F (0° to 60° C)
-49° to +221° F (-45° to +105° C)
5% to 90% non-condensing
5% to 90% non-condensing
>200,000 hours
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V3/02.04);Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS
3548); Safety: EN60950
Operating system support Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
Professional, XP Professional x64,
Red Hat Enterprise Linux 4 & 5 Desktop
Kit contents
Controller card, driver CD, LED cables, user documentation and warranty
card.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 33
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Controllers
Adaptec SCSI RAID
2120S Card
Dimensions (H x D)
RAID level
Data Transfer Rate
Cache Memory
Device Support
Bus Type
2.5 x 6.6 inches; 6.4 x 16.8 cm Low profile card
0, 1, 10, 5, 50, JBOD
Up to 320 MB/s
64 MB (onboard)
Up to 15 SCSI devices
64-bit/66 MHz PCI
(Also support 32-bit/33 MHz PCI)
One 68-pin high-density
One 68-pin VHDCI
Intel PC or equivalent with available PCI slot
Internal Connectors
External Connectors
System Requirements
Operating Temperature
Power Requirements
Operating System
Support
Other
Kit Contents
DA - 12594
32° to 131° F (0° to 55° C)
4 amps @ +5V
Windows 2000 Professional, Windows XP Professional,
Windows XP Professional x64 Edition
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Controller card, driver CD, LED cables, user documentation and warranty
card.
Worldwide — Version 13 — November 5, 2007
Page 34
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
Serial ATA Hard Drives
750 GB
(7,200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
500 GB
(7,200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
750,156,374,016 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (3.0 Gb/s), Native Command Queuing enabled
Up to 3.0 Gb/s
16 MB
Single Track
0.8 ms
Average
14.0 ms
Full-Stroke
20 ms
7,200 rpm
1,465,149,168
41° to 131°F (5° to 55°C)
500,107,862,016 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (3.0 Gb/s), Native Command Queuing enabled
Up to 3.0 Gb/s
16 MB
Single Track
1.3 ms
Average
20.0 ms
Full-Stroke
30 ms
7,200 rpm
976,773,168
41° to 131°F (5° to 55°C)
Worldwide — Version 13 — November 5, 2007
Page 35
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
250 GB
(7,200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
(7,200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
250,059,350,016 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (3.0 Gb/s)
Native Command Queuing enabled (Model EA788AA only)
Up to 3.0 Gb/s
With NCQ (Model EA788AA):16 MB
Without NCQ (Model PY278AA): 8MB
1.0 ms
Single Track
Average
18.5 ms
Full-Stroke
18 ms
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
160,041,885,696 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (3.0 Gb/s)
Serial ATA (3.0 Gb/s), Native Command Queuing enabled
8 MB
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
7,200 rpm
312,581,808
41° to 131°F (5° to 55°C)
Worldwide — Version 13 — November 5, 2007
Page 36
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
80 GB
(7,200 rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
(10k rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
80,026,361,856 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
2 ms
Average
9.3 ms
Full-Stroke
21 ms
7,200 rpm
156,301,488
41° to 131°F (5° to 55°C)
160,041,885,696 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (1.5 Gb/s), Native Command Queuing enabled
Up to 1.5 Gb/s
16 Mbytes
Single Track
0.3 ms
Average
4.6 ms
Full-Stroke
10.2 ms
10,000 rpm
312,581,808
41° to 131°F (5° to 55°C)
Worldwide — Version 13 — November 5, 2007
Page 37
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
80 GB
(10k rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Serial Attached SCSI (SAS) 300 GB
Hard Drives
(15K rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
80,026,361,856 bytes
1 inches; 2.54 cm
Media diameter: 3.5 inches; 8.89 cm
Physical size: 4 inches; 10.2 cm
Serial ATA (1.5 Gb/s), Native Command Queuing enabled
Up to 1.5 Gb/s
16 Mbytes
Single Track
0.3 ms
Average
4.6 ms
Full-Stroke
10.2 ms
10,000 rpm
156,301,488
41° to 131°F (5° to 55°C)
300,000,000,000 bytes
1.0 inches; 25.4 mm
4.0 inches; 101.6 mm
SAS
3.0 Gb/s
16 MB
Single Track
0.2 ms
Average
3.5 ms
Full-Stroke
7.0 ms
15,000 rpm
585,937,500 - 512 byte blocks
50° to 95° F (10° to 35° C)
Worldwide — Version 13 — November 5, 2007
Page 38
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
146 GB
(15K rpm)
73 GB
(15K rpm)
300 GB
(10K rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
146,815,737,856 bytes
1.0 inches; 25.4 mm
4.0 inches; 101.6 mm
SAS
3.0 Gb/s
16 MB
Single Track
0.27 ms
Average
3.5 ms
Full-Stroke
7.4 ms
Rotational Speed
Logical Blocks
Operating Temperature
15,000 rpm
286,749,488 - 512 byte blocks
50° to 95° F (10° to 35° C)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
73,407,865,856 bytes
1.0 inches; 25.4 mm
4.0 inches; 101.6 mm
SAS
3.0 Gb/s
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
16 MB
Single Track
0.2 ms
Average
3.5 ms
Full-Stroke
7.4 ms
15,000 rpm
143,374,738 - 512 byte blocks
50° to 95° F (10° to 35° C)
300,000,000,000 bytes
1.0 inches; 25.4 mm
4.0 inches; 101.6 mm
SAS
3.0 Gb/s
16 MB
Single Track
.3 ms
Average
<4.5 ms
Full-Stroke
<11.0 ms
10,000 rpm
585,937,500 - 512 byte blocks
50° to 95° F (10° to 35° C)
Worldwide — Version 13 — November 5, 2007
Page 39
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Hard Drives
146 GB
(10K rpm)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12594
146,815,737,856 bytes
1.0 inches; 25.4 mm
4.0 inches; 101.6 mm
SAS
3.0 Gb/s
16 MB
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
286,749,488 - 512 byte blocks
50° to 95° F (10° to 35° C)
Worldwide — Version 13 — November 5, 2007
Page 40
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Removable Storage
HP USB 2.0 Drive Key
Dimensions (HxWxD)
Weight
USB Specification
Transfer Rate
Storage Media
Power Supply
Capacity
DA - 12594
0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)
0.05 lb (0.02 kg)
2.0
Read-1023 KB/Sec; Write-850 KB/Sec
Solid state flash memory, no moving parts
USB Bus-powered, no external power required
512 MB or 1 GB
Worldwide — Version 13 — November 5, 2007
Page 41
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Input/Output Devices
FireWire 4-Port PCI Card Host Bus Burst Data Rate
(Windows XP only)
Devices Supported
Bus Interface
Physical
Environmental
Ports
Connectors
Minimum System
Requirements
PS/2 OR USB Standard
Keyboard
Physical
characteristics
Electrical
Mechanical
Environmental
DA - 12594
800 Mbps
IEEE-1394 compliant devices
PCI
PCI card with brackets for full height PCI slots.
50° to 131° F (10° to 55° C)
Operating temperature
-22° to 140° F (-30° to 60° C)
Non-operating
temperature
20% to 80%
Relative humidity
Two IEEE 1394b bilingual 9-pin Connectors (Rear)
One 10-Pin (9 Contacts) Custom Connector (Internal) to front panel IEEE1394a 6-pin connector
Microsoft Windows XP Professional, Windows XP Home
Pentium III or higher
128-MB RAM
1-GB Hard Drive
CD-ROM drive
Built-in sound system
Available PCI slot
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 inches; 45.8 x 16.3 x 2.5 cm
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 feet; 1.8 m
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Worldwide — Version 13 — November 5, 2007
Page 42
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Input/Output Devices
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop (out of box)
Drop (in box)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 inches; 66 cm on carpet, six-drop sequence
42 inches; 107 cm on concrete, 16-drop
sequence
Operating system support Microsoft Windows XP Professional, Microsoft Windows XP Professional x64
Edition, Red Hat Enterprise Linux WS 3 and 4
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
HP USB Smart Card
Keyboard
Ergonomic compliance
Kit contents
ANSI HFS 100, ISO 9241-4, and TUVGS
Keyboard, keyboard software media, installation guide, warranty card, safety
and comfort
Smart card compatibility
HP
American Express
Axalto (Schlumberger)
Cardlogix
Safenet, Inc.
De La Rue
Gemplus
Infineon
SafLink (Litronic)
DA - 12594
HP ProtectTools Smart Card
Amex Blue
Cryptoflex 8K
Cryptoflex 16K
Cryptoflex 32K
Cryptoflex 32K e-gate
Cyberflex Access 64K
Cyberflex Access 32K
Cyberflex 32K e-gate
Cyberflex 64K
Cyberflex Palmera
Payflex-S
Payflex 1K
Payflex 2K
Payflex 4K
Payflex 8K
Prismera
US DoD CAC
CLXSU004KK4
CLXSU008KK5
Model 300
Model 330
VisaCash
Gem Expresso
GKK32K
Gemclub Memo
GemClub Micro
GemXplore
GemSafe
SLE66C322P
Forte
Worldwide — Version 13 — November 5, 2007
Page 43
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Input/Output Devices
Sharp
Oberthur
Memory Cards
Atmel
Axalto (Schlumberger)
nfineon
ISSI
ST
Telefonkarte
XICOR
DA - 12594
Java Card
CosmopollIC v4
CosmopollIC v4.1
Cosmo ID-One
GalatIIC v2.1
US DoD CAC
AT24C01ASC
AT24C02SC
AT24C04SC
AT24C08SC
AT24C16SC
AT24C32SC
AT24C64SC
AT24C128SC
AT24C256SC
AT24C512SC
AT88SC153
AT88SC1608
PrimeFlex Store 8K
PrimeFlex Store 2K
SLE4406
SLE4406E
SLE4406E SE
SLE4418
SLE4428
SLE4432
SLE4436E
SLE4442
SLE5536
IS23SC4418
IS23SC4428
14C02
SLE4406
SLE4436
SLE5536
X24026
Worldwide — Version 13 — November 5, 2007
Page 44
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Input/Output Devices
HP 2-Button Scroll Mouse Scroll Wheel
(PS/2)
Maximum Rotation Speed
Switch Type
Switch Life
Mechanical Life
Environmental
Non-operating shock
Operating vibration
Non-operating vibration
Operating voltage
Power consumption
System consumption
ESD
EMI-RFI
Electrical
Microsoft
PC99 - 2001
Resolution
Tracking Speed
Acceleration
Switch Actuation
Switch Life
Mechanical
Dimensions (H x L x W)
Weight
Cable length
System requirements
DA - 12594
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
5 VDC ± 10%
15 mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
400 ± 20% DPI
10 in/s maximum
100 in/s
85 g nominal peak force
1,000,000 operations
(using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
Regulatory Approvals
HP 2-button Optical
Scroll Mouse (USB)
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
50° to 122° F (10° to 50° C)
Operating temperature
-22° to 140° F (-30° to 60° C)
Non-operating
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, 6 surfaces
Operating shock
1.5 x 4.5 x 2.5 inches; 3.8 x 11.6 x 6.3 cm
0.27 lb (0.12 kg)
72.8 inches; 185 cm
Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
Professional, Microsoft Windows XP Professional x64 Edition, Red Hat
Enterprise Linux WS 3 and 4
Worldwide — Version 13 — November 5, 2007
Page 45
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Input/Output Devices
HP Optical 3-Button
Mouse (USB)
Dimensions/Weight
Environmental
Mechanical
HP SpacePilot USB
(Windows XP only)
Physical Characteristics
Mechanical
Height
Length
Width
Weight
Operating temperature
Non-operating
temperature
Operating humidity
Tracking speed
Switch life
Switch type
1.5 inches; 3.76 cm
4.5 inches; 11.56 cm
2.4 inches; 6.19 cm
3.80 oz (108 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
Tracking mechanism life
Cable length
155 miles (250 km) at average speed of 10 in/s
9.5 feet; 2.9 m
Dimensions (L x W x H)
Weight
Palmrest
Buttons
9.3 x 5.6 x 2.0 inches; 236 x 143 x 53 mm
1.875 lb (0.85 kg)
Sculpted
21+ programmable speed keys
15 reprogrammable
(W x H) 4.0" x 1.0" (102.4 x 30.2mm)
(W x H) 3.7" x 1.0" (93.4 x 26.2mm)
240 x 64
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Adjustable to preference
LCD Viewing Area
Active Area
Display Format
Motion Controller
Connector
Operating System
Supported
Regulatory Approvals
DA - 12594
Device Sensitivity
USB 1.1 or 2.0
Microsoft Windows XP
10% to 90% (non condensing at ambient)
6 in/s Maximum
3,000,000 operations
Micro-switches
FCC, CE
Worldwide — Version 13 — November 5, 2007
Page 46
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Optical Devices
HP 48X SATA CDRW/DVD-ROM Combo
Drive
Form Factor
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speed
Read speeds
Buffer Size
Access times
(typical reads, including
setting)
Power
Environmental
(all conditions
non-condensing)
Operating Systems
Supported
Option kit contents
DA - 12594
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
1.5MB (Min)
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
SATA DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
DC Current
maximum
12 VDC - < 600 mA typical, < 1400 mA
maximum
< 2.5 Watt
Total Drive Power
(standby mode)
Temperature (operating) 41° to 122° F (5° to 50° C)
10% to 90%
Relative Humidity
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
Windows Vista Business 64* (64-bit expected availability in July 2007),
Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional
or Windows XP Home 32*, Red Hat Linux WS 4, 32/64-bit OS. No driver is
required for this device. Native support is provided by the operating system.
* Certain Windows Vista product features require advanced or additional
hardware. Windows Vista Upgrade Advisor can help you determine which
features of Windows Vista will run on your computer. To download the tool,
visit http://www.windowsvista.com/upgradeadvisor. For Windows Vista
system requirements, visit http://www.windowsvista.com/systemrequirements.
HP 48X Max SATA CD-RW/DVD-ROM Combo Drive, Roxio Easy Media
Creator version 9, Intervideo WinDVD, CD-R media, high-speed CD-RW
media, and installation guide.
Worldwide — Version 13 — November 5, 2007
Page 47
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Optical Devices
HP 16X Max SATA
DVD+/-RW LightScribe
Drive
Form Factor
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speed
Read speeds
Access times
(typical reads, including
setting)
Power
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
DVD-RAM
CD-R
CD-RW
DVD-RAM
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
CD-RW
Random
Full Stroke
Source
DC Power Requirement
DC Current
Environmental
(all conditions
non-condensing)
Operating Systems
Supported
DA - 12594
Up to 4X
Up to 16X
Up to 6X
Up to 12X
Up to 48X
Up to 32X
Up to 12X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC - < 600 mA typical, < 1400 mA
maximum
< 2.5 Watt
Total Drive Power
(standby mode)
Temperature (operating) 41° to 122° F (5° to 50° C)
10% to 90%
Relative Humidity
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
Windows Vista Business 64* (64-bit expected availability in July 2007),
Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional
or Windows XP Home 32*, Red Hat Linux WS 4, 32/64-bit OS. No driver is
required for this device. Native support is provided by the operating system.
Worldwide — Version 13 — November 5, 2007
Page 48
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Optical Devices
Option kit contents
DA - 12594
* Certain Windows Vista product features require advanced or additional
hardware. Windows Vista Upgrade Advisor can help you determine which
features of Windows Vista will run on your computer. To download the tool,
visit http://www.windowsvista.com/upgradeadvisor. For Windows Vista
system requirements, visit http://www.windowsvista.com/systemrequirements.
HP 16X DVD+-RW SuperMulti LightScribe drive, LightScribe software, Roxio
Easy Media Creator version 9, Intervideo WinDVD Software, installation
guide, and DVD+R media. Software is Microsoft Windows only.
Worldwide — Version 13 — November 5, 2007
Page 49
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS
Form Factor
285, 128 MB PCIe - Dual Graphics Controller
Head
Bus Type
(RD069AA)
RAMDAC
Memory
Connector
Dimensions
Controller clock speed
Color depth
Overlay planes
Low profile, both ATX and low profile brackets included
Integrated Quadro 285 2D graphics processor unit (GPU)
PCIe
Dual 350 MHz (integrated)
128 MB DDR
DVI DMS-59 to dual DVI Y-cable and DMS-59 to dual-VGA Y-cable
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
250 MHz
32 bits/pixel max
One 16-bit Video overlay plane
Maximum pixel clock
Multi-monitor support
Single DVI Support
Dual DVI Support
High-definition Video
Processor (HDVP)
350 MHz
Dual analog or digital monitors
Yes
Yes
Full screen, full frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
(Provides full native Dual View mode, Span or Big Desktop mode, and Clone
mode)
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://www.hp.com/country/us/en/support.html?pageDisplay=drivers
NVIDIA Quadro NVS
Form Factor
290, 256 MB Dual Head Bus Type
Memory
Low Profile
PCIe x16
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connector
DMS-59, includes DMS-59 to Dual DVI-I cable. DMS-59 to Dual VGA cable
available as an option.
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link). NVIEW advanced multi-display desktop and
application management seamlessly integrated into Microsoft Windows
RAMDAC
Color planes
Overlay planes
nView architecture
Multi-Monitor support
DA - 12594
Integrated dual 400MHz
32-bit color buffer
Hardware supported
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows.
Dual monitor support
Worldwide — Version 13 — November 5, 2007
Page 50
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
DVI support
High-definition Video
Processor (HDVP)
DMS-59 (to dual DVI-SL)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs OGL 2.1 & DX10 Support; Shader Model 4.0
Available graphics drivers Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
(Provides full native Dual View mode, Span or Big Desktop mode, and Clone
mode ), Linux – Full Open GL implementation, complete with NVIDIA and
ARB extensions. HP qualified drivers may be preloaded or available from the
HP support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
NVIDIA Quadro FX 560
PCIe graphics controller
(ES354AA)
Form Factor
Graphics Controller
Bus Type
Memory
ATX
NVIDIA NV73GL
PCI Express x16
128MB 600MHz GDDR3 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
2 DVI-I (one dual-link) + 9-pin HDTV output
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link) and 3840x2400 (dual-link).
HD-Out component Mode: YPrPB - SMPTE 1080i, 720p, 480p, 576p or
composite Mode: NTSC/PAL 480i, 576i
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Dual 400MHz integrated
Architecture features
128-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 51
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
Shading architecture
Fully programmable GPU
Long fragment programs (unlimited instructions)
Long vertex programs (unlimited instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Supported graphics APIs OpenGL 2.0
DirectX 9.0
Available graphics drivers Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
Professional qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
NVIDIA Quadro FX 570
PCI-Express graphics
controller
Form Factor
Bus Type
Memory
ATX
PCI-Express x16
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
DVI-I (dual-link) and DVI-I (dual-link)
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Integrated dual 400MHz
Architecture features
High Resolution Anti-Aliasing
PureVideo 2 engine supports AES 128-bit decryption
GPU Computing (HW/SW including CUDA SDK
3D Textures
LightSpeed Memory Architecture II
128-bit color precision
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
H/W accelerrated pixel readback
3rd generation occlusion culling
AA on scan-out
Power consumption
<60 W
Shading architecture
Fully programmable GPU (OpenGL 2.1/DirectX 10 class)
Vertex/Pixel Shader 4.0
Shading Support (HLSL, GLSL, CgFX)
Supported graphics APIs OGL 2.1 & SM4.0 and DirectX10 Support
Available graphics drivers Microsoft Windows Vista 32 and 64, Microsoft Windows XP, Linux - Full
Open GL implementation, complete with NVIDIA and ARB extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 52
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1500 Form Factor
PCIe graphics controller Graphics Controller
(ES355AA)
Bus Type
Memory
Connectors
Display resolution support
ATX
NVIDIA NV71GL
PCI Express x16
256MB GDDR3 SDRAM unified frame buffer, Z-buffer and Texture storage
2 dual-link DVI-I + 9-pin HDTV output
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link) and 3840x2400 (dual-link).
HD-Out component Mode: YPrPB - SMPTE 1080i, 720p, 480p, 576p or
composite Mode: NTSC/PAL 480i, 576i
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft® Windows®
RAMDAC
Architecture features
Dual 400MHz integrated
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)
Shading architecture
Fully programmable GPU
Long fragment programs (unlimited instructions)
Long vertex programs (unlimited instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Supported graphics APIs OpenGL 2.0
DirectX 9.0
Available graphics drivers Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
Professional qualified drivers may be preloaded or available from the HP
support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 53
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1700 Form Factor
PCI-Express graphics
Bus Type
controller
Memory
ATX
PCI Express x16
512 MB 400 MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
DVI-I (dual-link) and DVI-I (dual-link) and HD-out
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft® Windows®
RAMDAC
Integrated dual 400MHz
Architecture features
High Resolution Anti-Aliasing
PureVideo 2 engine supports AES 128-bit decryption
GPU Computing (HW/SW including CUDA SDK
3D Textures
LightSpeed Memory Architecture II
128-bit color precision
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
H/W accelerated pixel readback
3rd generation occlusion culling
AA on scan-out
Power consumption
<75 W
Shading architecture
Fully programmable GPU (OpenGL 2.1/DirectX 10 class)
Vertex/Pixel Shader 4.0
Shading Support (HLSL, GLSL, CgFX)
Supported graphics APIs OGL 2.1 & SM4.0 and DirectX10 Support
Available graphics drivers Microsoft Windows Vista 32 and 64, Microsoft Windows XP, Linux - Full
Open GL implementation, complete with NVIDIA and ARB extensions. HP
qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
NVIDIA Quadro FX 3500 Form Factor
PCIe graphics controller Graphics Controller
(ES357AA)
Bus Type
Memory
ATX
NVIDIA NV71GL-U
PCI-Express x16
256MB 700MHz GDDR3 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
2 dual-link DVI-I + 3-pin Mini DIN stereo output
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft® Windows®
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 54
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
Maximum Resolution
Dual DVI-I output - drives dual digital displays at resolutions up to
1920x1200 @ 60Hz (single-link) and 3840x2400 @ 24Hz (dual-link).
Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536
@ 75Hz each
RAMDAC
Dual 400MHz integrated
Architecture Features
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated anti-aliased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)
SLI Link
Shading Architecture
Fully programmable GPU (OpenGL 2.0/DirectX 9.0c class)
Long fragment programs (unlimited instructions)
Long vertex programs (unlimited instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Supported Graphics APIs OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available Graphics
Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP, Linux Drivers
Full Open GL implementation, complete with NVIDIA and ARB extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Dual DVI-I output - drives dual digital displays at resolutions up to
Maximum Resolution
1920x1200 @ 60Hz (single-link) and 3840x2400 @ 24Hz (dual-link).
Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536
@ 75Hz each
NVIDIA Quadro FX
4500 PCIe, 512 MB
(EA762AA)
and optional G-Sync
Card
(ED087AA
Graphics controller
Bus Type
RAMDAC
Memory
Connectors
NVIDIA Quadro FX 4500 Workstation GPU
PCI Express x16
Dual 400 MHz integrated
512 MB GDDR3 SDRAM unified graphics memory
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output, DVI-I
to VGA adapters included
Display resolution support Dual integrated display controllers supporting up to 2048x1536 @ 75Hz
(analog) or 3840x2400 @ 41Hz (digital) on both displays
NVIDIA Quadro FX 4500 256-bit memory interface
architecture
35.2GB/sec. memory bandwidth
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 55
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
Full 128-bit floating point color precision
12-bit subpixel precision
65,536 fragment instruction
65,536 vertex instruction
3D volumetric textures
Single-system powerwall
12 pixels per clock rendering engine
Hardware accelerated antialiased points & lines
Hardware OpenGL® overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware two-sided lighting
3rd-generation occlusion culling
OpenGL quad-buffered stereo
Hardware-Accelerated Pixel Read-Back
Shading Architecture
16 textures per pixel in fragment programs
Window ID clipping functionality
Hardware accelerated line stippling
Fully programmable GPU (OpenGL2.0/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
High Level Shader
Optimized compiler for Cg and Microsoft® HLSL
Languages
OpenGL 2.0 and DirectX 9.0c support
Open source compiler
High-Resolution
12-bit subpixel sampling precision enhances AA quality
Antialiasing
Rotated-grid full-scene antialiasing (RG FSAA)
16x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at
resolution up to 1920x1200
Display Resolution
Dual Dual Link DVI-I output-drives digital displays at resolutions up to 3840
Support
x 2400 @ 41Hz
Internal 400 MHz DACs - Two analog displays up to 2048x1536 @ 75 Hz
each
nView Architecture
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows®.
Optional G-Sync
Delivers Frame lock/Genlock functionality to unprecedented levels of
industrial realism, visualization and collaborative capabilities. Frame lock
allows the display channels from multiple workstations to be synchronized,
thus creating one large "virtual display" that can be driven by a multisystem
cluster for performance scalability, while Genlock allows the graphics output
to be synchronized to an external source, typically for film and broadcast
video applications. The NVIDIA Quadro G-Sync requires an NVIDIA Quadro
FX 4500 graphics controller and an available expansion slot.
Supported Graphics APIs OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 56
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
Available Graphics
drivers
NVIDIA Quadro FX 4600 Graphics controller
(768 MB)
Bus Type
RAMDAC
Memory
Connectors
Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP, Linux Full Open GL implementation, complete with NVIDIA and ARB extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html
NVIDIA Quadro FX 4600 Workstation GPU
PCI Express x16
Dual 400 MHz integrated
768 MB GDDR3 SDRAM unified graphics memory
2 Dual-Link DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo
output, DVI-I to VGA adapters included
Multi-monitor Support
Dual integrated display controllers supporting up to 2048x1536 @ 75Hz
(analog) or 3840x2400 @ 41Hz (digital) on both displays
NVIDIA Quadro FX 4600 384-bit memory interface
Architecture
67.2 GB/sec. memory bandwidth
Full 128-bit floating point color precision
12-bit subpixel precision
65,536 fragment instruction
65,536 vertex instruction
3D volumetric textures
Single-system powerwall
Hardware accelerated antialiased points & lines
Hardware OpenGL® overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware two-sided lighting
3rd-generation occlusion culling
OpenGL quad-buffered stereo
Hardware-Accelerated Pixel Read-Back
Shading Architecture
16 textures per pixel in fragment programs
Window ID clipping functionality
Hardware accelerated line stippling
Fully programmable GPU (OpenGL2.0/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
High-level Shader
Optimized compiler for Cg and Microsoft® HLSL
OpenGL 2.0 and DirectX 9.0c support
Languages
Open source compiler
High-resolution
12-bit subpixel sampling precision enhances AA quality
Antialiasing
Rotated-grid full-scene antialiasing (RG FSAA)
16x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at
resolution up to 1920x1200
Display Resolution
Dual Dual Link DVI-I output-drives digital displays at resolutions up to 3840
Support
x 2400 @ 41Hz
Internal 400 MHz DACs - Two analog displays up to 2048x1536 @ 75 Hz
each
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 57
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
nView Architecture
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows®.
Supported Graphics APIs OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available Graphics
Microsoft Windows XP Professional, Microsoft Windows Vista Professional,
drivers
Linux - Full Open GL implementation, complete with NVIDIA and ARB
extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html
NVIDIA Quadro FX 5500 Graphics controller
PCIe Graphics
Bus Type
(RF089AA)
RAMDAC
Memory
Connectors
Multi-monitor support
NVIDIA Quadro FX 5500
Architecture
Shading Architecture
High Level Shader
Languages
High-Resolution
Antialiasing
DA - 12594
NVIDIA Quadro FX 5500 Workstation GPU
PCI Express x16
Dual 400 MHz integrated
1 GB GDDR2 SDRAM unified graphics memory
2 Dual-link DVI-I, 1 Stereo
Yes
256-bit memory interface
33.6 GB/sec. memory bandwidth
Full 128-bit floating point color precision
12-bit subpixel precision
Unlimited fragment instruction
Unlimited vertex instruction
3D volumetric textures support
Single-system powerwall
12 pixels per clock rendering engine
Hardware accelerated antialiased points & lines
Hardware OpenGL® overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd-generation occlusion culling
OpenGL quad-buffered stereo
Hardware-Accelerated Line Strippling
16 textures per pixel in fragment programs
Window ID clipping functionality
Fully programmable GPU (OpenGL2.0/DirectX 9.0c class)
Long fragment programs (unlimited instructions)
Long vertex programs (unlimited instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compiler for Cg and Microsoft® HLSL
OpenGL 2.0 and DirectX 9.0c support
Open source compiler
12-bit subpixel sampling precision enhances AA quality
Rotated Grid Full Scene Antialiasing (RG FSAA)
16x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at
resolution up to 1920x1200
Worldwide — Version 13 — November 5, 2007
Page 58
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Graphics
Display Resolution
Support
2 Dual-link DVI-I output-drives digital displays at resolutions up to 3840 x
2400 @ 24Hz
Internal 400 MHz DACs - Two analog displays up to 2048x1536 @ 75 Hz
each
nView Architecture
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft® Windows®.
Supported Graphics APIs OpenGL 2.0
DirectX 9.0c
3D Primitive Perf
Geometry (Triangles per Second) 225 Million
Fill Rate (Texels per Second) 15.6 Billion
Available Graphics
Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP
drivers
Professional,
Windows XP Professional x64 Edition,
Linux® - Full Open GL implementation, complete with NVIDIA and ARB
extensions.
HP qualified drivers may be preloaded or available from the HP support web
site:
http://welcome.hp.com/country/us/eng/software_drivers.html
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 59
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
HP L1965 19-inch LCD
Monitor
Panel
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Video/Other Inputs
Signal Interface/
Performance
DA - 12594
Active matrix, thin film transistor (TFT)
19 inches; 48.25 cm maximum viewable
14.9 x 12.0 inches; 38.0 x 30.5 cm
178 degrees horizontal/178 degrees vertical
(10:1 minimum contrast ratio)
300 nits (cd/m2)
1000:1 (typical)
6 ms (typical gray to gray)**
0.294 mm
Backlight Lamp Life
50K hours
(to half brightness)
* NOTE: All performance specifications represent the typical specifications
provided by HP's component manufacturers; actual performance may vary
either higher or lower.
**NOTE:
NOTE: 20 ms rise and fall
Yes (supports VESA DDC2B and DDC/CI;
Plug and Play
PC2001 compliant)
One upstream, four downstream ports (cable
Self Powered USB 2.0
Hub
included)
Two DVI-I connectors (VGA analog or digital)
Input Signal
75 ohms ± 2%
Input Impedance
Separate sync (HSYNC/VSYNC); composite sync,
Sync Input
Sync on Green (activated through on-screen
display)
One DVI-D to DVI-D, and 1 DVI-I to VGA cables
Video Cable
71 in (1.8 m)
Video Cable Length
24 to 83 kHz
Horizontal Frequency
48 to 76 Hz
Vertical Frequency
1280 x 1024 @ 75 Hz analog
Native Resolution
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
Maximum Resolution
(Analog)
1280 x 1024 @ 75 Hz analog
Maximum Resolution
(Digital)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
Preset VESA Graphic
Modes (non-interlaced)
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
Preset MAC Mode
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
Preset VGA Mode
1152 x 900 @ 76 Hz
Preset SUN Mode
Worldwide — Version 13 — November 5, 2007
Page 60
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
Power
Mechanical
DA - 12594
Power Supply
Input Power
Nominal Current
Frequency
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Power Cable Length
Dimensions
(H x W x D)
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Netherlands, Italian,
Japanese, Simplified Chinese
Size and Positioning
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Serial Number
Mode Displayed
Sleep Timer
Input Selection
Factory Reset
Auto-ranging, 90 to 265 VAC; internal power supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
< 35 watts
< 55 watts
< 2 watts
0 watts (when master power switch is in the off position)
74.8 in (1.9 m); non-captive
14.85 min to 18.79 max x
Unpacked with stand
15.9 x 8.78 inches (37.72
min to 47.72 max x 40.39
x 22.29 cm)
8.78 x 11.88 inches
Base Area
(Footprint D x W)
(22.29 x 30.18 cm)
Panel only (without stand) (H x 12.96 x 15.9 x 2.4 inches
W x D)
(32.91 x 40.39 x 6.1 cm)
Worldwide — Version 13 — November 5, 2007
Page 61
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Weight
Environmental
Environmental Data
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Nonoperating
Eco-Label
Certifications and
Declarations
Unpacked with stand
15.6 lbs (7.06 kg)
9.26 lbs (4.19 kg)
Unpacked without stand
20.5 lbs (9.27 kg)
Packaged
12.5 mm left and right, 12.75 mm top and bottom
-4 degrees to +30 degrees
± 45 degrees horizontal swivel
Yes (4 in/100mm adjustment range)
Yes, 90 degrees
Ships attached and is removable
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
20% to 80%
5% to 95%
0 to 12,000 ft (0 to 3,658 m)
0 to 40,000 ft (0 to 12,192 m)
This product has received or is in the process of being
certified to the following approvals and may be labeled
with one or more of these marks:
US Energy Star
CECP
Energy
AC Input Voltage AC Input Voltage AC Input Voltage
Consumption
at 100 VAC +/- at 115 VAC +/- 5 at 230 VAC +/(in accordance with
5 VAC, 50 Hz VAC, 60 Hz +/- 3 5 VAC, 50 Hz
US Energy Star test
+/- 3 Hz
Hz
+/- 3 Hz
method)
Normal Operation
35.7 watts
35.6 watts
35.1 watts
Sleep
1.08 watts
1.14watts
1.23 watts
Off
0.93 watts
0.94 watts
0.92 watts
Heat Dissipation* 100 VAC, 50 Hz 115 VAC, 60 Hz 230 VAC, 50 Hz
Normal Operation
121.7 BTU/hr
121.4 BTU/hr
119.7 BTU/hr
Sleep
3.68 BTU/hr
3.89 BTU/hr
4.19 BTU/hr
Off
3.17 BTU/hr
3.21 BTU/hr
3.14 BTU/hr
*NOTE:
NOTE: Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Upgradeability features contained in the product include:
Longevity and
Upgrading
One upstream and four downstream USB ports
The monitor meets the ergonomic requirement of EN-ISO
Ergonomics
13406-2 for flat panel displays.
Additional Information This product is in compliance with the Restrictions of
Hazardous Substances (RoHS) Directive, 2002/95/EC.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 62
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
This HP product is designed to comply with the Waste
Electrical and Electronic Equipment (WEEE) Directive,
2002/96/EC.
Plastics parts weighing over 25 grams used in the product
are marked per ISO 11469 and ISO1043.
Display meets the requirement for low frequency
electromagnetic fields per MPR-II, TCO, and prEN50279
A/B/C.
This product contains 100% recycled materials (by wt.)
This product is 100% recycleable when properly disposed
of at end of life.
Packaging Materials
Material Usage
Corrugated - 0.955 kg
Plastic (other) - 0.055 kg
Polystyrene - 0.24 kg
This product does not contain any of the following
substances in excess of regulatory limits (refer to the HP
General Specification for the
Environment at
http://www.hp.com/hpinfo/globalcitizenship/
environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be
used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external
surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and
cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 63
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Packaging
End-of-life
Management and
Recycling
Hewlett-Packard
Corporate
Environmental
Information
Options
HP Silver Flat Panel
Speaker Bar
Other
Accessories Included
Software
DA - 12594
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin
Oxide (TBTO)
HP follows these guidelines to decrease the environmental
impact of product packaging:
Eliminate the use of heavy metals such as lead,
chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances
(ODS) in packaging materials.
Design packaging materials for ease of
disassembly.
Maximize the use of post-consumer recycled
content materials in packaging materials.
Use readily recyclable packaging materials such as
paper and corrugated materials.
Reduce size and weight of packages to improve
transportation fuel efficiency.
Plastic packaging materials are marked according
to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and
recycling programs in many geographic areas. To recycle
your product, please go to: http://www.hp.com/recycle or
contact your nearest HP sales office. Products returned to
HP will be recycled, recovered or disposed of in a
responsible manner.
For more information about HP's commitment to the
environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/
gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/
environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/
environment/operations/envmanagement.html
Powered directly by the monitor or PC, seamlessly
attaches to the monitor's bezel to bring full multimedia
support to select HP flat panel monitors. Features include
dual speakers with full sound range and external jack for
headphones. Sold separately, part number EE418AA. For
more information, refer to the HP Flat Panel Speaker Bar
QuickSpecs.
One DVI-D to DVI-D cable, one DVI-I to VGA cable, one
USB cable, and CD-ROM with Pivot Pro software, HP
Display Assistant software, and HP Display LiteSaver
software.
Pivot Pro software from Portrait Displays, Inc. interacts with
your PC's native graphics driver to enable seamless
portrait screen redraws with a simple mouse-click or
Worldwide — Version 13 — November 5, 2007
Page 64
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Certification and
Compliance
Compatibility
Service and Warranty
HP LP2065 20-inch LCD Panel
Monitor
keyboard command. Pivot Pro supports 90-degree portrait
and landscape views. Language support is available in
English, Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display Assistant is a software utility that allows
monitor adjustment, color calibration, and security/asset
management using the Display Data Channel Command
Interface (DDC/CI) protocol of the connected desktop PC.
HP Display LiteSaver feature allows you to schedule Sleep
mode at preset times to help protect the monitor against
image retention, drastically lower power consumption and
energy costs, and extend the lifespan of the monitor.
User Guide Languages English, Bahasa, B. Portuguese, French, LA Spanish,
Korean, Simplified Chinese, Traditional Chinese,
Japanese, Danish, Dutch, Finnish, German, Italian,
Norwegian, Swedish, Greek, Polish, Russian, Slovenian,
Turkish
Warranty Languages English
Color
Carbonite, two-tone carbonite and silver (EMEA only)
VESA Mounting
Yes (swing arm/wall mount not included); base must be
removed for mounting options)
VESA External
Yes (standard 4 hole pattern, 100 mm)
Mounting
Kensington Lock-ready Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals, Energy
Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark), ISO
13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MPR-II
Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 99 or 03 depending on region (emissions, ergonomics,
environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft® Windows®
Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and
proven compatible for use with the HP LP1965 Flat Panel Monitor. Recommended
for use with HP products.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical
support. Replacement options may include second business day on-site service, or
next business day direct replacement, at HP's sole discretion. With direct
replacement, HP will ship a replacement display product directly to you. Using the
prepaid shipping labels provided, return your failed display to HP in the same
packaging as the replacement. Certain restrictions and exclusions apply. For
details see your product warranty or contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
DA - 12594
20-inch Active Matrix TFT (thin film transistor)
20.1 inches; 51 cm
16.2 x 12.17 inches; 41.1 x 30.9 cm
Worldwide — Version 13 — November 5, 2007
Page 65
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Viewing Angle (typical)*
On Screen Display
(OSD) Controls
Brightness (typical*
Contrast Ratio (typical)*
Response Rate (typical)*
Pixel Pitch
Backlight Lamp Life
(to half brightness)
Buttons or Switches
Languages
User Controls
Signal Interface/
Performance
Horizontal Frequency
Vertical Frequency
Native Resolution
Preset VESA Graphic
Modes (non-interlaced)
Video Input
DA - 12594
Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
Plug and Play
Up to 178° horizontal/178° vertical (10:1
minimum contrast ratio)
Up to 300 nits (cd/m2)
Up to 800:1
8 ms (gray to gray), 16 ms (rise + fall)
0.255 mm
45K hours
Input select, auto adjust/OSD up, OSD down,
OSD menu select, power
English, French, German, Spanish, Italian,
Dutch, and Japanese
Brightness, contrast, positioning, color
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, input selection, image control
(including scaling), and factory reset
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
input for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI
input for modes with pixel clock less than 157
MHz)
1600 x 1200 @ 60 Hz (recommended)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Yes, 10
Yes
Yes
6500 K
Yes
Worldwide — Version 13 — November 5, 2007
Page 66
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Input Signal
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Video Cable
Video Cable Length
Input Power
Power
Mechanical
Environmental
DA - 12594
Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, and one s-video
One upstream, four downstream ports (cable
included)
Two DVI-I connectors (dual VGA analog or dual
digital input possible)
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Two VGA to DVI-I; two DVI-D to DVI-I
5.9 feet; 1.8 m
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Typical Power
55 watts (without USB ports); 70 watts (USB ports
Consumption
fully loaded)
Maximum
< 75 W
Power Saving
< 2 watts
Power Cable Length
5.9 feet; 1.8 m
Dimensions (H x W x D) Unpacked with stand 16.7 to 21.8 x 17.4 x
8.67 in
42.5 to 55.5 x 44.3 x
22.0 cm
13.58 x 17.4 x 3.42 in
Unpacked w/o stand
(head only)
34.5 x 44.3 x 8.7 cm
11.77 x 22.2 x 16.77
Packaged
in
29.9 x 56.4 x 42.6 cm
Weight
With stand: 20.28 lb
Unpacked
(9.2 kg);
Without stand: 12.35 lb
(5.6 kg)
26.3 lb (11.95 kg)
Packaged
Tilt Range
-5° to + 25° vertical tilt
Swivel Range
-45° to + 45°
Height Adjustable
Yes, range 5.1 inches; 13.0 cm
Pivot Rotation
Yes
Base
Detachable, ships attached
Temperature – Operating 46° to 95° F (10° to 35° C)
Temperature – Non6° to 140° F (-10° to 60° C)
operating
20% to 80% non-condensing
Humidity – Operating
5% to 85%
Humidity – Nonoperating
Worldwide — Version 13 — November 5, 2007
Page 67
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Altitude – Operating
+12,000 feet; +3,657.6 m
Altitude – Non-operating +40,000 feet; +12,192 m
Options
Other
Certification and
Compliance
Compatibility
DA - 12594
HP Silver Flat Panel
Speaker Bar - Part
number: EE418AA
Powered directly by the monitor or the PC, the
Speaker Bar seamlessly attaches to the monitor's
lower bezel to bring full audio support to select
HP flat panel monitors. Features include dual
speakers with full sound range and external jack
for headphones. Sold separately. For more
information, refer to the HP Silver Flat Panel
Speaker Bar QuickSpec.
Accessories Included
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #1 or 2
(DVI-I analog) connector.
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #1 or #2 (DVI-I digital) connector.
User Guide Languages
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Software
HP Display Assistant Utility makes it possible to
adjust displays settings through the PC using twoway communication via DDCI.
HP Display Lite Saver allows ability to power up
and down display at predetermined hours of the
day to safe power and backlight life.
Pivot Pro software from Portrait Displays, Inc.
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
User Guide Languages
English
Warranty Languages
English
Color
Carbonite/Silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Canadian Requirements/CSA, CE Marking, CISPR Requirements, , Energy
Star 3.0 Compliant, FCC Approval, ISO 13406-2 Pixel Defect Guidelines,
Mexican NOM Approval,, MPR-II Compliant, PC2001 Compliant, PC99
Certified, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Microsoft Windows Certification (Microsoft Windows
98, Microsoft Windows 2000, and Microsoft Windows XP)
Compatible with platforms using the VESA standard video modes.
Recommended for use with HP products.
Worldwide — Version 13 — November 5, 2007
Page 68
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Service and Warranty
Three years parts, labor, and on-site service. 24-hour 365-day 1-800
technical support. Replacement options include 2nd business day on-site
service or next business day direct replacement. With direct replacement, HP
will ship a replacement display product directly to you. Using the shipping
labels provided, return your failed display to HP. Certain restrictions and
exclusions apply. For details, contact HP Customer Support.
HP LP2465 24-inch
Panel
Widescreen LCD Monitor
Type
24-inch Active Matrix TFT (thin film transistor)
24 inches; 60.96 cm
Viewable Image Area
(diagonal)
20.47 x 12.83 inches; 52.0 x 32.6 cm
Screen Opening
(W x H)
Viewing Angle (typical)* 178° H/ 178° V (10:1 minimum contrast ratio)
500 nits (cd/m2)
Brightness (typical)*
Contrast Ratio (typical)* 1000:1
Response Rate (typical)* 8 ms (typical gray to gray)
0.270 mm
Pixel Pitch
50K hours
Backlight Lamp Life
(to half brightness)
*Response time 13 ms rise and fall, 6 ms gray to gray.
On Screen Display (OSD) Buttons or Switches
Input Select, Auto Adjust, OSD Up, OSD Down,
Controls
OSD Menu Select, Power
English, French, German, Spanish, Italian,
Languages
Japanese, Dutch
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, input selection (includes separate
direct access key for dedicated swap between
inputs 1 and 2), factory reset
Signal Interface/
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
Horizontal Frequency
Performance
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA and DVI input)
Vertical Frequency
1920 x 1200 @ 60 Hz (recommended)
Native Resolution
(native aspect ratio of 16:10)
1920 x 1200 @ 60 Hz
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75 Hz
640 x 480 @ 60 Hz, 75 Hz
720 x 400 @ 70 Hz
Text Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Mac Mode
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 69
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Video/Other Inputs
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Yes
Power
Video Cable
Video Cable Length
Input Power
Mechanical
Frequency
Typical Power
Consumption
Maximum
Power Saving
Power Cable Length
Dimensions (H x W x D)
Yes, 20
Yes
Yes
6500 K
One upstream, four downstream ports (located
on side of monitor, cable included)
Two DVI-I (VGA analog and digital) inputs
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to DVI-I; DVI-D to DVI-D
5.9 feet; 1.8 m
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
75 watts
< 110 watts
< 2 watts
6.2 feet; 1.9 m
Unpacked w/ stand
Unpacked w/o stand
(head only)
Packaged
Weight
Environmental
DA - 12594
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
14.6 (min) to 19.7
(max) x 22 x 9.1 in
37.1 (min) to 50.1
(max) x 55.4 x 23.2 cm
14.4 x 22 x 3.7 in
36.6 x 55.84 x 9.2 cm
11.7 x 22.1 x 25.6 in
29.8 x 56.0 x 65.1 cm
23.6 lbs (10.7 kg )
23.6 lbs (10.7 kg )
Unpacked
Packaged
-5° to + 25° vertical
-45° to + 45°
Yes, range 5.1 inches; 130 mm
Yes
Detachable, ships detached
46° to 95° F (10° to 35° C)
Worldwide — Version 13 — November 5, 2007
Page 70
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Other
Temperature –
Non-operating
Humidity – Operating
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
6° to 140° F (-10° to 60° C)
Accessories Included
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-D cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
Pivot Pro software from Portrait Displays, Inc.
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display Assistant is a software utility that
allows monitor adjustment, color calibration, and
security/asset management using the Display
Data Channel Command Interface (DDC/CI)
protocol of the connected desktop PC.
HP Display LiteSaver feature allows you to
schedule Sleep mode at preset times to help
protect the monitor against image retention,
drastically lower power consumption and energy
costs, and extend the lifespan of the monitor.
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Carbonite/silver
Yes (Standard 4 hole pattern, 100 mm)
Yes
Powered directly by the monitor or PC, the
Speaker Bar seamlessly attaches to the monitor's
lower bezel to bring full audio support to select
Software
User Guide Languages
Warranty Languages
Options
DA - 12594
Color
VESA External Mounting
Kensington Lock-Ready
HP Silver Flat Panel
Speaker Bar - Part
number: EE418AA
20% to 80% non-condensing
5% to 85%
+12,000 feet; +3,657.6 m
+40,000 feet; +12,192 m
Worldwide — Version 13 — November 5, 2007
Page 71
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Certification and
Compliance
Compatibility
Service and Warranty
HP LP3065 30-inch
Panel
Widescreen LCD Monitor
HP flat panel monitors. Features include dual
speakers with full sound range and an external
jack for headphones. Sold separately. For more
information, refer to the HP Flat Panel Speaker
Bar QuickSpec.
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star 3.0 Compliant, FCC Approval, German Ergonomic (TUV and
GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Microsoft Windows Certification (Microsoft Windows
98, Microsoft Windows 2000, and Microsoft Windows XP)
Compatible with platforms using the VESA standard video modes.
Recommended for use with HP products.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free
technical support. Replacement options may include second business day
on-site service, or next business day direct replacement, at HP's sole
discretion. With direct replacement, HP will ship a replacement display
product directly to you. Using the prepaid shipping labels provided, return
your failed display to HP in the same packaging as the replacement. Certain
restrictions and exclusions apply. For details see your product warranty or
contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
Brightness (typical)*
Contrast Ratio (typical)*
Response Rate (typical)*
Pixel Pitch
Backlight Lamp Life
(to half brightness)
Color Gamut
On Screen Display (OSD) Buttons or Switches
Controls
User Controls
Signal Interface/
Horizontal Frequency
Performance
Vertical Frequency
DA - 12594
30.0-inch Wide Format Active Matrix TFT (thin
film transistor)
29.77 in (75.623 cm)
25.3 x 15.8 in (64.3 x 40.3 cm)
Up to 178° H/ 178° V (10:1 minimum contrast
ratio)
300 nits (cd/m2)
1000:1
12 ms (8 ms average gray to gray)
0.250 mm
40K hours
92% of NTSC
Input select, brightness up, brightness down,
power
Brightness, input selection
100 KHz
60 Hz
Worldwide — Version 13 — November 5, 2007
Page 72
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Native Resolution
Pixel Clock Speed
Anti-Glare
Anti-Static
Default Color
Temperature
Video/Other Inputs
2560 x 1600 @ 60 Hz
(native aspect ratio of 16:10)
275 MHz
Yes
Yes
6500 K
Plug and Play
Self Powered USB 2.0
Hub
Yes
One upstream, four downstream ports (located
on side of monitor, cable included)
Input Signal
Three dual-link DVI-D inputs
(Windows PC and graphics card that supports
DVI ports with dual-link digital bandwidth and
VESA DDC standard for plug-and-play setup
requires a DVI-D dual-link graphic card that
supports WQXGA
(2560 x 1600) resolution.)
Two dual-link DVI cables
5.9 ft (1.8 m)
Auto-Ranging, 100 to 240 VAC; internal power
supply, 50 Hz/60 Hz
118 watts
Power
Video Cable
Video Cable Length
Input Power
Mechanical
Typical Power
Consumption
Maximum
Power Saving
Power Cable Length
Dimensions (H x W x D)
< 176 watts
< 2 watts
5.9 ft (1.8 m)
Unpacked w/ stand
Unpacked w/o stand
(head only)
Packaged
Environmental
DA - 12594
Weight
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature –
Non-operating
Humidity – Operating
19.3 to 23.2 x 27.2 x
9.5in (49.0 to 59.0 x
69.2 x 24.0 cm)
17.9 x 27.2 x 3.3 in
(45.5 x 69.2 x 8.4 cm)
22.4 x 31.1 x 14.9 in
(56.8 x 79.0 x 37.8 cm)
30.6 lbs (13.9 kg)
Unpacked
-5° to + 30° vertical
-45° to + 45°
Yes, range 5.1 in (100 mm)
No
Detachable, ships detached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
Worldwide — Version 13 — November 5, 2007
Page 73
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
Environmental Data
Eco-Label Certifications
and Declarations
Energy Consumption
(in accordance with US
Energy Star test method)
Normal Operation
Sleep1
Off
Heat Dissipation2
5% to 85%
+12,000 ft
+40,000 ft
This product has received or is in the process of
being certified to the following approvals and may
be labeled with one or more of these marks:
US Federal Energy Management Program
(FEMP)
IT Eco Declaration
TCO 03
Taiwan Green Mark
CECP
Korea Eco-label
EPEAT - Silver
AC Input
AC Input
AC Input Voltage
Voltage at 100 Voltage at 115 at 230 VAC +/- 5
VAC +/- 5
VAC +/- 5
VAC, 50 Hz +/- 3
VAC, 50 Hz
VAC, 60 Hz
Hz
+/- 3 Hz
+/- 3 Hz
102.8 watts
101.7 watts
100.4watts
2 watts
2 watts
2 watts
0.05 watts
0.06 watts
0.25 watts
AC Input
AC Input
AC Input Voltage
Voltage at 100 Voltage at 115 at 230 VAC +/- 5
VAC +/- 5
VAC +/- 5
VAC, 50 Hz +/- 3
VAC, 50 Hz
VAC, 60 Hz
Hz
+/- 3 Hz
+/- 3 Hz
350.8 BTU/hr 347.0 BTU/hr 342.6 BTU/hr
6.8 BTU/hr
6.8 BTU/hr
6.8 BTU/hr
0.2 BTU/hr
0.2 BTU/hr
0.9 BTU/hr
Normal Operation
Sleep
Off
NOTES
1This sleep status ignore the input sync signal check cycle when metering the
model in sleep mode.
2Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Longevity and Upgrading Upgradeability features contained in the product
include:
One upstream and four downstream USB ports
The monitor meets the ergonomic requirement of
Ergonomics
EN-ISO 13406-2 for flat panel displays.
This product is in compliance with the Restrictions of
Additional Information
Hazardous Substances (RoHS) Directive,
2002/95/EC.
This HP product is designed to comply with the
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 74
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Waste Electrical and Electronic Equipment (WEEE)
Directive, 2002/96/EC.
This product is in compliance with California
Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680
(EPEAT) standard at the SILVER level, see
www.epeat.net.
Plastics parts weighing over 25 grams used in the
product are marked per ISO 11469 and ISO1043.
Display meets the requirement for low frequency
electromagnetic fields per MPR-II, TCO, and
prEN50279 A/B/C.
This product contains 0% recycled materials (by wt.)
This product is 97.6% recycleable when properly
disposed of at end of life.
Packaging Materials
RoHS Compliance
Material Usage
Corrugated Paper 2.19 kg
PE-LD Bags 0.09 kg
EPS Molded Foam 1.07 kg
Hewlett-Packard is committed to compliance with
all applicable environmental laws and regulations,
including the European Union Restriction of
Hazardous Substances (RoHS) Directive. HP's goal
is to exceed compliance obligations by meeting the
requirements of the RoHS Directive on a worldwide
basis. By July 1, 2006, RoHS substances will be
virtually eliminated (virtually = to levels below legal
limits) for all HP electronic products subject to the
RoHS Directive, except where it is widely recognized
that there is no technically feasible alternative (as
indicated by an exemption under the EU RoHS
Directive).
This product does not contain any of the following
substances in excess of regulatory limits (refer to the
HP General Specification for the
Environment at
http://www.hp.com/hpinfo/globalcitizenship
/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may
not be used as flame retardants in plastics
Cadmium
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 75
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Packaging
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the
external surface designed to be frequently
handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires
and cables, and certain retail packaging has
been voluntarily removed from most
applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl
Tin Oxide (TBTO)
HP follows these guidelines to decrease the
environmental impact of product packaging:
Eliminate the use of heavy metals such as
lead, chromium, mercury and cadmium in
packaging materials.
Eliminate the use of ozone-depleting
substances (ODS) in packaging materials.
Design packaging materials for ease of
disassembly.
Maximize the use of post-consumer recycled
content materials in packaging materials.
Use readily recyclable packaging materials
such as paper and corrugated materials.
Reduce size and weight of packages to
improve transportation fuel efficiency.
Plastic packaging materials are marked
according to ISO 11469 and DIN 6120
standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return
and Recycling
and recycling programs in many geographic areas.
To recycle your product, please go to:
http://www.hp.com/recycle or contact your nearest
HP sales office. Products returned to HP will be
recycled, recovered or disposed of in a responsible
manner.
Hewlett-Packard
For more information about HP's commitment to the
Corporate Environmental environment:
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 76
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
Information
Other
Options
Certification and
Compliance
Compatibility
Service and Warranty
DA - 12594
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/
gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/
environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/
environment/operations/envmanagement.html
Accessories Included
Two dual link DVI-D to DVI-D cables - connects the
graphic card's DVI-D digital connector to the
monitor's input (DVI-D digital) connectors; power
cord
Software
HP Display LiteSaver feature allows you to schedule
Sleep mode at preset times to help protect the
monitor against image retention, drastically lower
power consumption and energy costs, and extend
the lifespan of the monitor.
User Guide Languages English, B. Portuguese, French, LA Spanish, Korean,
S. Chinese, T. Chinese, Bahasa, Japanese, Danish,
Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese,
S. Chinese
Color
Carbonite
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready Yes
HP Flat Panel Speaker
Powered directly by the monitor or PC, the Speaker
Bar - Part number:
Bar seamlessly attaches to the monitor's lower bezel
EE418AA
to bring full audio support to select HP flat panel
monitors. Features include dual speakers with full
sound range and an external jack for headphones.
Sold separately. For more information, refer to the
HP Flat Panel Speaker Bar QuickSpec.
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Compliant, FCC Approval, German Ergonomic (TUV and GS Mark), ISO
9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican
NOM Approval, MIC Requirements (New Zealand), MPR-II Compliant, Nordic
Approvals (Nemko, Fimko, Demko, Semko), S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 99 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals.
Compatible with platforms using the VESA standard video modes.
Recommended for use with HP products.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free
technical support. Replacement options may include second business day on-
Worldwide — Version 13 — November 5, 2007
Page 77
QuickSpecs
HP xw9400 Workstation
Technical Specifications - Monitors
site service, or next business day direct replacement, at HP's sole discretion.
With direct replacement, HP will ship a replacement display product directly to
you. Using the prepaid shipping labels provided, return your failed display to
HP in the same packaging as the replacement. Certain restrictions and
exclusions apply. For details see your product warranty or contact HP
Customer Support.
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
All rights reserved. Microsoft, Windows, Windows Vista, and Windows XP are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel and Xeon are US registered trademarks of Intel Corporation. Linux is a
registered trademark of Linus Torvalds in the United States and other countries. AMD, AMD Opteron, AMD-8131 and combinations
thereof, are trademarks of Advanced Micro Devices, Inc.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 12594
Worldwide — Version 13 — November 5, 2007
Page 78
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
