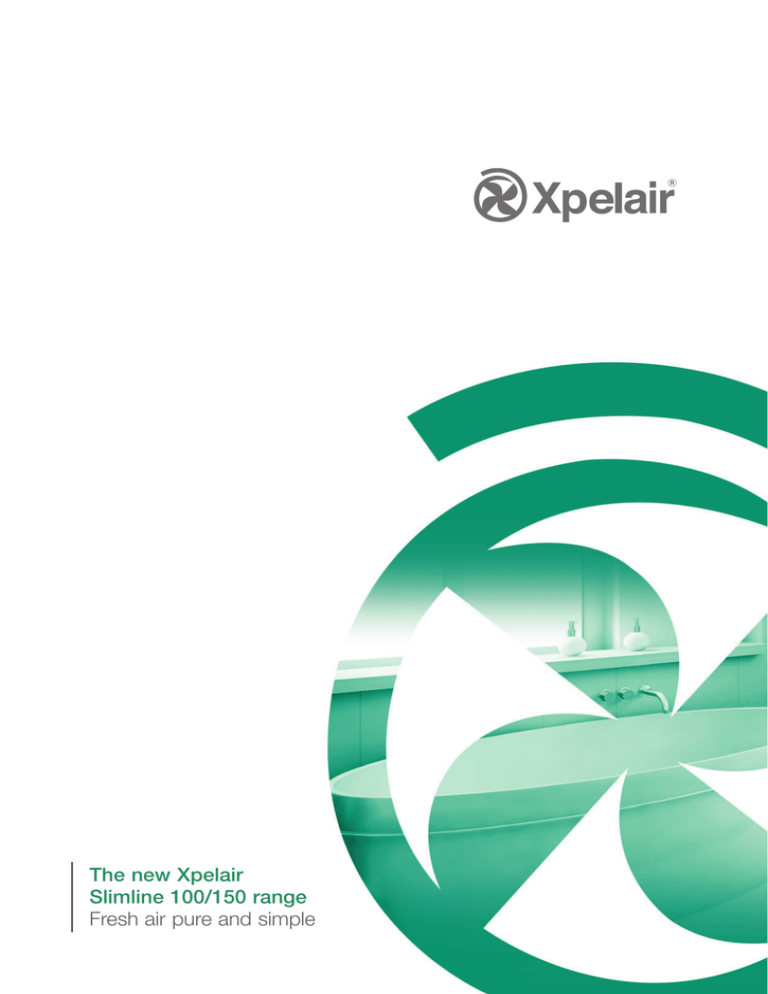

The new Xpelair

Slimline 100/150 range

Fresh air pure and simple

The new Xpelair 100mm Slimline range

Bathrooms and Toilets

Key Benefits

• Five control models for ease of use

• Unobtrusive low profile single speed fan with sleek styling

• IPX4 rated for peace of mind

• Suitable in temperatures up to 50oC

• Can be wall or ceiling mounted for ease of installation

The Range

Xpelair’s brand new generation of 100mm

Slimline fans is one of the lowest profile fans on the market. With an external projection of only

14mm and a stylish white finish the range will meet any design criteria.

Easy to install and maintain the range is perfect for refurbishments and minor works in bathrooms and toilet applications. This easy to use single speed unit comes complete with a range of control options that will fit all build applications. Humidistat models adjustable from 65-85% RH, timer options adjustable up to 30 minutes and PIR sensors for less populated areas are all available.

With the units designed specifically for small bathrooms and toilets they come complete with internal backdraught shutters and extract directly to outside atmosphere or alternatively through a short duct run.

2

Select the right setting for your application

Product Selector

Reference number

Speeds

Extract performance (FID, m

3

/h)

Extract performance (FID, l/s)

SFP w/l/s

Electrical Power (W)

Hole diameter (mm)

IP rating

Weight (Kg)

SL100

92674AW

1

72.5

20.1

0.5

11

100

IPX4

0.75

SL100P

92675AW

1

72.5

20.1

0.5

11

100

IPX4

0.75

SL100T

92676AW

1

72.5

20.1

0.5

11

100

IPX4

0.75

SL100HT

92677AW

1

72.5

20.1

0.5

11

100

IPX4

0.75

SL100PIR

92678AW

1

72.5

20.1

0.5

11

100

IPX4

0.75

www.

xpelair

.co.uk

Product Codes and Variants

SL100

Ref. 92674AW

• Single speed axial fan, operated by a remote switch sensor with built in backdraught shutter.

SL100P

Ref. 92675AW

• Single speed axial fan with pullcord and built in backdraught shutter.

SL100T

Ref. 92676AW

• Single speed axial fan with timer variable from 30sec-30mins with built in backdraught shutter.

SL100HT

Ref. 92677AW

• Automatic on/off operation by an integral active humidistat sensor and pre-set override adjustable from 65-85% RH.

Also includes adjustable timer function variable from 30sec-30mins and built in backdraught shutter as standard.

SL100PIR

Ref. 92678AW

• Single speed axial fan with integral PIR

Control and built in backdraught shutter.

Performance

14

Performance curve SL100 (240V 50Hz)

Volume (C.F.M.)

0 5 10 15 20 25 30 35 40 45 50

0.056

12

0.048

10

8

0.04

0.032

0.024

6

4

0.016

2

0.008

0

0 10 20 30 40 50 60 70 80 90

0

Flow rate in m

3

/h

Performance

Dimensions

Installation

Wall Mounting

Hole diameter: 100mm

Wall Mounted Installation

Accessories

Wall Kit

Ref. 91232AW

Ceiling Mounting

Hole diameter: 100mm

Ceiling Mounted Installation

Accessories

Flexible ducting FD100

Ref. 89910AA

Wiring

SL100/SL150

SL100P/SL150P

L

N

FUSE

ISOLATING SWITCH

IN ALL POLES

SL100T/SL150T

SL100HT/SL150HT

L

T

N

FUSE

ISOLATING SWITCH

IN ALL POLES

LAMP

IF REQUIRED

ON / OFF SWITCH

(RECOMMENDED TO INCORPORATE

AN INDICATOR IF LAMP NOT FITTED)

L

N

L

N

SL100PIR/SL150PIR

L

T

N

FUSE

ISOLATING SWITCH

IN ALL POLES

L

N

3

The new Xpelair 100mm Slimline range with Ultra DC Motors

Domestic Bathrooms, Shower Rooms, Toilets and other small rooms

Key Benefits

• Longer life DC motors

• Five control models for ease of use

• Can also be used as a wholehouse ventilation solution

• Energy efficient, reducing running costs

• Three speeds for all applications

• Can be wall or ceiling mounted for ease of installation

4

The Range

Xpelair’s brand new generation of 100mm Slimline fans complete with long Life Ultra DC motors are one of the lowest profile fans on the market.

With an external projection of only 14mm and a stylish white finish the range will meet any design criteria.

DC range is capable of intermittent or continuous ventilation with an optional pre-selected trickle function and boost speed selectable at point of installation. Easy to install and maintain the range is perfect for new build use in bathrooms, shower rooms, toilets and other small rooms. Complete with 3 speed settings and multiple control options this range will fit all build applications.

Humidistat models adjustable from 65-85% RH, timer options adjustable up to 30 minutes and PIR sensors for less populated areas are all available. Complete with internal backdraught shutters these DC models can be fitted as an AC alternative to ensure energy savings for the homeowner while simultaneously contributing to

Government goals of low carbon homes. These units meet

Building regulations for bathrooms, shower rooms, toilets and other small rooms and all models are suitable for a supply voltage of 220-240V 50Hz and ambient temperatures of 50

O

C.

Select the right setting for your application

Product Selector

Reference number

Speeds

Extract performance (FID, m

3

/h) Speed 1

Speed 2

Speed 3

Suitable for installations at:

Electrical Power (W) Speeds 1,2,3

SFP w/l/s

Hole diameter (mm)

IP rating

Weight (Kg)

SLDC100

92679AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.65

SLDC100P

92680AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.65

www.

xpelair

.co.uk

SLDC100T

92681AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.65

SLDC100HT

92682AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.65

SLDC100PIR

92683AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.65

Product Codes and Variants

SLDC100

Ref. 92679AW

• Three speed axial fan, operated by a remote switch sensor with built in backdraught shutter.

SLDC100P

Ref. 92680AW

• Three speed axial fan with pullcord and built in backdraught shutter.

SLDC100T

Ref. 92681AW

• Three speed axial fan with timer - variable from 30sec-30mins and built in backdraught shutter.

SLDC100HT

Ref. 92682AW

• Three speed operation by an integral active humidistat sensor and pre-set override adjustable from 65-85% RH. Also includes adjustable timer function variable from

30sec-30mins and built in backdraught shutter as standard.

SLDC100PIR

Ref. 92683AW

• Three speed axial fan with integral PIR

Control and built in backdraught shutter.

Performance

Performance and speed curve SL100DC

Volume (C.F.M.)

0 5 10 15 20 25 30 35 40

0.06

Dimensions

0.04

0.02

0

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70

Speed 1 Speed 2

Flow rate in m

3

/h

Speed 3 *Results at install performance

Installation

Wall Mounting

Hole diameter: 100mm

Wall Mounted Installation

Accessories

Wall Kit

Ref. 91232AW

Ceiling Mounting

Hole diameter: 100mm

Ceiling Mounted Installation

Accessories

Flexible ducting FD100

Ref. 89910AA

Wiring

SLDC100/SLDC100P/SLDC100PIR

SLDC150/SLDC150P/SLDC150PIR

ISOLATING SWITCH

IN ALL POLES

FUSE

L

N

SL

SLDC100HT/SLDC150HT

SLDC100T/SLDC150T

L

N

SL

FUSE

ISOLATING SWITCH

IN ALL POLES

LAMP

IF REQUIRED

ON / OFF SWITCH

(RECOMMENDED TO INCORPORATE

AN INDICATOR IF LAMP NOT FITTED)

L

N

L

N

5

The new Xpelair 100mm SELV Slimline range with Ultra DC Motors

Domestic Bathrooms, Shower Rooms, Toilets and other small rooms

Key Benefits

• Longer life DC motors

• SELV external transformer for complete safety

• Energy efficient, reducing running costs

• Three speeds for all applications

• Five control models for ease of use

6

The Range

Xpelair’s brand new generation of 100mm SELV

Slimline fans complete with long Life Ultra DC motors are one of the lowest profile fans on the market. With an external projection of only 14mm and a stylish white finish the range will meet any design criteria.

DC range is capable of intermittent or continuous ventilation with an optional pre-selected trickle function and boost speed selectable at point of installation. Easy to install and maintain the range is perfect for new build use in bathrooms, shower rooms, toilets and other small rooms. Complete with 3 speed settings and multiple control options this range will fit all build applications.

Humidistat models adjustable from 65-85% RH, timer options adjustable up to 30 minutes and PIR sensors for less populated areas are all available. Complete with internal backdraught shutters these DC models can be fitted as an AC alternative to ensure energy savings for the homeowner while simultaneously contributing to

Government goals of low carbon homes. These units meet Building regulations for bathrooms, shower rooms, toilets and other small rooms and all models are suitable for a supply voltage of 220-240V 50Hz and ambient temperatures of 50

O

C.

Select the right setting for your application

Product Selector

Reference number

Speeds

Extract performance (FID, m

3

/h) Speed 1

Speed 2

Speed 3

Suitable for installations at:

Electrical Power (W) Speeds 1,2,3

SFP w/l/s

Hole diameter (mm)

IP rating

Weight (Kg) inclusive of transformer

LVSLDC100

92685AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.95

LVSLDC100P

92686AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.95

LVSLDC100T

92687AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.95

LVSLDC100HT

92688AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.95

LVSLDC100PIR

92689AW

3

26

29

65

6,8,15 l/s

3.6,3.6,4.2

0.49,0.44,0.23

100

IPX4

0.95

www.

xpelair

.co.uk

Product Codes and Variants

LVSLDC100

Ref. 92685AW

• Three speed axial fan, operated by a remote switch sensor with built in backdraught shutter.

LVSLDC100P

Ref. 92686AW

• Three speed axial fan with pullcord and built in backdraught shutter.

Performance

LVSLDC100T

Ref. 92687AW

• Three speed axial fan with timer variable from 30sec-30mins and built in backdraught shutter.

LVSLDC100HT

Ref. 92688AW

• Three speed operation by an integral active humidistat sensor and pre-set override adjustable from 65-85% RH. Also includes adjustable timer function variable from

30sec-30mins and built in backdraught shutter as standard.

LVSLDC100PIR

Ref. 92689AW

• Three speed axial fan with integral PIR

Control and built in backdraught shutter.

Dimensions

Performance and speed curve LVSLDC100

Volume (C.F.M.)

0 5 10 15 20 25 30 35 40

0.06

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70

0

Speed 1 Speed 2

Flow rate in m

3

/h

Speed 3 *Results at install performance

Installation

0.04

0.02

LV Transformer

138

14

17

53

163

Wall Mounting

Hole diameter: 100mm

Wall Mounted Installation

Accessories

Wall Kit

Ref. 91232AW

Wiring

LVSLDC100/LVSLDC100P/LVSLDC100PIR

TRANSFORMER

FAN

TERMINALS

-

T

+

0V

T

24V

Ceiling Mounting

Hole diameter: 100mm

Ceiling Mounted Installation

Accessories

Flexible ducting FD100

Ref. 89910AA

FUSE

ISOLATING SWITCH

IN ALL POLES

L

N

LVSLDC100T/LVSLDC100HT

TRANSFORMER

FAN

TERMINALS

-

T

+

0V

T

24V

ON / OFF SWITCH

(RECOMMENDED TO INCORPORATE

AN INDICATOR IF LAMP NOT FITTED)

FUSE

ISOLATING SWITCH

IN ALL POLES

L

N

LAMP

IF REQUIRED

7

The new Xpelair 150mm Slimline range

Kitchens and Utility rooms

Key Benefits

• Five control models for ease of use

• Unobtrusive low profile single speed fan with sleek styling

• IPX4 rated for peace of mind

• Can be wall or ceiling mounted for ease of installation

• Easy to Install

The Range

Xpelair’s brand new generation of 150mm Slimline fans is one of the lowest profile fans on the market. With an external projection of only 17mm and a stylish white finish the range will meet any design criteria.

Easy to install and maintain the range is perfect for refurbishments and minor works in kitchens and utility rooms. This easy to use single speed unit comes complete with a range of control options that will fit all build applications. Humidistat models adjustable from

65-85% RH, timer options adjustable up to 30 minutes and PIR sensors for less populated areas are all available.

With the units designed specifically for kitchens and utility rooms they come complete with internal backdraught shutters and extract directly to outside atmosphere or alternatively through a short duct run.

8

Select the right setting for your application

Product Selector

Reference number

Speeds

Extract performance (FID, m

3

/h)

Extract performance (FID, l/s)

Electrical Power (W)

SFP w/l/s

Hole diameter (mm)

IP rating

Weight (Kg)

SL150 SL150 (Export)

92664AW

1

245 195 (220V, 60Hz)

68

91229AX

1

54.1

34

0.5

150

IPX4

1.20

26

0.5

150

IPX4

1.20

SL150P

92665AW

1

245

68

34

0.5

150

IPX4

1.20

SL150T

92666AW

1

245

68

34

0.5

150

IPX4

1.20

SL150HT

92667AW

1

245

68

34

0.5

150

IPX4

1.20

SL150PIR

92668AW

1

245

68

34

0.5

150

IPX4

1.20

www.

xpelair

.co.uk

Product Codes and Variants

SL150

Ref. 92664AW

• Single speed axial fan, operated by a remote switch sensor with built in backdraught shutter.

SL150P

Ref. 92665AW

• Single speed axial fan with pullcord and built in backdraught shutter.

SL150T

Ref. 92666AW

• Single speed axial fan with timer variable from 30sec-30mins with built in backdraught shutter.

SL150HT

Ref. 92667AW

• Single speed axial fan with humidistat and overrun timer. Timer variable from

30sec-30mins with built in backdraught shutter as standard.

SL150PIR

Ref. 92668AW

• Single speed axial fan with integral PIR

Control and built in backdraught shutter.

Performance

Performance curve for SL150

Volume in (C.F.M.)

0 15 30 45 60 75 90 105 120 135 150

80

0.32

75

0.30

70

0.28

65

0.26

60

0.24

55

0.22

50

0.20

45

0.18

40

0.16

35

0.14

30

0.12

25

0.10

20

0.08

15

0.06

10

0.04

5

0.02

0

0 25 50 75 100 125 150 175 200 225 250

0.00

Flow rate in m

3

/h

220V 50Hz 240V 50Hz 240V 60Hz 220V 60Hz

Dimensions

Installation

Wall Mounting

Hole diameter: 150mm

Wall Mounted Installation

Accessories

Wall Kit

Ref. 91233AW

Ceiling Mounting

Hole diameter: 150mm

Ceiling Mounted Installation

Accessories

Flexible ducting FD150

Ref. 89671AA

Wiring

SL100/SL150

SL100P/SL150P

L

N

FUSE

ISOLATING SWITCH

IN ALL POLES

SL100HT/SL150HT

SL100T/SL150T

L

T

N

FUSE

ISOLATING SWITCH

IN ALL POLES

LAMP

IF REQUIRED

ON / OFF SWITCH

(RECOMMENDED TO INCORPORATE

AN INDICATOR IF LAMP NOT FITTED)

L

N

L

N

SL100PIR/SL150PIR

L

T

N

FUSE

ISOLATING SWITCH

IN ALL POLES

L

N

9

The new Xpelair 150mm Slimline range with Ultra DC motors

Kitchens and Utility rooms

Key Benefits

• Longer life DC motors

• Five control models for ease of use

• Can also be used as a wholehouse ventilation solution

• Energy efficient, reducing running costs

• Five speeds for all applications

• Can be wall or ceiling mounted for ease of installation

10

The Range

Xpelair’s brand new generation of 150mm

Slimline fans complete with long Life Ultra DC motors are one of the lowest profile fans on the market. With an external projection of only 17mm and a stylish white finish the range will meet any design criteria.

DC range is capable of intermittent or continuous ventilation with an optional pre-selected trickle function and boost speed selectable at point of installation.

Easy to install and maintain the range is perfect for new build use in kitchens and utility rooms. Complete with 5 speed settings and multiple control options this range will fit all build applications. Humidistat models are available for use in kitchens, timer options adjustable up to 30 minutes and PIR sensors for less populated areas are all available. Complete with internal backdraught shutters these DC models can be fitted as an AC alternative to ensure energy savings for the homeowner while simultaneously contributing to Government goals of low carbon homes. These units meet Building regulations for kitchens and utility rooms and all models are suitable for a supply voltage of 220-240V 50Hz and ambient temperatures of 50

O

C.

Select the right setting for your application

Product Selector

Reference number

Speeds

Extract performance (FID, m

3

/h) Speed 1

Speed 2

Speed 3

Speed 4

Speed 5

SLDC150

92669AW

5

33

50

58

121

224

SLDC150P

92670W

5

33

50

58

121

224

SLDC150T

92671W

5

33

50

58

121

224

SLDC150HT

92672AW

5

33

50

58

121

224

SLDC150PIR

92673AW

5

33

50

58

121

224

Suitable for installations at: 8,13,15,30,60 l/s 8,13,15,30,60 l/s 8,13,15,30,60 l/s 8,13,15,30,60 l/s 8,13,15,30,60 l/s

Electrical Power (W) Speeds 1,2,3,4,5 2.4,2.6,2.8,4.4,13.5 2.4,2.6,2.8,4.4,13.5 2.4,2.6,2.8,4.4,13.5 2.4,2.6,2.8,4.4,13.5 2.4,2.6,2.8,4.4,13.5

SFP w/l/s

IP rating

0.25,0.18,0.17,0.13,0.21 0.25,0.18,0.17,0.13,0.21 0.25,0.18,0.17,0.13,0.21 0.25,0.18,0.17,0.13,0.21 0.25,0.18,0.17,0.13,0.21

Hole diameter (mm)

Weight (Kg)

IPX4

150

0.9

IPX4

150

0.9

IPX4

150

0.9

IPX4

150

0.9

IPX4

150

0.9

www.

xpelair

.co.uk

Product Codes and Variants

SLDC150

Ref. 92669AW

• Five speed axial fan, operated by a remote switch sensor with built in backdraught shutter.

SLDC150P

Ref. 92670AW

• Five speed axial fan with pullcord and built in backdraught shutter.

SLDC150T

Ref. 92671AW

• Five speed axial fan with timer - variable from 30sec-30mins with built in backdraught shutter.

SLDC150HT

Ref. 92672AW

• Five speed axial fan with humidistat and overrun timer. Timer variable from

30sec-30mins and built in backdraught shutter as standard.

SLDC150PIR

Ref. 92673AW

• Five speed axial fan with integral PIR

Control and built in backdraught shutter.

Performance

Performance curve for SL150DC

Volume in (C.F.M.)

0 30 60 90 120

50

40

30

20

10

70

60

0

0 20 40 60 80 100 120 140 160 180 200 220

Flow rate in m

3

/h

Speed 1 Speed 2

*Results at install performance

Speed 3 Speed 4 Speed 5

0

0.28

0.24

0.20

0.16

0.12

0.08

0.04

Dimensions

Installation

Wall Mounting

Hole diameter: 100mm

Wall Mounted Installation

Accessories

Wall Kit

Ref. 91232AW

Ceiling Mounting

Hole diameter: 100mm

Ceiling Mounted Installation

Accessories

Flexible ducting FD100

Ref. 89910AA

Wiring

SLDC100/SLDC100P/SLDC100PIR

SLDC150/SLDC150P/SLDC150PIR

ISOLATING SWITCH

IN ALL POLES

FUSE

L

N

SL

SLDC100HT/SLDC150HT

SLDC100T/SLDC150T

L

N

SL

FUSE

ISOLATING SWITCH

IN ALL POLES

LAMP

IF REQUIRED

ON / OFF SWITCH

(RECOMMENDED TO INCORPORATE

AN INDICATOR IF LAMP NOT FITTED)

L

N

L

N

11

Xpelair, Newcombe House,

Peterborough, PE2 6SE,

United Kingdom

Please call our sales hotline:

+44 (0)844 372 7760 www.xpelair.co.uk

2013 XO88

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
