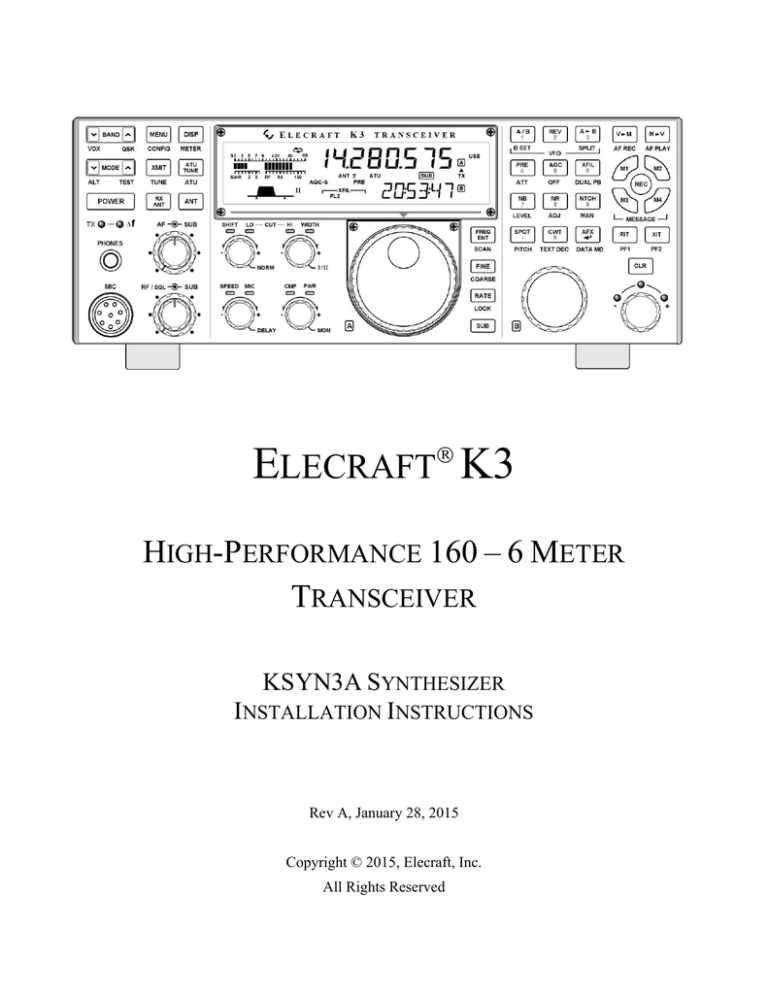

ELECRAFT K3
HIGH-PERFORMANCE 160 – 6 METER
TRANSCEIVER
KSYN3A SYNTHESIZER
INSTALLATION INSTRUCTIONS
Rev A, January 28, 2015
Copyright © 2015, Elecraft, Inc.
All Rights Reserved
Contents
Introduction............................................................................................................................................... 3 Checking Synthesizer Types ............................................................................................................................... 3 Customer Service and Support ................................................................................................................. 4 Technical Assistance ....................................................................................................................................... 4 Repair / Alignment Service ............................................................................................................................. 4 Preventing Electrostatic Discharge Damage ............................................................................................ 6 Choosing an Anti-Static Mat ............................................................................................................................... 6 Preparing for Installation .......................................................................................................................... 7 Tools Required .................................................................................................................................................... 7 Parts Included ...................................................................................................................................................... 7 Installation Procedure ............................................................................................................................... 8 Removing the Top Cover .................................................................................................................................... 8 K144XV Option .................................................................................................................................................. 8 Replacing the Synthesizer(s) ............................................................................................................................. 10 Reassembling the K3......................................................................................................................................... 15 2
Introduction
This manual will guide you through the replacement of the KSYN3 synthesizer(s) in your K3 transceiver with
the new KSYN3A synthesizer(s). No test equipment is required. Only a few hand tools are needed to assemble
your kit (see page Tools Required on page 7).
Should you have difficulty, you'll have our full support via phone and e-mail. In addition, we hope you'll join
our growing and enthusiastic community of owner/builders via the Elecraft reflector.
Basic K3s have one synthesizer. If you have the optional KRX3 Subreceiver installed in your K3 there will be
two synthesizers. If your K3 has both synthesizers, the both must be the same type. You cannot mix the new
KSYN3A synthesizer and the older KSYN3 in the same K3!
If you have the optional KRX3 Subreceiver installed in your K3 there will be two
synthesizers. If your K3 has both synthesizers, the both must be the same type. You cannot
mix the new KSYN3A synthesizer and the older KSYN3 in the same K3!
Checking Synthesizer Types
If you are unsure which synthesizer is installed in your K3, open the K3 top cover (see Removing Top Cover on
page 8). You don’t need to remove the top cover completely. Only lift it far enough to see the synthesizers (see
Figure 1). The old and new synthesizers are shown in Figure 2.
Figure 1. Synthesizer Locations in the K3.
3
The new KSYN3A boards are shipped in ESD-safe envelopes. Do not handle them
without first taking the ESD precautions listed on page 6. Keep the synthesizers you remove
in those envelopes.
Like the original synthesizer, one pin of the multi-pin connector at the bottom has been cut and the
corresponding opening in the socket on the K3 RF board has been plugged to assist in properly aligning the
connectors when installing the board.
Figure 2. Original and New Synthesizer Boards.
Synthesizer Calibration
The original KSYN3 synthesizers required calibration as described in your K3 Owner’s Manual. The new
KSYN3A synthesizers do not require calibration. If you have firmware 5.03 or later installed in your K3 it
will recognize the new KSYN3A synthesizer(s) and the CONFIG VCO:MD menu entry used by the calibration
procedure will no longer appear in the K3’s menu.
Customer Service and Support
Technical Assistance
You can send e-mail to [email protected] and we will respond quickly – typically the same day
Monday through Friday. If you need replacement parts, send an e-mail to [email protected] Telephone
assistance is available from 9 A.M. to 5 P.M. Pacific time (weekdays only) at 831-763-4211. Please use e-mail
rather than calling when possible since this gives us a written record of the details of your problem and allows us
to handle a larger number of requests each day.
Repair / Alignment Service
If necessary, you may return your Elecraft product to us for repair or alignment. (Note: We offer unlimited email
and phone support, so please try that route first as we can usually help you find the problem quickly.)
4
IMPORTANT: You must contact Elecraft before mailing your product to obtain authorization for the
return, what address to ship it to and current information on repair fees and turnaround times. (Frequently we
can determine the cause of your problem and save you the trouble of shipping it back to us.) Our repair location
is different from our factory location in Aptos. We will give you the address to ship your kit to at the time of
repair authorization. Packages shipped to Aptos without authorization will incur an additional shipping charge
for reshipment from Aptos to our repair depot.
Elecraft 1-Year Limited Warranty
This warranty is effective as of the date of first consumer purchase (or if shipped from the factory, the date
the product is shipped to the customer). It covers both our kits and fully assembled products. For kits,
before requesting warranty service, you should fully complete the assembly, carefully following all
instructions in the manual.
Who is covered: This warranty covers the original owner of the Elecraft product as disclosed to Elecraft
at the time of order. Elecraft products transferred by the purchaser to a third party, either by sale, gift, or
other method, who is not disclosed to Elecraft at the time of original order, are not covered by this
warranty. If the Elecraft product is being bought indirectly for a third party, the third party’s name and
address must be provided at time of order to ensure warranty coverage.
What is covered: During the first year after date of purchase, Elecraft will replace defective or missing
parts free of charge (post-paid). We will also correct any malfunction to kits or assembled units caused by
defective parts and materials. Purchaser pays inbound shipping to us for warranty repair; we pay shipping
to return the repaired equipment to you by UPS ground service or equivalent to the continental USA and
Canada. For Alaska, Hawaii, and other destinations outside the U.S. and Canada, actual return shipping
cost is paid by the owner.
What is not covered: This warranty does not cover correction of kit assembly errors. It also does not
cover misalignment; repair of damage caused by misuse, negligence, battery leakage or corrosion, or
builder modifications; or any performance malfunctions involving non-Elecraft accessory equipment. The
use of acid-core solder, water-soluble flux solder, or any corrosive or conductive flux or solvent will void
this warranty in its entirety. Also not covered is reimbursement for loss of use, inconvenience, customer
assembly or alignment time, or cost of unauthorized service.
Limitation of incidental or consequential damages: This warranty does not extend to non-Elecraft
equipment or components used in conjunction with our products. Any such repair or replacement is the
responsibility of the customer. Elecraft will not be liable for any special, indirect, incidental or
consequential damages, including but not limited to any loss of business or profits.
5
Preventing Electrostatic Discharge Damage
Sensitive components may be damaged by Electrostatic Discharge (ESD) simply by touching them or a circuit
board containing them unless you take specific steps to prevent such damage. Damage may occur with static
discharges far too little for you to notice.
A damaged component may not fail completely at first. Instead, the damage may result in below-normal
performance for an extended period of time before you experience a total failure.
Parts which are especially ESD-sensitive are identified in the parts list and in the assembly procedures.
We strongly recommend you take the following anti-static precautions (listed in order of importance) to ensure
there is no voltage difference between the components and any object that touches them:

Leave ESD-sensitive parts in their anti-static packaging until you install them. The packaging may be a
special plastic bag that allow static charges to flow harmlessly over their surface, or a component’s
leads may be inserted in conductive foam that keep them at the same potential.

Wear a conductive wrist strap with a series 1-megohm resistor that will constantly drain off any static
charge that accumulates on your body. If you do not have a wrist strap, touch a ground briefly before
touching any sensitive parts to discharge your body. Do this frequently while you are working. You can
collect a destructive static charge on your body just sitting at the work bench.
WARNING
DO NOT attach a ground directly to yourself without a current-limiting resistor as this poses a
serious shock hazard. A wrist strap must include a 1-megohm resistor to limit the current flow. If
you choose to touch an unpainted, metal ground to discharge yourself, do it only when you are
not touching live circuits with any part of your body.

Use a grounded anti-static mat on your work bench (see below).

If you pick up a pc (printed circuit) board that was not placed on an anti-static mat or in an anti-static
package, first touch a ground plane connection on the board such as a connector shell or mounting
point.

If you use a soldering iron to work on a circuit board, be sure your iron has an ESD-safe grounded tip
tied to the same common ground used by your mat and wrist strap.
Choosing an Anti-Static Mat
An anti-static mat must bleed off any charge that comes in contact with it at a rate slow enough to avoid a shock
or short circuit hazard but fast enough to ensure dangerous charges cannot accumulate. Typically, a mat will
have a resistance of up to 1 Gigaohm (109 ohms). Testing a mat requires specialized equipment, so we
recommend that you choose an anti-static mat that comes with published resistance specifications and clean it as
recommended by the manufacturer. Testing has shown that many inexpensive mats that do not specify their
resistance have resistance values much too high to provide adequate protection, even after they were cleaned
and treated with special anti-static mat solutions.
Suitable anti-static table mats are available from many sources including:

U-line (Model 12743 specified at 107 ohms)

Desco (Model 66164, specified at 106 to 108 ohms)

3MTM Portable Service Kit (Model 8505 or 8507, specified at 106 to 109 ohms)
6
Preparing for Installation
Tools Required
1. ESD Protection (see Preventing Electrostatic Discharge Damage, pg 6)
2. #1 size Phillips screwdriver. Some makes of size #0 screwdriver may fit better. Always use the
screwdriver that best fits the screw in each step. To avoid damaging screws and nuts, a power
screwdriver is not recommended.
3. Side (diagonal) cutters, flush-cut type preferred.
4. Small needle nose pliers or tweezers for holding small parts in tight spaces (see Figure 7 on page 10).
5. A magnet on a rod (or magnetized screwdriver) is handy to retrieve a dropped part if needed.
Parts Included
The following parts should be included in your kit. Check to ensure you have them all. If any parts are damaged
or missing, contact Elecraft for replacements (see Customer Service and Support on page 4).
ILLUSTRATION
DESCRIPTION
QTY.
ELECRAFT
PART NO.
1 for basic K3.
2 if KXV3
subreceiver
installed
E850638
1
E850338
2 for each
synthesizer
E700005
KSYN3 Printed Circuit Board
ESD Sensitive. Follow ESD
safe handling procedures. Keep in
ESD-safe bag until installed.
One pin on the multi-pin connector
has been removed intentionally.
TMP Cable 10” (25 cm)
Screw, 4-40, 1/4” (6.4 mm)
Zinc, Pan Head.
7
Installation Procedure
Removing the Top Cover
Disconnect power and all cables from your K3.
Remove the nine screws to free the top cover as shown in Figure 3. After the cover is open, lift it gently to
reach the speaker wire connector. Unplug the speaker then set the top cover aside in a safe place.
Whenever you remove screws from a panel, if one screw seems too tight to loosen
without damaging it, first loosen the other screws then try again. Sometimes one screw
binds in its hole when the other screws are tightened.
Figure 3. Removing K3 Top Cover.
CAUTION: Touch an unpainted metal ground or wear a grounded wrist strap
before touching components or circuit boards inside the K3. See Preventing Electrostatic
Discharge on page 6for more information.
K144XV Option
If your K3 does not have the K144XV 2-meter module option installed go to Replacing the Synthesizer(s) on
page 10. Otherwise, move the 2-meter module out of the way as follows:
8
Remove the stiffener as shown in Figure 4. It will be held in place by a flat head screw through each side
panel. If the KPA3 100 watt amplifier option is installed, two screws securing it to the KPA3 shield. Some older
K3s may use nuts and lock washers on the screws securing the stiffener to the KPA3 shield instead of PEM nuts.
Figure 4. Removing the Chassis Stiffener.
Remove the three screws that hold the K144XV module to the side panel (see Figure 5). You do not need to
remove the module but only free it so it can be moved back away from the main synthesizer board far enough to
gain access to it.
Figure 5. Removing the K144XV Module Mounting Screws.
You can either unplug the coaxial cables or push the module aside to reach the mounting screw for the main
synthesizer board. To remove the cables, first remove the five screws securing the top cover and lift it off so you
can pull on the metal grip of each connector (see Figure 6). Do not pull on the coaxial cable; you might pull it
out of the TMP connector. If you remove it completely, a diagram is provided on page 14showing all of the
required cable connections to reinstall it.
9
Replacing the Synthesizer(s)
CAUTION: The synthesizer mounting screws use two lock washers, one between the
pc board and the front panel shield and one under the screw head. Do not lose the lock
washers inside the K3. Some builders find it easier to stand the K3 on one side so a dropped
lock washer does not fall down onto the main RF board covering the bottom.
Unplug the coaxial cables from the synthesizer(s). The connectors are a friction fit and pull apart. Pull on
the metal “ears” of the TMP connectors, not on the coaxial cable (see Figure 6).
Figure 6. TMP Cable Connectors.
Loosen the two mounting screws at the top of the synthesizer board. Do not remove the screws completely
until you have loosened both of them and located the lock washer between the pc board and the front panel
shield. Slide the split-ring lock washer on each screw toward the pc board and then carefully finish unscrewing
each screw (see Figure 7) Once the screw is clear of the threaded PEM nut on the front panel shield you can
carefully grab the split ring lock washer with your needle nose pliers and remove it, then remove the screw and
remaining lock washer. It helps to remove both screws a few turns at a time so you have the greatest amount of
room to reach in and grab the lock washer while the other screw is still partially threaded into the PEM nut. If
your K3 is equipped with the K3EXREF option, the distance you can pull the synthesizer away from the front
panel shield is limited but there is still adequate clearance (see Figure 8).
Figure 7. Removing Synthesizer Mounting Screws.
10
Figure 8. K3EXREF Board Option.
Remove the replacement KSYN3A synthesizers from their envelopes. You will have two synthesizers only
if your K3 is equipped with the KRX3 Subreceiver option. Inspect the back of each board for long leads,
especially those associated with the mini-connector and U8 near the top of the board. Carefully trim these leads
flush with the board as shown in Figure 9.
Figure 9. Trimming Synthesizer Leads.
11
Install the main KSYN3A board as shown in Figure 10. Use the interior tooth lock washers you removed
earlier with the new screws that came with the synthesizer. Do not replace the lock washers behind the
synthesizer board that you removed earlier. The KSYN3A board rests directly against the PEM nuts on the front
panel shield.
Figure 10. Mounting the Main Synthesizer Board.
12
If your K3 has the KRX3 sub receiver, install the auxiliary synthesizer as follows:
1. First attach two coaxial cables to the pc board before installing it as shown in Figure 11.
Connecting these now will simplify connecting them later in the tight space between the sub
receiver enclosure and the synthesizer.
2. With the two coaxial cables connected, install the synthesizer just as you did the main
synthesizer, using the screws supplied with the KSYN3A board and the interior tooth lock
washers you removed earlier (see Figure 10).
Do not replace the lock washers behind the KSYN3A board. Like the main synthesizer,
the board rests directly against the PEM nuts on the front panel shield.
Figure 11. Preparing to Install the Auxiliary Synthesizer.
13
Complete installing the coaxial cables connected as shown in Figure 12, depending upon the options
you have in your K3. Note that:
1. The cables shown in gray do not change. They are shown in case one becomes disconnected from
the KREF3 board while you are working.
2. If you do not have the KRX3 subreceiver installed, only one coaxial cable is used to connect J2
on the KREF3 board to J83 on the main KSYN3A board.
3. If you have the K144XV 2-meter option with the reference oscillator phase lock option installed,
you now have only one coaxial cable instead of two cables as before. If you removed the
K144XV top cover to disconnect the other coaxial cables from the K144XV module, do not plug
the cable into REF IN until you are instructed to replace the module in the following steps. That
cable must pass through a hole in the K144XV top cover.
4. No connection is made to the large connector at the top of the new KSYN3A board(s). This
connector is for future use.
Figure 12. Coaxial Cable Connections.
14
Reassembling the K3
If you have the K144XV 2-meter option installed:
1. Reconnect any coaxial cables you removed (see Figure 13), but do not connect the REF IN cable
from the main KSYN3.
2. Replace the cover and attach with the five 4-40 1/4" (6.4 mm) zinc pan head screws and internal
tooth lock washers you removed earlier.
3. If you removed the K144XV from the side panel, remount it with the three 6-32 black flat head
screws you removed earlier.
Figure 13. Replacing the K144XV Module.
15
If you have the K144XV 2-meter module installed, connect the coaxial cable from the main KSYN3A
synthesizer board to REF IN as shown in Figure 14. Also reconnect the power cable as shown.
If you have the KRX3 subreceiver installed, dress the coaxial and power cables as shown in Figure 14. The
area on top of the KRX3 enclosure must be clear of all wires and cables as shown for the K3 top to fit properly.
Figure 14. Connecting and Dressing the Cables.
If you removed the chassis stiffener (see Figure 4 on page 9) replace it now. If you have the KPA3 100-watt
option installed, be sure to replace the two screws that attach the stiffener to the KPA3 shield.
16
If you have the K144XV option installed, hold the top cover above the K3, route the speaker wire under the
stiffener bar at the depression in the top of the K144XV module as shown in Figure 15.
Figure 15. Routing the Speaker Wire Under the Chassis Stiffener.
Plug the speaker wire into P25 on the KIO3 board at the left rear of the K3 as shown in Figure 16.
Figure 16. Plugging the Speaker Wire into the KIO3 Board.
Position the top cover on the K3. Note that the tab on the back center goes under the rear lip of the K3 rear
panel. Secure the top cover with the nine 4-40 3/16” (4.8 mm) black flat head screws you removed earlier (see
Figure 3on page 8for the screw locations).
REPLACE ALL THE SCREWS!
The K3's chassis has excellent rigidity despite its light weight. The screws that hold the top
cover in place are an important part of the structural design. Please be sure to replace all the
screws and verify they are tight whenever you replace the cover or other panels
17
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
