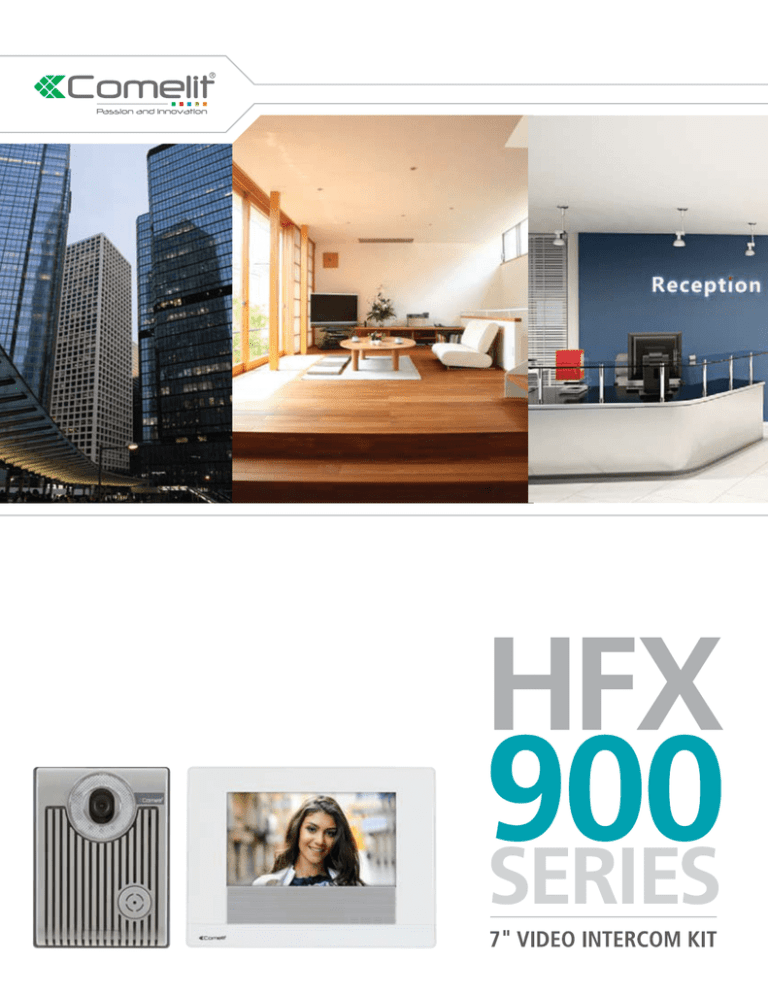

HFX
900
series
7” Video Intercom Kit
Convenience
Up to 8 monitors can be added to one system,
allowing calls to be answered from any station.
Safety
Utilizing the most innovative video
and audio features, the HFX-900R
allows a user to communicate with
and verify with a visitor before entry.
Bold Design
A 7” touch screen monitor captures the essence of
modern electronics design. The monitor is able to
be surface mount or flush mount giving it a truly
custom look.
The HFX-900 Series
continues the tradition for
the HFX series of feature
rich video intercoms.
Allowing the user a choice
of expanding up to 4 doors
and 8 inside stations, along
with a 7” touch screen,
call forwarding, and video
memory functionality.
Innovative Features
This device offers innovative features such
as auto-lock release, day/night mode for
distribution of calls, and a built-in call
forwarding to cell phone.
Easy Installation
Following the standard set by the HFX series of kits, the
installation is standard in daisy chain, or home run, when
using the EX-HUB. Up to 2 hubs can be used together in a
full system of 8 monitors.
Typical Applications
residential
Commercial
educational
house of worship
government
HFX
900
series
7” Video Intercom Kit
Featured Highlights
7” Touch Screen
Staying true to Comelit’s dedication to form and
function, this new 7” touch screen looks great
and offers the user easy-to-use access to all the
capabilities of the device on the screen.
Video Memory
After inserting a Micro SD card, the HFX900R
will allow the user to save a 20-second recording
of each visitor. Perfect for finding out who came
to visit while you were out to the store, or gone
for vacation.
7”
All-Page Intercom
The all- page intercom feature allows each device to
communicate with all of the other interior stations
in the system.
Video Input
This device has the ability to connect to a CCTV
camera, which gives you the ability to keep an eye
on the parking lot at your place of business or the
driveway in the front of your house.
Call Forwarding
Sitting by the pool and can’t get to the door
right away? No problem. A visitor’s call can be
forwarded to any land-line or mobile phone. So
you can tell the delivery man to bring the package
around the back of the house.
Flush/Surface/Desk Mount Option
The HFX-900 series allows the flexibility of different mounting options
depending on the decor of the building the unit is being used in.
See page seven for more options.
Basic Wiring Diagram
Daisy-Chain Diagram for HFX-900R
Expansion Wiring Diagram with the EX-HUB
Home-Run Diagram for HFX-900R
Expansion Wiring Diagram with the EX-HUB
Standard Expansion for HFX-900R
System Layout 1
Maximum Wiring Distance
(Using dry contact lock control at doorbell camera)
Maximum Wiring Distance
(Using the 12VDC/300mA lock control at doorbell camera)
NOTE: CAT-5 is not recommended for this type of installation.
*This system is capable to expanding up to 4 doorbell cameras and 8 Monitors.
For alternative application please consult our technical support engineer first.
System Layout 2
Maximum Wiring Distance
(Using dry contact lock control at doorbell camera)
Maximum Wiring Distance
(Using the 12VDC/300mA lock control at doorbell camera)
NOTE: CAT-5 is not recommended for this type of installation.
*The wiring HUB can amplify and distribute the 2-wire signal among the main
monitors and sub-monitors.
**The system is capable of expanding up to a total of 5 monitors with 1 EX-HUB.
Mounting Options
CDSK-9
Monitor Desk
Mount
Internal Unit
Flush Mount
Installation
Internal Unit
Surface Mount
Installation
External Unit
Surface Mount
Installation
System Parts
HFX-900R 7” Touch-Screen Video Intercom Kit
(includes master monitor, door bell camera and power supply)
• Expandable to 4 door bells and 8 monitors
• Video recording on a micro SD card
• Touch-screen controls
• Simple 2-wire installation (CAT5 to 18 AWG)
• Built in Door release (N.O dry contact, or 12V DC 300mA)
• All-page intercom between inside stations
• Call forwarding to a mobile phone (telephone line needed)
• Both flush and surface mount boxes included
EX-900H Expansion Monitor
• Expandable up to 8 monitors
• Touch-screen controls
• Simple 2-wire installation (CAT5 to 18 AWG)
• Built in Door release controls (N.O dry contact, or 12V DC 300mA)
• All-page intercom between inside stations
• Daisy chain or home-run wiring configuration (with ex-HUB)
• Both flush and surface mount boxes included
EX-900D Expansion Doorbell Camera
• Expandable to 4 door stations
• Simple 2-wire installation (CAT5 to 18 AWG)
• Built in Door release (N.O dry contact, or 12V DC 300mA)
• Auto lock release function capable
• Surface mount design
EX-VIN CCTV Video Input Module
•
•
•
•
Converts standard analog CCTV to be used with 900 series kits
Can be connected to one analog CCTV camera
Video signal can be viewed from any monitor
Metal housing with mounting brackets attached
EX-HUB Home Run Hub/Repeater Module
• Metal housing with brackets for easy installation
• Home run hub, great for retrofit situations
• Repeats
the digital signal, doubling the distance between the
master and the last expansion (over 600ft.)
• Powered by the same power supply as the Monitor or by a
dedicated power supply (24V DC)
CDSK-9 Monitor Desk Mount Option
• Plexiglass desk mount stand for the HFX-900R and the EX-900H
Comelit USA
2021 S. Myrtle Ave., Monrovia, CA 91016
tel. 626 930 0388 toll free. 1 888 692 9739 fax. 626 930 0488
www.comelitusa.com - [email protected]
Comelit Group SpA (Global Headquarters)
Via Don Arrigoni 5 - 24020 Rovetta S. Lorenzo - Bergamo - Italy
tel. 39 0346 750 011 fax. 39 0346 71436
www.comelitgroup.com
