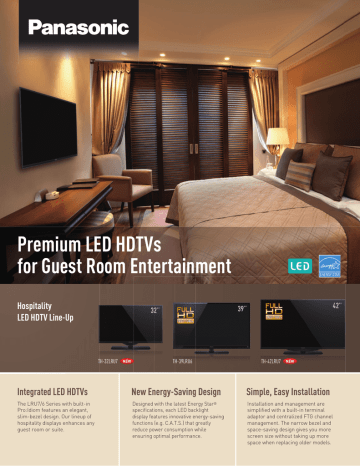

TH-42LRU7
Premium LED HDTVs
for Guest Room Entertainment
Hospitality
LED HDTV Line-Up
TH-32LRU7
NEW
42’’
39’’
32’’
TH-39LRU6
TH-42LRU7
NEW
Integrated LED HDTVs
New Energy-Saving Design
Simple, Easy Installation
The LRU7/6 Series with built-in
Pro:Idiom features an elegant,
slim-bezel design. Our lineup of
hospitality displays enhances any
guest room or suite.
Designed with the latest Energy Star®
specifications, each LED backlight
display features innovative energy-saving
functions (e.g. C.A.T.S.) that greatly
reduce power consumption while
ensuring optimal performance.
Installation and management are
simplified with a built-in terminal
adaptor and centralized FTG channel
management. The narrow bezel and
space-saving design gives you more
screen size without taking up more
space when replacing older models.
Specifications
TH-42LRU7
TH-39LRU6
TH-32LRU7
DISPLAY
Screen Size
Panel
Effective Display Area
Number of Pixels (H x V)
Panel Life
Brightness (Panel)
Intelligent Scene Controller
41.9 -inch
38.5 -inch
31.5 -inch
LCD Panel / D-LED
1080p (WSXGA) LED
LCD Panel / D-LED
36.5" x 20.5" (928 x 522 mm)
32.6" x 18.9" (854 x 480 mm)
27.4" x 15.4" (698 x 392 mm)
1,920 x 1,080 pixel
1,920 x 1,080 pixel
1,366 x 768 pixel
Approx. 60,000 hours
Approx. 60,000 hours
Approx. 60,000 hours
350 cd/m2
300 cd/m2
350 cd/m2
Yes
Yes
Yes
RECEIVING SYSTEM
ATSC/NTSC/QAM
FTG Pro: Idiom HD Support
VHF/ UHF: 2 - 69, CATV: 1 - 135
VHF/ UHF: 2 - 69, CATV: 1 - 135
VHF/ UHF: 2 - 69, CATV: 1 - 135
Local Authentication by USB Memory
Local Authentication by USB Memory
Local Authentication by USB Memory
CONNECTION TERMINAL
RF In (Antenna/Cable)
1
1
1
RCA x 1 (Rear)
RCA x 1 (Rear), RCA x 1 (Side)
RCA x 1 (Rear)
RCA x 1 set (Rear [Share with Component] )
RCA x 1 set (Rear [Share with Component] ), x 1 set (Side)
RCA x 1 set (Rear [Share with Component] )
RCA x 1 set (Y PB PR) (Rear)
RCA x 1 set (Y PB PR) (Rear)
RCA x 1 set (Y PB PR) (Rear [Share with Video] )
Video In
Audio In (L/R)
Component Video In
Audio In (L/R)
HDMI In
RCA x 1 set (Rear)
RCA x 1 set (Rear)
RCA x 1 set (Rear)
HDMI Type A Connector x 2 (Rear), x 1 (side)
HDMI Type A Connector x 2 (Rear), x 1 (side)
HDMI Type A Connector x 2 (Rear), x 1 (side)
PC In
Mini D-Sub 15-pin x 1 (Female, Rear)
Mini D-Sub 15-pin x 1 (Female, Rear)
Mini D-Sub 15-pin x 1 (Female, Rear)
Audio In (L/R)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
Audio Out (Digital / SPDIF)
Optical x 1 (Rear)
––
Optical x 1 (Rear)
Audio Out (Analog L/R)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
USB2.0 Type A Connector x 1 (Side)
1
USB2.0 Type A Connector x 1 (Side)
USB Memory Slot
CONTROL TERMINAL
DATA / MTI
RJ-11(6-pin) x 1 (Rear)
RJ-11(6-pin) x 1 (Rear)
RJ-11(6-pin) x 1 (Rear)
Serial Port
M3 jack x 1 (Rear), RS232C
M3 jack x 1 (Rear), RS232C
M3 jack x 1 (Rear), RS232C
RJ45 x 1 (Rear)
––
RJ45 x 1 (Rear)
Power Requirements
110-127 V AC, 60 Hz
110-127 V AC, 60 Hz
110-127 V AC, 60 Hz
Power Consumption
105 W
80 W
70 W
37.1 W (Energy star 6.1, CEC)
34.3 W (Energy star 6.0, CEC)
24.1 W (Energy star 6.1, CEC)
Under 1.0 W
Under 1.0 W
Under 1.0 W
Ethernet
ELECTRICAL
On Mode Average Power Consumption*
Stand-by Power
AUDIO
Audio Output Power
10 W + 10 W (10 % THD)
10 W + 10 W (10 % THD)
10 W + 10 W (10 % THD)
1 Way 2 Bottom Speakers
1 Way 2 Bottom Speakers
1 Way 2 Bottom Speakers
TV with Stand (W x H x D)
38.0" x 24.8" x 9.9"
35.3" x 24.4" × 9.0"
28.9" x 19.7" x 9.9"
TV without Stand (W x H x D)
38.0" x 22.3" x 3.0"
35.3" x 21.2" × 3.3"
28.9" x 17.2" x 2.8"
TV with Stand Weight
24.5 lbs.
23.4 lbs.
15.3 lbs.
TV without Stand Weight
18.8 lbs.
19.9 lbs.
11.5 lbs.
Invisible Speaker System Details
DIMENSIONS & WEIGHT
STANDARD (CERTIFICATIONS)
Safety Regulations
Radiation Regulations
UL6500 Ver.2, cUL, BETS-7
UL6500 Ver.2, cUL, BETS-7
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003
FCC Part 15 Class-B, ICES-003
FCC Part 15 Class-B, ICES-003
*Based on IEC 62087Ed.2 section 11.6.1 measurement method.
Features
•VIERA Link™, HDAVI Control™
•Integrated Pro: Idiom
•USB Slot (Image Viewer
(JPEG, Playback), Cloning)
•Hotel Mode
•Welcome Image
•Local Authentication
•Remote Stand (30/ 60/ 90 degree)
Ambient Light Sensor Automatically adjusts the image quality for each room based on room lighting, while saving energy.
The LRU7/6 Series' built-in ambient light sensor
(C.A.T.S.) automatically adjusts the television's
screen brightness, color and contrast to suit the
lighting of the room. This not only optimizes
picture performance, but it also helps keep power
consumption low –– so you can maximize your
guests’ experience while saving on energy costs.
Power
Consumption
Lowers
TCO
Reduction
Bright Environmentt
Dark Environment
LRU7/6 C.A.T.S.
C.A.T.S. [Contrast Automatic Tracking System] maintains brightness
levels and optimizes image quality while reducing power consumption.
For more information about Panasonic Professional Displays, please visit:
Professional Display Global Website – panasonic.net/prodisplays
YouTube – www.youtube.com/PanasonicProDisplay
Weights and dimensions shown are approximate. Specifications and appearance are subject
to change without notice. Product availability differs depending on region and country. This
product may be subject to export control regulations. All other trademarks are the property of
their respective trademark owners. Images on screen are simulated. © 2014 Panasonic
Corporation. All rights reserved.
All information included here is valid as of May 2014.
CT14-U02PF-LRU Printed in Japan.
